Courte critique du PC portable Lenovo IdeaPad 510S-13ISK

Sascha Mölck (traduit par Banibé TABOUKOUNA), 1010/1111/pmpm

Ensemble bien équilibré. L'IdeaPad 510S-13-ISK est un excellent PC portable de 13.3 pouces qui offre un écran IPS Full HD, un processeur Intel Skylake ainsi q'un clavier rétroéclairé. Cependant, son autonomie aurait pu être meilleure.

Lenovo Ideapad 510S-13ISK (Ideapad 510 Gamme)
Processeur
Carte graphique
Intel HD Graphics 520, Mémoire: 300-950 MHz, mono canal, 20.19.15.4390
Mémoire
8192 Mo
, DDR4-2134, mono canal, 1 emplacement mémoire (occupé)
Écran
13.3 pouces 16:9, 1920x1080 pixel 166 PPP, LG Philips LP133WF2-SPL1, IPS, brillant: non
Carte mère
Intel Skylake-U Premium PCH
Disque dur
WDC Slim WD10SPCX-24HWST1, 1000 Go
, 5400 tpm, 860 Go libres
Carte son
Realtek ALC236 @ Intel Sunrise Point-LP PCH - High Definition Audiocontroller
Connexions
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Encoche de Sécurité Kensington, Connectique audio: combo audio, Lecteur de cartes mémoires: SD, TPM 2.0
Réseau
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac), Bluetooth 4.2
Taille
Hauteur x Largeur x Profondeur (en mm): 19.3 x 323 x 230
Batterie
35 Wh Lithium-Ion, Autonomie de la batterie (selon les données du fabricant): 4.5 h
Système d'exploitation
Microsoft Windows 10 Home 64 Bit
Appareil photo
Webcam: webcam HD
Fonctionnalités additionnelles
Haut-parleurs: Stéreo, Clavier: Chiclet, Rétroéclairage du clavier: oui, Lenovo Photo Master, McAfee LiveSafe Internet Security (essai), MS Office (essai), 24 Mois Garantie
Poids
1.56 kg, Alimentation: 169 g
Prix
799 Euro



Size Comparison

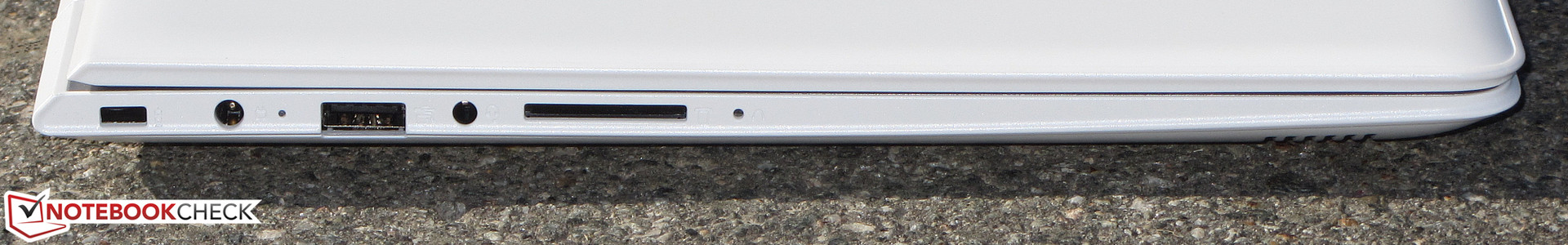

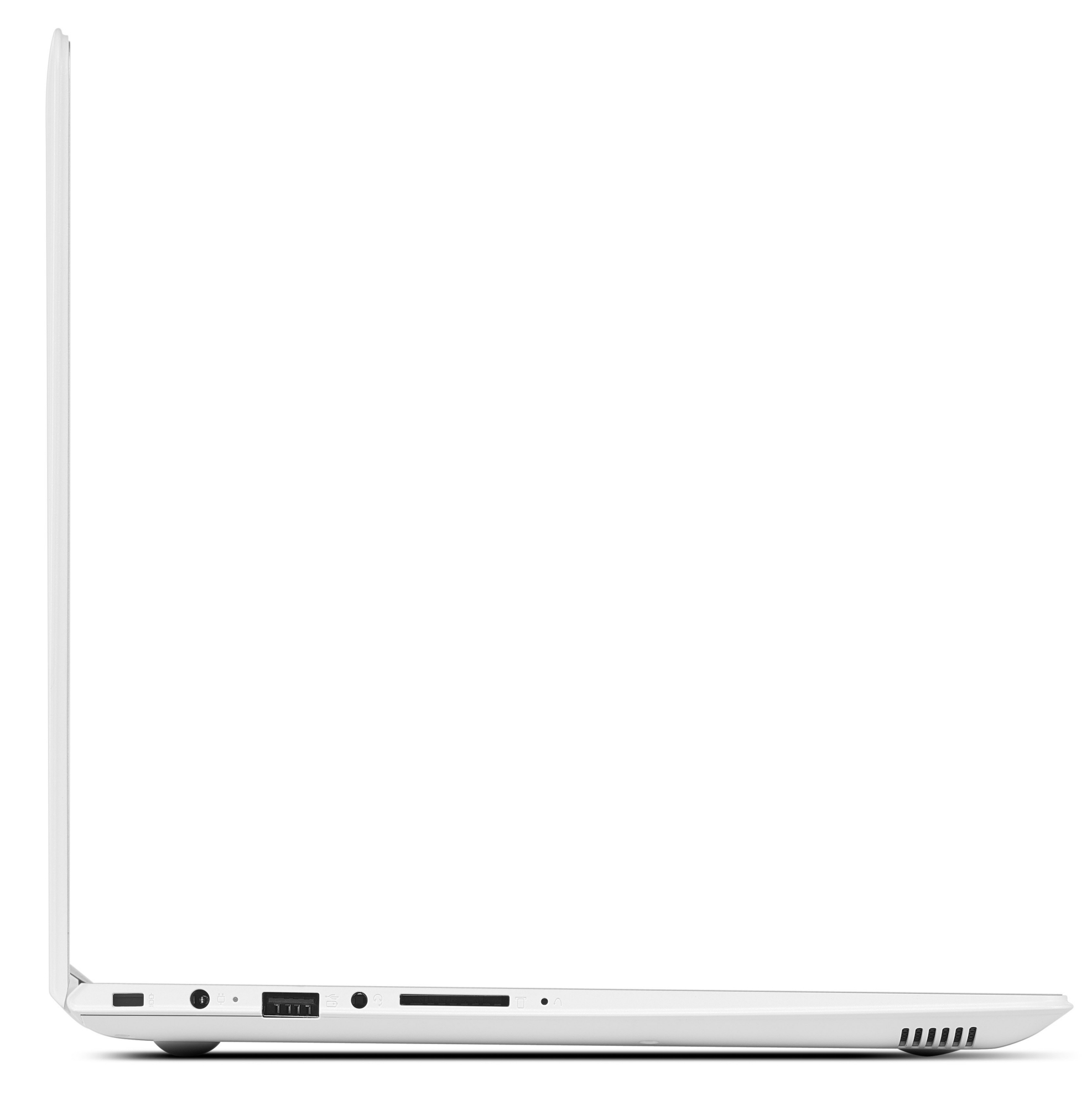

Left side: slot for a cable lock, power outlet, USB 2.0, audio combo and memory card reader (SD)
Left side: slot for a cable lock, power outlet, USB 2.0, audio combo and memory card reader (SD)

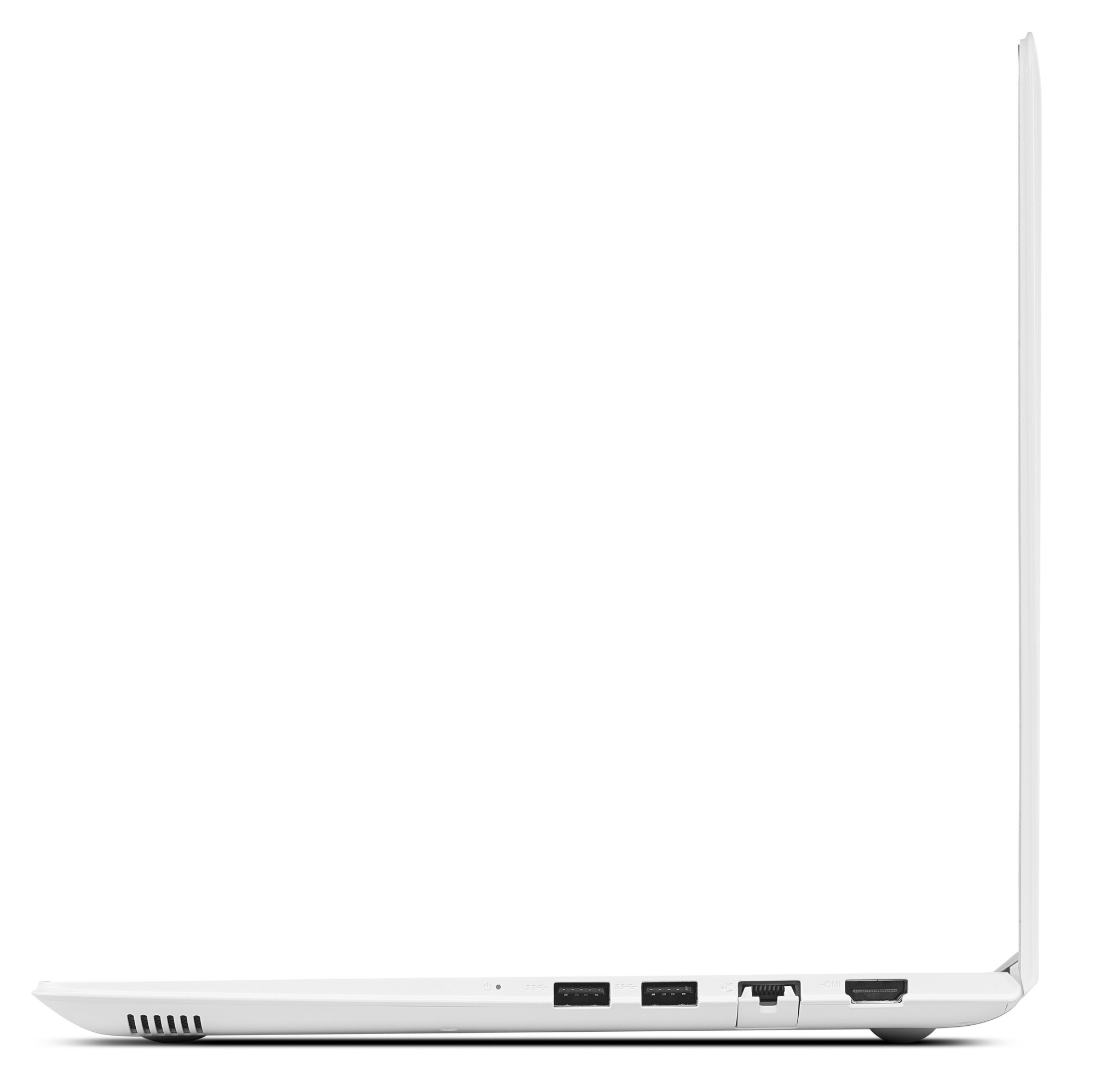

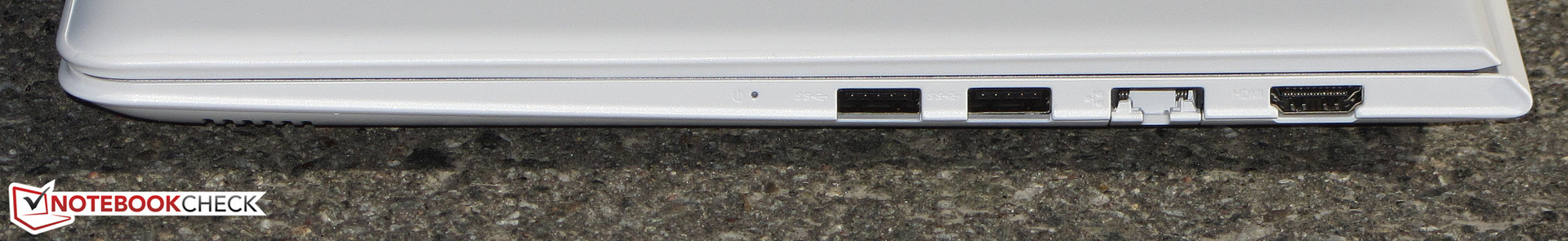

Right side: 2x USB 3.0, Gigabit-Ethernet, HDMI
Right side: 2x USB 3.0, Gigabit-Ethernet, HDMI
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Asus Zenbook UX303UA-R4051T
78.5 MB/s ∼100% +116%
Asus Zenbook UX303UA-FN121T
55 MB/s ∼70% +52%
HP Envy 13-d020ng
54 MB/s ∼69% +49%
Lenovo Ideapad 510S-13ISK
36.3 MB/s ∼46%
Asus X302UV-FN016T
27.9 MB/s ∼36% -23%
Acer Aspire V3-372-57CW
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
22.4 MB/s ∼29% -38%
Lenovo IdeaPad 500S-13ISK
14 MB/s ∼18% -61%
Lenovo E31-70 80KX015RGE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
10.3 MB/s ∼13% -72%
maximum AS SSD Seq Read Test (1GB)
Asus Zenbook UX303UA-FN121T
85.8 MB/s ∼100% +70%
Asus Zenbook UX303UA-R4051T
84.6 MB/s ∼99% +67%
HP Envy 13-d020ng
83 MB/s ∼97% +64%
Lenovo Ideapad 510S-13ISK
50.6 MB/s ∼59%
Asus X302UV-FN016T
37.1 MB/s ∼43% -27%
Lenovo E31-70 80KX015RGE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
29.93 MB/s ∼35% -41%
Acer Aspire V3-372-57CW
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.3 MB/s ∼32% -46%
Lenovo IdeaPad 500S-13ISK
26.2 MB/s ∼31% -48%
Networking
iperf Server (receive) TCP 1 m
Apple MacBook 12 (Early 2016) 1.1 GHz
Broadcom 802.11ac
570 MBit/s ∼100% +82%
Lenovo Ideapad 510S-13ISK
Intel Dual Band Wireless-AC 3165
313 MBit/s ∼55%
Lenovo IdeaPad 510S-14ISK
Intel Dual Band Wireless-AC 3165
268 MBit/s ∼47% -14%
iperf Client (transmit) TCP 1 m
Apple MacBook 12 (Early 2016) 1.1 GHz
Broadcom 802.11ac
397 MBit/s ∼100% +65%
Lenovo IdeaPad 510S-14ISK
Intel Dual Band Wireless-AC 3165
291 MBit/s ∼73% +21%
Lenovo Ideapad 510S-13ISK
Intel Dual Band Wireless-AC 3165
240 MBit/s ∼60%
268
cd/m²
273
cd/m²
260
cd/m²
265
cd/m²
265
cd/m²
250
cd/m²
261
cd/m²
262
cd/m²
247
cd/m²
Homogénéité de la luminosité
X-Rite i1Pro 2
Maximum: 273 cd/m² Moyenne: 261.2 cd/m² Minimum: 3 cd/m²
Homogénéité de la luminosité: 90 %
Valeur mesurée au centre, sur batterie: 265 cd/m²
Contraste: 803:1 (Valeurs des noirs: 0.33 cd/m²)
ΔE Color 4.98 | - Ø
ΔE Greyscale 3.9 | - Ø
59% sRGB (Argyll) 38% AdobeRGB 1998 (Argyll)
Gamma: 2.55
Lenovo Ideapad 510S-13ISK
LG Philips LP133WF2-SPL1, IPS
Lenovo IdeaPad 500S-13ISK
LGD048C (LP133WF2-SPL1), IPS
Asus X302UV-FN016T
InfoVision M133NWN1 R3, TN LED
Acer Aspire V3-372-57CW
LG LP133WF2-SPL3, IPS
HP Envy 13-d020ng
AU Optronics AUO272D, IPS
Asus Zenbook UX303UA-R4051T
ChiMei N133HSE-EA3 (CMN1361), IPS
Apple MacBook Air 13 inch 2015-03
Apple APP9CF0, TN LED
Response Times
-18%
-9%
-37%
103%
102%
Response Time Grey 50% / Grey 80% *
33
46
-39%
42
-27%
41
-24%
34
-3%
31
6%
Response Time Black / White *
23
22
4%
23
-0%
34.4
-50%
24
-4%
22
4%
PWM Frequency
50
50
0%
208
316%
198
296%
Screen
-6%
-10%
-14%
25%
15%
3%
Brightness
261
212
-19%
210
-20%
239
-8%
335
28%
351
34%
310
19%
Brightness Distribution
90
82
-9%
88
-2%
81
-10%
95
6%
90
0%
82
-9%
Black Level *
0.33
0.35
-6%
0.5
-52%
0.38
-15%
0.25
24%
0.58
-76%
0.405
-23%
Contrast
803
626
-22%
436
-46%
650
-19%
1380
72%
616
-23%
812
1%
Colorchecker DeltaE2000 *
4.98
4.95
1%
3.89
22%
5.95
-19%
4.94
1%
3.39
32%
3.96
20%
Greyscale DeltaE2000 *
3.9
3.45
12%
4.9
-26%
5.25
-35%
5.85
-50%
2.36
39%
3.51
10%
Gamma
2.55 94%
2.34 103%
2.41 100%
2.42 99%
2.25 107%
2.2 109%
3.83 63%
CCT
7318 89%
6815 95%
7860 83%
6736 96%
7105 91%
6653 98%
6711 97%
Color Space (Percent of AdobeRGB 1998)
38
37
-3%
46
21%
37.28
-2%
60
58%
60
58%
38.4
1%
Color Space (Percent of sRGB)
59
58
-2%
73
24%
58.37
-1%
93
58%
93
58%
59.8
1%
Moyenne finale (programmes/paramètres)
-12% / -8%
-10% / -10%
-26% / -18%
64% / 46%
59% / 39%
3% / 3%

* ... Moindre est la valeur, meilleures sont les performances

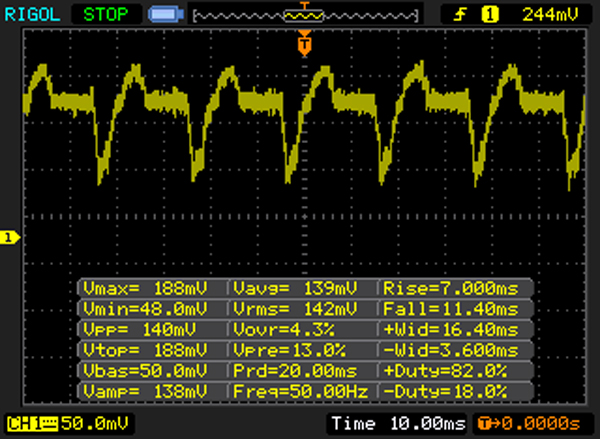

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) décelé 50 Hz80 Niveau de luminosité

Le rétroéclairage de l'écran scintille à la fréquence de 50 Hz (certainement du fait de l'utilisation d'une MDI - Modulation de largeur d'impulsion) à un niveau de luminosité inférieur ou égal à 80 % . Aucun scintillement ne devrait être perceptible au-dessus de cette valeur.

La fréquence de rafraîchissement de 50 Hz est extrêmement faible, de grands risques de fatigue oculaire accrue et de maux de tête en cas d'utilisation prolongée.

En comparaison, 60 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 456 (minimum : 43 - maximum : 10420) Hz dans le cas où une MDI était active.

CalMAN - Color Checker
CalMAN - Color Checker

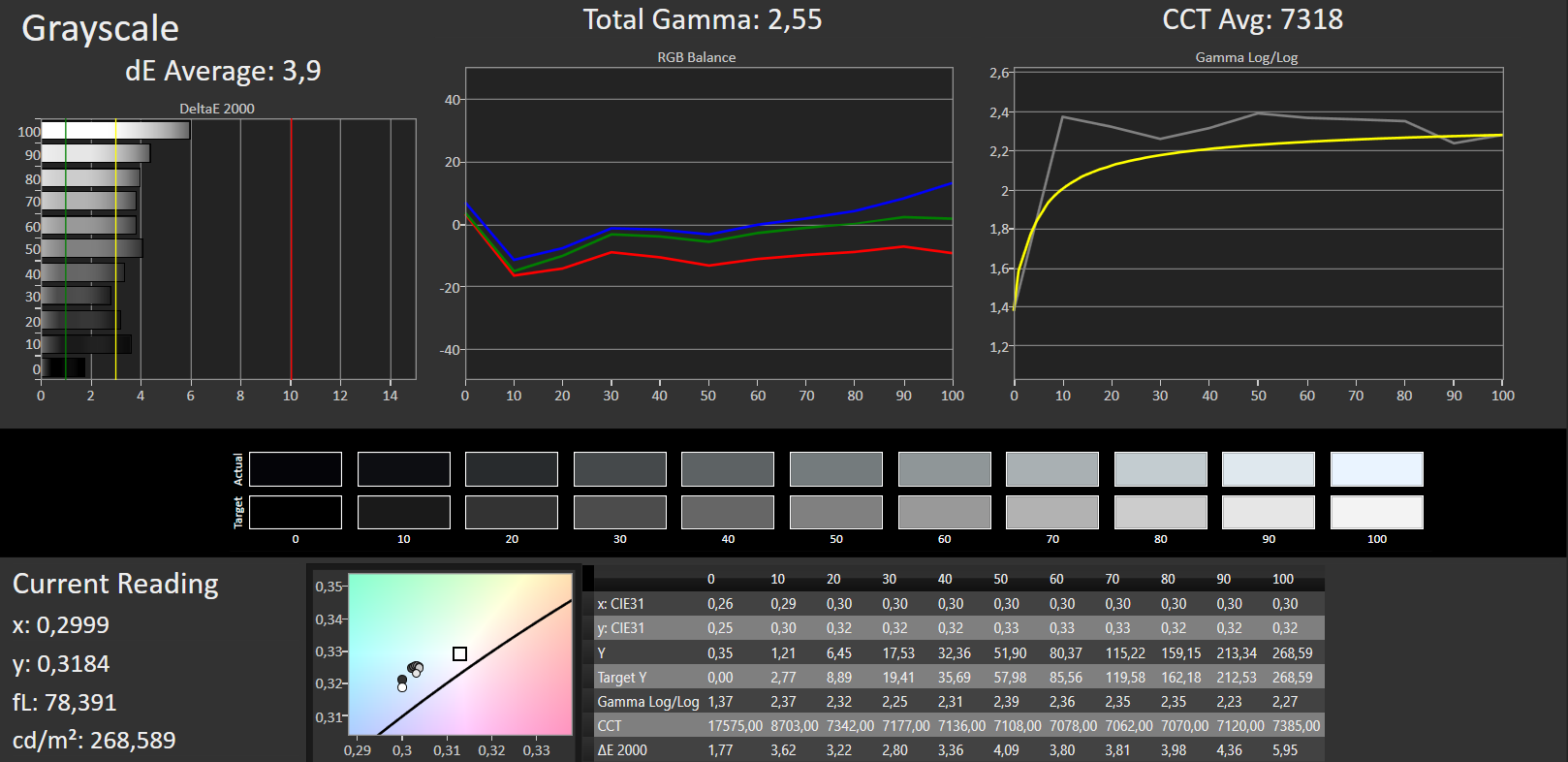

CalMAN - Grey Levels
CalMAN - Grey Levels

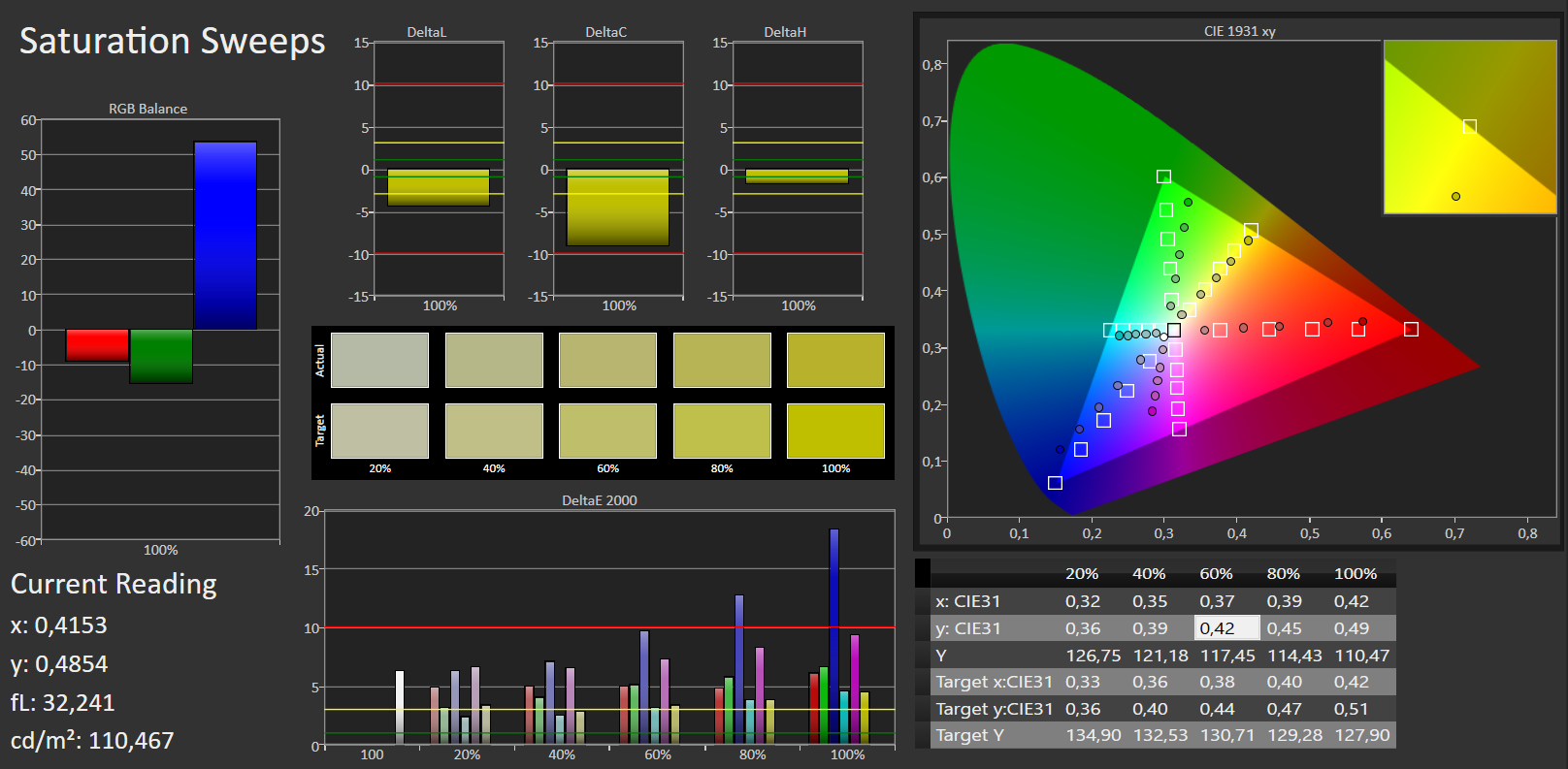

CalMAN - Saturation
CalMAN - Saturation

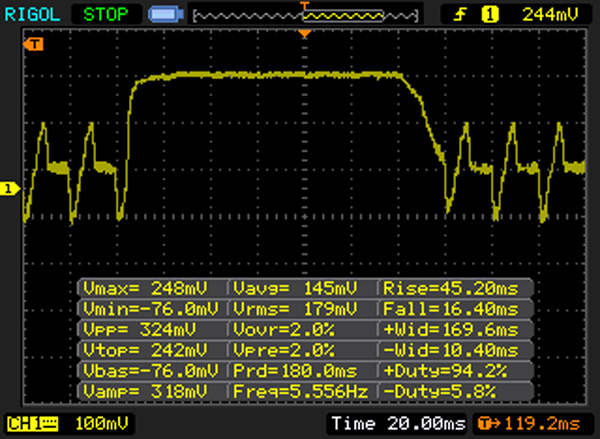

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

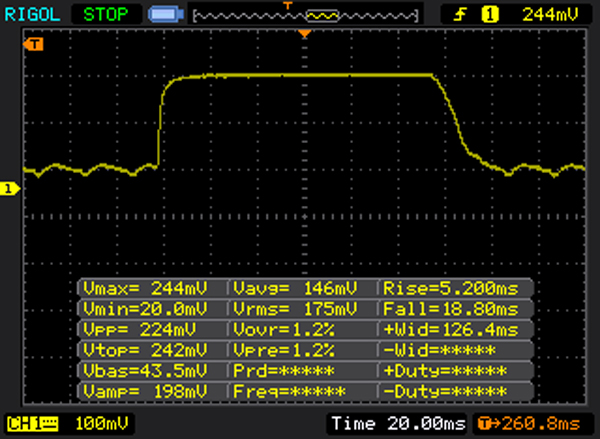

       Temps de réponse noir à blanc
23 ms ... hausse ↗ et chute ↘ combinées↗ 5 ms hausse
↘ 18 ms chute
L'écran montre de bons temps de réponse, mais insuffisant pour du jeu compétitif.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 20 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont meilleures que la moyenne (27.3 ms) de tous les appareils testés.

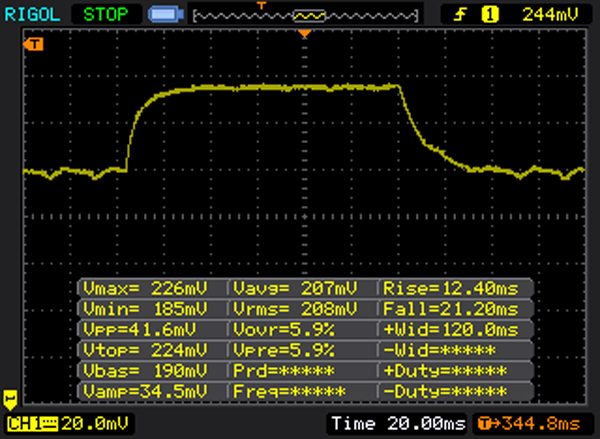

       Temps de réponse gris 50% à gris 80%
33 ms ... hausse ↗ et chute ↘ combinées↗ 12 ms hausse
↘ 21 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 250 (maximum) ms. » 20 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont meilleures que la moyenne (42.9 ms) de tous les appareils testés.

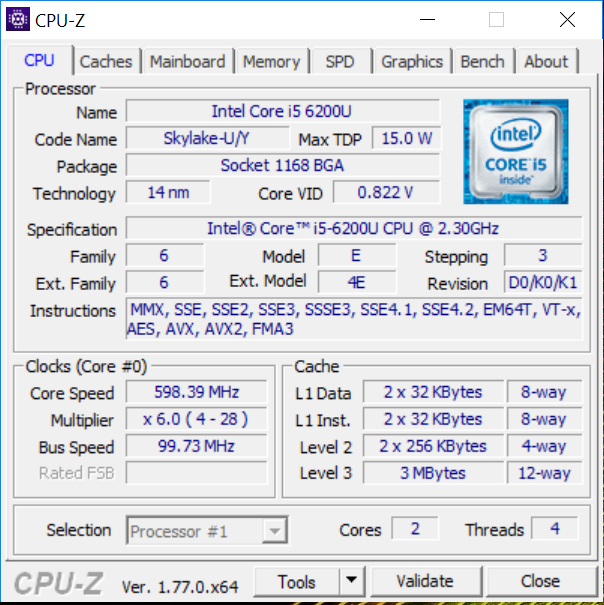

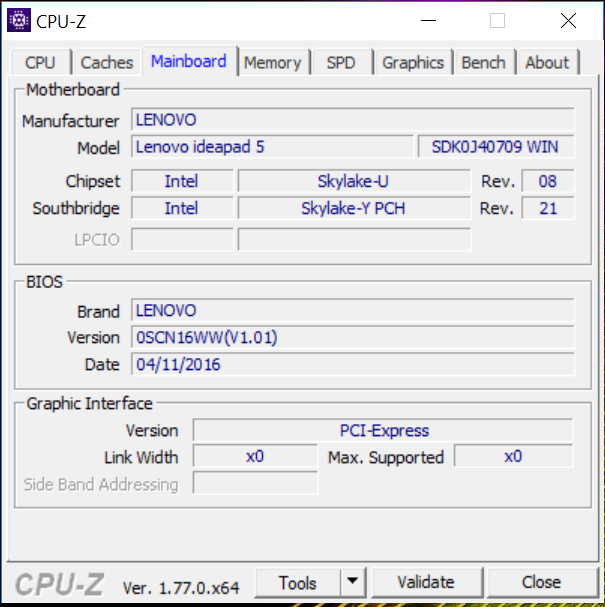

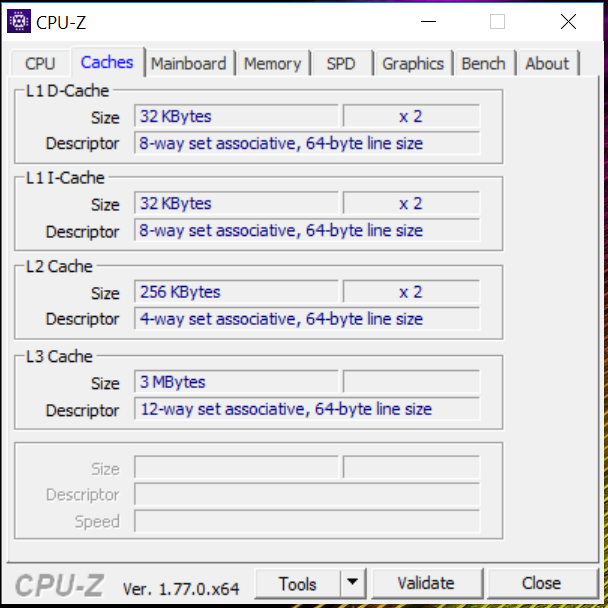

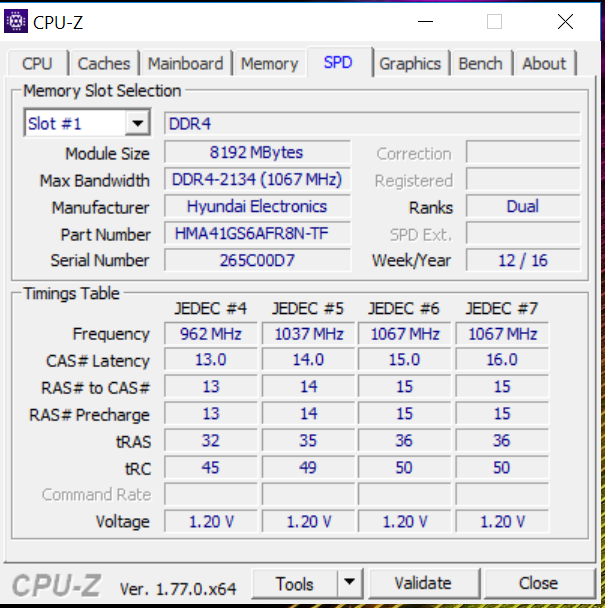

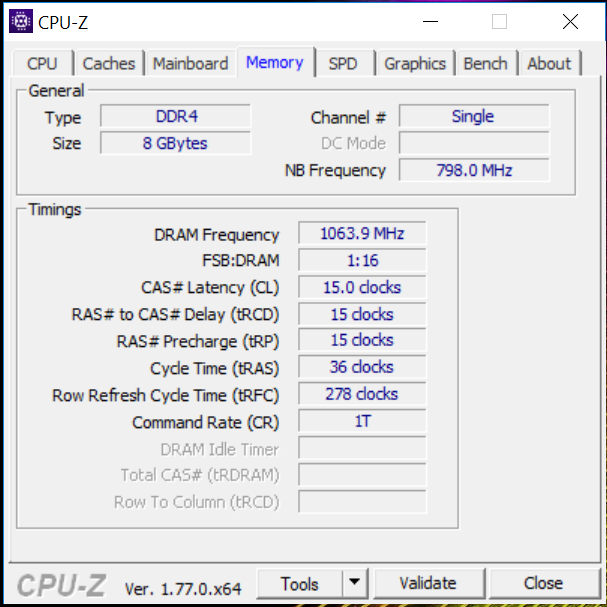

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

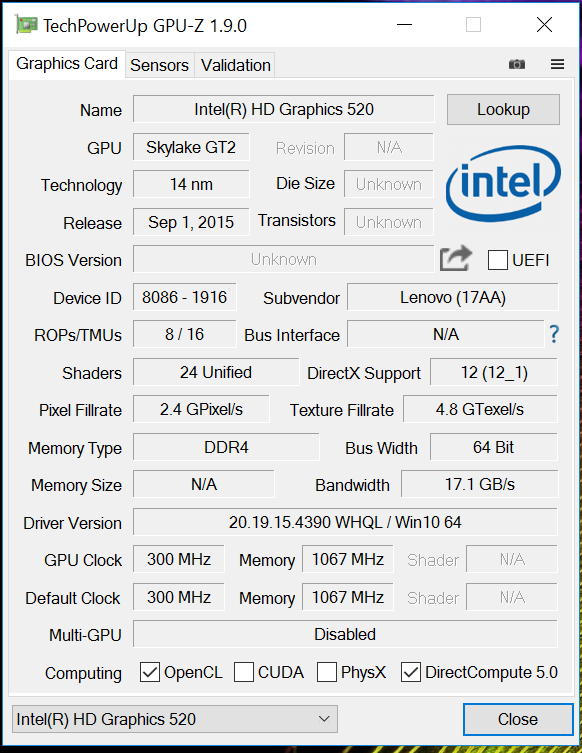

GPU-Z
HWInfo

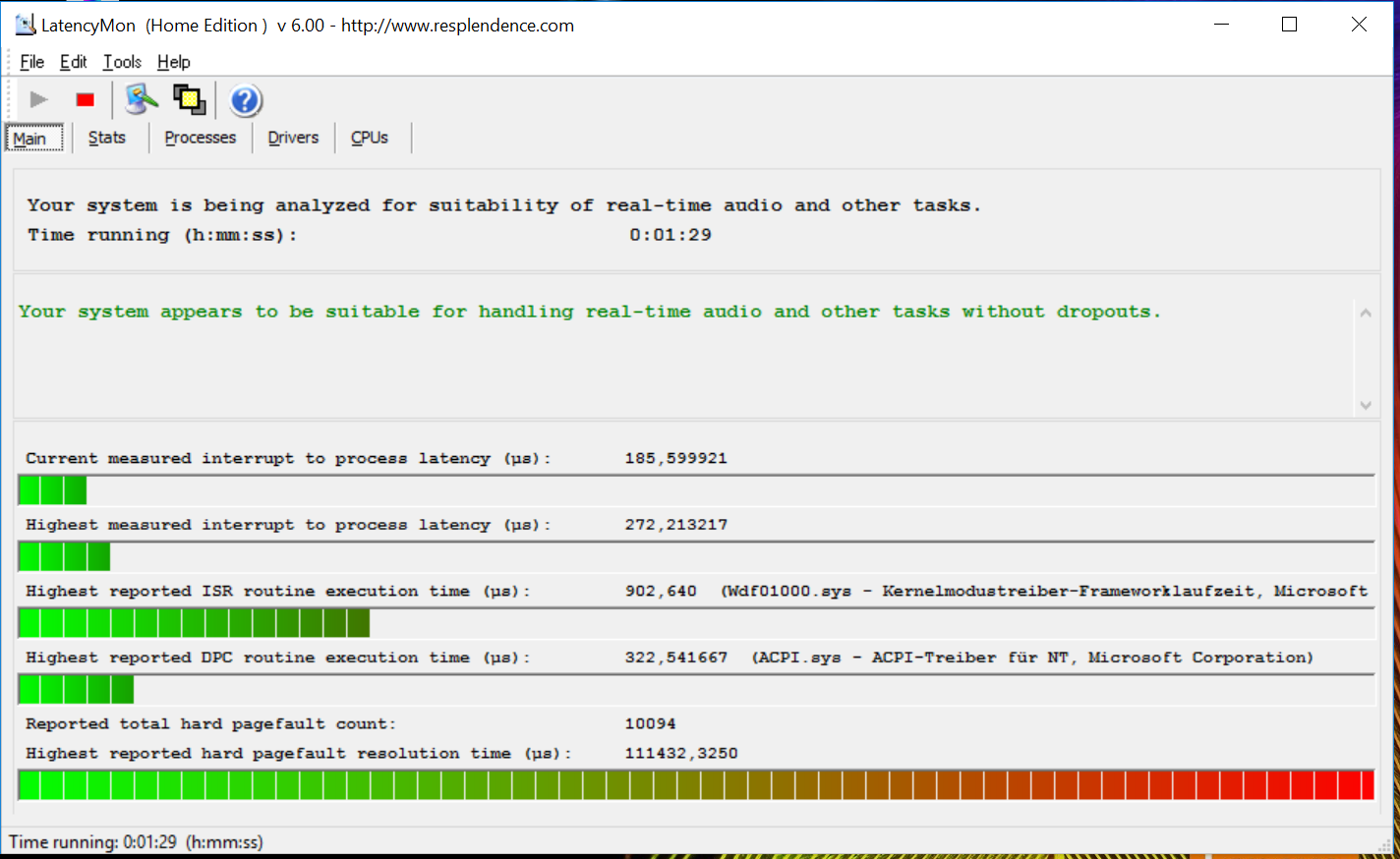

LatencyMon
Cinebench R10 Shading 32Bit
7410
Cinebench R10 Rendering Multiple CPUs 32Bit
9570
Cinebench R10 Rendering Single 32Bit
4419
Cinebench R11.5 OpenGL 64Bit
28.12 fps
Cinebench R11.5 CPU Multi 64Bit
2.79 Points
Cinebench R11.5 CPU Single 64Bit
1.24 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
36.64 fps
Cinebench R15 CPU Multi 64Bit
290 Points
Cinebench R15 CPU Single 64Bit
109 Points
Aide
Cinebench R15
CPU Single 64Bit
Acer Aspire V3-372-57CW
Intel Core i5-6267U
138 Points ∼73% +27%
Asus Zenbook UX303UA-R4051T
Intel Core i7-6500U
128 Points ∼67% +17%
Lenovo IdeaPad 500S-13ISK
Intel Core i5-6200U
115 Points ∼61% +6%
Asus X302UV-FN016T
Intel Core i5-6200U
115 Points ∼61% +6%
Apple MacBook Air 13 inch 2015-03
Intel Core i7-5650U
112 Points ∼59% +3%
HP Envy 13-d020ng
Intel Core i5-6200U
112 Points ∼59% +3%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
109 Points ∼57% 0%
Lenovo Ideapad 510S-13ISK
Intel Core i5-6200U
109 Points ∼57%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30 (Windows 10 Bootcamp)
91 Points ∼48% -17%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30 (OS X)
90 Points ∼47% -17%
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
83 Points ∼44% -24%
CPU Multi 64Bit
Acer Aspire V3-372-57CW
Intel Core i5-6267U
339 Points ∼20% +17%
Asus Zenbook UX303UA-R4051T
Intel Core i7-6500U
307 Points ∼19% +6%
Apple MacBook Air 13 inch 2015-03
Intel Core i7-5650U
296 Points ∼18% +2%
Asus X302UV-FN016T
Intel Core i5-6200U
290 Points ∼18% 0%
Lenovo Ideapad 510S-13ISK
Intel Core i5-6200U
290 Points ∼18%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U
286 Points ∼17% -1%
HP Envy 13-d020ng
Intel Core i5-6200U
285 Points ∼17% -2%
Lenovo IdeaPad 500S-13ISK
Intel Core i5-6200U
271 Points ∼16% -7%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30 (Windows 10 Bootcamp)
218 Points ∼13% -25%
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
209 Points ∼13% -28%
JetStream 1.1 - 1.1 Total Score
Acer Aspire V3-372-57CW
Intel Core i5-6267U (Edge 20)
209.34 Points ∼1% +9%
Asus X302UV-FN016T
Intel Core i5-6200U (Edge 25.10586.0.0)
197.48 Points ∼1% +3%
HP Envy 13-d020ng
Intel Core i5-6200U (Edge 25.10586.0.0)
194.6 Points ∼1% +1%
Lenovo Ideapad 510S-13ISK
Intel Core i5-6200U (Edge 38.14393.0.0)
192.2 Points ∼1%
Asus Zenbook UX303UA-FN121T
Intel Core i5-6200U (Edge 25.10586.0.0)
189.2 Points ∼1% -2%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30 (Edge 25)
143 Points ∼0% -26%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30 (Safari 9.1)
130.7 Points ∼0% -32%
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U (Chrome 50.0.2661.94)
106.94 Points ∼0% -44%
PCMark 8
Work Score Accelerated v2
Acer Aspire V3-372-57CW
Iris Graphics 550, 6267U, Kingston RBU-SNS8152S3256GG2
4676 Points ∼72% +29%
Asus X302UV-FN016T
GeForce 920MX, 6200U, Hynix HFS128G3MND
4464 Points ∼69% +23%
Apple MacBook Air 13 inch 2015-03
HD Graphics 6000, 5650U, Apple SSD SD0256F
4367 Points ∼67% +20%
Asus Zenbook UX303UA-R4051T
HD Graphics 520, 6500U, SK hynix SSD Canvas SC300 HFS256G32MND
4256 Points ∼65% +17%
HP Envy 13-d020ng
HD Graphics 520, 6200U, Samsung MZRPC256HADR-000SO
4113 Points ∼63% +13%
Asus Zenbook UX303UA-FN121T
HD Graphics 520, 6200U, Hitachi Travelstar Z5K500 HTS545050A7E680
4086 Points ∼63% +13%
Lenovo IdeaPad 500S-13ISK
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
4047 Points ∼62% +12%
Lenovo Ideapad 510S-13ISK
HD Graphics 520, 6200U, WDC Slim WD10SPCX-24HWST1
3629 Points ∼56%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
3550 Points ∼54% -2%
Home Score Accelerated v2
Acer Aspire V3-372-57CW
Iris Graphics 550, 6267U, Kingston RBU-SNS8152S3256GG2
4079 Points ∼72% +33%
Apple MacBook Air 13 inch 2015-03
HD Graphics 6000, 5650U, Apple SSD SD0256F
3579 Points ∼63% +16%
Asus X302UV-FN016T
GeForce 920MX, 6200U, Hynix HFS128G3MND
3466 Points ∼61% +13%
Asus Zenbook UX303UA-R4051T
HD Graphics 520, 6500U, SK hynix SSD Canvas SC300 HFS256G32MND
3454 Points ∼61% +12%
HP Envy 13-d020ng
HD Graphics 520, 6200U, Samsung MZRPC256HADR-000SO
3246 Points ∼57% +5%
Asus Zenbook UX303UA-FN121T
HD Graphics 520, 6200U, Hitachi Travelstar Z5K500 HTS545050A7E680
3209 Points ∼57% +4%
Lenovo Ideapad 510S-13ISK
HD Graphics 520, 6200U, WDC Slim WD10SPCX-24HWST1
3077 Points ∼54%
Lenovo IdeaPad 500S-13ISK
HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive
2802 Points ∼49% -9%
Lenovo E31-70 80KX015RGE
HD Graphics 5500, 5005U, Seagate ST500LM000 Solid State Hybrid Drive
2782 Points ∼49% -10%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
2550 Points ∼45% -17%
PCMark 7 Score
2846 points
PCMark 8 Home Score Accelerated v2
3077 points
PCMark 8 Creative Score Accelerated v2
3560 points
PCMark 8 Work Score Accelerated v2
3629 points
Aide
WDC Slim WD10SPCX-24HWST1
Débit de transfert minimal: 45.5 MB/s
Débit de transfert maximal: 113.5 MB/s
Débit de transfert moyen: 85.1 MB/s
Temps d'accès: 18.5 ms
Débit en pointe: 203.3 MB/s
Utilisation du processeur: 8.9 %
Lenovo Ideapad 510S-13ISK
WDC Slim WD10SPCX-24HWST1
Lenovo IdeaPad 500S-13ISK
Seagate ST500LM000 Solid State Hybrid Drive
Asus X302UV-FN016T
Hynix HFS128G3MND
Acer Aspire V3-372-57CW
Kingston RBU-SNS8152S3256GG2
Lenovo E31-70 80KX015RGE
Seagate ST500LM000 Solid State Hybrid Drive
HP Envy 13-d020ng
Samsung MZRPC256HADR-000SO
Asus Zenbook UX303UA-FN121T
Hitachi Travelstar Z5K500 HTS545050A7E680
CrystalDiskMark 3.0
23%
5638%
8604%
35%
8595%
-20%
Write 4k QD32
1.212
0.673
-44%
174
14256%
309.4
25428%
0.652
-46%
259.7
21327%
0.871
-28%
Read 4k QD32
1.139
1.026
-10%
253
22112%
319.9
27986%
0.967
-15%
369.4
32332%
0.792
-30%
Write 4k
1.19
3.439
189%
71.15
5879%
74.22
6137%
4.156
249%
78.66
6510%
0.862
-28%
Read 4k
0.395
0.48
22%
6.559
1561%
28.88
7211%
0.507
28%
26.88
6705%
0.379
-4%
Write 512
53.29
61.15
15%
179.1
236%
338.6
535%
73.07
37%
268.8
404%
35.06
-34%
Read 512
35.24
37.68
7%
282.6
702%
368.1
945%
37.01
5%
386.6
997%
31.27
-11%
Write Seq
109
113
4%
178.6
64%
338
210%
120.7
11%
268.5
146%
94.47
-13%
Read Seq
108.3
108.1
0%
428.2
295%
515.1
376%
116.4
7%
478.7
342%
97.7
-10%
3DMark 06 Standard
5463 points
3DMark 11 Performance
1488 points
3DMark Ice Storm Standard Score
49866 points
3DMark Cloud Gate Standard Score
5341 points
3DMark Fire Strike Score
749 points
Aide
3DMark 11 - 1280x720 Performance GPU
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
2524 Points ∼5% +86%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1747 Points ∼3% +29%
Asus Zenbook UX303UA-R4051T
Intel HD Graphics 520, Intel Core i7-6500U
1408 Points ∼3% +4%
Lenovo Ideapad 510S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
1354 Points ∼3%
Apple MacBook Air 13 inch 2015-03
Intel HD Graphics 6000, Intel Core i7-5650U
1333 Points ∼3% -2%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
1326 Points ∼3% -2%
Asus Zenbook UX303UA-FN121T
Intel HD Graphics 520, Intel Core i5-6200U
1261 Points ∼2% -7%
Lenovo IdeaPad 500S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
1197 Points ∼2% -12%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel HD Graphics 515, Intel Core m3-6Y30
1186 Points ∼2% -12%
Lenovo E31-70 80KX015RGE
Intel HD Graphics 5500, Intel Core i3-5005U
887 Points ∼2% -34%
3DMark
1920x1080 Fire Strike Graphics
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
1520 Points ∼4% +90%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1282 Points ∼3% +60%
Apple MacBook Air 13 inch 2015-03
Intel HD Graphics 6000, Intel Core i7-5650U
951 Points ∼2% +19%
Asus Zenbook UX303UA-R4051T
Intel HD Graphics 520, Intel Core i7-6500U
926 Points ∼2% +16%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
848 Points ∼2% +6%
Asus Zenbook UX303UA-FN121T
Intel HD Graphics 520, Intel Core i5-6200U
803 Points ∼2% 0%
Lenovo Ideapad 510S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
800 Points ∼2%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel HD Graphics 515, Intel Core m3-6Y30
735 Points ∼2% -8%
Lenovo IdeaPad 500S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
665 Points ∼2% -17%
1280x720 Cloud Gate Standard Graphics
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
12812 Points ∼8% +92%
Asus Zenbook UX303UA-R4051T
Intel HD Graphics 520, Intel Core i7-6500U
8312 Points ∼5% +25%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
7733 Points ∼5% +16%
Apple MacBook Air 13 inch 2015-03
Intel HD Graphics 6000, Intel Core i7-5650U
7495 Points ∼5% +13%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
7031 Points ∼4% +6%
Lenovo Ideapad 510S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
6661 Points ∼4%
Asus Zenbook UX303UA-FN121T
Intel HD Graphics 520, Intel Core i5-6200U
6577 Points ∼4% -1%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel HD Graphics 515, Intel Core m3-6Y30
6078 Points ∼4% -9%
Lenovo IdeaPad 500S-13ISK
Intel HD Graphics 520, Intel Core i5-6200U
6038 Points ∼4% -9%
Bas Moyen Élevé Ultra
Tomb Raider (2013) 68.334.620.39.5fps
BioShock Infinite (2013) 42.224.720.56fps
Battlefield 4 (2013) 3225.316.85.4fps

Degré de la nuisance sonore

Au repos
32.1 / 32.1 / 32.1 dB(A)
Disque dur
32.1 dB(A)
Fortement sollicité
40 / 40.9 dB(A)



30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 31.2 dB(A)
Lenovo Ideapad 510S-13ISK
6200U, HD Graphics 520
Lenovo IdeaPad 500S-13ISK
6200U, HD Graphics 520
Asus X302UV-FN016T
6200U, GeForce 920MX
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550
HP Envy 13-d020ng
6200U, HD Graphics 520
Asus Zenbook UX303UA-R4051T
6500U, HD Graphics 520
Apple MacBook Air 13 inch 2015-03
5650U, HD Graphics 6000
Noise
3%
5%
2%
4%
8%
3%
Idle Minimum *
32.1
31.3
2%
32.9
-2%
29.1
9%
32.5
-1%
31.3
2%
29.2
9%
Idle Average *
32.1
31.7
1%
32.9
-2%
29.1
9%
32.5
-1%
31.3
2%
29.2
9%
Idle Maximum *
32.1
31.8
1%
33
-3%
29.1
9%
32.4
-1%
31.5
2%
29.2
9%
Load Average *
40
36.7
8%
33
17%
41.1
-3%
36
10%
33.2
17%
40.2
-1%
Load Maximum *
40.9
39.4
4%
34.6
15%
46.4
-13%
36.5
11%
34.1
17%
46.3
-13%

* ... Moindre est la valeur, meilleures sont les performances

 31.1 °C38 °C34.1 °C
 28.5 °C37.9 °C32 °C
 26.2 °C26.7 °C29.6 °C
Maximum: 38 °C
Moyenne: 31.6 °C
29.7 °C39.1 °C32.4 °C
31.8 °C36.1 °C28.6 °C
30.5 °C30 °C26.6 °C
Maximum: 39.1 °C
Moyenne: 31.6 °C
Alimentation (valeur maximale)  39 °C | Température ambiante de la pièce 22.6 °C | FIRT 550-Pocket
Lenovo Ideapad 510S-13ISK
6200U, HD Graphics 520
Lenovo IdeaPad 500S-13ISK
6200U, HD Graphics 520
Asus X302UV-FN016T
6200U, GeForce 920MX
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550
HP Envy 13-d020ng
6200U, HD Graphics 520
Asus Zenbook UX303UA-R4051T
6500U, HD Graphics 520
Apple MacBook Air 13 inch 2015-03
5650U, HD Graphics 6000
Heat
5%
13%
-6%
-3%
8%
-2%
Maximum Upper Side *
38
35.9
6%
29.6
22%
37.1
2%
51
-34%
38.1
-0%
43.8
-15%
Maximum Bottom *
39.1
39.1
-0%
41
-5%
43.2
-10%
46
-18%
40.3
-3%
42.1
-8%
Idle Upper Side *
30.7
27.8
9%
24.8
19%
32.1
-5%
25.5
17%
25.8
16%
28.5
7%
Idle Bottom *
31.1
29.1
6%
26.6
14%
34.4
-11%
24.4
22%
25.5
18%
28.9
7%

* ... Moindre est la valeur, meilleures sont les performances

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.129.538.12540.833.640.83140.134.340.14033.430.633.45033.432.433.46330.828.930.88030.528.430.510031.226.431.212529.226.529.216036.924.536.920038.624.438.625043.823.143.831553.222.653.240058.621.258.650060.420.460.463058.719.658.780063.219.463.2100058.51958.512506018.56016005918.259200060.218.660.2250057.918.557.9315058.118.658.1400056.418.856.4500057.818.857.8630054.518.854.5800058.918.958.91000062.218.862.2125006518.765160006318.663SPL71.431.271.4N29.11.629.1median 58.5Lenovo Ideapad 510S-13ISKmedian 18.9median 58.5Delta61.4635.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Lenovo Ideapad 510S-13ISK audio analysis

(-) | not very loud speakers (64 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.7% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (6.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.7% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 43% of all tested devices in this class were better, 11% similar, 46% worse
» The best had a delta of 9%, average was 18%, worst was 41%
Compared to all devices tested
» 21% of all tested devices were better, 7% similar, 72% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 3% of all tested devices in this class were better, 3% similar, 94% worse
» The best had a delta of 9%, average was 18%, worst was 41%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Consommation énergétique
Éteint/en veilledarklight 0.28 / 0.5 Watts
Au reposdarkmidlight 5 / 7.2 / 8.7 Watts
Fortement sollicité midlight 32 / 33 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Lenovo Ideapad 510S-13ISK
6200U, HD Graphics 520
Lenovo IdeaPad 500S-13ISK
6200U, HD Graphics 520
Asus X302UV-FN016T
6200U, GeForce 920MX
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550
HP Envy 13-d020ng
6200U, HD Graphics 520
Asus Zenbook UX303UA-R4051T
6500U, HD Graphics 520
Apple MacBook Air 13 inch 2015-03
5650U, HD Graphics 6000
Power Consumption
10%
16%
-5%
-2%
14%
18%
Idle Minimum *
5
5.2
-4%
3.3
34%
3.4
32%
4.2
16%
3.5
30%
2.7
46%
Idle Average *
7.2
6.9
4%
5.1
29%
6.5
10%
7.4
-3%
7.3
-1%
5.7
21%
Idle Maximum *
8.7
7.2
17%
5.2
40%
7
20%
10.1
-16%
7.9
9%
6
31%
Load Average *
32
26.7
17%
29.5
8%
44.5
-39%
33.4
-4%
26.6
17%
32.1
-0%
Load Maximum *
33
28.2
15%
44
-33%
49.5
-50%
34.7
-5%
28
15%
36.2
-10%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
9h 15min
En navigation internet via le module WiFi WLAN v1.3 (Edge 38.14393.0.0)
5h 51min
En lecture de Big Buck Bunny encodé en H.264 1080p
5h 25min
Fortement sollicité (luminosité au maximum)
1h 34min
Lenovo Ideapad 510S-13ISK
35 Wh
Lenovo IdeaPad 500S-13ISK
35 Wh
Asus X302UV-FN016T
38 Wh
Acer Aspire V3-372-57CW
51 Wh
HP Envy 13-d020ng
45 Wh
Asus Zenbook UX303UA-R4051T
50 Wh
Apple MacBook Air 13 inch 2015-03
54 Wh
Autonomie de la batterie
-5%
12%
74%
9%
16%
88%
Reader / Idle
555
615
11%
1035
86%
1572
183%
Load
94
81
-14%
206
119%
97
3%
WiFi
WiFi v1.3
351
301
-14%
392
12%
412
17%
381
9%
407
16%
620
77%
H.264
325
311
-4%

Points positifs

+ écran IPS au revetement mat
+ résolution Full HD
+ silencieux
+ espace de stockage conséquent
+ clavier rétroéclairé excellent

Points négatifs

- autonomie moyenne

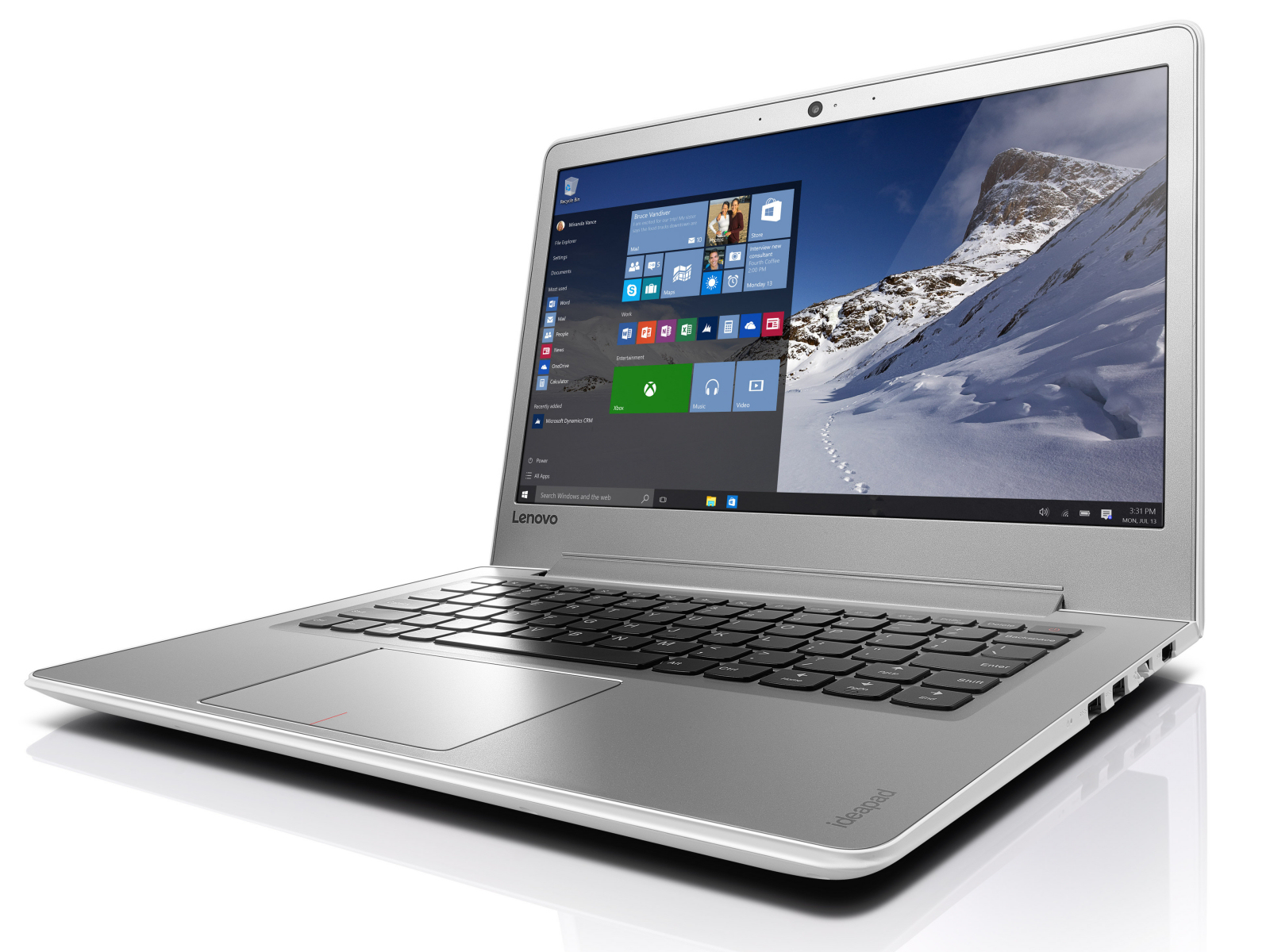

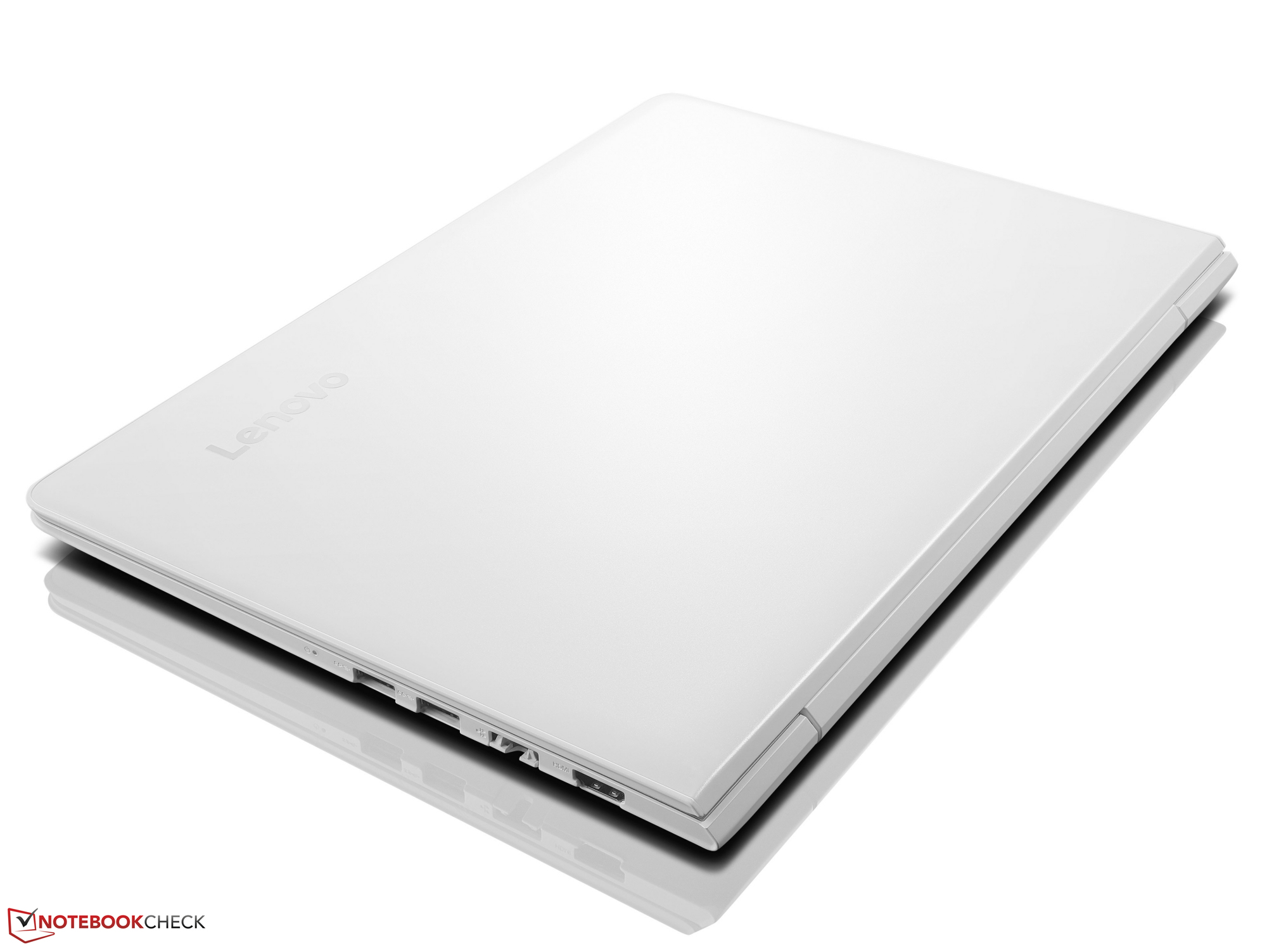

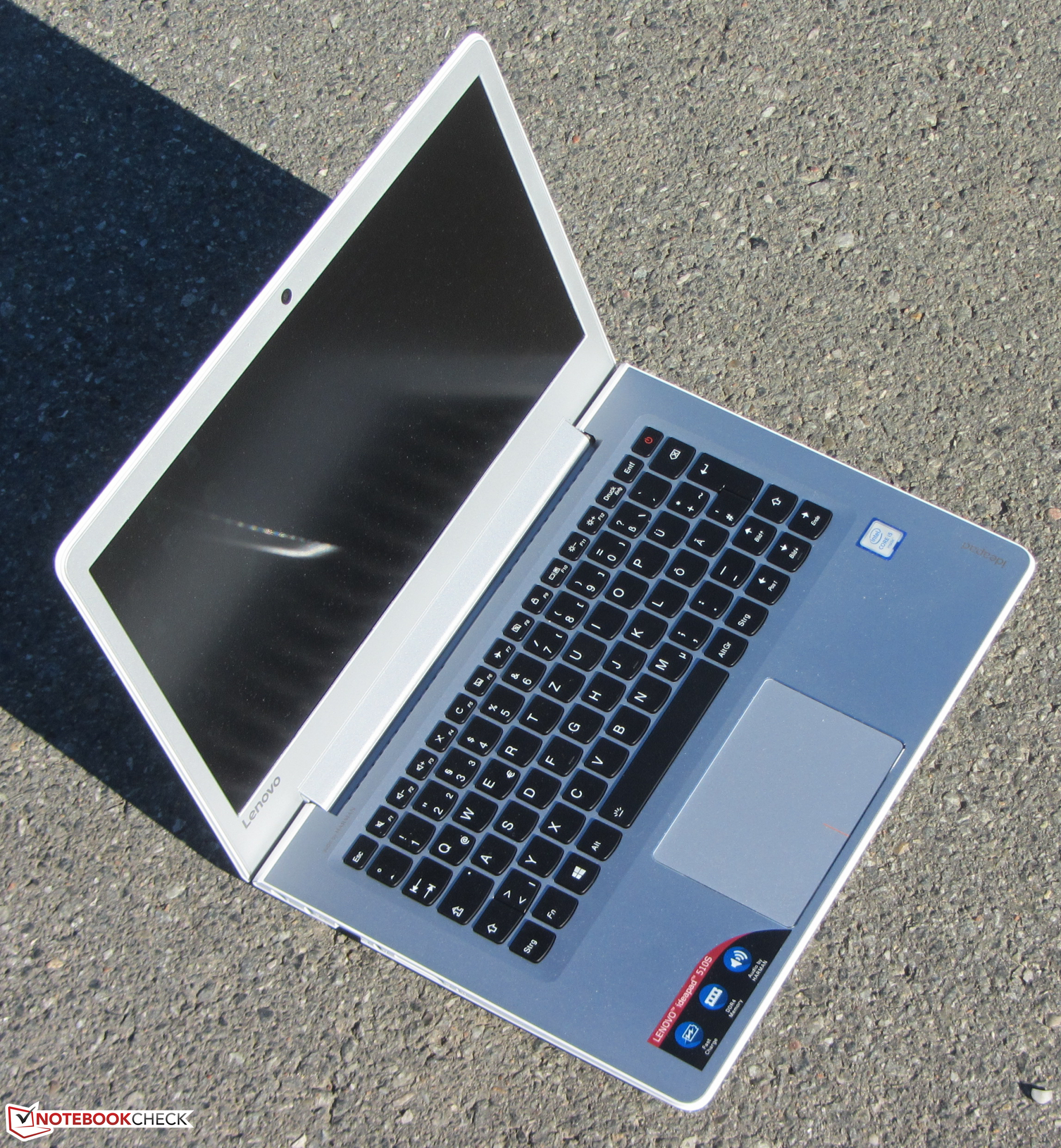

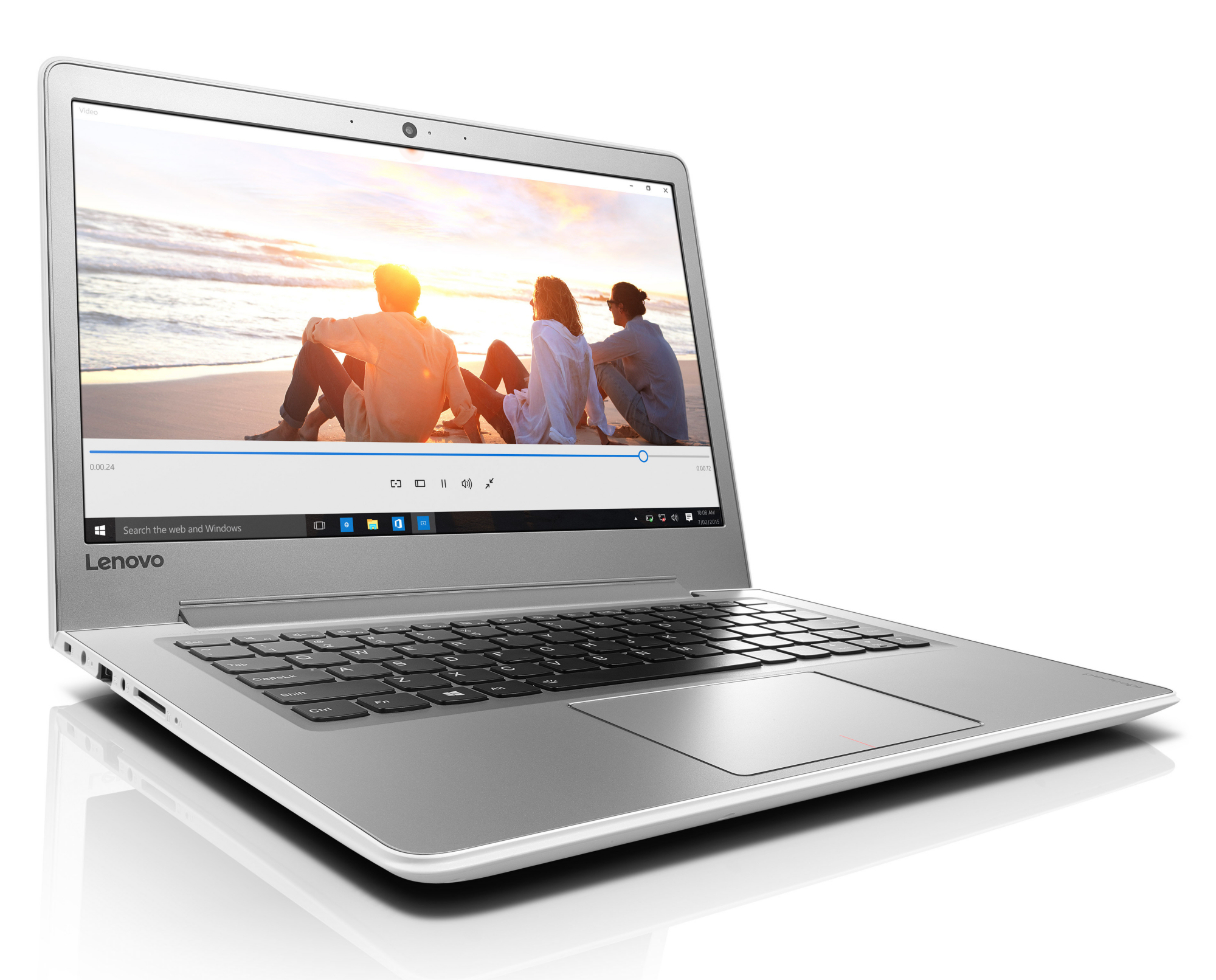

Test: Lenovo IdeaPad 510S-13ISK (80SJ001AGE). Exemplaire de test fourni par Lenovo Deutschland.
Test: Lenovo IdeaPad 510S-13ISK (80SJ001AGE). Exemplaire de test fourni par Lenovo Deutschland.

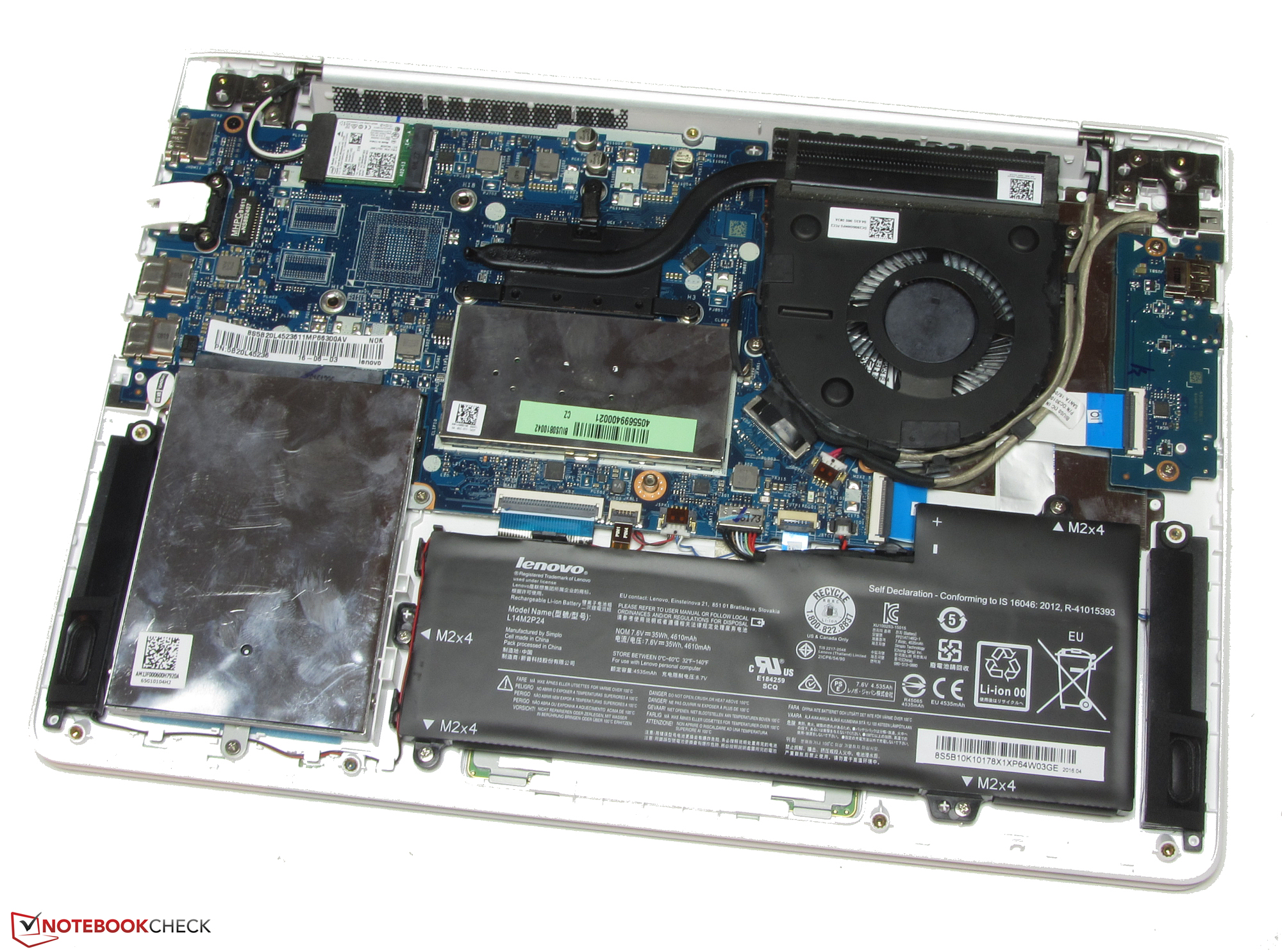

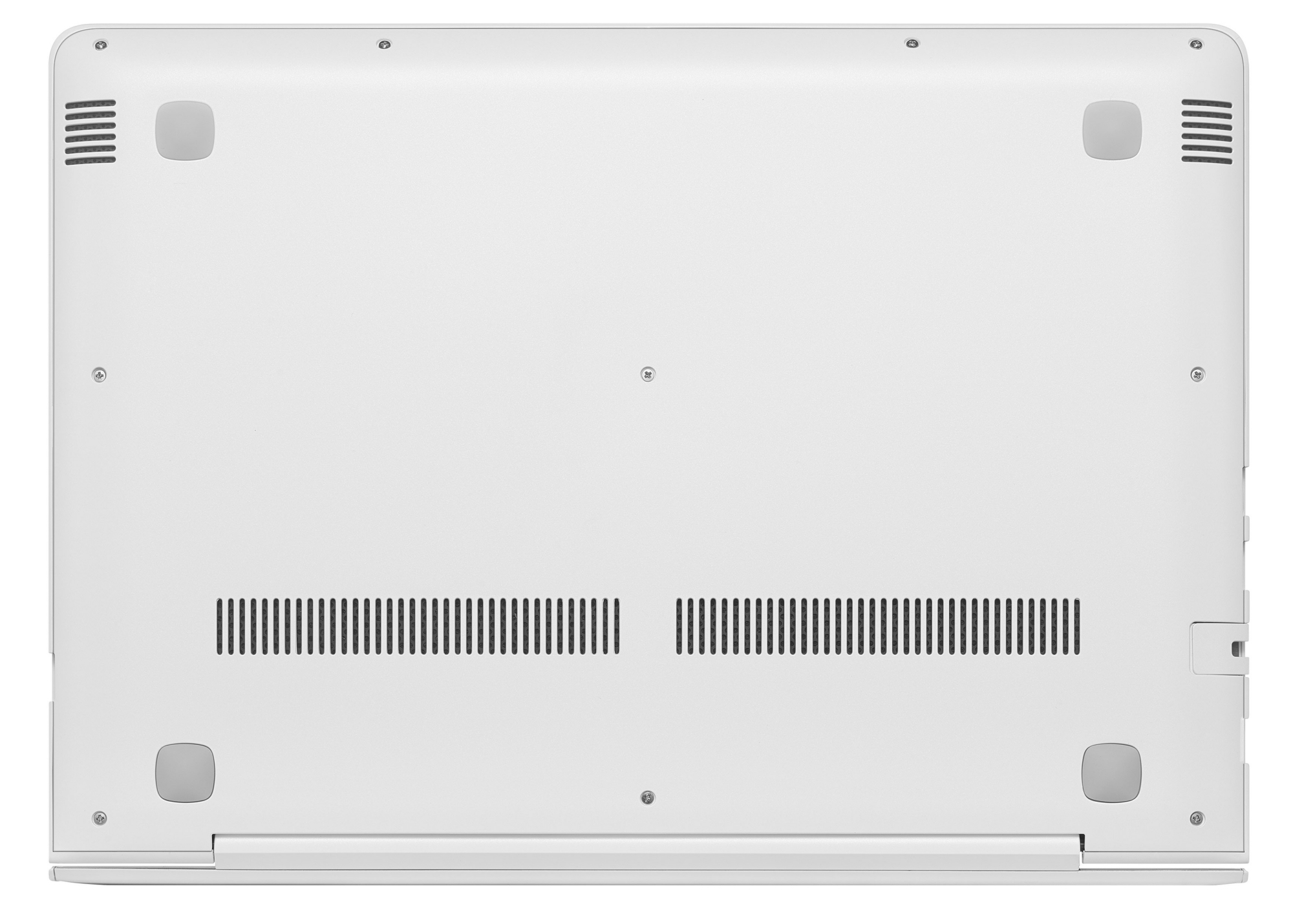

L'ideaPad 510S-13ISK dispose de performances suffisantes pour les taches quotidiennes. Les nuisances sonores ainsi que la chauffe sont plutôt bien maîtrisées. Grâce à la présence d'un disque dur de 1 To, on dispose d'un espace de stockage généreux. Il est possible de remplacer ce disque par un SSD, en enlevant le bas du PC, ce qui n'est pas très compliqué. Le clavier est excellent et dispose d'un rétroéclairage. L'autonomie est plutôt correcte, mais comparée à d'autres modèles de 13.3 pouces, elle aurait pu être encore meilleure. L'écran IPS Full HD n'a rien d'exceptionnel mais assure le nécessaire.

Cet IdeaPad est idéal pour les étudiants. Cependant, l'autonomie aurait pu être meilleure.

En dehors de l'autonomie perfectible, le modèle 80SJ0019GE est un excellent choix. Pour 599 euros (~669$), on a droit à un Core i3-6100U, un SSD de 128 Go et un écran Full HD. L'IdeaPad 500S-13ISK est disponible à 550 euros (~614$), mais avec un HDD à la place du SSD.

Pour plus de détails, la version complète de ce test (en anglais) est disponible ici.

Lenovo Ideapad 510S-13ISK - 1212/55/pmpm v6
Sascha Mölck

Châssis
81 /  98 → 82%
Clavier
82%
Dispositif de pointage
82%
Connectivité
49 / 80 → 61%
Poids
68 / 78 → 77%
Autonomie
85%
Écran
86%
Performances en jeu
54 / 68 → 80%
Performances dans les applications
72 / 87 → 83%
Chauffe
93 / 91 → 100%
Nuisance sonore
86%
Audio
56 / 91 → 62%
Appareil photo
40 / 85 → 47%
Moyenne
72%
82%
Subnotebook - Moyenne compensée

Pricecompare

> Français - Accueil > Critiques > Courte critique du PC portable Lenovo IdeaPad 510S-13ISK
Sascha Mölck, 2016-10-11 (Update: 2016-10-11)
