Mise à jour de la critique du Lenovo Thinkpad W500

W500, Le Retour

Après avoir testé l'échantillon pré-vente, nous mettons maintenant les mains sur le produit officiel, équippé d'un Core 2 Duo T9400 et d'une ATI FireGL V5700. Lisez ce qui suit pour savoir si ce 15 pouce de travail de chez Lenovo fait face à la concurrence.

Lenovo Thinkpad W500

Note: Ce test, couvre les spécificités de performances du materiel final, c'est une mise à jour du test du Thinkpad W500. Pour des infos sur le boîtier, la connectivité, les dispositifs d'entrées, et l'écran allez voir le test original du Thinkpad W500.

Performances

Le Lenovo Thinkpad W500 peut être équipé de processeurs Intel jusqu'aux T9600 cadencés à 2.8 GHz et 6MB L2-Cache. Donc, à part le Core 2 Extreme, les processeurs les plus puissants de chez intel sont dispos. Vu que ces processeurs font vite monter le prix total de l'appareil, il est important de regarder le rapport qualité prix de chacun. Plus d'infos sur les Centrinos dans cet article.

Étant une station de travail étudiée pour la CAO et les applications 3D pro, le Lenovo Thinkpad W500 est livré avec une carte graphique certifiée CAO de chez ATI. La FireGL V5700 est en fait une Mobility Radeon HD3650 avec des drivers optimisés, dont les performances sont étudiés pour des applications professionelles utilisant l'OpenGL.

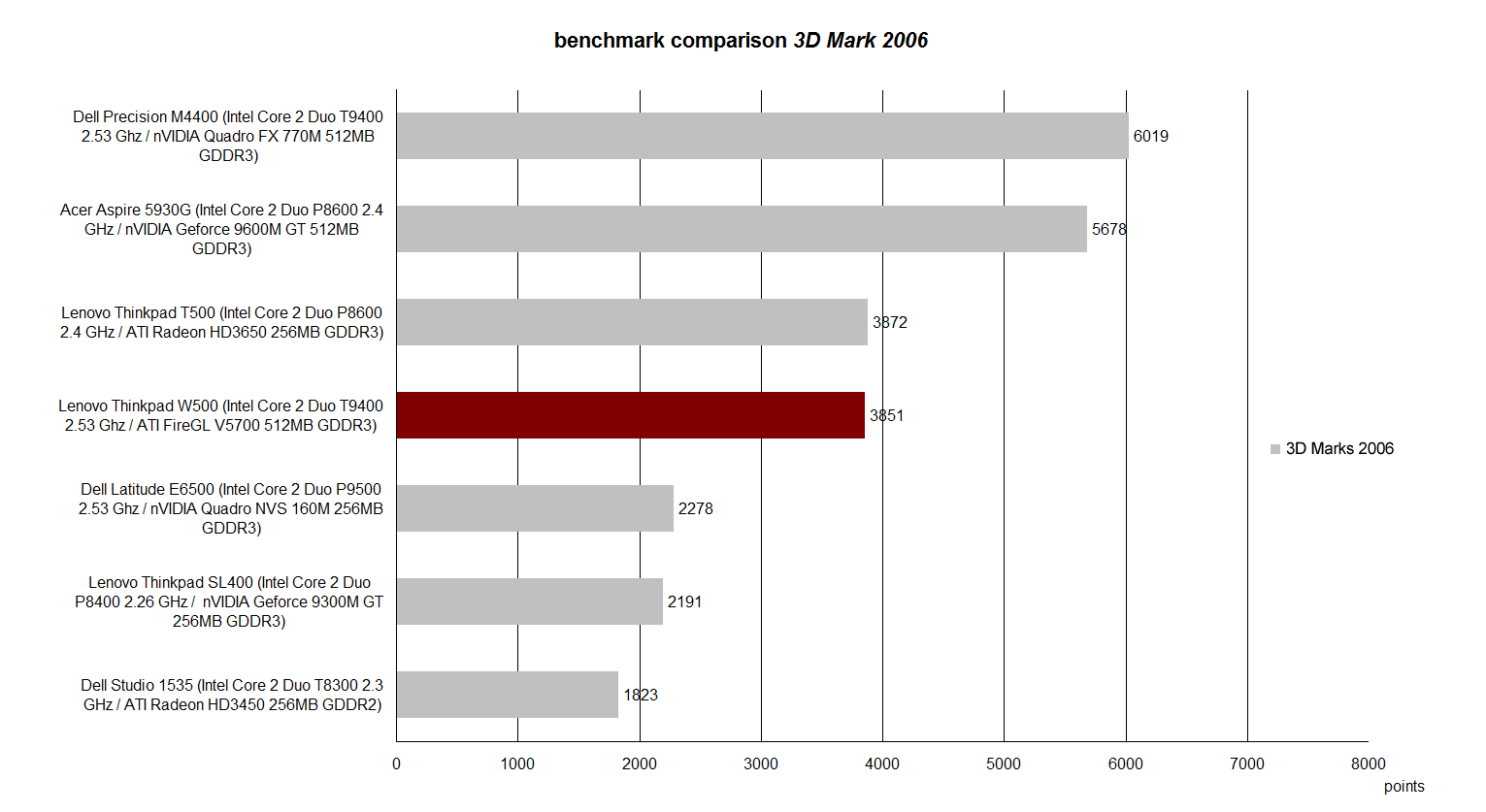

Performance 3DMark 2006
Performance 3DMark 2006

Dans 3D Mark 2006 de Futuremark, le W500 avec la ATI FireGL V5700 a la même performance que le Lenovo Thinkpad T500, équippé d'une HD3650 de chez ATI.
Cepandant, Cinebench R10 prouve que des drivers optimisés ne sont pas vains. Dans les tests de shading OpenGL, le W500 atteind 5049 points, soit 10% de plus que le Lenovo Thinkpad T500 avec la HD3650. Un gain de performances de 10% du T9400 comparé au P8600 dans le T500 devient évident.

Le Dell Precision M4400, qui est en compétition directe avec le Thinkpad W500, est en avant pour ce détail. La Quadro FX 770M de chez nVIDIA a un exellent résultat de 6180 points dans le test de shading.

Cinebench R10
Cinebench R10

Avec Viewperf 10.0 de SPEC. Les chiffres montrent une différence énorme entre le T500 et le W500, ou entre la Mobility Radeon HD3650 graphics et la FireGL V5700 optimisée pour la CAO. La carte graphique pro dépasse largement son équivalent grand public. LA plus grosse différence se trouve dans Maya.

De plus la Quadro FX770M de chez nVIDIA perd la première place. la solution de nVIDIA donne de meilleures performances dans CATIA et EnSight.

SPEC Viewperf 10.0 Comparison
SPEC Viewperf 10.0 Comparison

Dans l'équipement dispo sur le Lenovo Thinkpad il y a 2 Go de DDR3 avec un slot sur 2 occupé. Grâce à la plateforme Intel Montevina le Thinkpad W500 peut aller jusqu'à 8 Go de RAM. Il supporte de la DDR3 jusqu'à PC2-8500 1066 MHz.
A partir de 3 Go de RAM, vous devrez utiliser un OS 64 bit, sinon la RAM additionnelle ne sera pas pris en charge.

Lenovo propose une pléthore de stockage de masse différents. Lenovo liste: 80-320Go en 5400 rpm et 160-200Go en 7200 rpm ou un disque de 64 Go Solid State drive(SSD). Ils ont tous un capteur de choc, qui détecte la chute (avec des accéléromètres) avant l'impact et protège les têtes de lecture du disque dur dans un étau en silicone. Bien sûr les SSDs n'ont pas ce problème car ils sont dépourvus de tout système mécanique (la même technologie que les clés USB de mémoire). Lenovo et les constructeur tiers du W500 peuvent modifier la configuration à la demande.

Le Hitachi HTS722016K9S de notre produit à 7200 rpm a un très bon temps d'acces de 15.1 ms et une moyenne de débit de 44.3 Mo/sec dans HDTune.

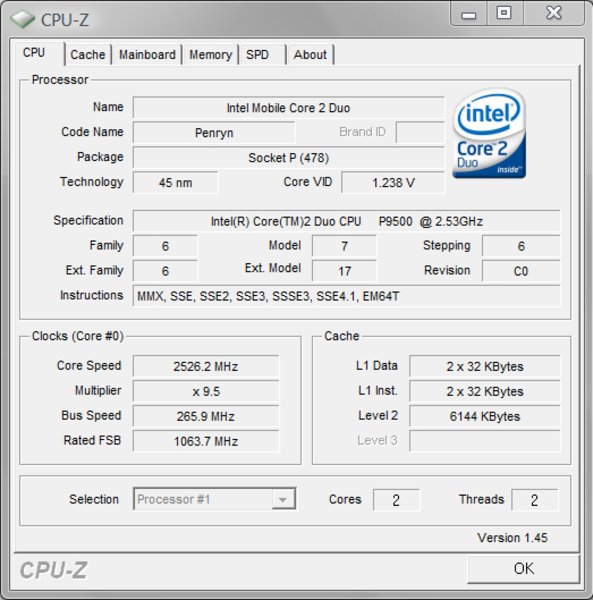

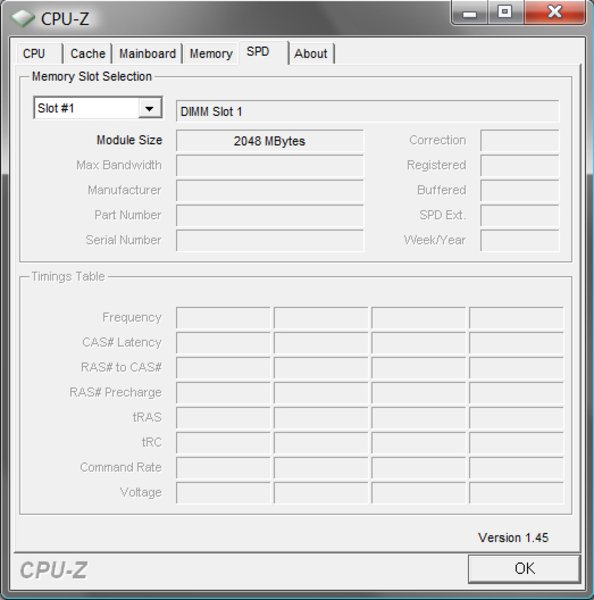

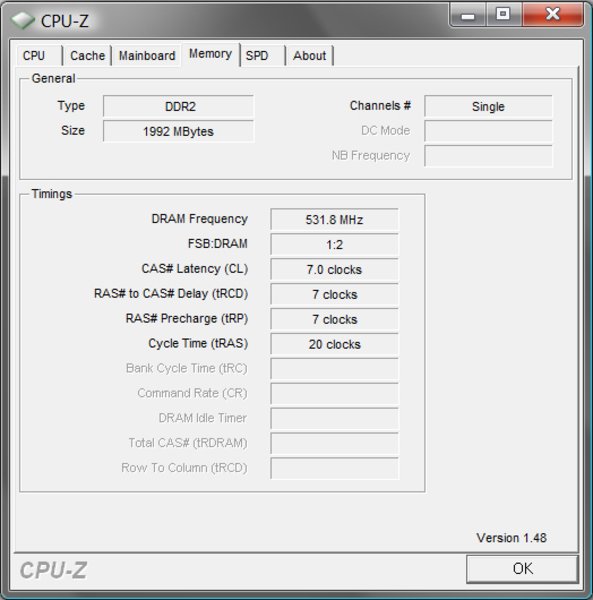

  • CPU-Z

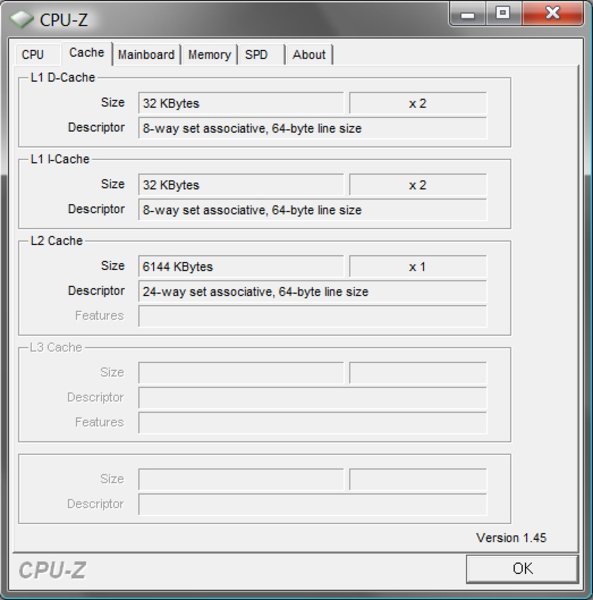

  • CPU-Z

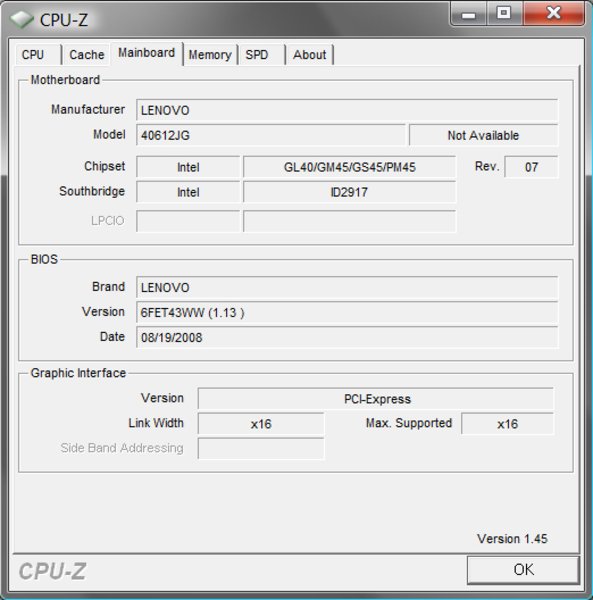

  • CPU-Z
  • CPU-Z
  • CPU-Z

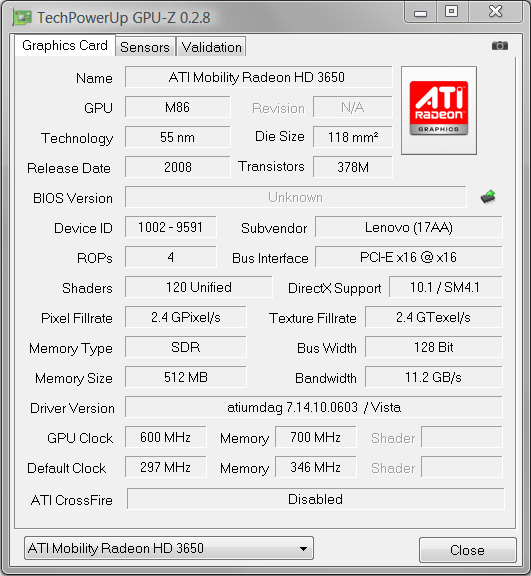

  • GPU-Z

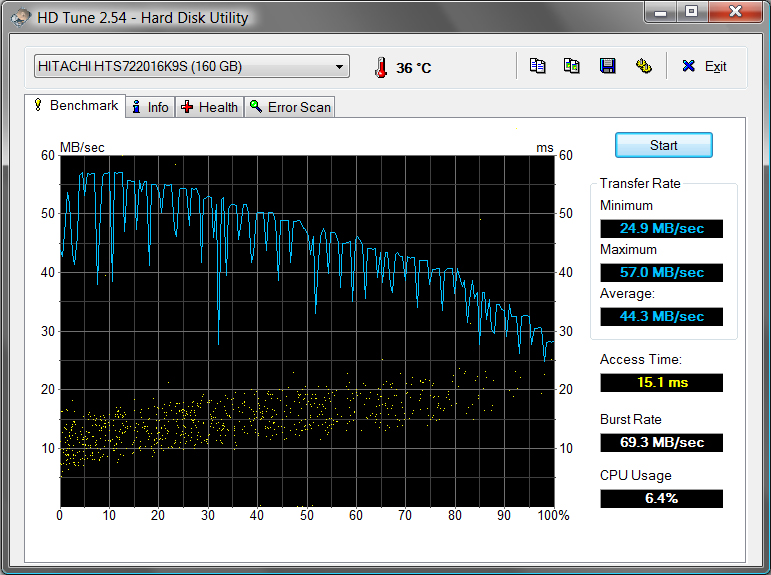

  • HDTune
System Information: Lenovo Thinkpad W500
3D Mark
3DMark 2001SE24429 points
(0)(0)(0)(0)(0)(0)(1)(1)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(1)(1)(1)(0)(0)(0)(1)(4)(0)(0)(0)(0)(1)(2)(0)(0)(0)(2)(2)(1)(4)(1)(2)(2)(5)(5)(2)(1)(6)(2)(0)(5)(1)(3)(2)(1)(2)(4)(3)(4)(1)(6)(1)(4)(3)(2)(1)(4)(4)(1)(3)(4)(8)(8)(5)(4)(5)(5)(3)(4)(3)(3)(1)(3)(5)(1)(1)(4)(3)(7)(3)(1)(4)(7)(3)(0)(1)(3)(1)(0)(3)(1)(2)(1)(0)(0)(1)(1)(0)(1)(2)(1)(3)(2)(0)(2)(1)(0)(2)(1)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
3DMark 0310864 points
(0)(1)(1)(0)(0)(1)(1)(0)(0)(0)(3)(0)(2)(2)(2)(0)(2)(5)(5)(1)(2)(7)(5)(0)(3)(3)(5)(1)(2)(4)(6)(1)(7)(4)(1)(2)(7)(3)(3)(3)(7)(14)(3)(4)(4)(5)(2)(6)(3)(1)(4)(2)(4)(6)(0)(0)(1)(1)(2)(2)(1)(2)(5)(2)(4)(1)(3)(5)(3)(3)(4)(3)(2)(3)(9)(3)(5)(9)(13)(4)(5)(3)(6)(2)(4)(5)(13)(1)(4)(2)(2)(4)(3)(1)(2)(0)(0)(0)(0)(0)(2)(0)(0)(0)(0)(2)(1)(3)(2)(0)(1)(1)(0)(1)(0)(0)(1)(0)(1)(0)(0)(0)(0)(1)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(0)(2)(0)(0)(1)
3DMark 058624 points
(0)(0)(0)(2)(1)(0)(1)(1)(0)(1)(1)(2)(0)(3)(2)(0)(0)(5)(0)(0)(2)(1)(2)(7)(7)(10)(2)(5)(2)(3)(4)(3)(5)(3)(2)(0)(2)(2)(0)(4)(4)(1)(5)(6)(5)(2)(6)(4)(5)(2)(4)(3)(8)(1)(6)(6)(6)(2)(3)(5)(4)(4)(2)(5)(7)(3)(2)(0)(1)(2)(0)(1)(1)(1)(3)(2)(4)(1)(3)(2)(2)(2)(3)(3)(2)(2)(6)(2)(4)(8)(0)(4)(0)(2)(4)(8)(2)(2)(1)(5)(4)(6)(13)(17)(1)(3)(2)(2)(3)(5)(3)(4)(1)(1)(2)(2)(3)(1)(0)(3)(4)(8)(2)(0)(2)(0)(1)(0)(3)(0)(1)(0)(0)(1)(1)(2)(0)(0)(1)(1)(0)(0)(0)(3)(1)(0)(1)(1)(0)(2)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
3DMark 06
 		2150 points
(0)(1)(2)(0)(0)(1)(0)(2)(0)(0)(1)(2)(0)(0)(1)(0)(1)(0)(1)(0)(1)(0)(2)(2)(0)(6)(2)(2)(1)(4)(0)(2)(1)(0)(0)(0)(4)(1)(1)(0)(1)(0)(1)(1)(0)(0)(0)(2)(0)(0)(0)(1)(0)(1)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(1)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
3DMark Vantage1017 points
(0)(0)(1)(2)(0)(1)(0)(0)(0)(0)(0)(1)(0)(3)(3)(8)(6)(5)(6)(4)(2)(1)(1)(2)(2)(1)(3)(4)(0)(1)(0)(2)(4)(4)(4)(4)(1)(2)(1)(6)(3)(7)(2)(3)(1)(4)(2)(8)(3)(3)(5)(5)(1)(1)(3)(4)(8)(9)(1)(3)(5)(7)(4)(1)(7)(9)(3)(0)(3)(1)(3)(3)(1)(1)(0)(0)(0)(3)(1)(2)(0)(3)(1)(0)(0)(4)(1)(1)(0)(1)(0)(1)(1)(1)(2)(0)(0)(3)(1)(1)(1)(0)(0)(0)(1)(0)(0)(0)(1)(0)(0)(0)(0)(2)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
Aide
3DMark Vantage en comparaison
Asus Eee PC 1215B-SIV006M (min)
 C-50, Radeon HD 6250
405
   ...
Asus Eee PC 1215B-SIV006M
 C-50, Radeon HD 6250
405
Acer Iconia Tab W500 Keydock
 C-50, Radeon HD 6250
425
HP ProBook 4720s-WT237EA/WS912EA
 460M, Mobility Radeon HD 5470
1326
   ...
Alienware M18x (GTX 580M SLI, 2920XM) (max)
 2920XM, GeForce GTX 580M SLI
23932
PC Mark
PCMark 056150 points
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(1)(0)(2)(0)(0)(1)(0)(0)(1)(0)(0)(1)(3)(2)(2)(2)(1)(4)(0)(2)(7)(5)(1)(1)(4)(4)(3)(6)(4)(8)(7)(4)(6)(2)(3)(3)(5)(4)(2)(7)(4)(5)(3)(3)(3)(7)(2)(1)(4)(4)(1)(2)(2)(4)(1)(4)(3)(3)(3)(0)(4)(0)(2)(1)(0)(2)(0)(3)(2)(1)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
PCMark Vantage3240 points
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(2)(0)(0)(2)(4)(4)(1)(3)(6)(7)(6)(1)(7)(5)(8)(4)(1)(3)(2)(1)(5)(5)(1)(0)(5)(6)(7)(5)(7)(5)(3)(8)(5)(7)(4)(8)(5)(8)(5)(3)(4)(2)(3)(2)(3)(3)(5)(4)(1)(1)(3)(1)(4)(0)(2)(0)(0)(1)(0)(1)(0)(1)(0)(1)(0)(1)(0)(2)(0)(1)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(2)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(1)(1)(1)(0)(0)(0)(0)(1)
Aide
PCMark Vantage en comparaison
Nokia Booklet 3G (min)
 Z530, Graphics Media Accelerator (GMA) 500
1061
   ...
Nokia Booklet 3G
 Z530, Graphics Media Accelerator (GMA) 500
1061
Asus Eee PC 1215B-SIV006M
 C-50, Radeon HD 6250
1788
Acer Iconia Tab W500 Keydock
 C-50, Radeon HD 6250
1831
   ...
Schenker XMG P701 PRO (max)
 2760QM, Radeon HD 6990M
20113
Cinebench R10
 ParamètresValeur
 Shading 32Bit5049 Points
 Rendering Multiple CPUs 32Bit5246 Points
 Rendering Single 32Bit2798 Points
hddimg
160 GB - 7200 rpm
Transfer Rate Minimum: 24.9 MB/s
(37)(38)(36)(24)(22)(29)(35)(54)(64)(60)(54)(76)(92)(88)(97)(91)(80)(68)(55)(31)(44)(26)(6)(7)(5)(9)(4)(5)(5)(3)(1)(1)(1)(2)(0)(0)(2)(1)(1)(1)(0)(0)(1)(2)(4)(0)(0)(4)(1)(2)(0)(2)(1)(0)(2)(2)(5)(2)(0)(1)(2)(3)(1)(1)(0)(0)(2)(3)(0)(1)(4)(0)(0)(0)(1)(1)(0)(0)(0)(1)(0)(1)(0)(2)(1)(1)(0)(0)(1)(1)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(1)(0)(0)(0)(0)(0)(0)(1)(1)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(1)(0)(0)(0)(0)(1)
Transfer Rate Maximum: 57 MB/s
(0)(2)(0)(0)(0)(6)(7)(14)(30)(57)(54)(50)(15)(32)(63)(87)(74)(53)(91)(133)(99)(96)(53)(40)(32)(66)(44)(20)(13)(8)(2)(3)(0)(0)(2)(3)(4)(6)(5)(7)(6)(0)(4)(1)(4)(1)(3)(3)(2)(1)(2)(2)(1)(1)(1)(1)(1)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(2)(0)(1)(0)(0)(0)(3)(2)(0)(1)(0)(0)(0)(1)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(2)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
Transfer Rate Average: 44.3 MB/s
(0)(0)(0)(0)(2)(7)(5)(21)(62)(64)(45)(23)(32)(75)(83)(80)(74)(110)(152)(91)(62)(58)(48)(61)(39)(16)(17)(7)(1)(2)(1)(1)(4)(2)(2)(1)(0)(2)(1)(3)(4)(2)(4)(4)(4)(4)(1)(4)(2)(2)(4)(4)(1)(2)(1)(1)(0)(1)(0)(3)(1)(2)(0)(0)(1)(0)(0)(1)(0)(0)(1)(0)(0)(1)(1)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(1)(1)(0)(0)(0)(0)(1)(1)(0)(1)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(1)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
Access Time: 15.1 ms
(93)(8)(1)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(1)(0)(0)(1)(2)(7)(16)(28)(22)(48)(30)(69)(153)(117)(119)(149)(124)(92)(54)(45)(26)(30)(24)(12)(5)(6)(7)(9)(3)(2)(3)(1)(0)(1)(2)(0)(1)(0)(1)(0)(0)(0)(1)(1)(2)(1)(1)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
Burst Rate: 69.3 MB/s
(2)(6)(27)(73)(235)(327)(311)(127)(95)(44)(28)(18)(1)(2)(1)(2)(0)(0)(2)(1)(0)(2)(0)(0)(0)(2)(1)(0)(0)(0)(0)(0)(0)(0)(3)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(1)
CPU Usage: 6.4 %
(35)(0)(381)(36)(90)(57)(69)(59)(60)(35)(36)(21)(29)(18)(25)(16)(15)(6)(5)(7)(10)(5)(7)(4)(5)(5)(2)(5)(7)(0)(5)(4)(2)(1)(2)(2)(3)(2)(3)(5)(1)(3)(2)(0)(2)(0)(1)(0)(1)(0)(1)(0)(1)(2)(1)(0)(0)(1)(0)(0)(2)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(2)(2)(0)(1)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)

Performances dans les jeux

Si vous êtes joueur, la FireGL V5700 graphics est performante. Mais ce n'est pas son usage principal.

Unreal Tournament 3 tourne à une résolution de 800x600 parfaitement à 50-62 images par secondes en détails standart (détails 3/5). Augmenter la résolution à 1024x768 le framerate tombe à 45-60 fps. A 1280x800 on s'écrase à 35-60 fps.

Dans Call of Duty 4 - Modern Warfare les tests étaits similaires. 30-55 fps en 1024x768 et sans anti-aliasing, le W500 se met à genoux avec l'anti-aliasing, et le framerate tombe irrémédiablement à 15-35 fps.

Emissions

Bruit système

Les ingénieurs de chez Lenovo pour le Thinkpad W500 doivet être félicités pour le travail fait sur le bruit système. les ventilateurs tournent tout le temps à 32.6 dB(A) ce qui n'est pas du tout un problème.

Nous avions peur pour le Thinkpad W500 au niveau du bruit pedant les jeux ou els benchmarks. Le maximum mesuré étant 35.0 dB(A). Ce qui conforte notre première impression sur le bruit.

Bref, le Lenovo Thinkpad W500 est bon pendant la lecture de DVD. à 35.8 dB(A) ice ui reste totalement dans le vert.

Bruit

A vide 32.6 / 32.6 / 32.6 dB
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(2)(0)(1)(10)(0)(1)(44)(0)(3)(35)(49)(0)(0)(109)(0)(7)(73)(0)(3)(4)(36)(2)(0)(23)(0)(5)(10)(1)(2)(1)(1)(0)(0)(0)(2)(0)(0)(1)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(5)(0)(0)(0)(15)(0)(1)(5)(47)(0)(3)(88)(0)(0)(100)(0)(0)(0)(52)(1)(14)(16)(2)(0)(23)(0)(0)(9)(1)(0)(0)(12)(0)(2)(5)(1)(0)(9)(0)(0)(3)(11)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(2)(0)(0)(0)(7)(0)(1)(23)(8)(0)(0)(61)(0)(0)(80)(0)(9)(13)(51)(0)(0)(43)(0)(0)(44)(2)(13)(12)(0)(0)(2)(12)(1)(1)(9)(1)(1)(5)(0)(0)(1)(17)(0)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
HDD 33.1 dB
(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(2)(17)(0)(3)(0)(57)(3)(10)(73)(1)(1)(95)(0)(0)(3)(55)(3)(1)(20)(0)(3)(13)(0)(0)(9)(7)(10)(1)(2)(0)(0)(2)(1)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
DVD 35.8 / dB
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(3)(0)(11)(1)(0)(9)(1)(38)(0)(9)(54)(5)(0)(81)(0)(16)(9)(35)(0)(11)(35)(1)(5)(28)(0)(2)(4)(14)(0)(2)(5)(1)(0)(5)(0)(0)(4)(0)(0)(2)(5)(0)(0)(0)(0)(2)(0)(0)(1)(2)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(1)(0)(0)(0)(0)(0)(0)(2)(3)(0)(6)(0)(0)(1)(8)(0)(0)(9)(0)(0)(4)(3)(0)(0)(4)(4)(0)(7)(0)(0)(5)(6)(0)(0)(0)(11)(0)(3)(6)(0)(11)(0)(0)(0)(0)(11)(0)(13)(4)(0)(2)(9)(1)(5)(0)(0)(0)(5)
Sous la charge 35.0 / 35.0 dB
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(1)(0)(0)(1)(0)(0)(6)(18)(0)(1)(6)(16)(0)(3)(32)(0)(8)(38)(0)(0)(10)(39)(0)(9)(20)(1)(1)(31)(1)(2)(20)(4)(0)(4)(23)(0)(0)(19)(1)(2)(14)(4)(1)(7)(12)(0)(1)(9)(0)(0)(5)(0)(0)(1)(7)(3)(0)(0)(0)(1)(1)(0)(0)(1)
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(2)(1)(0)(3)(0)(0)(0)(5)(3)(4)(2)(4)(1)(0)(9)(9)(0)(0)(23)(2)(7)(27)(1)(0)(22)(24)(0)(1)(49)(0)(0)(41)(0)(0)(13)(25)(0)(0)(42)(0)(1)(23)(0)(1)(1)(18)(0)(0)(20)(1)(4)(15)(0)(0)(0)(5)(0)(0)

    30 dB
Silencieux		 40 dB
audible		 50 dB
Bruit Fort
min: , med: , max:     (A 15 cm de distance)

Températures

Les températures du W500 prouvent que c'est une station de travail. Le dessus a un maximum de 32.4°C ce qui est assez doux comme chaleur. Seulement le dessus du Thinkpad W500 monte à 42.9°C ce qui et un peu plus chaud. Vu que le W500 sera sur une surface stable, c'est négligeable.

Load

 31.8 °C32.4 °C29.3 °C
 31.7 °C30.8 °C29.8 °C
 29.8 °C29.9 °C30.5 °C



 31.6 °C41.7 °C39.4 °C
 32.9 °C42.9 °C42.2 °C
 34.4 °C39.5 °C39.8 °C

Maximum: 32.4 °C
Moyen: 30.7 °C		 Maximum: 42.9 °C
Moyen: 38.3 °C
Température de la pièce 21.5 °C

Haut parleurs

Les haut parleurs sont bons mais atypiques. sont situés à droite et à gauche en dessous et ont un son passable.
Mais vous pouvez toujours vous rattrapper avec la prise casque qui est de bonne qualité.

Autonomie

Maximum Battery Life (BatteryEater Readers Test)
Readers Test

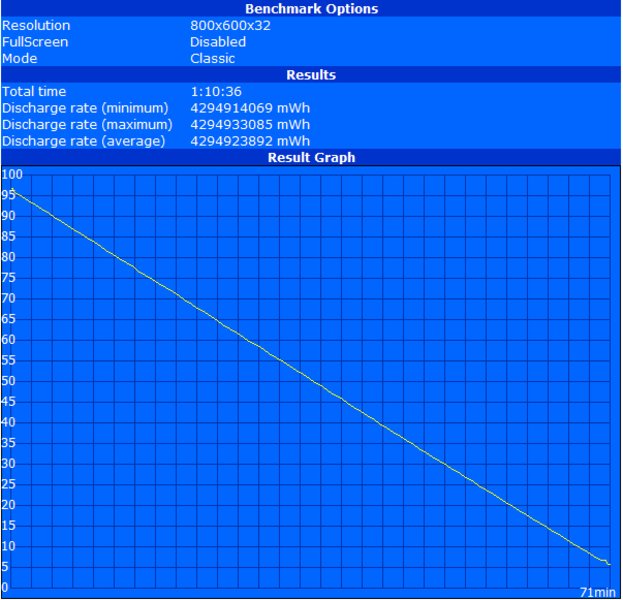

Minimum Battery Life (BatteryEater Classic Test)
Classic Test

Dans l'équipement standard du Lenovo Thinkpad W500 vous avez la batterie 6-cellules 5.2 Ah (56.16 Wh) lithium-ions. Mais elle est remplaçable par une batterie de 9-cellules, qui améliore l'autonomie de 50% en théorie. Via le slot ultra-bay, le W500 peut avoir encore une batterie supplémentaire.

Grâce à la mesure de la batterie 6-cellules, on peut dire facilement que c'est une option  non négligeable.
Dans BatteryEater Readers, l'autonomie maximum (tout au minimum), le W500 vas jusqu'à 212 minutes. Sous la charge dans BatteryEater Classic (tout au max., WLAN+BT on) l'autonomie descend à 71 minutes.

Si vous regardez un DVD dans de bonnes conditions, vous aurez 132 minutes de batterie. Ce qui est suffisant pour un film de myenne durée.
En WLAN mode (energy saving profile, luminosité max) on enregistre 160 minutes.

La mobilité pour le Thinkpad W500 est limitée. Mais des modifications simples améliorent considérablemet l'autonomie, à un prix élevé. Mais l'écran n'est pas très lumineux  la base donc, mieux ne vaux pas descendre la luminosité.

Consommation d'énergie

Idle 14.4 / 22.6 / 25.6 Watt
(0)(0)(0)(0)(0)(0)(2)(2)(11)(10)(5)(17)(29)(7)(12)(39)(25)(36)(2)(23)(18)(16)(18)(4)(12)(9)(16)(14)(9)(1)(7)(7)(12)(2)(7)(9)(5)(6)(0)(2)(0)(5)(0)(1)(0)(0)(1)(3)(1)(1)(0)(0)(0)(0)(1)(0)(1)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(2)(4)(6)(7)(6)(15)(12)(18)(0)(26)(21)(22)(27)(11)(17)(17)(15)(15)(3)(27)(0)(15)(15)(8)(9)(7)(10)(6)(1)(6)(7)(7)(5)(1)(9)(2)(6)(5)(1)(1)(0)(1)(7)(0)(2)(0)(0)(1)(0)(0)(1)(0)(0)(0)(1)(0)(0)(1)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(5)(0)(6)(7)(10)(2)(11)(9)(20)(24)(8)(10)(26)(18)(12)(8)(7)(12)(17)(16)(8)(6)(12)(10)(11)(8)(5)(7)(12)(6)(7)(0)(11)(8)(7)(3)(5)(4)(7)(10)(4)(1)(1)(3)(1)(1)(0)(2)(6)(1)(0)(1)(0)(2)(1)(2)(0)(0)(1)(1)(0)(0)(1)(2)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
Load 60.2 / 70.4 Watt
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(1)(0)(0)(0)(1)(1)(0)(1)(0)(0)(0)(0)(0)(0)(0)(1)(0)(2)(1)(3)(0)(0)(4)(2)(1)(3)(5)(6)(1)(6)(6)(9)(6)(2)(7)(9)(10)(11)(10)(0)(8)(12)(13)(8)(11)(6)(9)(10)(0)(13)(14)(7)(14)(1)(23)(1)(12)(6)(0)(12)(0)(6)(10)(5)(7)(1)(4)(4)(7)(7)(1)(1)(8)(0)(9)(2)(3)(4)(3)(2)(4)(7)(3)(1)(2)(3)(0)(0)(2)(0)(1)(0)(0)(1)(0)(1)(0)(0)(0)(0)
(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(2)(0)(0)(0)(0)(0)(0)(0)(1)(0)(0)(2)(0)(4)(1)(0)(3)(4)(1)(0)(3)(3)(4)(1)(4)(0)(5)(7)(2)(4)(8)(10)(8)(0)(6)(10)(6)(9)(9)(2)(5)(11)(12)(8)(7)(7)(3)(6)(10)(2)(13)(7)(15)(6)(3)(5)(5)(11)(3)(8)(0)(7)(5)(4)(4)(2)(8)(13)(3)(3)(5)(5)(6)(5)(1)(3)(2)(1)(1)(1)

Key: min: , med: , max:

Autonomie

A vide (Sans WiFi, luminosité minimum)3h 32min
(0)(0)(0)(0)(1)(2)(2)(5)(12)(15)(21)(40)(25)(37)(29)(33)(25)(22)(20)(18)(12)(12)(8)(6)(12)(9)(10)(5)(9)(8)(5)(2)(2)(3)(3)(6)(1)(1)(3)(0)(2)(1)(1)(4)(1)(1)(3)(2)(1)(1)(1)(0)(0)(1)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(1)
Navigation avec la WiFi2h 40min
(0)(0)(0)(0)(2)(4)(20)(35)(48)(32)(41)(34)(20)(21)(25)(14)(11)(16)(7)(9)(8)(1)(3)(2)(7)(3)(2)(1)(1)(1)(1)(1)(0)(2)(2)(0)(1)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
DVD2h 12min
(0)(0)(0)(3)(11)(40)(56)(51)(60)(34)(35)(32)(20)(12)(15)(8)(6)(5)(5)(3)(5)(4)(4)(1)(2)(2)(1)(0)(0)(0)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)
Chargé (Luminosité maximum)1h 11min
(0)(0)(8)(88)(147)(91)(61)(24)(13)(7)(5)(2)(1)(1)(2)(0)(1)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)(0)

Verdict

En tout et pour tout, le W500 est le digne successeur du T61p. Lenovo offre un chassis extremement robuste, il marque des points pour sa solidité.

Un port DVI a été ajouté , mais tout les ports sont à gauche, ce qui est un gros problème pour les gauchers. mais on peut résoudre ce problème avec le port de dock.

Le clavier est excellent et est encore meilleur que notre prmie modèle d'essai, la frappe répond bien et le toucher est doux.

Le seul avantage de l'écran WUXGA est sa haute résolution et ses bons angles de vision. mais la luminosité n'est pas très bonne à 100 cd/m², d'ailleur ce modèle est encore moins bon que le modèe de test. C'est suffisant pour travailler à l'interieur. Mais dans un environnement exterieur, 20-30 cd/m² n'auraient pas étés de trop.

Un avantage du W500 est ses drivers spéciaux pour la CAO et le applications 3D Pro. La FireGL V5700 montre bien à quoi sert le Lenovo Thinkpad W500.
On appréciera le silence de l'appareil même sous la tâche.

L'autonomie n'est pas trop mauvaise et peut être améliorée grâce aux modules de batteries pour le sllot Ultrabay. Le Lenovo Thinkpad W500 est une alternative au Precision M4400 de Dell. Ces deux portables sont fait pour les Pro de la 3D, faites votre choix.

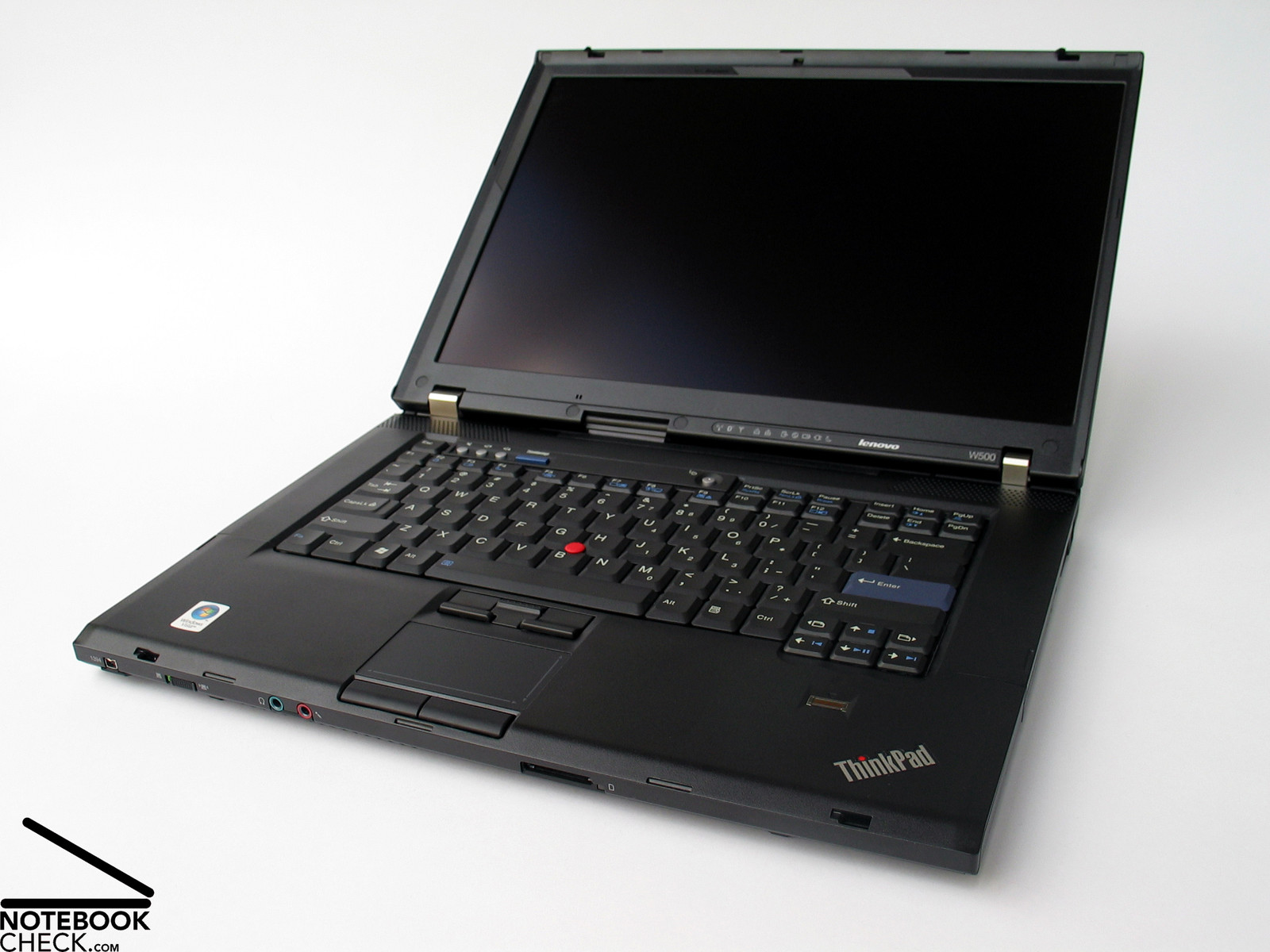

Lenovo Thinkpad W500
  • Lenovo Thinkpad W500
  • Lenovo Thinkpad W500
  • Lenovo Thinkpad W500
  • Lenovo Thinkpad W500
Lenovo Thinkpad W500



Many thanks to the company Planet Notebook, who kindly provided us with the test sample. Here you can configure and also buy this notebook.

Lenovo Thinkpad W500
In Review: Lenovo Thinkpad W500, provided by:

Spécifications de l'ordinateur portable

Lenovo Thinkpad W500 4061-2JG

:: Processeur
Intel Core 2 Duo T9400 2.53 GHz
:: Mainboard
Intel PM45
:: Mémoire
2048 MB, DDR3, 1x2048MB, max. 8GB
:: Carte graphique
ATI Mobility FireGL V5700 - 512 MB, Core: 600 MHz, Mémoire: 700 MHz, GDDR3 VRAM, 7.14.10.0603
:: Ècran
15.4 poices 16:10, 1920x1200 pixel, WUXGA TFT, brillant: non
:: Disque dur
160 GB - 7200 rpm, 160GB 7200rpm HITACHI HTS722016K9SA00
:: Carte son
HD Audio
:: Connections
1 PC-Card, 1 Express Card 54mm, 3 USB 2.0, 1 Firewire, 1 VGA, 1 DisplayPort, 1 Modem, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: microphone/LineIn, casque/LineOut, Card Reader: 7in1 Media Reader,
:: Réseau
Intel(R) 82567LM Gigabit Network Connection (10/100/1000MBit), Intel Wireless WiFi Link 5300 (abgn), 2.0 Bluetooth
:: Lecteur optique
HL-DT-ST DVDRAM GSA-U20N
:: Taille
Hauteur x Largeur x profondeur (en mm): 34 x 255 x 358
:: Poids
2.76 kg Consommation d'énergie: 0.4 kg
:: Batterie
56.16 Wh Lithium-Ion, 6-Cellules 10.8V 5200mAh
:: Prix
2000 Euro
:: Système d'exploitation
Microsoft Windows Vista Business 32 Bit
:: Finition additionnel
Intervideo WinDVD, Roxio Creator, Adobe Acrobat Reader, Thinkvantage Tools, 36 Mois Garantie,
Après avoir essayé la vrai série SL, Lenovo introduit un autre produit à la catégorie des portables avec le W500.
Après avoir essayé la vrai série SL, Lenovo introduit un autre produit à la catégorie des portables avec le W500.
Les nouveaux postes de travail Lenovo sont spécialement conçus pour les applications graphiques et de CAO et offre une performance axée sur les performances.
Les nouveaux postes de travail Lenovo sont spécialement conçus pour les applications graphiques et de CAO et offre une performance axée sur les performances.
Le clamshell design de l'écran offre une sécurité supplémentaire et protège le tout contre les dommages accidentels, comme de l'eau, par exemple.
Le clamshell design de l'écran offre une sécurité supplémentaire et protège le tout contre les dommages accidentels, comme de l'eau, par exemple.
Le Thinkpad W500 offre un nouveau port d'affichage numérique ainsi que 3 ports USB directement sur l'appareil.
Le Thinkpad W500 offre un nouveau port d'affichage numérique ainsi que 3 ports USB directement sur l'appareil.
Un port d'amarrage permet de plus d'options d'interface.
Un port d'amarrage permet de plus d'options d'interface.
À l'exception de la série R, tous les nouveaux modèles ThinkPad sont standard avec un module UMTS.
À l'exception de la série R, tous les nouveaux modèles ThinkPad sont standard avec un module UMTS.
Le clavier apparaît, à première vue, ne pas avoir de remarquables qualités, les touches habituelles sont groupées, et une mise en page est typique des Thinkpad.
Le clavier apparaît, à première vue, ne pas avoir de remarquables qualités, les touches habituelles sont groupées, et une mise en page est typique des Thinkpad.
En pratique, toutefois, une très probable déformation du clavier sous la pression des touches est possible.
En pratique, toutefois, une très probable déformation du clavier sous la pression des touches est possible.
Le touchpad / TrackPoint du Lenovo Thinkpad W500 offre les qualités habituelles.
Le touchpad / TrackPoint du Lenovo Thinkpad W500 offre les qualités habituelles.

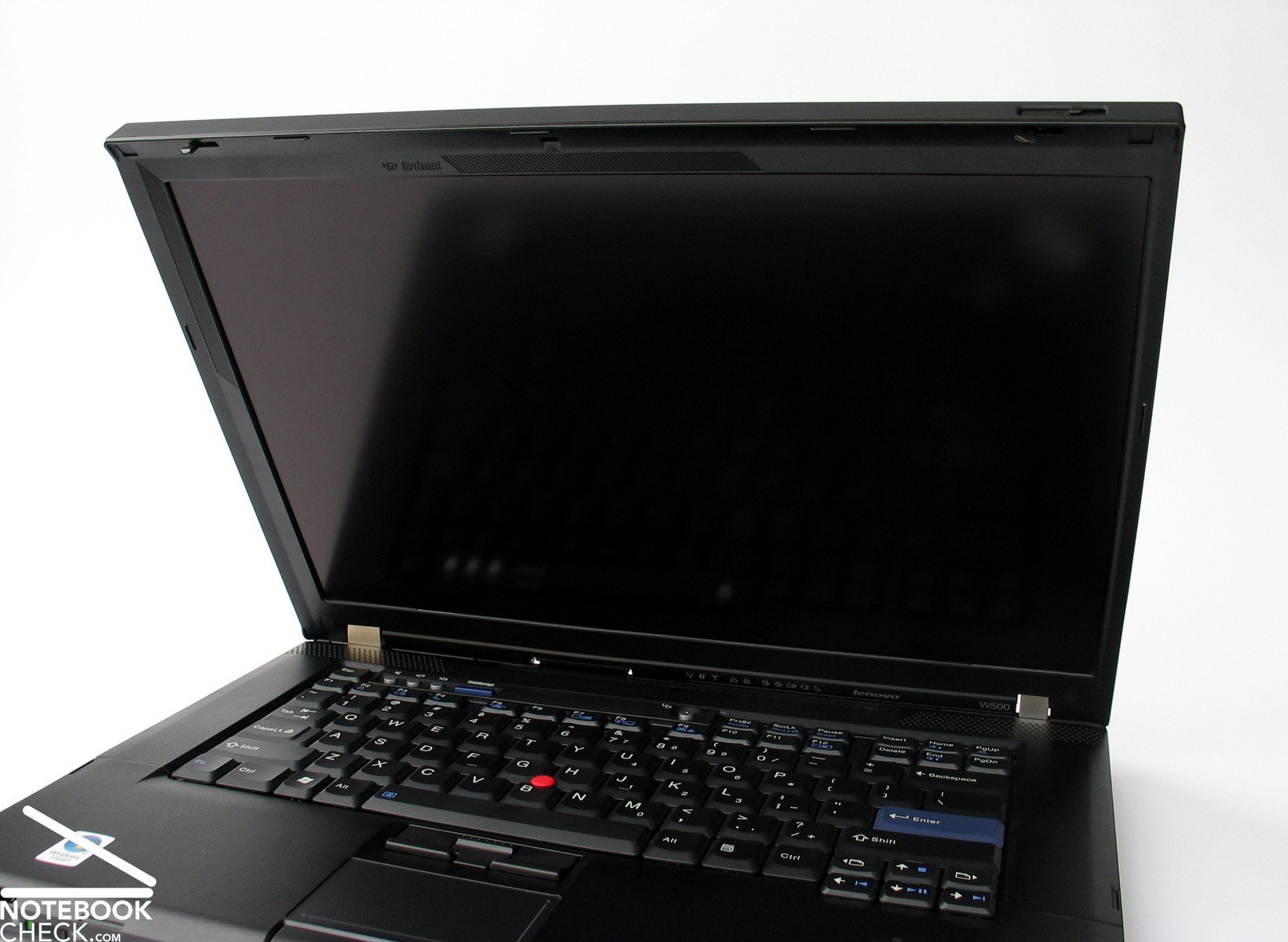

L'affichage est disponible avec une résolution de 1680x1050 ou avec un maximum de 1920x1200.
L'affichage est disponible avec une résolution de 1680x1050 ou avec un maximum de 1920x1200.
Malheureusement, l'écran n'est pas vraiment convaincant en termes de luminosité.
Malheureusement, l'écran n'est pas vraiment convaincant en termes de luminosité.
Équipés de la performance capable de processeurs Intel et ATI FireGL v5700 GPU, le W500 est destiné avant tout aux professionnels de la CAO.
Équipés de la performance capable de processeurs Intel et ATI FireGL v5700 GPU, le W500 est destiné avant tout aux professionnels de la CAO.

Comparable Notebooks

Portables avec la même taille d'écran et poids

» Critique du MSI GX640-i5447LW7P
Mobility Radeon HD 5850, Core i5 430M
» Critique du MSI GT640 pour joueurs
GeForce GTS 250M, Core i7 720QM
» Critique du Sony Vaio VGN-BZ26M
Graphics Media Accelerator (GMA) 4500MHD, Core 2 Duo T7250

Price Comparison

Pricerunner n.a.

Pro

+Souple, rigide et stable
+Ecran très solide
+Slot Ultrabay
+Toutes les options de communication disponibles
+Logiciel ThinkVantage pratique
+Clavier ergonomique
+Compinaison touchpad/trackpoint ergonomique
+Ecran WUXGA de très haute résolution
+Peu de bruit dans tout les cas


Point négatif

-Quasiment tout els ports sont à gauche (peu pratique pour les gauchers)
-Ecran peu lumineux
-Autonomie moyenne

Rating

Lenovo Thinkpad W500 4061-2JG
11/04/2008
Finition 88%
Clavier 88%
Souris 90%
Connectivité 88%
Poids 78%
Batterie 75%
Ècran 75%
Performances dans les ludicielles 86%
Performances dans les applications 92%
Température 86%
Bruit 90%
Impression 88%
Moyen 85%

85%

Multimedia *
Moyenne compensée

* Moyenne compensée pour portable multimédia:
finition 8%, clavier 8%, souris 6%, connectivité 8%, poids 6%, batterie 8%, ècran 10%, performance de jeux 10%, performances dans les applications 10%, température 8%, bruit 8%, impression 10%

> Français - Accueil > Critiques > Critique mise à jour du Lenovo Thinkpad W500
J. Simon Leitner, 2008-12-15 (Update: 2009-09- 6)
