Intel Core i5 520M

Intel 520M

Le Intel Core i5-520M est un dual core puissant pour portables (avec le Turbo Mode) cadencé de 2.4 à 2,93 GHz. Il est basé sur la plateforme Nehalem (Westemere). L'Hyperthreading permet à ce Dual Core de gérer 4 tâches à la fois (pour un meilleur usage du pipeline). Comparé au Core i7-620M, le 540M ne possède que 3 Mo de cache Level 3 est une fréquence moins élevée.

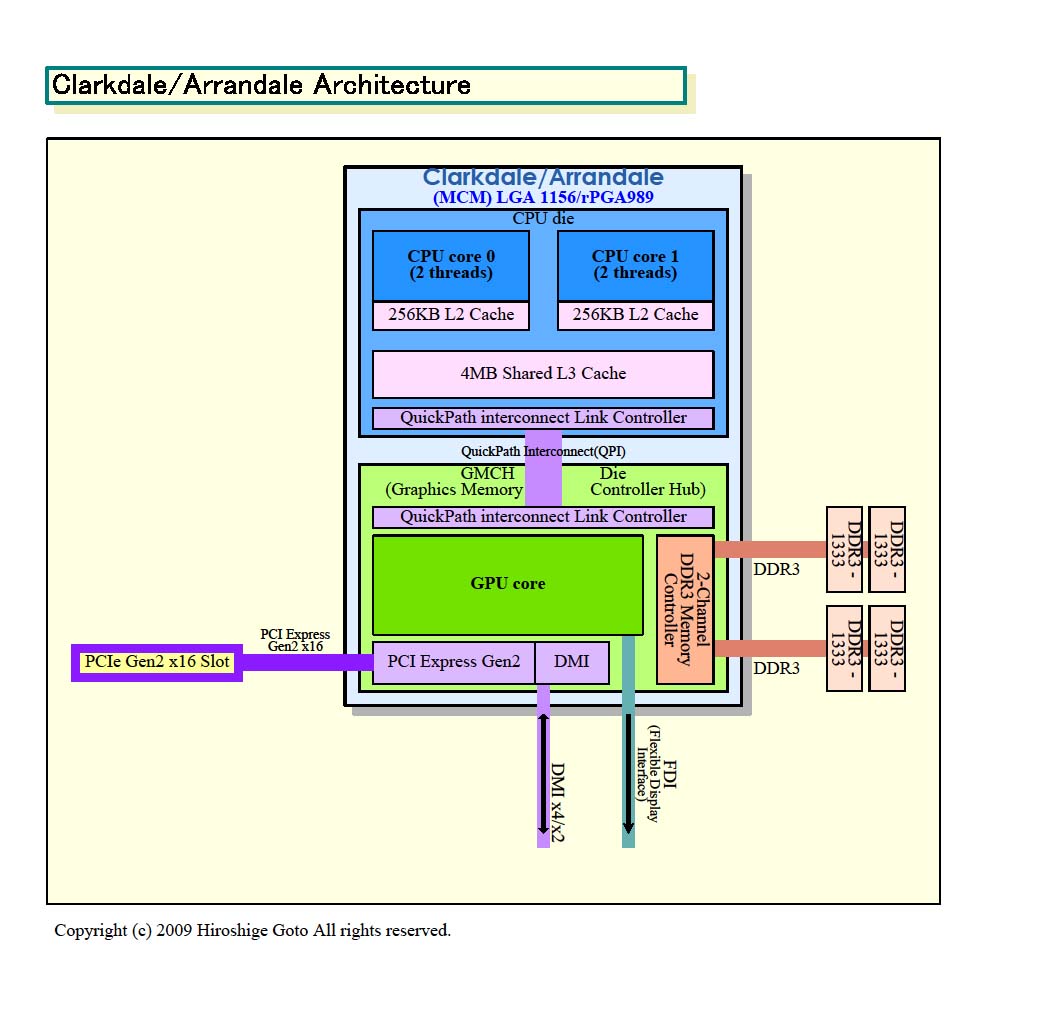

Le Core i5-520M possède une GMA HD et un contrôleur mémoire. Ils sont sur des puces séparées de 45nm alors que le CPU est gravé en 32nm.

Les performance du Core i5-520M sont en moyenne plus rapides que les 2.8 GHz du Core 2 Duo T9800 grâce au turbo boost. Le Core i5-520M est un processeur puissant capable de faire tourner tout les logiciels modernes. Il n'y a que le quad core i7 qui soit vraiment plus rapide.

Les CPU gravés en 32nm de la génération Westmere supportent les instructions AES.

La carte graphique intégrée Intel Graphics Media Accelerator HD (GMA HD) cadence entre 500 et 766 MHz bien plus rapide que la GMA 4500MHD. Une GeForce 9400M (ION) reste plus rapide vu que Nvidia et ATI mettent bien mieux à jour leurs drivers que Intel.

Avec une consommation de 35 Watt (max.) c'est bien mieux aux niveau des performances par rapport aux 35 Watt du Core 2 Duo de la série T (CPU seul). Grâce au Turbo Boost, Le Core i5 est potentiellement plus gourmand que le Core 2 Duo. En mode à vide, le i5 consomme moins que le Core 2 Duo.

SeriesIntel Core i5
CodenameArrandale
Clock Rate2400 - 2933 MHz
Front Side Bus2500 MHz
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3072 KB
Number of Cores / Threads2 / 4
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature105 °C
SocketBGA1288, PGA988
FeaturesTurbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 733MHz,
64 Bit64 Bit support
Hardware VirtualizationVT-x
Starting Price $225 U.S.
Announcement Date01/04/2010
Product Link (external)Intel Core i5 520M

CPU Benchmarks

3DMark 06 - CPU:
0% 100%
min: 2602     avg: 2728.4 (32%)     max: 2817 Points
Super Pi 1M:
0% 100%
min: 15     avg: 16.7 (4%)     max: 24 Seconds
Super Pi 2M:
0% 100%
min: 36     avg: 38.4 (2%)     max: 44 Seconds
Super Pi 32M:
0% 100%
min: 848     avg: 898.9 (4%)     max: 1182 Seconds
SiSoft Sandra Dhrystone (MIPS):
0% 100%
min: 31600     avg: 34552.9 (16%)     max: 39000 MIPS
SiSoft Sandra Whetstone (MFLOPS):
0% 100%
min: 25360     avg: 28514.3 (22%)     max: 35320 MFLOPS
PCMark 05: Standard 1024x768
0% 100%
min: 8082     avg: 8082 (51%)     max: 8082 Points
PCMark Vantage: Result 1024x768
0% 100%
min: 4464     avg: 6801.5 (33%)     max: 10721 Points
Cinebench R10: Rendering Single 32Bit
0% 100%
min: 2789     avg: 3017.3 (60%)     max: 3102 Points
Cinebench R10: Rendering Multiple CPUs 32Bit
0% 100%
min: 6114     avg: 6660.8 (24%)     max: 6925 Points
Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 7129     avg: 8021.6 (24%)     max: 8342 Points
Cinebench R10: Rendering Single CPUs 64Bit
0% 100%
min: 1799     avg: 3636.1 (58%)     max: 3957 Points
3DMark Vantage: P CPU no PhysX 1280x1024
0% 100%
min: 7304     avg: 7540.4 (20%)     max: 7658 Points
wPrime 2.0x: 32m
0% 100%
min: 19     avg: 26.6 (5%)     max: 44.633 seconds
wPrime 2.0x: 1024m
0% 100%
min: 599     avg: 813.7 (10%)     max: 1427.826 seconds
Windows 7 Experience Index: Processor
0% 100%
min: 5.2     avg: 6.6 (85%)     max: 6.8 points
Cinebench R11.5: CPU 64Bit
0% 100%
min: 1.97     avg: 2.1 (20%)     max: 2.19 Points
- Range of benchmarks for this CPU
- Average benchmark score

Cinebench R10 in comparison
Intel Atom Z670 (min)
691
...
Intel Core i3 380M
6552.3
AMD Phenom II X4 N950
6554
Intel Core i5 450M
6649.5
Intel Core i5 520M
6660.8
Intel Core i7 2677M
6672
Intel Core i7 2617M
6690
Intel Core i3 2350M
6715
...
Intel Core i7 (Desktop) 3960X (max)
27189.5
