Courte critique du PC portable Asus VivoBook S15 S510UQ (i5-7200U, 940MX)

Sven Kloevekorn (traduit par JBP), 01/10/2018

Imparfait. Le nouveau-venu d’Asus pour le multimédia et le bureau séduit, avec son design élégant et son châssis spécialement léger et compact, mais il n’est pas à la hauteur dans le jeu, avec sa GeForce 940MX. Malgré de bons arguments nombreux, nous ne pouvons le recommander, et pas seulement à cause de son autonomie moyenne.

Asus Vivobook S15 S510UQ-BQ189T (VivoBook S510 Gamme)

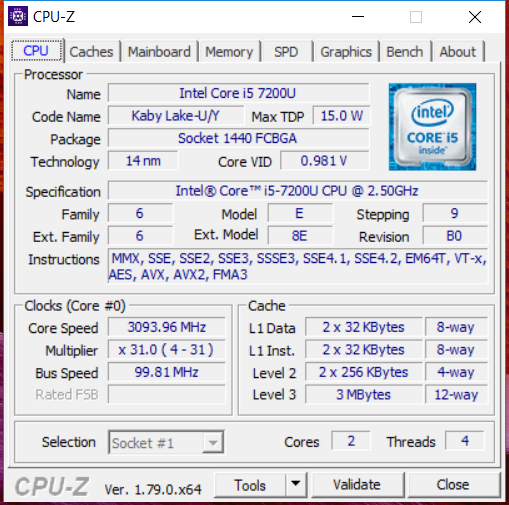

Processeur
Intel Core i5-7200U
Carte graphique

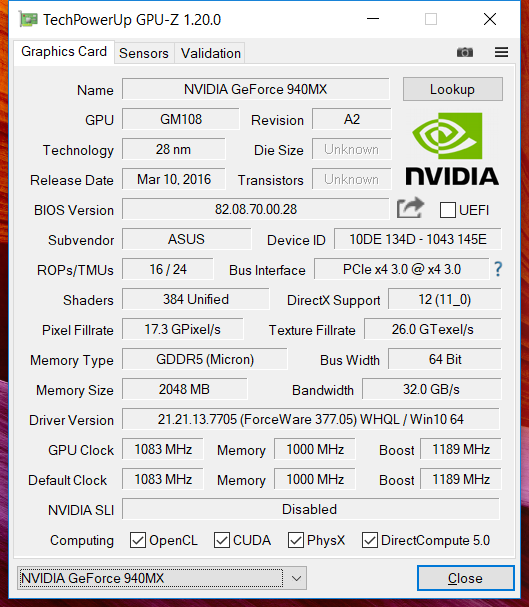

NVIDIA GeForce 940MX - 2048 Mo, Processeur: 1083 - 1189 MHz, Mémoire: 4000 MHz, GDDR5, ForceWare 377.05, Nvidia Optimus

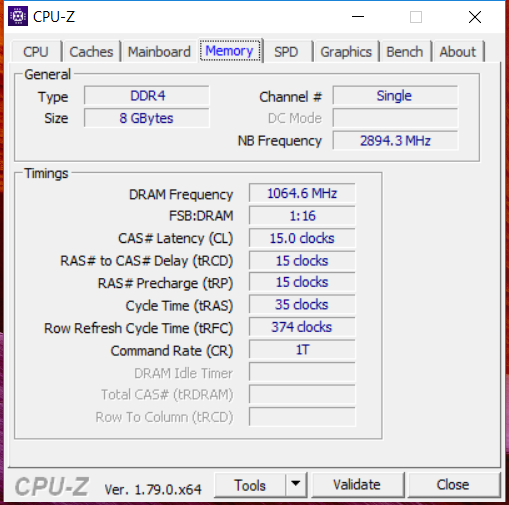

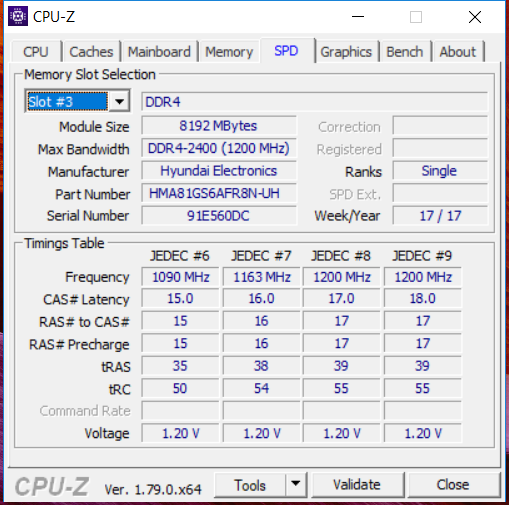

Mémoire
8192 Mo
, DDR4, 2400 MHz, simple canal, 1 emplacement sur 2 occupé
Écran
15.6 pouces 16:9, 1920 x 1080 pixel 141 PPP, AU Optronics B156W02 / AUO B156HAN02.1, IPS, brillant: non

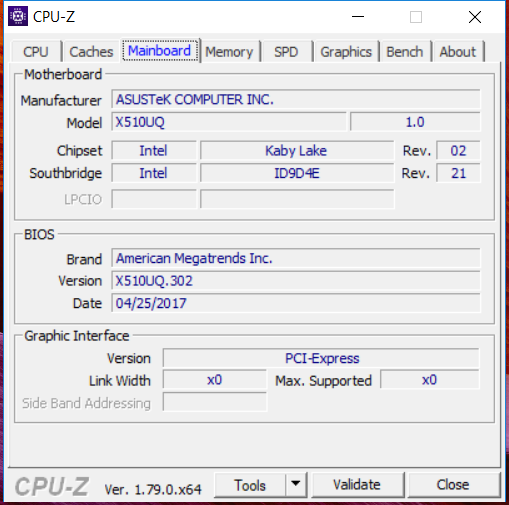

Carte mère
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Disque dur
Toshiba SG5 THNSNK128GVN8, 128 Go
, SSD + HDD 1 To Seagate ST1000LM035-1RK172 (5400 tr/min.)
Carte son
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connexions

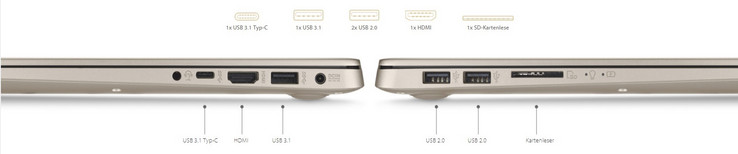

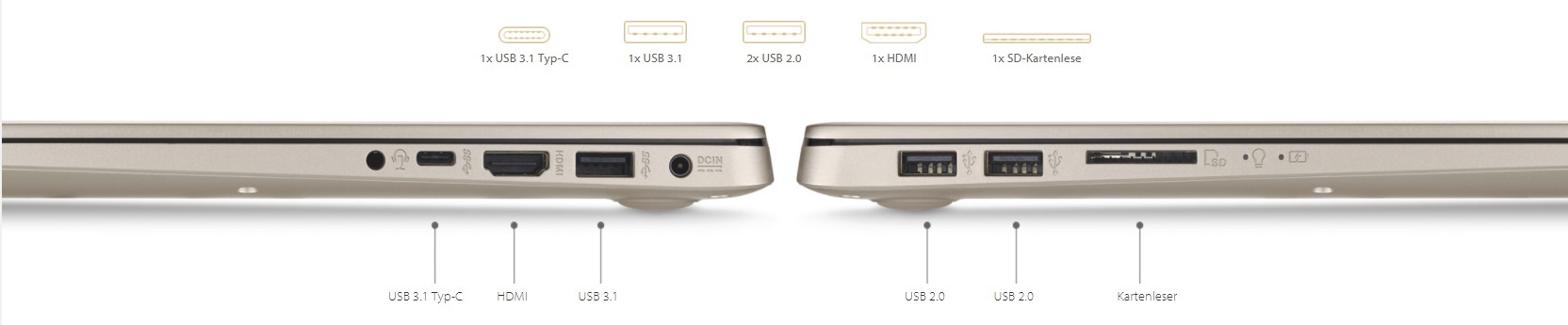

2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, Connectique audio: combo audio 3,5 mm, Lecteur de cartes mémoires: SD / SDHC / SDXC, 1 Lecteur d'empreintes digitales, Brightness Sensor
Réseau
Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Taille
Hauteur x Largeur x Profondeur (en mm): 18 x 361 x 244
Batterie
42 Wh Lithium-Ion, 3 cellules
Système d'exploitation
Microsoft Windows 10 Home 64 Bit
Appareil photo
Webcam: VGA
Fonctionnalités additionnelles
Haut-parleurs: stéréo, en bas, Clavier: chiclet, Rétroéclairage du clavier: oui, 24 Mois Garantie
Poids
1.7 kg, Alimentation: 219 g
Prix
950 EUR

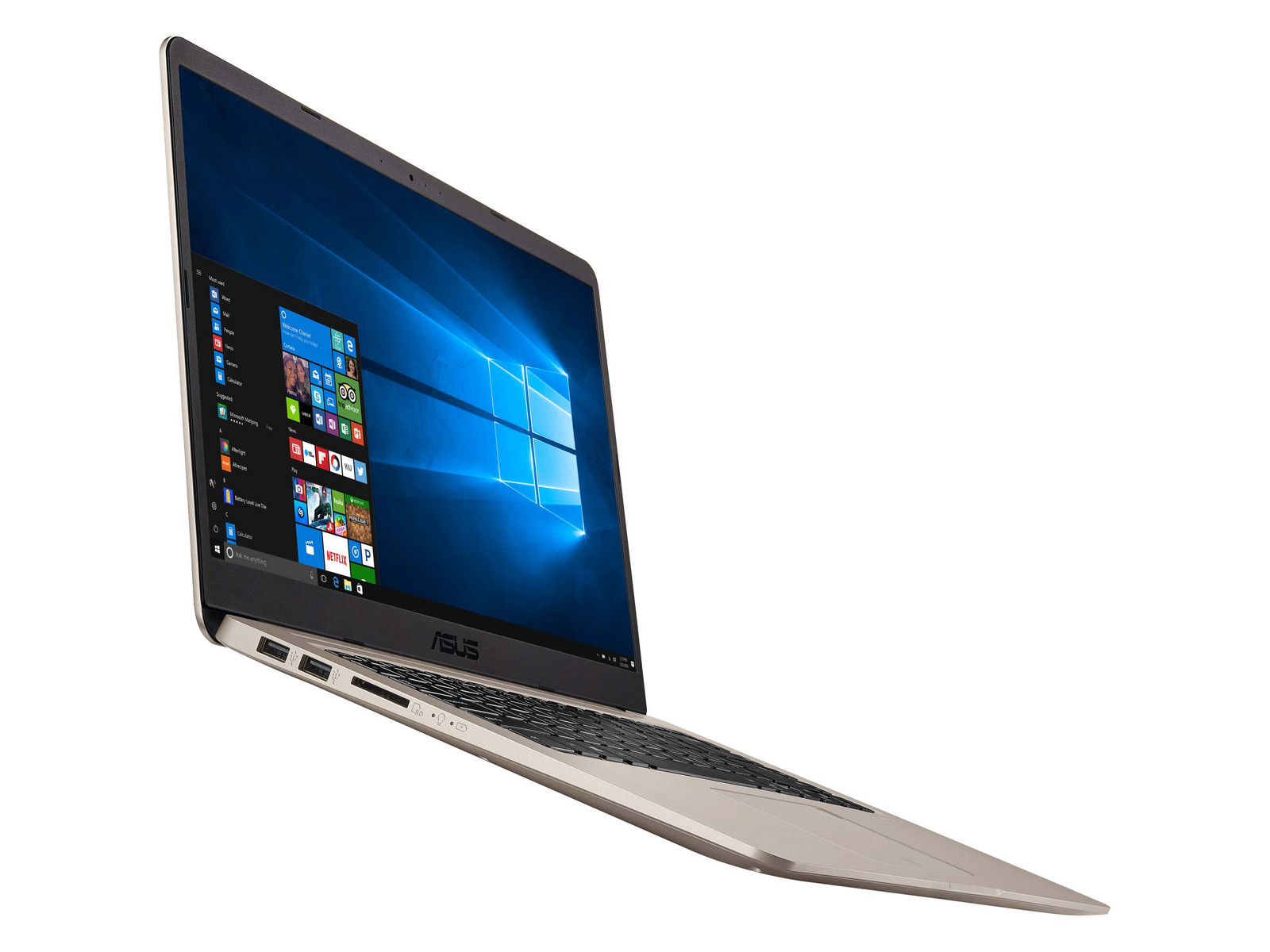

Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ
Asus VivoBook S15 S510UQ

Size Comparison

Photo : Asus.
Photo : Asus.
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP Pavilion 15 Power 1GK62AV
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81.27 MB/s ∼100% +140%
Lenovo ThinkPad E570-20H6S00000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
62.5 MB/s ∼77% +84%
Asus Vivobook S15 S510UQ-BQ189T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
33.9 MB/s ∼42%
Acer Swift 3 SF315-51G-55Z9
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
23.3 MB/s ∼29% -31%
maximum AS SSD Seq Read Test (1GB)
HP Pavilion 15 Power 1GK62AV
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.39 MB/s ∼100% +131%
Lenovo ThinkPad E570-20H6S00000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81.71 MB/s ∼95% +118%
Asus Vivobook S15 S510UQ-BQ189T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.4 MB/s ∼43%
Acer Swift 3 SF315-51G-55Z9
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
24.9 MB/s ∼29% -33%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP Pavilion 15 Power 1GK62AV
Intel Dual Band Wireless-AC 7265
645 MBit/s ∼100% +26%
Acer Swift 3 SF315-51G-55Z9
Intel Dual Band Wireless-AC 7265
529 MBit/s ∼82% +4%
Asus Vivobook S15 S510UQ-BQ189T
Intel Dual Band Wireless-AC 8265
510 MBit/s ∼79%
Lenovo ThinkPad E570-20H6S00000
Atheros/Qualcomm QCA6174
495 MBit/s ∼77% -3%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus Vivobook S15 S510UQ-BQ189T
Intel Dual Band Wireless-AC 8265
668 MBit/s ∼100%
Acer Swift 3 SF315-51G-55Z9
Intel Dual Band Wireless-AC 7265
649 MBit/s ∼97% -3%
HP Pavilion 15 Power 1GK62AV
Intel Dual Band Wireless-AC 7265
465 MBit/s ∼70% -30%
Lenovo ThinkPad E570-20H6S00000
Atheros/Qualcomm QCA6174
434 MBit/s ∼65% -35%
278
cd/m²
265
cd/m²
276
cd/m²
284
cd/m²
293
cd/m²
293
cd/m²
260
cd/m²
253
cd/m²
274
cd/m²
Homogénéité de la luminosité
X-Rite i1Pro 2
Maximum: 293 cd/m² Moyenne: 275.1 cd/m² Minimum: 16 cd/m²
Homogénéité de la luminosité: 86 %
Valeur mesurée au centre, sur batterie: 293 cd/m²
Contraste: 1172:1 (Valeurs des noirs: 0.25 cd/m²)
ΔE Color 3.81 | 0.8-29.43 Ø6.4
ΔE Greyscale 2.66 | 0.64-98 Ø6.6

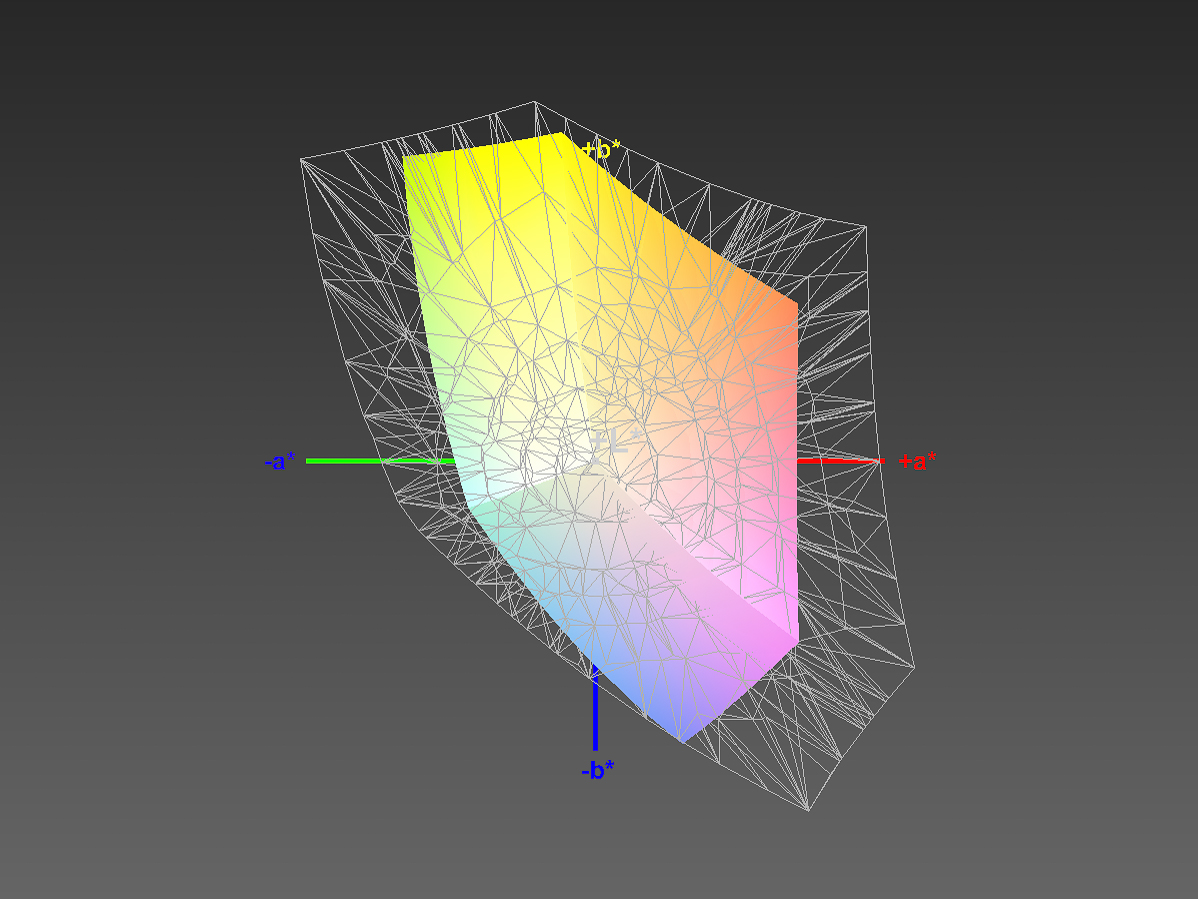

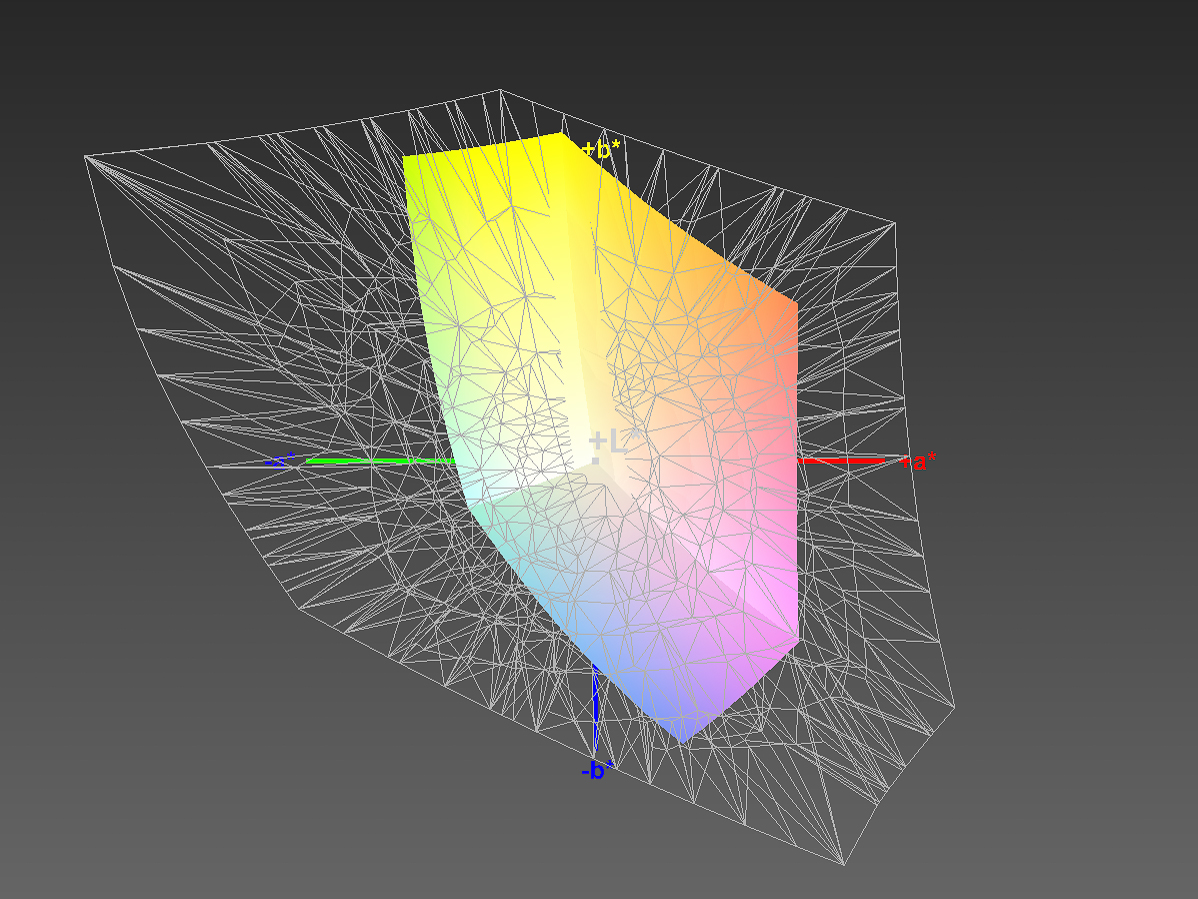

58% sRGB (Argyll) 37% AdobeRGB 1998 (Argyll)
Gamma: 2.54
Asus Vivobook S15 S510UQ-BQ189T
AU Optronics B156W02 / AUO B156HAN02.1, , 1920x1080, 15.6
Acer Swift 3 SF315-51G-55Z9
BOE0700 / BOE CQ NV156FHM-N48, , 1920x1080, 15.6
Lenovo ThinkPad E570-20H6S00000
AUO B156HAN04.4, , 1920x1080, 15.6
HP Pavilion 15 Power 1GK62AV
ID: AU Optronics AUO41ED, , 1920x1080, 15.6
Response Times
-2%
7%
9%
Response Time Grey 50% / Grey 80% *
47 (21, 26)
42 (22, 20)
11%
44.8 (16.4, 28.4)
5%
38.8 (20, 18.8)
17%
Response Time Black / White *
28 (16, 12)
32 (18, 14)
-14%
25.6 (6.8, 18.8)
9%
28 (16.4, 11.6)
-0%
PWM Frequency
1087 (90)
Screen
-10%
-15%
-23%
Brightness middle
293
248
-15%
242
-17%
256.6
-12%
Brightness
275
239
-13%
243
-12%
243
-12%
Brightness Distribution
86
69
-20%
75
-13%
81
-6%
Black Level *
0.25
0.18
28%
0.24
4%
0.19
24%
Contrast
1172
1378
18%
1008
-14%
1351
15%
Colorchecker DeltaE2000 *
3.81
4.85
-27%
4.65
-22%
5
-31%
Colorchecker DeltaE2000 max. *
6.64
8.34
-26%
9.64
-45%
20.1
-203%
Greyscale DeltaE2000 *
2.66
3.84
-44%
3.39
-27%
2.7
-2%
Gamma
2.54 94%
2.29 105%
2.7 89%
2.32 103%
CCT
6541 99%
6790 96%
6246 104%
6599 98%
Color Space (Percent of AdobeRGB 1998)
37
37
0%
36.69
-1%
36.7
-1%
Color Space (Percent of sRGB)
58
57
-2%
57.66
-1%
57.7
-1%
Moyenne finale (programmes/paramètres)
-6% / -9%
-4% / -11%
-7% / -18%

* ... Moindre est la valeur, meilleures sont les performances

vs. AdobeRGB
vs. AdobeRGB
vs. sRGB
vs. sRGB

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

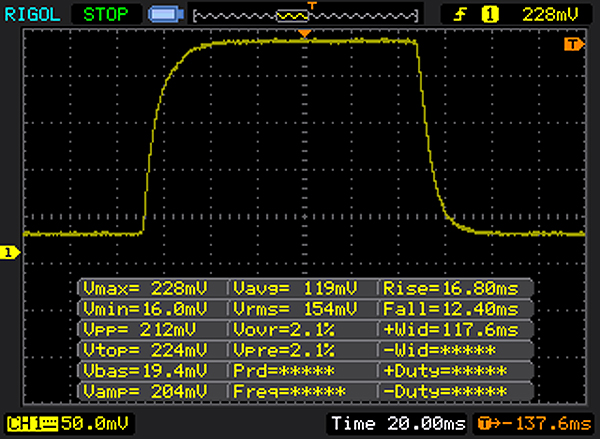

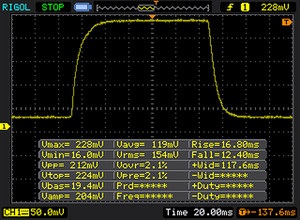

       Temps de réponse noir à blanc
28 ms ... hausse ↗ et chute ↘ combinées↗ 16 ms hausse
↘ 12 ms chute
L'écran souffre de latences relativement élevées, insuffisant pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 57 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (26.3 ms) de tous les appareils testés.

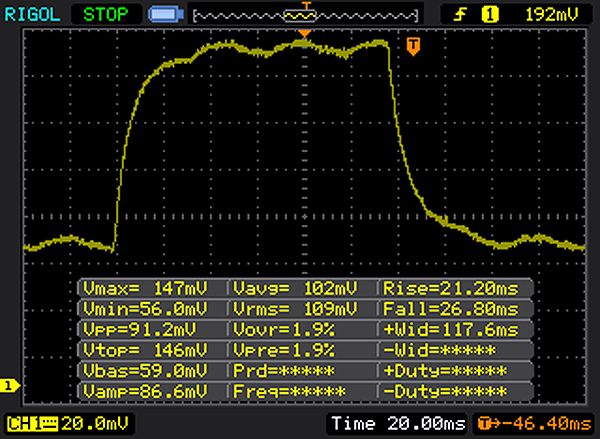

       Temps de réponse gris 50% à gris 80%
47 ms ... hausse ↗ et chute ↘ combinées↗ 21 ms hausse
↘ 26 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 74 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (42.1 ms) de tous les appareils testés.

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) non décelé

En comparaison, 54 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 9953 (minimum : 43 - maximum : 588200) Hz dans le cas où une MDI était active.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
HP Pavilion 15 Power 1GK62AV
Intel Core i7-7700HQ
151 Points ∼100% +16%
Acer Swift 3 SF315-51G-57E5
Intel Core i5-8250U
145 Points ∼96% +12%
Asus Vivobook S15 S510UQ-BQ189T
Intel Core i5-7200U
130 Points ∼86%
Lenovo ThinkPad E570-20H6S00000
Intel Core i5-7200U
129 Points ∼85% -1%
Acer Swift 3 SF315-51G-55Z9
Intel Core i5-7200U
128 Points ∼85% -2%
CPU Multi 64Bit
HP Pavilion 15 Power 1GK62AV
Intel Core i7-7700HQ
740 Points ∼100% +124%
Acer Swift 3 SF315-51G-57E5
Intel Core i5-8250U
560 Points ∼76% +69%
Asus Vivobook S15 S510UQ-BQ189T
Intel Core i5-7200U
331 Points ∼45%
Lenovo ThinkPad E570-20H6S00000
Intel Core i5-7200U
330 Points ∼45% 0%
Acer Swift 3 SF315-51G-55Z9
Intel Core i5-7200U
326 Points ∼44% -2%
Cinebench R15 CPU Multi 64Bit
331 Points
Cinebench R15 CPU Single 64Bit
130 Points
Aide
PCMark 8
Work Score Accelerated v2
HP Pavilion 15 Power 1GK62AV
GeForce GTX 1050 (Notebook), 7700HQ, SK Hynix HFS256G39TND-N210A
4964 Points ∼100% +11%
Lenovo ThinkPad E570-20H6S00000
GeForce GTX 950M, 7200U, Toshiba THNSF5256GPUK
4666 Points ∼94% +4%
Acer Swift 3 SF315-51G-55Z9
GeForce MX150, 7200U, Kingston RBUSNS8180DS3128GH
4577 Points ∼92% +2%
Asus Vivobook S15 S510UQ-BQ189T
GeForce 940MX, 7200U, Toshiba SG5 THNSNK128GVN8
4483 Points ∼90%
Home Score Accelerated v2
HP Pavilion 15 Power 1GK62AV
GeForce GTX 1050 (Notebook), 7700HQ, SK Hynix HFS256G39TND-N210A
4042 Points ∼100% +17%
Acer Swift 3 SF315-51G-55Z9
GeForce MX150, 7200U, Kingston RBUSNS8180DS3128GH
3719 Points ∼92% +7%
Lenovo ThinkPad E570-20H6S00000
GeForce GTX 950M, 7200U, Toshiba THNSF5256GPUK
3550 Points ∼88% +2%
Asus Vivobook S15 S510UQ-BQ189T
GeForce 940MX, 7200U, Toshiba SG5 THNSNK128GVN8
3468 Points ∼86%
PCMark 8 Home Score Accelerated v2
3468 points
PCMark 8 Work Score Accelerated v2
4483 points
Aide
Asus Vivobook S15 S510UQ-BQ189T
Toshiba SG5 THNSNK128GVN8
Acer Swift 3 SF315-51G-55Z9
Kingston RBUSNS8180DS3128GH
Lenovo ThinkPad E570-20H6S00000
Toshiba THNSF5256GPUK
HP Pavilion 15 Power 1GK62AV
SK Hynix HFS256G39TND-N210A
CrystalDiskMark 3.0
46%
139%
4%
Write 4k QD32
121.8
170.6
40%
319.2
162%
104.8
-14%
Read 4k QD32
279.1
287.9
3%
529.5
90%
348.5
25%
Write 4k
86.19
73.22
-15%
123.4
43%
76.3
-11%
Read 4k
16.05
31.89
99%
34.3
114%
18.83
17%
Write 512
138.2
216.6
57%
414
200%
142.6
3%
Read 512
368.6
310.3
-16%
759
106%
345.6
-6%
Write Seq
138.6
409.9
196%
468.1
238%
141.7
2%
Read Seq
437.6
462.2
6%
1140
161%
491.6
12%
Toshiba SG5 THNSNK128GVN8
Sequential Read: 437.6 MB/s
Sequential Write: 138.6 MB/s
512K Read: 368.6 MB/s
512K Write: 138.2 MB/s
4K Read: 16.05 MB/s
4K Write: 86.19 MB/s
4K QD32 Read: 279.1 MB/s
4K QD32 Write: 121.8 MB/s
3DMark 11 - 1280x720 Performance GPU
HP Pavilion 15 Power 1GK62AV
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
7537 Points ∼100% +180%
Acer Swift 3 SF315-51G-55Z9
NVIDIA GeForce MX150, Intel Core i5-7200U
4547 Points ∼60% +69%
Lenovo ThinkPad E570-20H6S00000
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
4243 Points ∼56% +58%
Asus Vivobook S15 S510UQ-BQ189T
NVIDIA GeForce 940MX, Intel Core i5-7200U
2689 Points ∼36%
3DMark
1920x1080 Fire Strike Graphics
HP Pavilion 15 Power 1GK62AV
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
6002 Points ∼100% +178%
Acer Swift 3 SF315-51G-55Z9
NVIDIA GeForce MX150, Intel Core i5-7200U
3603 Points ∼60% +67%
Lenovo ThinkPad E570-20H6S00000
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
3545 Points ∼59% +64%
Asus Vivobook S15 S510UQ-BQ189T
NVIDIA GeForce 940MX, Intel Core i5-7200U
2158 Points ∼36%
1280x720 Cloud Gate Standard Graphics
HP Pavilion 15 Power 1GK62AV
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
38082 Points ∼100% +218%
Lenovo ThinkPad E570-20H6S00000
NVIDIA GeForce GTX 950M, Intel Core i5-7200U
21835 Points ∼57% +82%
Acer Swift 3 SF315-51G-55Z9
NVIDIA GeForce MX150, Intel Core i5-7200U
21160 Points ∼56% +77%
Asus Vivobook S15 S510UQ-BQ189T
NVIDIA GeForce 940MX, Intel Core i5-7200U
11986 Points ∼31%
3DMark 11 Performance
2843 points
3DMark Cloud Gate Standard Score
7748 points
3DMark Fire Strike Score
1944 points
Aide
Bas Moyen Élevé Ultra
The Witcher 3 (2015) 41.425.4fps
Rise of the Tomb Raider (2016) 46.926.1fps
Farming Simulator 17 (2016) 43.829.8fps

Degré de la nuisance sonore

Au repos
31.2 / 31.2 / 31.2 dB(A)
Disque dur
31.6 dB(A)
Fortement sollicité
43.3 / 43.3 dB(A)



30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 30.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.935.63435.532.9253434.335.438.6343138.238.839.348.238.24031.933.734.535.631.95038.640.138.83438.66333.33130.332.233.38028.231.726.428.228.210028.728.626.42728.712526.627.524.724.326.616025.7272423.225.720025.625.822.722.825.625026.626.72222.326.631528.729.321.221.528.740026.126.520.320.226.150027.627.819.619.227.663026.627.519.418.926.68002929.720.318.429100030.8311917.930.8125030.530.618.31830.5160032.633.518.617.632.6200034.534.519.717.534.5250034.234.518.217.934.2315032.132.518.41832.1400030.630.918.518.230.6500029.329.818.718.529.363002828.318.618.628800025.52618.818.825.51000021.321.418.918.721.31250020.320.518.918.920.31600019.519.419.119.119.5SPL4343.331.230.743N4.14.31.51.54.1median 28Asus Vivobook S15 S510UQ-BQ189Tmedian 28.3median 19.1median 18.8median 28Delta2.521.31.82.531.934.93335.531.933.636.735.838.633.642.745.349.748.242.733.834.439.235.633.829.934.933.93429.928.729.830.732.228.727.329.130.628.227.326.430.527.12726.424.826.526.524.324.824.724.124.723.224.724.324.123.222.824.322.922.722.722.322.92323.620.821.52322.622.720.420.222.622.322.119.819.222.322.8231918.922.827.628.31918.427.625.426.61817.925.426.327.4181826.324.325.217.917.624.324.625.51817.524.624.125.21817.924.125.92718.21825.921.422.418.418.221.421.822.918.518.521.820.22118.518.620.219.319.718.818.819.31919.318.918.71919.119.51918.919.119.52019.319.119.53636.930.930.7362.42.61.51.52.4median 23Acer Swift 3 SF315-51G-55Z9median 23.6median 19median 18.8median 231.71.91.61.81.7hearing rangehide median Fan Noise
 30.5 °C38.2 °C37.4 °C
 23.7 °C29.4 °C36.6 °C
 23 °C23.8 °C26 °C
Maximum: 38.2 °C
Moyenne: 29.8 °C
36.4 °C49 °C33.3 °C
35.6 °C35 °C26.1 °C
26 °C24.2 °C23.6 °C
Maximum: 49 °C
Moyenne: 32.1 °C
Alimentation (valeur maximale)  47.5 °C | Température ambiante de la pièce 21.3 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.635.532.6253538.6353136.848.236.8403435.6345038.83438.86328.832.228.88030.728.230.710034.72734.712540.924.340.916041.923.241.920046.122.846.125057.422.357.43156121.56140063.420.263.45006619.26663066.618.966.680065.418.465.4100063.617.963.6125067.21867.2160069.417.669.4200071.217.571.2250073.417.973.4315069.41869.4400069.318.269.3500068.318.568.3630069.818.669.8800069.518.869.5100006818.7681250061.918.961.91600054.719.154.7SPL81.230.781.2N50.91.550.9median 66Asus Vivobook S15 S510UQ-BQ189Tmedian 18.8median 66Delta7.31.87.336.535.536.533.738.633.737.648.237.633.735.633.732.13432.129.432.229.427.528.227.526.12726.128.424.328.440.523.240.544.722.844.756.922.356.959.121.559.162.320.262.364.519.264.572.518.972.57618.47674.317.974.373.31873.373.217.673.274.517.574.575.717.975.776.41876.477.518.277.574.318.574.370.318.670.358.618.858.662.818.762.873.518.973.570.419.170.486.130.786.165.61.565.6median 70.4Acer Swift 3 SF315-51G-55Z9median 18.8median 70.49.51.89.530.331.130.331.73133.229.23029.131.328.429.534.133.538.236.831.333.625.539.726.354.825.266.926.670.824.368.222.764.319.461.119.656.518.657.518.764.518.570.918.27618.37118.566.920.96520.364.819.563.619.764.219.756.820.554.219.652.332.480.71.945.7median 19.7Lenovo ThinkPad E570-20H6S00000median 64.23.25.838.94036.33736.736.334.835.334.936.336.43333.532.631.831.430.130.230.533.729.643.828.850.828.154.127.355.82857.228.359.725.861.925.763.925.366.425.668.524.459.824.867.124.261.324.259.524.262.724.161.223.958.323.854.123.853.123.949.437.475.5334.6median 25.6HP Pavilion 15 Power 1GK62AVmedian 58.326.2hearing rangehide median Pink Noise
Asus Vivobook S15 S510UQ-BQ189T audio analysis

(±) | speaker loudness is average but good (73.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2% away from median
(+) | mids are linear (4.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (3.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.8% difference to median)
Compared to same class
» 33% of all tested devices in this class were better, 6% similar, 61% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 21% of all tested devices were better, 4% similar, 76% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Acer Swift 3 SF315-51G-55Z9 audio analysis

(±) | speaker loudness is average but good (77.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.8% lower than median
(±) | linearity of bass is average (11.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.4% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6% higher than median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.8% difference to median)
Compared to same class
» 61% of all tested devices in this class were better, 7% similar, 32% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 47% of all tested devices were better, 8% similar, 45% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad E570-20H6S00000 audio analysis

(±) | speaker loudness is average but good (80.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.8% lower than median
(-) | bass is not linear (16.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(±) | linearity of mids is average (9.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (6.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.8% difference to median)
Compared to same class
» 48% of all tested devices in this class were better, 6% similar, 47% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 31% of all tested devices were better, 6% similar, 63% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP Pavilion 15 Power 1GK62AV audio analysis

(-) | not very loud speakers (68.52 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.7% lower than median
(±) | linearity of bass is average (13.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(±) | linearity of mids is average (8.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(±) | linearity of highs is average (11.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.7% difference to median)
Compared to same class
» 78% of all tested devices in this class were better, 6% similar, 16% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 63% of all tested devices were better, 8% similar, 29% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consommation énergétique
Éteint/en veilledarklight 0.4 / 0.5 Watts
Au reposdarkmidlight 3.6 / 6.8 / 9.5 Watts
Fortement sollicité midlight 51.6 / 56 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Asus Vivobook S15 S510UQ-BQ189T
7200U, GeForce 940MX, Toshiba SG5 THNSNK128GVN8, IPS, 1920x1080, 15.6
Lenovo IdeaPad 320-15IKB 80XL01NEGE
7200U, GeForce 940MX, SK Hynix HFS256G3BTND, TN LED, 1920x1080, 15.6
Acer Swift 3 SF315-51G-55Z9
7200U, GeForce MX150, Kingston RBUSNS8180DS3128GH, IPS, 1920x1080, 15.6
Lenovo ThinkPad E570-20H6S00000
7200U, GeForce GTX 950M, Toshiba THNSF5256GPUK, IPS LED, 1920x1080, 15.6
HP Pavilion 15 Power 1GK62AV
7700HQ, GeForce GTX 1050 (Notebook), SK Hynix HFS256G39TND-N210A, IPS, 1920x1080, 15.6
Power Consumption
21%
1%
6%
-84%
Idle Minimum *
3.6
2.9
19%
3.7
-3%
2.8
22%
9.4
-161%
Idle Average *
6.8
5.9
13%
6.2
9%
6.3
7%
9.7
-43%
Idle Maximum *
9.5
7.3
23%
8.4
12%
6.9
27%
16.8
-77%
Load Average *
51.6
39.5
23%
50
3%
51.6
-0%
76.5
-48%
Load Maximum *
56
42
25%
65.2
-16%
69.7
-24%
105.6
-89%
Witcher 3 ultra *
86.5

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
7h 03min
NBC WiFi Websurfing Battery Test 1.3
4h 15min
Fortement sollicité (luminosité au maximum)
1h 11min
Asus Vivobook S15 S510UQ-BQ189T
7200U, GeForce 940MX, 42 Wh
Acer Swift 3 SF315-51G-55Z9
7200U, GeForce MX150, 49 Wh
Lenovo ThinkPad E570-20H6S00000
7200U, GeForce GTX 950M, 41 Wh
HP Pavilion 15 Power 1GK62AV
7700HQ, GeForce GTX 1050 (Notebook), 70 Wh
Autonomie de la batterie
108%
91%
91%
Reader / Idle
423
916
117%
883
109%
971
130%
WiFi v1.3
255
509
100%
462
81%
481
89%
Load
71
146
106%
129
82%
110
55%

Points positifs

+ beaucoup de variantes
+ léger, compact, fin
+ design premium
+ finitions parfaites
+ fonctionnalités de sécurité disponibles
+ bon touchpad
+ très bon contraste
+ SSD supérieur à la moyenne
+ silencieux
+ système audio honnête
+ logiciel d'économie de batterie disponible

Points négatifs

- solidité pourrait être meilleure
- 2 USB 2.0
- position des ports pas idéale
- lecteur de carte SD lent
- touches molles
- l'écran aurait pu être plus lumineux
- couverture de l'espace colorimétrique insuffisante
- mauvaise webcam
- autonomie beaucoup trop courte
En test : l'Asus Vivobook S15 S510UQ-BQ189T . Modèle de test fourni par notebooksbilliger.de.
En test : l'Asus Vivobook S15 S510UQ-BQ189T . Modèle de test fourni par notebooksbilliger.de.

Désolé Asus, mais votre élégant VivoBook S15 S510UQ est dans une certaine mesure un échec. Notre modèle testé ici est vendu presque 1 000 €, et cela ne colle ni avec la solidité relative du châssis, ni avec le clavier tout juste passable. Et que faire du cryptage TPM, d’un capteur d’empreintes digitales, et d’un poids et d’une taille réduits, si la batterie ne tient que 4h ? Comment le traitement d’image peut-il profiter des bons contrastes et des couleurs fidèles, si même l’espace colorimétrique sRGB n’est que très mal couvert ? Pourquoi Asus utilise-t-il une carte graphique qui n’améliore pas grand-chose, au lieu d’une GeForce MX150 bien plus efficace ? Où le Taïwanais a-t-il trouvé ce SSD à la vitesse d’un autre âge ? Les deux ports USB 2.0, le lecteur de carte ultra lent, et la webcam vraiment mauvaise sont-ils à la hauteur du prix ?

A notre avis, Asus est devenu la victime de sa propre stratégie. D’autres modèles de la série débutent à des prix auxquels nous pourrions accepter de telles limitations. Mais nous attendons tout simplement plus à près de 1 000 €. Quiconque cherchant un PC portable compact multimédia de 15 pouces pour les déplacements sera bien mieux servi par exemple par l’Acer Swift 3 SF315, dans l’une des configurations que nous avons récemment testée.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Asus Vivobook S15 S510UQ-BQ189T - 10/17/2017 v6
Sven Kloevekorn

Châssis
77 / 98 → 79%
Clavier
72%
Dispositif de pointage
84%
Connectivité
49 / 81 → 61%
Poids
67 / 20-67 → 99%
Autonomie
80%
Écran
88%
Performances en jeu
68 / 85 → 80%
Performances dans les applications
83 / 92 → 90%
Chauffe
93%
Nuisance sonore
84 / 95 → 88%
Audio
73%
Appareil photo
29 / 85 → 34%
Moyenne
73%
81%
Multimedia - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique du PC portable Asus VivoBook S15 S510UQ (i5-7200U, 940MX)
Sven Kloevekorn, 2018-01-10 (Update: 2018-01-10)
