Courte critique du PC portable Lenovo IdeaPad 510S-14ISK (80TK003KGE)

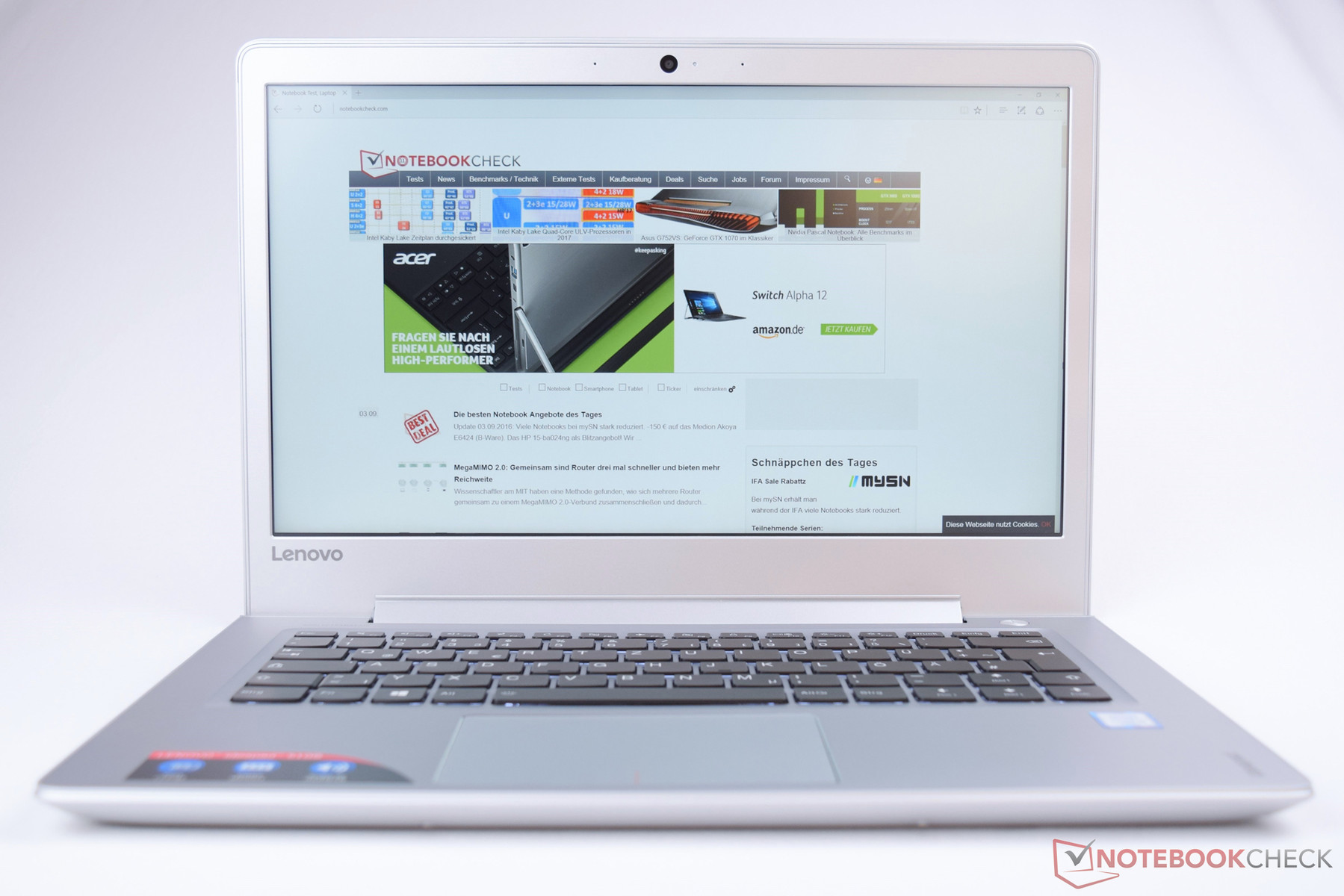

Compagnon couleur argent! Lenovo présente un nouveau PC portable de 14 pouces léger, équipé d'un processeur basse consommation Intel accompagné d'une partie graphique intégrée Iris Graphics. Sa tentative de s'insérer dans le secteur premium n'est pas tout à fait couronnée de succès. Notre test révèle pourquoi Lenovo a échoué à cet égard ainsi que le comportement de notre exemplaire lors des divers tests.
Sebastian Bade, Sven Kloevekorn (traduit par Banibé TABOUKOUNA), 🇺🇸 🇩🇪 ...
Lenovo IdeaPad 510S-14ISK (Ideapad 500 Gamme)
Processeur
Intel Core i5-6267U 2 x 2.9 - 3.3 GHz, Skylake
Carte graphique
Intel Iris Graphics 550, Processeur: 300 - 1100 MHz, 20.19.15.4390
Mémoire
8192 Mo
, DDR4, 1866 MHz, mono canal, aucun emplacement mémoire libre
Écran
14.00 pouces 16:9, 1920 x 1080 pixel 157 PPP, NV140FHM-N41, a-Si TFT-LCD, IPS, LED, 262K, 6 Bit, mat, brillant: non
Disque dur

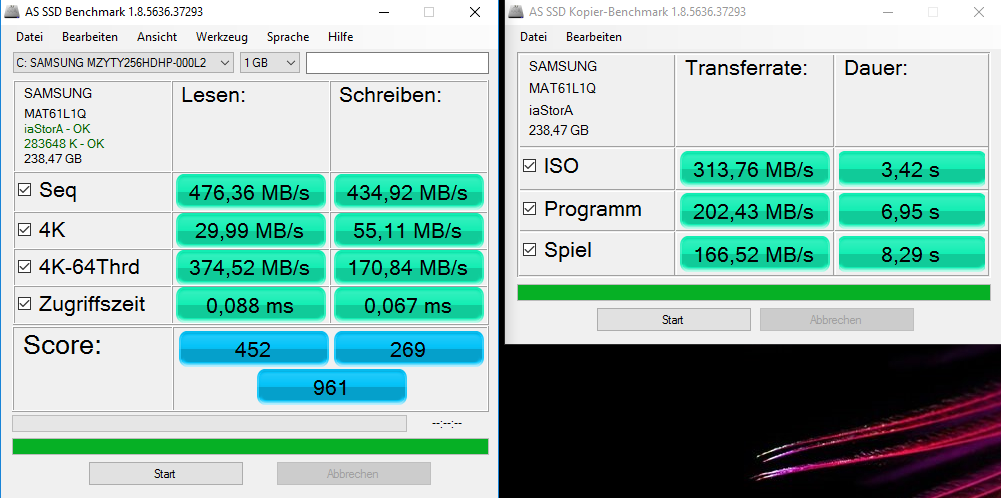

Samsung MZYTY256HDHP, 256 Go
, SSD de 2.5", 193 Go libres
Carte son
Realtek High Definition Audio
Connexions
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Encoche de Sécurité Kensington, Connectique audio: stereo, Lecteur de cartes mémoires: MMC, SD, SDHC, SDXC
Réseau
Realtek PCIe GBE Family Controller (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Taille
Hauteur x Largeur x Profondeur (en mm): 19.5 x 340 x 240

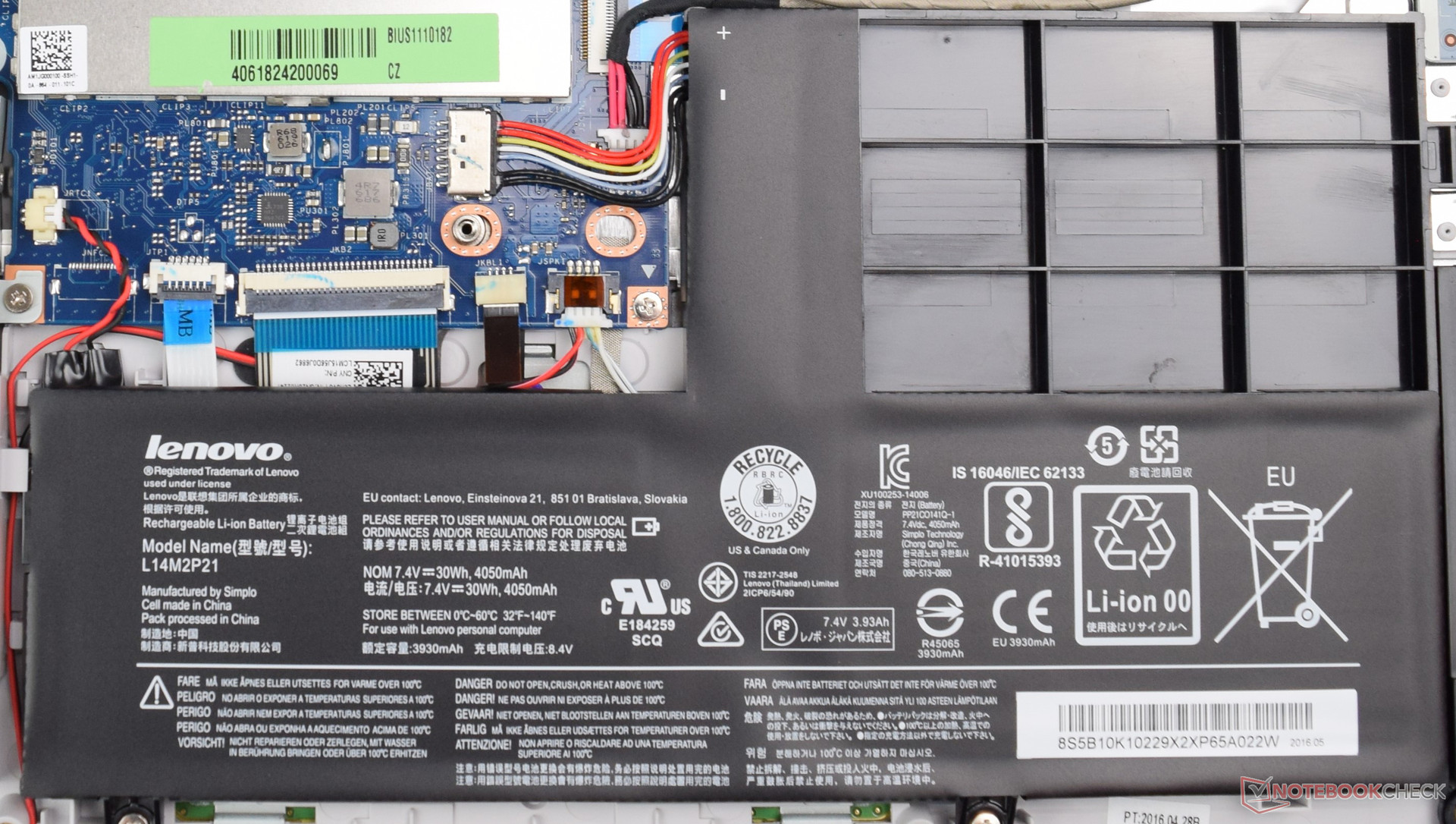

Batterie
30 Wh, 4050 mAh Lithium-Ion
Système d'exploitation
Microsoft Windows 10 Home 64 Bit
Appareil photo

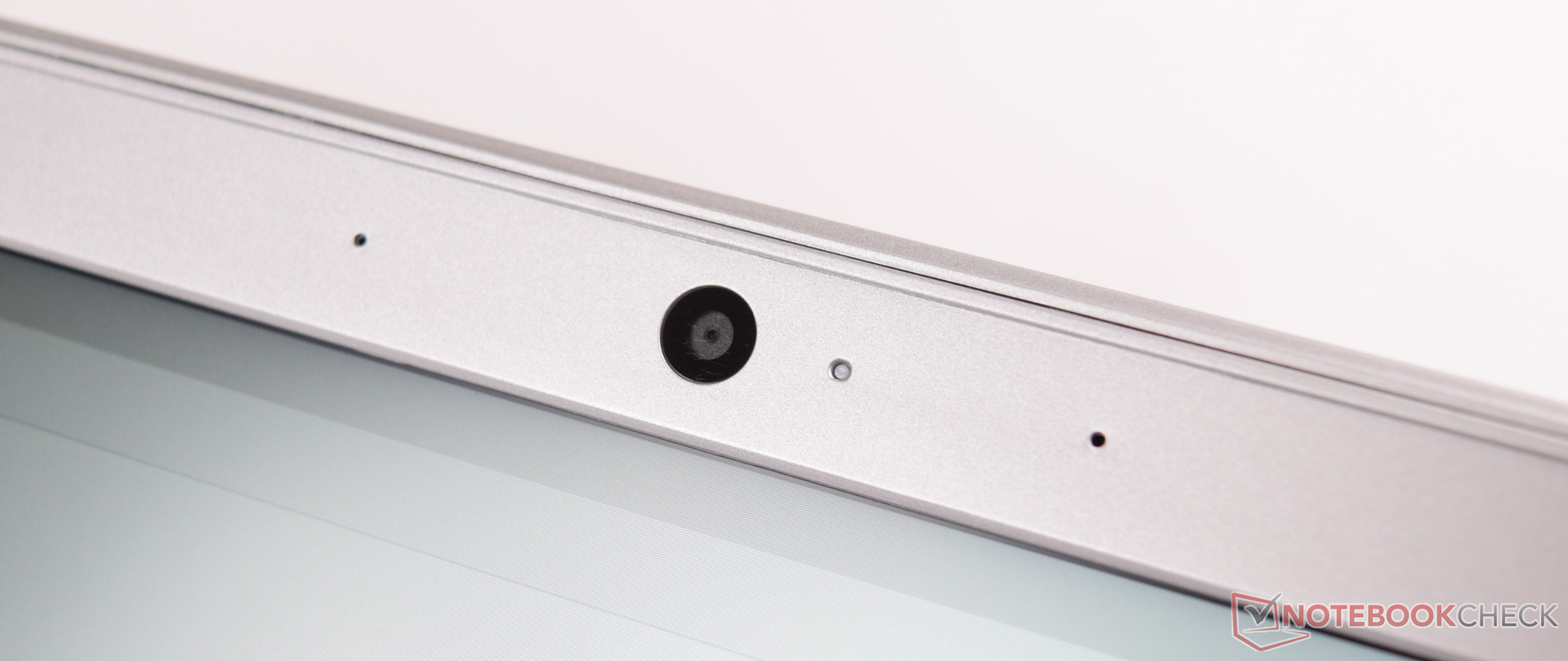

Webcam: 720p-HD
Fonctionnalités additionnelles

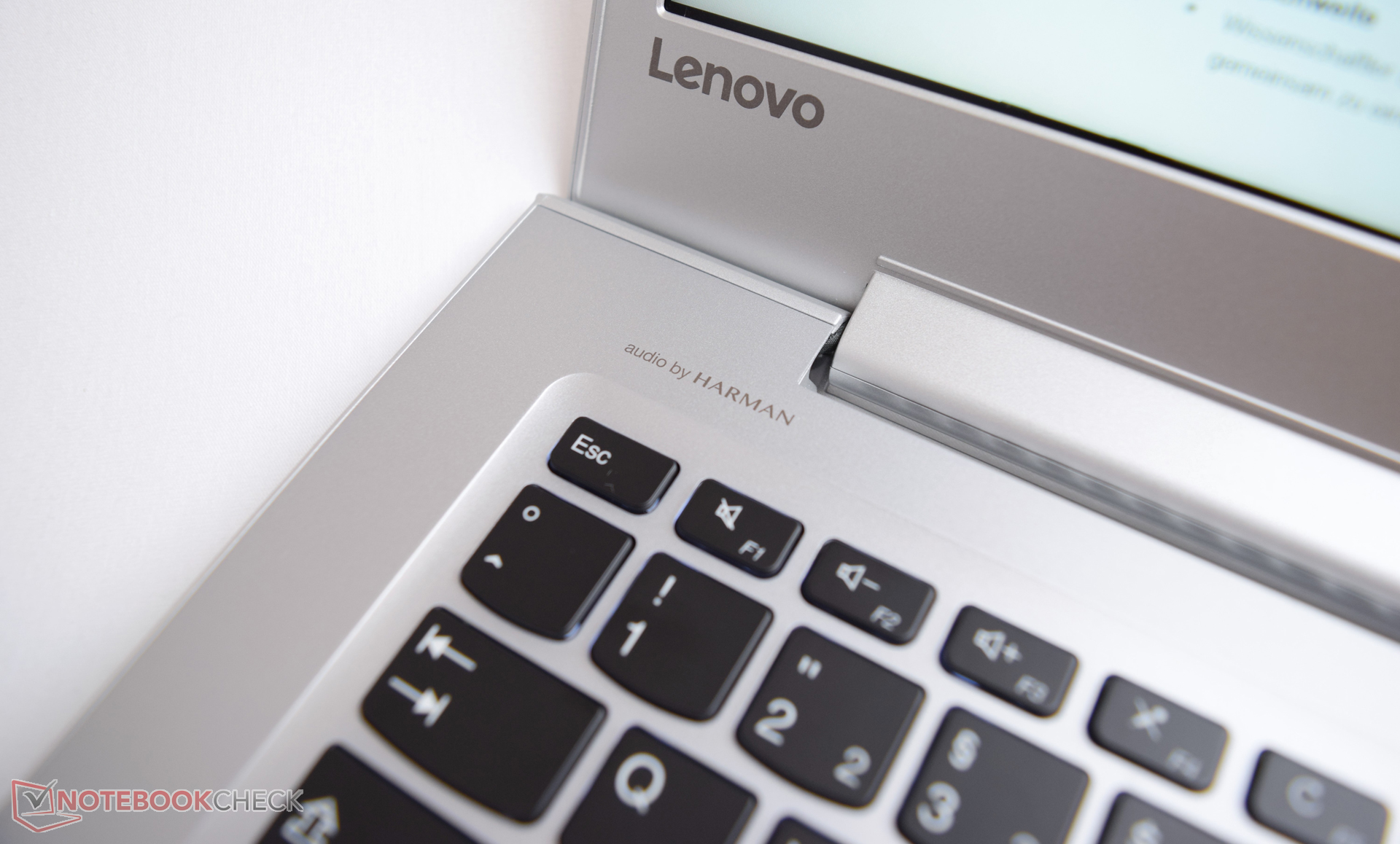

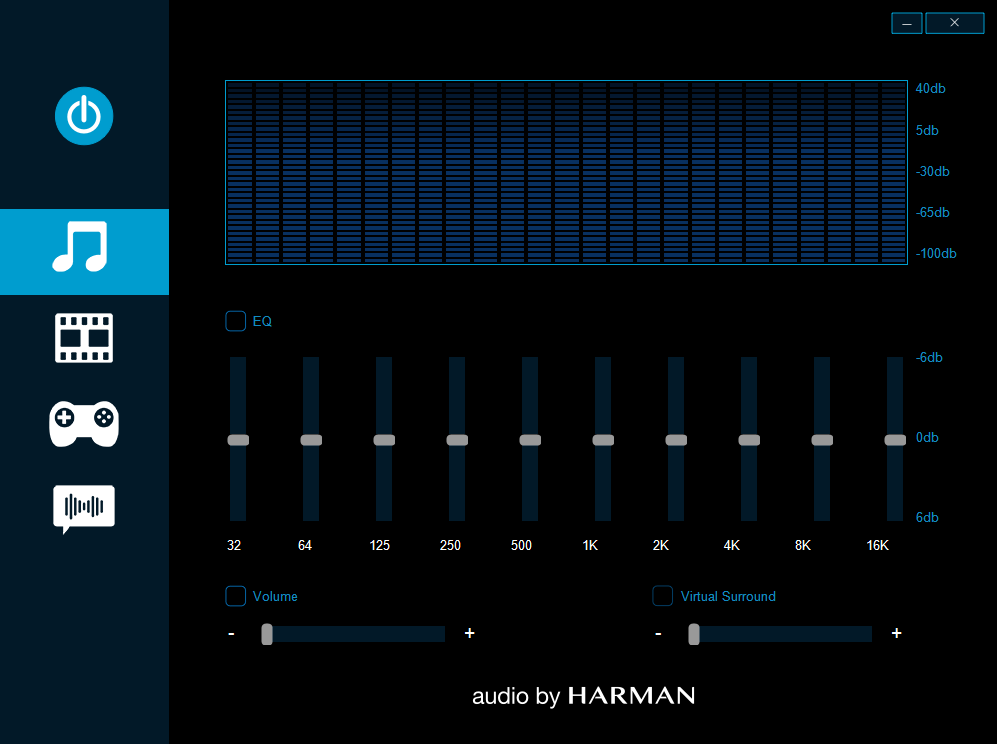

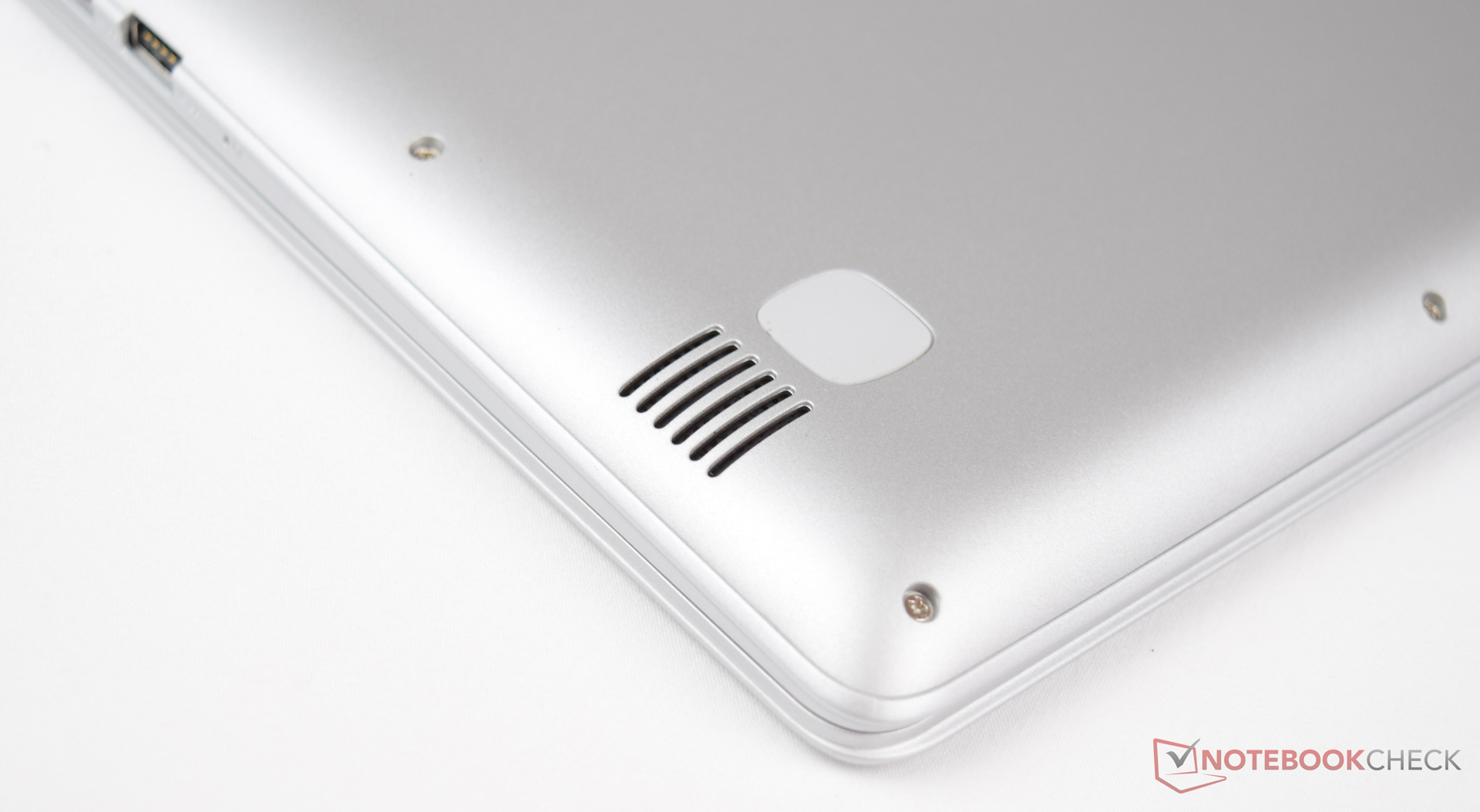

Haut-parleurs: Audio by HARMAN, Clavier: Chiclet, Rétroéclairage du clavier: oui, McAfee LifeSafe, Lenovo Solution Center, 24 Mois Garantie
Poids

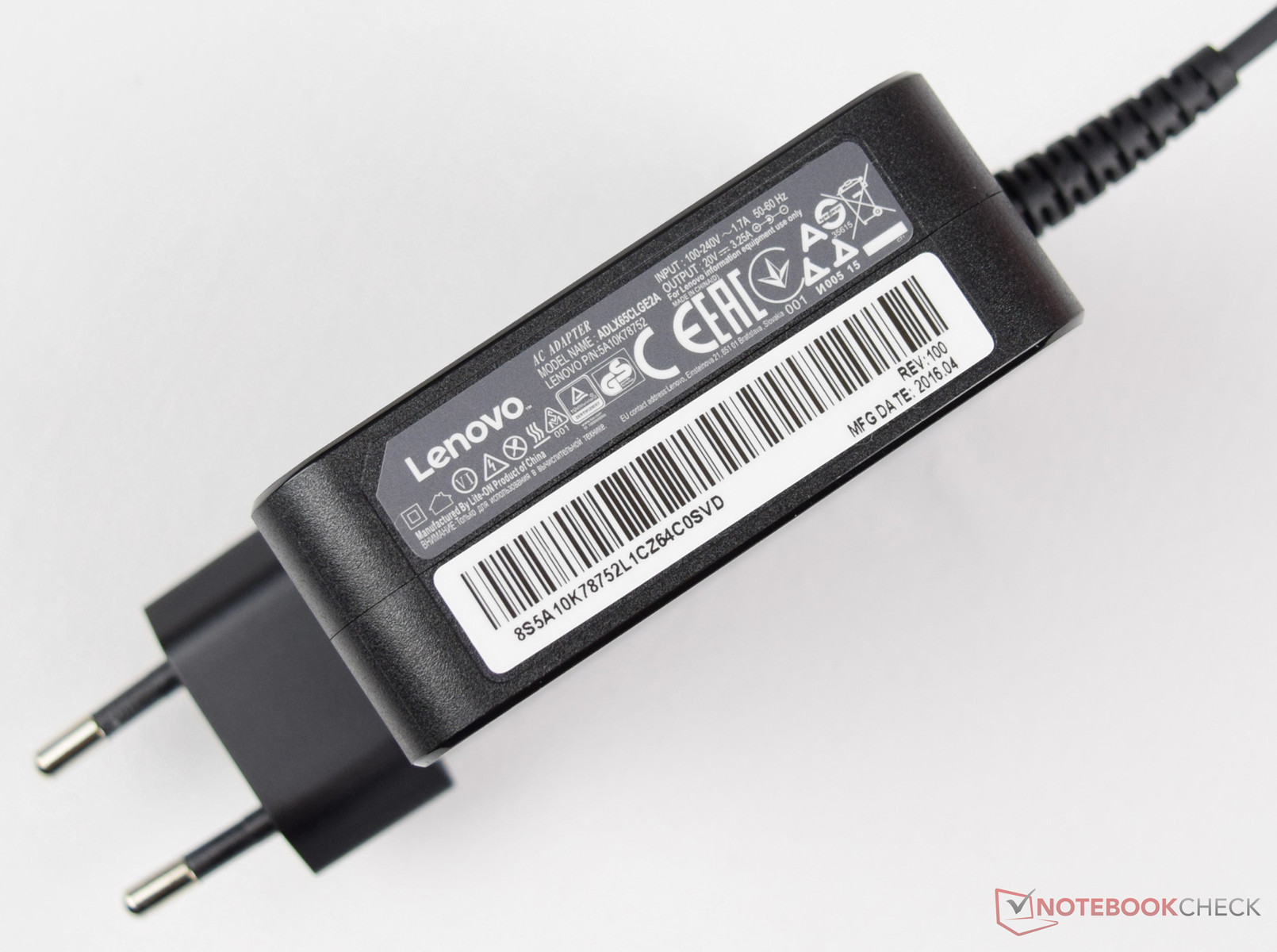

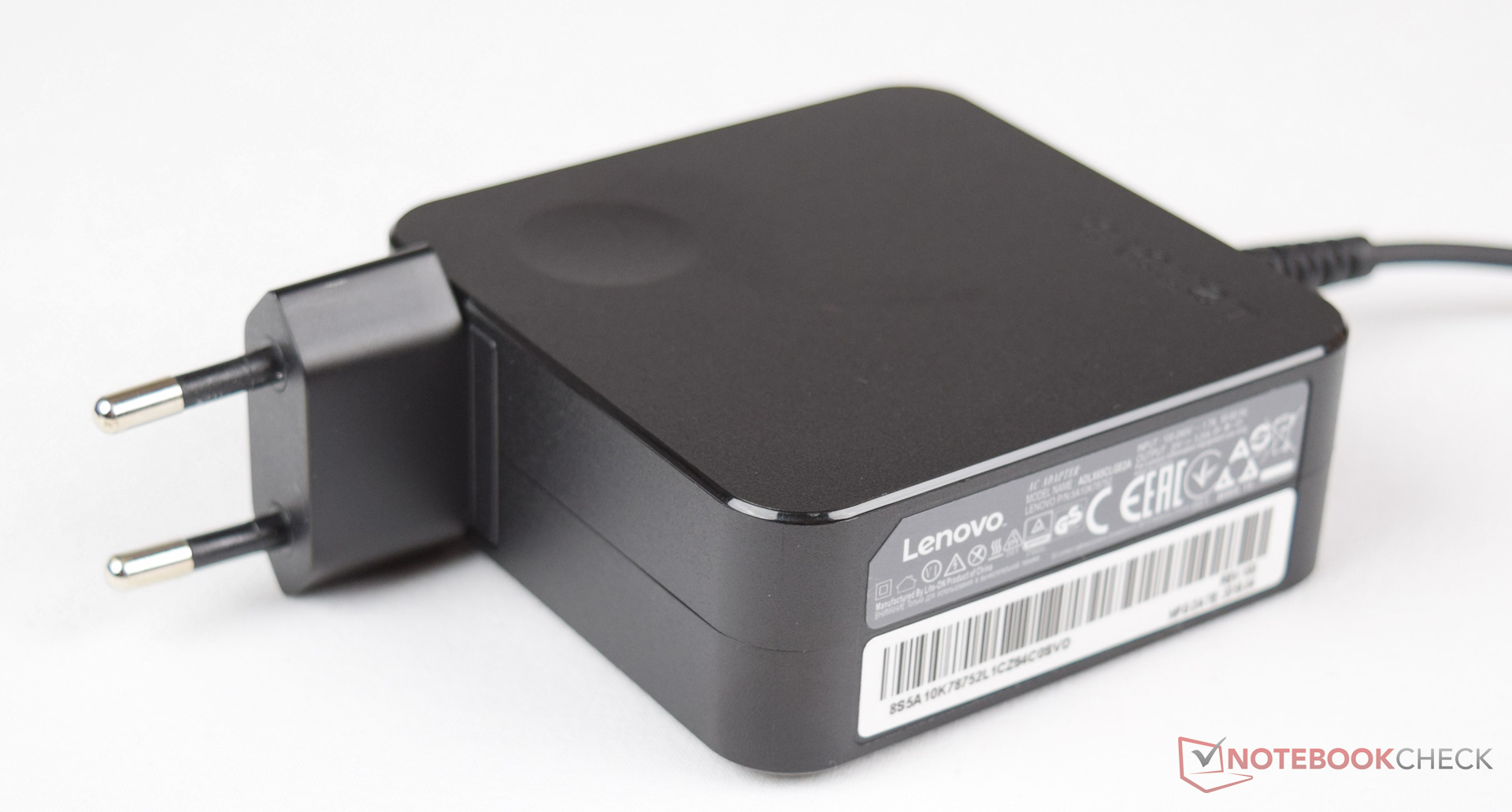

1.542 kg, Alimentation: 230 g
Prix
799 euros
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



340 mm 240 mm 19.5 mm 1.5 kg340 mm 240 mm 19.5 mm 1.6 kg328 mm 234 mm 25.6 mm 1.6 kg327 mm 228 mm 19.7 mm 1.6 kg327 mm 228 mm 19.7 mm 1.6 kg326.5 mm 226 mm 12.6 mm 1.4 kg
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo Ideapad 500s-14ISK

61 MB/s ∼100% +23%
HP Envy 13-d020ng

54 MB/s ∼89% +9%
Lenovo IdeaPad 510S-14ISK

49.5 MB/s ∼81%
Asus X302UV-FN016T

27.9 MB/s ∼46% -44%
Acer Aspire V3-372-57CW

22.4 MB/s ∼37% -55%
Acer Aspire V3-372-50LK

15 MB/s ∼25% -70%
maximum AS SSD Seq Read Test (1GB)
Lenovo Ideapad 500s-14ISK

85.7 MB/s ∼100% +3%
Lenovo IdeaPad 510S-14ISK

83.4 MB/s ∼97%
HP Envy 13-d020ng

83 MB/s ∼97% 0%
Asus X302UV-FN016T

37.1 MB/s ∼43% -56%
Acer Aspire V3-372-57CW

27.3 MB/s ∼32% -67%
Acer Aspire V3-372-50LK

27.1 MB/s ∼32% -68%
Networking
iperf Server (receive) TCP 1 m
Dell Inspiron 15 5568
Intel Dual Band Wireless-AC 3165
372 MBit/s ∼100% +39%
Lenovo IdeaPad 510S-14ISK
Intel Dual Band Wireless-AC 3165
268 MBit/s ∼72%
iperf Client (transmit) TCP 1 m
Dell Inspiron 15 5568
Intel Dual Band Wireless-AC 3165
390 MBit/s ∼100% +34%
Lenovo IdeaPad 510S-14ISK
Intel Dual Band Wireless-AC 3165
291 MBit/s ∼75%
270
cd/m²
272
cd/m²
276
cd/m²
264
cd/m²
257
cd/m²
259
cd/m²
267
cd/m²
254
cd/m²
248
cd/m²
Homogénéité de la luminosité
NV140FHM-N41
X-Rite i1Pro 2
Maximum: 276 cd/m² Moyenne: 263 cd/m² Minimum: 4 cd/m²
Homogénéité de la luminosité: 90 %
Valeur mesurée au centre, sur batterie: 257 cd/m²
Contraste: 1071:1 (Valeurs des noirs: 0.24 cd/m²)
ΔE Color 5.44 | 0.6-29.43 Ø5.7
ΔE Greyscale 3.95 | 0.64-98 Ø5.9
64% sRGB (Argyll 3D) 40% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.29
Lenovo IdeaPad 510S-14ISK
NV140FHM-N41, 1920x1080, 14.00
Lenovo Ideapad 500s-14ISK
Chi Mei CMN14A7, 1920x1080, 14.00
Asus X302UV-FN016T
InfoVision M133NWN1 R3, 1366x768, 13.30
Acer Aspire V3-372-57CW
LG LP133WF2-SPL3, 1920x1080, 13.30
HP Envy 13-d020ng
AU Optronics AUO272D, 1920x1080, 13.30
Acer Aspire V3-372-50LK
LG Display LP133WF2-SPL3, 1920x1080, 13.30
Response Times
8%
6%
-12%
116%
3%
Response Time Grey 50% / Grey 80% *
45 (17, 28)
43 (22, 21)
4%
42 (20, 22)
7%
41 (16, 25)
9%
34 (11, 23)
24%
46 (19, 27)
-2%
Response Time Black / White *
26 (7, 19)
23 (8, 15)
12%
23 (6, 17)
12%
34.4 (11.6, 12.8)
-32%
24 (5, 19)
8%
24 (5, 19)
8%
PWM Frequency
50 (60)
50 (90)
0%
208 (40)
316%
Screen
-43%
-14%
-21%
17%
-13%
Brightness middle
257
249
-3%
218
-15%
247
-4%
345
34%
250
-3%
Brightness
263
235
-11%
210
-20%
239
-9%
335
27%
247
-6%
Brightness Distribution
90
87
-3%
88
-2%
81
-10%
95
6%
87
-3%
Black Level *
0.24
0.44
-83%
0.5
-108%
0.38
-58%
0.25
-4%
0.43
-79%
Contrast
1071
566
-47%
436
-59%
650
-39%
1380
29%
581
-46%
Colorchecker DeltaE2000 *
5.44
9.47
-74%
3.89
28%
5.95
-9%
4.94
9%
4.51
17%
Colorchecker DeltaE2000 max. *
10.93
15.41
-41%
7.11
35%
14.2
-30%
8.85
19%
Greyscale DeltaE2000 *
3.95
10.22
-159%
4.9
-24%
5.25
-33%
5.85
-48%
3.18
19%
Gamma
2.29 96%
2.34 94%
2.41 91%
2.42 91%
2.25 98%
2.43 91%
CCT
6896 94%
11451 57%
7860 83%
6736 96%
7105 91%
6743 96%
Color Space (Percent of AdobeRGB 1998)
40
39
-2%
46
15%
37.28
-7%
60
50%
37
-7%
Color Space (Percent of sRGB)
64
57
-11%
73
14%
58.37
-9%
93
45%
58
-9%
Moyenne finale (programmes/paramètres)
-18% / -35%
-4% / -9%
-17% / -19%
67% / 40%
-5% / -10%

* ... Moindre est la valeur, meilleures sont les performances

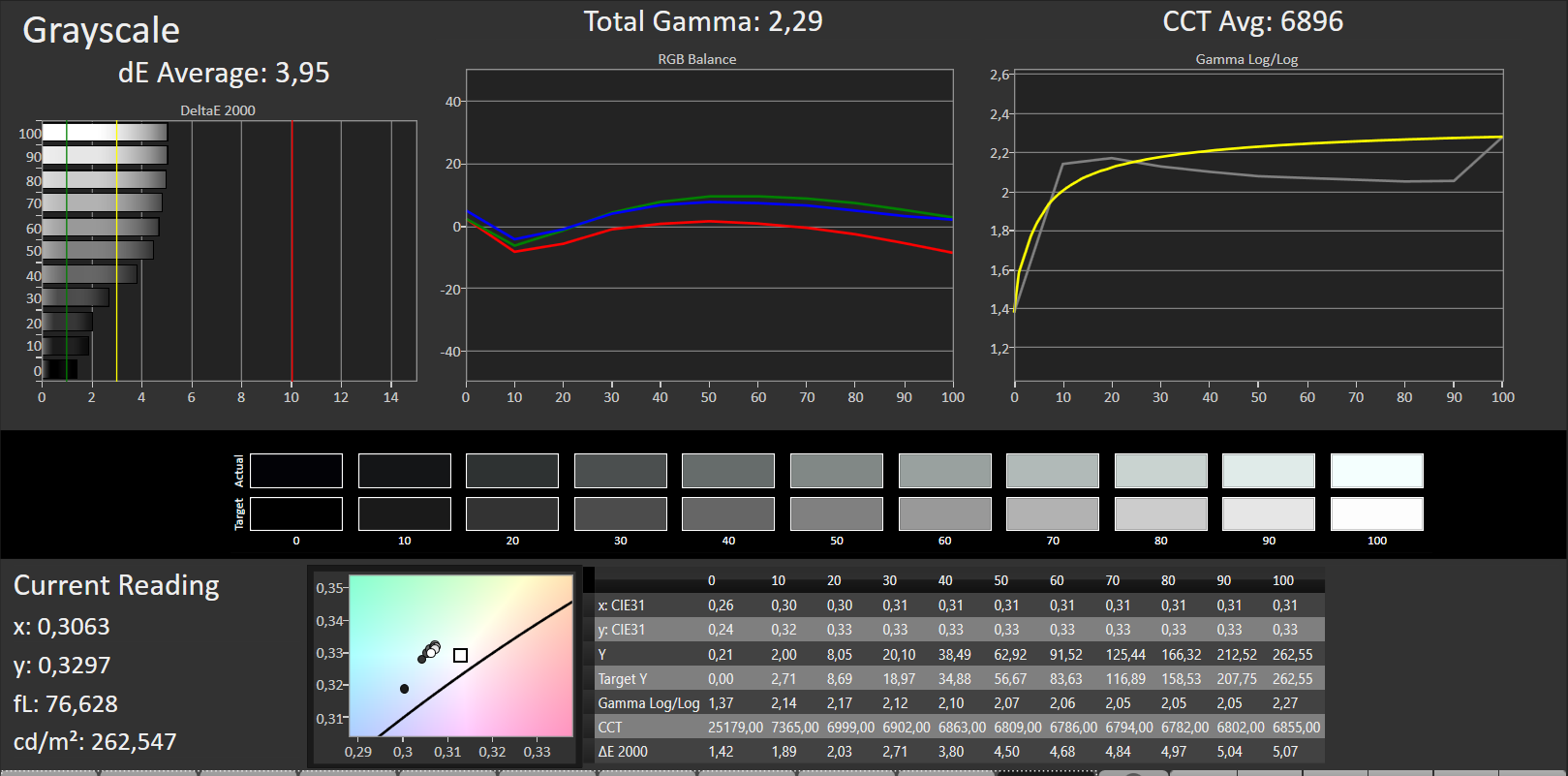

Grayscale
Grayscale

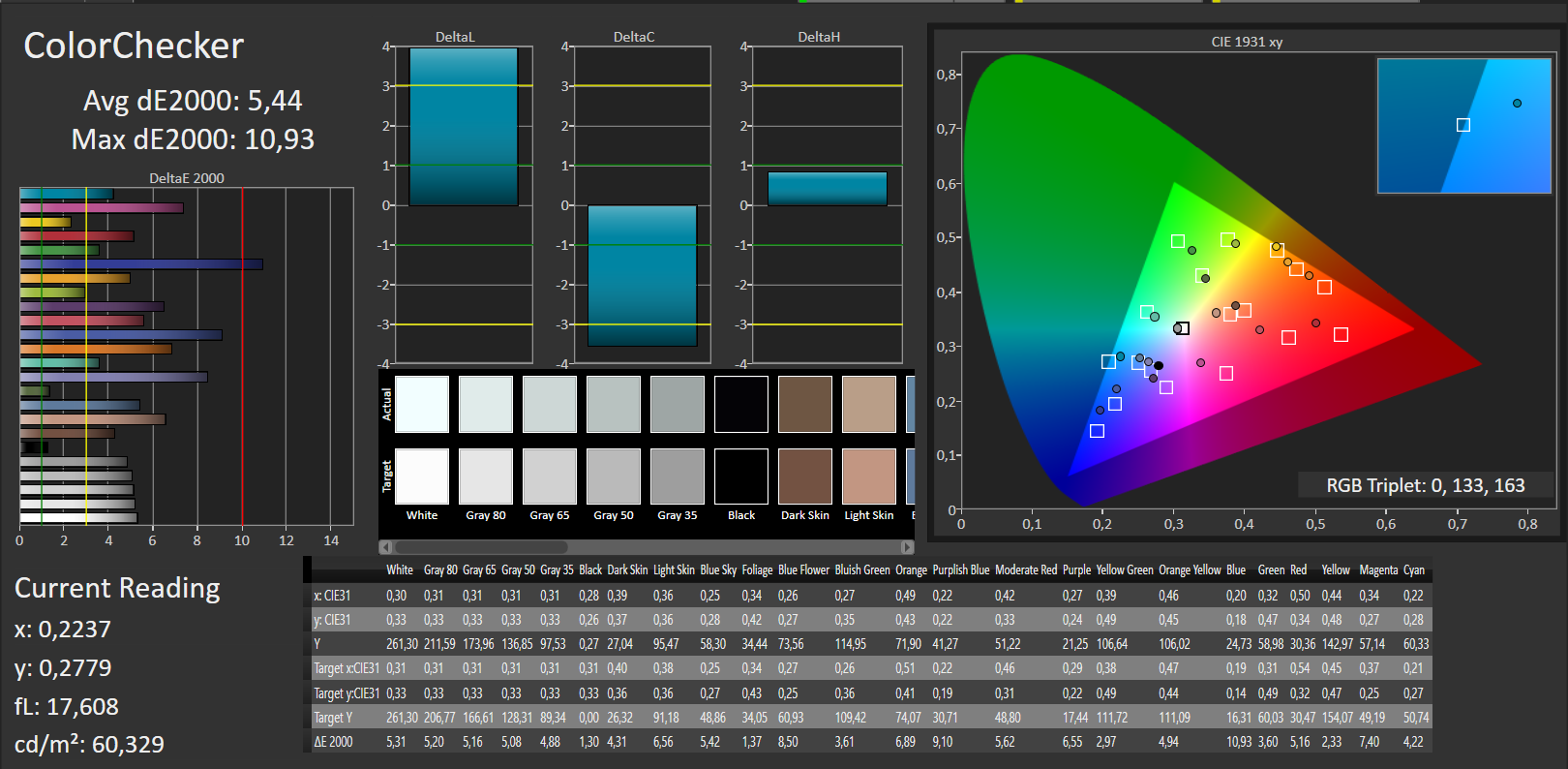

ColorChecker
ColorChecker

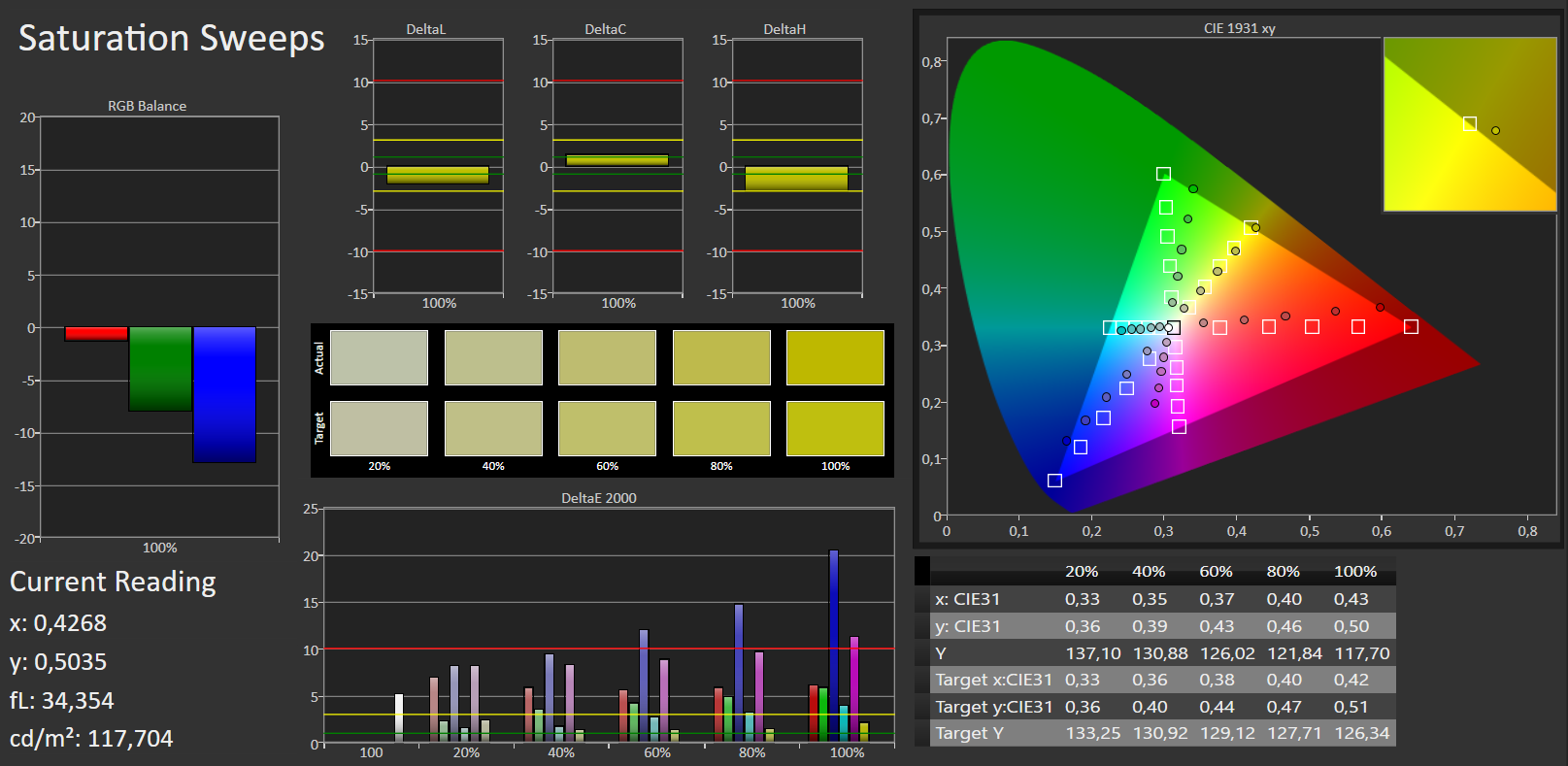

Saturation Sweeps
Saturation Sweeps

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

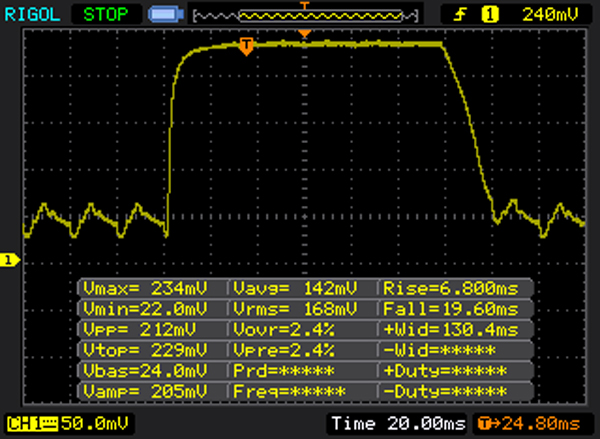

       Temps de réponse noir à blanc
26 ms ... hausse ↗ et chute ↘ combinées↗ 7 ms hausse
↘ 19 ms chute
L'écran souffre de latences relativement élevées, insuffisant pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 48 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (24.4 ms) de tous les appareils testés.

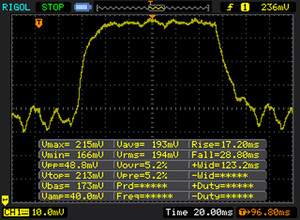

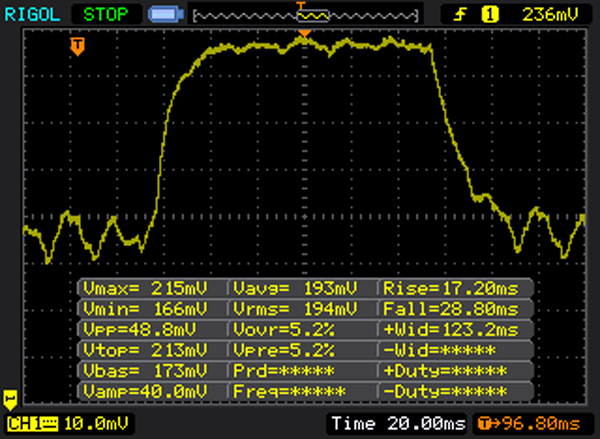

       Temps de réponse gris 50% à gris 80%
45 ms ... hausse ↗ et chute ↘ combinées↗ 17 ms hausse
↘ 28 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 636 (maximum) ms. » 68 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (38.7 ms) de tous les appareils testés.

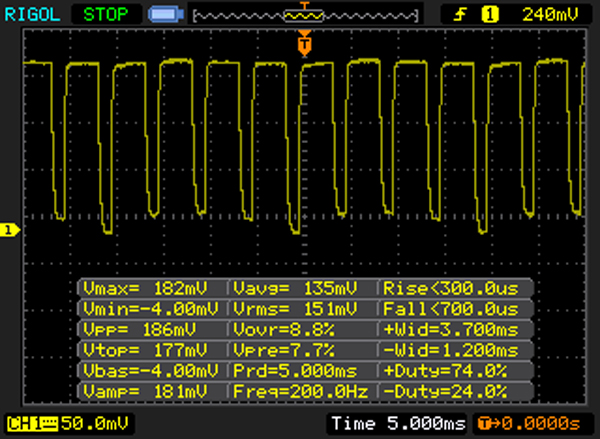

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) décelé 50 Hz ≤ 60 Niveau de luminosité

Le rétroéclairage de l'écran scintille à la fréquence de 50 Hz (certainement du fait de l'utilisation d'une MDI - Modulation de largeur d'impulsion) à un niveau de luminosité inférieur ou égal à 60 % . Aucun scintillement ne devrait être perceptible au-dessus de cette valeur.

La fréquence de rafraîchissement de 50 Hz est extrêmement faible, de grands risques de fatigue oculaire accrue et de maux de tête en cas d'utilisation prolongée.

En comparaison, 51 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 9725 (minimum : 5 - maximum : 142900) Hz dans le cas où une MDI était active.

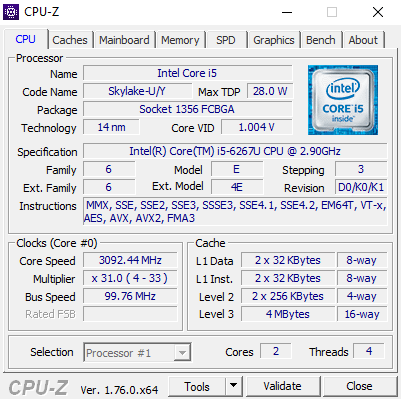

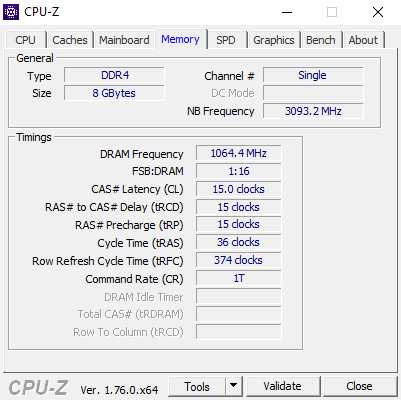

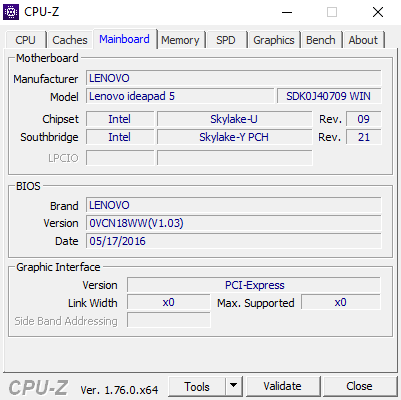

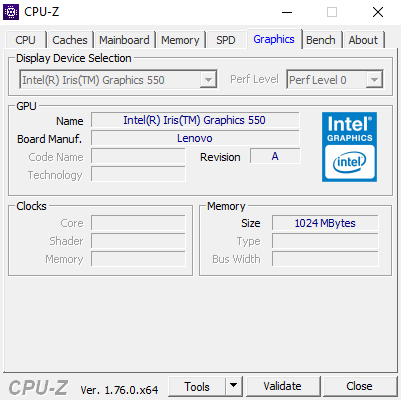

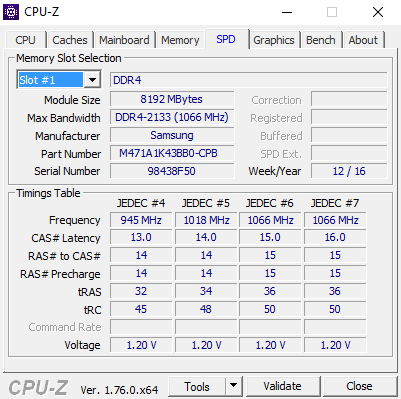

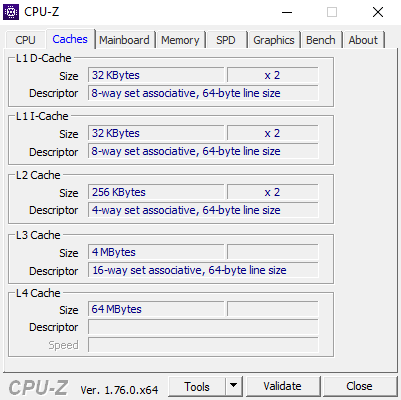

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

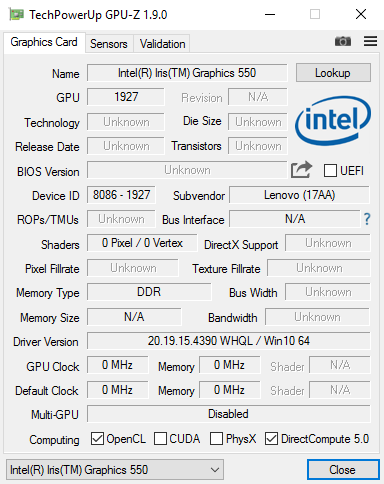

GPU-Z

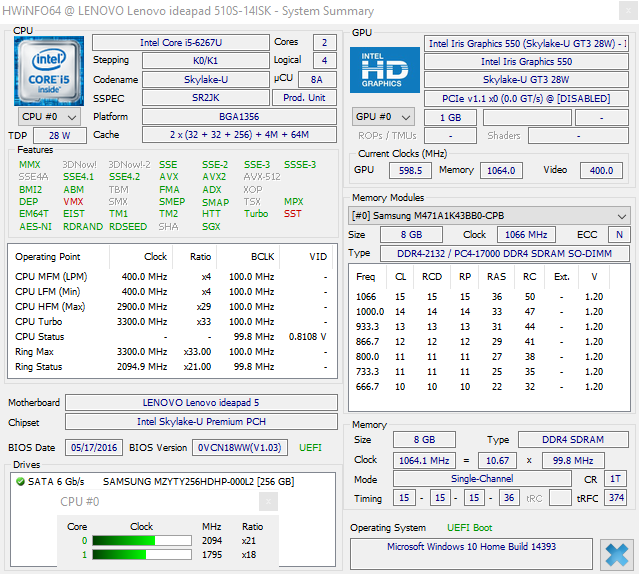

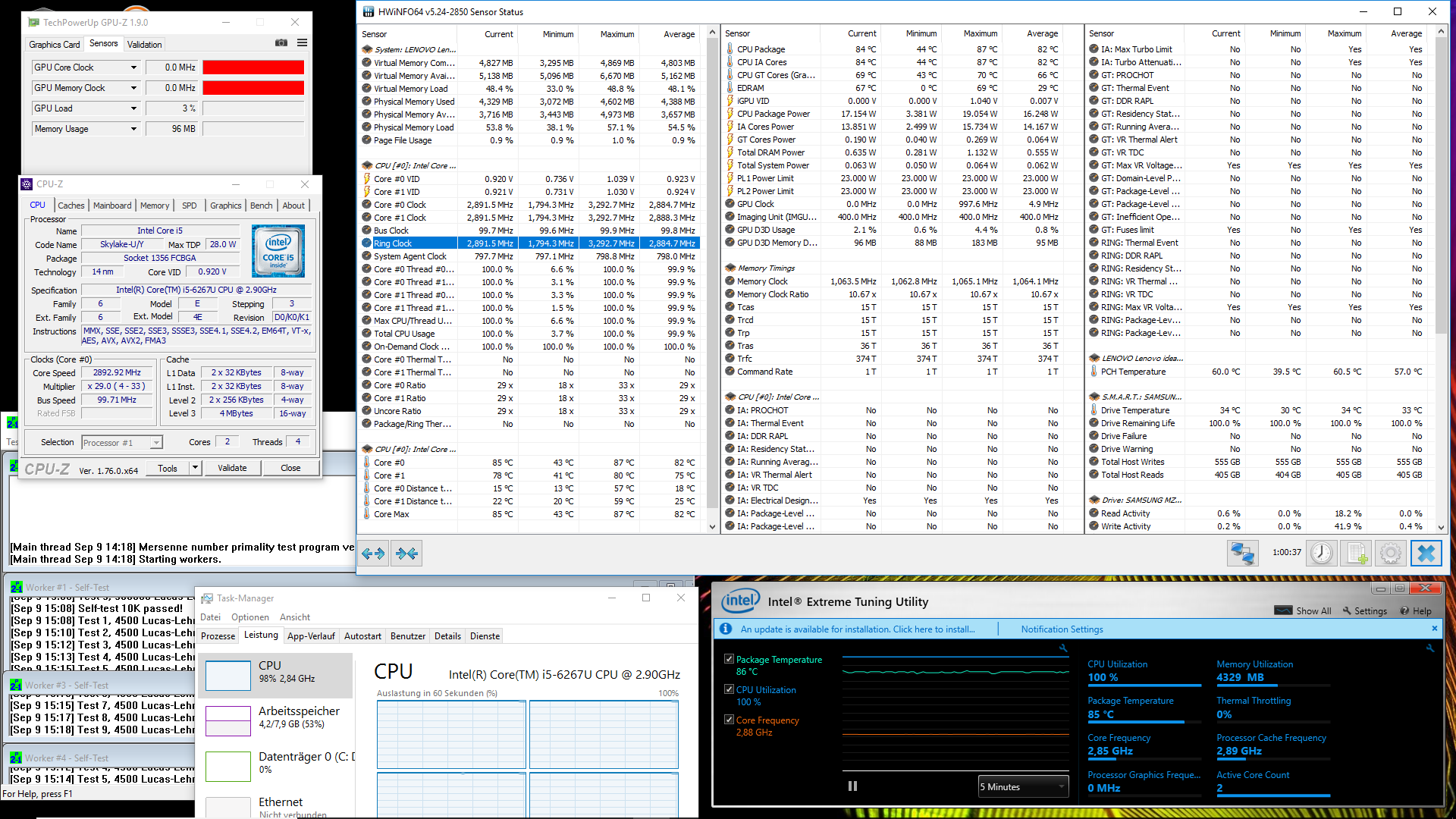

HWiNFO

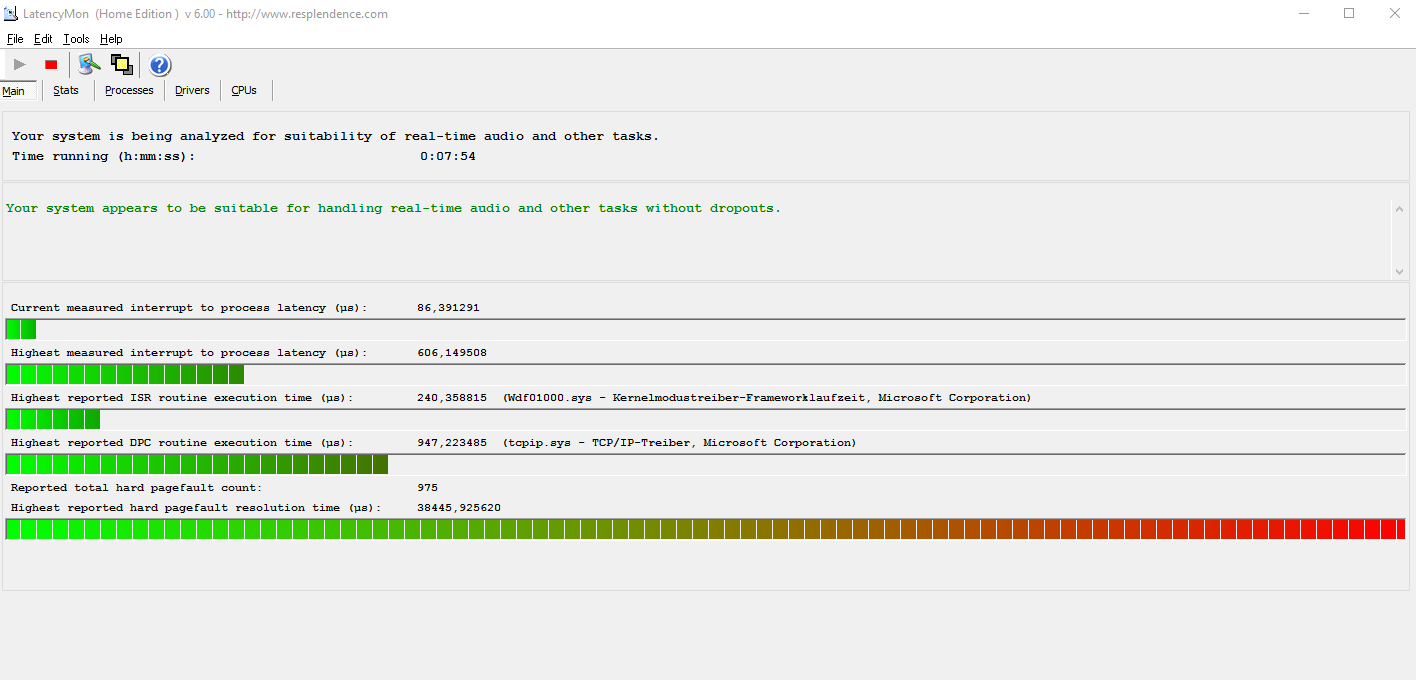

DPC Latency

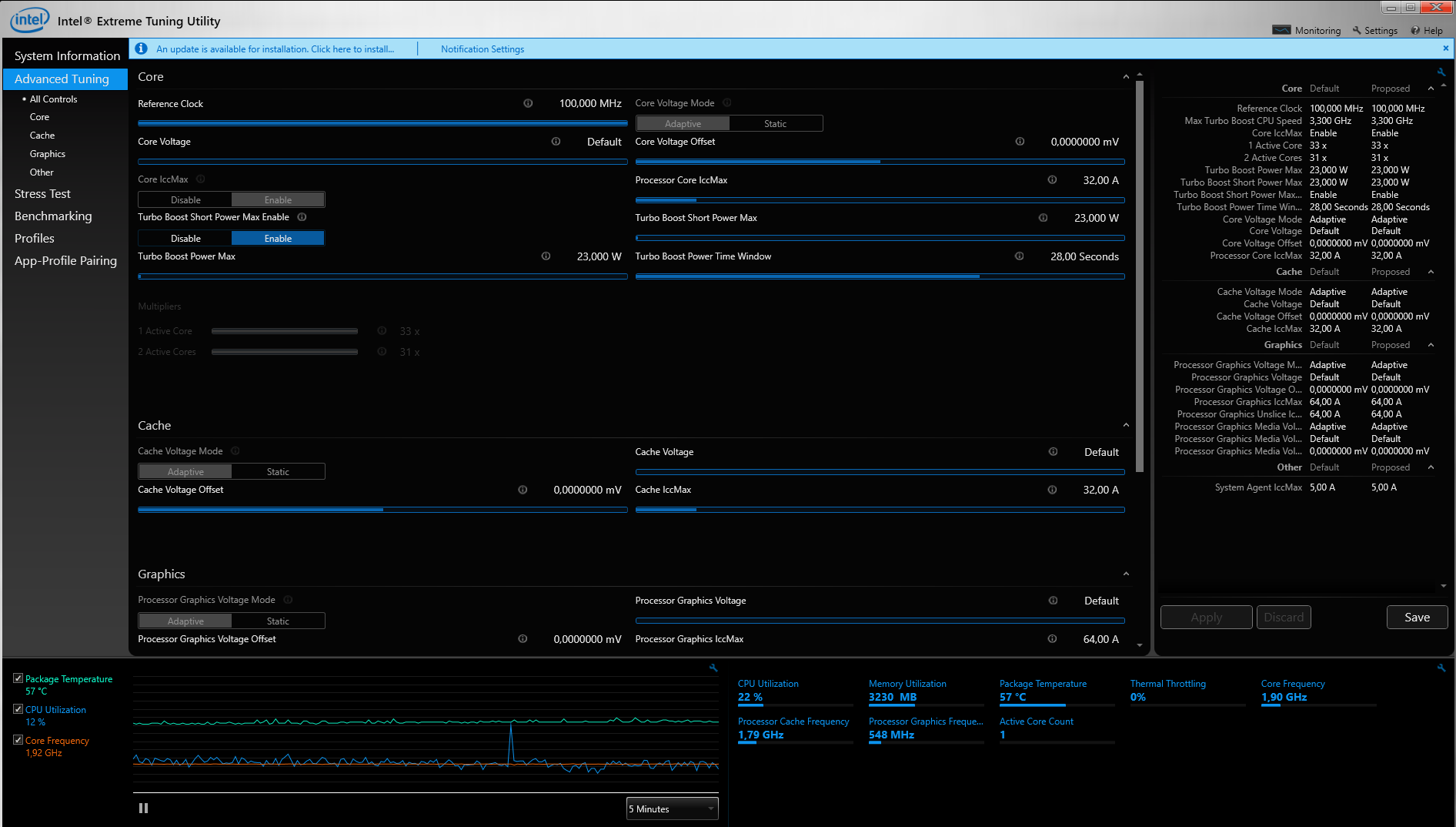

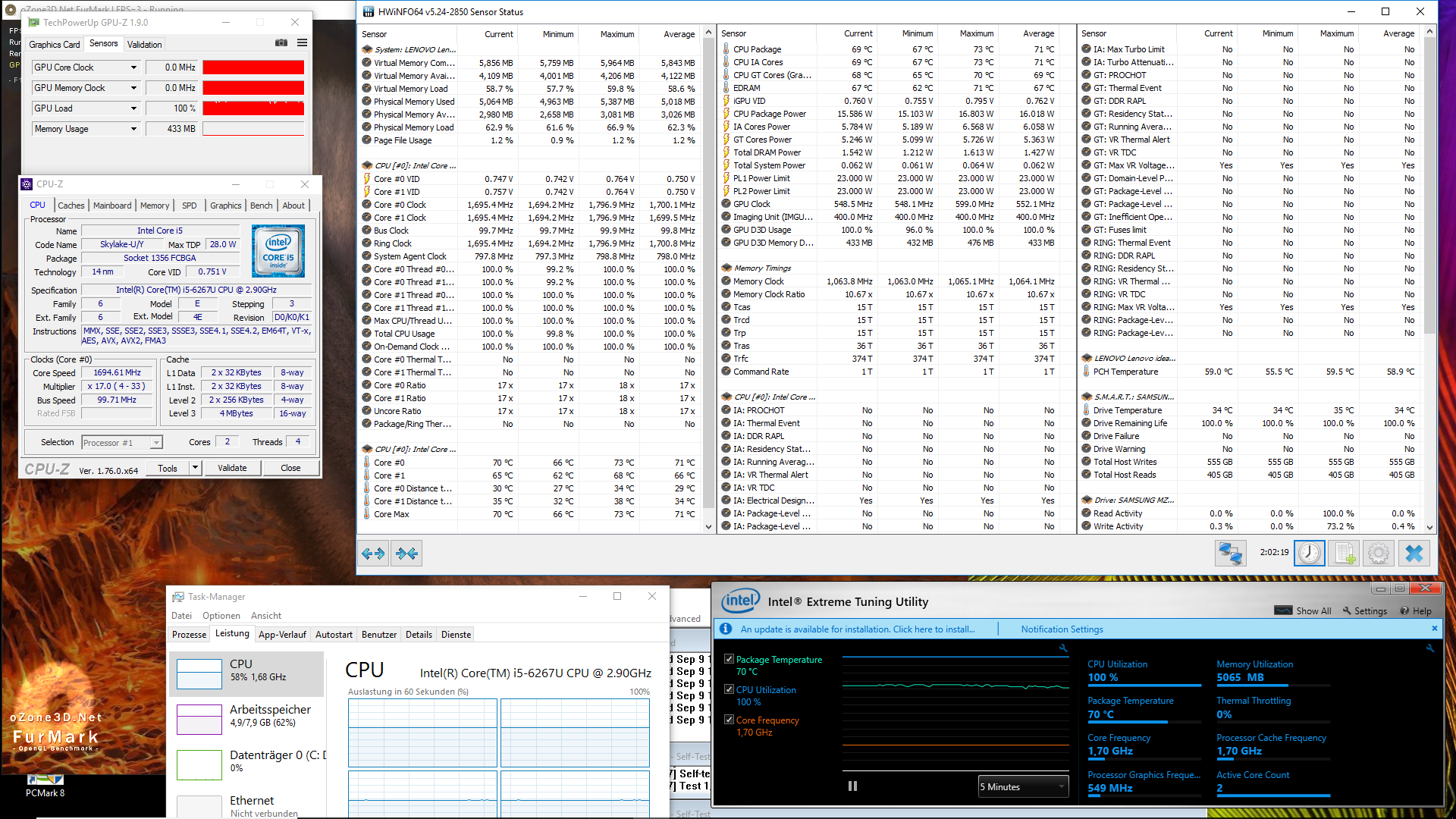

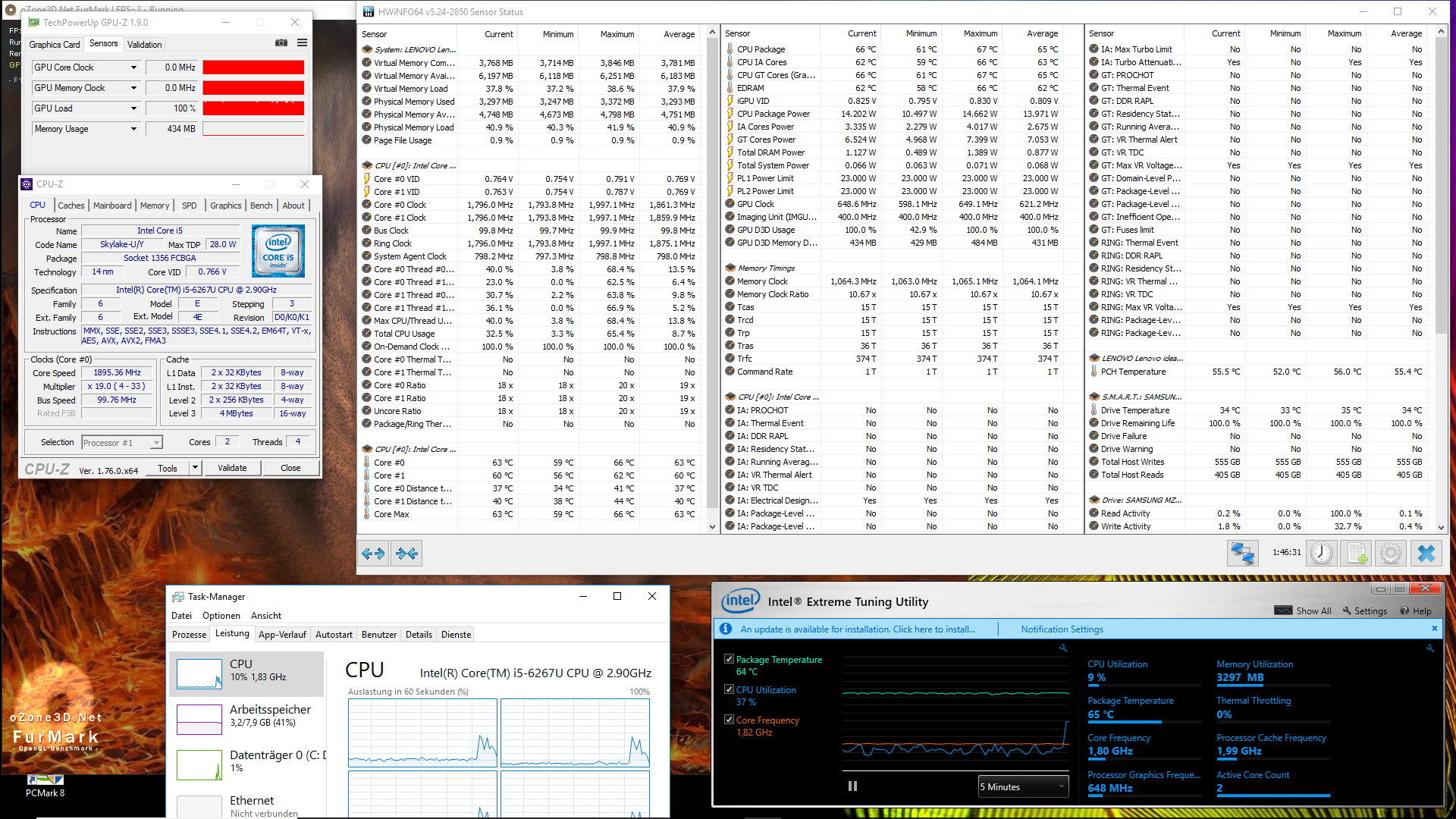

Intel Extreme Tuning Utility

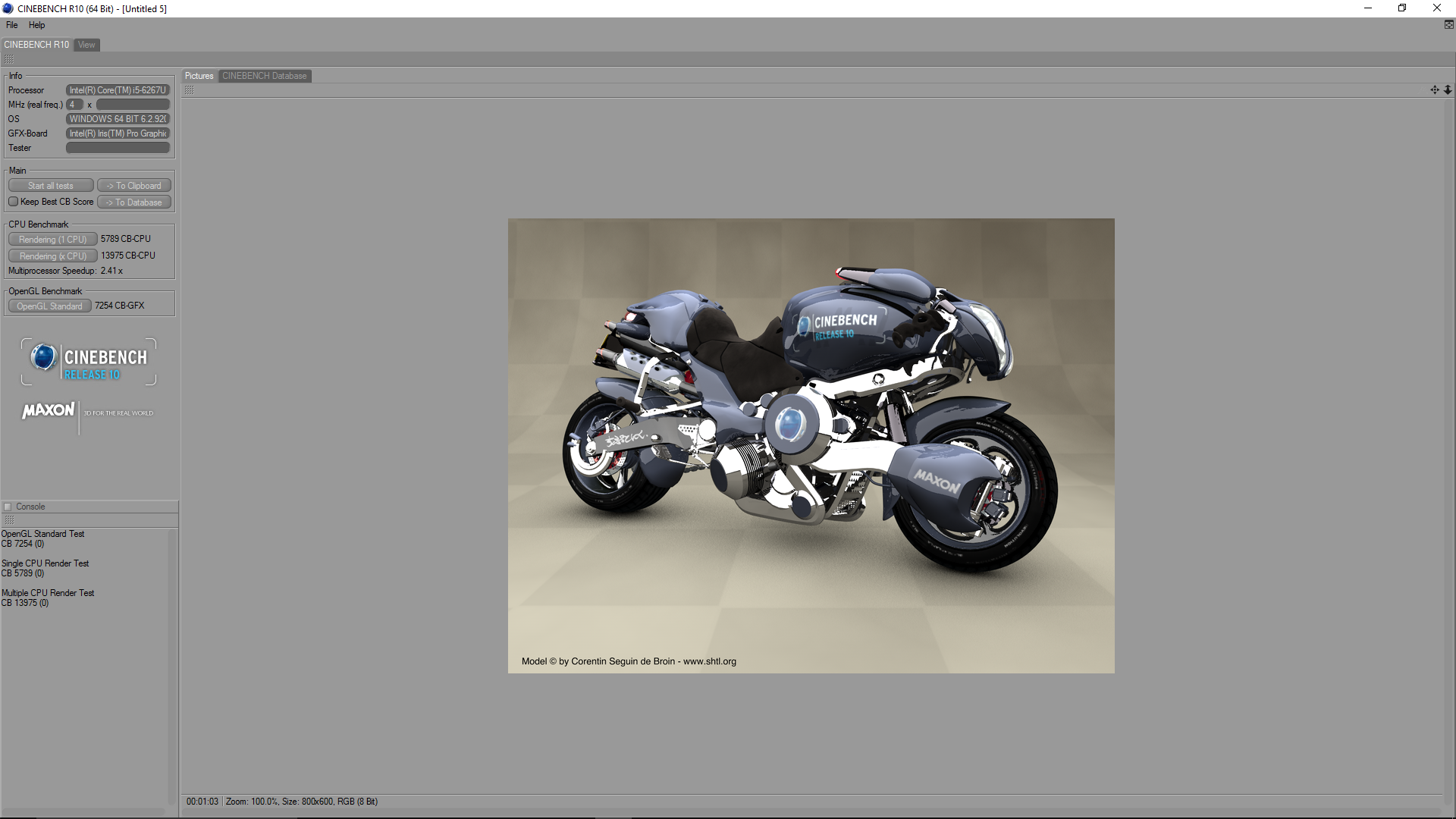

Cinebench R10
Cinebench R10

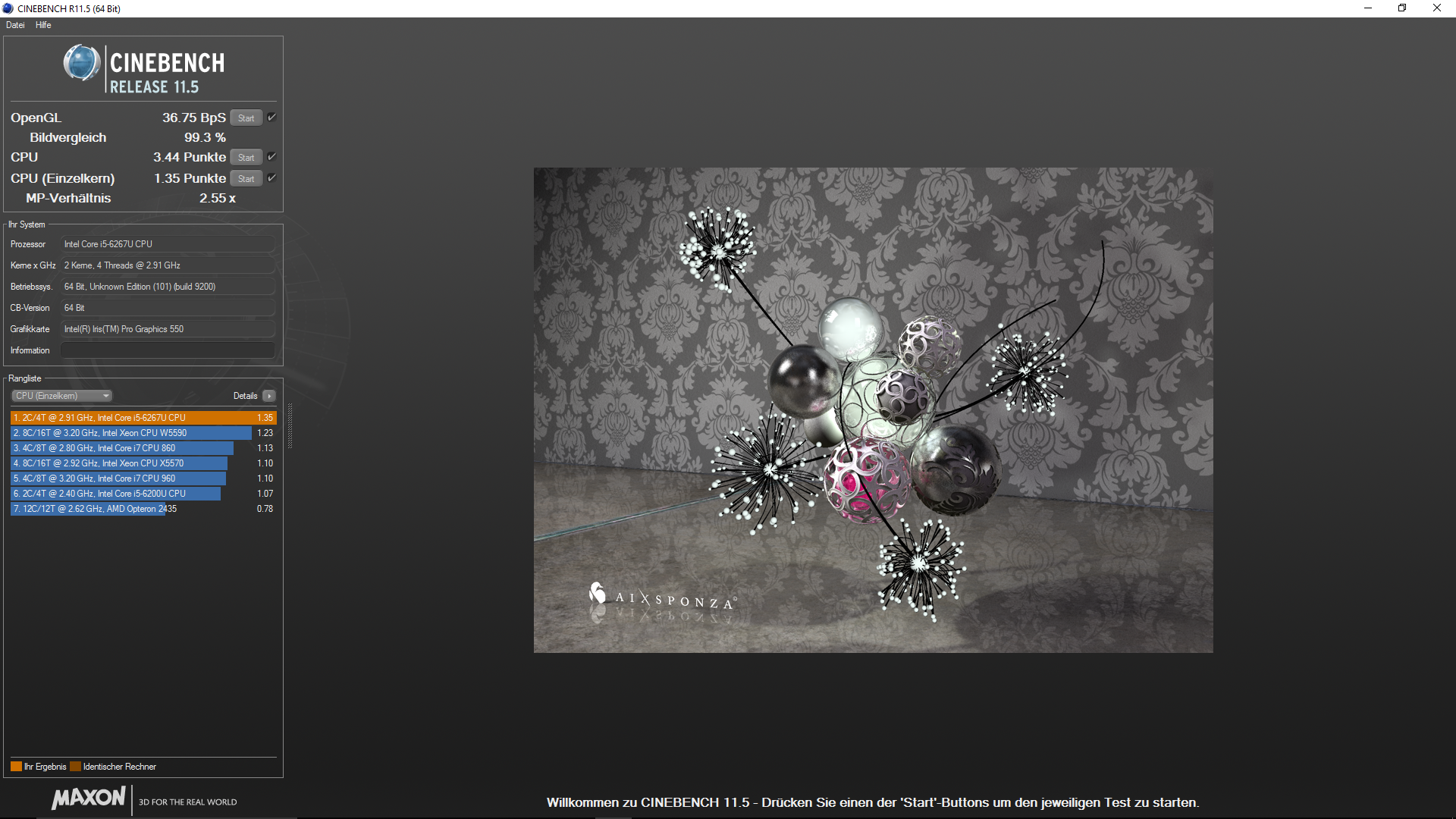

Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1
Cinebench R15
CPU Single 64Bit
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900
138 Points ∼51% +12%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500
125 Points ∼46% +2%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
123 Points ∼45%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300
115 Points ∼42% -7%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300
112 Points ∼41% -9%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300
97 Points ∼36% -21%
CPU Multi 64Bit
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900
339 Points ∼8% +8%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
314 Points ∼7%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500
313 Points ∼7% 0%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300
291 Points ∼6% -7%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300
290 Points ∼6% -8%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300
285 Points ∼6% -9%
Cinebench R11.5
CPU Single 64Bit
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900
1.58 Points ∼50% +17%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500
1.4 Points ∼45% +4%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
1.35 Points ∼43%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300
1.33 Points ∼42% -1%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300
1.13 Points ∼36% -16%
CPU Multi 64Bit
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900
3.71 Points ∼7% +8%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
3.44 Points ∼7%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500
3.43 Points ∼7% 0%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300
3.2 Points ∼6% -7%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300
3.09 Points ∼6% -10%
Cinebench R10
Rendering Multiple CPUs 64Bit
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
13975 Points ∼13%
Rendering Single CPUs 64Bit
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
5789 Points ∼44%

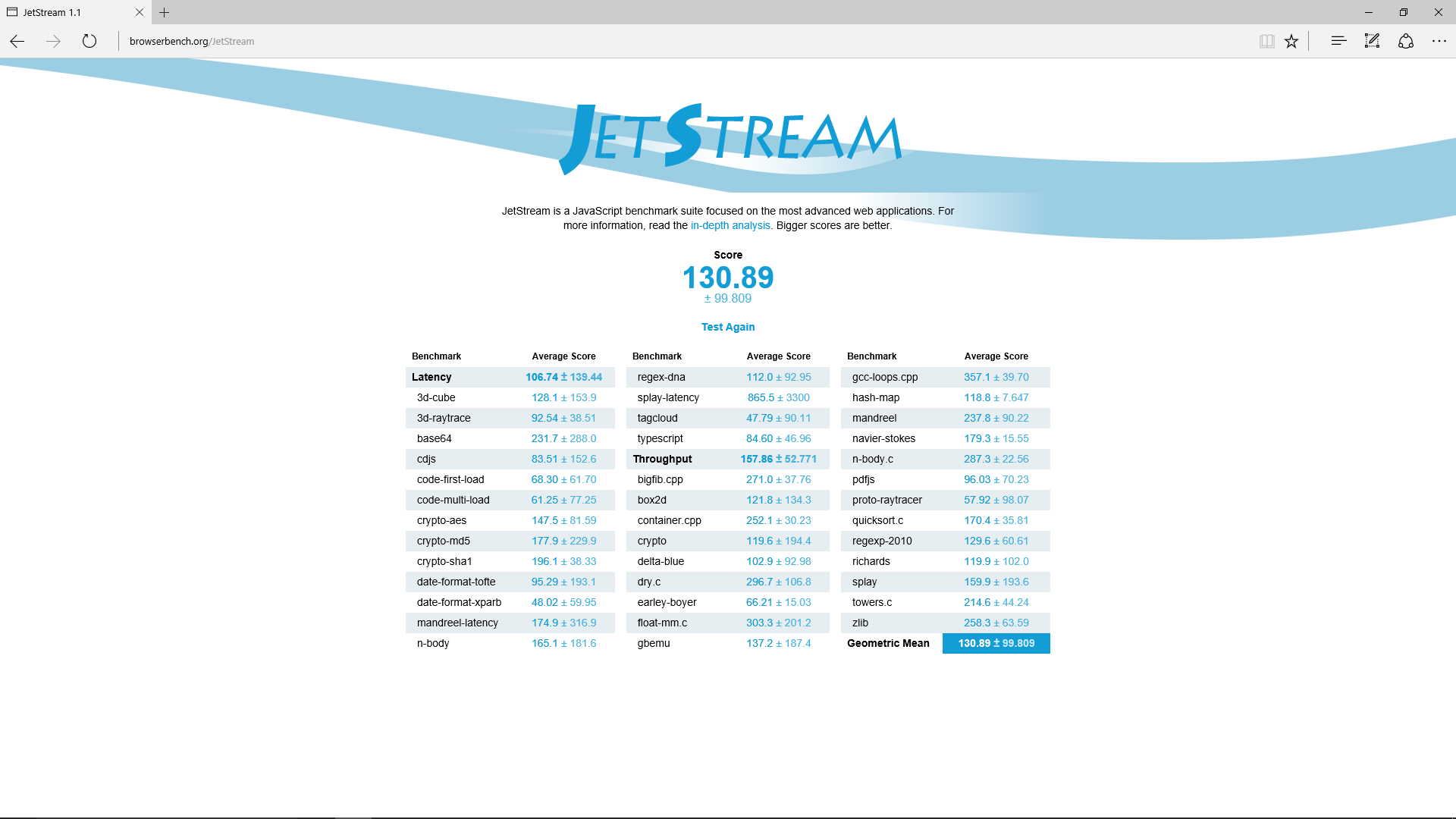

JetStream 1.1 - Total Score
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900
209.34 Points ∼52% +60%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300
197.48 Points ∼49% +51%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300
194.6 Points ∼48% +49%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
130.89 Points ∼32%
Octane V2 - Total Score
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900
33031 Points ∼52% +10%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500
30419 Points ∼48% +1%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
30059 Points ∼48%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300
29057 Points ∼46% -3%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300
28525 Points ∼45% -5%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300
27593 Points ∼44% -8%

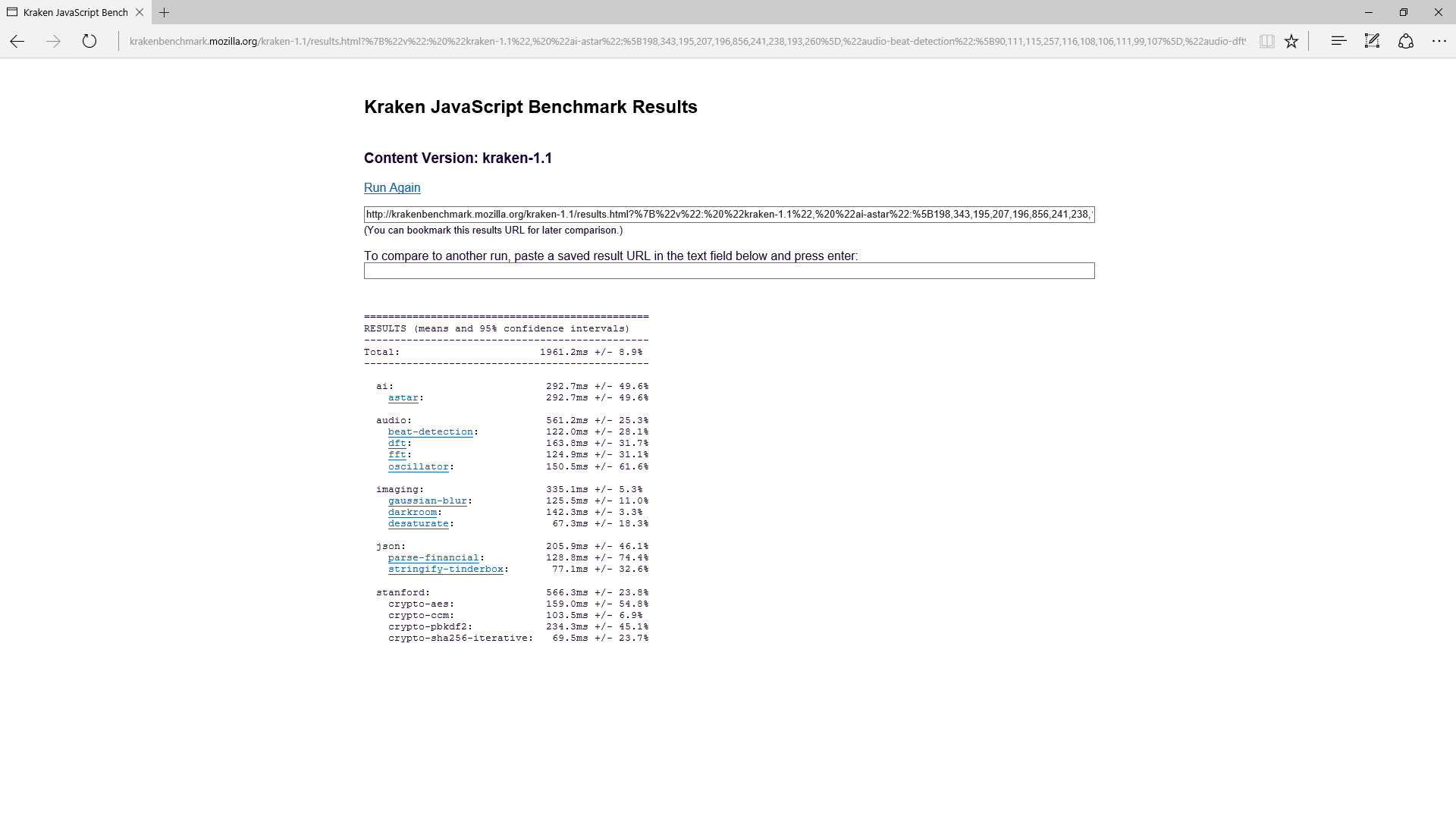

Mozilla Kraken 1.1 - Total Score
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900
1961.2 ms * ∼3%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300
1310.6 ms * ∼2% +33%
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900
1291.4 ms * ∼2% +34%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300
1266.8 ms * ∼2% +35%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300
1250.7 ms * ∼2% +36%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500
1150.9 ms * ∼2% +41%

* ... Moindre est la valeur, meilleures sont les performances

Cinebench R10 Shading 32Bit
6941
Cinebench R10 Rendering Multiple CPUs 32Bit
10595
Cinebench R10 Rendering Single 32Bit
4903
Cinebench R10 Shading 64Bit
7254 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
13975 Points
Cinebench R10 Rendering Single CPUs 64Bit
5789 Points
Cinebench R11.5 CPU Multi 64Bit
3.44 Points
Cinebench R11.5 OpenGL 64Bit
36.75 fps
Cinebench R11.5 CPU Single 64Bit
1.35 Points

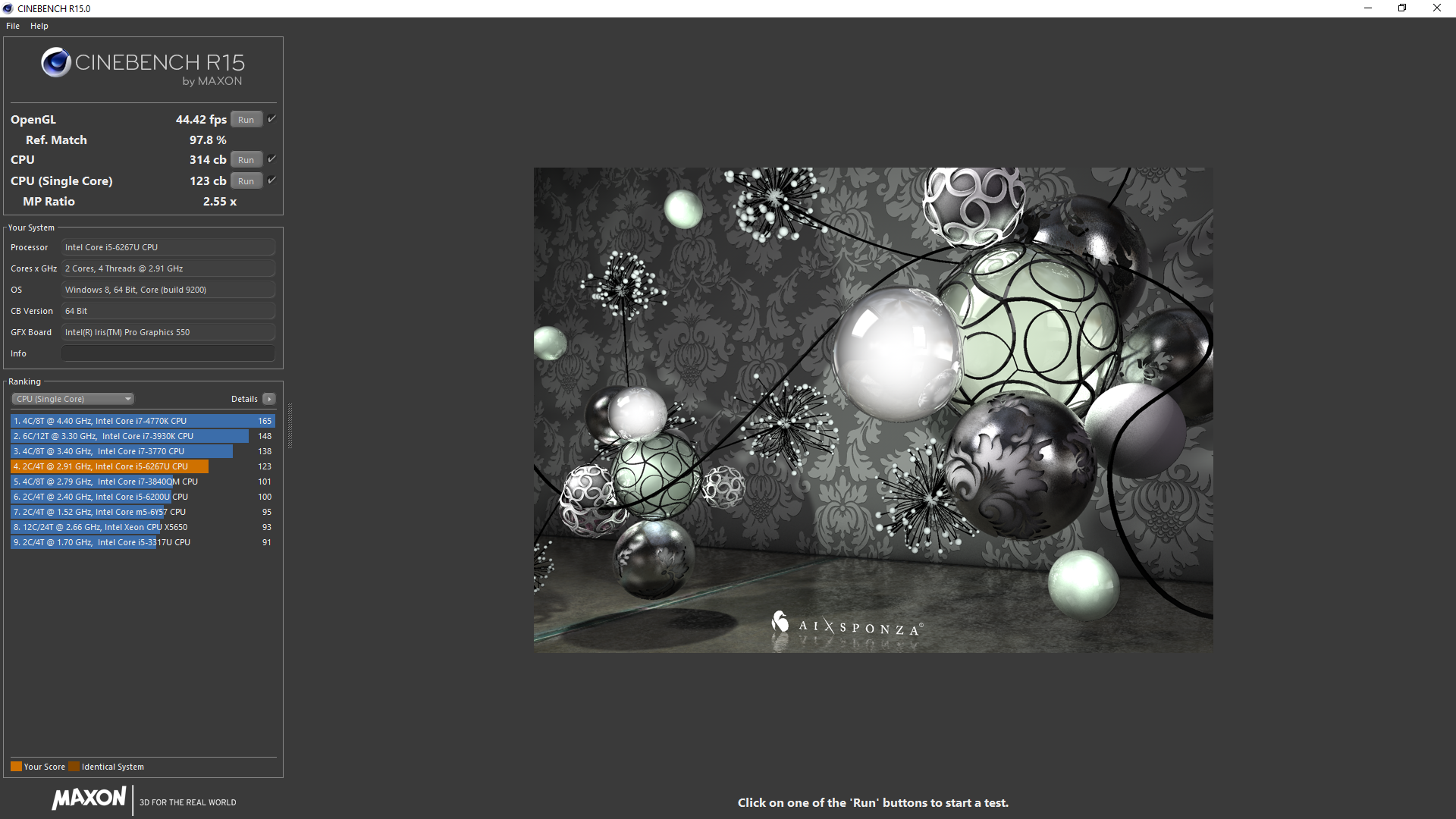

Cinebench R15 CPU Multi 64Bit
314 Points
Cinebench R15 CPU Single 64Bit
123 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
44.42 fps
Aide

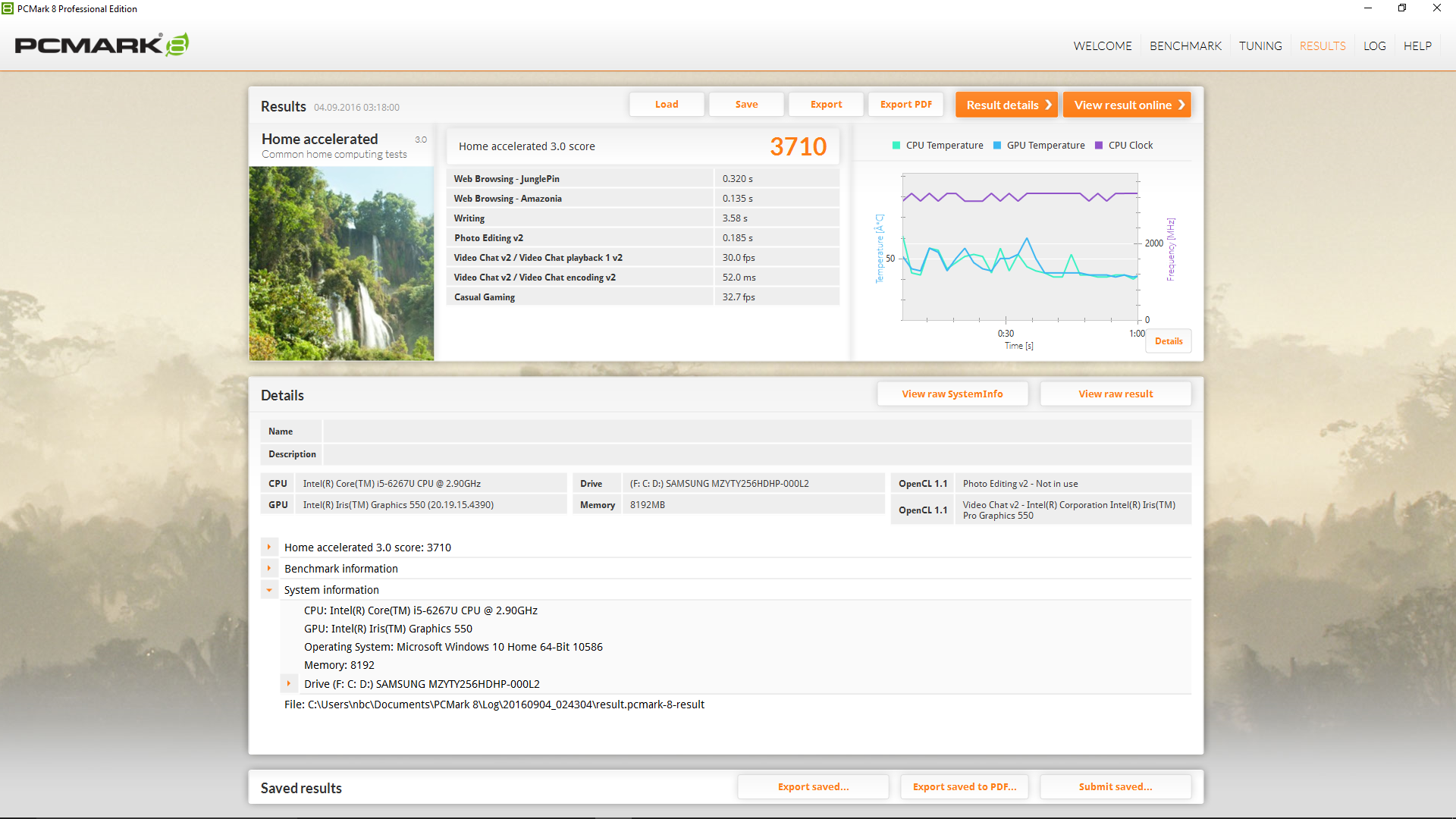

PCMark 8 Home
PCMark 8 Home

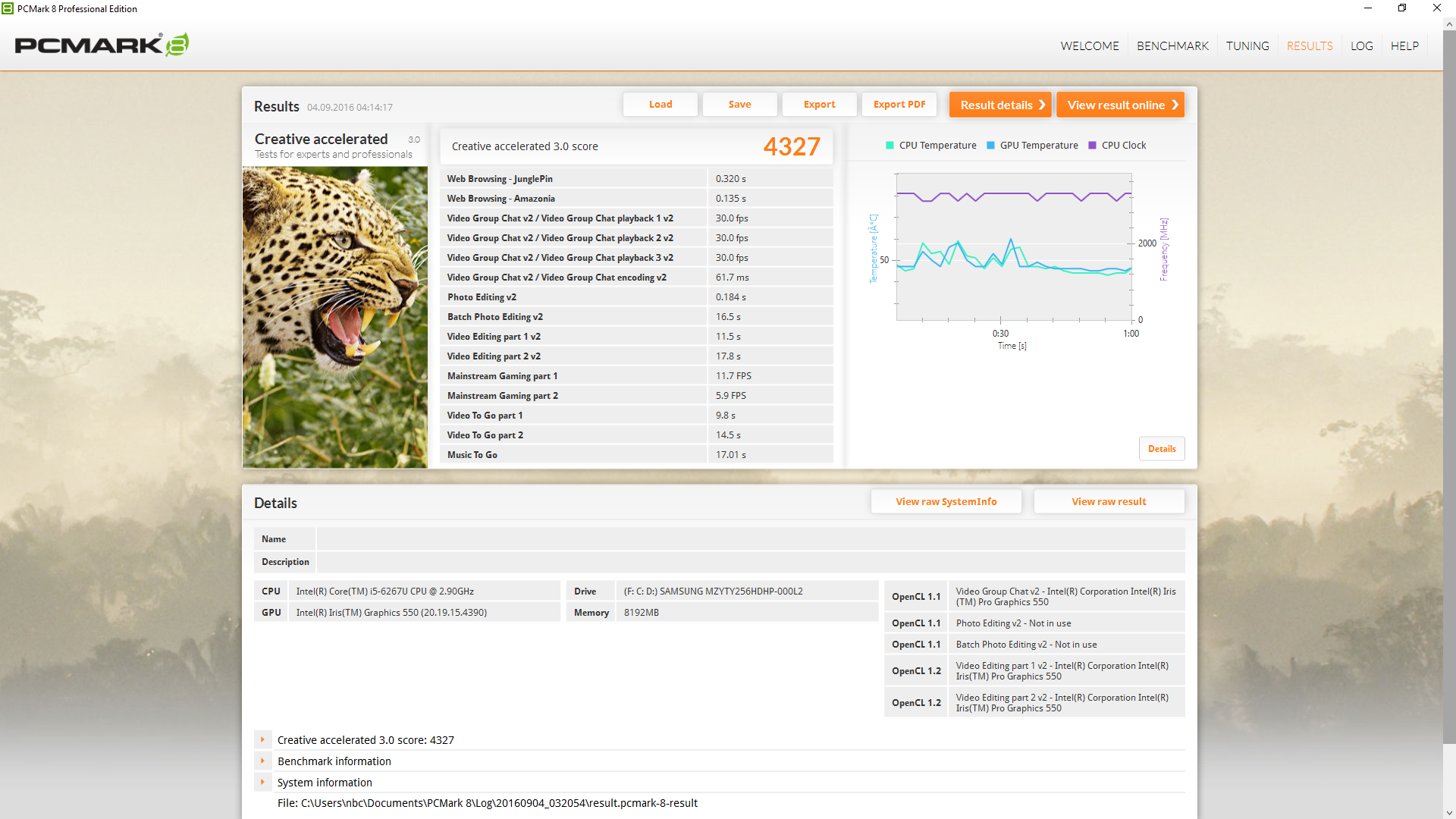

PCMark 8 Creative
PCMark 8 Creative

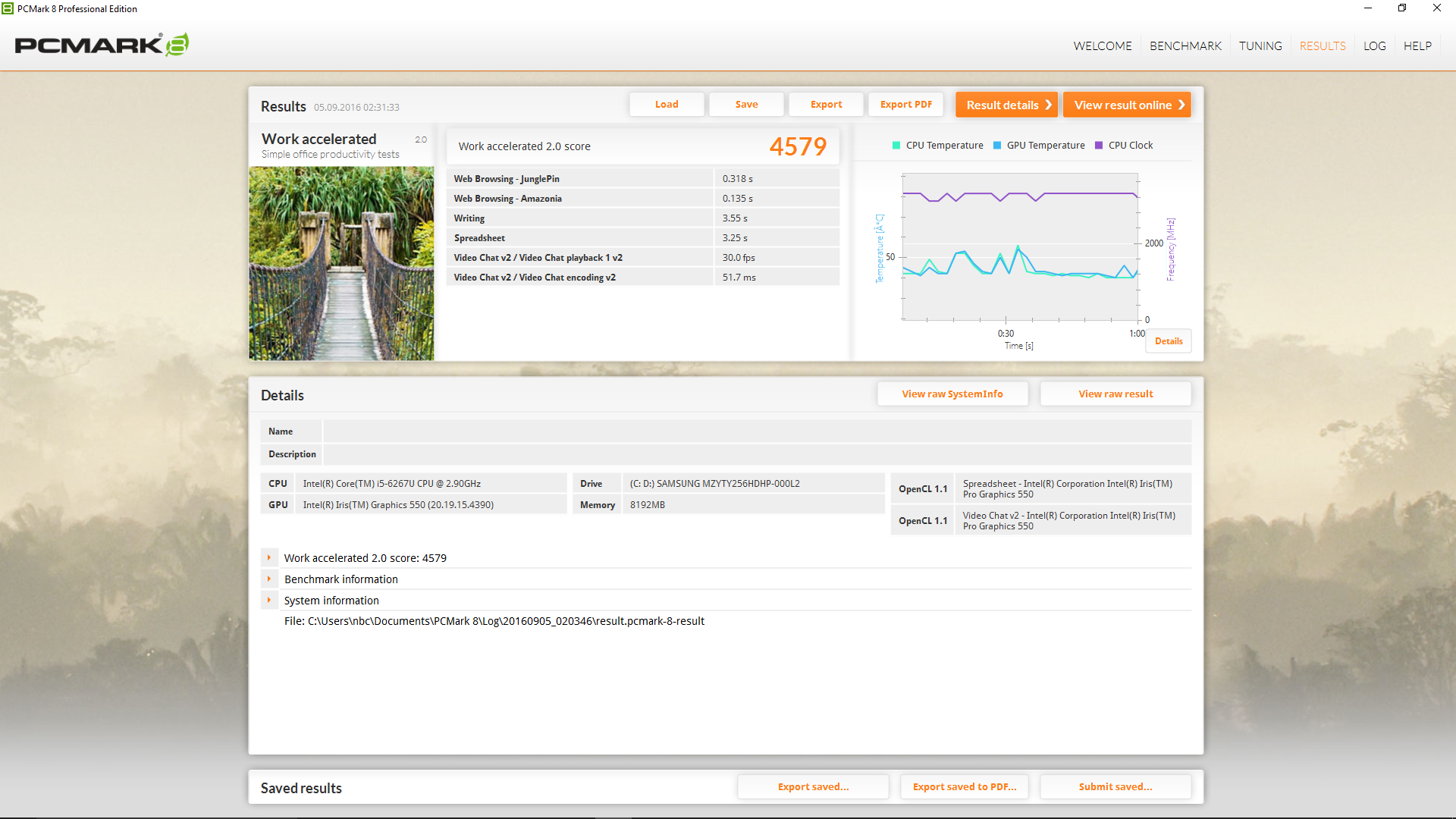

PCMark 8 Work
PCMark 8 Work

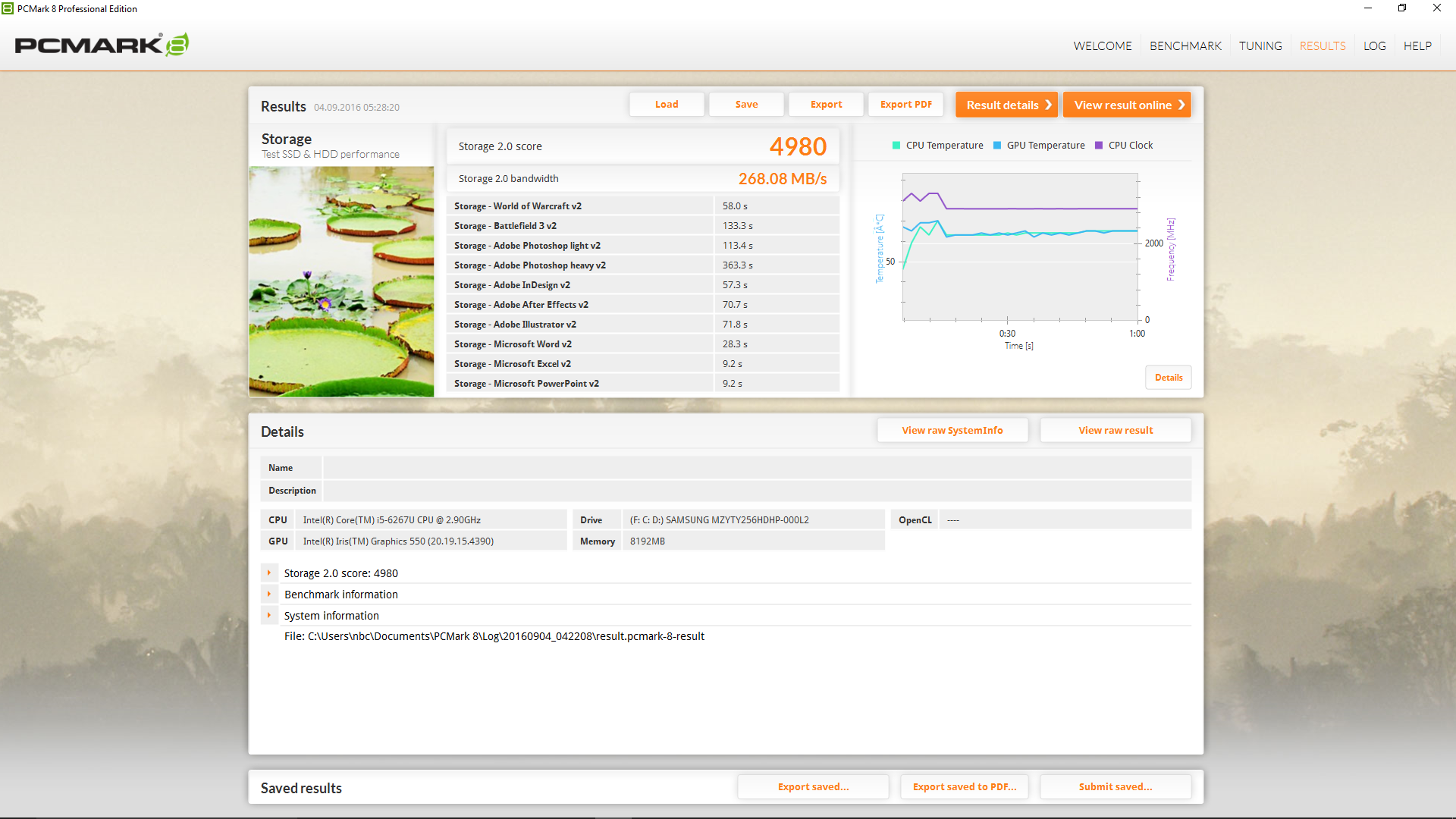

PCMark 8 Storage
PCMark 8 Storage

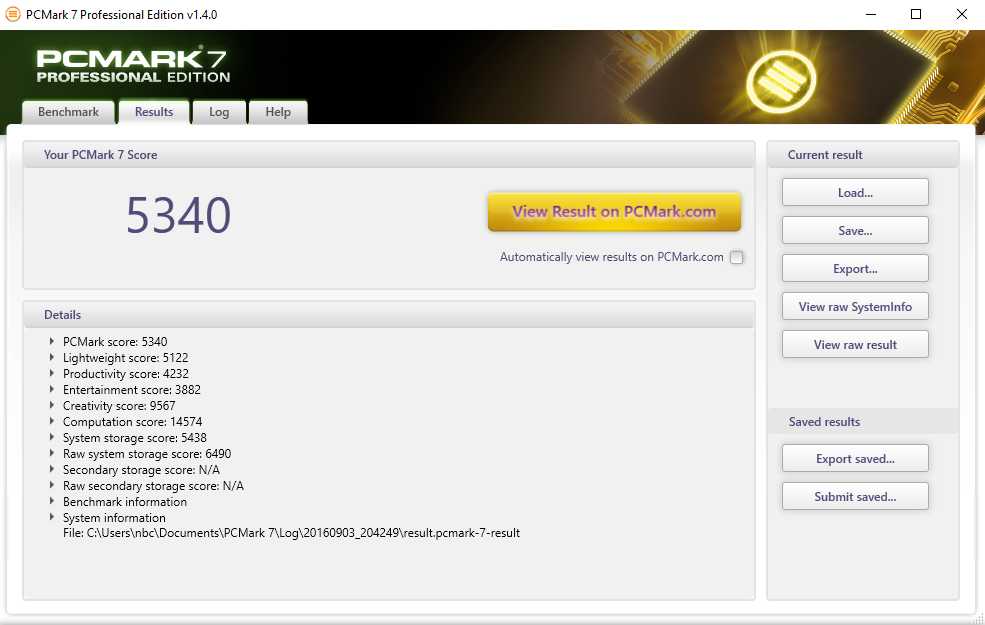

PCMark 7
PCMark 7
PCMark 8
Work Score Accelerated v2
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900, Kingston RBU-SNS8152S3256GG2
4676 Points ∼69% +2%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900, Samsung MZYTY256HDHP
4579 Points ∼67%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300, Hynix HFS128G3MND
4464 Points ∼65% -3%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300, Toshiba HG6 THNSNJ256G8NU
4155 Points ∼61% -9%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300, Samsung MZRPC256HADR-000SO
4113 Points ∼60% -10%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500, Samsung PM871 MZYLN256HCHP
4064 Points ∼60% -11%
Creative Score Accelerated v2
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900, Kingston RBU-SNS8152S3256GG2
4792 Points ∼41% +11%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900, Samsung MZYTY256HDHP
4327 Points ∼37%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300, Hynix HFS128G3MND
3885 Points ∼33% -10%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300, Samsung MZRPC256HADR-000SO
3774 Points ∼32% -13%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500, Samsung PM871 MZYLN256HCHP
3592 Points ∼31% -17%
Home Score Accelerated v2
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900, Kingston RBU-SNS8152S3256GG2
4079 Points ∼66% +10%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900, Samsung MZYTY256HDHP
3710 Points ∼60%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300, Hynix HFS128G3MND
3466 Points ∼56% -7%
HP Envy 13-d020ng
Intel Core i5-6200U, 2300, Samsung MZRPC256HADR-000SO
3246 Points ∼52% -13%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300, Toshiba HG6 THNSNJ256G8NU
3209 Points ∼52% -14%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500, Samsung PM871 MZYLN256HCHP
3006 Points ∼48% -19%
PCMark 7
Productivity
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900, Kingston RBU-SNS8152S3256GG2
4481 Points ∼41% +6%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500, Samsung PM871 MZYLN256HCHP
4334 Points ∼40% +2%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300, Toshiba HG6 THNSNJ256G8NU
4247 Points ∼39% 0%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900, Samsung MZYTY256HDHP
4232 Points ∼39%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300, Hynix HFS128G3MND
3837 Points ∼35% -9%
Score
Acer Aspire V3-372-57CW
Intel Core i5-6267U, 2900, Kingston RBU-SNS8152S3256GG2
5979 Points ∼65% +12%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, 2900, Samsung MZYTY256HDHP
5340 Points ∼58%
Acer Aspire V3-372-50LK
Intel Core i5-6200U, 2300, Toshiba HG6 THNSNJ256G8NU
5197 Points ∼57% -3%
Asus X302UV-FN016T
Intel Core i5-6200U, 2300, Hynix HFS128G3MND
4955 Points ∼54% -7%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, 2500, Samsung PM871 MZYLN256HCHP
4811 Points ∼53% -10%
PCMark 7 Score
5340 points
PCMark 8 Home Score Accelerated v2
3710 points
PCMark 8 Creative Score Accelerated v2
4327 points
PCMark 8 Work Score Accelerated v2
4579 points
Aide
AS SSD
AS SSD
CrystalDiskMark
CrystalDiskMark
Lenovo IdeaPad 510S-14ISK
Samsung MZYTY256HDHP
Lenovo Ideapad 500s-14ISK
Samsung PM871 MZYLN256HCHP
Asus X302UV-FN016T
Hynix HFS128G3MND
Acer Aspire V3-372-57CW
Kingston RBU-SNS8152S3256GG2
HP Envy 13-d020ng
Samsung MZRPC256HADR-000SO
Acer Aspire V3-372-50LK
Toshiba HG6 THNSNJ256G8NU
CrystalDiskMark 3.0
-4%
-40%
-7%
-13%
-11%
Write 4k QD32
257.3
241.6
-6%
174
-32%
309.4
20%
259.7
1%
212.9
-17%
Read 4k QD32
397.7
394.5
-1%
253
-36%
319.9
-20%
369.4
-7%
248
-38%
Write 4k
90.22
93.26
3%
71.15
-21%
74.22
-18%
78.66
-13%
71.05
-21%
Read 4k
35.27
36.24
3%
6.559
-81%
28.88
-18%
26.88
-24%
21.1
-40%
Write 512
299.3
308.3
3%
179.1
-40%
338.6
13%
268.8
-10%
388
30%
Read 512
399.7
409.5
2%
282.6
-29%
368.1
-8%
386.6
-3%
392.3
-2%
Write Seq
458.8
309.5
-33%
178.6
-61%
338
-26%
268.5
-41%
447.4
-2%
Read Seq
509.7
506.9
-1%
428.2
-16%
515.1
1%
478.7
-6%
522.2
2%

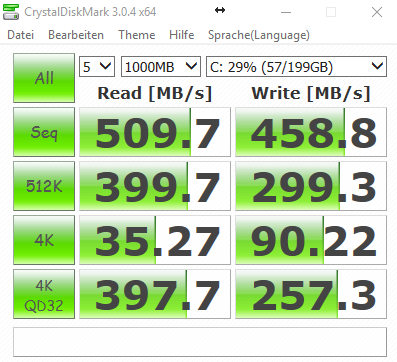

Samsung MZYTY256HDHP
Sequential Read: 509.7 MB/s
Sequential Write: 458.8 MB/s
512K Read: 399.7 MB/s
512K Write: 299.3 MB/s
4K Read: 35.27 MB/s
4K Write: 90.22 MB/s
4K QD32 Read: 397.7 MB/s
4K QD32 Write: 257.3 MB/s
3DMark Ice Storm

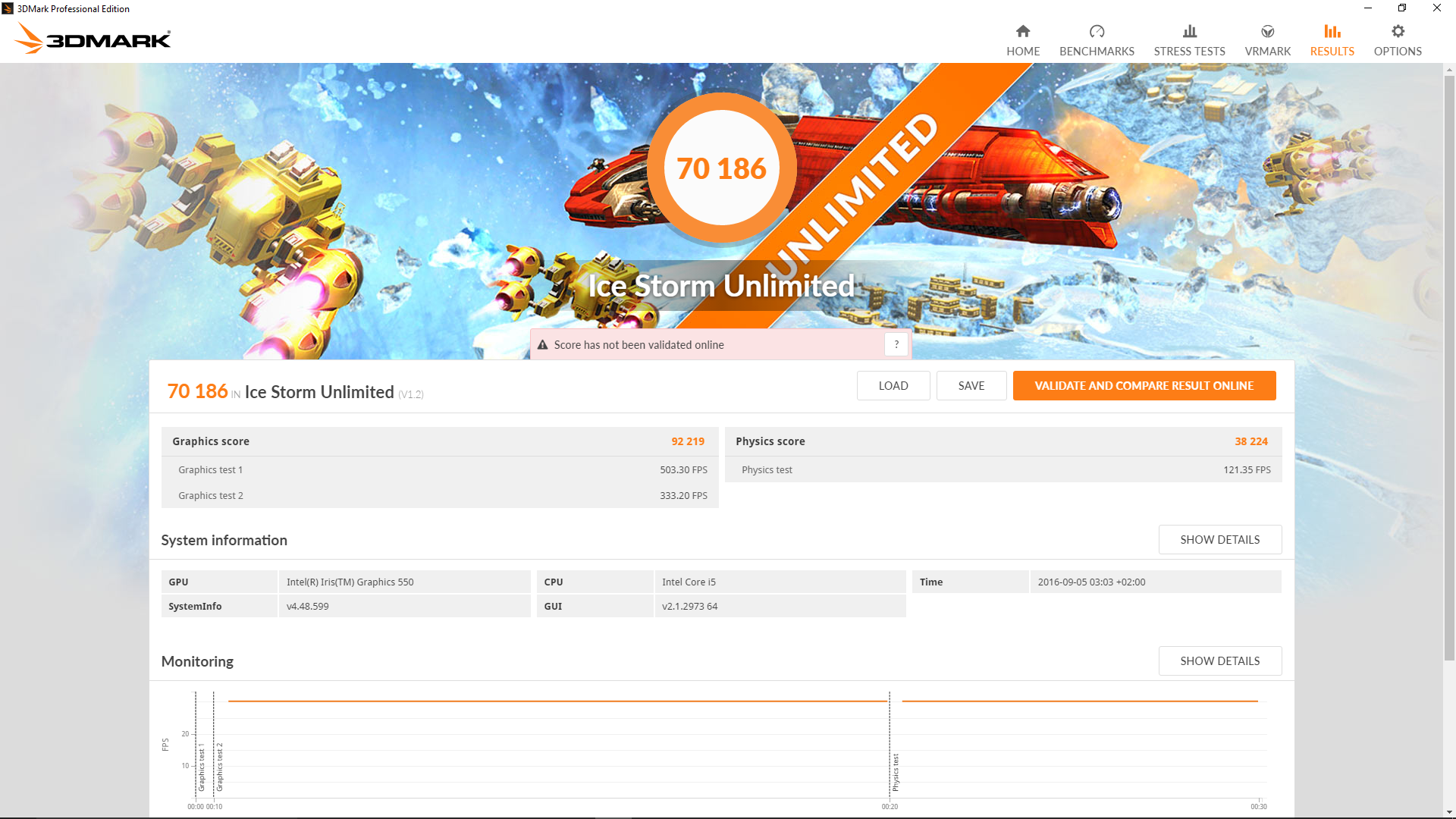

3DMark Ice Storm Unlimited

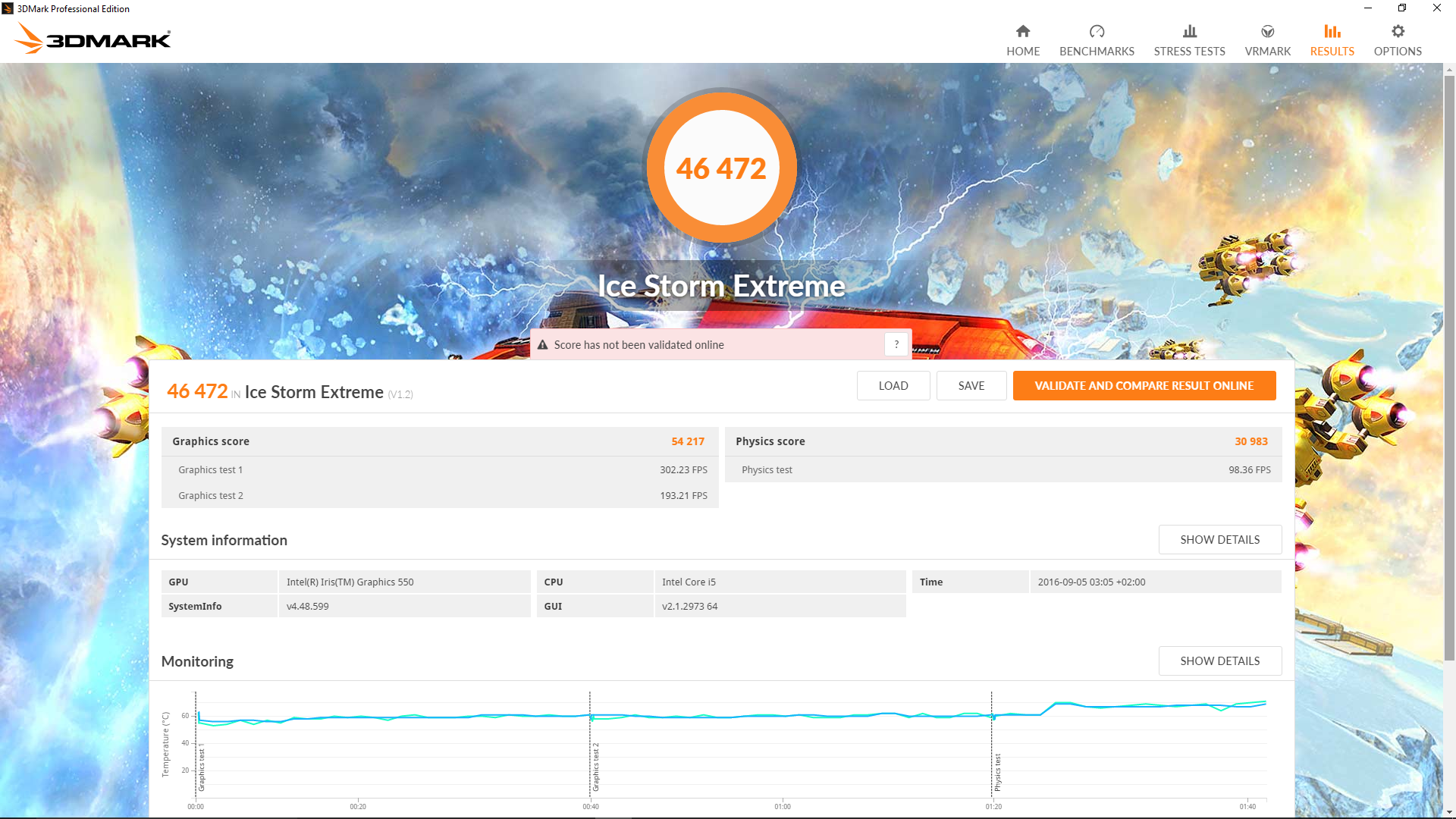

3DMark Ice Storm Extreme
3DMark Cloud Gate

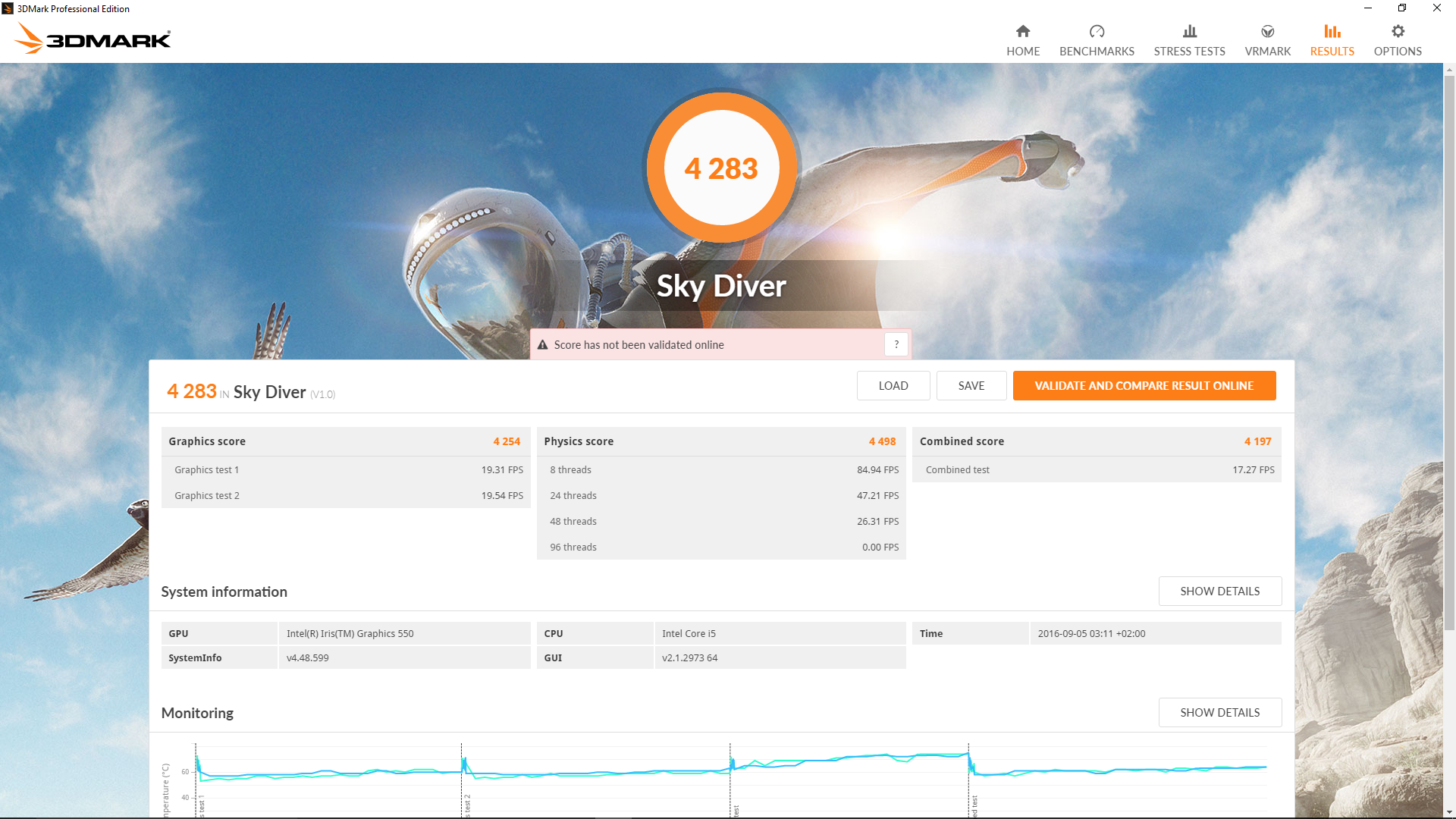

3DMark Sky Diver

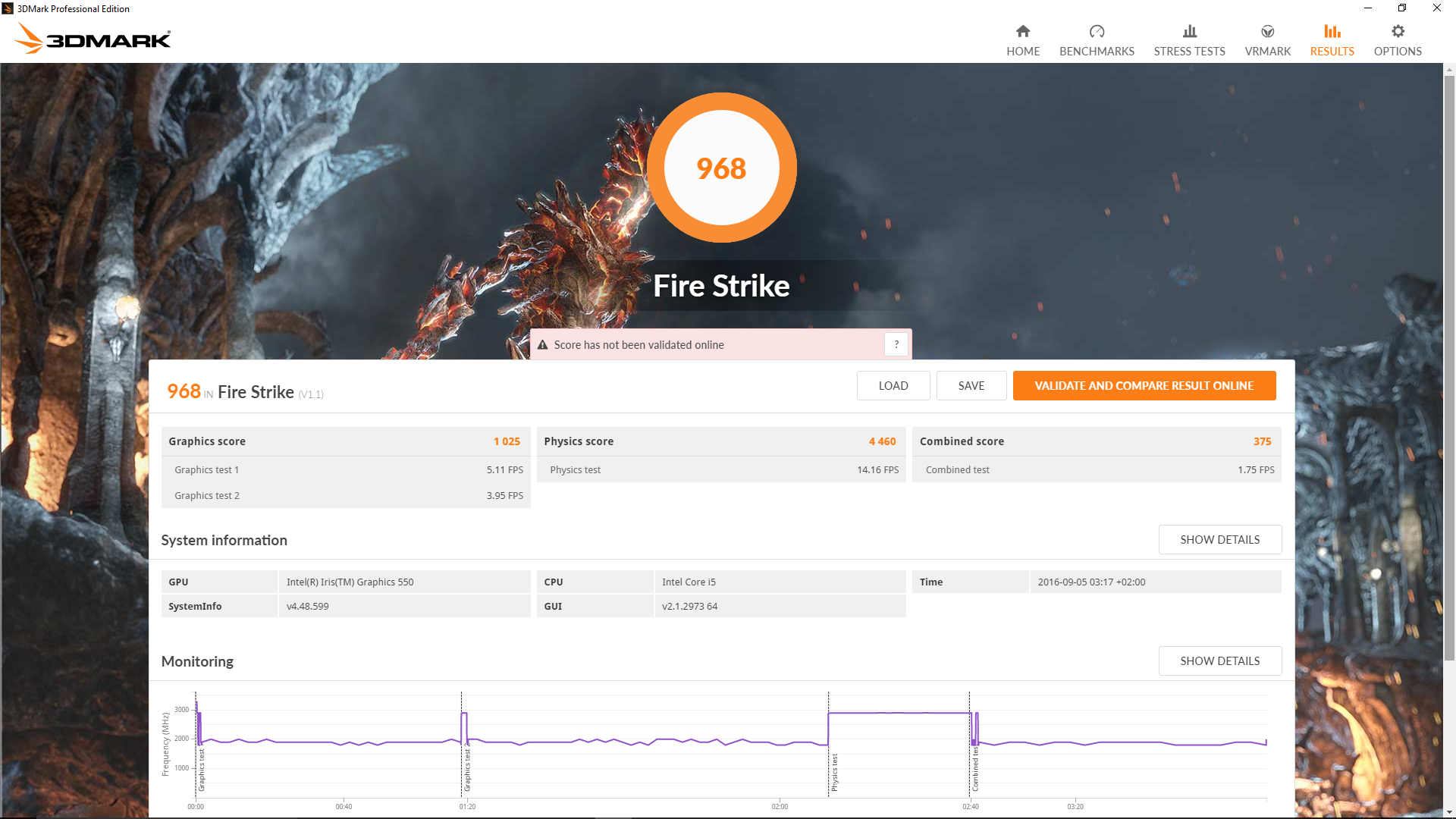

3DMark Fire Strike
3DMark Fire Strike Extreme

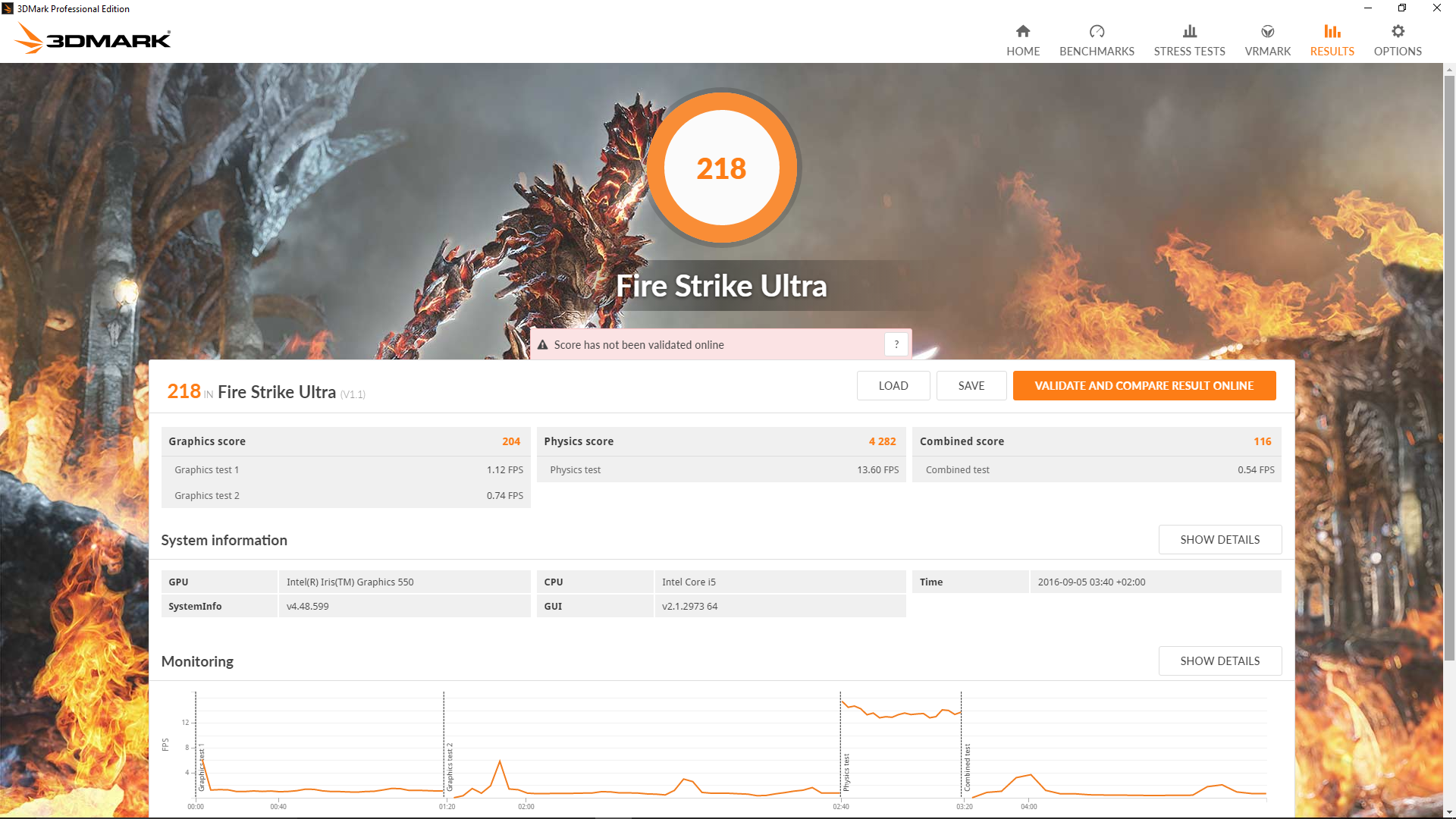

3DMark Fire Strike Ultra
3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
1589 Points ∼3% +55%
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
1520 Points ∼3% +48%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1282 Points ∼3% +25%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
1025 Points ∼2%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
848 Points ∼2% -17%
1280x720 Cloud Gate Standard Graphics
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
12812 Points ∼6% +44%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
8885 Points ∼4%
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
8549 Points ∼4% -4%
Acer Aspire V3-372-50LK
Intel HD Graphics 520, Intel Core i5-6200U
7745 Points ∼4% -13%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
7733 Points ∼4% -13%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
7031 Points ∼3% -21%
1280x720 Ice Storm Standard Graphics
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
113807 Points ∼15% +45%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
78253 Points ∼10%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
73997 Points ∼10% -5%
Acer Aspire V3-372-50LK
Intel HD Graphics 520, Intel Core i5-6200U
68430 Points ∼9% -13%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
62078 Points ∼8% -21%
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
50719 Points ∼7% -35%
3DMark 11
1280x720 Performance GPU
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
2524 Points ∼4% +42%
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
2366 Points ∼4% +33%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
1782 Points ∼3%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1747 Points ∼3% -2%
Acer Aspire V3-372-50LK
Intel HD Graphics 520, Intel Core i5-6200U
1341 Points ∼2% -25%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
1326 Points ∼2% -26%
1280x720 Performance
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
2703 Points ∼7% +39%
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
2423 Points ∼6% +25%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
1943 Points ∼5%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1888 Points ∼5% -3%
Acer Aspire V3-372-50LK
Intel HD Graphics 520, Intel Core i5-6200U
1487 Points ∼4% -23%
HP Envy 13-d020ng
Intel HD Graphics 520, Intel Core i5-6200U
1483 Points ∼4% -24%

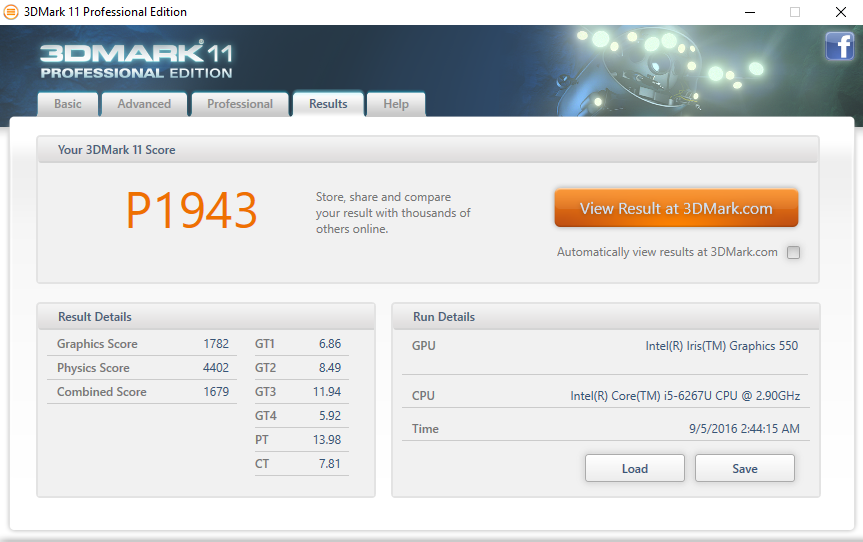

3DMark 11 Performance
1943 points

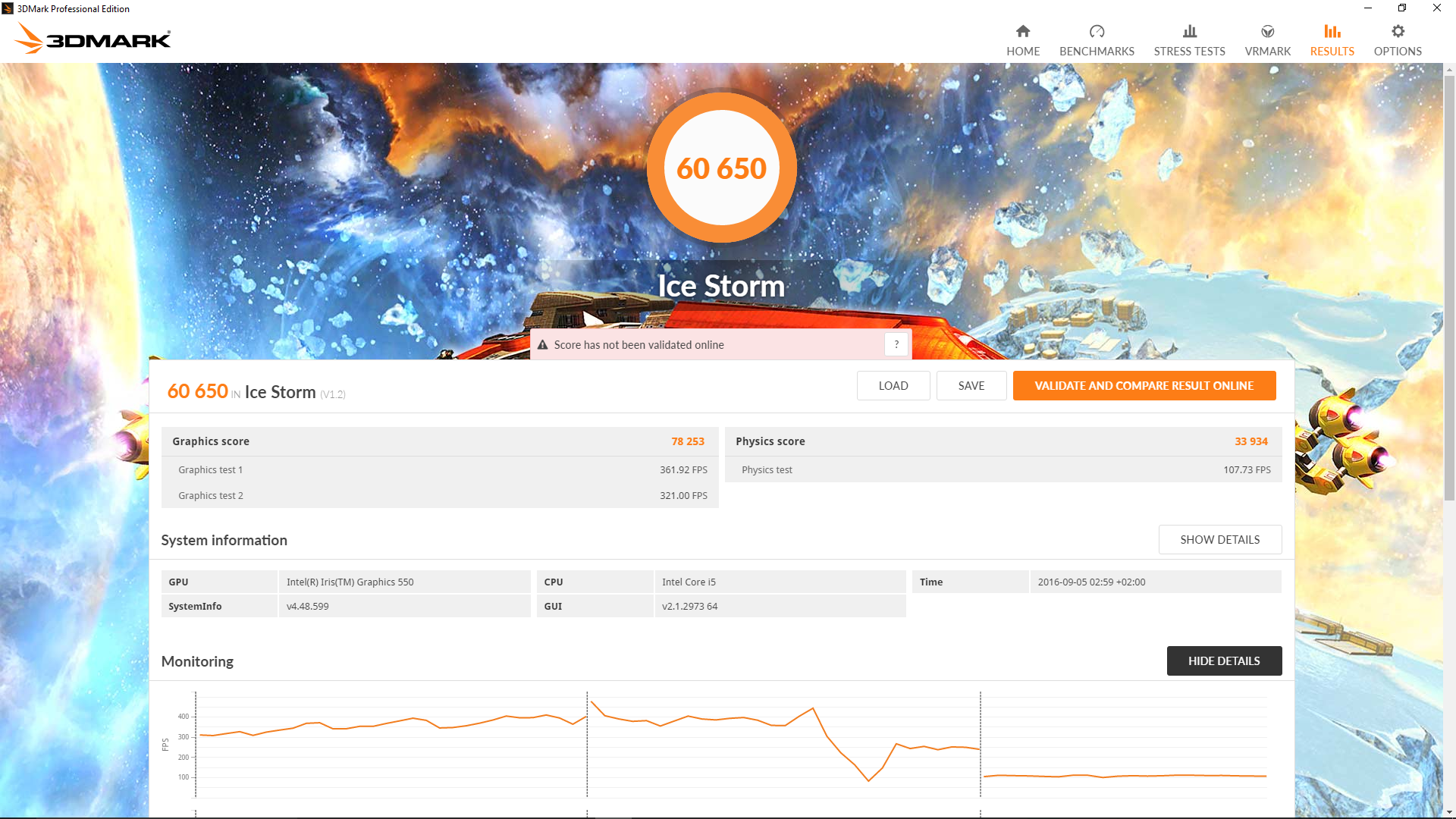

3DMark Ice Storm Standard Score
60650 points

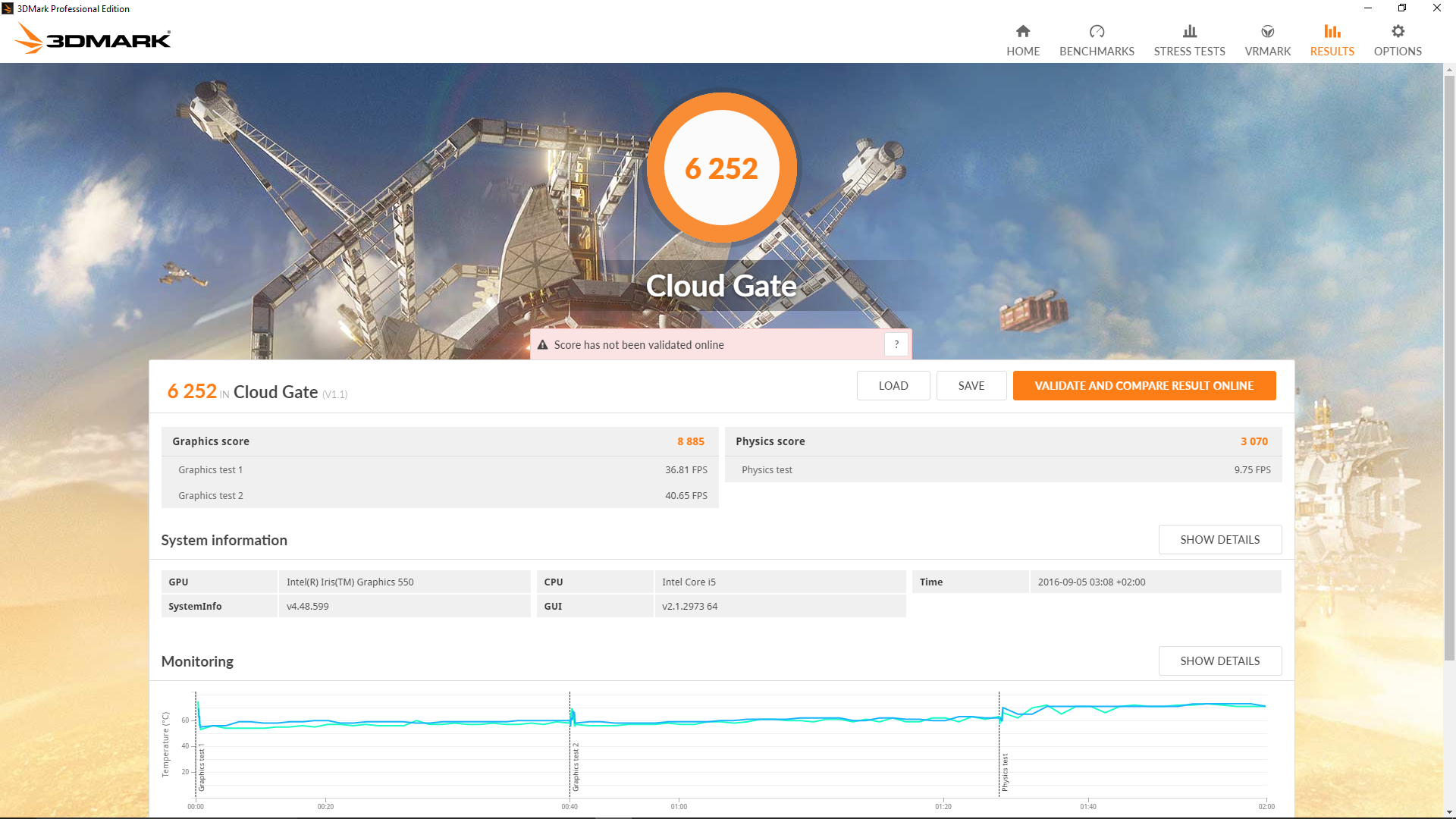

3DMark Cloud Gate Standard Score
6252 points
3DMark Fire Strike Score
968 points

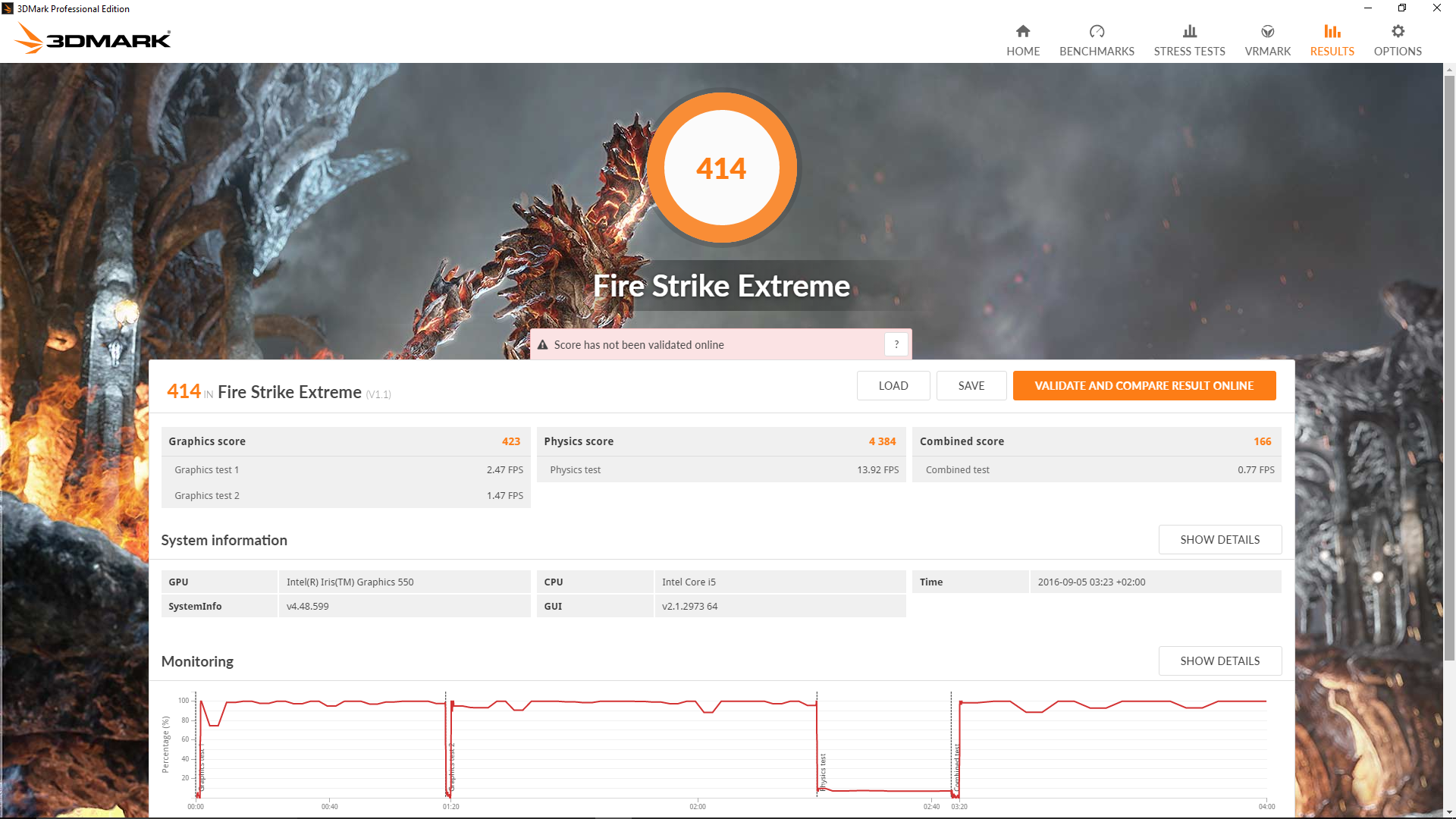

3DMark Fire Strike Extreme Score
414 points
Aide
Bas Moyen Élevé Ultra
BioShock Infinite (2013) 61.3 34 29 7.8 fps
Battlefield 4 (2013) 59.9 33.4 24.8 8.2 fps
Rise of the Tomb Raider (2016) 23.6 16.2 9.5 4.3 fps

Degré de la nuisance sonore

Au repos
32.2 / 32.2 / 32.3 dB(A)
Disque dur
32.2 dB(A)
Fortement sollicité
38.4 / 39.9 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 31.2 dB(A)
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U, Iris Graphics 550
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U, GeForce 940M
Asus X302UV-FN016T
Intel Core i5-6200U, GeForce 920MX
Acer Aspire V3-372-57CW
Intel Core i5-6267U, Iris Graphics 550
HP Envy 13-d020ng
Intel Core i5-6200U, HD Graphics 520
Acer Aspire V3-372-50LK
Intel Core i5-6200U, HD Graphics 520
Noise
2%
4%
2%
3%
8%
off / environment *
31.2
31.3
-0%
31.2
-0%
29.1
7%
Idle Minimum *
32.2
31.3
3%
32.9
-2%
29.1
10%
32.5
-1%
31.5
2%
Idle Average *
32.2
31.7
2%
32.9
-2%
29.1
10%
32.5
-1%
31.5
2%
Idle Maximum *
32.3
31.8
2%
33
-2%
29.1
10%
32.4
-0%
31.5
2%
Load Average *
38.4
36.7
4%
33
14%
41.1
-7%
36
6%
32.4
16%
Load Maximum *
39.9
39.4
1%
34.6
13%
46.4
-16%
36.5
9%
32.3
19%

* ... Moindre est la valeur, meilleures sont les performances

Stress test Prime95 + Furmark
Stress test Prime95 + Furmark
Stress test Furmark only
Stress test Furmark only
Stress test Prime95 only
Stress test Prime95 only
 34.7 °C39.8 °C35.1 °C
 28.7 °C36.5 °C32.2 °C
 26.5 °C26.3 °C28.3 °C
Maximum: 39.8 °C
Moyenne: 32 °C
32.4 °C36.9 °C29 °C
31.6 °C34.8 °C27.3 °C
28 °C26.6 °C25.8 °C
Maximum: 36.9 °C
Moyenne: 30.3 °C
Alimentation (valeur maximale)  38.5 °C | Température ambiante de la pièce 22.6 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 32 °C / 90 F, compared to the average of 30.6 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 35.7 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 36.9 °C / 98 F, compared to the average of 39.5 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 30.6 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.3 °C / 82.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.4 °C / 83.1 F (+0.1 °C / 0.2 F).

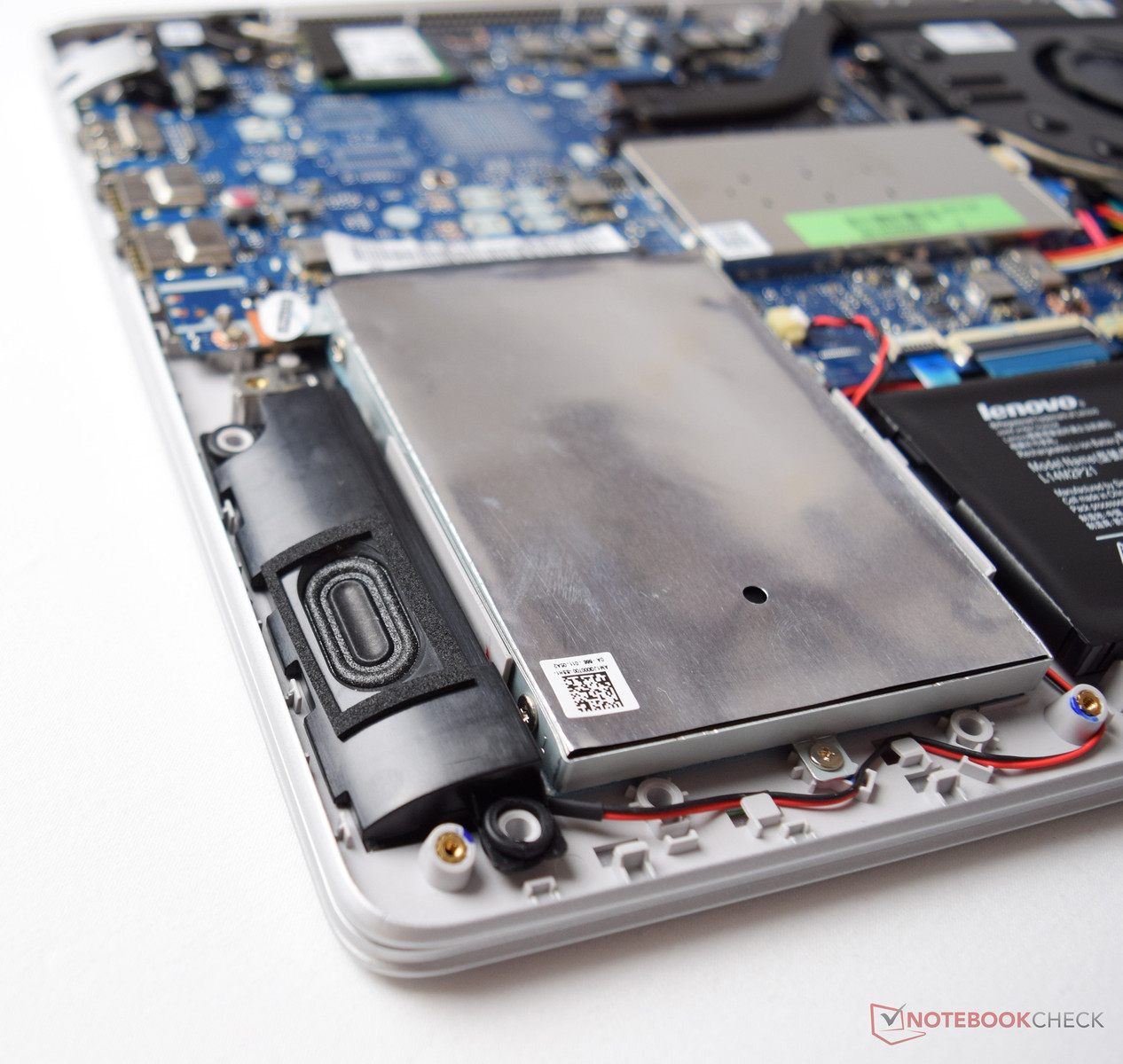

The speakers are situated...
The speakers are situated...
...on the base's front underside
...on the base's front underside
Equalizer with predefined sound profiles
Equalizer with predefined sound profiles
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.129.534.12532.233.632.23137.234.337.24030.330.630.35030.932.430.96329.428.929.48027.828.427.810026.926.426.91253026.53016031.624.531.620035.424.435.425049.723.149.731556.922.656.940061.221.261.250060.520.460.563060.719.660.780067.419.467.4100061.81961.8125057.718.557.7160059.518.259.520005918.659250057.418.557.4315058.718.658.7400055.718.855.7500056.718.856.7630052.618.852.6800048.518.948.51000054.118.854.11250059.818.759.81600060.618.660.6SPL71.631.271.6N28.81.628.8median 57.4median 18.9median 57.4Delta6.51.46.535.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseLenovo IdeaPad 510S-14ISKApple MacBook 12 (Early 2016) 1.1 GHz
Lenovo IdeaPad 510S-14ISK audio analysis

(-) | not very loud speakers (64 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19% lower than median
(±) | linearity of bass is average (13.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(±) | linearity of mids is average (7.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(±) | linearity of highs is average (7.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19% difference to median)
Compared to same class
» 55% of all tested devices in this class were better, 8% similar, 37% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 38% of all tested devices were better, 7% similar, 55% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

The compact power supply...
The compact power supply...
...has a maximum output of 65 watts.
...has a maximum output of 65 watts.
Consommation énergétique
Éteint/en veilledarklight 0.3 / 0.5 Watts
Au reposdarkmidlight 3.9 / 7.1 / 8.8 Watts
Fortement sollicité midlight 27.6 / 30.2 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Lenovo IdeaPad 510S-14ISK
6267U, Iris Graphics 550, 14.00
Lenovo Ideapad 500s-14ISK
6500U, GeForce 940M, 14.00
Asus X302UV-FN016T
6200U, GeForce 920MX, 13.30
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550, 13.30
HP Envy 13-d020ng
6200U, HD Graphics 520, 13.30
Acer Aspire V3-372-50LK
6200U, HD Graphics 520, 13.30
Power Consumption
-20%
6%
-17%
-13%
3%
Idle Minimum *
3.9
3.8
3%
3.3
15%
3.4
13%
4.2
-8%
3.8
3%
Idle Average *
7.1
7.2
-1%
5.1
28%
6.5
8%
7.4
-4%
5.8
18%
Idle Maximum *
8.8
7.6
14%
5.2
41%
7
20%
10.1
-15%
8.1
8%
Load Average *
27.6
40
-45%
29.5
-7%
44.5
-61%
33.4
-21%
30.2
-9%
Load Maximum *
30.2
52
-72%
44
-46%
49.5
-64%
34.7
-15%
32.4
-7%

* ... Moindre est la valeur, meilleures sont les performances

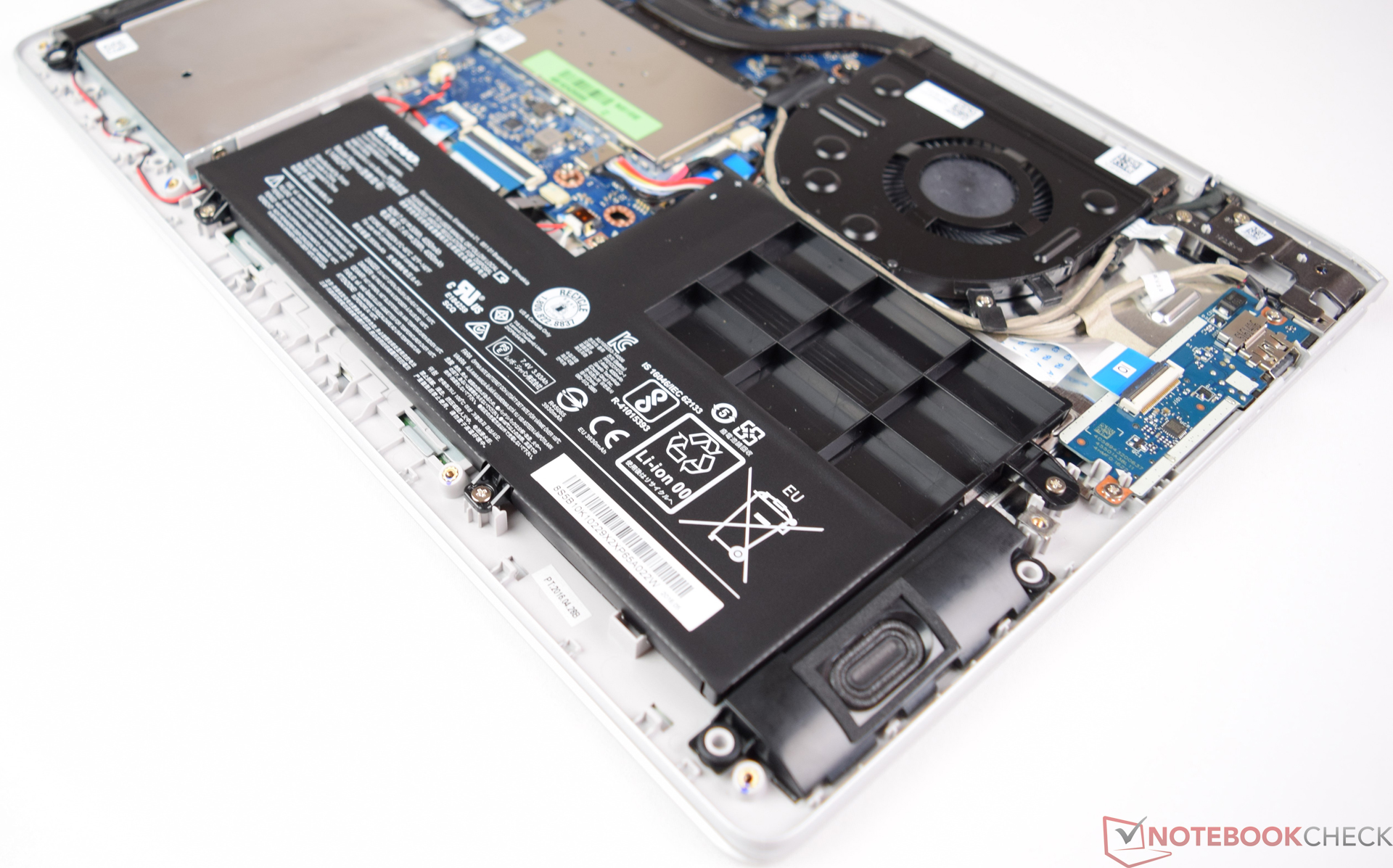

Lenovo installs a 30-Wh lithium-ion battery
Lenovo installs a 30-Wh lithium-ion battery

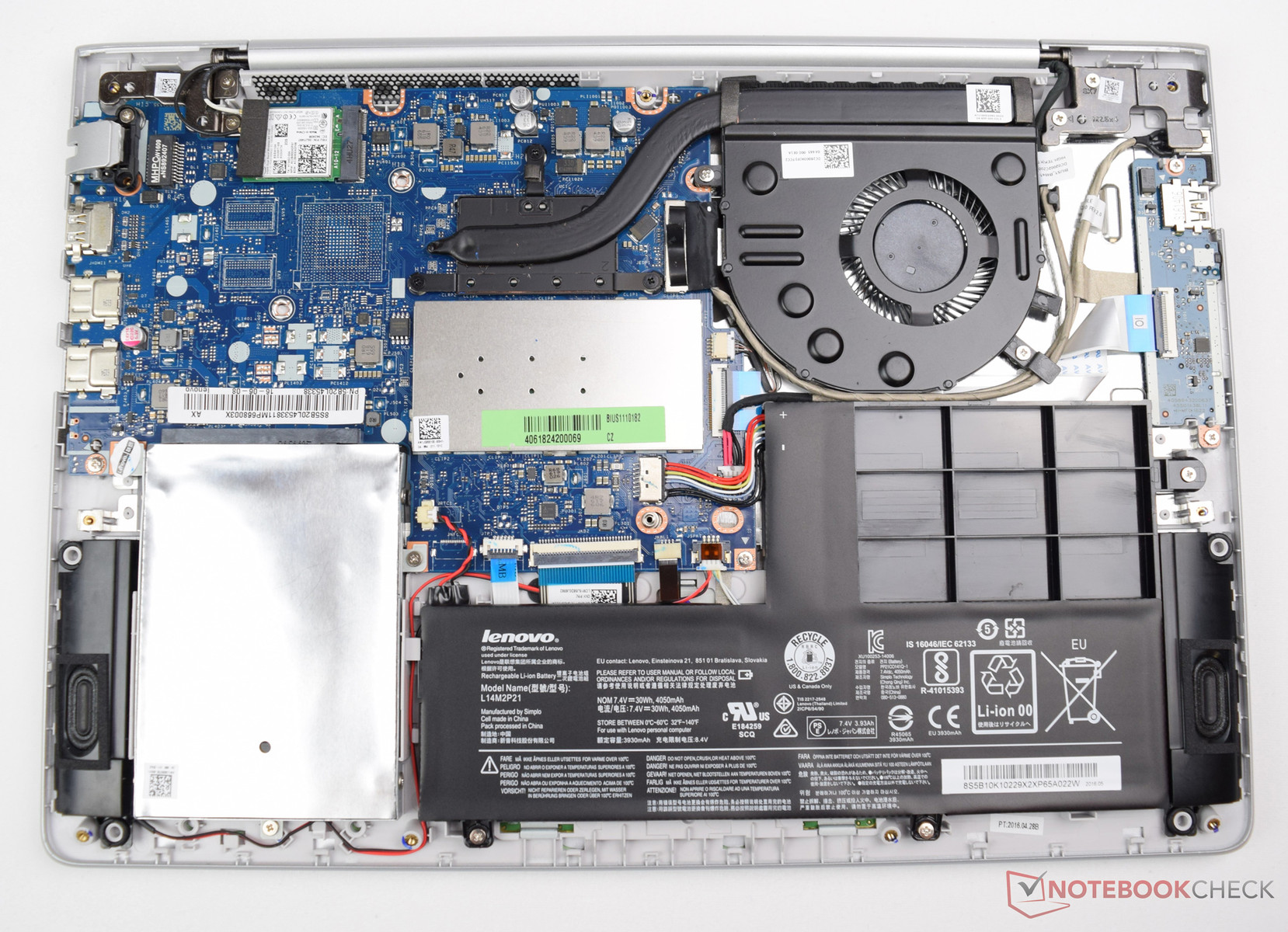

There is plenty of room for a bigger battery
There is plenty of room for a bigger battery
Maximum battery life
Maximum battery life

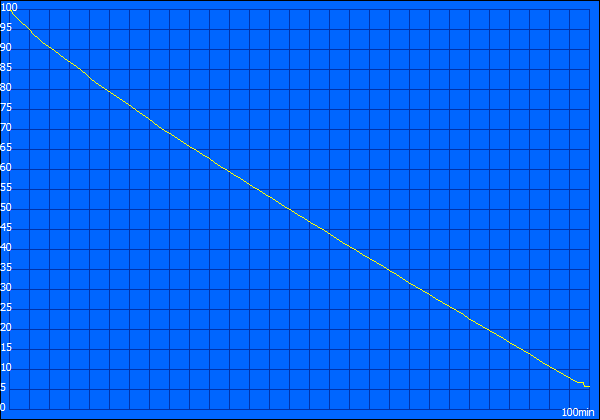

Minimum battery life
Minimum battery life

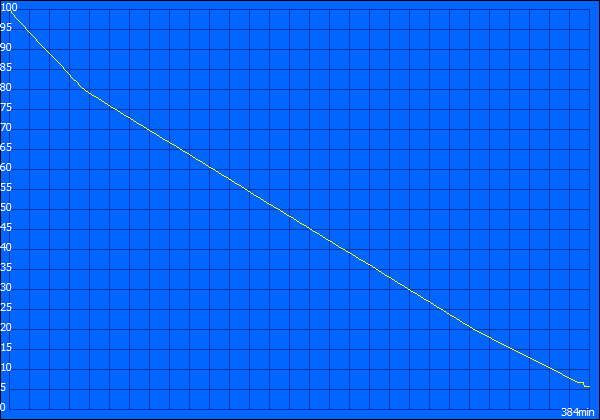

Wi-Fi battery life
Wi-Fi battery life

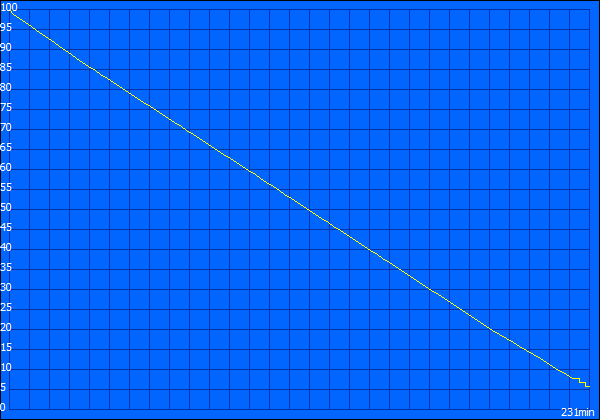

H.264 battery life
H.264 battery life

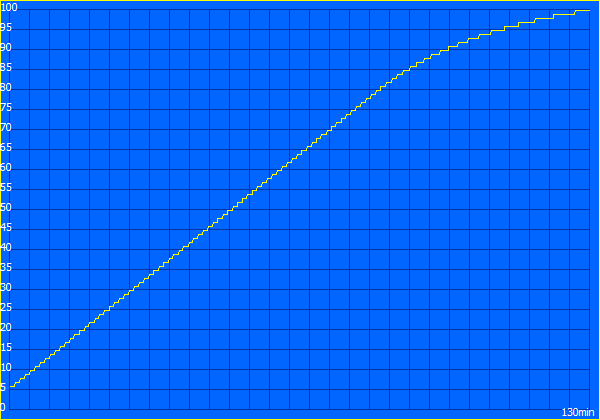

Charging time
Charging time
Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
10h 38min
NBC WiFi Websurfing Battery Test 1.3 (EDGE: 25.10586.0.0)
6h 24min
En lecture de Big Buck Bunny encodé en H.264 1080p
3h 51min
Fortement sollicité (luminosité au maximum)
1h 40min
Lenovo IdeaPad 510S-14ISK
6267U, Iris Graphics 550, 30 Wh
Lenovo Ideapad 500s-14ISK
6500U, GeForce 940M, 30 Wh
Asus X302UV-FN016T
6200U, GeForce 920MX, 38 Wh
Acer Aspire V3-372-57CW
6267U, Iris Graphics 550, 51 Wh
HP Envy 13-d020ng
6200U, HD Graphics 520, 45 Wh
Acer Aspire V3-372-50LK
6200U, HD Graphics 520, 51 Wh
Autonomie de la batterie
-27%
2%
58%
-1%
23%
Reader / Idle
638
346
-46%
1035
62%
906
42%
H.264
231
246
6%
WiFi v1.3
384
257
-33%
392
2%
412
7%
381
-1%
349
-9%
Load
100
64
-36%
206
106%
135
35%

Points positifs

+ châssis rigide et de d'excellente qualité
+ périphériques d'entrée corrects

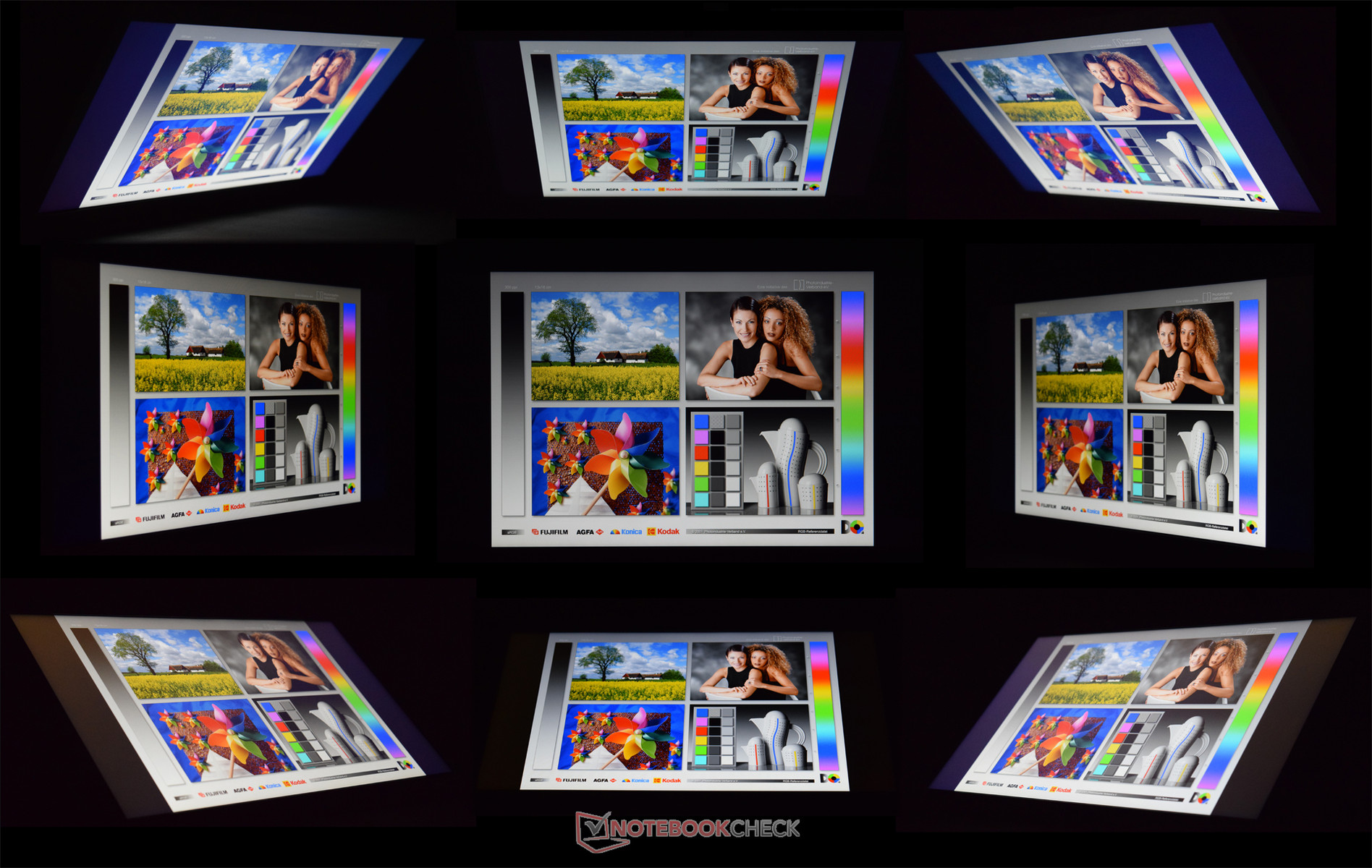

+ bons angles de vision de la dalle IPS
+ consommation électrique modérée sous charge
+ SSD véloce
+ nuisances sonores modérées
+ design attractif
+ garantie de 24 mois

Points négatifs

- capacité un peu faible de la batterie - espace disponible pour en mettre une plus grosse
- performances moyennes de l'Iris Graphics 550
- scintillement de l'écran
- utilisation d'outils adéquats pour démonter le PC recommandée
Test: Lenovo IdeaPad 510S-14ISK. Exemplaire de test fourni par Notebooksbilliger.de
Test: Lenovo IdeaPad 510S-14ISK. Exemplaire de test fourni par Notebooksbilliger.de

Lenovo apporte sur le marché un PC portable compact, globalement attractif avec son IdeaPad 510S-14ISK. Son bon rapport prix/performances pourrait attirer certains acheteurs. On a droit à un PC de 14 pouces dans un châssis rigide avec de bons périphériques d'entrée, le tout pour 799 euros (~$897). L'écran Full HD IPS offre une bonne colorimétrie, de bons angles de vision et un rétroéclairage uniforme. Le Core i5-6267U d'Intel qui intègre aussi l'IGP Iris Graphics 550 propose assez de performances pour la routine quotidienne.

Lenovo a fait du bon travail avec l'IdeaPad 510S-14ISK sur bon nombre d'aspects. Cependant, pour ceux qui sont toujours en déplacement et recherchant une machine endurante du point de vue de l'autonomie, ce sera la déception avec l'IdeaPad sur le long terme.

Après les points positifs, les défauts récapitulés ici:

En premier, la batterie dont l'autonomie est médiocre. La batterie devrait avoir une capacité de 45-50 Wh pour une autonomie acceptable. Les performances du CPU et du GPU ne sont pas pleinement exploitables. L'Acer Aspire V3-372-57CW qui dispose d'une configuration similaire se montre plus véloce dans certains cas d'utilisation. Cela ne veut pas pour autant dire que l'IdeaPad 510S-14ISK est sujet aux lenteurs et plantages. Les différences de performances ne sont remarquables que dans les benchmarks, et sont presque inexistantes lors de l'utilisation habituelle. En outre, la septième génération de processeurs d'Intel sera lancée prochainement. Lenovo en fait déjà la publicité sur sa boutique en ligne.

Pour plus de détails, la version complète de ce test (en anglais) est disponible ici.

Lenovo IdeaPad 510S-14ISK - 09/17/2016 v5.1(old)
Sebastian Bade

Châssis
87 /  98 → 89%
Clavier
85%
Dispositif de pointage
81%
Connectivité
56 / 80 → 71%
Poids
68 / 35-78 → 77%
Autonomie
81%
Écran
87%
Performances en jeu
59 / 68 → 87%
Performances dans les applications
84 / 87 → 97%
Chauffe
93 / 91 → 100%
Nuisance sonore
87%
Audio
79 / 91 → 87%
Appareil photo
53 / 85 → 62%
Moyenne
77%
84%
Subnotebook - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique du PC portable Lenovo IdeaPad 510S-14ISK (80TK003KGE)
Sebastian Bade, 2016-10- 1 (Update: 2016-10-11)
