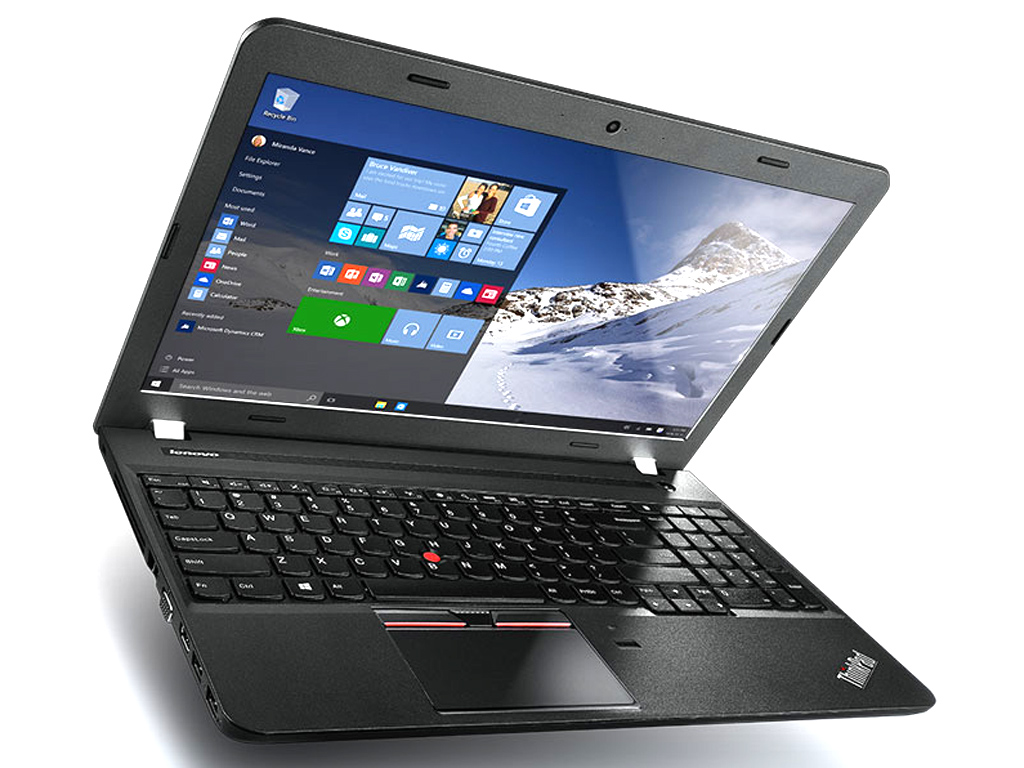

Courte critique du PC portable Lenovo ThinkPad E560 (Core i7, Radeon R7 M370)

Evolution réussie. C'est la première fois que Lenovo dote l'une des machine de sa série E500 d'un écran IPS haute-qualité, et d'une puissance carte graphique à mémoire GDDR5. Pour moins de 1000 euros, on a même droit à un SSD et à un processeur i7 : l'affaire du siècle ?
E560 20EWS00000 (ThinkPad E560 Gamme)

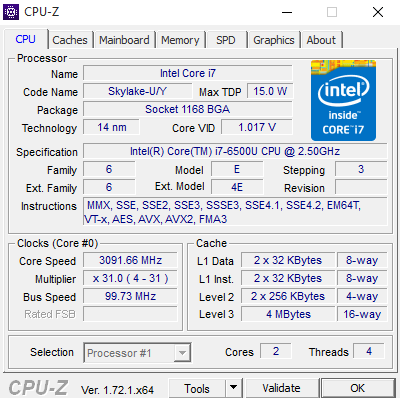

Processeur
Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

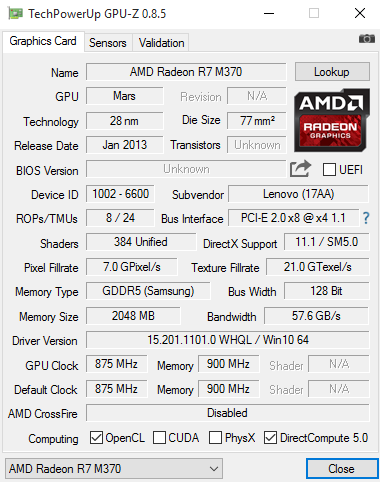

Carte graphique
AMD Radeon R7 M370 - 2048 Mo VRAM, Processeur: 875 MHz, Mémoire: 3600 MHz, GDDR5, 15.201.1101.0, Enduro

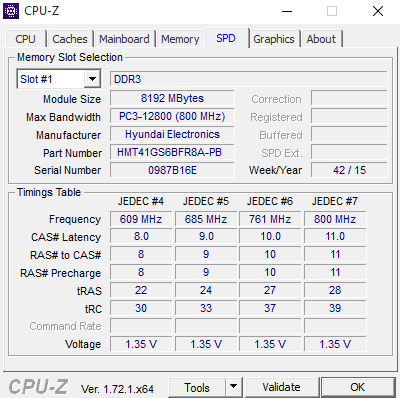

Mémoire
8 Go

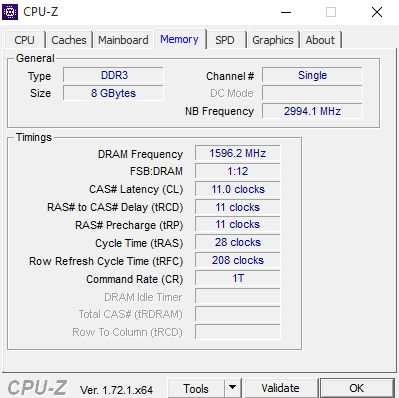

, 1x 8 GB DDR3L-1600, 1 slot sur 2 utilisé
Écran
15.60 pouces 16:9, 1920 x 1080 pixel, Lenovo LP156WF6-SPK2, Dalle IPS, Rétroéclairage LED, brillant: non

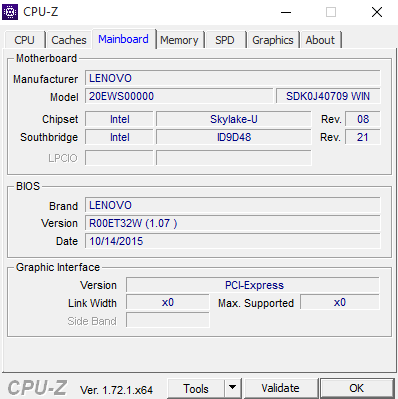

Carte mère
Intel Skylake-U Premium PCH

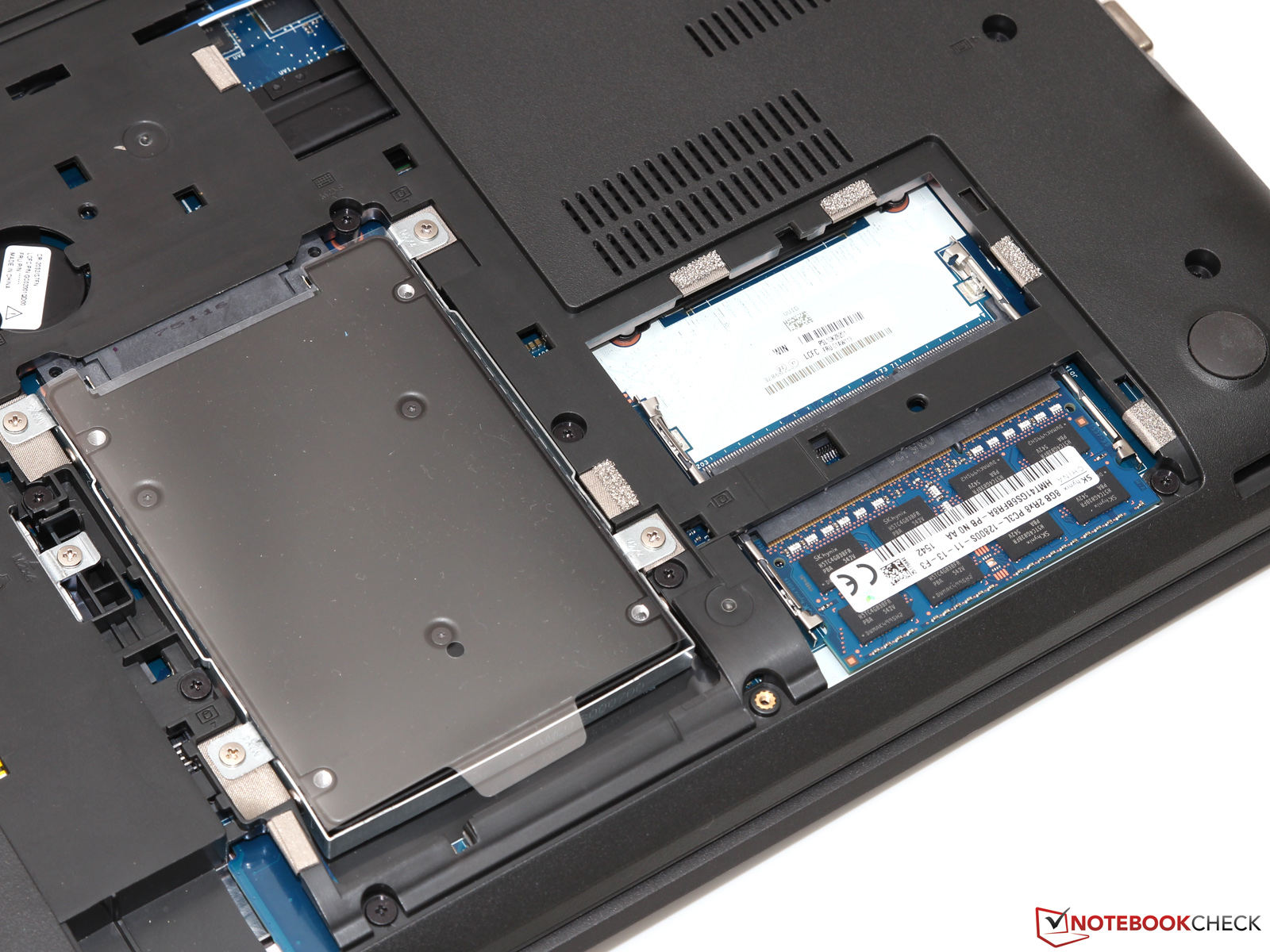

Disque dur
Samsung CM871 MZ7LF192HCGS, 192 Go
, 158 Go libres
Carte son
Intel Skylake-U/Y PCH - High Definition Audio

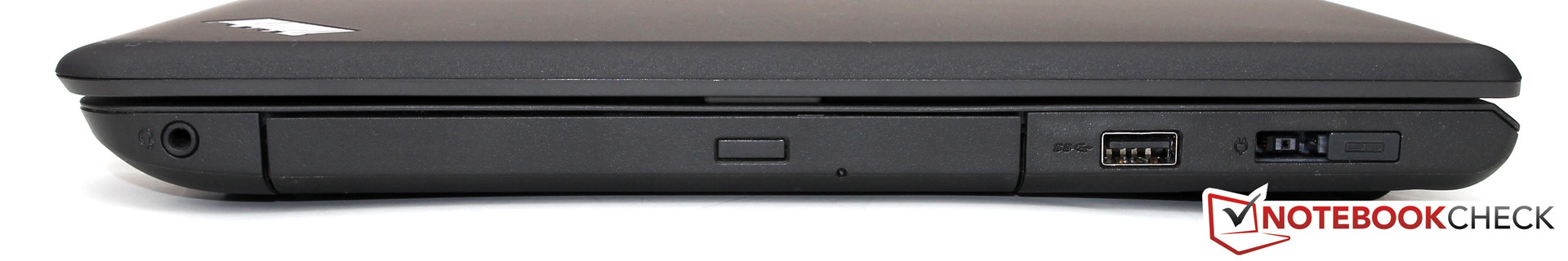

Connexions

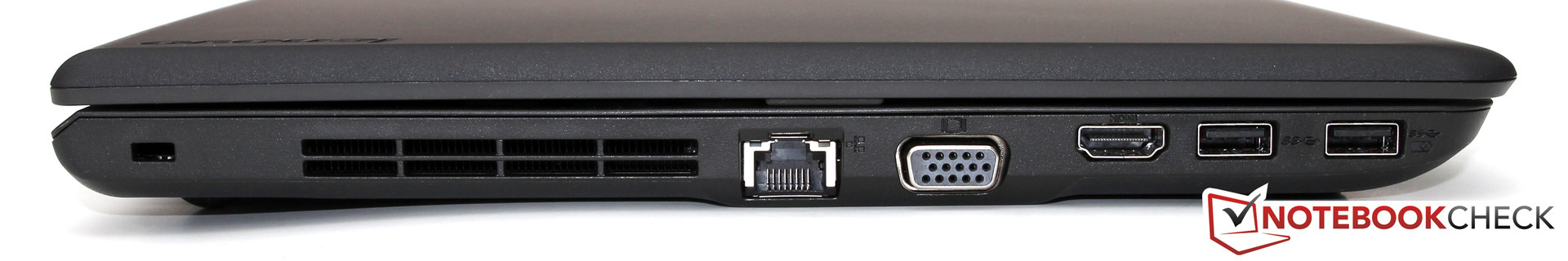

3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Encoche de Sécurité Kensington, 1 Port pour Station d'accueil, Connectique audio: Port entrée audio (jack 3.5 mm), Lecteur de cartes mémoires: SD, MMC

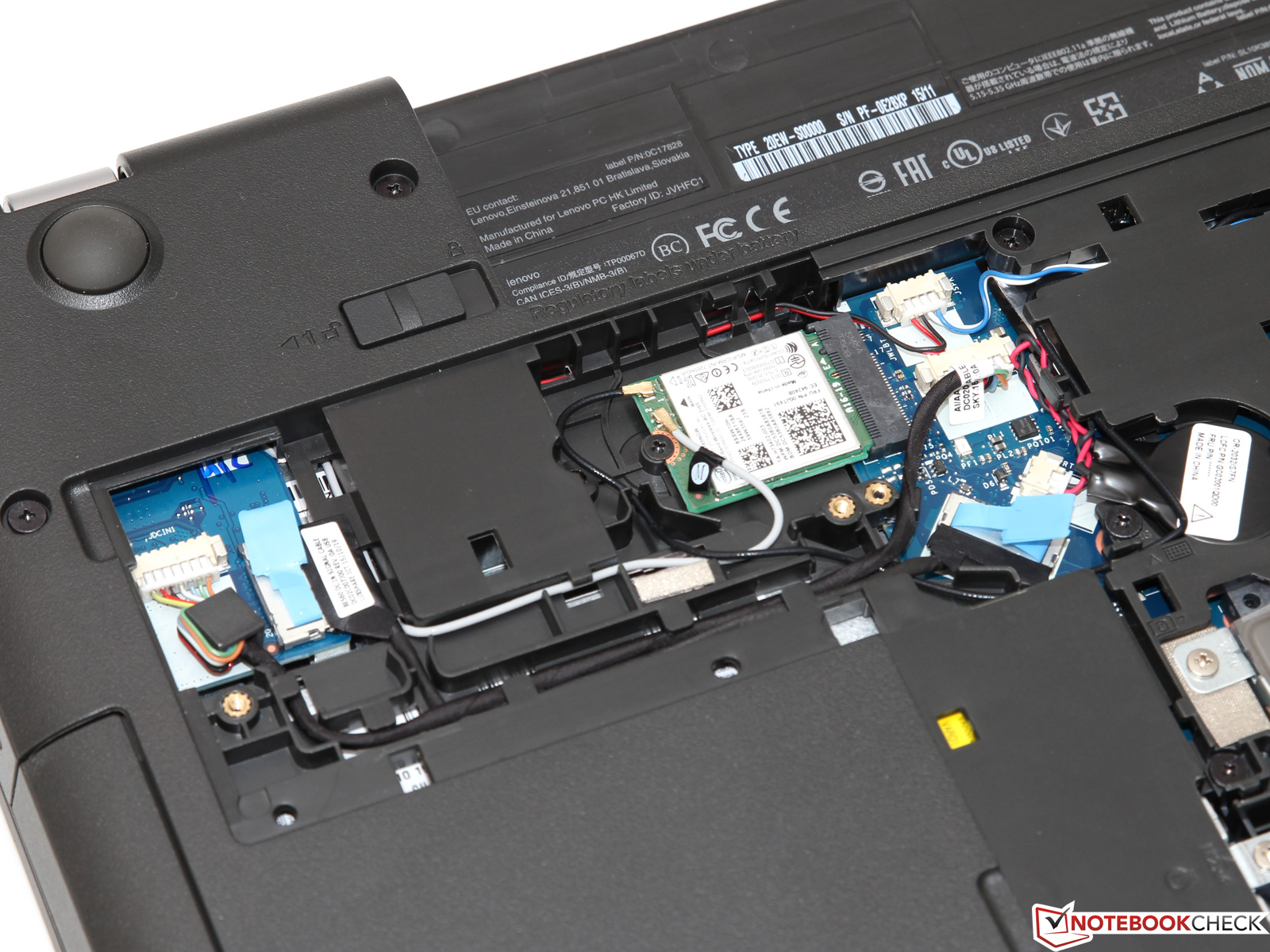

Réseau
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Lecteur optique
HL-DT-ST DVDRAM GUC0N
Taille
Hauteur x Largeur x Profondeur (en mm): 27.1 x 377 x 256

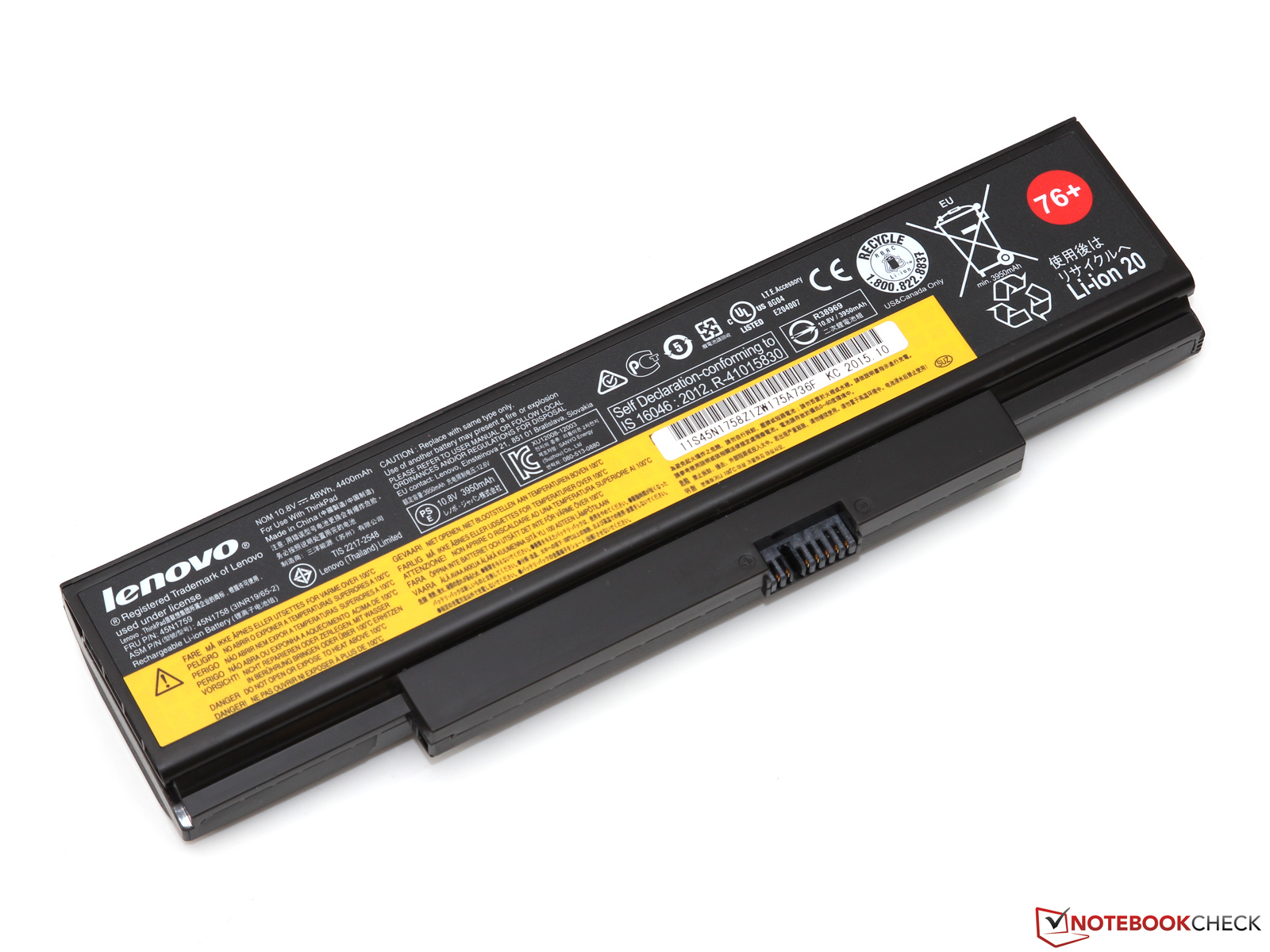

Batterie
48 Wh Lithium-Ion, 6 cellules
Système d'exploitation
Microsoft Windows 10 Home 64 Bit

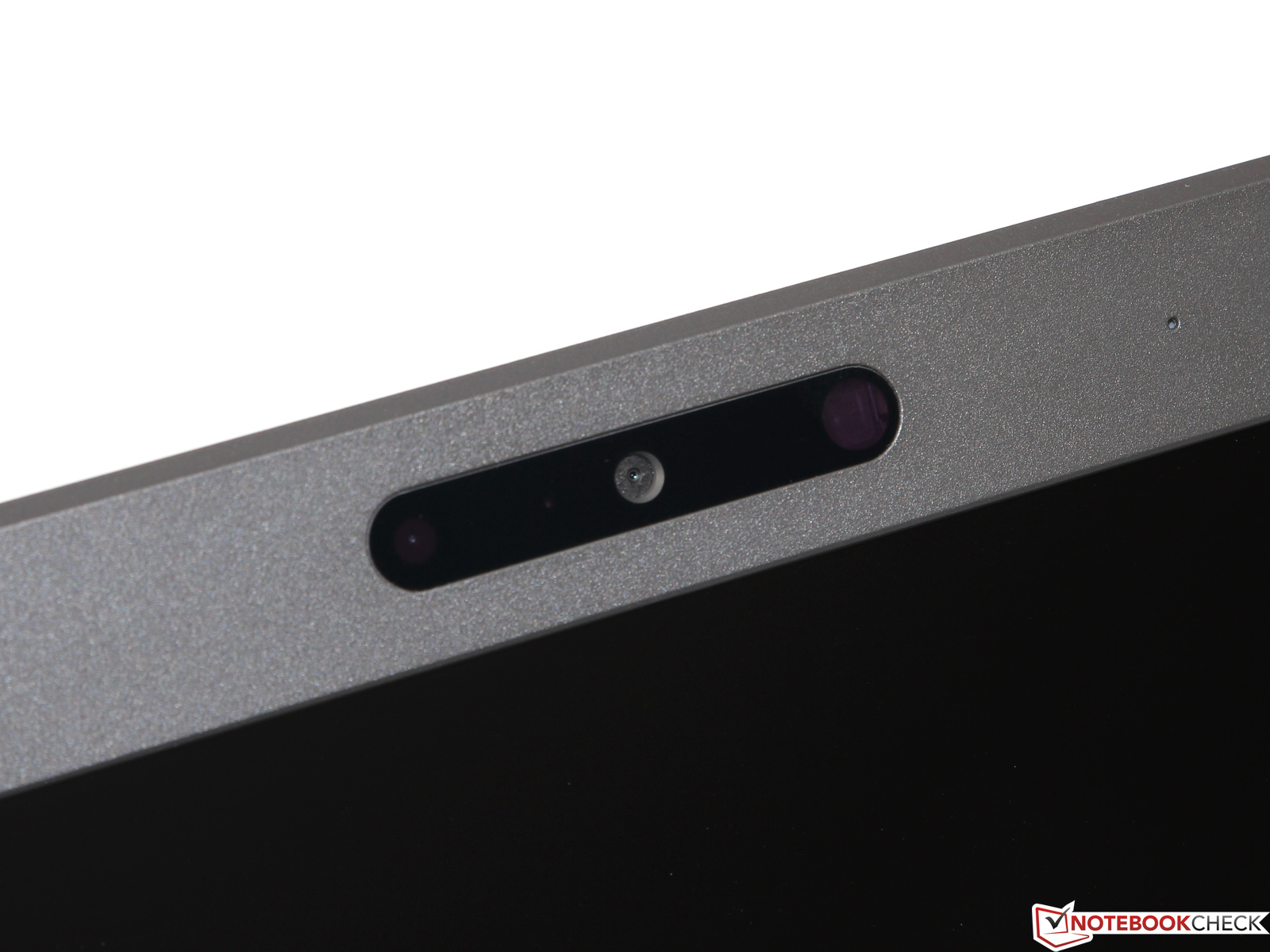

Appareil photo
Webcam: Caméra Intel RealSense 3D (2x 1080p)
Fonctionnalités additionnelles
Haut-parleurs: JBL Stéréo (2x 2W), Clavier: Chiclet, Rétroéclairage du clavier: non, Alimentation 65 Watts, Lenovo Solution Center, 12 Mois Garantie
Poids

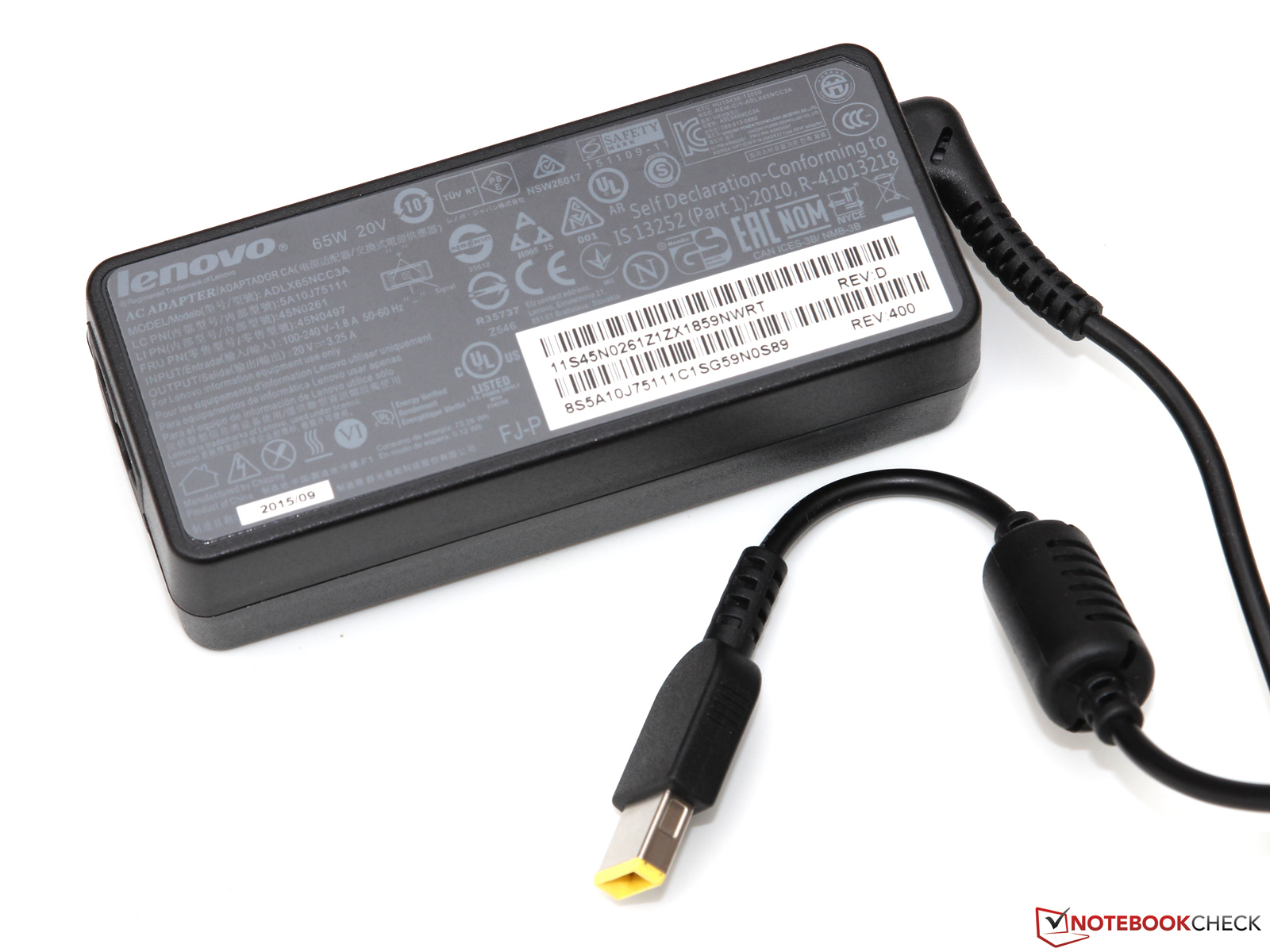

2.35 kg, Alimentation: 220 g
Prix
930 euros
Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.



Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) non décelé

En comparaison, 53 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 18110 (minimum : 5 - maximum : 3846000) Hz dans le cas où une MDI était active.

238
cd/m²
230
cd/m²
222
cd/m²
249
cd/m²
257
cd/m²
239
cd/m²
228
cd/m²
229
cd/m²
214
cd/m²
Homogénéité de la luminosité
Lenovo LP156WF6-SPK2 tested with X-Rite i1Pro 2
Maximum: 257 cd/m² (Nits) Moyenne: 234 cd/m²
Homogénéité de la luminosité: 83 %
Valeur mesurée au centre, sur batterie: 255 cd/m²
Contraste: 952:1 (Valeurs des noirs: 0.27 cd/m²)
ΔE Color 7.16 | 0.5-29.43 Ø5
ΔE Greyscale 6.28 | 0.57-98 Ø5.3
57.3% sRGB (Argyll 1.6.3 3D)
36.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.5% sRGB (Argyll 2.2.0 3D)
38.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44
Lenovo ThinkPad E560-20EWS00000
1.920 x 1.080 IPS-Panel
Lenovo ThinkPad E550-20DF00CNGE
1.920 x 1.080 TN-Panel
HP ProBook 450 G3
1.920 x 1.080 TN-Panel
Dell Latitude 15 3550-0123
1.920 x 1.080 IPS-Panel
Display
3%
-1%
55%
Display P3 Coverage
38.5
39.84
3%
38.1
-1%
64.3
67%
sRGB Coverage
57.5
59.3
3%
57.3
0%
83.3
45%
AdobeRGB 1998 Coverage
39.8
41.2
4%
39.37
-1%
60.9
53%
Response Times
-16%
Response Time Grey 50% / Grey 80% *
38.4 ?(13.2, 25.2)
41.2 ?(22.4, 18.8)
-7%
Response Time Black / White *
22.4 ?(6.4, 16)
28 ?(10, 18)
-25%
PWM Frequency
Screen
-28%
-23%
29%
Brightness middle
257
195
-24%
211
-18%
353
37%
Brightness
234
188
-20%
214
-9%
335
43%
Brightness Distribution
83
90
8%
91
10%
88
6%
Black Level *
0.27
0.46
-70%
0.43
-59%
0.31
-15%
Contrast
952
424
-55%
491
-48%
1139
20%
Colorchecker dE 2000 *
7.16
9.92
-39%
9.25
-29%
4.59
36%
Greyscale dE 2000 *
6.28
10.06
-60%
9.83
-57%
3.73
41%
Gamma
2.44 90%
2.37 93%
2.82 78%
2.42 91%
CCT
6806 96%
11552 56%
10890 60%
6268 104%
Color Space (Percent of AdobeRGB 1998)
36.6
38
4%
36.4
-1%
55
50%
Color Space (Percent of sRGB)
57.3
59.3
3%
57.3
0%
83
45%
Moyenne finale (programmes/paramètres)
-13% / -20%
-13% / -18%
42% / 36%

* ... Moindre est la valeur, meilleures sont les performances

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

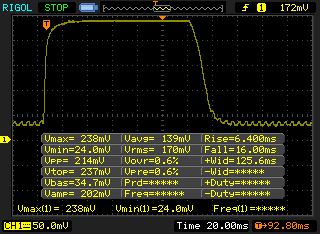

       Temps de réponse noir à blanc
22.4 ms ... hausse ↗ et chute ↘ combinées↗ 6.4 ms hausse
↘ 16 ms chute
L'écran montre de bons temps de réponse, mais insuffisant pour du jeu compétitif.
En comparaison, tous les appareils testés affichent entre 0.1 (minimum) et 240 (maximum) ms. » 44 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (21.6 ms) de tous les appareils testés.

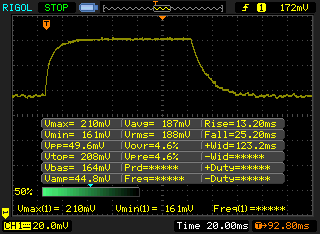

       Temps de réponse gris 50% à gris 80%
38.4 ms ... hausse ↗ et chute ↘ combinées↗ 13.2 ms hausse
↘ 25.2 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.2 (minimum) et 636 (maximum) ms. » 52 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (33.9 ms) de tous les appareils testés.
Cinebench R11.5
CPU Single 64Bit (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
1.45 Points
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U
1.3 Points -10%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
1.42 Points -2%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
1.51 Points +4%
HP ProBook 450 G3
Intel Core i5-6200U
1.32 Points -9%
Dell Latitude 15 3550-0123
Intel Core i7-5500U
1.41 Points -3%
CPU Multi 64Bit (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
3.55 Points
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U
3.23 Points -9%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
3.13 Points -12%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
3.31 Points -7%
HP ProBook 450 G3
Intel Core i5-6200U
3.21 Points -10%
Dell Latitude 15 3550-0123
Intel Core i7-5500U
3.29 Points -7%
Cinebench R15
CPU Single 64Bit (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
124 Points
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U
114 Points -8%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
123 Points -1%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
130 Points +5%
HP ProBook 450 G3
Intel Core i5-6200U
116 Points -6%
Dell Latitude 15 3550-0123
Intel Core i7-5500U
124 Points 0%
CPU Multi 64Bit (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
319 Points
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U
290 Points -9%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
282 Points -12%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
302 Points -5%
HP ProBook 450 G3
Intel Core i5-6200U
288 Points -10%
Dell Latitude 15 3550-0123
Intel Core i7-5500U
299 Points -6%
X264 HD Benchmark 4.0
Pass 1 (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
107.6 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U
97.6 fps -9%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
89.6 fps -17%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
102.4 fps -5%
Pass 2 (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
20.95 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U
18.97 fps -9%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
17.31 fps -17%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
18.72 fps -11%
Geekbench 3
64 Bit Single-Core Score (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
2902 Points
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U
2702 Points -7%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
2839 Points -2%
64 Bit Multi-Core Score (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
6403 Points
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U
5801 Points -9%
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U
5794 Points -10%
Cinebench R10 Shading 32Bit
7921
Cinebench R10 Rendering Multiple CPUs 32Bit
11004
Cinebench R10 Rendering Single 32Bit
4871
Cinebench R10 Shading 64Bit
7835 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
14045 Points
Cinebench R10 Rendering Single CPUs 64Bit
6343 Points
Cinebench R11.5 CPU Single 64Bit
1.45 Points
Cinebench R11.5 OpenGL 64Bit
52.9 fps
Cinebench R11.5 CPU Multi 64Bit
3.55 Points
Cinebench R15 OpenGL 64Bit
51.3 fps
Cinebench R15 CPU Single 64Bit
124 Points
Cinebench R15 CPU Multi 64Bit
319 Points
Cinebench R15 Ref. Match 64Bit
98 %
Aide
Samsung CM871 MZ7LF192HCGS
Débit de transfert minimal: 280.8 MB/s
Débit de transfert maximal: 399.1 MB/s
Débit de transfert moyen: 388.8 MB/s
Temps d'accès: 0.2 ms
Débit en pointe: 126.7 MB/s
Utilisation du processeur: 3.1 %
PCMark 7 - Score (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
5102 Points
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
2819 Points -45%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3075 Points -40%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
2714 Points -47%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
4293 Points -16%
PCMark 8
Home Score Accelerated v2 (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
3595 Points
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
3960 Points +10%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
2910 Points -19%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
3152 Points -12%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
3090 Points -14%
Creative Score Accelerated v2 (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
4049 Points
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3460 Points -15%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
3443 Points -15%
Work Score Accelerated v2 (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
4650 Points
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
4020 Points -14%
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
3901 Points -16%
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
3873 Points -17%
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
3979 Points -14%
PCMark 7 Score
5102 points
PCMark 8 Home Score Accelerated v2
3595 points
PCMark 8 Creative Score Accelerated v2
4049 points
PCMark 8 Work Score Accelerated v2
4650 points
Aide
3DMark 11 - 1280x720 Performance GPU (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
AMD Radeon R7 M370
2522 Points
Lenovo ThinkPad T450s-20BWS1UT00
NVIDIA GeForce 940M
2313 Points -8%
Lenovo ThinkPad E550-20DF00CNGE
AMD Radeon R7 M265
2073 Points -18%
Lenovo ThinkPad E460-20EUS00000
AMD Radeon R7 M360
1989 Points -21%
Dell Latitude 15 3550-0123
NVIDIA GeForce 830M
1961 Points -22%
HP ProBook 430 G3 P5T00ES
Intel HD Graphics 520
1318 Points -48%
HP ProBook 450 G3
Intel HD Graphics 520
1165 Points -54%
3DMark - 1920x1080 Fire Strike Graphics (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
AMD Radeon R7 M370
1760 Points
Lenovo ThinkPad T450s-20BWS1UT00
NVIDIA GeForce 940M
1627 Points -8%
Lenovo ThinkPad E550-20DF00CNGE
AMD Radeon R7 M265
1397 Points -21%
Lenovo ThinkPad E460-20EUS00000
AMD Radeon R7 M360
1109 Points -37%
Dell Latitude 15 3550-0123
NVIDIA GeForce 830M
1360 Points -23%
HP ProBook 430 G3 P5T00ES
Intel HD Graphics 520
861 Points -51%
HP ProBook 450 G3
Intel HD Graphics 520
608 Points -65%
3DMark 06 Standard Score
12983 points
3DMark Vantage P Result
8513 points
3DMark 11 Performance
2689 points
3DMark Ice Storm Standard Score
34736 points
3DMark Cloud Gate Standard Score
7083 points
3DMark Fire Strike Score
1654 points
3DMark Fire Strike Extreme Score
822 points
Aide
Crysis 3
1024x768 Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
54.1 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
39.1 fps -28%
1366x768 Medium Preset AF:16x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
32.6 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
25.4 fps -22%
1366x768 High Preset AA:FX AF:16x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
20.2 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
18.1 fps -10%
Tomb Raider
1024x768 Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
105.5 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
104.5 fps -1%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
73.2 fps -31%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
52 fps -51%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
50.1 fps -53%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
74.2 fps -30%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
108.7 fps +3%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
130.8 fps +24%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
123.2 fps +17%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
128.8 fps +22%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
71.8 fps -32%
1366x768 Normal Preset AA:FX AF:4x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
55.4 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
51.5 fps -7%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
38.7 fps -30%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
26.8 fps -52%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
26.6 fps -52%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
39.4 fps -29%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
55.3 fps 0%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
66.1 fps +19%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
58 fps +5%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
61.5 fps +11%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
36.6 fps -34%
1366x768 High Preset AA:FX AF:8x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
42.7 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
34.6 fps -19%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
29.7 fps -30%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
15.1 fps -65%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
15.3 fps -64%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
24.5 fps -43%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
31.1 fps -27%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
36.4 fps -15%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
33.4 fps -22%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
33.5 fps -22%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
24.4 fps -43%
BioShock Infinite
1280x720 Very Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
86.7 fps
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
51.4 fps -41%
1366x768 Medium Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
48.4 fps
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
27.9 fps -42%
1366x768 High Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
46.7 fps
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
24.1 fps -48%
Metro: Last Light
1024x768 Low (DX10) AF:4x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
51.9 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
46.4 fps -11%
1366x768 Medium (DX10) AF:4x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
38.2 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
36.4 fps -5%
1366x768 High (DX11) AF:16x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
21.8 fps
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
22.5 fps +3%
Battlefield 4
1024x768 Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
68 fps
1366x768 Medium Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
46.7 fps
1366x768 High Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
33.2 fps
Thief
1024x768 Very Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
30.3 fps
1366x768 Normal Preset AA:FX (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
21 fps
1366x768 High Preset AA:FXAA & Low SS AF:4x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
18 fps
Sims 4
1024x768 Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
172.7 fps
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
164.8 fps -5%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
176.8 fps +2%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
161.1 fps -7%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
184.5 fps +7%
1366x768 Medium Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
58.6 fps
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
40.5 fps -31%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
49.4 fps -16%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
66.2 fps +13%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
90.1 fps +54%
1920x1080 High Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
35 fps
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
16.6 fps -53%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
25.3 fps -28%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
35.7 fps +2%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
40.1 fps +15%
Middle-earth: Shadow of Mordor
1280x720 Lowest Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
37.4 fps
1344x756 Medium Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
27.8 fps
1920x1080 High Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
15.7 fps
Dragon Age: Inquisition
1024x768 Low Graphics Quality (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
58.6 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
42 fps -28%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
17.2 fps -71%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
28.6 fps -51%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
44.7 fps -24%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
40.9 fps -30%
1366x768 Medium Graphics Quality (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
34.9 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
28.7 fps -18%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
11.7 fps -66%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
18.9 fps -46%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
29.7 fps -15%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
25.1 fps -28%
1920x1080 High Graphics Quality (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
11.7 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
10.7 fps -9%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
4.5 fps -62%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
10.3 fps -12%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
16.1 fps +38%
Battlefield Hardline
1024x768 Low Graphics Quality (DX11) (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
72.4 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
53.3 fps -26%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
30.6 fps -58%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
47.7 fps -34%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
65.2 fps -10%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
71.7 fps -1%
1366x768 Medium Graphics Quality (DX11) (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
52.5 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
42 fps -20%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
21.7 fps -59%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
33.5 fps -36%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
46.1 fps -12%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
50.2 fps -4%
1920x1080 High Graphics Quality (DX11) (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
19.4 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
17.3 fps -11%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
7.3 fps -62%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
11.9 fps -39%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
16.7 fps -14%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
18 fps -7%
Dirt Rally
1024x768 Ultra Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
116.8 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
136.6 fps +17%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
91.8 fps -21%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
71.3 fps -39%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
70.6 fps -40%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
113.3 fps -3%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
165.4 fps +42%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
183.2 fps +57%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
95 fps -19%
1366x768 Medium Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
47.6 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
40.6 fps -15%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
34 fps -29%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
20 fps -58%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
19.9 fps -58%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
25.7 fps -46%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
45.6 fps -4%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
45.1 fps -5%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
23.6 fps -50%
1920x1080 High Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
25.6 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
21.3 fps -17%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
18.4 fps -28%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
12.5 fps -51%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
12.5 fps -51%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
12.5 fps -51%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
25.5 fps 0%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
22.6 fps -12%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
12.7 fps -50%
The Witcher 3
1024x768 Low Graphics & Postprocessing (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
27.6 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
22.9 fps -17%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
24.5 fps -11%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
27 fps -2%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
29 fps +5%
1366x768 Medium Graphics & Postprocessing (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
18 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
15.9 fps -12%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
15 fps -17%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
16.7 fps -7%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
17.6 fps -2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
9.5 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
8.8 fps -7%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
7.3 fps -23%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
9 fps -5%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
9.2 fps -3%
Batman: Arkham Knight
1280x720 Low / Off AF:Trilinear (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
29 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
25 fps -14%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
23 fps -21%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
26 fps -10%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
25 fps -14%
1366x768 Normal / Off AF:4x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
23 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
17 fps -26%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
19 fps -17%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
21 fps -9%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
21 fps -9%
1920x1080 High / On (Interactive Smoke & Paper Debris Off) AA:SM AF:8x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
10 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
7 fps -30%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
7 fps -30%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
10 fps 0%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
12 fps +20%
Metal Gear Solid V
1024x768 Low / Off (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
57.1 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
60 fps +5%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
28.6 fps -50%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
45 fps -21%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
60 fps +5%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
60 fps +5%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
58 fps +2%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
43.7 fps -23%
1366x768 Medium / Off (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
43.3 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
48.7 fps +12%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
18.3 fps -58%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
28.2 fps -35%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
48.2 fps +11%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
40.5 fps -6%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
39.9 fps -8%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
28.3 fps -35%
1920x1080 High / On (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
20.2 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
18.3 fps -9%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
16.9 fps -16%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
16.4 fps -19%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
16.1 fps -20%
Dell XPS 13 2016 i7 256GB QHD
Intel Core i7-6500U, Intel HD Graphics 520
11.5 fps -43%
Mad Max
1366x768 Normal Preset AF:2x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
38.4 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
32.4 fps -16%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
32 fps -17%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
34.5 fps -10%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
34.4 fps -10%
1920x1080 High Preset AF:6x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
17.1 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
16 fps -6%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
15.7 fps -8%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
16.4 fps -4%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
17 fps -1%
World of Warships
1366x768 Low Preset AF:Trilinear (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
51 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
83.2 fps +63%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
46.5 fps -9%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
45.2 fps -11%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
69.2 fps +36%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
48.4 fps -5%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
102.6 fps +101%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
103.4 fps +103%
1366x768 Medium Preset AF:Trilinear (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
35.6 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
56.4 fps +58%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
36.7 fps +3%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
32.1 fps -10%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
47 fps +32%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
37.6 fps +6%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
75.3 fps +112%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
78.1 fps +119%
1920x1080 High Preset AF:8x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
17.7 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
28.1 fps +59%
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
17.2 fps -3%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
15.9 fps -10%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
22 fps +24%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
20.2 fps +14%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
34.7 fps +96%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
36.6 fps +107%
FIFA 16
1280x720 Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
69 fps
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
36.9 fps
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
63.5 fps
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
92.6 fps
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
99.7 fps
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
88.5 fps
1366x768 High Preset AA:2x MS (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
27.9 fps
Lenovo ThinkPad E550-20DF00CNGE
Intel Core i7-5500U, AMD Radeon R7 M265
49.1 fps +76%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
25 fps -10%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
39.7 fps +42%
Dell Latitude 15 3550-0123
Intel Core i7-5500U, NVIDIA GeForce 830M
50 fps +79%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
57.8 fps +107%
Lenovo Flex 2 Pro-15
Intel Core i7-4510U, NVIDIA GeForce 840M
57.9 fps +108%
Anno 2205
1024x768 Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
35.4 fps
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
8.2 fps -77%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
40.6 fps +15%
1366x768 Medium Preset AA:2x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
19.8 fps
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
5.3 fps -73%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
22.3 fps +13%
1920x1080 High Preset AA:4x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
8.7 fps
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
9.7 fps +11%
Call of Duty: Black Ops 3
1024x768 Low / Off (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
44.2 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
33.9 fps -23%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
17.2 fps -61%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
22 fps -50%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
46.7 fps +6%
1366x768 Medium / Off (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
28 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
20.6 fps -26%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
9.7 fps -65%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
12 fps -57%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
29.2 fps +4%
1920x1080 High / On AA:FX (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
11.4 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
8.5 fps -25%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
13.1 fps +15%
Fallout 4
1280x720 Low Preset AA:FX (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
34 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
21.4 fps -37%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
13.2 fps -61%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
13.6 fps -60%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
18.8 fps -45%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
32.3 fps -5%
1366x768 Medium Preset AA:T AF:16x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
21.1 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
14.5 fps -31%
HP ProBook 450 G3
Intel Core i5-6200U, Intel HD Graphics 520
8.6 fps -59%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
9.1 fps -57%
HP ProBook 430 G3 P5T00ES
Intel Core i5-6200U, Intel HD Graphics 520
11.4 fps -46%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
19.8 fps -6%
1920x1080 High Preset AA:T AF:16x (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
11.5 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
7.5 fps -35%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
11.1 fps -3%
Star Wars Battlefront
1024x768 Low Preset (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
52.1 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
23.5 fps -55%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
46.2 fps -11%
1366x768 Medium Preset AA:FX (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
32.8 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
16.5 fps -50%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
28.5 fps -13%
1920x1080 High Preset AA:FX (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
16 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
8.9 fps -44%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
12.8 fps -20%
Assassin's Creed Syndicate
1024x768 Low Preset AA:FX (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
19.3 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
12 fps -38%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
21.8 fps +13%
1366x768 Medium Preset AA:FX (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
15.8 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
10 fps -37%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
17.3 fps +9%
1920x1080 High Preset AA:FX (Classer selon les valeurs)
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U, AMD Radeon R7 M370
8.9 fps
Lenovo ThinkPad E460-20EUS00000
Intel Core i5-6200U, AMD Radeon R7 M360
5.9 fps -34%
HP Envy 15-w103ng x360
Intel Core i5-6200U, NVIDIA GeForce 930M
9.6 fps +8%
Bas Moyen Élevé Ultra
Crysis 3 (2013) 54.1 32.6 20.2 7.4
Tomb Raider (2013) 105.5 55.4 42.7 18.6
BioShock Infinite (2013) 86.7 48.4 46.7 16.1
Metro: Last Light (2013) 51.9 38.2 21.8 10.1
Battlefield 4 (2013) 68 46.7 33.2 12.8
Thief (2014) 30.3 21 18 9.8
Sims 4 (2014) 172.7 58.6 35 25
Middle-earth: Shadow of Mordor (2014) 37.4 27.8 15.7 11.7
Dragon Age: Inquisition (2014) 58.6 34.9 11.7 7.6
Battlefield Hardline (2015) 72.4 52.5 19.4 12.8
Dirt Rally (2015) 116.8 47.6 25.6 13.4
The Witcher 3 (2015) 27.6 18 9.5 5.7
Batman: Arkham Knight (2015) 29 23 10
Metal Gear Solid V (2015) 57.1 43.3 20.2 12.7
Mad Max (2015) 38.4 17.1 13.8
World of Warships (2015) 51 35.6 17.7 13.3
FIFA 16 (2015) 27.9 15.6
Anno 2205 (2015) 35.4 19.8 8.7 4.1
Call of Duty: Black Ops 3 (2015) 44.2 28 11.4 6.5
Fallout 4 (2015) 34 21.1 11.5 8.4
Star Wars Battlefront (2015) 52.1 32.8 16 13.5
Assassin's Creed Syndicate (2015) 19.3 15.8 8.9
Lenovo ThinkPad E560-20EWS00000
Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS
Lenovo ThinkPad E550-20DF00CNGE
Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0
Dell Latitude 15 3550-0123
GeForce 830M, 5500U, Toshiba MQ01ABD100
HP ProBook 450 G3
HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
Noise
-2%
-18%
-0%
-7%
Idle Minimum *
29.2
29.8
-2%
32.5
-11%
29.7
-2%
31.8
-9%
Idle Average *
29.2
29.8
-2%
32.5
-11%
29.7
-2%
31.8
-9%
Idle Maximum *
29.2
31.1
-7%
32.5
-11%
29.7
-2%
31.8
-9%
Load Average *
33.6
33.1
1%
43.5
-29%
33.1
1%
35
-4%
Load Maximum *
35.5
35.6
-0%
45.3
-28%
34.2
4%
37.6
-6%

* ... Moindre est la valeur, meilleures sont les performances

Degré de la nuisance sonore

Au repos
29.2 / 29.2 / 29.2 dB(A)
Fortement sollicité
33.6 / 35.5 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Voltcraft SL-451 (à 15 cm de distance)
 40.3 °C41.5 °C28.6 °C
 37.3 °C45 °C26.8 °C
 29.9 °C36.6 °C24.1 °C
Maximum: 45 °C
Moyenne: 34.5 °C
26.8 °C39.8 °C31.9 °C
25.8 °C38.9 °C36.8 °C
23.9 °C33.8 °C30.6 °C
Maximum: 39.8 °C
Moyenne: 32 °C
Alimentation (valeur maximale)  50.6 °C | Température ambiante de la pièce 19.1 °C | Fluke 62 Max
(±) La température moyenne de la face supérieure sous charge maximale est de 34.5 °C / 94 F, par rapport à la moyenne de 29.5 °C / 85 F pour les appareils de la classe Office.
(±) La température maximale du côté supérieur est de 45 °C / 113 F, par rapport à la moyenne de 34.2 °C / 94 F, allant de 21.2 à 62.5 °C pour la classe Office.
(+) Le fond chauffe jusqu'à un maximum de 39.8 °C / 104 F, contre une moyenne de 36.7 °C / 98 F
(+) En utilisation inactive, la température moyenne du côté supérieur est de 25.1 °C / 77 F, par rapport à la moyenne du dispositif de 29.5 °C / 85 F.
(±) Les repose-poignets et le pavé tactile peuvent devenir très chauds au toucher, avec un maximum de 36.6 °C / 97.9# F.
(-) La température moyenne de la zone de l'appui-paume de dispositifs similaires était de 27.7 °C / 81.9 F (-8.9 °C / #-16 F).
Consommation énergétique
Éteint/en veilledarklight 0.25 / 0.4 Watts
Au reposdarkmidlight 4.2 / 7.5 / 8.2 Watts
Fortement sollicité midlight 49.6 / 65.8 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo ThinkPad E560-20EWS00000
48 Wh
Lenovo ThinkPad E550-20DF00CNGE
48 Wh
HP ProBook 450 G3
44 Wh
Dell Latitude 15 3550-0123
58 Wh
Acer TravelMate P257-M-56AX
37 Wh
Autonomie de la batterie
-21%
-19%
10%
-15%
Reader / Idle
884
663
-25%
575
-35%
775
-12%
703
-20%
H.264
413
311
-25%
337
-18%
474
15%
WiFi v1.3
342
293
-14%
309
-10%
379
11%
321
-6%
Load
104
82
-21%
90
-13%
129
24%
83
-20%
Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
14h 44min
WiFi Websurfing
5h 42min
En lecture de Big Buck Bunny encodé en H.264 1080p
6h 53min
Fortement sollicité (luminosité au maximum)
1h 44min

Points positifs

+ boîtier de bonne qualité
+ excellent clavier
+ station de docking en option
+ dalle IPS haute-résolution au bon contraste et aux larges angles de vue
+ très bonnes performances logicielles
+ faibles nuisances sonores
+ bon rapport performances/prix

Points négatifs

- très mauvaise reproduction des couleurs
- maintenabilité limitée
- légère autolimitation du processeur en charge système maximale
- seulement 12 mois de garantie
In review: Lenovo ThinkPad E560. Test model courtesy of Campuspoint.
In review: Lenovo ThinkPad E560. Test model courtesy of Campuspoint.

Après son excellent ThinkPad E460, Lenovo continue sur sa lancée et nous propose un E560 performant qui, selon la configuration choisie, se place au tarif d'un entrée de gamme classique. Outre son excellent clavier, dont nous avons désormais l'habitude, il nous faut louer son nouvel écran IPS, qui offre une meilleure luminosité, un contraste plus élevé et des angles de vue bien plus larges que les dalles TN qu'on trouve habituellement sur cette gamme de prix. Ses performances sont plus que convenables, grâce à son SSD, ses 8 Go de RAM et son processeur Core i7. Si vous préférez payer un peu moins cher, nous vous recommanderions cependant le CPU Core i5, qui n'est finalement pas beaucoup plus lent. Sa Radeon R7 M370 dédiée, à mémoire GDDR5, permet de jouer convenablement en détails réduits, mais la HD Graphics 520 qu'il intègre suffira aux tâches bureautiques ou multimédia.

Opter pour le ThinkPad E560 est un choix relativement sage. La question se pose toutefois de savoir si vous avez vraiment besoin d'un processeur Core i7 et d'un GPU Radeon.

Vous pouvez voir dans notre test que nous n'avons finalement que peu de critiques à faire à cet ordinateur. Néanmoins, nous espérons que certaines choses seront améliorée à la prochaine génération. Nous aimerions entre autres la présence d'un slot M.2 libre ainsi qu'un accès facilité au ventilateur. La fidélité des couleurs de l'écran est, elle aussi, perfectible. Mais, de même que sa période de garantie relativement courte (12 mois), ces défauts sont dus à son prix : si l'E560 était parfait, Lenovo ne vendrait plus aucun exemplaire de ses séries L et T, plus onéreuses.



Cet article est la traduction d'un test complet rédigé en anglais, que vous trouverez ici.

Lenovo ThinkPad E560-20EWS00000 - 02/26/2016 v5(old)
Till Schönborn

Châssis
80 / 98 → 82%
Clavier
87%
Dispositif de pointage
83%
Connectivité
53 / 80 → 66%
Poids
61 / 20-67 → 87%
Autonomie
87%
Écran
83%
Performances en jeu
62 / 68 → 91%
Performances dans les applications
81 / 92 → 88%
Chauffe
90%
Nuisance sonore
93%
Audio
69%
Appareil photo
58 / 85 → 68%
Moyenne
76%
84%
Office - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique du PC portable Lenovo ThinkPad E560 (Core i7, Radeon R7 M370)
Till Schönborn, 2016-01- 8 (Update: 2016-01-10)
