Courte critique du PC portable Acer Swift 3 SF314-51-731X

Nino Ricchizzi (traduit par Nicolas L), 01/14/2017

Un compagnon apprécié. Des matériaux de haute qualité accompagnent des composants réactifs, pour une bonne impression. Même si la luminosité de l'écran ne semble pas au niveau des standards modernes, ce nouvel Acer Swift 3 représentera globalement un bon achat.

Acer Swift 3 SF314-51-731X (Swift 3 Gamme)
Processeur
Carte graphique
Intel HD Graphics 520, Processeur: 1050 MHz, 20.19.15.4444
Mémoire
8192 Mo
, DDR4, Dual-Channel, non extensible
Écran
14 pouces 16:9, 1920x1080 pixel 157 PPP, AU Optronics AUO213D B140HAN02.1, IPS, brillant: non
Carte mère
Intel Skylake-U Premium PCH
Disque dur
Liteonit CV3-8D512, 512 Go
, M.2-SSD, SATA3
Carte son
Intel Skylake-U/Y PCH - High Definition Audio
Connexions
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Encoche de Sécurité Kensington, Connectique audio: combo audio, Lecteur de cartes mémoires: SD, 1 Lecteur d'empreintes digitales
Réseau
Atheros/Qualcomm QCA6174 (a/b/g/n/ac), Bluetooth 4.0
Taille
Hauteur x Largeur x Profondeur (en mm): 18 x 341 x 237
Batterie
48.9 Wh Lithium-Ion, 4 cellules
Système d'exploitation
Microsoft Windows 10 Home 64 Bit
Appareil photo
Webcam: 1.3 MP
Fonctionnalités additionnelles
Haut-parleurs: haut-parleurs stéréo, Clavier: chiclet, Rétroéclairage du clavier: oui, 24 Mois Garantie
Poids
1.55 kg, Alimentation: 260 g
Prix
1000 euros



You can choose between two colors.
The new Swift 3 gets …
… a sophisticated chassis.
A fingerprint scanner…
…as integrated security feature.

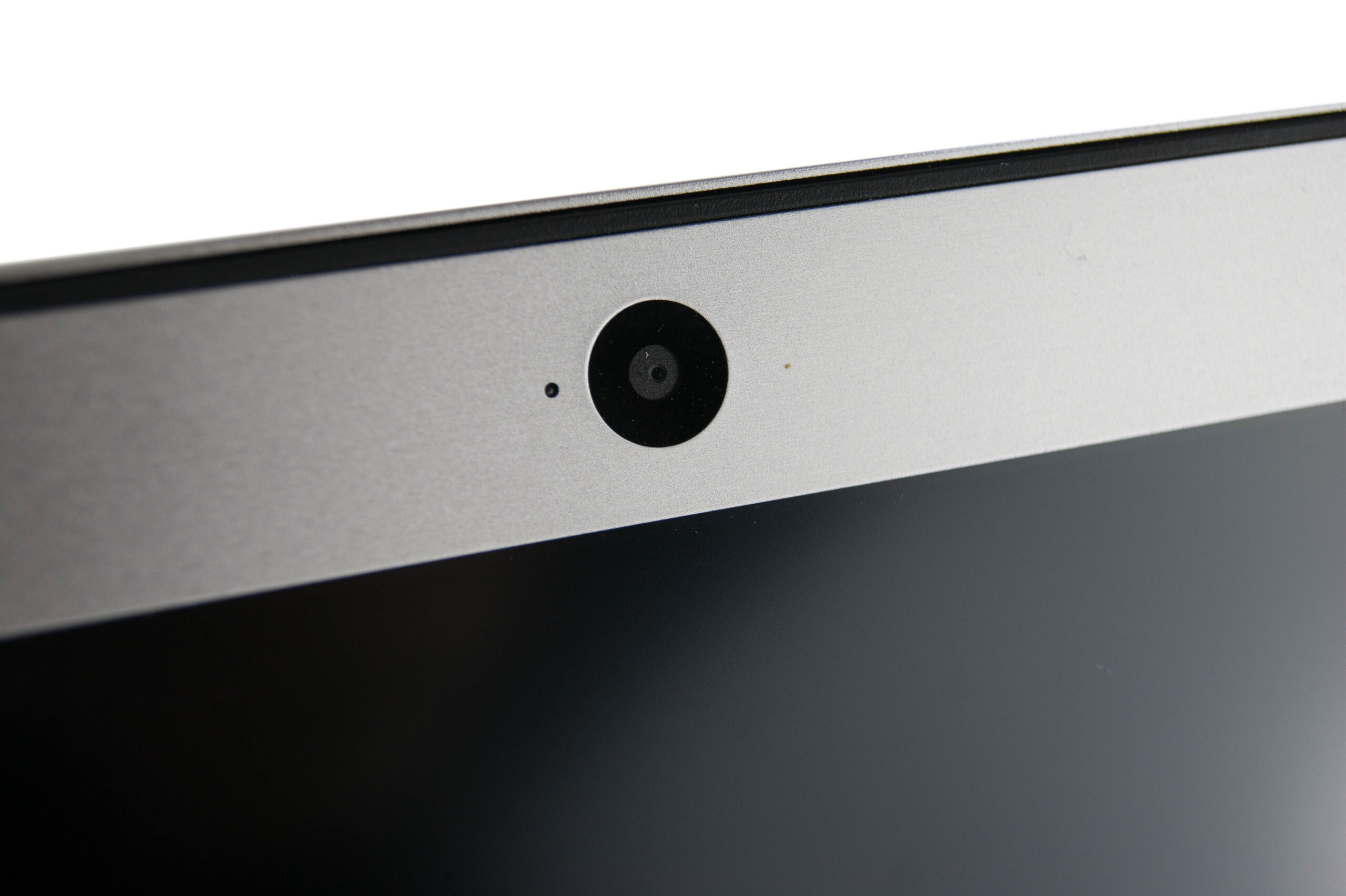

The webcam does its job.

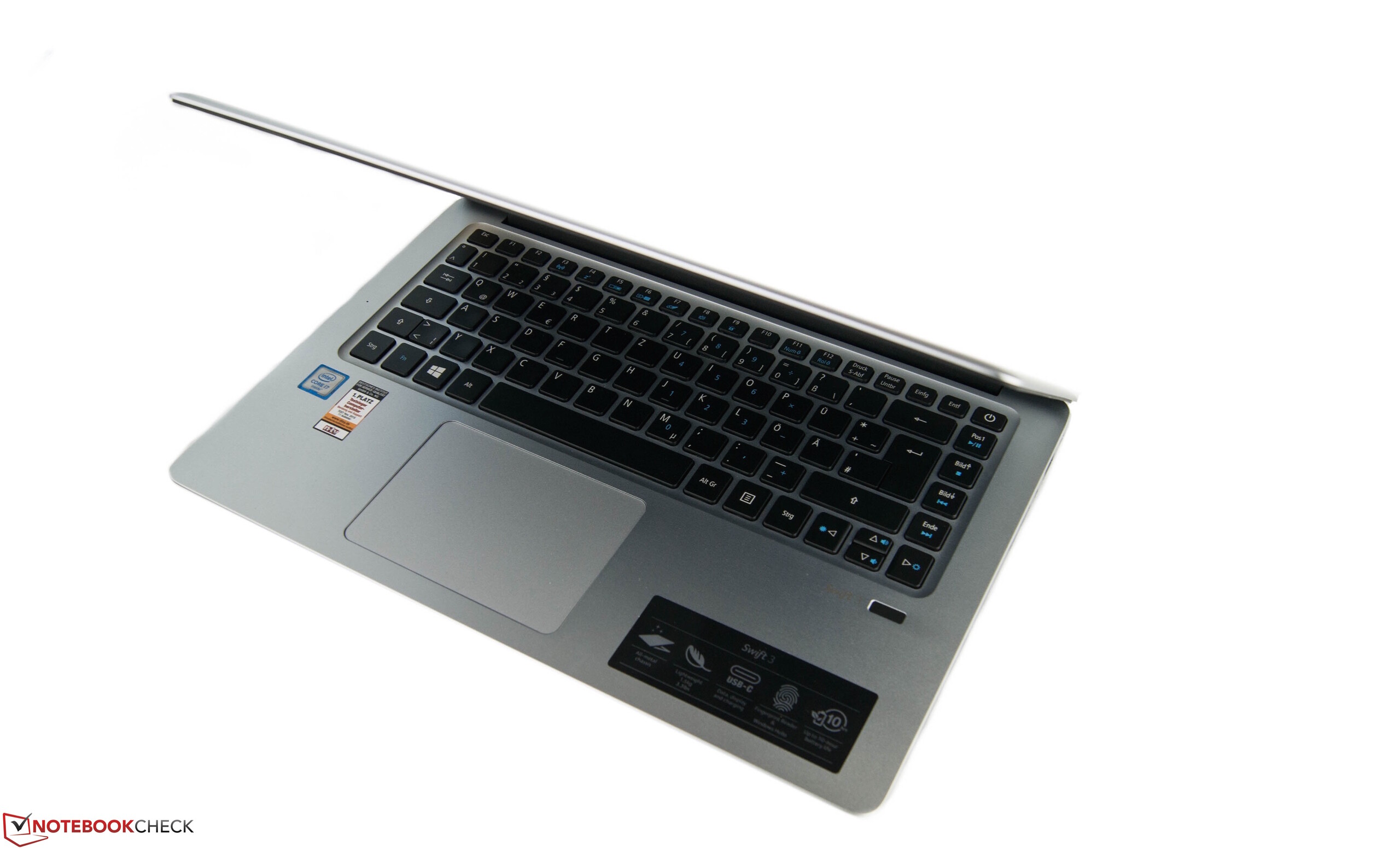

The Swift 3 is a solid subnotebook …
…thanks to high-quality materials.
A look inside the chassis…
…is possible with some fiddling.
You can replace the CMOS battery.
The storage drive can be replaced as well.

Size Comparison

Connectivity

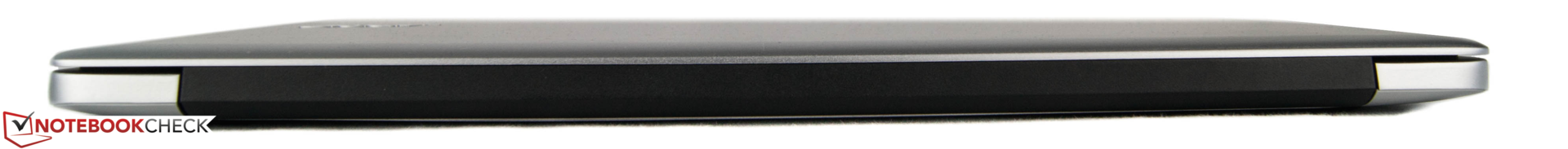

Rear
Rear

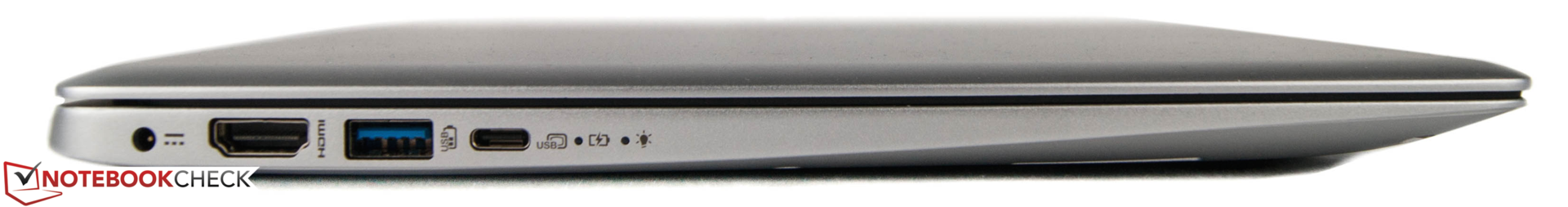

Left side: Power, HDMI-out, 1x USB 3.0, 1x USB 3.1 Type-C
Left side: Power, HDMI-out, 1x USB 3.0, 1x USB 3.1 Type-C

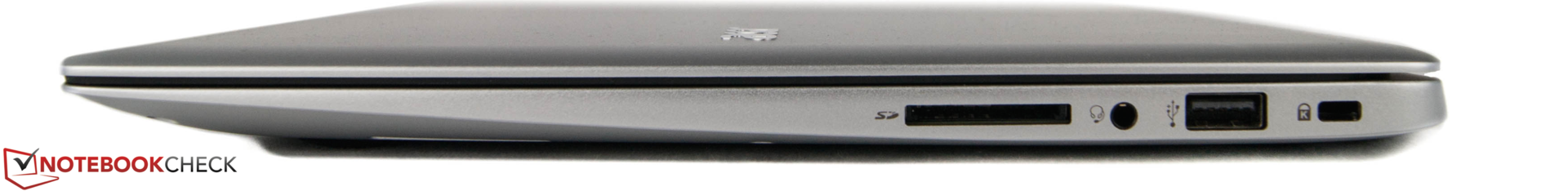

Rights side: SD reader, combo audio, 1x USB 2.0, Kensington Lock
Rights side: SD reader, combo audio, 1x USB 2.0, Kensington Lock

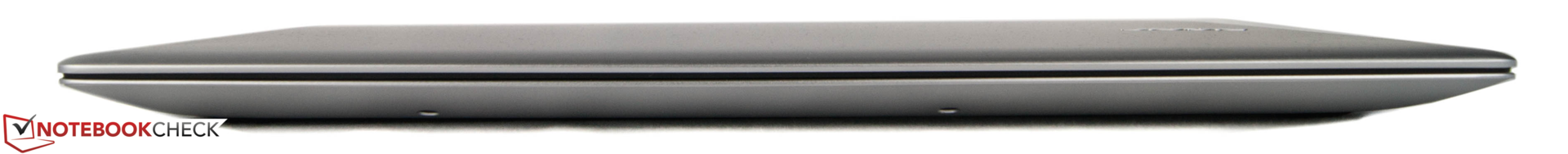

Front
Front
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Acer Aspire S 13 S5-371-71QZ
78 MB/s ∼100% +244%
Lenovo Ideapad 500s-14ISK
61 MB/s ∼78% +169%
Asus Zenbook UX330UA-FC059T
30.3 MB/s ∼39% +33%
Acer Swift 3 SF314-51-731X
22.7 MB/s ∼29%
Acer TravelMate X3 X349-M-7261
19.1 MB/s ∼24% -16%
maximum AS SSD Seq Read Test (1GB)
Lenovo Ideapad 500s-14ISK
85.7 MB/s ∼100% +227%
Acer Aspire S 13 S5-371-71QZ
84.4 MB/s ∼98% +222%
Asus Zenbook UX330UA-FC059T
37.3 MB/s ∼44% +42%
Acer Swift 3 SF314-51-731X
26.2 MB/s ∼31%
Acer TravelMate X3 X349-M-7261
26.1 MB/s ∼30% 0%
Networking
iperf Server (receive) TCP 1 m (Classer selon les valeurs)
Acer Swift 3 SF314-51-731X
Atheros/Qualcomm QCA6174 (jseb)
115 MBit/s ∼19%
Asus Zenbook UX330UA-FC059T
Intel Dual Band Wireless-AC 7265
609 MBit/s ∼100% +430%
Acer Aspire S 13 S5-371-71QZ
Qualcomm Atheros QC61x4 Wireless Network Adapter
320 MBit/s ∼53% +178%
Acer TravelMate X3 X349-M-7261
Intel Dual Band Wireless-AC 7265 (jseb)
563 MBit/s ∼92% +390%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Dell Wireless 1820A 802.11ac
579 MBit/s ∼95% +403%
iperf Client (transmit) TCP 1 m (Classer selon les valeurs)
Acer Swift 3 SF314-51-731X
Atheros/Qualcomm QCA6174 (jseb)
112 MBit/s ∼20%
Asus Zenbook UX330UA-FC059T
Intel Dual Band Wireless-AC 7265 (jseb)
421 MBit/s ∼77% +276%
Acer Aspire S 13 S5-371-71QZ
Qualcomm Atheros QC61x4 Wireless Network Adapter
260 MBit/s ∼48% +132%
Acer TravelMate X3 X349-M-7261
Intel Dual Band Wireless-AC 7265 (jseb)
547 MBit/s ∼100% +388%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Dell Wireless 1820A 802.11ac
461 MBit/s ∼84% +312%

Maintenance

Maintainability
Maintainability
Input devices Swift 3
Input devices Swift 3

Display

211
cd/m²
195
cd/m²
204
cd/m²
211
cd/m²
215
cd/m²
212
cd/m²
211
cd/m²
209
cd/m²
207
cd/m²
Homogénéité de la luminosité
X-Rite i1Pro 2
Maximum: 215 cd/m² Moyenne: 208.3 cd/m² Minimum: 15.3 cd/m²
Homogénéité de la luminosité: 91 %
Valeur mesurée au centre, sur batterie: 215 cd/m²
Contraste: 694:1 (Valeurs des noirs: 0.31 cd/m²)
ΔE Color 5.6 | - Ø
ΔE Greyscale 4.2 | - Ø
55% sRGB (Argyll) 35% AdobeRGB 1998 (Argyll)
Gamma: 2.46
Acer Swift 3 SF314-51-731X
AU Optronics AUO213D B140HAN02.1, , 1920x1080, 14
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Sharp SHP1449 LQ133M1, , 1920x1080, 13.3
Asus Zenbook UX330UA-FC059T
AU Optronics AUO272D / B133HAN02.7, , 1920x1080, 13.3
Acer Aspire S 13 S5-371-71QZ
AUO B133HAN04.1, , 1920x1080, 13.3
Acer TravelMate X3 X349-M-7261
AU Optronics B140HAN02.1, , 1920x1080, 14
Lenovo Ideapad 500s-14ISK
Chi Mei CMN14A7, , 1920x1080, 14
Response Times
-3%
10%
-21%
-9%
1%
Response Time Grey 50% / Grey 80% *
42 (18, 24)
42.8 (16, 26.8)
-2%
32 (12, 20)
24%
50 (22, 28)
-19%
42 (15, 27)
-0%
43 (22, 21)
-2%
Response Time Black / White *
24 (8, 16)
24.8 (5.2, 19.6)
-3%
25 (5, 20)
-4%
29.6 (7.6, 22)
-23%
28 (8, 20)
-17%
23 (8, 15)
4%
PWM Frequency
200 (80)
Screen
62%
39%
29%
16%
-31%
Brightness
208
350
68%
337
62%
358
72%
226
9%
235
13%
Brightness Distribution
91
86
-5%
86
-5%
87
-4%
86
-5%
87
-4%
Black Level *
0.31
0.17
45%
0.22
29%
0.39
-26%
0.2
35%
0.44
-42%
Contrast
694
2265
226%
1636
136%
962
39%
1150
66%
566
-18%
Colorchecker DeltaE2000 *
5.6
4.17
26%
5.21
7%
4.6
18%
5.07
9%
9.47
-69%
Greyscale DeltaE2000 *
4.2
5.39
-28%
6.23
-48%
4
5%
3.64
13%
10.22
-143%
Gamma
2.46 98%
2.12 113%
2.5 96%
2.34 103%
2.46 98%
2.34 103%
CCT
6564 99%
7404 88%
6506 100%
7304 89%
6521 100%
11451 57%
Color Space (Percent of AdobeRGB 1998)
35
62.7
79%
59
69%
57.9
65%
35
0%
39
11%
Color Space (Percent of sRGB)
55
99.8
81%
90
64%
88.7
61%
55
0%
57
4%
Moyenne finale (programmes/paramètres)
30% / 49%
25% / 33%
4% / 19%
4% / 11%
-15% / -25%

* ... Moindre est la valeur, meilleures sont les performances

CalMAN ColorChecker
CalMAN ColorChecker
CalMAN Saturation Sweeps
CalMAN Saturation Sweeps
CalMAN Grayscale
CalMAN Grayscale
AdobeRGB coverage
AdobeRGB coverage
sRGB coverage
sRGB coverage
Complicated outdoor use
Complicated outdoor use

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.
       Temps de réponse noir à blanc
24 ms ... hausse ↗ et chute ↘ combinées↗ 8 ms hausse
↘ 16 ms chute
L'écran montre de bons temps de réponse, mais insuffisant pour du jeu compétitif.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 28 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont meilleures que la moyenne (26.7 ms) de tous les appareils testés.

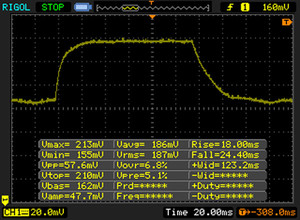

       Temps de réponse gris 50% à gris 80%
42 ms ... hausse ↗ et chute ↘ combinées↗ 18 ms hausse
↘ 24 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 52 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (42.8 ms) de tous les appareils testés.

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) non décelé

En comparaison, 57 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 6262 (minimum : 43 - maximum : 142900) Hz dans le cas où une MDI était active.

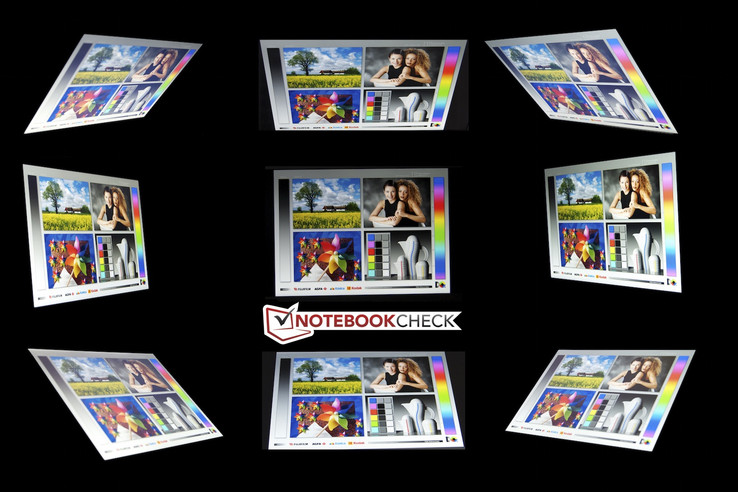

Viewing angles
Viewing angles

Performance

LatencyMon
LatencyMon
Cinebench R15
CPU Single 64Bit
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Core i7-6560U
133 Points ∼68% +5%
Acer TravelMate X3 X349-M-7261
Intel Core i7-6500U
130 Points ∼67% +2%
Acer Aspire S 13 S5-371-71QZ
Intel Core i7-6500U
129 Points ∼66% +2%
Acer Swift 3 SF314-51-731X
Intel Core i7-6500U
127 Points ∼65%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U
125 Points ∼64% -2%
Asus Zenbook UX330UA-FC059T
Intel Core i7-6500U
124 Points ∼64% -2%
Acer TravelMate P249-M-5452
Intel Core i5-6200U
117 Points ∼60% -8%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
98 Points ∼50% -23%
CPU Multi 64Bit
Acer TravelMate X3 X349-M-7261
Intel Core i7-6500U
324 Points ∼15% 0%
Acer Swift 3 SF314-51-731X
Intel Core i7-6500U
323 Points ∼15%
Asus Zenbook UX330UA-FC059T
Intel Core i7-6500U
319 Points ∼15% -1%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Core i7-6560U
314 Points ∼15% -3%
Lenovo Ideapad 500s-14ISK
Intel Core i7-6500U
313 Points ∼15% -3%
Acer TravelMate P249-M-5452
Intel Core i5-6200U
294 Points ∼14% -9%
Acer Aspire S 13 S5-371-71QZ
Intel Core i7-6500U
293 Points ∼14% -9%
Acer TravelMate P249-M-3895
Intel Core i3-6100U
250 Points ∼12% -23%
Cinebench R15 CPU Single 64Bit
127 Points
Cinebench R15 CPU Multi 64Bit
323 Points
Cinebench R15 OpenGL 64Bit
43.62 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Aide
PCMark 8
Work Score Accelerated v2
Acer Swift 3 SF314-51-731X
HD Graphics 520, 6500U, Liteonit CV3-8D512
4385 Points ∼67%
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
4361 Points ∼67% -1%
Asus Zenbook UX330UA-FC059T
HD Graphics 520, 6500U, SanDisk SD8SNAT256G1002
4355 Points ∼67% -1%
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
4316 Points ∼66% -2%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZ-VLV256D
4213 Points ∼65% -4%
Lenovo Ideapad 500s-14ISK
GeForce 940M, 6500U, Samsung PM871 MZYLN256HCHP
4064 Points ∼62% -7%
Home Score Accelerated v2
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
3545 Points ∼59% +1%
Asus Zenbook UX330UA-FC059T
HD Graphics 520, 6500U, SanDisk SD8SNAT256G1002
3527 Points ∼59% +1%
Acer Swift 3 SF314-51-731X
HD Graphics 520, 6500U, Liteonit CV3-8D512
3503 Points ∼59%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZ-VLV256D
3479 Points ∼58% -1%
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
3386 Points ∼57% -3%
Lenovo Ideapad 500s-14ISK
GeForce 940M, 6500U, Samsung PM871 MZYLN256HCHP
3006 Points ∼50% -14%
PCMark 8 Home Score Accelerated v2
3503 points
PCMark 8 Work Score Accelerated v2
4385 points
Aide
Acer Swift 3 SF314-51-731X
Liteonit CV3-8D512
Asus Zenbook UX330UA-FC059T
SanDisk SD8SNAT256G1002
Acer Aspire S 13 S5-371-71QZ
LiteOn CV1-8B512
Acer TravelMate X3 X349-M-7261
Liteonit CV3-8D512
Lenovo Ideapad 500s-14ISK
Samsung PM871 MZYLN256HCHP
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Samsung PM951 NVMe MZ-VLV256D
CrystalDiskMark 3.0
-14%
14%
19%
20%
56%
Write 4k QD32
260.2
228.9
-12%
211.2
-19%
280.6
8%
241.6
-7%
245.6
-6%
Read 4k QD32
284.3
142.2
-50%
301.3
6%
368.5
30%
394.5
39%
399.7
41%
Write 4k
65.96
75.12
14%
86.75
32%
67.48
2%
93.26
41%
133.9
103%
Read 4k
24.14
18.89
-22%
29.69
23%
33.44
39%
36.24
50%
39.63
64%
Write 512
283.3
275.2
-3%
389.7
38%
355.1
25%
308.3
9%
276.3
-2%
Read 512
295.1
265.9
-10%
341.3
16%
399.1
35%
409.5
39%
685.4
132%
Write Seq
398.3
309.4
-22%
418.9
5%
449.8
13%
309.5
-22%
311.4
-22%
Read Seq
471
447.6
-5%
502.2
7%
484.1
3%
506.9
8%
1131
140%
Liteonit CV3-8D512
Sequential Read: 471 MB/s
Sequential Write: 398.3 MB/s
512K Read: 295.1 MB/s
512K Write: 283.3 MB/s
4K Read: 24.14 MB/s
4K Write: 65.96 MB/s
4K QD32 Read: 284.3 MB/s
4K QD32 Write: 260.2 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
2366 Points ∼5% +60%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
1947 Points ∼4% +32%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
1481 Points ∼3% 0%
Acer Swift 3 SF314-51-731X
Intel HD Graphics 520, Intel Core i7-6500U
1475 Points ∼3%
Asus Zenbook UX330UA-FC059T
Intel HD Graphics 520, Intel Core i7-6500U
1469 Points ∼3% 0%
Acer Aspire S 13 S5-371-71QZ
Intel HD Graphics 520, Intel Core i7-6500U
1428 Points ∼3% -3%
Acer TravelMate P249-M-3895
Intel HD Graphics 520, Intel Core i3-6100U
1131 Points ∼2% -23%
3DMark
1920x1080 Fire Strike Graphics
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
1589 Points ∼4%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
1194 Points ∼3%
Acer Aspire S 13 S5-371-71QZ
Intel HD Graphics 520, Intel Core i7-6500U
935 Points ∼2%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
864 Points ∼2%
1280x720 Cloud Gate Standard Graphics
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Intel Iris Graphics 540, Intel Core i7-6560U
9788 Points ∼6% +33%
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
8549 Points ∼5% +16%
Asus Zenbook UX330UA-FC059T
Intel HD Graphics 520, Intel Core i7-6500U
7801 Points ∼5% +6%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
7407 Points ∼5% +1%
Acer Swift 3 SF314-51-731X
Intel HD Graphics 520, Intel Core i7-6500U
7361 Points ∼5%
3DMark 11 Performance
1643 points
3DMark Cloud Gate Standard Score
5839 points
Aide
BioShock Infinite - 1366x768 Medium Preset
Asus Zenbook UX330UA-FC059T
HD Graphics 520, 6500U, SanDisk SD8SNAT256G1002
31.1 fps ∼100% +8%
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
30.8 (min: 12.7) fps ∼99% +7%
Acer Swift 3 SF314-51-731X
HD Graphics 520, 6500U, Liteonit CV3-8D512
28.7 fps ∼92%
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
28.3 fps ∼91% -1%
The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Lenovo Ideapad 500s-14ISK
GeForce 940M, 6500U, Samsung PM871 MZYLN256HCHP
31.4 fps ∼100% +180%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Iris Graphics 540, 6560U, Samsung PM951 NVMe MZ-VLV256D
16.5 fps ∼53% +47%
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
14.1 (min: 10) fps ∼45% +26%
Asus Zenbook UX330UA-FC059T
HD Graphics 520, 6500U, SanDisk SD8SNAT256G1002
12.3 fps ∼39% +10%
Acer Swift 3 SF314-51-731X
HD Graphics 520, 6500U, Liteonit CV3-8D512
11.2 fps ∼36%
Rise of the Tomb Raider - 1024x768 Lowest Preset
Lenovo Ideapad 500s-14ISK
GeForce 940M, 6500U, Samsung PM871 MZYLN256HCHP
25.6 fps ∼100% +35%
Acer Swift 3 SF314-51-731X
HD Graphics 520, 6500U, Liteonit CV3-8D512
18.9 fps ∼74%
Bas Moyen Élevé Ultra
BioShock Infinite (2013) 57.228.7247.1fps
The Witcher 3 (2015) 11.283.8fps
Rise of the Tomb Raider (2016) 18.911.64.7fps

Emissions

System Noise

Noise development
Noise development
Fan characteristics
Fan characteristics
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.733.833.534.635.7253237.133.339.6323138.338.539.639.938.34032.53334.735.232.55033.939.930.532.333.96329.737.732.728.229.78026.226.626.92626.210027.127.625.52627.112525.827.428.225.425.816024.123.723.823.324.12002324.123.223.82325021.822.622.522.721.831521.322.121.121.621.340020.720.520.720.220.750019.619.719.619.619.663018.718.919.218.618.780018.518.518.618.618.5100018.618.918.61818.6125018.71919.517.418.7160020.820.721.717.920.8200022.120.420.217.522.1250018.11818.317.818.1315018.318.418.417.918.3400018.218.318.11818.2500018.318.418.318.318.3630018.418.318.218.418.4800018.618.518.618.418.61000018.518.618.418.418.51250018.818.418.318.218.81600019.218.218.318.419.2SPL31.531.431.430.531.5N1.61.61.61.41.6median 18.8Acer Swift 3 SF314-51-731Xmedian 18.9median 19.2median 18.4median 18.8Delta1.61.61.721.639.939.539.138.139.939.642.337.235.839.633.834.433.534.833.832.433.534.133.632.433.533.434.232.933.536.33640.735.236.332.331.131.330.732.330.932.330.628.930.927.727.627.327.827.727.428.32826.527.427.727.229.727.627.725.425.825.824.925.425.325.627.12525.323.624.224.52323.623.223.624.622.623.22223.524.821.42221.924.224.821.121.920.925.927.120.220.920.424.425.419.920.420.226.126.819.520.22027.72919.22019.628.229.119.619.619.527.228.819.319.519.325.228.219.319.319.523.225.619.319.519.421.52319.319.419.420.821.519.219.419.220.922.718.919.21919.620.418.61919.119.219.218.919.132.837.438.832.432.81.92.83.11.81.9median 20.4Asus Zenbook UX330UA-FC059Tmedian 25.2median 25.8median 19.9median 20.42.62.222.82.6hearing rangehide median Fan Noise

Degré de la nuisance sonore

Au repos
31.4 / 31.4 / 31.4 dB(A)
Fortement sollicité
31.5 / 31.3 dB(A)



30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 30.5 dB(A)

Température

Stress test
Stress test
Au repos/à faible charge
 24.2 °C24.8 °C24.1 °C
 24.1 °C24.5 °C23.6 °C
 23.4 °C23.1 °C23.1 °C
Maximum: 24.8 °C
Moyenne: 23.9 °C
24.2 °C24.8 °C24.2 °C
23.7 °C23.9 °C24 °C
23.4 °C23.5 °C23.7 °C
Maximum: 24.8 °C
Moyenne: 23.9 °C
Alimentation (valeur maximale)  29.5 °C | Température ambiante de la pièce 21.8 °C | FIRT 550-Pocket
Top: Idle
Top: Idle
Bottom: Idle
Bottom: Idle
Top: Last
Top: Last
Bottom: Last
Bottom: Last
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.335.12532.931.83131.8324036.535.15032.428.9633328.98036.328.810048.32712561.52716052.924.820060.92425062.822.731563.32240069.521.250067.82163074.82080075.919.4100072.718.912507117.7160070.117.820006917.6250071.817.6315068.117.6400071.417.6500073.717.6630070.417.5800071.617.61000071.617.61250069.617.41600059.717.5SPL83.630.6N62.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.8Delta4.62.441.738.141.74035.84038.534.838.539.333.639.340.832.940.842.735.242.743.930.743.945.428.945.445.827.845.847.526.547.551.727.651.755.824.955.858.72558.758.92358.961.122.661.163.121.463.165.621.165.662.720.262.761.419.961.466.419.566.47019.27069.819.669.868.819.368.872.919.372.975.519.375.576.819.376.872.119.272.167.218.967.26418.66460.118.960.182.932.482.9531.853median 63.1Asus Zenbook UX330UA-FC059Tmedian 19.9median 63.15.82.85.839.241.632.839.234.237.132.734.235.636.232.135.632.130.731.432.132.733.831.232.728.62828.328.62827.427.82827.826.927.627.8272929.72729.633.535.929.631.735.637.931.738.643.545.138.64651.255.34652.858.162.752.847.151.956.347.141.947.65241.951.256.660.451.258.363.367.958.355.260.164.255.251.956.861.251.951.556.460.751.548.253.257.548.251.156.160.451.154.458.763.154.448.152.957.148.148.753.658.548.748.553.457.848.557.462.166.757.458.663.56858.651.656.66151.66569.974.36517.423.731.117.4median 48.7Lenovo Ideapad 500s-14ISKmedian 53.6median 58.5median 48.75.15.86.25.134.334.53432.630.833.334.534.633.635.132.232.634.329.136.228.348.128.841.525.954.724.650.423.857.223.468.222.569.621.871.220.968.719.876.519.372.71976.618.673.318.272.117.964.91867.417.870.517.869.91864.21858.817.959.517.952.617.983.731.257.11.6median 67.4Dell XPS 13 2016 9350 (FHD, i7-6560U) median 198.23hearing rangehide median Pink Noise
Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 2% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Asus Zenbook UX330UA-FC059T audio analysis

(±) | speaker loudness is average but good (77 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.3% lower than median
(+) | bass is linear (5.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.8% higher than median
(+) | highs are linear (6.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.1% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 6% similar, 55% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 22% of all tested devices were better, 3% similar, 75% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Lenovo Ideapad 500s-14ISK audio analysis

(-) | not very loud speakers (68 dB)
Analysis not possible as minimum curve is missing or too high

Dell XPS 13 2016 9350 (FHD, i7-6560U) audio analysis

(+) | speakers can play relatively loud (83.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.4% lower than median
(-) | bass is not linear (15.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(±) | linearity of mids is average (9.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(±) | linearity of highs is average (7.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.1% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 9% similar, 40% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 31% of all tested devices were better, 6% similar, 63% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Frequency Comparison (Checkboxes select/deselectable!)

Energy Management

Consommation énergétique
Éteint/en veilledarklight 0.42 / 0.53 Watts
Au reposdarkmidlight 4.9 / 7.4 / 9.2 Watts
Fortement sollicité midlight 34 / 32.2 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Acer Swift 3 SF314-51-731X
6500U, HD Graphics 520, Liteonit CV3-8D512, IPS, 1920x1080, 14
Asus Zenbook UX330UA-FC059T
6500U, HD Graphics 520, SanDisk SD8SNAT256G1002, IPS, 1920x1080, 13.3
Acer Aspire S 13 S5-371-71QZ
6500U, HD Graphics 520, LiteOn CV1-8B512, IPS, 1920x1080, 13.3
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520, Liteonit CV3-8D512, IPS, 1920x1080, 14
Lenovo Ideapad 500s-14ISK
6500U, GeForce 940M, Samsung PM871 MZYLN256HCHP, TN, 1920x1080, 14
Dell XPS 13 2016 9350 (FHD, i7-6560U)
6560U, Iris Graphics 540, Samsung PM951 NVMe MZ-VLV256D, IPS, 1920x1080, 13.3
Power Consumption
14%
10%
2%
-7%
0%
Idle Minimum *
4.9
3
39%
4.1
16%
4.9
-0%
3.8
22%
5.8
-18%
Idle Average *
7.4
6.3
15%
6.7
9%
7.3
1%
7.2
3%
7.3
1%
Idle Maximum *
9.2
7.5
18%
7.4
20%
9.4
-2%
7.6
17%
8.5
8%
Load Average *
34
36
-6%
32.4
5%
26
24%
40
-18%
30.6
10%
Load Maximum *
32.2
31.5
2%
32.4
-1%
36
-12%
52
-61%
32.5
-1%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
11h 47min
En navigation internet via le module WiFi WLAN v1.3
5h 54min
En lecture de Big Buck Bunny encodé en H.264 1080p
5h 43min
Fortement sollicité (luminosité au maximum)
1h 36min
Acer Swift 3 SF314-51-731X
6500U, HD Graphics 520, 48.9 Wh
Asus Zenbook UX330UA-FC059T
6500U, HD Graphics 520, 57 Wh
Acer Aspire S 13 S5-371-71QZ
6500U, HD Graphics 520, 45 Wh
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520, 48.9 Wh
Lenovo Ideapad 500s-14ISK
6500U, GeForce 940M, 30 Wh
Dell XPS 13 2016 9350 (FHD, i7-6560U)
6560U, Iris Graphics 540, 56 Wh
Autonomie de la batterie
55%
27%
9%
-35%
35%
Reader / Idle
707
1225
73%
1028
45%
675
-5%
346
-51%
944
34%
H.264
343
400
17%
246
-28%
WiFi v1.3
354
612
73%
472
33%
392
11%
257
-27%
436
23%
Load
96
115
20%
99
3%
109
14%
64
-33%
141
47%

Points positifs

+ châssis robuste
+ bons périphériques d'entrée
+ performances système
+ température et bruit modérés

Points négatifs

- performances SD
- module WiFi catastrophique (peut-être un défaut de l'exemplaire de test)
- mémoire non extensible
- pas de trappe de maintenance
- écran sombre

Verdict

In review: Acer Swift 3. Test model courtesy of Acer Germany.
In review: Acer Swift 3. Test model courtesy of Acer Germany.

Le Swift 3 représente une entrée réussie dans la gamme subnotebook. Son châssis en aluminium est sophistiqué et ne se prête pas à beaucoup de critiques. L'accès aux composants internes pour leur maintenance aurait cependant pu être plus facile. Les périphériques d'entrée se révèlent surprenants de qualité, le touchpad en particulier exécute de nombreux mouvements multidigitaux sans problème. Cette fonctionnalité place le 14" en très bonne position pour devenir un compagnon de travail idéal. Le premier gros problème concerne l'écran, tout simplement trop sombre à notre goût. La gamme d'Asus dont nous nous sommes servis comme point de comparaison suffit à démontrer que la moyenne des dalles dans cette gamme de prix est nettement plus lumineuse. L'aspect du Swift 3 que nous apprécions sans doute le plus est sa polyvalence en termes de performances. Même sous des charges de calcul extrêmes, le modèle ne rencontre pas de souci majeur. Le développement de chaleur ainsi que le comportement des ventilateurs sont la plupart du temps sans reproche. Seule l'autonomie de batterie pâlit devant la concurrence.

Il n'est pas parfait, mais montre l'exemple : l'Acer Swift 3 convainc aussi bien en tant qu'appareil de travail que pour le multimédia.

Si votre budget peut être étendu davantage, jetez un œil au Dell XPS 13. Avec son très bon écran, une autonomie de batterie plus longue et de bonnes performances graphique, il représente une alternative de qualité. Le port Thunderbolt 3 assure de plus un meilleur potentiel pour l'extension des interfaces, en nombre limité, grâce au support PCIe et sa large bande passante. Le ZenBook d'Asus est lui particulièrement intéressant pour les utilisateurs les plus mobiles. En plus de son autonomie de batterie supérieure, il possède un écran très lumineux.

Les points positifs de l'Asus ZenBook que nous avons listés sont aussi applicables pour un concurrent d'Acer lui-même, l'Aspire S 13 (en anglais), à un prix lui aussi similaire.

Acer Swift 3 SF314-51-731X - 12/14/2016 v6
Nino Ricchizzi

Châssis
88 /  98 → 90%
Clavier
87%
Dispositif de pointage
88%
Connectivité
46 / 80 → 58%
Poids
68 / 78 → 78%
Autonomie
86%
Écran
84%
Performances en jeu
55 / 68 → 81%
Performances dans les applications
87 / 87 → 100%
Chauffe
92 / 91 → 100%
Nuisance sonore
90%
Audio
55 / 91 → 60%
Appareil photo
50 / 85 → 59%
Moyenne
75%
85%
Subnotebook - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique du PC portable Acer Swift 3 SF314-51-731X
Nino Ricchizzi, 2017-01-14 (Update: 2017-01-15)
