Courte critique de la station de travail Fujitsu Celsius H780 (i7-8850H, P2000, FHD)

Benjamin Herzig (traduit par Prévots), 04/04/2019

Déséquilibré. Étant un petit acteur du marché, Fujitsu fait face à un âpre combat sur le marché des stations de travail mobiles. Parviendra-t-il à faire de son Celsius H780 un concurrent crédible face à Dell, HP et Lenovo ? Cela va s’avérer difficile, le Fujitsu Celsius H780 accumulant les faiblesses dans nos tests.

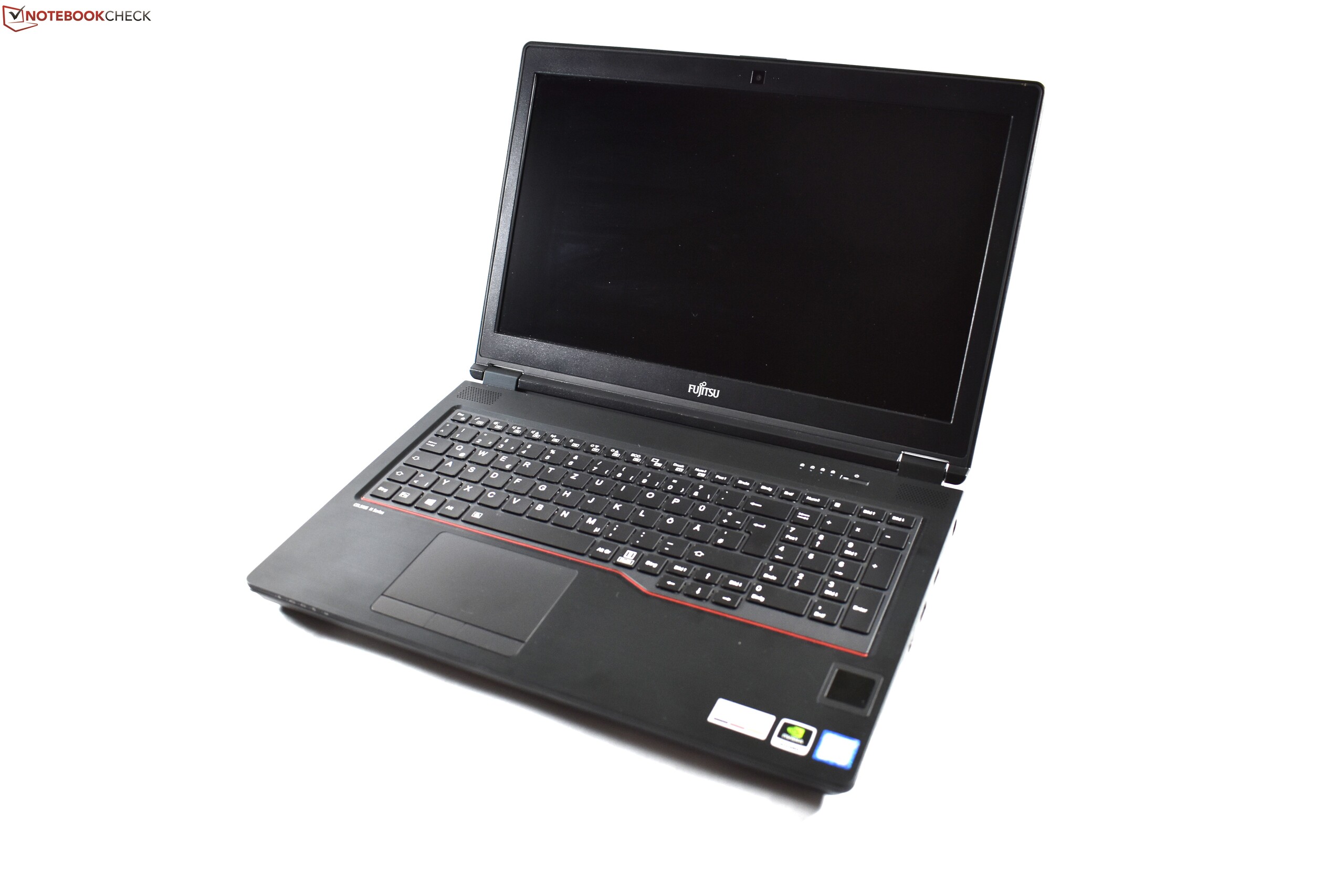

Fujitsu Celsius H780
Carte graphique
NVIDIA Quadro P2000 - 4096 Mo, Processeur: 1607 MHz, Mémoire: 1502 MHz, 397.93, Optimus
Mémoire
16384 Mo
, DDR4-2666, 2 emplacements libres sur 4, jusqu'à 128 Go
Écran
15.6 pouces 16:9, 1920 x 1080 pixel 141 PPP, LP156WF6-SPP1, IPS LED, brillant: non
Carte mère
Intel QM370
Disque dur
Samsung SSD PM981 MZVLB512HAJQ, 512 Go
, M.2 2280, 432 Go libres
Carte son
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Connexions
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 VGA, 1 HDMI, 2 DisplayPort, 1 Encoche de Sécurité Kensington, 1 Port pour Station d'accueil, Connectique audio: combo, Lecteur de cartes mémoires: carte SD, 1 Lecteur de cartes à puce
Réseau
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0, EM7455, LTE
Taille
Hauteur x Largeur x Profondeur (en mm): 31.9 x 380 x 258
Batterie
96 Wh Lithium-Ion, Amovible
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Appareil photo
Webcam: 1080p
Fonctionnalités additionnelles
Haut-parleurs: stéréo, Clavier: chiclet 6 rangs avec pavé numérique, Rétroéclairage du clavier: oui, DVD de récupération, DVD des pilotes, Lifebook Application Panel, Power2Go pour Fujitsu, PowerDirector pour Fujitsu, PhotoDirector pour Fujitsu, YouCam pour Fujitsu, Microsoft Office (version d'essai), 36 Mois Garantie
Poids
2.752 kg, Alimentation: 911 g
Prix
2500 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Comparaison des tailles

380 mm 257 mm 32 mm 3 kg380 mm 258 mm 31.9 mm 2.8 kg377.4 mm 252.3 mm 29.4 mm 2.6 kg375.9 mm 251.3 mm 29.95 mm 2.6 kg365 mm 256.5 mm 25.4 mm 2.3 kg

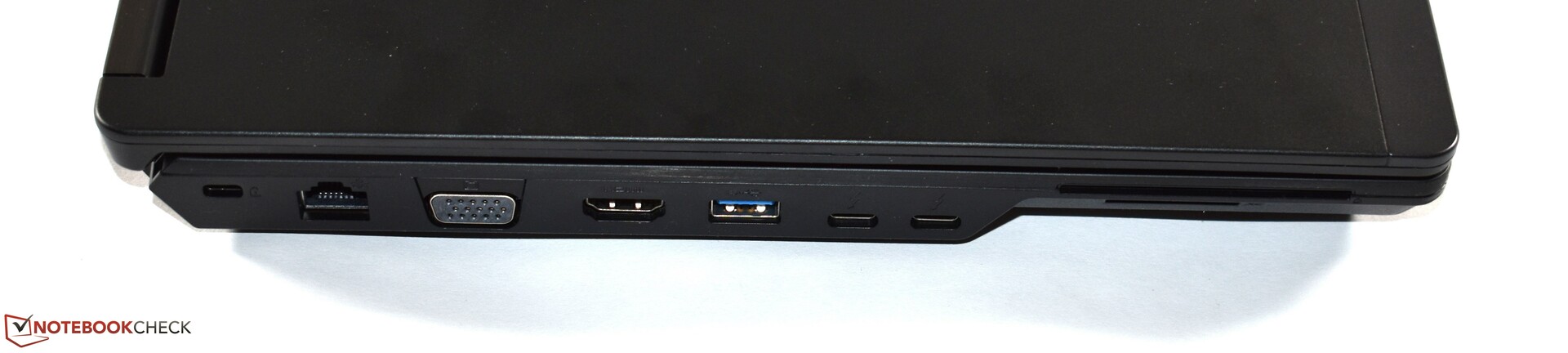

Côté gauche : verrou de sécurité Kensington, Ethernet RJ45, VGA, HDMI, USB A 3.0, 2 Thunderbolt 3.
Côté gauche : verrou de sécurité Kensington, Ethernet RJ45, VGA, HDMI, USB A 3.0, 2 Thunderbolt 3.

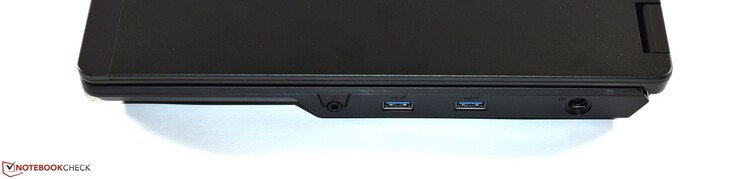

Côté droit : combo audio, 2 USB A 3.0, entrée secteur.
Côté droit : combo audio, 2 USB A 3.0, entrée secteur.
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Precision 7530
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
193.2 MB/s ∼100% +32%
Lenovo ThinkPad P52 20MAS03N00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
169 MB/s ∼87% +16%
Fujitsu Celsius H780
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
146 MB/s ∼76%
Average of class Workstation
  (17.2 - 213, n=55)
137 MB/s ∼71% -6%
Fujitsu Celsius H760
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
84 MB/s ∼43% -42%
HP ZBook 15v G5
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
80.9 MB/s ∼42% -45%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 7530
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
194.64 MB/s ∼100% +12%
Lenovo ThinkPad P52 20MAS03N00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
189.2 MB/s ∼97% +8%
Fujitsu Celsius H780
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
174.4 MB/s ∼90%
Average of class Workstation
  (18.4 - 255, n=55)
173 MB/s ∼89% -1%
Fujitsu Celsius H760
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
171 MB/s ∼88% -2%
HP ZBook 15v G5
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.7 MB/s ∼45% -50%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP ZBook 15v G5
Intel Cannon Lake-H/S CNVi: WiFi
646 MBit/s ∼100% +2%
Dell Precision 7530
Intel Wireless-AC 9260
636 MBit/s ∼98% 0%
Fujitsu Celsius H780
Intel Wireless-AC 9560
636 (min: 613, max: 655) MBit/s ∼98%
Lenovo ThinkPad P52 20MAS03N00
Intel Wireless-AC 9560
629 MBit/s ∼97% -1%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Precision 7530
Intel Wireless-AC 9260
681 MBit/s ∼100% +3%
Lenovo ThinkPad P52 20MAS03N00
Intel Wireless-AC 9560
662 MBit/s ∼97% 0%
Fujitsu Celsius H780
Intel Wireless-AC 9560
659 (min: 649, max: 666) MBit/s ∼97%
HP ZBook 15v G5
Intel Cannon Lake-H/S CNVi: WiFi
638 MBit/s ∼94% -3%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670Tooltip
Fujitsu Celsius H780 Intel Core i7-8850H, NVIDIA Quadro P2000; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø636 (613-655)
Fujitsu Celsius H780 Intel Core i7-8850H, NVIDIA Quadro P2000; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø659 (649-666)
260
cd/m²
266
cd/m²
263
cd/m²
266
cd/m²
271
cd/m²
280
cd/m²
242
cd/m²
243
cd/m²
246
cd/m²
Homogénéité de la luminosité
X-Rite i1Pro 2
Maximum: 280 cd/m² Moyenne: 259.7 cd/m² Minimum: 15.3 cd/m²
Homogénéité de la luminosité: 86 %
Valeur mesurée au centre, sur batterie: 276 cd/m²
Contraste: 934:1 (Valeurs des noirs: 0.29 cd/m²)
ΔE Color 3.9 | 0.6-29.43 Ø6.1, calibrated: 2.9
ΔE Greyscale 2.6 | 0.64-98 Ø6.3
85.8% sRGB (Argyll 3D) 56.1% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.29
Fujitsu Celsius H780
LP156WF6-SPP1, , 1920x1080, 15.6
Fujitsu Celsius H760
LGD046F LP156WF6-SPP1, , 1920x1080, 15.6
Lenovo ThinkPad P52 20MAS03N00
N156HCE-EN1, , 1920x1080, 15.6
Dell Precision 7530
Sharp LQ156D1, , 3840x2160, 15.6
HP ZBook 15v G5
CMN15E7, , 1920x1080, 15.6
Response Times
2%
7%
-30%
8%
Response Time Grey 50% / Grey 80% *
38 (18.8, 19.2)
38 (15, 23)
-0%
39.2 (21.2, 18)
-3%
35.2 (17.2, 18)
7%
37.6 (20.4, 17.2)
1%
Response Time Black / White *
26.8 (16.4, 10.4)
26 (7, 19)
3%
26 (14.4, 11.6)
3%
26.4 (14, 12.4)
1%
26.8 (15.2, 11.6)
-0%
PWM Frequency
20830 (60)
25250 (50)
21%
198.4 (25)
-99%
25640 (30)
23%
Screen
4%
-1%
2%
-13%
Brightness middle
271
341
26%
304
12%
292.8
8%
244
-10%
Brightness
260
310
19%
293
13%
295
13%
227
-13%
Brightness Distribution
86
82
-5%
88
2%
85
-1%
87
1%
Black Level *
0.29
0.34
-17%
0.26
10%
0.36
-24%
0.17
41%
Contrast
934
1003
7%
1169
25%
813
-13%
1435
54%
Colorchecker DeltaE2000 *
3.9
3.8
3%
4.5
-15%
3.48
11%
4.6
-18%
Colorchecker DeltaE2000 max. *
10.2
10.8
-6%
7.7
25%
6.81
33%
19.1
-87%
Colorchecker DeltaE2000 calibrated *
2.9
2.4
17%
3.13
-8%
4.6
-59%
Greyscale DeltaE2000 *
2.6
2
23%
5.2
-100%
4.1
-58%
2.7
-4%
Gamma
2.29 96%
2.17 101%
2.26 97%
2.2 100%
2.27 97%
CCT
6517 100%
6581 99%
6789 96%
6740 96%
6407 101%
Color Space (Percent of AdobeRGB 1998)
56.1
54
-4%
53.8
-4%
84.4
50%
41.5
-26%
Color Space (Percent of sRGB)
85.8
82.2
-4%
90.1
5%
99.6
16%
65.1
-24%
Moyenne finale (programmes/paramètres)
3% / 4%
3% / 1%
-14% / -5%
-3% / -9%

* ... Moindre est la valeur, meilleures sont les performances

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

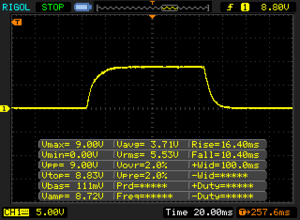

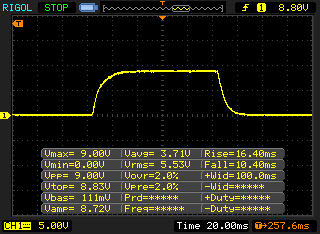

       Temps de réponse noir à blanc
26.8 ms ... hausse ↗ et chute ↘ combinées↗ 16.4 ms hausse
↘ 10.4 ms chute
L'écran souffre de latences relativement élevées, insuffisant pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 53 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (25.3 ms) de tous les appareils testés.

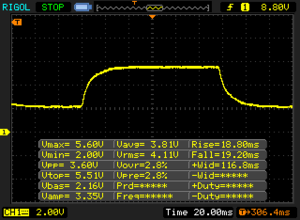

       Temps de réponse gris 50% à gris 80%
38 ms ... hausse ↗ et chute ↘ combinées↗ 18.8 ms hausse
↘ 19.2 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 35 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (40.4 ms) de tous les appareils testés.

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) décelé 20830 Hz ≤ 60 Niveau de luminosité

Le rétroéclairage de l'écran scintille à la fréquence de 20830 Hz (certainement du fait de l'utilisation d'une MDI - Modulation de largeur d'impulsion) à un niveau de luminosité inférieur ou égal à 60 % . Aucun scintillement ne devrait être perceptible au-dessus de cette valeur.

La fréquence de rafraîchissement de 20830 Hz est élevée, la grande majorité des utilisateurs ne devrait pas percevoir de scintillements et être sujette à une fatigue oculaire accrue.

En comparaison, 51 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 9554 (minimum : 43 - maximum : 142900) Hz dans le cas où une MDI était active.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970980990100010101020103010401050106010701080109011001110112011301140115011601170118011901200Tooltip
Fujitsu Celsius H780 Intel Core i7-8850H, Intel Core i7-8850H: Ø1023 (1008-1102)
Lenovo ThinkPad P52 20MAS03N00 Intel Core i7-8750H, Intel Core i7-8750H: Ø1034 (1019-1128)
Dell Precision 7530 Intel Core i9-8950HK, Intel Core i9-8950HK: Ø1123 (1110.46-1192.57)
Cinebench R15
CPU Single 64Bit
Dell Precision 7530
Intel Core i9-8950HK
187 Points ∼86% +1%
Fujitsu Celsius H780
Intel Core i7-8850H
185 Points ∼85%
Average Intel Core i7-8850H
  (176 - 185, n=10)
180 Points ∼83% -3%
HP ZBook 15v G5
Intel Core i7-8850H
177 Points ∼81% -4%
Lenovo ThinkPad P52 20MAS03N00
Intel Core i7-8750H
175 Points ∼80% -5%
Fujitsu Celsius H760
Intel Xeon E3-1505M v5
158 Points ∼72% -15%
Average of class Workstation
  (117 - 214, n=87)
157 Points ∼72% -15%
CPU Multi 64Bit
Lenovo ThinkPad P52 20MAS03N00
Intel Core i7-8750H
1217 Points ∼28% +9%
Dell Precision 7530
Intel Core i9-8950HK
1166 Points ∼27% +4%
Average Intel Core i7-8850H
  (929 - 1276, n=14)
1118 Points ∼26% 0%
Fujitsu Celsius H780
Intel Core i7-8850H
1116 Points ∼26%
HP ZBook 15v G5
Intel Core i7-8850H
929 Points ∼21% -17%
Average of class Workstation
  (260 - 1623, n=89)
735 Points ∼17% -34%
Fujitsu Celsius H760
Intel Xeon E3-1505M v5
710 Points ∼16% -36%
Cinebench R15 OpenGL 64Bit
165.47 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 CPU Multi 64Bit
1116 Points
Cinebench R15 CPU Single 64Bit
185 Points
Aide
PCMark 10
Digital Content Creation
Dell Precision 7530
Quadro P3200, 8950HK, Samsung PM961 NVMe MZVLW512HMJP
6907 Points ∼62% +17%
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
5880 Points ∼53%
Average Intel Core i7-8850H, NVIDIA Quadro P2000

5880 Points ∼53% 0%
Average of class Workstation
  (2466 - 8528, n=31)
5065 Points ∼45% -14%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4348 Points ∼39% -26%
HP ZBook 15v G5
Quadro P600, 8850H, Toshiba XG5 KXG50ZNV512G
4236 Points ∼38% -28%
Productivity
Dell Precision 7530
Quadro P3200, 8950HK, Samsung PM961 NVMe MZVLW512HMJP
7994 Points ∼82% +8%
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
7377 Points ∼76%
Average Intel Core i7-8850H, NVIDIA Quadro P2000

7377 Points ∼76% 0%
HP ZBook 15v G5
Quadro P600, 8850H, Toshiba XG5 KXG50ZNV512G
7322 Points ∼76% -1%
Average of class Workstation
  (4897 - 8307, n=31)
7046 Points ∼73% -4%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
6649 Points ∼69% -10%
Essentials
Dell Precision 7530
Quadro P3200, 8950HK, Samsung PM961 NVMe MZVLW512HMJP
9288 Points ∼87% +8%
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
8632 Points ∼81%
Average Intel Core i7-8850H, NVIDIA Quadro P2000

8632 Points ∼81% 0%
HP ZBook 15v G5
Quadro P600, 8850H, Toshiba XG5 KXG50ZNV512G
8520 Points ∼80% -1%
Average of class Workstation
  (7172 - 9847, n=31)
8463 Points ∼79% -2%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
8298 Points ∼78% -4%
Score
Dell Precision 7530
Quadro P3200, 8950HK, Samsung PM961 NVMe MZVLW512HMJP
5738 Points ∼74% +11%
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
5167 Points ∼67%
Average Intel Core i7-8850H, NVIDIA Quadro P2000

5167 Points ∼67% 0%
Average of class Workstation
  (3281 - 6255, n=32)
4764 Points ∼61% -8%
HP ZBook 15v G5
Quadro P600, 8850H, Toshiba XG5 KXG50ZNV512G
4600 Points ∼59% -11%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4428 Points ∼57% -14%
PCMark 8 - Home Score Accelerated v2
HP ZBook 15v G5
Quadro P600, 8850H, Toshiba XG5 KXG50ZNV512G
4357 Points ∼72% +3%
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
4230 Points ∼69%
Average Intel Core i7-8850H, NVIDIA Quadro P2000

4230 Points ∼69% 0%
Dell Precision 7530
Quadro P3200, 8950HK, Samsung PM961 NVMe MZVLW512HMJP
4200 Points ∼69% -1%
Fujitsu Celsius H760
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512 m.2 PCI-e
4028 Points ∼66% -5%
Average of class Workstation
  (2320 - 5505, n=70)
3983 Points ∼65% -6%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
3959 Points ∼65% -6%
PCMark 8 Home Score Accelerated v2
4230 points
PCMark 8 Work Score Accelerated v2
5256 points
Aide
Fujitsu Celsius H780
Samsung SSD PM981 MZVLB512HAJQ
Lenovo ThinkPad P52 20MAS03N00
Samsung SSD PM981 MZVLB512HAJQ
Dell Precision 7530
Samsung PM961 NVMe MZVLW512HMJP
HP ZBook 15v G5
Toshiba XG5 KXG50ZNV512G
Average Samsung SSD PM981 MZVLB512HAJQ

Average of class Workstation

CrystalDiskMark 5.2 / 6
7%
2%
1%
14%
16%
Write 4K
98.29
108.5
10%
105.9
8%
119
21%
122 (90.4 - 166, n=38)
24%
135 (97.8 - 220, n=29)
37%
Read 4K
40.18
42.78
6%
23.87
-41%
37.25
-7%
42.8 (28 - 61.3, n=37)
7%
44.6 (23.9 - 59.8, n=29)
11%
Write Seq
1777
1645
-7%
1542
-13%
522.7
-71%
1496 (112 - 2125, n=38)
-16%
1440 (396 - 2539, n=29)
-19%
Read Seq
1247
1485
19%
1916
54%
1227
-2%
1643 (501 - 2494, n=38)
32%
1814 (786 - 2972, n=29)
45%
Write 4K Q32T1
344.7
269.2
-22%
305.4
-11%
518.2
50%
416 (198 - 1707, n=38)
21%
401 (250 - 606, n=30)
16%
Read 4K Q32T1
383.1
348.7
-9%
358.4
-6%
646
69%
402 (268 - 1015, n=38)
5%
448 (241 - 698, n=30)
17%
Write Seq Q32T1
2019
1877
-7%
1572
-22%
523.8
-74%
1919 (1714 - 2128, n=38)
-5%
1574 (342 - 3101, n=30)
-22%
Read Seq Q32T1
2076
3419
65%
3061
47%
2508
21%
2955 (1772 - 3487, n=38)
42%
2972 (1761 - 3515, n=30)
43%
Samsung SSD PM981 MZVLB512HAJQ
Sequential Read: 1393 MB/s
Sequential Write: 1785 MB/s
512K Read: 767.7 MB/s
512K Write: 1921 MB/s
4K Read: 57.38 MB/s
4K Write: 117.7 MB/s
4K QD32 Read: 434.3 MB/s
4K QD32 Write: 380 MB/s
3DMark 11 - 1280x720 Performance GPU
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
14673 Points ∼100% +71%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
8573 Points ∼58%
Average NVIDIA Quadro P2000
  (8201 - 8573, n=2)
8387 Points ∼57% -2%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
6115 Points ∼42% -29%
Average of class Workstation
  (841 - 25266, n=101)
6007 Points ∼41% -30%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
4608 Points ∼31% -46%
3DMark
1920x1080 Fire Strike Graphics
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
11316 Points ∼100% +63%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
6953 Points ∼61%
Average NVIDIA Quadro P2000
  (6741 - 6953, n=2)
6847 Points ∼61% -2%
Average of class Workstation
  (752 - 18544, n=93)
4867 Points ∼43% -30%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
4843 Points ∼43% -30%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
4053 Points ∼36% -42%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
4039 Points ∼36% -42%
1280x720 Cloud Gate Standard Graphics
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
57501 Points ∼100% +29%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
44533 Points ∼77%
Average NVIDIA Quadro P2000
  (42598 - 44533, n=2)
43566 Points ∼76% -2%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
31396 Points ∼55% -29%
Average of class Workstation
  (5836 - 107472, n=93)
31069 Points ∼54% -30%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
30255 Points ∼53% -32%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
28736 Points ∼50% -35%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
139.49 fps ∼100% +34%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
104.03 fps ∼75%
Average NVIDIA Quadro P2000
  (104 - 104, n=2)
104 fps ∼75% 0%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
86.62 fps ∼62% -17%
Average of class Workstation
  (15.6 - 212, n=77)
76.5 fps ∼55% -26%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
73 fps ∼52% -30%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
67.68 fps ∼49% -35%
1900x1060 Siemens NX (snx-02)
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
121.32 fps ∼100% +79%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
67.59 fps ∼56%
Average NVIDIA Quadro P2000
  (65.9 - 67.6, n=2)
66.7 fps ∼55% -1%
Average of class Workstation
  (4.87 - 218, n=77)
58.2 fps ∼48% -14%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
57.4 fps ∼47% -15%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
37.77 fps ∼31% -44%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
33.6 fps ∼28% -50%
1900x1060 Showcase (showcase-01)
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
59.33 fps ∼100% +95%
Average NVIDIA Quadro P2000
  (30.4 - 30.7, n=2)
30.6 fps ∼52% +1%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
30.42 fps ∼51%
Average of class Workstation
  (3.93 - 75.6, n=75)
30.2 fps ∼51% -1%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
27.56 fps ∼46% -9%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
22.5 fps ∼38% -26%
1900x1060 Medical (medical-01)
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
44 fps ∼100% +90%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
23.11 fps ∼53%
Average NVIDIA Quadro P2000
  (22.8 - 23.1, n=2)
23 fps ∼52% 0%
Average of class Workstation
  (0.99 - 79.4, n=76)
21.8 fps ∼50% -6%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
15.41 fps ∼35% -33%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
14.7 fps ∼33% -36%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
12.48 fps ∼28% -46%
1900x1060 Maya (maya-04)
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
81.51 fps ∼100% +35%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
60.27 fps ∼74%
Average NVIDIA Quadro P2000
  (59.2 - 60.3, n=2)
59.7 fps ∼73% -1%
Average of class Workstation
  (5.4 - 148, n=77)
44.7 fps ∼55% -26%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
42.26 fps ∼52% -30%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
36.98 fps ∼45% -39%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
35.5 fps ∼44% -41%
1900x1060 Energy (energy-01)
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
9.04 fps ∼100% +61%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
5.62 fps ∼62%
Average NVIDIA Quadro P2000
  (5.27 - 5.62, n=2)
5.45 fps ∼60% -3%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
4.57 fps ∼51% -19%
Average of class Workstation
  (0.06 - 16.9, n=77)
4.36 fps ∼48% -22%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
3.19 fps ∼35% -43%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
3.08 fps ∼34% -45%
1900x1060 Creo (creo-01)
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
107.13 fps ∼100% +64%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
65.17 fps ∼61%
Average NVIDIA Quadro P2000
  (65 - 65.2, n=2)
65.1 fps ∼61% 0%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
57.11 fps ∼53% -12%
Average of class Workstation
  (14 - 160, n=77)
53.8 fps ∼50% -17%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
41.27 fps ∼39% -37%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
40 fps ∼37% -39%
1900x1060 Catia (catia-04)
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
121.76 fps ∼100% +72%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
70.83 fps ∼58%
Average NVIDIA Quadro P2000
  (69.6 - 70.8, n=2)
70.2 fps ∼58% -1%
Average of class Workstation
  (13.4 - 197, n=77)
60.3 fps ∼50% -15%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
55.35 fps ∼45% -22%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
47 fps ∼39% -34%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
40.52 fps ∼33% -43%
1900x1060 3ds Max (3dsmax-05)
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
71.9 fps ∼100%
Average NVIDIA Quadro P2000

71.9 fps ∼100% 0%
Average of class Workstation
  (11.4 - 110, n=14)
53.1 fps ∼74% -26%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
52.91 fps ∼74% -26%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
40 fps ∼56% -44%
LuxMark v2.0 64Bit
Room GPUs-only
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
2170 Samples/s ∼100% +70%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
1280 Samples/s ∼59%
Average NVIDIA Quadro P2000
  (870 - 1280, n=2)
1075 Samples/s ∼50% -16%
Average of class Workstation
  (49 - 2539, n=79)
799 Samples/s ∼37% -38%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
713 Samples/s ∼33% -44%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
636 Samples/s ∼29% -50%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
626 Samples/s ∼29% -51%
Sala GPUs-only
Dell Precision 7530
NVIDIA Quadro P3200, Intel Core i9-8950HK
4192 Samples/s ∼100% +59%
Average NVIDIA Quadro P2000
  (2636 - 2747, n=2)
2692 Samples/s ∼64% +2%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
2636 Samples/s ∼63%
Average of class Workstation
  (48 - 5183, n=80)
1477 Samples/s ∼35% -44%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
1260 Samples/s ∼30% -52%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
1144 Samples/s ∼27% -57%
Fujitsu Celsius H760
NVIDIA Quadro M2000M, Intel Xeon E3-1505M v5
961 Samples/s ∼23% -64%
SiSoft Sandra 2016
Image Processing
Average NVIDIA Quadro P2000

391 MPix/s ∼100% 0%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
390.7 MPix/s ∼100%
Average of class Workstation
  (95.8 - 830, n=35)
323 MPix/s ∼83% -17%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
269 MPix/s ∼69% -31%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
217.53 MPix/s ∼56% -44%
GP Cryptography (Higher Security AES256+SHA2-512)
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
16.63 GB/s ∼100%
Average NVIDIA Quadro P2000

16.6 GB/s ∼100% 0%
Average of class Workstation
  (3.92 - 33.3, n=35)
13 GB/s ∼78% -22%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
10.88 GB/s ∼65% -35%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
9.1 GB/s ∼55% -45%
GP Financial Analysis (FP High/Double Precision)
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
38 KOPT/s ∼100%
Average NVIDIA Quadro P2000

38 KOPT/s ∼100% 0%
Average of class Workstation
  (11.8 - 100, n=35)
37.9 KOPT/s ∼100% 0%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, Intel Core i7-8750H
23.76 KOPT/s ∼63% -37%
HP ZBook 15v G5
NVIDIA Quadro P600, Intel Core i7-8850H
18.41 KOPT/s ∼48% -52%
3DMark 11 Performance
8738 points
3DMark Cloud Gate Standard Score
23632 points
3DMark Fire Strike Score
6204 points
Aide
Bas Moyen Élevé Ultra
The Witcher 3 (2015) 130.376.143.224.3fps
Dota 2 Reborn (2015) 130.2115.4102.497.5fps
X-Plane 11.11 (2018) 938672fps

Degré de la nuisance sonore

Au repos
29.6 / 32.2 / 37 dB(A)
Fortement sollicité
40.3 / 49.4 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 29.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.237.835.433.137.835.32529.33228.529.928.533.83130.134.733.332.532.233.340303230.33028.431.75027.434.628.42926.733.46337.126.625.726.325.728.28038.925.4252524.224.710026.825.626.726.426.427.112527.227.126.325.723.625.916027.226.129.829.424.825.920028.231.728.128.223.826.325028.526.525.825.923.925.431530.825.425.524.422.525.640033.22925.825.62227.950033.126.626.426.220.627.463036.228.526.826.219.83080040.630.228.528.119.231.3100038.6322928.318.531.7125039.631.128.327.917.431.8160040.432.329.829.416.833.320004032.427.12616.234.725003925.9252215.928.6315035.7222418.815.724.1400034.220.62417.715.622.5500034.820.624.217.715.422.9630033.619.323.916.715.621.3800031.31822.916.515.419.61000025.716.520.915.915.216.81250021.11617.715.81517.41600018.915.717.415.714.916.2SPL49.440.338.53729.641.6N6.73.23.12.51.33.5median 33.2median 26.1median 25.8median 25.7median 17.4median 25.9Delta4.84.41.85.13.43.532.431.433.531.132.428.228.128.728.928.231.229.7302831.22927.228.427.32927.327.72726.427.325.625.825.424.325.624.626.124.324.924.624.323.823.223.324.323.423.822.722.723.424.623.523.121.424.624.923.522.120.724.924.62221.319.524.623.52220.118.923.525.822.820.218.225.827.624.12117.627.62723.820.816.62725.32219.516.325.326.522.620.215.726.527.823.921.315.827.83026.221.915.83030.224.319.91630.231.22420.316.331.227.321.220.516.827.325.120.320.917.525.123.519.121.417.723.522.91921.518.322.921.119.421.91921.120.419.421.919.220.422.421.122.320.322.426.923.523.122.226.939.434.733.129.539.43.12.11.81.23.1median 25.1median 22.8median 21.3median 18.2median 25.11.91.80.92.21.9hearing rangehide median Fan NoiseFujitsu Celsius H780Lenovo ThinkPad P52 20MAS03N00
 38.9 °C43.7 °C41.9 °C
 37.3 °C38.3 °C33.2 °C
 25.6 °C26.8 °C24.2 °C
Maximum: 43.7 °C
Moyenne: 34.4 °C
37.9 °C45.3 °C34.6 °C
25.7 °C34.3 °C36.7 °C
21.9 °C25.4 °C24.6 °C
Maximum: 45.3 °C
Moyenne: 31.8 °C
Alimentation (valeur maximale)  38.1 °C | Température ambiante de la pièce 20.7 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 34.4 °C / 94 F, compared to the average of 31.1 °C / 88 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 43.7 °C / 111 F, compared to the average of 37.1 °C / 99 F, ranging from 23 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 45.3 °C / 114 F, compared to the average of 40.4 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 24.6 °C / 76 F, compared to the device average of 31.1 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.8 °C / 80.2 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (+1 °C / 1.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.835.52528.527.13132.232.14028.430.55026.726.36325.724.48024.224.710026.42712523.624.716024.823.620023.826.325023.930.531522.536.84002245.150020.650.663019.856.980019.256.1100018.556.7125017.458.4160016.862.1200016.262250015.958.8315015.756.7400015.663.7500015.465.5630015.660800015.458.11000015.255.1125001557.21600014.956.8SPL29.672.5N1.327.6median 17.4median 56.7Delta3.48.837.538.435.735.433.333.733.832.731.233.132.33431.737.23145.828.353.428.362.527.664.725.767.126.469.925.767.125.167.424.373.924.471.524.166.423.771.323.774.523.671.823.57123.56923.266.423.269.623.16823.171.22373.22365.62356.635.982.92.660.4median 23.7median 681.54hearing rangehide median Pink NoiseFujitsu Celsius H780Dell Precision 7530
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Fujitsu Celsius H780 audio analysis

(±) | speaker loudness is average but good (72.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.6% lower than median
(±) | linearity of bass is average (8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(±) | linearity of highs is average (8.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.1% difference to median)
Compared to same class
» 81% of all tested devices in this class were better, 6% similar, 14% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 72% of all tested devices were better, 6% similar, 22% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Dell Precision 7530 audio analysis

(±) | speaker loudness is average but good (74.45 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(±) | linearity of mids is average (7.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 3% similar, 97% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consommation énergétique
Éteint/en veilledarklight 0.61 / 0.89 Watts
Au reposdarkmidlight 9.1 / 13.2 / 14.04 Watts
Fortement sollicité midlight 78.8 / 172.5 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime - WiFi Websurfing 1.3
Lenovo ThinkPad P52 20MAS03N00
8750H, Quadro P1000, 96 Wh
637 min ∼24% +42%
HP ZBook 15v G5
8850H, Quadro P600, 70 Wh
459 min ∼17% +2%
Fujitsu Celsius H780
8850H, Quadro P2000, 96 Wh
450 min ∼17%
Average of class Workstation
  (106 - 974, n=63)
407 min ∼15% -10%
Fujitsu Celsius H760
E3-1505M v5, Quadro M2000M, 72 Wh
333 min ∼13% -26%
Dell Precision 7530
8950HK, Quadro P3200, 97 Wh
278 min ∼11% -38%
Autonomie
NBC WiFi Websurfing Battery Test 1.3 (Edge)
7h 30min

Points positifs

+ beaucoup de ports, dont VGA / mécanique pour le docking
+ clavier
+ températures du châssis
+ maintenance, évolutivité
+ robuste
+ trois ans de garantie

Points négatifs

- gros et lourd
- problème de qualité de construction du cadre d'écran
- bouton de pointage disponible qu'en option
- écran : couverture des espaces colorimétriques, luminosité, fuites de lumière
- gestion des ventilateurs
- throttling dans les stress tests
En test : le Fujitsu Celsius H780. Modèle de test fourni par Fujitsu.
En test : le Fujitsu Celsius H780. Modèle de test fourni par Fujitsu.

Le marché des stations de travail est un terrain difficile pour Fujitsu, le fabricant japonais comparativement petit devant faire face à des mastodontes tels que Dell, HP et Lenovo. Sans l’ombre d’un doute, le Fujitsu Celsius a des qualités. Mais si l’on prend en compte ses défauts, ses concurrents font tout simplement mieux…

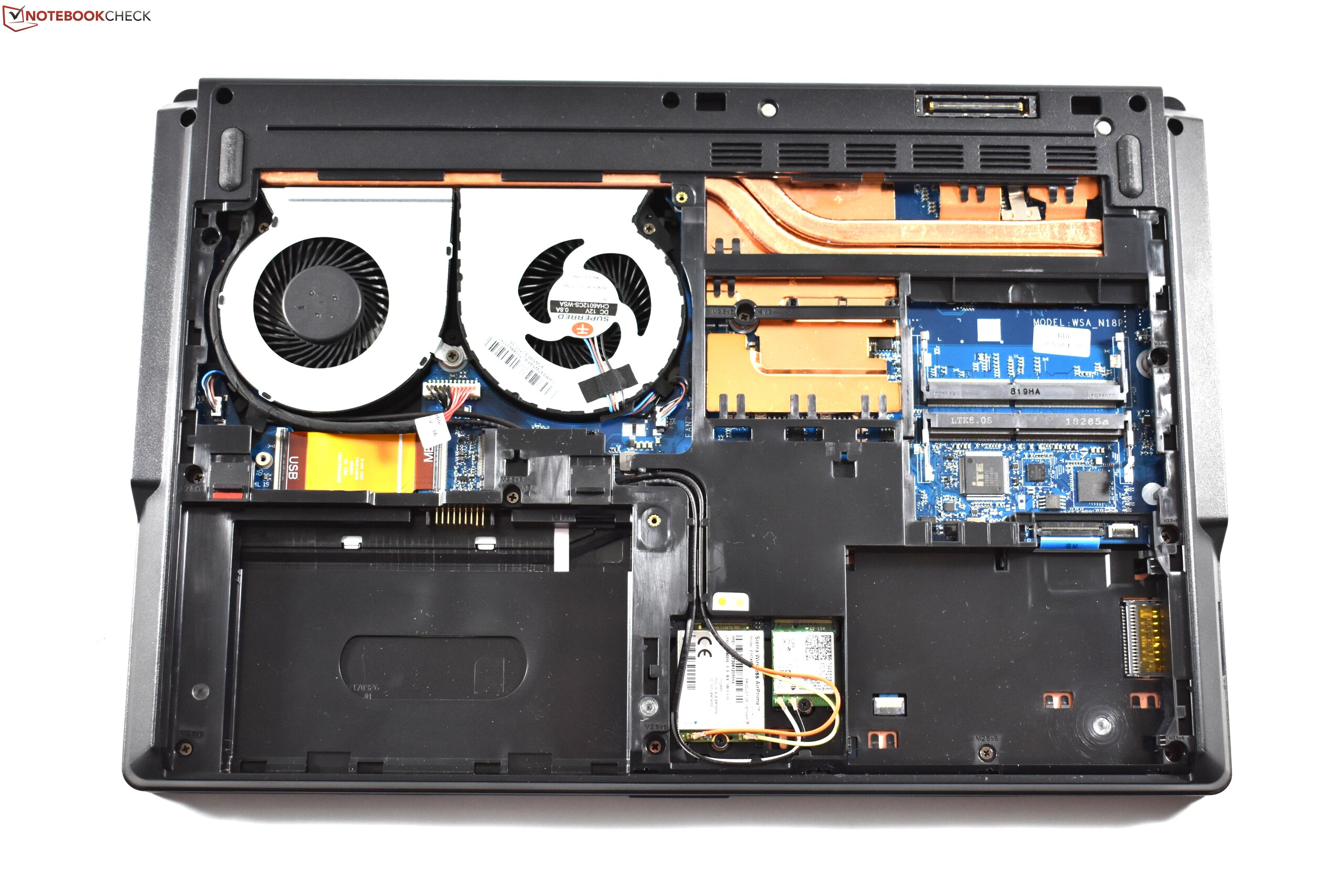

Un des points forts du portable Fujitsu est sa sélection de ports, avec du VGA, deux Thunderbolt et un port mécanique pour station d’accueil. Le clavier est plutôt bon, et le châssis reste toujours frais, même en cas de sollicitations. De même, le PC est facilement évolutif et sa maintenance est aisée. Sa batterie est même externe, et donc facilement remplaçable. Et sa garantie de 3 ans est appréciable.

Malheureusement, l’appareil possède beaucoup de défauts. Le châssis est plutôt robuste, mais ses finitions ne sont pas parfaites, et il est gros, plus encombrant et plus lourd que les concurrents. Le bouton de pointage, en série chez les concurrents, n’est ici disponible qu’en option. L’écran de l’appareil n’est pas vraiment mauvais, mais sa luminosité et la couverture des espaces colorimétriques sont décevantes. Et il y a des fuites de lumière. Le plus gros problème du Fujitsu Celsius H780 reste son système de refroidissement très gênant, les deux ventilateurs tournant trop souvent et trop fortement. Et malgré cela, le throttling du CPU est important dans les stress tests, pouvant même intervenir dans un usage classique au quotidien.

Le Fujitsu Celsius H780 possède trop de défaut - les concurrents font tout simplement mieux.

Le Fujitsu Celsius H780 est loin d’être un désastre, mais nous en attendons plus d’une machine à 2 500 €. Les concurrents, tels le Lenovo ThinkPad P52 et le Dell Precision 7530, ont plus d’arguments en leur faveur.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Fujitsu Celsius H780 - 03/11/2019 v6
Benjamin Herzig

Châssis
86 / 98 → 88%
Clavier
81%
Dispositif de pointage
85%
Connectivité
77 / 81 → 95%
Poids
58 / 10-66 → 86%
Autonomie
90%
Écran
87%
Performances en jeu
90%
Performances dans les applications
94%
Chauffe
91 / 95 → 96%
Nuisance sonore
73 / 90 → 81%
Audio
52%
Appareil photo
42 / 85 → 50%
Moyenne
78%
86%
Workstation - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique de la station de travail Fujitsu Celsius H780 (i7-8850H, P2000, FHD)
Benjamin Herzig, 2019-04- 4 (Update: 2019-04- 4)
