Courte critique de la station de travail Dell Precision 7730 (i7-8850H, Quadro P3200, FHD)

Benjamin Herzig, 👁 Andreas Osthoff (traduit par Prévots), 05/13/2019

Puissant mais sans autonomie. Dell a retravaillé ses plus grosses stations de travail Precision, dont fait partie le Precision 7730. Le nouveau 17,3 pouces est plus compact que son prédécesseur, même si c’est difficile à voir quand les deux appareils ne sont pas côte à côte. Le Precision 7730 est certainement puissant, mais est-ce que ses 92 Wh lui permettront de tenir la distance ?

Dell Precision 7730
Carte graphique
NVIDIA Quadro P3200 - 6144 Mo, Processeur: 1328 MHz, Mémoire: 1753 MHz, GP104, 411.63, Optimus
Mémoire
16384 Mo
, DDR4-2666, 2 emplacements SODIMM libres sur 4, max. 128 Go
Écran
17.3 pouces 16:9, 1920 x 1080 pixel 127 PPP, B173HAN01.3, IPS LED, brillant: non
Carte mère
Intel C246 (Cannon Lake-H)
Disque dur
Samsung SSD PM981 MZVLB512HAJQ, 512 Go
, M.2 2280, SSD PCIe NVMe, 441 Go libres
Carte son
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Connexions
3 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, Connectique audio: jack 3,5 mm, Lecteur de cartes mémoires: carte SD, 1 Lecteur de cartes à puce
Réseau
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Wireless-AC 9260 (a/b/g/n/ac), Bluetooth 5.0
Taille
Hauteur x Largeur x Profondeur (en mm): 30 x 414 x 274
Batterie
92 Wh Lithium-Ion
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Appareil photo
Webcam: 0,92 MP
Fonctionnalités additionnelles

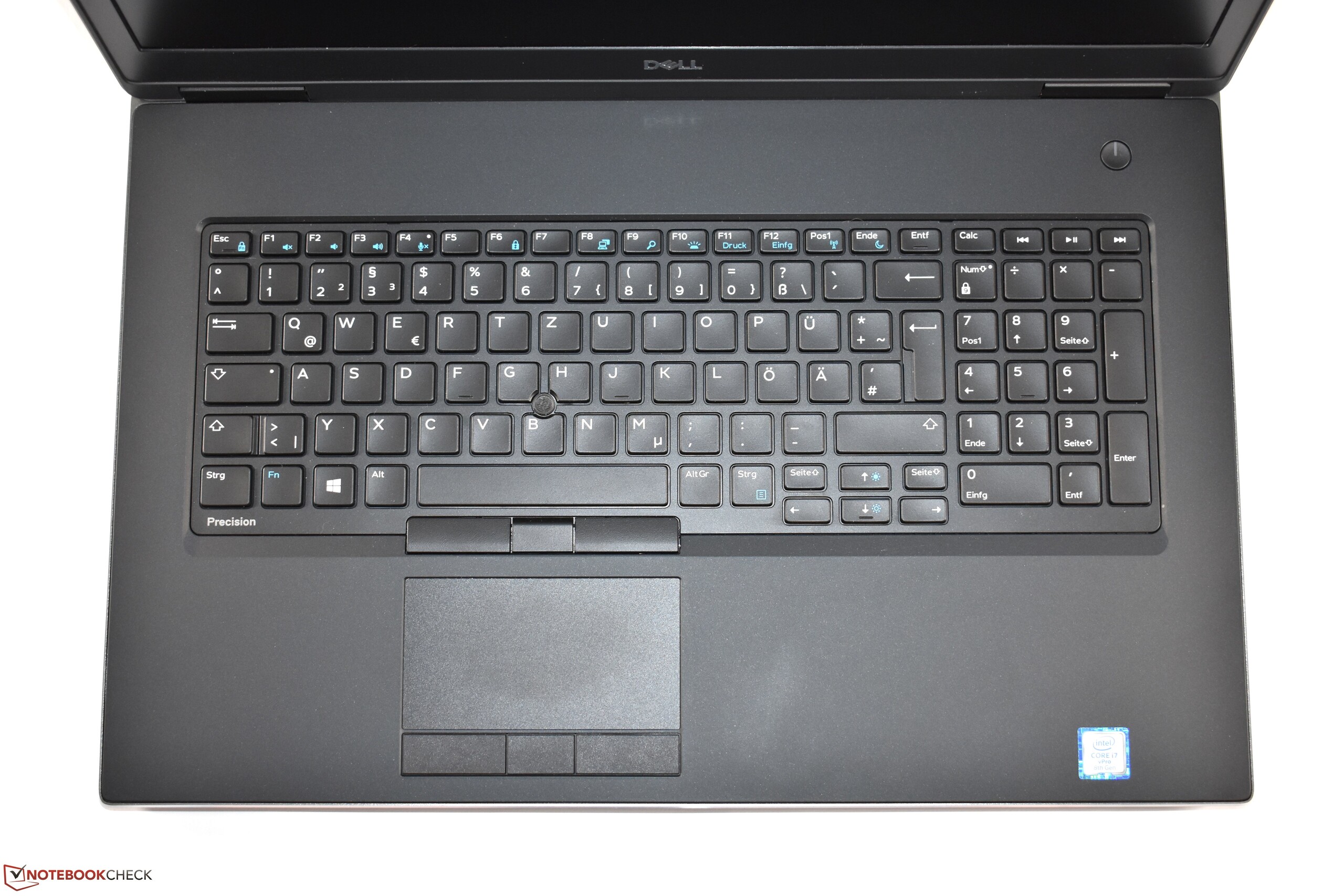

Haut-parleurs: 2 W stéréo, Clavier: chiclet 6 rangs avec pavé numérique, Rétroéclairage du clavier: oui, Dell SupportAssist, Dell PremierColor, Dell Precision Optimizer, Dell Digital Delivery, Dell Power Manager, Dell Command, Microsoft Office (version d'essai), 36 Mois Garantie
Poids
3.347 kg, Alimentation: 788 g
Prix
2800 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Comparaison des tailles

417 mm 281 mm 35 mm 3.6 kg418 mm 288 mm 30 mm 3.5 kg416 mm 281 mm 29.4 mm 3.4 kg414 mm 274 mm 30 mm 3.3 kg
Côté droit : jack 3,5 mm, 2 USB A 3.0, verrou de sécurité Noble.
Côté droit : jack 3,5 mm, 2 USB A 3.0, verrou de sécurité Noble.
Côté gauche : 2 Thunderbolt 3, lecteur de carte SD, lecteur de carte à puce.
Côté gauche : 2 Thunderbolt 3, lecteur de carte SD, lecteur de carte à puce.

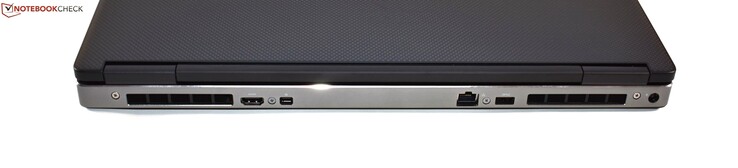

A l'arrière : HDMI, mini DisplayPort, Ethernet RJ45, USB A 3.0, entrée secteur.
A l'arrière : HDMI, mini DisplayPort, Ethernet RJ45, USB A 3.0, entrée secteur.
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Precision 7730
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
198 MB/s ∼100%
Lenovo ThinkPad P72-20MB000EGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
171 MB/s ∼86% -14%
Fujitsu Celsius H980
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
148 MB/s ∼75% -25%
Average of class Workstation
  (17.2 - 213, n=56)
138 MB/s ∼70% -30%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 7730
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
212.8 MB/s ∼100%
Lenovo ThinkPad P72-20MB000EGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
203.3 MB/s ∼96% -4%
Fujitsu Celsius H980
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
176.9 MB/s ∼83% -17%
Average of class Workstation
  (18.4 - 255, n=56)
174 MB/s ∼82% -18%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Fujitsu Celsius H980
Intel Wireless-AC 9560
693 (min: 345, max: 697) MBit/s ∼100% +19%
Lenovo ThinkPad P72-20MB000EGE
Intel Wireless-AC 9560
681 (min: 341, max: 686) MBit/s ∼98% +17%
Average of class Workstation
  (292 - 705, n=41)
611 MBit/s ∼88% +5%
Dell Precision 7720
Intel Dual Band Wireless-AC 8265
587 MBit/s ∼85% +1%
Dell Precision 7730
Intel Wireless-AC 9260
580 MBit/s ∼84%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Precision 7730
Intel Wireless-AC 9260
683 MBit/s ∼100%
Fujitsu Celsius H980
Intel Wireless-AC 9560
652 (min: 330, max: 712) MBit/s ∼95% -5%
Lenovo ThinkPad P72-20MB000EGE
Intel Wireless-AC 9560
642 (min: 629, max: 650) MBit/s ∼94% -6%
Average of class Workstation
  (83 - 690, n=41)
527 MBit/s ∼77% -23%
Dell Precision 7720
Intel Dual Band Wireless-AC 8265
518 MBit/s ∼76% -24%
319
cd/m²
334
cd/m²
335
cd/m²
282
cd/m²
322
cd/m²
300
cd/m²
305
cd/m²
329
cd/m²
322
cd/m²
Homogénéité de la luminosité
X-Rite i1Pro 2
Maximum: 335 cd/m² Moyenne: 316.4 cd/m² Minimum: 11.7 cd/m²
Homogénéité de la luminosité: 84 %
Valeur mesurée au centre, sur batterie: 322 cd/m²
Contraste: 1342:1 (Valeurs des noirs: 0.24 cd/m²)
ΔE Color 2.2 | 0.6-29.43 Ø6.1, calibrated: 1.9
ΔE Greyscale 1.6 | 0.64-98 Ø6.3
93.3% sRGB (Argyll 3D) 60.4% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.19
Dell Precision 7730
B173HAN01.3, , 1920x1080, 17.3
Lenovo ThinkPad P72-20MB000EGE
LP173WF4_SPF7, , 1920x1080, 17.3
Fujitsu Celsius H980
LG Philips, LP173WF4-SPF5, , 1920x1080, 17.3
Dell Precision 7720
SHP1446 (LQ173D1), , 3840x2160, 17.3
Response Times
14%
26%
-32%
Response Time Grey 50% / Grey 80% *
48.8 (24.4, 24.4)
40.8 (22, 18.8)
16%
38 (19.2, 18.8)
22%
60 (26.8, 33.2)
-23%
Response Time Black / White *
32.8 (18.8, 14)
28.8 (15.6, 13.2)
12%
23.2 (10, 13.2)
29%
46.4 (28.4, 18)
-41%
PWM Frequency
120500 (99)
1020 (20)
Screen
-35%
-64%
-21%
Brightness middle
322
338
5%
400
24%
464
44%
Brightness
316
317
0%
394
25%
441
40%
Brightness Distribution
84
86
2%
92
10%
89
6%
Black Level *
0.24
0.28
-17%
0.51
-113%
0.45
-88%
Contrast
1342
1207
-10%
784
-42%
1031
-23%
Colorchecker DeltaE2000 *
2.2
4.3
-95%
5.3
-141%
3.2
-45%
Colorchecker DeltaE2000 max. *
4.6
10.2
-122%
9.3
-102%
6.1
-33%
Colorchecker DeltaE2000 calibrated *
1.9
3.7
-95%
3.8
-100%
Greyscale DeltaE2000 *
1.6
2.2
-38%
5.5
-244%
4.2
-163%
Gamma
2.19 100%
2.17 101%
2.17 101%
2.01 109%
CCT
6621 98%
6621 98%
6686 97%
6736 96%
Color Space (Percent of AdobeRGB 1998)
60.4
55.8
-8%
55.8
-8%
88.1
46%
Color Space (Percent of sRGB)
93.3
84.7
-9%
84.9
-9%
100
7%
Moyenne finale (programmes/paramètres)
-11% / -28%
-19% / -50%
-27% / -23%

* ... Moindre est la valeur, meilleures sont les performances

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

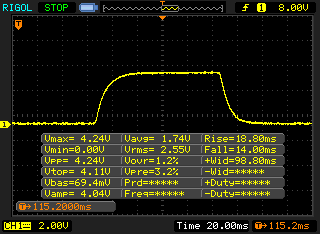

       Temps de réponse noir à blanc
32.8 ms ... hausse ↗ et chute ↘ combinées↗ 18.8 ms hausse
↘ 14 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 85 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (25.2 ms) de tous les appareils testés.

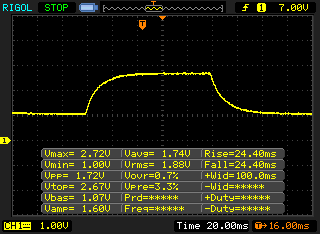

       Temps de réponse gris 50% à gris 80%
48.8 ms ... hausse ↗ et chute ↘ combinées↗ 24.4 ms hausse
↘ 24.4 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 81 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (40.2 ms) de tous les appareils testés.

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) non décelé

En comparaison, 51 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 9439 (minimum : 43 - maximum : 142900) Hz dans le cas où une MDI était active.

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220123012401250126012701280Tooltip
Dell Precision 7730 Intel Core i7-8850H, Intel Core i7-8850H: Ø1158 (1144.66-1276.49)
Lenovo ThinkPad P72-20MB000EGE Intel Core i7-8850H, Intel Core i7-8850H; Undervolting: Ø1267 (1252.58-1272.26)
Lenovo ThinkPad P72-20MB000EGE Intel Core i7-8850H, Intel Core i7-8850H; Default: Ø1147 (1115.23-1244.83)
Fujitsu Celsius H980 Intel Core i7-8750H, Intel Core i7-8750H: Ø1034 (1025.75-1058.79)
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
184 Points ∼100% +1%
Dell Precision 7730
Intel Core i7-8850H
182 Points ∼99%
Average Intel Core i7-8850H
  (176 - 185, n=10)
180 Points ∼98% -1%
Dell Precision 7720
Intel Xeon E3-1535M v6
179 Points ∼97% -2%
Fujitsu Celsius H980
Intel Core i7-8750H
175 Points ∼95% -4%
Average of class Workstation
  (117 - 214, n=88)
157 Points ∼85% -14%
CPU Multi 64Bit
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
1267 Points ∼100% +10%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H
1262 Points ∼100% +9%
Dell Precision 7730
Intel Core i7-8850H
1153 (min: 1144.66, max: 1276.49) Points ∼91%
Average Intel Core i7-8850H
  (929 - 1276, n=14)
1118 Points ∼88% -3%
Fujitsu Celsius H980
Intel Core i7-8750H
1090 Points ∼86% -5%
Dell Precision 7720
Intel Xeon E3-1535M v6
848 Points ∼67% -26%
Average of class Workstation
  (260 - 1623, n=90)
740 Points ∼58% -36%
Cinebench R15 CPU Multi 64Bit
1153 Points
Cinebench R15 OpenGL 64Bit
172 fps
Cinebench R15 Ref. Match 64Bit
100 %
Cinebench R15 CPU Single 64Bit
182 Points
Aide
PCMark 10
Digital Content Creation
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
6622 Points ∼100% +4%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
6437 Points ∼97% +1%
Dell Precision 7730
Quadro P3200, 8850H, Samsung SSD PM981 MZVLB512HAJQ
6353 Points ∼96%
Average Intel Core i7-8850H, NVIDIA Quadro P3200
  (6058 - 6353, n=2)
6206 Points ∼94% -2%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
6058 Points ∼91% -5%
Average of class Workstation
  (2466 - 8528, n=32)
5132 Points ∼77% -19%
Productivity
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
7544 Points ∼100% +4%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
7459 Points ∼99% +2%
Average Intel Core i7-8850H, NVIDIA Quadro P3200
  (7278 - 7459, n=2)
7369 Points ∼98% +1%
Dell Precision 7730
Quadro P3200, 8850H, Samsung SSD PM981 MZVLB512HAJQ
7278 Points ∼96%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
7203 Points ∼95% -1%
Average of class Workstation
  (4897 - 8307, n=32)
7075 Points ∼94% -3%
Essentials
Dell Precision 7730
Quadro P3200, 8850H, Samsung SSD PM981 MZVLB512HAJQ
9251 Points ∼100%
Average Intel Core i7-8850H, NVIDIA Quadro P3200
  (9121 - 9251, n=2)
9186 Points ∼99% -1%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
9121 Points ∼99% -1%
Average of class Workstation
  (7172 - 9847, n=32)
8500 Points ∼92% -8%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
8077 Points ∼87% -13%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
8032 Points ∼87% -13%
Score
Dell Precision 7730
Quadro P3200, 8850H, Samsung SSD PM981 MZVLB512HAJQ
5401 Points ∼100%
Average Intel Core i7-8850H, NVIDIA Quadro P3200
  (5287 - 5401, n=3)
5341 Points ∼99% -1%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
5335 Points ∼99% -1%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
5248 Points ∼97% -3%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5206 Points ∼96% -4%
Average of class Workstation
  (3281 - 6255, n=33)
4798 Points ∼89% -11%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
5503 Points ∼100% +1%
Dell Precision 7730
Quadro P3200, 8850H, Samsung SSD PM981 MZVLB512HAJQ
5450 Points ∼99%
Average Intel Core i7-8850H, NVIDIA Quadro P3200
  (5276 - 5503, n=3)
5410 Points ∼98% -1%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5132 Points ∼93% -6%
Average of class Workstation
  (3311 - 5655, n=70)
4815 Points ∼87% -12%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
4460 Points ∼81% -18%
Home Score Accelerated v2
Dell Precision 7730
Quadro P3200, 8850H, Samsung SSD PM981 MZVLB512HAJQ
4657 Points ∼100%
Lenovo ThinkPad P72-20MB000EGE
Quadro P3200, 8850H, Lenovo LENSE20256GMSP34MEAT2TA
4550 Points ∼98% -2%
Average Intel Core i7-8850H, NVIDIA Quadro P3200
  (4332 - 4657, n=3)
4513 Points ∼97% -3%
Fujitsu Celsius H980
Quadro P3200, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4376 Points ∼94% -6%
Average of class Workstation
  (2320 - 5505, n=71)
3994 Points ∼86% -14%
Dell Precision 7720
Quadro P5000, E3-1535M v6, Toshiba NVMe THNSN5512GPU7
3772 Points ∼81% -19%
PCMark 8 Home Score Accelerated v2
4657 points
PCMark 8 Work Score Accelerated v2
5450 points
Aide
Dell Precision 7730
Samsung SSD PM981 MZVLB512HAJQ
Dell Precision 7720
Toshiba NVMe THNSN5512GPU7
Lenovo ThinkPad P72-20MB000EGE
Lenovo LENSE20256GMSP34MEAT2TA
Fujitsu Celsius H980
Samsung SSD PM981 MZVLB512HAJQ
Average Samsung SSD PM981 MZVLB512HAJQ

CrystalDiskMark 5.2 / 6
8%
-4%
-5%
5%
Write 4K
103.2
169.16
64%
101.04
-2%
111.8
8%
122 (90.4 - 166, n=43)
18%
Read 4K
41.39
46.03
11%
45.37
10%
32.02
-23%
42.8 (28 - 61.3, n=42)
3%
Write Seq
1880
1234.23
-34%
1408.54
-25%
1539
-18%
1513 (112 - 2125, n=43)
-20%
Read Seq
2350
1853.87
-21%
2129.47
-9%
1252
-47%
1666 (501 - 2494, n=43)
-29%
Write 4K Q32T1
282.3
364.81
29%
320.28
13%
355.4
26%
411 (198 - 1707, n=43)
46%
Read 4K Q32T1
314.3
551.68
76%
348.3
11%
408.7
30%
401 (268 - 1015, n=43)
28%
Write Seq Q32T1
1881
1087.7
-42%
1529.2
-19%
1912.6
2%
1920 (1714 - 2128, n=43)
2%
Read Seq Q32T1
3216
2582.2
-20%
2957
-8%
2529.9
-21%
3009 (1772 - 3540, n=43)
-6%
Samsung SSD PM981 MZVLB512HAJQ
Sequential Read: 2603 MB/s
Sequential Write: 1865 MB/s
512K Read: 2009 MB/s
512K Write: 1848 MB/s
4K Read: 66.46 MB/s
4K Write: 159.3 MB/s
4K QD32 Read: 513.6 MB/s
4K QD32 Write: 479.8 MB/s
3DMark 11 - 1280x720 Performance GPU
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
19569 Points ∼100% +19%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
17021 Points ∼87% +4%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
16805 Points ∼86% +2%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
16433 Points ∼84%
Average NVIDIA Quadro P3200
  (14673 - 17021, n=4)
16233 Points ∼83% -1%
Average of class Workstation
  (841 - 25266, n=102)
6181 Points ∼32% -62%
3DMark
2560x1440 Time Spy Graphics
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
4378 Points ∼100%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
4356 Points ∼99%
Average NVIDIA Quadro P3200
  (3732 - 4378, n=3)
4155 Points ∼95%
Average of class Workstation
  (566 - 6851, n=21)
2983 Points ∼68%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
2898 Points ∼66%
1920x1080 Fire Strike Graphics
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
14666 Points ∼100% +17%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
12558 Points ∼86%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
12555 Points ∼86% 0%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
12554 Points ∼86% 0%
Average NVIDIA Quadro P3200
  (11316 - 12558, n=4)
12246 Points ∼83% -2%
Average of class Workstation
  (752 - 18544, n=94)
5002 Points ∼34% -60%
1280x720 Cloud Gate Standard Graphics
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
86679 Points ∼100% +5%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
84059 Points ∼97% +2%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
82713 Points ∼95%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
82300 Points ∼95% 0%
Average NVIDIA Quadro P3200
  (57501 - 84059, n=4)
76643 Points ∼88% -7%
Average of class Workstation
  (5836 - 119052, n=94)
32005 Points ∼37% -61%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
148.39 fps ∼100% +45%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
144.9 fps ∼98% +42%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
142.34 fps ∼96% +40%
Average NVIDIA Quadro P3200
  (102 - 148, n=5)
130 fps ∼88% +27%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
102.01 fps ∼69%
Average of class Workstation
  (15.6 - 212, n=78)
77.4 fps ∼52% -24%
1900x1060 Siemens NX (snx-02)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
157.44 fps ∼100% +45%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
134.52 fps ∼85% +24%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
130.1 fps ∼83% +20%
Average NVIDIA Quadro P3200
  (108 - 135, n=5)
124 fps ∼79% +14%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
108.36 fps ∼69%
Average of class Workstation
  (4.87 - 218, n=78)
59.8 fps ∼38% -45%
1900x1060 Showcase (showcase-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
68.76 fps ∼100% +17%
Average NVIDIA Quadro P3200
  (58.5 - 59.9, n=5)
59.1 fps ∼86% +1%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
59.05 fps ∼86% +1%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
58.71 fps ∼85%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
58.52 fps ∼85% 0%
Average of class Workstation
  (3.93 - 98, n=76)
31.1 fps ∼45% -47%
1900x1060 Medical (medical-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
62.74 fps ∼100% +44%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
48.7 fps ∼78% +11%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
47.28 fps ∼75% +8%
Average NVIDIA Quadro P3200
  (43.7 - 48.7, n=5)
46.2 fps ∼74% +6%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
43.68 fps ∼70%
Average of class Workstation
  (0.99 - 79.4, n=77)
22.3 fps ∼36% -49%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
92.73 fps ∼100% +43%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
90.3 fps ∼97% +39%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
88.79 fps ∼96% +37%
Average NVIDIA Quadro P3200
  (64.9 - 92.7, n=5)
79.8 fps ∼86% +23%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
64.91 fps ∼70%
Average of class Workstation
  (5.4 - 148, n=78)
45.9 fps ∼49% -29%
1900x1060 Energy (energy-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
14.22 fps ∼100% +39%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
10.72 fps ∼75% +5%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
10.61 fps ∼75% +4%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
10.25 fps ∼72%
Average NVIDIA Quadro P3200
  (9.04 - 10.7, n=5)
10.2 fps ∼72% 0%
Average of class Workstation
  (0.06 - 16.9, n=78)
4.48 fps ∼32% -56%
1900x1060 Creo (creo-01)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
117.15 fps ∼100% +11%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
112.57 fps ∼96% +6%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
109.47 fps ∼93% +4%
Average NVIDIA Quadro P3200
  (97.2 - 113, n=5)
106 fps ∼90% 0%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
105.73 fps ∼90%
Average of class Workstation
  (14 - 160, n=78)
54.9 fps ∼47% -48%
1900x1060 Catia (catia-04)
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
139.86 fps ∼100% +33%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
126.84 fps ∼91% +21%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
125.36 fps ∼90% +19%
Average NVIDIA Quadro P3200
  (105 - 127, n=5)
117 fps ∼84% +11%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
105.1 fps ∼75%
Average of class Workstation
  (13.4 - 197, n=78)
61.6 fps ∼44% -41%
1900x1060 3ds Max (3dsmax-05)
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
110.31 fps ∼100%
Average NVIDIA Quadro P3200
  (110 - 110, n=2)
110 fps ∼100% 0%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
109.97 fps ∼100% 0%
Average of class Workstation
  (11.4 - 110, n=14)
53.1 fps ∼48% -52%
LuxMark v2.0 64Bit
Room GPUs-only
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
2337 Samples/s ∼100% +6%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
2206 Samples/s ∼94%
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
2181 Samples/s ∼93% -1%
Average NVIDIA Quadro P3200
  (1842 - 2206, n=5)
2052 Samples/s ∼88% -7%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
1863 Samples/s ∼80% -16%
Average of class Workstation
  (49 - 2840, n=80)
824 Samples/s ∼35% -63%
Sala GPUs-only
Fujitsu Celsius H980
NVIDIA Quadro P3200, Intel Core i7-8750H
4383 Samples/s ∼100% 0%
Dell Precision 7730
NVIDIA Quadro P3200, Intel Core i7-8850H
4369 Samples/s ∼100%
Dell Precision 7720
NVIDIA Quadro P5000, Intel Xeon E3-1535M v6
4357 Samples/s ∼99% 0%
Average NVIDIA Quadro P3200
  (3612 - 4383, n=5)
4038 Samples/s ∼92% -8%
Lenovo ThinkPad P72-20MB000EGE
NVIDIA Quadro P3200, Intel Core i7-8850H
3635 Samples/s ∼83% -17%
Average of class Workstation
  (48 - 5927, n=81)
1532 Samples/s ∼35% -65%
3DMark 11 Performance
15079 points
3DMark Cloud Gate Standard Score
34440 points
3DMark Fire Strike Score
11058 points
Aide
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Dell Precision 7720
Intel Xeon E3-1535M v6, NVIDIA Quadro P5000
53.4 fps ∼100% +15%
Dell Precision 7730
Intel Core i7-8850H, NVIDIA Quadro P3200
46.4 fps ∼87%
Lenovo ThinkPad P72-20MB000EGE
Intel Core i7-8850H, NVIDIA Quadro P3200
46.1 fps ∼86% -1%
Average NVIDIA Quadro P3200
  (41.6 - 46.4, n=4)
44.9 fps ∼84% -3%
Average of class Workstation
  (5.7 - 70, n=51)
25 fps ∼47% -46%
0510152025303540455055Tooltip
Dell Precision 7730 Quadro P3200, 8850H, Samsung SSD PM981 MZVLB512HAJQ: Ø44.5 (42-47)
Bas Moyen Élevé Ultra
BioShock Infinite (2013) 306.9265.1246114.2fps
The Witcher 3 (2015) 218.6148.282.246.4fps
Dota 2 Reborn (2015) 140131123117fps
Rise of the Tomb Raider (2016) 181.7146.384.671.1fps
X-Plane 11.11 (2018) 1018673fps

Degré de la nuisance sonore

Au repos
29.7 / 29.7 / 29.7 dB(A)
Fortement sollicité
31.4 / 44.2 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 29.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.429.632.127.829.629.32524.524.228.623.425.125.73127.730.531.62828.429.84025.327.628.726.125.1245024.324.625.525.222.424.16325.72425.724.724.225.28025.824.323.222.922.725.410027.223.722.222.62326.61252623.422.522.62225.616025.924.722.622.422.526.320026.424.921.921.521.726.825025.523.62321.421.225.33152724.52221.521.426.640028.924.321.921.220.52850028.625.721.520.719.629.463029.226.722.620.419.329.380030.726.221.619.418.830.7100033.828.521.919.518.333.2125036.730.721.919.317.636160035.528.619.917.917.635.5200036.528.419.917.616.936.2250033.525.917.916.416.933.531503123.416.61616.730.5400026.51915.915.816.426.3500022.317.415.715.616.122.4630020.616.615.715.816.420.7800017.815.915.715.616.417.8100001615.615.515.516.4161250015.315.315.315.31615.5160001515.115.21515.915SPL44.237.931.429.929.744N42.61.51.31.34median 27median 24.3median 21.5median 19.3median 17.6median 26.6Delta43.72.52.62.43.73131.131.132.527.826.627.225.823.127.826.426.124.326.525.628.226.122.924.528.626.522.321.830.124.221.720.830.624.323.123.132.622.621.721.52823.72319.923.924.622.620.524.723.621.820.124.223.921.719.62525.221.12025.424.920.719.425.525.420.418.825.724.420.318.324.224.920.117.724.625.719.71725.424.619.116.32526.72115.926.42621.515.526.529.519.815.229.527.518.71527.724.617.614.924.424.117.31523.721.616.414.621.318.315.814.518.315.415.514.515.714.814.814.114.937.731.728.637.82.81.61.12.8median 24.6median 20.3median 17median 251.21.72.41.5hearing rangehide median Fan NoiseDell Precision 7730Lenovo ThinkPad P72-20MB000EGE
 49.1 °C45.5 °C50 °C
 35.9 °C44.6 °C45.2 °C
 24.7 °C29.9 °C29.3 °C
Maximum: 50 °C
Moyenne: 39.4 °C
52.7 °C59.8 °C41.2 °C
46.7 °C49.5 °C38.9 °C
28.8 °C31.3 °C26.3 °C
Maximum: 59.8 °C
Moyenne: 41.7 °C
Alimentation (valeur maximale)  47.9 °C | Température ambiante de la pièce 20.4 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 39.4 °C / 103 F, compared to the average of 31.1 °C / 88 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 37.2 °C / 99 F, ranging from 23 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 59.8 °C / 140 F, compared to the average of 40.4 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 26.4 °C / 80 F, compared to the device average of 31.1 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.4 °C / 94 F, compared to the device average of 31.1 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.9 °C / 85.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-2.1 °C / -3.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.631.22525.124.13128.428.94025.125.65022.426.66324.2278022.726.71002336.31252243.516022.55320021.756.825021.254.331521.453.240020.553.750019.65763019.366.280018.869100018.370.1125017.670.9160017.672.3200016.970.4250016.968.8315016.769400016.468.4500016.171.9630016.467800016.460.31000016.457.8125001666.31600015.968.6SPL29.781.1N1.349.1median 17.6median 66.3Delta2.473337.127.327.12931.52628.22726.923.532.921.529.523.526.124.125.623.329.523.735.222.639.62149.319.954.819.956.919.158.218.55717.763.617.560.816.458.615.860.615.654.415.251.71555.61555.814.651.514.745.214.638.414.239.214.140.228.969.61.223.7median 17.5median 51.738.9hearing rangehide median Pink NoiseDell Precision 7730Lenovo ThinkPad P72-20MB000EGE
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dell Precision 7730 audio analysis

(±) | speaker loudness is average but good (81.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.7% lower than median
(±) | linearity of bass is average (11.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5.4% lower than median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(+) | highs are linear (5.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.6% difference to median)
Compared to same class
» 26% of all tested devices in this class were better, 11% similar, 63% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 78% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad P72-20MB000EGE audio analysis

(-) | not very loud speakers (69.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.4% lower than median
(±) | linearity of bass is average (13.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.2% higher than median
(±) | linearity of mids is average (8.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (12.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27.5% difference to median)
Compared to same class
» 87% of all tested devices in this class were better, 8% similar, 5% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 81% of all tested devices were better, 5% similar, 14% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consommation énergétique
Éteint/en veilledarklight 0.09 / 0.12 Watts
Au reposdarkmidlight 10.1 / 18 / 19.7 Watts
Fortement sollicité midlight 89.6 / 204 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Dell Precision 7730
8850H, Quadro P3200, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 1920x1080, 17.3
Dell Precision 7720
E3-1535M v6, Quadro P5000, Toshiba NVMe THNSN5512GPU7, IGZO, 3840x2160, 17.3
Lenovo ThinkPad P72-20MB000EGE
8850H, Quadro P3200, Lenovo LENSE20256GMSP34MEAT2TA, IPS, 1920x1080, 17.3
Fujitsu Celsius H980
8750H, Quadro P3200, Samsung SSD PM981 MZVLB512HAJQ, IPS, 1920x1080, 17.3
Average NVIDIA Quadro P3200

Average of class Workstation

Power Consumption
-6%
28%
-17%
-0%
-5%
Idle Minimum *
10.1
9.6
5%
4.6
54%
14.8
-47%
10.9 (4.6 - 15.7, n=5)
-8%
13.7 (2.4 - 65.2, n=124)
-36%
Idle Average *
18
20.5
-14%
12.2
32%
20.4
-13%
17.1 (12.2 - 20.4, n=5)
5%
19.8 (5.3 - 69, n=123)
-10%
Idle Maximum *
19.7
22.9
-16%
15.4
22%
21.5
-9%
19.6 (15.4 - 25.7, n=5)
1%
23.1 (7.1 - 73.1, n=124)
-17%
Load Average *
89.6
96.8
-8%
79.6
11%
98.4
-10%
95.1 (79.6 - 119, n=5)
-6%
88.4 (34.4 - 185, n=122)
1%
Load Maximum *
204
202.1
1%
176
14%
213.5
-5%
191 (174 - 214, n=5)
6%
132 (43.5 - 336, n=122)
35%
Witcher 3 ultra *
134
86
36%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
NBC WiFi Websurfing Battery Test 1.3 (Edge)
5h 35min
En lecture de Big Buck Bunny encodé en H.264 1080p
5h 45min
Fortement sollicité (luminosité au maximum)
1h 30min
Dell Precision 7730
8850H, Quadro P3200, 92 Wh
Dell Precision 7720
E3-1535M v6, Quadro P5000, 91 Wh
Lenovo ThinkPad P72-20MB000EGE
8850H, Quadro P3200, 99 Wh
Fujitsu Celsius H980
8750H, Quadro P3200, 96 Wh
Average of class Workstation

Autonomie de la batterie
3%
66%
14%
12%
Reader / Idle
685
1697
811
606 (63 - 2360, n=117)
H.264
345
405
17%
739
114%
355
3%
390 (123 - 1131, n=57)
13%
WiFi v1.3
335
379
13%
670
100%
496
48%
407 (106 - 974, n=64)
21%
Load
90
70
-22%
76
-16%
82
-9%
90.6 (22 - 323, n=112)
1%

Points positifs

+ robuste
+ premium
+ ports nombreux
+ clavier confortable
+ performances CPU impressionnantes
+ performances GPU honnêtes
+ large gamme de configurations
+ écran
+ lecteur SD rapide
+ garantie de 36 mois

Points négatifs

- autonomie
- températures extérieures
- bridage sur batterie
- fuites de lumière
- pas de lecteur d'empreintes digitales

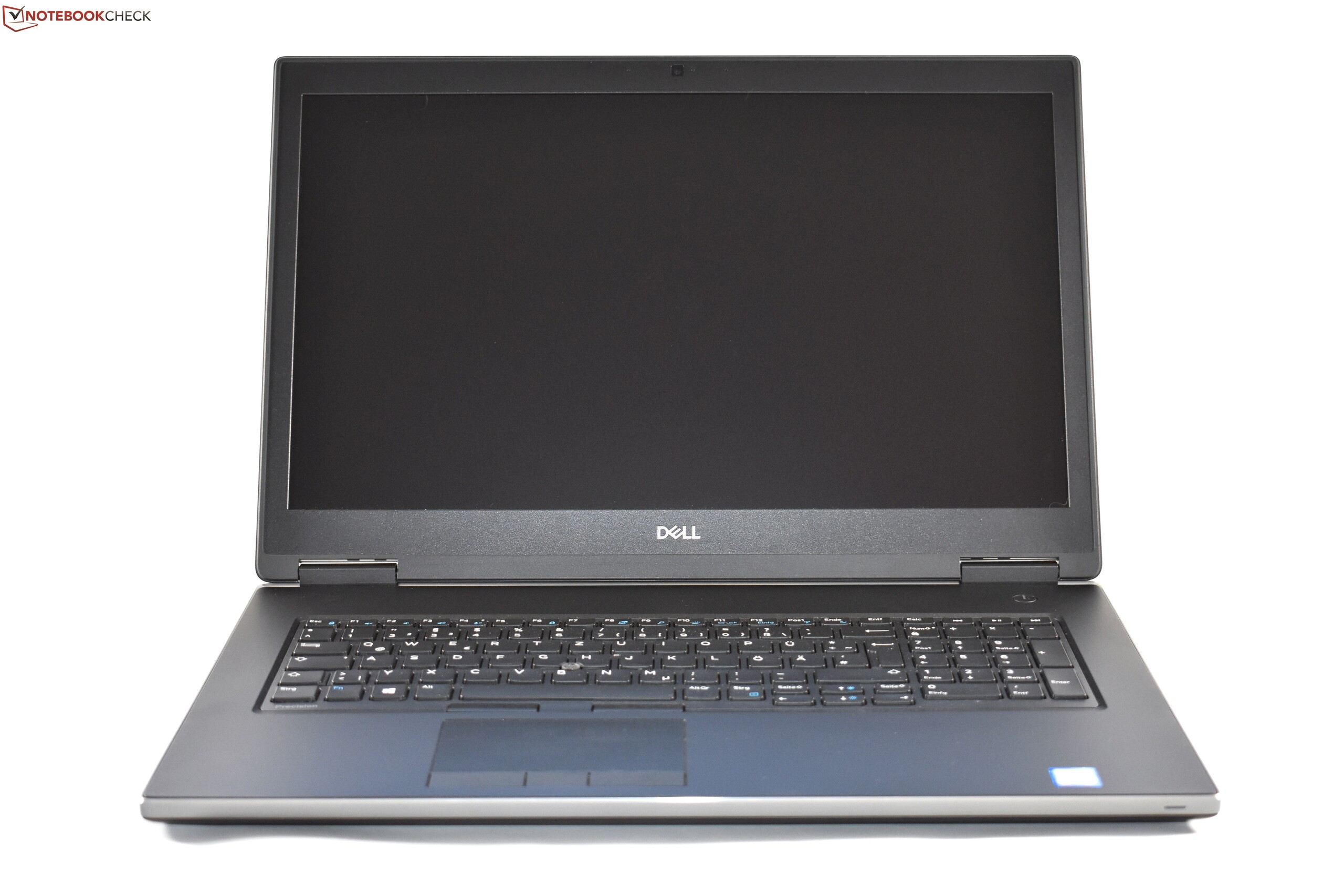

The Dell Precision 7730 workstation review. Test device courtesy of Cyberport.
The Dell Precision 7730 workstation review. Test device courtesy of Cyberport.

Vous serez pardonnés de penser que pas grand-chose n’a changé avec la nouvelle série Precision 7700. Dell rend le 7730 encore plus compact que son prédécesseur, mais il est toujours fait des mêmes matériaux.

Le Precision 7730 possède toujours un bon clavier, un châssis robuste, et de nombreux ports. De plus, Dell propose plus de configurations que ses concurrents, ce qui rend la série plus flexible pour les clients. Notre modèle possède d’excellentes performances du processeur et de la carte graphique, comme c’est souvent le cas avec les stations de travail, et nous saluons la présence de versions avec écrans mats. Dell a également équipé la machine d’un lecteur de carte SD étonnamment rapide, et inclut une garantie de 36 mois par défaut.

Le Dell Precision 7730 est une excellente station de travail, gâchée par une autonomie décevante.

Le plus gros problème du Precision 7730 est son autonomie anémique. Alors que la plupart des gens garderont la station de travaille branchée à cause de sa taille, le ThinkPad P72 est une meilleure option pour ceux qui ont occasionnellement besoin d’utiliser leur appareil loin d’une prise électrique. De plus, notre appareil possède des températures extérieures trop élevées, et bride exagérément le CPU et le GPU sur batterie.

C’est également dommage de voir une station de travail affectée par des fuites de lumière, et par le retrait du lecteur d’empreintes digitales, pourtant présent sur le Precision 7720.

Tout compte fait, nous pouvons toujours recommander le Precision 7730 si vous êtes à la recherche d’une station de travail : mis à part l’autonomie, tout répond au cahier des charges pour une station de travail. Il faudra toujours avoir un chargeur si vous comptez utiliser la machine en déplacements - mais de toutes façons les stations de travail restent trop encombrantes pour une telle utilisation.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Dell Precision 7730 - 05/06/2019 v6
Benjamin Herzig

Châssis
89 / 98 → 91%
Clavier
88%
Dispositif de pointage
84%
Connectivité
70 / 81 → 86%
Poids
54 / 10-66 → 79%
Autonomie
85%
Écran
90%
Performances en jeu
94%
Performances dans les applications
94%
Chauffe
84 / 95 → 89%
Nuisance sonore
90 / 90 → 100%
Audio
56%
Appareil photo
39 / 85 → 46%
Moyenne
79%
89%
Workstation - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique de la station de travail Dell Precision 7730 (i7-8850H, Quadro P3200, FHD)
Benjamin Herzig, 2019-05-13 (Update: 2019-05-13)
