Courte critique de la station de travail HP ZBook 14u G5 (i7-8550U, Pro WX 3100)

Sebastian Bade, 👁 Andreas Osthoff, Felicitas Krohn (traduit par JBP), 05/28/2018

Basé sur l’EliteBook. La série ZBook de HP passe aux processeurs Kaby Lake Refresh. HP a également largement changé son design, pour se rapprocher de près de ce que nous avons vu avec l’EliteBook 840 G5 récemment testé. Le ZBook 14u G5 possède de bonnes réserves de puissance de calcul grâce à sa carte graphique AMD Polaris. Découvrez les résultats du HP ZBook 14u G5 dans notre rapport de test.

HP ZBook 14u G5-2ZB99EA

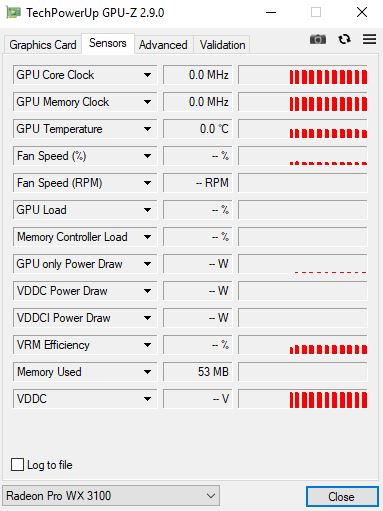

Carte graphique

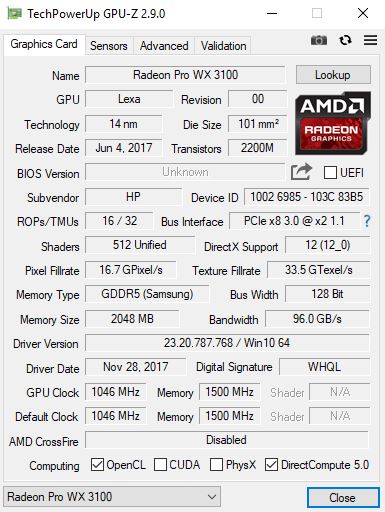

AMD Radeon Pro WX 3100 Mobile - 2048 Mo, Processeur: 1046 MHz, Mémoire: 6000 MHz, GDDR5, 23.20.787.768, Enduro
Mémoire
8192 Mo
, DDR4 2 400, 1 emplacement sur 2 occupé, maximum 32 Go
Écran
14 pouces 16:9, 1920 x 1080 pixel 157 PPP, LG Philips, LGD0599, IPS, brillant: non
Carte mère
Intel Kaby Lake-U + iHDCP 2.2 Premium PCH

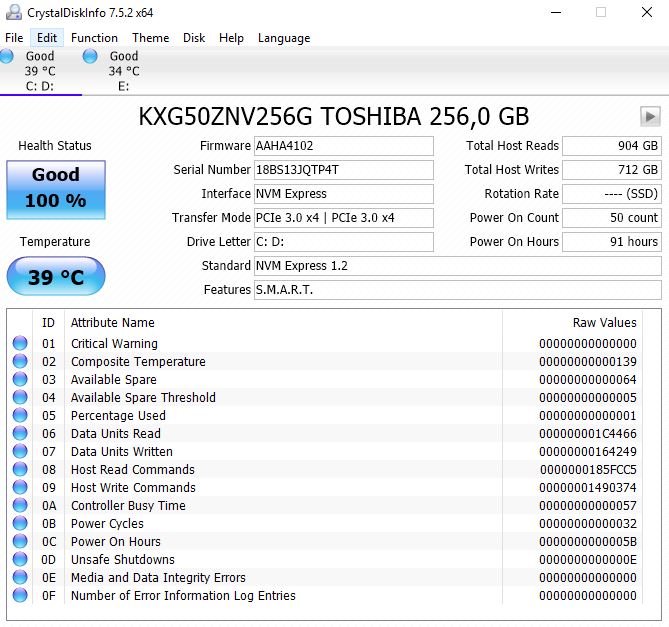

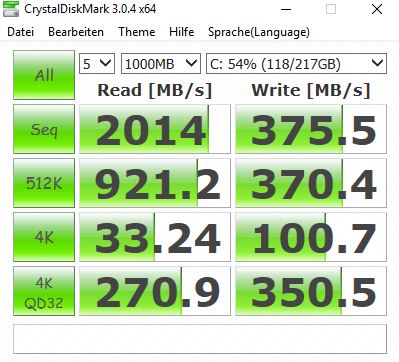

Disque dur
Toshiba XG5 KXG50ZNV256G, 256 Go
, SSD M.2-2280, 175 Go libres
Carte son
Conexant ISST Audio
Connexions
2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 Encoche de Sécurité Kensington, 1 Port pour Station d'accueil, Connectique audio: combo jack 3,5 mm, 1 Lecteur de cartes à puce, 1 Lecteur d'empreintes digitales, NFC
Réseau

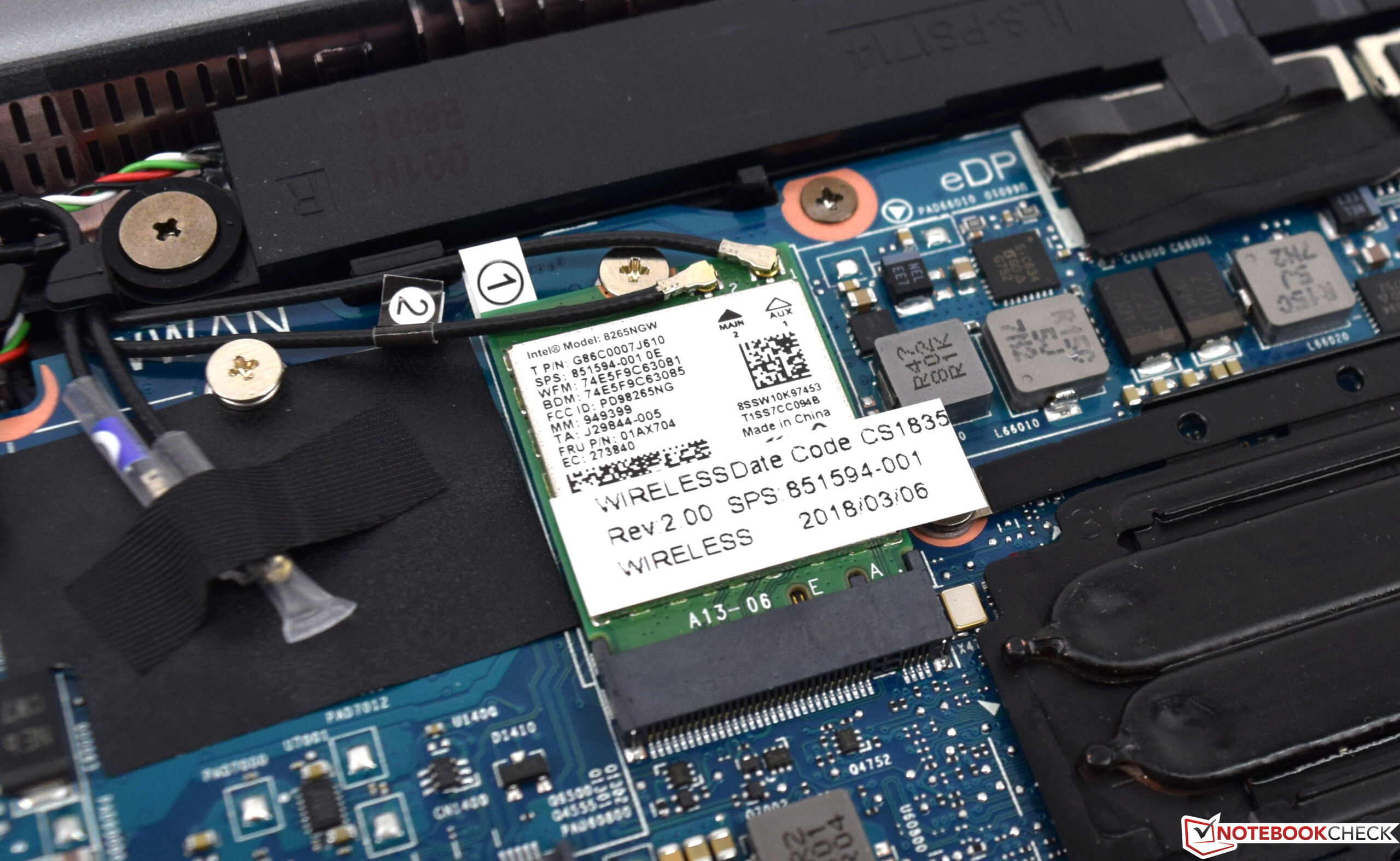

Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Taille
Hauteur x Largeur x Profondeur (en mm): 18 x 326 x 234

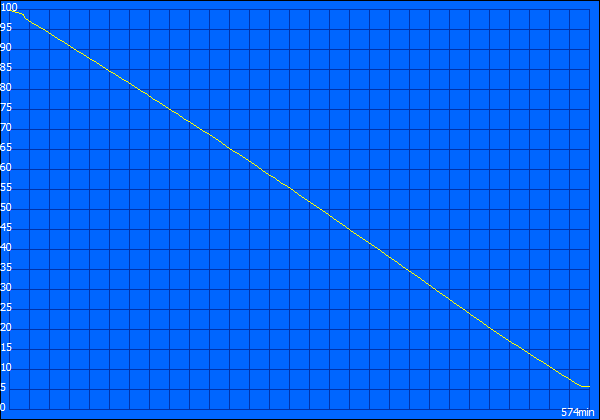

Batterie
50 Wh, 4330 mAh Lithium-Ion
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Appareil photo
Webcam: HDAppareil photo secondaire: HD-IR
Fonctionnalités additionnelles
Haut-parleurs: v, Clavier: chiclet, Rétroéclairage du clavier: oui, adaptateur secteur, HP Client Security, HP Velocity, HP Sure-Click, HP LAN Protection, HP Connection Optimiser, HP JumpStart, HP PhoneWise, HP Noise Cancellation Software, HP 3D DriveGuard, HP ePrint Driver & JetAdvantage, HP Hotkey Support, HP Recovery Manager, 36 Mois Garantie
Poids
1.576 kg, Alimentation: 352 g
Prix
1 680 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5
HP ZBook 14u G5

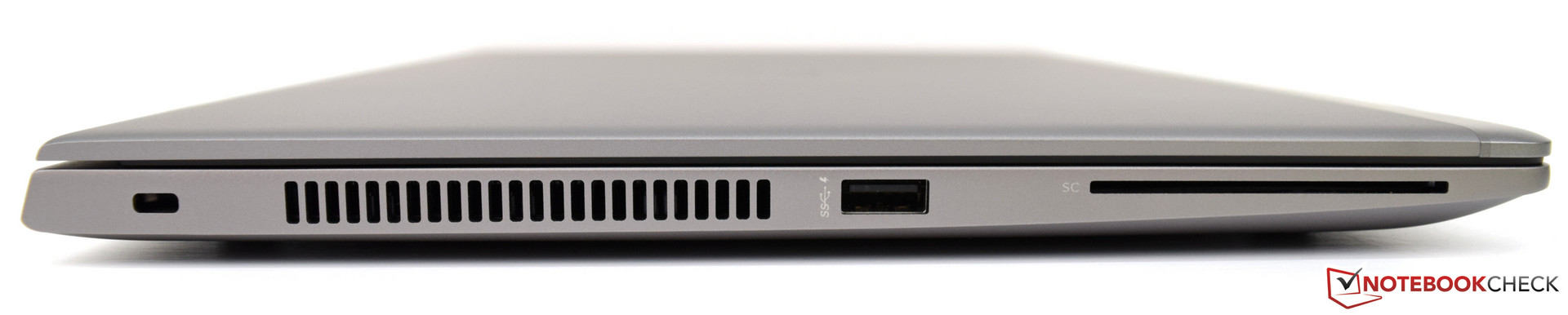

Côté gauche : verrou de sécurité Kensington, grille du ventilateur, USB A 3.1 Gen 1, lecteur de carte à puce.
Côté gauche : verrou de sécurité Kensington, grille du ventilateur, USB A 3.1 Gen 1, lecteur de carte à puce.

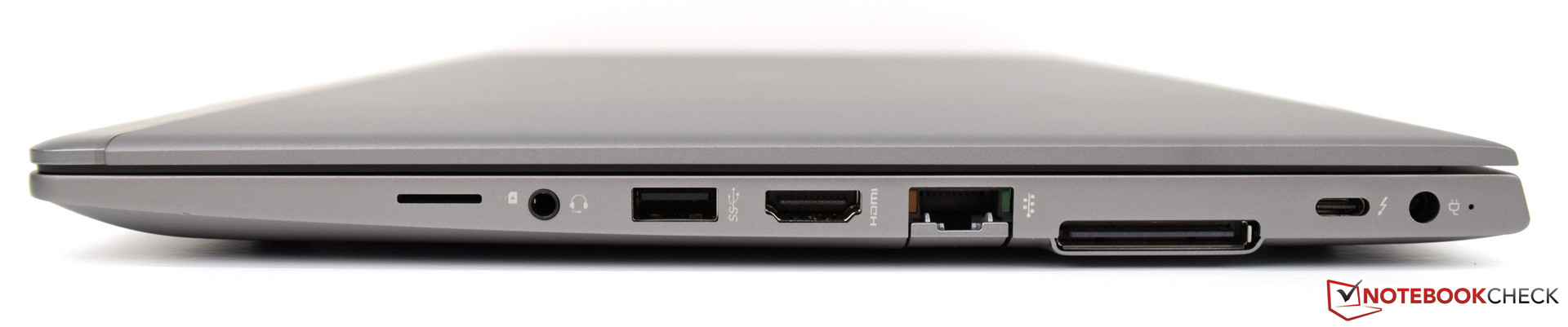

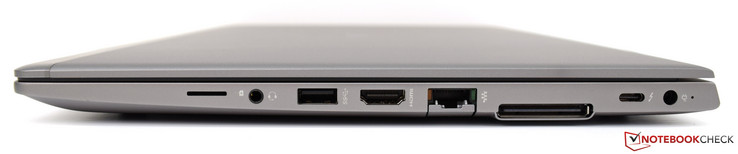

Côté droit : emplacement pour carte micro SIM, prise jack écouteurs / micro, USB A 3.1 Gen 1, HDMI v1.4b, Ethernet RJ45, port pour station d'accueil, USB C Thunderbolt, entrée secteur.
Côté droit : emplacement pour carte micro SIM, prise jack écouteurs / micro, USB A 3.1 Gen 1, HDMI v1.4b, Ethernet RJ45, port pour station d'accueil, USB C Thunderbolt, entrée secteur.

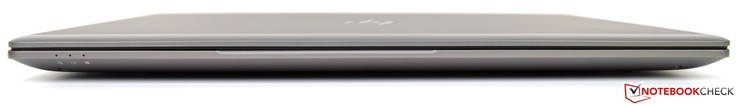

A l'avant : LED de statut.
A l'avant : LED de statut.

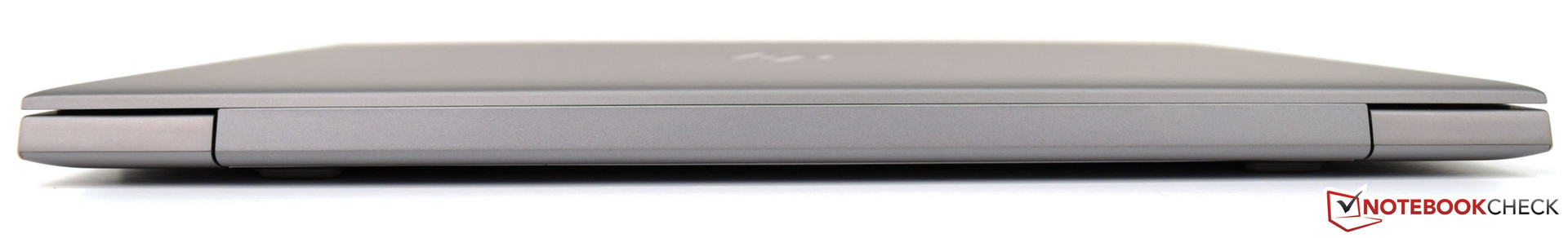

A l'arrière : aucune connectivité.
A l'arrière : aucune connectivité.
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼100% +3%
Lenovo ThinkPad T480s-20L8S02E00
Intel Dual Band Wireless-AC 8265
623 MBit/s ∼97% +1%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
622 MBit/s ∼97% 0%
HP ZBook 14u G5-2ZB99EA
Intel Dual Band Wireless-AC 8265
619 MBit/s ∼97%
Average of class Workstation
  (292 - 705, n=32)
603 MBit/s ∼94% -3%
HP ZBook 14u G4
Intel Dual Band Wireless-AC 8265
519 MBit/s ∼81% -16%
iperf3 Client (transmit) TCP 1 m 4M x10
HP ZBook 14u G4
Intel Dual Band Wireless-AC 8265
665 MBit/s ∼100% +39%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
528 MBit/s ∼79% +10%
Average of class Workstation
  (158 - 690, n=32)
524 MBit/s ∼79% +9%
Lenovo ThinkPad T480s-20L8S02E00
Intel Dual Band Wireless-AC 8265
515 MBit/s ∼77% +8%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
506 (min: 622) MBit/s ∼76% +6%
HP ZBook 14u G5-2ZB99EA
Intel Dual Band Wireless-AC 8265
479 MBit/s ∼72%
215
cd/m²
216
cd/m²
202
cd/m²
227
cd/m²
234
cd/m²
203
cd/m²
220
cd/m²
221
cd/m²
198
cd/m²
Homogénéité de la luminosité
X-Rite i1Pro 2
Maximum: 234 cd/m² Moyenne: 215.1 cd/m² Minimum: 9.9 cd/m²
Homogénéité de la luminosité: 85 %
Valeur mesurée au centre, sur batterie: 234 cd/m²
Contraste: 1463:1 (Valeurs des noirs: 0.16 cd/m²)
ΔE Color 5.7 | 0.4-29.43 Ø6.3, calibrated: 4.2
ΔE Greyscale 4.7 | 0.64-98 Ø6.5
60.4% sRGB (Argyll 3D) 38.3% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.38
HP ZBook 14u G5-2ZB99EA
LG Philips, LGD0599, IPS, 1920x1080, 14
HP ZBook 15u G5 2ZC05EA
CMN15E7, IPS LED, 1920x1080, 15.6
Dell Precision 5520 UHD
SHP1476, IPS, 3840x2160, 15.6
Lenovo ThinkPad T480s-20L8S02E00
LP140QH2-SPB1, IPS LED, 2560x1440, 14
HP ZBook 14u G4
AU Optronics AUO123D, TN, 1920x1080, 14
Response Times
-6%
-51%
3%
-4%
Response Time Grey 50% / Grey 80% *
39.6 (20.4, 19.2)
41.6 (22, 19.6)
-5%
59.2 (27.6, 31.6)
-49%
36 (17.6, 18.4)
9%
47 (29, 18)
-19%
Response Time Black / White *
27.2 (16.4, 10.8)
28.8 (15.6, 13.2)
-6%
41.6 (26.8, 14.8)
-53%
28 (15.6, 12.4)
-3%
24 (19, 5)
12%
PWM Frequency
25770 (40)
Screen
2%
16%
22%
-51%
Brightness middle
234
229
-2%
372.4
59%
311
33%
338
44%
Brightness
215
212
-1%
368
71%
302
40%
307
43%
Brightness Distribution
85
88
4%
90
6%
91
7%
81
-5%
Black Level *
0.16
0.23
-44%
0.48
-200%
0.36
-125%
0.85
-431%
Contrast
1463
996
-32%
776
-47%
864
-41%
398
-73%
Colorchecker DeltaE2000 *
5.7
4.2
26%
2.6
54%
3
47%
8.53
-50%
Colorchecker DeltaE2000 max. *
18.4
18
2%
5.6
70%
6.1
67%
14
24%
Colorchecker DeltaE2000 calibrated *
4.2
4.2
-0%
1.7
60%
Greyscale DeltaE2000 *
4.7
2
57%
3.7
21%
4
15%
11.12
-137%
Gamma
2.38 92%
2.23 99%
2.14 103%
2.17 101%
2.5 88%
CCT
6730 97%
6292 103%
7096 92%
6961 93%
12193 53%
Color Space (Percent of AdobeRGB 1998)
38.3
41
7%
63
64%
66.7
74%
53
38%
Color Space (Percent of sRGB)
60.4
64.5
7%
99
64%
96.7
60%
82
36%
Moyenne finale (programmes/paramètres)
-2% / 1%
-18% / 5%
13% / 19%
-28% / -43%

* ... Moindre est la valeur, meilleures sont les performances

HP ZBook 14u G5 - CalMAN : Echelle de gris (avant calibrage).
CalMAN : Echelle de gris (avant calibrage).
HP ZBook 14u G5 - CalMAN : ColorChecker (avant calibrage).
CalMAN : ColorChecker (avant calibrage).
HP ZBook 14u G5 - CalMAN : Saturation (avant calibrage).
CalMAN : Saturation (avant calibrage).
HP ZBook 14u G5 - CalMAN : Echelle de gris (après calibrage).
CalMAN : Echelle de gris (après calibrage).
HP ZBook 14u G5 - CalMAN : ColorChecker (après calibrage).
CalMAN : ColorChecker (après calibrage).
HP ZBook 14u G5 - CalMAN : Saturation (après calibrage).
CalMAN : Saturation (après calibrage).

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

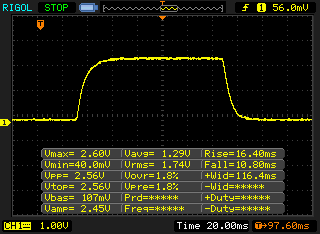

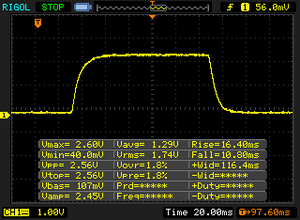

       Temps de réponse noir à blanc
27.2 ms ... hausse ↗ et chute ↘ combinées↗ 16.4 ms hausse
↘ 10.8 ms chute
L'écran souffre de latences relativement élevées, insuffisant pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 57 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (25.6 ms) de tous les appareils testés.

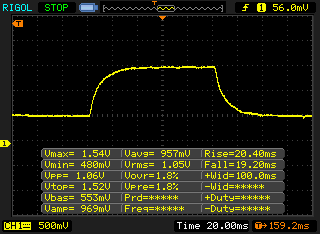

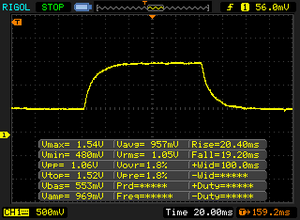

       Temps de réponse gris 50% à gris 80%
39.6 ms ... hausse ↗ et chute ↘ combinées↗ 20.4 ms hausse
↘ 19.2 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 43 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (41 ms) de tous les appareils testés.

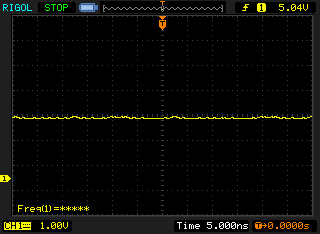

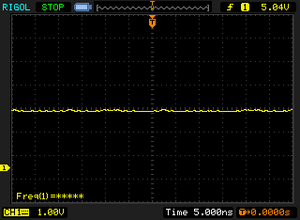

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) non décelé

En comparaison, 52 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 8773 (minimum : 43 - maximum : 142900) Hz dans le cas où une MDI était active.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530Tooltip

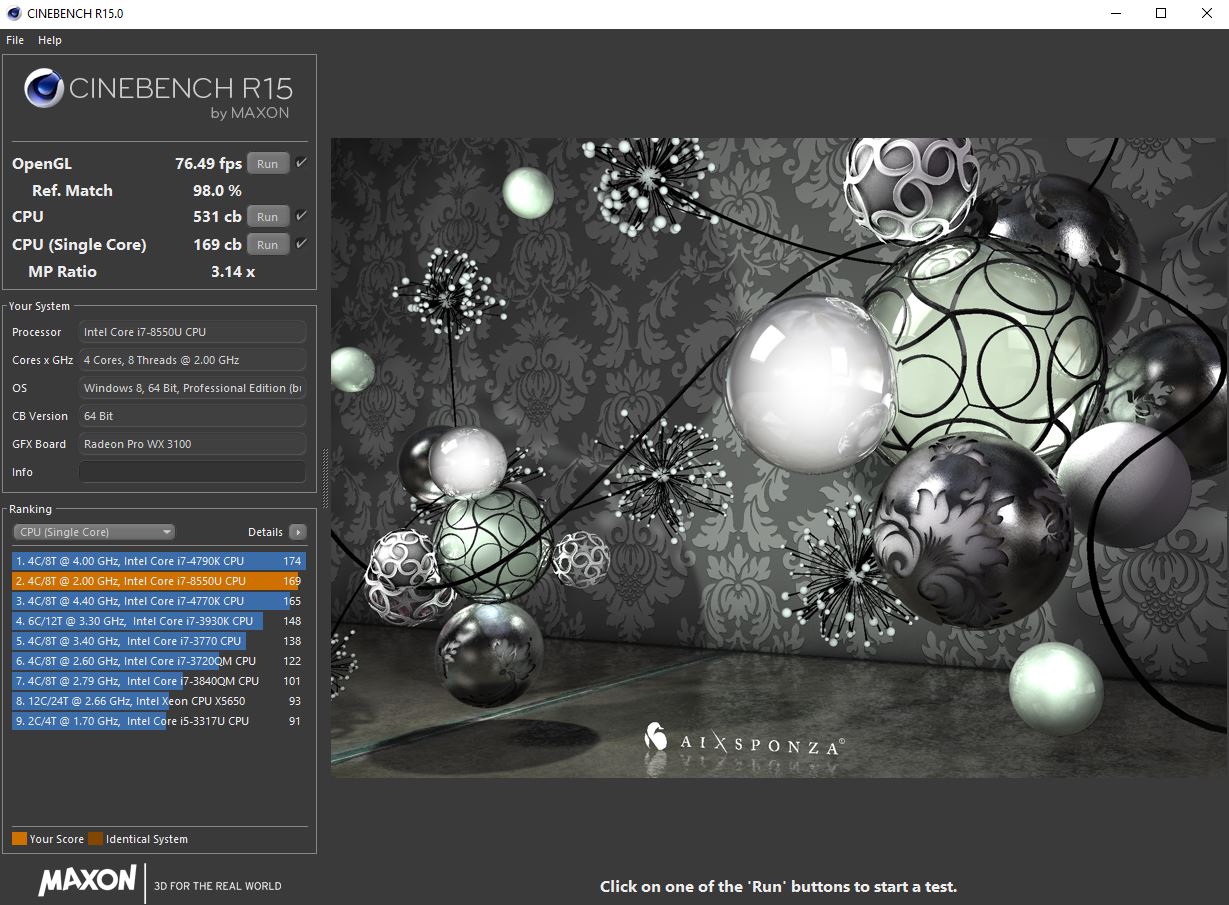

Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
172 Points ∼100% +2%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
170 Points ∼99% +1%
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
170 Points ∼99% +1%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
169 Points ∼98%
Average Intel Core i7-8550U
  (108 - 172, n=62)
160 Points ∼93% -5%
Average of class Workstation
  (117 - 189, n=79)
155 Points ∼90% -8%
HP ZBook 14u G4
Intel Core i7-7500U
142 Points ∼83% -16%
CPU Multi 64Bit
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
723 Points ∼100% +36%
Average of class Workstation
  (260 - 1267, n=81)
704 Points ∼97% +33%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
654 Points ∼90% +23%
Average Intel Core i7-8550U
  (301 - 761, n=64)
571 Points ∼79% +8%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
552 Points ∼76% +4%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
531 Points ∼73%
HP ZBook 14u G4
Intel Core i7-7500U
349 Points ∼48% -34%

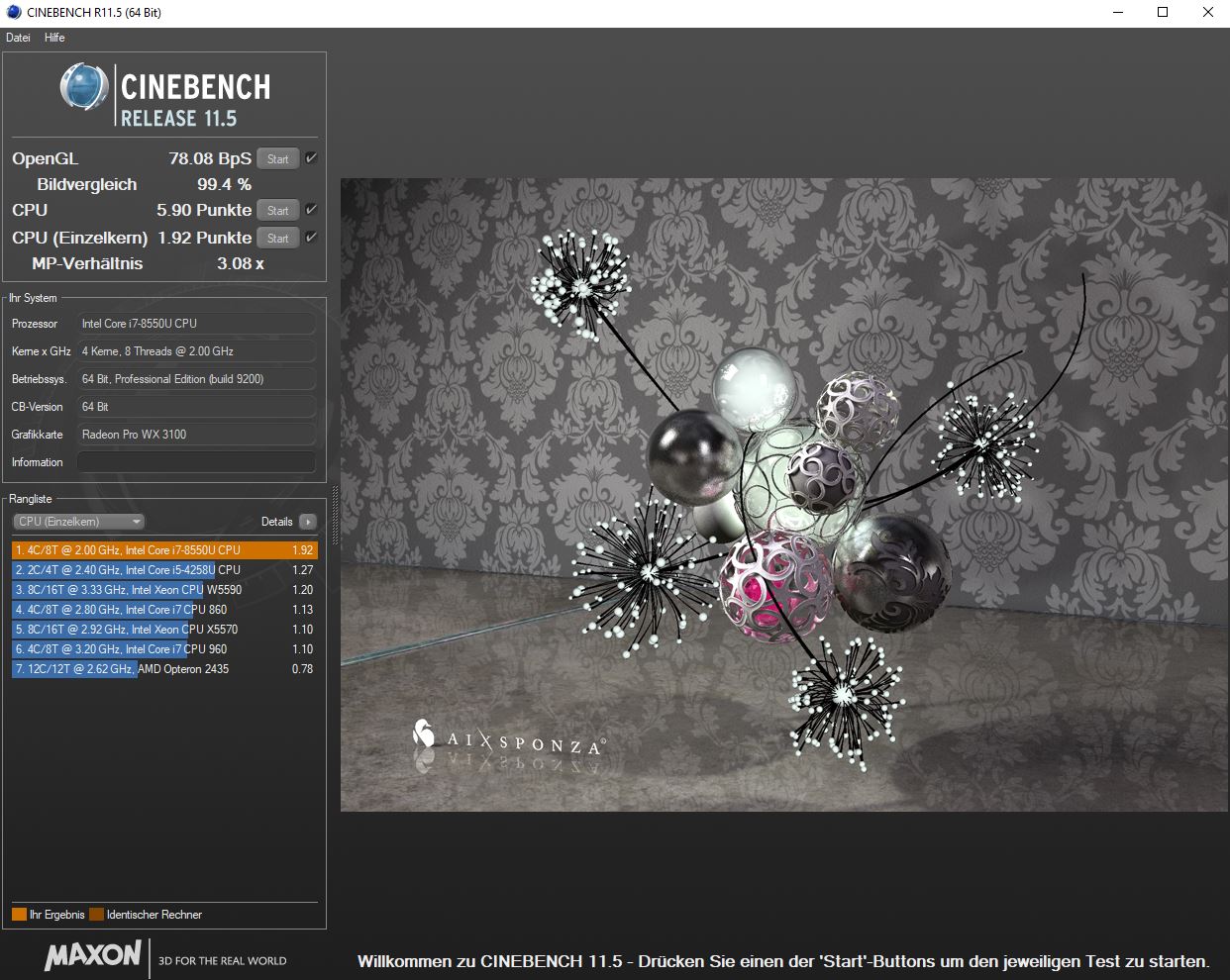

Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
1.94 Points ∼100% +1%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
1.93 Points ∼99% +1%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
1.92 Points ∼99% 0%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
1.92 Points ∼99%
Average Intel Core i7-8550U
  (1.43 - 1.95, n=30)
1.832 Points ∼94% -5%
Average of class Workstation
  (1.09 - 2.15, n=80)
1.668 Points ∼86% -13%
CPU Multi 64Bit
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
7.89 Points ∼100% +34%
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
7.84 Points ∼99% +33%
Average of class Workstation
  (2.16 - 13.9, n=98)
6.61 Points ∼84% +12%
Average Intel Core i7-8550U
  (4.38 - 8.56, n=30)
6.31 Points ∼80% +7%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
5.9 Points ∼75%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
5.86 Points ∼74% -1%

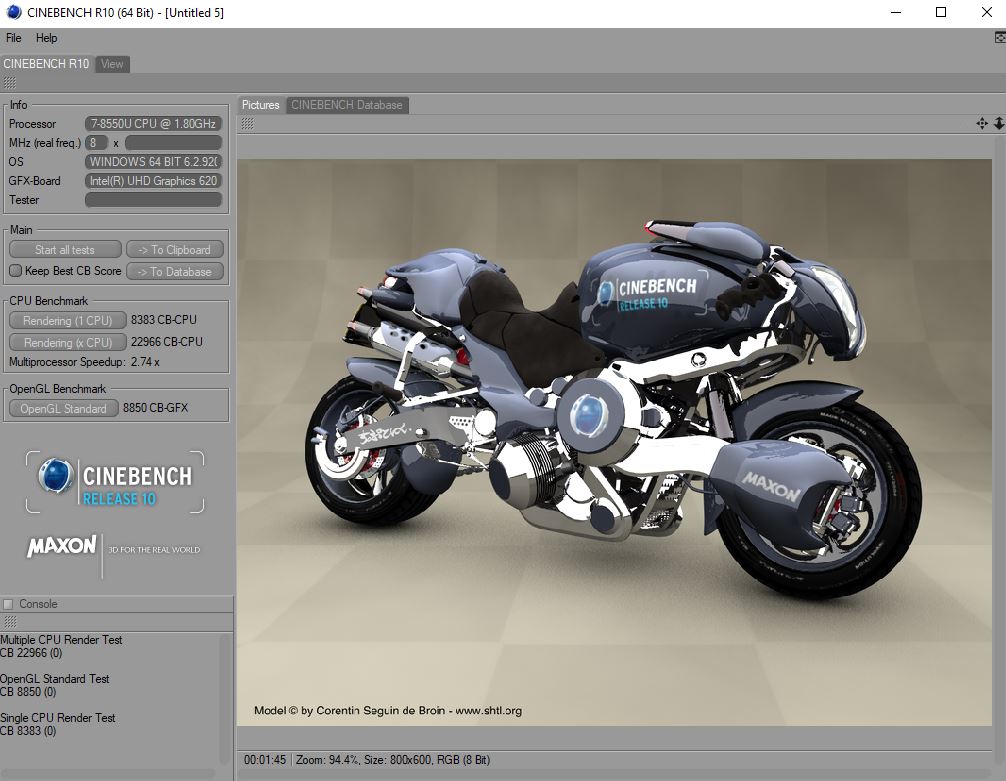

Cinebench R10
Rendering Single CPUs 64Bit
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
8436 Points ∼100% +1%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
8430 Points ∼100% +1%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
8383 Points ∼99%
Average Intel Core i7-8550U
  (6737 - 8436, n=12)
8065 Points ∼96% -4%
Average of class Workstation
  (3552 - 8911, n=70)
6117 Points ∼73% -27%
Rendering Multiple CPUs 64Bit
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
29780 Points ∼100% +30%
Average Intel Core i7-8550U
  (12279 - 31667, n=12)
23153 Points ∼78% +1%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
22966 Points ∼77%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
22346 Points ∼75% -3%
Average of class Workstation
  (7542 - 43494, n=70)
21097 Points ∼71% -8%

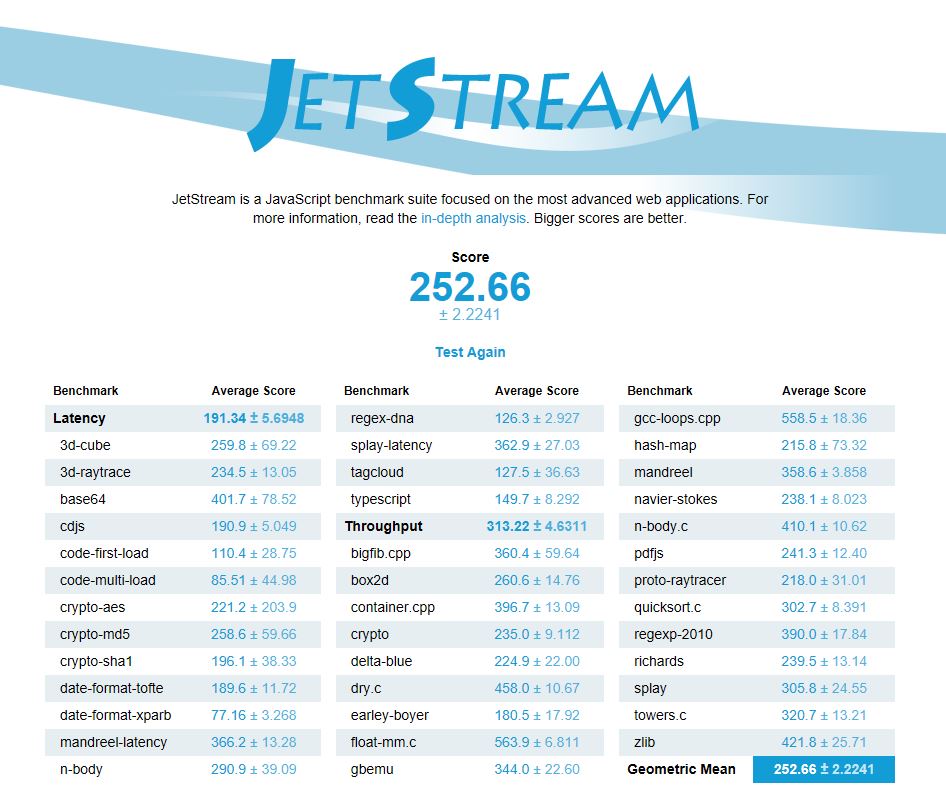

JetStream 1.1 - 1.1 Total Score
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
270.43 Points ∼100% +7%
Average of class Workstation
  (201 - 295, n=30)
254 Points ∼94% +1%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
252.66 Points ∼93%
Average Intel Core i7-8550U
  (142 - 288, n=51)
237 Points ∼88% -6%
HP ZBook 14u G4
Intel Core i7-7500U
227.99 Points ∼84% -10%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
226.63 Points ∼84% -10%
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
141.85 Points ∼52% -44%

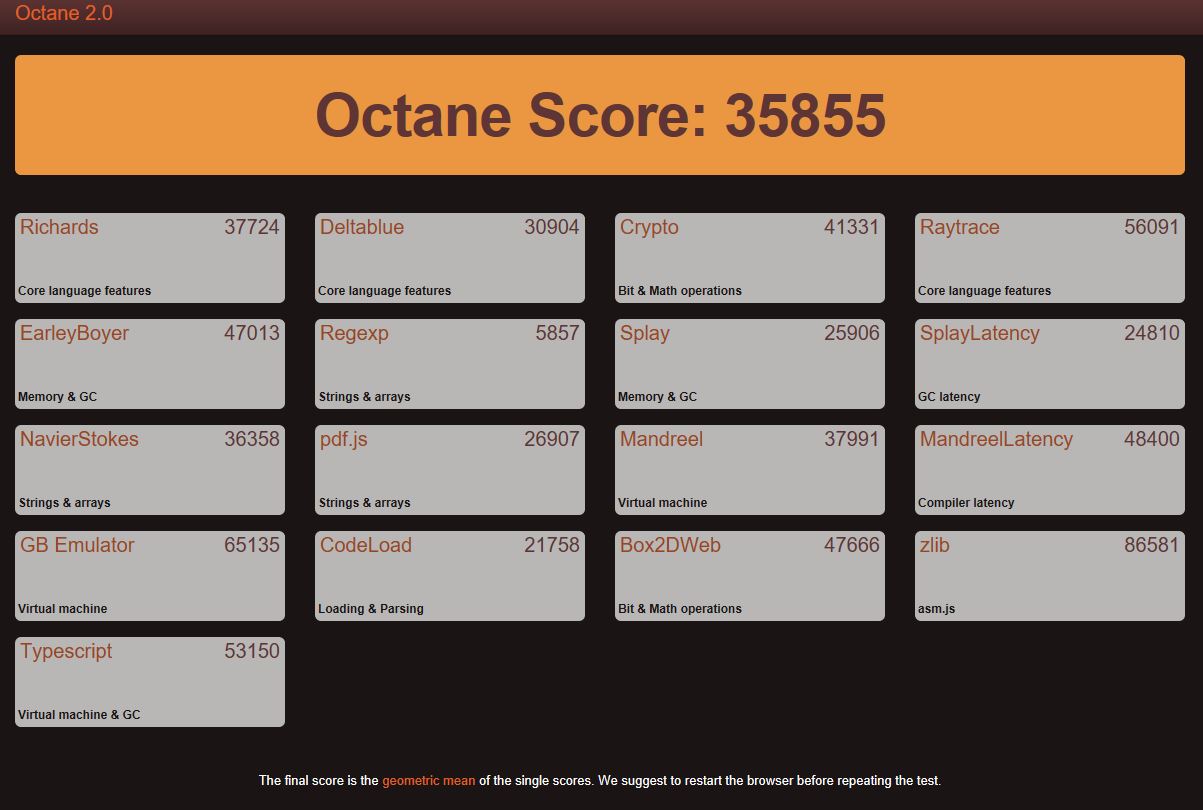

Octane V2 - Total Score
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
35855 Points ∼100%
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
35599 Points ∼99% -1%
HP ZBook 14u G4
Intel Core i7-7500U
35013 Points ∼98% -2%
Average of class Workstation
  (14774 - 44371, n=30)
34864 Points ∼97% -3%
Average Intel Core i7-8550U
  (17296 - 42043, n=33)
34147 Points ∼95% -5%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
30229 Points ∼84% -16%

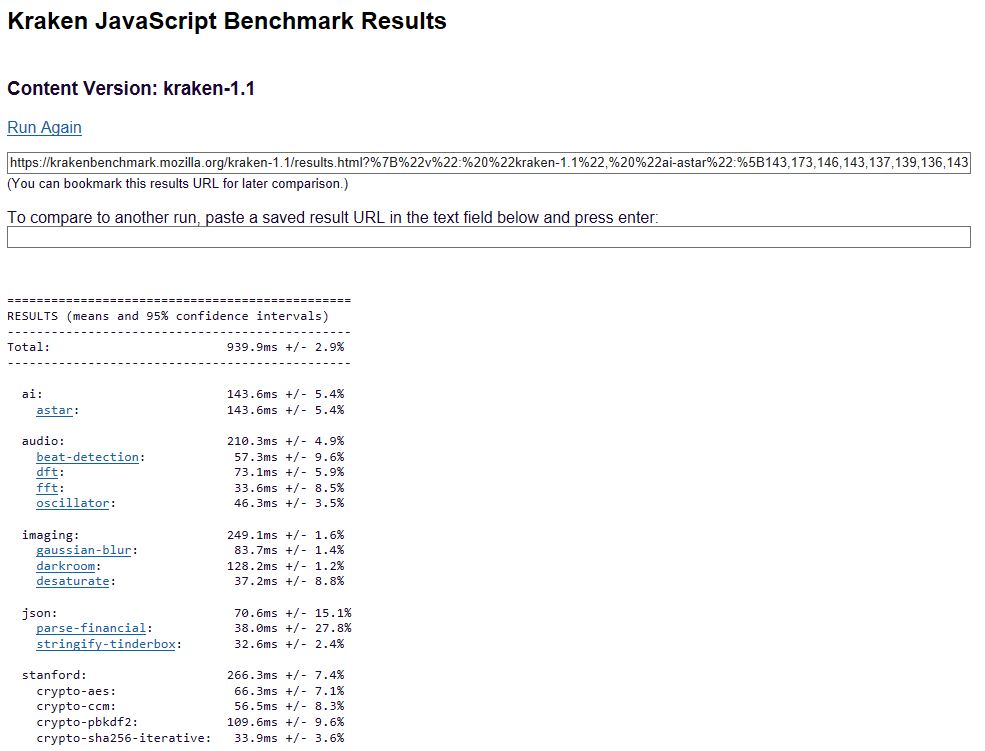

Mozilla Kraken 1.1 - Total Score
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
1106.7 ms * ∼100% -19%
Average of class Workstation
  (847 - 2263, n=32)
1102 ms * ∼100% -19%
Average Intel Core i7-8550U
  (877 - 2114, n=38)
1082 ms * ∼98% -16%
Lenovo ThinkPad T480s-20L8S02E00
Intel Core i7-8550U
1073.1 ms * ∼97% -15%
HP ZBook 14u G4
Intel Core i7-7500U
1069.4 ms * ∼97% -15%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
929.9 ms * ∼84%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
896.8 ms * ∼81% +4%

* ... Moindre est la valeur, meilleures sont les performances

Cinebench R10
Cinebench R10
Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1
Cinebench R10 Shading 32Bit
8666
Cinebench R10 Rendering Multiple CPUs 32Bit
17449
Cinebench R10 Rendering Single 32Bit
6428
Cinebench R10 Shading 64Bit
8850 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
22966 Points
Cinebench R10 Rendering Single CPUs 64Bit
8383 Points
Cinebench R11.5 CPU Multi 64Bit
5.9 Points
Cinebench R11.5 CPU Single 32Bit
1.71 Points
Cinebench R11.5 CPU Multi 32Bit
5.51 Points
Cinebench R11.5 OpenGL 32Bit
77.86 fps
Cinebench R11.5 OpenGL 64Bit
78.08 fps
Cinebench R11.5 CPU Single 64Bit
1.92 Points
Cinebench R15 OpenGL 64Bit
76.49 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Multi 64Bit
531 Points
Cinebench R15 CPU Single 64Bit
169 Points
Aide

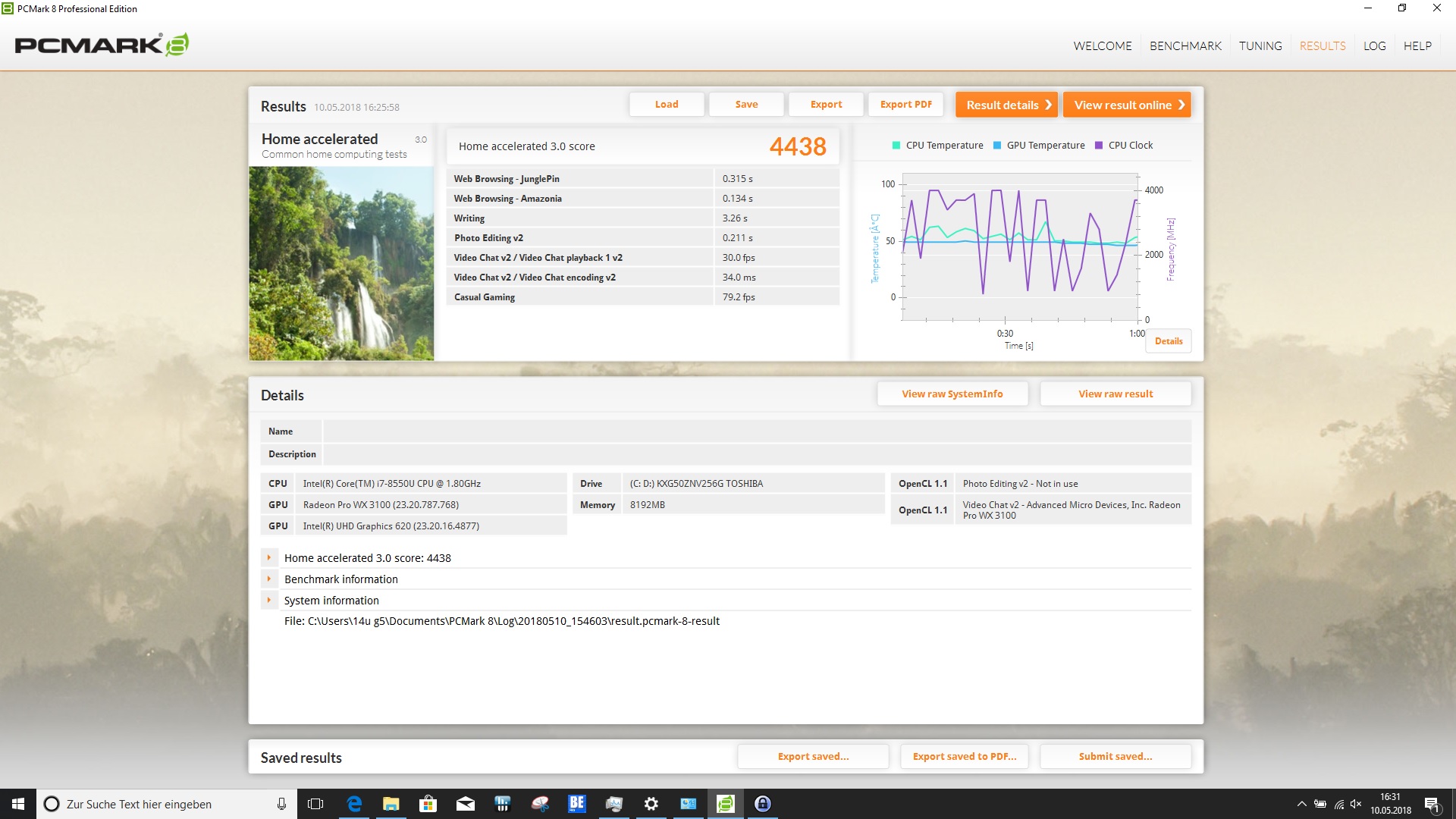

HP ZBook 14u G5 - PCMark 8 Home
PCMark 8 Home

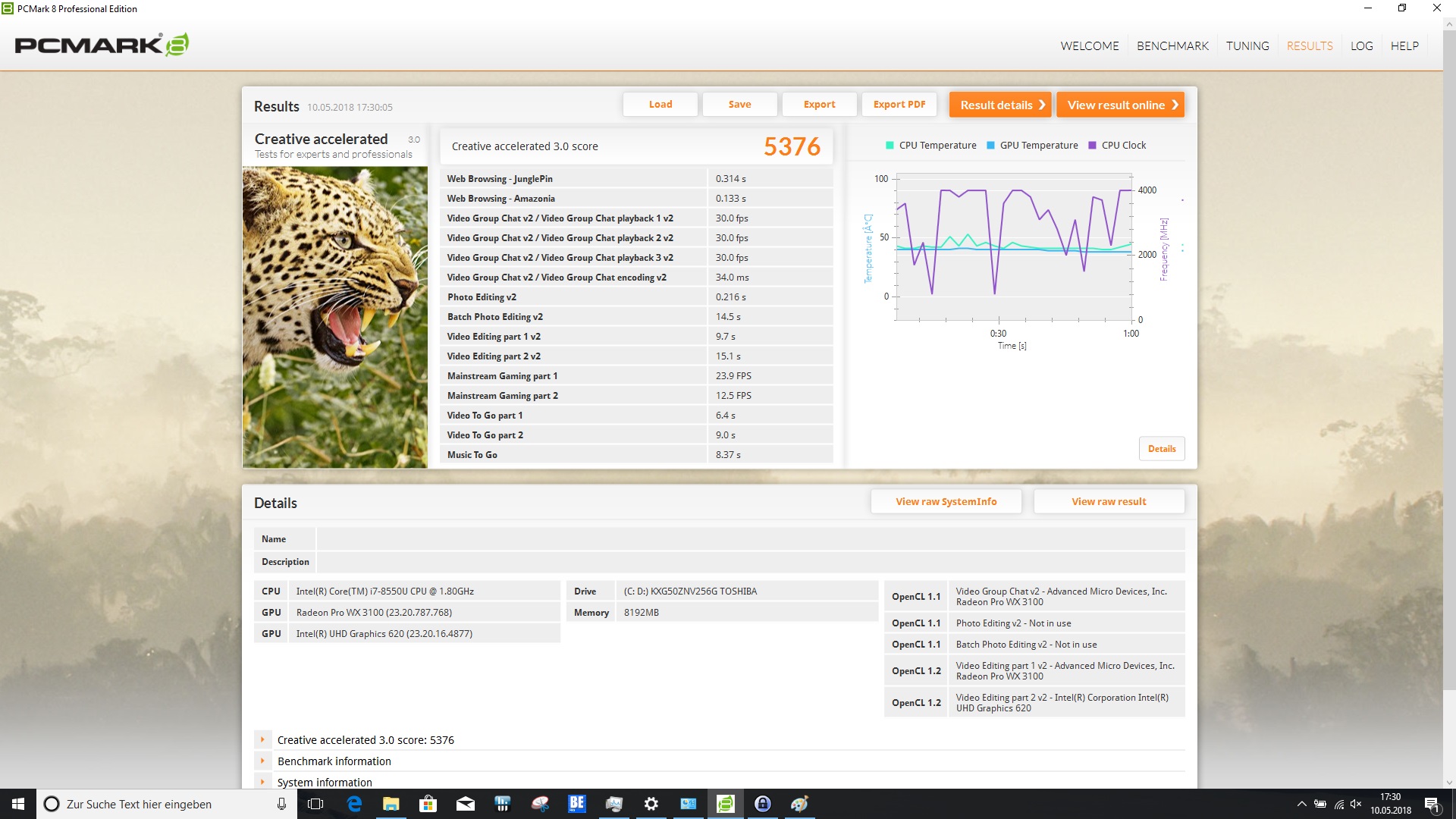

HP ZBook 14u G5 - PCMark 8 Creative
PCMark 8 Creative
HP ZBook 14u G5 - PCMark 8 Work
PCMark 8 Work

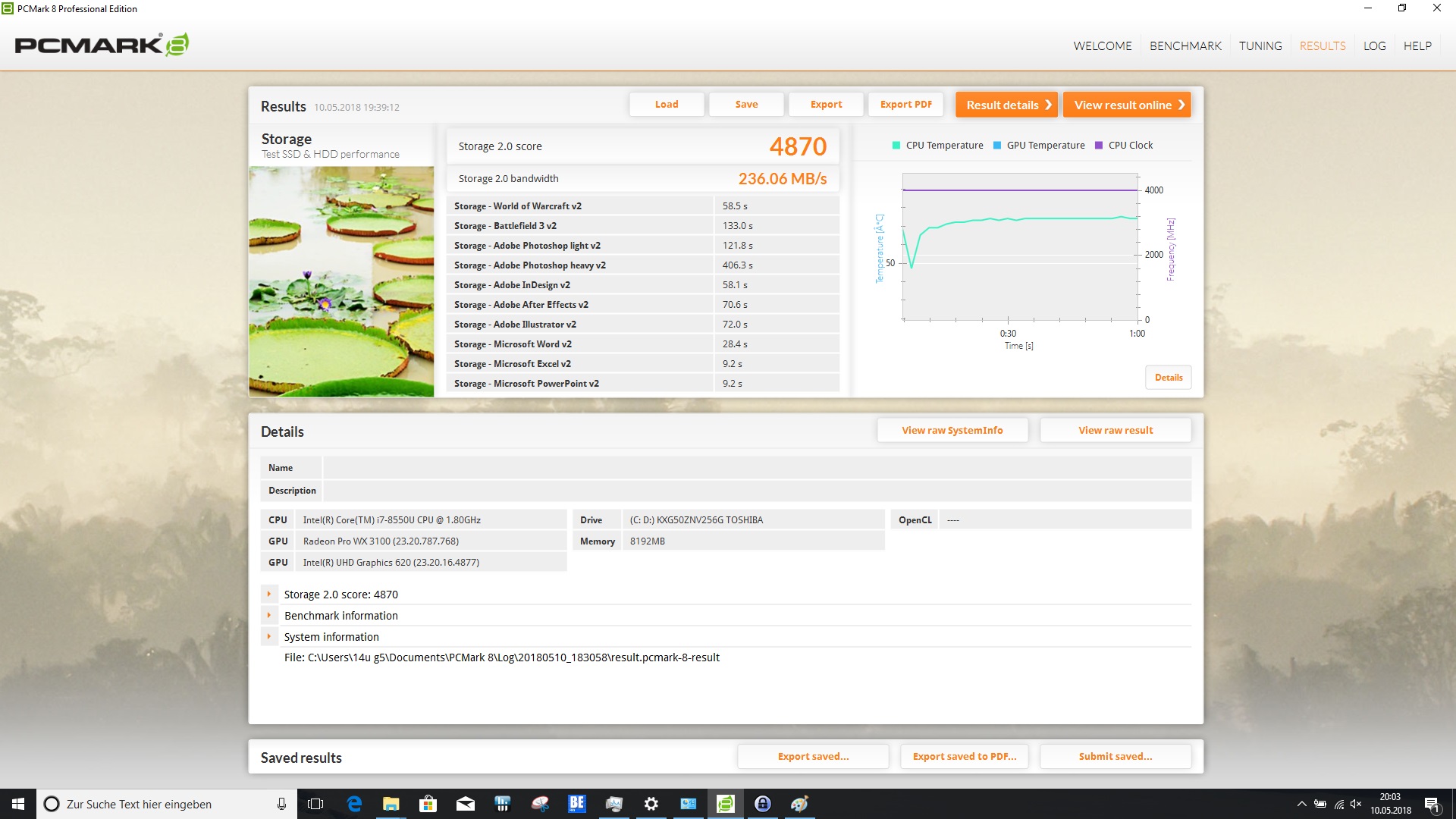

HP ZBook 14u G5 - PCMark 8 Stockage
PCMark 8 Storage

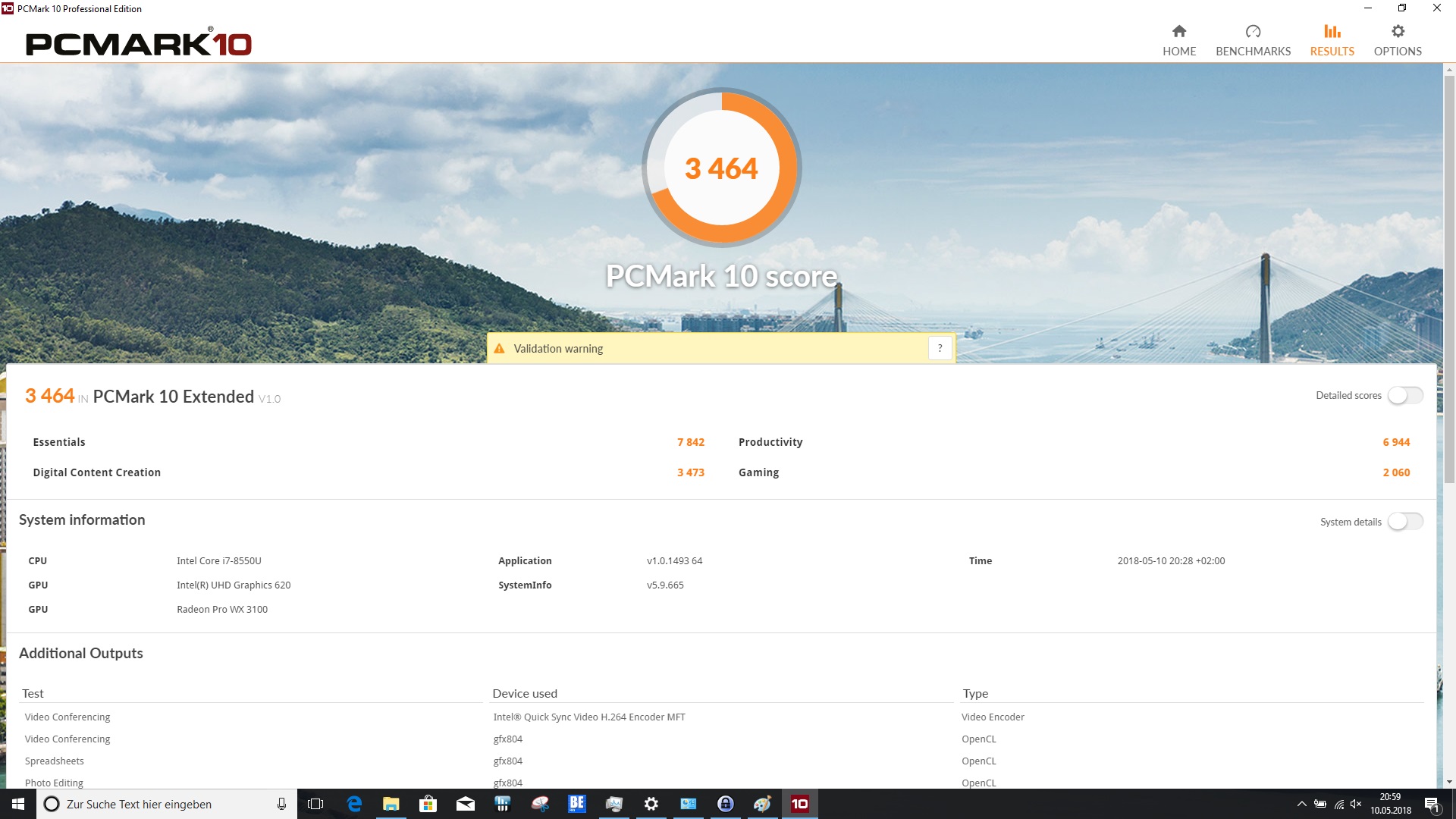

HP ZBook 14u G5 - PCMark 10
PCMark 10

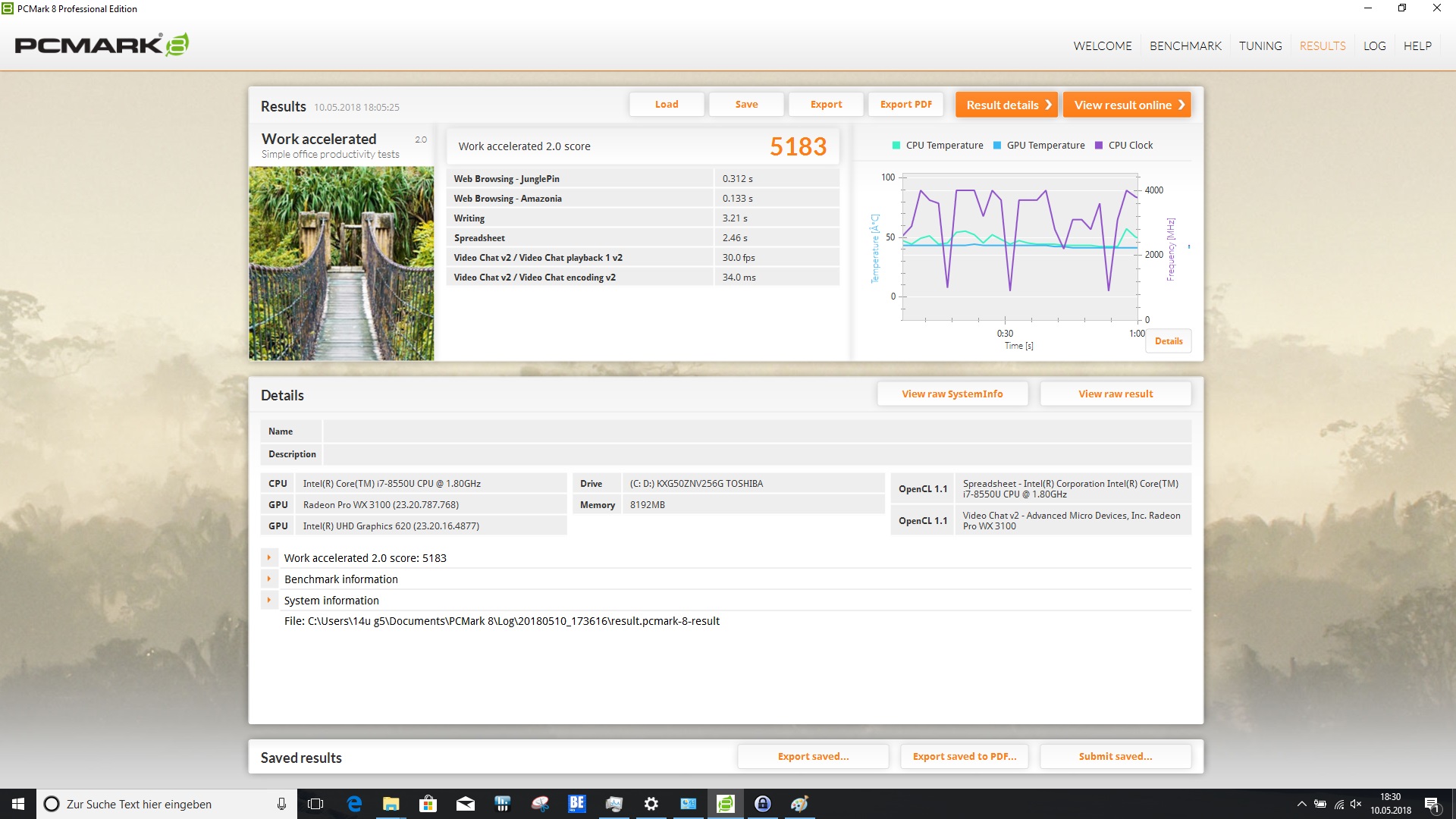

PCMark 8
Work Score Accelerated v2
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5183 Points ∼100%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (5137 - 5183, n=2)
5160 Points ∼100% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5137 Points ∼99% -1%
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
4909 Points ∼95% -5%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
4781 Points ∼92% -8%
Average of class Workstation
  (3311 - 5655, n=62)
4762 Points ∼92% -8%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4291 Points ∼83% -17%
Home Score Accelerated v2
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
4438 Points ∼100%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (3721 - 4438, n=2)
4080 Points ∼92% -8%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
3947 Points ∼89% -11%
Average of class Workstation
  (2320 - 5505, n=62)
3919 Points ∼88% -12%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3721 Points ∼84% -16%
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3540 Points ∼80% -20%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3504 Points ∼79% -21%
PCMark 10
Productivity
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
6944 Points ∼100%
Average of class Workstation
  (4897 - 7994, n=24)
6902 Points ∼99% -1%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (6777 - 6944, n=2)
6861 Points ∼99% -1%
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
6825 Points ∼98% -2%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
6777 Points ∼98% -2%
Score
Average of class Workstation
  (3281 - 5738, n=24)
4583 Points ∼100% +32%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
4046 Points ∼88% +17%
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
3960 Points ∼86% +14%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (3464 - 4046, n=2)
3755 Points ∼82% +8%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3464 Points ∼76%
PCMark 8 Home Score Accelerated v2
4438 points
PCMark 8 Creative Score Accelerated v2
5376 points
PCMark 8 Work Score Accelerated v2
5183 points
Aide

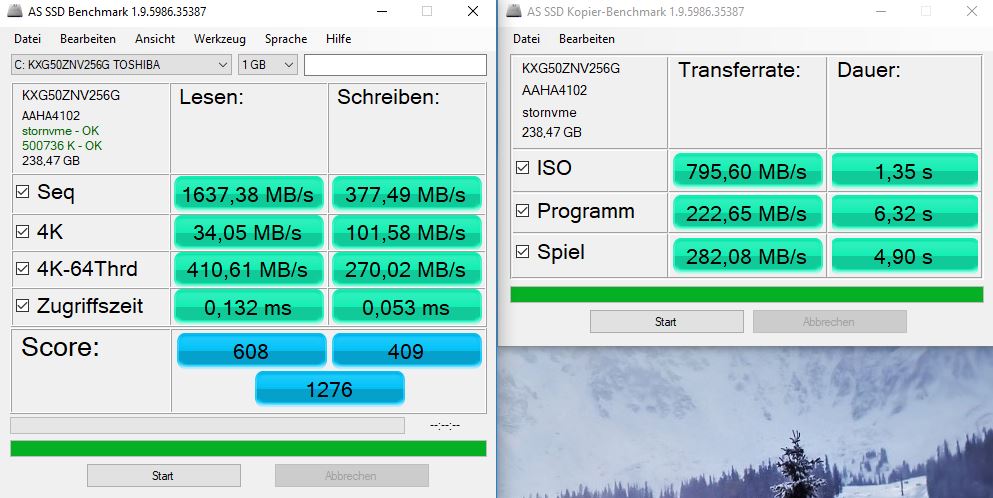

HP ZBook 14u G5 - AS SSD
AS SSD
HP ZBook 14u G5 - CrystalDiskMark 3
CrystalDiskMark 3

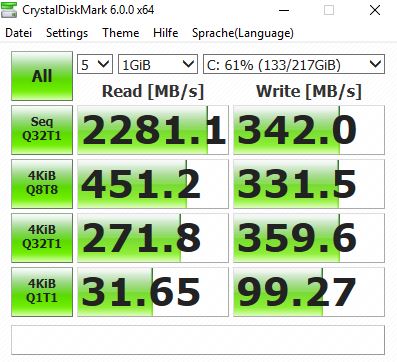

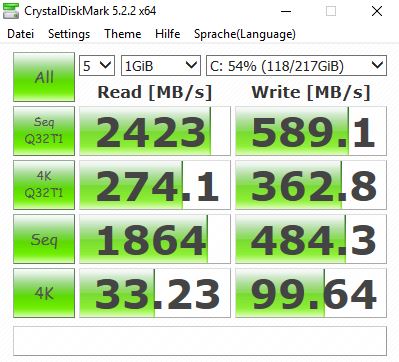

HP ZBook 14u G5 - CrystalDiskMark 5
CrystalDiskMark 5
HP ZBook 14u G5 - CrystalDiskMark 6
CrystalDiskMark 6
HP ZBook 14u G5 - CrystalDiskInfo
CrystalDiskInfo
HP ZBook 14u G5-2ZB99EA
Toshiba XG5 KXG50ZNV256G
HP ZBook 15u G5 2ZC05EA
Toshiba XG5 KXG50ZNV256G
Dell Precision 5520 UHD
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Lenovo ThinkPad T480s-20L8S02E00
Samsung SSD PM981 MZVLB512HAJQ
HP ZBook 14u G4
Samsung SSD PM871a MZNLN256HMHQ
CrystalDiskMark 3.0
Write 4k QD32
350.5
351.5
0%
506.1
44%
706.2
101%
222.3
-37%
Read 4k QD32
270.9
276.7
2%
633.1
134%
446.6
65%
298.4
10%
Write 4k
100.7
99.1
-2%
169.4
68%
146.8
46%
91.33
-9%
Read 4k
33.24
35.5
7%
56.08
69%
62.65
88%
30.9
-7%
Write 512
370.4
488.9
32%
1611
335%
1863
403%
83.19
-78%
Read 512
921.2
912.4
-1%
459.1
-50%
1799
95%
467
-49%
Write Seq
375.5
916.7
144%
1662
343%
1858
395%
502
34%
Read Seq
2014
2040
1%
2253
12%
2588
29%
517.4
-74%
Toshiba XG5 KXG50ZNV256G
Sequential Read: 2014 MB/s
Sequential Write: 375.5 MB/s
512K Read: 921.2 MB/s
512K Write: 370.4 MB/s
4K Read: 33.24 MB/s
4K Write: 100.7 MB/s
4K QD32 Read: 270.9 MB/s
4K QD32 Write: 350.5 MB/s
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
69.01 fps ∼100% +164%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
55.35 fps ∼80% +112%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
53.48 fps ∼77% +105%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
31.31 fps ∼45% +20%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
26.11 fps ∼38%
1900x1060 Siemens NX (snx-02)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
34.18 fps ∼100% +140%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
28.31 fps ∼83% +98%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
27.54 fps ∼81% +93%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
18.74 fps ∼55% +31%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
14.27 fps ∼42%
1900x1060 Showcase (showcase-01)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
26.2 fps ∼100% +405%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
20.17 fps ∼77% +289%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
12.13 fps ∼46% +134%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
7.28 fps ∼28% +40%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5.19 fps ∼20%
1900x1060 Medical (medical-01)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
17.49 fps ∼100% +371%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
10.34 fps ∼59% +179%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
9.33 fps ∼53% +151%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3.99 fps ∼23% +8%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3.71 fps ∼21%
1900x1060 Maya (maya-04)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
32.07 fps ∼100% +248%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
25.21 fps ∼79% +173%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
21.61 fps ∼67% +134%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
11.75 fps ∼37% +27%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
9.22 fps ∼29%
1900x1060 Energy (energy-01)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3.78 fps ∼100% +1119%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
0.62 fps ∼16% +100%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
0.55 fps ∼15% +77%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
0.31 fps ∼8%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
0.26 fps ∼7% -16%
1900x1060 Creo (creo-01)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
46.12 fps ∼100% +169%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
35.91 fps ∼78% +110%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
35.26 fps ∼76% +106%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
18.82 fps ∼41% +10%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
17.12 fps ∼37%
1900x1060 Catia (catia-04)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
45.75 fps ∼100% +204%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
33.32 fps ∼73% +121%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
27.97 fps ∼61% +86%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
17.1 fps ∼37% +14%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
15.05 fps ∼33%
SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
38.74 fps ∼100% +53%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
37.9 fps ∼98% +50%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
28.74 fps ∼74% +14%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
25.26 fps ∼65%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
24.88 fps ∼64% -2%
1920x1080 Tcvis
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
41.41 fps ∼100% +100%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
40.35 fps ∼97% +95%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
23.36 fps ∼56% +13%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
20.7 fps ∼50%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
20.1 fps ∼49% -3%
1920x1080 SolidWorks
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
51.18 fps ∼100% +7%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
50.13 fps ∼98% +5%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
47.82 fps ∼93%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
46.79 fps ∼91% -2%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
42.52 fps ∼83% -11%
1920x1080 Pro/ENGINEER
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
20.19 fps ∼100% +163%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
16.57 fps ∼82% +115%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
8.71 fps ∼43% +13%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
7.69 fps ∼38%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
7.66 fps ∼38% 0%
1920x1080 Maya
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
65.46 fps ∼100% +40%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
55.41 fps ∼85% +18%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
54.64 fps ∼83% +17%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
46.83 fps ∼72%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
45.64 fps ∼70% -3%
1920x1080 Lightwave
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
67.54 fps ∼100% +4%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
64.82 fps ∼96% 0%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
64.67 fps ∼96%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
54.85 fps ∼81% -15%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
46.67 fps ∼69% -28%
1920x1080 Ensight
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
32.63 fps ∼100% +76%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
32.3 fps ∼99% +74%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
21.09 fps ∼65% +14%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
18.55 fps ∼57%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
18.01 fps ∼55% -3%
1920x1080 Catia
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
51.54 fps ∼100% +36%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
40.16 fps ∼78% +6%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
38.01 fps ∼74%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
33.99 fps ∼66% -11%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
29.61 fps ∼57% -22%
SiSoft Sandra 2016
Image Processing
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
226.64 MPix/s ∼100% +5%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
216.18 MPix/s ∼95%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
190.64 MPix/s ∼84% -12%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
137.5 MPix/s ∼61% -36%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
128.1 MPix/s ∼57% -41%
GP Cryptography (Higher Security AES256+SHA2-512)
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
8 GB/s ∼100% +38%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5.78 GB/s ∼72%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
5.24 GB/s ∼66% -9%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5.16 GB/s ∼65% -11%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
4 GB/s ∼50% -31%
GP Financial Analysis (FP High/Double Precision)
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
42.2 KOPT/s ∼100% +14%
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
37 KOPT/s ∼88%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
25.76 KOPT/s ∼61% -30%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
19.2 KOPT/s ∼45% -48%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
11.84 KOPT/s ∼28% -68%
3DMark
1920x1080 Fire Strike Graphics
Average of class Workstation
  (752 - 14990, n=86)
4370 Points ∼100% +62%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
4165 Points ∼95% +54%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
2807 Points ∼64% +4%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
2698 Points ∼62%
Average AMD Radeon Pro WX 3100 Mobile
  (2644 - 2698, n=2)
2671 Points ∼61% -1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
2644 Points ∼61% -2%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
1745 Points ∼40% -35%
1280x720 Cloud Gate Standard Graphics
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
28254 Points ∼100% +48%
Average of class Workstation
  (5836 - 102368, n=86)
28099 Points ∼99% +47%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
19122 Points ∼68%
Average AMD Radeon Pro WX 3100 Mobile
  (17922 - 19122, n=2)
18522 Points ∼66% -3%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
17922 Points ∼63% -6%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
17743 Points ∼63% -7%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
12317 Points ∼44% -36%
3DMark 11 - 1280x720 Performance GPU
Average of class Workstation
  (841 - 20623, n=94)
5370 Points ∼100% +43%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, Intel Xeon E3-1505M v6
5105 Points ∼95% +36%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3749 Points ∼70%
Average AMD Radeon Pro WX 3100 Mobile
  (3632 - 3749, n=2)
3691 Points ∼69% -2%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3632 Points ∼68% -3%
Lenovo ThinkPad T480s-20L8S02E00
NVIDIA GeForce MX150, Intel Core i7-8550U
3551 Points ∼66% -5%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
2351 Points ∼44% -37%
Unigine Heaven 4.0
Extreme Preset OpenGL
Average of class Workstation
  (6.8 - 88.2, n=20)
29.3 fps ∼100% +331%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
10.7 fps ∼37% +57%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
10.7 fps ∼37% +57%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.4 fps ∼25% +9%
Average AMD Radeon Pro WX 3100 Mobile
  (6.8 - 7.4, n=2)
7.1 fps ∼24% +4%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
6.8 (min: 3.6, max: 14.6) fps ∼23%
Extreme Preset DX11
Average of class Workstation
  (8.1 - 100, n=27)
32.6 fps ∼100% +302%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
12.4 fps ∼38% +53%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
12.4 fps ∼38% +53%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
8.8 fps ∼27% +9%
Average AMD Radeon Pro WX 3100 Mobile
  (8.1 - 8.8, n=2)
8.45 fps ∼26% +4%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
8.1 (min: 4.2, max: 17.9) fps ∼25%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Average of class Workstation
  (6.1 - 74.8, n=33)
27.2 fps ∼100% +189%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
10.8 fps ∼40% +15%
Average AMD Radeon Pro WX 3100 Mobile
  (9.4 - 10.8, n=2)
10.1 fps ∼37% +7%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
9.4 (min: 3.5, max: 20.9) fps ∼35%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
8.3 fps ∼31% -12%
1920x1080 Extreme HD Preset OpenGL AA:x8
Average of class Workstation
  (5.6 - 60.8, n=32)
21.6 fps ∼100% +286%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
6.3 fps ∼29% +13%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
6.2 fps ∼29% +11%
Average AMD Radeon Pro WX 3100 Mobile
  (5.6 - 6.3, n=2)
5.95 fps ∼28% +6%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
5.6 (min: 3.2, max: 9.9) fps ∼26%

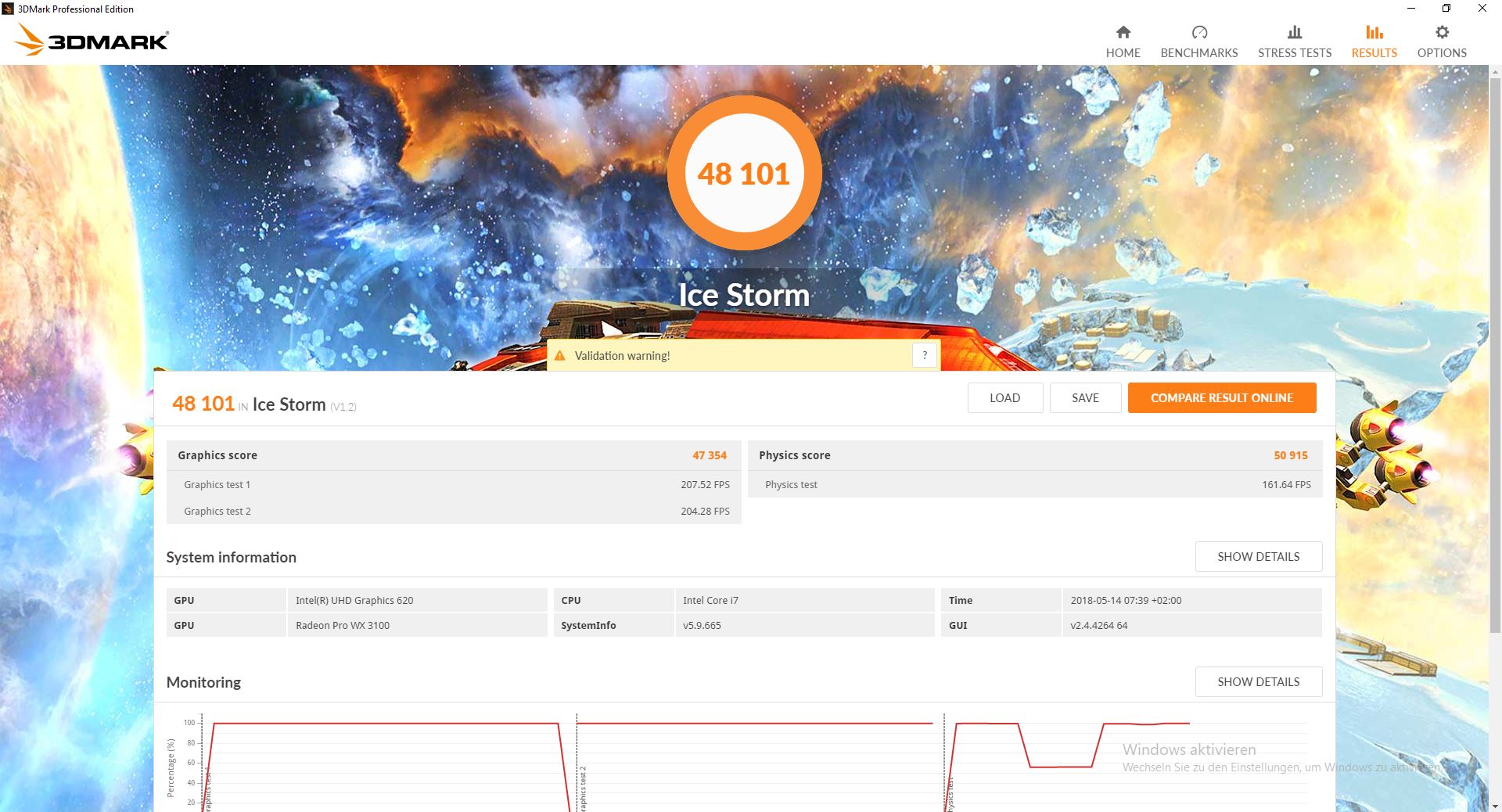

HP ZBook 14u G5 - 3DMark Ice Storm
3DMark Ice Storm

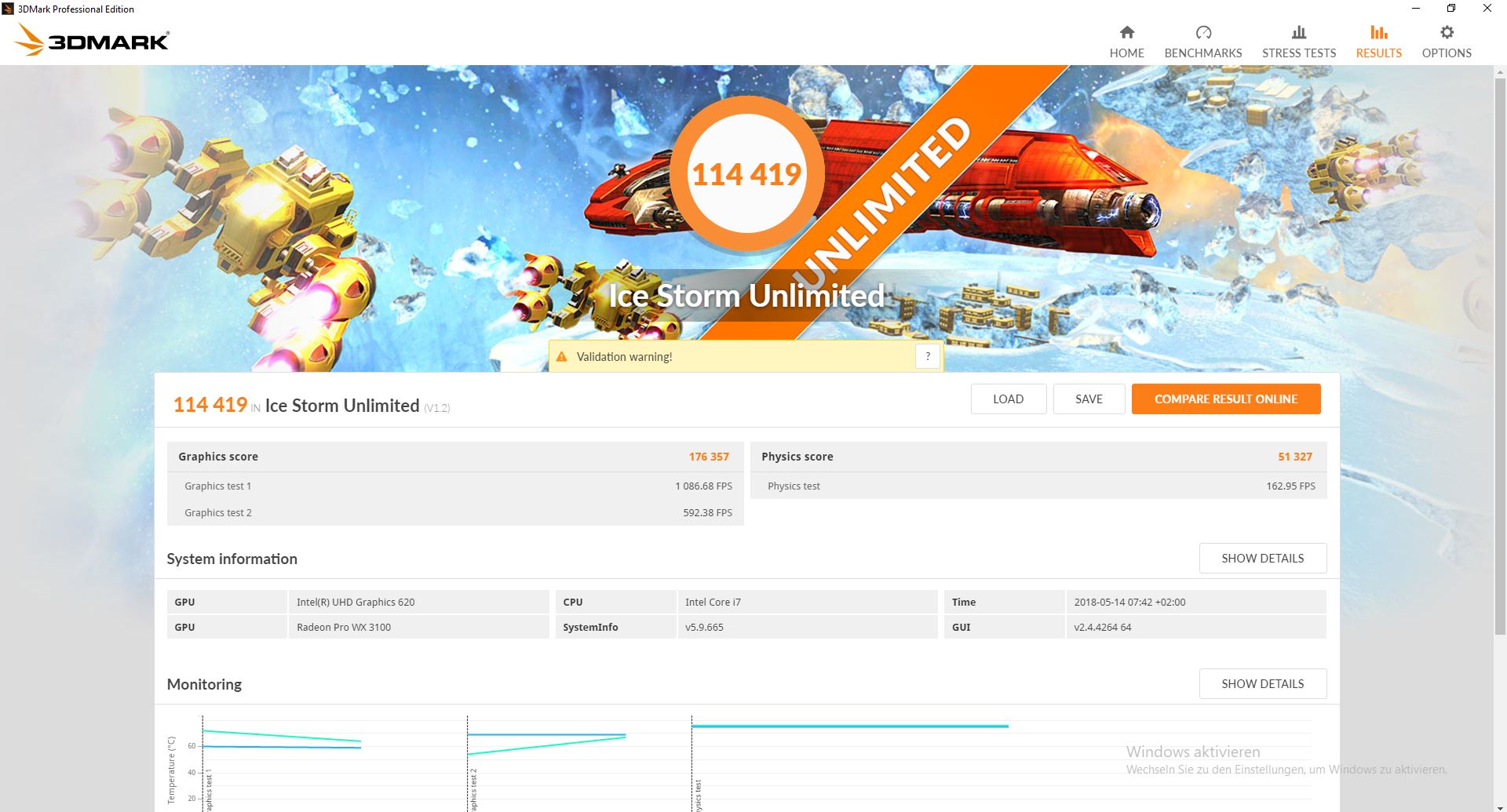

HP ZBook 14u G5 - 3DMark Ice Storm Unlimited
3DMark Ice Storm Unlimited

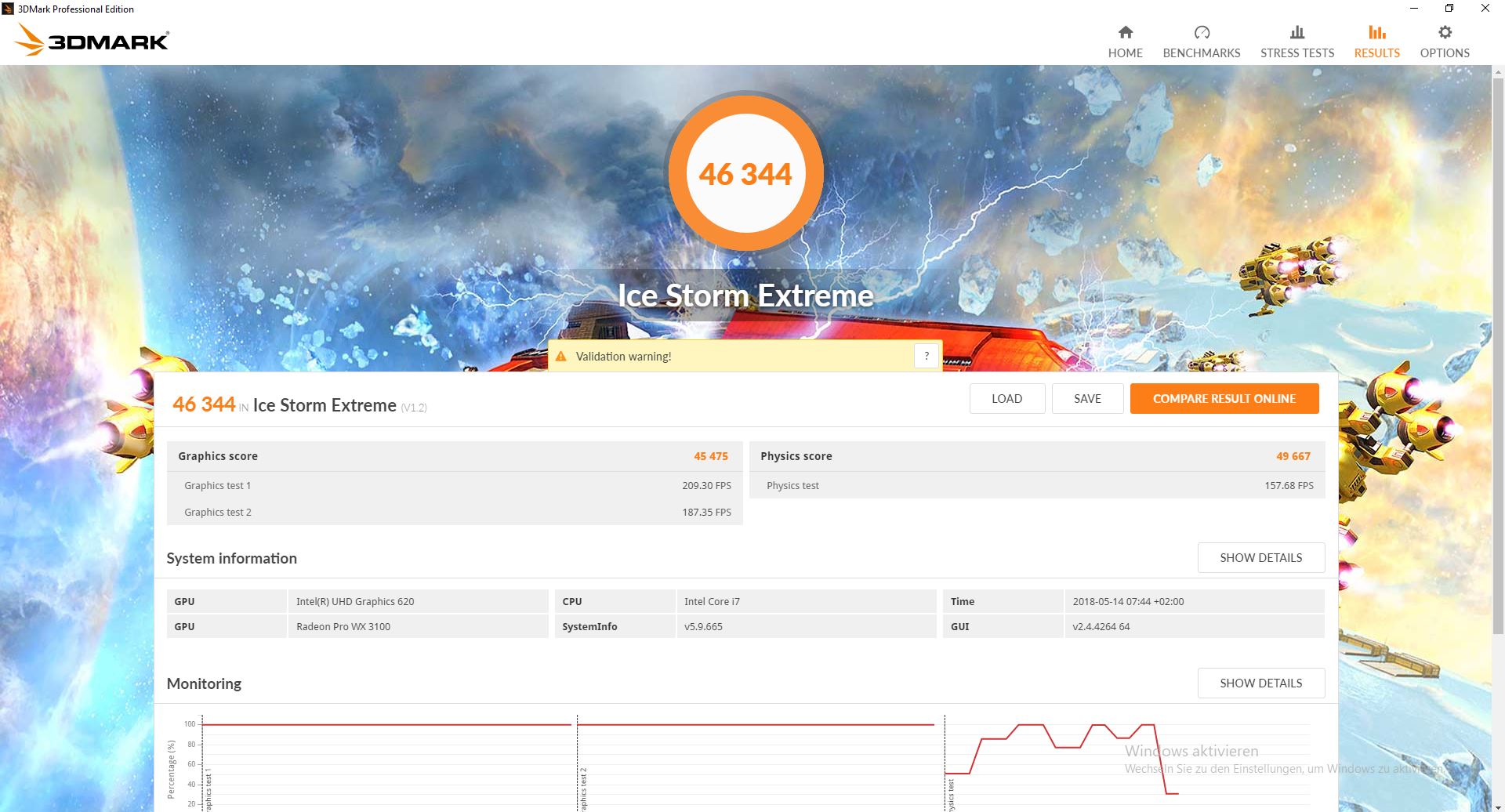

HP ZBook 14u G5 - 3DMark Ice Storm Extreme
3DMark Ice Storm Extreme

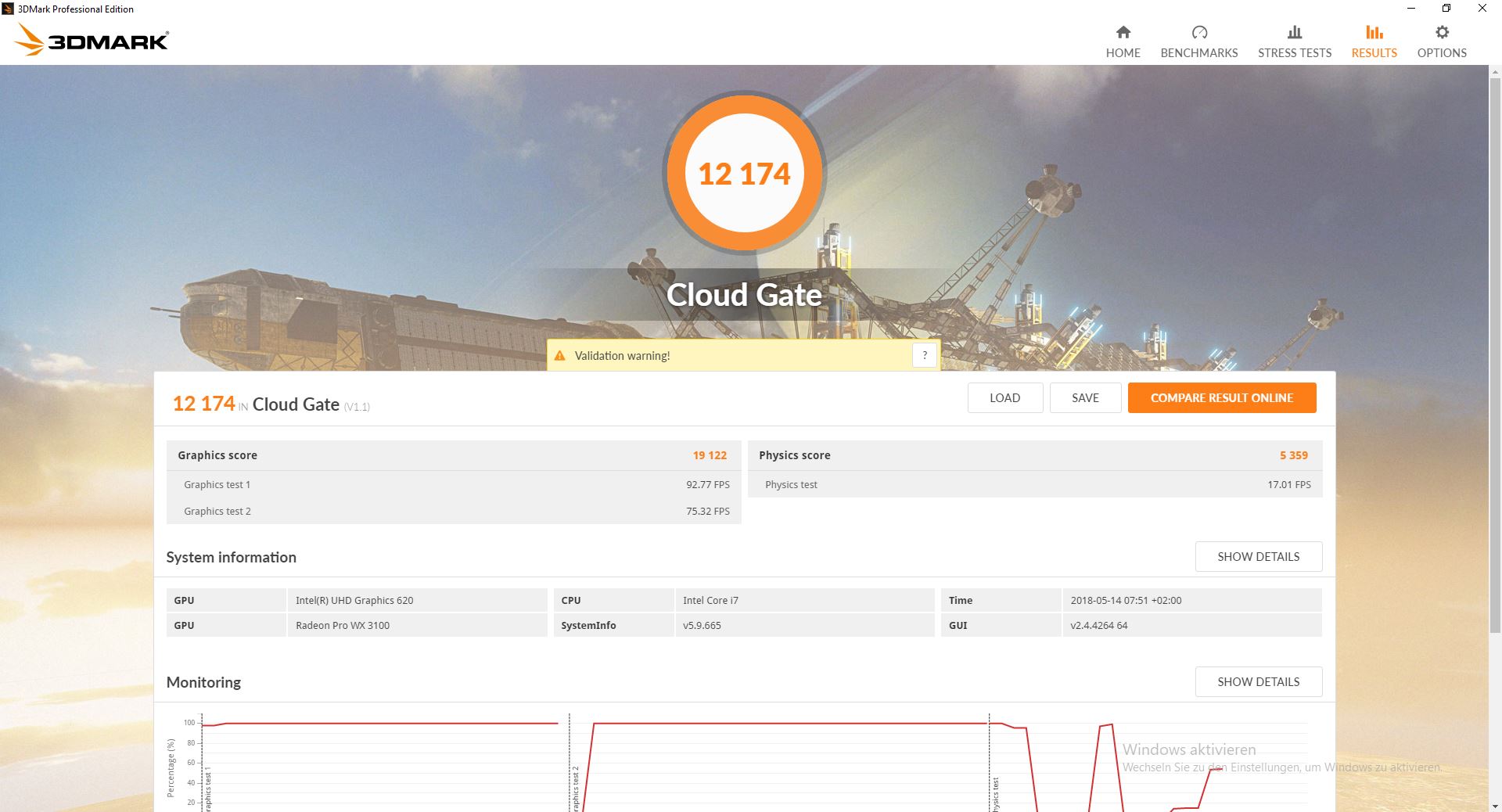

HP ZBook 14u G5 - 3DMark Cloud Gate
3DMark Cloud Gate

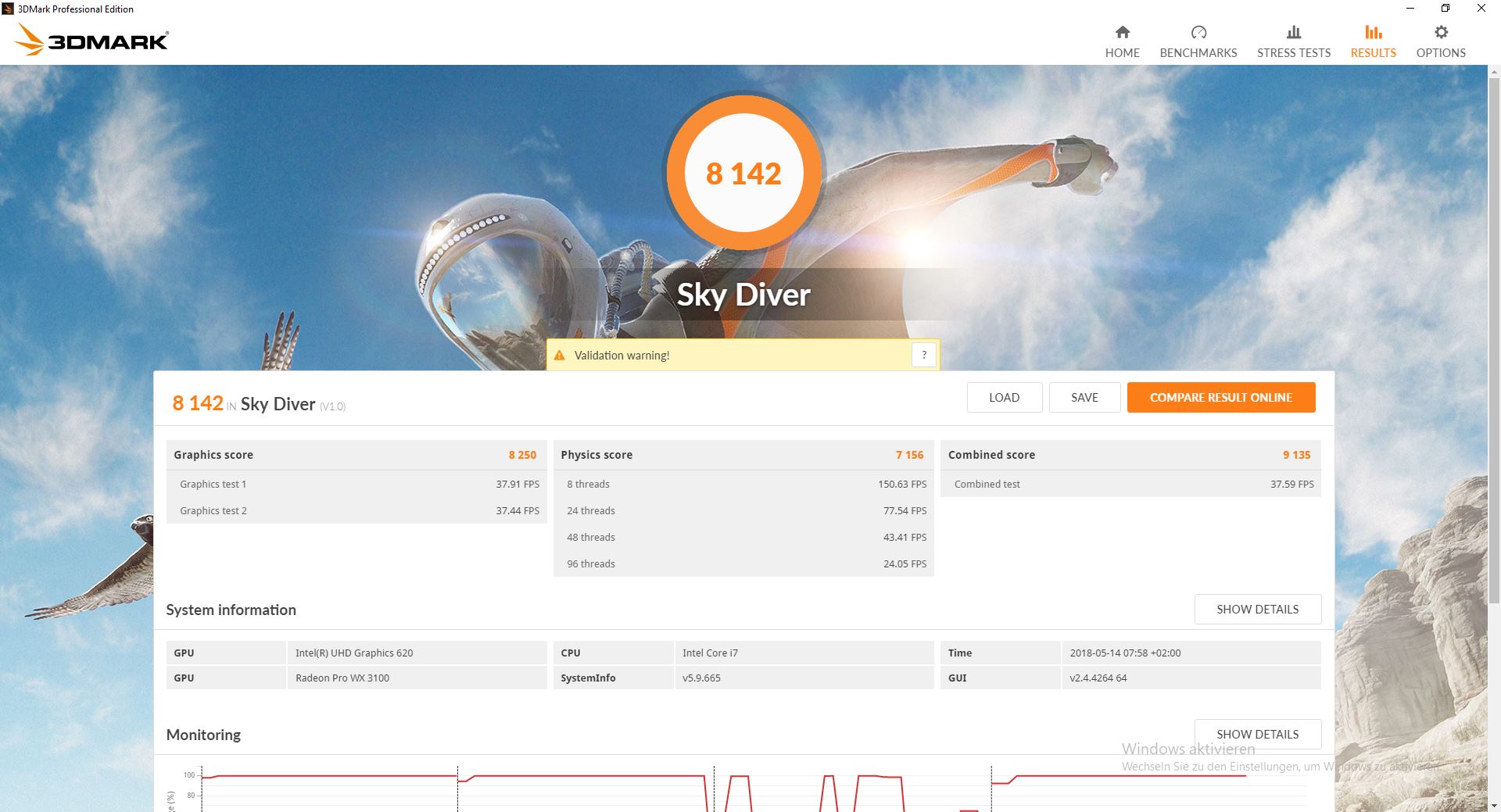

HP ZBook 14u G5 - 3DMark Sky Diver
3DMark Sky Diver
HP ZBook 14u G5 - 3DMark Fire Strike
3DMark Fire Strike

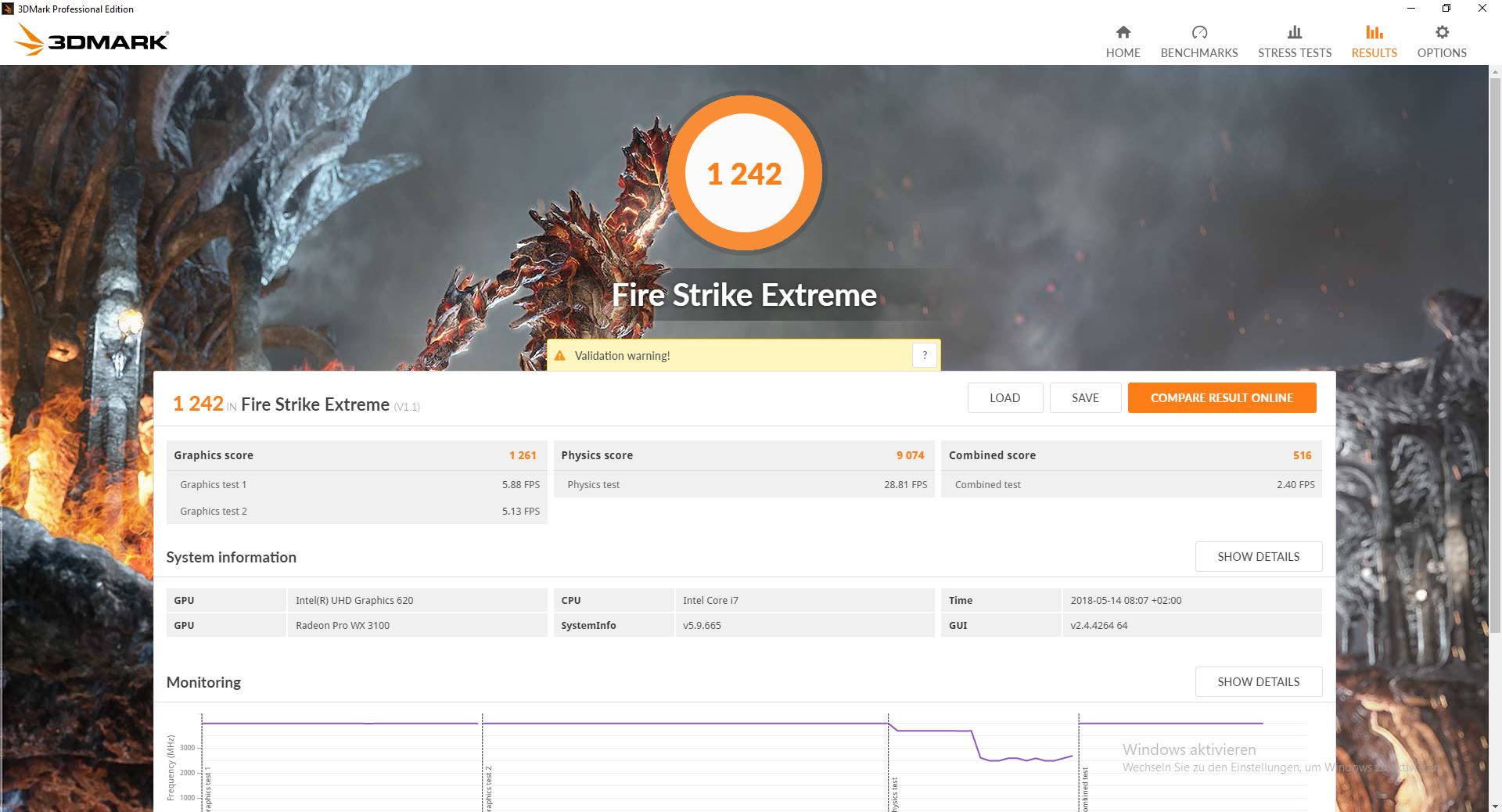

HP ZBook 14u G5 - 3DMark Fire Strike Extreme
3DMark Fire Strike Extreme

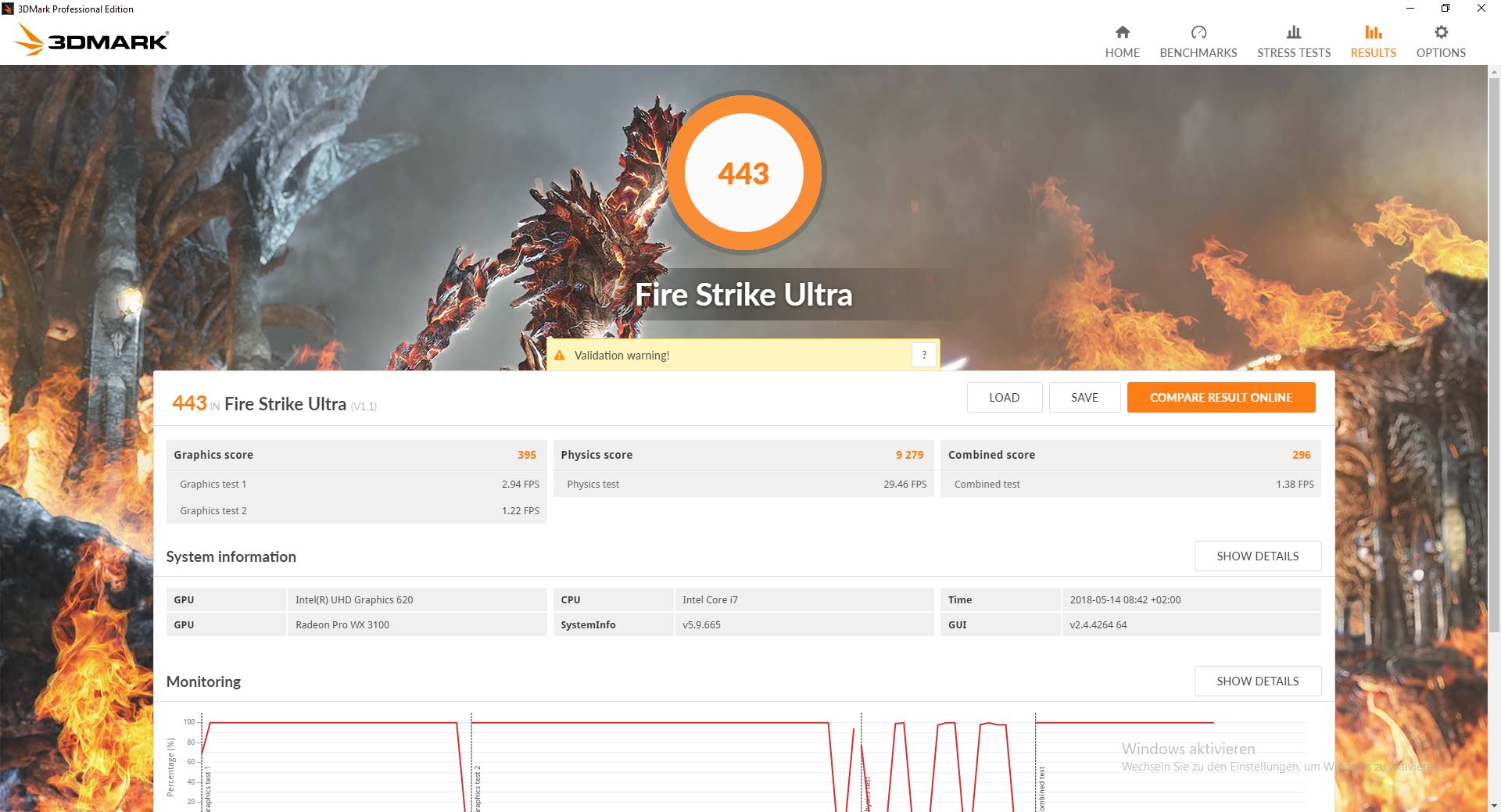

HP ZBook 14u G5 - 3DMark Fire Strike Ultra
3DMark Fire Strike Ultra

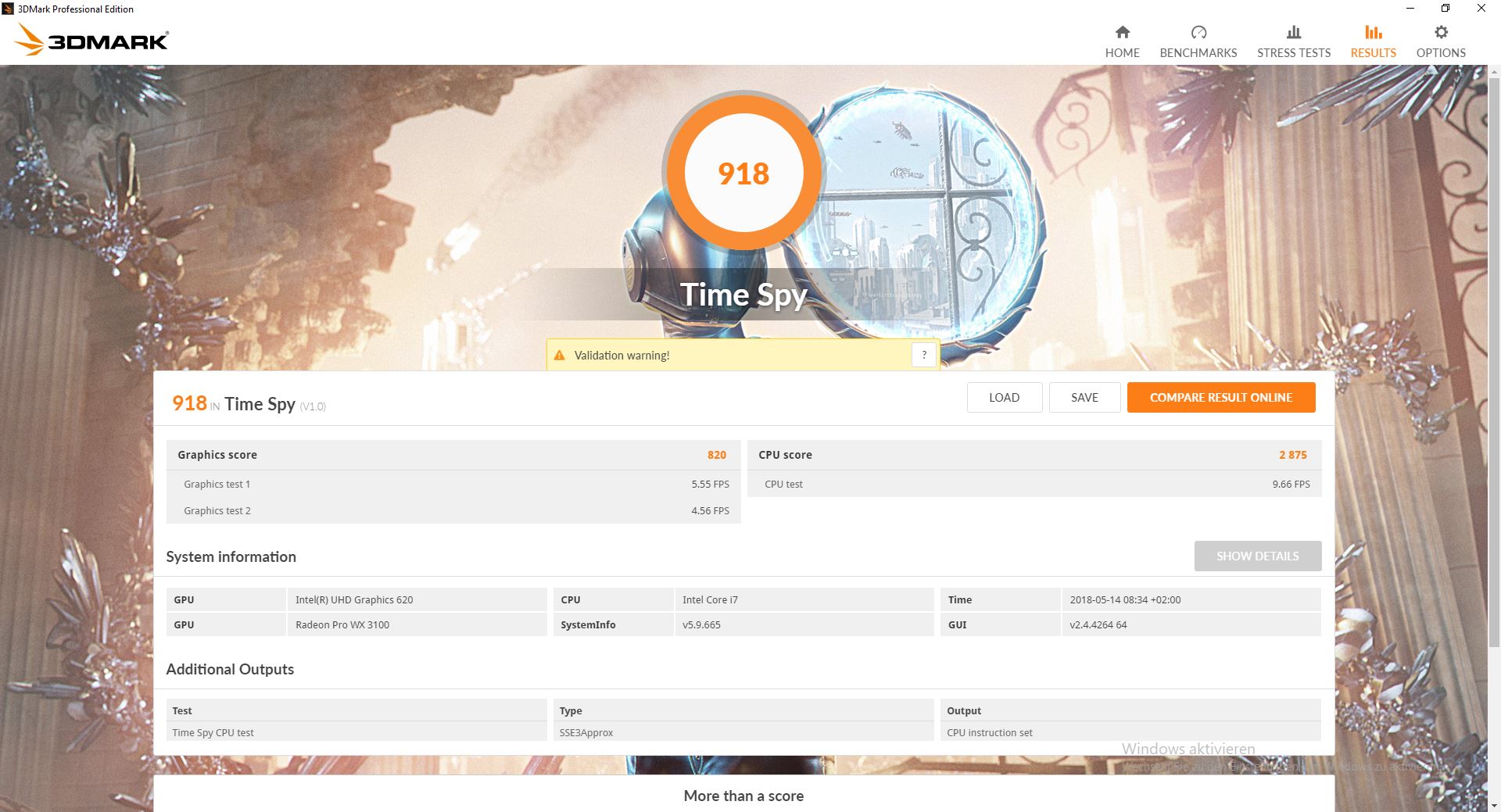

HP ZBook 14u G5 - 3DMark Time Spy
3DMark Time Spy

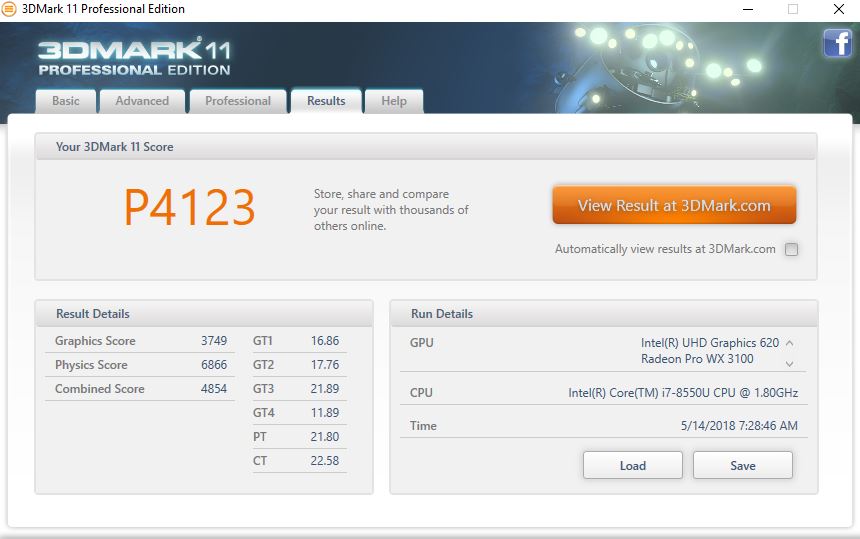

HP ZBook 14u G5 - 3DMark 11
3DMark 11
3DMark 11 Performance
4123 points
3DMark Ice Storm Standard Score
48101 points
3DMark Cloud Gate Standard Score
12174 points

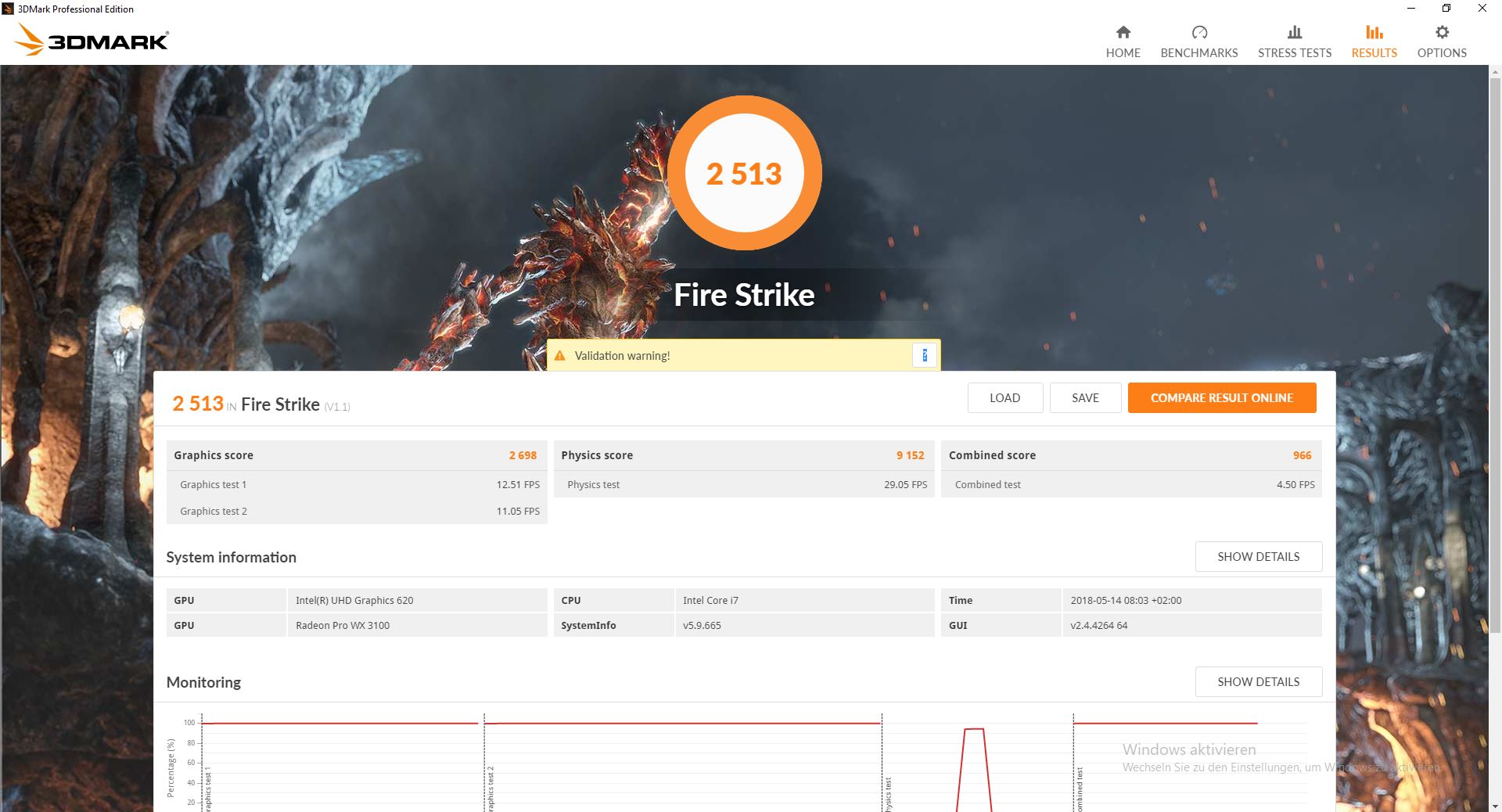

3DMark Fire Strike Score
2513 points
3DMark Fire Strike Extreme Score
1242 points
3DMark Time Spy Score
918 points
Aide
012345678910Tooltip
The Witcher 3 ultra
Bas Moyen Élevé Ultra
BioShock Infinite (2013) 160.774.74714.7fps
The Witcher 3 (2015) 26.816.78.76.8fps
Rise of the Tomb Raider (2016) 50.43015.312.2fps
Far Cry Primal (2016) 3011107fps
The Division (2016) 37.320.49.2fps
Deus Ex Mankind Divided (2016) 31.215.68.43.2fps
For Honor (2017) 37.814.911.59.2fps
Ghost Recon Wildlands (2017) 25.410.49.18.1fps
F1 2017 (2017) 60212113fps
Assassin´s Creed Origins (2017) 28119fps
Final Fantasy XV Benchmark (2018) 94fps
Far Cry 5 (2018) 1255fps

Degré de la nuisance sonore

Au repos
29.8 / 29.8 / 29.8 dB(A)
Fortement sollicité
33.5 / 37.3 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 29.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.933.131.934.52529.831.62931.93131.930.330.632.54028.32928.131.15032.726.928.734.76324.926.126.327.58024.726.825.627.510027.726.325.82712524.224.62524.516022.223.623.22420021.722.622.222.925022.422.121.62331521.520.820.421.440020.620.31921.950020.619.918.522.563020.319.717.422.680021.320.917.223.2100021.821.217.424125022.722.816.925.3160023.723.616.82720002322.117.427.1250025.523.917.428.2315024221729.1400020.920.217.324.7500019.219.317.221.36300181817.520.380001818.317.918.81000018.318.717.917.9125001919.418.317.61600018.619.31817.4SPL34.233.529.837.3N1.91.81.32.5median 21.5median 20.9median 17.9median 23Delta1.71.61.71.7hearing rangehide median Fan NoiseHP ZBook 14u G5-2ZB99EA
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
Noise
-1%
-12%
1%
-4%
off / environment *
29.8
29.8
-0%
28.7
4%
29
3%
30.4
-2%
Idle Minimum *
29.8
29.8
-0%
28.7
4%
29
3%
30.4
-2%
Idle Average *
29.8
29.8
-0%
32.1
-8%
29
3%
30.4
-2%
Idle Maximum *
29.8
30.8
-3%
32.1
-8%
29
3%
30.4
-2%
Load Average *
33.5
32.9
2%
41.3
-23%
36.5
-9%
37
-10%
Witcher 3 ultra *
34.2
36.5
-7%
45.5
-33%
32.8
4%
Load Maximum *
37.3
36.5
2%
45.5
-22%
38.2
-2%
40
-7%

* ... Moindre est la valeur, meilleures sont les performances

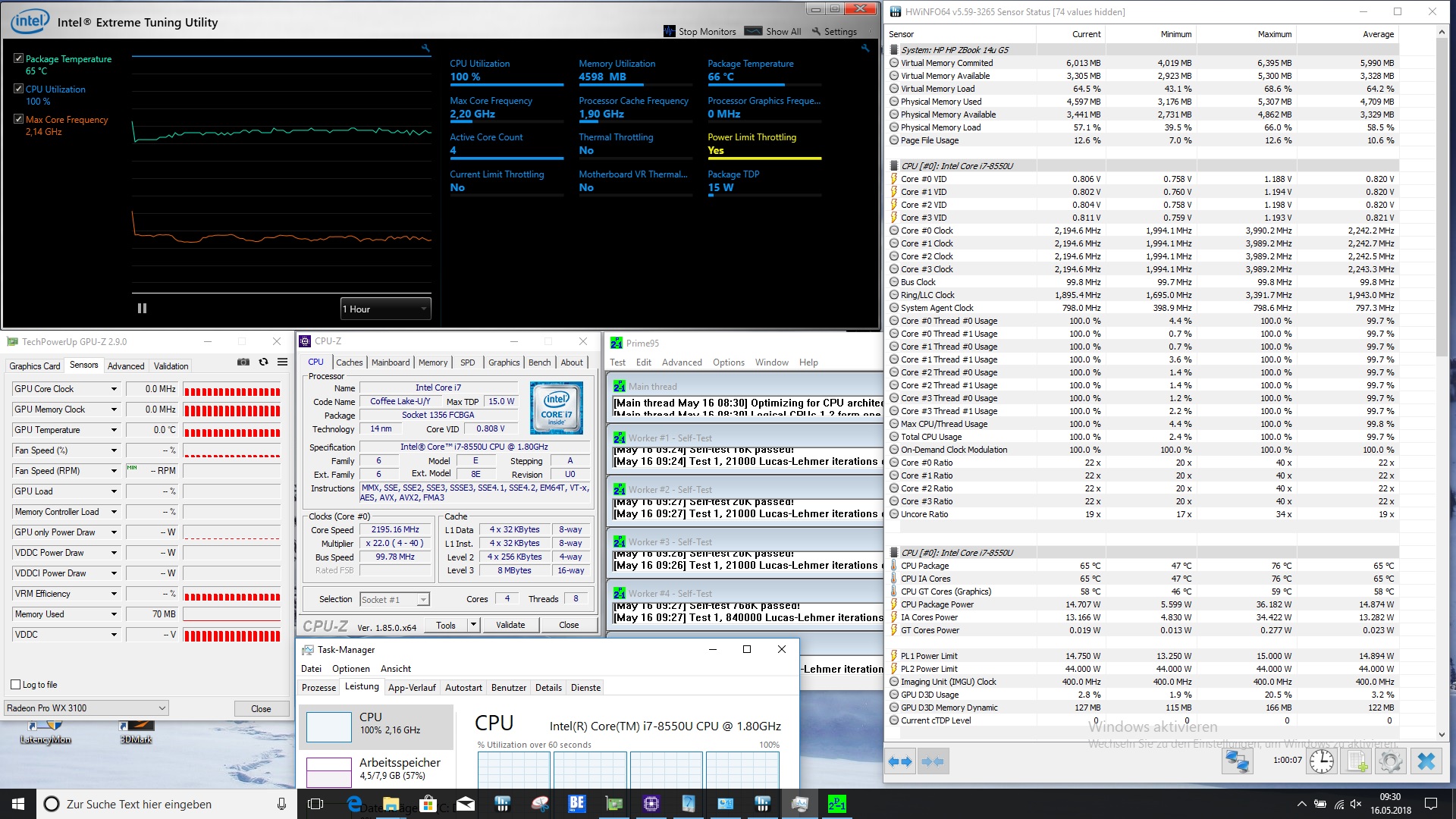

HP ZBook 14u G5 - Prime95 stress test
Prime95 stress test

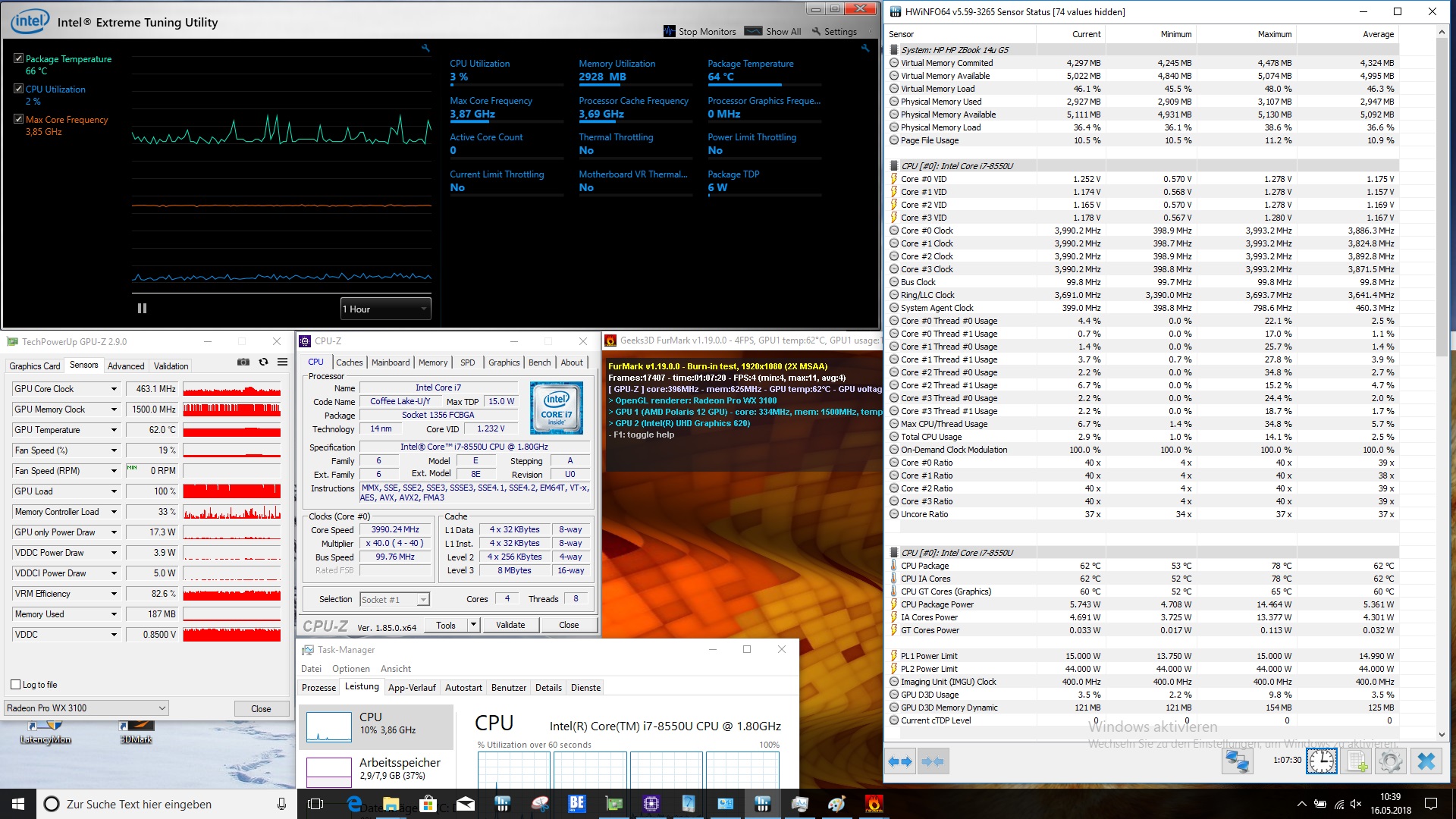

HP ZBook 14u G5 - FurMark stress test
FurMark stress test

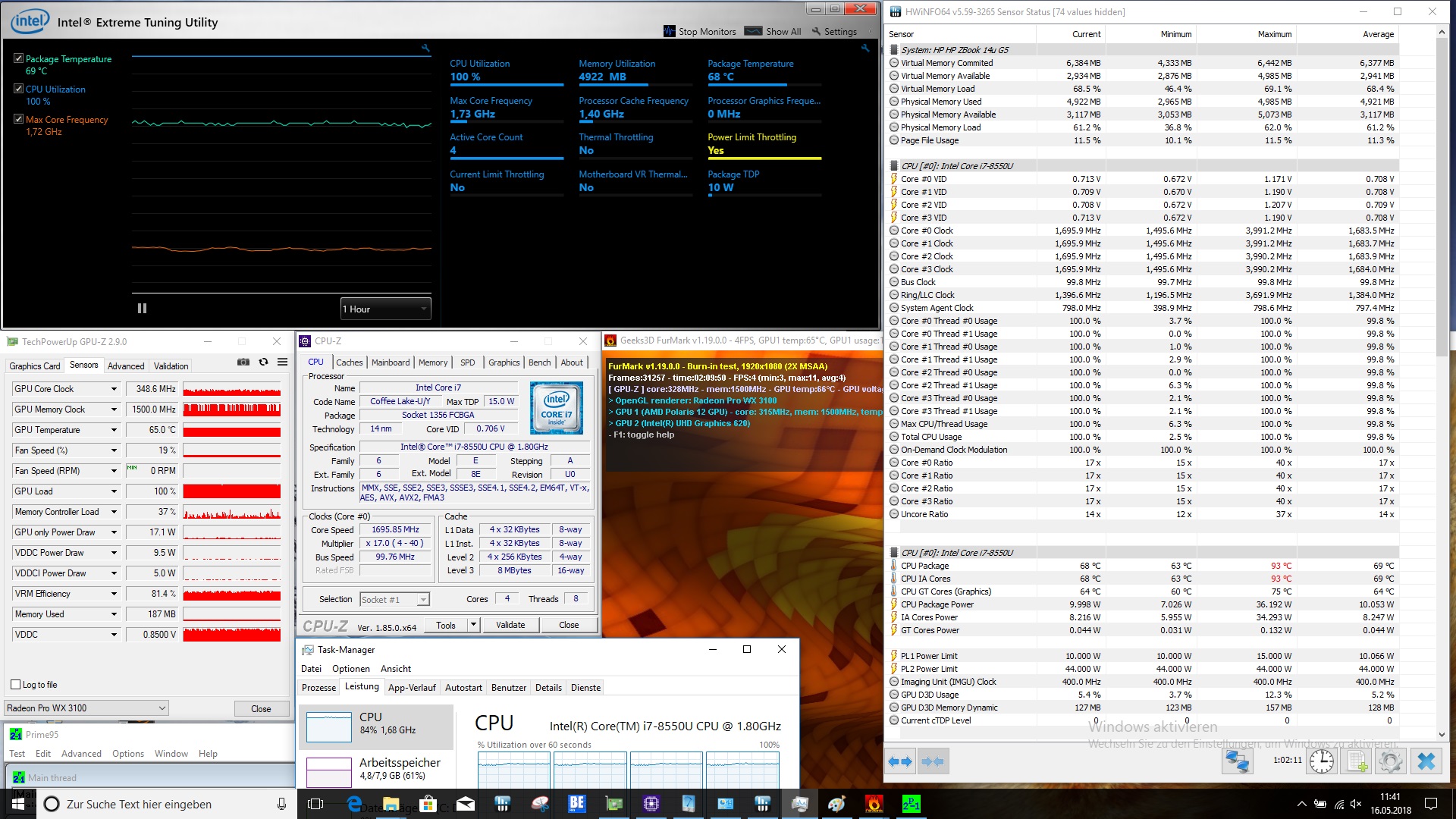

HP ZBook 14u G5 - FurMark & Prime95 stress test
FurMark & Prime95 stress test
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
Lenovo ThinkPad T480s-20L8S02E00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
Heat
1%
-12%
-7%
-12%
Maximum Upper Side *
39.7
39.8
-0%
51.6
-30%
49.2
-24%
48
-21%
Maximum Bottom *
42.7
43.1
-1%
43.6
-2%
48.2
-13%
48.6
-14%
Idle Upper Side *
24.2
23.3
4%
26.6
-10%
23.2
4%
25.4
-5%
Idle Bottom *
24.6
24.6
-0%
26.2
-7%
23
7%
26.1
-6%

* ... Moindre est la valeur, meilleures sont les performances

 38.8 °C39.3 °C38.3 °C
 39.5 °C39.7 °C37.8 °C
 30 °C27.6 °C27.5 °C
Maximum: 39.7 °C
Moyenne: 35.4 °C
38.5 °C42.7 °C37.8 °C
36.6 °C38.1 °C36 °C
29.7 °C32.3 °C31.9 °C
Maximum: 42.7 °C
Moyenne: 36 °C
Alimentation (valeur maximale)  38.7 °C | Température ambiante de la pièce 20.6 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 35.4 °C / 96 F, compared to the average of 31.2 °C / 88 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 39.7 °C / 103 F, compared to the average of 37.2 °C / 99 F, ranging from 23.1 to 69.8 °C for the class Workstation.
(±) The maximum temperature on the bottom side is 42.7 °C / 109 F, compared to the average of 40.3 °C / 105 F, ranging from 23.5 to 77.3 °C for the class Workstation.
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 31.2 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.9 °C / 95 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-1.9 °C / -3.4 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.930.3252930.43130.6354028.130.45028.727.26326.331.88025.632.110025.829.61252531.916023.240.320022.249.825021.653.331520.458.34001965.450018.569.163017.469.280017.267.8100017.471.4125016.972.3160016.872.9200017.471.2250017.47331501772.4400017.373.3500017.276.3630017.576.9800017.972.81000017.972.51250018.369.6160001856.2SPL29.885N1.363.4median 17.9median 69.6Delta1.78.531.129.529.328.631.13131.130.129.727.12624.726.623.725.724.923.928.623.837.922.645.822.451.720.454.818.956.618.16617.772.116.774.416.770.816.161.615.761.915.961.715.959.115.95816.364.216.668.516.968.117.260.917.26017.358.217.454.42978.91.242.9median 17.2median 601.75.3hearing rangehide median Pink NoiseHP ZBook 14u G5-2ZB99EALenovo ThinkPad T480s-20L8S02E00
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
HP ZBook 14u G5-2ZB99EA audio analysis

(+) | speakers can play relatively loud (85 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.8% lower than median
(±) | linearity of bass is average (10.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2% away from median
(+) | mids are linear (4.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (3.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18% difference to median)
Compared to same class
» 52% of all tested devices in this class were better, 10% similar, 38% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 31% of all tested devices were better, 6% similar, 63% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad T480s-20L8S02E00 audio analysis

(±) | speaker loudness is average but good (78.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.4% lower than median
(±) | linearity of bass is average (12.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.5% higher than median
(±) | linearity of mids is average (9.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.5% away from median
(±) | linearity of highs is average (7.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 12% similar, 41% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 43% of all tested devices were better, 9% similar, 49% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consommation énergétique
Éteint/en veilledarklight 0.29 / 0.44 Watts
Au reposdarkmidlight 3.4 / 5.6 / 8.5 Watts
Fortement sollicité midlight 55.2 / 71.4 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
HP ZBook 14u G5-2ZB99EA
8550U, Radeon Pro WX 3100 Mobile, Toshiba XG5 KXG50ZNV256G, IPS, 1920x1080, 14
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6
Lenovo ThinkPad T480s-20L8S02E00
8550U, GeForce MX150, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 2560x1440, 14
HP ZBook 14u G4
7500U, FirePro W4190M, Samsung SSD PM871a MZNLN256HMHQ, TN, 1920x1080, 14
Average AMD Radeon Pro WX 3100 Mobile

Average of class Workstation

Power Consumption
-5%
-108%
-6%
12%
-3%
-173%
Idle Minimum *
3.4
3.2
6%
8.9
-162%
3.4
-0%
2.4
29%
3.3 (3.2 - 3.4, n=2)
3%
13.7 (2.4 - 65.2, n=115)
-303%
Idle Average *
5.6
6.1
-9%
13.6
-143%
7.5
-34%
5.3
5%
5.85 (5.6 - 6.1, n=2)
-4%
19.7 (5.3 - 69, n=114)
-252%
Idle Maximum *
8.5
9.7
-14%
14.1
-66%
10.8
-27%
8.8
-4%
9.1 (8.5 - 9.7, n=2)
-7%
23.1 (7.1 - 73.1, n=115)
-172%
Load Average *
55.2
62
-12%
100.3
-82%
55.4
-0%
45
18%
58.6 (55.2 - 62, n=2)
-6%
87.8 (34.4 - 185, n=113)
-59%
Load Maximum *
71.4
71
1%
126.3
-77%
70.3
2%
64
10%
71.2 (71 - 71.4, n=2)
-0%
127 (43.5 - 266, n=113)
-78%
Witcher 3 ultra *
46
48
-4%
100.2
-118%
34
26%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
19h 12min
NBC WiFi Websurfing Battery Test 1.3 (EDGE: 41.16299.15.0)
9h 34min
En lecture de Big Buck Bunny encodé en H.264 1080p
8h 24min
Fortement sollicité (luminosité au maximum)
3h 08min

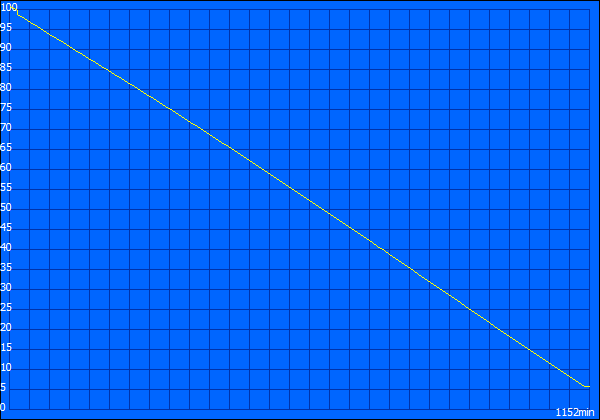

HP ZBook 14u G5 - Autonomie maximale.
Autonomie maximale.
HP ZBook 14u G5 - Autonomie minimale.
Autonomie minimale.
HP ZBook 14u G5 - Autonomie Wifi.
Autonomie Wifi.
HP ZBook 14u G5 - Autonomie H.264.
Autonomie H.264.

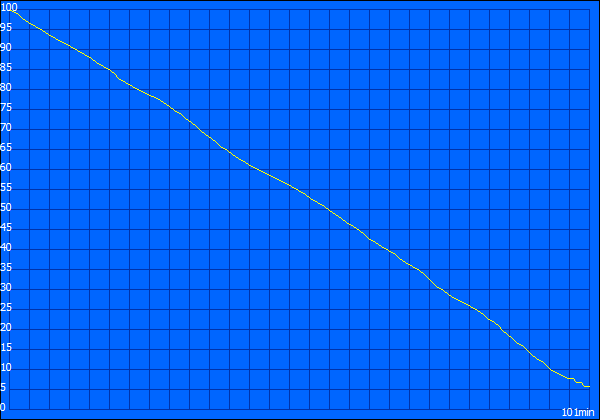

HP ZBook 14u G5 - Autonomie SPECviewperf.
Autonomie SPECviewperf.

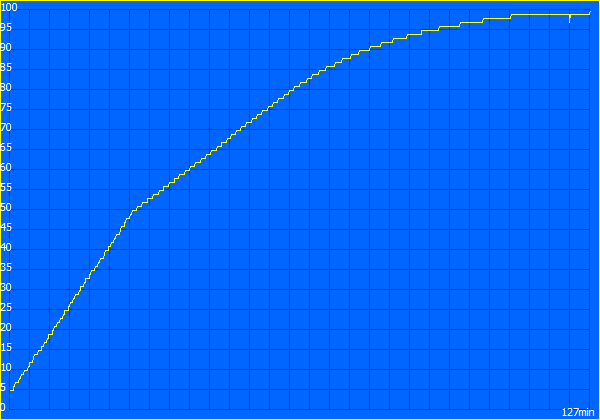

HP ZBook 14u G5 - Temps de charge.
Temps de charge.
HP ZBook 14u G5-2ZB99EA
8550U, Radeon Pro WX 3100 Mobile, 50 Wh
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, 56 Wh
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, 97 Wh
Lenovo ThinkPad T480s-20L8S02E00
8550U, GeForce MX150, 57 Wh
HP ZBook 14u G4
7500U, FirePro W4190M, 51 Wh
Average of class Workstation

Autonomie de la batterie
8%
-54%
-10%
1%
-39%
Reader / Idle
1152
1301
13%
724
-37%
1366
19%
1418
23%
584 (63 - 2360, n=111)
-49%
H.264
504
623
24%
550
9%
575
14%
383 (123 - 1131, n=52)
-24%
WiFi v1.3
574
514
-10%
254
-56%
530
-8%
643
12%
394 (106 - 974, n=55)
-31%
Load
188
200
6%
61
-68%
76
-60%
104
-45%
88.7 (22 - 323, n=104)
-53%

Points positifs

+ châssis élégant et robuste
+ AMD Radeon Pro avec 2 Go de VRAM
+ bonne autonomie
+ écran IPS mat
+ pas de MLI
+ beaucoup de fonctionnalités de sécurité
+ bonnes performances globales
+ périphériques d'entrée confortables
+ USB C avec Thunderbolt
+ températures extérieures maîtrisées
+ connecteur pour station d'accueil
+ compatible WWAN

Points négatifs

- luminosité de l'écran inférieure à la moyenne
- couverture de l'espace colorimétrique trop faible
- pas de lecteur de carte
- throttle du GPU en cas de sollicitations
- processeur Core i7 comparativement pas assez performant

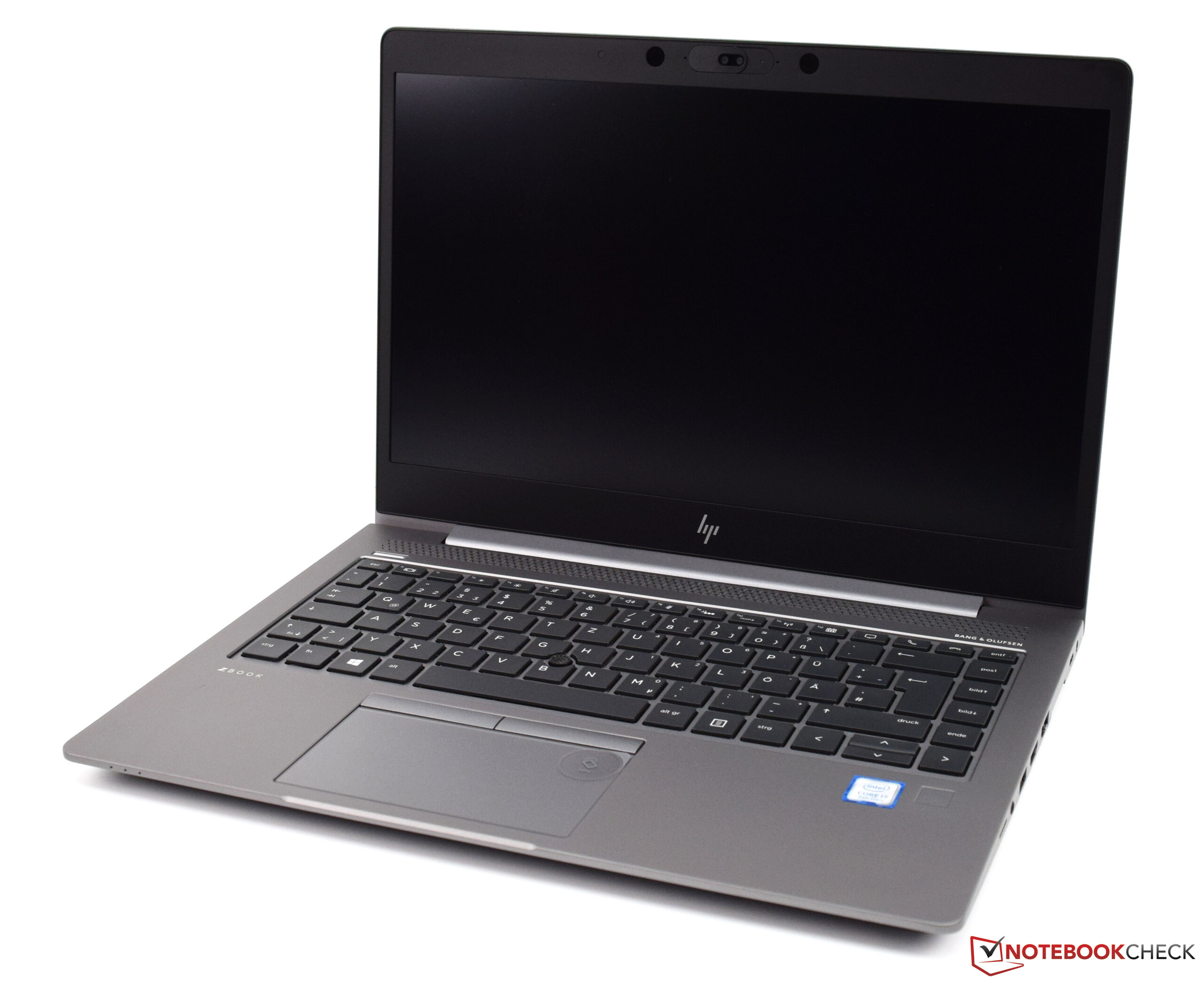

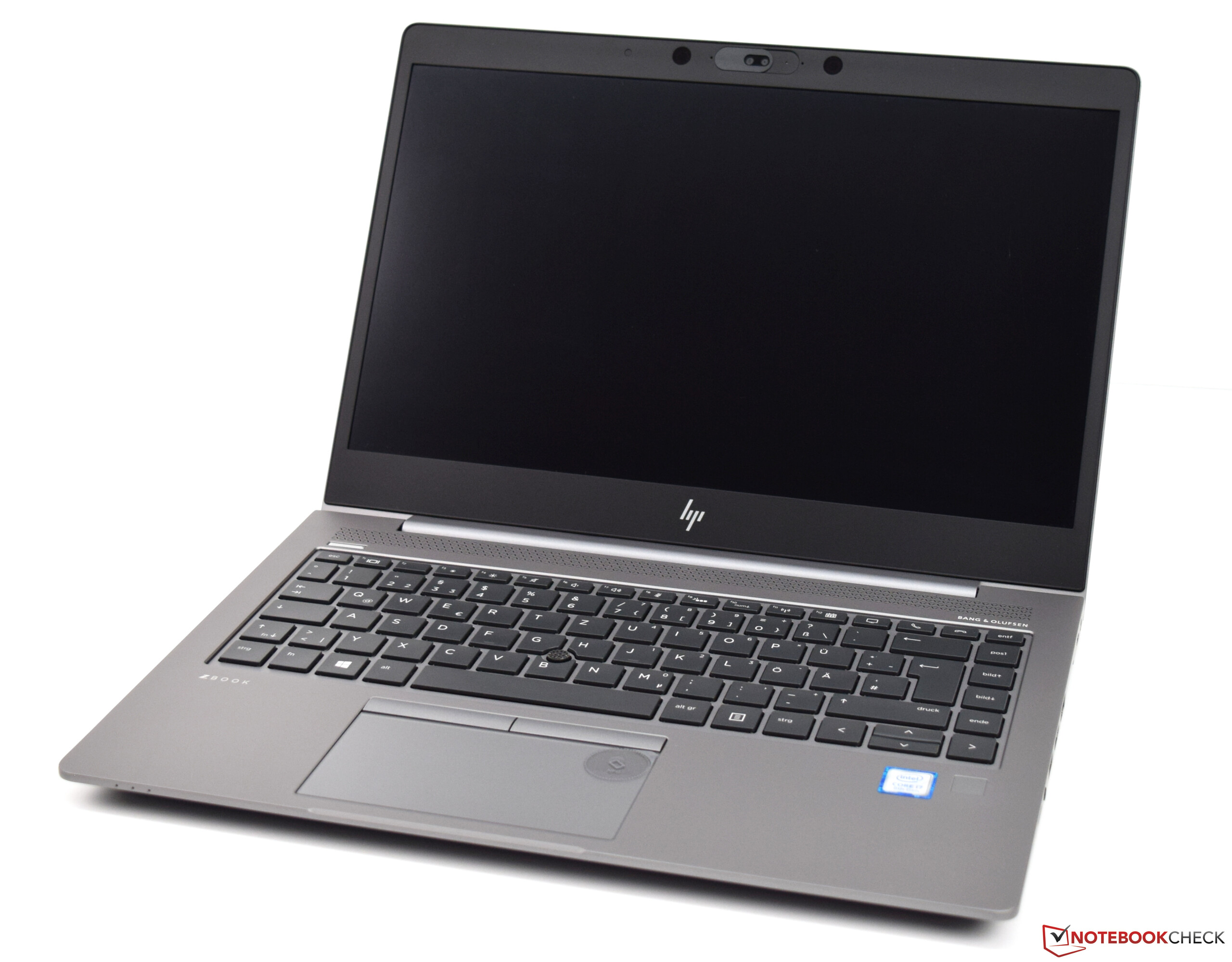

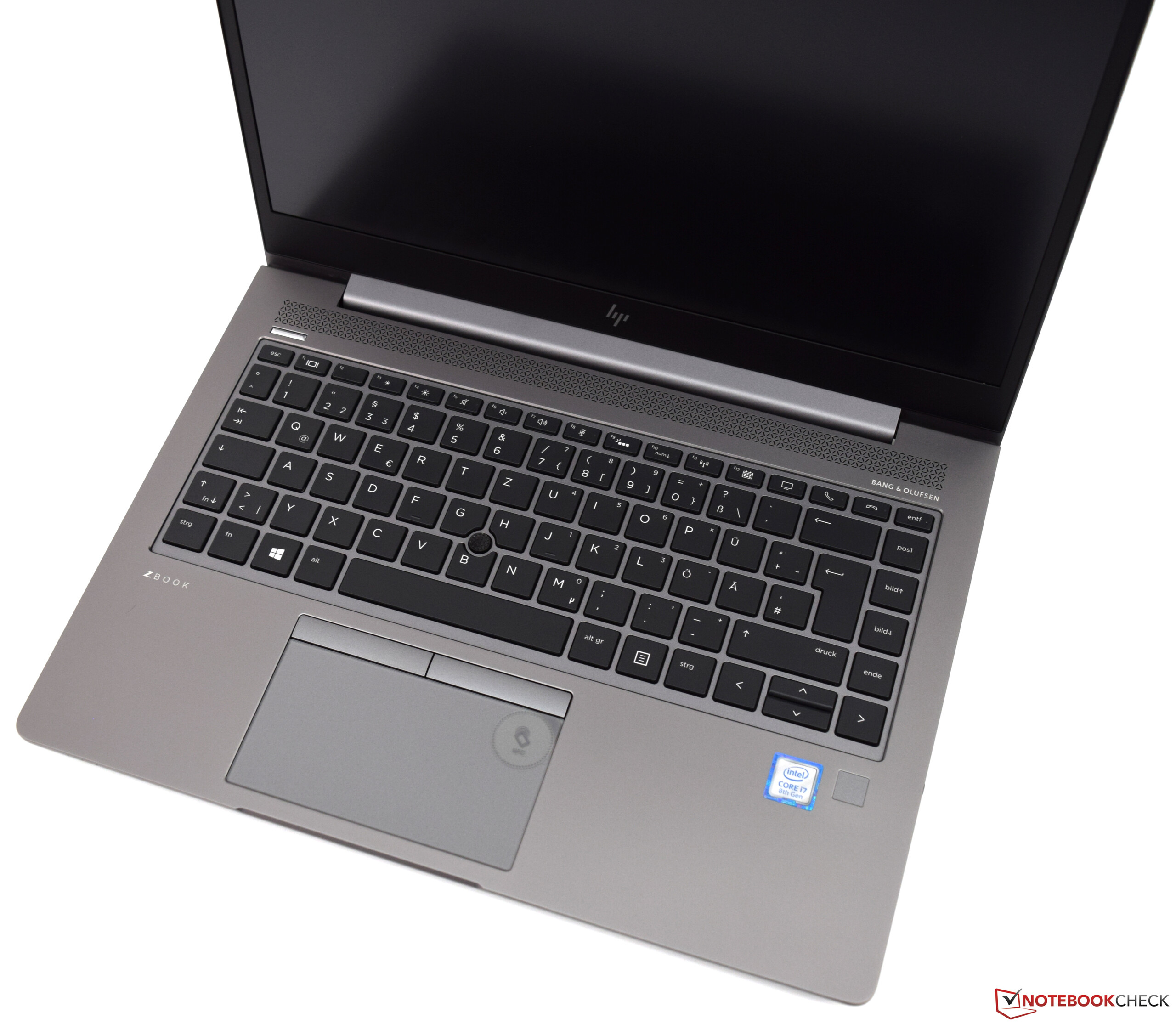

En test : le HP ZBook 14u G5. Modèle de test aimablement fourni par Cyberport.
En test : le HP ZBook 14u G5. Modèle de test aimablement fourni par Cyberport.

Le HP ZBook 14u G5 est une station de travail mobile de 14 pouces, qui entre dans cette catégorie grâce à son processeur puissant et son GPU professionnel. De nombreuses fonctionnalités de sécurité et un SSD NVMe rapide complètent l’ensemble. HP propose ici une station de travail mobile plutôt abordable à 1 680 €, qui remet en question l’intérêt d’acquérir une station de travail haut-de-gamme plus chère…

L’appareil possède néanmoins quelques défauts, en particulier en ce qui concerne l’écran. La luminosité maximale de 215 cd/m² est juste inacceptable à ce prix, tout comme la couverture limitée de l’espace colorimétrique. Même certains portables de bureau bon marché ont un meilleur écran. Et même si l’appareil peut être connecté à une station d’accueil ou à des écrans externes, nous nous attendions à mieux pour une station de travail mobile. Nous ne comprenons pas non plus l’absence de lecteur de carte.

Les performances du système de refroidissement, du processeur et de la carte graphique laissent également à désirer. Le système de refroidissement atteint ses limites en cas de sollicitations, tandis que le processeur est moins bon que dans des appareils comparables. Pire, la carte graphique fait souvent moins bien que l’ancienne AMD FirePro W4190M : le ZBook 14u G5 est battu par son prédécesseur dans certains logiciels pros.

Le HP ZBook 14u G5 est plus fin que son prédécesseur au châssis de haute qualité. HP propose ici une station de travail mobile impressionnante, qui mérite l’attention des clients potentiels.

HP propose beaucoup de variantes de l’appareil, mais malheureusement sans alternative pour l’AMD Radeon Pro WX 3100. Les performances globales sont dans l’ensemble correctes, et l’autonomie est appréciable. De plus, la présence d'un port USB C Thunderbolt permet de voir venir.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

HP ZBook 14u G5-2ZB99EA - 05/18/2018 v6
Sebastian Bade

Châssis
92 / 98 → 94%
Clavier
89%
Dispositif de pointage
89%
Connectivité
62 / 81 → 77%
Poids
68 / 10-66 → 100%
Autonomie
91%
Écran
84%
Performances en jeu
63%
Performances dans les applications
92%
Chauffe
91 / 95 → 95%
Nuisance sonore
97 / 90 → 100%
Audio
68%
Appareil photo
27 / 85 → 32%
Moyenne
76%
81%
Workstation - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique de la station de travail HP ZBook 14u G5 (i7-8550U, Pro WX 3100)
Sebastian Bade, 2018-05-28 (Update: 2018-05-28)
