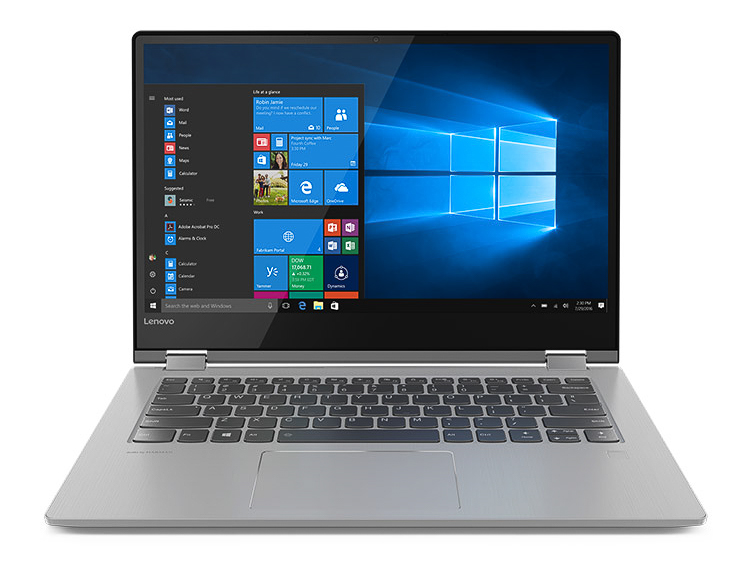

Courte critique du convertible Lenovo Yoga 530-14IKB (i5-8250U, UHD 620, 8 GB, SSD 256 Go)

Sven Kloevekorn, 👁 Sebastian Jentsch, Tanja Hinum-Balaz (traduit par Prévots), 10/19/2018

Acrobate de bureau. La nouvelle série 530 de Lenovo vise les utilisateurs et les entreprises soucieux du prix, mais qui voient les avantages d’un convertible. Le prix du Yoga 530-14IKB est compétitif, mais certains compromis qu'il implique ont dû être faits, comme un poids élevé pour un convertible. Découvrez dans notre test approfondi les forces et les faiblesses de ce jeune premier plutôt réussi.

Lenovo Yoga 530-14IKB-81EK00CWGE (Yoga 530 Gamme)
Carte graphique
Intel UHD Graphics 620, Processeur: 300 - 1100 MHz, shared memory, 24.20.100.6025

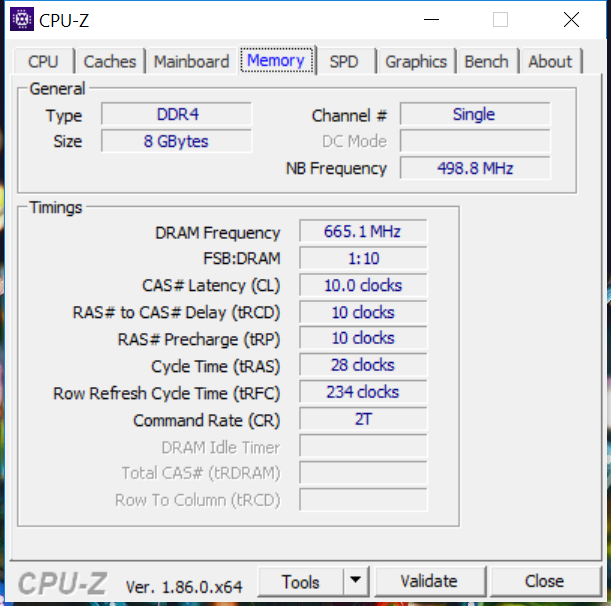

Mémoire
8192 Mo
, DDR4-2,400, single channel, 1 of 2 SO-DIMM slots occupied
Écran
14 pouces 16:9, 1920 x 1080 pixel 157 PPP, 10-point multitouch, InfoVision M140NWF5 R2, IPS, brillant: oui
Carte mère
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Disque dur
SK hynix PC401 HFS256GD9TNG, 256 Go
Carte son
Intel Kaby Lake-U/Y PCH - High Definition Audio

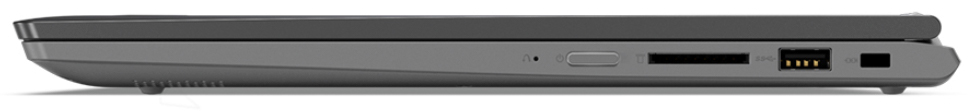

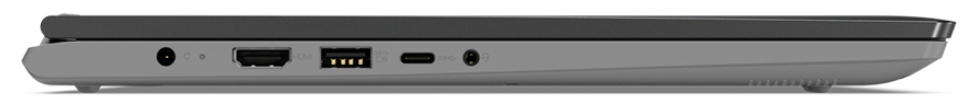

Connexions
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Encoche de Sécurité Kensington, Connectique audio: 3.5 mm combined headphone and microphone jack, Lecteur de cartes mémoires: SD/SDHC/SDXC/MMC, 1 Lecteur d'empreintes digitales, Brightness Sensor
Réseau
Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Taille
Hauteur x Largeur x Profondeur (en mm): 17.6 x 328 x 229
Batterie
45 Wh Lithium-Ion
Système d'exploitation
Microsoft Windows 10 Home 64 Bit
Appareil photo
Webcam: HD 720p
Fonctionnalités additionnelles

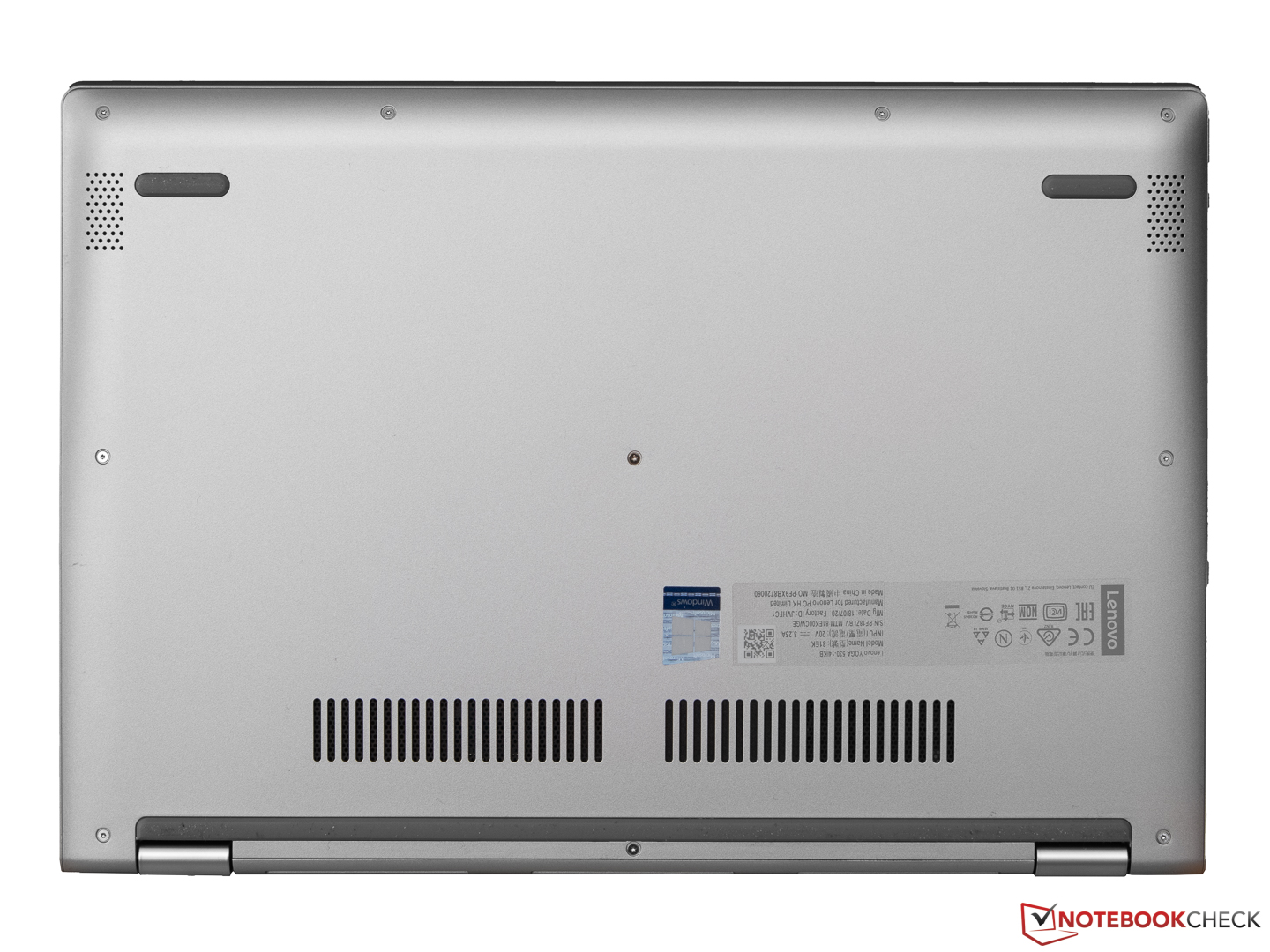

Haut-parleurs: Stereo speakers on the underside of the device, Clavier: Chiclet, Rétroéclairage du clavier: oui, 24 Mois Garantie
Poids
1.6 kg, Alimentation: 210 g
Prix
799 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

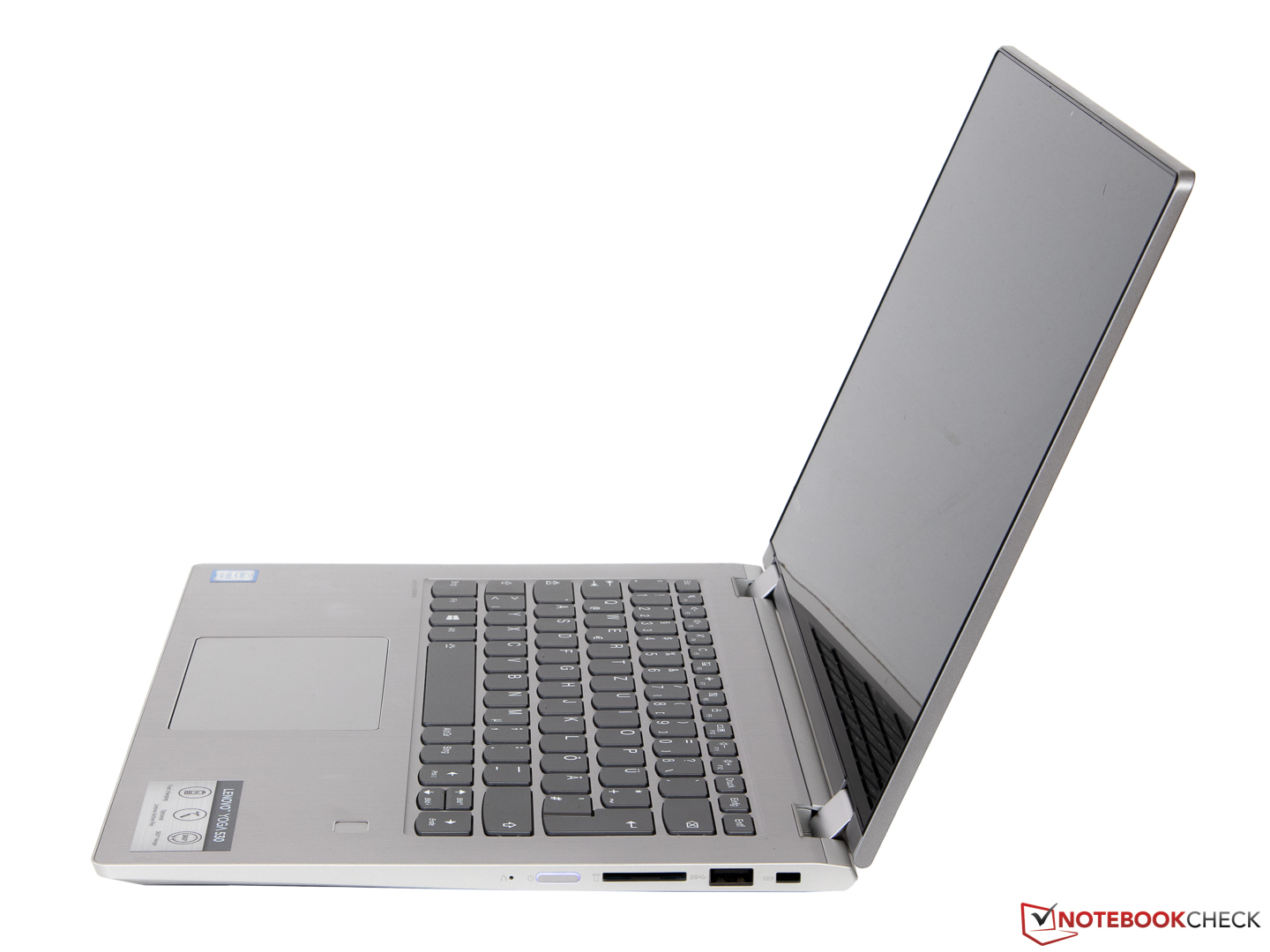

Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB
Lenovo Yoga 530-14IKB

Comparaison des tailles

334.95 mm 229.95 mm 20.8 mm 1.7 kg330 mm 232 mm 19.9 mm 1.7 kg328 mm 229 mm 17.6 mm 1.6 kg327.4 mm 224.8 mm 17.6 mm 1.5 kg
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP ProBook x360 440 G1
  (Toshiba Exceria Pro M501 microSDXC 64GB)
81 MB/s ∼100% +198%
Average of class Convertible
  (7.5 - 197, n=123)
60.1 MB/s ∼74% +121%
Lenovo Yoga 530-14IKB-81EK00CWGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.2 MB/s ∼34%
Asus VivoBook Flip 14 TP412UA-DB51T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
25.3 MB/s ∼31% -7%
Acer Spin 3 SP314-51-548L
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
20.6 MB/s ∼25% -24%
maximum AS SSD Seq Read Test (1GB)
HP ProBook x360 440 G1
  (Toshiba Exceria Pro M501 microSDXC 64GB)
74.9 MB/s ∼100% +158%
Average of class Convertible
  (21.7 - 246, n=121)
74.6 MB/s ∼100% +157%
Lenovo Yoga 530-14IKB-81EK00CWGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
29 MB/s ∼39%
Asus VivoBook Flip 14 TP412UA-DB51T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.87 MB/s ∼37% -4%
Acer Spin 3 SP314-51-548L
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
24.8 MB/s ∼33% -14%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus VivoBook Flip 14 TP412UA-DB51T
Intel Dual Band Wireless-AC 8265
613 MBit/s ∼100% +96%
Acer Spin 3 SP314-51-548L
Atheros/Qualcomm QCA6174
596 MBit/s ∼97% +91%
HP ProBook x360 440 G1
Intel Dual Band Wireless-AC 8265
504 MBit/s ∼82% +62%
Average of class Convertible
  (28.7 - 678, n=137)
487 MBit/s ∼79% +56%
Lenovo Yoga 530-14IKB-81EK00CWGE
Intel Dual Band Wireless-AC 3165
312 MBit/s ∼51%
iperf3 Client (transmit) TCP 1 m 4M x10
HP ProBook x360 440 G1
Intel Dual Band Wireless-AC 8265
624 MBit/s ∼100% +97%
Asus VivoBook Flip 14 TP412UA-DB51T
Intel Dual Band Wireless-AC 8265
506 MBit/s ∼81% +60%
Average of class Convertible
  (36.4 - 685, n=137)
496 MBit/s ∼79% +56%
Lenovo Yoga 530-14IKB-81EK00CWGE
Intel Dual Band Wireless-AC 3165
317 MBit/s ∼51%
Acer Spin 3 SP314-51-548L
Atheros/Qualcomm QCA6174
300 MBit/s ∼48% -5%
239
cd/m²
242
cd/m²
243
cd/m²
230
cd/m²
240
cd/m²
227
cd/m²
230
cd/m²
229
cd/m²
228
cd/m²
Homogénéité de la luminosité
InfoVision M140NWF5 R2
X-Rite i1Pro 2
Maximum: 243 cd/m² Moyenne: 234.2 cd/m² Minimum: 4.7 cd/m²
Homogénéité de la luminosité: 93 %
Valeur mesurée au centre, sur batterie: 240 cd/m²
Contraste: 2182:1 (Valeurs des noirs: 0.11 cd/m²)
ΔE Color 4.98 | 0.6-29.43 Ø6.1, calibrated: 3.33
ΔE Greyscale 3.51 | 0.64-98 Ø6.3
62% sRGB (Argyll 3D) 40% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.2
Lenovo Yoga 530-14IKB-81EK00CWGE
InfoVision M140NWF5 R2, , 1920x1080, 14
HP ProBook x360 440 G1
Chi MEi, CMN14E0, , 1920x1080, 14
Acer Spin 3 SP314-51-548L
BOE CQ NV140FHM-N41, , 1920x1080, 14
Asus VivoBook Flip 14 TP412UA-DB51T
AUO B140HAN04.0, , 1920x1080, 14
Response Times
1652%
26%
7%
Response Time Grey 50% / Grey 80% *
45 (20, 25)
34 (16, 18)
24%
43 (21, 22)
4%
38 (19.6, 18.4)
16%
Response Time Black / White *
30 (14, 16)
20 (11, 9)
33%
35 (21, 14)
-17%
30.8 (17.2, 13.6)
-3%
PWM Frequency
520 (90)
26000 (50)
4900%
1000
92%
Screen
26%
-6%
-25%
Brightness middle
240
408
70%
220
-8%
255.5
6%
Brightness
234
375
60%
221
-6%
242
3%
Brightness Distribution
93
87
-6%
78
-16%
87
-6%
Black Level *
0.11
0.34
-209%
0.18
-64%
0.29
-164%
Contrast
2182
1200
-45%
1222
-44%
881
-60%
Colorchecker DeltaE2000 *
4.98
1.2
76%
3.98
20%
4.18
16%
Colorchecker DeltaE2000 max. *
10.75
2.44
77%
7.69
28%
19.15
-78%
Colorchecker DeltaE2000 calibrated *
3.33
0.67
80%
4
-20%
3.8
-14%
Greyscale DeltaE2000 *
3.51
0.98
72%
1.68
52%
2.2
37%
Gamma
2.2 100%
2.32 95%
2.37 93%
2.05 107%
CCT
6606 98%
6485 100%
6382 102%
6599 98%
Color Space (Percent of AdobeRGB 1998)
40
62
55%
38
-5%
37.5
-6%
Color Space (Percent of sRGB)
62
98
58%
58
-6%
59.1
-5%
Moyenne finale (programmes/paramètres)
839% / 375%
10% / 1%
-9% / -20%

* ... Moindre est la valeur, meilleures sont les performances

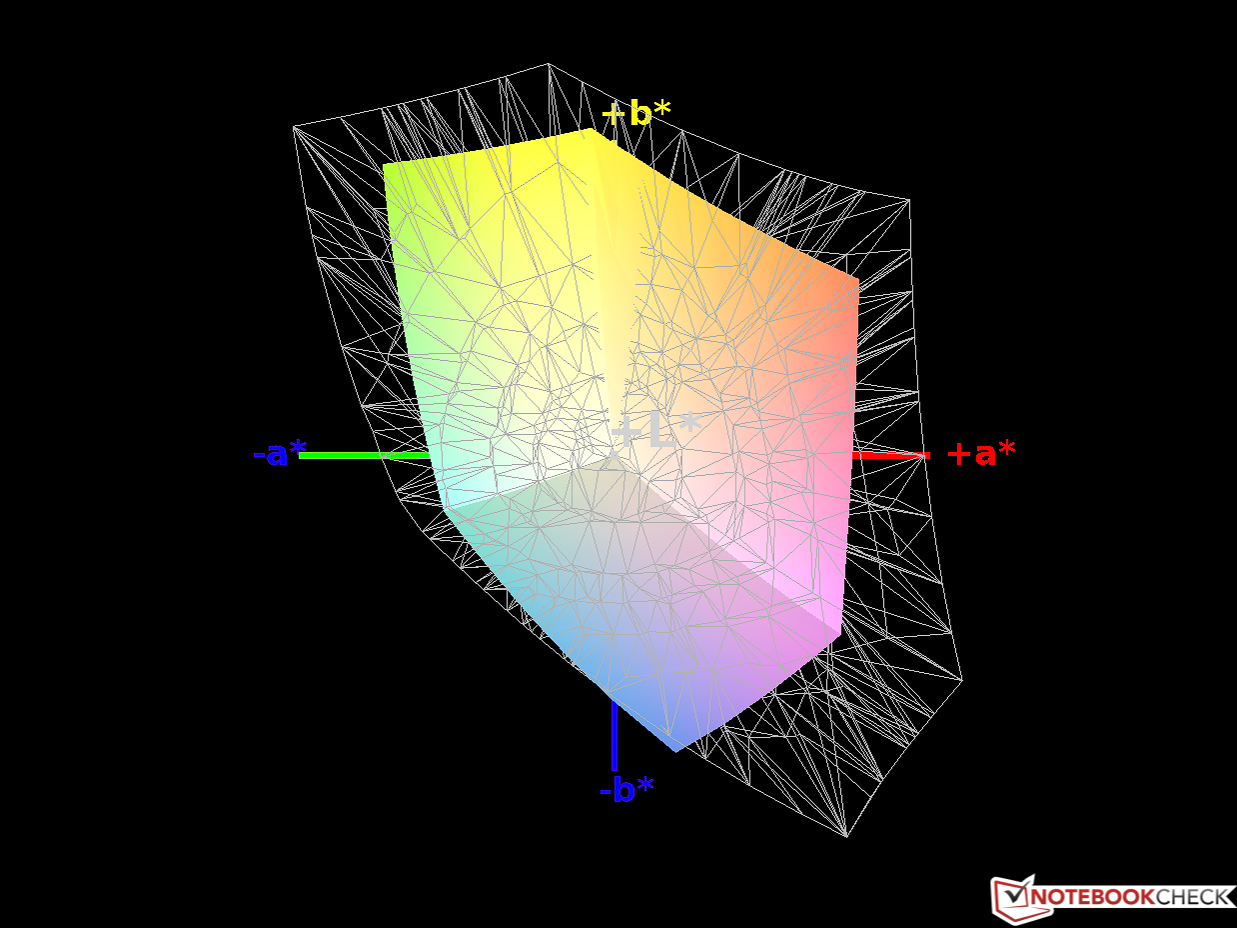

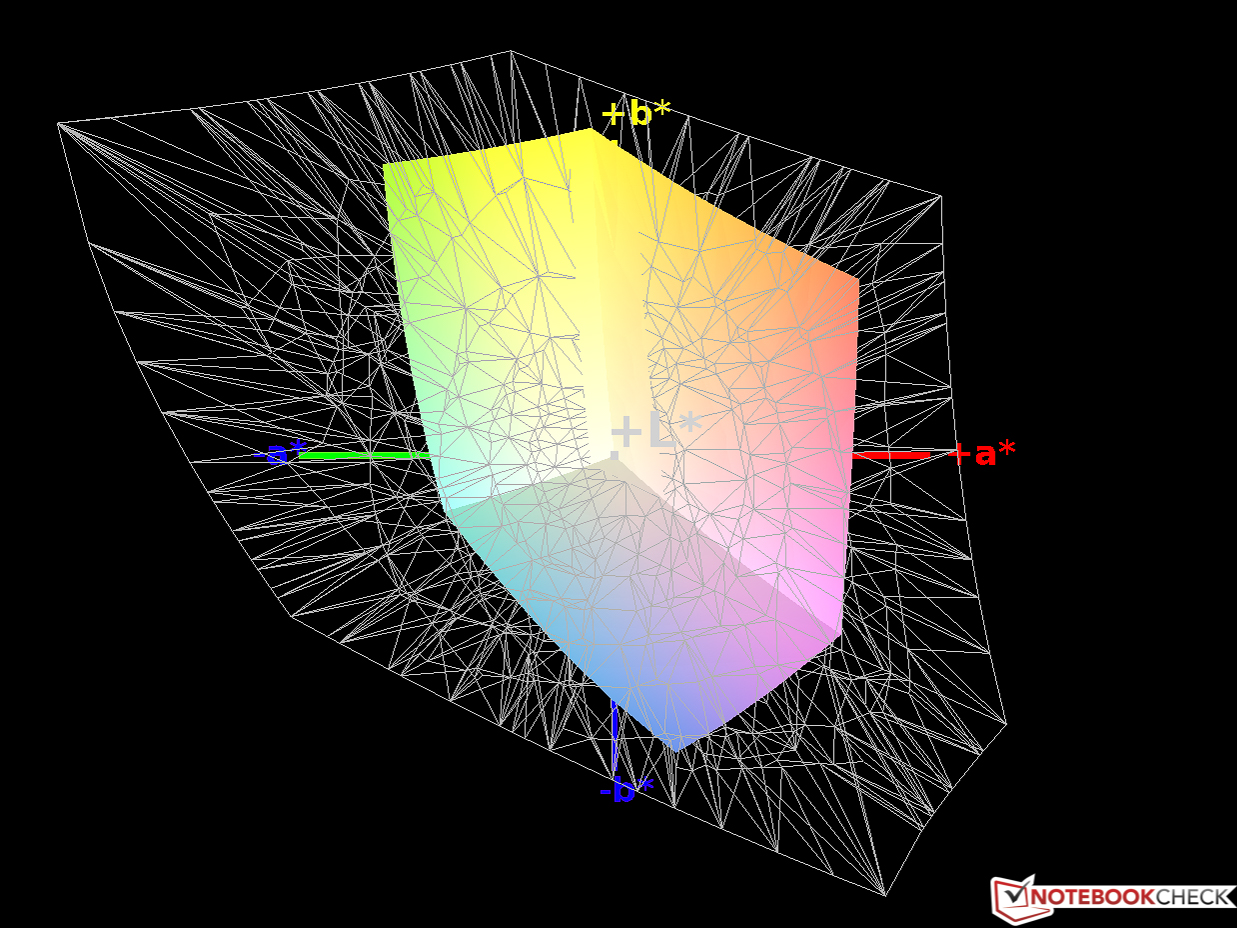

Lenovo Yoga 530-14IKB - AdobeRVB : 40%.
AdobeRVB : 40%.
Lenovo Yoga 530-14IKB - sRVB : 62%.
sRVB : 62%.

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

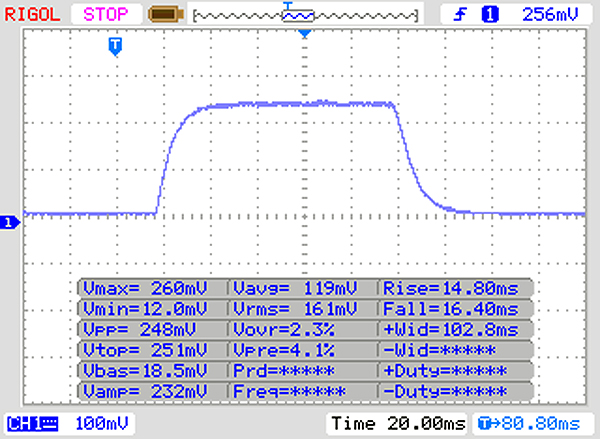

       Temps de réponse noir à blanc
30 ms ... hausse ↗ et chute ↘ combinées↗ 14 ms hausse
↘ 16 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 73 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (25.1 ms) de tous les appareils testés.

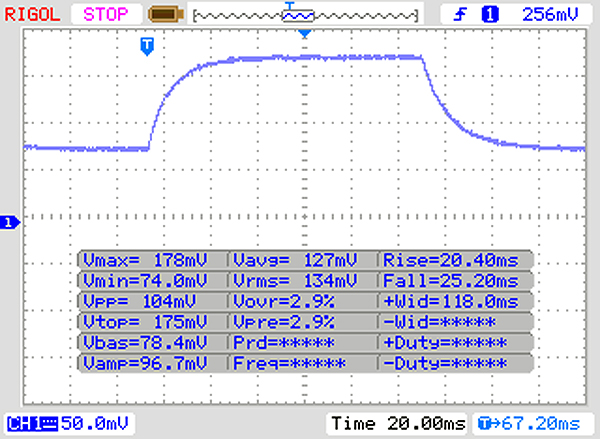

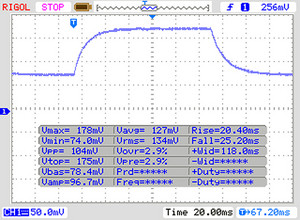

       Temps de réponse gris 50% à gris 80%
45 ms ... hausse ↗ et chute ↘ combinées↗ 20 ms hausse
↘ 25 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 70 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (40 ms) de tous les appareils testés.

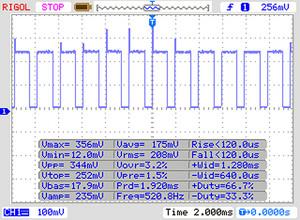

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) décelé 520 Hz ≤ 90 Niveau de luminosité

Le rétroéclairage de l'écran scintille à la fréquence de 520 Hz (certainement du fait de l'utilisation d'une MDI - Modulation de largeur d'impulsion) à un niveau de luminosité inférieur ou égal à 90 % . Aucun scintillement ne devrait être perceptible au-dessus de cette valeur.

La fréquence de rafraîchissement de 520 Hz est élevée, la grande majorité des utilisateurs ne devrait pas percevoir de scintillements et être sujette à une fatigue oculaire accrue.

En comparaison, 51 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 9418 (minimum : 43 - maximum : 142900) Hz dans le cas où une MDI était active.


Cinebench R15
CPU Single 64Bit
Acer Spin 3 SP314-51-548L
Intel Core i5-8250U
144 Points ∼100% 0%
HP ProBook x360 440 G1
Intel Core i5-8250U
144 Points ∼100% 0%
Lenovo Yoga 530-14IKB-81EK00CWGE
Intel Core i5-8250U
144 Points ∼100%
Asus VivoBook Flip 14 TP412UA-DB51T
Intel Core i5-8250U
144 Points ∼100% 0%
Average Intel Core i5-8250U
  (81 - 147, n=94)
141 Points ∼98% -2%
Average of class Convertible
  (19 - 179, n=292)
104 Points ∼72% -28%
CPU Multi 64Bit
Average Intel Core i5-8250U
  (320 - 730, n=98)
568 Points ∼100% +6%
HP ProBook x360 440 G1
Intel Core i5-8250U
547 Points ∼96% +2%
Lenovo Yoga 530-14IKB-81EK00CWGE
Intel Core i5-8250U
535 Points ∼94%
Acer Spin 3 SP314-51-548L
Intel Core i5-8250U
523 Points ∼92% -2%
Asus VivoBook Flip 14 TP412UA-DB51T
Intel Core i5-8250U
521 Points ∼92% -3%
Average of class Convertible
  (33 - 761, n=299)
292 Points ∼51% -45%
Cinebench R15 CPU Multi 64Bit
535 Points
Cinebench R15 CPU Single 64Bit
144 Points
Aide
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600Tooltip
Lenovo Yoga 530-14IKB-81EK00CWGE Intel Core i5-8250U: Ø502 (498.68-535.35)
HP ProBook x360 440 G1 Intel Core i5-8250U: Ø508 (496.57-547.14)
Acer Spin 3 SP314-51-548L Intel Core i5-8250U: Ø476 (440.88-522.5)
Asus VivoBook Flip 14 TP412UA-DB51T Intel Core i5-8250U: Ø549 (543.42-590.28)
PCMark 10
Digital Content Creation
HP ProBook x360 440 G1
UHD Graphics 620, 8250U, Toshiba KBG30ZMV256G
3008 Points ∼100% +12%
Asus VivoBook Flip 14 TP412UA-DB51T
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
2779 Points ∼92% +3%
Average Intel Core i5-8250U, Intel UHD Graphics 620
  (2688 - 3082, n=64)
2733 Points ∼91% +1%
Acer Spin 3 SP314-51-548L
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
2706 Points ∼90% 0%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
2695 Points ∼90%
Average of class Convertible
  (605 - 4342, n=89)
2453 Points ∼82% -9%
Productivity
Acer Spin 3 SP314-51-548L
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
6270 Points ∼100% +12%
HP ProBook x360 440 G1
UHD Graphics 620, 8250U, Toshiba KBG30ZMV256G
5970 Points ∼95% +7%
Average Intel Core i5-8250U, Intel UHD Graphics 620
  (3851 - 6653, n=64)
5730 Points ∼91% +3%
Asus VivoBook Flip 14 TP412UA-DB51T
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
5722 Points ∼91% +2%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
5583 Points ∼89%
Average of class Convertible
  (1121 - 7077, n=91)
5199 Points ∼83% -7%
Essentials
HP ProBook x360 440 G1
UHD Graphics 620, 8250U, Toshiba KBG30ZMV256G
7966 Points ∼100% +2%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
7837 Points ∼98%
Asus VivoBook Flip 14 TP412UA-DB51T
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
7731 Points ∼97% -1%
Acer Spin 3 SP314-51-548L
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
7548 Points ∼95% -4%
Average Intel Core i5-8250U, Intel UHD Graphics 620
  (5855 - 9289, n=64)
7400 Points ∼93% -6%
Average of class Convertible
  (2489 - 9291, n=91)
6869 Points ∼86% -12%
Score
Acer Spin 3 SP314-51-548L
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
3613 Points ∼100% +3%
Asus VivoBook Flip 14 TP412UA-DB51T
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
3564 Points ∼99% +1%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
3515 Points ∼97%
Average Intel Core i5-8250U, Intel UHD Graphics 620
  (3407 - 4081, n=64)
3288 Points ∼91% -6%
Average of class Convertible
  (872 - 4347, n=92)
3132 Points ∼87% -11%
HP ProBook x360 440 G1
UHD Graphics 620, 8250U, Toshiba KBG30ZMV256G
2688 Points ∼74% -24%
Lenovo Yoga 530-14IKB-81EK00CWGE
SK hynix PC401 HFS256GD9TNG
HP ProBook x360 440 G1
Toshiba KBG30ZMV256G
Acer Spin 3 SP314-51-548L
Micron 1100 MTFDDAV256TBN
Asus VivoBook Flip 14 TP412UA-DB51T
Micron 1100 MTFDDAV256TBN
Average SK hynix PC401 HFS256GD9TNG

CrystalDiskMark 3.0
23%
-13%
13%
Write 4k QD32
222.5
340.2
53%
260.6
17%
268 (223 - 302, n=4)
20%
Read 4k QD32
294.2
264.9
-10%
246.7
-16%
278 (246 - 305, n=4)
-6%
Write 4k
93.12
89.25
-4%
86.65
-7%
97.6 (84.6 - 121, n=4)
5%
Read 4k
27.92
41.23
48%
27.17
-3%
36 (27.9 - 42.5, n=4)
29%
Write 512
329.3
449.4
36%
345.4
5%
333 (329 - 338, n=4)
1%
Read 512
773
620
-20%
316.4
-59%
843 (773 - 941, n=4)
9%
Write Seq
343.3
695.2
103%
439.8
28%
458 (343 - 648, n=4)
33%
Read Seq
1368
1065
-22%
484.3
-65%
1513 (1368 - 1722, n=4)
11%
SK hynix PC401 HFS256GD9TNG
Sequential Read: 1368 MB/s
Sequential Write: 343.3 MB/s
512K Read: 773 MB/s
512K Write: 329.3 MB/s
4K Read: 27.92 MB/s
4K Write: 93.12 MB/s
4K QD32 Read: 294.2 MB/s
4K QD32 Write: 222.5 MB/s
3DMark 11 - 1280x720 Performance GPU
HP ProBook x360 440 G1
Intel UHD Graphics 620, Intel Core i5-8250U
1854 Points ∼100% +11%
Asus VivoBook Flip 14 TP412UA-DB51T
Intel UHD Graphics 620, Intel Core i5-8250U
1737 Points ∼94% +4%
Average Intel UHD Graphics 620
  (1235 - 3743, n=155)
1719 Points ∼93% +3%
Lenovo Yoga 530-14IKB-81EK00CWGE
Intel UHD Graphics 620, Intel Core i5-8250U
1663 Points ∼90%
Acer Spin 3 SP314-51-548L
Intel UHD Graphics 620, Intel Core i5-8250U
1634 Points ∼88% -2%
Average of class Convertible
  (173 - 7483, n=320)
1231 Points ∼66% -26%
3DMark
1920x1080 Fire Strike Graphics
HP ProBook x360 440 G1
Intel UHD Graphics 620, Intel Core i5-8250U
1298 Points ∼100% +22%
Average Intel UHD Graphics 620
  (557 - 1401, n=124)
1119 Points ∼86% +5%
Acer Spin 3 SP314-51-548L
Intel UHD Graphics 620, Intel Core i5-8250U
1117 Points ∼86% +5%
Lenovo Yoga 530-14IKB-81EK00CWGE
Intel UHD Graphics 620, Intel Core i5-8250U
1068 Points ∼82%
Average of class Convertible
  (132 - 5965, n=229)
991 Points ∼76% -7%
1280x720 Cloud Gate Standard Graphics
HP ProBook x360 440 G1
Intel UHD Graphics 620, Intel Core i5-8250U
10331 Points ∼100% +23%
Acer Spin 3 SP314-51-548L
Intel UHD Graphics 620, Intel Core i5-8250U
9128 Points ∼88% +9%
Average Intel UHD Graphics 620
  (6910 - 11436, n=142)
9118 Points ∼88% +9%
Lenovo Yoga 530-14IKB-81EK00CWGE
Intel UHD Graphics 620, Intel Core i5-8250U
8374 Points ∼81%
Average of class Convertible
  (1023 - 37388, n=281)
6618 Points ∼64% -21%
3DMark 11 Performance
1803 points
3DMark Cloud Gate Standard Score
7467 points
3DMark Fire Strike Score
984 points
Aide
BioShock Infinite
1366x768 Medium Preset
HP ProBook x360 440 G1
UHD Graphics 620, 8250U, Toshiba KBG30ZMV256G
38.8 fps ∼100% +33%
Asus VivoBook Flip 14 TP412UA-DB51T
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
34.3 fps ∼88% +17%
Average Intel UHD Graphics 620
  (11.5 - 45.5, n=141)
32 fps ∼82% +10%
Acer Spin 3 SP314-51-548L
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
30.6 fps ∼79% +5%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
29.2 fps ∼75%
Average of class Convertible
  (5.2 - 168, n=201)
28.8 fps ∼74% -1%
1280x720 Very Low Preset
HP ProBook x360 440 G1
UHD Graphics 620, 8250U, Toshiba KBG30ZMV256G
76.2 fps ∼100% +44%
Asus VivoBook Flip 14 TP412UA-DB51T
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
63.8 fps ∼84% +20%
Acer Spin 3 SP314-51-548L
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
62.3 fps ∼82% +18%
Average Intel UHD Graphics 620
  (18.3 - 83, n=141)
59.7 fps ∼78% +13%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
53 fps ∼70%
Average of class Convertible
  (8.35 - 247, n=203)
49.5 fps ∼65% -7%
Ghost Recon Wildlands - 1280x720 Low Preset
Average of class Convertible
  (8.1 - 73.8, n=8)
19.4 fps ∼100% +42%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
13.7 fps ∼71%
Average Intel UHD Graphics 620
  (13.2 - 13.7, n=2)
13.5 fps ∼70% -1%
Rise of the Tomb Raider
1366x768 Medium Preset AF:2x
HP ProBook x360 440 G1
UHD Graphics 620, 8250U, Toshiba KBG30ZMV256G
14.7 fps ∼100% +25%
Average of class Convertible
  (3.9 - 66.4, n=59)
14.6 fps ∼99% +24%
Average Intel UHD Graphics 620
  (6.5 - 49.3, n=56)
12.9 fps ∼88% +9%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
11.8 fps ∼80%
1024x768 Lowest Preset
Average of class Convertible
  (5.3 - 99.4, n=81)
21.5 fps ∼100% +8%
Average Intel UHD Graphics 620
  (10.4 - 111, n=72)
21.3 fps ∼99% +7%
HP ProBook x360 440 G1
UHD Graphics 620, 8250U, Toshiba KBG30ZMV256G
21.2 fps ∼99% +7%
Lenovo Yoga 530-14IKB-81EK00CWGE
UHD Graphics 620, 8250U, SK hynix PC401 HFS256GD9TNG
19.9 fps ∼93%
Bas Moyen Élevé Ultra
BioShock Infinite (2013) 5329.22410.7fps
Rise of the Tomb Raider (2016) 19.911.8fps
Ghost Recon Wildlands (2017) 13.7fps

Degré de la nuisance sonore

Au repos
30.3 / 30.3 / 30.3 dB(A)
Fortement sollicité
36.1 / 33.9 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.633.934.530.635.6253234.336.531.8323141.640.238.729.641.64032.732.530.730.732.75033.533.832.928.633.56328.627.328.227.628.68028.927.225.82628.910025.126.725.325.825.112524.424.925.92424.416023.324.323.323.623.320022.52323.122.722.525021.522.32221.121.531521.123.222.720.921.1400202221.220.320500192120.319.61963018.7212018.818.780018.32321.518.418.3100017.826.824.31817.812501825.923.418.518160017.624.922.217.617.6200017.325.422.717.717.3250017.827.724.618.117.8315017.924.121.31817.9400018.222.620.617.818.2500018.121.719.317.918.1630018.121.418.918.118.1800018.218.818.318.218.21000018.318.418.318.218.31250018.118.218.11818.11600018.218.218.11818.2SPL30.336.233.930.430.3N1.22.21.81.31.2median 18.2median 23median 21.5median 18.2median 18.2Delta11.91.72131.131.631.135.732.529.731.535.832.929.832.137.531.329.231.231.531.532.830.336.628.629.128.327.627.828.42827.226.626.726.625.126.325.825.425.824.725.223.924.323.824.223.723.123.52322.722.722.122.523.121.721.722.122.220.721.122.522.32020.123.222.919.820.124.425.918.620.32525.518.219.924.824.617.92126.826.917.820.926.726.917.520.126.126.317.620.12626.317.918.824.924.81818.321.521.618.118.319.919.818.118.418.718.718.218.318.318.418.118.118.318.31818.218.318.318.132.136.536.730.61.52.32.31.3median 20.1median 24.2median 23.7median 18.22.22.22.5234.533.832.933.834.53330.932.833.53336.735.734.33636.731.429.930.829.931.430.733.333.232.430.728.327.627.22928.327.929.326.826.727.929.426.526.72629.425.226.925.425.325.223.82423.622.723.823.824.1222223.82523.221.821.42527.82720.820.527.832.823.720.119.832.824.722.719.119.224.724.923.318.71824.926.725.718.417.826.740.131.617.517.440.137.232.617.517.137.229.625.517.917.129.6292617.417.42930.427.117.517.230.430.626.217.717.430.627.122.617.917.727.123.820.518.117.923.822.82018.117.822.821.219.118.218.121.220.518.918.418.120.519.218.518.218.119.219.118.518.418.219.14438.530.3304442.81.41.34median 25.2median 24median 18.4median 18.1median 25.23.22.521.53.2hearing rangehide median Fan NoiseLenovo Yoga 530-14IKB-81EK00CWGEHP ProBook x360 440 G1Acer Spin 3 SP314-51-548L
Au repos/à faible charge
 24.7 °C25.4 °C25.1 °C
 24.3 °C25.2 °C25.4 °C
 22.5 °C22.6 °C23.9 °C
Maximum: 25.4 °C
Moyenne: 24.3 °C
24.4 °C25.9 °C24.4 °C
27 °C24.9 °C24.6 °C
24.1 °C23.3 °C23.4 °C
Maximum: 27 °C
Moyenne: 24.7 °C
Alimentation (valeur maximale)  25.5 °C | Température ambiante de la pièce 21.6 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30.8 °C / 87 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 35 °C / 95 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 35.6 °C / 96 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.3 °C / 76 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.3 °C / 81.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (+1.7 °C / 3.1 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.730.636.72536.731.836.73140.729.640.74032.730.732.75036.128.636.16328.527.628.58026.92626.910025.425.825.412526.42426.416032.523.632.520037.422.737.425052.221.152.231559.320.959.340062.720.362.750055.619.655.663054.718.854.780063.818.463.8100063.21863.2125061.818.561.816006517.665200069.917.769.9250066.218.166.2315063.51863.5400062.417.862.450005717.957630063.518.163.5800065.318.265.31000066.318.266.31250064.61864.61600058.11858.1SPL76.530.476.5N35.71.335.7median 62.4median 18.2median 62.4Delta7.527.531.935.731.931.235.831.232.637.532.63131.53128.836.628.827.527.627.526.327.226.326.925.126.927.625.827.634.724.334.740.223.140.240.222.740.250.321.750.361.120.761.157.62057.663.519.863.567.618.667.668.418.268.468.717.968.767.817.867.866.517.566.569.517.669.570.817.970.867.91867.973.318.173.369.518.169.569.118.269.163.518.163.561186152.718.152.780.830.680.845.51.345.5median 63.5median 18.2median 63.510.4210.431.633.831.633.133.533.13636363329.93330.932.430.927.52927.526.626.726.625.92625.926.425.326.438.122.738.146.72246.743.921.443.944.420.544.459.319.859.360.519.260.562.41862.465.117.865.164.217.464.263.317.163.362.317.162.36317.46366.617.266.665.217.465.262.417.762.46617.96660.817.860.865.918.165.964.418.164.456.518.156.557.618.257.676307637.71.337.7median 62.3median 18.1median 62.38.41.58.438.340.732.435.833.133.933.332.931.13130.533.630.231.128.732.127.4392749.126.55426.359.826.163.725.565.524.665.224.366.224.173.324.274.623.870.123.567.823.272.223.266.623.36623.26823.271.923.275.123.176.323.17722.972.822.974.835.7842.560.5median 23.8median 67.80.97.2hearing rangehide median Pink NoiseLenovo Yoga 530-14IKB-81EK00CWGEHP ProBook x360 440 G1Acer Spin 3 SP314-51-548LAsus VivoBook Flip 14 TP412UA-DB51T
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo Yoga 530-14IKB-81EK00CWGE audio analysis

(-) | not very loud speakers (69.87 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.6% lower than median
(±) | linearity of bass is average (13.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(±) | linearity of mids is average (8.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.1% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 9% similar, 54% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 37% of all tested devices were better, 6% similar, 57% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP ProBook x360 440 G1 audio analysis

(±) | speaker loudness is average but good (73.34 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.8% lower than median
(±) | linearity of bass is average (8.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(±) | linearity of mids is average (7.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.4% difference to median)
Compared to same class
» 62% of all tested devices in this class were better, 7% similar, 31% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 63% of all tested devices were better, 9% similar, 29% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Acer Spin 3 SP314-51-548L audio analysis

(-) | not very loud speakers (66.62 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.8% lower than median
(±) | linearity of bass is average (9.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.4% away from median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(±) | linearity of highs is average (7.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.6% difference to median)
Compared to same class
» 33% of all tested devices in this class were better, 8% similar, 59% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 34% of all tested devices were better, 6% similar, 60% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Asus VivoBook Flip 14 TP412UA-DB51T audio analysis

(±) | speaker loudness is average but good (77.01 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.2% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.7% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 7% similar, 65% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 28% of all tested devices were better, 7% similar, 65% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consommation énergétique
Éteint/en veilledarklight 0.28 / 0.44 Watts
Au reposdarkmidlight 3.3 / 5.8 / 8 Watts
Fortement sollicité midlight 29.2 / 31.1 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Lenovo Yoga 530-14IKB-81EK00CWGE
8250U, UHD Graphics 620, SK hynix PC401 HFS256GD9TNG, IPS, 1920x1080, 14
HP ProBook x360 440 G1
8250U, UHD Graphics 620, Toshiba KBG30ZMV256G, IPS, 1920x1080, 14
Acer Spin 3 SP314-51-548L
8250U, UHD Graphics 620, Micron 1100 MTFDDAV256TBN, IPS, 1920x1080, 14
Asus VivoBook Flip 14 TP412UA-DB51T
8250U, UHD Graphics 620, Micron 1100 MTFDDAV256TBN, IPS, 1920x1080, 14
Average Intel UHD Graphics 620

Average of class Convertible

Power Consumption
-28%
12%
3%
-23%
-17%
Idle Minimum *
3.3
4.6
-39%
2.9
12%
3.3
-0%
3.89 (1 - 12.4, n=163)
-18%
4.68 (1 - 23, n=368)
-42%
Idle Average *
5.8
7.5
-29%
5.2
10%
5.2
10%
7.14 (4.3 - 15.5, n=163)
-23%
7.84 (1.3 - 32.3, n=368)
-35%
Idle Maximum *
8
9.6
-20%
5.4
32%
5.6
30%
9 (5.2 - 16.6, n=163)
-13%
9.35 (1.8 - 61, n=368)
-17%
Load Average *
29.2
37
-27%
29.4
-1%
32.9
-13%
35.4 (12.9 - 51.6, n=163)
-21%
26.3 (1.4 - 94, n=366)
10%
Load Maximum *
31.1
38.8
-25%
29.6
5%
35.2
-13%
43.8 (22 - 79, n=163)
-41%
31.2 (6.8 - 117, n=367)
-0%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
15h 18min
En navigation internet via le module WiFi WLAN
0h 00min
NBC WiFi Websurfing Battery Test 1.3
6h 57min
En lecture de Big Buck Bunny encodé en H.264 1080p
9h 03min
Fortement sollicité (luminosité au maximum)
1h 45min
Lenovo Yoga 530-14IKB-81EK00CWGE
8250U, UHD Graphics 620, 45 Wh
HP ProBook x360 440 G1
8250U, UHD Graphics 620, 48 Wh
Acer Spin 3 SP314-51-548L
8250U, UHD Graphics 620, 52.5 Wh
Asus VivoBook Flip 14 TP412UA-DB51T
8250U, UHD Graphics 620, 42 Wh
Average of class Convertible

Autonomie de la batterie
22%
19%
39%
3%
Reader / Idle
918
1038
13%
764 (117 - 1985, n=287)
-17%
H.264
543
496
-9%
447 (206 - 1070, n=111)
-18%
WiFi v1.3
417
536
29%
496
19%
578
39%
453 (153 - 1010, n=242)
9%
Load
105
163
55%
146 (49 - 677, n=279)
39%

Points positifs

+ affordable base model
+ solid, stylish and well-constructed case
+ TPM 2.0 & a fingerprint sensor
+ impressive input devices
+ extremely low display black value
+ high contrast ratio
+ good CPU turbo boost utilization (CB R15)
+ quick PCIe SSD
+ quiet and cool

Points négatifs

- rather heavy
- tricky to open
- the hinges are too tight
- the display bounces when using the device
- slow SD card reader
- only 1x1 Wi-Fi
- no maintenance cover
- battery only accessible by removing the bottom case
- the display could be better
- backlight bleed in dark pictures
- only 62% sRGB color-space coverage
- relatively short battery life
En test : le Lenovo Yoga 530-14IKB review. Modèle de test aimablement fourni par notebooksbilliger.de.
En test : le Lenovo Yoga 530-14IKB review. Modèle de test aimablement fourni par notebooksbilliger.de.

Le Lenovo Yoga 530-14IKB est une appareil impressionnant avec quelques compromis - qu'il fallait prévoir, vu le prix de l’appareil. Mais le nombre de points négatifs est quelque peu trompeur - nous avons noté son poids élevé, son Wifi inférieur à la moyenne, sa faible couverture de l’espace colorimétrique, et son autonomie comparativement réduite.

Du côté des points positifs, l’appareil est bien conçu, et son châssis est robuste. L’appareil Lenovo a équipé le Yoga 530 de fonctionnalités de sécurité modernes, et de bons périphériques d’entrée. De plus, l’écran possède un excellent contraste et des noirs incroyablement faibles. La RAM n’est que de 8 Go, mais cela peut être amélioré avec un plus gros pagefile (mémoire virtuelle) sur le SSD rapide. L’appareil est également exceptionnellement frais et silencieux.

Dans notre test, le Yoga 530 arrive en deuxième position, derrière le HP ProBook x360 440 G1. Celui-ci est plus cher, mais fait moins de compromis, et possède une trappe de maintenance, une webcam infrarouge, un module LTE, et possède une meilleure autonomie. Le ProBook x360 est cependant plus lourd et possède des ventilateurs plus aigus.

Le Lenovo Yoga 530-14IKB 81EK00CWGE est l’un des meilleurs convertibles dans les 800 €, malgré ses compromis. Ce bon ratio prix-performances semble s’appliquer à l’ensemble de la série.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Lenovo Yoga 530-14IKB-81EK00CWGE - 10/15/2018 v6
Sven Kloevekorn

Châssis
84 / 98 → 85%
Clavier
91%
Dispositif de pointage
91%
Connectivité
48 / 80 → 60%
Poids
68 / 35-78 → 76%
Autonomie
90%
Écran
82%
Performances en jeu
58 / 68 → 85%
Performances dans les applications
89 / 87 → 100%
Chauffe
90%
Nuisance sonore
93%
Audio
50 / 91 → 55%
Appareil photo
54 / 85 → 63%
Moyenne
76%
84%
Convertible - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique du convertible Lenovo Yoga 530-14IKB (i5-8250U, UHD 620, 8 GB, SSD 256 Go)
Sven Kloevekorn, 2018-10-19 (Update: 2018-10-19)
