Test de l'Ace Magician T8Pro : un mini PC économique pour le bureau

Silencieux et efficace ! L'Ace Magician T8Pro est un PC de bureau extrêmement compact commercialisé par Minipc Union. Le SoC Jasper Lake qu'il contient est seulement capable d'exécuter des tâches de base. Dans cette revue, nous avons résumé nos conclusions avec de nombreuses mesures et résultats de benchmark pour vous donner une meilleure idée de ce produit.

Le fabricant de systèmes Minipc Union propose une large gamme de PC compacts pour des applications allant des tâches de bureau de base aux jeux à petit budget. Le Ace Magician T8Pro est un mini-PC très compact équipé d'un Intel Celeron N5095A. L'appareil est également équipé de 8 Go de RAM et d'un SSD de 256 Go. Vous pouvez vous attendre à payer environ 290 € (309 $ US) pour l'appareil, ce qui est un prix équitable par rapport à d'autres mini-ordinateurs compacts. Aucune autre variante n'est disponible - pas que nous pensions que ce soit nécessaire de toute façon. De plus, Windows 11 Pro est inclus dans le prix.

Le mini-PC est livré dans une petite boîte qui contient également un chargeur de 65 watts et un support VESA pour fixer l'appareil sur un moniteur.

Minipc Union Ace Magician T8Pro
Processeur
Intel Celeron N5095 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake
Mémoire
8 Go
Disque dur
FPT310M4SSD256G, 256 Go
, M.2 2242 SATA SSD, 210 Go libres
Connexions
3 USB 3.0 / 3.1 Gen1, 3 HDMI, Connectique audio: 3.5mm Klinke
Réseau
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Taille
Hauteur x Largeur x Profondeur (en mm): 43.5 x 87 x 87
Système d'exploitation
Microsoft Windows 11 Pro
Fonctionnalités additionnelles
12 Mois Garantie
Poids
209 g, Alimentation: 124 g
Prix
280 EUR
Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.



Cas

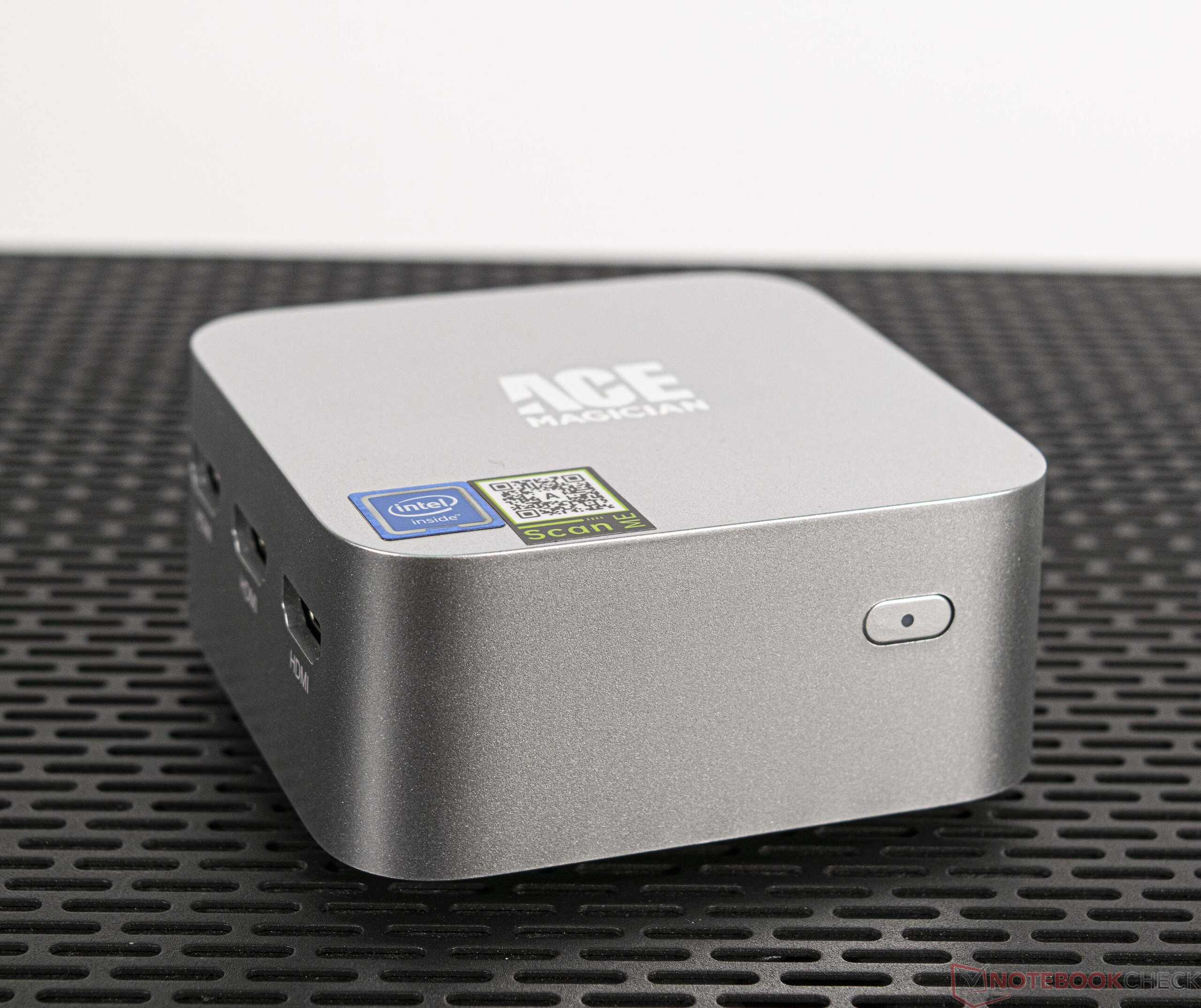

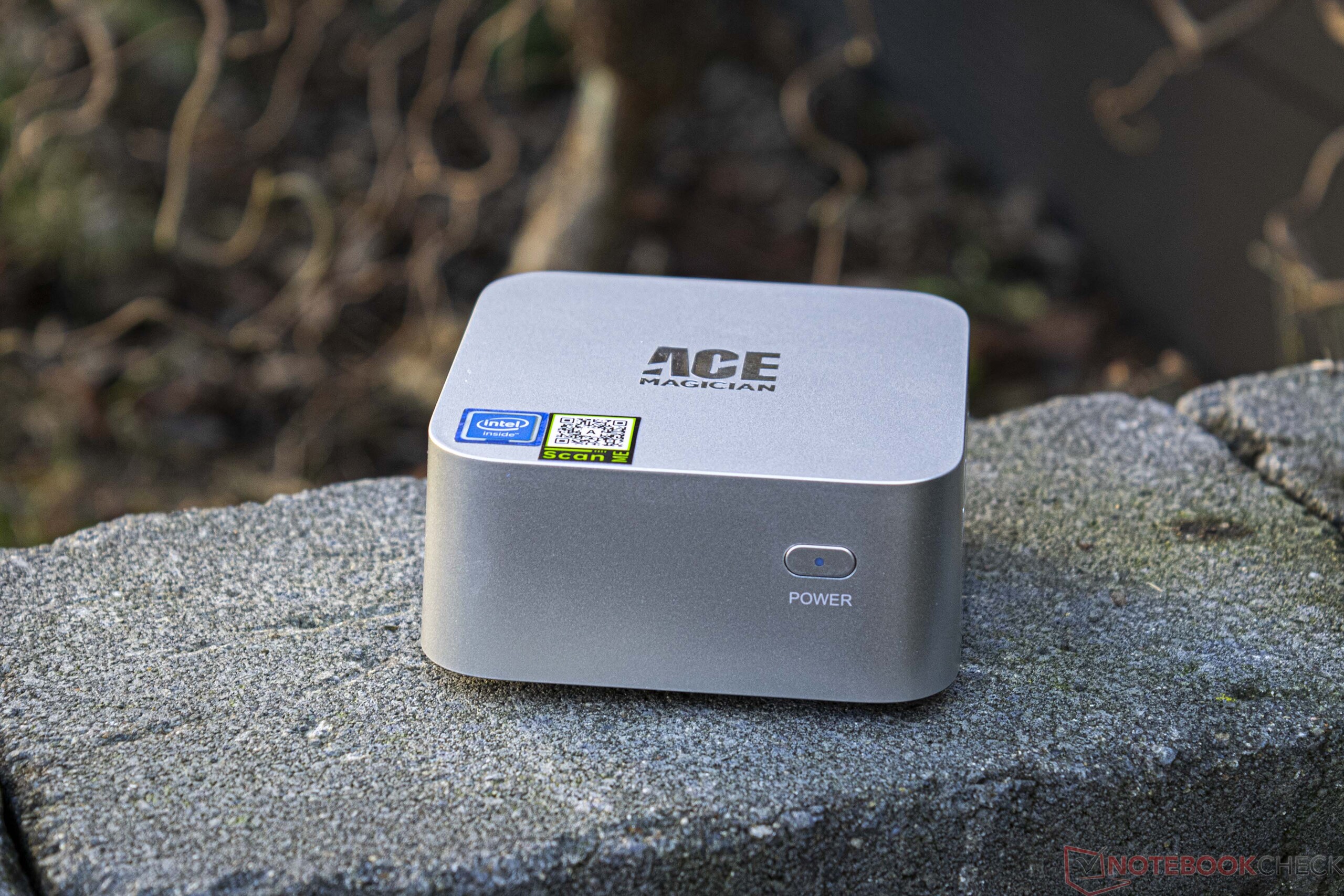

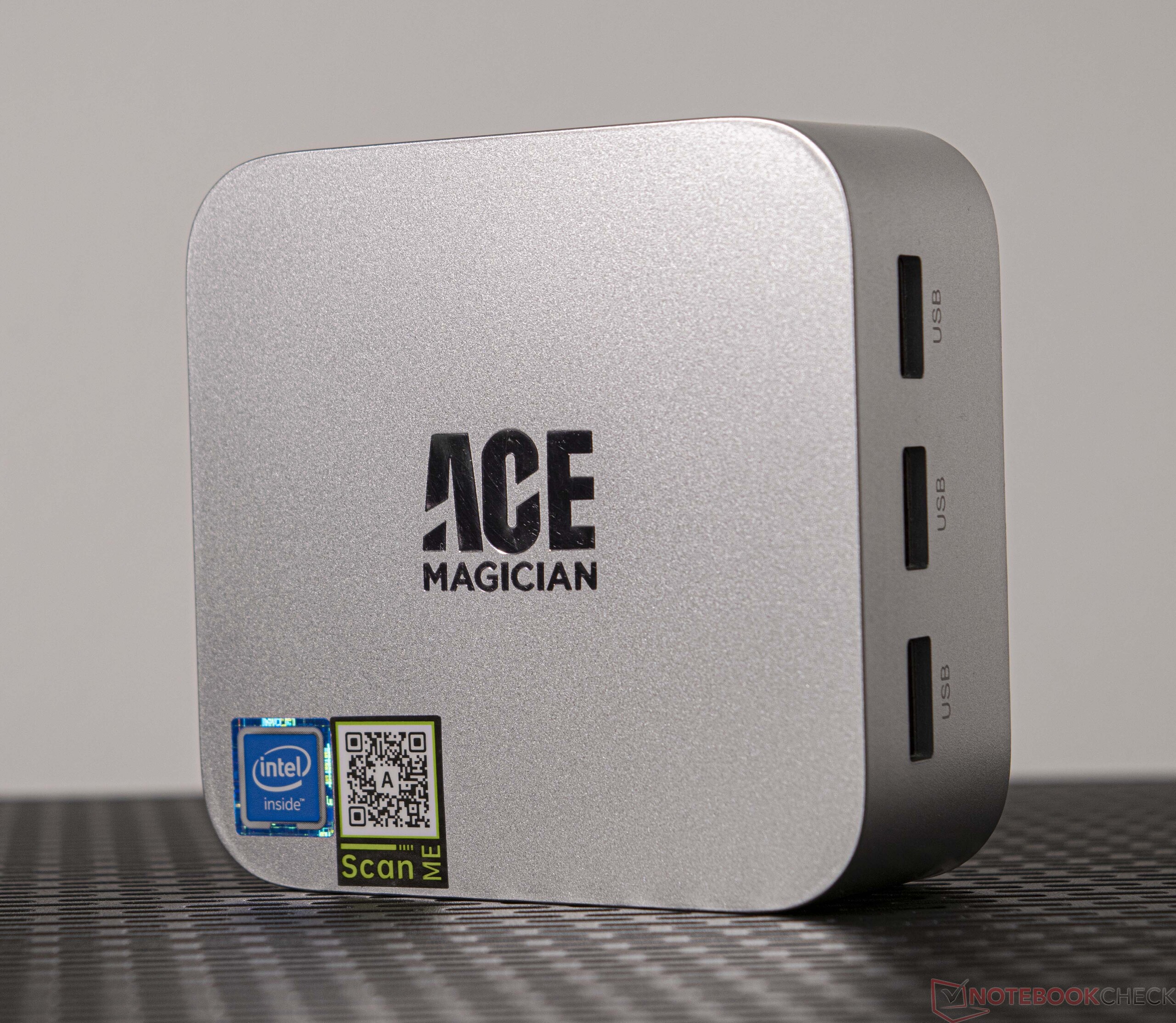

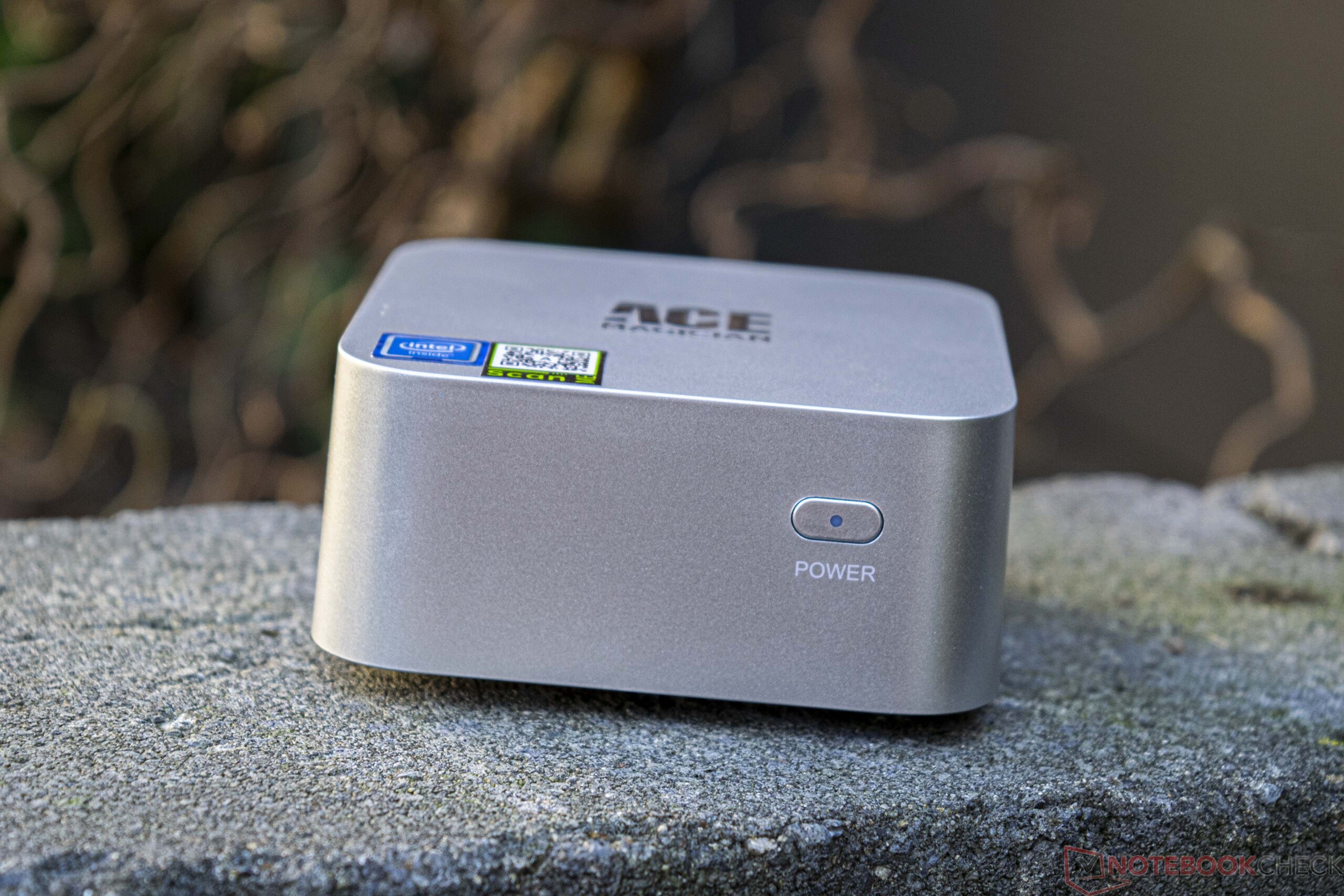

Le Ace Magician T8Pro est un minuscule mini PC qui n'occupe qu'un espace d'environ 8,7 x 8,7 cm (3,5 x 3,5"). Le produit est également relativement fin avec seulement 4,35 cm (1,69"). Le fabricant a opté pour une construction essentiellement en plastique. Les surfaces de l'appareil sont assez lisses et agréables au toucher. En ce qui concerne les couleurs, l'Ace Magician T8Pro reste relativement neutre avec de l'argent et du gris, ce qui lui permet de se fondre parfaitement dans un bureau moderne. Il n'y a pas de problèmes de stabilité grâce à sa conception compacte. Et le petit ordinateur est très léger, avec seulement 209 g (0,46 lb).

Comparaison des tailles

158 mm 166 mm 67 mm 1.1 kg185 mm 179 mm 40 mm 1.3 kg168 mm 120 mm 39 mm 638 g149.6 mm 149.6 mm 55.5 mm 763 g145 mm 149 mm 40 mm 697 g117 mm 112 mm 34.2 mm 496 g87 mm 87 mm 43.5 mm 209 g297 mm 210 mm 1 mm 5.7 g

Spécifications

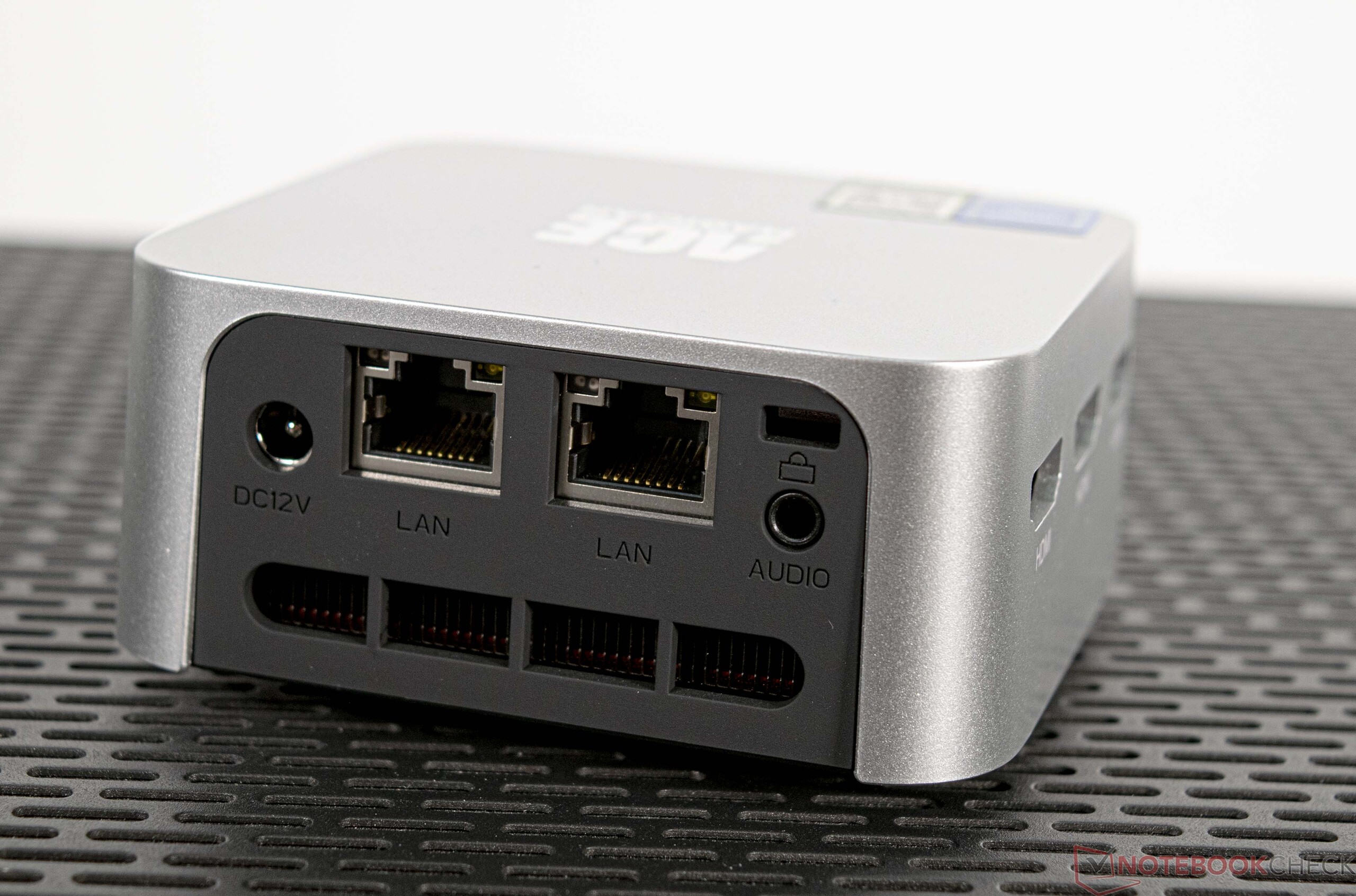

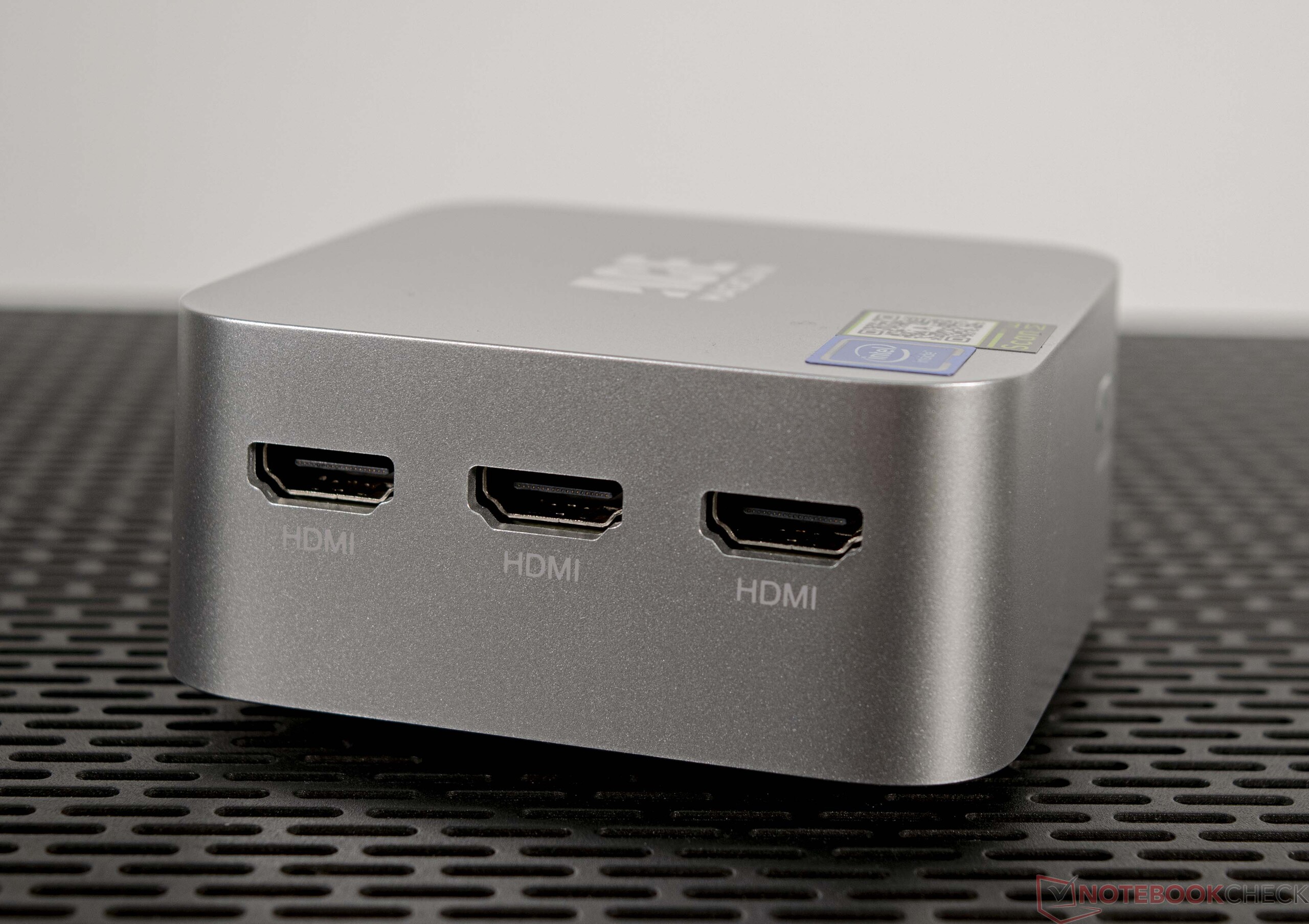

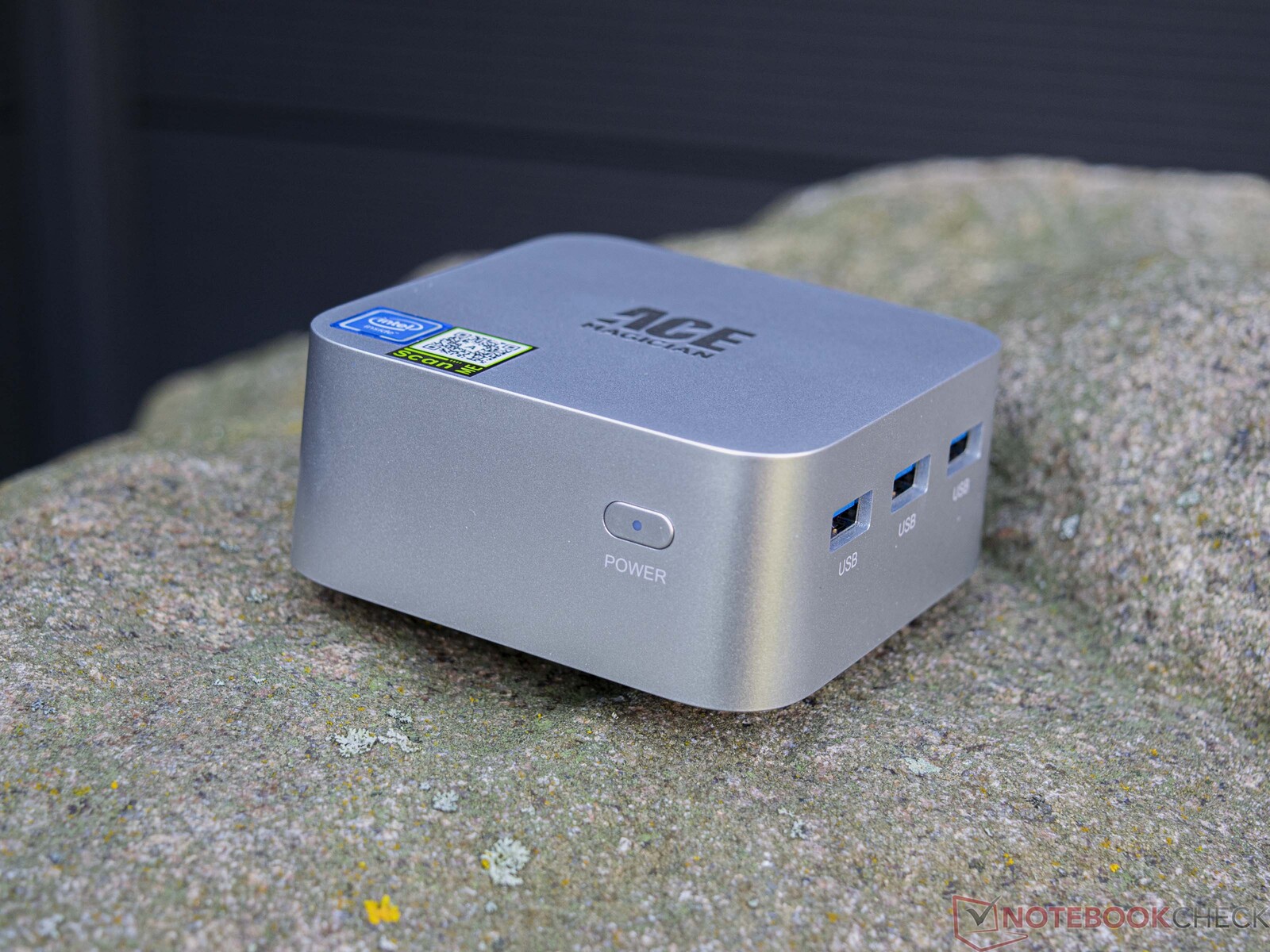

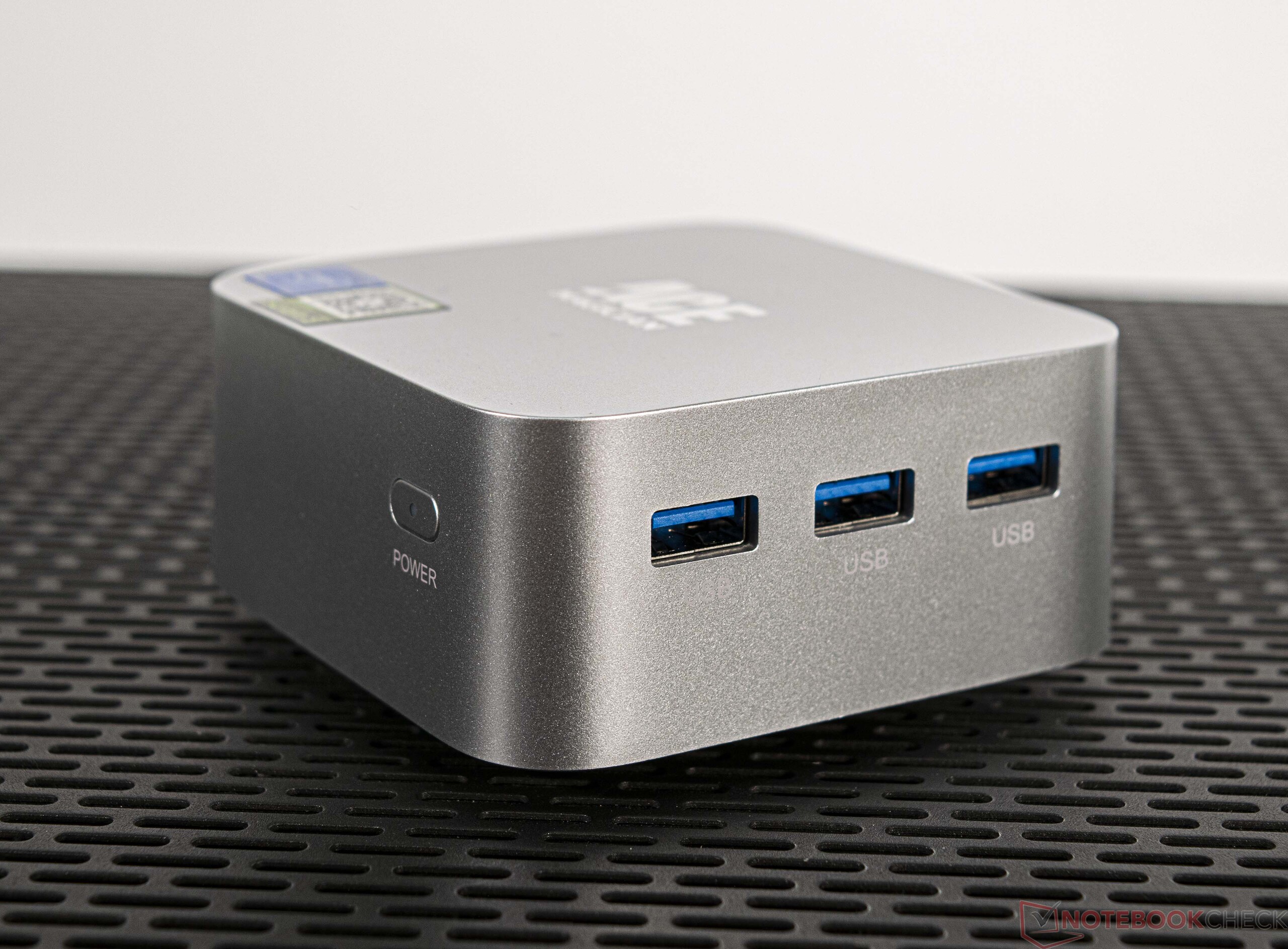

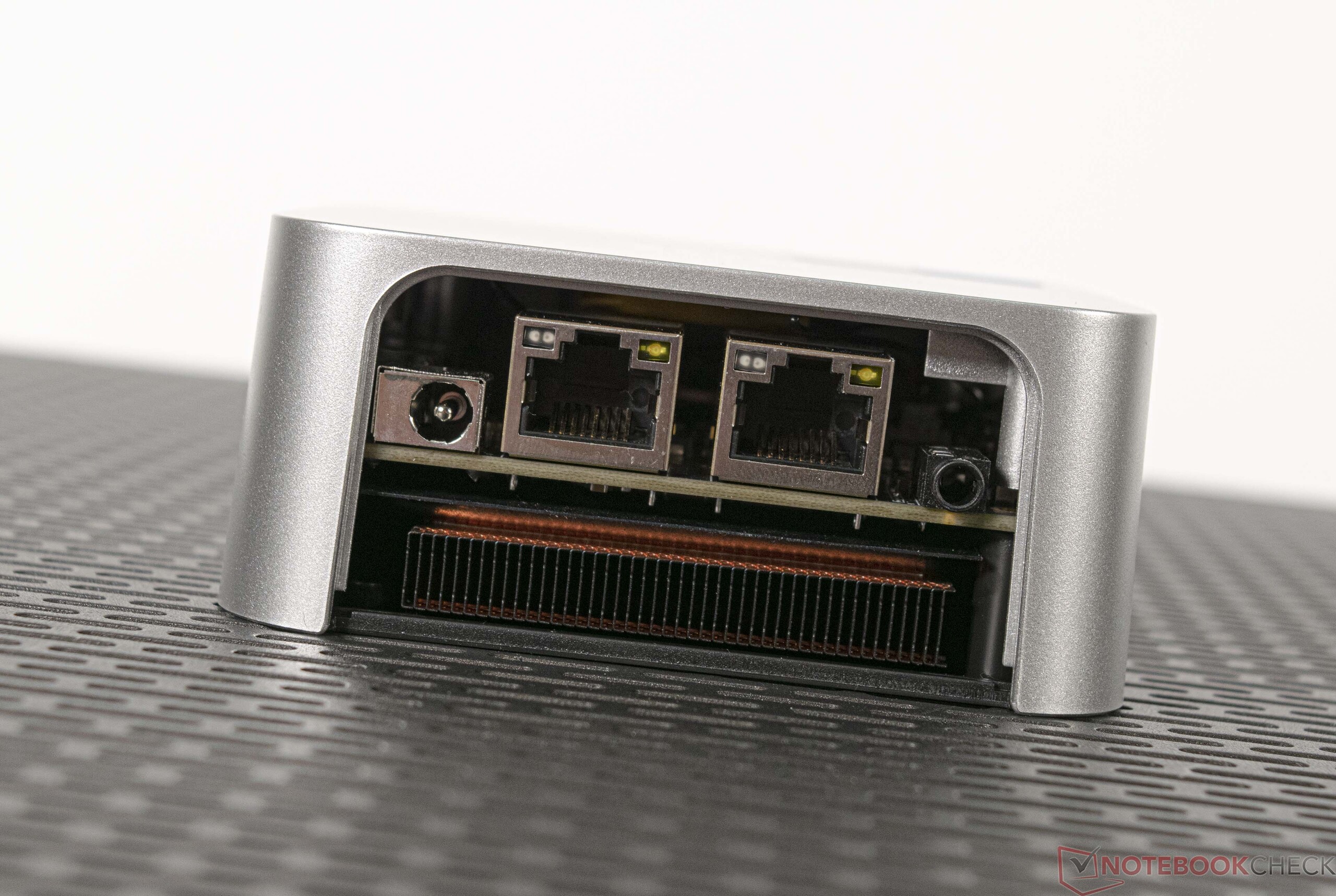

Malgré son design compact, Minipc Union a réussi à intégrer trois ports USB-A et trois sorties HDMI dans l'Ace Magician T8Pro. Les deux types de port sont chacun situés sur un côté de l'appareil, et il y a deux ports LAN à l'arrière. Cela signifie que le Ace Magician T8Pro est très bien équipé et qu'il peut tenir son rang face à des appareils "plus grands" dans notre comparaison. Le T8Pro utilise une puce Realtek 8821CE pour la communication sans fil, qui offre de moins bonnes performances que les solutions sans fil des autres appareils.

Networking
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
964 (933min - 986max) MBit/s +166%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s +149%
Moyenne de la classe Mini PC
  (192.9 - 1796, n=81, 2 dernières années)
894 MBit/s +146%
Minisforum EliteMini TH50
MediaTek MT7921
776 MBit/s +114%
Minisforum EliteMini B550
MediaTek RZ608
430 MBit/s +18%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
363 (359min - 365max) MBit/s
Moyenne Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (354 - 365, n=5)
360 MBit/s -1%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
290 (279min - 299max) MBit/s -20%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +425%
Minisforum EliteMini TH50
MediaTek MT7921
866 MBit/s +370%
Newsmay Neosmay S2-B560TPM
Realtek RTL8852BE
858 (810min - 882max) MBit/s +366%
Moyenne de la classe Mini PC
  (184.1 - 1776, n=81, 2 dernières années)
828 MBit/s +350%
Minisforum EliteMini B550
MediaTek RZ608
572 MBit/s +211%
Moyenne Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
  (184.1 - 274, n=5)
242 MBit/s +31%
Geekom MiniAir 11 Special Edition
Intel Dual Band Wireless-AC 7265
225 (210min - 237max) MBit/s +22%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
184.1 (94min - 191max) MBit/s
050100150200250300350Tooltip
Minipc Union Ace Magician T8Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø363 (359-365)
Minipc Union Ace Magician T8Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø181 (94-191)

Maintenance

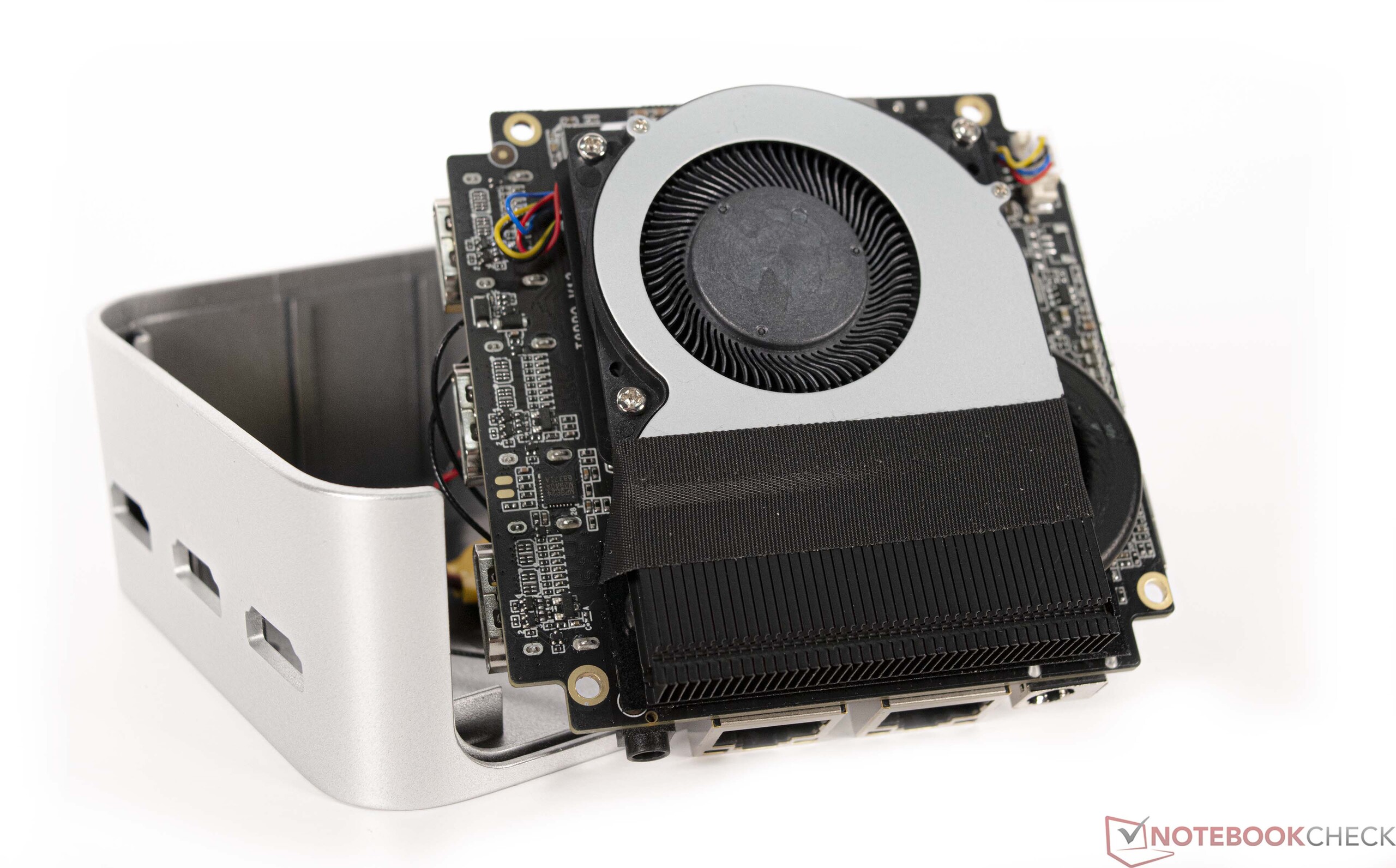

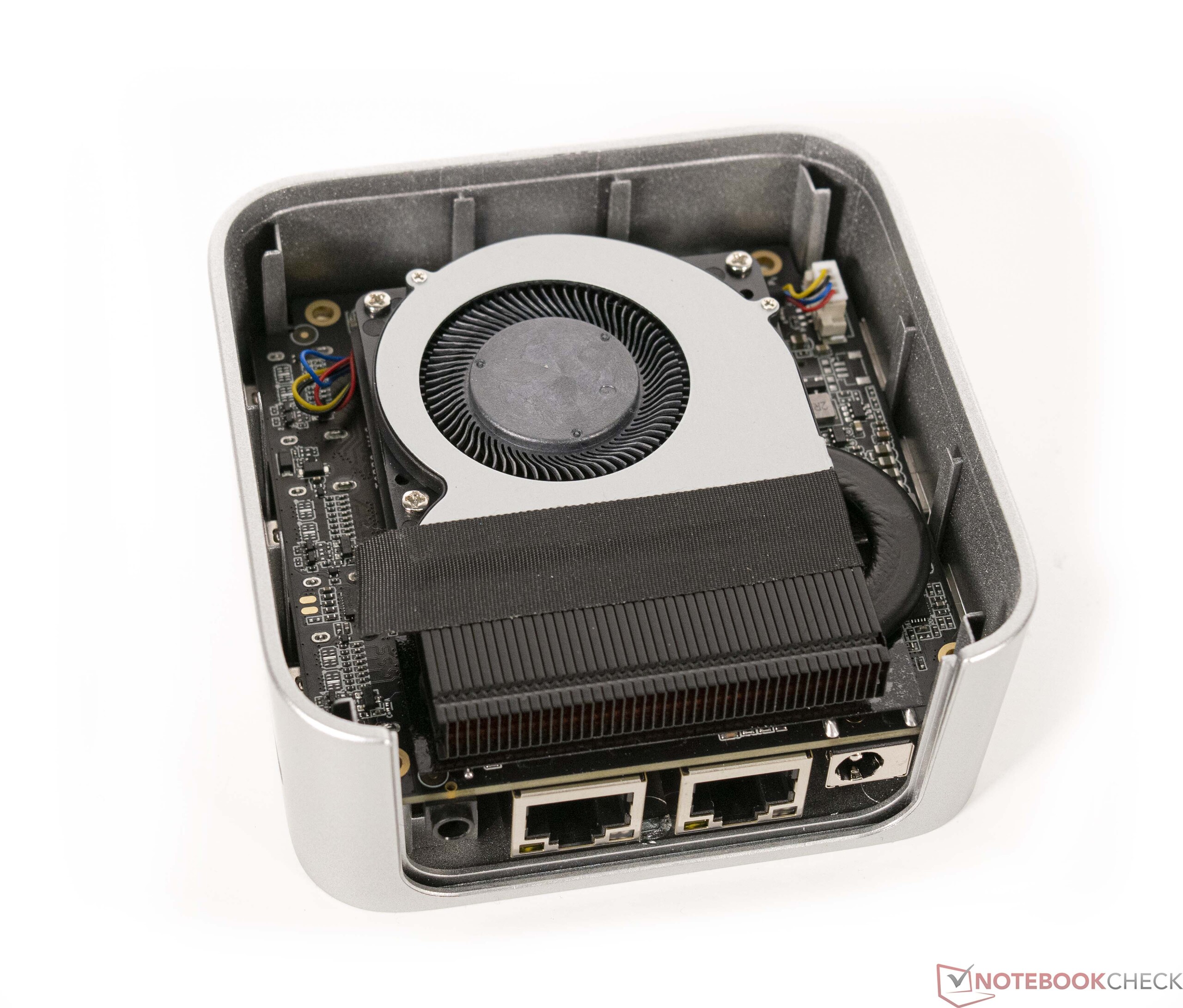

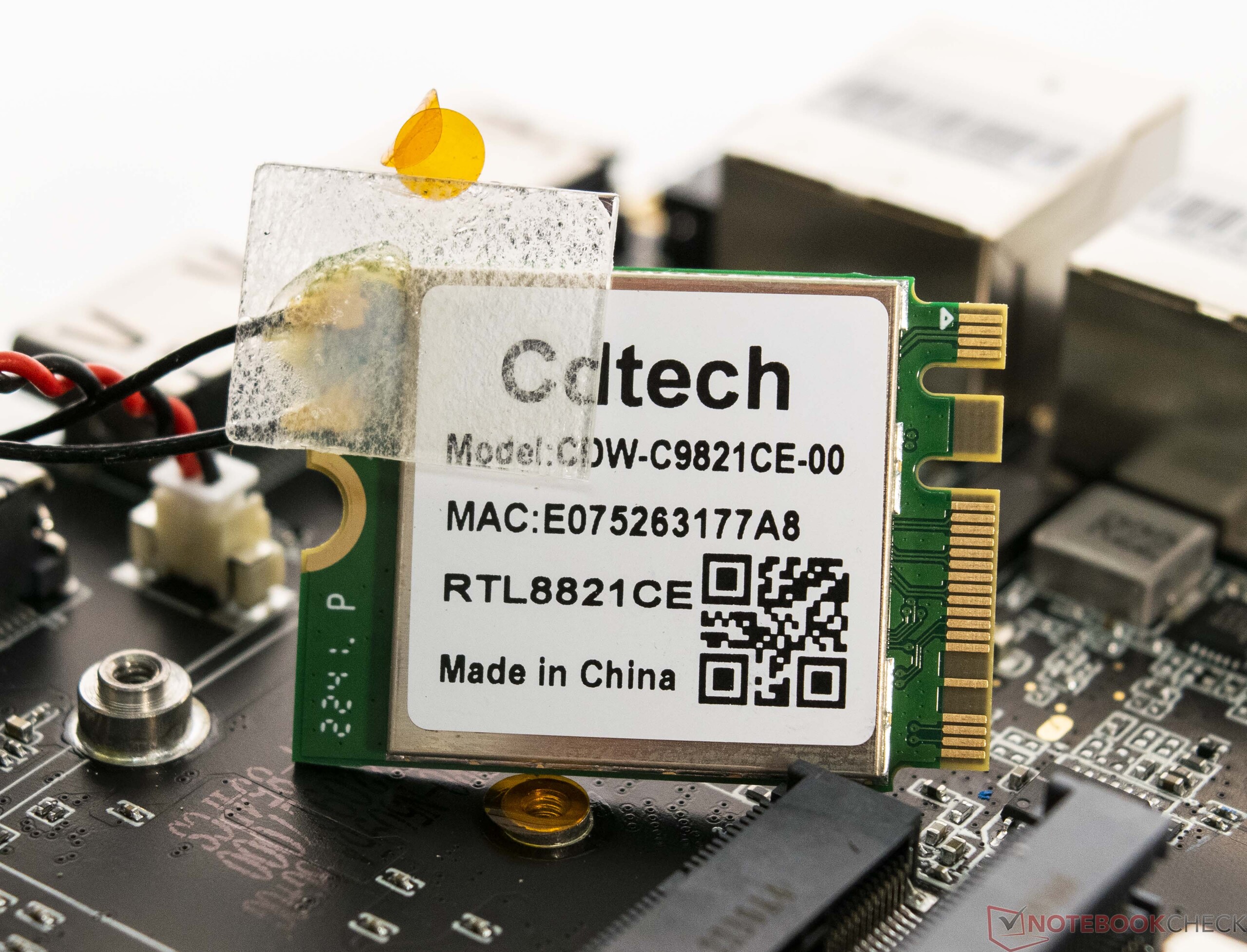

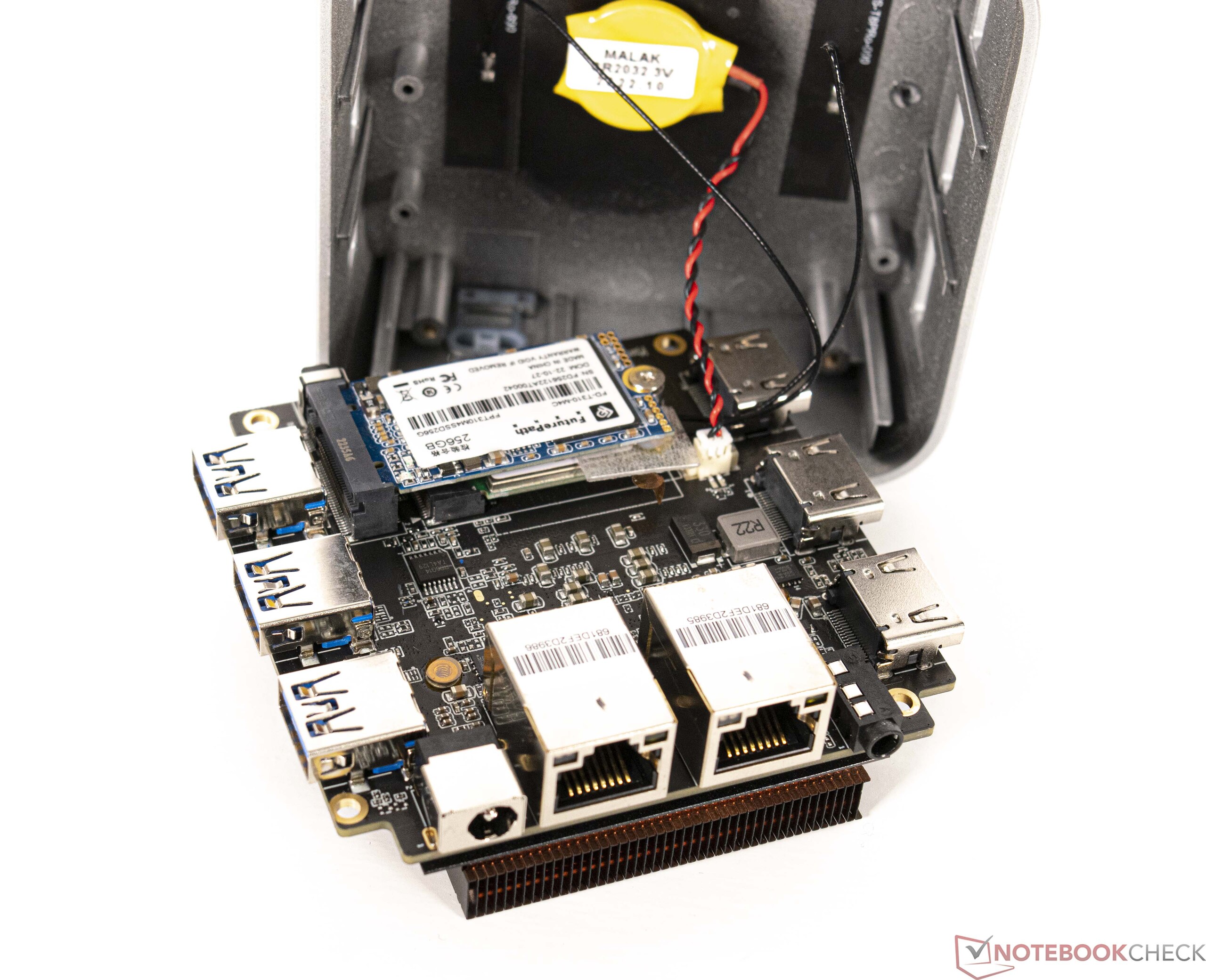

Le SSD et le module Wi-Fi sont facilement accessibles pour ceux qui souhaitent mettre à niveau le Ace Magician T8Pro. Pour ouvrir l'appareil, il suffit de retirer les quatre vis situées sur le fond. Cependant, vous devez tenir compte du facteur de forme du SSD, car l'appareil ne peut accueillir qu'un SSD M.2 d'une longueur de 42 mm. Contrairement au SSD et au module Wi-Fi, la mémoire n'est pas extensible.

Performance

Le site Intel Celeron N5095 est la seule option de processeur disponible pour l'Ace Magician T8Pro. Les quatre cœurs natifs ont 8 Go de RAM DDR4 à leur disposition et offrent des performances solides pour les tâches de bureautique de base.

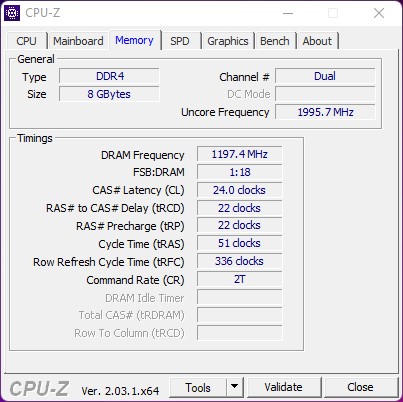

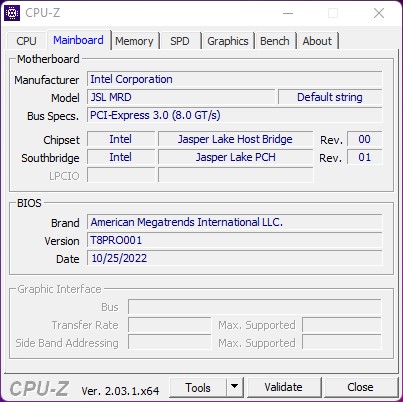

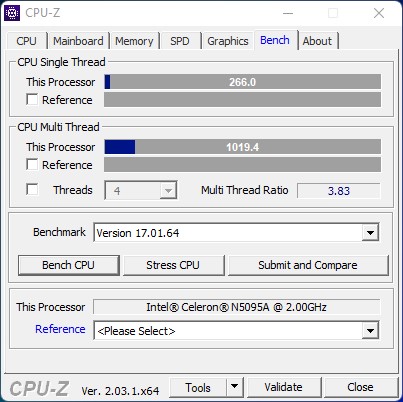

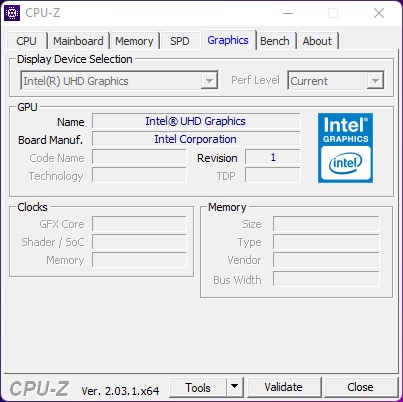

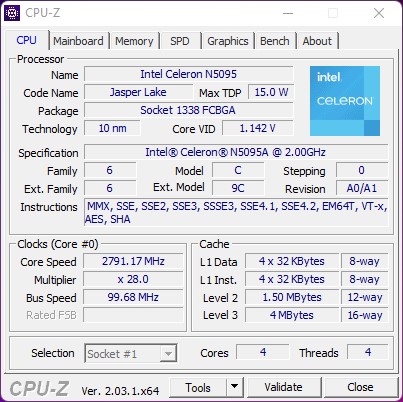

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

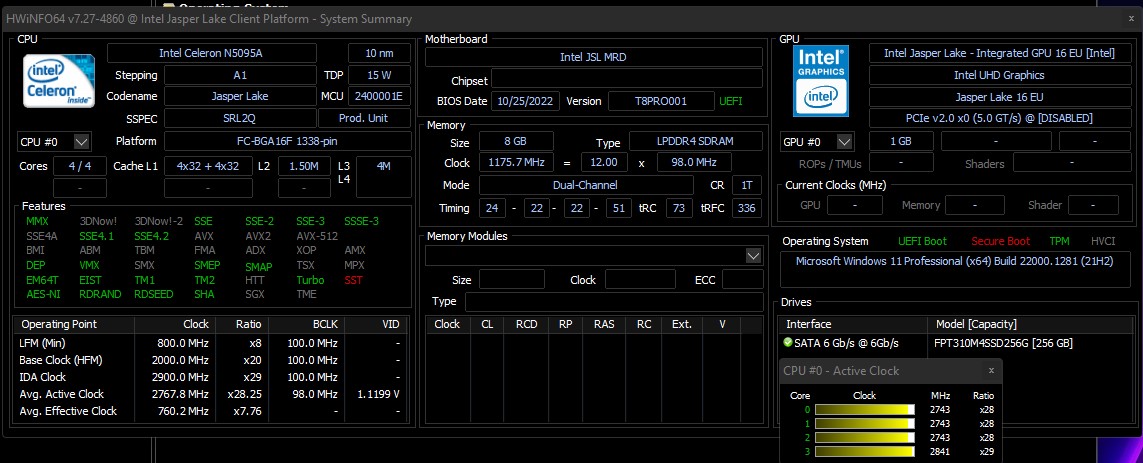

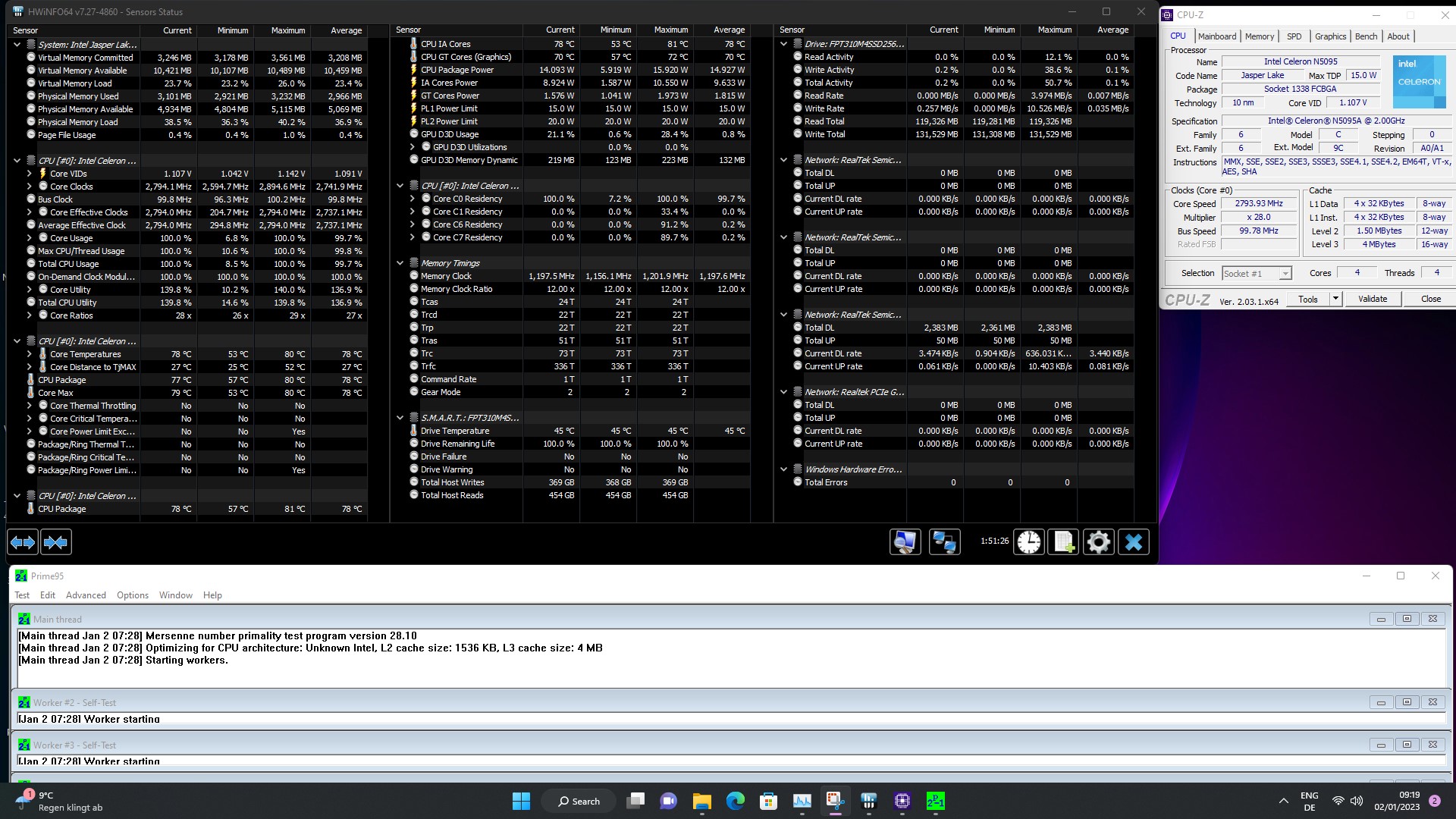

HWiNFO

Conditions d'essai

Nous avons effectué tous les tests de performance avec le plan d'alimentation "Haute performance" afin d'obtenir les meilleurs résultats possibles. Nous n'avons utilisé un plan d'alimentation différent que pour mesurer la consommation d'énergie et les niveaux de bruit. Cliquez sur ici pour en savoir plus sur nos critères de test.

Processeur

L'Ace Magician T8Pro peut exploiter la puissance de l'Intel Celeron N5095 Intel Celeron N5095 assez bien. Cela dit, il y a des produits concurrents qui sont plus performants avec le même SoC, comme le Geekom MiniAir 11 Special Edition. Le différentiel de performance est toutefois de l'ordre d'un pourcentage à un chiffre et est donc négligeable. La limite de puissance à court terme (PL2) du SoC est d'environ 20 watts, tandis que la limite de puissance à long terme (PL1) est plafonnée à 15 watts.

Vous pouvez cliquer sur icipour voir d'autres benchmarks de processeurs.

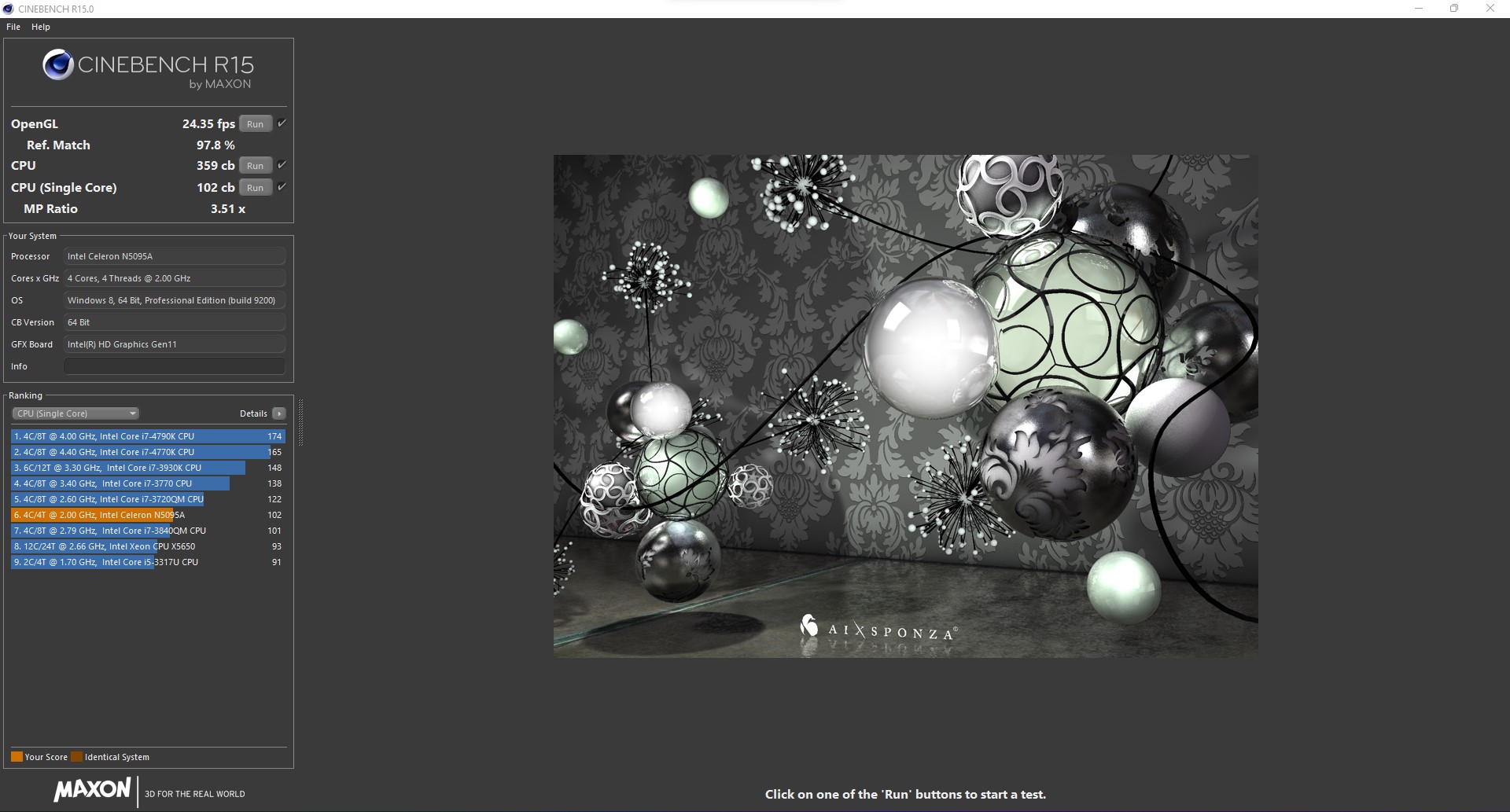

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20

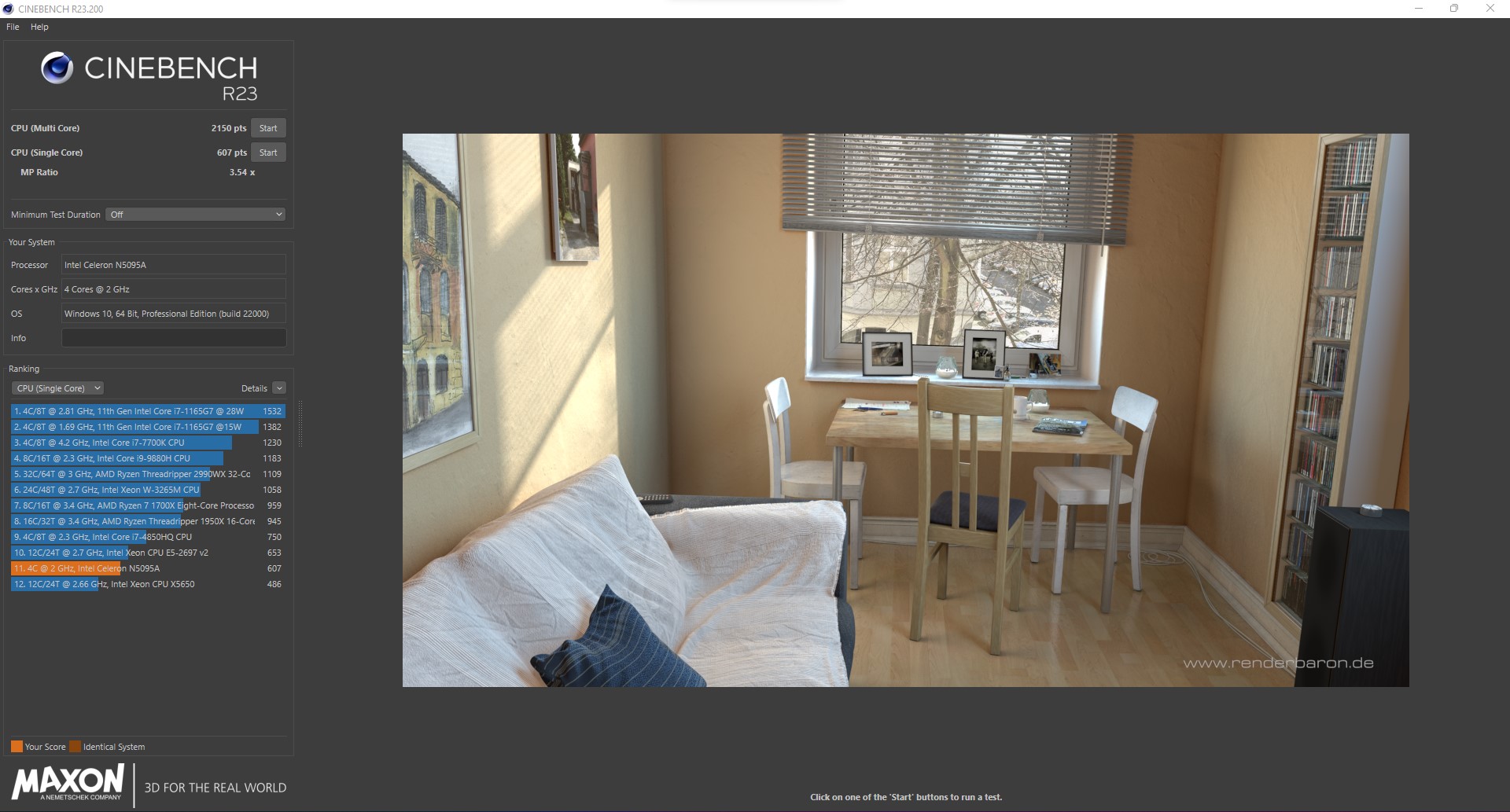

Cinebench R23
Cinebench R23
Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
123 Points +21%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
107.3 Points +5%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
106 Points +4%
Moyenne Intel Celeron N5095
  (95.4 - 109, n=5)
103.9 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
102 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
95.4 Points -6%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
77 Points -25%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
76 Points -25%
CPU Multi 64Bit
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
372 Points +4%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
369 Points +3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
359 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
358 (350.25min - 357.53max) Points 0%
Moyenne Intel Celeron N5095
  (221 - 379, n=6)
343 Points -4%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
319 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
248 Points -31%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
128 Points -64%

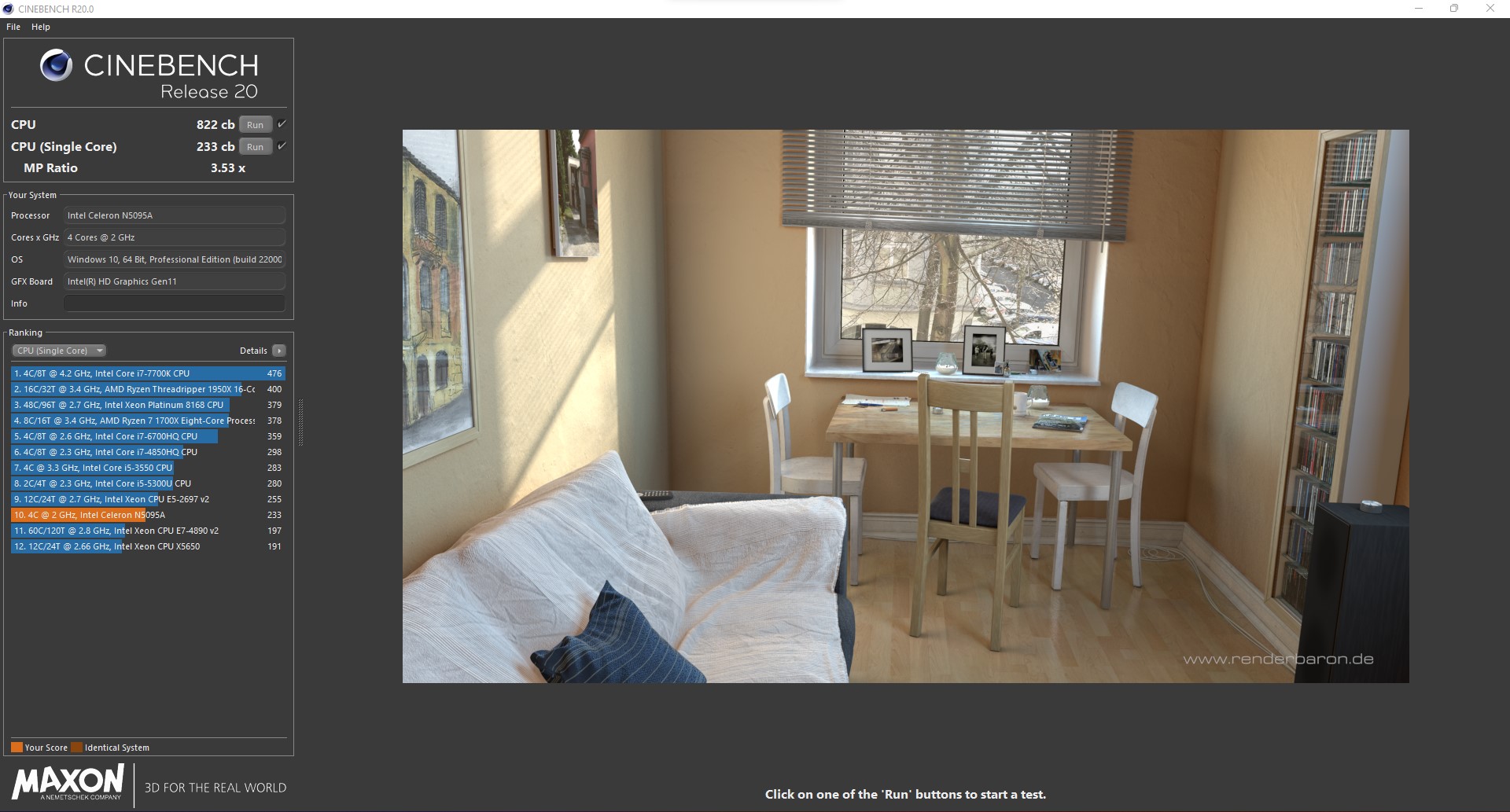

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
266 Points +14%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
236 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
234 Points 0%
Moyenne Intel Celeron N5095
  (228 - 239, n=5)
234 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
233 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
228 Points -2%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
174 Points -25%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
171 Points -27%
CPU (Multi Core)
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
828 Points +1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
827 Points +1%
Moyenne Intel Celeron N5095
  (804 - 844, n=5)
825 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
822 Points
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
804 Points -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
720 Points -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
556 Points -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
285 Points -65%
Cinebench R23
Single Core
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
696 Points +15%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
615 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
611 Points +1%
Moyenne Intel Celeron N5095
  (587 - 621, n=5)
608 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
607 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
587 Points -3%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
439 Points -28%
Multi Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2176 (2164.67min - 2176.1max) Points +1%
Moyenne Intel Celeron N5095
  (2150 - 2219, n=5)
2174 Points +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2164 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
2159 (2113.79min - 2158.74max) Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2150 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1833 Points -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
735 Points -66%
Cinebench R11.5
CPU Single 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.47 Points +18%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.29 Points +3%
Moyenne Intel Celeron N5095
  (1.25 - 1.29, n=2)
1.27 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.25 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.97 Points -22%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.92 Points -26%
CPU Multi 64Bit
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4.76 Points +2%
Moyenne Intel Celeron N5095
  (4.65 - 4.76, n=2)
4.71 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4.65 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
4.14 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3.09 Points -34%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1.65 Points -65%
Cinebench R10
Rendering Single CPUs 64Bit
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
6163 Points +18%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5451 Points +4%
Moyenne Intel Celeron N5095
  (5224 - 5451, n=2)
5338 Points +2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5224 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
4120 Points -21%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3711 Points -29%
Rendering Multiple CPUs 64Bit
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
17278 Points
Moyenne Intel Celeron N5095
  (16442 - 17278, n=2)
16860 Points -2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
16442 Points -5%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
15504 Points -10%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
10705 Points -38%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
6653 Points -61%
Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3767 Seconds * -144%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2379 Seconds * -54%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1805 Seconds * -17%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1624 Seconds * -5%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1550 Seconds * -0%
Moyenne Intel Celeron N5095
  (1502 - 1624, n=5)
1548 Seconds * -0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1547 Seconds *
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1502 Seconds * +3%
wPrime 2.10
32m
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
49.66 s * -159%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
19.779 s * -3%
Moyenne Intel Celeron N5095
  (19.2 - 19.8, n=2)
19.5 s * -2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
19.202 s *
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
17.37 s * +10%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
17.09 s * +11%
1024m
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1561.178 s * -158%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
617.326 s * -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
615 s * -2%
Moyenne Intel Celeron N5095
  (605 - 617, n=2)
611 s * -1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
605.375 s *
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
566 s * +7%
X264 HD Benchmark 4.0
Pass 1
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
120.25 (119.9min - 120.3max) fps +7%
Moyenne Intel Celeron N5095
  (112.8 - 120.3, n=2)
116.5 fps +3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
112.75 (112min - 114.5max) fps
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
102 (100min - 118max) fps -10%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
78.9 (77.1min - 81.7max) fps -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps -60%
Pass 2
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
25.25 (25.2min - 25.4max) fps +2%
Moyenne Intel Celeron N5095
  (24.8 - 25.3, n=2)
25 fps +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
24.75 (24.5min - 25max) fps
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps -13%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
16.75 (16.7min - 16.9max) fps -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps -60%
WinRAR - Result
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1781 KB/s +9%
Moyenne Intel Celeron N5095
  (1630 - 1781, n=2)
1706 KB/s +5%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1630 KB/s
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1525 KB/s -6%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1140 KB/s -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
731 KB/s -55%
TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
2.6 GB/s +4%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.5 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.5 GB/s
Moyenne Intel Celeron N5095
  (2.5 - 2.5, n=2)
2.5 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.9 GB/s -24%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.979 GB/s -61%
Twofish Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
0.403 GB/s +9%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.37 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.37 GB/s
Moyenne Intel Celeron N5095
  (0.37 - 0.37, n=2)
0.37 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.266 GB/s -28%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.14 GB/s -62%
Serpent Mean 100MB
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
0.23 GB/s +16%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
0.198 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.198 GB/s
Moyenne Intel Celeron N5095
  (0.198 - 0.198, n=2)
0.198 GB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
0.182 GB/s -8%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.074 GB/s -63%
Geekbench 5.5
Multi-Core
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2052 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2036 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2020 Points -2%
Moyenne Intel Celeron N5095
  (1933 - 2052, n=4)
2010 Points -2%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1933 Points -6%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1673 Points -18%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1501 Points -27%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
844 Points -59%
Single-Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
659 Points +3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
657 Points +3%
Moyenne Intel Celeron N5095
  (637 - 659, n=4)
649 Points +2%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
644 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
637 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
606 Points -5%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
556 Points -13%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
455 Points -29%
Geekbench 5.0
5.0 Multi-Core
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2041 Points
Moyenne Intel Celeron N5095
  (1985 - 2070, n=4)
2029 Points -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2020 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1985 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1482 Points -27%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1313 Points -36%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
857 Points -58%
5.0 Single-Core
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
655 Points +3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
655 Points +3%
Moyenne Intel Celeron N5095
  (628 - 655, n=4)
644 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
638 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
603 Points -5%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
559 Points -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
453 Points -29%
Geekbench 4.4
64 Bit Single-Core Score
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2929 Points +2%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
2900 Points +1%
Moyenne Intel Celeron N5095
  (2858 - 2929, n=3)
2896 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2858 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2585 Points -10%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
2555 Points -11%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1922 Points -33%
64 Bit Multi-Core Score
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
7968 Points
Moyenne Intel Celeron N5095
  (7759 - 7968, n=3)
7856 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
7842 Points -2%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
7759 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
5468 Points -31%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
5399 Points -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3606 Points -55%
3DMark 11 - 1280x720 Performance Physics
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
4322 Points +1%
Moyenne Intel Celeron N5095
  (4224 - 4439, n=5)
4309 Points +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4287 Points
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
4272 Points 0%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
4224 Points -1%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
3659 Points -15%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2794 Points -35%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1591 Points -63%
7-Zip 18.03
7z b 4
Moyenne Intel Celeron N5095
  (10924 - 11168, n=5)
11024 MIPS +1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
11023 MIPS +1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
11013 MIPS +1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
10994 MIPS +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
10924 MIPS
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
9964 MIPS -9%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
7790 MIPS -29%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3974 MIPS -64%
7z b 4 -mmt1
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
3515 MIPS +20%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
3124 MIPS +6%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
3100 MIPS +6%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
3098 MIPS +6%
Moyenne Intel Celeron N5095
  (2935 - 3124, n=5)
3074 MIPS +5%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2935 MIPS
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2593 MIPS -12%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2379 MIPS -19%
HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
2.02 fps 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.01 fps
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
2 fps 0%
Moyenne Intel Celeron N5095
  (1.9 - 2.05, n=5)
1.996 fps -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1.9 fps -5%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.65 fps -18%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.48 fps -26%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.88 fps -56%
R Benchmark 2.5 - Overall mean
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
1.579 sec * -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1.371 sec * -14%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.2 sec *
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1.178 sec * +2%
Moyenne Intel Celeron N5095
  (1.16 - 1.2, n=5)
1.174 sec * +2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1.166 sec * +3%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1.16 sec * +3%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1.137 sec * +5%
LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
144.7 s * -40%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
143 s * -38%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
107.9 s * -4%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
106.5 s * -3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
103.6 s *
Moyenne Intel Celeron N5095
  (97 - 107.9, n=5)
103.6 s * -0%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
103.2 s * -0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
92.9 s * +10%
WebXPRT 3 - Overall
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
146 Points +15%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
127.2 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
125.3 Points -1%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
125.3 Points -1%
Moyenne Intel Celeron N5095
  (114.3 - 127.2, n=6)
123.4 Points -3%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
122.2 Points -4%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
114.3 Points -10%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
89.2 Points -30%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
86.2 Points -32%
Mozilla Kraken 1.1 - Total
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
2288 ms * -41%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1619 ms *
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
1591 ms * +2%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
1581 ms * +2%
Moyenne Intel Celeron N5095
  (1557 - 1619, n=6)
1578 ms * +3%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1557 ms * +4%
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
1557 ms * +4%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
1396 ms * +14%
3DMark - 1920x1080 Fire Strike Physics
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5535 Points
Geekom MiniAir 11
Intel Celeron N5095, 2000 MHz
5499 Points -1%
Moyenne Intel Celeron N5095
  (5400 - 5572, n=5)
5496 Points -1%
Geekom MiniAir 11 Special Edition
Intel Celeron N5095, 2000 MHz
5474 Points -1%
Beelink U59 Mini-S
Intel Celeron N5095, 2000 MHz
5400 Points -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, 2000 MHz
4295 Points -22%
AC6-M Mini-PC
Intel Celeron J4125, 2000 MHz
3885 Points -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2195 Points -60%

* ... Moindre est la valeur, meilleures sont les performances

Performance Rating
Moyenne de la classe Mini PC

100 pt
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22.4 pt
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21.4 pt
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21.1 pt
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
17.3 pt
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
9.4 pt
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7.2 pt
AIDA64 / FP32 Ray-Trace
Moyenne de la classe Mini PC
  (561 - 27538, n=94, 2 dernières années)
9758 KRay/s +686%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1244 KRay/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1242 KRay/s
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
999 KRay/s -20%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
490 KRay/s -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
416 KRay/s -67%
AIDA64 / FPU Julia
Moyenne de la classe Mini PC
  (3604 - 116903, n=94, 2 dernières années)
51601 Points +592%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7459 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7457 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7264 Points -3%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6217 Points -17%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
2932 Points -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2401 Points -68%
AIDA64 / CPU SHA3
Moyenne de la classe Mini PC
  (225 - 5096, n=94, 2 dernières années)
2255 MB/s +339%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
508 MB/s -1%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
396 MB/s -23%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
202 MB/s -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
167 MB/s -68%
AIDA64 / CPU Queen
Moyenne de la classe Mini PC
  (8172 - 119569, n=94, 2 dernières années)
68432 Points +207%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22326 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21801 Points -2%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21458 Points -4%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
20014 Points -10%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8820 Points -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7876 Points -65%
AIDA64 / FPU SinJulia
Moyenne de la classe Mini PC
  (408 - 15525, n=94, 2 dernières années)
7192 Points +618%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
1204 Points +20%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
397 Points -60%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
396 Points -60%
AIDA64 / FPU Mandel
Moyenne de la classe Mini PC
  (1958 - 62378, n=94, 2 dernières années)
27375 Points +591%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3962 Points 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3961 Points
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3802 Points -4%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
3375 Points -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
1558 Points -61%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
1264 Points -68%
AIDA64 / CPU AES
Moyenne de la classe Mini PC
  (3691 - 177158, n=94, 2 dernières années)
73659 MB/s +281%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19350 MB/s
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19086 MB/s -1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19076 MB/s -1%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10084 MB/s -48%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
7653 MB/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6370 MB/s -67%
AIDA64 / CPU ZLib
Moyenne de la classe Mini PC
  (74.8 - 1117, n=94, 2 dernières années)
570 MB/s +203%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
189.9 MB/s +1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188.1 MB/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
187.7 MB/s 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
131 MB/s -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
75.2 MB/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
60.6 MB/s -68%
AIDA64 / FP64 Ray-Trace
Moyenne de la classe Mini PC
  (308 - 14722, n=94, 2 dernières années)
5212 KRay/s +671%
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
673 KRay/s 0%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
553 KRay/s -18%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
273 KRay/s -60%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
213 KRay/s -68%
AIDA64 / CPU PhotoWorxx
Moyenne de la classe Mini PC
  (4408 - 44347, n=94, 2 dernières années)
24394 MPixel/s +146%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9899 MPixel/s
Geekom MiniAir 11
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7707 MPixel/s -22%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7386 MPixel/s -25%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6778 MPixel/s -32%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
5125 MPixel/s -48%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2501 MPixel/s -75%

Les performances du Intel Celeron N5059sont très bien gérées sous charge, comme le démontre le test en boucle Cinebench R15. Les résultats sont restés cohérents tout au long des 50 passages du test. Le refroidisseur passif Newsmay AC8 n'a pas pu suivre, malgré un SoC plus rapide. Dans l'ensemble, notre unité d'examen a réussi à obtenir la deuxième place dans le groupe de comparaison.

020406080100120140160180200220240260280300320340360Tooltip
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)
Geekom MiniAir 11 Intel Celeron N5095, Intel Celeron N5095: Ø373 (370.41-374.55)
Beelink U59 Mini-S Intel Celeron N5095, Intel Celeron N5095: Ø353 (350.25-357.53)
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Performance du système

Le site Intel Celeron N5059 limite les capacités de l'Ace Magician T8Pro. Néanmoins, l'appareil se débrouille bien dans une utilisation quotidienne, à condition de ne pas surcharger son SoC. Le Ace Magician a même été capable de surpasser légèrement le Geekom MiniAir 11 Special Editionet l'écart de performance entre le T8Pro et le Newsmay AC8Pro Newsmay AC8 (avec un Intel Pentium Silver N6005) est minuscule.

Performance Rating - Percent
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
97.6 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
96.7 pt
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
95.1 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
93.7 pt
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
91.5 pt
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
75.6 pt
PCMark 10
Score
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2548 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
2417 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
2386 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2351 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2317 Points -4%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
1806 Points -25%
Essentials
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
5866 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
5778 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
5679 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
5516 Points -6%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
5446 Points -7%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
4693 Points -20%
Productivity
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
3854 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
3666 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
3591 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
3547 Points -3%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
3454 Points -6%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
2928 Points -20%
Performance Rating - Percent
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
99.8 pt
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
98 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
93 pt
CrossMark
Responsiveness
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
497 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
469 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
403 Points -19%
Creativity
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
440 Points 0%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
438 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
434 Points -1%
Productivity
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
561 Points +1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
558 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
535 Points -4%
Overall
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
495 Points
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
490 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
473 Points -4%
PCMark 10 Score
2417 points
Aide

Latence DPC

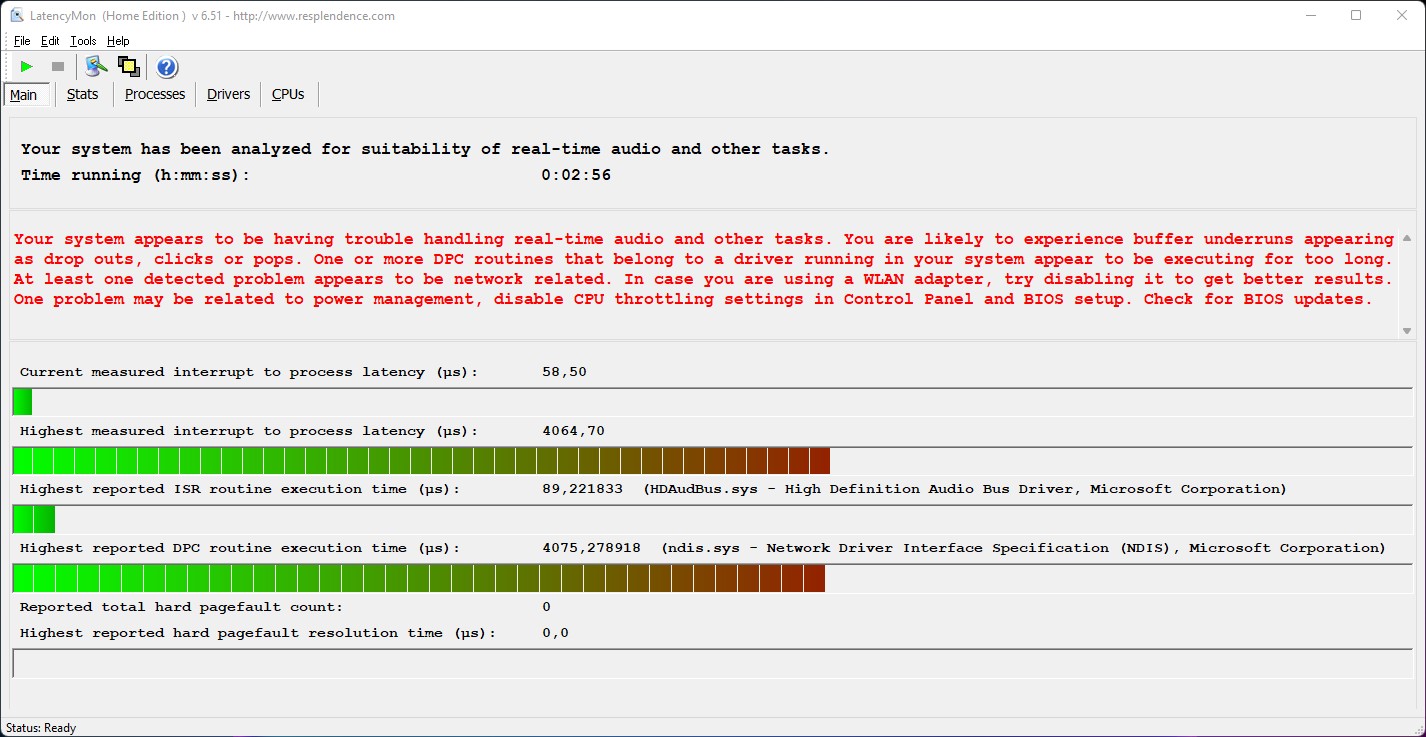

L'Ace Magician T8Pro a rencontré des problèmes de latence dès que plusieurs onglets étaient ouverts dans le navigateur Edge. La lecture de notre vidéo de test 4K a encore augmenté la latence. Pendant la lecture de la vidéo, l'utilisation de l'iGPU était légèrement supérieure à 30 pour cent.

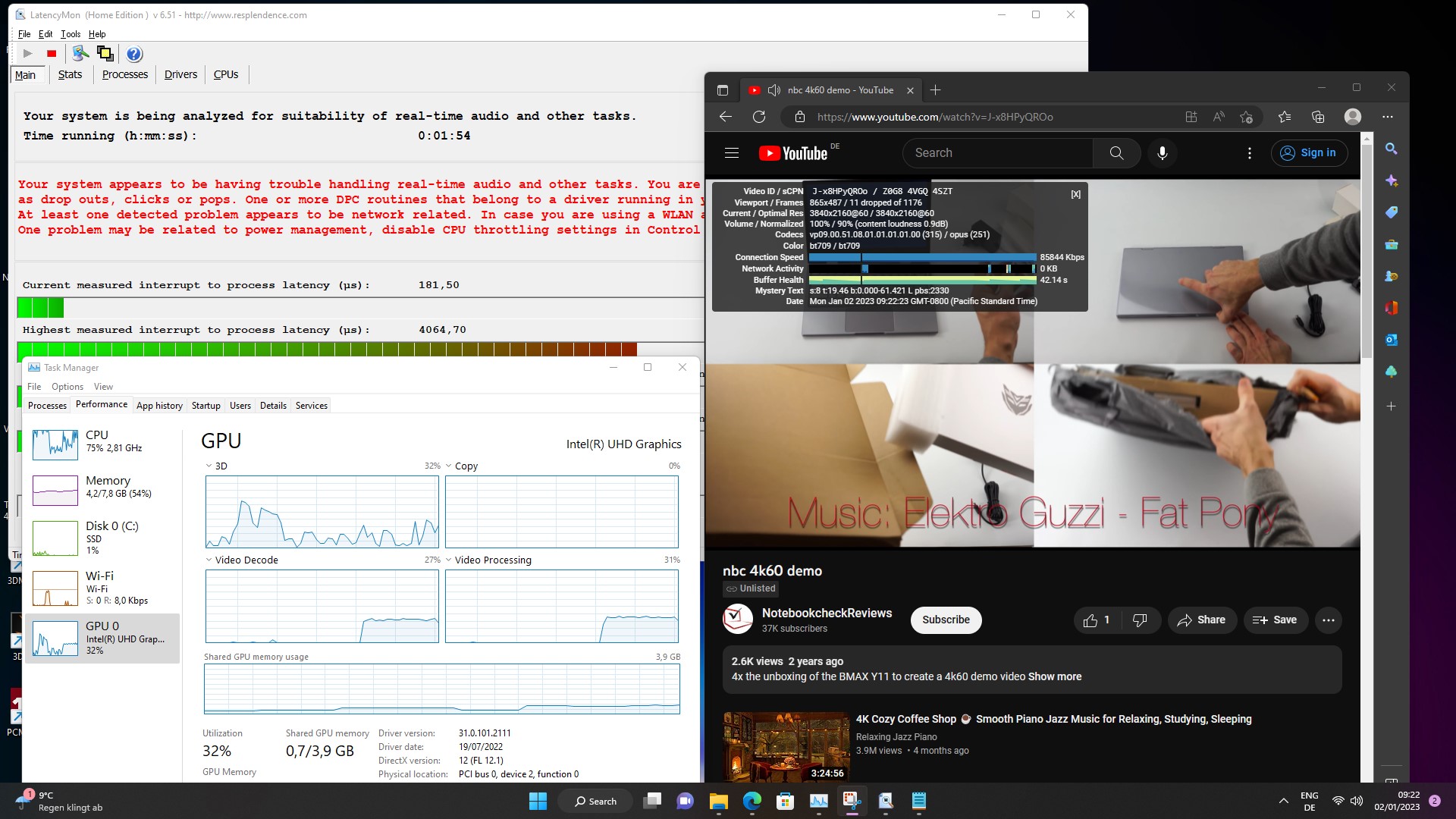

Latence maximale avec plusieurs onglets de navigateur ouverts et avec la lecture d'une vidéo 4K
Latence maximale avec plusieurs onglets de navigateur ouverts et avec la lecture d'une vidéo 4K
Latence maximale après avoir exécuté Prime95 pendant 10 secondes
Latence maximale après avoir exécuté Prime95 pendant 10 secondes

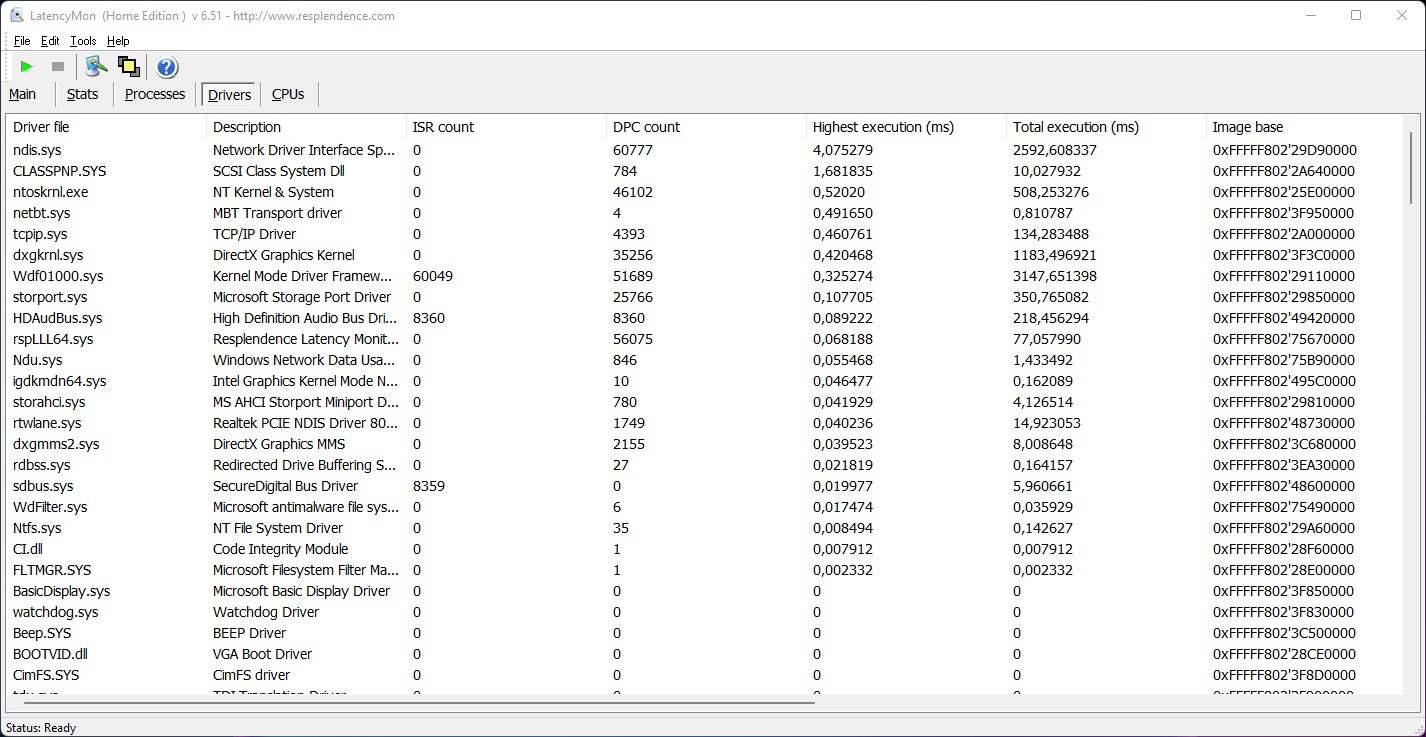

Pilotes triés selon le temps d'exécution (du plus élevé au plus bas)
Pilotes triés selon le temps d'exécution (du plus élevé au plus bas)
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
4075 μs *
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
3767 μs * +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2635 μs * +35%
Geekom MiniAir 11, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
2582.6 μs * +37%
Beelink U59 Mini-S, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3
1732.2 μs * +57%
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128
1476.3 μs * +64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280
687.3 μs * +83%

* ... Moindre est la valeur, meilleures sont les performances

Mémoire de masse

Le Ace Magician T8Pro est équipé d'un SSD de 256 Go. Ce disque ne prend en charge que les vitesses SATA et est donc plus lent que les SSD NVMe. Néanmoins, il reste adéquat pour l'utilisation prévue du T8Pro. Nous n'avons pas non plus remarqué de baisses de performances en cas de charge soutenue. Si les 256 Go de stockage de la configuration par défaut ne sont pas suffisants pour vos besoins, vous pouvez remplacer le SSD inclus par un plus grand. Cependant, vous devez vous assurer que le nouveau SSD ne dépasse pas 42 mm de long (M.2 2242).

Vous pouvez vous reporter à notre tableau des disques de stockage https://www.notebookcheck.net/Laptop-harddisks-HDD-SSD-benchmarks.22089.0.html pour plus de comparaisons et de résultats de référence.

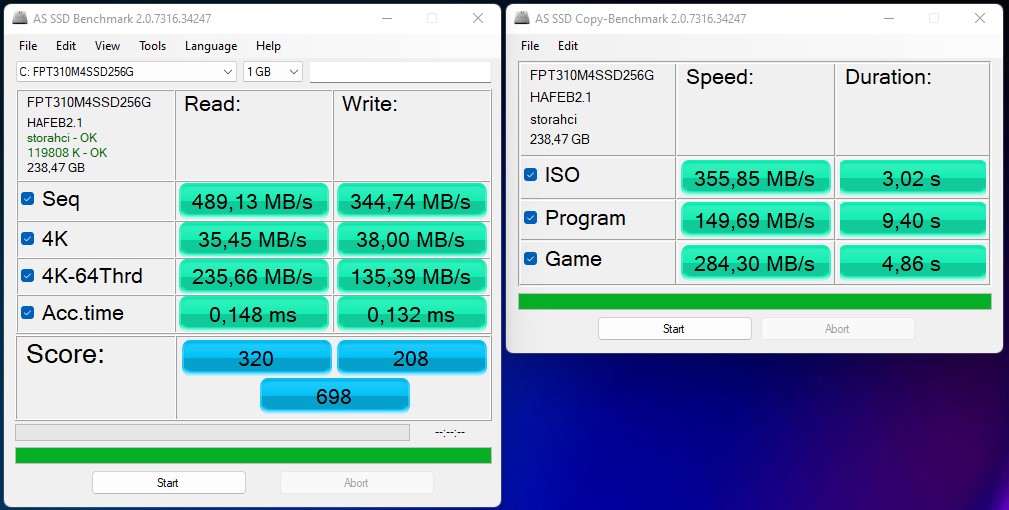

AS SSD
AS SSD

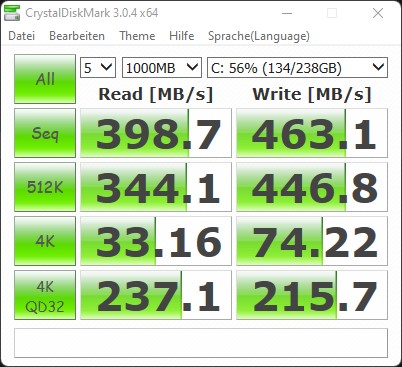

MDP 3
MDP 3

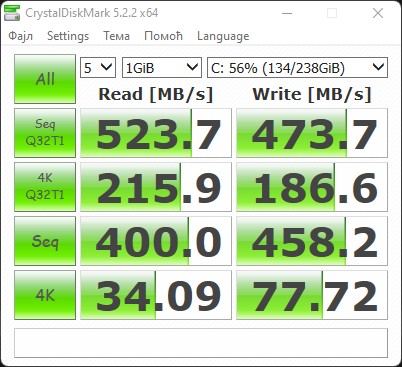

MDP 5
MDP 5

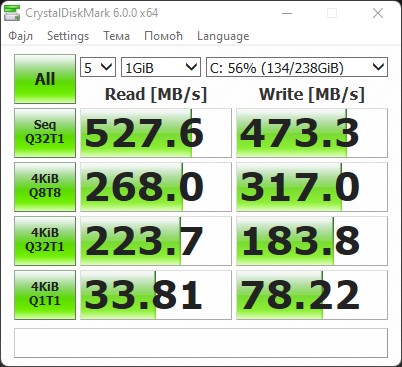

MDP 6
MDP 6
FPT310M4SSD256G
Sequential Read: 398.7 MB/s
Sequential Write: 463.1 MB/s
512K Read: 344.1 MB/s
512K Write: 446.8 MB/s
4K Read: 33.16 MB/s
4K Write: 74.22 MB/s
4K QD32 Read: 237.1 MB/s
4K QD32 Write: 215.7 MB/s
Drive Performance Rating - Percent
Moyenne de la classe Mini PC

97.5 pt
AC6-M Mini-PC

33.2 pt
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
31.5 pt
Moyenne FPT310M4SSD256G

31.5 pt
Newsmay AC8 N6005
Lexar 128GB SSD
31.2 pt
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
24.5 pt
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
21.9 pt
Geekom MiniAir 11
NF830 256GB M.2 2280
18.5 pt
Zotac ZBOX PI336 pico
SanDisk DF4128
6.9 pt
DiskSpd
seq read
Moyenne de la classe Mini PC
  (233 - 4168, n=93, 2 dernières années)
2024 MB/s +329%
Newsmay AC8 N6005
Lexar 128GB SSD
511 (502.22min - 510.84max) MB/s +8%
AC6-M Mini-PC

477 (454.59min - 477.1max) MB/s +1%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
472 (470.6min - 472.28max) MB/s
Moyenne FPT310M4SSD256G

472 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
468 (410.62min - 468.2max) MB/s -1%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
434 (226.49min - 434.29max) MB/s -8%
Zotac ZBOX PI336 pico
SanDisk DF4128
250 (248.23min - 249.69max) MB/s -47%
Geekom MiniAir 11
NF830 256GB M.2 2280
229 (187.74min - 229.26max) MB/s -51%
seq write
Moyenne de la classe Mini PC
  (222 - 5595, n=93, 2 dernières années)
2042 MB/s +341%
Newsmay AC8 N6005
Lexar 128GB SSD
491 (445.91min - 491.36max) MB/s +6%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
463 (451.31min - 462.72max) MB/s
Moyenne FPT310M4SSD256G

463 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
435 (387.34min - 434.74max) MB/s -6%
AC6-M Mini-PC

428 (412.52min - 427.8max) MB/s -8%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
409 (44.25min - 408.73max) MB/s -12%
Geekom MiniAir 11
NF830 256GB M.2 2280
256 (237.45min - 255.73max) MB/s -45%
Zotac ZBOX PI336 pico
SanDisk DF4128
105.7 (97.74min - 105.7max) MB/s -77%
seq q8 t1 read
Moyenne de la classe Mini PC
  (236 - 8430, n=93, 2 dernières années)
3134 MB/s +470%
AC6-M Mini-PC

563 (509.43min - 563.43max) MB/s +2%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
550 (465.68min - 549.87max) MB/s
Moyenne FPT310M4SSD256G

550 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
548 (494.87min - 547.82max) MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
490 (435.79min - 489.54max) MB/s -11%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
447 (396.95min - 446.64max) MB/s -19%
Geekom MiniAir 11
NF830 256GB M.2 2280
260 (234.3min - 260.36max) MB/s -53%
Zotac ZBOX PI336 pico
SanDisk DF4128
254 (201.55min - 254.3max) MB/s -54%
seq q8 t1 write
Moyenne de la classe Mini PC
  (228 - 6669, n=93, 2 dernières années)
2209 MB/s +374%
Newsmay AC8 N6005
Lexar 128GB SSD
515 (500.64min - 515.04max) MB/s +11%
AC6-M Mini-PC

497 (494.3min - 497.29max) MB/s +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
488 (470.29min - 487.93max) MB/s +5%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
466 (442.13min - 465.87max) MB/s
Moyenne FPT310M4SSD256G

466 MB/s 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
346 (118.46min - 345.82max) MB/s -26%
Geekom MiniAir 11
NF830 256GB M.2 2280
268 (261.2min - 268.44max) MB/s -42%
Zotac ZBOX PI336 pico
SanDisk DF4128
100.9 (42.78min - 100.87max) MB/s -78%
4k q1 t1 read
Moyenne de la classe Mini PC
  (5.67 - 86.6, n=93, 2 dernières années)
51.2 MB/s +51%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
33.9 (33.27min - 33.91max) MB/s
Moyenne FPT310M4SSD256G

33.9 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
26.4 (25.68min - 26.38max) MB/s -22%
Geekom MiniAir 11
NF830 256GB M.2 2280
16.1 (12.09min - 16.13max) MB/s -53%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
16 (13.05min - 15.97max) MB/s -53%
AC6-M Mini-PC

13.9 (11.27min - 13.88max) MB/s -59%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.7 (13.61min - 13.69max) MB/s -60%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
12.9 (5.79min - 12.85max) MB/s -62%
4k q1 t1 write
Moyenne de la classe Mini PC
  (22 - 425, n=93, 2 dernières années)
185.1 MB/s +150%
Newsmay AC8 N6005
Lexar 128GB SSD
99.8 (98.72min - 99.78max) MB/s +35%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
74.1 (72.55min - 74.09max) MB/s
Moyenne FPT310M4SSD256G

74.1 MB/s 0%
AC6-M Mini-PC

62 (61.58min - 62.02max) MB/s -16%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
46.9 (43.93min - 46.94max) MB/s -37%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
22 (19.72min - 21.99max) MB/s -70%
Geekom MiniAir 11
NF830 256GB M.2 2280
20.9 (15.11min - 20.94max) MB/s -72%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.8 (12.91min - 13.8max) MB/s -81%
4k q32 t16 read
Moyenne de la classe Mini PC
  (26.1 - 2810, n=93, 2 dernières années)
1069 MB/s +302%
AC6-M Mini-PC

302 (300.2min - 301.59max) MB/s +14%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
266 (264.89min - 265.82max) MB/s
Moyenne FPT310M4SSD256G

266 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
185 (183.89min - 185.03max) MB/s -30%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
170.2 (157.55min - 170.17max) MB/s -36%
Geekom MiniAir 11
NF830 256GB M.2 2280
165.1 (75.31min - 165.14max) MB/s -38%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
163.2 (153.74min - 163.17max) MB/s -39%
Zotac ZBOX PI336 pico
SanDisk DF4128
26 (24.84min - 25.96max) MB/s -90%
4k q32 t16 write
Moyenne de la classe Mini PC
  (30.2 - 3983, n=93, 2 dernières années)
1071 MB/s +236%
AC6-M Mini-PC

351 (323.82min - 350.53max) MB/s +10%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
319 (315.72min - 318.72max) MB/s
Moyenne FPT310M4SSD256G

319 MB/s 0%
Newsmay AC8 N6005
Lexar 128GB SSD
288 (244.64min - 287.66max) MB/s -10%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
209 (190.39min - 209.23max) MB/s -34%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
168.3 (88.04min - 168.3max) MB/s -47%
Geekom MiniAir 11
NF830 256GB M.2 2280
113 (45.88min - 112.97max) MB/s -65%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.1 (12.24min - 13.12max) MB/s -96%
AS SSD
Score Total
Moyenne de la classe Mini PC
  (151.3 - 9030, n=91, 2 dernières années)
3523 Points +405%
AC6-M Mini-PC

1091 Points +56%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
698 Points
Moyenne FPT310M4SSD256G

698 Points 0%
Newsmay AC8 N6005
Lexar 128GB SSD
604 Points -13%
Geekom MiniAir 11
NF830 256GB M.2 2280
582 Points -17%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
580 Points -17%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
151.3 (331.02min) Points -78%
Zotac ZBOX PI336 pico
SanDisk DF4128
136 Points -81%
Score Read
Moyenne de la classe Mini PC
  (61 - 3635, n=91, 2 dernières années)
1343 Points +320%
AC6-M Mini-PC

473 Points +48%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
320 Points
Moyenne FPT310M4SSD256G

320 Points 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
217 Points -32%
Geekom MiniAir 11
NF830 256GB M.2 2280
201 Points -37%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
166 Points -48%
Newsmay AC8 N6005
Lexar 128GB SSD
134 Points -58%
Zotac ZBOX PI336 pico
SanDisk DF4128
65 Points -80%
Score Write
Moyenne de la classe Mini PC
  (88 - 4185, n=91, 2 dernières années)
1544 Points +642%
Newsmay AC8 N6005
Lexar 128GB SSD
396 Points +90%
AC6-M Mini-PC

374 Points +80%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
324 Points +56%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
312 Points +50%
Geekom MiniAir 11
NF830 256GB M.2 2280
278 Points +34%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
208 Points
Moyenne FPT310M4SSD256G

208 Points 0%
Zotac ZBOX PI336 pico
SanDisk DF4128
39 Points -81%
Seq Read
Moyenne de la classe Mini PC
  (291 - 6620, n=91, 2 dernières années)
2788 MB/s +470%
Newsmay AC8 N6005
Lexar 128GB SSD
512 MB/s +5%
AC6-M Mini-PC

492 MB/s +1%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
489 MB/s
Moyenne FPT310M4SSD256G

489 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
455.57 MB/s -7%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
433 MB/s -11%
Geekom MiniAir 11
NF830 256GB M.2 2280
421.78 MB/s -14%
Zotac ZBOX PI336 pico
SanDisk DF4128
264.86 MB/s -46%
Seq Write
Moyenne de la classe Mini PC
  (240 - 5783, n=91, 2 dernières années)
1929 MB/s +461%
AC6-M Mini-PC

450 MB/s +31%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
438.23 MB/s +27%
Newsmay AC8 N6005
Lexar 128GB SSD
411.6 MB/s +20%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
385 MB/s +12%
Geekom MiniAir 11
NF830 256GB M.2 2280
365.24 MB/s +6%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
344 MB/s
Moyenne FPT310M4SSD256G

344 MB/s 0%
Zotac ZBOX PI336 pico
SanDisk DF4128
117 MB/s -66%
4K Read
Moyenne de la classe Mini PC
  (6.08 - 104.2, n=91, 2 dernières années)
55.5 MB/s +57%
Moyenne FPT310M4SSD256G

35.5 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
35.45 MB/s
Newsmay AC8 N6005
Lexar 128GB SSD
23.29 MB/s -34%
AC6-M Mini-PC

19.43 MB/s -45%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
16.2 MB/s -54%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
13.9 MB/s -61%
Geekom MiniAir 11
NF830 256GB M.2 2280
13.57 MB/s -62%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.21 MB/s -63%
4K Write
Moyenne de la classe Mini PC
  (30.9 - 366, n=91, 2 dernières années)
167.1 MB/s +340%
Newsmay AC8 N6005
Lexar 128GB SSD
83 MB/s +118%
AC6-M Mini-PC

51.4 MB/s +35%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
49.68 MB/s +31%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
38 MB/s
Moyenne FPT310M4SSD256G

38 MB/s 0%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
36.63 MB/s -4%
Geekom MiniAir 11
NF830 256GB M.2 2280
21.25 MB/s -44%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.46 MB/s -65%
4K-64 Read
Moyenne de la classe Mini PC
  (23.4 - 3035, n=91, 2 dernières années)
1009 MB/s +328%
AC6-M Mini-PC

404.1 MB/s +71%
Moyenne FPT310M4SSD256G

236 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
235.66 MB/s
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
157.18 MB/s -33%
Geekom MiniAir 11
NF830 256GB M.2 2280
144.84 MB/s -39%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
106.99 MB/s -55%
Newsmay AC8 N6005
Lexar 128GB SSD
59.4 MB/s -75%
Zotac ZBOX PI336 pico
SanDisk DF4128
25.74 MB/s -89%
4K-64 Write
Moyenne de la classe Mini PC
  (32.8 - 3598, n=91, 2 dernières années)
1184 MB/s +775%
AC6-M Mini-PC

277.8 MB/s +105%
Newsmay AC8 N6005
Lexar 128GB SSD
272.3 MB/s +101%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
237.24 MB/s +75%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
230.65 MB/s +70%
Geekom MiniAir 11
NF830 256GB M.2 2280
219.83 MB/s +62%
Moyenne FPT310M4SSD256G

135.4 MB/s 0%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
135.39 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.71 MB/s -90%
Access Time Read
Zotac ZBOX PI336 pico
SanDisk DF4128
0.311 ms * -110%
Geekom MiniAir 11
NF830 256GB M.2 2280
0.284 ms * -92%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.205 ms * -39%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.193 ms * -30%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.148 ms *
Moyenne FPT310M4SSD256G

0.148 ms * -0%
Newsmay AC8 N6005
Lexar 128GB SSD
0.139 ms * +6%
Moyenne de la classe Mini PC
  (0.022 - 0.489, n=91, 2 dernières années)
0.1032 ms * +30%
AC6-M Mini-PC

0.088 ms * +41%
Access Time Write
Zotac ZBOX PI336 pico
SanDisk DF4128
0.942 ms * -614%
Geekom MiniAir 11
NF830 256GB M.2 2280
0.218 ms * -65%
Geekom MiniAir 11 Special Edition
NF830 256GB M.2 2280
0.203 ms * -54%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.18 ms * -36%
Newsmay AC8 N6005
Lexar 128GB SSD
0.145 ms * -10%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.132 ms *
Moyenne FPT310M4SSD256G

0.132 ms * -0%
Moyenne de la classe Mini PC
  (0.016 - 0.765, n=91, 2 dernières années)
0.128 ms * +3%
AC6-M Mini-PC

0.071 ms * +46%

* ... Moindre est la valeur, meilleures sont les performances

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

0306090120150180210240270300330360390420450480510540Tooltip
Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)
Geekom MiniAir 11 NF830 256GB M.2 2280: Ø222 (150.9-230.52)
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3: Ø485 (394.52-487.59)
Zotac ZBOX PI336 pico SanDisk DF4128: Ø256 (203.85-260.99)
Newsmay AC8 N6005 Lexar 128GB SSD: Ø545 (496.4-547.82)

Carte graphique et performances de jeu

Le traitement graphique est assuré par UHD Graphics 16 UE d'Intel (Jasper Lake) d'Intel. Avec cet iGPU, il est déraisonnable de demander au Ace Magician T8Pro d'effectuer des calculs 3D complexes. Néanmoins, d'après nos mesures, le T8Pro est légèrement meilleur que le Geekom MiniAir 11 Special Geekom MiniAir 11 Special Edition en termes de performances graphiques. Cela dit, notre unité de test n'est pas aussi bonne que le Newsmay AC8car l'iGPU du Intel Pentium Silver N6005 a un total de 32 UE. Si vous ne devez pas vous attendre à jouer à des jeux 3D exigeants sur le Ace Magician T8Pro, ce petit PC de bureau ne devrait pas avoir de problème pour faire tourner des jeux simples basés sur un navigateur et d'autres jeux occasionnels.

Cliquez sur ici pour plus de résultats de benchmark pour le Intel UHD Graphics.

3DMark Performance Rating - Percent
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
100 pt
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
72.6 pt
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
69.7 pt
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
69.1 pt
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
68.3 pt
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
54.7 pt
AC6-M Mini-PC
Intel UHD Graphics 600, Intel Celeron J4125
49.3 pt
3DMark 11 - 1280x720 Performance GPU
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
1589 Points +85%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
859 Points
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
854 Points -1%
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
837 Points -3%
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
837 Points -3%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
650 Points -24%
AC6-M Mini-PC
Intel UHD Graphics 600, Intel Celeron J4125
602 Points -30%
3DMark
1280x720 Cloud Gate Standard Graphics
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
5895 Points +13%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
5217 Points
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4958 Points -5%
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4952 Points -5%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4863 Points -7%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
3762 Points -28%
AC6-M Mini-PC
Intel UHD Graphics 600, Intel Celeron J4125
3503 Points -33%
1920x1080 Fire Strike Graphics
Newsmay AC8 N6005
Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005
881 Points +33%
Minipc Union Ace Magician T8Pro
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
662 Points
Geekom MiniAir 11 Special Edition
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
637 Points -4%
Geekom MiniAir 11
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
623 Points -6%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
605 Points -9%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
523 Points -21%
AC6-M Mini-PC
Intel UHD Graphics 600, Intel Celeron J4125
446 Points -33%
Bas Moyen Élevé Ultra
Dota 2 Reborn (2015) 61.2 22.8 12 11.2
Final Fantasy XV Benchmark (2018) 7.13 3.27
X-Plane 11.11 (2018) 15.1

Émissions - généralement silencieuses et efficaces

Émissions sonores

En raison du faible TDP du Intel Celeron N5095le système de refroidissement n'est pas particulièrement sollicité. L'ordinateur est presque silencieux en veille et ne produit qu'une petite quantité de bruit en charge (ne dépassant pas 30,9 dB(A) selon nos mesures).

Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Minisforum EliteMini B550
R7 5700G, Vega 8
Minisforum EliteMini TH50
i5-11320H, Iris Xe G7 96EUs
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
Geekom MiniAir 11 Special Edition
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise
15%
-3%
-10%
-25%
1%
off / environment *
30.2
23.3
23%
30.2
-0%
30.2
-0%
30.5
-1%
29.6
2%
Idle Minimum *
30.2
24.2
20%
30.5
-1%
30.8
-2%
31.5
-4%
29.6
2%
Idle Average *
30.2
24.2
20%
30.5
-1%
32.1
-6%
32.6
-8%
29.6
2%
Idle Maximum *
30.2
24.2
20%
30.5
-1%
32.9
-9%
33.8
-12%
29.6
2%
Load Average *
30.5
25.1
18%
31.2
-2%
33.9
-11%
49.3
-62%
30
2%
Load Maximum *
30.9
33.9
-10%
35.1
-14%
41.4
-34%
50.9
-65%
32.9
-6%

* ... Moindre est la valeur, meilleures sont les performances

Degré de la nuisance sonore

Au repos
30.2 / 30.2 / 30.2 dB(A)
Fortement sollicité
30.5 / 30.9 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Earthworks M23R, Arta (à 15 cm de distance)   bruit ambiant: 30.2 dB(A)

Température

Le châssis du Ace Magician T8Pro ne devient que modérément chaud sous charge. Sur le SoC lui-même, la température la plus élevée que nous avons enregistrée était de 80°C (176°F), ce qui est encore loin de la limite thermique maximale du CPU de 105°C (221°F).

Test d'effort Prime95
Test d'effort Prime95
Ace Magician T8Pro pendant le test de stress
Ace Magician T8Pro pendant le test de stress
Ace Magician T8Pro pendant le test de stress
Ace Magician T8Pro pendant le test de stress
L'adaptateur d'alimentation de l'Ace Magician T8Pro pendant le stress test
L'adaptateur d'alimentation de l'Ace Magician T8Pro pendant le stress test

Consommation électrique

La plupart des mini-PC ont une consommation d'énergie remarquablement faible, et le Ace Magician T8Pro ne fait pas exception. Alors que sa consommation d'énergie est sensiblement inférieure à la moyenne pour cette catégorie d'appareils, les autres mini PC de notre comparaison sont encore plus économes en énergie. Notre moniteur d'alimentation a montré que le T8Pro a consommé un maximum de 26,3 watts. Avec une puissance nominale de 30 watts, l'adaptateur d'alimentation est capable de gérer ce niveau d'utilisation.

Consommation énergétique
Éteint/en veilledarklight 0.8 / 1.7 Watts
Au reposdarkmidlight 8.4 / 8.4 / 11.1 Watts
Fortement sollicité midlight 16.5 / 26.3 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Zotac ZBOX PI336 pico
Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
Geekom MiniAir 11 Special Edition
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Moyenne Intel UHD Graphics (Jasper Lake 16 EU)

Moyenne de la classe Mini PC

Power Consumption
10%
40%
24%
20%
-105%
Idle Minimum *
8.4
7
17%
5.4
36%
4.8
43%
5.65 ?(2.5 - 8.4, n=8)
33%
9.83 ?(1.9 - 46.5, n=88, 2 dernières années)
-17%
Idle Average *
8.4
7
17%
5.5
35%
4.8
43%
6.61 ?(4.6 - 8.4, n=7)
21%
11.7 ?(1.9 - 63, n=88, 2 dernières années)
-39%
Idle Maximum *
11.1
7.6
32%
6.2
44%
6.7
40%
7.54 ?(5.3 - 11.1, n=7)
32%
14.3 ?(2.6 - 68.9, n=88, 2 dernières années)
-29%
Load Average *
16.5
18.3
-11%
11.3
32%
15.9
4%
16.2 ?(12.3 - 18.3, n=6)
2%
51.6 ?(11.3 - 158.7, n=89, 2 dernières années)
-213%
Load Maximum *
26.3
27.1
-3%
11.8
55%
28.4
-8%
23.1 ?(13.4 - 28.4, n=7)
12%
85.5 ?(18.1 - 271, n=89, 2 dernières années)
-225%

* ... Moindre est la valeur, meilleures sont les performances

Power consumption with external monitor

0510152025Tooltip
Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.8 (23.8-26.3)
Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.6 (23.2-25.8)
Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø22.7 (15-23.3)
Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø21.4 (17.3-21.8)
Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (13.6-23.3)
Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)
Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)

Points positifs

+ mini PC extrêmement compact
+ boîtier robuste
+ très silencieux en charge
+ faible consommation d'énergie
+ 3x HDMI
+ Double LAN

Points négatifs

- soC lent
- performances graphiques limitées
- pas de lecteur de carte SD
- wi-Fi lent
- rAM soudée

Verdict - Mini PC pour les tâches de base

Ace Magician T8Pro
Ace Magician T8Pro

Le Ace Magician T8Pro offre de bonnes performances dans un facteur de forme très petit et est capable de gérer le travail de bureau de base. Le site Intel Celeron N5095comporte quatre cœurs natifs qui sont rapidement poussés à leurs limites lors de l'exécution de tâches difficiles. Si vous êtes attentif à ce que le Ace Magician T8Pro est conçu pour faire, vous trouverez un mini PC compact qui est à la fois efficace et extrêmement silencieux. Il y a 8 Go de RAM à bord, ce qui, à notre avis, est la quantité minimale requise pour un système raisonnablement fonctionnel. Les 256 Go de stockage sont suffisants, et le T8Pro est même livré avec Windows 11 Pro pour moins de 300 € (320 $ US).

La qualité de fabrication de l'appareil est excellente, même si son châssis est entièrement en plastique. Malgré son design compact, le Ace Magician T8Pro offre une sélection impressionnante de ports. Le mini PC peut piloter jusqu'à trois écrans externes en même temps et dispose de trois ports USB-A et de deux ports LAN. Tous ces éléments ne sont pas toujours acquis pour un produit de cette taille.

L'Ace Magician T8Pro est un ordinateur de travail compact pour les applications de bureau de base.

Une chose que nous n'avons pas appréciée dans ce système est le module Wi-Fi intégré. Malheureusement, il ne prend pas en charge la dernière norme et offre des performances médiocres. Un module Wi-Fi 6E moderne aurait été une solution plus adaptée à l'avenir. Le Ace Magician T8Pro s'est incontestablement distingué lors de notre examen, mais le Beelink U59 Mini-S et Geekom MiniAir 11 (tous deux équipés du même SoC) offrent de meilleures performances à certains égards ainsi qu'une latence DPC beaucoup plus faible.

Le Ace Magician T8Pro a été prêté à Notebookcheck à des fins d'évaluation.

Prix et disponibilité

En Allemagne, vous pouvez acheter le Ace Magician T8Pro (avec 8 Go de RAM et un SSD de 256 Go) sur Amazon pour 329 € dès maintenant. Aux États-Unis, le produit est proposé à un prix aussi bas que US$199 sur Amazon.

Veuillez noter que les prix sont exacts au moment de la rédaction et sont susceptibles d'être modifiés.

Minipc Union Ace Magician T8Pro - 01/05/2023 v7
Sebastian Bade

Châssis
80 / 98 → 82%
Connectivité
49 / 81 → 61%
Poids
88%
Performances en jeu
31%
Performances dans les applications
72%
Nuisance sonore
95%
Moyenne
69%
66%
Mini PC - Moyenne compensée
Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Test de l'Ace Magician T8Pro : un mini PC économique pour le bureau
Sebastian Bade, 2023-01-10 (Update: 2023-01-10)
