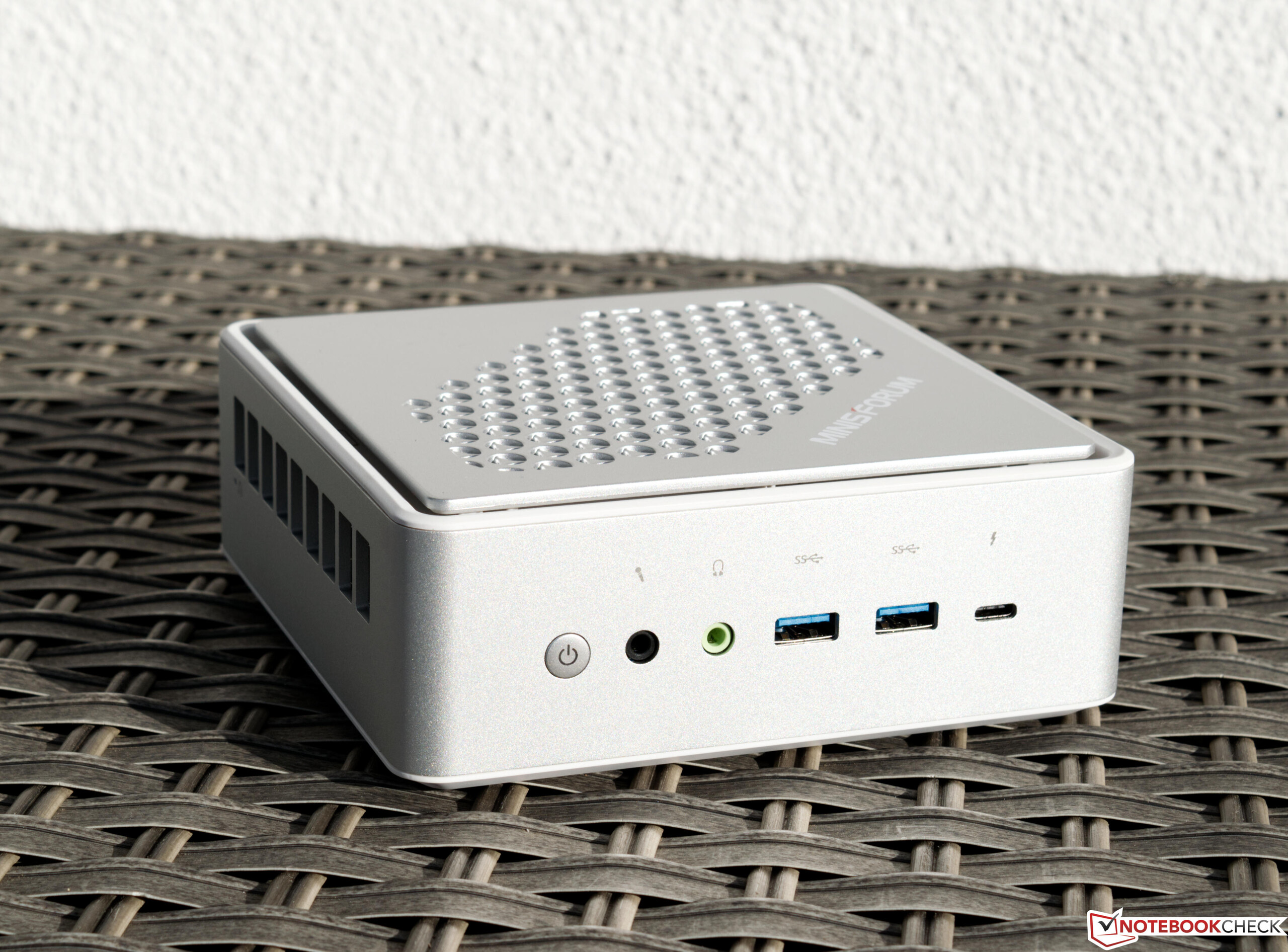

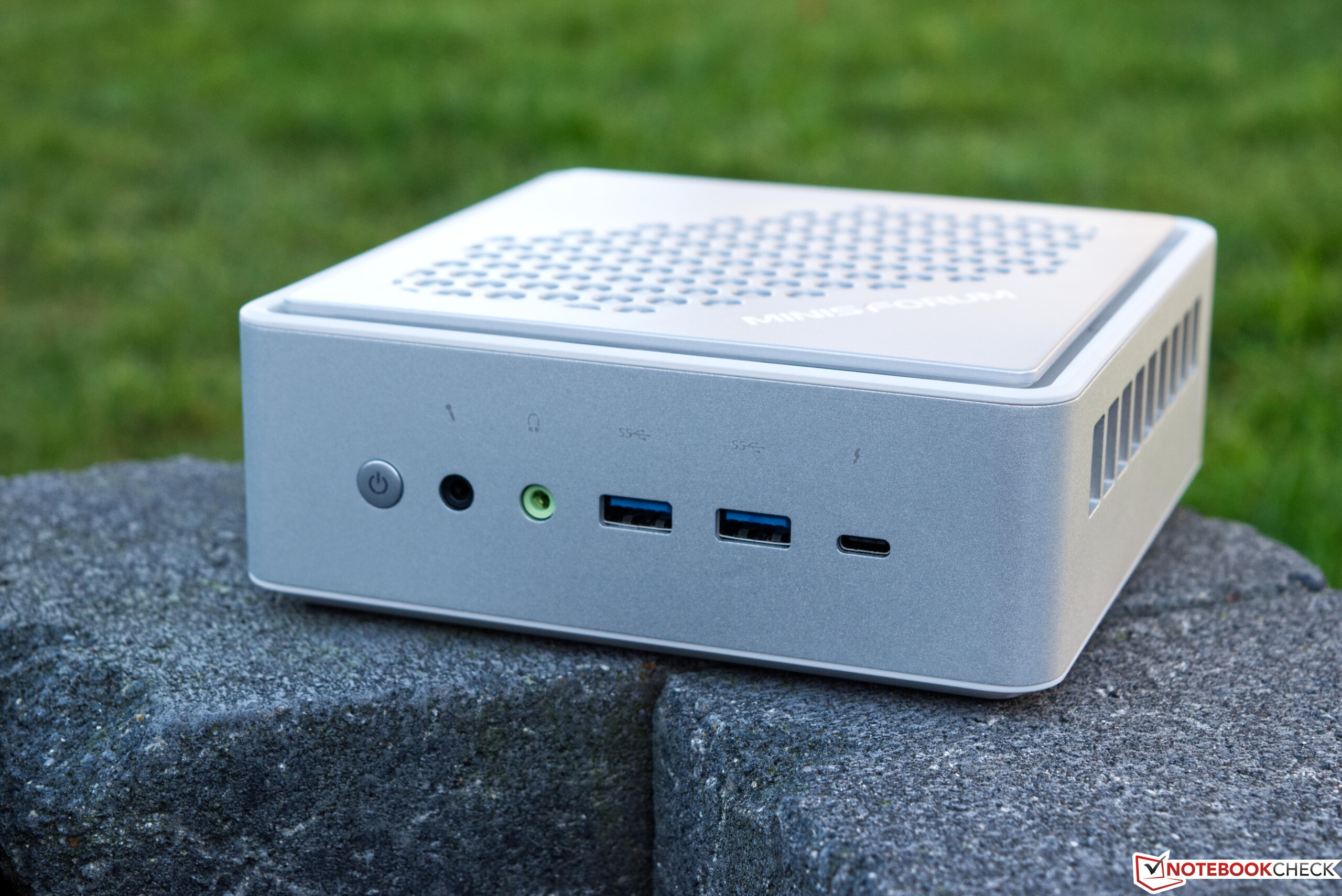

Test du Minisforum EliteMini TH50 : PC de bureau compact à utiliser au quotidien au bureau

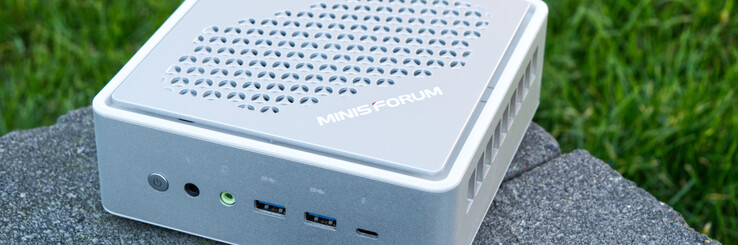

Plus qu'un simple PC de bureau ! Avec le EliteMini TH50, le fabricant Minisforum propose un PC de travail à base d'Intel solide comme le roc. Grâce à Thunderbolt, la gamme d'applications a été considérablement élargie. Dans cette revue, nous allons découvrir ce que cette petite centrale informatique a à offrir.

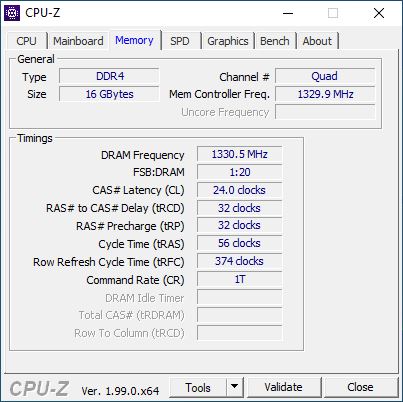

CPU-Z
CPU-Z

En tant que fabricant de systèmes, Minisforum est désormais un nom familier pour beaucoup, même si le fabricant chinois n'est pas encore très répandu dans cette partie du monde. La gamme de produits s'étend des mini-PC IOT aux appareils de bureau et aux ordinateurs de jeu compacts. Nous avons déjà pu faire connaissance avec certains systèmes de la série EliteMini. Toutefois, un APU d'AMD a servi de base à ces PC jusqu'à présent. Désormais, l'EliteMini TH50 repose sur un SoC Intel Tiger Lake et offre ainsi encore plus d'options d'utilisation.

Le Intel Core i5-11320H est un SoC solide et offre une base solide. Les records ne seront pas battus avec ce processeur, mais les performances devraient être suffisantes pour l'utilisation prévue. Équipé de 16 Go de RAM DDR4 et d'un SSD de 512 Go, Minisforum nous a fourni le modèle supérieur. Le fabricant facture 669 dollars américains pour cette configuration. Le EliteMini TH50 est également disponible en version barebones sans SSD. Cependant, le prix de 629 $US sans SSD ne représente pas une grande économie. Il faut également considérer qu'aucune licence Windows n'est incluse dans l'achat sans périphérique de stockage de masse. En outre, 16 Go de RAM sont toujours installés dans l'EliteMini TH50 car ils sont soudés sur la carte.

Le Minisforum EliteMini TH50 est livré dans une boîte solide avec des accessoires appropriés pour rendre le système opérationnel. Le bloc d'alimentation est compact et délivre 65 W via l'USB-C. En outre, une plaque de montage pour la fixation à un écran (montage VESA) est fournie dans le cadre de la livraison. En interne, l'appareil peut être équipé de deux périphériques de stockage de masse supplémentaires de 2,5 pouces.

Minisforum EliteMini TH50
Processeur
Intel Core i5-11320H 4 x 3.2 - 4.5 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35
Carte graphique
Mémoire
16 Go
, DDR4-3200, fest verlötet
Carte mère
Intel Tiger Lake-UP3 PCH-LP
Disque dur

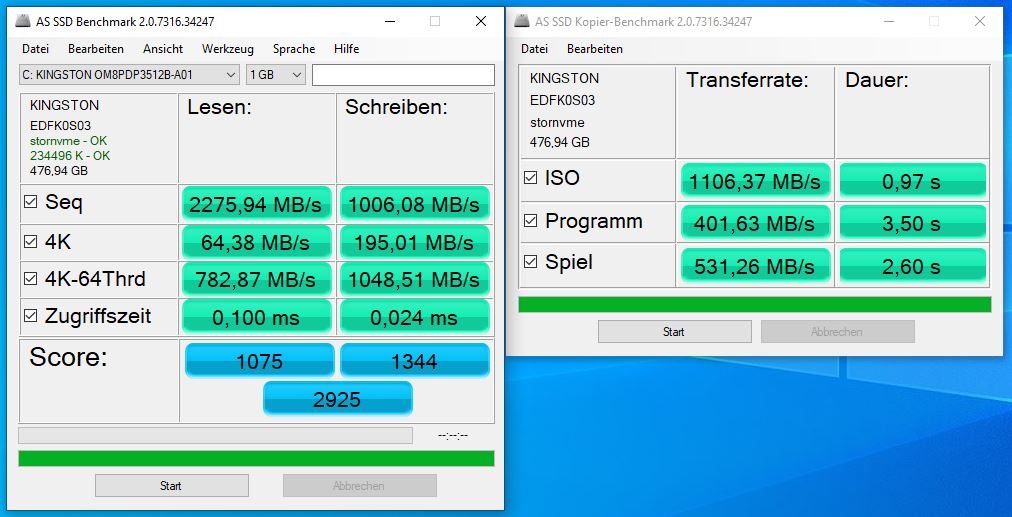

Kingston OM8PDP3512B-AI1, 512 Go
, M.2-2280 NVMe, 450 Go libres
Connexions
2 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Encoche de Sécurité Kensington, Connectique audio: 3.5mm Audio Jack
Réseau
MediaTek MT7921 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5
Taille

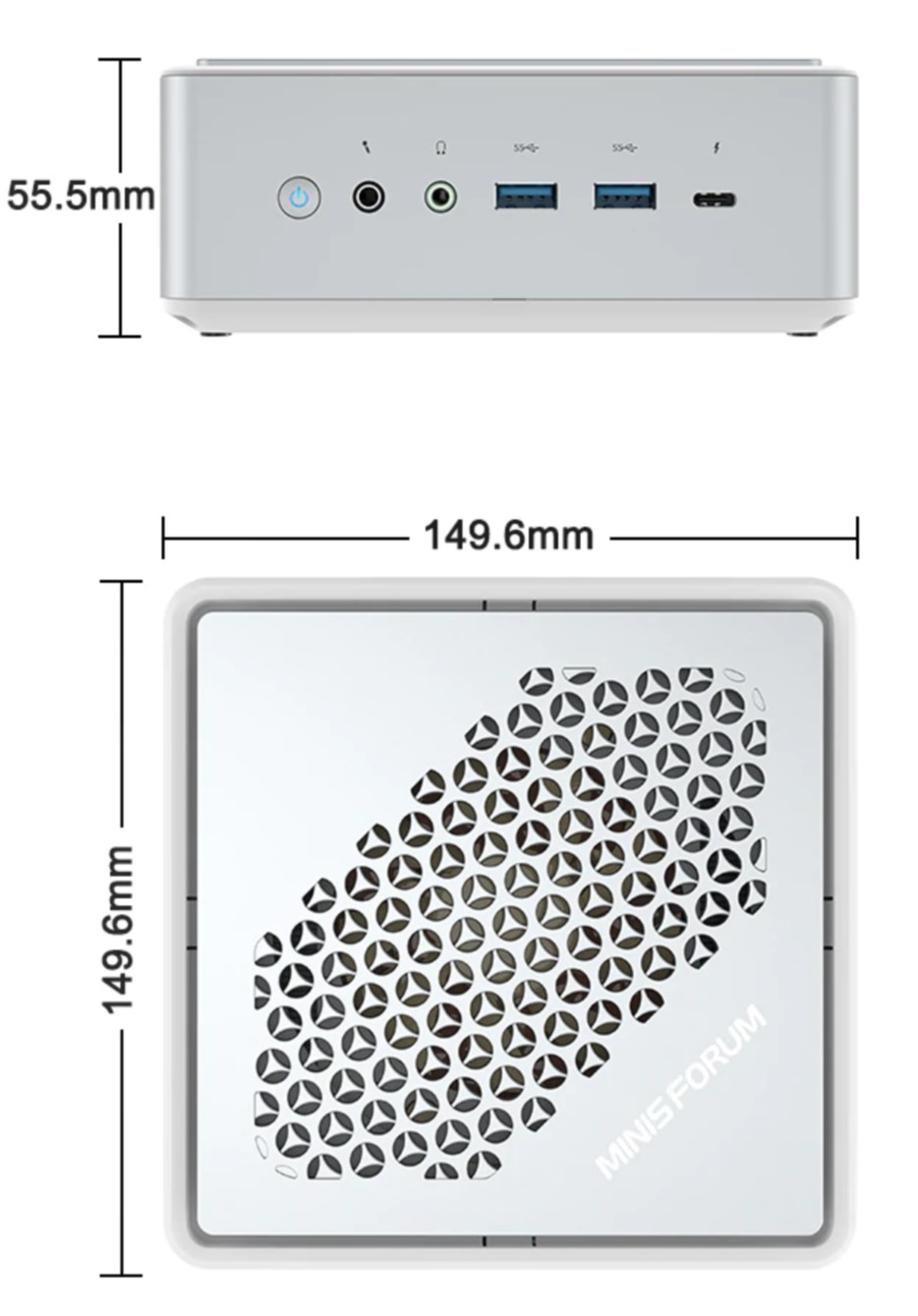

Hauteur x Largeur x Profondeur (en mm): 55.5 x 149.6 x 149.6
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Fonctionnalités additionnelles
65-Watt-Netzteil
Poids
763 g, Alimentation: 277 g
Prix
0 599
Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.



Cas et équipement

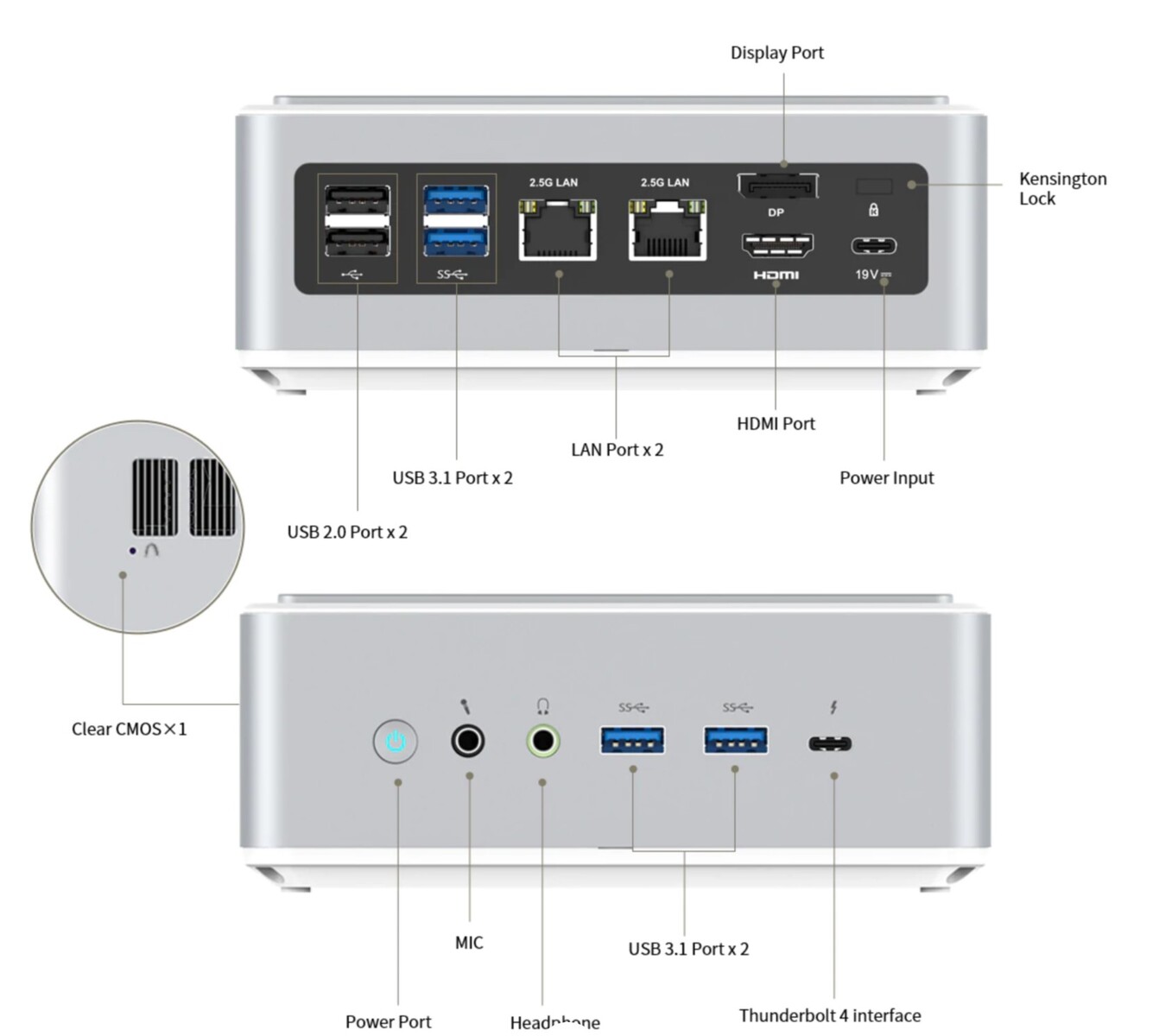

Interfaces externes (source : Minisforum)
Interfaces externes (source : Minisforum)

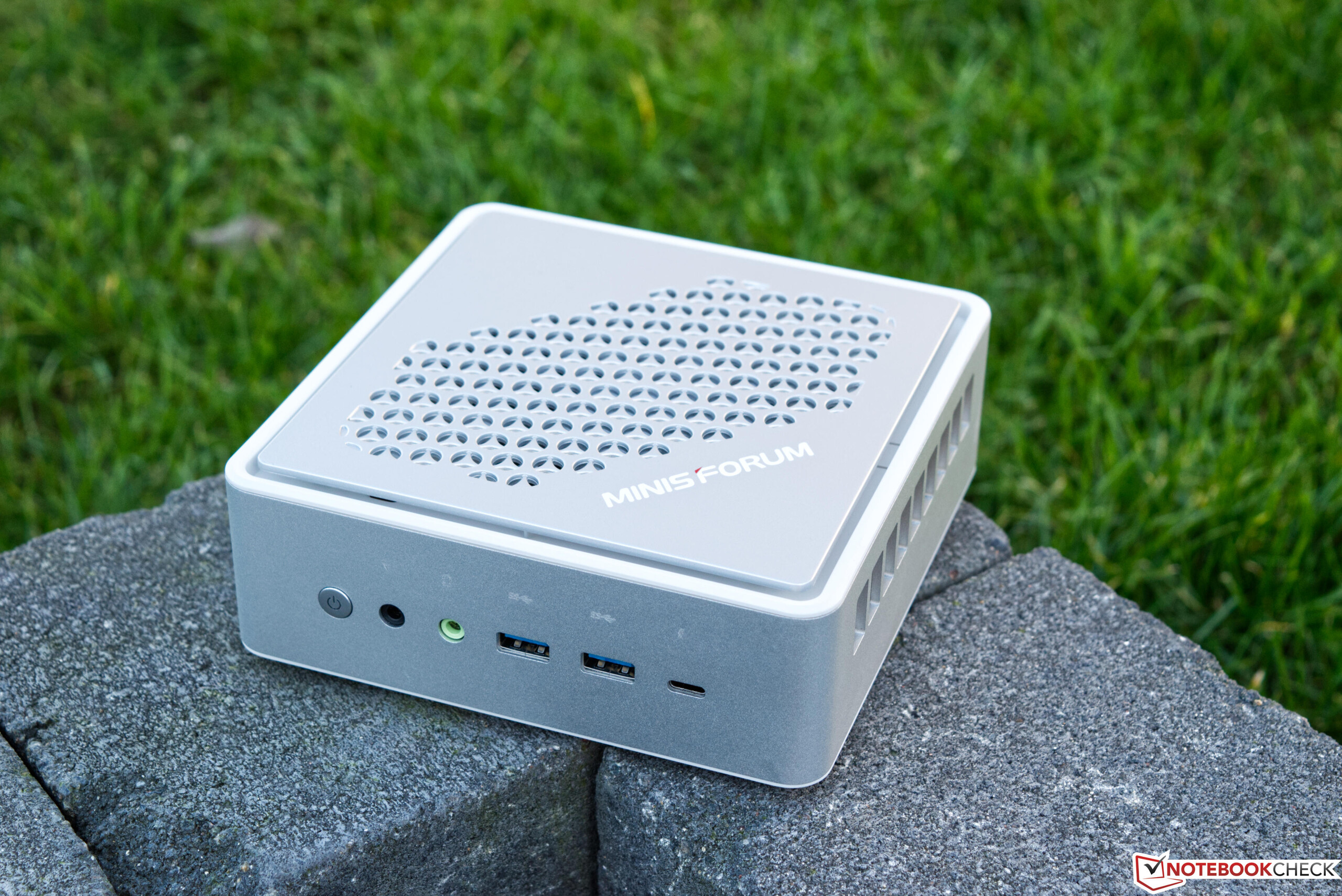

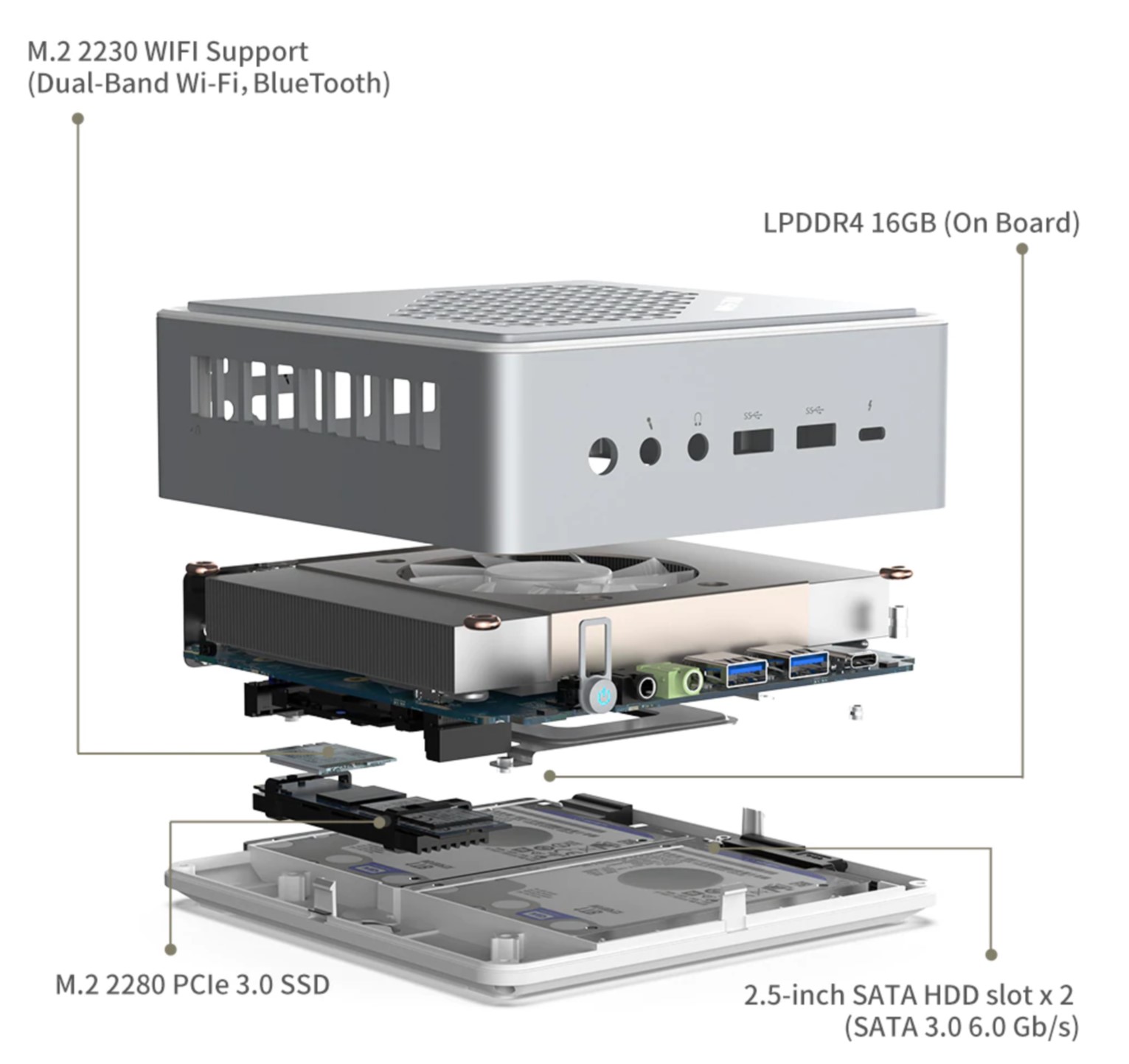

La structure du Minisforum EliteMini TH50 ressemble fortement à celle du Minisforum Elitemini HM90. Le boîtier est fait d'un corps en aluminium, ce qui confère au système une bonne stabilité. Le dessus et le dessous sont en plastique, ce qui correspond bien à la base en aluminium en termes de couleur. En termes de couleur, vous devez aimer la combinaison de l'argent et du blanc, car il n'y a pas d'alternatives. Le système n'offre pas de points forts optiques frappants, mais ce n'est pas nécessaire car la fonctionnalité est bien plus importante

En ce qui concerne le refroidissement avant tout, il était déjà très convaincant dans l'EliteMini HM90. Le principe reste le même cette fois encore. L'air frais est aspiré sur le côté supérieur et conduit hors du boîtier via le refroidisseur sur le côté.

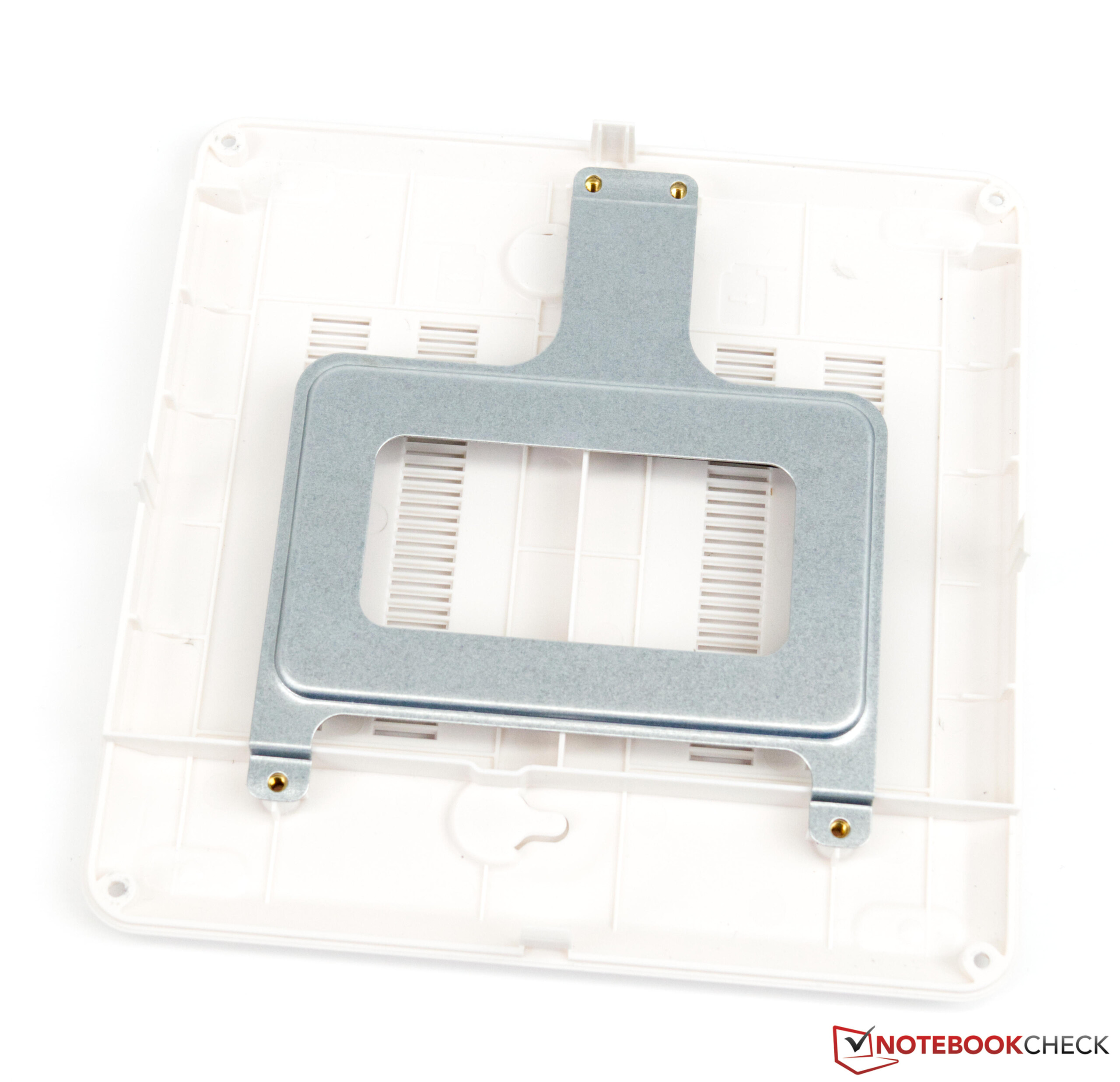

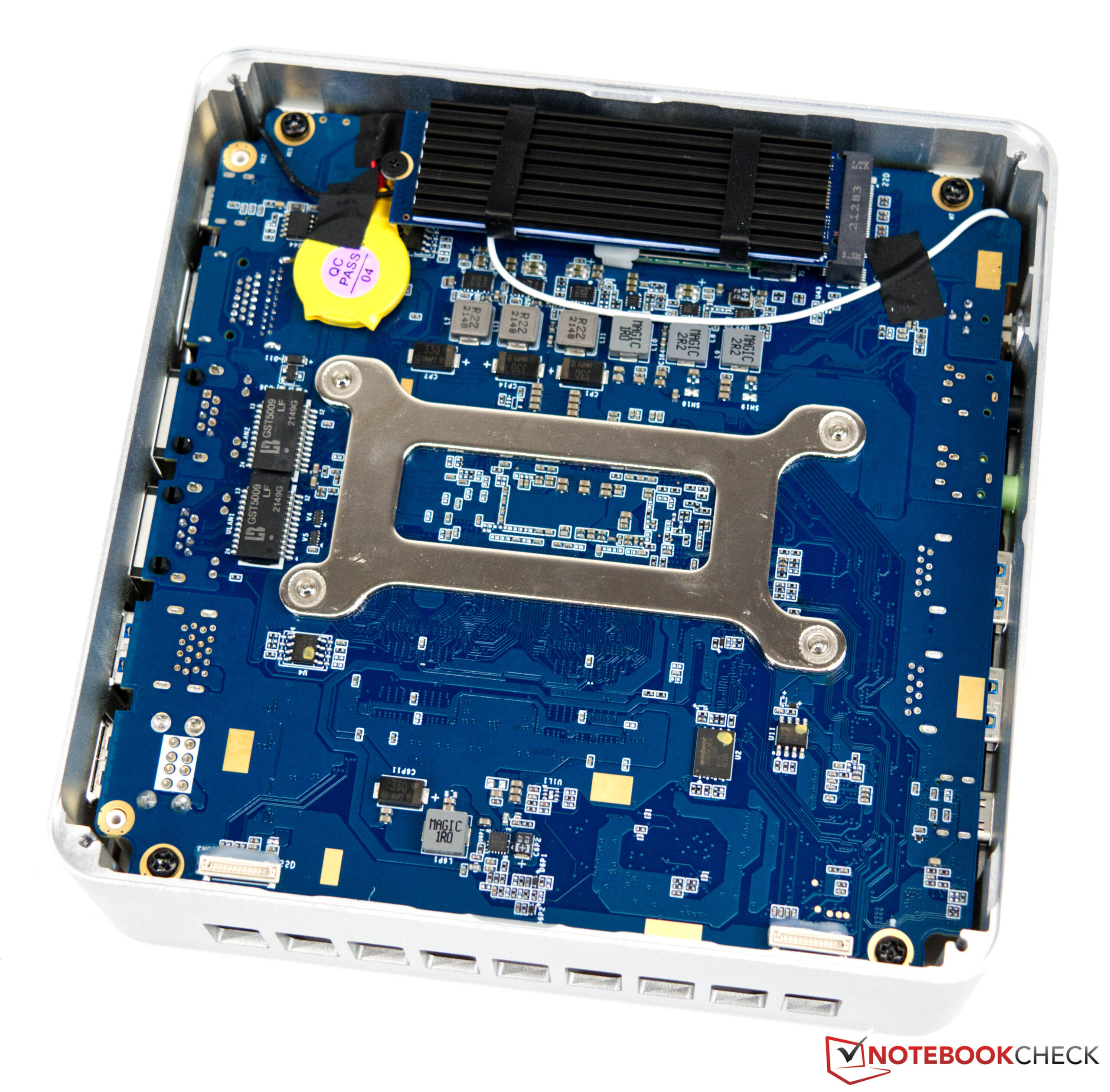

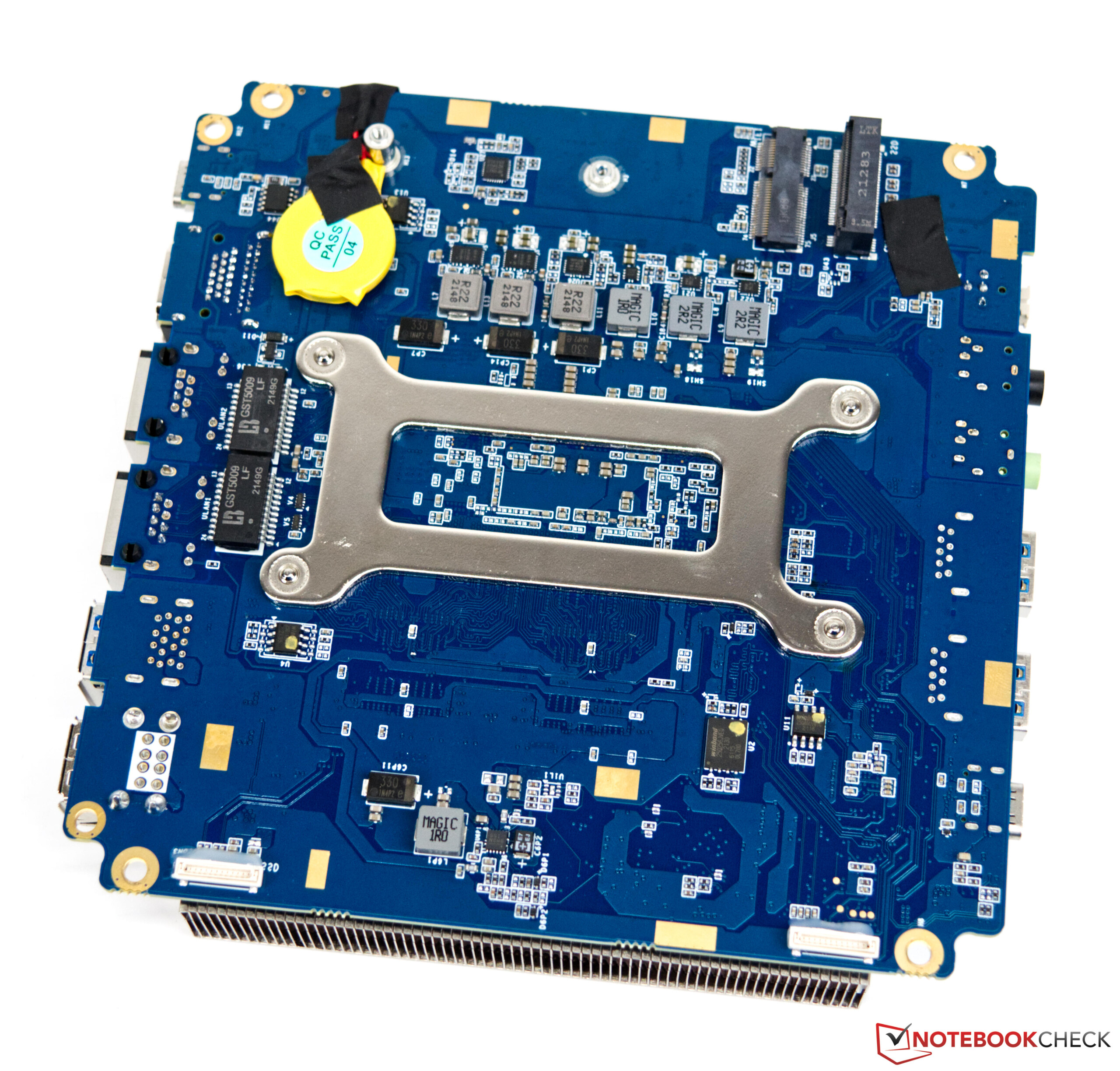

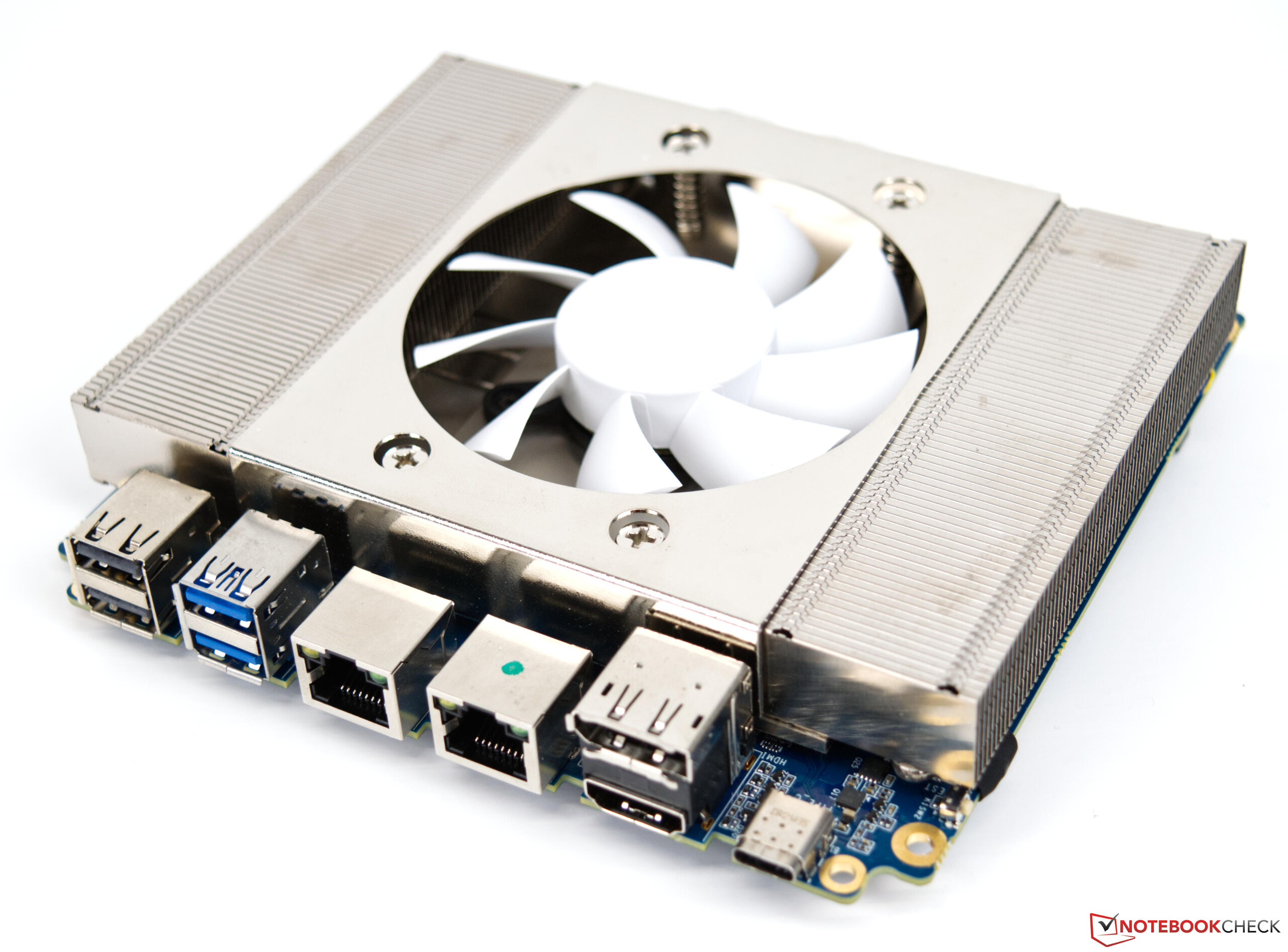

L'appareil s'ouvre facilement par la plaque de fond. Quatre vis fixent la plaque de base au boîtier. Cependant, il n'y a pas grand-chose à voir en dessous. Le module WLAN ainsi que le SSD peuvent être échangés. En outre, deux autres disques de données de 2,5 pouces peuvent être stockés dans l'appareil. Ceux-ci sont fixés directement sur la plaque de base et reliés à la carte par des câbles courts.

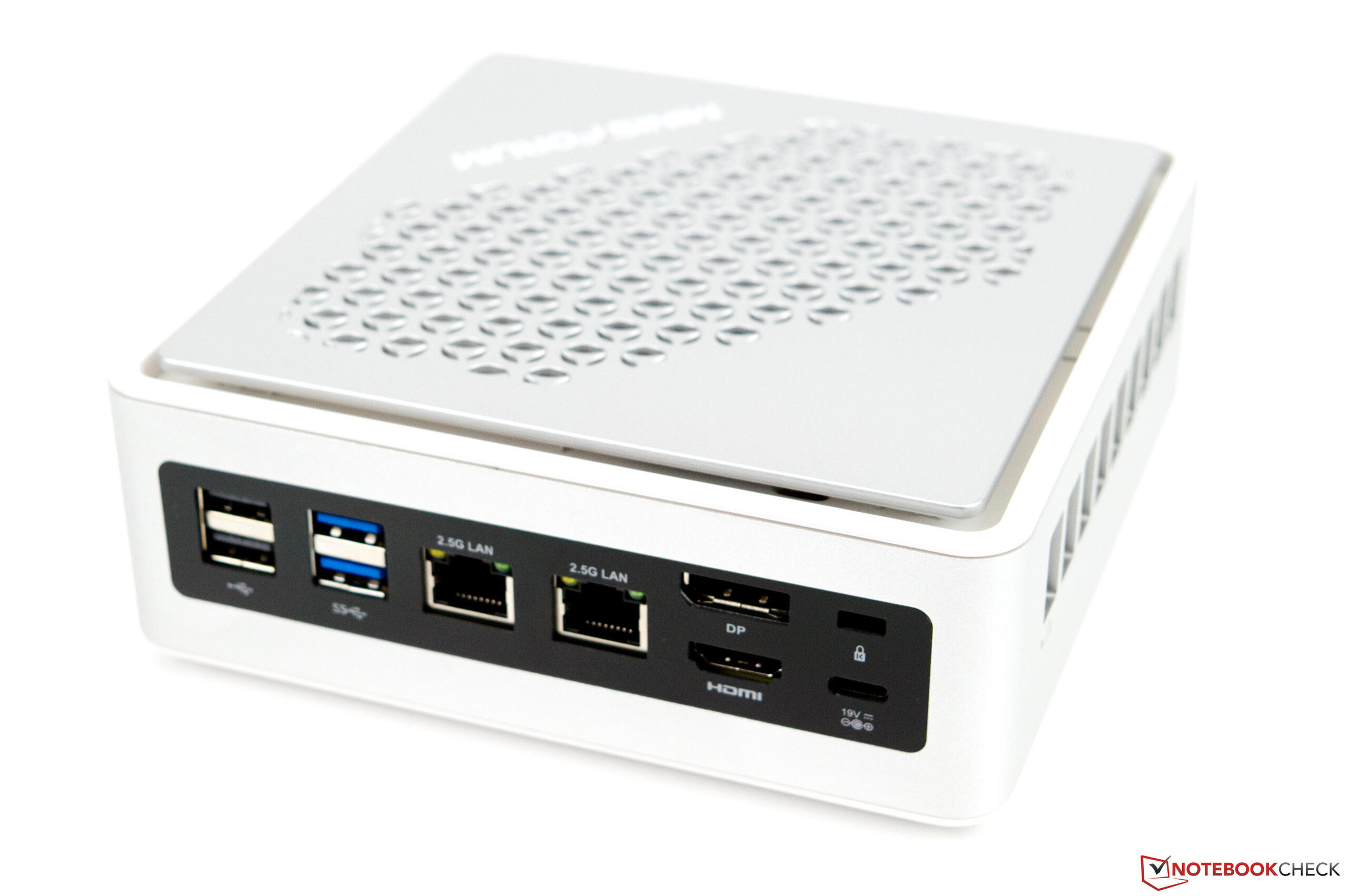

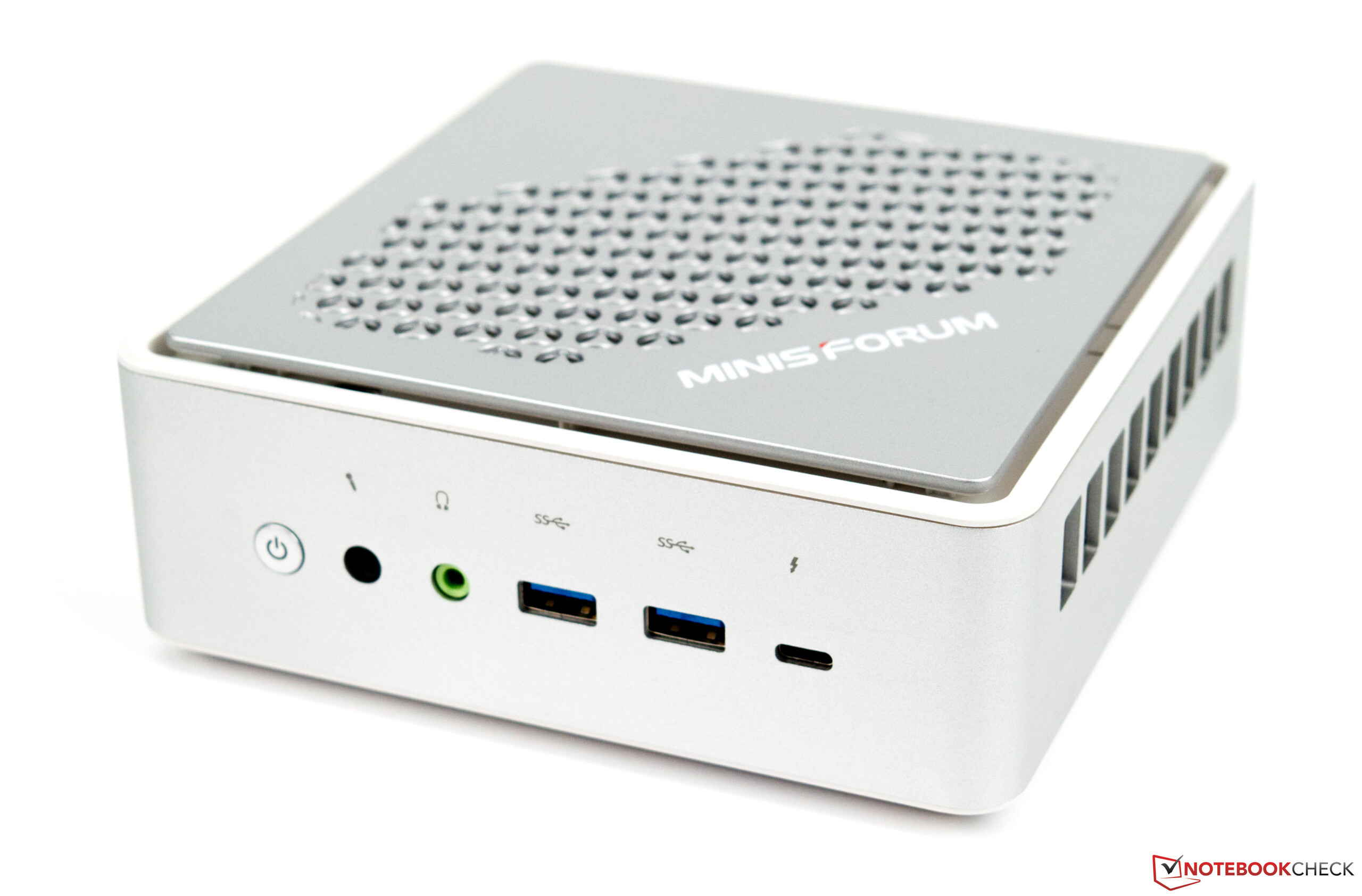

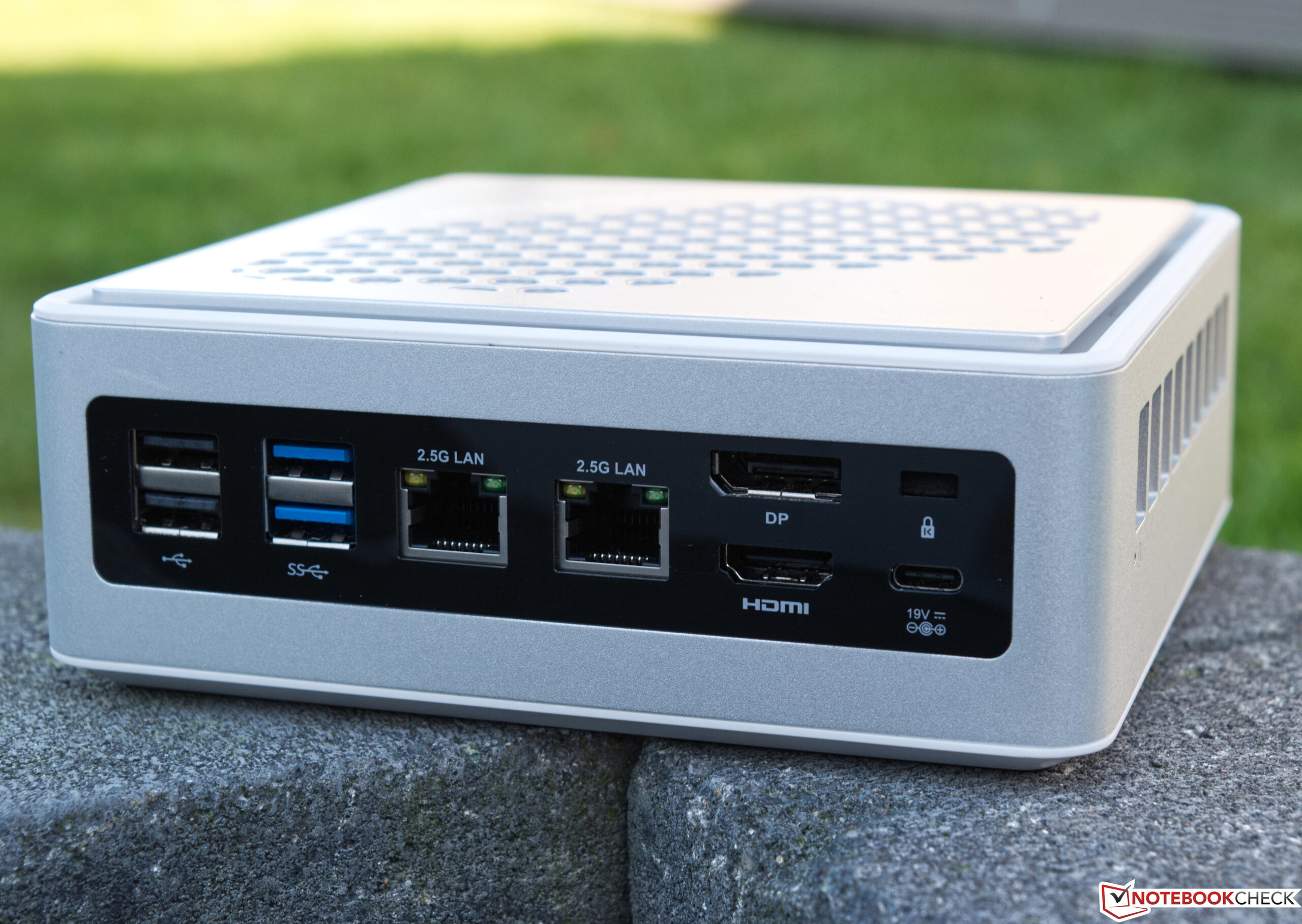

En termes de connexions externes, le EliteMini HM50 offre plusieurs options pour connecter des appareils supplémentaires. Au total, six interfaces USB-A sont disponibles, ce qui devrait être plus que suffisant. Il existe également un support Thunderbolt 4 auquel des solutions de docking externes peuvent être connectées, permettant ainsi un large éventail d'options pour étendre la connectivité de l'EliteMini TH50. Nous avons également testé une solution GPU externe pour voir quelles performances de jeu peuvent être attendues avec ce petit système. Il y a également deux ports Ethernet 2.5G ainsi qu'un HDMI et un DisplayPort. Ceux qui utilisent également le port Thunderbolt pour la sortie d'images peuvent piloter jusqu'à trois écrans simultanément avec le EliteMini TH50.

Remarque importante

Il y a un port USB-C à l'arrière, qui est destiné à l'adaptateur d'alimentation. Minisforum indique explicitement qu'il ne faut pas connecter l'adaptateur d'alimentation au port Thunderbolt 4. Après avoir contacté le fabricant, il a été confirmé qu'en connectant l'alimentation de manière incorrecte, le système ne démarrera pas et la carte mère sera irrémédiablement endommagée.

Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50

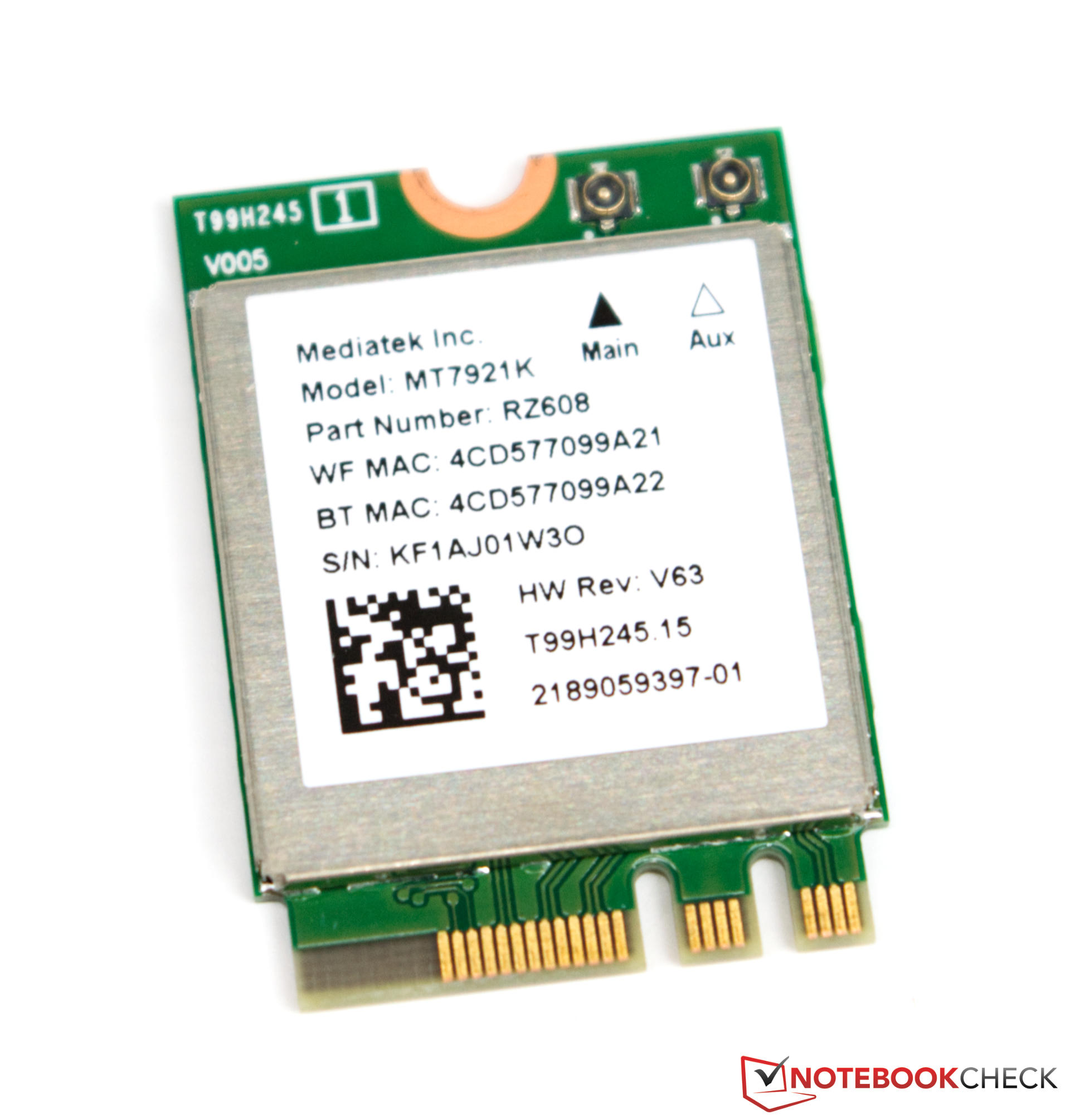

Minisforum EliteMini TH50 - Carte WLAN
Minisforum EliteMini TH50
Minisforum EliteMini TH50
Minisforum EliteMini TH50

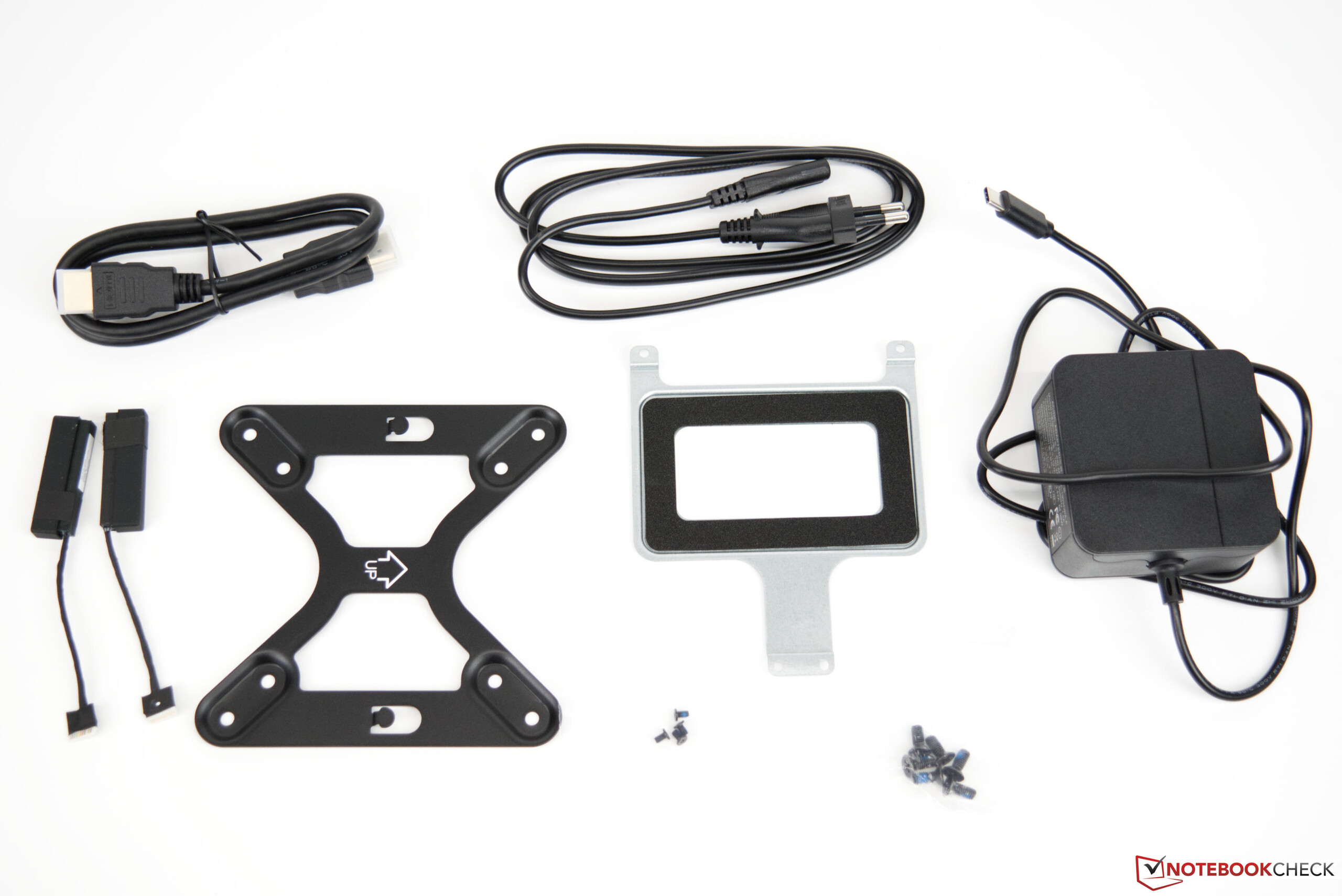

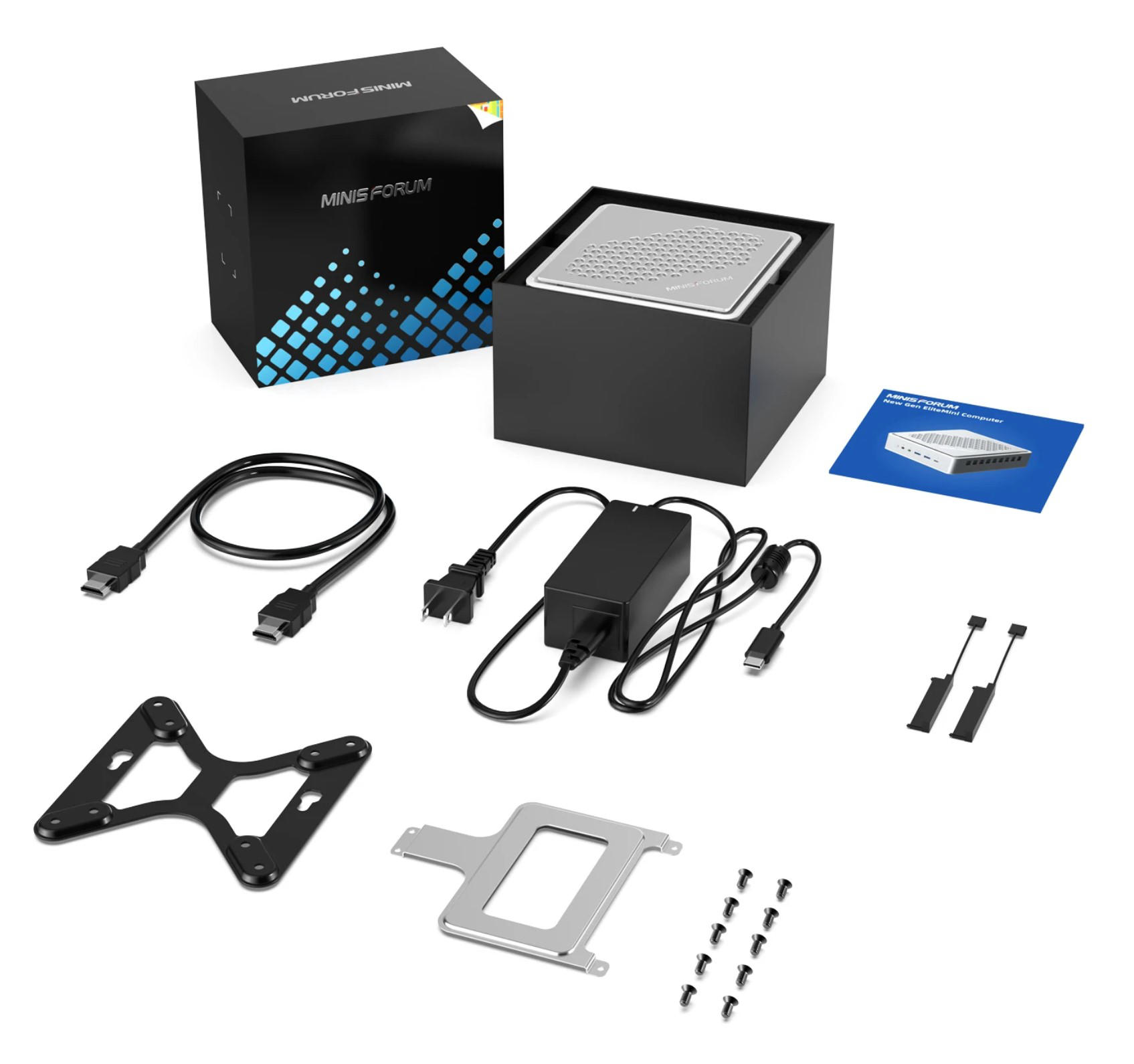

Minisforum EliteMini TH50 - Accessoires
Minisforum EliteMini TH50

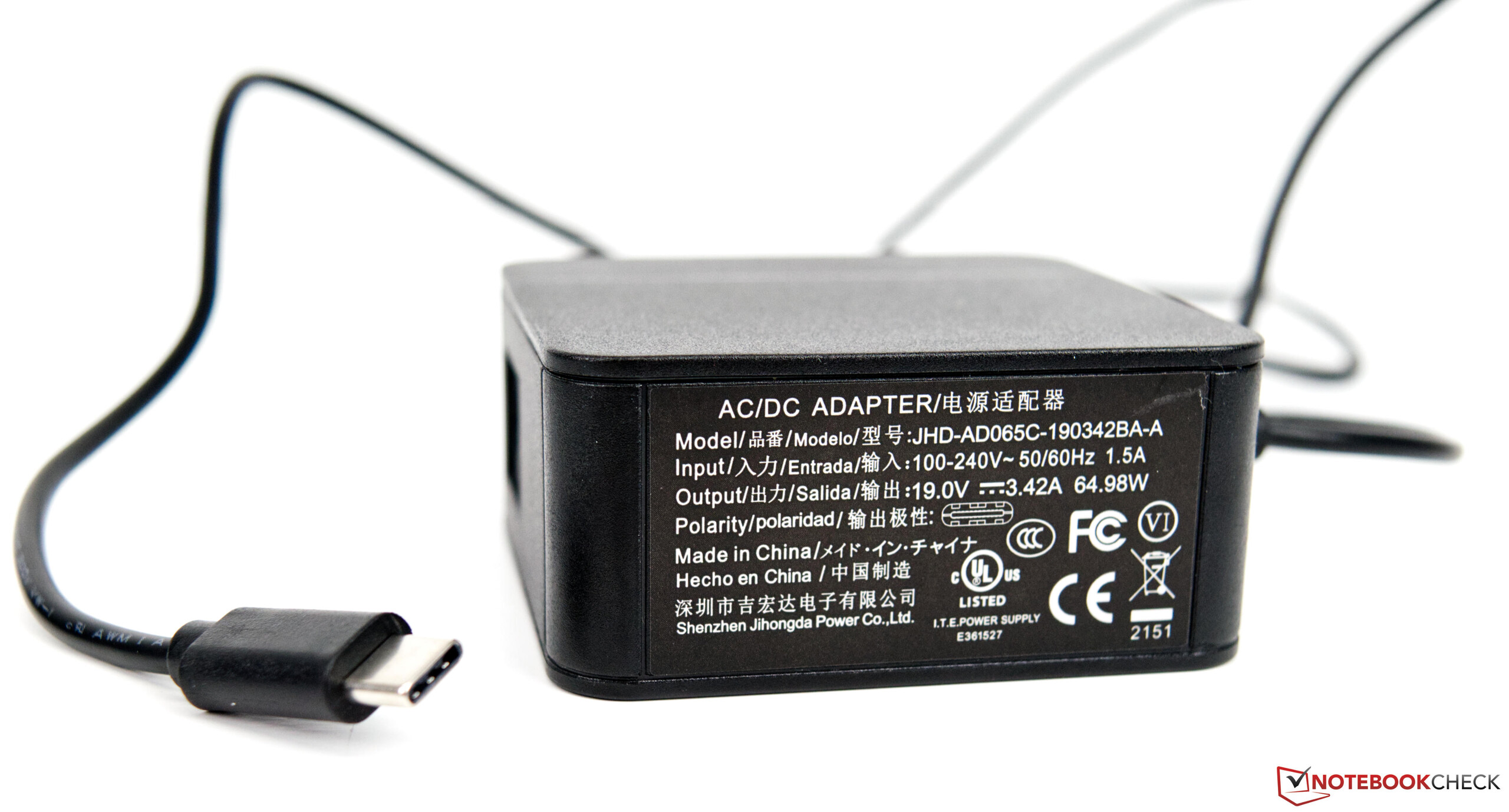

Minisforum EliteMini TH50 - Bloc d'alimentation

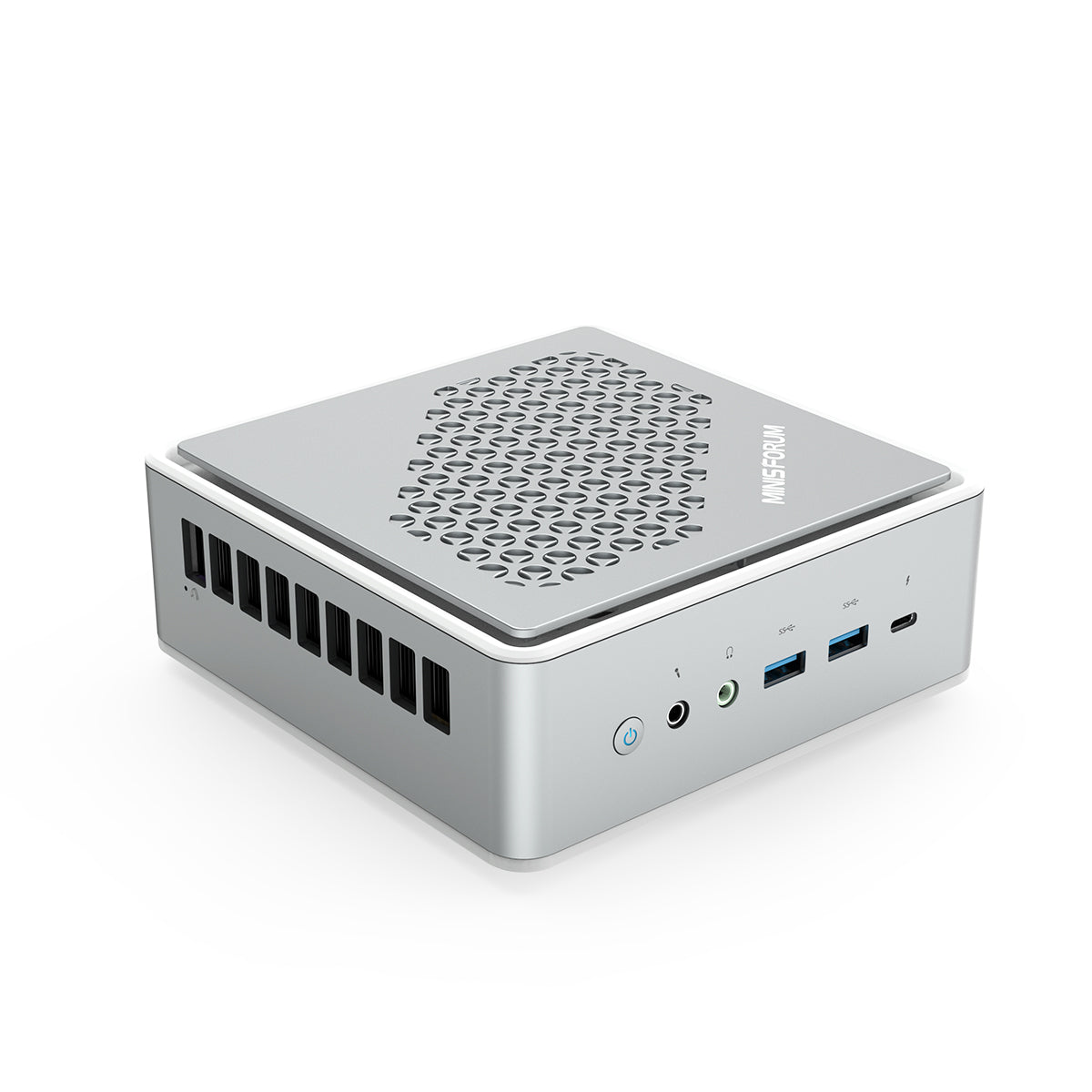

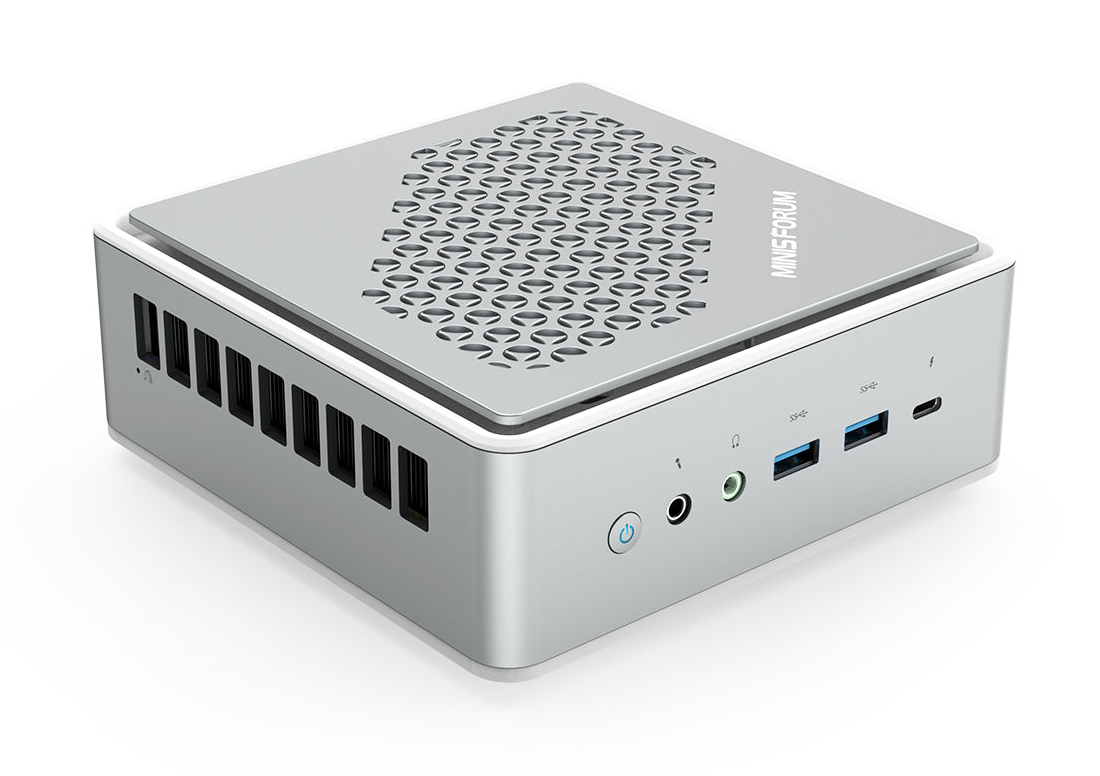

Minisforum EliteMini TH50 (Source : Minisforum)
Minisforum EliteMini TH50 (Source : Minisforum)
Minisforum EliteMini TH50 (Source : Minisforum)
Minisforum EliteMini TH50 (Source : Minisforum)
Minisforum EliteMini TH50 (Source : Minisforum)

Performance : Réserves suffisantes

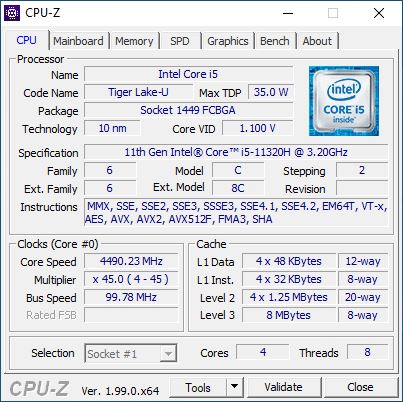

Le Minisforum EliteMini TH50 est alimenté par le Intel Core i5-11320H. Ce SoC est soutenu par 16 Go de RAM DDR4 et offre ainsi une bonne base pour la plupart des applications. Le SSD NVMe rapide offre 512 Go d'espace de stockage dans notre configuration et devrait être suffisant pour la plupart des utilisateurs. Alternativement, le EliteMini TH50 est également disponible avec un SSD de 256 Go. Cependant, nous recommandons toujours d'opter pour la variante de 512 Go en raison du faible potentiel d'économies

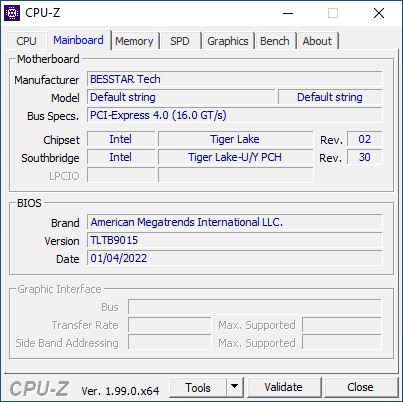

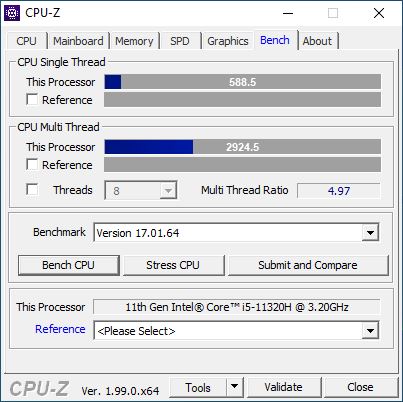

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

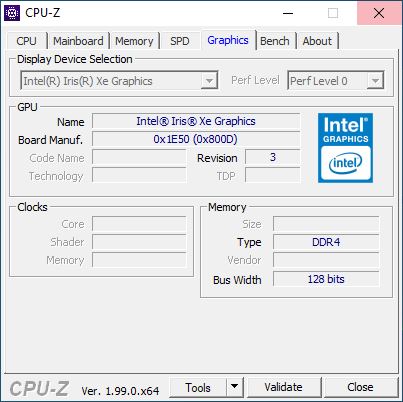

GPU-Z
GPU-Z
HWiNFO

Processeur

Le site Intel Core i5-11320H appartient à la série Tiger Lake et vient de la démographie des ordinateurs portables. Le SoC frugal offre quatre cœurs natifs et huit threads avec un TDP de 35 W. La performance monocœur est assez positive et n'est souvent inférieure que de quelques pourcents à celle de la concurrence avec des SoC beaucoup plus rapides. Cependant, le EliteMini TH50 doit laisser les concurrents avec six et huit cœurs prendre de l'avance dans les benchmarks multi-thread. Néanmoins, notre échantillon de test s'en sort bien et s'aligne principalement sur le Intel NUC10i7FNH

Le Intel Core i5-11320H est spécifié avec une consommation d'énergie de 35 W. Néanmoins, nous avons pu documenter une consommation d'énergie du SoC jusqu'à 48 W sous charge pendant une courte période. Cependant, ce n'est que de courte durée en raison du turbo du SoC. Malheureusement, aucun autre ajustement de la limite de puissance ne peut être réglé dans le BIOS du Minisforum EliteMini TH50. Cela a été le cas avec les systèmes basés sur AMD aussi, alors attendez-vous à une option similaire pour le EliteMini TH50

Pour d'autres comparaisons et benchmarks, nous vous renvoyons à notreTableau de comparaison des CPU.

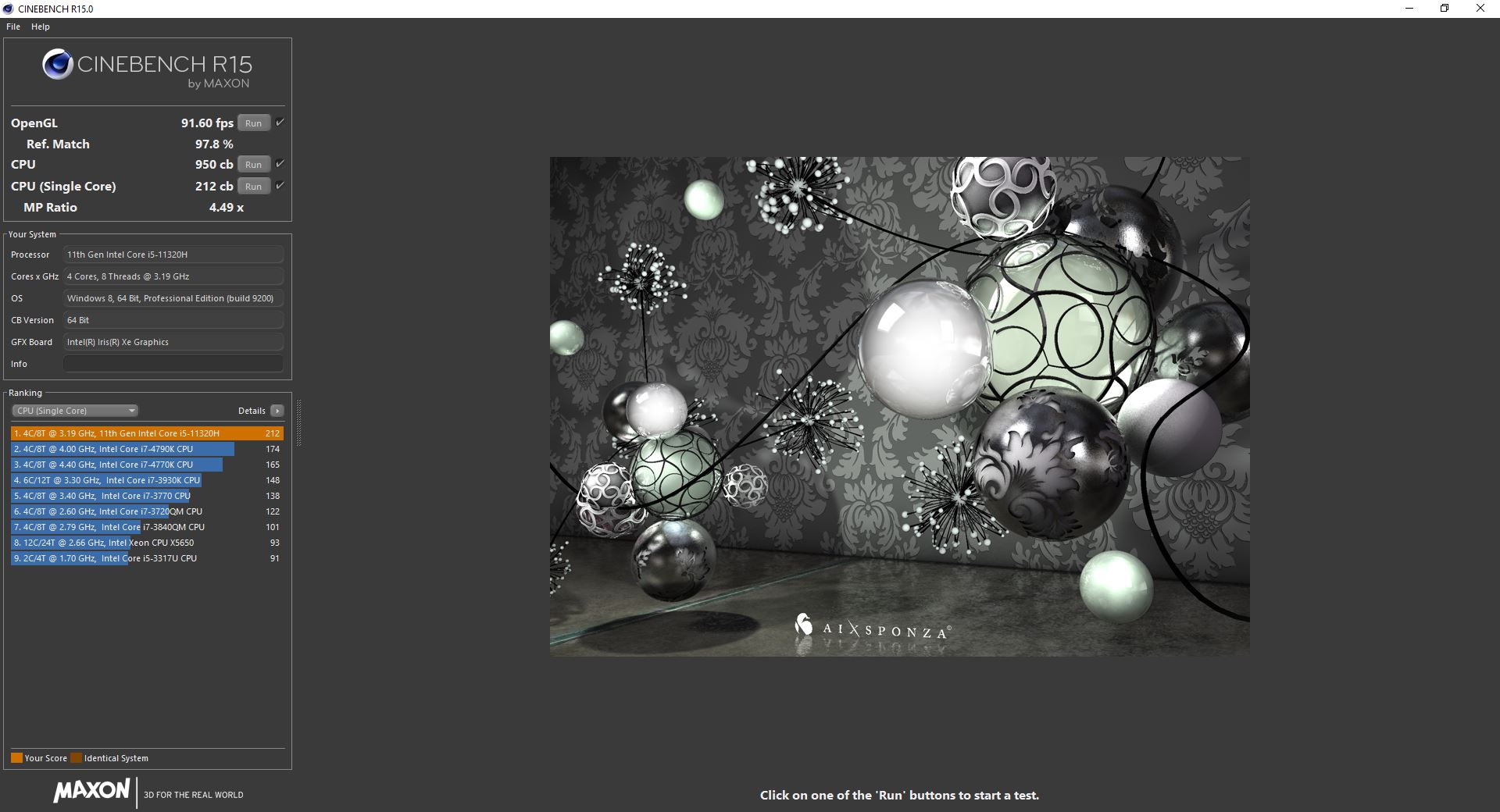

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
242 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
240 Points +13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
215 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
212 Points
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
196 Points -8%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
194 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
194 Points -8%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
168 Points -21%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
162 Points -24%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
123 Points -42%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
117 Points -45%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
108 Points -49%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
84 Points -60%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
77 Points -64%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2224 Points +134%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1967 Points +107%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1919 (1862.02min - 1893.4max) Points +102%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1607 Points +69%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1455 Points +53%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1067 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
950 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
790 Points -17%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
319 Points -66%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
316 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
298 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
261 Points -73%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
248 Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
220 Points -77%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
211 (209.9min - 211.39max) Points -78%

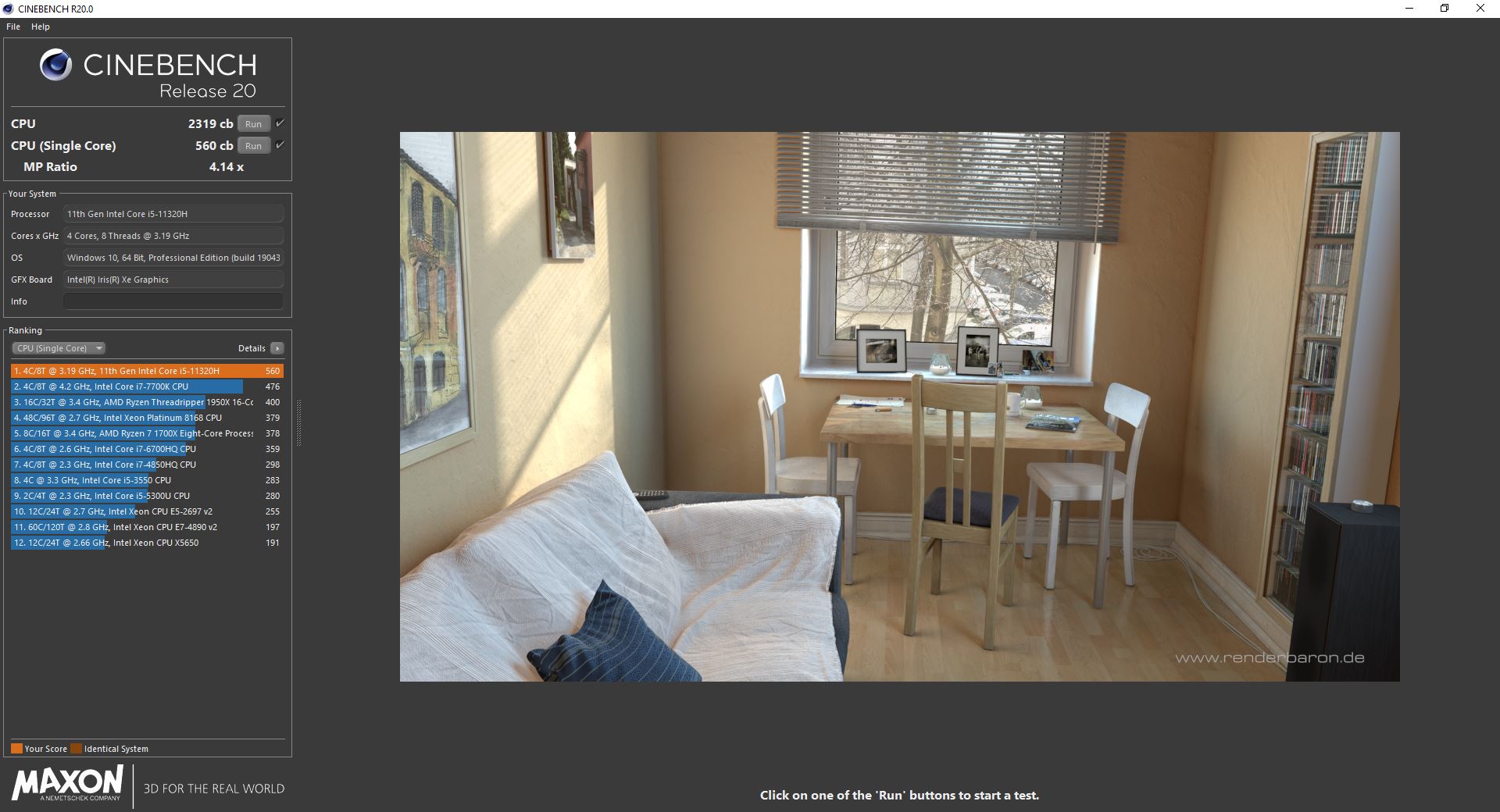

Cinebench R20
CPU (Single Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
582 Points +4%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
567 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
560 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
505 Points -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
504 Points -10%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
480 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
428 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
401 Points -28%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
266 Points -52%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
200 Points -64%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
171 Points -69%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5185 Points +124%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4585 Points +98%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4495 Points +94%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
3357 Points +45%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2319 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2303 Points -1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1820 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
743 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
720 Points -69%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
556 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
491 Points -79%
Cinebench R23
Single Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1499 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1479 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
1456 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1298 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1234 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1031 Points -29%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
696 Points -52%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
660 Points -55%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
411 Points -72%
Multi Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13430 Points +125%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11792 Points +97%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11440 Points +91%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
8532 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5980 Points
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1910 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1833 Points -69%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1529 (1521.41min - 1529.3max) Points -74%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
834 (768.67min - 833.537max) Points -86%
Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.86 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.8 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2.51 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
2.4 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
2.26 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.24 Points -11%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.19 Points -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1.91 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1.87 Points -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1.47 Points -41%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1.33 Points -47%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.28 Points -49%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.92 Points -63%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25.6 Points +137%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.03 Points +114%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 Points +104%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
18.04 Points +67%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
16.7 Points +55%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
10.89 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
10.78 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
8.66 Points -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
4.14 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
3.59 Points -67%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
3.26 Points -70%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3.09 Points -71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
2.86 Points -73%
Blender - v2.79 BMW27 CPU
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2379 Seconds * -361%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1805 Seconds * -250%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
585 Seconds * -13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
516 Seconds *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
468.3 Seconds * +9%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
317.4 Seconds * +38%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
315.4 Seconds * +39%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
265 Seconds * +49%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
247.3 Seconds * +52%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
229.3 Seconds * +56%
wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
732 s * -282%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
620 s * -224%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
615 s * -221%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
566 s * -196%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
558 s * -192%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
543 s * -184%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
217.8 s * -14%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
191.4 s *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
177.4 s * +7%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
120.2 s * +37%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
119.5 s * +38%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
106.7 s * +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
91.6 s * +52%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
82.9 s * +57%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
23.1 s * -292%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
19.5 s * -231%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
18 s * -205%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
17.62 s * -199%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
17.37 s * -195%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
17.09 s * -190%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.78 s * -15%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5.895 s *
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5.103 s * +13%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4.4 s * +25%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
3.788 s * +36%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.308 s * +44%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
3.257 s * +45%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.194 s * +46%
X264 HD Benchmark 4.0
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
128 (122min - 128max) fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
112 (112min - 112max) fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
111 (111min - 112max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
92.8 (89.1min - 100max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
84.8 (84.6min - 105max) fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
60.5 (60.4min - 73.5max) fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
49.35 (49.1min - 51.6max) fps
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21.6 (21.5min - 22.1max) fps
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
20.55 (20.4min - 20.7max) fps
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
19.3 fps
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
16.75 (16.7min - 16.9max) fps
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
16.46 fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
13.75 fps
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276.5 (274min - 278max) fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
271.5 (259min - 276max) fps
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
237.5 (236min - 239max) fps
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
236 (235min - 257max) fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
215 (213min - 217max) fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
206 (204min - 208max) fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
184.5 (184min - 186max) fps
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
106.5 (106min - 109max) fps
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
105 fps
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
102 (100min - 118max) fps
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
88.5 fps
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
78.9 (77.1min - 81.7max) fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
74 fps
TrueCrypt
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +129%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +129%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1.1 GB/s +110%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.1 GB/s +110%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1 GB/s +90%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.57 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.525 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.48 GB/s -9%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.23 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.21 GB/s -60%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.182 GB/s -65%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.166 GB/s -68%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.142 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.133 GB/s -75%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +118%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +118%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
1.8 GB/s +96%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
1.7 GB/s +85%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.6 GB/s +74%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1 GB/s +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.919 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.79 GB/s -14%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.403 GB/s -56%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.346 GB/s -62%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.283 GB/s -69%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.266 GB/s -71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.245 GB/s -73%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.199 GB/s -78%
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 GB/s +77%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
10.3 GB/s +69%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
10.1 GB/s +66%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +21%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6.1 GB/s
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4.7 GB/s -23%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
4.6 GB/s -25%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.6 GB/s -57%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.9 GB/s -69%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1.9 GB/s -69%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1.7 GB/s -72%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.5 GB/s -75%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1.3 GB/s -79%
Geekbench 4.4
64 Bit Multi-Core Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
32434 Points +47%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
32174 Points +46%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31724 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
29385 Points +33%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28402 Points +29%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
22969 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
22045 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
13949 Points -37%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
5468 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
5399 Points -76%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
5066 Points -77%
64 Bit Single-Core Score
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6434 Points +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6365 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6238 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
5969 Points -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
5726 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5287 Points -15%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5271 Points -16%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
3680 Points -41%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
2613 Points -58%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2555 Points -59%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1922 Points -69%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.9 fps +102%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.5 fps +84%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.9 fps +64%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
11.6 fps +48%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
11.4 fps +45%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
7.95 fps +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
7.86 fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.28 fps -20%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1.65 fps -79%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.48 fps -81%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0 fps -100%
3DMark 11 - 1280x720 Performance Physics
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16783 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
16422 Points +41%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
15497 Points +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13940 Points +20%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12199 Points +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
11662 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
11443 Points -2%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
7679 Points -34%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
4420 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
3863 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
3765 Points -68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
3659 Points -69%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
3072 Points -74%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2794 Points -76%
LibreOffice - 20 Documents To PDF
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
143 s * -194%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
92.9 s * -91%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
66 s * -36%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
59.5 s * -22%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 s * -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.3 s * -1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
48.7 s *
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
45.23 s * +7%

* ... Moindre est la valeur, meilleures sont les performances

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23

Cinebench R15 multi-boucles

Pendant le test de charge avec le multi-boucle Cinebench R15, le Minisforum EliteMini TH50 peut garder le Intel Core i5-11320H bien en main. Après la première exécution, les performances diminuent légèrement et restent ensuite largement stables. Avec une moyenne de 896 points, notre échantillon de test est juste derrière leIntel NUC10i7FNHavec six cœurs et 12 threads.

0801602403204004805606407208008809601040112012001280136014401520Tooltip
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)
Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)
Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)
Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)

Tests de performance et de rendu du système

Dans les benchmarks synthétiques, notre unité Minisforum EliteMini TH50 affronte une fois de plus leIntel NUC10i7FNH. En raison des SoC plus rapides des autres appareils de comparaison, il n'est pas possible d'obtenir un meilleur classement ici. Néanmoins, l'EliteMini TH50 s'en sort bien et l'écart avec l'EliteMini HM90 n'est pas très élevé. La latence mesurée en charge et pendant la lecture de vidéos 4K est très bonne et il n'y a pas de dropout. L'iGPU Intel Iris Xe Graphics G7 est utilisé à environ 26% pendant la lecture. Même après avoir lancé Prime 95, la latence du CPD n'augmente pas beaucoup.

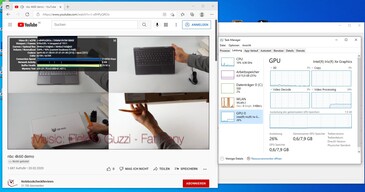

Ce qui se passe avec un dock GPU externe et l'iGPU utilisé Nvidia GeForce RTX 3060 peut être vu de manière impressionnante ici lorsque vous regardez les résultats LuxMark et ComputeMark. Le plein potentiel de la carte graphique externe ne peut pas être réalisé dans les benchmarks SPECviewprf.

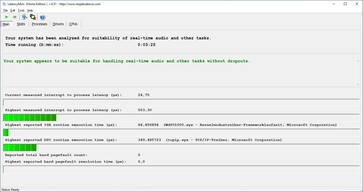

Latence maximale lors de l'ouverture de plusieurs onglets de navigateur et de la lecture de vidéos 4K.
Latence maximale lors de l'ouverture de plusieurs onglets de navigateur et de la lecture de vidéos 4K.
Latence maximale après dix secondes de Prime95
Latence maximale après dix secondes de Prime95
PCMark 10
Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
6939 Points +35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points +27%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
6499 Points +27%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points +23%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
5697 Points +11%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5565 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5130 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
4418 Points -14%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4019 Points -22%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2958 Points -42%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points -50%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
2391 Points -53%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1806 Points -65%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10196 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9856 Points +44%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
8581 Points +26%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8277 Points +21%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
8136 Points +19%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
7447 Points +9%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
6876 Points +1%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6832 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6494 Points -5%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
5397 Points -21%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
4084 Points -40%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
3854 Points -44%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2928 Points -57%
Essentials
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
10797 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10321 Points +8%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10087 Points +6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
9846 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
9556 Points
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
9059 Points -5%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9026 Points -6%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
9013 Points -6%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
8235 Points -14%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
6210 Points -35%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
5446 Points -43%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
5419 Points -43%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
4693 Points -51%
Digital Content Creation
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
10161 Points +81%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9785 Points +74%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7105 Points +27%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
6808 Points +21%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6794 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6262 Points +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5615 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
3777 Points -33%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
3296 Points -41%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2139 Points -62%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2097 Points -63%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1677 Points -70%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1165 Points -79%
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3767 μs * -978%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * -654%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * -365%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1581 μs * -352%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -216%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -216%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
349.5 μs *
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
82.3 fps +121%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64.5 fps +73%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
61.8 fps +66%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
59.2 fps +59%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.3 fps +32%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
47.8 fps +28%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
37.3 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
28.71 fps -23%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
26.2 fps -30%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
23.86 fps -36%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
16.55 fps -56%
1900x1060 Siemens NX (snx-02)
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.1 fps +513%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.1 fps +484%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.4 fps +377%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
12 fps +249%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9.08 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
7.39 fps +115%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3.44 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.98 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.67 fps -22%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2.6 fps -24%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
2.48 fps -28%
1900x1060 Showcase (showcase-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
72.6 fps +295%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.4 fps -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.3 fps -28%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
8.8 fps -52%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
8.35 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.81 fps -63%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
5.56 fps -70%
1900x1060 Medical (medical-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
49 fps +341%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
40.14 fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
24.9 fps +124%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.8 fps +33%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.2 fps +10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
11.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.91 fps -74%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2.7 fps -76%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.62 fps -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.61 fps -85%
1900x1060 Maya (maya-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
200 fps +410%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
171 fps +336%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
66 fps +68%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
39.2 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.8 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31 fps -21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.6 fps -32%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
17 fps -57%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.71 fps -60%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
13.02 fps -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
3.33 fps -92%
1900x1060 Energy (energy-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
13.1 fps +2947%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
11.49 fps +2572%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
8.21 fps +1809%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.19 fps +409%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.52 fps +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.5 fps +16%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.43 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.28 fps -35%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.23 fps -47%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.09 fps -79%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.08 fps -81%
1900x1060 Creo (creo-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
61.5 fps +635%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
52.2 fps +524%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
45.4 fps +442%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.2 fps +344%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.9 fps +329%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.9 fps +257%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
14.42 fps +72%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.93 fps +54%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
10.8 fps +29%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
9.89 fps +18%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
8.37 fps
1900x1060 Catia (catia-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
117 fps +215%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
78.3 fps +111%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
63.1 fps +70%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
41.2 fps +11%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.7 fps +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
37.1 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
32.7 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
16.55 fps -55%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
15.5 fps -58%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
14.12 fps -62%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
11.3 fps -70%
1900x1060 3ds Max (3dsmax-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps +449%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
180.8 fps +366%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
98 fps +153%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.5 fps +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
43.7 fps +13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
38.8 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.4 fps -4%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.22 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.92 fps -67%
SPECviewperf 13
Solidworks (sw-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
114 fps +129%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
85.4 fps +72%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
73.2 fps +47%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
71.7 fps +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
69.6 fps +40%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
57.4 fps +15%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
49.7 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
37.6 fps -24%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
31.48 fps -37%
Siemens NX (snx-03)
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.2 fps +517%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.3 fps +486%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.6 fps +378%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
21.9 fps +254%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
16.33 fps +164%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
13.4 fps +116%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6.19 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
5.37 fps -13%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4.8 fps -22%
Showcase (showcase-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps +797%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps +544%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
72.9 fps +296%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
18.4 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.3 fps -6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.1 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.5 fps -27%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
8.34 fps -55%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.81 fps -63%
Medical (medical-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
78.3 fps +498%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
56.4 fps +331%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
44.9 fps +243%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.2 fps +62%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19.2 fps +47%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.4 fps +25%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
13.1 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
2.23 fps -83%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
2.12 fps -84%
Maya (maya-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
367 fps +834%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
281 fps +615%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
141 fps +259%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48.6 fps +24%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
39.3 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.9 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.1 fps -11%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
22.97 fps -42%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
18.97 fps -52%
Energy (energy-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
28.2 fps +675%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
21.83 fps +500%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
13.1 fps +260%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6.93 fps +90%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3.64 fps
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1.42 fps -61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.88 fps -76%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.82 fps -77%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
0.73 fps -80%
Creo (creo-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
241 fps +605%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
183.8 fps +437%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
111 fps +225%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 fps +47%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
44.9 fps +31%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.7 fps +10%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
34.2 fps
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
18.88 fps -45%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
16.77 fps -51%
Catia (catia-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
171 fps +223%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
113.7 fps +115%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
92.9 fps +76%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
59.3 fps +12%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
52.9 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
52.2 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
46.4 fps -12%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
23.37 fps -56%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
19.97 fps -62%
3ds Max (3dsmax-06)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps +453%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
178.6 fps +364%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
97.7 fps +154%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.5 fps +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
42.9 fps +11%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
38.5 fps
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.8 fps -2%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
15.01 fps -61%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
12.71 fps -67%
ComputeMark v2.1
1024x600 Normal, Score
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
20018 Points +486%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points +21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points +2%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points +2%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
3414 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1476 Points -57%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1134 Points -67%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
964 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
964 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
959 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
696 Points -80%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
631 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
337 Points -90%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
2016 Points +559%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
306 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276 Points -10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points -23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points -23%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
128 Points -58%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
128 Points -58%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
86 Points -72%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
86 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
86 Points -72%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
67 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
54 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
44 Points -86%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
1958 Points +571%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
292 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
272 Points -7%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points -21%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points -21%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
126 Points -57%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
105 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
105 Points -64%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
103 Points -65%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
83 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
82 Points -72%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
63 Points -78%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
42 Points -86%
1024x600 Normal, Mandel Vector
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
4163 Points +446%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1280 Points +68%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points +40%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
763 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
250 Points -67%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
211 Points -72%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
189 Points -75%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
189 Points -75%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
186 Points -76%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
147 Points -81%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
140 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
79 Points -90%
1024x600 Normal, Mandel Scalar
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
4367 Points +412%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1115 Points +31%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points +13%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
853 Points
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
428 Points -50%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
262 Points -69%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
226 Points -74%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
223 Points -74%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
223 Points -74%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
137 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
135 Points -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
54 Points -94%
1024x600 Normal, QJuliaRayTrace
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
7514 Points +526%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1205 Points 0%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
1200 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points -16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points -16%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
543 Points -55%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
430 Points -64%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
379 Points -68%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
362 Points -70%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
362 Points -70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
272 Points -77%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
230 Points -81%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
118 Points -90%
LuxMark v2.0 64Bit
Room GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
1647 Samples/s +138%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
693 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s -21%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s -35%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
306 Samples/s -56%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
291 Samples/s -58%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
291 Samples/s -58%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
188 Samples/s -73%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
163 Samples/s -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
146 Samples/s -79%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
109 Samples/s -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
76 Samples/s -89%
Sala GPUs-only
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
6513 Samples/s +181%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2320 Samples/s
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s -45%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s -60%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s -60%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
736 Samples/s -68%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
736 Samples/s -68%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
702 Samples/s -70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
404 Samples/s -83%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
397 Samples/s -83%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
379 Samples/s -84%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
266 Samples/s -89%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
129 Samples/s -94%

* ... Moindre est la valeur, meilleures sont les performances

Mémoire de masse

512 GB Kingston SSD
512 GB Kingston SSD

Notre système de test est équipé d'un SSD NVMe de 512 Go, qui est également la meilleure offre pour l'EliteMini TH50. Il n'existe pas de SSD plus grand en sortie d'usine, mais cela ne signifie pas que vous ne pouvez pas le remplacer vous-même. Néanmoins, 512 Go de stockage devraient suffire pour la plupart des usages, étant donné que l'utilisateur dispose encore de 450 Go moins l'installation de Windows

Le SSD installé ici utilise l'emplacement M.2-2280 et offre des taux de transfert très élevés grâce au protocole NVMe. Nous aimons beaucoup le taux de lecture en 4K de plus de 60 Mo/s. Vous pouvez également installer deux périphériques de stockage de masse de 2,5 pouces dans le panneau inférieur. Tous les supports, vis et câbles de connexion nécessaires sont inclus.

AS SSD
AS SSD
CDM3
CDM3
CDM5
CDM5
CDM6
CDM6
CDI
CDI

Continuous DiskSpd Read Loop, Queue Depth 8

012024036048060072084096010801200132014401560168018001920204021602280Tooltip
Minisforum EliteMini TH50: Ø1905 (1097.76-2359.4)

Carte graphique

L'unité graphique intégrée du Intel Core i5-11320H est le Intel Iris Xe Graphics G7 avec 96 UE. Dans l'ensemble, les performances affichées ici reflètent exactement ce que vous pouvez attendre de cet iGPU. Comparé à la Radeon RX Vega 8 d'AMDd'AMD, l'iGPU d'Intel tient très bien la distance et se place même souvent devant

Nous avons également testé les performances du GPU à l'aide du Razer Core X et d'un Radeon RX Vega 8 Nvidia GeForce RTX 3060 et nous avons pu obtenir de bons résultats. Étonnamment, les valeurs étaient meilleures que celles du Zotac Magnus One avec une Nvidia GeForce RTX 3070 installée

Plus de benchmarks pour l'Intel Iris Xe Graphics G7 peuvent être trouvésici.

3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
40950 Points +528%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
28828 Points +342%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
24369 Points +274%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7122 Points +9%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6518 Points
Moyenne Intel Iris Xe Graphics G7 96EUs
  (2867 - 7471, n=193)
6342 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6306 Points -3%
Moyenne AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (3459 - 7591, n=53)
5920 Points -9%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5567 Points -15%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points -64%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1983 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1853 Points -72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1589 Points -76%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points -78%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points -80%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points -82%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
602 Points -91%
3DMark
1280x720 Ice Storm Standard Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
441161 Points +635%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
326331 Points +444%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
286573 Points +378%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
171104 Points +185%
Moyenne AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (96941 - 231980, n=18)
154016 Points +157%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
130976 Points +118%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
100414 Points +67%
Moyenne Intel Iris Xe Graphics G7 96EUs
  (35195 - 214326, n=39)
90880 Points +51%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
79747 Points +33%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
60011 Points
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
58199 Points -3%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points -32%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
25631 Points -57%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21465 Points -64%
1920x1080 Ice Storm Extreme Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
376770 Points +646%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
289413 Points +473%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
284001 Points +462%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
121736 Points +141%
Moyenne AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (84227 - 147236, n=14)
111810 Points +121%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
102227 Points +102%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
84227 Points +67%
Moyenne Intel Iris Xe Graphics G7 96EUs
  (35612 - 144112, n=25)
70045 Points +39%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
50500 Points
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
48446 Points -4%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points -19%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
40532 Points -20%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points -48%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
20602 Points -59%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14360 Points -72%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
30090 Points +536%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
20775 Points +339%
Minisforum EliteMini TH50 (RTX 3060 via TB), Intel Core i5-11320H
3200 MHz, NVIDIA GeForce RTX 3060
18711 Points +296%
Moyenne Intel Iris Xe Graphics G7 96EUs
  (2286 - 6143, n=206)
4903 Points +4%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
4730 Points
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4369 Points -8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3775 Points -20%
Moyenne AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1694 - 5041, n=53)
3677 Points -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3414 Points -28%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points -69%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1418 Points -70%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1202 Points -75%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points -78%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
881 Points -81%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points -84%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points -84%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points -91%
Unigine Heaven 4.0
Extreme Preset DX11
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
196.4 fps +743%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
141.3 fps +506%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
23.3 fps
Moyenne Intel Iris Xe Graphics G7 96EUs
  (17.7 - 27.5, n=16)
23.3 fps 0%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.4 fps -8%
Moyenne AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (15.4 - 24.4, n=9)
19.9 fps -15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
18 fps -23%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.4 fps -34%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2.4 fps -90%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.4 fps -90%
Extreme Preset OpenGL
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
187.5 fps +708%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
132.9 fps +473%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
23.2 fps
Moyenne Intel Iris Xe Graphics G7 96EUs
  (17.3 - 26.3, n=16)
22.8 fps -2%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19.6 fps -16%
Moyenne AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (13.5 - 22.8, n=8)
18.8 fps -19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.2 fps -30%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.5 fps -42%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2.2 fps -91%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.2 fps -91%
Unigine Valley 1.0
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
140.2 fps +782%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
99.6 fps +526%
Moyenne Intel Iris Xe Graphics G7 96EUs
  (11.7 - 21.1, n=14)
16.7 fps +5%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
15.9 fps
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.8 fps -19%
Moyenne AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (8.8 - 14.7, n=8)
12.1 fps -24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.7 fps -33%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8.8 fps -45%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
6.3 fps -60%
1920x1080 Extreme HD DirectX AA:x8
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
157.5 fps +957%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
112.8 fps +657%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
14.9 fps
Moyenne Intel Iris Xe Graphics G7 96EUs
  (11.3 - 17.2, n=14)
14.8 fps -1%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.2 fps -5%
Moyenne AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (10 - 16.4, n=8)
13.1 fps -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.6 fps -22%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10 fps -33%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
6.5 fps -56%
3DMark 05 Standard
36918 points
3DMark 06 Standard Score
27809 points
3DMark Vantage P Result
22253 points
3DMark 11 Performance
6905 points
3DMark Ice Storm Standard Score
61362 points
3DMark Cloud Gate Standard Score
17814 points
3DMark Fire Strike Score
4340 points
3DMark Fire Strike Extreme Score
2149 points
3DMark Time Spy Score
1777 points
Aide

Performances de jeu

Minisforum ne présente pas explicitement le EliteMini TH50 comme un PC de jeu. Néanmoins, certaines valeurs peuvent être trouvées sur la page d'accueil, ce qui devrait aider à clarifier les performances de jeu. Ceux qui achètent l'EliteMini TH50 doivent garder à l'esprit que l'Intel Iris Xe Graphics G7 installé surhttps://www.notebookcheck.com/Intel-Tiger-Lake-U-Xe-Graphics-G7-96EUs-Grafikkarte-Benchmarks-und-Spezifikationen.462132.0.htmln'est qu'un simple iGPU. Les performances sont comparables à celles de l'iGPU de l'AMD Ryzen 9 5900H AMD Ryzen 9 5900HXsi l'on considère uniquement les performances de jeu à ce stade

Cependant, avec le port Thunderbolt 4, les utilisateurs ont maintenant d'autres options pour améliorer les performances 3D à l'aide de stations d'accueil de GPU externes. Nous avons testé l'EliteMini TH50 avec le Razer Core X, équipé d'un GPU Nvidia RTX Nvidia GeForce RTX 3060et nous avons examiné ce que l'on peut attendre en termes de performances de jeu

Il est clair que les performances ne sont pas comparables à celles d'un système de bureau classique. Dans les jeux testés, les performances étaient environ 40 % inférieures à notre système de test (base AMD Ryzen 9 5900X), que nous utilisons pour nos tests de cartes graphiques. Cependant, l'avantage par rapport à l'iGPU est toujours très clair. Tous les jeux testés se déroulent sans problème même avec l'Intel Core i5-11320H en combinaison avec notre Razer Core X et le Nvidia GeForce RTX 3060. Il s'agit d'un net avantage par rapport aux mini-PC basés sur AMD, qui ne disposent toujours pas de Thunderbolt. Toutefois, cela pourrait être de l'histoire ancienne dans un avenir proche, car les nouveaux APU d'AMD pourront également utiliser une interface moderne comme l'USB4.

Performance Rating - Percent
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
97.5 pt
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060 -1!
96 pt
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
69 pt
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.8 pt
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
20.3 pt
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 pt
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
111 (4.48min, 76.9P1 - 235max) fps +988%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1 - 206max) fps +920%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
77.1 (6.65min, 50P1 - 157max) fps +656%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.2 (7.37min, 10.8P1 - 37.9max) fps +49%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12 (3.91min, 8.93P1 - 33.5max) fps +18%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
10.2 (4.22min, 6.37P1 - 90.8max) fps
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
63.3 (22.3min, 40.7P0.1, 51.3P1 - 358max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
52.4 (36.2min, 37.9P0.1, 42.8P1 - 115max) fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.4 (14min, 14.2P0.1, 14.7P1 - 22.5max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
15.5 (6.52min, 7.57P0.1, 9.58P1 - 59max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 (8.07min, 10.9P0.1, 12P1 - 59.1max) fps -7%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
159.7 (126.4min) fps +191%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
147.1 (126min) fps +168%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
110.5 (94.3min) fps +102%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
62.8 (57.5min) fps +15%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
54.8 (47.9min) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.9 (43.8min) fps -9%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
88.6 fps +282%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
88.6 fps +282%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
70.8 fps +205%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
23.2 fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16 fps -31%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.6 fps -41%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
112 fps +416%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
105 fps +384%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
73.4 fps +238%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
40.1 fps +85%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37 fps +71%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
21.7 fps
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
132 (109min - 150max) fps +428%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
122 (93min - 151max) fps +388%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
88 (67min - 116max) fps +252%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
25 (23min - 32max) fps 0%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
25 (22min - 29max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (17min - 23max) fps -24%
Far Cry New Dawn - 1920x1080 Ultra Preset
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
112 (83min - 146max) fps +348%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
102 (72min - 145max) fps +308%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
73 (52min - 111max) fps +192%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
25 (18min - 31max) fps
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24 (19min - 30max) fps -4%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (14min - 24max) fps -24%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1 - 215max) fps +521%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
153 (43.4min, 116P1 - 214max) fps +517%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
114 (56min, 73.9P1 - 191max) fps +360%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27.6 (21.9min, 22.5P1 - 39max) fps +11%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
24.8 (8min, 8.72P1 - 317max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.9 (18.2min, 19.2P1 - 34.3max) fps -4%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
59.8 (30.99min - 119.9max) fps +416%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
55.1 (32.45min - 87.42max) fps +375%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
37.8 (17.54min - 83.29max) fps +226%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13 (7.31min - 18.99max) fps +12%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
11.6 (6.55min - 19.58max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 (5.78min - 15.68max) fps -7%
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
100 fps +777%
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
78.5 fps +589%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
58.5 fps +413%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.8 fps +21%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
11.4 fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.3 fps -1%
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
142 (114min - 171max) fps +509%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
142 (114min - 171max) fps +509%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
87.8 (55min - 111max) fps +277%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28.4 (21min - 36max) fps +22%
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.3 (18min - 30max) fps +4%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
23.3 (16min - 29max) fps
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Inno3D GeForce RTX 3060 Twin X2, NVIDIA GeForce RTX 3060
104 (88min, 88P1 - 117max) fps +288%
Intel Beast Canyon NUC, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1 - 107max) fps +262%
Minisforum EliteMini TH50 (RTX 3060 via TB), NVIDIA GeForce RTX 3060
75.1 (52min, 54P1 - 85max) fps +180%
Morefine S500+, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27 (22min, 22P1 - 31max) fps +1%
Minisforum EliteMini TH50, Intel Iris Xe Graphics G7 96EUs
26.8 (22min, 22P1 - 30max) fps
Minisforum EliteMini HX90, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 (17min, 17P1 - 25max) fps -18%

Légende


Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1

Intel Beast Canyon NUC Intel Core i9-11900KB, NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB

Inno3D GeForce RTX 3060 Twin X2 AMD Ryzen 9 5900X, NVIDIA GeForce RTX 3060, Corsair MP600

Minisforum EliteMini TH50 (RTX 3060 via TB) Intel Core i5-11320H, NVIDIA GeForce RTX 3060,

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB

Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB
Bas Moyen Élevé Ultra
GTA V (2015) 99.2 85.3 26 10.2
The Witcher 3 (2015) 89.8 56.5 29.5 15.5
Dota 2 Reborn (2015) 125.3 90 60.5 54.8
Final Fantasy XV Benchmark (2018) 43.2 23.2 23.2
X-Plane 11.11 (2018) 27.3 25.5 21.7
Far Cry 5 (2018) 55 29 27 25
Strange Brigade (2018) 87.5 37.3 30.5 24.8
Far Cry New Dawn (2019) 48 29 27 25
Metro Exodus (2019) 40.4 20.6 14.8 11.6
Borderlands 3 (2019) 51.7 24.3 15.1 11.4
F1 2020 (2020) 93.1 47.7 36.4 23.3
F1 2021 (2021) 105 50.3 40.1 26.8
God of War (2022) 21 18.8 15.2 10.1
Dying Light 2 (2022) 16.8 13.8 11.7
GRID Legends (2022) 66.4 45.4 36.6 26.9
Elden Ring (2022) 45.5 41.5 33.6 27.9
Cyberpunk 2077 1.6 (2022) 17.8 15.4 12.2 10.1
Elex 2 (2022) 20.4 18.3 16.3 14.6
Bas Moyen Élevé Ultra
GTA V (2015) 166 160 135 77.1
The Witcher 3 (2015) 219 133 80 52.4
Dota 2 Reborn (2015) 135.5 117.1 113.2 110.5
Final Fantasy XV Benchmark (2018) 137 102 70.8
X-Plane 11.11 (2018) 95.8 88 73.4
Far Cry 5 (2018) 118 98 95 88
Strange Brigade (2018) 170 130 121 114
Far Cry New Dawn (2019) 100 86 80 73
Metro Exodus (2019) 110 66.9 50 37.8
Borderlands 3 (2019) 112 94.2 73.4 58.5
F1 2020 (2020) 180 111 111 87.8
F1 2021 (2021) 184 163 128 75.1

Émissions et énergie

Température

Minisforum utilise la même technologie de refroidissement pour l'EliteMini TH50 que pour l'EliteMini HM90 EliteMini HM90- le ventilateur axial aspire l'air froid par le haut et le presse vers le bas sur le dissipateur, afin que l'air chaud puisse s'échapper par le côté du boîtier. Le principe est bien pensé et fonctionne très bien. Le siteIntel Core i5-11320H a atteint un maximum de 86 °C. Le SoC se trouve donc clairement dans la zone verte. Le test de stress étant un scénario extrême, on peut s'attendre à des températures bien plus basses en utilisation normale. Cependant, la charge permanente n'a pas eu d'impact négatif. Le résultat du benchmark 3DMark11 est au même niveau que le démarrage à froid et ne varie que de quelques points dans les tolérances de mesure.

Test de stress : Prime95 solo
Test de stress : Prime95 solo
Test de résistance : FurMark solo
Test de résistance : FurMark solo
Test de stress : FurMark+Prime95
Test de stress : FurMark+Prime95
Développement de la chaleur pendant le test de résistance
Développement de la chaleur pendant le test de résistance
Développement de la chaleur pendant le test de résistance
Développement de la chaleur pendant le test de résistance
Développement de la chaleur pendant le test de stress (unité d'alimentation)
Développement de la chaleur pendant le test de stress (unité d'alimentation)

Émissions sonores

Grâce à la conception sophistiquée du refroidissement, le niveau de bruit mesuré sous charge est également modéré. L'appareil est presque silencieux au ralenti et le bruit du ventilateur se stabilise à un peu moins de 32,5 dB(A) en charge. Néanmoins, une nette montée en régime est perceptible au début. Nous avons mesuré près de 41 dB(A) ici, mais ce n'est que de très courte durée

Émissions sonores (ambiantes)
Émissions sonores (ambiantes)
Émissions sonores (fonctionnement au ralenti)
Émissions sonores (fonctionnement au ralenti)
Émissions sonores (test de stress : FurMark+Prime95)
Émissions sonores (test de stress : FurMark+Prime95)

Degré de la nuisance sonore

Au repos
30.8 / 32.1 / 32.9 dB(A)
Fortement sollicité
33.9 / 41.4 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Earthworks M23R, Arta (à 15 cm de distance)   bruit ambiant: 30.2 dB(A)
Minisforum EliteMini TH50
Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1
Morefine S500+
Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
Noise
-1%
6%
off / environment *
30.2
30.1
-0%
30.8
-2%
Idle Minimum *
30.8
Idle Average *
32.1
33.15
-3%
31.6
2%
Idle Maximum *
32.9
Load Average *
33.9
Load Maximum *
41.4
41.63
-1%
33.4
19%

* ... Moindre est la valeur, meilleures sont les performances

Absorption d'énergie

En termes de consommation d'énergie, le Minisforum EliteMini TH50 fait très bonne figure. Grâce au SoC frugal, la consommation d'énergie est tout à fait nominale, même en charge, avec une moyenne de 52,7 W. Cependant, l'alimentation doit compenser jusqu'à 72 W en peu de temps. De plus, l'alimentation peut être surchargée lorsque deux dispositifs de stockage supplémentaires sont installés. C'est pourquoi nous aurions préféré une alimentation allant jusqu'à 90 W.

Consommation d'énergie désactivée
Consommation d'énergie désactivée
Consommation d'énergie en mode veille
Consommation d'énergie en mode veille
Consommation d'énergie pendant le test de stress (Prime95)
Consommation d'énergie pendant le test de stress (Prime95)
Consommation d'énergie pendant le test de stress (FurMark)
Consommation d'énergie pendant le test de stress (FurMark)
Consommation d'énergie pendant le test de stress (FurMark et Prime95)
Consommation d'énergie pendant le test de stress (FurMark et Prime95)
Consommation d'énergie pendant le jeu (The Witcher 3 Ultra Preset)
Consommation d'énergie pendant le jeu (The Witcher 3 Ultra Preset)
Power Consumption
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
326.2 (316min - 333max) Watt * -1991%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
251.9 (242min - 270max) Watt * -1515%
Morefine S500+
58.3 (53.2min, 55.8P1 - 69.7max) Watt * -274%
Minisforum EliteMini HX90 (Idle: 6.3 W)
56.2 (52.1min, 53.3P1 - 79.8max) Watt * -260%
Minisforum HM90 (Idle: 9.8 W)
47.47 (44min - 78max) Watt * -204%
Intel NUC10i7FNH (Idle: 8.4 W)
46.6 (45min - 68max) Watt * -199%
Intel NUC10i5FNK (Idle: 15.7 W)
37.8 (35min - 63max) Watt * -142%
MSI Cubi 5 10M (Idle: 8 W)
25.17 (25min - 26max) Watt * -61%
Minisforum EliteMini TH50
15.6 (15min, 15.1P1 - 19.6max) Watt *
Prime95 V2810 Stress (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
116.3 (110min - 238max) Watt * -121%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
109.4 (107min - 151max) Watt * -108%
Minisforum EliteMini HX90 (Idle: 6.3 W)
86.9 (77.4min, 79.5P1 - 109max) Watt * -65%
Minisforum HM90 (Idle: 9.8 W)
73.2 (71min - 76max) Watt * -39%
Morefine S500+
72.4 (69.4min, 71P1 - 75.6max) Watt * -37%
Intel NUC10i7FNH (Idle: 8.4 W)
60 (52min - 86max) Watt * -14%
Intel NUC10i5FNK (Idle: 15.7 W)
58.5 (56min - 69max) Watt * -11%
Minisforum EliteMini TH50
52.7 (45.8min, 49.6P1 - 72.1max) Watt *
MSI Cubi 5 10M (Idle: 8 W)
46.72 (40min - 66max) Watt * +11%
AC6-M Mini-PC
17.4 (15.8min, 16.8P1 - 18max) Watt * +67%

* ... Moindre est la valeur, meilleures sont les performances

Points positifs

+ bonne performance du système
+ boîtier stable
+ dimensions compactes
+ nombreuses interfaces USB
+ Support de Thunderbolt 4
+ jusqu'à trois périphériques de stockage de masse possibles

Points négatifs

- pas de lecteur de carte SD

Conclusion : De bonnes performances et une bonne connectivité

Minisforum EliteMini TH50 en test, fourni par Minisforum
Minisforum EliteMini TH50 en test, fourni par Minisforum
Minisforum EliteMini TH50 en test, fourni par Minisforum

Le Minisforum EliteMini TH50 est un mini-PC très compact avec de grandes performances pour une large gamme d'applications. Avec le Core i5-11320H d'Intel, l'EliteMini TH50 laisse une impression positive grâce à ses bonnes performances en mode monocœur. Avec ses quatre cœurs, le SoC est également capable de tenir le coup dans les applications multithreadées et peut se mesurer auIntel NUC10i7FNHqui est équipé d'un SoC à six cœurs. Avec 16 Go de mémoire de travail et un SSD de 512 Go, vous obtenez un excellent appareil dans la configuration supérieure. En outre, le EliteMini TH50 accumule les points positifs grâce à sa connectivité moderne. Avant tout, l'option Thunderbolt devrait offrir la plus grande valeur ajoutée aux utilisateurs

Le Minisforum EliteMini TH50 est un très bon PC polyvalent qui peut faire plus que de simples tâches de bureau.

Dans l'ensemble, l'EliteMini TH50 convainc par la stabilité de ses performances. La carte graphique Intel Iris Xe G7 a également fait un grand pas en avant en termes de performances 3D. Ici, les performances de l'AMD Radeon RX Vega 8 sont dépassées. Ainsi, le EliteMini TH50 convient également aux jeux dans une certaine mesure. La performance 3D peut être étendue avec un dock GPU externe via l'interface Thunderbolt, ce qui transforme le EliteMini TH50 en un PC de jeu à part entière

La combinaison de couleurs argent et blanc est une question d'opinion, mais vous n'avez pas d'autre choix que de l'aimer. Minisforum ne propose pas d'autres couleurs de boîtier pour le EliteMini TH50. La fabrication est bonne et l'extension avec des baies de stockage supplémentaires peut se faire rapidement

Au prix deà partir de 629le EliteMini TH50 peut être acheté directement sur Minisforum. Cependant, il faut compter avec 669 $US pour notre système de test. Nous considérons notre configuration de test comme une recommandation d'achat car une licence Windows n'est incluse que dans les configurations avec un disque de stockage.

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Test du Minisforum EliteMini TH50 : PC de bureau compact à utiliser au quotidien au bureau
Sebastian Bade, 2022-02-22 (Update: 2022-02-22)
