Test de l'Intel Frost Canyon (i5-10210U, UHD 620) : NUC avec i5 Comet Lake

Sebastian Bade, Andrea Grüblinger (traduit par Prévots), 02/21/2020

Mini PC de bureau ! La dernière série de NUC d’Intel est composée d’appareils compacts mais puissants, avec des machines intégrant des composants plus puissants que précédemment, dans un châssis éprouvé. Découvrez dans ce rapport quelles sont les conséquences de cette mise à niveau et ce que propose de nouveau SoC Comet Lake.

Intel NUC10i5FNK
Carte graphique
Intel UHD Graphics 620, 26.20.100.7262 DCH
Mémoire
8192 Mo
, DDR4-2666, double canal, 2 emplacements occupés sur deux, jusqu'à 64 Go
Carte mère
Intel Comet Lake-U PCH-LP Premium

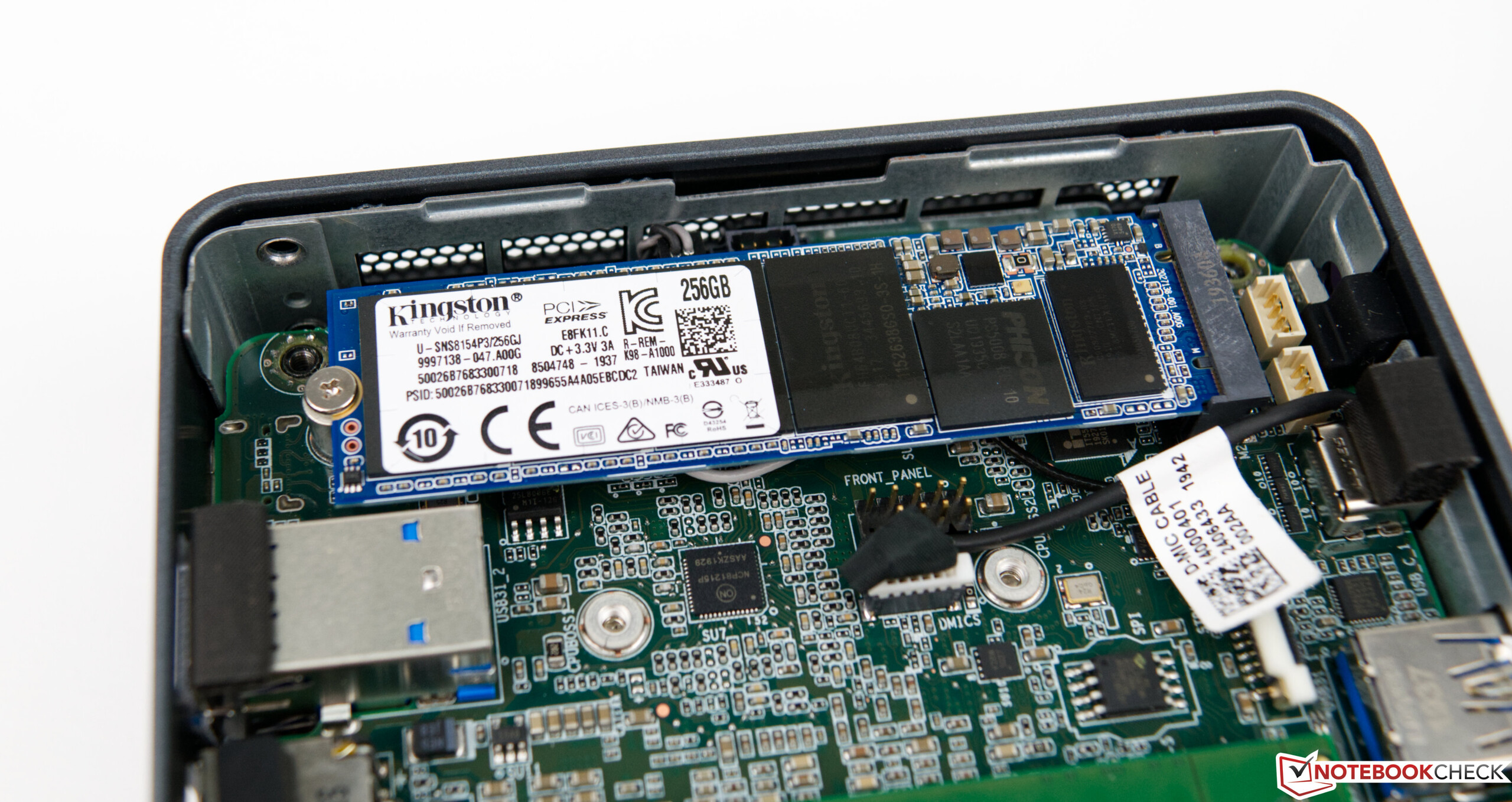

Disque dur
Kingston RBUSNS8154P3256GJ1, 256 Go
, 200 Go libres
Carte son
Realtek Audio
Connexions
4 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Encoche de Sécurité Kensington, Connectique audio: jack, Lecteur de cartes mémoires: SD
Réseau
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Taille
Hauteur x Largeur x Profondeur (en mm): 36 x 117 x 112
Système d'exploitation
Microsoft Windows 10 Home 64 Bit
Fonctionnalités additionnelles
36 Mois Garantie
Poids
493 g, Alimentation: 315 g
Prix
749 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

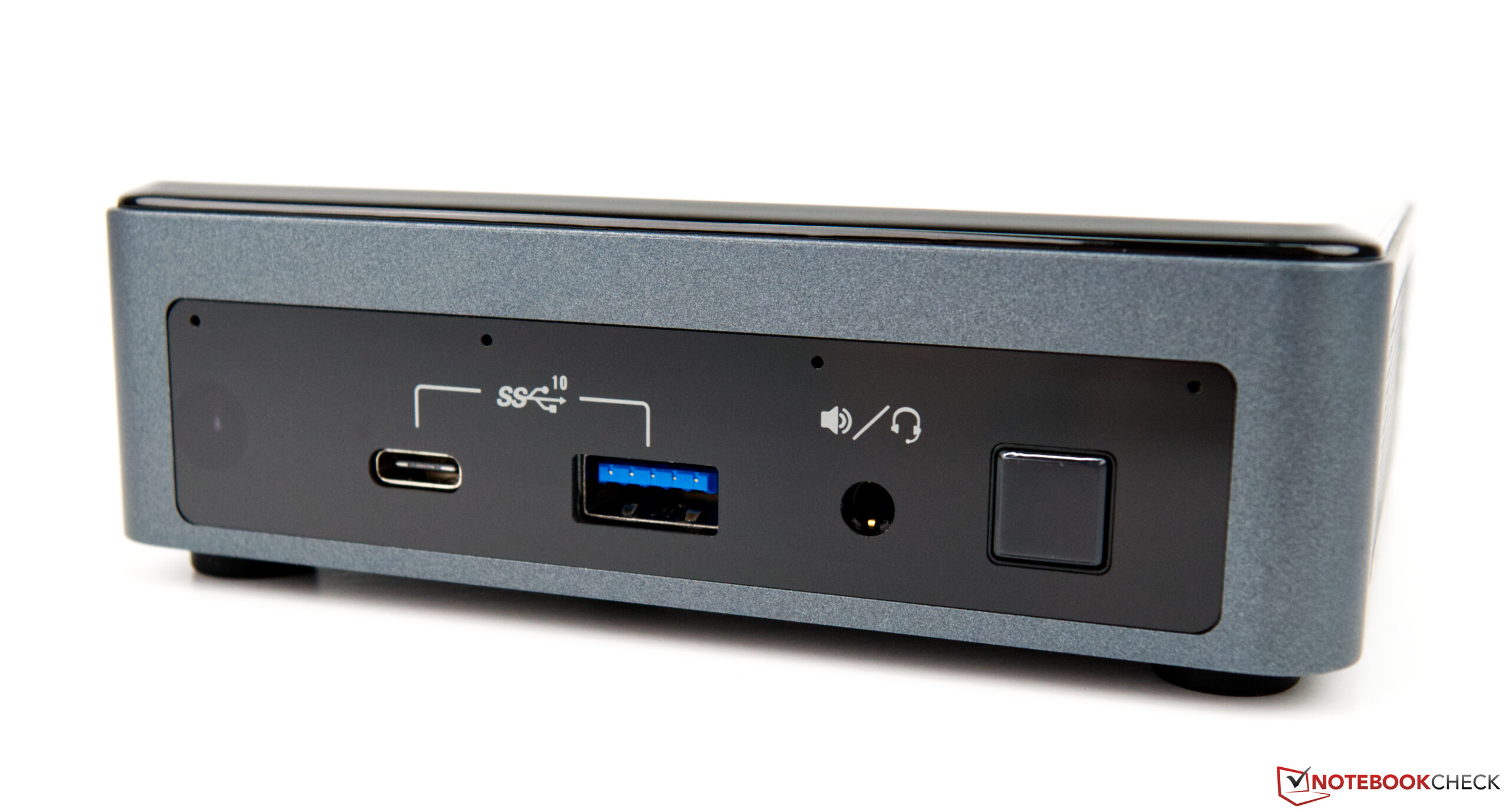

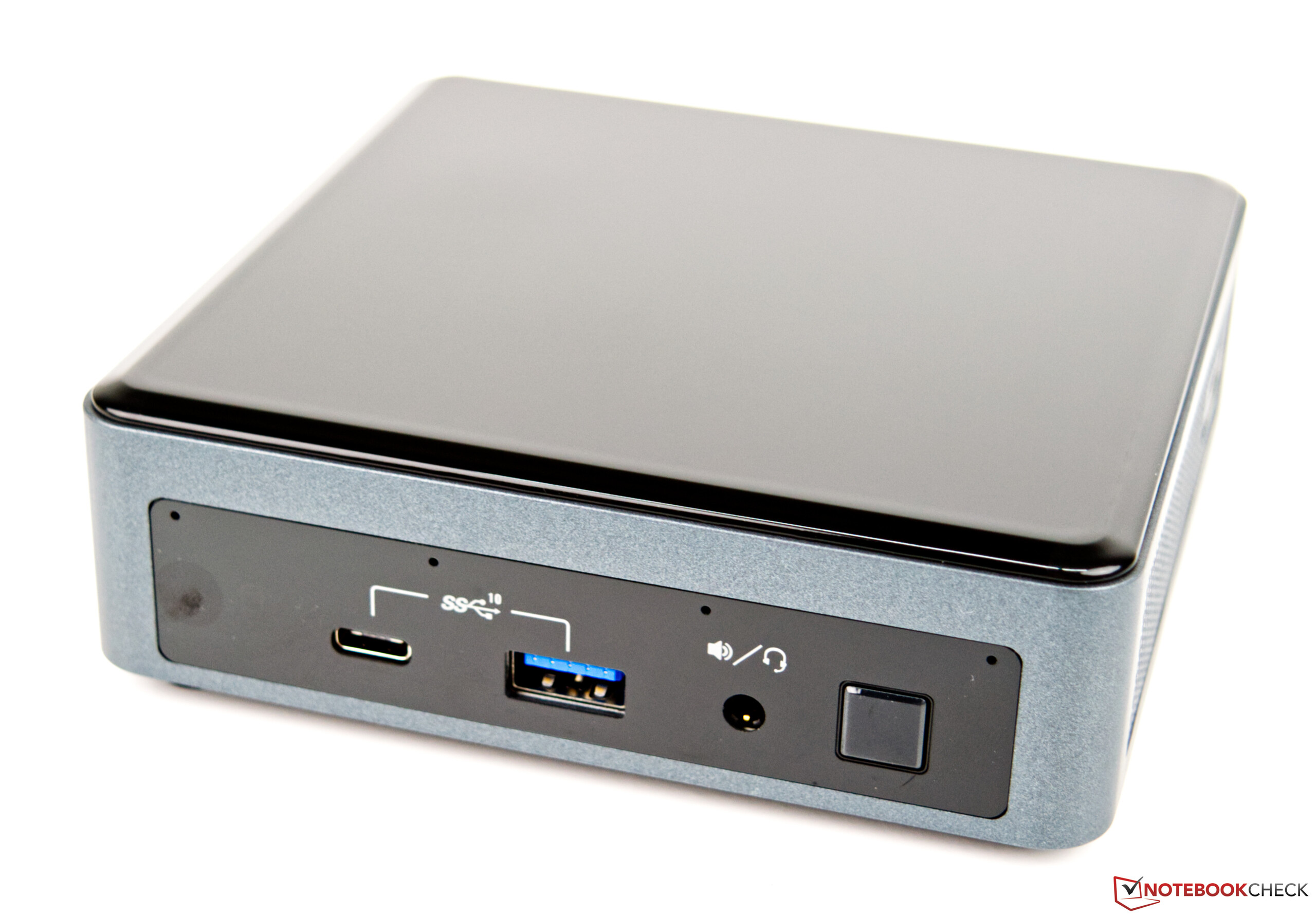

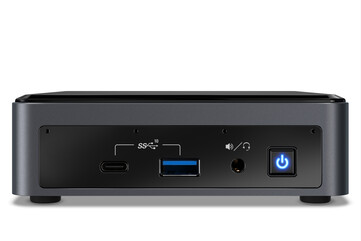

Intel NUC (NUC10i5FNKPA) front (source : Intel)
Front (source : Intel)

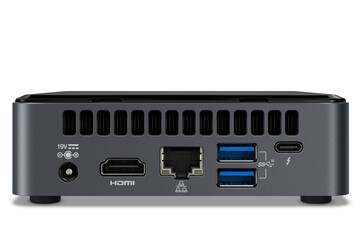

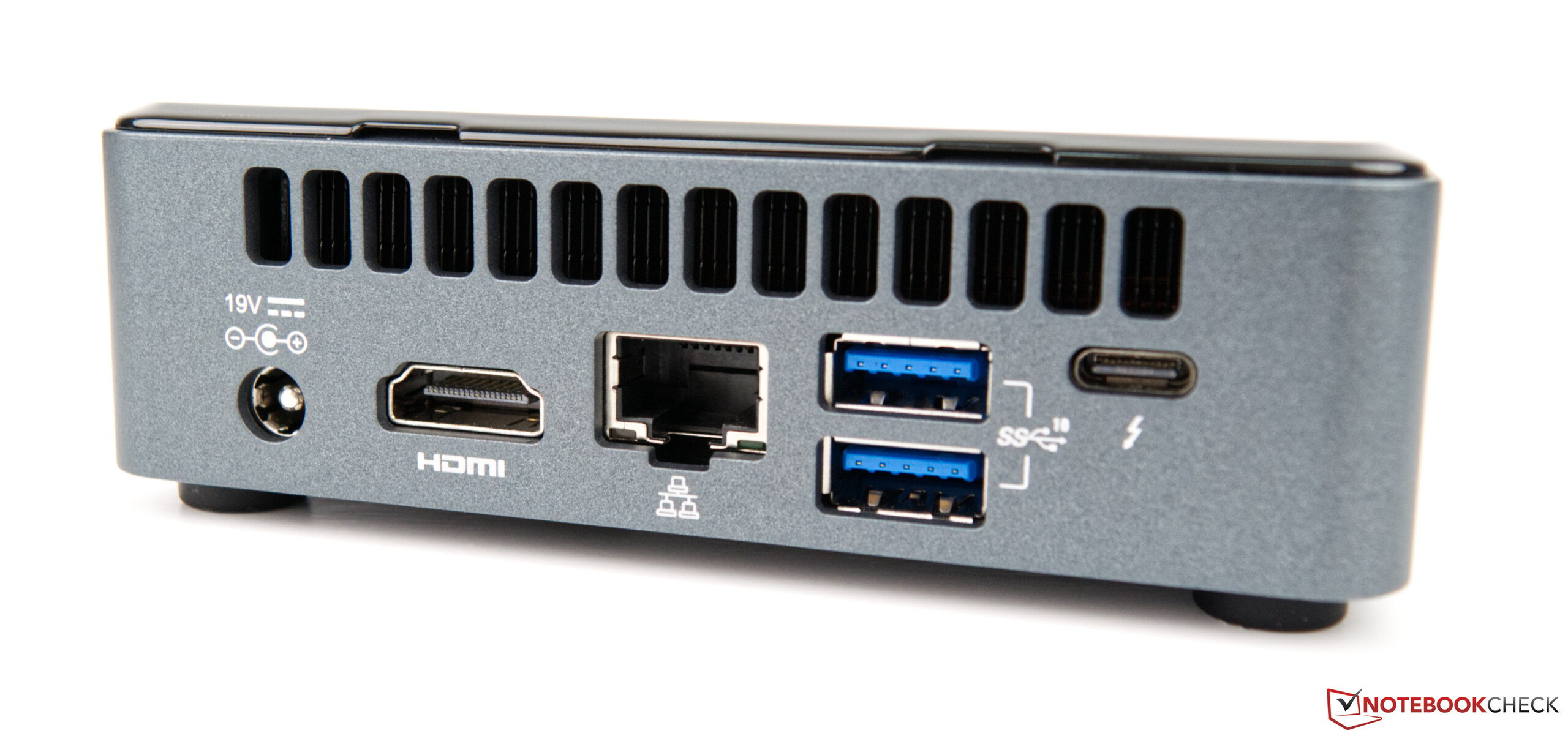

Intel NUC (NUC10i5FNKPA) rear (source : Intel)
Rear (source : Intel)
Intel NUC (NUC10i5FNKPA) (source : Intel)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)
Intel NUC (NUC10i5FNKPA)

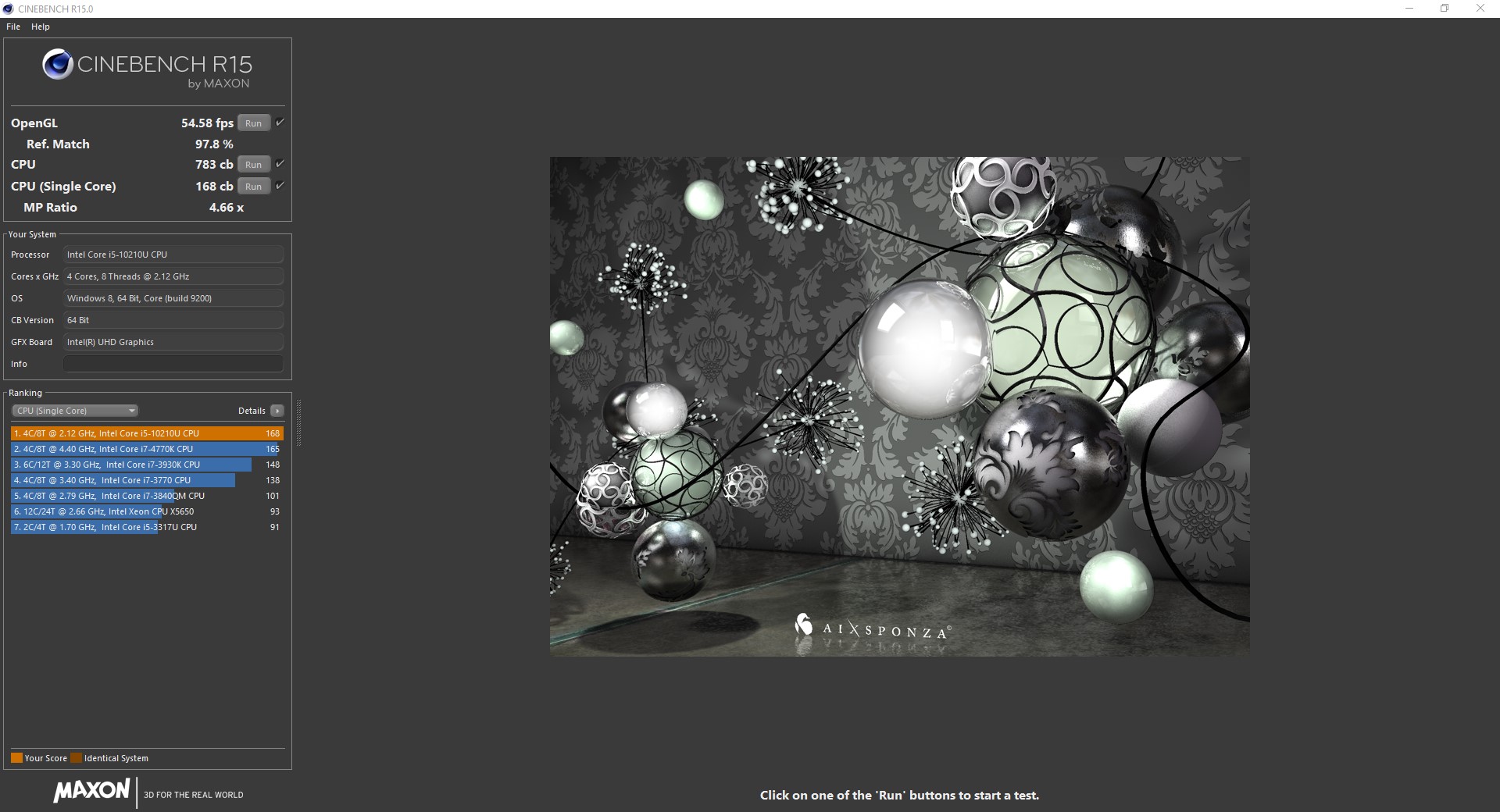

Cinebench R15
CPU Single 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
194 Points ∼100% +15%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
168 Points ∼87%
Average Intel Core i5-10210U
  (154 - 174, n=16)
167 Points ∼86% -1%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
165 Points ∼85% -2%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
117 Points ∼60% -30%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
108 Points ∼56% -36%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
84 Points ∼43% -50%
CPU Multi 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1067 Points ∼100% +36%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
783 Points ∼73%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
687 Points ∼64% -12%
Average Intel Core i5-10210U
  (488 - 783, n=16)
610 Points ∼57% -22%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
298 Points ∼28% -62%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
261 Points ∼24% -67%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
220 Points ∼21% -72%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
211 (min: 209.9, max: 211.39) Points ∼20% -73%
Cinebench R11.5
CPU Single 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
2.19 Points ∼100% +15%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1.91 Points ∼87%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1.88 Points ∼86% -2%
Average Intel Core i5-10210U
  (1.71 - 1.91, n=4)
1.85 Points ∼84% -3%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1.33 Points ∼61% -30%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1.28 Points ∼58% -33%
CPU Multi 64Bit
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
10.89 Points ∼100% +26%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
8.66 Points ∼80%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
7.55 Points ∼69% -13%
Average Intel Core i5-10210U
  (5.69 - 8.66, n=4)
7.34 Points ∼67% -15%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
3.26 Points ∼30% -62%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
2.86 Points ∼26% -67%
Blender 2.79 - BMW27 CPU
Average Intel Core i5-10210U
  (585 - 1004, n=6)
757 Seconds * ∼100% -29%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
676.2 Seconds * ∼89% -16%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
584.9 Seconds * ∼77%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
468.3 Seconds * ∼62% +20%
wPrime 2.0x
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
731.5 s * ∼100% -236%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
620 s * ∼85% -185%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
558 s * ∼76% -156%
Average Intel Core i5-10210U

218 s * ∼30% -0%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
217.837 s * ∼30%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
177.37 s * ∼24% +19%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
23.1 s * ∼100% -241%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
19.5 s * ∼84% -188%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
18 s * ∼78% -165%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6.78 s * ∼29%
Average Intel Core i5-10210U

6.78 s * ∼29% -0%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
5.103 s * ∼22% +25%
X264 HD Benchmark 4.0
Pass 2
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
60.55 (min: 60.4, max: 73.5) fps ∼100% +23%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
49.35 (min: 49.1, max: 51.6) fps ∼82%
Average Intel Core i5-10210U
  (33.4 - 49.4, n=3)
42.2 fps ∼70% -14%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
19.3 fps ∼32% -61%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
16.46 fps ∼27% -67%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
13.75 fps ∼23% -72%
Pass 1
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
206 (min: 204, max: 208) fps ∼100% +12%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
184.5 (min: 184, max: 186) fps ∼90%
Average Intel Core i5-10210U
  (149 - 185, n=3)
168 fps ∼82% -9%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
105 fps ∼51% -43%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
88.46 fps ∼43% -52%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
74 fps ∼36% -60%
TrueCrypt
Serpent Mean 100MB
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
0.57 GB/s ∼100% +19%
Average Intel Core i5-10210U
  (0.48 - 0.491, n=2)
0.4855 GB/s ∼85% +1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
0.48 GB/s ∼84%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
0.166 GB/s ∼29% -65%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
0.142 GB/s ∼25% -70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0.133 GB/s ∼23% -72%
Twofish Mean 100MB
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1 GB/s ∼100% +27%
Average Intel Core i5-10210U
  (0.79 - 0.802, n=2)
0.796 GB/s ∼80% +1%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
0.79 GB/s ∼79%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
0.283 GB/s ∼28% -64%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
0.245 GB/s ∼25% -69%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0.199 GB/s ∼20% -75%
AES Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4.7 GB/s ∼100%
Average Intel Core i5-10210U
  (4.6 - 4.7, n=2)
4.65 GB/s ∼99% -1%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4.6 GB/s ∼98% -2%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1.7 GB/s ∼36% -64%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1.5 GB/s ∼32% -68%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
1.3 GB/s ∼28% -72%
Geekbench 4.4
64 Bit Multi-Core Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
22969 Points ∼100% +65%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
16172 Points ∼70% +16%
Average Intel Core i5-10210U
  (12471 - 16818, n=8)
14408 Points ∼63% +3%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
13949 Points ∼61%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
5066 Points ∼22% -64%
64 Bit Single-Core Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
5271 Points ∼100% +43%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4871 Points ∼92% +32%
Average Intel Core i5-10210U
  (3680 - 5077, n=8)
4611 Points ∼87% +25%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
3680 Points ∼70%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2613 Points ∼50% -29%
Cinebench R20
CPU (Single Core)
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
480 Points ∼100% +12%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
428 Points ∼89%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
418 Points ∼87% -2%
Average Intel Core i5-10210U
  (395 - 428, n=12)
416 Points ∼87% -3%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
200 Points ∼42% -53%
CPU (Multi Core)
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
2303 Points ∼100% +27%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1820 Points ∼79%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1581 Points ∼69% -13%
Average Intel Core i5-10210U
  (1105 - 1820, n=12)
1331 Points ∼58% -27%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
491 Points ∼21% -73%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
7.95 fps ∼100% +27%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6.28 fps ∼79%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5.16 fps ∼65% -18%
Average Intel Core i5-10210U
  (3.69 - 6.28, n=6)
4.86 fps ∼61% -23%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
0 fps ∼0% -100%

* ... Moindre est la valeur, meilleures sont les performances

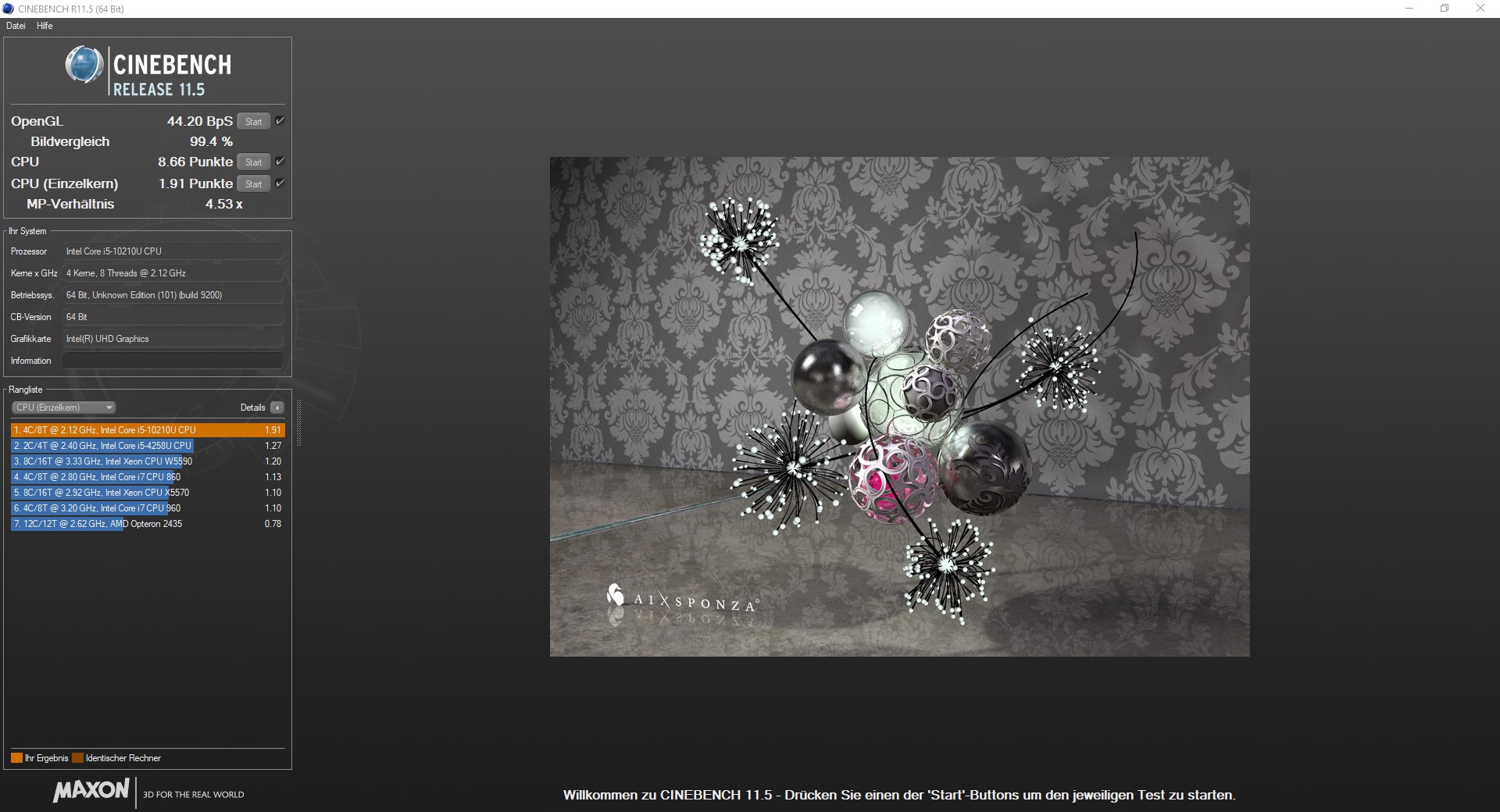

Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15

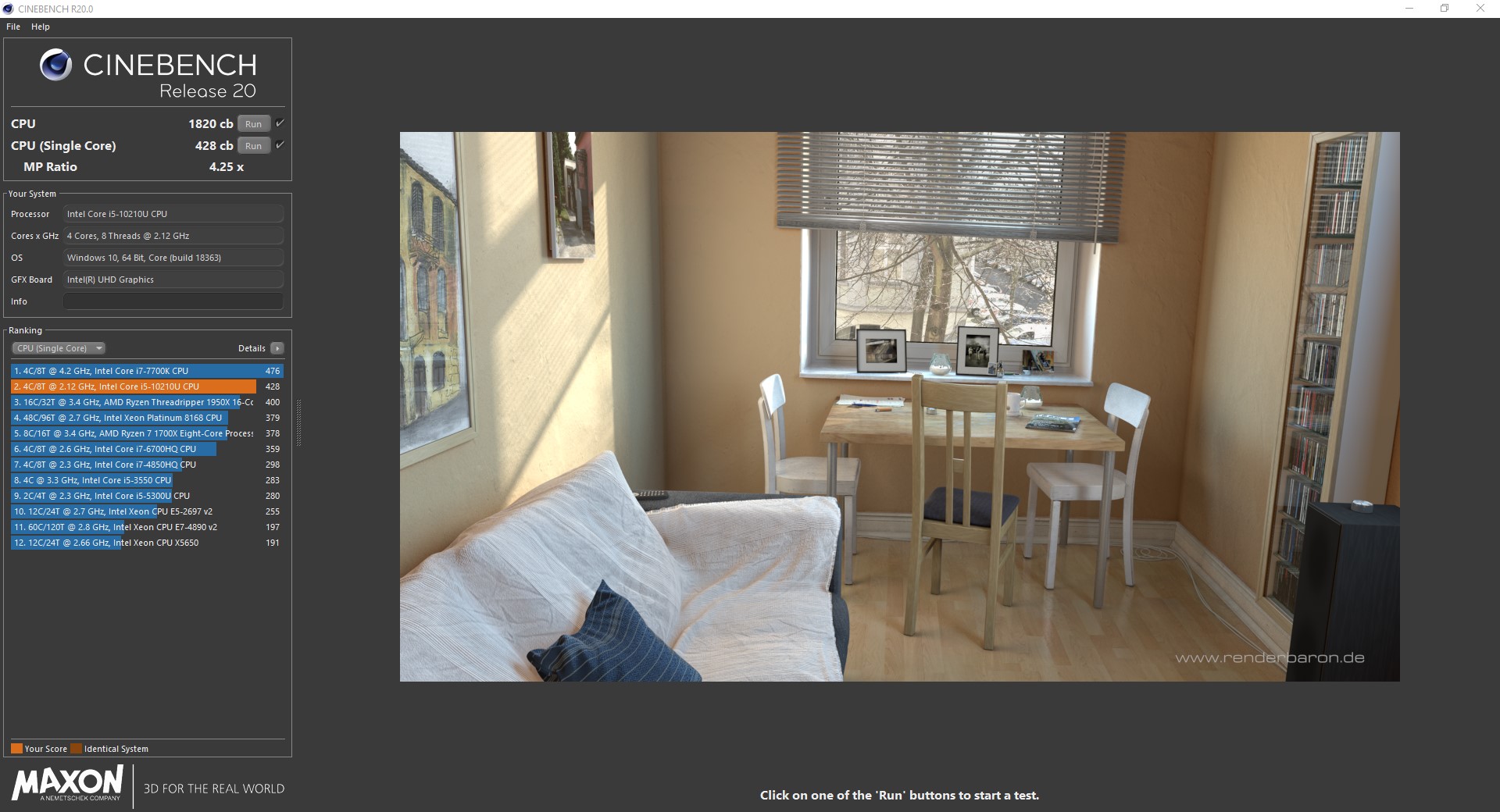

Cinebench R20
Cinebench R20
010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070Tooltip
Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)
Intel NUC10i7FNH Intel Core i7-10710U, Intel Core i7-10710U: Ø946 (834.01-1067.02)
PCMark 10
Productivity
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
6876 Points ∼100% +6%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
6874 Points ∼100% +6%
Average Intel Core i5-10210U
  (6099 - 7217, n=14)
6748 Points ∼98% +4%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
6494 Points ∼94%
Average Intel Core i5-8265U
  (2941 - 6755, n=33)
6105 Points ∼89% -6%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
4084 Points ∼59% -37%
Score
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4418 Points ∼100% +10%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4248 Points ∼96% +6%
Average Intel Core i5-10210U
  (3752 - 4497, n=14)
4084 Points ∼92% +2%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4019 Points ∼91%
Average Intel Core i5-8265U
  (2247 - 4192, n=33)
3743 Points ∼85% -7%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2391 Points ∼54% -41%
PCMark 8
Storage Score v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5088 Points ∼100% +20%
Average Intel Core i5-8265U
  (4832 - 4999, n=4)
4923 Points ∼97% +16%
Average Intel Core i5-10210U
  (4233 - 5088, n=4)
4809 Points ∼95% +14%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4729 Points ∼93% +12%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4233 Points ∼83%
Work Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5102 Points ∼100% +19%
Average Intel Core i5-10210U
  (4286 - 5102, n=11)
4886 Points ∼96% +14%
Average Intel Core i5-8265U
  (3132 - 5223, n=28)
4728 Points ∼93% +10%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4631 Points ∼91% +8%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
4588 Points ∼90% +7%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
4286 Points ∼84%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
4046 Points ∼79% -6%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
3732 Points ∼73% -13%
Creative Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
5312 Points ∼100% +6%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
5005 Points ∼94%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
4853 Points ∼91% -3%
Average Intel Core i5-10210U
  (3462 - 5440, n=6)
4627 Points ∼87% -8%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
4395 Points ∼83% -12%
Average Intel Core i5-8265U
  (3473 - 5959, n=12)
4373 Points ∼82% -13%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
3594 Points ∼68% -28%
Home Score Accelerated v2
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
4227 Points ∼100% +20%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
3938 Points ∼93% +12%
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
3667 Points ∼87% +4%
Average Intel Core i5-10210U
  (3182 - 4284, n=11)
3626 Points ∼86% +3%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
3526 Points ∼83%
Average Intel Core i5-8265U
  (2747 - 4244, n=29)
3512 Points ∼83% 0%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
3062 Points ∼72% -13%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
2901 Points ∼69% -18%

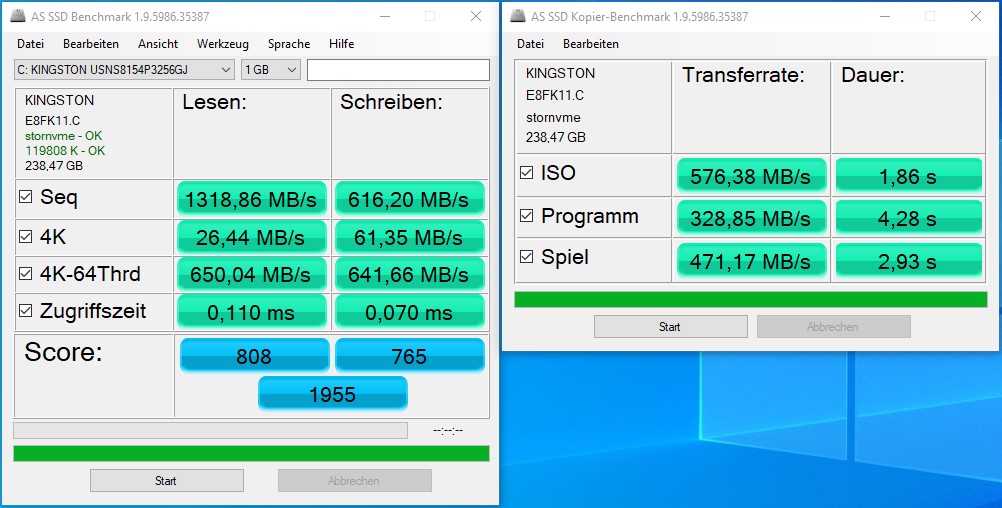

AS SSD
AS SSD
CrystalDiskMark 3
CrystalDiskMark 3
CrystalDiskMark 5
CrystalDiskMark 5
CrystalDiskMark 6
CrystalDiskMark 6
Kingston RBUSNS8154P3256GJ1
Sequential Read: 705.8 MB/s
Sequential Write: 773.6 MB/s
512K Read: 382.5 MB/s
512K Write: 672.1 MB/s
4K Read: 30.25 MB/s
4K Write: 58.22 MB/s
4K QD32 Read: 380.1 MB/s
4K QD32 Write: 447.4 MB/s
3DMark 11 - 1280x720 Performance GPU
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
2322 Points ∼100% +25%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1983 Points ∼85% +7%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1914 Points ∼82% +3%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1853 Points ∼80%
Average Intel UHD Graphics 620
  (1235 - 2006, n=192)
1725 Points ∼74% -7%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1458 Points ∼63% -21%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
1175 Points ∼51% -37%
3DMark
1920x1080 Fire Strike Graphics
Intel NUC6i5SYH, Intel Core i5-6260U
1800, Intel Iris Graphics 540
1479 Points ∼100% +23%
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
1418 Points ∼96% +18%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
1309 Points ∼89% +9%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
1202 Points ∼81%
Average Intel UHD Graphics 620
  (557 - 1418, n=162)
1136 Points ∼77% -5%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
1033 Points ∼70% -14%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
770 Points ∼52% -36%
1920x1080 Ice Storm Extreme Graphics
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
48446 Points ∼100% +20%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
47803 Points ∼99% +18%
Average Intel UHD Graphics 620
  (29002 - 59483, n=52)
43398 Points ∼90% +7%
Intel NUC5i3RYK, Intel Core i3-5010U
2100, Intel HD Graphics 5500
40670 Points ∼84% 0%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
40532 Points ∼84%
1280x720 Ice Storm Standard Graphics
Intel NUC10i7FNH, Intel Core i7-10710U
1100, Intel UHD Graphics 620
79747 Points ∼100% +37%
Lenovo ThinkBook 15 , Intel Core i5-10210U
1600, Intel UHD Graphics 620
76488 Points ∼96% +31%
Average Intel UHD Graphics 620
  (13790 - 102010, n=52)
68668 Points ∼86% +18%
Intel NUC5i5RYH, Intel Core i5-5250U
1600, Intel HD Graphics 6000
61979 Points ∼78% +6%
Intel NUC10i5FNK, Intel Core i5-10210U
1600, Intel UHD Graphics 620
58199 Points ∼73%
3DMark 11 Performance
2064 points
3DMark Ice Storm Standard Score
56938 points
3DMark Cloud Gate Standard Score
8987 points
3DMark Fire Strike Score
1113 points
3DMark Fire Strike Extreme Score
526 points
3DMark Time Spy Score
456 points
Aide
Bas Moyen Élevé Ultra4K
Dota 2 Reborn (2015) 78.8 48.9 20.4 18.1 6.6 fps
X-Plane 11.11 (2018) 10.7 8.95 8.77 6.03 fps
Ghost Recon Breakpoint (2019) 11 5 fps
Star Wars Jedi Fallen Order (2019) 6.55 fps
Intel Frost Canyon - Stress test : Prime95 seul.
Intel Frost Canyon - Stress test : Prime95 seul.
Intel Frost Canyon - Stress test : FurMark seul.
Intel Frost Canyon - Stress test : FurMark seul.
Intel Frost Canyon - Stress test : FurMark+Prime95.
Intel Frost Canyon - Stress test : FurMark+Prime95.
Intel Frost Canyon - Relevé thermique au-dessus (sollicitations).
Intel Frost Canyon - Relevé thermique au-dessus (sollicitations).
Intel Frost Canyon - Relevé thermique à l'arrière (sollicitations).
Intel Frost Canyon - Relevé thermique à l'arrière (sollicitations).
Intel Frost Canyon - Relevé thermique adaptateur secteur (sollicitations).
Intel Frost Canyon - Relevé thermique adaptateur secteur (sollicitations).
Consommation énergétique
Éteint/en veilledarklight 0.69 / Watts
Au reposdarkmidlight / 15.7 / Watts
Fortement sollicité midlight / 58.6 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy

Points positifs

+ robustesse
+ économie d'espace
+ consommation
+ performances
+ Wifi 6 et Bluetooth 5
+ USB C avec Thunderbolt 3
+ garantie de 36 mois
+ lecteur de carte SD

Points négatifs

- niveau sonore
- prix par rapport à la configuration
- seul un emplacement de stockage libre
En test : l'Intel NUC NUC10i5FNK. Modèle de test aimablement fourni par Intel Allemagne.
En test : l'Intel NUC NUC10i5FNK. Modèle de test aimablement fourni par Intel Allemagne.

Le NUC Intel Comet Lake est un mini PC très compact et très efficient avec beaucoup de superlatifs. Notre NUC10i5FNK de test est vendu un peu plus de 800 $ et s’équipe d’un Intel Core i5-10210U, de 8 Go de RAM, d’un SSD de 256 Go, et de Windows 10. L’appareil s’installe rapidement, et le mini PC de bureau sera prêt en un rien de temps. Mais si vous préférez choisir votre configuration, il est possible de commander le NUC sans SSD, sans RAM et sans Windows – pour environ 500 $.

Ceux qui sont intéressés par un mini PC ne peuvent se tromper en choisissant l’Intel NUC NUC10i5FNK. Ses composants dernier cri et ses qualités intrinsèques en font un appareil très séduisant, même pour le long terme.

Au regard des performances, ce PC compact est bien équipé, et à jour, avec la dernière technologie Wifi en date, et un SoC Intel Comet Lake (Intel Core i5-10210U). Quatre micros et un récepteur infrarouge le rendent particulièrement adapté comme appareil de streaming. Les ports sont nombreux, même si le deuxième port HDMI a dû être abandonné pour faire de la place au port Thunderbolt 3. Celui-ci est cependant bien plus moderne et polyvalent. Il y a toujours un lecteur de cartes SD, compatible UHS-II.

L’allure comme la construction sont ici au meilleur niveau, même si nous aurions préféré une surface matte sur le dessus. Aucun doute, le dessus noir brillant est séduisant, mais il ne le restera pas très longtemps… Un autre souci est lié au système de refroidissement : s’il fonctionne bien en cas de sollicitations et garde le SoC frais en permanence, le niveau sonore n’est pas des meilleurs, vu qu’il est toujours actif, même avec de faibles sollicitations. Heureusement, il n’est vraiment gênant qu’en cas de grosses sollicitations.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Test de l'Intel Frost Canyon (i5-10210U, UHD 620) : NUC avec i5 Comet Lake
Sebastian Bade, 2020-02-21 (Update: 2020-02-21)
