Test du HP ZBook 15u G6 (i7-8565U, Radeon Pro WX 3200, 4K UHD) : écran 4K bien contrasté et autonomie réduite

Mike Wobker, 👁 Andreas Osthoff (traduit par Prévots), 10/09/2019

Mise à jour Whiskey Lake décevante La sixième génération de la station de travail ZBook 15u de HP propose un bon nombre de configurations. Il y a par exemple un écran 4K, un processeur Intel Core i7, et une carte graphique dédiée, le tout disponible pour environ 2 000 €. Découvrez si cela vaut le coup de passer à ce nouveau modèle, ou si l’on fera mieux de garder le prédécesseur.

HP ZBook 15u G6 6TP54EA (ZBook 15u Gamme)
Processeur
Intel Core i7-8565U
Carte graphique
AMD Radeon Pro WX 3200 - 4096 Mo, Processeur: 1082 MHz, Mémoire: 1000 MHz, GDDR5, Adrenalin 18.50.26, Intel UHD Graphics 620
Mémoire
16384 Mo
, mono canal
Écran
15.6 pouces 16:9, 3840 x 2160 pixel, AU Optronics AUO30EB, IPS, brillant: non
Carte mère
Intel Cannon Lake-U PCH-LP Premium
Disque dur
Samsung SSD PM981 MZVLB512HAJQ, 512 Go
, 439 Go libres
Carte son
Intel Cannon Lake-LP - cAVS

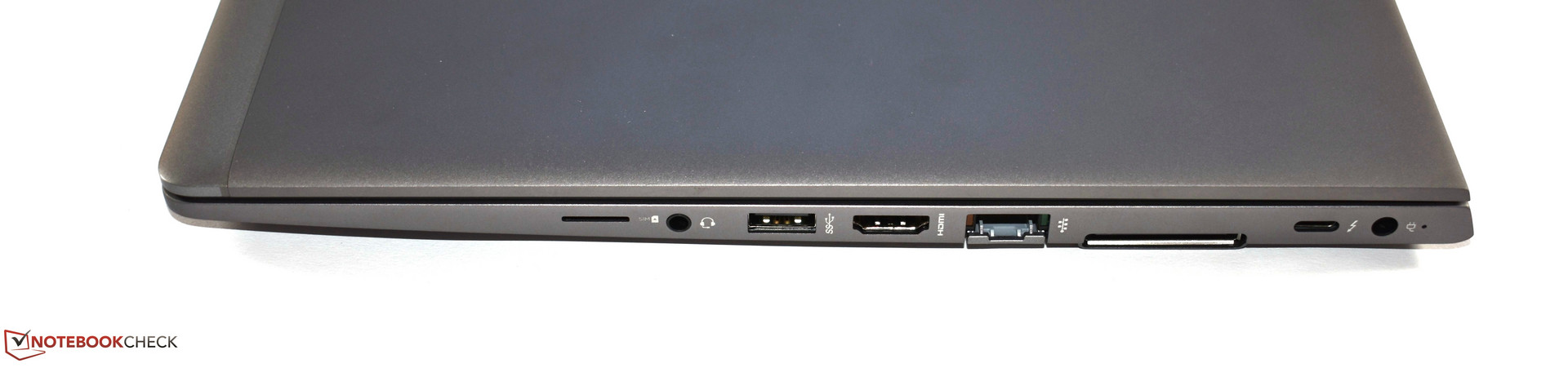

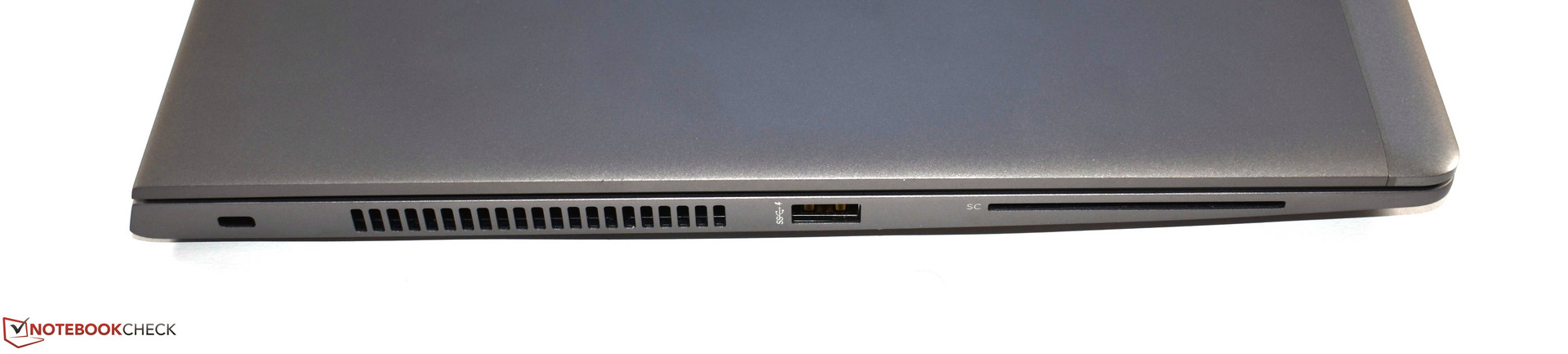

Connexions
2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 3 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Encoche de Sécurité Kensington, 1 Port pour Station d'accueil, Connectique audio: 3,5 mm, 1 Lecteur de cartes à puce, 1 Lecteur d'empreintes digitales, NFC
Réseau
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5
Taille
Hauteur x Largeur x Profondeur (en mm): 19 x 371 x 251
Batterie
56 Wh Lithium-Polymère
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Appareil photo
Webcam: 0,9 MP, 720p (1280x720)
Fonctionnalités additionnelles
Haut-parleurs: stéréo, Clavier: chiclet, Rétroéclairage du clavier: oui, 36 Mois Garantie
Poids
1.588 kg, Alimentation: 334 g
Prix
2000 euros
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



#compare_competitor

NoteDateModèlePoidsÉpaisseurTailleRésolutionBest Price
81%10/19HP ZBook 15u G6 6TP54EA
8565U, Radeon Pro WX 3200
1.6 kg19 mm15.6"3840x2160
90%08/19Lenovo ThinkPad P1 2019-20QT000RGE
9850H, Quadro T1000 (Laptop)
1.7 kg18.4 mm15.6"1920x1080
86%04/19Fujitsu Celsius H780
8850H, Quadro P2000
2.8 kg31.9 mm15.6"1920x1080
89%03/19Dell Latitude 5420 Rugged-P85G
8650U, Radeon RX 540
2.8 kg32.9 mm14"1920x1080
80%06/18HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100
1.9 kg19 mm15.6"1920x1080
HP ZBook 15u G6
HP ZBook 15u G6
HP ZBook 15u G6
HP ZBook 15u G6
HP ZBook 15u G6

Comparaison des tailles

380 mm 258 mm 31.9 mm 2.8 kg371 mm 251 mm 19 mm 1.6 kg371 mm 251 mm 19 mm 1.9 kg361.8 mm 245.7 mm 18.4 mm 1.7 kg347 mm 244.5 mm 32.9 mm 2.8 kg
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell Latitude 5420 Rugged-P85G
Intel Dual Band Wireless-AC 8265
652 MBit/s ∼100% 0%
HP ZBook 15u G6 6TP54EA
Intel Wireless-AC 9560
652 MBit/s ∼100%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼98% -2%
Fujitsu Celsius H780
Intel Wireless-AC 9560
636 (min: 613, max: 655) MBit/s ∼98% -2%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Wi-Fi 6 AX200
625 MBit/s ∼96% -4%
Average of class Workstation
  (292 - 705, n=48)
610 MBit/s ∼94% -6%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Wi-Fi 6 AX200
706 MBit/s ∼100% +6%
HP ZBook 15u G6 6TP54EA
Intel Wireless-AC 9560
669 MBit/s ∼95%
Fujitsu Celsius H780
Intel Wireless-AC 9560
659 (min: 649, max: 666) MBit/s ∼93% -1%
Average of class Workstation
  (83 - 706, n=48)
541 MBit/s ∼77% -19%
Dell Latitude 5420 Rugged-P85G
Intel Dual Band Wireless-AC 8265
540 MBit/s ∼76% -19%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
528 MBit/s ∼75% -21%
407
cd/m²
439
cd/m²
419
cd/m²
430
cd/m²
451
cd/m²
432
cd/m²
438
cd/m²
456
cd/m²
433
cd/m²
Homogénéité de la luminosité
AU Optronics AUO30EB
X-Rite i1Pro 2
Maximum: 456 cd/m² Moyenne: 433.9 cd/m² Minimum: 35.8 cd/m²
Homogénéité de la luminosité: 89 %
Valeur mesurée au centre, sur batterie: 450 cd/m²
Contraste: 1804:1 (Valeurs des noirs: 0.25 cd/m²)
ΔE Color 4.4 | 0.6-29.43 Ø6, calibrated: 1.8
ΔE Greyscale 5 | 0.64-98 Ø6.2
97% sRGB (Argyll 3D) 63% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.31
HP ZBook 15u G6 6TP54EA
AU Optronics AUO30EB, , 3840x2160, 15.6
HP ZBook 15u G5 2ZC05EA
CMN15E7, , 1920x1080, 15.6
Lenovo ThinkPad P1 2019-20QT000RGE
N156HCE-GN1, , 1920x1080, 15.6
Fujitsu Celsius H780
LP156WF6-SPP1, , 1920x1080, 15.6
Dell Latitude 5420 Rugged-P85G
AU Optronics AUO523D, , 1920x1080, 14
Response Times
22%
52%
27%
-7%
Response Time Grey 50% / Grey 80% *
68.8 (33.2, 35.6)
41.6 (22, 19.6)
40%
34.4 (17.2, 17.2)
50%
38 (18.8, 19.2)
45%
68 (34, 34)
1%
Response Time Black / White *
29.6
28.8 (15.6, 13.2)
3%
14 (4.4, 9.6)
53%
26.8 (16.4, 10.4)
9%
33.6 (18.8, 14.8)
-14%
PWM Frequency
25770 (40)
26040 (70)
20830 (60)
735.3 (100)
Screen
-40%
-3%
-20%
-6%
Brightness middle
451
229
-49%
542
20%
271
-40%
1111.7
146%
Brightness
434
212
-51%
528
22%
260
-40%
1026
136%
Brightness Distribution
89
88
-1%
84
-6%
86
-3%
80
-10%
Black Level *
0.25
0.23
8%
0.41
-64%
0.29
-16%
0.81
-224%
Contrast
1804
996
-45%
1322
-27%
934
-48%
1372
-24%
Colorchecker DeltaE2000 *
4.4
4.2
5%
3.5
20%
3.9
11%
3.83
13%
Colorchecker DeltaE2000 max. *
6.7
18
-169%
7.8
-16%
10.2
-52%
7.85
-17%
Colorchecker DeltaE2000 calibrated *
1.8
4.2
-133%
1.3
28%
2.9
-61%
2.98
-66%
Greyscale DeltaE2000 *
5
2
60%
4.8
4%
2.6
48%
5.6
-12%
Gamma
2.31 95%
2.23 99%
2.33 94%
2.29 96%
2.306 95%
CCT
7717 84%
6292 103%
7690 85%
6517 100%
7676 85%
Color Space (Percent of AdobeRGB 1998)
63
41
-35%
58.8
-7%
56.1
-11%
59
-6%
Color Space (Percent of sRGB)
97
64.5
-34%
91.1
-6%
85.8
-12%
93
-4%
Moyenne finale (programmes/paramètres)
-9% / -31%
25% / 5%
4% / -13%
-7% / -6%

* ... Moindre est la valeur, meilleures sont les performances

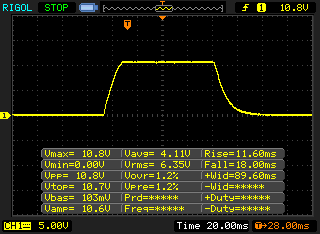

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.
       Temps de réponse noir à blanc
29.6 ms ... hausse ↗ et chute ↘ combinées↗ ms hausse
↘ ms chute
L'écran souffre de latences relativement élevées, insuffisant pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 71 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (24.9 ms) de tous les appareils testés.

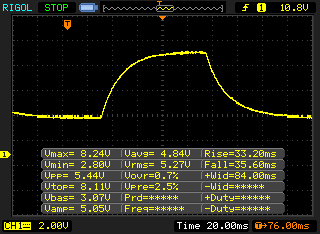

       Temps de réponse gris 50% à gris 80%
68.8 ms ... hausse ↗ et chute ↘ combinées↗ 33.2 ms hausse
↘ 35.6 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 98 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (39.7 ms) de tous les appareils testés.

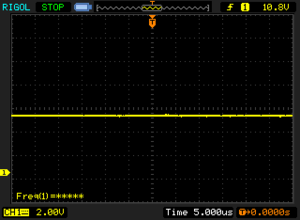

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) non décelé

En comparaison, 51 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 9352 (minimum : 43 - maximum : 142900) Hz dans le cas où une MDI était active.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570Tooltip
HP ZBook 15u G6 6TP54EA Intel Core i7-8565U, Intel Core i7-8565U: Ø489 (485.76-508.49)
HP ZBook 15u G5 2ZC05EA Intel Core i7-8550U, Intel Core i7-8550U: Ø502 (492-518.79)
Dell Latitude 5420 Rugged-P85G Intel Core i7-8650U, Intel Core i7-8650U: Ø466 (461.37-494.52)
Acer Swift 3 SF314-55G-768V Intel Core i7-8565U, Intel Core i7-8565U: Ø525 (504.86-564.35)
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H
193 Points ∼100% +17%
Fujitsu Celsius H780
Intel Core i7-8850H
185 Points ∼96% +12%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
172 Points ∼89% +4%
Average Intel Core i7-8565U
  (73.1 - 193, n=48)
171 Points ∼89% +4%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U
165 Points ∼85%
Average of class Workstation
  (117 - 214, n=95)
158 Points ∼82% -4%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U
143 Points ∼74% -13%
CPU Multi 64Bit
Fujitsu Celsius H780
Intel Core i7-8850H
1116 Points ∼100% +126%
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H
961 (min: 896, max: 1114) Points ∼86% +95%
Average of class Workstation
  (260 - 1623, n=97)
742 Points ∼66% +50%
Average Intel Core i7-8565U
  (361 - 815, n=49)
585 Points ∼52% +18%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
552 Points ∼49% +12%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U
494 (min: 492.26, max: 519.15) Points ∼44%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U
451 Points ∼40% -9%
Cinebench R10 Rendering Multiple CPUs 64Bit
14542 Points
Cinebench R10 Rendering Single CPUs 64Bit
5474 Points
Cinebench R10 Shading 64Bit
6503 Points
Cinebench R11.5 CPU Multi 64Bit
4.09 Points
Cinebench R11.5 OpenGL 64Bit
57.37 fps
Cinebench R11.5 CPU Single 64Bit
1.37 Points
Cinebench R15 CPU Single 64Bit
165 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
74 fps
Cinebench R15 CPU Multi 64Bit
494 Points
Aide
PCMark 10
Digital Content Creation
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
5880 Points ∼100% +102%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5033 Points ∼86% +73%
Average of class Workstation
  (2329 - 8528, n=38)
4993 Points ∼85% +72%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, 8650U, SK hynix PC401 NVMe 500 GB
3843 Points ∼65% +32%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100, 8550U, Toshiba XG5 KXG50ZNV256G
3397 Points ∼58% +17%
Average Intel Core i7-8565U, AMD Radeon Pro WX 3200
  (2905 - 3759, n=2)
3332 Points ∼57% +15%
HP ZBook 15u G6 6TP54EA
Radeon Pro WX 3200, 8565U, Samsung SSD PM981 MZVLB512HAJQ
2905 Points ∼49%
Productivity
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
7377 Points ∼100% +85%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, 8650U, SK hynix PC401 NVMe 500 GB
7328 Points ∼99% +83%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
7243 Points ∼98% +81%
Average of class Workstation
  (3998 - 8307, n=38)
6992 Points ∼95% +75%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100, 8550U, Toshiba XG5 KXG50ZNV256G
6777 Points ∼92% +70%
Average Intel Core i7-8565U, AMD Radeon Pro WX 3200
  (3998 - 7429, n=2)
5714 Points ∼77% +43%
HP ZBook 15u G6 6TP54EA
Radeon Pro WX 3200, 8565U, Samsung SSD PM981 MZVLB512HAJQ
3998 Points ∼54%
Essentials
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
9566 Points ∼100% +83%
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
8632 Points ∼90% +65%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, 8650U, SK hynix PC401 NVMe 500 GB
8503 Points ∼89% +63%
Average of class Workstation
  (5223 - 9917, n=38)
8454 Points ∼88% +62%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100, 8550U, Toshiba XG5 KXG50ZNV256G
7810 Points ∼82% +50%
Average Intel Core i7-8565U, AMD Radeon Pro WX 3200
  (5223 - 8350, n=2)
6787 Points ∼71% +30%
HP ZBook 15u G6 6TP54EA
Radeon Pro WX 3200, 8565U, Samsung SSD PM981 MZVLB512HAJQ
5223 Points ∼55%
Score
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
5167 Points ∼100% +83%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5046 Points ∼98% +79%
Average of class Workstation
  (2817 - 6255, n=39)
4730 Points ∼92% +68%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, 8650U, SK hynix PC401 NVMe 500 GB
4451 Points ∼86% +58%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100, 8550U, Toshiba XG5 KXG50ZNV256G
4046 Points ∼78% +44%
Average Intel Core i7-8565U, AMD Radeon Pro WX 3200
  (2817 - 4413, n=2)
3615 Points ∼70% +28%
HP ZBook 15u G6 6TP54EA
Radeon Pro WX 3200, 8565U, Samsung SSD PM981 MZVLB512HAJQ
2817 Points ∼55%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
5332 Points ∼100% +33%
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
5256 Points ∼99% +31%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, 8650U, SK hynix PC401 NVMe 500 GB
5170 Points ∼97% +29%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100, 8550U, Toshiba XG5 KXG50ZNV256G
5137 Points ∼96% +28%
Average of class Workstation
  (3311 - 5655, n=75)
4819 Points ∼90% +20%
Average Intel Core i7-8565U, AMD Radeon Pro WX 3200
  (4022 - 4885, n=2)
4454 Points ∼84% +11%
HP ZBook 15u G6 6TP54EA
Radeon Pro WX 3200, 8565U, Samsung SSD PM981 MZVLB512HAJQ
4022 Points ∼75%
Home Score Accelerated v2
Fujitsu Celsius H780
Quadro P2000, 8850H, Samsung SSD PM981 MZVLB512HAJQ
4230 Points ∼100% +30%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, 8650U, SK hynix PC401 NVMe 500 GB
4038 Points ∼95% +24%
Lenovo ThinkPad P1 2019-20QT000RGE
Quadro T1000 (Laptop), 9850H, WDC PC SN720 SDAQNTW-512G
3986 Points ∼94% +22%
Average of class Workstation
  (2320 - 5505, n=76)
3977 Points ∼94% +22%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100, 8550U, Toshiba XG5 KXG50ZNV256G
3721 Points ∼88% +14%
Average Intel Core i7-8565U, AMD Radeon Pro WX 3200
  (3257 - 3954, n=2)
3606 Points ∼85% +11%
HP ZBook 15u G6 6TP54EA
Radeon Pro WX 3200, 8565U, Samsung SSD PM981 MZVLB512HAJQ
3257 Points ∼77%
PCMark 8 Home Score Accelerated v2
3257 points
PCMark 8 Work Score Accelerated v2
4022 points
Aide
HP ZBook 15u G6 6TP54EA
Samsung SSD PM981 MZVLB512HAJQ
HP ZBook 15u G5 2ZC05EA
Toshiba XG5 KXG50ZNV256G
Lenovo ThinkPad P1 2019-20QT000RGE
WDC PC SN720 SDAQNTW-512G
Fujitsu Celsius H780
Samsung SSD PM981 MZVLB512HAJQ
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
Average Samsung SSD PM981 MZVLB512HAJQ

CrystalDiskMark 5.2 / 6
-25%
25%
-7%
-26%
5%
Write 4K
156
98.85
-37%
162.2
4%
98.29
-37%
98.76
-37%
124 (90.4 - 174, n=52)
-21%
Read 4K
45.73
33.98
-26%
43.71
-4%
40.18
-12%
38.51
-16%
43.3 (28 - 61.3, n=51)
-5%
Write Seq
1158
395.7
-66%
2441
111%
1777
53%
843.3
-27%
1558 (112 - 2714, n=52)
35%
Read Seq
1132
2063
82%
1753
55%
1247
10%
1282
13%
1695 (501 - 2665, n=52)
50%
Write 4K Q32T1
369.2
352.3
-5%
397.6
8%
344.7
-7%
355.5
-4%
414 (198 - 1707, n=52)
12%
Read 4K Q32T1
573
281.8
-51%
519.7
-9%
383.1
-33%
241.4
-58%
414 (268 - 1015, n=52)
-28%
Write Seq Q32T1
1969
355
-82%
2519
28%
2019
3%
892.5
-55%
1985 (1714 - 2994, n=52)
1%
Read Seq Q32T1
3138
2775
-12%
3448
10%
2076
-34%
2478
-21%
3050 (1772 - 3562, n=52)
-3%
Write 4K Q8T8
361
1381.4
1750.6
1307 (409 - 1814, n=11)
Read 4K Q8T8
447.3
1371.1
1568.1
1244 (527 - 1620, n=11)
AS SSD
-65%
4%
-10%
-38%
-29%
Copy Game MB/s
741.77
1449.2
1170.02
792.9
1003 (547 - 1584, n=37)
Copy Program MB/s
324.8
597.27
405.92
378.14
436 (206 - 713, n=37)
Copy ISO MB/s
1145.95
2014.86
1547.02
1622.33
1699 (917 - 3259, n=37)
Score Total
3976
1697
-57%
4300
8%
4469
12%
2475
-38%
3950 (2348 - 5316, n=50)
-1%
Score Write
1755
710
-60%
1871
7%
2080
19%
1143
-35%
1760 (147 - 2992, n=50)
0%
Score Read
1474
689
-53%
1634
11%
1549
5%
921
-38%
1455 (820 - 2125, n=50)
-1%
Access Time Write *
0.026
0.051
-96%
0.024
8%
0.037
-42%
0.051
-96%
0.0903 (0.026 - 2.52, n=50)
-247%
Access Time Read *
0.039
0.103
-164%
0.064
-64%
0.066
-69%
0.044
-13%
0.0501 (0.029 - 0.082, n=50)
-28%
4K-64 Write
1445.94
564.31
-61%
1506.25
4%
1789.01
24%
981.79
-32%
1490 (96.2 - 2716, n=50)
3%
4K-64 Read
1210.64
488.39
-60%
1290.93
7%
1395
15%
676.65
-44%
1210 (530 - 1823, n=50)
0%
4K Write
137.63
101.5
-26%
155.44
13%
102.48
-26%
96.39
-30%
109 (1.76 - 142, n=50)
-21%
4K Read
55.3
31.28
-43%
45.05
-19%
48.35
-13%
39.34
-29%
50 (31.7 - 61, n=50)
-10%
Seq Write
1715.24
441.04
-74%
2093.83
22%
1882.1
10%
652.54
-62%
1602 (487 - 2330, n=50)
-7%
Seq Read
2082.88
1695.81
-19%
2980.03
43%
1049.45
-50%
2053.85
-1%
1946 (1030 - 2806, n=50)
-7%
Moyenne finale (programmes/paramètres)
-45% / -48%
15% / 13%
-9% / -9%
-32% / -33%
-12% / -15%

* ... Moindre est la valeur, meilleures sont les performances

Samsung SSD PM981 MZVLB512HAJQ
Sequential Read: 1175 MB/s
Sequential Write: 1171 MB/s
512K Read: 632.4 MB/s
512K Write: 1229 MB/s
4K Read: 70.21 MB/s
4K Write: 161.6 MB/s
4K QD32 Read: 499.9 MB/s
4K QD32 Write: 331.4 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
10407 Points ∼100% +145%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
8573 Points ∼82% +101%
Average of class Workstation
  (841 - 25266, n=107)
6162 Points ∼59% +45%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, Intel Core i7-8650U
4983 Points ∼48% +17%
Average AMD Radeon Pro WX 3200
  (4256 - 4419, n=2)
4338 Points ∼42% +2%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
4256 Points ∼41%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
3632 Points ∼35% -15%
3DMark
2560x1440 Time Spy Graphics
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
2834 Points ∼100% +202%
Average of class Workstation
  (566 - 6851, n=26)
2680 Points ∼95% +186%
Average AMD Radeon Pro WX 3200
  (938 - 973, n=2)
956 Points ∼34% +2%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
938 Points ∼33%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, Intel Core i7-8650U
566 Points ∼20% -40%
1920x1080 Fire Strike Graphics
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
7558 Points ∼100% +145%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
6953 Points ∼92% +125%
Average of class Workstation
  (752 - 18544, n=99)
4968 Points ∼66% +61%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, Intel Core i7-8650U
3853 Points ∼51% +25%
Average AMD Radeon Pro WX 3200
  (3088 - 3224, n=2)
3156 Points ∼42% +2%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
3088 Points ∼41%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
2644 Points ∼35% -14%
1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
48965 Points ∼100% +158%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
44533 Points ∼91% +135%
Average of class Workstation
  (5836 - 119052, n=99)
31761 Points ∼65% +68%
Dell Latitude 5420 Rugged-P85G
AMD Radeon RX 540, Intel Core i7-8650U
25077 Points ∼51% +32%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
18952 Points ∼39%
Average AMD Radeon Pro WX 3200
  (18780 - 18952, n=2)
18866 Points ∼39% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
17922 Points ∼37% -5%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
36.7 fps ∼100% +174%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
34.6 fps ∼94% +158%
Average of class Workstation
  (6.1 - 89.9, n=39)
30.5 fps ∼83% +128%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
13.4 fps ∼37%
Average AMD Radeon Pro WX 3200

13.4 fps ∼37% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
10.8 fps ∼29% -19%
1920x1080 Extreme HD Preset OpenGL AA:x8
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
29.7 fps ∼100% +230%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
29.5 fps ∼99% +228%
Average of class Workstation
  (5.6 - 75.8, n=38)
24.6 fps ∼83% +173%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
9 fps ∼30%
Average AMD Radeon Pro WX 3200

9 fps ∼30% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
6.3 fps ∼21% -30%
Unigine Heaven 4.0
Extreme Preset OpenGL
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
41.2 fps ∼100% +215%
Average of class Workstation
  (6.8 - 104, n=26)
35.2 fps ∼85% +169%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
27.4 fps ∼67% +109%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
13.1 fps ∼32%
Average AMD Radeon Pro WX 3200

13.1 fps ∼32% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
7.4 fps ∼18% -44%
Extreme Preset DX11
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
44.8 fps ∼100% +160%
Average of class Workstation
  (8.1 - 123, n=35)
39.7 fps ∼89% +131%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
30.7 fps ∼69% +78%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
17.2 fps ∼38%
Average AMD Radeon Pro WX 3200

17.2 fps ∼38% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
8.8 fps ∼20% -49%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
104.03 fps ∼100% +151%
Average of class Workstation
  (15.6 - 212, n=82)
75.9 fps ∼73% +83%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
41.43 fps ∼40%
Average AMD Radeon Pro WX 3200
  (39.3 - 41.4, n=2)
40.4 fps ∼39% -2%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
31.31 fps ∼30% -24%
1900x1060 Siemens NX (snx-02)
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
67.59 fps ∼100% +92%
Average of class Workstation
  (4.87 - 218, n=82)
58.5 fps ∼87% +67%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
35.12 fps ∼52%
Average AMD Radeon Pro WX 3200
  (27.8 - 35.1, n=2)
31.5 fps ∼47% -10%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
18.74 fps ∼28% -47%
1900x1060 Showcase (showcase-01)
Average of class Workstation
  (3.93 - 98, n=80)
30.5 fps ∼100% +58%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
30.42 fps ∼100% +58%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
19.25 fps ∼63%
Average AMD Radeon Pro WX 3200
  (16.2 - 19.3, n=2)
17.7 fps ∼58% -8%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
7.28 fps ∼24% -62%
1900x1060 Medical (medical-01)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
24.99 fps ∼100% +183%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
23.11 fps ∼92% +162%
Average of class Workstation
  (0.99 - 79.4, n=82)
21.7 fps ∼87% +146%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
8.83 fps ∼35%
Average AMD Radeon Pro WX 3200
  (7.42 - 8.83, n=2)
8.13 fps ∼33% -8%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
3.99 fps ∼16% -55%
1900x1060 Maya (maya-04)
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
60.27 fps ∼100% +143%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
47.5 fps ∼79% +91%
Average of class Workstation
  (5.4 - 148, n=83)
45 fps ∼75% +81%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
24.84 fps ∼41%
Average AMD Radeon Pro WX 3200
  (19.1 - 24.8, n=2)
22 fps ∼37% -11%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
11.75 fps ∼19% -53%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
5.79 fps ∼100% +243%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
5.62 fps ∼97% +233%
Average of class Workstation
  (0.06 - 16.9, n=83)
4.38 fps ∼76% +159%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
1.69 fps ∼29%
Average AMD Radeon Pro WX 3200
  (1.44 - 1.69, n=2)
1.565 fps ∼27% -7%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
0.26 fps ∼4% -85%
1900x1060 Creo (creo-01)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
74.99 fps ∼100% +98%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
65.17 fps ∼87% +72%
Average of class Workstation
  (14 - 160, n=83)
54.4 fps ∼73% +44%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
37.9 fps ∼51%
Average AMD Radeon Pro WX 3200
  (30.4 - 37.9, n=2)
34.1 fps ∼45% -10%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
18.82 fps ∼25% -50%
1900x1060 Catia (catia-04)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
82.39 fps ∼100% +157%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
70.83 fps ∼86% +121%
Average of class Workstation
  (13.4 - 197, n=83)
60.5 fps ∼73% +89%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
32.08 fps ∼39%
Average AMD Radeon Pro WX 3200
  (23.1 - 32.1, n=2)
27.6 fps ∼33% -14%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
17.1 fps ∼21% -47%
1900x1060 3ds Max (3dsmax-05)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
85.53 fps ∼100% +195%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
71.9 fps ∼84% +148%
Average of class Workstation
  (11.4 - 110, n=17)
51.8 fps ∼61% +79%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100, Intel Core i7-8550U
31.28 fps ∼37% +8%
Average AMD Radeon Pro WX 3200

29 fps ∼34% 0%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
28.98 fps ∼34%
SPECviewperf 13
Solidworks (sw-04)
Average of class Workstation
  (37.3 - 189, n=18)
96.3 fps ∼100% +116%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
96.07 fps ∼100% +115%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
89.18 fps ∼93% +100%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
44.6 fps ∼46%
Average AMD Radeon Pro WX 3200
  (42.5 - 44.6, n=2)
43.6 fps ∼45% -2%
Siemens NX (snx-03)
Average of class Workstation
  (36.4 - 396, n=18)
161 fps ∼100% +144%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
127.83 fps ∼79% +93%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
121.86 fps ∼76% +84%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
66.07 fps ∼41%
Average AMD Radeon Pro WX 3200
  (49.5 - 66.1, n=2)
57.8 fps ∼36% -13%
Showcase (showcase-02)
Average of class Workstation
  (12.6 - 94, n=18)
41.2 fps ∼100% +113%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
35.27 fps ∼86% +82%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
30.26 fps ∼73% +56%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
19.38 fps ∼47%
Average AMD Radeon Pro WX 3200
  (16.7 - 19.4, n=2)
18 fps ∼44% -7%
Medical (medical-02)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
33.45 fps ∼100% +183%
Average of class Workstation
  (6.8 - 73.2, n=18)
26.7 fps ∼80% +126%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
18.47 fps ∼55% +57%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
11.8 fps ∼35%
Average AMD Radeon Pro WX 3200
  (11.3 - 11.8, n=2)
11.5 fps ∼34% -3%
Maya (maya-05)
Average of class Workstation
  (29.4 - 255, n=18)
114 fps ∼100% +152%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
101.04 fps ∼89% +123%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
89.31 fps ∼78% +98%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
45.21 fps ∼40%
Average AMD Radeon Pro WX 3200
  (29.4 - 45.2, n=2)
37.3 fps ∼33% -17%
Energy (energy-02)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
12 fps ∼100% +458%
Average of class Workstation
  (0.72 - 36, n=18)
9.44 fps ∼79% +339%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
5.28 fps ∼44% +146%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
2.15 fps ∼18%
Average AMD Radeon Pro WX 3200
  (1.88 - 2.15, n=2)
2.02 fps ∼17% -6%
Creo (creo-02)
Average of class Workstation
  (27.8 - 248, n=18)
111 fps ∼100% +148%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
99.93 fps ∼90% +124%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
82.1 fps ∼74% +84%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
44.68 fps ∼40%
Average AMD Radeon Pro WX 3200
  (29.7 - 44.7, n=2)
37.2 fps ∼34% -17%
Catia (catia-05)
Average of class Workstation
  (27.7 - 302, n=18)
129 fps ∼100% +184%
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
121.33 fps ∼94% +168%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
104.04 fps ∼81% +129%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
45.35 fps ∼35%
Average AMD Radeon Pro WX 3200
  (32.5 - 45.4, n=2)
38.9 fps ∼30% -14%
3ds Max (3dsmax-06)
Lenovo ThinkPad P1 2019-20QT000RGE
NVIDIA Quadro T1000 (Laptop), Intel Core i7-9850H
83.89 fps ∼100% +159%
Average of class Workstation
  (20 - 173, n=18)
80.1 fps ∼95% +148%
Fujitsu Celsius H780
NVIDIA Quadro P2000, Intel Core i7-8850H
71.66 fps ∼85% +121%
Average AMD Radeon Pro WX 3200
  (32.4 - 35.2, n=2)
33.8 fps ∼40% +4%
HP ZBook 15u G6 6TP54EA
AMD Radeon Pro WX 3200, Intel Core i7-8565U
32.36 fps ∼39%
3DMark 06 Standard
16604 points
3DMark Vantage P Result
12538 points
3DMark 11 Performance
4592 points
3DMark Cloud Gate Standard Score
11979 points
3DMark Fire Strike Score
2822 points
3DMark Time Spy Score
1039 points
Aide
The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
30.9 (min: 28, max: 32, 99th percentile: 28) fps ∼100% +229%
Average of class Workstation
  (5.7 - 70, n=57)
24.6 fps ∼80% +162%
Fujitsu Celsius H780
Intel Core i7-8850H, NVIDIA Quadro P2000
24.3 fps ∼79% +159%
Average AMD Radeon Pro WX 3200
  (9.4 - 11.2, n=2)
10.3 fps ∼33% +10%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
9.4 fps ∼30%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U, AMD Radeon Pro WX 3100
6.65 fps ∼22% -29%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
6 fps ∼19% -36%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
52.7 fps ∼100% +328%
Fujitsu Celsius H780
Intel Core i7-8850H, NVIDIA Quadro P2000
43.2 fps ∼82% +251%
Average of class Workstation
  (8 - 132, n=58)
38.5 fps ∼73% +213%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U, AMD Radeon Pro WX 3100
15.4 fps ∼29% +25%
Average AMD Radeon Pro WX 3200
  (12.3 - 18, n=2)
15.2 fps ∼29% +24%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
12.3 fps ∼23%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
8 fps ∼15% -35%
1366x768 Medium Graphics & Postprocessing
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
94.1 fps ∼100% +255%
Fujitsu Celsius H780
Intel Core i7-8850H, NVIDIA Quadro P2000
76.1 fps ∼81% +187%
Average of class Workstation
  (16.7 - 229, n=56)
67.4 fps ∼72% +154%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
39 fps ∼41% +47%
Average AMD Radeon Pro WX 3200
  (26.5 - 35.6, n=2)
31.1 fps ∼33% +17%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U, AMD Radeon Pro WX 3100
29 fps ∼31% +9%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
26.5 fps ∼28%
BioShock Infinite
1366x768 Medium Preset
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
209.96 fps ∼100%
Average of class Workstation
  (26.4 - 376, n=62)
130 fps ∼62%
Average AMD Radeon Pro WX 3200

90.4 fps ∼43%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
78 fps ∼37%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U, AMD Radeon Pro WX 3100
76.6 fps ∼36%
1280x720 Very Low Preset
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
280.38 fps ∼100%
Average of class Workstation
  (52.5 - 435, n=58)
190 fps ∼68%
Average AMD Radeon Pro WX 3200

187 fps ∼67%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U, AMD Radeon Pro WX 3100
154.8 fps ∼55%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
147 fps ∼52%
Thief
1366x768 High Preset AA:FXAA & Low SS AF:4x
Average of class Workstation
  (13 - 146, n=29)
56.3 fps ∼100% +61%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
44.4 fps ∼79% +27%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
34.9 fps ∼62%
Average AMD Radeon Pro WX 3200

34.9 fps ∼62% 0%
1366x768 Normal Preset AA:FX
Average of class Workstation
  (20 - 145, n=27)
61.1 fps ∼100% +68%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
50.3 fps ∼82% +38%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
36.4 fps ∼60%
Average AMD Radeon Pro WX 3200

36.4 fps ∼60% 0%
1024x768 Very Low Preset
Average of class Workstation
  (21 - 149, n=23)
74.8 fps ∼100%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
63 fps ∼84%
Rise of the Tomb Raider
1920x1080 High Preset AA:FX AF:4x
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
53.41 fps ∼100% +188%
Average of class Workstation
  (8 - 128, n=44)
44.8 fps ∼84% +142%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
20 fps ∼37% +8%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
18.54 fps ∼35%
Average AMD Radeon Pro WX 3200

18.5 fps ∼35% 0%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U, AMD Radeon Pro WX 3100
14.8 fps ∼28% -20%
1366x768 Medium Preset AF:2x
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
85.97 fps ∼100% +137%
Average of class Workstation
  (14 - 221, n=43)
74.6 fps ∼87% +106%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
38 fps ∼44% +5%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
36.22 fps ∼42%
Average AMD Radeon Pro WX 3200

36.2 fps ∼42% 0%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U, AMD Radeon Pro WX 3100
29.1 fps ∼34% -20%
1024x768 Lowest Preset
Lenovo ThinkPad P1 2019-20QT000RGE
Intel Core i7-9850H, NVIDIA Quadro T1000 (Laptop)
136.16 fps ∼100% +169%
Average of class Workstation
  (25.6 - 293, n=38)
105 fps ∼77% +107%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
59 fps ∼43% +17%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
50.62 fps ∼37%
Average AMD Radeon Pro WX 3200

50.6 fps ∼37% 0%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U, AMD Radeon Pro WX 3100
50.4 fps ∼37% 0%
Far Cry 5
1920x1080 Ultra Preset AA:T
Average of class Workstation
  (8 - 96, n=9)
44.3 fps ∼100% +161%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
17 fps ∼38% 0%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
17 fps ∼38%
Average AMD Radeon Pro WX 3200

17 fps ∼38% 0%
1920x1080 High Preset AA:T
Average of class Workstation
  (10 - 100, n=10)
44.2 fps ∼100% +146%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
21 fps ∼48% +17%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
18 fps ∼41%
Average AMD Radeon Pro WX 3200

18 fps ∼41% 0%
1920x1080 Medium Preset AA:T
Average of class Workstation
  (12 - 106, n=10)
48.2 fps ∼100% +141%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
25 fps ∼52% +25%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
20 fps ∼41%
Average AMD Radeon Pro WX 3200

20 fps ∼41% 0%
1280x720 Low Preset AA:T
Average of class Workstation
  (30 - 129, n=10)
76.9 fps ∼100% +79%
HP ZBook 15u G6 6TP54EA
Intel Core i7-8565U, AMD Radeon Pro WX 3200
43 fps ∼56%
Average AMD Radeon Pro WX 3200

43 fps ∼56% 0%
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
42 fps ∼55% -2%
Bas Moyen Élevé Ultra4K
BioShock Infinite (2013) 81.5529.16fps
Thief (2014) 36.434.919.9fps
The Witcher 3 (2015) 26.512.39.45.2fps
Dota 2 Reborn (2015) 988748459.4fps
Rise of the Tomb Raider (2016) 50.6236.2218.54fps
X-Plane 11.11 (2018) 25.416.715.2fps
Far Cry 5 (2018) 43201817fps

Degré de la nuisance sonore

Au repos
29.7 / 29.7 / 30.3 dB(A)
Fortement sollicité
32.6 / 36.1 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 29.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.433.433.429.730.829.52527.729.526.927.625.828.63130.929.931.129.527.230.84028.52929.826.725.5295024.425.526.525.923.825.56324.124.92623.52424.98023.723.724.123.222.524.610024.62523.724.623.124.812524.32323.323.322.2231602423.422.723.322.223.42002422.622.724.72223.92502424.322.92321.923.131523.222.621.421.32122.540021.821.321.521.120.922.350021.820.921.320.319.322.163022.421.421.12019.722.480024.12321.419.618.923.710002422.221.419.118.323.8125025.123.721.319.117.725.4160025.523.8221817.325.6200026.223.121.117.617.125.7250027.725.92317.51728.1315025.422.520.316.916.825.4400022.119.818.516.516.522.5500020.118.117.816.616.519.9630019.81818.116.516.519.9800017.616.917.116.416.417.71000016.616.717.116.416.416.71250016.216.817.116.116.216.31600016.216.81716.116.316.2SPL36.134.232.630.329.736.1N2.321.71.41.32.3median 24median 22.5median 21.3median 19.1median 17.7median 23Delta2.22.41.72.52.52.133.129.631.933.329.526.52929.732.730.430.634.730.527.328.130.32927.528.727.526.827.426.327.725.725.425.631.726.626.225.827.224.424.525252423.623.224.223.122.422.223.421.420.921.621.920.119.520.421.119.418.71920.719.118.218.521.519.417.717.421.418.517.517.222.519.117.217.422.320.116.716.924.120.716.516.826.220.716.717.427.722.617.417.427.919171727.418.217.117.322.917.917.417.220.717.818.417.52018.919.217.918.518.719.417.917.92020.918.317.719.220.41817.531.93029.836.51.61.31.32.3median 19.4median 18.4median 17.9median 22.31.21.81.72.3hearing rangehide median Fan NoiseHP ZBook 15u G6 6TP54EAHP ZBook 15u G5 2ZC05EA
 40.5 °C40.2 °C39.2 °C
 40.3 °C40.1 °C38.7 °C
 31.6 °C29.2 °C29.1 °C
Maximum: 40.5 °C
Moyenne: 36.5 °C
44.4 °C44.9 °C42.5 °C
39.6 °C41.6 °C43.3 °C
34.2 °C34.7 °C36 °C
Maximum: 44.9 °C
Moyenne: 40.1 °C
Alimentation (valeur maximale)  39 °C | Température ambiante de la pièce 19.3 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 36.5 °C / 98 F, compared to the average of 31.2 °C / 88 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 40.5 °C / 105 F, compared to the average of 37.2 °C / 99 F, ranging from 23 to 69.8 °C for the class Workstation.
(±) The bottom heats up to a maximum of 44.9 °C / 113 F, compared to the average of 40.4 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 31.2 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.5 °C / 96 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.6 °C / 88.9 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-3.8 °C / -6.9 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.831.82525.827.13127.230.34025.527.95023.826.46324258022.524.210023.126.512522.231.516022.243.72002250.825021.954.33152157.740020.961.650019.366.163019.76880018.964.2100018.364125017.767.1160017.365.2200017.163.625001761.8315016.861.4400016.562.7500016.566.9630016.568.7800016.463.71000016.458.61250016.256.81600016.347.4SPL29.776.9N1.340.9median 17.7median 61.8Delta2.56.235.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseHP ZBook 15u G6 6TP54EAApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
HP ZBook 15u G6 6TP54EA audio analysis

(±) | speaker loudness is average but good (76.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.7% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.2% away from median
(+) | mids are linear (5.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (6.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 34% of all tested devices in this class were better, 11% similar, 55% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 22% of all tested devices were better, 7% similar, 71% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consommation énergétique
Éteint/en veilledarklight 0.39 / 0.53 Watts
Au reposdarkmidlight 5.5 / 9.8 / 12 Watts
Fortement sollicité midlight 59 / 70 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
HP ZBook 15u G6 6TP54EA
8565U, Radeon Pro WX 3200, Samsung SSD PM981 MZVLB512HAJQ, IPS, 3840x2160, 15.6
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
Dell Latitude 5420 Rugged-P85G
8650U, Radeon RX 540, SK hynix PC401 NVMe 500 GB, IPS, 1920x1080, 14
Acer Swift 3 SF314-55G-768V
8565U, GeForce MX250, WDC PC SN520 SDAPNUW-512G, IPS, 1920x1080, 14
Lenovo ThinkPad P1 2019-20QT000RGE
9850H, Quadro T1000 (Laptop), WDC PC SN720 SDAQNTW-512G, IPS LED, 1920x1080, 15.6
Fujitsu Celsius H780
8850H, Quadro P2000, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 1920x1080, 15.6
Average AMD Radeon Pro WX 3200

Average of class Workstation

Power Consumption
17%
-21%
9%
-82%
-59%
5%
-93%
Idle Minimum *
5.5
3.2
42%
4.8
13%
7.4
-35%
13.7
-149%
9.1
-65%
4.85 (4.2 - 5.5, n=2)
12%
13.3 (2.4 - 65.2, n=131)
-142%
Idle Average *
9.8
6.1
38%
13.6
-39%
9.9
-1%
17.5
-79%
13.2
-35%
8.87 (7.93 - 9.8, n=2)
9%
19.3 (4.94 - 69, n=130)
-97%
Idle Maximum *
12
9.7
19%
13.8
-15%
11.7
2%
20.9
-74%
14.04
-17%
11.5 (10.9 - 12, n=2)
4%
22.7 (7.1 - 73.1, n=131)
-89%
Load Average *
59
62
-5%
67.8
-15%
29
51%
77.2
-31%
78.8
-34%
59.1 (59 - 59.1, n=2)
-0%
87.4 (34.4 - 185, n=129)
-48%
Load Maximum *
70
71
-1%
93.5
-34%
52
26%
123.7
-77%
172.5
-146%
70.3 (70 - 70.5, n=2)
-0%
131 (43.5 - 336, n=129)
-87%
Witcher 3 ultra *
51
48
6%
69.1
-35%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
12h 25min
NBC WiFi Websurfing Battery Test 1.3 max Brightness
5h 50min
NBC WiFi Websurfing Battery Test 1.3
6h 55min
Fortement sollicité (luminosité au maximum)
2h 20min
HP ZBook 15u G6 6TP54EA
8565U, Radeon Pro WX 3200, 56 Wh
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100, 56 Wh
Dell Latitude 5420 Rugged-P85G
8650U, Radeon RX 540, 102 Wh
Acer Swift 3 SF314-55G-768V
8565U, GeForce MX250, 50.7 Wh
Lenovo ThinkPad P1 2019-20QT000RGE
9850H, Quadro T1000 (Laptop), 80 Wh
Fujitsu Celsius H780
8850H, Quadro P2000, 96 Wh
Average of class Workstation

Autonomie de la batterie
47%
108%
7%
-8%
8%
-18%
Reader / Idle
745
1301
75%
1882
153%
968
30%
611 (63 - 2360, n=120)
-18%
WiFi v1.3
415
514
24%
972
134%
484
17%
532
28%
450
8%
411 (106 - 974, n=69)
-1%
Load
140
200
43%
190
36%
104
-26%
79
-44%
90.7 (22 - 323, n=117)
-35%

Points positifs

+ contraste de l'écran 4K
+ touchpad
+ finitions
+ Wifi
+ Thunderbolt 3

Points négatifs

- peu évolutif
- processeur bridé
- absence de lecteur de carte SD

Verdict

En test : le HP ZBook 15u G6. Modèle de test fourni par HP Allemagne.
En test : le HP ZBook 15u G6. Modèle de test fourni par HP Allemagne.

Le HP ZBook 15u G6 n’offre qu’une légère hausse de performances par rapport à son prédécesseur. Nous avons été particulièrement déçus par les performances du processeur par rapport au ZBook 15u G5. La carte graphique AMD Radeon Pro WX 3200 est en revanche plus performante, et le stockage est également efficace dans les tests. Nous avons été particulièrement impressionnés par l’écran 4K, qui offre une luminosité maximale élevée, des couleurs vives, et un très bon contraste. La surface matte fait qu’il est possible d’utiliser la machine à l’extérieur sans avoir à lutter contre des reflets gênants.

HP n’a pas fait beaucoup de changements dans le ZBook 15u G6. Et si nous sommes un peu déçus par la mise à jour matérielle, l’écran 4K est excellent.

Les innovations étant limitées aux entrailles du ZBook 15u G6, les clients auront toujours un châssis de haute qualité et de très bons périphériques d’entrée. La sélection des ports un peu réduite sera vite compensée par la présence d’un port Thunderbolt 3, et le Wifi est rapide – ce qui rend l’évolutivité en berne acceptable. Ceux qui ont déjà un ZBook 15u G5 ne bénéficieront d’un passage au successeur que si les performances graphiques sont importantes pour eux au quotidien.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

HP ZBook 15u G6 6TP54EA - 10/08/2019 v7
Mike Wobker

Châssis
89 / 98 → 91%
Clavier
86%
Dispositif de pointage
88%
Connectivité
62 / 80 → 78%
Poids
68 / 10-66 → 100%
Autonomie
74 / 95 → 78%
Écran
89%
Performances en jeu
58%
Performances dans les applications
78%
Chauffe
89 / 95 → 93%
Nuisance sonore
96 / 90 → 100%
Audio
72%
Appareil photo
26 / 85 → 31%
Moyenne
74%
81%
Workstation - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Test du HP ZBook 15u G6 (i7-8565U, Radeon Pro WX 3200, 4K UHD) : écran 4K bien contrasté et autonomie réduite
Mike Wobker, 2019-10- 9 (Update: 2019-10- 9)
