Test du Kit Intel NUC 12 Pro Canyon Wall Street : Mini PC avancé avec Intel Core i7-1260P

Puissant et à l'épreuve du temps ! Les composants mobiles Alder Lake de 12e génération d'Intel sont arrivés dans la série NUC. La conception hybride composée de cœurs P et E est une réussite et offre de bonnes performances. Dans cette revue, nous allons explorer les fonctionnalités incluses et les performances du mini PC.

Intel a mis à jour sa série de mini PC compacts NUC avec les nouveaux SoCs Alder Lake-P. Le nom "Wall Street Canyon" désigne la dernière série de modèles basée sur les SoC modernes. Il existe deux configurations de base, qui se distinguent par leurs dimensions. Le modèle légèrement plus haut de gamme porte le nom de "Tall", qui indique la possibilité d'ajouter un lecteur supplémentaire de 2,5 pouces. En revanche, notre appareil de test "Slim" ne propose pas cette option. En termes de prix, environ 100 USD séparent les deux variantes. Les deux appareils ne sont disponibles que sous forme de barebone. Ainsi, les utilisateurs devront installer eux-mêmes la mémoire vive et le stockage.

Pour nos tests, nous avons installé deux modules DDR4-3200 de 8 Go et un SSD de 512 Go dans notre échantillon. Le système d'exploitation est constitué de la dernière version de Windows 11 Professional disponible au moment de la rédaction de cet article.

Intel NUC 12 Pro Kit NUC12WSKi7
Processeur
Intel Core i7-1260P 12 x 1.5 - 4.7 GHz, 64 W PL2 / Short Burst, 40 W PL1 / Sustained, Alder Lake-P
Carte graphique
Intel Iris Xe Graphics G7 96EUs, Processeur: 1400 MHz, Mémoire: 1600 MHz, 30.0.101.1369 DCH
Mémoire
16 Go
, DDR4-3200, Dual-Channel, max. 64 GB
Carte mère
Intel Alder Lake-P PCH
Disque dur

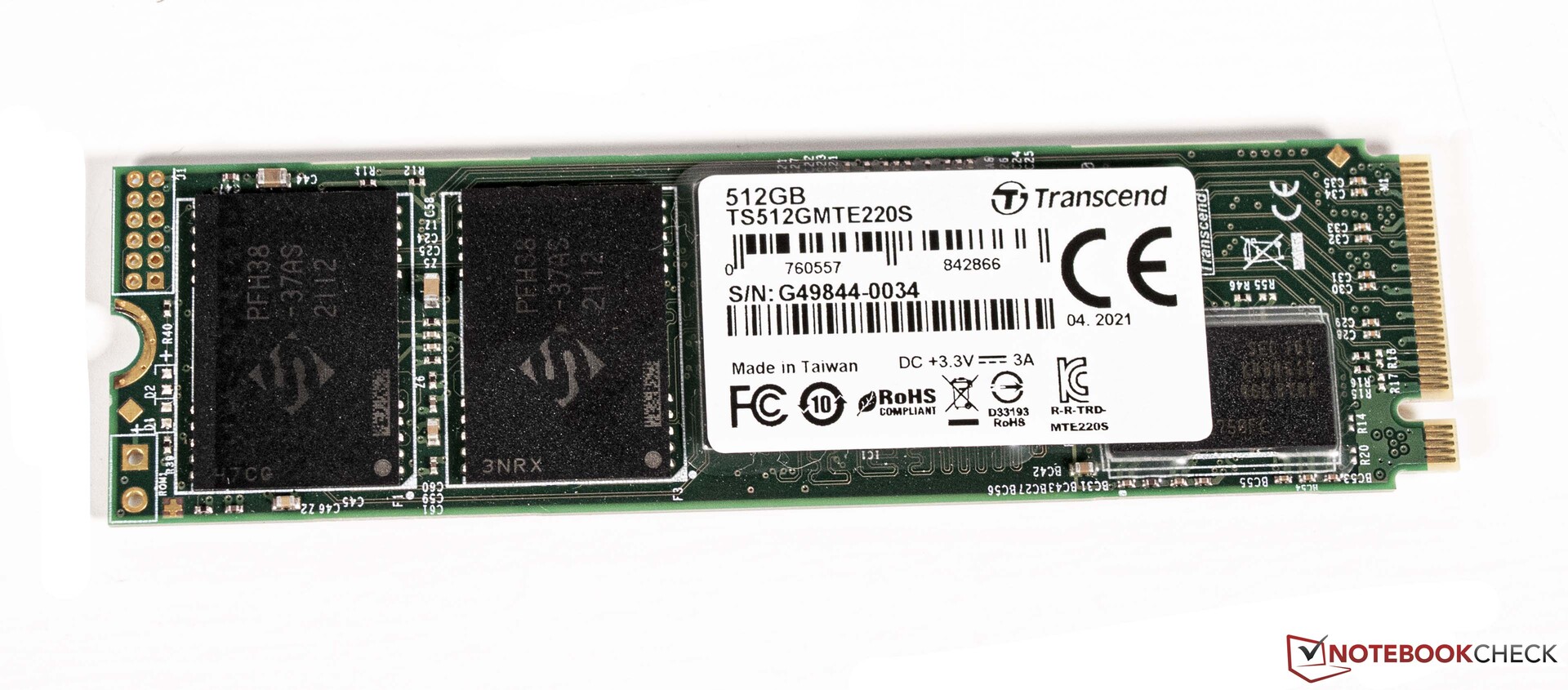

Transcend M.2 SSD 2200S TS512GMTE220S, 512 Go
Carte son
Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)
Connexions
1 USB 2.0, 3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 HDMI, 1 Encoche de Sécurité Kensington, Connectique audio: 3.5mm Klinke
Réseau
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Taille
Hauteur x Largeur x Profondeur (en mm): 37 x 117 x 112
Système d'exploitation
Microsoft Windows 11 Pro
Fonctionnalités additionnelles
Netzteil, 36 Mois Garantie
Poids
511 g, Alimentation: 342 g
Prix
699 EUR
Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.



Comparaison avec les concurrents potentiels

Note
Date
Modèle
Poids
Épaisseur
Meilleur prix
78.9 %
11/22
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
511 g37 mm
01/22
Minisforum EliteMini HX90
R9 5900HX, Vega 8
60 mm
04/21
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mm
09/22
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
628 g72 mm
09/22
Minipc Union Ace Magician TK11-A0
i5-1135G7, Iris Xe G7 96EUs
586 g53 mm
10/22
Morefine S600-Apex Engineer
i9-12900HK, Iris Xe G7 96EUs
795 g63.5 mm

Le kit Intel NUC 12 Pro en détail

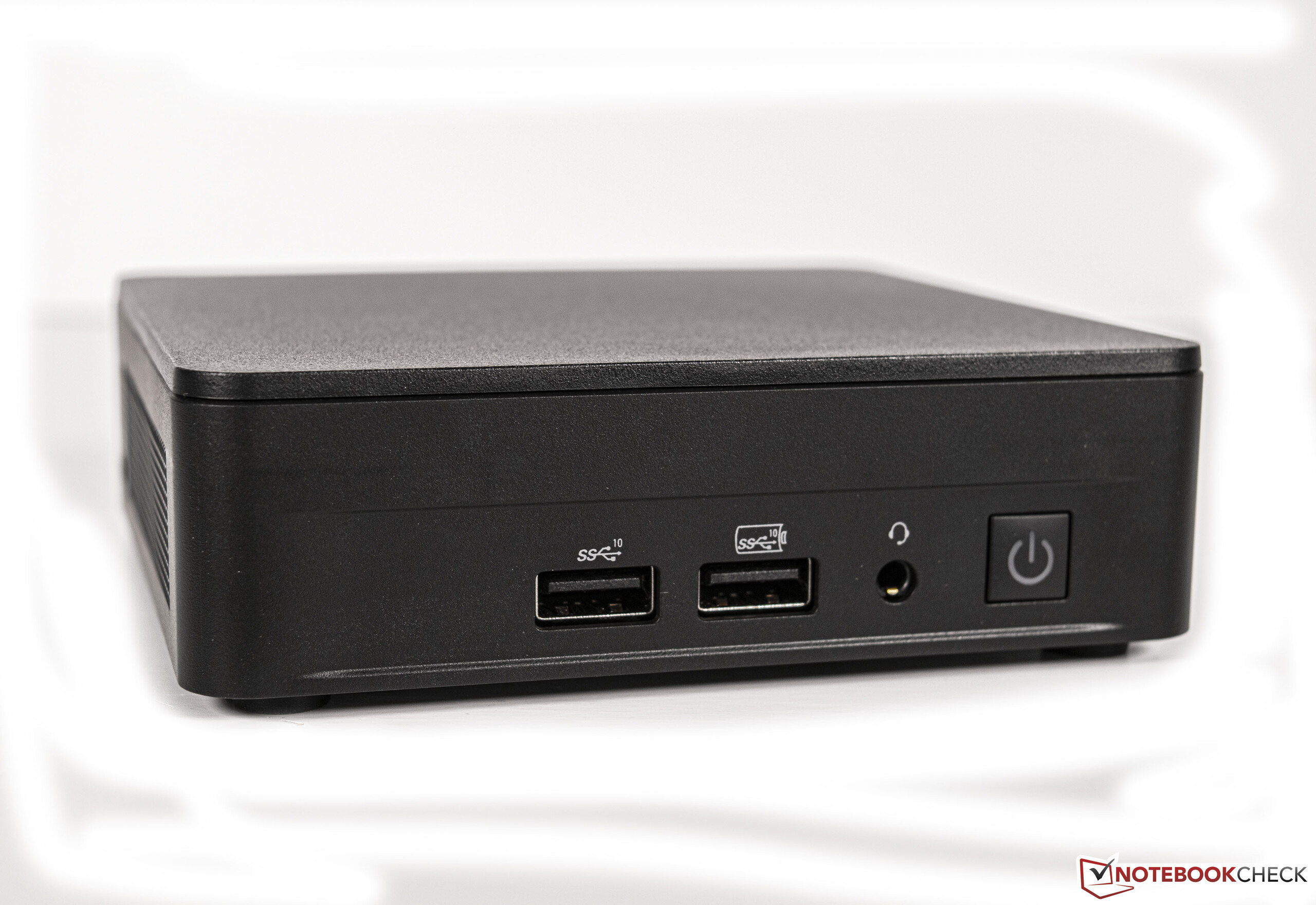

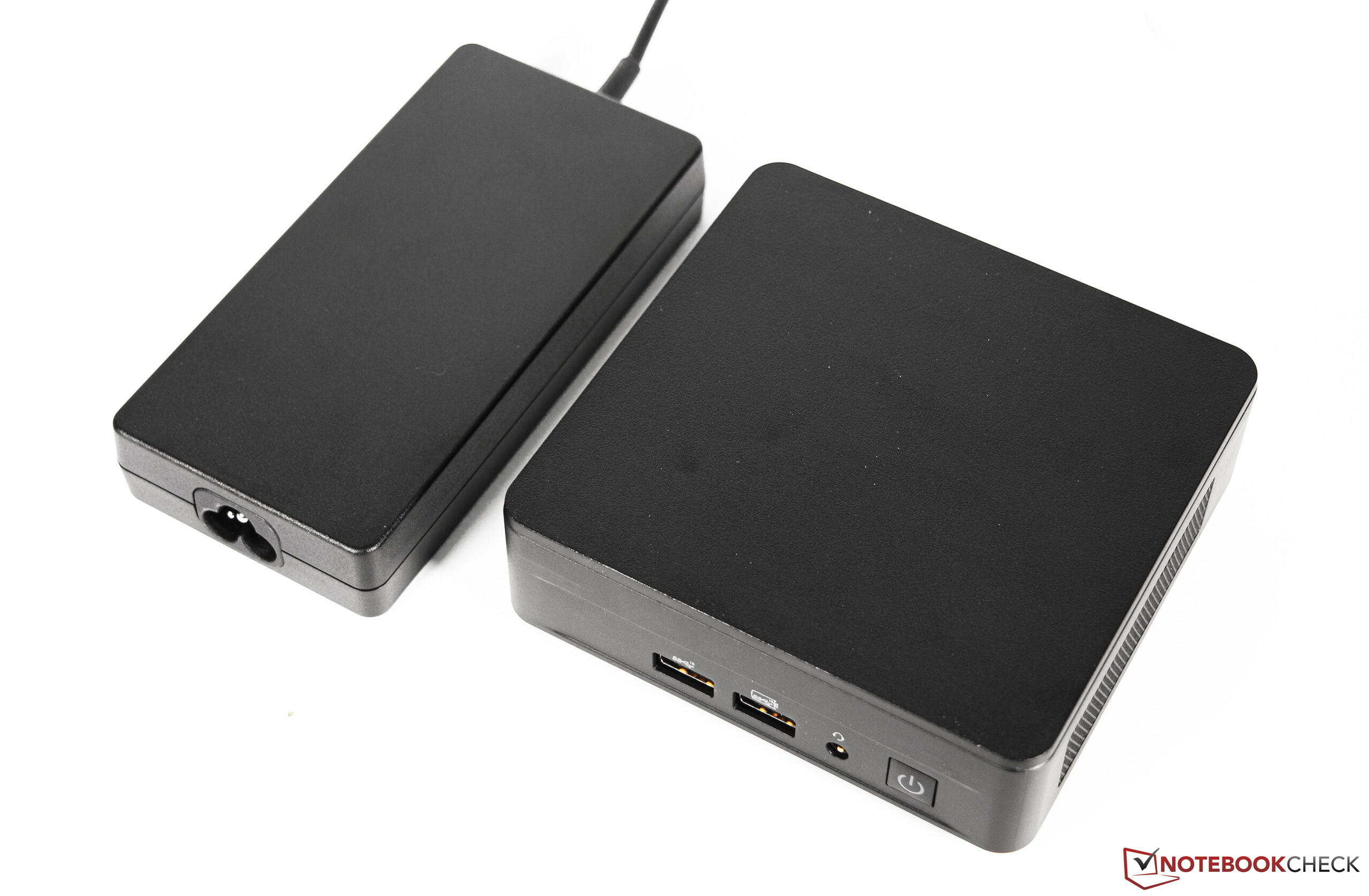

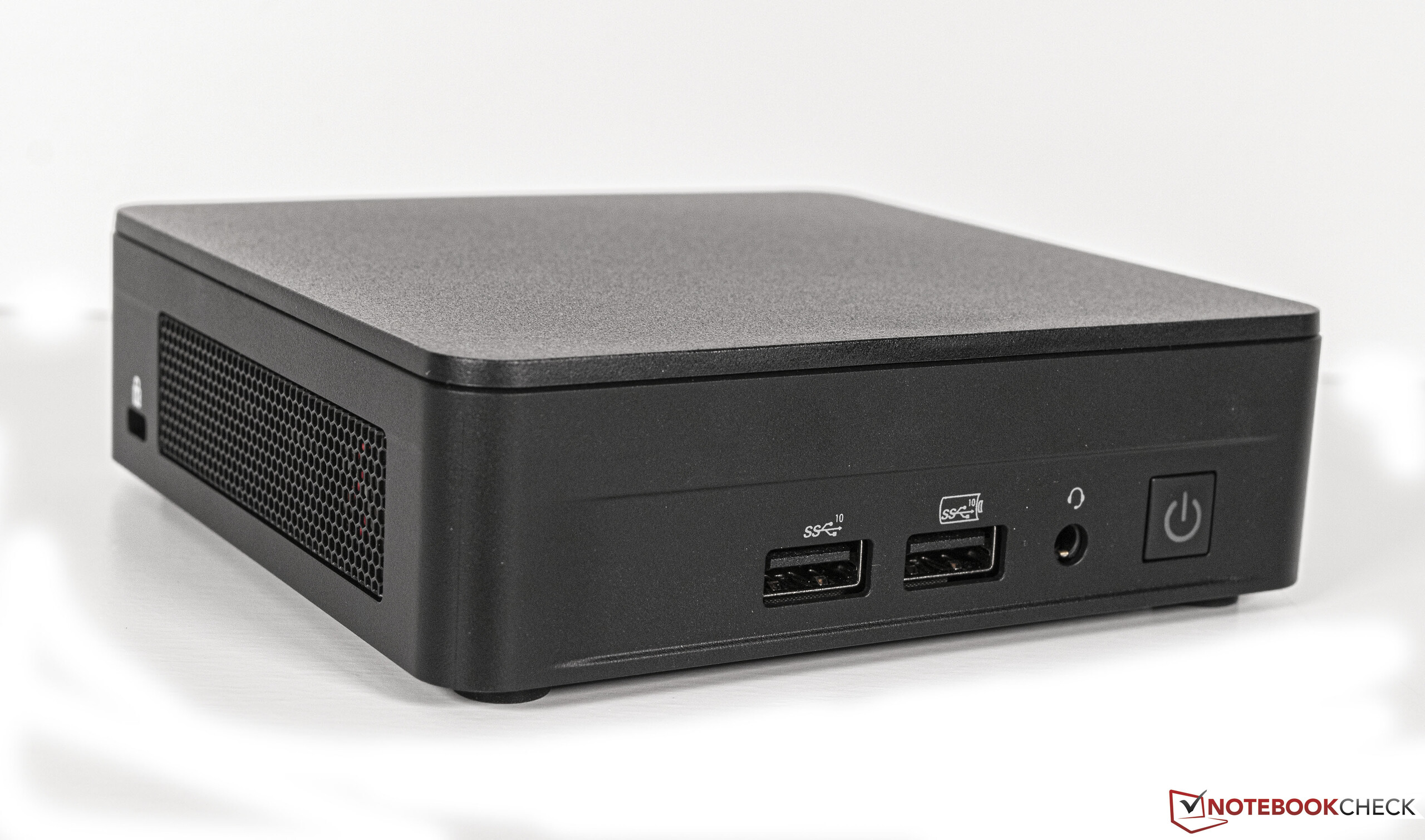

Kit Intel NUC 12 Pro - Wall Street Canyon
Kit Intel NUC 12 Pro - Wall Street Canyon
Kit Intel NUC 12 Pro - Wall Street Canyon
Kit Intel NUC 12 Pro - Wall Street Canyon
Kit Intel NUC 12 Pro - Wall Street Canyon

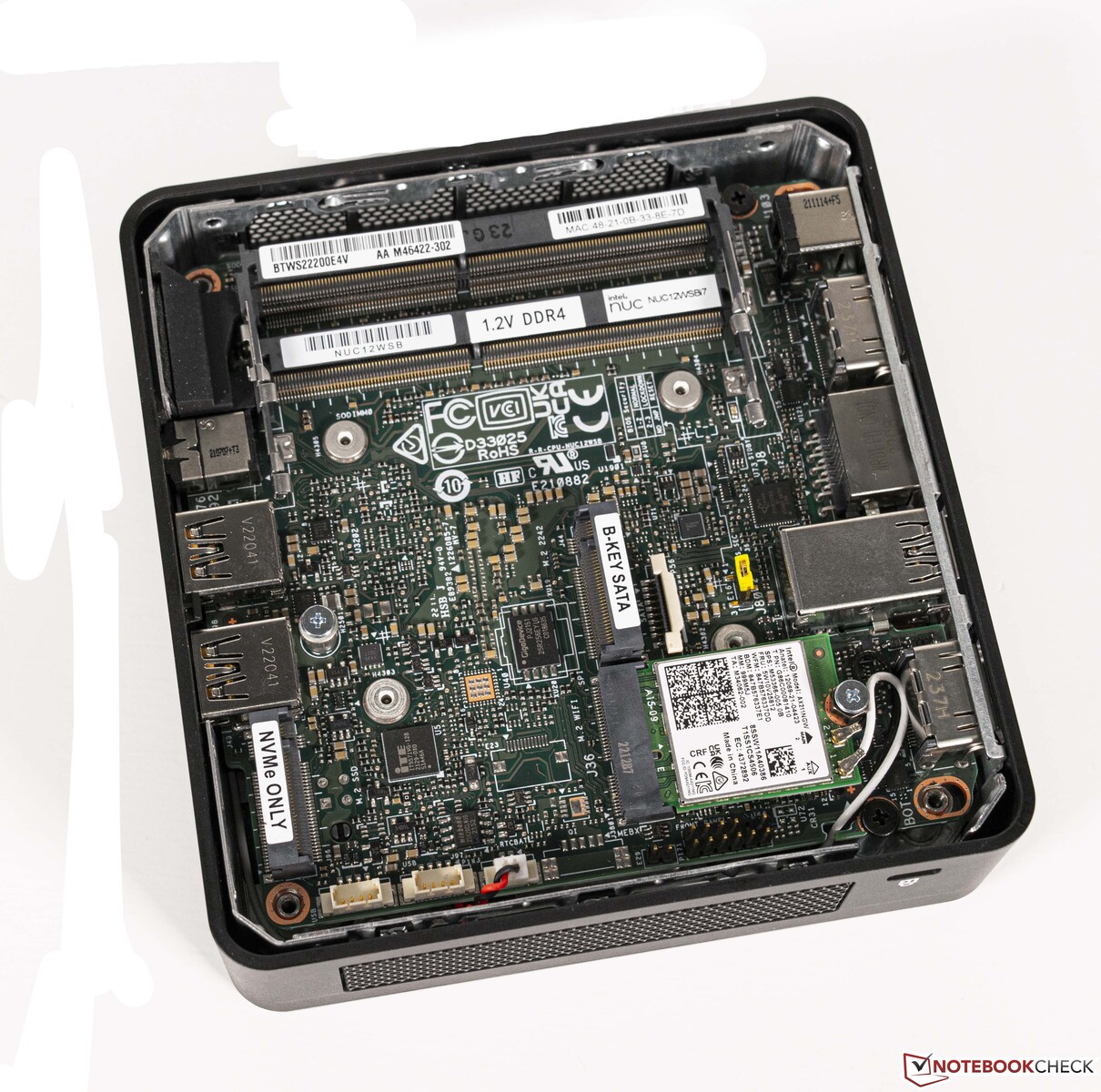

Kit Intel NUC 12 Pro - Wall Street Canyon (sans couvercle)

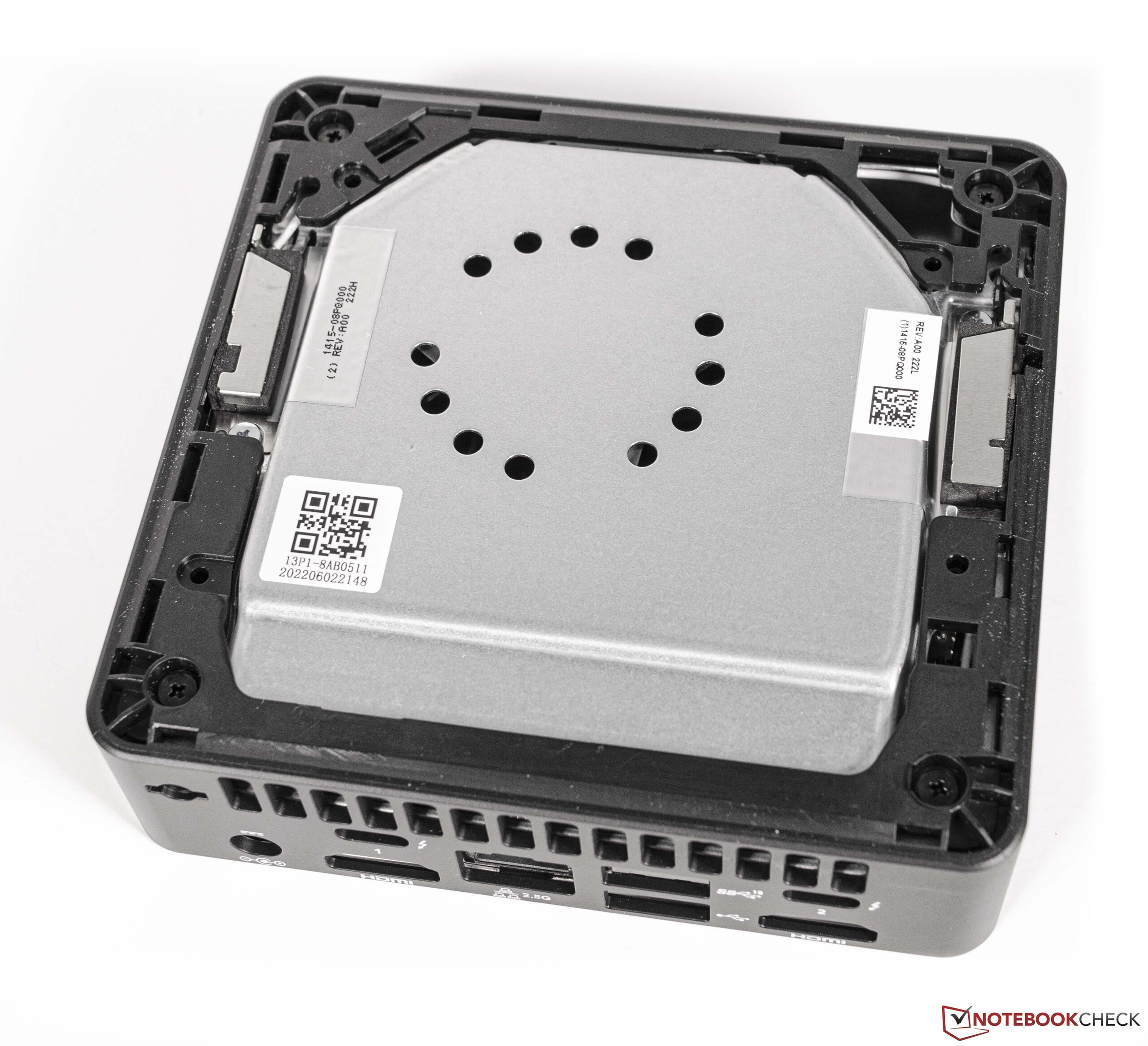

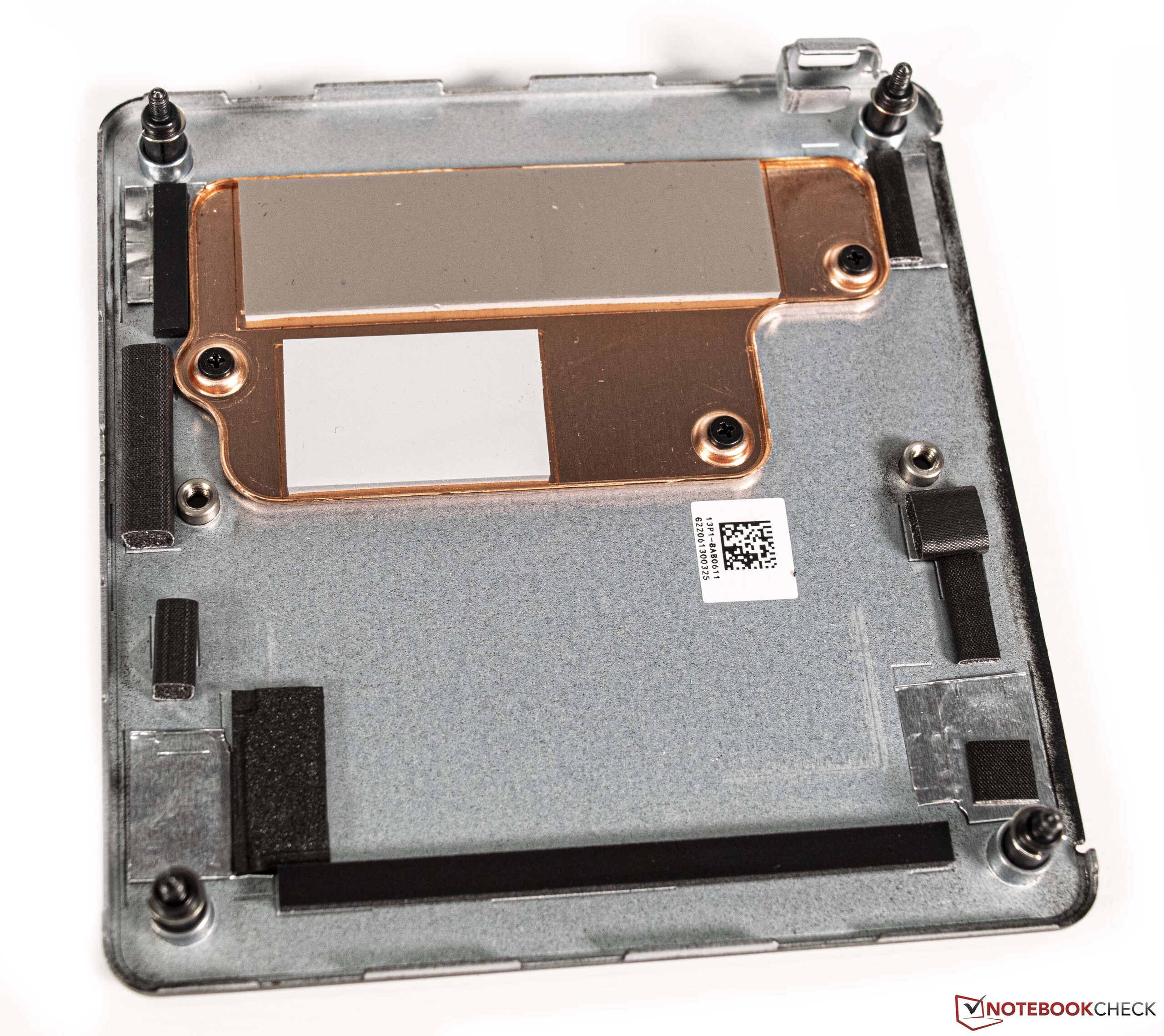

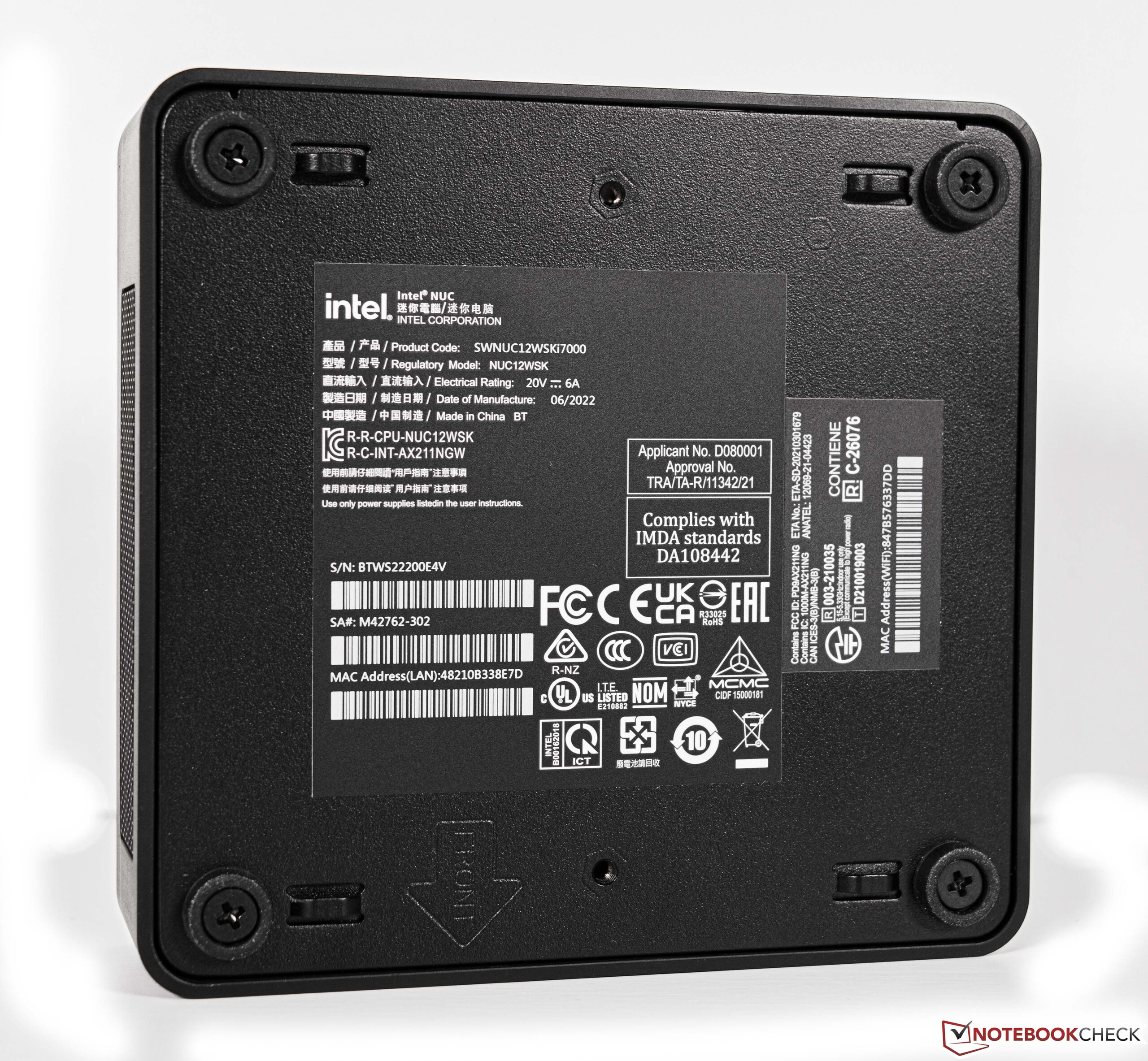

Kit Intel NUC 12 Pro - Wall Street Canyon (plaque inférieure)

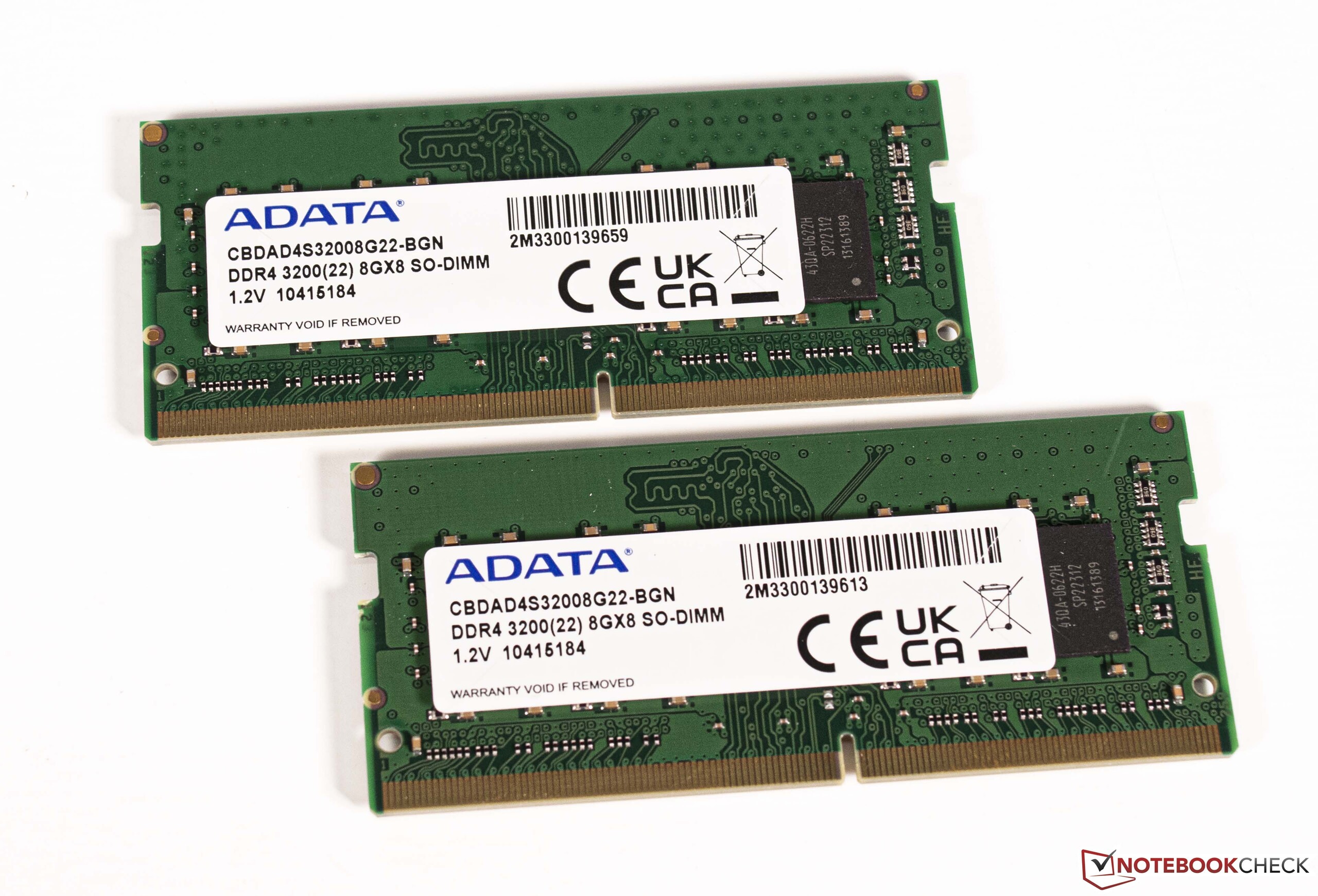

2x 8 GB DDR4-3200 MHz

Cas

Visuellement, le Wall Street Canyon est très clairement un Intel NUC. Le design extérieur de l'appareil est très subtil et il n'y a aucune surface brillante sur le système. Bien que le fond du boîtier soit en métal et serve de solution de refroidissement pour le stockage, une grande partie du NUC est en plastique. L'appareil est doté d'un cadre métallique robuste, qui est presque devenu la norme sur les NUC compacts d'Intel et qui confère au PC la rigidité nécessaire. Avec une hauteur de seulement 37 mm (~1.46 in), notre version Slim est assez petite. En outre, l'appareil ne prend pas beaucoup de place sur un bureau en raison de son faible encombrement de 11,7 x 11,2 cm (~4,61 x 4,41 in). Vous pouvez également le fixer à un moniteur à l'aide du support VESA fourni.

Connectivité

Le kit Intel NUC 12 Pro offre toutes les options les plus courantes en termes de sélection de ports. Il y a quatre ports USB de type A et deux ports USB de type C. Les ports de type C prennent en charge les vitesses USB4. Les ports de type C prennent en charge les vitesses USB4. Les deux interfaces Thunderbolt augmentent également considérablement la flexibilité du système. La large gamme d'accessoires disponibles est presque infinie. Enfin, il y a deux ports HDMI et un port Ethernet 2,5G.

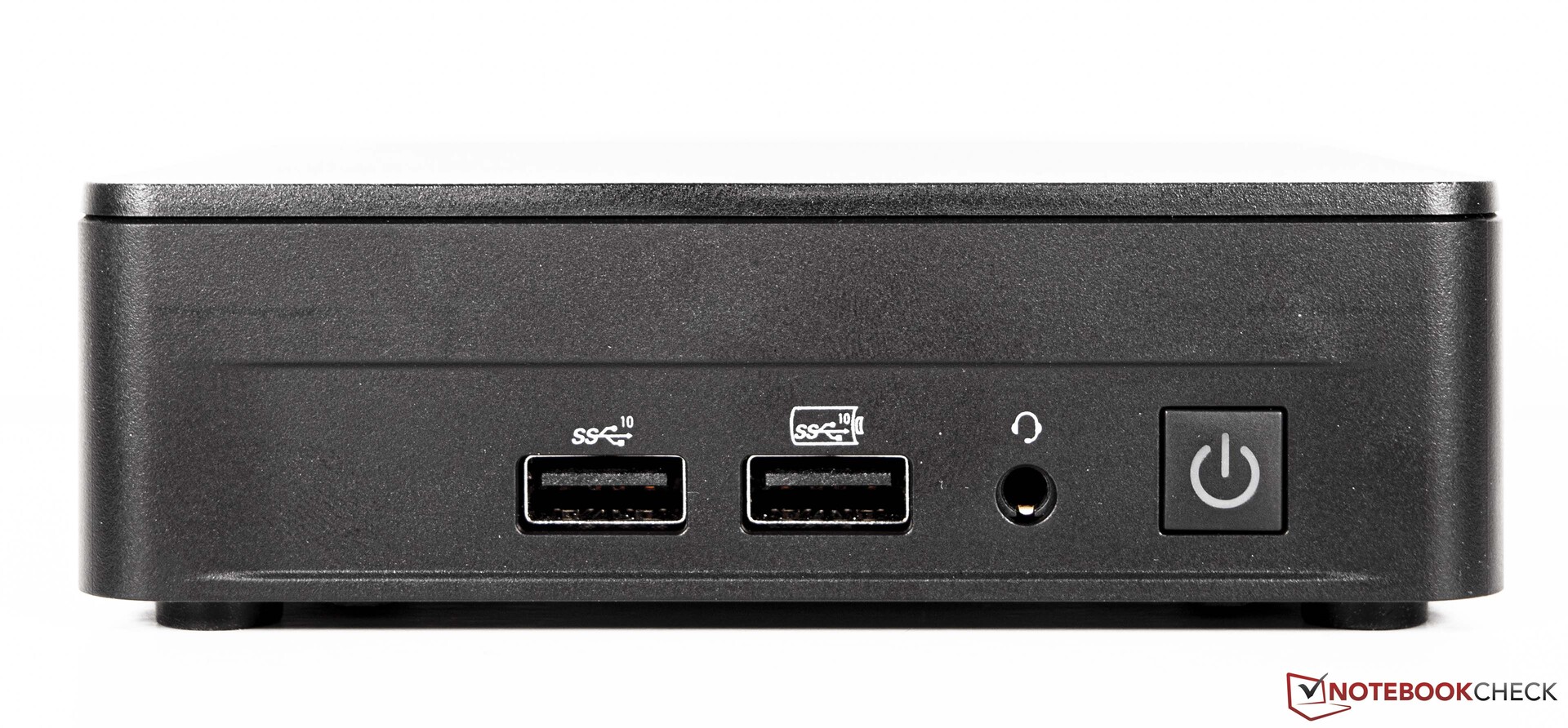

Avant : 2x USB 3.2, jack 3.5mm
Avant : 2x USB 3.2, jack 3.5mm

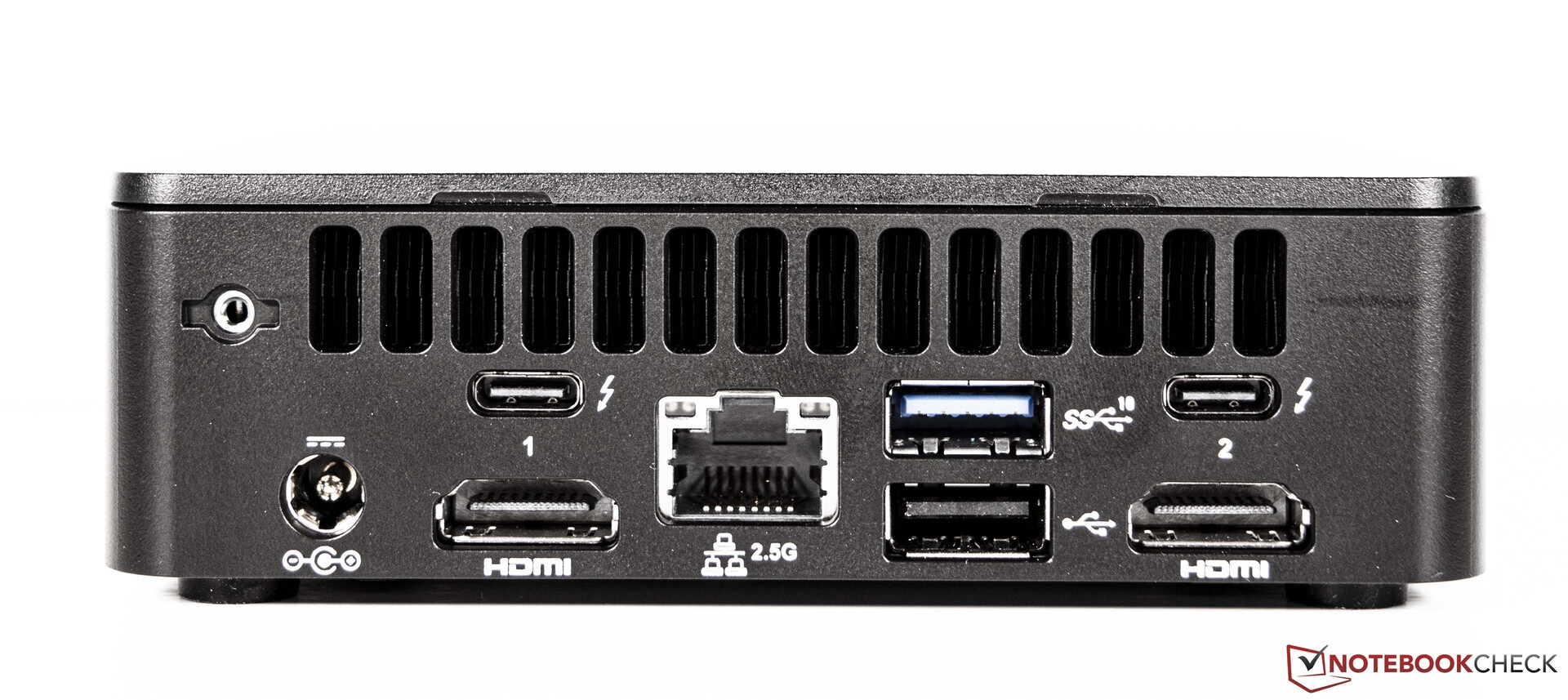

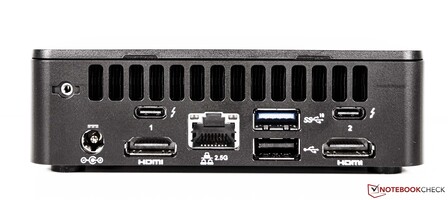

Arrière : Adaptateur secteur, 2x USB4 (type-C), 1x USB 3.2, 1x USB 2.0, LAN 2,5G, 2x HDMI 2.1
Arrière : Adaptateur secteur, 2x USB4 (type-C), 1x USB 3.2, 1x USB 2.0, LAN 2,5G, 2x HDMI 2.1

Communication

Sur le kit NUC 12 Pro, le module Wi-Fi 6E AX211 d'Intel est utilisé pour le réseau sans fil. Il donne de bons résultats lors de nos tests. Néanmoins, il n'atteint pas les taux de transfert que nous espérions pour l'envoi de données. Le site Morefine S600-Apex obtient des résultats nettement meilleurs avec le même module. Nous avons utilisé notre routeur de référence Asus ROG Rapture GT-AXE11000 pour ce test.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Wi-Fi 6E AX211
1530 (1509min - 1551max) MBit/s ∼100%
Moyenne Intel Wi-Fi 6E AX211
  (883 - 1857, n=80)
1516 MBit/s ∼99% -1%
Moyenne de la classe Mini PC
  (390 - 1762, n=15, 2 dernières années)
1069 MBit/s ∼70% -30%
Morefine S600-Apex Engineer
Intel Wi-Fi 6E AX211
1044 (1009min - 1058max) MBit/s ∼68% -32%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 (450min - 913max) MBit/s ∼59% -41%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
390 (322min - 478max) MBit/s ∼25% -75%
iperf3 transmit AXE11000 6GHz
Morefine S600-Apex Engineer
Intel Wi-Fi 6E AX211
1658 (1514min - 1706max) MBit/s ∼100% +80%
Moyenne Intel Wi-Fi 6E AX211
  (891 - 1851, n=80)
1409 MBit/s ∼85% +53%
Moyenne de la classe Mini PC
  (722 - 1745, n=16, 2 dernières années)
1039 MBit/s ∼63% +13%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 (486min - 993max) MBit/s ∼58% +5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Wi-Fi 6E AX211
919 (458min - 982max) MBit/s ∼55%
Minipc Union Ace Magician TK11-A0
Intel Wi-Fi 6 AX201
745 (381min - 876max) MBit/s ∼45% -19%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400145015001550Tooltip
Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø904 (458-982)
Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1530 (1509-1551)

Accessoires

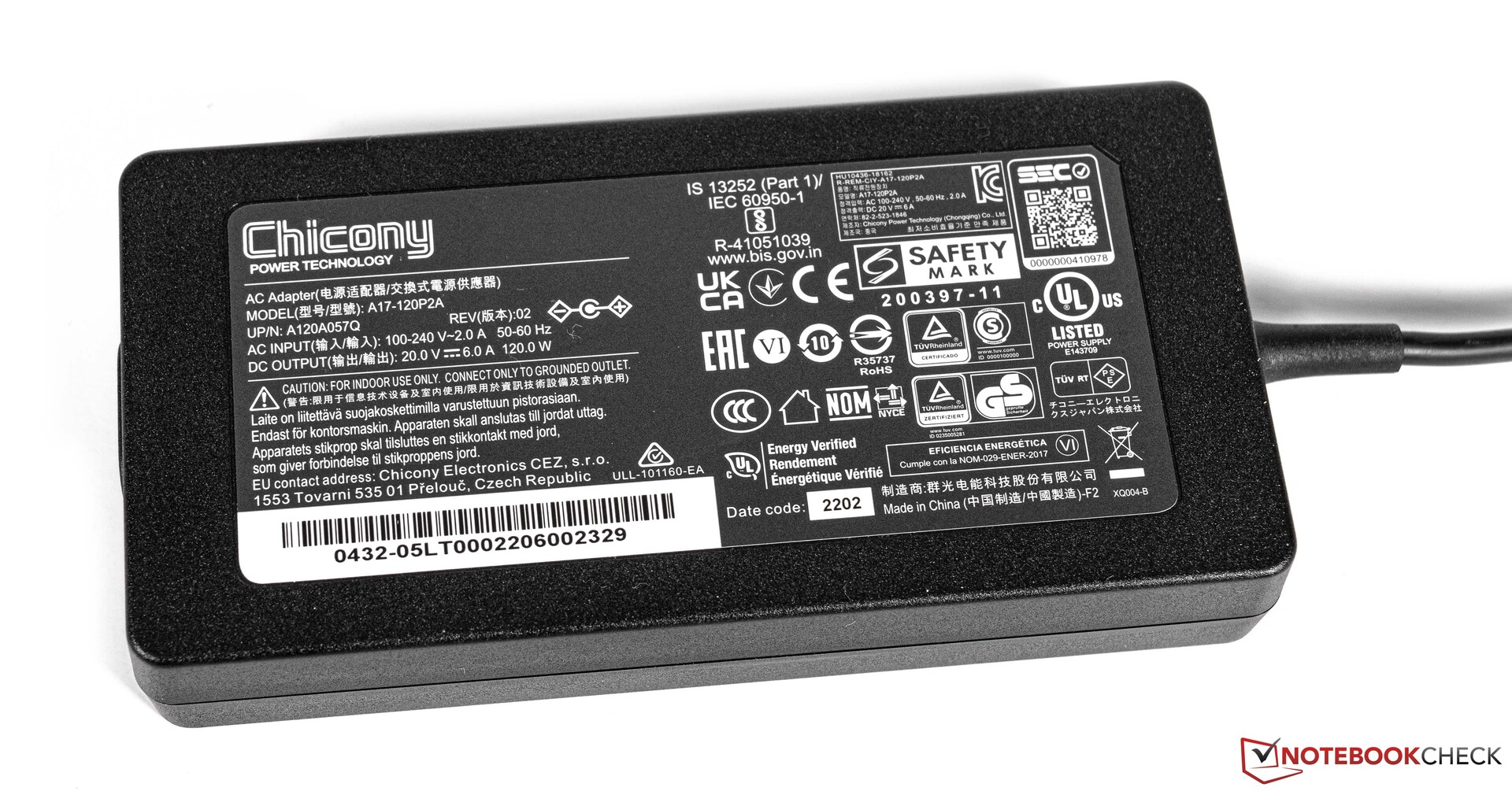

Outre l'appareil lui-même, l'emballage comprend un adaptateur secteur de 120 watts et une plaque pour le montage VESA.

Maintenance

Comme tous les NUC compacts d'Intel, le kit NUC 12 Pro permet une maintenance rapide et facile par le bas de l'appareil. Le couvercle inférieur est fixé par quatre petites vis et fait office de refroidisseur pour les SSD. Une fois à l'intérieur, l'accès aux emplacements pour la RAM et les SSD est très simple.

Kit Intel NUC 12 Pro - Wall Street Canyon avec le couvercle inférieur retiré
Kit Intel NUC 12 Pro - Wall Street Canyon avec le couvercle inférieur retiré

Performances - Core i7 à 12 cœurs

Les PC compacts sont de plus en plus puissants, comme les utilisateurs travaillant avec le kit Intel NUC 12 Pro s'en rendront rapidement compte. Au cœur du système, on trouve un processeur à 12 cœurs et 16 threads, ce qui fait de ce système compact un excellent choix pour les tâches exigeantes.

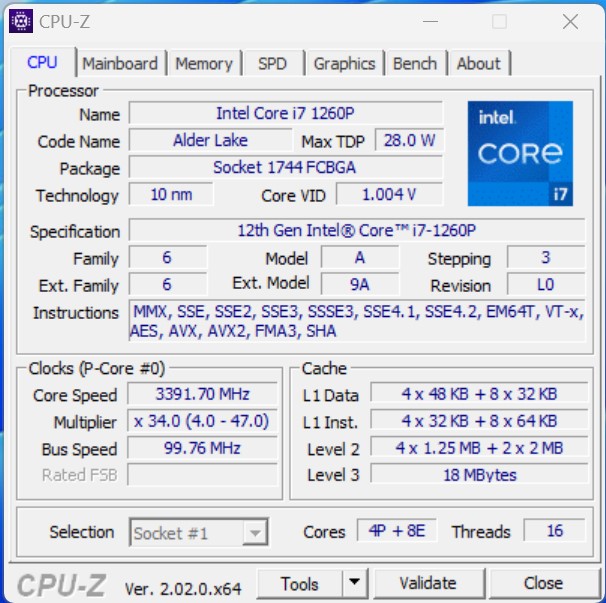

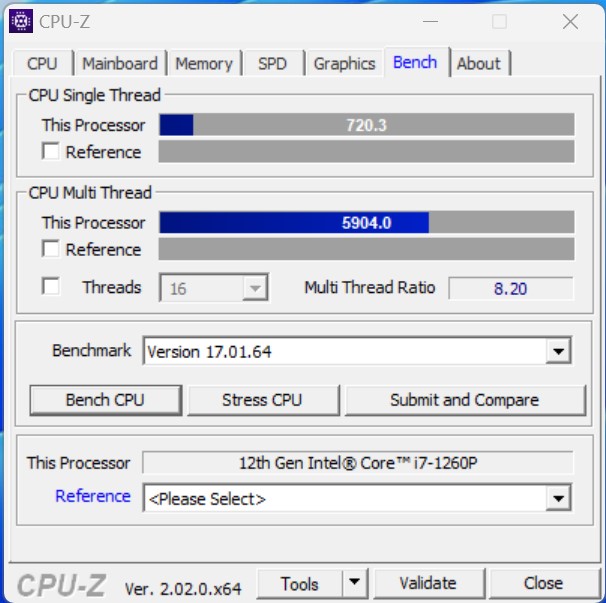

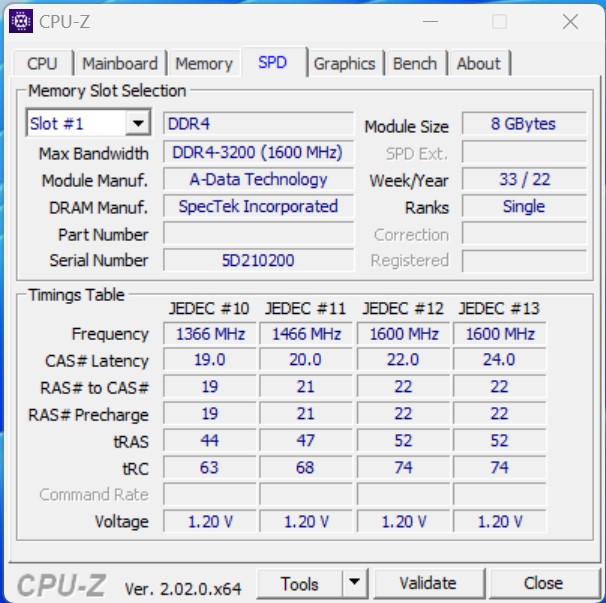

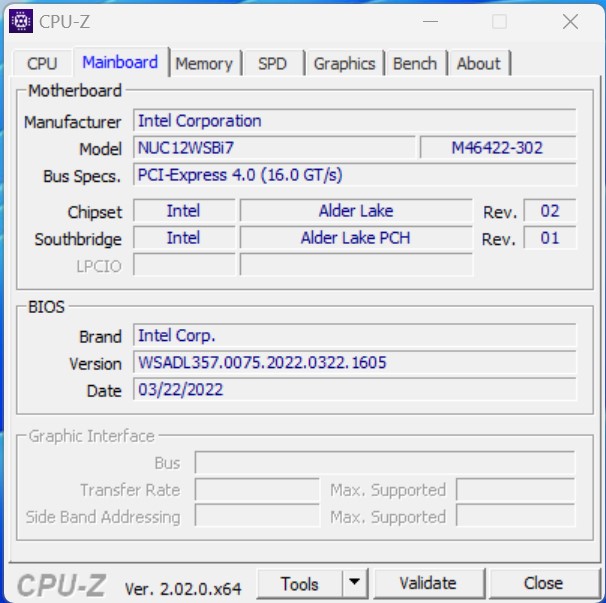

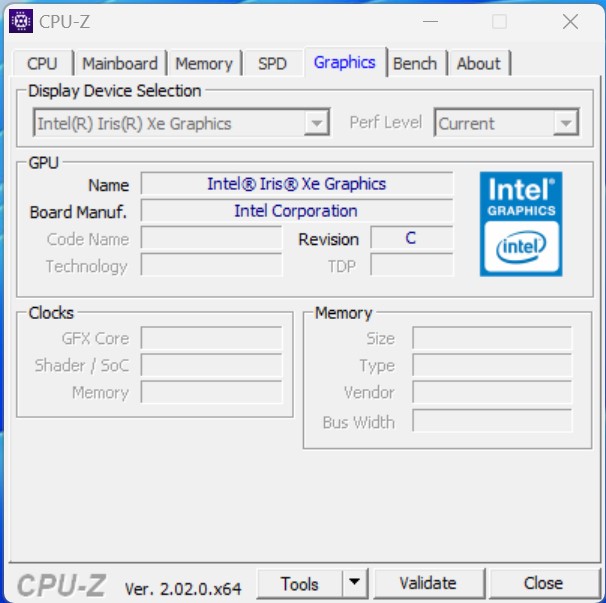

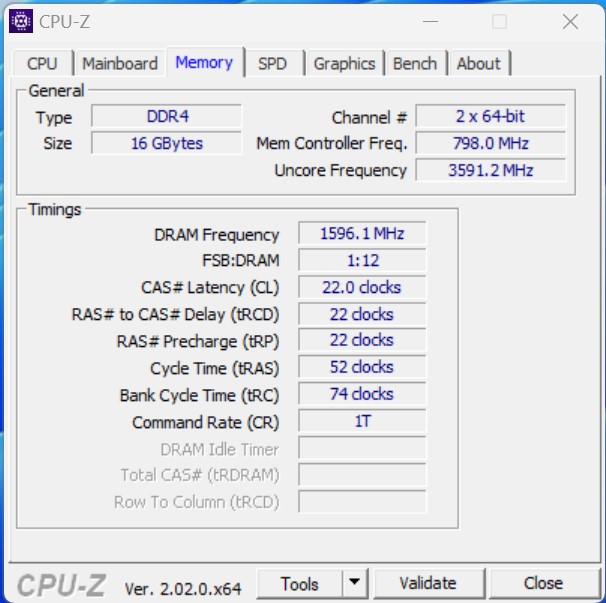

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

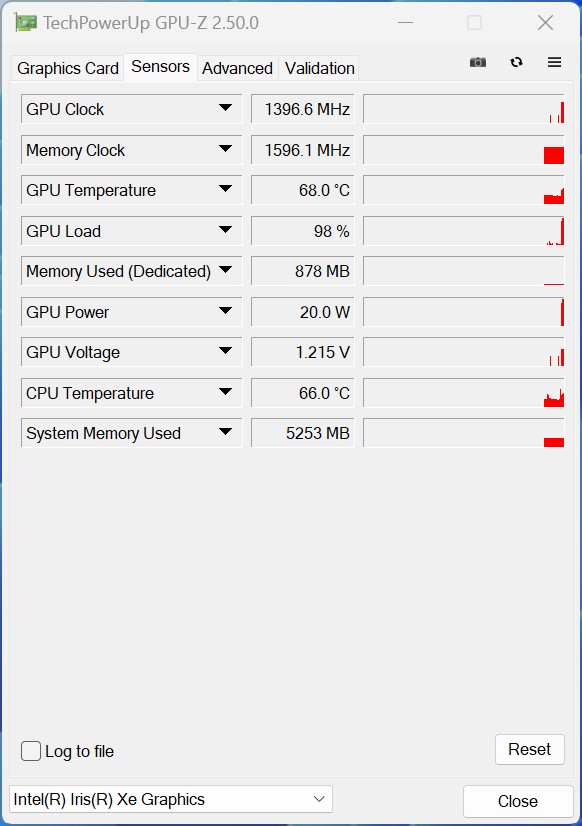

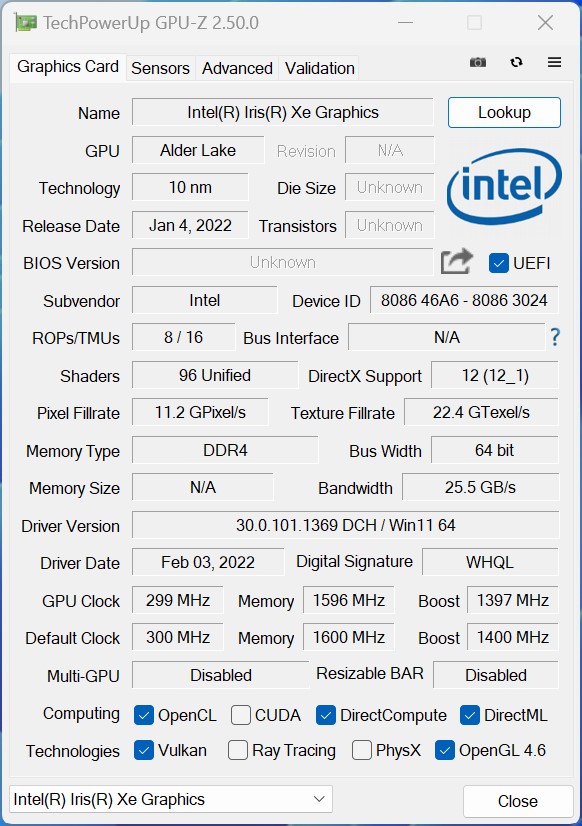

GPU-Z
GPU-Z

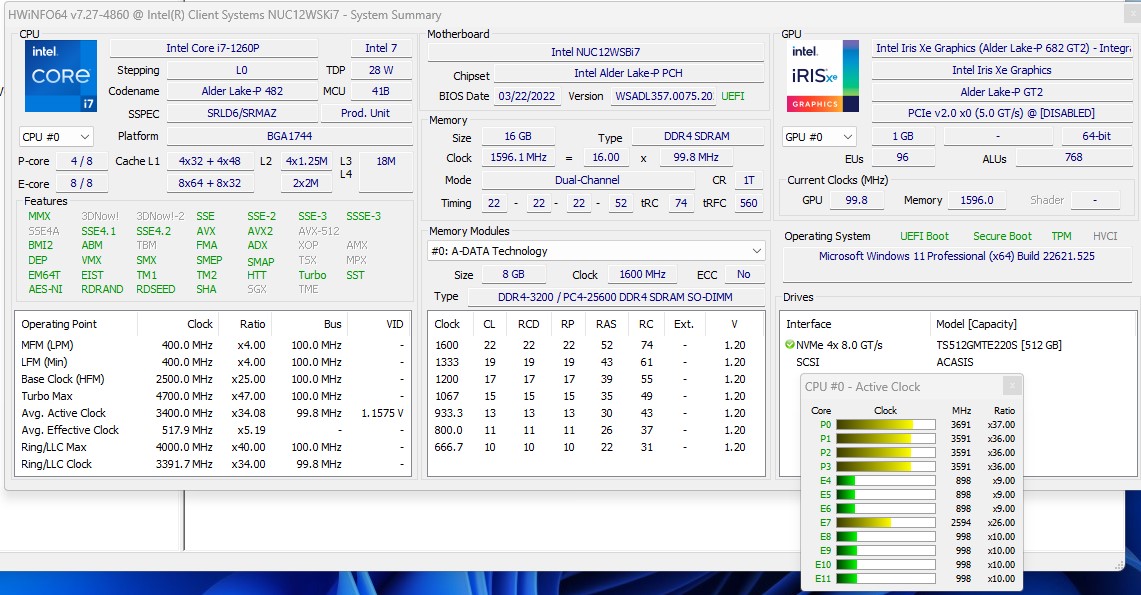

HWiNFO

Conditions d'essai

Nous avons effectué tous les benchmarks en utilisant le profil d'alimentation équilibré. Nous n'avons pas modifié les paramètres de performance du CPU et avons laissé tout en automatique dans les paramètres du BIOS.

Processeur

Avec leIntel Core i7-1260Ple kit Intel NUC 12 Pro comprend un SoC très récent. Grâce à ses 12 cœurs physiques et un total de 16 threads, l'Intel Core i7-1260p est un choix solide même pour les utilisateurs exigeants. Son TDP en rafale (PL2) est de 64 watts et son TDP en continu (PL1) est de 40 watts. Comparé à ses concurrents, le kit Intel NUC 12 Pro est très performant. Parmi ses concurrents PC compacts, seul le Morefine S600-Apex est capable d'obtenir un score global légèrement meilleur. Un déficit de 14 % par rapport à un Intel Core i5-12600K n'est pas particulièrement important. Cela illustre une fois de plus les performances de ce SoC mobile.

Vous trouverez d'autres comparaisons et benchmarks sur notre Page de benchmark des CPU.

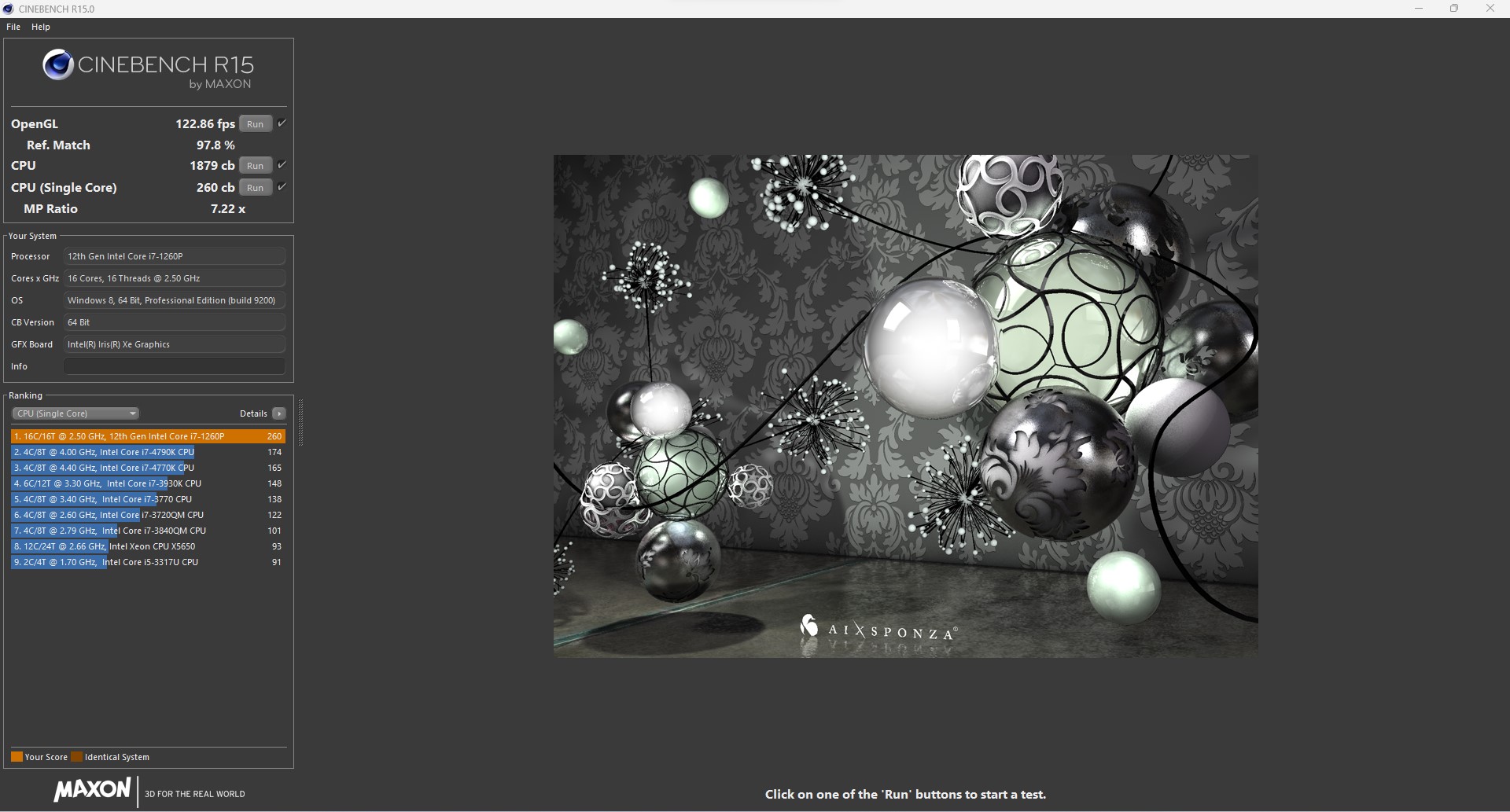

Cinebench R15
Cinebench R15

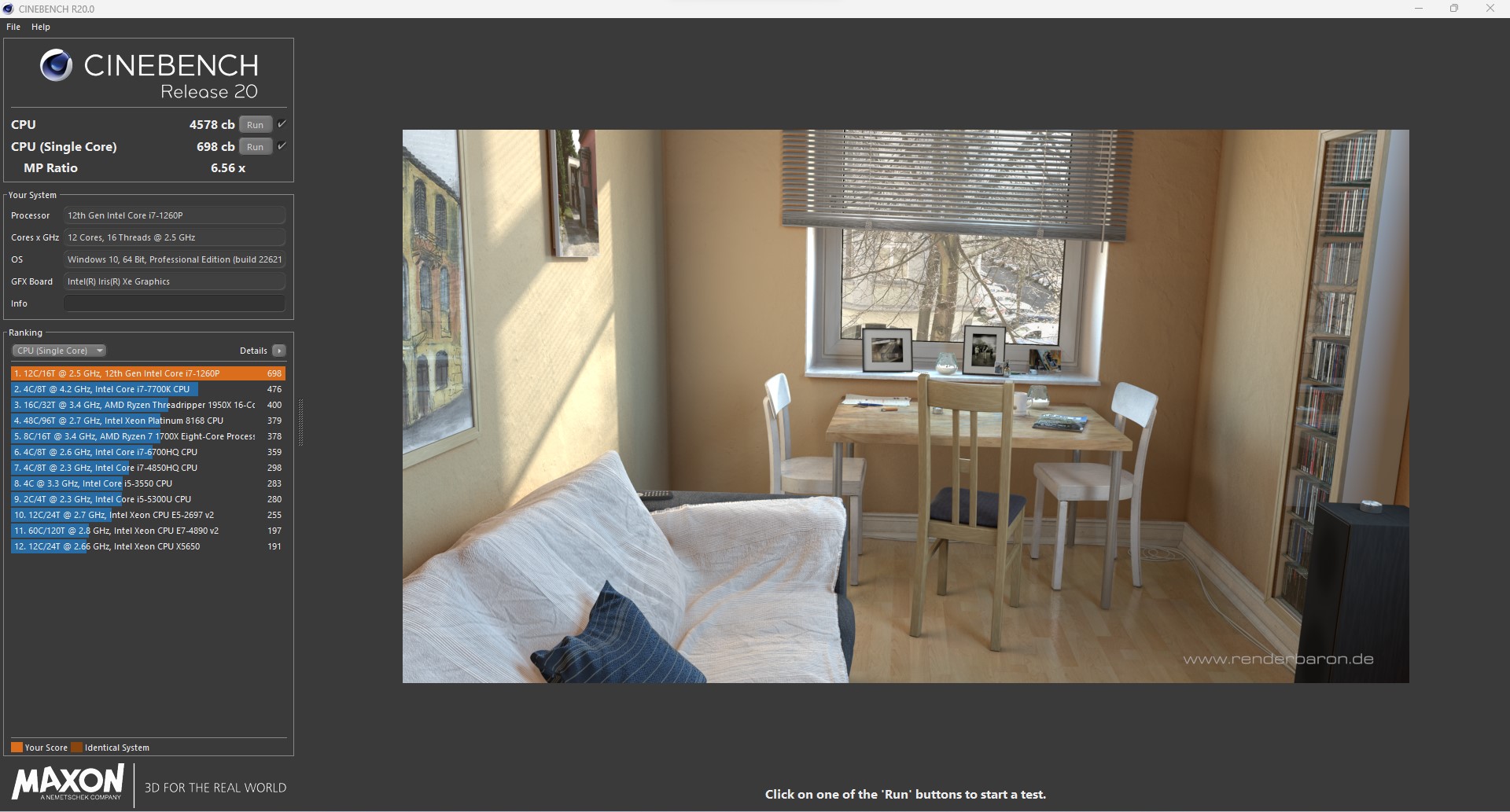

Cinebench R20
Cinebench R20

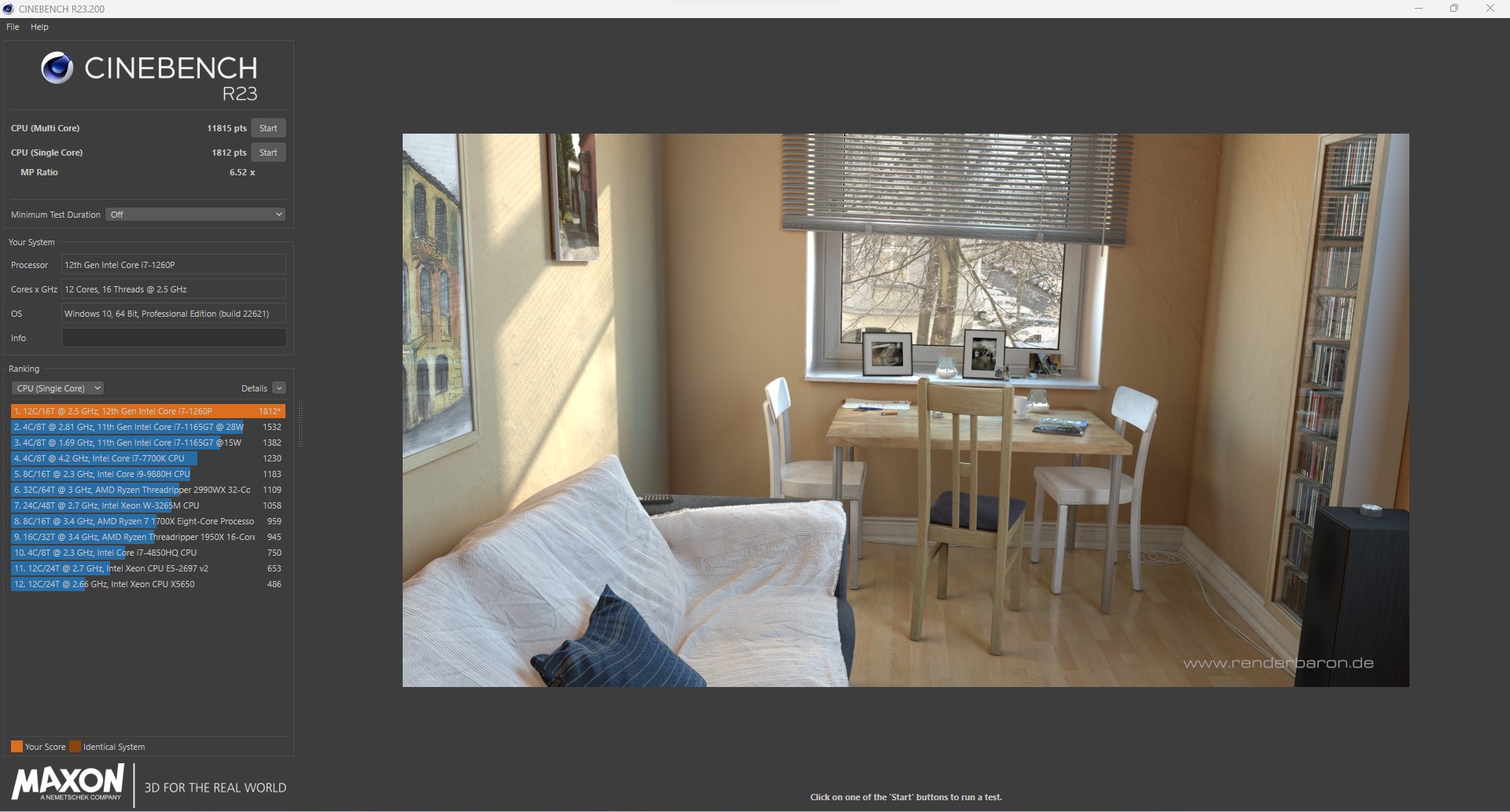

Cinebench R23
Cinebench R23
Performance Rating - Percent
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
57.8 pt ∼58%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
50.5 pt ∼51%
Moyenne Intel Core i7-1260P

49.2 pt ∼49%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
48.6 pt ∼49%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
43.1 pt ∼43%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
36.8 pt ∼37%
Cinebench R15
CPU Single 64Bit
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
275 Points ∼84% +6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
260 Points ∼79%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
242 Points ∼74% -7%
Moyenne Intel Core i7-1260P
  (165.4 - 260, n=26)
231 Points ∼70% -11%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
223 Points ∼68% -14%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
197 Points ∼60% -24%
CPU Multi 64Bit
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
2555 Points ∼26% +36%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2224 Points ∼23% +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1879 Points ∼19%
Moyenne Intel Core i7-1260P
  (549 - 2034, n=28)
1553 Points ∼16% -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1265 Points ∼13% -33%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
560 Points ∼6% -70%
Cinebench R20
CPU (Single Core)
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
734 Points ∼84% +5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
698 Points ∼80%
Moyenne Intel Core i7-1260P
  (448 - 698, n=24)
645 Points ∼74% -8%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
582 Points ∼67% -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
534 Points ∼61% -23%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
517 Points ∼59% -26%
CPU (Multi Core)
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
6692 Points ∼28% +46%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5185 Points ∼22% +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
4578 Points ∼19%
Moyenne Intel Core i7-1260P
  (1234 - 4748, n=24)
3602 Points ∼15% -21%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2975 Points ∼13% -35%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1440 Points ∼6% -69%
Cinebench R11.5
CPU Single 64Bit
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
3.31 Points ∼11% +5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.15 Points ∼10%
Moyenne Intel Core i7-1260P
  (3.1 - 3.15, n=2)
3.13 Points ∼10% -1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2.86 Points ∼9% -9%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
2.64 Points ∼8% -16%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
2.31 Points ∼7% -27%
CPU Multi 64Bit
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
30.01 Points ∼42% +27%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
25.6 Points ∼36% +8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
23.6 Points ∼33%
Moyenne Intel Core i7-1260P
  (22 - 23.6, n=2)
22.8 Points ∼32% -3%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
14.78 Points ∼21% -37%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
6.37 Points ∼9% -73%
Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
15180 Points ∼83% +5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
14504 Points ∼79%
Moyenne Intel Core i7-1260P

14504 Points ∼79% 0%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
12152 Points ∼66% -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
11098 Points ∼60% -23%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
10395 Points ∼57% -28%
Rendering Multiple CPUs 64Bit
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
89478 Points ∼64% +22%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
73492 Points ∼53%
Moyenne Intel Core i7-1260P

73492 Points ∼53% 0%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
73115 Points ∼53% -1%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
45363 Points ∼33% -38%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
24499 Points ∼18% -67%
Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
750 Seconds * ∼5% -168%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
399 Seconds * ∼3% -43%
Moyenne Intel Core i7-1260P
  (264 - 906, n=25)
369 Seconds * ∼3% -32%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
280 Seconds * ∼2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
229.3 Seconds * ∼2% +18%
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
189.5 Seconds * ∼1% +32%
wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
6.799 s * ∼1% -87%
Moyenne Intel Core i7-1260P
  (3.64 - 9.8, n=2)
6.72 s * ∼1% -85%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5.377 s * ∼1% -48%
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
4.725 s * ∼1% -30%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.641 s * ∼1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
3.308 s * ∼1% +9%
1024m
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
286.835 s * ∼3% -22%
Moyenne Intel Core i7-1260P
  (236 - 314, n=2)
275 s * ∼3% -17%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
235.874 s * ∼3%
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
202.7 s * ∼2% +14%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
156.33 s * ∼2% +34%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
91.6 s * ∼1% +61%
X264 HD Benchmark 4.0
Pass 1
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
333.5 (332min - 336max) fps ∼78% +25%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
271.5 (259min - 276max) fps ∼64% +2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
266 (264min - 271max) fps ∼63%
Moyenne Intel Core i7-1260P

266 fps ∼63% 0%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
234 (233min - 235max) fps ∼55% -12%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
165.55 (163.6min - 204max) fps ∼39% -38%
Pass 2
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
148 (147min - 148max) fps ∼54% +34%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
128 (122min - 128max) fps ∼47% +16%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
110.5 (101.7min - 125.3max) fps ∼40%
Moyenne Intel Core i7-1260P

110.5 fps ∼40% 0%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
76 (75.7min - 76.3max) fps ∼28% -31%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
36.7 (36.7min - 37.6max) fps ∼13% -67%
WinRAR - Result
Moyenne Intel Core i7-1260P
  (7200 - 16777, n=2)
11989 KB/s ∼69% +67%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7200 KB/s ∼42%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6877 KB/s ∼40% -4%
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
6239 KB/s ∼36% -13%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
4297 KB/s ∼25% -40%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4185 KB/s ∼24% -42%
TrueCrypt
AES Mean 100MB
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
12.8 GB/s ∼0% +10%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
11.6 GB/s ∼0%
Moyenne Intel Core i7-1260P
  (11.6 - 11.6, n=2)
11.6 GB/s ∼0% 0%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
7.7 GB/s ∼0% -34%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7.4 GB/s ∼0% -36%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5.3 GB/s ∼0% -54%
Twofish Mean 100MB
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
2.2 GB/s ∼0% +16%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2 GB/s ∼0% +5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.9 GB/s ∼0%
Moyenne Intel Core i7-1260P
  (1.9 - 1.9, n=2)
1.9 GB/s ∼0% 0%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1.1 GB/s ∼0% -42%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.755 GB/s ∼0% -60%
Serpent Mean 100MB
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
1.3 GB/s ∼0% +18%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1.2 GB/s ∼0% +9%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.1 GB/s ∼0%
Moyenne Intel Core i7-1260P
  (1.1 - 1.1, n=2)
1.1 GB/s ∼0% 0%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.7 GB/s ∼0% -36%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.448 GB/s ∼0% -59%
Geekbench 5.4
Multi-Core
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
12797 Points ∼44% +29%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9935 Points ∼34%
Moyenne Intel Core i7-1260P
  (3866 - 10570, n=24)
8756 Points ∼30% -12%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7875 Points ∼27% -21%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6175 Points ∼21% -38%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4898 Points ∼17% -51%
Single-Core
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
1904 Points ∼82% +11%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1715 Points ∼74%
Moyenne Intel Core i7-1260P
  (1436 - 1786, n=24)
1690 Points ∼73% -1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1542 Points ∼67% -10%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1430 Points ∼62% -17%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1391 Points ∼60% -19%
Geekbench 5.0
5.0 Multi-Core
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
12746 Points ∼40% +30%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9817 Points ∼31%
Moyenne Intel Core i7-1260P
  (6440 - 10411, n=9)
9355 Points ∼30% -5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7859 Points ∼25% -20%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
6117 Points ∼19% -38%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4841 Points ∼15% -51%
5.0 Single-Core
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
1821 Points ∼8% +7%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1694 Points ∼7%
Moyenne Intel Core i7-1260P
  (1623 - 1694, n=9)
1666 Points ∼7% -2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1498 Points ∼7% -12%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
1385 Points ∼6% -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
1383 Points ∼6% -18%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
8223 Points ∼85% +9%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7554 Points ∼78%
Moyenne Intel Core i7-1260P
  (7531 - 7554, n=2)
7543 Points ∼78% 0%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6365 Points ∼66% -16%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5911 Points ∼61% -22%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5854 Points ∼60% -23%
64 Bit Multi-Core Score
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
46557 Points ∼52% +26%
Moyenne Intel Core i7-1260P
  (36974 - 38187, n=2)
37581 Points ∼42% +2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
36974 Points ∼41%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
32434 Points ∼36% -12%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
24495 Points ∼27% -34%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
19288 Points ∼22% -48%
3DMark 11 - 1280x720 Performance Physics
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
25017 Points ∼69% +39%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
18044 Points ∼50%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
13940 Points ∼38% -23%
Moyenne Intel Core i7-1260P
  (4745 - 18968, n=25)
13699 Points ∼38% -24%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
12608 Points ∼35% -30%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
7792 Points ∼21% -57%
7-Zip 18.03
7z b 4
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
64260 MIPS ∼40% +37%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
57435 MIPS ∼36% +22%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
47064 MIPS ∼29%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
39207 MIPS ∼24% -17%
Moyenne Intel Core i7-1260P
  (16146 - 47064, n=24)
38755 MIPS ∼24% -18%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
17636 MIPS ∼11% -63%
7z b 4 -mmt1
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
5944 MIPS ∼71% +4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5739 MIPS ∼69% 0%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
5738 MIPS ∼69%
Moyenne Intel Core i7-1260P
  (4064 - 5791, n=24)
5272 MIPS ∼63% -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5249 MIPS ∼63% -9%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
4788 MIPS ∼57% -17%
HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
30.1 fps ∼65% +128%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
15.9 fps ∼34% +20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
13.2 fps ∼28%
Moyenne Intel Core i7-1260P
  (3.45 - 13.6, n=25)
10.8 fps ∼23% -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
10.1 fps ∼22% -23%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
5.26 fps ∼11% -60%
R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
0.639 sec * ∼14% -33%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
0.537 sec * ∼12% -12%
Moyenne Intel Core i7-1260P
  (0.4559 - 0.727, n=24)
0.501 sec * ∼11% -5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
0.4965 sec * ∼11% -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
0.4787 sec * ∼10%
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
0.4456 sec * ∼10% +7%
LibreOffice - 20 Documents To PDF
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
71.8 s * ∼18% -60%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
52 s * ∼13% -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
51.1 s * ∼13% -14%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
49.3 s * ∼12% -10%
Moyenne Intel Core i7-1260P
  (40.2 - 65.7, n=24)
48.4 s * ∼12% -8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
45 s * ∼11%
WebXPRT 3 - ---
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
293 Points ∼72% +3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
285 Points ∼70%
Moyenne Intel Core i7-1260P
  (250 - 298, n=23)
281 Points ∼69% -1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
278 Points ∼68% -2%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
255 Points ∼63% -11%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
236 Points ∼58% -17%
Mozilla Kraken 1.1 - Total Score
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
724 ms * ∼1% -36%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
646 ms * ∼1% -21%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
601 ms * ∼1% -13%
Moyenne Intel Core i7-1260P
  (531 - 604, n=23)
555 ms * ∼1% -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
534 ms * ∼1%
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
511 ms * ∼1% +4%
3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
29443 Points ∼54% +52%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
22976 Points ∼42% +19%
Moyenne Intel Core i7-1260P
  (17350 - 22818, n=10)
19676 Points ∼36% +2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
19357 Points ∼36%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
17568 Points ∼32% -9%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
9561 Points ∼18% -51%
1920x1080 Fire Strike Physics
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
29671 Points ∼55% +43%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
24096 Points ∼44% +16%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
20684 Points ∼38%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
18076 Points ∼33% -13%
Moyenne Intel Core i7-1260P
  (6797 - 22877, n=25)
17940 Points ∼33% -13%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
9354 Points ∼17% -55%
2560x1440 Time Spy CPU
Intel Core i5-12600K
Intel Core i5-12600K, 3700 MHz
13869 Points ∼68% +65%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
8393 Points ∼41%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6955 Points ∼34% -17%
Moyenne Intel Core i7-1260P
  (2352 - 10150, n=26)
6759 Points ∼33% -19%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, 2300 MHz
5443 Points ∼27% -35%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, 2400 MHz
2867 Points ∼14% -66%

* ... Moindre est la valeur, meilleures sont les performances

Cinebench R15
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
260 Points ∼79%
Moyenne Intel Core i7-1260P
  (165.4 - 260, n=26)
231 Points ∼70% -11%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
226 Points ∼69% -13%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
201 Points ∼61% -23%
CPU Multi 64Bit
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
1975 Points ∼20% +5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1879 Points ∼19%
Moyenne Intel Core i7-1260P
  (549 - 2034, n=28)
1553 Points ∼16% -17%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
794 (772.57min - 794.38max) Points ∼8% -58%
Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
698 Points ∼80%
Moyenne Intel Core i7-1260P
  (448 - 698, n=24)
645 Points ∼74% -8%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
608 Points ∼70% -13%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
503 Points ∼58% -28%
CPU (Multi Core)
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
5168 Points ∼22% +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
4578 Points ∼19%
Moyenne Intel Core i7-1260P
  (1234 - 4748, n=24)
3602 Points ∼15% -21%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
1974 Points ∼8% -57%
Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.15 Points ∼10%
Moyenne Intel Core i7-1260P
  (3.1 - 3.15, n=2)
3.13 Points ∼10% -1%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
2.69 Points ∼9% -15%
CPU Multi 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
23.6 Points ∼33%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
23.44 Points ∼33% -1%
Moyenne Intel Core i7-1260P
  (22 - 23.6, n=2)
22.8 Points ∼32% -3%
Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
14504 Points ∼79%
Moyenne Intel Core i7-1260P

14504 Points ∼79% 0%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
12378 Points ∼67% -15%
Rendering Multiple CPUs 64Bit
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
75223 Points ∼54% +2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
73492 Points ∼53%
Moyenne Intel Core i7-1260P

73492 Points ∼53% 0%
Blender - v2.79 BMW27 CPU
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
600 Seconds * ∼4% -114%
Moyenne Intel Core i7-1260P
  (264 - 906, n=25)
369 Seconds * ∼3% -32%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
280 Seconds * ∼2%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
232 Seconds * ∼2% +17%
wPrime 2.10
32m
Moyenne Intel Core i7-1260P
  (3.64 - 9.8, n=2)
6.72 s * ∼1% -85%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.641 s * ∼1%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
3.375 s * ∼1% +7%
1024m
Moyenne Intel Core i7-1260P
  (236 - 314, n=2)
275 s * ∼3% -17%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
235.874 s * ∼3%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
201.062 s * ∼2% +15%
X264 HD Benchmark 4.0
Pass 1
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
276 (273min - 294max) fps ∼65% +4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
266 (264min - 271max) fps ∼63%
Moyenne Intel Core i7-1260P

266 fps ∼63% 0%
Pass 2
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
113.7 (113.5min - 122.2max) fps ∼41% +3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
110.5 (101.7min - 125.3max) fps ∼40%
Moyenne Intel Core i7-1260P

110.5 fps ∼40% 0%
WinRAR - Result
Moyenne Intel Core i7-1260P
  (7200 - 16777, n=2)
11989 KB/s ∼69% +67%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
7387 KB/s ∼43% +3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7200 KB/s ∼42%
TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
14.1 GB/s ∼0% +22%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
11.6 GB/s ∼0%
Moyenne Intel Core i7-1260P
  (11.6 - 11.6, n=2)
11.6 GB/s ∼0% 0%
Twofish Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
2.3 GB/s ∼0% +21%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.9 GB/s ∼0%
Moyenne Intel Core i7-1260P
  (1.9 - 1.9, n=2)
1.9 GB/s ∼0% 0%
Serpent Mean 100MB
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
1.3 GB/s ∼0% +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.1 GB/s ∼0%
Moyenne Intel Core i7-1260P
  (1.1 - 1.1, n=2)
1.1 GB/s ∼0% 0%
Geekbench 5.4
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9935 Points ∼34%
Moyenne Intel Core i7-1260P
  (3866 - 10570, n=24)
8756 Points ∼30% -12%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
4593 Points ∼16% -54%
Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1715 Points ∼74%
Moyenne Intel Core i7-1260P
  (1436 - 1786, n=24)
1690 Points ∼73% -1%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
1396 Points ∼60% -19%
Geekbench 5.0
5.0 Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9817 Points ∼31%
Moyenne Intel Core i7-1260P
  (6440 - 10411, n=9)
9355 Points ∼30% -5%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
4586 Points ∼14% -53%
5.0 Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1694 Points ∼7%
Moyenne Intel Core i7-1260P
  (1623 - 1694, n=9)
1666 Points ∼7% -2%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
1368 Points ∼6% -19%
Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7554 Points ∼78%
Moyenne Intel Core i7-1260P
  (7531 - 7554, n=2)
7543 Points ∼78% 0%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
5828 Points ∼60% -23%
64 Bit Multi-Core Score
Moyenne Intel Core i7-1260P
  (36974 - 38187, n=2)
37581 Points ∼42% +2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
36974 Points ∼41%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
18200 Points ∼20% -51%
3DMark 11 - 1280x720 Performance Physics
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
18044 Points ∼50%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
17378 Points ∼48% -4%
Moyenne Intel Core i7-1260P
  (4745 - 18968, n=25)
13699 Points ∼38% -24%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
10105 Points ∼28% -44%
7-Zip 18.03
7z b 4
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
56455 MIPS ∼35% +20%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
47064 MIPS ∼29%
Moyenne Intel Core i7-1260P
  (16146 - 47064, n=24)
38755 MIPS ∼24% -18%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
23280 MIPS ∼14% -51%
7z b 4 -mmt1
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
5738 MIPS ∼69%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
5347 MIPS ∼64% -7%
Moyenne Intel Core i7-1260P
  (4064 - 5791, n=24)
5272 MIPS ∼63% -8%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
4738 MIPS ∼57% -17%
HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
15.7 fps ∼34% +19%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
13.2 fps ∼28%
Moyenne Intel Core i7-1260P
  (3.45 - 13.6, n=25)
10.8 fps ∼23% -18%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
6.63 fps ∼14% -50%
R Benchmark 2.5 - Overall mean
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
0.622 sec * ∼13% -30%
Moyenne Intel Core i7-1260P
  (0.4559 - 0.727, n=24)
0.501 sec * ∼11% -5%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
0.4997 sec * ∼11% -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
0.4787 sec * ∼10%
LibreOffice - 20 Documents To PDF
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
51.3 s * ∼13% -14%
Moyenne Intel Core i7-1260P
  (40.2 - 65.7, n=24)
48.4 s * ∼12% -8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
45 s * ∼11%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
41.9 s * ∼11% +7%
WebXPRT 3 - ---
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
285 Points ∼70% 0%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
285 Points ∼70%
Moyenne Intel Core i7-1260P
  (250 - 298, n=23)
281 Points ∼69% -1%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
228 Points ∼56% -20%
Mozilla Kraken 1.1 - Total Score
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
715 ms * ∼1% -34%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
582 ms * ∼1% -9%
Moyenne Intel Core i7-1260P
  (531 - 604, n=23)
555 ms * ∼1% -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
534 ms * ∼1%
3DMark
3840x2160 Fire Strike Ultra Physics
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
22101 Points ∼41% +14%
Moyenne Intel Core i7-1260P
  (17350 - 22818, n=10)
19676 Points ∼36% +2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
19357 Points ∼36%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
12434 Points ∼23% -36%
1920x1080 Fire Strike Physics
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
23308 Points ∼43% +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
20684 Points ∼38%
Moyenne Intel Core i7-1260P
  (6797 - 22877, n=25)
17940 Points ∼33% -13%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
12562 Points ∼23% -39%
2560x1440 Time Spy CPU
Morefine S600-Apex Engineer
Intel Core i9-12900HK, 1800 MHz
9449 Points ∼47% +13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
8393 Points ∼41%
Moyenne Intel Core i7-1260P
  (2352 - 10150, n=26)
6759 Points ∼33% -19%
Intel NUC11TNKi5
Intel Core i5-1135G7, 2400 MHz
4117 Points ∼20% -51%

* ... Moindre est la valeur, meilleures sont les performances

Performance Rating
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
91.9 pt ∼92%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
70.1 pt ∼70%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
69 pt ∼69%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
63.7 pt ∼64%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
56.1 pt ∼56%
Moyenne de la classe Mini PC

49.3 pt ∼49%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
39.9 pt ∼40%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
37.1 pt ∼37%
AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
15755 KRay/s ∼100% +52%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
12208 KRay/s ∼77% +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
10351 KRay/s ∼66%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
9086 KRay/s ∼58% -12%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
8243 KRay/s ∼52% -20%
Moyenne de la classe Mini PC
  (561 - 15814, n=30, 2 dernières années)
7853 KRay/s ∼50% -24%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s ∼43% -35%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
5612 KRay/s ∼36% -46%
AIDA64 / FPU Julia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
100504 Points ∼100% +93%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
61600 Points ∼61% +18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
57375 Points ∼57% +10%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
52136 Points ∼52%
Moyenne de la classe Mini PC
  (3604 - 99936, n=30, 2 dernières années)
43647 Points ∼43% -16%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
37321 Points ∼37% -28%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points ∼28% -47%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
24138 Points ∼24% -54%
AIDA64 / CPU SHA3
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
3444 MB/s ∼100% +33%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
3250 MB/s ∼94% +25%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
2844 MB/s ∼83% +10%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
2590 MB/s ∼75%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
1971 MB/s ∼57% -24%
Moyenne de la classe Mini PC
  (225 - 3570, n=30, 2 dernières années)
1917 MB/s ∼56% -26%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s ∼54% -28%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
1649 MB/s ∼48% -36%
AIDA64 / CPU Queen
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
105123 Points ∼100% +27%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
95602 Points ∼91% +16%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
88337 Points ∼84% +7%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
82493 Points ∼78%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67224 Points ∼64% -19%
Moyenne de la classe Mini PC
  (8178 - 104437, n=30, 2 dernières années)
61655 Points ∼59% -25%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
46646 Points ∼44% -43%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points ∼44% -44%
AIDA64 / FPU SinJulia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
12792 Points ∼100% +90%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
9510 Points ∼74% +41%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
8294 Points ∼65% +23%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
8213 Points ∼64% +22%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
6728 Points ∼53%
Moyenne de la classe Mini PC
  (408 - 13164, n=30, 2 dernières années)
6198 Points ∼48% -8%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points ∼35% -34%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
3964 Points ∼31% -41%
AIDA64 / FPU Mandel
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
55452 Points ∼100% +113%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
31389 Points ∼57% +21%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
30804 Points ∼56% +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
25996 Points ∼47%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
24230 Points ∼44% -7%
Moyenne de la classe Mini PC
  (1958 - 55002, n=30, 2 dernières années)
23217 Points ∼42% -11%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points ∼31% -35%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
14905 Points ∼27% -43%
AIDA64 / CPU AES
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
135212 MB/s ∼100% +46%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92356 MB/s ∼68%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
78211 MB/s ∼58% -15%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s ∼49% -28%
Moyenne de la classe Mini PC
  (3778 - 136723, n=30, 2 dernières années)
63647 MB/s ∼47% -31%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
59882 MB/s ∼44% -35%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
58910 MB/s ∼44% -36%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
58635 MB/s ∼43% -37%
AIDA64 / CPU ZLib
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
988 MB/s ∼100% +37%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
871 MB/s ∼88% +21%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
828 MB/s ∼84% +15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
722 MB/s ∼73%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
505 MB/s ∼51% -30%
Moyenne de la classe Mini PC
  (74.8 - 982, n=30, 2 dernières années)
498 MB/s ∼50% -31%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s ∼38% -48%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
265 MB/s ∼27% -63%
AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
8425 KRay/s ∼100% +50%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
6612 KRay/s ∼78% +18%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
5613 KRay/s ∼67%
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
5149 KRay/s ∼61% -8%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
4636 KRay/s ∼55% -17%
Moyenne de la classe Mini PC
  (308 - 8447, n=30, 2 dernières années)
4193 KRay/s ∼50% -25%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s ∼43% -35%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
2997 KRay/s ∼36% -47%
AIDA64 / CPU PhotoWorxx
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
48577 MPixel/s ∼100% +71%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
30098 MPixel/s ∼62% +6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
28377 MPixel/s ∼58%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
26959 MPixel/s ∼55% -5%
Moyenne de la classe Mini PC
  (4408 - 44347, n=30, 2 dernières années)
23375 MPixel/s ∼48% -18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s ∼40% -32%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s ∼35% -41%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
14978 MPixel/s ∼31% -47%

Kit Intel NUC 12 Pro - Wall Street Canyon vs Cinebench R15 Multi Loop

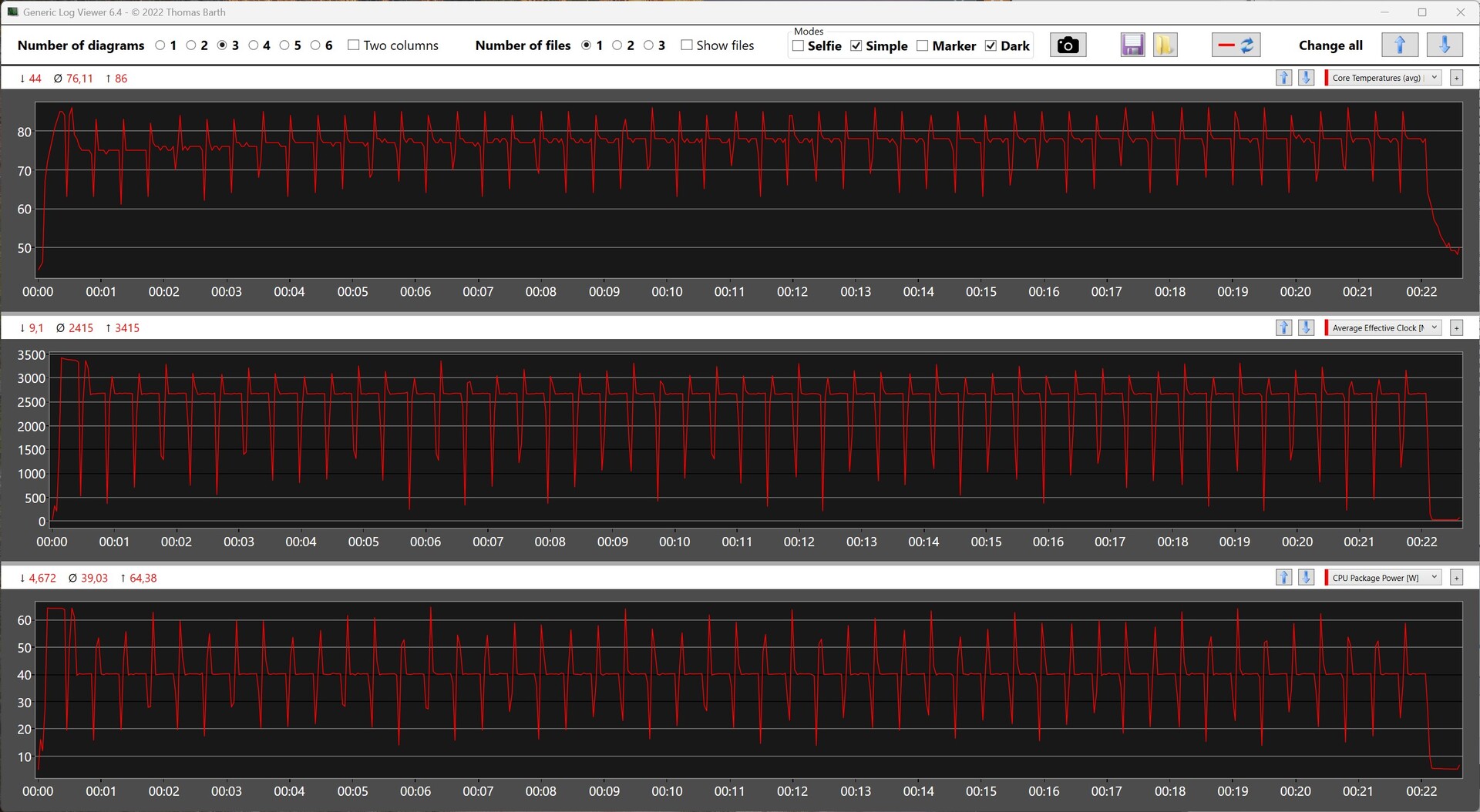

Relevés du CPU pendant la boucle Cinebench R15
Relevés du CPU pendant la boucle Cinebench R15

Nous avons un premier aperçu de l'efficacité de la solution de refroidissement intégrée dans notre boucle Cinebench R15. Le turbo maximum n'est actif que pendant la première boucle, les performances chutant de manière significative pendant la seconde. Les scores baissent d'environ 10 %. Il n'y a pas de fluctuations majeures pendant le reste du test et le score total moyen est de 1702 points.

01102203304405506607708809901100121013201430154016501760187019802090Tooltip
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø789 (772.57-794.38)
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Performance du système

Malheureusement, le kit Intel NUC 12 Pro n'est pas en mesure de transformer ses bons résultats aux tests d'évaluation du processeur en bons résultats aux tests synthétiques. Sans tenir compte de l'Intel Core i5-12600K, il ne se classe que troisième dans PCMark 10. En revanche, Crossmark semble une fois de plus favoriser notre appareil de test et rétablit l'ancienne hiérarchie des performances. De même, nous observons des taux de transfert supérieurs à la moyenne par rapport aux autres mini-PC dans les tests de RAM.

PCMark 10 / Score
Intel Core i5-12600K, Intel Core i5-12600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
8259 Points ∼100% +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
6507 Points ∼79% +10%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
5915 Points ∼72%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
5761 Points ∼70% -3%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
5658 Points ∼69% -4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
4521 Points ∼55% -24%
Intel NUC11TNKi5, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points ∼55% -24%
PCMark 10 / Essentials
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
10700 Points ∼100% 0%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
10661 Points ∼100%
Intel Core i5-12600K, Intel Core i5-12600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
10650 Points ∼100% 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
10385 Points ∼97% -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10321 Points ∼96% -3%
Intel NUC11TNKi5, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points ∼84% -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
8910 Points ∼83% -16%
PCMark 10 / Productivity
Intel Core i5-12600K, Intel Core i5-12600K
NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5
11001 Points ∼100% +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10196 Points ∼93% +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
9539 Points ∼87% +25%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
7626 Points ∼69%
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
7041 Points ∼64% -8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
6357 Points ∼58% -17%
Intel NUC11TNKi5, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points ∼56% -19%
CrossMark / Overall
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1804 Points ∼100% +7%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1679 Points ∼93%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1373 Points ∼76% -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1245 Points ∼69% -26%
CrossMark / Responsiveness
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1811 Points ∼100% +23%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1476 Points ∼82%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1263 Points ∼70% -14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1224 Points ∼68% -17%
CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1867 Points ∼100% +5%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1785 Points ∼96%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1379 Points ∼74% -23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1193 Points ∼64% -33%
CrossMark / Productivity
Morefine S600-Apex Engineer, Intel Core i9-12900HK
Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8
1740 Points ∼100% +6%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1649 Points ∼95%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1406 Points ∼81% -15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7
Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G
1306 Points ∼75% -21%
AIDA64 / Memory Copy
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
70749 MB/s ∼100% +58%
Moyenne Intel Core i7-1260P
  (25125 - 71544, n=24)
54763 MB/s ∼77% +23%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
44965 MB/s ∼64% +1%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
44661 MB/s ∼63%
Moyenne de la classe Mini PC
  (6481 - 70620, n=30, 2 dernières années)
40062 MB/s ∼57% -10%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
37616 MB/s ∼53% -16%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
35423 MB/s ∼50% -21%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
35051 MB/s ∼50% -22%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s ∼32% -49%
AIDA64 / Memory Read
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
76864 MB/s ∼100% +65%
Moyenne Intel Core i7-1260P
  (24983 - 72065, n=24)
56756 MB/s ∼74% +22%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46644 MB/s ∼61%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
44775 MB/s ∼58% -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
43678 MB/s ∼57% -6%
Moyenne de la classe Mini PC
  (6914 - 65856, n=30, 2 dernières années)
40845 MB/s ∼53% -12%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
40348 MB/s ∼52% -13%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
38400 MB/s ∼50% -18%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s ∼32% -47%
AIDA64 / Memory Write
Intel Core i5-12600K
Intel Core i5-12600K, NVIDIA Titan RTX
73824 MB/s ∼100% +60%
Moyenne Intel Core i7-1260P
  (23512 - 66799, n=24)
53626 MB/s ∼73% +16%
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
46454 MB/s ∼63% 0%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46223 MB/s ∼63%
Moyenne de la classe Mini PC
  (6862 - 66047, n=30, 2 dernières années)
42379 MB/s ∼57% -8%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
39154 MB/s ∼53% -15%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
37475 MB/s ∼51% -19%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
35146 MB/s ∼48% -24%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s ∼32% -49%
AIDA64 / Memory Latency
Morefine S600-Apex Engineer
Intel Core i9-12900HK, Iris Xe G7 96EUs
101.5 ns * ∼100% -9%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92.7 ns * ∼91%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
91.3 ns * ∼90% +2%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * ∼86% +6%
Moyenne de la classe Mini PC
  (55.3 - 146, n=30, 2 dernières années)
85.3 ns * ∼84% +8%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
79.6 ns * ∼78% +14%
Moyenne Intel Core i7-1260P
  (77.9 - 118.4, n=20)
78.6 ns * ∼77% +15%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
69 ns * ∼68% +26%

* ... Moindre est la valeur, meilleures sont les performances

Latence DPC

Le kit Intel NUC 12 Pro se comporte bien en combinaison avec le Intel Core i7-1260P. Nous n'avons pas observé de latences problématiques lors de la lecture d'un échantillon vidéo. Ici, l'iGPU était utilisé à environ 45 %.

Latence maximale lors de l'ouverture de plusieurs onglets de navigateur et de la lecture de vidéos 4K
Latence maximale lors de l'ouverture de plusieurs onglets de navigateur et de la lecture de vidéos 4K
Latence maximale après avoir stressé le système avec Prime95 pendant dix secondes
Latence maximale après avoir stressé le système avec Prime95 pendant dix secondes
Pilotes classés par temps d'exécution le plus élevé
Pilotes classés par temps d'exécution le plus élevé
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
1106 μs * ∼100% -42%
Morefine S600-Apex Engineer
Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8
961.5 μs * ∼87% -23%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
779 μs * ∼70%
Minipc Union Ace Magician AMR5
Vega 7, R5 5600U, Future Path FPE220M8SSD512G
765 μs * ∼69% +2%
Minipc Union Ace Magician TK11-A0
Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G
659.1 μs * ∼60% +15%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * ∼47% +33%

* ... Moindre est la valeur, meilleures sont les performances

Solution de stockage

sSD NVMe de 512 Go
sSD NVMe de 512 Go

Notre échantillon de test du kit Intel NUC 12 Pro prend en charge jusqu'à deux SSD M.2. Toutefois, les utilisateurs devront faire attention au facteur de forme. Alors que l'emplacement NVMe-M.2 primaire ne prend en charge que les SSD de 80 mm, l'emplacement M.2 secondaire n'accepte que les SSD plus courts de 42 mm.

Nous utilisons un SSD Transcend et de la RAM provenant de notre stock de matériel. Les performances du SSD sont solides. Cependant, les autres appareils de notre comparaison sont équipés de SSD plus rapides. L'importance de ces résultats ne doit pas être surestimée, car les utilisateurs pourront installer un SSD de leur choix dans le barebone du kit Intel NUC 12 Pro.

Vous trouverez d'autres comparaisons et benchmarks sur notre Page SSD et HDD.

AS SSD
AS SSD
MDP 3
MDP 3
MDP 5
MDP 5
MDP 6
MDP 6
Transcend M.2 SSD 2200S TS512GMTE220S
Sequential Read: 2435 MB/s
Sequential Write: 800.8 MB/s
512K Read: 1004 MB/s
512K Write: 848.8 MB/s
4K Read: 66.36 MB/s
4K Write: 193.8 MB/s
4K QD32 Read: 563.8 MB/s
4K QD32 Write: 406.4 MB/s
Drive Performance Rating - Percent
Moyenne de la classe Mini PC

89.7 pt ∼90%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
83 pt ∼83%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
81.4 pt ∼81%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
65.1 pt ∼65%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
61.3 pt ∼61%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
22.8 pt ∼23%
DiskSpd
seq read
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2184 (2176.42min - 2183.52max) MB/s ∼100% +22%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2082 (2067.58min - 2082.23max) MB/s ∼95% +16%
Moyenne de la classe Mini PC
  (233 - 4168, n=29, 2 dernières années)
1879 MB/s ∼86% +5%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
1790 (1744.2min - 1789.7max) MB/s ∼82%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1319 (1307.78min - 1319.44max) MB/s ∼60% -26%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s ∼23% -72%
seq write
Moyenne de la classe Mini PC
  (222 - 3938, n=29, 2 dernières années)
1857 MB/s ∼100% +89%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1792 (1662.17min - 1791.62max) MB/s ∼96% +82%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
1790 (1681.49min - 1789.9max) MB/s ∼96% +82%
Intel NUC 12 Pro Kit NUC12WSKi7
Transcend M.2 SSD 2200S TS512GMTE220S
984 (154.77min - 984.48max) MB/s ∼53%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 977.06max) MB/s ∼53% -1%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s ∼25% -53%
seq q8 t1 read
Moyenne de la classe Mini PC
  (236 - 7061, n=29, 2 dernières années)
2779 MB/s ∼100% +22%
Minipc Union Ace Magician TK11-A0
Future Path FPE220M8SSD512G
2525 (2269.25min - 2525.2max) MB/s ∼91% +11%
