Lenovo ThinkPad T14s : L'AMD Ryzen 7 Pro 4750U laisse Intel dans la poussière

Teaser
Teaser
Après les ThinkPad T14 équipés du processeur Intel Comet Lake, nous avons également reçu les ThinkPad T14 équipés du processeur AMD Ryzen 7 Pro 4750U. Nos premiers tests de référence montrent que le processeur AMD est beaucoup plus rapide, malgré des chiffres de consommation électrique similaires.

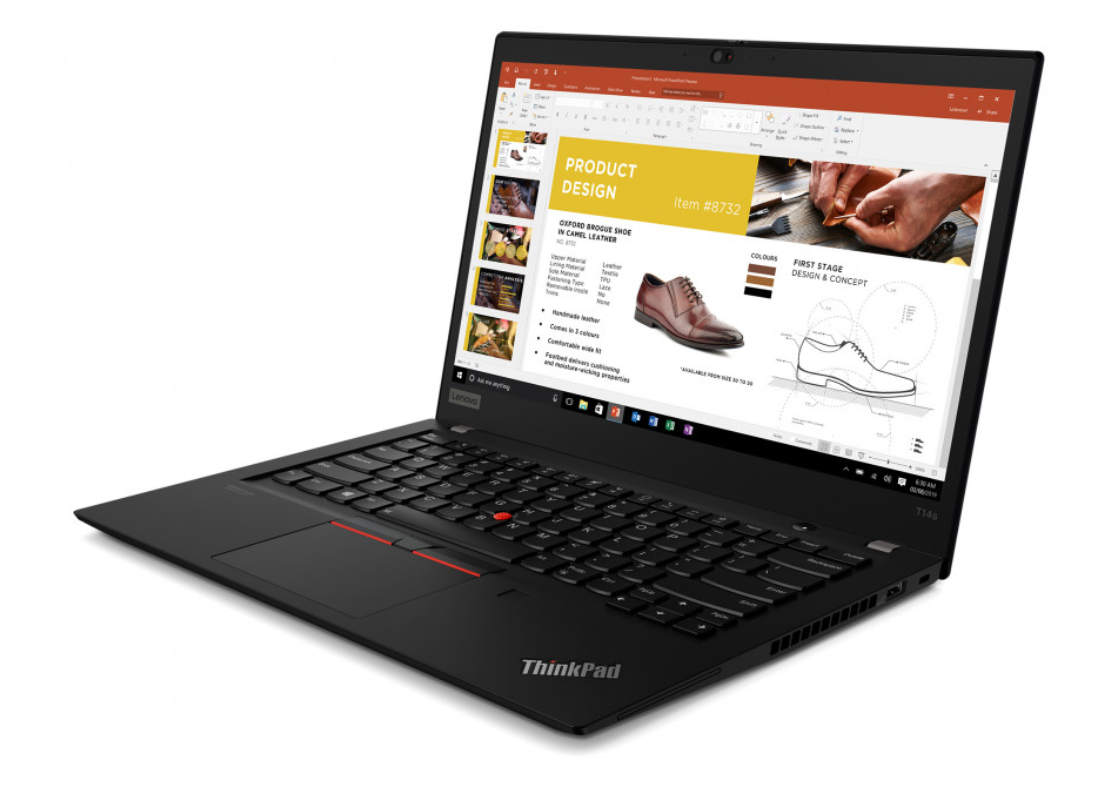

Après le nouveau X1 Carbon qui n'est qu'une mise à jour mineure cette année, les nouveaux ThinkPad T14 pourraient bien être le nouveau modèle le plus intéressant de Lenovo. Le successeur des ThinkPad T490s (Intel) et ThinkPad T495s (AMD), respectivement, s'appelle désormais ThinkPad T14s Gen.1. Lenovo combine donc les deux options de processeur en une seule série de modèles. Nous avons les deux SKU dans notre bureau de rédaction et avons déjà effectué quelques tests de référence. Les deux appareils sont des modèles éducatifs avec les caractéristiques suivantes :

ThinkPad T14s-20T00044GE ThinkPad T14s-20UJS00K00
CPU Intel Core i5-10210U AMD Ryzen 7 Pro 4750U
Coes/Threads 4/8 1.6-4.2 GHz 8/16 1.7-4.1 GHz
GPU Intel UHD Graphics AMD Radeon RX Vega 7
RAM 8 GB DDR4-2666 32 GB DDR4-3200
SSD 256 GB PCIe 1 TB PCIe
Ports 2x TB3, 2x USB-A, HDMI 1.4b 2x USB-C (DisplayPort), 2x USB-A, HDMI 2.0
OS Windows 10 Pro none
RRP 1379 Euros 1399 Euros

CPU-Performance - Ryzen 7 Pro can keep up with Intel's 45W Chips

The comparison of the two processors is very interesting because Lenovo uses the same TDP limits. However, the Intel model even has a slight advantage, because the Core i5 can consume up to 45W for a few seconds before the regular limits set in at 25W (PL2) and 18W (PL1). The AMD model can consume 25W at the beginning and then quickly drops to 18W after a couple of seconds. This means both chips consume pretty much the same amount of power. The Ryzen 7 Pro 4750U obviously benefits from its 8 cores /16 threads in the multi-core tests and can easily beat all the Intel rivals. To get a better perspective, we have also included the brand-new Dell XPS 17 with the Intel Core i7-10875H (also 8C/16T) in the comparison chart. This 45W processor is just slightly faster than the Ryzen 7 Pro 4750U in all the benchmarks, despite the much higher power consumption. The single-core performance is the only thing where Intel's i7 chips still have an advantage, but the differences are very small. The improvements compared to the previous Ryzen 7 Pro 3700U are not bad, either.

010020030040050060070080090010001100120013001400Tooltip
Lenovo ThinkPad T14s-20UJS00K00 Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00: Ø1311 (1300.6-1345.67)
Lenovo ThinkPad T14s-20T00044GE UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB256HBHQ: Ø564 (557.76-618.79)
Dell XPS 17 9700 Core i7 RTX 2060 Max-Q GeForce RTX 2060 Max-Q, i7-10875H, Micron 2200S 1TB MTFDHBA1T0TCK: Ø1366 (1339.18-1451.59)
Lenovo ThinkPad T495s-20QKS01E00 Vega 10, R7 PRO 3700U, Samsung PM981a MZVLB1T0HBLR: Ø578 (565.26-658.27)
Dell XPS 13 9300 Core i7-1065G7 Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSDPEMKF512G8 NVMe SSD: Ø636 (559.86-812.55)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core)
Moyenne de la classe Office
  (229 - 766, n=85, 2 dernières années)
620 Points +32%
Dell XPS 17 9700 Core i7 RTX 2060 Max-Q
Intel Core i7-10875H
483 Points +3%
Lenovo ThinkPad T15 Gen1-20S7S02U00
Intel Core i7-10510U
474 Points +1%
Moyenne AMD Ryzen 7 PRO 4750U
  (461 - 479, n=5)
470 Points 0%
Lenovo ThinkPad T14s-20UJS00K00
AMD Ryzen 7 PRO 4750U
468 Points
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
466 Points 0%
Xiaomi RedmiBook 16 R5
AMD Ryzen 5 4500U
451 Points -4%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
441 Points -6%
Lenovo ThinkPad T14s-20T00044GE
Intel Core i5-10210U
414 Points -12%

* ... Moindre est la valeur, meilleures sont les performances

System Performance - AMD also ahead in PCMark 10

The ThinkPad T14s is also ahead of the competitors in the synthetic PCMark 10. So far, we did not notice any problems and the subjective performance impression is very good.

PCMark 10 / Score
Moyenne de la classe Office
  (2463 - 7578, n=79, 2 dernières années)
5884 Points +20%
Moyenne AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (4639 - 5034, n=5)
4900 Points 0%
Lenovo ThinkPad T14s-20UJS00K00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBPNTY-1T00
4890 Points
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
4886 Points 0%
Xiaomi RedmiBook 16 R5
Vega 6, R5 4500U, Samsung PM881 MZNLH512HALU-0000/07
4784 Points -2%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
4527 Points -7%
Dell XPS 13 9300 Core i7-1065G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSDPEMKF512G8 NVMe SSD
4154 Points -15%
Lenovo ThinkPad T14s-20T00044GE
UHD Graphics 620, i5-10210U, Samsung SSD PM981a MZVLB256HBHQ
3929 Points -20%
Lenovo ThinkPad T15 Gen1-20S7S02U00
GeForce MX330, i7-10510U, Toshiba XG6 KXG6AZNV1T02
3861 Points -21%
Lenovo ThinkPad T495s-20QKS01E00
Vega 10, R7 PRO 3700U, Samsung PM981a MZVLB1T0HBLR
3762 Points -23%

GPU-Performance - RX Vega 7 beats the GeForce MX330

The graphics calculations are handled by the integrated AMD Radeon RX Vega 7, which has a core clock of up to 1600 MHz. As expected, it is faster than the iGPUs from Intel's Comet Lake generation, but the newer Ice Lake iGPUs are also beaten. If you are currently looking for a 14-inch ThinkPad, you might also be interested in the comparison with the GeForce MX330, which is optional for the ThinkPad T14 or T15, for example. The AMD RX Vega 7 is either similarly fast or even ahead, at least in the synthetic benchmarks. We will obviously check the real-world gaming performance in our final review.

3DMark 11 - 1280x720 Performance GPU
Moyenne de la classe Office
  (1468 - 16418, n=84, 2 dernières années)
7572 Points +40%
Lenovo ThinkPad T14s-20UJS00K00
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
5399 Points
Moyenne AMD Radeon RX Vega 7
  (3353 - 6249, n=58)
5054 Points -6%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
4990 Points -8%
Lenovo ThinkPad T15 Gen1-20S7S02U00
NVIDIA GeForce MX330, Intel Core i7-10510U
4616 Points -15%
Dell XPS 13 9300 Core i7-1065G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
4508 Points -17%
Xiaomi RedmiBook 16 R5
AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U
4210 Points -22%
Lenovo ThinkPad T495s-20QKS01E00
AMD Radeon RX Vega 10, AMD Ryzen 7 PRO 3700U
3781 Points -30%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1978 Points -63%
Lenovo ThinkPad T14s-20T00044GE
Intel UHD Graphics 620, Intel Core i5-10210U
1844 Points -66%

First Impressions - AMD T14s is much more powerful and less expensive

The AMD Ryzen 7 Pro 4750U has impressed us in the initial benchmarks. At a similar power consumption, the mobile Intel CPUs (15W) are easily beaten, only the single-core performance still shows a slight advantage for the i7 chips. However, AMD's new chip is almost on par with Intel's current 45W CPUs like the i7-10875H in the Dell XPS 17 9700 when you stress all cores.

The second big advantage for AMD is the price. Our test model is a really good offer at 1399 Euros and offers much better specs than the similarly priced Intel SKU. So far, we did not experience any issues in regard to the implementation of the AMD processor, but we want to wait for all our measurements and tests before we can give a final verdict.

The only question is how long the battery of the AMD SKU will last compared to the Intel notebook. If AMD can keep up, then the only real argument for the Intel model would be the Thunderbolt 3 support. You can expect the full review of the ThinkPad T14s Gen.1 AMD next week.

Please share our article, every link counts!
Mail Logo
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Archives des nouvelles 2020 07 > Lenovo ThinkPad T14s : L'AMD Ryzen 7 Pro 4750U laisse Intel dans la poussière
Andreas Osthoff, 2020-07-16 (Update: 2024-11- 4)
