Test du Nofflink M500 : PC de bureau et client de streaming économe en énergie avec SoC Intel et 32 Go de RAM

Ordinateur de bureau compact. Le Nofflink M500 est un mini-PC destiné à une utilisation quotidienne au bureau. Dans cette revue, nous allons examiner de plus près le modèle de base avec le Intel Pentium Gold 5405U.
CPU-Z
CPU-Z

Comme Morefine ou MinisForum, Nofflink est un fabricant de systèmes chinois spécialisé dans les mini-PC compacts. La série M500 de Nofflink est destinée aux utilisateurs de bureau. Toutefois, le M500 peut également être utilisé comme client de streaming. Le châssis abrite des composants éprouvés, ce qui signifie dans ce cas les SoC Intel Whiskey Lake et Intel Comet Lake. Pour une utilisation quotidienne au bureau, les processeurs quelque peu datés offrent encore des performances décentes.

Notre configuration de test est le modèle de base Nofflink avec le processeur Intel Pentium Gold 5405U. Associé à 32 Go de RAM et à un disque dur SSD de 512 Go, l'appareil est certainement très performant. Certes, 32 Go sont peut-être un peu excessifs et la version 16 Go ne devrait pas présenter d'inconvénients. Curieusement, Nofflink ne propose même pas le modèle 32 Go sur sa propre boutique en ligne. Les clients potentiels qui envisagent notre configuration doivent s'attendre à payer environ 400 USD. Quant au modèle supérieur, il est basé sur un Intel Core i7 10510U et un SSD de 1 To, et coûte environ 600 USD. Il s'agit d'un prix équitable et convaincant pour un mini-PC rapide et compact.

Le Nofflink M500 est livré dans un petit emballage avec tous les accessoires nécessaires.

Nofflink M500
Processeur
Intel Pentium Gold 5405U 2 x 2.3 GHz, 18 W PL2 / Short Burst, 10 W PL1 / Sustained, Whiskey Lake-U
Carte graphique
Mémoire
32 Go
, DDR4-2666, 2 of 2 occupied
Carte mère
Intel Cannon Lake-U PCH-LP Mainstream/Base
Disque dur
Qunion P20A NGFF 512GB, 512 Go
Carte son
Intel Cannon Lake-LP - cAVS
Réseau
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz)
Taille
Hauteur x Largeur x Profondeur (en mm): 39 x 127 x 127
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Poids
657 g, Alimentation: 301 g
Prix
400 euros
Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.



Boîtier et caractéristiques

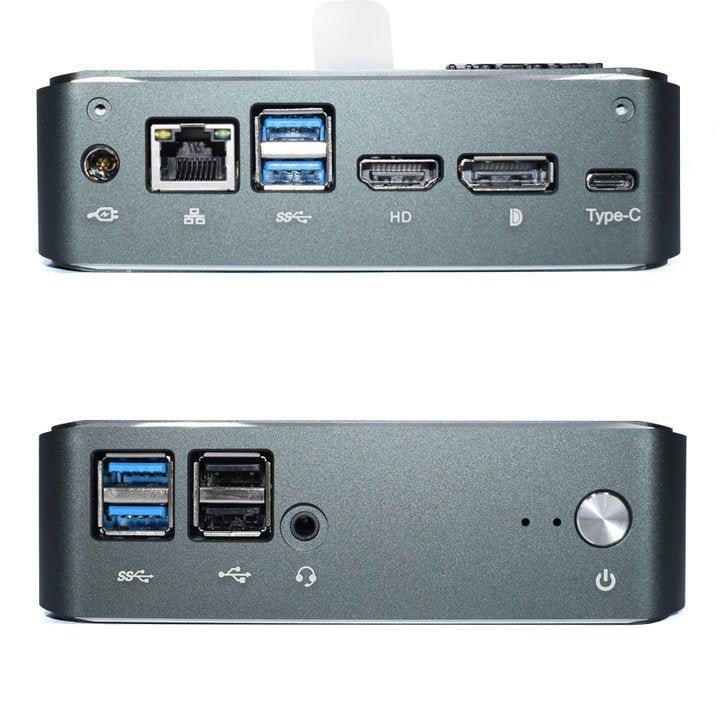

Interfaces externes (Source : Nofflink)
Interfaces externes (Source : Nofflink)

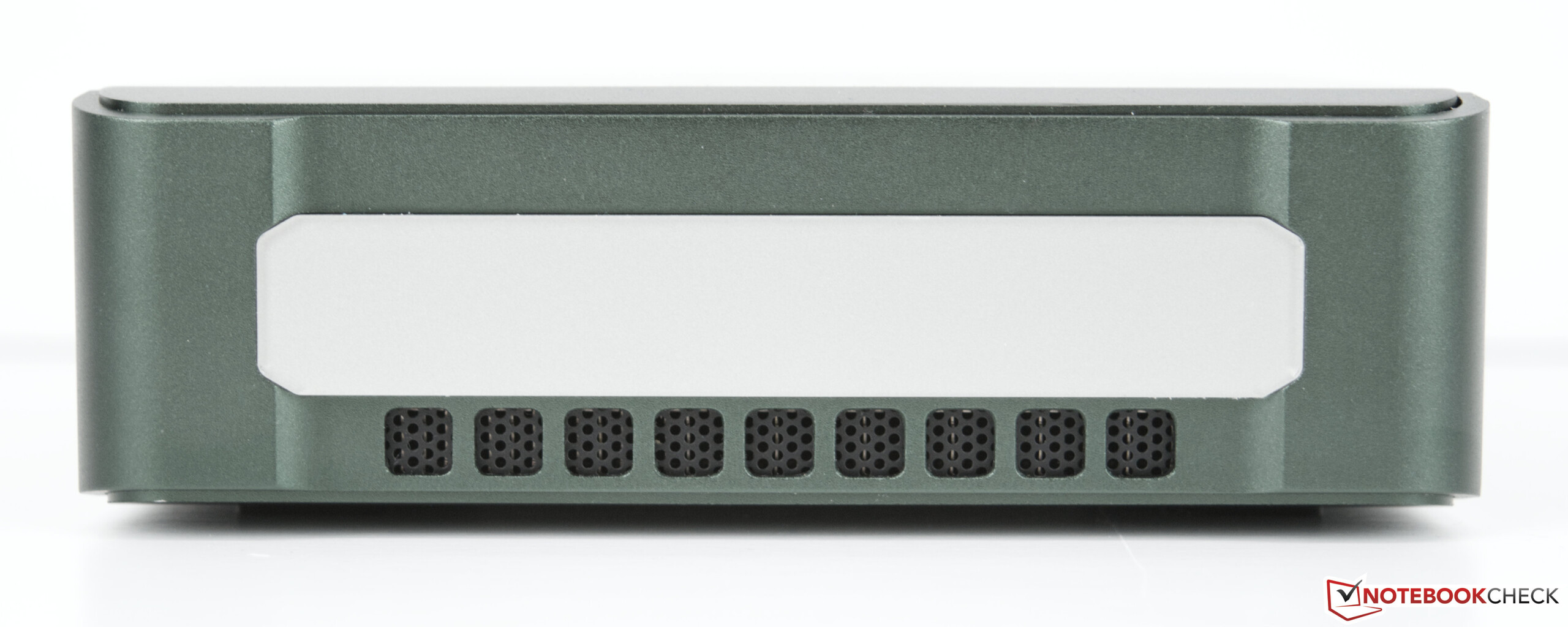

Le Nofflink M500 est principalement constitué d'aluminium, ce qui rend l'appareil très rigide. Bien que l'appareil apparaisse essentiellement gris sur la boutique en ligne du fabricant, une teinte verte distincte peut être observée en y regardant de plus près. En termes d'apparence générale, ce n'est pas un inconvénient. Il n'y a pas d'arêtes vives et l'appareil donne une impression de qualité supérieure. Si nécessaire, le couvercle de l'appareil peut être retiré rapidement.

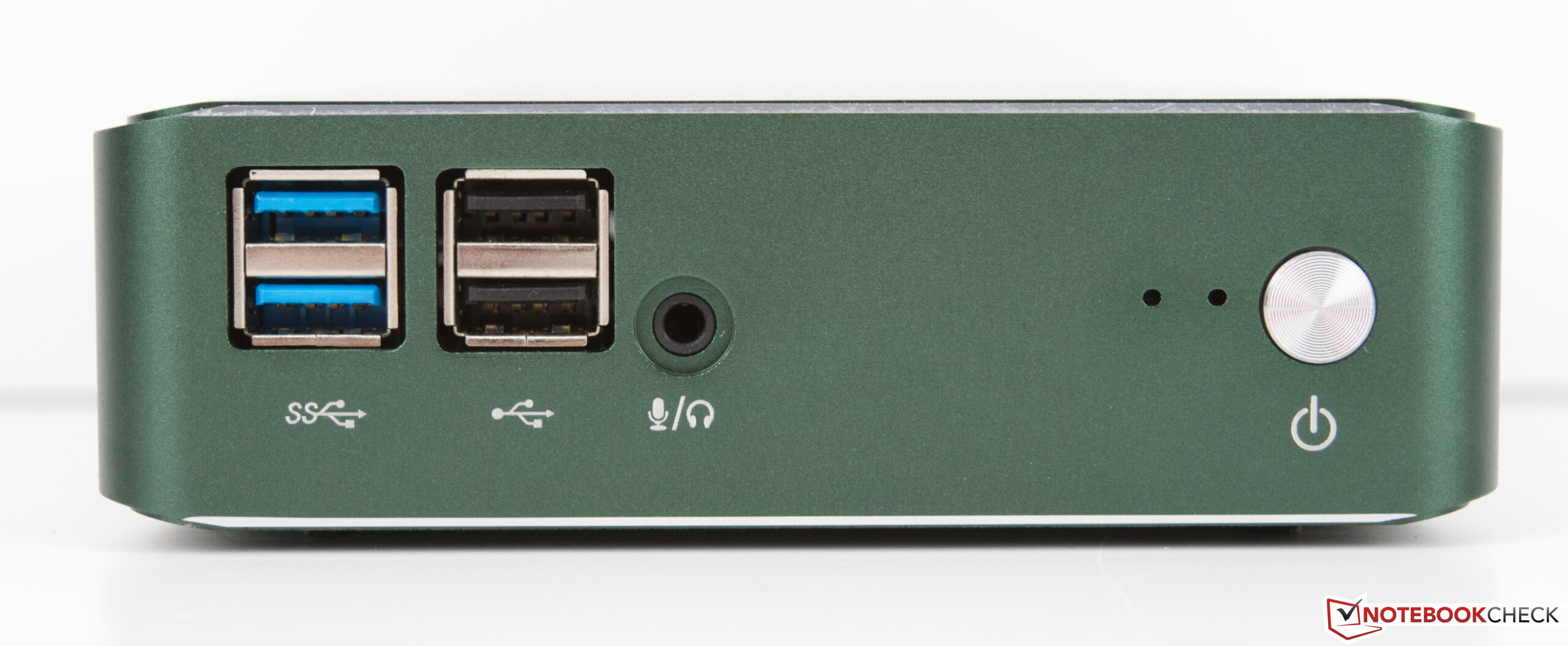

En ce qui concerne les interfaces externes, le Nofflink M500 offre de nombreuses options pour les périphériques externes. Il compte au total six ports USB de type A et un port USB de type C. Ainsi, le M500 offre exactement autant de ports que le Morefine S500+. Toutefois, deux des ports sont limités à l'USB 2.0. Les utilisateurs peuvent choisir entre HDMI, DisplayPort ou USB type-C pour la sortie vidéo. Il est ainsi possible de connecter jusqu'à trois écrans simultanément. Il n'y a pas de lecteur de carte SD.

Nofflink s'appuie sur le module Wi-Fi Intel AX201 pour la communication sans fil. Il prend en charge le Wi-Fi 6 dans les bandes 2,4 GHz et 5 GHz. Dans nos tests de performance, le Nofflink M500 obtient de bons résultats, bien qu'ils soient largement inférieurs à la moyenne de la catégorie des PC de bureau. Le mini-PC offre également un port Ethernet traditionnel prenant en charge 2,5 Gb/s.

Networking
iperf3 receive AXE11000 6GHz
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1480 (1212min - 1519max) MBit/s
Moyenne de la classe Desktop
  (430 - 1827, n=9, 2 dernières années)
1265 MBit/s
Moyenne MediaTek RZ608
  (430 - 961, n=16)
826 MBit/s
Minisforum EliteMini TH50
MediaTek MT7921
776 (482min - 881max) MBit/s
Minisforum EliteMini B550
MediaTek RZ608
430 (379min - 451max) MBit/s
iperf3 transmit AXE11000 6GHz
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1669 (1609min - 1719max) MBit/s
Moyenne de la classe Desktop
  (572 - 1745, n=10, 2 dernières années)
1409 MBit/s
Minisforum EliteMini TH50
MediaTek MT7921
866 (502min - 950max) MBit/s
Moyenne MediaTek RZ608
  (572 - 980, n=16)
825 MBit/s
Minisforum EliteMini B550
MediaTek RZ608
572 (532min - 680max) MBit/s
050100150200250300350400450500550600650700750800850900950Tooltip
Nofflink M500-5405U; iperf3 receive AXE11000; iperf 3.1.3: Ø976 (958-997)
Nofflink M500-5405U; iperf3 transmit AXE11000; iperf 3.1.3: Ø831 (730-860)
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U
Nofflink M500-5405U

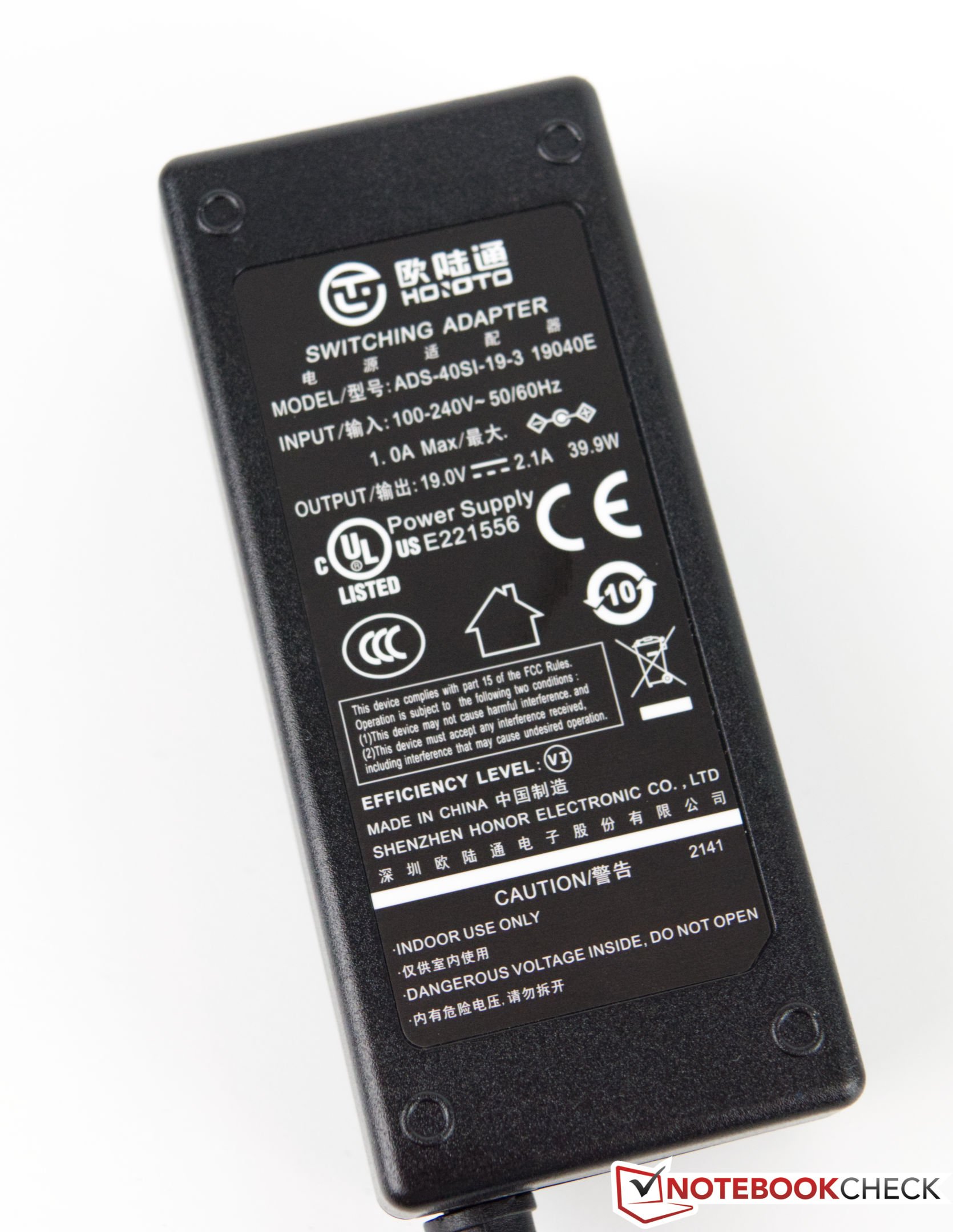

Nofflink M500-5405U - Bloc d'alimentation
Nofflink M500-5405U - Bloc d'alimentation

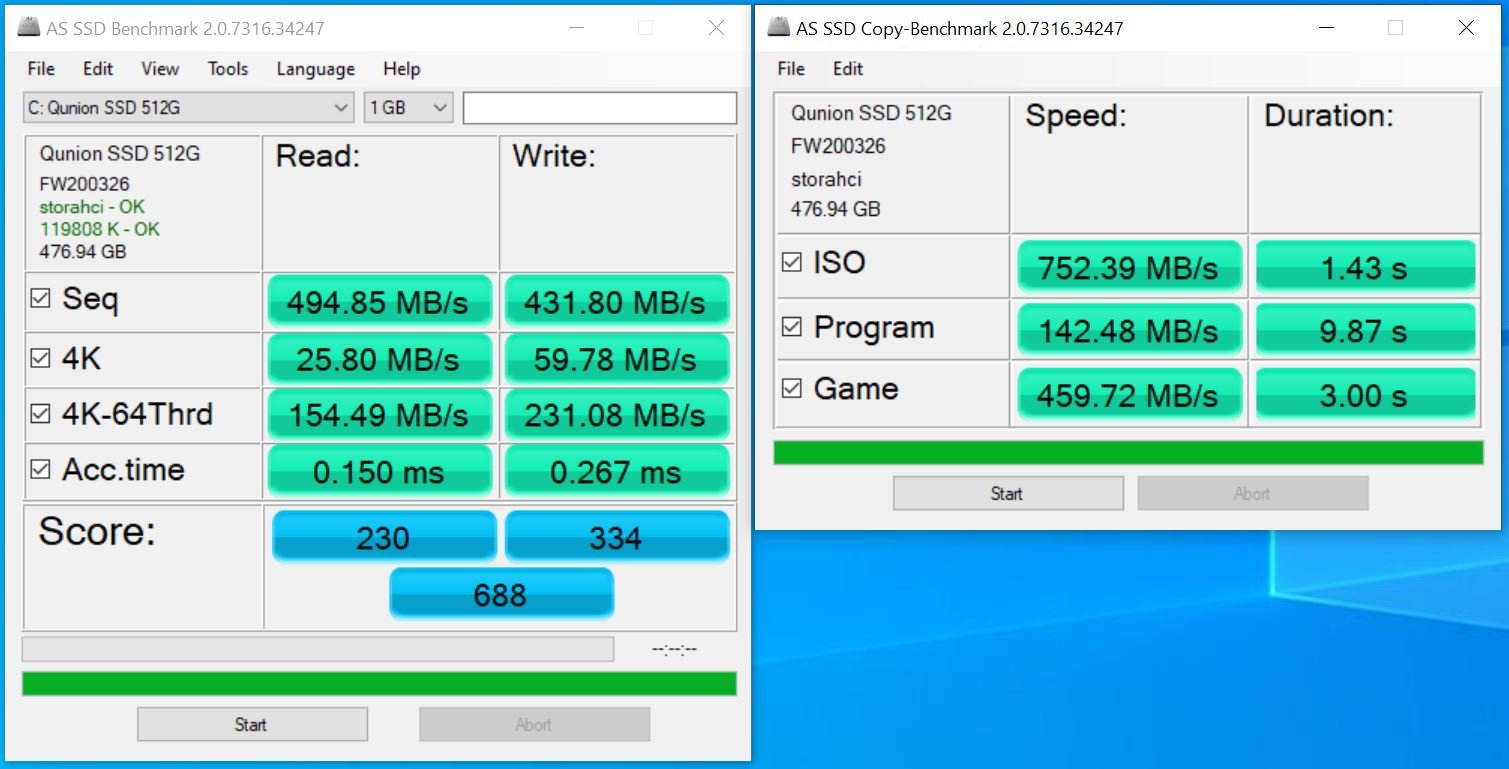

Nofflink M500-5405U - SSD

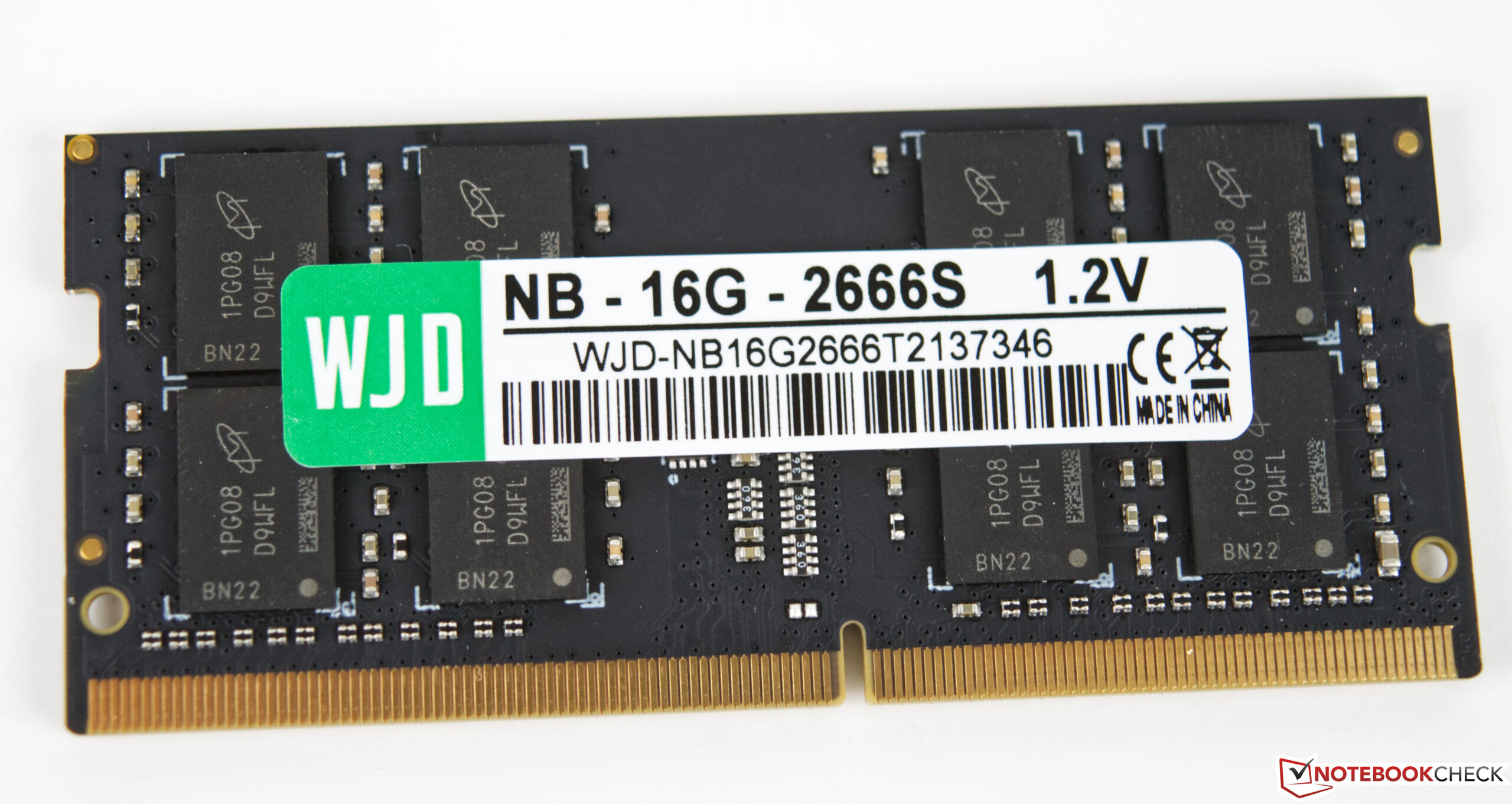

Nofflink M500-5405U - RAM

Performance

Processeur

Comme son nom l'indique, le Nofflink M500-5405U utilise un processeur Intel Pentium Gold 5405U Intel Pentium Gold 5405U. Ce SoC de 15 watts fait partie de la famille Whiskey Lake-U et offre deux cœurs physiques, qui peuvent traiter jusqu'à quatre threads simultanément à une vitesse maximale de 2,3 GHz.

Dans une comparaison directe, les inconvénients du SoC natif à deux cœurs deviennent apparents. Le site Newsmay AC6 est légèrement plus performant dans nos benchmarks multi-threads, bien que les performances en single-core de notre Nofflink M500 soient légèrement supérieures. Le rapide CPU octa-core d'AMD laisse cependant notre Intel Pentium Gold 5405U dans la poussière. Cela correspond à nos attentes et n'est donc pas surprenant. À des fins de comparaison, nous avons également inclus le Intel Core i7-10510U dans notre graphique. Cela montre les performances approximatives que les utilisateurs peuvent attendre de ce SoC, qui est également disponible pour le Nofflink M500.

Vous trouverez d'autres comparaisons et bancs d'essai dans notre Tableau de comparaison des CPU.

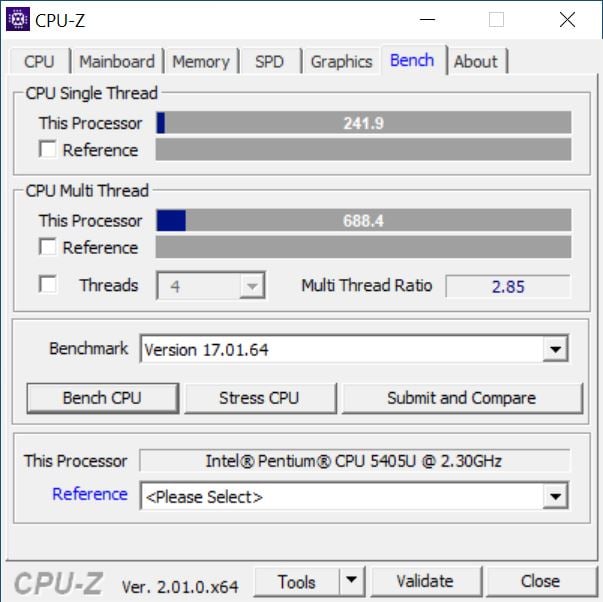

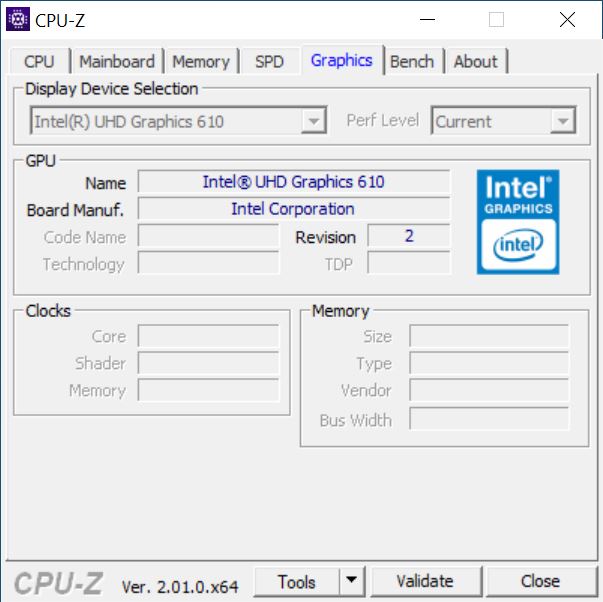

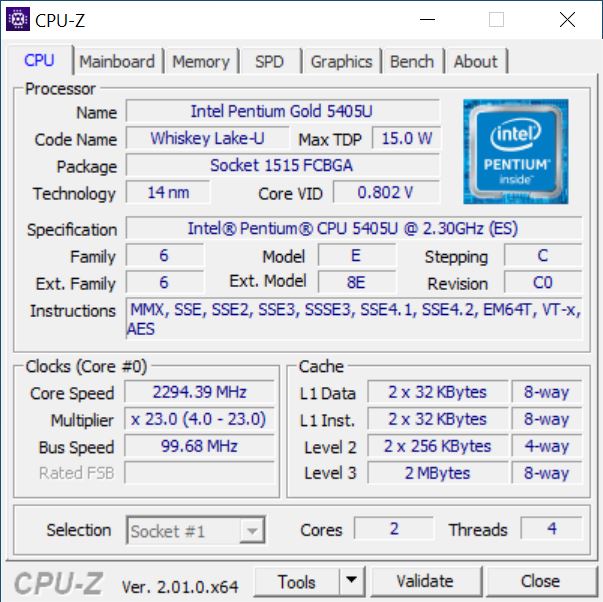

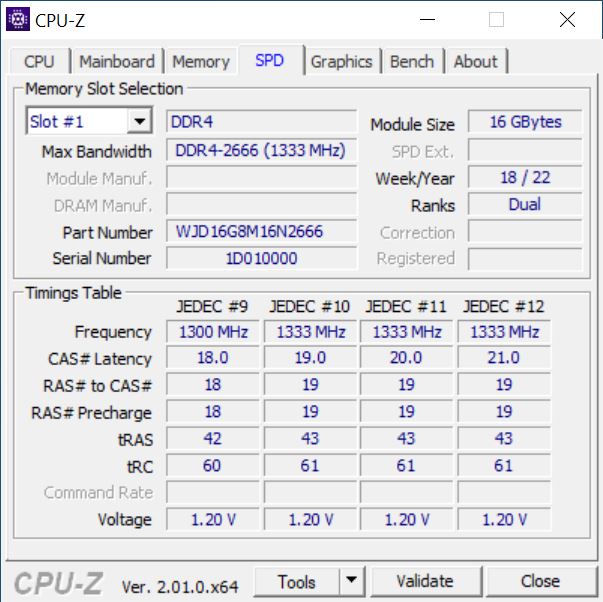

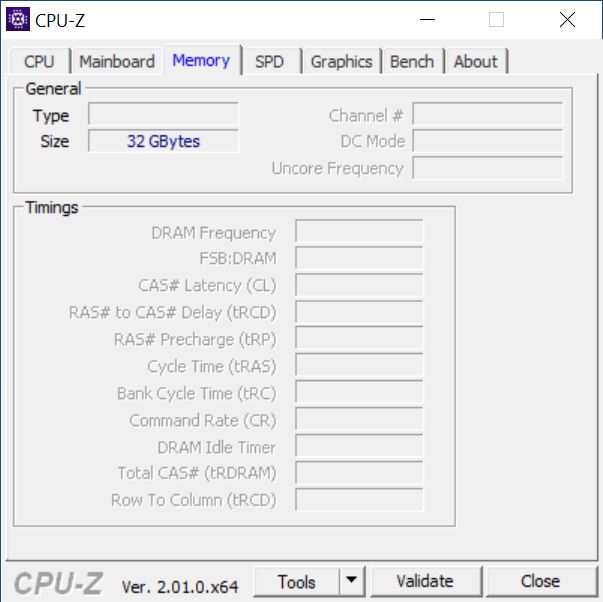

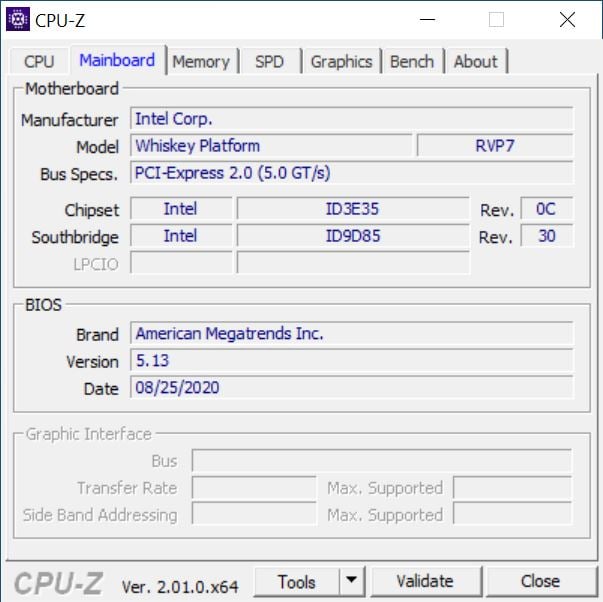

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

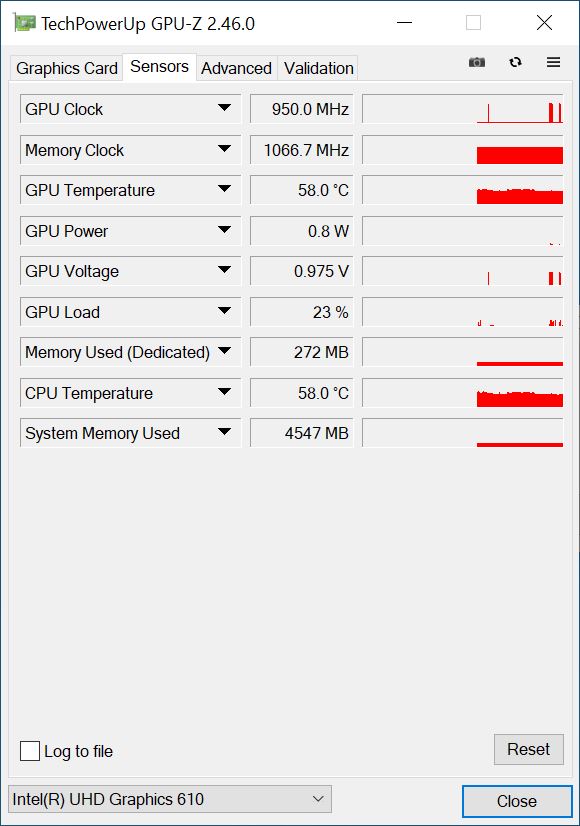

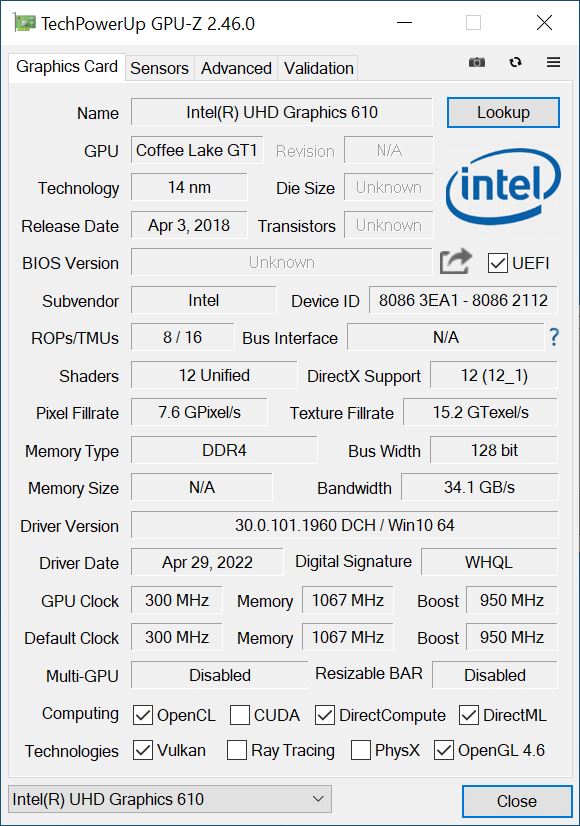

GPU-Z
GPU-Z
HWiNFO
Cinebench R23
Single Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1499 Points +178%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1495 Points +177%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1479 Points +174%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
1456 Points +170%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1298 Points +141%
Moyenne Intel Core i7-10510U
  (1066 - 1207, n=3)
1142 Points +112%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1031 Points +91%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
696 Points +29%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
660 Points +22%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
539 Points
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points -17%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
411 Points -24%
Multi Core
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13430 Points +866%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11873 Points +754%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11792 Points +748%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11440 Points +723%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5980 Points +330%
Moyenne Intel Core i7-10510U
  (3626 - 4239, n=3)
3866 Points +178%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1910 Points +37%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1833 Points +32%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1563 (1557.19min - 1562.55max) Points +12%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1529 (1521.41min - 1529.3max) Points +10%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
1390 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
834 (768.67min - 833.537max) Points -40%
Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
585 Points +181%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
582 Points +180%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
567 Points +173%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
560 Points +169%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
505 Points +143%
Moyenne Intel Core i7-10510U
  (362 - 497, n=37)
437 Points +110%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
428 Points +106%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
401 Points +93%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
266 Points +28%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
208 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
200 Points -4%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
174 Points -16%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
171 Points -18%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
161 Points -23%
CPU (Multi Core)
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5185 Points +869%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4660 Points +771%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4585 Points +757%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4495 Points +740%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
2319 Points +333%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1820 Points +240%
Moyenne Intel Core i7-10510U
  (1015 - 1897, n=38)
1412 Points +164%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
743 Points +39%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
720 Points +35%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
610 Points +14%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
556 Points +4%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
535 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
491 Points -8%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
304 Points -43%
Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
243 Points +159%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
242 Points +157%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
240 Points +155%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
212 Points +126%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
194 Points +106%
Moyenne Intel Core i7-10510U
  (113 - 202, n=42)
178.4 Points +90%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
168 Points +79%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
162 Points +72%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
123 Points +31%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
117 Points +24%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
108 Points +15%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
94 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
84 Points -11%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
79.1 Points -16%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
77 Points -18%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
75.3 Points -20%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2224 Points +831%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1980 Points +728%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1967 Points +723%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1919 (1862.02min - 1893.4max) Points +703%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
950 Points +297%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
790 Points +231%
Moyenne Intel Core i7-10510U
  (482 - 856, n=45)
666 Points +179%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
319 Points +33%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
316 Points +32%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
298 Points +25%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
271 (263.32min - 271.42max) Points +13%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
261 Points +9%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
248 Points +4%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
243 (199.13min - 242.53max) Points +2%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
239 Points
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
220 Points -8%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
211 (209.9min - 211.39max) Points -12%
Blender - v2.79 BMW27 CPU
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2391 Seconds * -10%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2379 Seconds * -10%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2198 Seconds * -1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
2168 Seconds *
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1805 Seconds * +17%
Moyenne Intel Core i7-10510U
  (628 - 1051, n=31)
796 Seconds * +63%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
585 Seconds * +73%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
516 Seconds * +76%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
265 Seconds * +88%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
252.1 Seconds * +88%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
247.3 Seconds * +89%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
229.3 Seconds * +89%
wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
732 s * -3%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
714.014 s *
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
620 s * +13%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
615 s * +14%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
603 s * +16%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
566 s * +21%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
558 s * +22%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
543 s * +24%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
217.8 s * +69%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
191.4 s * +73%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
106.7 s * +85%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
98.635 s * +86%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
91.6 s * +87%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
82.9 s * +88%
32m
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
23.1 s * -1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
22.797 s *
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
19.5 s * +14%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
19.42 s * +15%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
18 s * +21%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
17.62 s * +23%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
17.37 s * +24%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
17.09 s * +25%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.78 s * +70%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5.895 s * +74%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4.4 s * +81%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.595 s * +84%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.308 s * +85%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3.194 s * +86%
X264 HD Benchmark 4.0
Pass 2
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
128 (122min - 128max) fps +715%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
116.8 (116.8min - 117.3max) fps +644%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
112 (112min - 112max) fps +613%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
111 (111min - 112max) fps +607%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
49.35 (49.1min - 51.6max) fps +214%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21.6 (21.5min - 22.1max) fps +38%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
20.55 (20.4min - 20.7max) fps +31%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
19.3 fps +23%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
16.75 (16.7min - 16.9max) fps +7%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
16.46 fps +5%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
15.7 (15.6min - 15.9max) fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
13.75 fps -12%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
11.31 fps -28%
Pass 1
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276.5 (274min - 278max) fps +232%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
271.5 (259min - 276max) fps +226%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
263.5 (262min - 266max) fps +216%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
215 (213min - 217max) fps +158%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
184.5 (184min - 186max) fps +121%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
106.5 (106min - 109max) fps +28%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
105 fps +26%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
102 (100min - 118max) fps +22%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
88.5 fps +6%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
83.4 (83.2min - 85.2max) fps
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
78.9 (77.1min - 81.7max) fps -5%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
74 fps -11%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
52.6 fps -37%
TrueCrypt
AES Mean 100MB
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 GB/s +671%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.6 GB/s +443%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +429%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.4 GB/s +429%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6.1 GB/s +336%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4.7 GB/s +236%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2.6 GB/s +86%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.9 GB/s +36%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1.9 GB/s +36%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.8 GB/s +29%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1.7 GB/s +21%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1.5 GB/s +7%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
1.4 GB/s
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1.3 GB/s -7%
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +728%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.2 GB/s +728%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.1 GB/s +659%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.1 GB/s +659%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.525 GB/s +262%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.48 GB/s +231%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.23 GB/s +59%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.21 GB/s +45%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.182 GB/s +26%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.178 GB/s +23%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.166 GB/s +14%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
0.145 GB/s
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.142 GB/s -2%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.133 GB/s -8%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +713%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2 GB/s +713%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.6 GB/s +550%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1.5 GB/s +510%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
0.919 GB/s +274%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
0.79 GB/s +221%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
0.403 GB/s +64%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
0.346 GB/s +41%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
0.283 GB/s +15%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.266 GB/s +8%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
0.262 GB/s +7%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
0.246 GB/s
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
0.245 GB/s 0%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0.199 GB/s -19%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.9 fps +1182%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.8 fps +1094%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.5 fps +1069%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.9 fps +940%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
7.86 fps +534%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6.28 fps +406%
Moyenne Intel Core i7-10510U
  (3.41 - 6.04, n=31)
4.65 fps +275%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1.65 fps +33%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.61 fps +30%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.48 fps +19%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1.46 fps +18%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
1.24 fps
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
0 fps -100%

* ... Moindre est la valeur, meilleures sont les performances

Performance Rating
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
92 pt
Moyenne de la classe Desktop

87.3 pt
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
82.4 pt
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
81.9 pt
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
81.8 pt
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
50.1 pt
Intel NUC5i3RYK -1!
Intel Core i3-5010U, HD Graphics 5500
11 pt
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
11 pt
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10.7 pt
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
10.6 pt
Moyenne Intel Pentium Gold 5405U

9.9 pt
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
4.4 pt
AIDA64 / FP32 Ray-Trace
Moyenne de la classe Desktop
  (490 - 62786, n=27, 2 dernières années)
16637 KRay/s +1755%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
15755 KRay/s +1656%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
15061 KRay/s +1579%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
13631 KRay/s +1420%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
13460 KRay/s +1401%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
7489 KRay/s +735%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
1473 KRay/s +64%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
1040 KRay/s +16%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
999 KRay/s +11%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
897 KRay/s
Moyenne Intel Pentium Gold 5405U
  (895 - 897, n=2)
896 KRay/s 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
416 KRay/s -54%
AIDA64 / FPU Julia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
100504 Points +2395%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
86825 Points +2055%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
85294 Points +2017%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
80302 Points +1893%
Moyenne de la classe Desktop
  (2932 - 264044, n=27, 2 dernières années)
78037 Points +1837%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
31637 Points +685%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
7200 Points +79%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
6611 Points +64%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6217 Points +54%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
4029 Points
Moyenne Intel Pentium Gold 5405U
  (4011 - 4029, n=2)
4020 Points 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2401 Points -40%
AIDA64 / CPU SHA3
Moyenne de la classe Desktop
  (202 - 10362, n=27, 2 dernières années)
3549 MB/s +1168%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
3444 MB/s +1130%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
2953 MB/s +955%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
2924 MB/s +944%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
2631 MB/s +840%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
2099 MB/s +650%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
417 MB/s +49%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
396 MB/s +41%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
280 MB/s
Moyenne Intel Pentium Gold 5405U
  (279 - 280, n=2)
280 MB/s 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
167 MB/s -40%
AIDA64 / CPU Queen
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
105123 Points +570%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
101697 Points +548%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
97720 Points +523%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
94655 Points +503%
Moyenne de la classe Desktop
  (8820 - 205588, n=27, 2 dernières années)
90836 Points +479%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
52477 Points +235%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
20042 Points +28%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
20014 Points +28%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
15686 Points
Moyenne Intel Pentium Gold 5405U
  (15437 - 15686, n=2)
15562 Points -1%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
14767 Points -6%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7876 Points -50%
AIDA64 / FPU SinJulia
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
14477 Points +948%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
12792 Points +826%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
12202 Points +783%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
11929 Points +763%
Moyenne de la classe Desktop
  (396 - 32855, n=27, 2 dernières années)
10690 Points +674%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
5011 Points +263%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
1382 Points
Moyenne Intel Pentium Gold 5405U
  (1378 - 1382, n=2)
1380 Points 0%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
1342 Points -3%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
1263 Points -9%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
1204 Points -13%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
397 Points -71%
AIDA64 / FPU Mandel
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
55452 Points +2601%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
47597 Points +2218%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
47010 Points +2190%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
42220 Points +1957%
Moyenne de la classe Desktop
  (1558 - 138291, n=27, 2 dernières années)
41415 Points +1917%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
18770 Points +814%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
3821 Points +86%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
3614 Points +76%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
3375 Points +64%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
2053 Points
Moyenne Intel Pentium Gold 5405U
  (2050 - 2053, n=2)
2052 Points 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
1264 Points -38%
AIDA64 / CPU AES
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
135212 MB/s +2486%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
119844 MB/s +2192%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
115382 MB/s +2107%
Moyenne de la classe Desktop
  (3778 - 379659, n=27, 2 dernières années)
102684 MB/s +1864%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
76500 MB/s +1363%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
75234 MB/s +1339%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
10604 MB/s +103%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10084 MB/s +93%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6370 MB/s +22%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
5229 MB/s
Moyenne Intel Pentium Gold 5405U
  (5222 - 5229, n=2)
5226 MB/s 0%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
4759 MB/s -9%
AIDA64 / CPU ZLib
Moyenne de la classe Desktop
  (75.2 - 2441, n=27, 2 dernières années)
894 MB/s +767%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
871 MB/s +745%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
851 MB/s +725%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
774 MB/s +651%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
747 MB/s +625%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
410 MB/s +298%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
137 MB/s +33%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
131 MB/s +27%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
103.1 MB/s
Moyenne Intel Pentium Gold 5405U
  (100 - 103.1, n=2)
101.6 MB/s -1%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
95 MB/s -8%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
60.6 MB/s -41%
AIDA64 / FP64 Ray-Trace
Moyenne de la classe Desktop
  (273 - 33821, n=27, 2 dernières années)
9035 KRay/s +1689%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
8425 KRay/s +1568%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
8242 KRay/s +1532%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
7193 KRay/s +1324%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
7184 KRay/s +1323%
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
4021 KRay/s +696%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
814 KRay/s +61%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
578 KRay/s +14%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
553 KRay/s +10%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
505 KRay/s
Moyenne Intel Pentium Gold 5405U
  (503 - 505, n=2)
504 KRay/s 0%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
213 KRay/s -58%
AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50
Intel Core i5-11320H, Iris Xe G7 96EUs
30647 MPixel/s +152%
Moyenne de la classe Desktop
  (5125 - 54037, n=27, 2 dernières années)
26041 MPixel/s +114%
Morefine S500+
AMD Ryzen 9 5900HX, Vega 8
19885 MPixel/s +64%
Minisforum HM90
AMD Ryzen 9 4900H, Vega 8
19718 MPixel/s +62%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
14978 MPixel/s +23%
Minisforum EliteMini B550
AMD Ryzen 7 5700G, Vega 8
14810 MPixel/s +22%
Nofflink M500-5405U
Intel Pentium Gold 5405U, UHD Graphics 610
12141 MPixel/s
Moyenne Intel Pentium Gold 5405U
  (7835 - 12141, n=2)
9988 MPixel/s -18%
Intel NUC5i3RYK
Intel Core i3-5010U, HD Graphics 5500
9034 MPixel/s -26%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6778 MPixel/s -44%
Beelink GK Mini
Intel Celeron J4125, UHD Graphics 600
6756 MPixel/s -44%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2501 MPixel/s -79%

Nofflink M500-5405U dans la boucle multiple de Cinebench R15

Dans notre test de charge, qui est simulé en exécutant Cinebench R15 Multi en boucle, la solution de refroidissement de Nofflink se montre capable de gérer le développement de la chaleur du Intel Pentium Gold 5405U. Nous avons mesuré un score moyen de 238 points après 50 exécutions.

050100150200250300350400450500550600650700750800850900950Tooltip
Nofflink M500-5405U Intel Pentium Gold 5405U, Intel Pentium Gold 5405U: Ø238 (236.3-238.86)
Beelink GK Mini Intel Celeron J4125, Intel Celeron J4125: Ø268 (263.32-271.42)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)
MSI Cubi 5 10M Intel Core i3-10110U, Intel Core i3-10110U: Ø315 (308.88-317.27)

Performance du système et solution de stockage

Dans notre benchmark synthétique PCMark 10, le Nofflink M500 atteint des scores assez décents malgré la faiblesse de son SoC. Cependant, il se situe dans le tiers inférieur des appareils de notre comparaison. La lecture d'une vidéo de test 4K fonctionne toujours bien. La perte d'images ne se produit qu'au début de la vidéo, sans bégaiement pendant le reste de la vidéo, pour une lecture 4K fluide. Pendant ce temps, la charge de l'iGPU fluctue entre 20 et 50 %.

Latence maximale lors de l'ouverture de plusieurs onglets de navigateur et de la lecture de vidéos 4K
Latence maximale lors de l'ouverture de plusieurs onglets de navigateur et de la lecture de vidéos 4K
Latence maximale après 10 secondes d'exécution de Prime95
Latence maximale après 10 secondes d'exécution de Prime95
Les moteurs de l'exécution la plus élevée
Les moteurs de l'exécution la plus élevée
PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points +175%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points +166%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6214 Points +163%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5565 Points +135%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
5130 Points +117%
Moyenne Intel Core i7-10510U
  (3783 - 5409, n=39)
4312 Points +82%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
4019 Points +70%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2958 Points +25%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2548 Points +8%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
2391 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
2365 Points
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1898 Points -20%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1831 Points -23%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1806 Points -24%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10196 Points +151%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9941 Points +145%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9856 Points +143%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8277 Points +104%
Moyenne Intel Core i7-10510U
  (5883 - 8567, n=39)
7255 Points +79%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6832 Points +68%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
6494 Points +60%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
5397 Points +33%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
4084 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
4056 Points
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
3854 Points -5%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3050 Points -25%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2948 Points -27%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2928 Points -28%

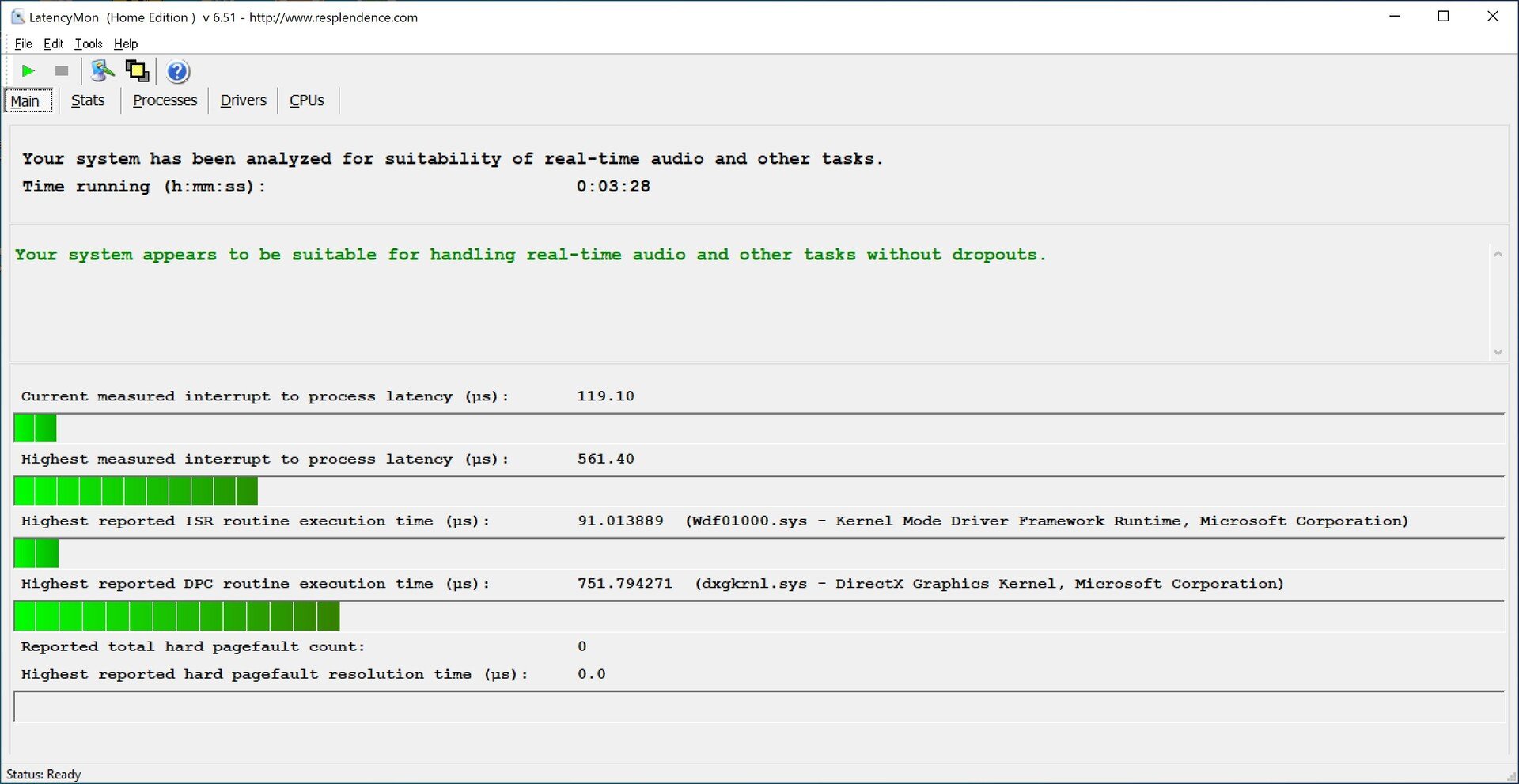

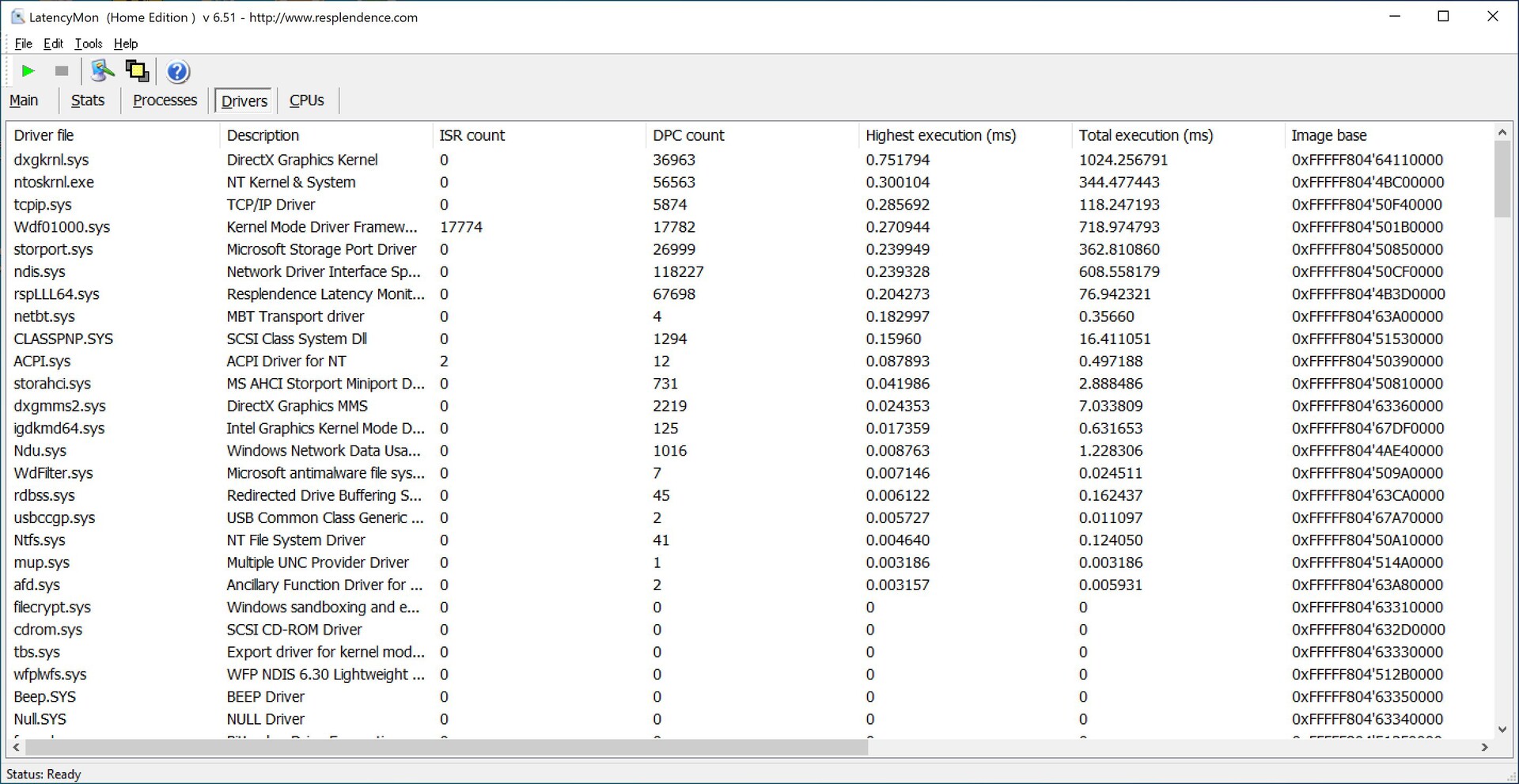

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3767 μs * -401%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
2635 μs * -251%
Moyenne Intel Core i7-10510U
  (395 - 5640, n=26)
2114 μs * -181%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1867 μs * -148%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1717 μs * -128%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs * -116%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1581 μs * -110%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1318 μs * -75%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -47%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * -47%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
751.7 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
349.5 μs * +54%

* ... Moindre est la valeur, meilleures sont les performances

Solution de stockage

Notre configuration du Nofflink M500 est équipée d'un SSD M.2 2280 de 512 Go. La plupart des utilisateurs ne connaîtront probablement pas son fabricant, Qunion. Le modèle utilise l'interface SATA et obtient des résultats solides dans nos tests. Le boîtier comporte également un emplacement pour un disque de stockage secondaire de 2,5 pouces. Tous les câbles et vis nécessaires à l'installation sont inclus.

AS SSD
AS SSD
MDP 3
MDP 3
MDP 5
MDP 5
MDP 6
MDP 6
CDI
CDI

Performances du GPU

Le célèbre Intel UHD Graphics 610 sert d'unité graphique au Nofflink M500. Avec 12 UE et une vitesse d'horloge allant jusqu'à 950 MHz, il convient uniquement aux applications 2D simples. Même les applications 3D de base peuvent amener le Intel UHD Graphics 610 à genoux. Par conséquent, les utilisateurs devraient éviter d'utiliser l'Intel Graphics 610 pour tout autre chose que les applications bureautiques pures.

3DMark 11 - 1280x720 Performance GPU
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7122 Points +666%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
6518 Points +601%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6306 Points +578%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5777 Points +521%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5567 Points +499%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points +150%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1853 Points +99%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1589 Points +71%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points +57%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points +42%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points +26%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
930 Points
Moyenne Intel HD Graphics 610
  (804 - 949, n=5)
868 Points -7%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
613 Points -34%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
602 Points -35%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
589 Points -37%
3DMark
1280x720 Ice Storm Standard Graphics
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
171104 Points +416%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
141325 Points +326%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
130976 Points +295%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
100414 Points +203%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points +87%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
60011 Points +81%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
58199 Points +76%
Moyenne Intel HD Graphics 610
  (38522 - 60904, n=4)
47069 Points +42%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points +24%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
33154 Points
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
25631 Points -23%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21465 Points -35%
1920x1080 Ice Storm Extreme Graphics
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
121736 Points +495%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
102227 Points +400%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
96874 Points +374%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
84227 Points +312%
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
50500 Points +147%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points +99%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
40532 Points +98%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points +29%
Moyenne Intel HD Graphics 610
  (21082 - 26975, n=4)
23697 Points +16%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
20602 Points +1%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
20443 Points
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14600 Points -29%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14360 Points -30%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50, Intel Core i5-11320H
3200 MHz, Intel Iris Xe Graphics G7 96EUs
4730 Points +583%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4369 Points +530%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3775 Points +445%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3414 Points +393%
Minisforum EliteMini B550, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3379 Points +388%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points +113%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1202 Points +73%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points +49%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
881 Points +27%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points +11%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points +11%
Nofflink M500-5405U, Intel Pentium Gold 5405U
2300 MHz, Intel UHD Graphics 610
693 Points
Moyenne Intel HD Graphics 610
  (556 - 657, n=4)
607 Points -12%
Beelink GK Mini, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
455 Points -34%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points -36%
GMK NucBox K1, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
433 Points -38%
3DMark 05 Standard
12054 points
3DMark 06 Standard Score
7778 points
3DMark Vantage P Result
3996 points
3DMark 11 Performance
1065 points
3DMark Ice Storm Standard Score
32825 points
3DMark Cloud Gate Standard Score
4423 points
3DMark Fire Strike Score
635 points
Aide
Bas Moyen Élevé Ultra
GTA V (2015) 28.5 25.4 5.97
The Witcher 3 (2015) 11.3 7.68 4.18
Dota 2 Reborn (2015) 63.1 31.7 12.8 11.6
Final Fantasy XV Benchmark (2018) 7.73 3.53 3.53
X-Plane 11.11 (2018) 10.9 10.5 7.28
Far Cry 5 (2018) 8 4 3
Strange Brigade (2018) 18.3 7.7 10 13.6
Far Cry New Dawn (2019) 8 4 4
F1 2020 (2020) 17.6 7.54 5.5
F1 2021 (2021) 19.7 7.88 6.26

Émissions

Bruit du système

En ce qui concerne les niveaux sonores, nous nous attendions à pouvoir mesurer de meilleurs résultats. Au ralenti, le système est souvent complètement silencieux, bien que le ventilateur puisse occasionnellement devenir sensiblement actif, même temporairement. En charge, le ventilateur produit un niveau sonore constant d'environ 39,1 dB(A). Pendant notre test de stress, nous avons mesuré une valeur encore plus élevée de 45,5 dB(A). Cela fait penser à un ordinateur portable de jeu avec un niveau de performance beaucoup plus élevé. En revanche, nous avons mesuré un maximum de 41,6 dB(A) pour le Morefine S500+ dans le même scénario.

Degré de la nuisance sonore

Au repos
30.2 / 30.2 / 30.2 dB(A)
Fortement sollicité
39.1 / 45.5 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Earthworks M23R, Arta (à 15 cm de distance)   bruit ambiant: 29.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203435.234.133.532.732.734.32533.938.53534.733.533.536.93132.641.931.632.333.733.732.14030.829.331.537.329.729.728.75031.632.932.932.833.433.4326331.132.631.831.131.331.330.88026.927.827.528.527.327.331.61003028.628.528.527.827.830.21252625.825.424.824.624.626.316024.724.523.523.723.823.825.320024.72324.223.923.223.225.625035.421.921.822.821.121.126.531524.721212120.820.836.840023.120.220.820.2202025.350025.719.719.819.319.219.225.363023.318.818.718.618.718.733.480025.718.718.518.718.118.12810002518.518.520.1181829.2125029.41817.918.517.617.633.2160031.917.517.817.516.816.836.4200029.617.818.817171736250027.417.217.816.716.816.83731502717.517.316.716.516.534.6400026.917.717.417.216.316.335.5500021.217.116.916.916.516.529.8630019.417.116.916.916.716.727.4800017.91717.117.216.816.823.71000017.517.317.417.317.217.219.91250017.617.517.61817.417.418.51600018.218.118.118.3181818.3SPL39.230.230.330.229.729.745.5N3.11.41.41.41.31.34.9median 25median 18.1median 18.5median 18.5median 18median 18median 28Delta3.81.71.722.22.25.2hearing rangehide median Fan NoiseNofflink M500-5405U

Température

Test de stress : FurMark+Prime95
Test de stress : FurMark+Prime95

Nos premiers tests de charge ont donné une impression favorable du refroidissement du SoC. Cela dit, la solution de refroidissement de l'Intel Pentium Gold 5405U est à sa limite dans notre scénario de charge extrême. HWiNFO signale un étranglement thermique, suggérant que Nofflink a défini la température maximale du SoC à environ 80 °C (176 °F). Sans les limites fixées par le fabricant, l'Intel Pentium Gold 5405U autorise une température maximale de 100 °C (212 °F). En moyenne, l'horloge du CPU, lorsque le CPU et l'iGPU sont sollicités, tombe à seulement 1,2 GHz. C'est le résultat du budget d'alimentation limité à 10 watts, que le CPU et l'iGPU doivent partager.

Comme le boîtier chauffe sensiblement sous charge, il doit être placé dans une zone bien ventilée pour permettre à la chaleur de s'échapper.

Test de stress lié au développement de la chaleur
Test de stress lié au développement de la chaleur
Test de stress lié au développement de la chaleur
Test de stress lié au développement de la chaleur
Test de stress lié au développement de la chaleur
Test de stress lié au développement de la chaleur

Consommation d'énergie

adaptateur secteur de 40 watts
adaptateur secteur de 40 watts

La consommation d'énergie est l'un des points forts du Nofflink M500. Avec une consommation bien inférieure à 20 watts, le système est très économe en énergie en mode veille. Sous une charge moyenne, nous mesurons seulement 32 watts. Au pire, l'adaptateur secteur de 40 watts, assez volumineux, doit faire face à 38,5 watts. Les réserves devraient être suffisantes pour un disque secondaire, qui consomme également de l'énergie.

Consommation énergétique
Au reposdarkmidlight 8.1 / 8.6 / 16.2 Watts
Fortement sollicité midlight 32.1 / 38.5 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Consumption external Monitor

0510152025Tooltip
Nofflink M500-5405U; Prime95 V2810 Stress (external Monitor): Ø23.6 (22.7-24.2)
Nofflink M500-5405U; Cinebench R15 Multi (external Monitor): Ø21 (18.9-21.5)
Nofflink M500-5405U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø28.2 (27.9-30)
Nofflink M500-5405U; Idle 1min (external Monitor): Ø8.68 (8.13-16.3)

Points positifs

+ construction compacte
+ conception attrayante
+ bonne sélection de ports
+ abordable
+ efficace sur le plan énergétique
+ deux emplacements pour disque dur
+ performances Wi-Fi constantes

Points négatifs

- solution de refroidissement proche de sa limite sous charge
- pas de lecteur de carte SD

Verdict - Un PC de bureau compact avec de petits inconvénients

Nofflink M500-5405U, avec l'aimable autorisation de Nofflink
Nofflink M500-5405U, avec l'aimable autorisation de Nofflink

Le Nofflink M500-5405U est un mini PC très compact. Ce PC à petit facteur de forme est basé sur le processeur Intel Pentium Gold 5405U n'est pas adapté à des charges trop exigeantes. Malheureusement, le fabricant n'a pas opté pour l'un des derniers SoC du marché et cela se voit. Le processeur dual-core natif se comporte tout de même admirablement lors de nos tests. Cela étant dit, cette configuration du Nofflink M500 n'est pas adaptée à des tâches autres que la bureautique pure, la navigation sur Internet ou le streaming vidéo. À cet égard, le Intel Core i7-10510U a beaucoup plus de potentiel.

Bien qu'il soit agréable de disposer de 32 Go de RAM, ce n'est pas beaucoup plus que cela, car il est peu probable que la plupart des utilisateurs profitent de la capacité élevée de la RAM dans cette configuration. Ainsi, une configuration avec 16 Go de RAM sera probablement un meilleur choix et même à 8 Go, cela correspond à la quantité standard de mémoire système de la plupart des appareils de bureau compacts.

Le Nofflink M500 est un PC de bureau compact doté de nombreux ports externes. Malheureusement, le fait de ne pas utiliser de SoC plus modernes laisse de côté une grande partie du potentiel de performance.

Le M500 offre de bonnes options de connectivité, toutes les principales interfaces externes étant présentes. L'absence d'un lecteur de cartes peut être comblée à l'aide d'un adaptateur USB grâce à la quantité suffisante de ports disponibles.

Le plus gros inconvénient du Nofflink M500 que nous avons rencontré est la solution de refroidissement, qui atteint rapidement ses limites sous charge. Cela se traduit également par des niveaux sonores importants dans les scénarios exigeants. Ici, le Newsmay AC8 de Newsmay peut être une bonne alternative, puisqu'il est refroidi passivement. De même, le Cubi M5 de MSI mérite d'être examiné de plus près. Plusieurs modèles sont disponibles sur Amazon à partir de 440 USD. Le Nofflink M500-5405U coûte actuellement environ 400 USD. De plus, il est uniquement disponible via la boutique en ligne du fabricant https://www.nofflink.com/products/nofflink-m500-10510u-mini-pc-tht9?spm=..product_cbd45cce-a340-4899-887a-a3a69c2384a4.header_1.1&spm_prev=..404.header_1.1&variant=99e16d7b-ca78-4ff4-a505-cac1cc6ed519.

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Test du Nofflink M500 : PC de bureau et client de streaming économe en énergie avec SoC Intel et 32 Go de RAM
Sebastian Bade, 2022-06-29 (Update: 2022-06-30)
