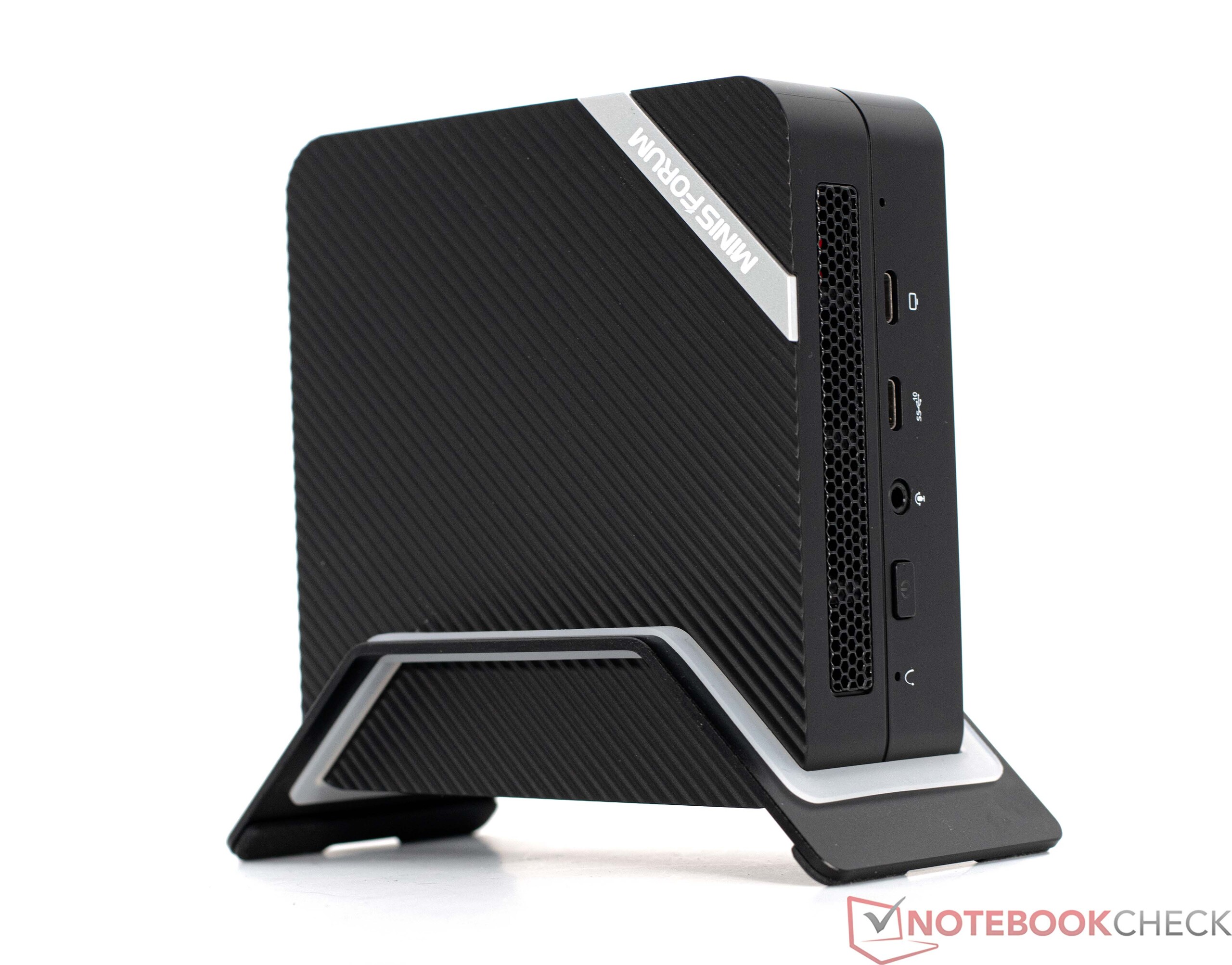

Test du Minisforum Venus Series UM560 XT : mini PC abordable avec SoC AMD Cezanne

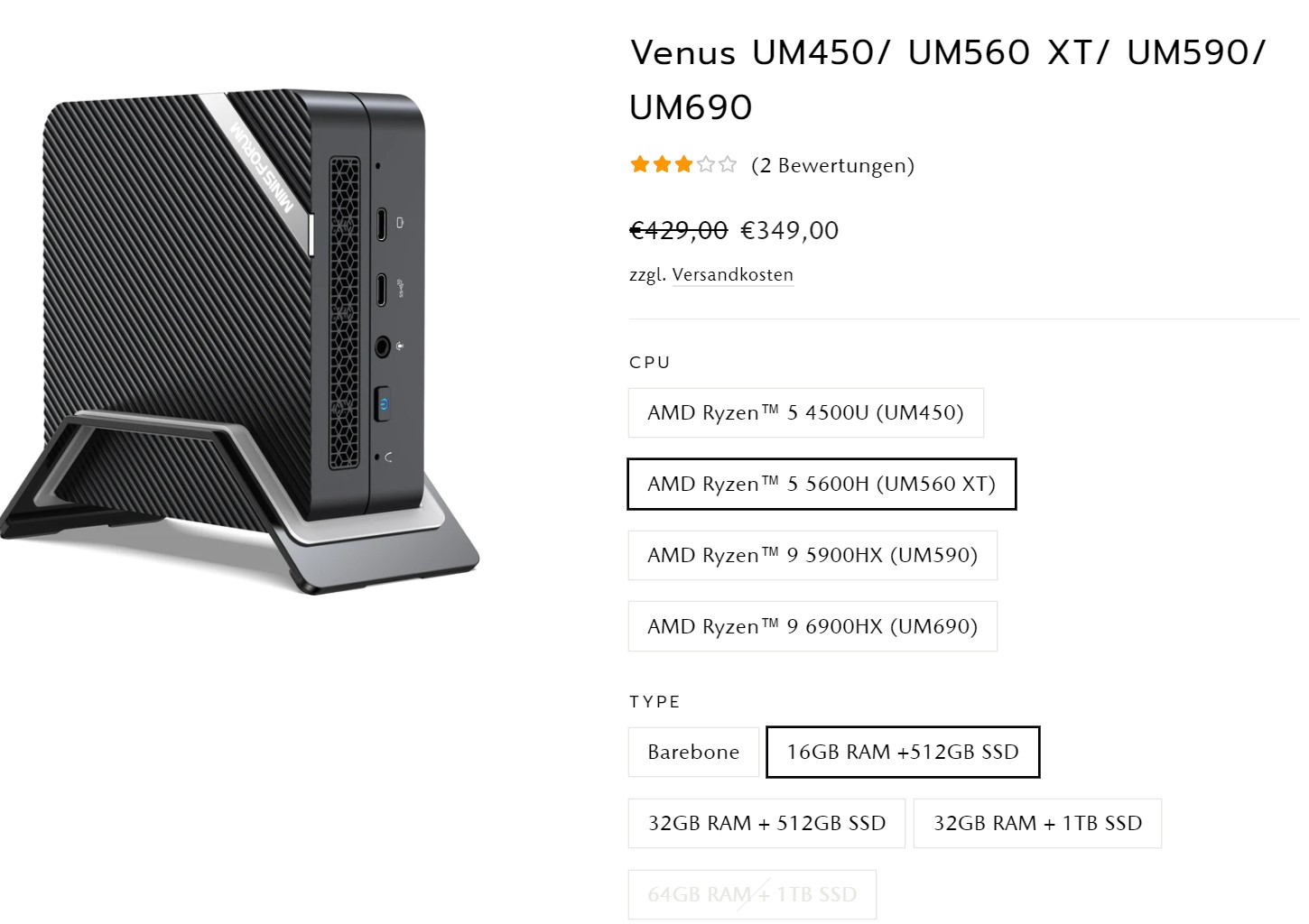

Configurations Minisforum Venus Series UM560 XT (source : Minisforum)

En début d'année, nous avons jeté un coup d'œil sur le Minisforum Venus Series UM690. Outre le modèle haut de gamme basé sur l'AMD Ryzen 9 6900HX, le fabricant chinois de mini-PC propose d'autres configurations. Basé sur l'AMD Ryzen 5 5600H, le UM560 XT est disponible dans le même boîtier et à un prix nettement inférieur. Bien sûr, il n'est pas juste de comparer les performances de la machine native à six cœurs avec le modèle supérieur, mais à 419 $ avec 16 Go de RAM et un SSD de 512 Go, c'est une proposition intéressante. Dans la version la plus dépouillée, il est possible d'économiser 90 dollars supplémentaires. Toutefois, c'est à l'utilisateur de s'occuper de la RAM et du SSD.

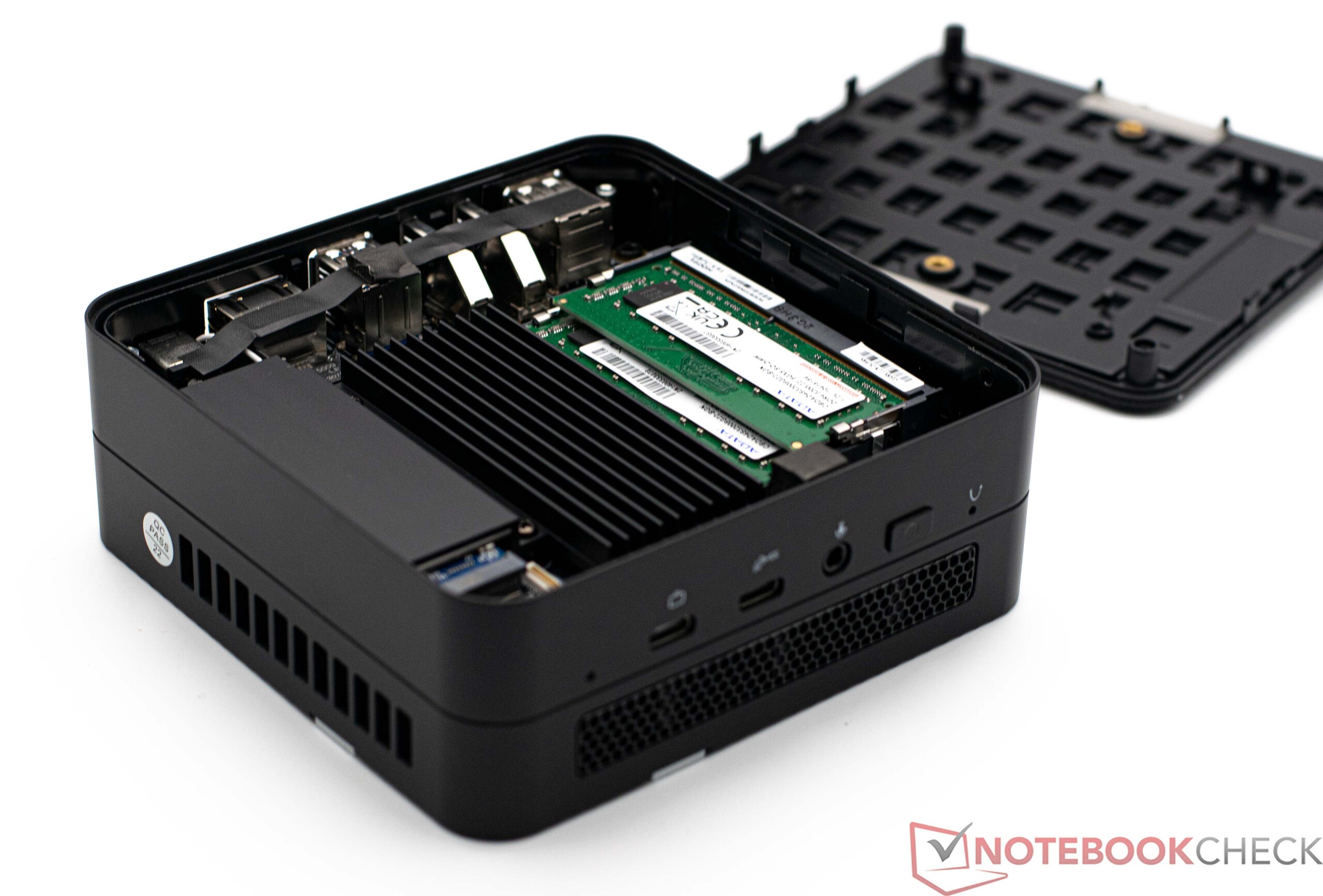

Le Minisforum Venus Series UM560 XT est bien équipé. Tous les éléments nécessaires à la mise en route de l'appareil sont inclus. L'appareil est également livré avec une plaque permettant de le fixer à un moniteur (support Vesa). Dans cet article, nous examinons de près les performances du modèle d'évaluation par rapport au modèle supérieur, un appareil qui coûte près de 400 dollars de plus. Cette différence de prix est-elle justifiée ou le modèle d'entrée de gamme est-il suffisant ? Et quels sont les changements en détail ? En outre, le Minisforum Venus Series UM560 XT doit non seulement faire face à ses propres concurrents, mais aussi à la forte concurrence de Geekom, Morefine et Intel dans cette catégorie de prix. Le tableau suivant en dresse la liste.

Note	Date	Modèle	Poids	Épaisseur
81.7 %	05/23	Minisforum Venus Series UM560 XT (5600H) R5 5600H, Vega 7	652 g	48 mm
	09/22	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
79.5 %	02/23	Minisforum Mars Series MC560 R5 5600U, Vega 7	562 g	66 mm
81.9 %	05/23	Minisforum Venus Series NAB6, i7-12650H i7-12650H, UHD Graphics 64EUs	616 g	55 mm
85.5 %	03/23	Morefine M600, 6900HX R9 6900HX, Radeon 680M	779 g	40.6 mm
86.1 %	02/23	Minisforum Venus Series UM690 (6900HX) R9 6900HX, Radeon 680M	621 g	48 mm
82.3 %	05/23	Geekom Mini IT12, i7-1260P i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
86.6 %	01/23	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
83.7 %	05/23	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm

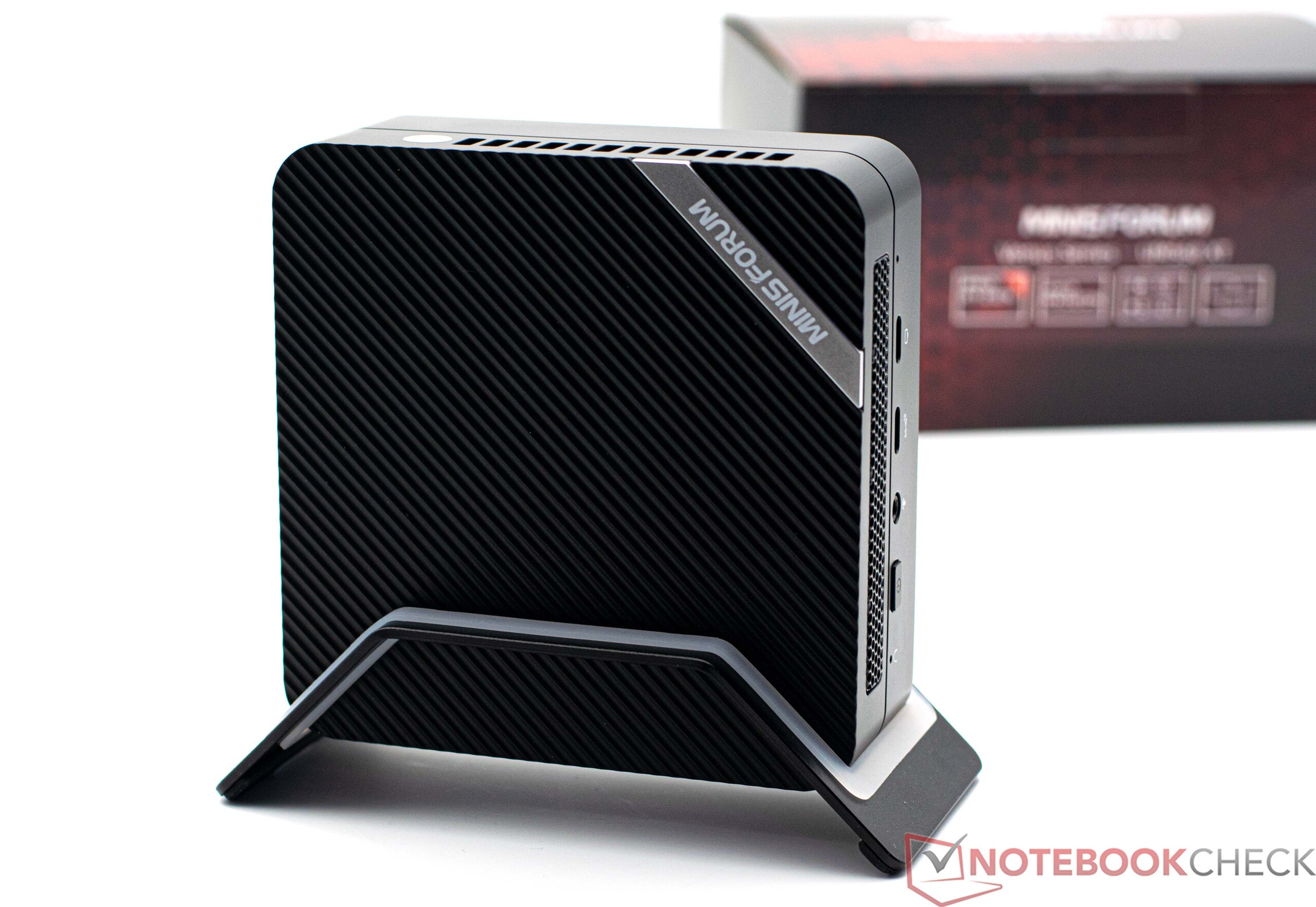

Cas

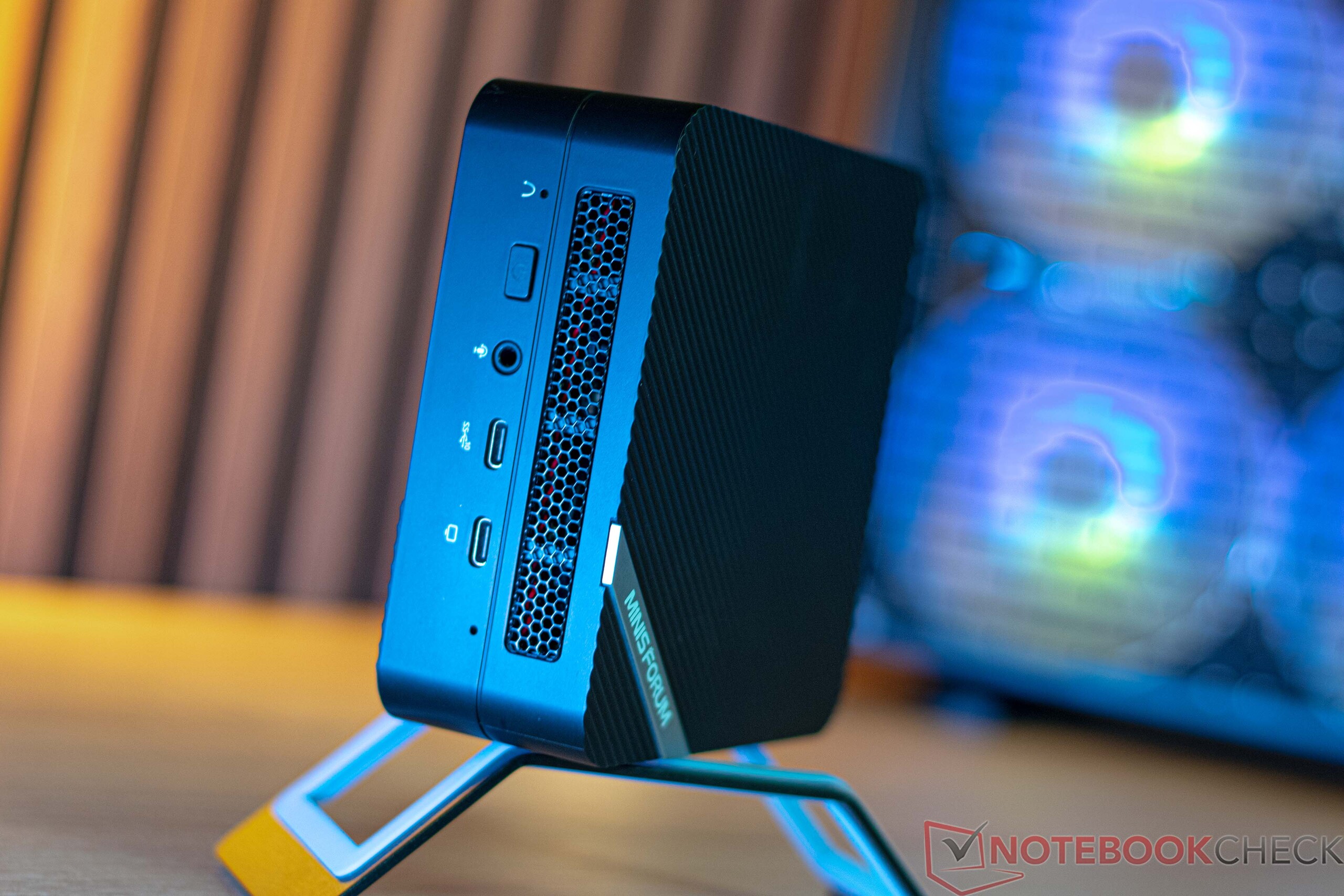

Le Minisforum UM560 XT est similaire au Minisforum UM690 avec un AMD Ryzen 9 6900HX. De plus amples détails concernant le boîtier peuvent être trouvés ici dans notre revue du modèle supérieur.

Comparaison des tailles

Caractéristiques

À première vue, le Minisforum Venus Series UM560 XT offre les mêmes caractéristiques que le modèle UM690. Toutefois, la prise en charge de l'USB4 n'est pas assurée. Cela signifie que le type d'extensions possibles via Thunderbolt n'est pas possible ici. Néanmoins, six ports USB sont heureusement disponibles. En outre, trois moniteurs peuvent être utilisés simultanément si le port USB-C situé à l'avant de l'appareil est également utilisé.

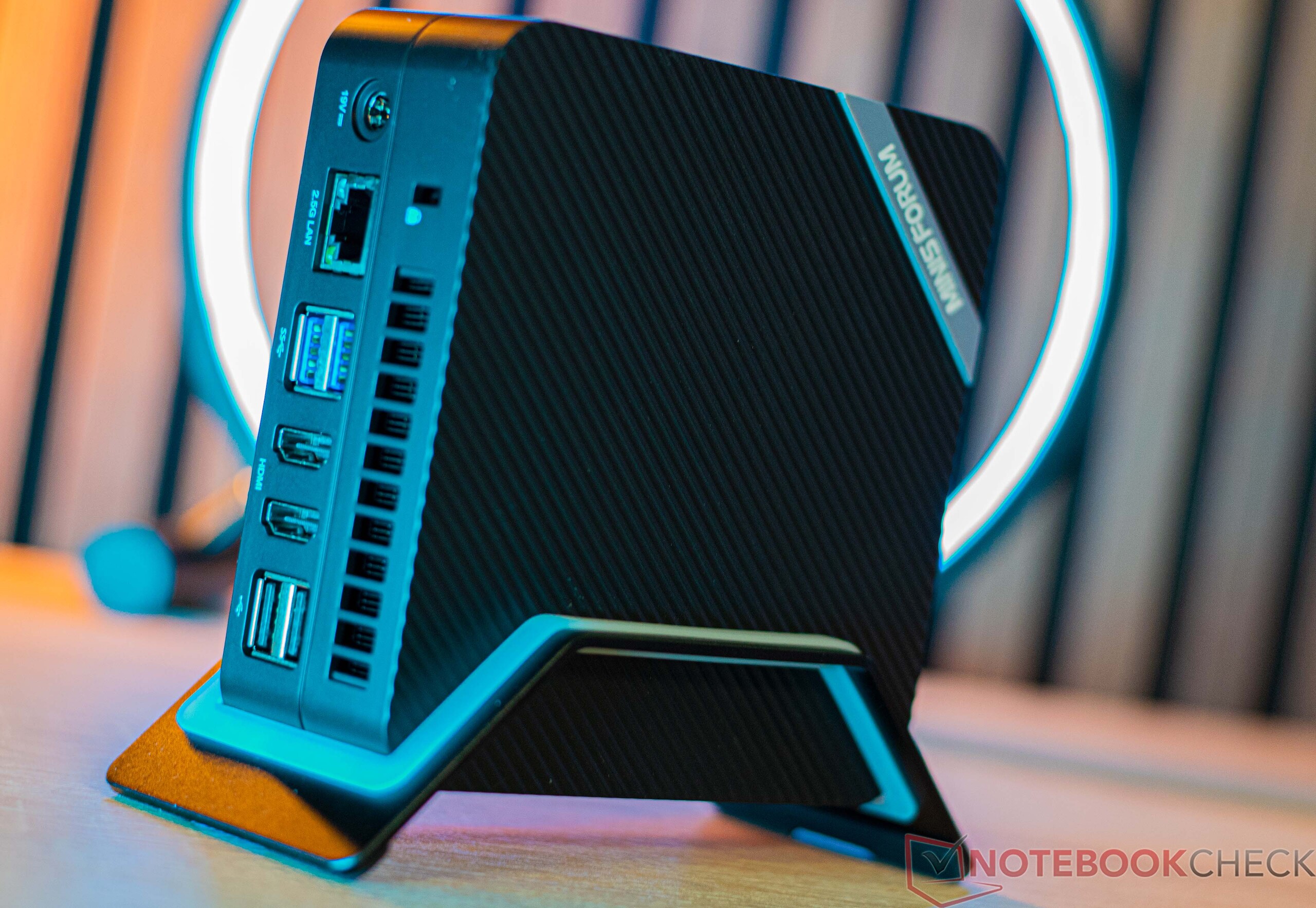

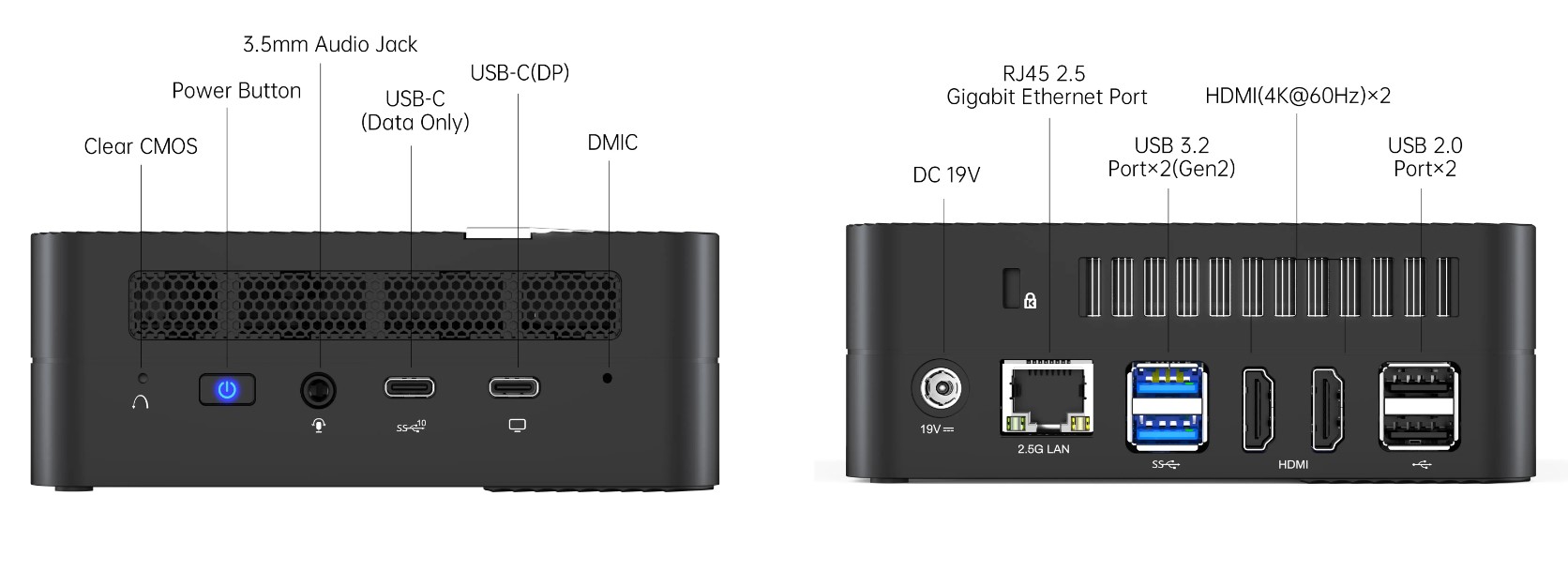

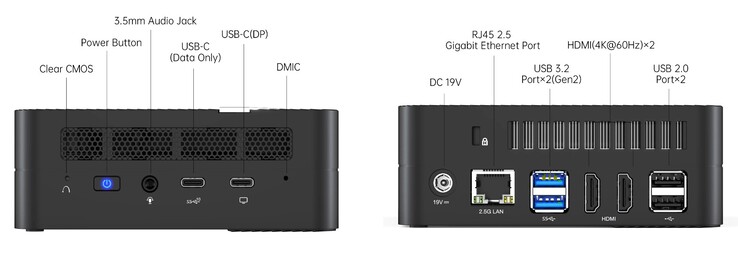

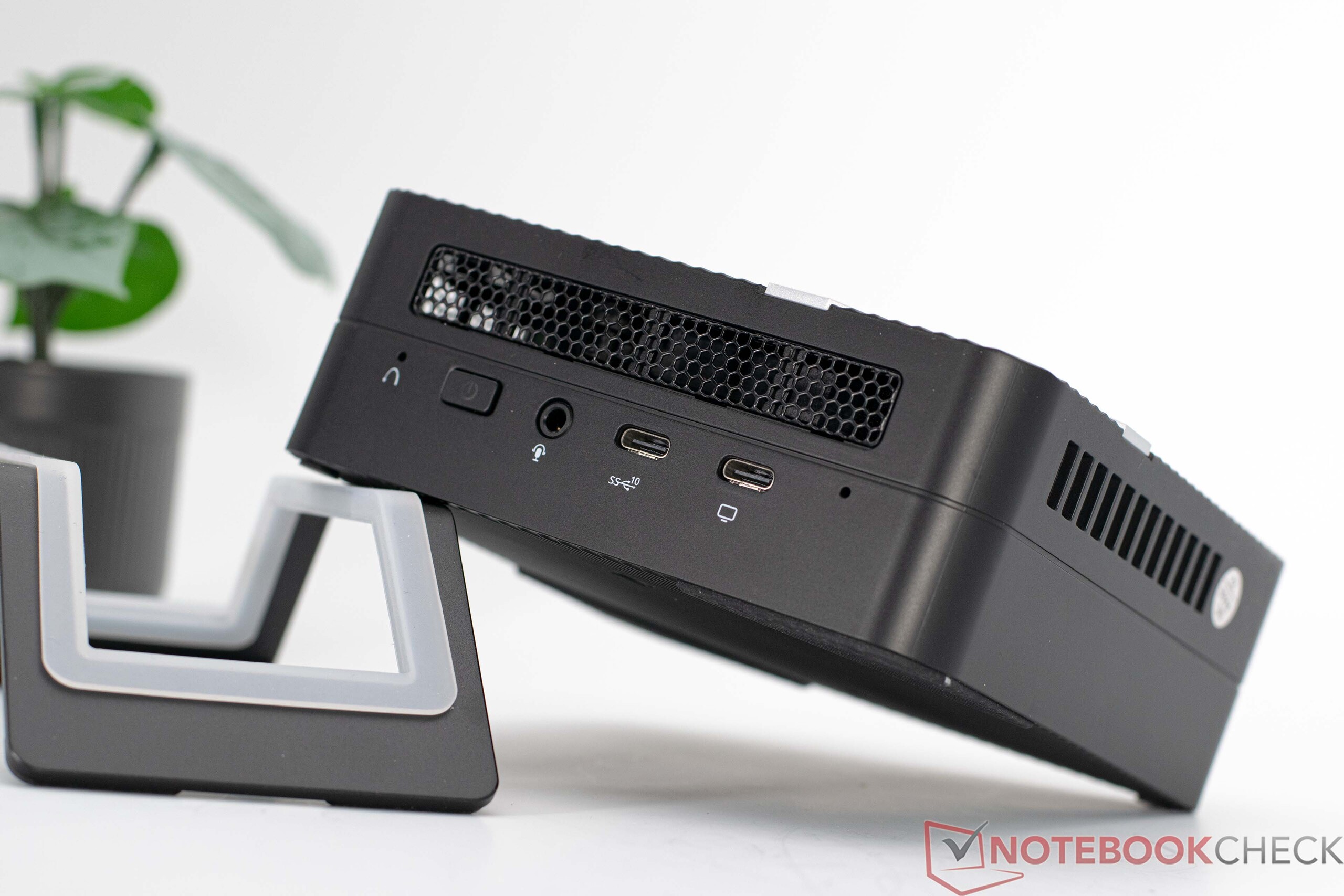

Ports externes sur le Minisforum Venus Series UM560 XT (source : Minisforum)

Communication

Minisforum Série Venus UM560 XT module Wi-Fi

Minisforum a équipé l'UM560 XT du même module Wi-Fi 6E que celui qui équipe l'UM690 XT UM690. Lors des tests pratiques, le module Mediatek s'est bien comporté. Pour les tests, nous avons utilisé la carte Asus ROG Rapture GT-AXE11000. Pour des connexions de données plus rapides, il est possible d'utiliser le port LAN, qui permet des transferts de données jusqu'à un maximum de 2,5 GBit/s.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s ∼100% +48%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	956 (944^min - 963^max) MBit/s ∼73% +7%
Minisforum Mars Series MC560 MediaTek RZ608	949 (924^min - 954^max) MBit/s ∼72% +7%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s ∼72% +7%
Geekom Mini IT12, i7-1260P Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s ∼72% +6%
Morefine M600, 6900HX MediaTek RZ608	929 (874^min - 946^max) MBit/s ∼70% +4%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s ∼69% +1%
Minisforum Venus Series UM560 XT (5600H) MediaTek RZ608	890 (851^min - 908^max) MBit/s ∼68%
Moyenne MediaTek RZ608 (430 - 975, n=13)	885 MBit/s ∼67% -1%
Moyenne de la classe Mini PC (192.9 - 1688, n=32, 2 dernières années)	848 MBit/s ∼64% -5%
Minisforum Venus Series NAB6, i7-12650H MediaTek RZ608	787 (752^min - 801^max) MBit/s ∼60% -12%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s ∼100% +59%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s ∼73% +17%
Morefine M600, 6900HX MediaTek RZ608	964 (924^min - 990^max) MBit/s ∼73% +16%
Minisforum Venus Series UM690 (6900HX) MediaTek RZ608	943 (477^min - 981^max) MBit/s ∼71% +14%
Minisforum Mars Series MC560 MediaTek RZ608	936 (873^min - 988^max) MBit/s ∼71% +13%
Geekom Mini IT12, i7-1260P Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s ∼70% +11%
Moyenne MediaTek RZ608 (572 - 979, n=13)	862 MBit/s ∼65% +4%
Minisforum Venus Series UM560 XT (5600H) MediaTek RZ608	829 (775^min - 889^max) MBit/s ∼63%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s ∼59% -5%
Moyenne de la classe Mini PC (184.1 - 1491, n=32, 2 dernières années)	771 MBit/s ∼58% -7%
Minisforum Venus Series NAB6, i7-12650H MediaTek RZ608	626 (301^min - 689^max) MBit/s ∼47% -24%

Minisforum Venus Series UM560 XT (5600H); iperf3 receive AXE11000; iperf 3.1.3: Ø889 (851-908)

Minisforum Venus Series UM560 XT (5600H); iperf3 transmit AXE11000; iperf 3.1.3: Ø829 (775-889)

Performance - AMD basée sur la génération Cezanne

Dans le Minisforum Venus Series UM560 XT, un AMD Ryzen 5 5600H avec six cœurs et douze threads, permet à l'appareil d'être bien équipé pour les tâches professionnelles quotidiennes. La bureautique, le multimédia et le streaming sont les principaux objectifs de ce mini-PC. Avec l'AMD Radeon RX Vega 7, nous avons un bon iGPU qui supporte bien le SoC.

Conditions d'essai

Pour tous les tests de performance, nous avons choisi le profil énergétique High Performance. Nous ne nous en sommes écartés que pour les mesures d'énergie et de volume, conformément à nos critères de test. Les performances du processeur n'ont pas été modifiées dans le BIOS et nous n'avons pas non plus modifié la courbe du ventilateur en ce qui concerne le refroidissement.

Processeur

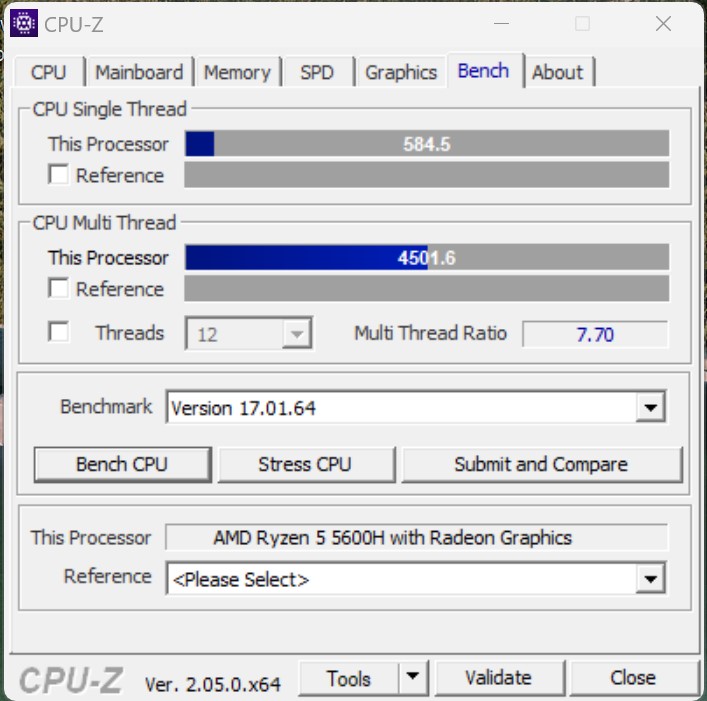

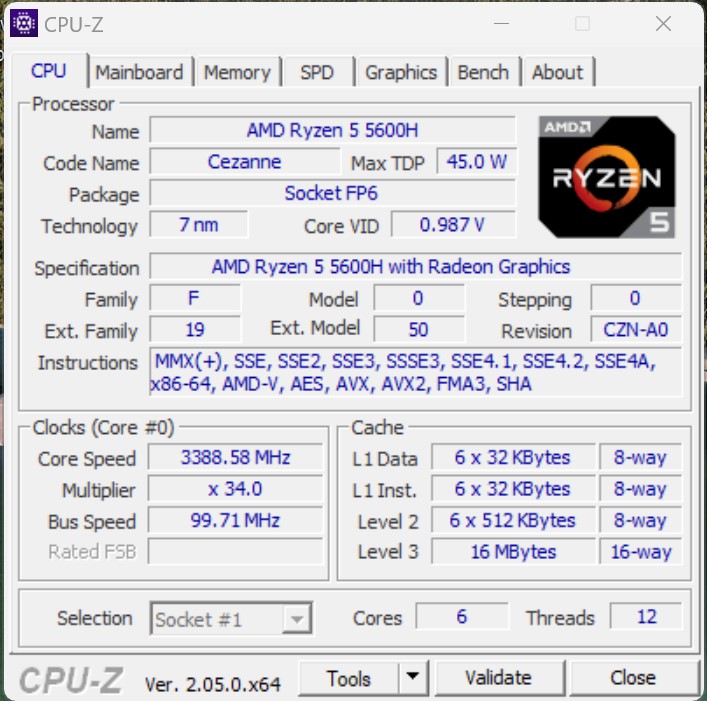

Le AMD Ryzen 5 5600H appartient à la série Cezanne d'AMD et offre six cœurs avec un total de douze threads. Comparé au modèle supérieur avec AMD Ryzen 9 6900HX, le Minisforum Venus Series UM560 XT perd 13 % dans notre évaluation des performances, ce qui correspond à la valeur moyenne de tous les benchmarks de CPU dans cette comparaison. Cependant, par rapport à la concurrence, notre échantillon d'évaluation se maintient à merveille. En fait, le Minisforum Venus Series UM560 XT offre des performances similaires à celles du Geekom Mini IT12 avec un Intel Core i7-1260P. De plus, le Morefine M600 6600U reste sous contrôle. Néanmoins, notre appareil d'examen n'a fourni qu'une performance marginalement meilleure, qui ne peut être réellement détectée que dans les conditions de test.

D'autres tests de performance du processeur sont disponiblesici.

Performance Rating - Percent
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	52.7 pt ∼53%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	52.4 pt ∼52%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	52.4 pt ∼52%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	50.5 pt ∼51%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	47.6 pt ∼48%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	46.5 pt ∼47%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	45.8 pt ∼46%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	44 pt ∼44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	43.6 pt ∼44%

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	261 Points ∼80% +16%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	260 Points ∼79% +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points ∼75% +10%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	244 Points ∼74% +8%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	241 Points ∼73% +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points ∼69% +1%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	225 Points ∼69%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points ∼68% -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	223 Points ∼68% -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	2231 Points ∼23% +40%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points ∼21% +30%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1920 Points ∼20% +20%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	1893 Points ∼20% +19%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	1596 Points ∼16%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	1565 Points ∼16% -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points ∼14% -15%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1356 Points ∼14% -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points ∼13% -21%

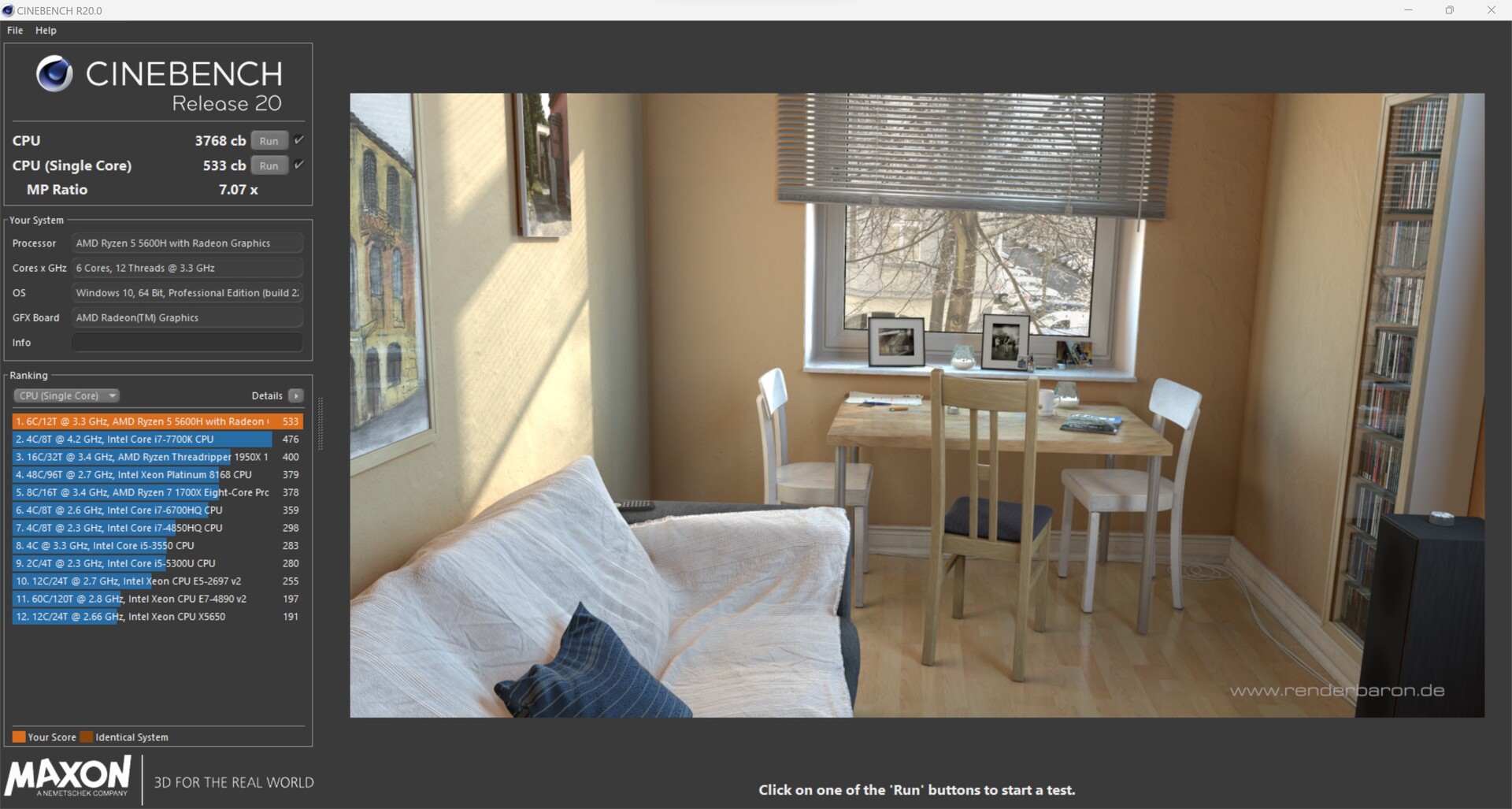

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	696 Points ∼80% +31%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points ∼78% +28%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	652 Points ∼75% +22%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	629 Points ∼72% +18%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 Points ∼69% +13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points ∼64% +5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	535 Points ∼61% 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points ∼61% 0%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	533 Points ∼61%
CPU (Multi Core)
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	5328 Points ∼23% +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points ∼21% +31%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4788 Points ∼20% +27%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	4781 Points ∼20% +27%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	3768 Points ∼16%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	3427 Points ∼15% -9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points ∼15% -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	3189 Points ∼14% -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points ∼13% -21%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	3.14 Points ∼10% +19%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points ∼10% +17%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	2.93 Points ∼9% +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.88 Points ∼9% +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points ∼9% +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points ∼9% +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points ∼8% 0%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	2.63 Points ∼8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	2.61 Points ∼8% -1%
CPU Multi 64Bit
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points ∼37% +41%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points ∼37% +39%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.66 Points ∼33% +27%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	22.08 Points ∼31% +18%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	20.06 Points ∼28% +7%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	18.68 Points ∼26%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points ∼24% -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	15.96 Points ∼23% -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points ∼21% -21%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	14533 Points ∼79% +30%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	13568 Points ∼74% +21%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	12943 Points ∼71% +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points ∼70% +15%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12185 Points ∼66% +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points ∼64% +4%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	11201 Points ∼61%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	11132 Points ∼61% -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points ∼60% -1%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points ∼56% +30%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	76758 Points ∼55% +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	69797 Points ∼50% +17%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	68516 Points ∼49% +15%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	59479 Points ∼43%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points ∼39% -8%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	53950 Points ∼39% -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	50831 Points ∼37% -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points ∼33% -24%

Blender - v2.79 BMW27 CPU
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	426 Seconds * ∼3% -34%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * ∼3% -30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * ∼3% -25%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	319 Seconds * ∼2%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	285 Seconds * ∼2% +11%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	279 Seconds * ∼2% +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * ∼2% +14%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds * ∼2% +27%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	231 Seconds * ∼2% +28%

wPrime 2.10
32m
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * ∼1% -18%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	4.848 s * ∼1% -7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * ∼1% -3%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	4.552 s * ∼1%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	4.485 s * ∼1% +1%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	3.705 s * ∼1% +19%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.642 s * ∼1% +20%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	3.461 s * ∼1% +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * ∼1% +25%
1024m
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	410.289 s * ∼5% -218%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	237.123 s * ∼3% -84%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * ∼2% -46%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * ∼2% -21%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	147.807 s * ∼2% -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * ∼2% -13%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	129.204 s * ∼2%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	103.226 s * ∼1% +20%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	93.19 s * ∼1% +28%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps ∼73% +24%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps ∼62% +4%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	258.5 (256^min - 268^max) fps ∼61% +3%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	251.21 fps ∼59%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps ∼58% -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	236 (235^min - 246^max) fps ∼55% -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps ∼55% -7%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps ∼53% -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps ∼50% -16%
Pass 2
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps ∼47% +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps ∼46% +32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114 (111.2^min - 119.4^max) fps ∼42% +20%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps ∼41% +17%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	95.18 fps ∼35%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	80.95 (76.3^min - 82.4^max) fps ∼30% -15%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps ∼28% -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps ∼28% -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps ∼26% -25%

WinRAR - Result
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	9090 KB/s ∼53% +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s ∼46% +6%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	7497 KB/s ∼43%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s ∼40% -7%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s ∼40% -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s ∼40% -8%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6858 KB/s ∼40% -9%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6795 KB/s ∼39% -9%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	6559 KB/s ∼38% -13%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s ∼41% +43%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12.1 GB/s ∼37% +29%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	10.4 GB/s ∼32% +11%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	10.1 GB/s ∼31% +7%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	9.4 GB/s ∼29%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s ∼29% -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s ∼26% -9%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	8.3 GB/s ∼26% -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s ∼24% -18%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s ∼0% +54%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s ∼0% +38%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	1.8 GB/s ∼0% +38%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	1.8 GB/s ∼0% +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.6 GB/s ∼0% +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s ∼0% 0%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	1.3 GB/s ∼0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1.2 GB/s ∼0% -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s ∼0% -15%
Serpent Mean 100MB
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s ∼0% +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s ∼0% +28%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	1.1 GB/s ∼0% +28%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	1 GB/s ∼0% +17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s ∼0% +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s ∼0% 0%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	0.857 GB/s ∼0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.796 GB/s ∼0% -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s ∼0% -18%

Geekbench 5.4
Multi-Core
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9706 Points ∼34% +34%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points ∼34% +34%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	9363 Points ∼33% +29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9151 Points ∼32% +26%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	8918 Points ∼31% +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points ∼27% +6%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	7253 Points ∼25%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6523 Points ∼23% -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points ∼21% -15%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points ∼81% +29%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	1782 Points ∼77% +23%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	1767 Points ∼76% +22%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1634 Points ∼71% +13%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1547 Points ∼67% +7%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points ∼65% +4%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	1443 Points ∼62%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points ∼62% -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1427 Points ∼62% -1%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	10249 Points ∼32% +44%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	10249 Points ∼32% +44%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points ∼32% +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points ∼30% +36%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9638 Points ∼30% +35%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	9099 Points ∼29% +28%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	7128 Points ∼22%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	6479 Points ∼20% -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points ∼19% -14%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points ∼8% +32%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	1736 Points ∼8% +25%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	1593 Points ∼7% +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1557 Points ∼7% +12%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	1557 Points ∼7% +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points ∼7% +12%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	1393 Points ∼6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points ∼6% -1%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	1371 Points ∼6% -2%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points ∼83% +31%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	7705 Points ∼80% +26%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6804 Points ∼70% +11%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6698 Points ∼69% +9%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	6698 Points ∼69% +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points ∼69% +9%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	6117 Points ∼63%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5918 Points ∼61% -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points ∼60% -4%
64 Bit Multi-Core Score
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	39852 Points ∼44% +37%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	39852 Points ∼44% +37%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points ∼44% +37%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	38566 Points ∼43% +33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points ∼41% +27%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	34909 Points ∼39% +20%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	28997 Points ∼32%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	25738 Points ∼29% -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points ∼27% -16%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points ∼50% +27%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	18363 Points ∼50% +27%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	18277 Points ∼49% +26%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15855 Points ∼43% +9%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	14496 Points ∼39%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	13130 Points ∼35% -9%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	13067 Points ∼35% -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points ∼34% -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points ∼31% -20%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS ∼38% +32%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56923 MIPS ∼35% +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS ∼32% +10%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	47893 MIPS ∼30% +3%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	46562 MIPS ∼29%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS ∼27% -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	40318 MIPS ∼25% -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS ∼24% -16%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	37570 MIPS ∼23% -19%
7z b 4 -mmt1
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	6116 MIPS ∼73% +14%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS ∼73% +13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS ∼72% +12%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5591 MIPS ∼67% +4%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	5577 MIPS ∼67% +4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS ∼66% +2%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	5369 MIPS ∼64%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS ∼63% -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5161 MIPS ∼62% -4%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps ∼37% +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.4 fps ∼33% +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps ∼30% +14%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	13.6 fps ∼29% +10%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	12.4 fps ∼27%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps ∼25% -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	10.2 fps ∼22% -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps ∼22% -19%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	10.1 fps ∼22% -19%

R Benchmark 2.5 - Overall mean
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	0.548 sec * ∼12% -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * ∼12% -2%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	0.526 sec * ∼11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * ∼11% +3%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4881 sec * ∼11% +7%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec * ∼10% +10%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	0.4718 sec * ∼10% +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * ∼10% +12%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	0.462 sec * ∼10% +12%

LibreOffice - 20 Documents To PDF
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	57.5 s * ∼15% -1%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	56.7 s * ∼14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	53.4 s * ∼13% +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * ∼13% +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * ∼13% +10%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	48.8 s * ∼12% +14%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	48.1 s * ∼12% +15%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	39.6 s * ∼10% +30%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * ∼10% +33%

WebXPRT 3 - ---
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points ∼72% +15%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	309 Points ∼72% +14%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	292 Points ∼68% +8%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	287 Points ∼66% +6%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	287 Points ∼66% +6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points ∼63% +1%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	270 Points ∼63%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	263 Points ∼61% -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points ∼59% -6%

Mozilla Kraken 1.1 - Total Score
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	659 ms * ∼1% -1%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	651 ms * ∼1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * ∼1% +1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * ∼1% +5%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	605 ms * ∼1% +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * ∼1% +11%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	571 ms * ∼1% +12%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	539 ms * ∼1% +17%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	519 ms * ∼1% +20%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	25456 Points ∼47% +21%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22441 Points ∼41% +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points ∼40% +1%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	21110 Points ∼39%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	21001 Points ∼39% -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points ∼34% -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points ∼32% -17%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	16412 Points ∼30% -22%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	15903 Points ∼29% -25%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	25915 Points ∼48% +23%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22426 Points ∼41% +7%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	22346 Points ∼41% +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points ∼41% +6%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	21025 Points ∼39%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points ∼33% -14%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	17499 Points ∼32% -17%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	16568 Points ∼31% -21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points ∼29% -24%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points ∼52% +56%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, 3300 MHz	9354 Points ∼46% +38%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, 1700 MHz	9168 Points ∼45% +35%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, 3300 MHz	8622 Points ∼43% +27%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, 3300 MHz	6767 Points ∼33%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, 1500 MHz	6487 Points ∼32% -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points ∼27% -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points ∼25% -24%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, 2300 MHz	5077 Points ∼25% -25%

* ... Moindre est la valeur, meilleures sont les performances

Performance Rating
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	99.3 pt ∼99%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	85.9 pt ∼86%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	71.2 pt ∼71%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt ∼71%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	69.4 pt ∼69%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	62.8 pt ∼63%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	62.3 pt ∼62%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	60.2 pt ∼60%
Moyenne de la classe Mini PC	57.2 pt ∼57%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	57 pt ∼57%

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s ∼100% +33%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	13757 KRay/s ∼91% +21%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	11347 KRay/s ∼75%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s ∼73% -3%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s ∼72% -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s ∼63% -16%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	9406 KRay/s ∼62% -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s ∼60% -20%
Moyenne de la classe Mini PC (561 - 15814, n=41, 2 dernières années)	8458 KRay/s ∼56% -25%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s ∼53% -30%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	98980 Points ∼100% +40%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	87663 Points ∼89% +24%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	70782 Points ∼72%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	60111 Points ∼61% -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points ∼60% -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points ∼58% -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points ∼56% -22%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points ∼55% -23%
Moyenne de la classe Mini PC (3604 - 99936, n=41, 2 dernières années)	48021 Points ∼49% -32%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points ∼41% -43%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s ∼100% +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	2931 MB/s ∼85% +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s ∼74% +8%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	2360 MB/s ∼68%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s ∼68% 0%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	2065 MB/s ∼60% -12%
Moyenne de la classe Mini PC (225 - 3570, n=41, 2 dernières années)	2011 MB/s ∼58% -15%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s ∼58% -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s ∼58% -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s ∼57% -16%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	103686 Points ∼100% +37%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	100293 Points ∼97% +32%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points ∼82% +13%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points ∼80% +9%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	75724 Points ∼73%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points ∼73% -1%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points ∼71% -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	70563 Points ∼68% -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points ∼65% -11%
Moyenne de la classe Mini PC (8178 - 104437, n=41, 2 dernières années)	65697 Points ∼63% -13%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	13101 Points ∼100% +46%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	12396 Points ∼95% +38%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	8952 Points ∼68%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points ∼67% -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	8507 Points ∼65% -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points ∼63% -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points ∼58% -16%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points ∼57% -17%
Moyenne de la classe Mini PC (408 - 13164, n=41, 2 dernières années)	6787 Points ∼52% -24%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points ∼42% -38%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	52710 Points ∼100% +35%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	44629 Points ∼85% +14%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	38989 Points ∼74%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	33084 Points ∼63% -15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points ∼62% -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points ∼60% -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points ∼53% -28%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points ∼51% -31%
Moyenne de la classe Mini PC (1958 - 55002, n=41, 2 dernières années)	25478 Points ∼48% -35%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points ∼38% -49%

AIDA64 / CPU AES
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s ∼100% +44%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s ∼73% +5%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	95057 MB/s ∼70%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s ∼68% -3%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	82315 MB/s ∼60% -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s ∼57% -18%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s ∼55% -21%
Moyenne de la classe Mini PC (3778 - 136723, n=41, 2 dernières années)	67142 MB/s ∼49% -29%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	56199 MB/s ∼41% -41%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s ∼29% -58%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s ∼100% +41%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	745 MB/s ∼86% +21%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s ∼85% +19%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s ∼78% +10%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	614 MB/s ∼71%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s ∼67% -6%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	531 MB/s ∼62% -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s ∼61% -14%
Moyenne de la classe Mini PC (74.8 - 982, n=41, 2 dernières années)	521 MB/s ∼60% -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s ∼59% -18%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s ∼100% +38%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7288 KRay/s ∼91% +26%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s ∼72% 0%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	5777 KRay/s ∼72%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s ∼72% 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s ∼63% -12%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	5024 KRay/s ∼63% -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s ∼58% -20%
Moyenne de la classe Mini PC (308 - 8447, n=41, 2 dernières années)	4506 KRay/s ∼57% -22%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s ∼52% -28%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	29765 MPixel/s ∼100% +46%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s ∼94% +38%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s ∼94% +37%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s ∼93% +36%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s ∼92% +35%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s ∼82% +19%
Moyenne de la classe Mini PC (4408 - 44347, n=41, 2 dernières années)	23806 MPixel/s ∼80% +17%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s ∼69%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s ∼65% -5%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	17803 MPixel/s ∼60% -13%

Minisforum Venus Series UM560 XT dans le test multi-boucles Cinebench R15

La boucle continue de Cinebench R15 permet de se faire une bonne idée de la manière dont le système fonctionne sous charge. Le Minisforum Venus Series UM560 XT a parfaitement maîtrisé le test. Les résultats de l'AMD Ryzen 5 5600H dans chacun des 50 runs étaient très stables et il n'y a pratiquement pas eu de baisse significative des performances. Dans ce domaine de comparaison, aucun autre système n'arrive à la cheville.

Mesures du processeur pendant la boucle Cinebench R15

Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Performance du système

Dans le domaine des benchmarks système, le Minisforum Venus Series UM560 XT s'en sort très bien, avec une troisième place dans le comparatif PCMark 10. Il en va tout autrement dans la comparaison Crossmark. C'est dans ce domaine que tous les appareils équipés d'AMD doivent céder la place à ceux d'Intel. Avec sa mémoire vive DDR4, le Minisforum Venus Series UM560 XT ne peut rivaliser qu'avec des armes peu tranchantes. Les trois premières places reviennent aux appareils dotés d'une RAM DDR5 plus rapide. Néanmoins, les performances de notre échantillon sont décentes et peuvent être comparées à celles d'un UM560 XT. Cela se reflète subjectivement en termes de performances.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points ∼100% +14%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	6654 Points ∼94% +8%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points ∼88%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points ∼88% 0%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points ∼86% -2%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points ∼83% -5%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	5862 Points ∼83% -5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points ∼82% -7%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points ∼80% -9%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points ∼100% +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points ∼98% +7%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points ∼95% +3%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points ∼92%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	10484 Points ∼92% 0%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	10390 Points ∼91% -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points ∼91% -1%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points ∼89% -3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points ∼86% -7%

PCMark 10 / Productivity
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points ∼100% +4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	9817 Points ∼98% +2%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points ∼96%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, ESO512GYLCT	9545 Points ∼95% -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points ∼95% -1%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points ∼90% -6%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points ∼81% -15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points ∼76% -20%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points ∼74% -23%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points ∼100% +41%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points ∼99% +39%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points ∼92% +29%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points ∼91% +29%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1517 Points ∼80% +13%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points ∼80% +13%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points ∼72% +2%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points ∼71%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1300 Points ∼69% -3%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points ∼100% +40%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points ∼98% +37%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points ∼90% +27%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points ∼90% +26%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1491 Points ∼78% +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points ∼78% +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points ∼73% +3%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points ∼71%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1335 Points ∼69% -2%

CrossMark / Creativity
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points ∼100% +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points ∼99% +31%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points ∼97% +27%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points ∼96% +27%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1652 Points ∼91% +20%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points ∼91% +20%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points ∼76% 0%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points ∼76%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1325 Points ∼73% -4%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points ∼100% +77%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points ∼98% +74%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points ∼82% +45%
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points ∼79% +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points ∼60% +6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1238 Points ∼59% +3%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points ∼59% +3%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points ∼57%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1133 Points ∼54% -5%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50228 MB/s ∼100% +20%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s ∼95% +15%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s ∼95% +14%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s ∼93% +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s ∼91% +10%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s ∼89% +7%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	41732 MB/s ∼83%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	38102 MB/s ∼76% -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s ∼70% -16%

AIDA64 / Memory Read
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51077 MB/s ∼100% +9%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s ∼98% +7%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s ∼98% +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s ∼97% +6%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s ∼93% +1%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	46963 MB/s ∼92%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s ∼90% -2%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40126 MB/s ∼79% -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s ∼75% -18%

AIDA64 / Memory Write
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55194 MB/s ∼100% +23%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s ∼99% +22%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s ∼89% +10%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s ∼86% +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s ∼85% +4%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s ∼85% +4%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	44872 MB/s ∼81%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	40633 MB/s ∼74% -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s ∼68% -16%

AIDA64 / Memory Latency
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * ∼100% -32%
Minisforum Mars Series MC560 AMD Ryzen 5 5600U, Vega 7	96.2 ns * ∼96% -27%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * ∼94% -25%
Morefine M600, 6900HX AMD Ryzen 9 6900HX, Radeon 680M	92.4 ns * ∼92% -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * ∼91% -21%
Minisforum Venus Series UM690 (6900HX) AMD Ryzen 9 6900HX, Radeon 680M	83 ns * ∼83% -10%
Geekom Mini IT12, i7-1260P Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * ∼80% -6%
Minisforum Venus Series UM560 XT (5600H) AMD Ryzen 5 5600H, Vega 7	75.5 ns * ∼76%
Minisforum Venus Series NAB6, i7-12650H Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * ∼72% +5%

* ... Moindre est la valeur, meilleures sont les performances

Latences DPC

Nous n'avons rencontré aucun problème de latence avec le Minisforum Venus Series UM560 XT. Notre appareil de test a parfaitement géré l'ouverture de plusieurs onglets dans Edge et la lecture d'une vidéo de test 4K. En utilisant Prime95, nous n'avons pas pu détecter d'augmentation de la latence.

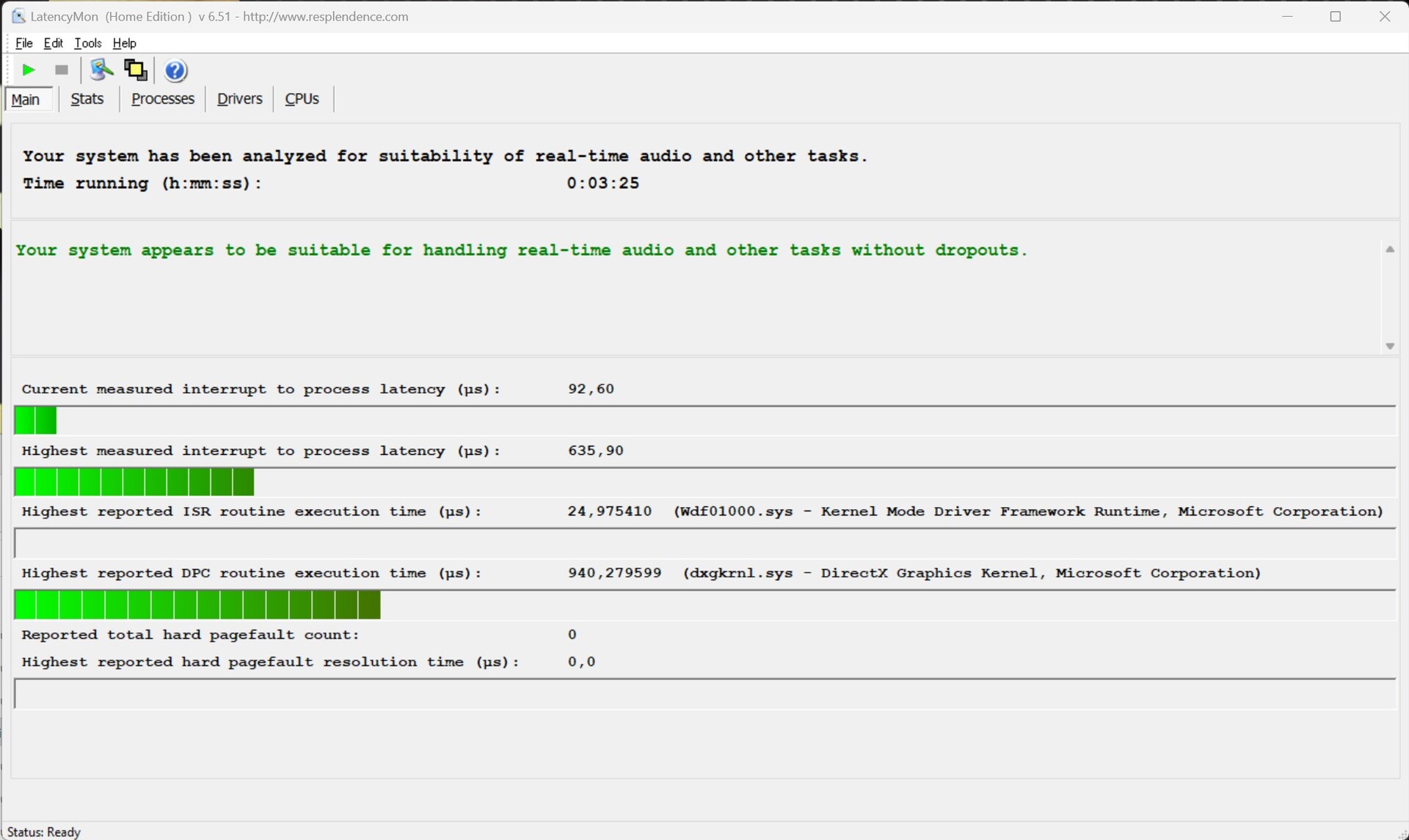

Latence maximale lors de l'ouverture de plusieurs onglets du navigateur et de la lecture de vidéos 4K

Latence maximale après dix secondes de Prime95

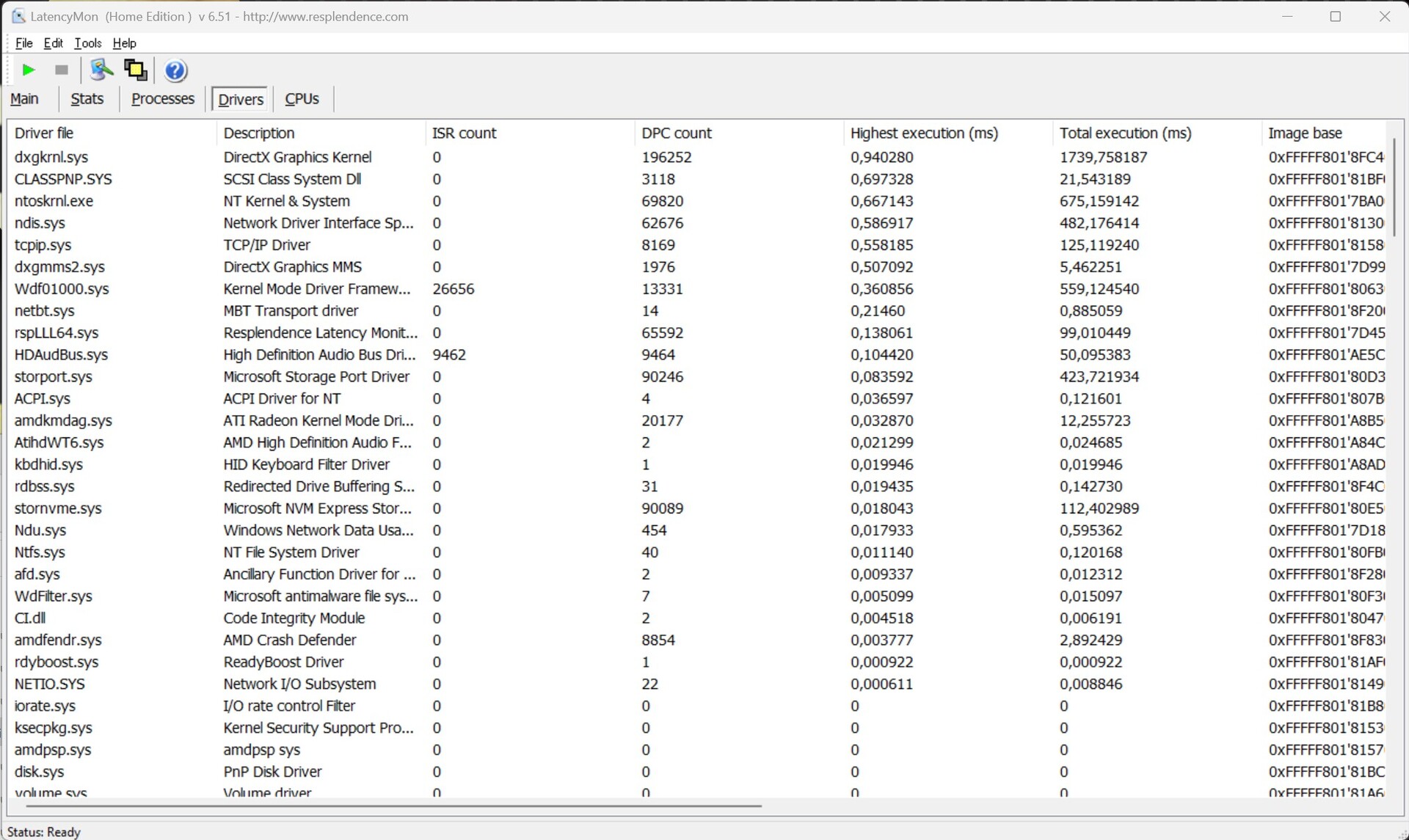

Conducteurs classés par ordre de durée de performance la plus longue

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690 (6900HX), AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs * ∼100% -58%
Minisforum Mars Series MC560, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, ESO512GYLCT	1359.1 μs * ∼91% -45%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G	1317 μs * ∼89% -40%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * ∼75% -18%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * ∼68% -8%
Geekom Mini IT12, i7-1260P, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	985.8 μs * ∼66% -5%
Minisforum Venus Series UM560 XT (5600H), AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	940.27 μs * ∼63%
Minisforum Venus Series NAB6, i7-12650H, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	795 μs * ∼53% +15%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * ∼51% +19%

* ... Moindre est la valeur, meilleures sont les performances

Mémoire de masse

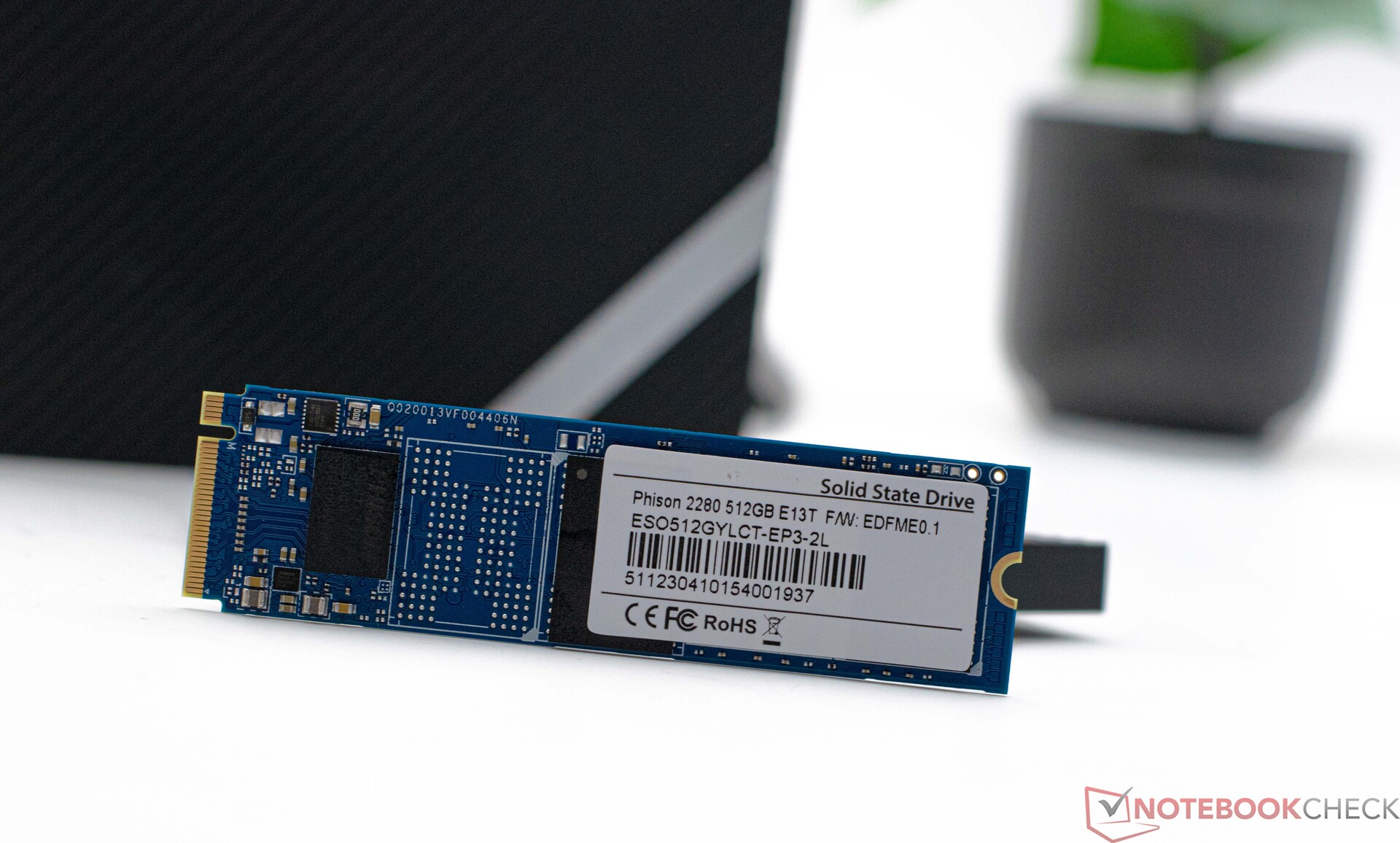

Minisforum a équipé notre modèle de test Venus Series UM560 XT d'un SSD de 512 Go, sans en préciser les détails. Les taux de transfert du modèle installé reflètent son interface PCIe 3.0. La concurrence, avec des SSD PCIe 4.0 plus rapides, bénéficie d'une avance inatteignable. En charge continue, le Minisforum Venus Series UM560 XT n'a eu aucun problème à maintenir les performances de son SSD. C'est dans ce domaine qu'il est judicieux d'avoir équipé le SSD d'un dissipateur thermique relativement grand. L'appareil peut accueillir au total deux périphériques de stockage de masse. Outre l'interface M.2, il y a également un connecteur SATA pour un support de stockage de 2,5 pouces. L'appareil est livré avec les câbles de connexion appropriés.

Vous trouverez d'autres comparaisons et benchmarks dans notre tableau de comparaison.

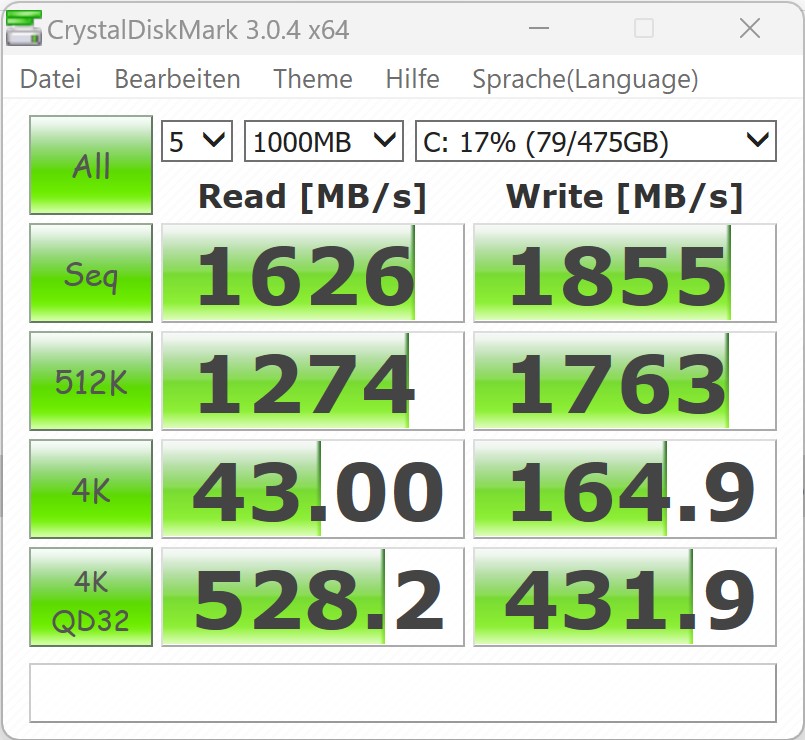

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

ESO512GYLCT

Sequential Read: 1626 MB/s

Sequential Write: 1855 MB/s

512K Read: 1274 MB/s

512K Write: 1763 MB/s

4K Read: 43 MB/s

4K Write: 164.9 MB/s

4K QD32 Read: 528.2 MB/s

4K QD32 Write: 431.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	85.4 pt ∼85%
Minisforum Venus Series UM690 (6900HX) Kingston OM8PGP4512Q-A0	81.4 pt ∼81%
Minisforum Venus Series NAB6, i7-12650H Kingston OM8PGP4512Q-A0	70.1 pt ∼70%
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G	66.2 pt ∼66%
Minisforum Venus Series UM560 XT (5600H) ESO512GYLCT	47 pt ∼47%
Moyenne de la classe Mini PC	41.4 pt ∼41%
Minisforum Mars Series MC560 ESO512GYLCT	41.2 pt ∼41%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	40.6 pt ∼41%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	36.9 pt ∼37%
Geekom Mini IT12, i7-1260P Kingston OM8SEP4512N-A0

Test du Minisforum Venus Series UM560 XT : mini PC abordable avec SoC AMD Cezanne

Comparaison avec les concurrents potentiels

Minisforum Série Venus UM560 XT en détail

Cas

Comparaison des tailles

Caractéristiques

Communication

Performance - AMD basée sur la génération Cezanne

Conditions d'essai

Processeur

Minisforum Venus Series UM560 XT dans le test multi-boucles Cinebench R15

Performance du système

Latences DPC

Mémoire de masse
