Courte critique de la station de travail HP ZBook Studio x360 G5 (i7-8750H, Quadro P1000, FHD)

Benjamin Herzig, 👁 Andreas Osthoff, Felicitas Krohn (traduit par Prévots), 11/19/2018

Combinaison originale. HP ajoute un nouveau modèle à sa série ZBook Studio, série de stations de travail premium chères. La particularité de ce nouveau ZBook : c’est un convertible ! La combinaison d’une station de travail et d’un tel appareil fonctionne-t-elle en réalité ? Découvrez-le dans ce test approfondi.

HP ZBook Studio x360 G5-4QH13EA (ZBook Studio x360 G5 Gamme)
Carte graphique
NVIDIA Quadro P1000 - 4096 Mo, Processeur: 1519 MHz, Mémoire: 1502 MHz, GDDR5, 391.76, Optimus
Mémoire
16384 Mo
, DDR4-2666, 1 emplacement sur 2 libre, maximum 64 Go
Écran
15.6 pouces 16:9, 1920 x 1080 pixel 141 PPP, 10 points, Prise en charge native d'une utilisation avec un stylet, LGD05A9, LED IPS, brillant: oui
Carte mère
Intel CM246
Disque dur
Samsung SSD PM981 MZVLB512HAJQ, 512 Go
, M.2 2280, PCIe NVMe, 404 Go libres
Carte son
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Connexions
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Encoche de Sécurité Kensington, Lecteur de cartes mémoires: SD, 1 Lecteur d'empreintes digitales, NFC
Réseau
Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0
Taille
Hauteur x Largeur x Profondeur (en mm): 18.7 x 360 x 254
Batterie
97.2 Wh Lithium-Polymère
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Appareil photo
Webcam: 720p
Fonctionnalités additionnelles

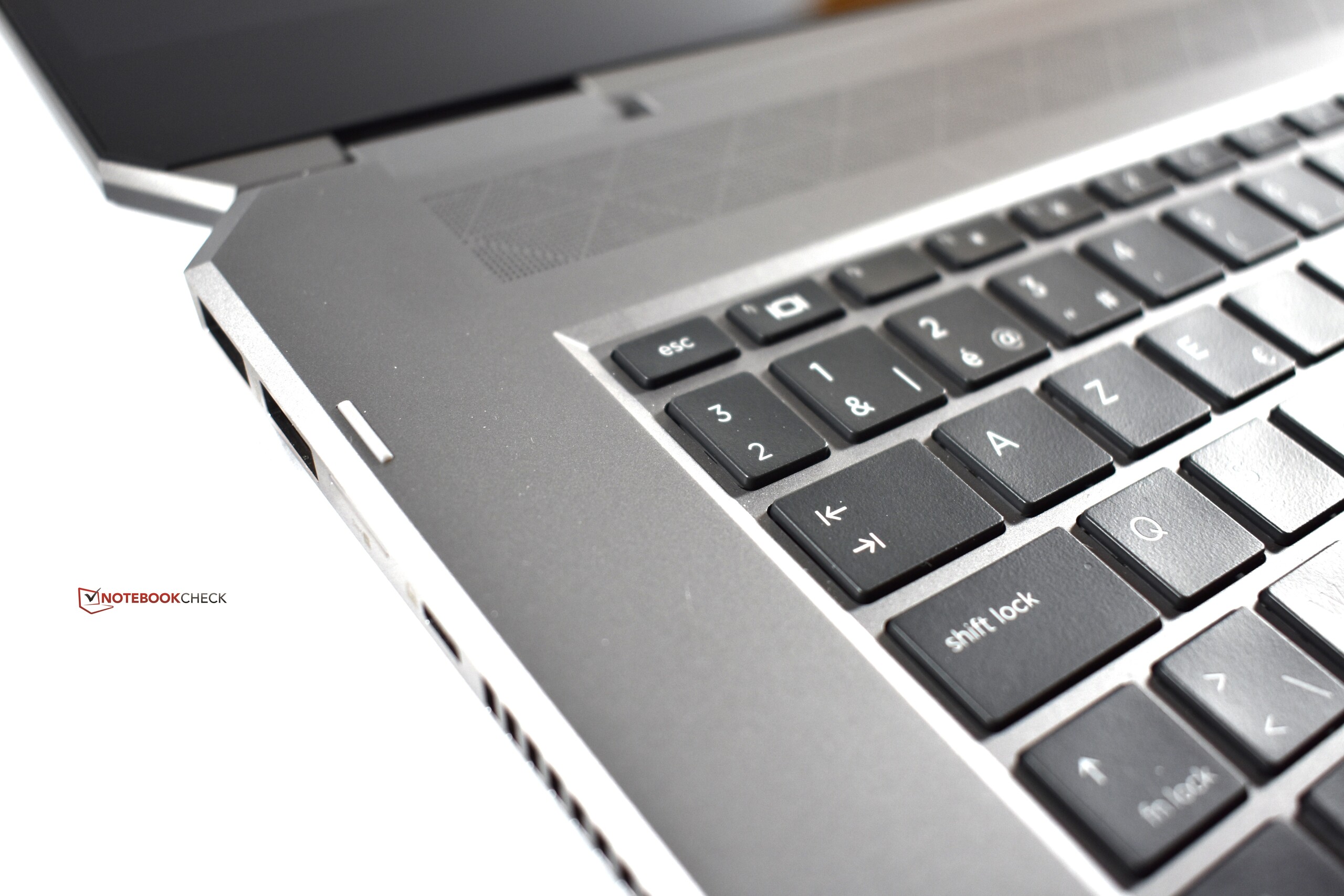

Haut-parleurs: stéréo, Clavier: chiclet 6 rangs, Rétroéclairage du clavier: oui, DVD de récupération, HP Client Security Manager, HP Collaboration Keyboard, HP Connection Optimizer, HP Documentation, HP Jumpstart, HP Device Access Manager, Microsoft Office (version d'essai), 36 Mois Garantie
Poids
2.352 kg, Alimentation: 435 g
Prix
2 649 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Comparaison des tailles

Côté gauche : 2 USB 3.0, emplacement pour carte SIM, verrou de sécurité Kensington.
Côté gauche : 2 USB 3.0, emplacement pour carte SIM, verrou de sécurité Kensington.
Côté droit : lecteur SD, combo audio, HDMI 2.0, 2 Thunderbolt 3, entrée secteur.
Côté droit : lecteur SD, combo audio, HDMI 2.0, 2 Thunderbolt 3, entrée secteur.
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad P1-20MD002LUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
173.6 MB/s ∼100% +4%
HP ZBook Studio x360 G5-4QH13EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
167 MB/s ∼96%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
166.23 MB/s ∼96% 0%
Average of class Workstation
  (17.2 - 213, n=48)
132 MB/s ∼76% -21%
Dell Precision 5530 2-in-1
  (Toshiba Exceria Pro M501 UHS-II)
128.6 MB/s ∼74% -23%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad P1-20MD002LUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
230.5 MB/s ∼100% +22%
Dell Precision 5530 2-in-1
  (Toshiba Exceria Pro M501 UHS-II)
206.5 MB/s ∼90% +9%
Dell Precision 5530 Xeon E-2176M
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
190.7 MB/s ∼83% +1%
HP ZBook Studio x360 G5-4QH13EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
189 MB/s ∼82%
Average of class Workstation
  (18.4 - 255, n=48)
169 MB/s ∼73% -11%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Broadcom 802.11ac
817 (min: 664, max: 835) MBit/s ∼100% +31%
Lenovo ThinkPad P1-20MD002LUS
Intel Wireless-AC 9560
667 MBit/s ∼82% +7%
HP ZBook Studio G5-4QH10EA
Intel Wireless-AC 9560
666 (min: 328, max: 700) MBit/s ∼82% +7%
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
663 MBit/s ∼81% +6%
HP ZBook Studio x360 G5-4QH13EA
Intel Wireless-AC 9560
623 (min: 415, max: 647) MBit/s ∼76%
Dell Precision 5530 2-in-1
Intel Dual Band Wireless-AC 8265
609 MBit/s ∼75% -2%
Average of class Workstation
  (292 - 705, n=33)
603 MBit/s ∼74% -3%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Precision 5530 Xeon E-2176M
Intel Wireless-AC 9260
648 MBit/s ∼100% +4%
Lenovo ThinkPad P1-20MD002LUS
Intel Wireless-AC 9560
645 MBit/s ∼100% +4%
HP ZBook Studio G5-4QH10EA
Intel Wireless-AC 9560
633 (min: 606, max: 660) MBit/s ∼98% +2%
HP ZBook Studio x360 G5-4QH13EA
Intel Wireless-AC 9560
623 (min: 217, max: 661) MBit/s ∼96%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Broadcom 802.11ac
602 (min: 543, max: 628) MBit/s ∼93% -3%
Average of class Workstation
  (83 - 690, n=33)
511 MBit/s ∼79% -18%
Dell Precision 5530 2-in-1
Intel Dual Band Wireless-AC 8265
510 MBit/s ∼79% -18%
379
cd/m²
391
cd/m²
366
cd/m²
362
cd/m²
381
cd/m²
345
cd/m²
341
cd/m²
357
cd/m²
334
cd/m²
Homogénéité de la luminosité
X-Rite i1Pro 2
Maximum: 391 cd/m² Moyenne: 361.8 cd/m² Minimum: 19 cd/m²
Homogénéité de la luminosité: 85 %
Valeur mesurée au centre, sur batterie: 386 cd/m²
Contraste: 1121:1 (Valeurs des noirs: 0.34 cd/m²)
ΔE Color 1.8 | 0.4-29.43 Ø6.2, calibrated: 1
ΔE Greyscale 1.8 | 0.64-98 Ø6.5
97.7% sRGB (Argyll 3D) 62.5% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.25
HP ZBook Studio x360 G5-4QH13EA
LGD05A9, , 1920x1080, 15.6
Dell Precision 5530 Xeon E-2176M
Sharp SHP148D / LQ156D1, , 3840x2160, 15.6
Dell Precision 5530 2-in-1
Sharp SHP148D, , 3840x2160, 15.6
Lenovo ThinkPad P1-20MD002LUS
B156ZAN03.2, , 3840x2160, 15.6
HP ZBook Studio G5-4QH10EA
AUO30EB, , 3840x2160, 15.6
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
APPA040, , 2880x1800, 15.4
Response Times
-18%
-27%
-22%
-32%
-8%
Response Time Grey 50% / Grey 80% *
41.6 (22, 19.6)
48 (24.4, 23.6)
-15%
49.6 (25.2, 24.4)
-19%
55.6 (38, 37.6)
-34%
60.8 (30, 30.8)
-46%
43.2 (20.4, 22.8)
-4%
Response Time Black / White *
28 (16.4, 11.6)
33.6 (19.6, 14)
-20%
37.6 (20.4, 17.2)
-34%
30.8 (16.4, 14.4)
-10%
32.8 (16.4, 16.4)
-17%
31.2 (16.4, 14.8)
-11%
PWM Frequency
1000
990.1 (25)
117000 (75, 150)
Screen
-39%
-35%
-62%
-36%
24%
Brightness middle
381
451.7
19%
430.9
13%
397.6
4%
417
9%
520
36%
Brightness
362
440
22%
398
10%
396
9%
412
14%
492
36%
Brightness Distribution
85
90
6%
79
-7%
85
0%
85
0%
88
4%
Black Level *
0.34
0.4
-18%
0.35
-3%
0.25
26%
0.29
15%
0.39
-15%
Contrast
1121
1129
1%
1231
10%
1590
42%
1438
28%
1333
19%
Colorchecker DeltaE2000 *
1.8
3.11
-73%
3.29
-83%
4.95
-175%
4.4
-144%
1.2
33%
Colorchecker DeltaE2000 max. *
4.6
8.62
-87%
7.46
-62%
10.23
-122%
6.7
-46%
2.3
50%
Colorchecker DeltaE2000 calibrated *
1
3.07
-207%
3.58
-258%
4.22
-322%
1.9
-90%
Greyscale DeltaE2000 *
1.8
3.7
-106%
2.6
-44%
5.1
-183%
5
-178%
1.3
28%
Gamma
2.25 98%
2.11 104%
2.19 100%
2.234 98%
2.28 96%
2.18 101%
CCT
6735 97%
6492 100%
6870 95%
7543 86%
7575 86%
6738 96%
Color Space (Percent of AdobeRGB 1998)
62.5
69
10%
87.2
40%
87.6
40%
62.3
0%
Color Space (Percent of sRGB)
97.7
98
0%
100
2%
100
2%
96
-2%
Moyenne finale (programmes/paramètres)
-29% / -36%
-31% / -33%
-42% / -56%
-34% / -35%
8% / 18%

* ... Moindre est la valeur, meilleures sont les performances

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

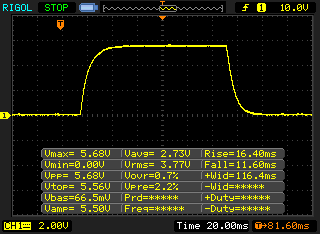

       Temps de réponse noir à blanc
28 ms ... hausse ↗ et chute ↘ combinées↗ 16.4 ms hausse
↘ 11.6 ms chute
L'écran souffre de latences relativement élevées, insuffisant pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 59 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (25.6 ms) de tous les appareils testés.

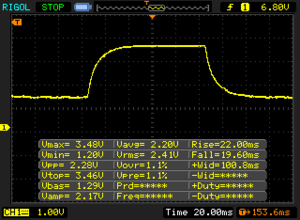

       Temps de réponse gris 50% à gris 80%
41.6 ms ... hausse ↗ et chute ↘ combinées↗ 22 ms hausse
↘ 19.6 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 52 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (41 ms) de tous les appareils testés.

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) non décelé

En comparaison, 52 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 8933 (minimum : 43 - maximum : 142900) Hz dans le cas où une MDI était active.

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130Tooltip
HP ZBook Studio x360 G5-4QH13EA Intel Core i7-8750H, Intel Core i7-8750H: Ø1021 (938.28-1108)
Lenovo ThinkPad P1-20MD002LUS Intel Xeon E-2176M, Intel Xeon E-2176M: Ø1026 (1012.5-1120.61)
Dell Precision 5530 Xeon E-2176M Intel Xeon E-2176M, Intel Xeon E-2176M: Ø1024 (1006.14-1126.25)
Dell Precision 5530 2-in-1 Intel Core i7-8706G, Intel Core i7-8706G: Ø748 (717.21-781.39)
HP EliteBook 1050 G1-4QY20EA Intel Core i7-8750H, Intel Core i7-8750H: Ø1015 (972-1114)
Cinebench R15
CPU Single 64Bit
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
189 Points ∼100% +7%
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
187 Points ∼99% +6%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
177 Points ∼94% 0%
HP ZBook Studio x360 G5-4QH13EA
Intel Core i7-8750H
177 Points ∼94%
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H
175 Points ∼93% -1%
Average Intel Core i7-8750H
  (163 - 177, n=51)
173 Points ∼92% -2%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
172 Points ∼91% -3%
Average of class Workstation
  (117 - 214, n=80)
155 Points ∼82% -12%
CPU Multi 64Bit
HP ZBook Studio G5-4QH10EA
Intel Core i7-8750H
1127 Points ∼100% +1%
Lenovo ThinkPad P1-20MD002LUS
Intel Xeon E-2176M
1118 Points ∼99% 0%
HP ZBook Studio x360 G5-4QH13EA
Intel Core i7-8750H
1118 Points ∼99%
Average Intel Core i7-8750H
  (863 - 1251, n=54)
1105 Points ∼98% -1%
Dell Precision 5530 Xeon E-2176M
Intel Xeon E-2176M
1095 Points ∼97% -2%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
1064 Points ∼94% -5%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
1057 Points ∼94% -5%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Intel Core i7-8850H
953 Points ∼85% -15%
Dell Precision 5530 2-in-1
Intel Core i7-8706G
767 Points ∼68% -31%
Average of class Workstation
  (260 - 1623, n=82)
716 Points ∼64% -36%
Cinebench R15 OpenGL 64Bit
149.18 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 CPU Multi 64Bit
1118 Points
Cinebench R15 CPU Single 64Bit
177 Points
Aide
PCMark 8
Work Score Accelerated v2
HP ZBook Studio x360 G5-4QH13EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5335 Points ∼100%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (4453 - 5335, n=3)
5039 Points ∼94% -6%
Average of class Workstation
  (3311 - 5655, n=62)
4762 Points ∼89% -11%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
4666 Points ∼87% -13%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
4575 Points ∼86% -14%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4453 Points ∼83% -17%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4404 Points ∼83% -17%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
4146 Points ∼78% -22%
Home Score Accelerated v2
HP ZBook Studio x360 G5-4QH13EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4244 Points ∼100%
Average of class Workstation
  (2320 - 5505, n=63)
3939 Points ∼93% -7%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (3433 - 4244, n=3)
3879 Points ∼91% -9%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
3831 Points ∼90% -10%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
3735 Points ∼88% -12%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
3536 Points ∼83% -17%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
3480 Points ∼82% -18%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
3433 Points ∼81% -19%
PCMark 10
Digital Content Creation
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5736 Points ∼100% +21%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
5020 Points ∼88% +6%
Average of class Workstation
  (2466 - 8122, n=25)
4879 Points ∼85% +3%
HP ZBook Studio x360 G5-4QH13EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4742 Points ∼83%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4741 Points ∼83% 0%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4709 Points ∼82% -1%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (4348 - 4742, n=3)
4610 Points ∼80% -3%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
4473 Points ∼78% -6%
Productivity
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
7569 Points ∼100% +12%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
7281 Points ∼96% +8%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
7009 Points ∼93% +4%
Average of class Workstation
  (4897 - 8307, n=25)
6958 Points ∼92% +3%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
6824 Points ∼90% +1%
HP ZBook Studio x360 G5-4QH13EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
6749 Points ∼89%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (6573 - 6749, n=3)
6657 Points ∼88% -1%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
6573 Points ∼87% -3%
Essentials
HP ZBook Studio x360 G5-4QH13EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
9007 Points ∼100%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
8894 Points ∼99% -1%
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
8479 Points ∼94% -6%
Average of class Workstation
  (7172 - 9847, n=25)
8382 Points ∼93% -7%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (7739 - 9007, n=3)
8348 Points ∼93% -7%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
8321 Points ∼92% -8%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
8317 Points ∼92% -8%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
7739 Points ∼86% -14%
Score
Dell Precision 5530 Xeon E-2176M
Quadro P2000, E-2176M, SK hynix PC400 512 GB
5072 Points ∼100% +7%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Radeon Pro 560X, 8850H, Apple SSD AP0512
4805 Points ∼95% +1%
Dell Precision 5530 2-in-1
WX Vega M GL, 8706G, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
4760 Points ∼94% +1%
HP ZBook Studio x360 G5-4QH13EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4735 Points ∼93%
Average of class Workstation
  (3281 - 6255, n=25)
4649 Points ∼92% -2%
Lenovo ThinkPad P1-20MD002LUS
Quadro P2000 Max-Q, E-2176M, Samsung SSD PM981 MZVLB2T0HMLB
4618 Points ∼91% -2%
Average Intel Core i7-8750H, NVIDIA Quadro P1000
  (4428 - 4735, n=3)
4542 Points ∼90% -4%
HP ZBook Studio G5-4QH10EA
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
4462 Points ∼88% -6%
PCMark 8 Home Score Accelerated v2
4244 points
PCMark 8 Creative Score Accelerated v2
5138 points
PCMark 8 Work Score Accelerated v2
5335 points
Aide
HP ZBook Studio x360 G5-4QH13EA
Samsung SSD PM981 MZVLB512HAJQ
Dell Precision 5530 Xeon E-2176M
SK hynix PC400 512 GB
Dell Precision 5530 2-in-1
SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
Lenovo ThinkPad P1-20MD002LUS
Samsung SSD PM981 MZVLB2T0HMLB
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
Apple SSD AP0512
Average Samsung SSD PM981 MZVLB512HAJQ

CrystalDiskMark 5.2 / 6
-1%
-6%
1%
-21%
63%
Write 4K
105.1
97.75
-7%
128.9
23%
108
3%
43.59
-59%

35.92
-66%

124 (95.3 - 155, n=23)
18%
Read 4K
42.66
41.21
-3%
45.7
7%
37.24
-13%
12.68
-70%

11.67
-73%

237 (29.5 - 4505, n=23)
456%
Write Seq
1571
1312
-16%
635.2
-60%
1476
-6%
1605.16
2%

1522
-3%

1383 (112 - 2125, n=23)
-12%
Read Seq
1427
1667
17%
2065
45%
1367
-4%
1595.08
12%

1528
7%

1533 (501 - 2354, n=23)
7%
Write 4K Q32T1
291.2
449.5
54%
336.6
16%
302.4
4%
232.67
-20%

204.5
-30%

428 (198 - 1707, n=23)
47%
Read 4K Q32T1
369.9
327.4
-11%
393.6
6%
375
1%
404
9%

393.32
6%

403 (289 - 1015, n=23)
9%
Write Seq Q32T1
2024
1385
-32%
661.9
-67%
2433
20%
1770
-13%

1755.8
-13%

1918 (1714 - 2128, n=23)
-5%
Read Seq Q32T1
3392
2948
-13%
2664
-21%
3493
3%
2993
-12%

2805.4
-17%

2845 (1772 - 3423, n=23)
-16%
Samsung SSD PM981 MZVLB512HAJQ
Sequential Read: 1989 MB/s
Sequential Write: 1550 MB/s
512K Read: 877.5 MB/s
512K Write: 1781 MB/s
4K Read: 64.67 MB/s
4K Write: 139.8 MB/s
4K QD32 Read: 514.4 MB/s
4K QD32 Write: 430.4 MB/s
3DMark 11 - 1280x720 Performance GPU
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
10020 Points ∼100% +67%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
8201 Points ∼82% +37%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
8148 Points ∼81% +36%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
AMD Radeon Pro 560X, Intel Core i7-8850H
7590 Points ∼76% +26%
Average NVIDIA Quadro P1000
  (5982 - 6115, n=3)
6033 Points ∼60% +1%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
6001 Points ∼60%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
5982 Points ∼60% 0%
Average of class Workstation
  (841 - 24934, n=95)
5576 Points ∼56% -7%
3DMark
1920x1080 Fire Strike Graphics
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
7333 Points ∼100% +53%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
6742 Points ∼92% +41%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
6741 Points ∼92% +41%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
AMD Radeon Pro 560X, Intel Core i7-8850H
5699 Points ∼78% +19%
Average NVIDIA Quadro P1000
  (4756 - 4843, n=3)
4795 Points ∼65% 0%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
4787 Points ∼65%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
4756 Points ∼65% -1%
Average of class Workstation
  (752 - 18390, n=87)
4532 Points ∼62% -5%
1280x720 Cloud Gate Standard Graphics
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
42598 Points ∼100% +39%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
38986 Points ∼92% +27%
Apple MacBook Pro 15 2018 (2.6 GHz, 560X)
AMD Radeon Pro 560X, Intel Core i7-8850H
32449 Points ∼76% +6%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
30721 Points ∼72%
Average of class Workstation
  (5836 - 105184, n=87)
28985 Points ∼68% -6%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
28679 Points ∼67% -7%
Average NVIDIA Quadro P1000
  (21391 - 31396, n=3)
27836 Points ∼65% -9%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
21391 Points ∼50% -30%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
103.79 fps ∼100% +16%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
89.8 fps ∼87%
Average NVIDIA Quadro P1000
  (75.2 - 89.8, n=3)
83.9 fps ∼81% -7%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
75.2 fps ∼72% -16%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
75.15 fps ∼72% -16%
Average of class Workstation
  (15.6 - 212, n=72)
72.5 fps ∼70% -19%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
71.31 fps ∼69% -21%
1900x1060 Siemens NX (snx-02)
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
65.85 fps ∼100% +19%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
59.96 fps ∼91% +8%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
56.96 fps ∼86% +3%
Average NVIDIA Quadro P1000
  (55.4 - 57.4, n=3)
56.2 fps ∼85% +1%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
55.74 fps ∼85% +1%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
55.4 fps ∼84%
Average of class Workstation
  (4.87 - 218, n=72)
53.2 fps ∼81% -4%
1900x1060 Showcase (showcase-01)
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
38.31 fps ∼100% +40%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
30.73 fps ∼80% +12%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
30.01 fps ∼78% +10%
Average of class Workstation
  (3.93 - 75, n=70)
28.3 fps ∼74% +3%
Average NVIDIA Quadro P1000
  (27.4 - 27.6, n=3)
27.5 fps ∼72% 0%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
27.42 fps ∼72% 0%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
27.4 fps ∼72%
1900x1060 Medical (medical-01)
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
26.61 fps ∼100% +79%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
22.84 fps ∼86% +53%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
19.94 fps ∼75% +34%
Average of class Workstation
  (0.99 - 79.4, n=71)
19.9 fps ∼75% +34%
Average NVIDIA Quadro P1000
  (14.9 - 15.4, n=3)
15.1 fps ∼57% +1%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
14.9 fps ∼56%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
14.89 fps ∼56% 0%
1900x1060 Maya (maya-04)
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
59.21 fps ∼100% +40%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
47.2 fps ∼80% +12%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
42.84 fps ∼72% +1%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
42.3 fps ∼71%
Average of class Workstation
  (5.4 - 148, n=72)
41.8 fps ∼71% -1%
Average NVIDIA Quadro P1000
  (37 - 42.3, n=3)
40.5 fps ∼68% -4%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
36.99 fps ∼62% -13%
1900x1060 Energy (energy-01)
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
6.43 fps ∼100% +65%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
5.27 fps ∼82% +35%
Average NVIDIA Quadro P1000
  (3.66 - 4.57, n=3)
4.04 fps ∼63% +4%
Average of class Workstation
  (0.06 - 16.9, n=72)
3.92 fps ∼61% +1%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
3.9 fps ∼61%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
3.66 fps ∼57% -6%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
2.94 fps ∼46% -25%
1900x1060 Creo (creo-01)
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
64.99 fps ∼100% +10%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
59 fps ∼91%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
57.43 fps ∼88% -3%
Average NVIDIA Quadro P1000
  (51.2 - 59, n=3)
55.8 fps ∼86% -5%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
55.69 fps ∼86% -6%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
51.22 fps ∼79% -13%
Average of class Workstation
  (14 - 160, n=72)
50.2 fps ∼77% -15%
1900x1060 Catia (catia-04)
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
69.61 fps ∼100% +29%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
64.5 fps ∼93% +20%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
64.39 fps ∼93% +20%
Average of class Workstation
  (13.4 - 197, n=72)
56.2 fps ∼81% +4%
Average NVIDIA Quadro P1000
  (53.8 - 55.4, n=3)
54.4 fps ∼78% +1%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
54.04 fps ∼78% 0%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
53.8 fps ∼77%
LuxMark v2.0 64Bit
Room GPUs-only
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
1277 Samples/s ∼100% +64%
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
870 Samples/s ∼68% +12%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
845 Samples/s ∼66% +9%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
777 Samples/s ∼61%
Average of class Workstation
  (49 - 2539, n=74)
745 Samples/s ∼58% -4%
Average NVIDIA Quadro P1000
  (712 - 777, n=3)
734 Samples/s ∼57% -6%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
712 Samples/s ∼56% -8%
Sala GPUs-only
Dell Precision 5530 Xeon E-2176M
NVIDIA Quadro P2000, Intel Xeon E-2176M
2747 Samples/s ∼100% +102%
Lenovo ThinkPad P1-20MD002LUS
NVIDIA Quadro P2000 Max-Q, Intel Xeon E-2176M
2617 Samples/s ∼95% +92%
Dell Precision 5530 2-in-1
AMD Radeon Pro WX Vega M GL, Intel Core i7-8706G
1567 Samples/s ∼57% +15%
Average of class Workstation
  (48 - 5183, n=75)
1363 Samples/s ∼50% 0%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
1361 Samples/s ∼50%
Average NVIDIA Quadro P1000
  (1260 - 1361, n=3)
1294 Samples/s ∼47% -5%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
1260 Samples/s ∼46% -7%
SiSoft Sandra 2016
Image Processing
Average of class Workstation
  (95.8 - 819, n=31)
277 MPix/s ∼100% +4%
Average NVIDIA Quadro P1000
  (264 - 269, n=3)
266 MPix/s ∼96% 0%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
265.8 MPix/s ∼96%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
264 MPix/s ∼95% -1%
GP Cryptography (Higher Security AES256+SHA2-512)
Average of class Workstation
  (3.92 - 33.3, n=31)
11.4 GB/s ∼100% +4%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
11 GB/s ∼96%
Average NVIDIA Quadro P1000
  (10.8 - 11, n=3)
10.9 GB/s ∼96% -1%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
10.83 GB/s ∼95% -2%
GP Financial Analysis (FP High/Double Precision)
Average of class Workstation
  (11.8 - 100, n=31)
33.2 KOPT/s ∼100% +43%
Average NVIDIA Quadro P1000
  (23.2 - 23.8, n=3)
23.5 KOPT/s ∼71% +2%
HP ZBook Studio G5-4QH10EA
NVIDIA Quadro P1000, Intel Core i7-8750H
23.48 KOPT/s ∼71% +1%
HP ZBook Studio x360 G5-4QH13EA
NVIDIA Quadro P1000, Intel Core i7-8750H
23.15 KOPT/s ∼70%
3DMark 11 Performance
6506 points
3DMark Cloud Gate Standard Score
21290 points
3DMark Fire Strike Score
4508 points
Aide
01020
