Courte critique de la station de travail Dell Precision 3530 (Xeon E-2176M, Quadro P600)

Sam Medley, 👁 Allen Ngo (traduit par JBP), 08/18/2018

Chaleur exagérée. Le Precision 3530 est la dernière station de travail d’entrée-de-gamme de Dell. Équipé d’une carte graphique Nvidia Quadro P600 et d’un nouveau processeur Xeon d’Intel, le Precision 3530 est une machine tout à fait capable. Mais la gestion de la chauffe et le niveau sonore des ventilateurs laissent à désirer.

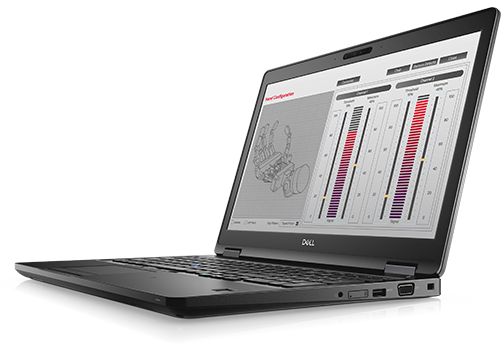

Dell Precision 3530 (Precision 3000 Gamme)
Processeur
Intel Xeon E-2176M, six coeurs, Coffee Lake
Carte graphique
NVIDIA Quadro P600 - 4096 Mo, Processeur: 1430 MHz, Mémoire: 1253 MHz, 4 Go GDDR5, 128 bit, Quadro Desktop/Quadro Notebook Driver Release 390, NVIDIA Optimus
Mémoire
32768 Mo
, DDR4-2666 / PC4-21300
Écran
15.6 pouces 16:9, 1920 x 1080 pixel 141 PPP, BOE BOE06F1, IPS, brillant: non
Carte mère
Intel CM246
Disque dur
SK hynix PC400 512 GB,  Go
, 475 Go libres
Carte son
Intel Cannon Lake-H/S - cAVS (Audio, Voice, Speech)
Connexions
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Encoche de Sécurité Kensington, Connectique audio: combo audio in / out, Lecteur de cartes mémoires: SD / SDHC / SDXC, 1 Lecteur de cartes à puce, 1 Lecteur d'empreintes digitales, NFC, Brightness Sensor
Réseau
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0, LTE
Taille
Hauteur x Largeur x Profondeur (en mm): 24.3 x 376 x 251
Batterie
92 Wh Lithium-Ion
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Appareil photo
Webcam: HD
Fonctionnalités additionnelles
Haut-parleurs: 2x 2 Watt, Clavier: chiclet, Rétroéclairage du clavier: oui, 12 Mois Garantie
Poids
2.333 kg, Alimentation: 546 g
Prix
2 650 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



386 mm 264 mm 26 mm 2.6 kg377.4 mm 252.3 mm 29.4 mm 2.6 kg377.1 mm 252.6 mm 24.6 mm 2.3 kg376 mm 251 mm 24.3 mm 2.3 kg366 mm 253 mm 20.2 mm 2 kg358 mm 237 mm 21 mm 2.1 kg
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Precision 3520
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
210 MB/s ∼100% +17%
HP ZBook 15 G4-Y4E80AV
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
186 MB/s ∼89% +4%
Dell Precision 3530
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
179 MB/s ∼85%
Lenovo ThinkPad P52 20MAS03N00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
169 MB/s ∼80% -6%
Dell Precision 5520 UHD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
157.5 MB/s ∼75% -12%
Average of class Workstation
  (17.2 - 213, n=55)
137 MB/s ∼65% -23%
Lenovo ThinkPad P52S-20LB001FUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81.39 MB/s ∼39% -55%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 5520 UHD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
254.5 MB/s ∼100% +27%
HP ZBook 15 G4-Y4E80AV
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
209.8 MB/s ∼82% +4%
Dell Precision 3530
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
201 MB/s ∼79%
Lenovo ThinkPad P52 20MAS03N00
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
189.2 MB/s ∼74% -6%
Average of class Workstation
  (18.4 - 255, n=55)
173 MB/s ∼68% -14%
Dell Precision 3520
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
119 MB/s ∼47% -41%
Lenovo ThinkPad P52S-20LB001FUS
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.75 MB/s ∼34% -56%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell Precision 3520
Intel Dual Band Wireless-AC 8265
705 MBit/s ∼100% +4%
Dell Precision 3530
Intel Wireless-AC 9560
680 MBit/s ∼96%
Lenovo ThinkPad P52S-20LB001FUS
Intel Dual Band Wireless-AC 8265
672 MBit/s ∼95% -1%
Lenovo ThinkPad P52 20MAS03N00
Intel Wireless-AC 9560
629 MBit/s ∼89% -7%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
622 MBit/s ∼88% -9%
Average of class Workstation
  (292 - 705, n=40)
610 MBit/s ∼87% -10%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
559 MBit/s ∼79% -18%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Precision 3530
Intel Wireless-AC 9560
690 MBit/s ∼100%
Lenovo ThinkPad P52 20MAS03N00
Intel Wireless-AC 9560
662 MBit/s ∼96% -4%
Average of class Workstation
  (83 - 690, n=40)
526 MBit/s ∼76% -24%
Dell Precision 5520 UHD
Intel Dual Band Wireless-AC 8265
506 (min: 622) MBit/s ∼73% -27%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
475 MBit/s ∼69% -31%
Dell Precision 3520
Intel Dual Band Wireless-AC 8265
378 MBit/s ∼55% -45%
Lenovo ThinkPad P52S-20LB001FUS
Intel Dual Band Wireless-AC 8265
158 MBit/s ∼23% -77%
299.4
cd/m²
296.3
cd/m²
273.4
cd/m²
276.1
cd/m²
285.7
cd/m²
265.9
cd/m²
259.7
cd/m²
265.4
cd/m²
253.3
cd/m²
Homogénéité de la luminosité
X-Rite i1Pro 2
Maximum: 299.4 cd/m² Moyenne: 275 cd/m² Minimum: 15.5 cd/m²
Homogénéité de la luminosité: 85 %
Valeur mesurée au centre, sur batterie: 285.7 cd/m²
Contraste: 922:1 (Valeurs des noirs: 0.31 cd/m²)
ΔE Color 5.84 | 0.6-29.43 Ø6.1, calibrated: 3.14
ΔE Greyscale 6.5 | 0.64-98 Ø6.3
94% sRGB (Argyll 3D) 62% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.383
Dell Precision 3530
BOE BOE06F1, IPS, 15.6, 1920x1080
Dell Precision 3520
IPS LED, 15.6, 1920x1080
Dell Precision 5520 UHD
SHP1476, IPS, 15.6, 3840x2160
Lenovo ThinkPad P52 20MAS03N00
N156HCE-EN1, IPS LED, 15.6, 1920x1080
Lenovo ThinkPad P52S-20LB001FUS
Lenovo LEN40BD, IPS, 15.6, 3840x2160
HP ZBook 15 G4-Y4E80AV
LG Philips LGD057E, IPS, 15.6, 1920x1080
Response Times
-6%
-34%
775%
11%
636%
Response Time Grey 50% / Grey 80% *
40.4 (22, 18.4)
48 (24.4, 23.6)
-19%
59.2 (27.6, 31.6)
-47%
39.2 (21.2, 18)
3%
43.2 (24.4, 18.8)
-7%
39.2 (20.4, 18.8)
3%
Response Time Black / White *
34.8 (20.8, 14)
34.4 (17.2, 17.2)
1%
41.6 (26.8, 14.8)
-20%
26 (14.4, 11.6)
25%
18 (13.2, 14.8)
48%
25.6 (14.8, 10.8)
26%
PWM Frequency
1053 (98)
1064 (90)
1%
25250 (50)
2298%
980.4
-7%
20830 (80)
1878%
Screen
6%
14%
11%
13%
10%
Brightness middle
285.7
345
21%
372.4
30%
304
6%
305.5
7%
321
12%
Brightness
275
329
20%
368
34%
293
7%
282
3%
320
16%
Brightness Distribution
85
88
4%
90
6%
88
4%
78
-8%
89
5%
Black Level *
0.31
0.37
-19%
0.48
-55%
0.26
16%
0.24
23%
0.29
6%
Contrast
922
932
1%
776
-16%
1169
27%
1273
38%
1107
20%
Colorchecker DeltaE2000 *
5.84
5
14%
2.6
55%
4.5
23%
3.51
40%
4.5
23%
Colorchecker DeltaE2000 max. *
8.76
8
9%
5.6
36%
7.7
12%
7.28
17%
9.5
-8%
Colorchecker DeltaE2000 calibrated *
3.14
2.4
24%
3.15
-0%
Greyscale DeltaE2000 *
6.5
6.2
5%
3.7
43%
5.2
20%
4
38%
2.9
55%
Gamma
2.383 92%
2.35 94%
2.14 103%
2.26 97%
2.18 101%
2.27 97%
CCT
7176 91%
6702 97%
7096 92%
6789 96%
7291 89%
6519 100%
Color Space (Percent of AdobeRGB 1998)
62
61.8
0%
63
2%
53.8
-13%
58
-6%
54.2
-13%
Color Space (Percent of sRGB)
94
94.7
1%
99
5%
90.1
-4%
89
-5%
82.6
-12%
Moyenne finale (programmes/paramètres)
0% / 3%
-10% / 6%
393% / 175%
12% / 13%
323% / 155%

* ... Moindre est la valeur, meilleures sont les performances

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

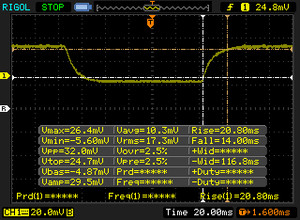

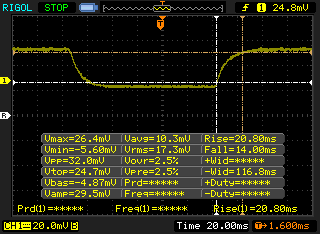

       Temps de réponse noir à blanc
34.8 ms ... hausse ↗ et chute ↘ combinées↗ 20.8 ms hausse
↘ 14 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 90 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (25.3 ms) de tous les appareils testés.

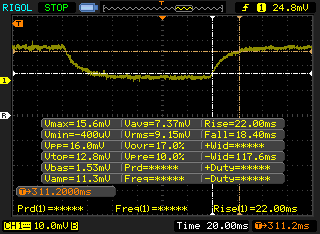

       Temps de réponse gris 50% à gris 80%
40.4 ms ... hausse ↗ et chute ↘ combinées↗ 22 ms hausse
↘ 18.4 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 47 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (40.4 ms) de tous les appareils testés.

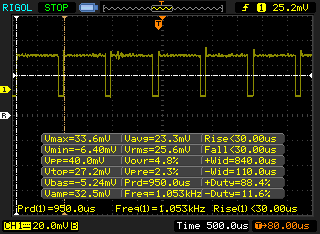

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) décelé 1053 Hz ≤ 98 Niveau de luminosité

Le rétroéclairage de l'écran scintille à la fréquence de 1053 Hz (certainement du fait de l'utilisation d'une MDI - Modulation de largeur d'impulsion) à un niveau de luminosité inférieur ou égal à 98 % . Aucun scintillement ne devrait être perceptible au-dessus de cette valeur.

La fréquence de rafraîchissement de 1053 Hz est élevée, la grande majorité des utilisateurs ne devrait pas percevoir de scintillements et être sujette à une fatigue oculaire accrue.

En comparaison, 51 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 9566 (minimum : 43 - maximum : 142900) Hz dans le cas où une MDI était active.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Asus G703
Intel Core i7-7820HK
185 Points ∼85% +9%
Average Intel Xeon E-2176M
  (169 - 189, n=3)
182 Points ∼83% +8%
Microsoft Surface Book 2 15
Intel Core i7-8650U
178 Points ∼82% +5%
Acer Nitro 5 AN515-52-74DR
Intel Core i7-8750H
177 Points ∼81% +5%
HP ZBook 15 G4-Y4E80AV
Intel Xeon E3-1535M v6
176 Points ∼81% +4%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
170 Points ∼78% +1%
Dell Precision 3530
Intel Xeon E-2176M
169 Points ∼78%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
168 Points ∼77% -1%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
163 Points ∼75% -4%
Average of class Workstation
  (117 - 214, n=87)
157 Points ∼72% -7%
CPU Multi 64Bit
Acer Nitro 5 AN515-52-74DR
Intel Core i7-8750H
1090 Points ∼25% +10%
Average Intel Xeon E-2176M
  (987 - 1118, n=3)
1067 Points ∼24% +8%
Dell Precision 3530
Intel Xeon E-2176M
987 Points ∼23%
Asus G703
Intel Core i7-7820HK
932 Points ∼21% -6%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
815 Points ∼19% -17%
HP ZBook 15 G4-Y4E80AV
Intel Xeon E3-1535M v6
806 Points ∼18% -18%
Average of class Workstation
  (260 - 1623, n=89)
735 Points ∼17% -26%
Microsoft Surface Book 2 15
Intel Core i7-8650U
675 Points ∼15% -32%
Microsoft Surface Book 2 15
Intel Core i7-8650U
657 Points ∼15% -33%
Microsoft Surface Book 2 15
Intel Core i7-8650U
649 Points ∼15% -34%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
654 Points ∼15% -34%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
647 Points ∼15% -34%
Cinebench R11.5
CPU Single 64Bit
Asus G703
Intel Core i7-7820HK
2.09 Points ∼86% +2%
Average Intel Xeon E-2176M
  (1.99 - 2.12, n=3)
2.05 Points ∼84% 0%
Dell Precision 3530
Intel Xeon E-2176M
2.04 Points ∼84%
Acer Nitro 5 AN515-52-74DR
Intel Core i7-8750H
1.99 Points ∼82% -2%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
1.92 Points ∼79% -6%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
1.92 Points ∼79% -6%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
1.92 Points ∼79% -6%
Average of class Workstation
  (1.09 - 2.43, n=85)
1.689 Points ∼69% -17%
CPU Multi 64Bit
Acer Nitro 5 AN515-52-74DR
Intel Core i7-8750H
12.98 Points ∼48% +39%
Average Intel Xeon E-2176M
  (9.32 - 12.4, n=3)
11.3 Points ∼42% +21%
Asus G703
Intel Core i7-7820HK
10.33 Points ∼38% +11%
Dell Precision 3530
Intel Xeon E-2176M
9.32 Points ∼34%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
8.91 Points ∼33% -4%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
7.89 Points ∼29% -15%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
7.01 Points ∼26% -25%
Average of class Workstation
  (2.16 - 17.4, n=103)
6.82 Points ∼25% -27%
Cinebench R10
Rendering Single 32Bit
Average Intel Xeon E-2176M
  (6928 - 9142, n=3)
7681 Points ∼59% +11%
Dell Precision 3530
Intel Xeon E-2176M
6928 Points ∼54%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
6782 Points ∼52% -2%
Average of class Workstation
  (3094 - 9142, n=86)
5355 Points ∼41% -23%
Rendering Multiple CPUs 32Bit
Average Intel Xeon E-2176M
  (31923 - 43681, n=3)
35912 Points ∼72% +12%
Dell Precision 3530
Intel Xeon E-2176M
31923 Points ∼64%
Average of class Workstation
  (8373 - 43681, n=87)
19772 Points ∼40% -38%
Lenovo ThinkPad P52S-20LB001FUS
Intel Core i7-8650U
16227 Points ∼33% -49%
wPrime 2.0x - 1024m
Average of class Workstation
  (98.7 - 1390, n=58)
323 s * ∼4% -80%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
319 s * ∼4% -78%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
299 s * ∼4% -66%
Dell Precision 3530
Intel Xeon E-2176M
179.63 s * ∼2%
Average Intel Xeon E-2176M
  (147 - 180, n=2)
163 s * ∼2% +9%
Super Pi Mod 1.5 XS 32M - ---
Average of class Workstation
  (-1 - 172530, n=700)
8477 Seconds * ∼38% -1670%
Average Intel Xeon E-2176M
  (8.51 - 10061, n=9)
3114 Seconds * ∼14% -550%
Eurocom Tornado F5W
Intel Xeon E3-1280 v5
527 Seconds * ∼2% -10%
Dell Precision 5520 UHD
Intel Xeon E3-1505M v6
489 Seconds * ∼2% -2%
Dell Precision 3530
Intel Xeon E-2176M
478.8 Seconds * ∼2%

* ... Moindre est la valeur, meilleures sont les performances

Cinebench R10 Shading 32Bit
13234
Cinebench R10 Rendering Multiple CPUs 32Bit
31923
Cinebench R10 Rendering Single 32Bit
6928
Cinebench R11.5 OpenGL 64Bit
113.37 fps
Cinebench R11.5 CPU Multi 64Bit
9.32 Points
Cinebench R11.5 CPU Single 64Bit
2.04 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
144.01 fps
Cinebench R15 CPU Multi 64Bit
987 Points
Cinebench R15 CPU Single 64Bit
169 Points
Aide
PCMark 8
Work Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5423 Points ∼83% +2%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5329 Points ∼82% +1%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
5295 Points ∼81%
Average Intel Xeon E-2176M, NVIDIA Quadro P600

5295 Points ∼81% 0%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
5194 Points ∼80% -2%
Average of class Workstation
  (3311 - 5655, n=69)
4808 Points ∼74% -9%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4291 Points ∼66% -19%
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, 8650U, Samsung SSD PM981 MZVLB1T0HALR
4196 Points ∼64% -21%
Creative Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5663 Points ∼59% +10%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
5126 Points ∼54%
Average Intel Xeon E-2176M, NVIDIA Quadro P600

5126 Points ∼54% 0%
Average of class Workstation
  (2399 - 8015, n=49)
5106 Points ∼54% 0%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5086 Points ∼53% -1%
Home Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4375 Points ∼72% +3%
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
4233 Points ∼69%
Average Intel Xeon E-2176M, NVIDIA Quadro P600

4233 Points ∼69% 0%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
4183 Points ∼69% -1%
Average of class Workstation
  (2320 - 5505, n=70)
3983 Points ∼65% -6%
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
3959 Points ∼65% -6%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3504 Points ∼58% -17%
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, 8650U, Samsung SSD PM981 MZVLB1T0HALR
3178 Points ∼52% -25%
PCMark 8 Home Score Accelerated v2
4233 points
PCMark 8 Creative Score Accelerated v2
5126 points
PCMark 8 Work Score Accelerated v2
5295 points
Aide
Dell Precision 3530
SK hynix PC400 512 GB
Dell Precision 3520
Toshiba XG4 NVMe (THNSN5512GPUK)
Dell Precision 5520 UHD
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Lenovo ThinkPad P52 20MAS03N00
Samsung SSD PM981 MZVLB512HAJQ
Lenovo ThinkPad P52S-20LB001FUS
Samsung SSD PM981 MZVLB1T0HALR
HP ZBook 15 G4-Y4E80AV
Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
AS SSD
-31%
29%
34%
26%
35%
Copy Game MB/s
1049.94
746.92
-29%
921.16
-12%
1016.4
-3%
982.38
-6%
Copy Program MB/s
346.12
340.39
-2%
372.79
8%
476.85
38%
325.44
-6%
Copy ISO MB/s
1700.81
1052.86
-38%
1659.32
-2%
1016.4
-40%
1486.12
-13%
Score Total
3013
1646
-45%
3681
22%
4307
43%
4038
34%
4303
43%
Score Write
1138
248
-78%
1379
21%
2079
83%
1468
29%
1472
29%
Score Read
1288
961
-25%
1554
21%
1485
15%
1703
32%
1902
48%
Access Time Write *
0.053
0.034
36%
0.023
57%
0.031
42%
0.04
25%
0.023
57%
Access Time Read *
0.099
0.123
-24%
0.038
62%
0.072
27%
0.04
60%
0.034
66%
4K-64 Write
908.29
134.53
-85%
1054.63
16%
1779.98
96%
1245.29
37%
1136.39
25%
4K-64 Read
993.95
787.91
-21%
1222.65
23%
1203
21%
1523.57
53%
1578.04
59%
4K Write
102.77
93.75
-9%
155.28
51%
121
18%
100.47
-2%
158.04
54%
4K Read
25.98
32.58
25%
51.45
98%
52.62
103%
44.33
71%
51.66
99%
Seq Write
1272.09
201.91
-84%
1694.02
33%
1781.29
40%
1219.9
-4%
1776.51
40%
Seq Read
2682.46
1405.86
-48%
2799.35
4%
2293.89
-14%
1351.25
-50%
2718.57
1%

* ... Moindre est la valeur, meilleures sont les performances

SK hynix PC400 512 GB
CDM 5/6 Read Seq Q32T1: 3095 MB/s
CDM 5/6 Write Seq Q32T1: 1411 MB/s
CDM 5/6 Read 4K Q32T1: 404.3 MB/s
CDM 5/6 Write 4K Q32T1: 355 MB/s
CDM 5 Read Seq: 1896 MB/s
CDM 5 Write Seq: 1417 MB/s
CDM 5/6 Read 4K: 41.18 MB/s
CDM 5/6 Write 4K: 113.6 MB/s
3DMark 11
1280x720 Performance Combined
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
10428 Points ∼46% +111%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
9296 Points ∼41% +88%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, 8750H
6375 Points ∼28% +29%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
5312 Points ∼23% +8%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
5166 Points ∼23% +5%
Average of class Workstation
  (830 - 22606, n=101)
5066 Points ∼22% +3%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
4936 Points ∼22%
Average NVIDIA Quadro P600
  (4821 - 4936, n=2)
4879 Points ∼22% -1%
Dell Precision 3520
NVIDIA Quadro M620, 7820HQ
3994 Points ∼18% -19%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, 7600U
2912 Points ∼13% -41%
1280x720 Performance GPU
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
20623 Points ∼40% +339%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
15837 Points ∼31% +237%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, 8750H
6115 Points ∼12% +30%
Average of class Workstation
  (841 - 25266, n=101)
6007 Points ∼12% +28%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
5515 Points ∼11% +17%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
5105 Points ∼10% +9%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
4702 Points ∼9%
Average NVIDIA Quadro P600
  (4608 - 4702, n=2)
4655 Points ∼9% -1%
Dell Precision 3520
NVIDIA Quadro M620, 7820HQ
3801 Points ∼7% -19%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, 7600U
2658 Points ∼5% -43%
3DMark
1920x1080 Fire Strike Graphics
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
14990 Points ∼37% +263%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
12312 Points ∼30% +198%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, E3-1535M v6
5786 Points ∼14% +40%
Average of class Workstation
  (752 - 18544, n=93)
4867 Points ∼12% +18%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, 8750H
4843 Points ∼12% +17%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
4165 Points ∼10% +1%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
4127 Points ∼10%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
4118 Points ∼10% 0%
Average NVIDIA Quadro P600
  (4039 - 4127, n=2)
4083 Points ∼10% -1%
Dell Precision 3520
NVIDIA Quadro M620, 7820HQ
3204 Points ∼8% -22%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, 7600U
2342 Points ∼6% -43%
Lenovo ThinkPad P52S-20LB001FUS
NVIDIA Quadro P500, 8650U
2239 Points ∼6% -46%
1280x720 Cloud Gate Standard Graphics
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
102368 Points ∼55% +251%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, 7700HQ
74933 Points ∼41% +157%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, E3-1535M v6
37796 Points ∼20% +30%
Lenovo ThinkPad P52 20MAS03N00
NVIDIA Quadro P1000, 8750H
31396 Points ∼17% +8%
Average of class Workstation
  (5836 - 107472, n=93)
31069 Points ∼17% +6%
Dell Precision 3530
NVIDIA Quadro P600, E-2176M
29178 Points ∼16%
Average NVIDIA Quadro P600
  (28736 - 29178, n=2)
28957 Points ∼16% -1%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
28254 Points ∼15% -3%
HP ZBook Studio G4-Y6K17EA
NVIDIA Quadro M1200, E3-1505M v6
26860 Points ∼15% -8%
Dell Precision 3520
NVIDIA Quadro M620, 7820HQ
23259 Points ∼13% -20%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, 7600U
13394 Points ∼7% -54%
Lenovo ThinkPad P52S-20LB001FUS
NVIDIA Quadro P500, 8650U
12868 Points ∼7% -56%
1920x1080 Ice Storm Extreme Graphics
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
310648 Points ∼43%
Average NVIDIA Quadro P600

120898 Points ∼17%
Average of class Workstation
  (20741 - 310648, n=19)
115171 Points ∼16%
Dell Precision 5520 UHD
NVIDIA Quadro M1200, E3-1505M v6
42129 Points ∼6%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, 7600U
20741 Points ∼3%
3DMark 06 Standard
18112 points
3DMark 11 Performance
5193 points
3DMark Cloud Gate Standard Score
19813 points
3DMark Fire Strike Score
3858 points
Aide
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF) (Classer selon les valeurs)
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
35.6 fps ∼13%
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
47 fps ∼18%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, 7700HQ, Toshiba NVMe THNSN5512GPU7
113 fps ∼43%
Average NVIDIA Quadro P600

41.9 fps ∼16%
Average of class Workstation
  (6 - 129, n=63)
47.9 fps ∼18%
Rise of the Tomb Raider
1920x1080 Very High Preset AA:FX AF:16x (Classer selon les valeurs)
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
20 fps ∼11%
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, 8650U, Samsung SSD PM981 MZVLB1T0HALR
11 fps ∼6% -45%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, 7700HQ, Toshiba NVMe THNSN5512GPU7
65 fps ∼35% +225%
Average NVIDIA Quadro P600
  (20 - 21, n=2)
20.5 fps ∼11% +3%
Average of class Workstation
  (7.9 - 105, n=38)
43.1 fps ∼23% +116%
1366x768 Medium Preset AF:2x (Classer selon les valeurs)
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
45 fps ∼20%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
36.6 fps ∼16% -19%
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, 8650U, Samsung SSD PM981 MZVLB1T0HALR
26 fps ∼12% -42%
MSI WS63VR 7RL-023US
Quadro P4000 Max-Q, 7700HQ, Toshiba NVMe THNSN5512GPU7
144 fps ∼64% +220%
Average NVIDIA Quadro P600
  (45 - 46.5, n=2)
45.8 fps ∼20% +2%
Average of class Workstation
  (14 - 221, n=39)
72.4 fps ∼32% +61%
Bas Moyen Élevé Ultra
The Witcher 3 (2015) 60452514fps
Rise of the Tomb Raider (2016) 70452320fps
Rocket League (2017) 22011872fps
Middle-earth: Shadow of War (2017) 81322317fps
0123456789101112131415161718192021222324252627282930Tooltip
The Witcher 3 high

Degré de la nuisance sonore

Au repos
28.3 / 28.3 / 28.4 dB(A)
Fortement sollicité
46.2 / 48.6 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   BK Precision 732A (à 15 cm de distance)   environment noise: 28.1 dB(A)
Dell Precision 3530
Quadro P600, E-2176M, SK hynix PC400 512 GB
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
Dell Precision 5520 UHD
Quadro M1200, E3-1505M v6, Samsung SM961 MZVKW512HMJP m.2 PCI-e
Lenovo ThinkPad P52 20MAS03N00
Quadro P1000, 8750H, Samsung SSD PM981 MZVLB512HAJQ
Lenovo ThinkPad P52S-20LB001FUS
Quadro P500, 8650U, Samsung SSD PM981 MZVLB1T0HALR
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
Noise
-3%
-2%
5%
4%
4%
off / environment *
28.1
29.6
-5%
28.7
-2%
29.5
-5%
28.3
-1%
29.5
-5%
Idle Minimum *
28.3
29.6
-5%
28.7
-1%
29.5
-4%
28.3
-0%
29.5
-4%
Idle Average *
28.3
29.6
-5%
32.1
-13%
29.5
-4%
28.3
-0%
29.5
-4%
Idle Maximum *
28.4
31.2
-10%
32.1
-13%
29.5
-4%
29.8
-5%
30
-6%
Load Average *
46.2
43
7%
41.3
11%
34.7
25%
40.6
12%
39.5
15%
Load Maximum *
48.6
46.9
3%
45.5
6%
39.4
19%
40.6
16%
36
26%
Witcher 3 ultra *
45.5
33.1
40.6
39.5

* ... Moindre est la valeur, meilleures sont les performances

 42.6 °C39.2 °C30 °C
 44.8 °C39.4 °C27.8 °C
 23.4 °C23 °C23 °C
Maximum: 44.8 °C
Moyenne: 32.6 °C
31 °C38.4 °C44.4 °C
27 °C44.2 °C56.4 °C
25.4 °C25.6 °C28 °C
Maximum: 56.4 °C
Moyenne: 35.6 °C
Alimentation (valeur maximale)  41 °C | Température ambiante de la pièce 20 °C | Fluke 62 Mini
(±) The average temperature for the upper side under maximal load is 32.6 °C / 91 F, compared to the average of 31.1 °C / 88 F for the devices in the class Workstation.
(±) The maximum temperature on the upper side is 44.8 °C / 113 F, compared to the average of 37.1 °C / 99 F, ranging from 23 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 56.4 °C / 134 F, compared to the average of 40.4 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 25.9 °C / 79 F, compared to the device average of 31.1 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 23.4 °C / 74.1 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (+4.4 °C / 7.9 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.437.22535.634.13132.836.14032.533.45033.633.96332.332.78031.531.810029.440.112528.844.216029.342.420027.249.225026.959.431526634002660.75002663.163025.36580025.270.4100024.773.3125024.374160023.971.220002466.3250023.663.1315023.763.9400023.562.7500023.463.3630023.366.2800023.265.21000023.360.81250023.159.61600023.166.1SPL36.380.3N2.746.7median 24.3median 63.1Delta1.54.245.64345.638.335.938.336.535.936.535.734.235.735.433.235.433.934.333.936.835.136.846.732.646.753.731.153.758.23058.254.229.154.249.627.649.65427.95457.527.157.556.826.856.866.625.766.668.325.268.366.725.166.765.524.765.56925.16958.824.558.862.524.262.569.223.969.27223.97266.423.866.463.323.763.37123.67166.823.666.869.523.769.566.323.766.379.636.879.646.82.946.8median 65.5median 25.1median 65.55.22.15.2hearing rangehide median Pink NoiseDell Precision 3530Dell Precision 5520 UHD
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Dell Precision 3530 audio analysis

(±) | speaker loudness is average but good (73.98 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.4% lower than median
(±) | linearity of bass is average (14.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.5% higher than median
(±) | linearity of mids is average (7.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.3% away from median
(+) | highs are linear (5.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.7% difference to median)
Compared to same class
» 25% of all tested devices in this class were better, 11% similar, 64% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 19% of all tested devices were better, 4% similar, 78% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Dell Precision 5520 UHD audio analysis

(±) | speaker loudness is average but good (79.57 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.8% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(±) | linearity of mids is average (9.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (12% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.7% difference to median)
Compared to same class
» 11% of all tested devices in this class were better, 14% similar, 75% worse
» The best had a delta of 10%, average was 19%, worst was 31%
Compared to all devices tested
» 14% of all tested devices were better, 4% similar, 82% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consommation énergétique
Éteint/en veilledarklight 0.38 / 1.6 Watts
Au reposdarkmidlight 5.3 / 10.7 / 14.1 Watts
Fortement sollicité midlight 85.4 / 91.9 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Dell Precision 3530
E-2176M, Quadro P600, SK hynix PC400 512 GB, IPS, 1920x1080, 15.6
Dell Precision 3520
7820HQ, Quadro M620, Toshiba XG4 NVMe (THNSN5512GPUK), IPS LED, 1920x1080, 15.6
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6
Lenovo ThinkPad P52 20MAS03N00
8750H, Quadro P1000, Samsung SSD PM981 MZVLB512HAJQ, IPS LED, 1920x1080, 15.6
Lenovo ThinkPad P52S-20LB001FUS
8650U, Quadro P500, Samsung SSD PM981 MZVLB1T0HALR, IPS, 3840x2160, 15.6
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 1920x1080, 15.6
Power Consumption
0%
-30%
4%
10%
-13%
Idle Minimum *
5.3
5.8
-9%
8.9
-68%
4.02
24%
5.9
-11%
5.9
-11%
Idle Average *
10.7
10.7
-0%
13.6
-27%
7.2
33%
11.7
-9%
8.9
17%
Idle Maximum *
14.1
13.3
6%
14.1
-0%
11.46
19%
15.6
-11%
12.7
10%
Load Average *
85.4
78.2
8%
100.3
-17%
76.3
11%
63
26%
95.2
-11%
Load Maximum *
91.9
116
-26%
126.3
-37%
154
-68%
63.1
31%
154
-68%
Witcher 3 ultra *
75.5
58.8
22%
100.2
-33%
74
2%
48.4
36%
87.7
-16%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
18h 48min
NBC WiFi Websurfing Battery Test 1.3
9h 19min
Fortement sollicité (luminosité au maximum)
1h 36min
Dell Precision 3530
E-2176M, Quadro P600, 92 Wh
Dell Precision 3520
7820HQ, Quadro M620, 68 Wh
Dell Precision 5520 UHD
E3-1505M v6, Quadro M1200, 97 Wh
Lenovo ThinkPad P52 20MAS03N00
8750H, Quadro P1000, 96 Wh
Lenovo ThinkPad P52S-20LB001FUS
8650U, Quadro P500, 80 Wh
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, 90 Wh
Autonomie de la batterie
-16%
-42%
10%
21%
5%
Reader / Idle
1128
996
-12%
724
-36%
1519
35%
1031
-9%
1096
-3%
WiFi v1.3
559
455
-19%
254
-55%
637
14%
665
19%
547
-2%
Load
96
79
-18%
61
-36%
79
-18%
146
52%
115
20%

Points positifs

+ bonne sélection de ports
+ bonne qualité de construction
+ bon clavier
+ Trackpad et Trackpoint excellents
+ énorme autonomie

Points négatifs

- performances pas stables
- mauvaise gestion thermique
- zones qui chauffent sous le châssis en cas de sollicitations
- ventilateur trop agressif et trop bruyant
- écran sombre
En test : le Dell Precision 3530. Modèle de test aimablement fourni par Dell.
En test : le Dell Precision 3530. Modèle de test aimablement fourni par Dell.

Le Dell Precision 3530 est tout de compromis. Dell recycle le châssis de l’ancien 3520, mais intègre des composants plus puissants. De ce fait l'appareil possède les mêmes inconvénients que son prédécesseur, en particulier en ce qui concerne la gestion de la chauffe et le niveau sonore. Tout comme le 3520, le 3530 possède des zones bien trop chaudes, et le ventilateur démarre trop rapidement, en faisant trop de bruit. Pire, le mauvais refroidissement entraîne un gros thermal throttling, baissant de 20 % les performances du CPU lors de grosses sollicitations.

Ces compromis gâchent quelque peu un appareil par ailleurs excellent. La qualité de construction du 3530 est bonne, le clavier excellent, et les ports abondants (dont un port Thunderbolt 3). L’écran est dans la moyenne, et devrait satisfaire les non-professionnels. L’autonomie est excellente.

Malgré toutes ces qualités, le Precision 3530 peine à convaincre totalement, à cause de ses mauvaises performances. Le CPU Xeon et le GPU Quadro sont juste trop puissants pour le système de refroidissement médiocre. Il en résulte un throttling élevé, surtout en ce qui concerne le CPU, et des ventilateurs trop agressifs. Il y a une meilleure offre d’appareils avec des performances similaires ou meilleures, et plus équilibrés. Le Zbook 15 G4 de HP ou le ThinkPad P52 de Lenovo font de meilleurs choix.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Dell Precision 3530 - 08/13/2018 v6
Sam Medley

Châssis
84 / 98 → 85%
Clavier
88%
Dispositif de pointage
90%
Connectivité
76 / 81 → 94%
Poids
0 / 10-66 → -18%
Autonomie
Écran
86%
Performances en jeu
83%
Performances dans les applications
90%
Chauffe
88 / 95 → 92%
Nuisance sonore
83 / 90 → 92%
Audio
59%
Appareil photo
44 / 85 → 52%
Moyenne
78%
84%
Workstation - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique de la station de travail Dell Precision 3530 (Xeon E-2176M, Quadro P600)
Sam Medley, 2018-08-18 (Update: 2018-08-18)
