Test de l'Acer Swift 5 SF514 (i5-1035G1, UHD G1, FHD) : améliorations tous azimuts pour l'ultraportable de 14 pouces

Son poids en euros... Un autre poids plume Swift est arrivé en test, et va devoir démontrer qu’il fait bien moins de compromis que son prédécesseur. Le nouvel Intel Core i5-1035G1 parviendra-t-il à fournir les performances adéquates, et non un throttling extrême ? Nous allons voir cela dans ce rapport de test.
Christian Hintze, 👁 Sebastian Jentsch (traduit par Prévots),
Acer Swift 5 SF514-54T-501U (Swift 5 Gamme)
Processeur
Intel Core i5-1035G1 4 x 1.2 GHz, Ice Lake U
Carte graphique
Intel UHD Graphics G1 (Ice Lake 32 EU) - 1024 Mo, Mémoire: 1330 MHz, 26.20.100.7372
Mémoire
8192 Mo
, LPDDR4
Écran
14.00 pouces 16:9, 1920 x 1080 pixel 157 PPP, Yes, AU Optronics AUO253D, IPS, CineCrystal, brillant: non
Carte mère
Intel 495 (Ice Lake-U PCH-LP Premium)
Disque dur
Kingston RBUSNS8154P3512GJ1, 512 Go
, 480 Go libres
Carte son
Intel Ice Lake-U/Y PCH-LP cAVS
Connexions
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Encoche de Sécurité Kensington, Connectique audio: jack 3,5 mm, Lecteur de cartes mémoires: aucun, 1 Lecteur d'empreintes digitales
Réseau
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth Bluetooth 5.0
Taille
Hauteur x Largeur x Profondeur (en mm): 14.95 x 318.7 x 210.5
Batterie
56 Wh Lithium-Ion, 4 cellules, Autonomie de la batterie (selon les données du fabricant): 12 h
Charging
fast charging / Quickcharge
Système d'exploitation
Microsoft Windows 10 Home 64 Bit
Appareil photo
Webcam: HD
Appareil photo primaire: 1 MPix
Fonctionnalités additionnelles
Haut-parleurs: stéréo, Clavier: chiclet, Rétroéclairage du clavier: oui, 24 Mois Garantie, 2 ans de garantie
Poids
943 g, Alimentation: 275 g
Prix
900 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Note
Date
Modèle
Poids
Épaisseur
Taille
Résolution
Best Price
86 %
01/20
Acer Swift 5 SF514-54T-501U
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU)
943 g14.95 mm14.00"1920x1080
84 %
06/18
Acer Swift 5 SF514-52T-59HY
i5-8250U, UHD Graphics 620
930 g15 mm14.00"1920x1080
84 %
11/19
Acer Swift 7 SF714-52T-76MR
i7-8500Y, UHD Graphics 615
890 g9.95 mm14.00"1920x1080
84 %
11/19
Acer TravelMate X514-51-511Q
i5-8265U, UHD Graphics 620
980 g15 mm14.00"1920x1080
85 %
02/19
Asus Zenbook 14 UX433FA-A6018T
i5-8265U, UHD Graphics 620
1.2 kg15.9 mm14.00"1920x1080
85 %
04/19
LG Gram 14Z980-U.AAW5U1
i5-8250U, UHD Graphics 620
994 g15.2 mm14.00"1920x1080

Comparaison des tailles

329 mm 228 mm 15 mm 930 g329 mm 228 mm 15 mm 980 g322.6 mm 210.8 mm 15.2 mm 994 g319 mm 199 mm 15.9 mm 1.2 kg318.7 mm 210.5 mm 14.95 mm 943 g317.9 mm 191.5 mm 9.95 mm 890 g
Côté gauche : AC, HDMI, USB A 3.1, USB C (Thunderbolt).
Côté gauche : AC, HDMI, USB A 3.1, USB C (Thunderbolt).

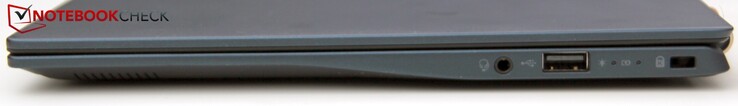

Côté droit : audio 3,5 mm jack, USB A 2.0, verrou de sécurité Kensington.
Côté droit : audio 3,5 mm jack, USB A 2.0, verrou de sécurité Kensington.
A l'avant : aucune connectivité.
A l'avant : aucune connectivité.

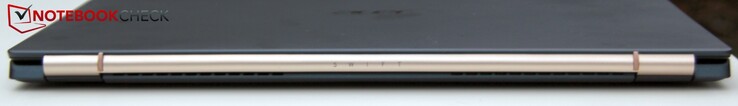

A l'arrière : aucune connectivité.
A l'arrière : aucune connectivité.
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Acer Swift 5 SF514-54T-501U
Intel Wi-Fi 6 AX201
968 (860min - 1204max) MBit/s ∼100%
Asus Zenbook 14 UX433FA-A6018T
Intel Wireless-AC 9560
666 (585min - 685max) MBit/s ∼69% -31%
Average of class Subnotebook
  (30.9 - 1658, n=186)
660 MBit/s ∼68% -32%
LG Gram 14Z980-U.AAW5U1
Intel Dual Band Wireless-AC 8265
655 MBit/s ∼68% -32%
Acer Swift 5 SF514-52T-59HY
Intel Dual Band Wireless-AC 7265
493 MBit/s ∼51% -49%
iperf3 Client (transmit) TCP 1 m 4M x10
Acer Swift 5 SF514-54T-501U
Intel Wi-Fi 6 AX201
1416 (1003min - 1801max) MBit/s ∼100%
Asus Zenbook 14 UX433FA-A6018T
Intel Wireless-AC 9560
631 (503min - 648max) MBit/s ∼45% -55%
Average of class Subnotebook
  (36 - 1614, n=186)
614 MBit/s ∼43% -57%
Acer Swift 5 SF514-52T-59HY
Intel Dual Band Wireless-AC 7265
511 MBit/s ∼36% -64%
LG Gram 14Z980-U.AAW5U1
Intel Dual Band Wireless-AC 8265
505 MBit/s ∼36% -64%
01020304050607080901001101201301401501601701801902002102202302402502602702802903003103203303403503603703803904004104204304404504604704804905005105205305405505605705805906006106206306406506606706806907007107207307407507607707807908008108208308408508608708808909009109209309409509609709809901000101010201030104010501060107010801090110011101120113011401150116011701180119012001210122012301240125012601270128012901300131013201330134013501360137013801390140014101420143014401450146014701480149015001510152015301540155015601570158015901600161016201630164016501660167016801690170017101720173017401750176017701780179018001810Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø968 (860-1204)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1416 (1003-1801)
298
cd/m²
311
cd/m²
290
cd/m²
284
cd/m²
319
cd/m²
275
cd/m²
283
cd/m²
296
cd/m²
268
cd/m²
Homogénéité de la luminosité
AU Optronics AUO253D
X-Rite i1Pro 2
Maximum: 319 cd/m² Moyenne: 291.6 cd/m² Minimum: 20.9 cd/m²
Homogénéité de la luminosité: 84 %
Valeur mesurée au centre, sur batterie: 320 cd/m²
Contraste: 1387:1 (Valeurs des noirs: 0.23 cd/m²)
ΔE Color 2.53 | 0.6-29.43 Ø5.7, calibrated: 2.67
ΔE Greyscale 2.22 | 0.64-98 Ø5.9
95% sRGB (Argyll 3D) 62% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.54
Acer Swift 5 SF514-54T-501U
AU Optronics AUO253D, IPS, CineCrystal, 1920x1080, 14.00
Acer Swift 5 SF514-52T-59HY
AU Optronics AUO203D, IPS, 1920x1080, 14.00
Acer Swift 7 SF714-52T-76MR
AU Optronics B140HAN06.0, IPS, 1920x1080, 14.00
Acer TravelMate X514-51-511Q
Chi mei CMN14D5, IPS, 1920x1080, 14.00
LG Gram 14Z980-U.AAW5U1
LG Philips LP140WF7-SPG1, IPS, 1920x1080, 14.00
Asus Zenbook 14 UX433FA-A6018T
AU Optronics B140HAN03.2, IPS, 1920x1080, 14.00
Response Times
25%
-6%
16%
14%
12%
Response Time Grey 50% / Grey 80% *
47 (21, 26)
37 (17, 20)
21%
55 (25, 30)
-17%
40 (21, 19)
15%
36.8 (19.6, 17.2)
22%
42 (21, 21)
11%
Response Time Black / White *
32 (18, 14)
23 (13, 10)
28%
30 (14, 16)
6%
27 (16, 11)
16%
30 (18.4, 11.6)
6%
28 (16, 12)
12%
PWM Frequency
250 (10)
Screen
-25%
3%
-6%
-23%
-46%
Brightness middle
319
254
-20%
296
-7%
295
-8%
333.8
5%
321
1%
Brightness
292
231
-21%
272
-7%
276
-5%
307
5%
282
-3%
Brightness Distribution
84
86
2%
79
-6%
82
-2%
83
-1%
77
-8%
Black Level *
0.23
0.25
-9%
0.095
59%
0.215
7%
0.4
-74%
0.2
13%
Contrast
1387
1016
-27%
3116
125%
1372
-1%
835
-40%
1605
16%
Colorchecker DeltaE2000 *
2.53
3.85
-52%
3.1
-23%
2.6
-3%
3.54
-40%
6.35
-151%
Colorchecker DeltaE2000 max. *
5.5
7.05
-28%
6.2
-13%
5.6
-2%
5.8
-5%
12.2
-122%
Colorchecker DeltaE2000 calibrated *
2.67
3.66
-37%
2.36
12%
1.88
30%
Greyscale DeltaE2000 *
2.22
4.1
-85%
4.5
-103%
3.4
-53%
4.7
-112%
8.35
-276%
Gamma
2.54 87%
2.43 91%
2.15 102%
2.08 106%
2.14 103%
2.51 88%
CCT
6381 102%
7369 88%
7277 89%
7192 90%
6261 104%
8227 79%
Color Space (Percent of AdobeRGB 1998)
62
63
2%
65
5%
63
2%
61.2
-1%
59
-5%
Color Space (Percent of sRGB)
95
97
2%
99
4%
99
4%
94.7
0%
91
-4%
Moyenne finale (programmes/paramètres)
0% / -17%
-2% / 2%
5% / -3%
-5% / -17%
-17% / -37%

* ... Moindre est la valeur, meilleures sont les performances

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.
       Temps de réponse noir à blanc
32 ms ... hausse ↗ et chute ↘ combinées↗ 18 ms hausse
↘ 14 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 82 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (24.3 ms) de tous les appareils testés.
       Temps de réponse gris 50% à gris 80%
47 ms ... hausse ↗ et chute ↘ combinées↗ 21 ms hausse
↘ 26 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 636 (maximum) ms. » 75 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (38.6 ms) de tous les appareils testés.

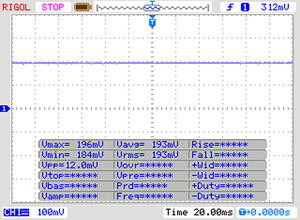

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) non décelé

En comparaison, 51 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 9589 (minimum : 5 - maximum : 142900) Hz dans le cas où une MDI était active.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660Tooltip
Acer Swift 5 SF514-54T-501U Intel Core i5-1035G1, Intel Core i5-1035G1: Ø494 (437.21-504.69)
Acer Swift 5 SF514-52T-59HY Intel Core i5-8250U, Intel Core i5-8250U: Ø408 (359.46-494.25)
LG Gram 14Z980-U.AAW5U1 Intel Core i5-8250U, Intel Core i5-8250U: Ø480 (467.78-544.81)
Asus Zenbook 14 UX433FA-A6018T Intel Core i5-8265U, Intel Core i5-8265U: Ø504 (494.08-654.12)
Asus Zenbook 14 UX433FA-A6018T Intel Core i5-8265U, Intel Core i5-8265U; BIOS 204: Ø571 (557.17-647.21)
Cinebench R15
CPU Single 64Bit
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
170 Points ∼100%
Average Intel Core i5-1035G1
  (161 - 171, n=7)
168 Points ∼99% -1%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U
162 Points ∼95% -5%
Asus Zenbook 14 UX433FA-A6018T
Intel Core i5-8265U
149 Points ∼88% -12%
LG Gram 14Z980-U.AAW5U1
Intel Core i5-8250U
143 Points ∼84% -16%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
132 Points ∼78% -22%
Acer Swift 7 SF714-52T-76MR
Intel Core i7-8500Y
129 Points ∼76% -24%
Average of class Subnotebook
  (20 - 219, n=342)
124 Points ∼73% -27%
CPU Multi 64Bit
Asus Zenbook 14 UX433FA-A6018T
Intel Core i5-8265U
654 Points ∼100% +26%
Asus Zenbook 14 UX433FA-A6018T
Intel Core i5-8265U
647 Points ∼99% +25%
Average Intel Core i5-1035G1
  (518 - 803, n=10)
610 Points ∼93% +18%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
518 Points ∼79%
LG Gram 14Z980-U.AAW5U1
Intel Core i5-8250U
517 Points ∼79% 0%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U
501 Points ∼77% -3%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
494 Points ∼76% -5%
Average of class Subnotebook
  (32 - 1626, n=357)
411 Points ∼63% -21%
Acer Swift 7 SF714-52T-76MR
Intel Core i7-8500Y
246 Points ∼38% -53%
Cinebench R11.5
CPU Single 64Bit
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
1.97 Points ∼100%
Average Intel Core i5-1035G1

1.97 Points ∼100% 0%
Asus Zenbook 14 UX433FA-A6018T
Intel Core i5-8265U
1.73 Points ∼88% -12%
Average of class Subnotebook
  (0.09 - 2.49, n=286)
1.186 Points ∼60% -40%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
0.91 Points ∼46% -54%
CPU Multi 64Bit
Asus Zenbook 14 UX433FA-A6018T
Intel Core i5-8265U
7.22 Points ∼100% +24%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
5.81 Points ∼80%
Average Intel Core i5-1035G1

5.81 Points ∼80% 0%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
3.15 Points ∼44% -46%
Average of class Subnotebook
  (0.33 - 16.1, n=425)
2.7 Points ∼37% -54%
Cinebench R10
Rendering Multiple CPUs 64Bit
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
21753 Points ∼100%
Average Intel Core i5-1035G1

21753 Points ∼100% 0%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
11245 Points ∼52% -48%
Average of class Subnotebook
  (1294 - 44658, n=304)
8918 Points ∼41% -59%
Rendering Single CPUs 64Bit
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
9192 Points ∼100%
Average Intel Core i5-1035G1

9192 Points ∼100% 0%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U
5163 Points ∼56% -44%
Average of class Subnotebook
  (50.8 - 11411, n=307)
4115 Points ∼45% -55%
Cinebench R10 Shading 64Bit
10054 Points
Cinebench R10 Rendering Multiple CPUs 32Bit
17213
Cinebench R10 Shading 32Bit
9655
Cinebench R10 Rendering Single 32Bit
6687
Cinebench R10 Rendering Single CPUs 64Bit
9192 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
21753 Points
Cinebench R11.5 OpenGL 64Bit
36.61 fps
Cinebench R11.5 CPU Multi 64Bit
5.81 Points
Cinebench R11.5 CPU Single 64Bit
1.97 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Multi 64Bit
518 Points
Cinebench R15 OpenGL 64Bit
49.47 fps
Cinebench R15 CPU Single 64Bit
170 Points
Aide
PCMark 10
Digital Content Creation
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3076 Points ∼100%
Average Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (2930 - 3281, n=5)
3056 Points ∼99% -1%
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
2902 Points ∼94% -6%
Average of class Subnotebook
  (405 - 5795, n=153)
2813 Points ∼91% -9%
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
2795 Points ∼91% -9%
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
2751 Points ∼89% -11%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
2006 Points ∼65% -35%
Acer Swift 7 SF714-52T-76MR
UHD Graphics 615, i7-8500Y, SK Hynix BC501 HFM512GDJTNG
1880 Points ∼61% -39%
Productivity
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
6382 Points ∼100% +11%
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
5939 Points ∼93% +3%
Average Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (4872 - 6766, n=5)
5908 Points ∼93% +3%
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
5749 Points ∼90% 0%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
5740 Points ∼90%
Average of class Subnotebook
  (1014 - 8682, n=153)
5538 Points ∼87% -4%
Acer Swift 7 SF714-52T-76MR
UHD Graphics 615, i7-8500Y, SK Hynix BC501 HFM512GDJTNG
5164 Points ∼81% -10%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
3851 Points ∼60% -33%
Essentials
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
8482 Points ∼100%
Average Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (7975 - 8568, n=5)
8371 Points ∼99% -1%
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
7867 Points ∼93% -7%
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
7618 Points ∼90% -10%
Average of class Subnotebook
  (2062 - 10113, n=153)
7270 Points ∼86% -14%
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
7132 Points ∼84% -16%
Acer Swift 7 SF714-52T-76MR
UHD Graphics 615, i7-8500Y, SK Hynix BC501 HFM512GDJTNG
6709 Points ∼79% -21%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
6312 Points ∼74% -26%
Score
Average Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (3474 - 4122, n=5)
3814 Points ∼100% 0%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3807 Points ∼100%
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
3725 Points ∼98% -2%
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
3643 Points ∼96% -4%
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
3463 Points ∼91% -9%
Average of class Subnotebook
  (743 - 5549, n=156)
3430 Points ∼90% -10%
Acer Swift 7 SF714-52T-76MR
UHD Graphics 615, i7-8500Y, SK Hynix BC501 HFM512GDJTNG
2884 Points ∼76% -24%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
2619 Points ∼69% -31%
PCMark 8
Work Score Accelerated v2
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
4950 Points ∼100%
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
4715 Points ∼95% -5%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
4700 Points ∼95% -5%
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
4698 Points ∼95% -5%
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
4520 Points ∼91% -9%
Acer Swift 7 SF714-52T-76MR
UHD Graphics 615, i7-8500Y, SK Hynix BC501 HFM512GDJTNG
4141 Points ∼84% -16%
Average of class Subnotebook
  (1283 - 5628, n=265)
4121 Points ∼83% -17%
Average Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (2647 - 5035, n=5)
4051 Points ∼82% -18%
Home Score Accelerated v2
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
3733 Points ∼100% +4%
Average Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
  (3469 - 3988, n=5)
3653 Points ∼98% +2%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3590 Points ∼96%
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
3264 Points ∼87% -9%
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
3218 Points ∼86% -10%
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
3170 Points ∼85% -12%
Average of class Subnotebook
  (1027 - 4410, n=294)
3137 Points ∼84% -13%
Acer Swift 7 SF714-52T-76MR
UHD Graphics 615, i7-8500Y, SK Hynix BC501 HFM512GDJTNG
2588 Points ∼69% -28%
PCMark 8 Home Score Accelerated v2
3590 points
PCMark 8 Work Score Accelerated v2
4950 points
PCMark 10 Score
3807 points
Aide
Acer Swift 5 SF514-54T-501U
Kingston RBUSNS8154P3512GJ1
Acer Swift 5 SF514-52T-59HY
Intel SSD 600p SSDPEKKW256G7
Acer Swift 7 SF714-52T-76MR
SK Hynix BC501 HFM512GDJTNG
Acer TravelMate X514-51-511Q
Kingston RBUSNS8154P3256GJ1
LG Gram 14Z980-U.AAW5U1
SK Hynix SC313 HFS256G39TNF
Asus Zenbook 14 UX433FA-A6018T
WDC PC SN520 SDAPNUW-256G
Average Kingston RBUSNS8154P3512GJ1

CrystalDiskMark 5.2 / 6
-29%
-33%
-10%
-54%
-7%
-9%
Write 4K
107.79
98.01
-9%
48.38
-55%
122.3
13%
74.66
-31%
99.9
-7%
87.6 (54.6 - 108, n=3)
-19%
Read 4K
45.42
33.88
-25%
28.98
-36%
45.51
0%
14.89
-67%
40.03
-12%
40.3 (28.2 - 47.2, n=3)
-11%
Write Seq
989.57
585.3
-41%
742.7
-25%
667.1
-33%
502
-49%
973.1
-2%
941 (840 - 993, n=3)
-5%
Read Seq
1129.29
1149
2%
1027
-9%
713
-37%
498.6
-56%
1111
-2%
1070 (905 - 1176, n=3)
-5%
Write 4K Q32T1
490.86
161.6
-67%
94.56
-81%
411.8
-16%
214.3
-56%
424.6
-13%
418 (355 - 491, n=3)
-15%
Read 4K Q32T1
517.76
289.5
-44%
300
-42%
559.3
8%
225.5
-56%
255.9
-51%
428 (292 - 518, n=3)
-17%
Write Seq Q32T1
1033.2
577.8
-44%
870.3
-16%
891.8
-14%
504.8
-51%
1300
26%
1035 (1033 - 1038, n=3)
0%
Read Seq Q32T1
1643.8
1563
-5%
1640
0%
1639
0%
559.8
-66%
1723
5%
1629 (1607 - 1644, n=3)
-1%
AS SSD
-39%
-13%
-7%
-43%
-8%
-9%
Copy Game MB/s
541.61
372.79
-31%
571.59
6%
520.7
-4%
549.22
1%
542
0%
Copy Program MB/s
262.2
226.74
-14%
236.01
-10%
259.33
-1%
246.84
-6%
262
0%
Copy ISO MB/s
654.76
503.58
-23%
872.59
33%
513.76
-22%
600.52
-8%
655
0%
Score Total
2635
969
-63%
1653
-37%
2411
-9%
1040
-61%
2048
-22%
2372 (1786 - 2695, n=3)
-10%
Score Write
902
341
-62%
657
-27%
796
-12%
378
-58%
815
-10%
821 (601 - 961, n=3)
-9%
Score Read
1154
438
-62%
674
-42%
1073
-7%
431
-63%
829
-28%
1037 (804 - 1154, n=3)
-10%
Access Time Write *
0.044
0.041
7%
0.034
23%
0.044
-0%
0.055
-25%
0.028
36%
0.0533 (0.044 - 0.072, n=3)
-21%
Access Time Read *
0.075
0.054
0.092
0.114
0.0417 (0.051 - 0.074, n=3)
4K-64 Write
707.44
192.16
-73%
475.69
-33%
603.72
-15%
263.12
-63%
605.06
-14%
654 (483 - 772, n=3)
-8%
4K-64 Read
953.86
274.65
-71%
487.96
-49%
896.38
-6%
352.87
-63%
652.98
-32%
852 (644 - 959, n=3)
-11%
4K Write
100.82
90.78
-10%
112.8
12%
114.43
13%
66.14
-34%
130.83
30%
82.2 (52.7 - 101, n=3)
-18%
4K Read
54.64
24.72
-55%
42.64
-22%
54.84
0%
30.57
-44%
37.3
-32%
45.1 (26.7 - 54.6, n=3)
-17%
Seq Write
939
575.88
-39%
689.13
-27%
774.82
-17%
487.41
-48%
794.94
-15%
848 (653 - 953, n=3)
-10%
Seq Read
1454
1382.13
-5%
1437.05
-1%
1222.37
-16%
476.13
-67%
1388.77
-4%
1398 (1336 - 1454, n=3)
-4%
Moyenne finale (programmes/paramètres)
-34% / -35%
-23% / -21%
-9% / -8%
-49% / -47%
-8% / -8%
-9% / -9%

* ... Moindre est la valeur, meilleures sont les performances

Kingston RBUSNS8154P3512GJ1
Sequential Read: 1124 MB/s
Sequential Write: 994.1 MB/s
512K Read: 908.24 MB/s
512K Write: 982.71 MB/s
4K Read: 46.9 MB/s
4K Write: 112.59 MB/s
4K QD32 Read: 518.37 MB/s
4K QD32 Write: 496.87 MB/s
3DMark 11 - 1280x720 Performance GPU
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
2516 Points ∼100%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (1963 - 2578, n=9)
2283 Points ∼91% -9%
Asus Zenbook 14 UX433FA-A6018T
Intel UHD Graphics 620, Intel Core i5-8265U
1851 Points ∼74% -26%
LG Gram 14Z980-U.AAW5U1
Intel UHD Graphics 620, Intel Core i5-8250U
1757 Points ∼70% -30%
Acer TravelMate X514-51-511Q
Intel UHD Graphics 620, Intel Core i5-8265U
1740 Points ∼69% -31%
Average of class Subnotebook
  (230 - 12199, n=424)
1617 Points ∼64% -36%
Acer Swift 5 SF514-52T-59HY
Intel UHD Graphics 620, Intel Core i5-8250U
1420 Points ∼56% -44%
Acer Swift 7 SF714-52T-76MR
Intel UHD Graphics 615, Intel Core i7-8500Y
1288 Points ∼51% -49%
3DMark
2560x1440 Time Spy Graphics
Average of class Subnotebook
  (85 - 3276, n=85)
692 Points ∼100% +53%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
453 Points ∼65%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (395 - 472, n=4)
440 Points ∼64% -3%
Acer Swift 7 SF714-52T-76MR
Intel UHD Graphics 615, Intel Core i7-8500Y
279 Points ∼40% -38%
1920x1080 Fire Strike Graphics
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
1739 Points ∼100%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (1255 - 1755, n=9)
1538 Points ∼88% -12%
Average of class Subnotebook
  (222 - 8743, n=306)
1316 Points ∼76% -24%
Asus Zenbook 14 UX433FA-A6018T
Intel UHD Graphics 620, Intel Core i5-8265U
1292 Points ∼74% -26%
LG Gram 14Z980-U.AAW5U1
Intel UHD Graphics 620, Intel Core i5-8250U
1194 Points ∼69% -31%
Acer TravelMate X514-51-511Q
Intel UHD Graphics 620, Intel Core i5-8265U
1144 Points ∼66% -34%
Acer Swift 5 SF514-52T-59HY
Intel UHD Graphics 620, Intel Core i5-8250U
995 Points ∼57% -43%
Acer Swift 7 SF714-52T-76MR
Intel UHD Graphics 615, Intel Core i7-8500Y
943 Points ∼54% -46%
1280x720 Cloud Gate Standard Graphics
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
11934 Points ∼100%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (9346 - 12698, n=8)
11136 Points ∼93% -7%
Asus Zenbook 14 UX433FA-A6018T
Intel UHD Graphics 620, Intel Core i5-8265U
10968 Points ∼92% -8%
LG Gram 14Z980-U.AAW5U1
Intel UHD Graphics 620, Intel Core i5-8250U
9643 Points ∼81% -19%
Acer TravelMate X514-51-511Q
Intel UHD Graphics 620, Intel Core i5-8265U
9324 Points ∼78% -22%
Average of class Subnotebook
  (1484 - 53539, n=318)
8912 Points ∼75% -25%
Acer Swift 5 SF514-52T-59HY
Intel UHD Graphics 620, Intel Core i5-8250U
7980 Points ∼67% -33%
Acer Swift 7 SF714-52T-76MR
Intel UHD Graphics 615, Intel Core i7-8500Y
7205 Points ∼60% -40%
3DMark 06
12136 points
3DMark Vantage P Result
8750 points
3DMark 11 Performance
2730 points
3DMark Ice Storm Standard Score
55398 points
3DMark Cloud Gate Standard Score
9444 points
3DMark Fire Strike Score
1614 points
3DMark Time Spy Score
512 points
Aide
The Witcher 3
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Average of class Subnotebook
  (3.8 - 52.8, n=50)
17.1 fps ∼100% +144%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (7 - 11.5, n=3)
9.63 fps ∼56% +38%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
7 fps ∼41%
1366x768 Medium Graphics & Postprocessing
Average of class Subnotebook
  (5.6 - 92, n=60)
26.7 fps ∼100% +49%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (17.9 - 21.6, n=3)
19.5 fps ∼73% +9%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
17.9 fps ∼67%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U, Intel UHD Graphics 620
8 fps ∼30% -55%
Acer Swift 7 SF714-52T-76MR
Intel Core i7-8500Y, Intel UHD Graphics 615
5.9 fps ∼22% -67%
1024x768 Low Graphics & Postprocessing
Average of class Subnotebook
  (7.4 - 160, n=93)
35.5 fps ∼100% +31%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (27 - 35, n=3)
30.6 fps ∼86% +13%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
27 fps ∼76%
Acer Swift 7 SF714-52T-76MR
Intel Core i7-8500Y, Intel UHD Graphics 615
12.1 fps ∼34% -55%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U, Intel UHD Graphics 620
9.59 fps ∼27% -64%
Rocket League
1920x1080 High Quality AA:High FX
Average of class Subnotebook
  (14.5 - 59.8, n=26)
30.4 fps ∼100% +27%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
24 fps ∼79%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (22.8 - 24, n=2)
23.4 fps ∼77% -2%
LG Gram 14Z980-U.AAW5U1
Intel Core i5-8250U, Intel UHD Graphics 620
21.4 fps ∼70% -11%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U, Intel UHD Graphics 620
14.52 fps ∼48% -39%
1920x1080 Quality AA:Medium FX
Average of class Subnotebook
  (9.9 - 76.1, n=29)
40.1 fps ∼100% +8%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (37 - 42.2, n=2)
39.6 fps ∼99% +7%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
37 fps ∼92%
LG Gram 14Z980-U.AAW5U1
Intel Core i5-8250U, Intel UHD Graphics 620
31.6 fps ∼79% -15%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U, Intel UHD Graphics 620
23.74 fps ∼59% -36%
1920x1080 Performance
Average of class Subnotebook
  (31.8 - 113, n=11)
64 fps ∼100% +49%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (43 - 58.8, n=2)
50.9 fps ∼80% +18%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U, Intel UHD Graphics 620
43.44 fps ∼68% +1%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
43 fps ∼67%
1280x720 Performance
Average of class Subnotebook
  (22.1 - 156, n=31)
83.3 fps ∼100% +52%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (54.8 - 69.5, n=2)
62.2 fps ∼75% +14%
Acer Swift 5 SF514-52T-59HY
Intel Core i5-8250U, Intel UHD Graphics 620
57.56 fps ∼69% +5%
LG Gram 14Z980-U.AAW5U1
Intel Core i5-8250U, Intel UHD Graphics 620
56.7 fps ∼68% +3%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
54.8 fps ∼66%
BioShock Infinite
1366x768 High Preset
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
33.6 fps ∼100%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (25 - 40.4, n=7)
31.8 fps ∼95% -5%
Asus Zenbook 14 UX433FA-A6018T
Intel Core i5-8265U, Intel UHD Graphics 620
31 fps ∼92% -8%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
30.26 fps ∼90% -10%
Average of class Subnotebook
  (6.96 - 169, n=197)
30.1 fps ∼90% -10%
LG Gram 14Z980-U.AAW5U1
Intel Core i5-8250U, Intel UHD Graphics 620
29.7 fps ∼88% -12%
Acer Swift 7 SF714-52T-76MR
Intel Core i7-8500Y, Intel UHD Graphics 615
18.2 fps ∼54% -46%
1366x768 Medium Preset
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
42.1 fps ∼100%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (30.3 - 46.8, n=7)
37.9 fps ∼90% -10%
Asus Zenbook 14 UX433FA-A6018T
Intel Core i5-8265U, Intel UHD Graphics 620
36.7 fps ∼87% -13%
LG Gram 14Z980-U.AAW5U1
Intel Core i5-8250U, Intel UHD Graphics 620
35.2 fps ∼84% -16%
Average of class Subnotebook
  (8 - 187, n=208)
34.7 fps ∼82% -18%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
34.3 fps ∼81% -19%
Acer Swift 7 SF714-52T-76MR
Intel Core i7-8500Y, Intel UHD Graphics 615
25 fps ∼59% -41%
1280x720 Very Low Preset
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
75.9 fps ∼100%
Average Intel UHD Graphics G1 (Ice Lake 32 EU)
  (58.4 - 82.6, n=7)
71.5 fps ∼94% -6%
Asus Zenbook 14 UX433FA-A6018T
Intel Core i5-8265U, Intel UHD Graphics 620
67.4 fps ∼89% -11%
LG Gram 14Z980-U.AAW5U1
Intel Core i5-8250U, Intel UHD Graphics 620
60.5 fps ∼80% -20%
Average of class Subnotebook
  (16.9 - 231, n=212)
60.4 fps ∼80% -20%
Acer TravelMate X514-51-511Q
Intel Core i5-8265U, Intel UHD Graphics 620
59.88 fps ∼79% -21%
Acer Swift 7 SF714-52T-76MR
Intel Core i7-8500Y, Intel UHD Graphics 615
38.8 fps ∼51% -49%
Bas Moyen Élevé Ultra
BioShock Infinite (2013) 75.9 42.1 33.6 12.9 fps
The Witcher 3 (2015) 27 17.9 7 fps
Rocket League (2017) 54.8 37 24 fps

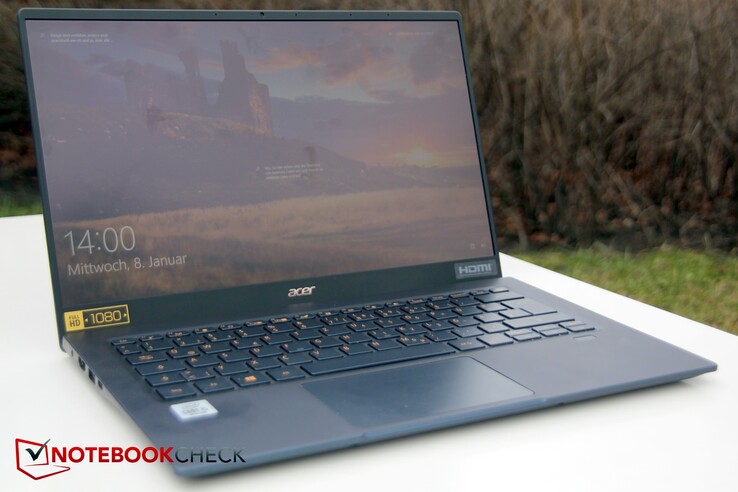

Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
Noise
-1%
2%
-1%
0%
off / environment *
30.3
30.3
-0%
28.2
7%
30.4
-0%
30.5
-1%
Idle Minimum *
30.3
30.3
-0%
28.4
6%
30.4
-0%
30.5
-1%
Idle Average *
30.3
30.3
-0%
28.4
6%
30.4
-0%
30.5
-1%
Idle Maximum *
30.6
31.2
-2%
28.4
7%
30.4
1%
30.9
-1%
Load Average *
32
33.1
-3%
35.7
-12%
34.1
-7%
32.7
-2%
Load Maximum *
33.7
34.4
-2%
34.2
-1%
34.4
-2%
31.5
7%

* ... Moindre est la valeur, meilleures sont les performances

Degré de la nuisance sonore

Au repos
30.3 / 30.3 / 30.6 dB(A)
Fortement sollicité
32 / 33.7 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   environment noise: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.238.535.434.334.92536.140.835.834.134.13136.736.942.63637.7403132.133.933.832.1503135.232.332.232.66330.628.930.83132.68029.228.229.528.230.41002930.130.329.330.312529.229.229.129.335.216024.924.524.724.326.720023.423.522.522.424.825022.622.121.822.423.731521.422.221.121.222.740021.721.220.920.421.650020.619.819.519.52163020.519.518.718.721.280020.719.618.518.320.6100021.5201817.720.6125021.920.317.517.721.7160023.820.617.617.123.5200024.521.217.517.423.8250023.421.617.817.422.831502118.617.917.621400019.718.51817.722.350001918.418.11822.5630018.718.518.21822.9800018.618.418.418.323.11000018.418.418.318.122.51250018.318.318.218.2201600018.418.318.318.220.6SPL33.63230.530.434.5N1.91.71.51.42.2median 21.4median 20median 18.3median 18.2median 22.5Delta1.82.422.31.438.241.833.738.233.435.134.133.433.636.535.733.631.736.730.531.731.936.937.631.931.637.828.731.629.63226.229.630.533.62630.524.62726.724.626.12924.826.125.229.223.625.224.125.723.224.123.526.422.623.522.62422.722.62223.82022212319.32121.52318.721.521.522.818.121.52122.6182122.123.517.922.122.523.31822.521.922.817.921.92121.918.22119.820.618.519.819.520.418.619.518.41918.718.418.118.618.918.11818.4191818.118.419.118.118.618.719.418.633.134.43133.11.721.41.7median 21.5median 23median 19median 21.52.12.61.92.1hearing rangehide median Fan NoiseAcer Swift 5 SF514-54T-501UAcer Swift 5 SF514-52T-59HY
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
Acer Swift 7 SF714-52T-76MR
UHD Graphics 615, i7-8500Y, SK Hynix BC501 HFM512GDJTNG
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
Heat
-9%
-18%
-6%
-7%
-1%
Maximum Upper Side *
40
42.9
-7%
55
-38%
44.9
-12%
45.2
-13%
41
-3%
Maximum Bottom *
42.1
44.9
-7%
51.4
-22%
44.2
-5%
41.4
2%
41.4
2%
Idle Upper Side *
25.4
28.4
-12%
27.1
-7%
26.3
-4%
26.8
-6%
26.1
-3%
Idle Bottom *
26.1
28.5
-9%
27.1
-4%
26.6
-2%
29
-11%
25.8
1%

* ... Moindre est la valeur, meilleures sont les performances

 39.4 °C40 °C39.3 °C
 35.8 °C36.4 °C31.3 °C
 30 °C29.4 °C27.3 °C
Maximum: 40 °C
Moyenne: 34.3 °C
41.2 °C42.1 °C41.7 °C
30.3 °C37.7 °C34 °C
28.1 °C30.6 °C30.3 °C
Maximum: 42.1 °C
Moyenne: 35.1 °C
Alimentation (valeur maximale)  40.8 °C | Température ambiante de la pièce 23.1 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.3 °C / 94 F, compared to the average of 30.6 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 40 °C / 104 F, compared to the average of 35.7 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 42.1 °C / 108 F, compared to the average of 39.6 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 30.6 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.4 °C / 83.1 F (-1.6 °C / -2.9 F).
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
Acer Swift 5 SF514-52T-59HY
UHD Graphics 620, i5-8250U, Intel SSD 600p SSDPEKKW256G7
Acer Swift 7 SF714-52T-76MR
UHD Graphics 615, i7-8500Y, SK Hynix BC501 HFM512GDJTNG
Acer TravelMate X514-51-511Q
UHD Graphics 620, i5-8265U, Kingston RBUSNS8154P3256GJ1
LG Gram 14Z980-U.AAW5U1
UHD Graphics 620, i5-8250U, SK Hynix SC313 HFS256G39TNF
Asus Zenbook 14 UX433FA-A6018T
UHD Graphics 620, i5-8265U, WDC PC SN520 SDAPNUW-256G
Heat
-9%
-18%
-6%
-7%
-1%
Maximum Upper Side *
40
42.9
-7%
55
-38%
44.9
-12%
45.2
-13%
41
-3%
Maximum Bottom *
42.1
44.9
-7%
51.4
-22%
44.2
-5%
41.4
2%
41.4
2%
Idle Upper Side *
25.4
28.4
-12%
27.1
-7%
26.3
-4%
26.8
-6%
26.1
-3%
Idle Bottom *
26.1
28.5
-9%
27.1
-4%
26.6
-2%
29
-11%
25.8
1%

* ... Moindre est la valeur, meilleures sont les performances

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203334.3332533.134.133.13136.93636.94031.633.831.6503132.2316329.43129.48028.128.228.110028.729.328.712527.829.327.816029.224.329.220027.922.427.92503922.43931546.221.246.24005320.4535005419.55463054.518.754.580059.618.359.6100054.717.754.7125061.517.761.5160060.917.160.9200063.817.463.8250059.517.459.5315060.917.660.9400059.217.759.2500060.31860.3630064.21864.2800061.318.361.31000061.518.161.51250069.418.269.41600069.618.269.6SPL73.530.473.5N30.51.430.5median 59.5median 18.2median 59.5Delta8.32.38.335.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAcer Swift 5 SF514-54T-501UApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Swift 5 SF514-54T-501U audio analysis

(-) | not very loud speakers (69.55 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.4% lower than median
(±) | linearity of bass is average (9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.6% away from median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23% difference to median)
Compared to same class
» 74% of all tested devices in this class were better, 4% similar, 22% worse
» The best had a delta of 8%, average was 19%, worst was 50%
Compared to all devices tested
» 63% of all tested devices were better, 8% similar, 29% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Consommation énergétique
Éteint/en veilledarklight 0.43 / 0.47 Watts
Au reposdarkmidlight 4.3 / 7.5 / 8.9 Watts
Fortement sollicité midlight 29 / 29.4 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Acer Swift 5 SF514-54T-501U
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU), Kingston RBUSNS8154P3512GJ1, IPS, CineCrystal, 1920x1080, 14.00
Acer Swift 5 SF514-52T-59HY
i5-8250U, UHD Graphics 620, Intel SSD 600p SSDPEKKW256G7, IPS, 1920x1080, 14.00
Acer Swift 7 SF714-52T-76MR
i7-8500Y, UHD Graphics 615, SK Hynix BC501 HFM512GDJTNG, IPS, 1920x1080, 14.00
Acer TravelMate X514-51-511Q
i5-8265U, UHD Graphics 620, Kingston RBUSNS8154P3256GJ1, IPS, 1920x1080, 14.00
LG Gram 14Z980-U.AAW5U1
i5-8250U, UHD Graphics 620, SK Hynix SC313 HFS256G39TNF, IPS, 1920x1080, 14.00
Asus Zenbook 14 UX433FA-A6018T
i5-8265U, UHD Graphics 620, WDC PC SN520 SDAPNUW-256G, IPS, 1920x1080, 14.00
Average Intel UHD Graphics G1 (Ice Lake 32 EU)

Average of class Subnotebook

Power Consumption
30%
36%
29%
10%
1%
-5%
-33%
Idle Minimum *
4.3
2.8
35%
2.7
37%
2.3
47%
2.7
37%
2.7
37%
3.5 (2.8 - 4.5, n=7)
19%
6.33 (2.6 - 36, n=664)
-47%
Idle Average *
7.5
4.8
36%
4.9
35%
4.6
39%
6
20%
5.8
23%
6.57 (5.4 - 7.7, n=7)
12%
9.53 (5 - 39, n=664)
-27%
Idle Maximum *
8.9
6.3
29%
5.8
35%
5.8
35%
6.5
27%
10.2
-15%
8.16 (6.8 - 10.2, n=7)
8%
11.8 (3.9 - 55, n=664)
-33%
Load Average *
29
21
28%
15.7
46%
22.4
23%
32.5
-12%
34.9
-20%
31.7 (27 - 37.2, n=7)
-9%
33.6 (6.3 - 79.2, n=654)
-16%
Load Maximum *
29.4
23
22%
21.7
26%
29
1%
35.5
-21%
35
-19%
45.8 (29.4 - 51.6, n=7)
-56%
41.1 (7.6 - 111, n=657)
-40%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
Au repos (module WiFi éteint, luminosité au minimum)
14h 45min
NBC WiFi Websurfing Battery Test 1.3
7h 48min
En lecture de Big Buck Bunny encodé en H.264 1080p
8h 05min
Fortement sollicité (luminosité au maximum)
2h 14min
Acer Swift 5 SF514-54T-501U
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU), 56 Wh
Acer Swift 5 SF514-52T-59HY
i5-8250U, UHD Graphics 620, 36 Wh
Acer Swift 7 SF714-52T-76MR
i7-8500Y, UHD Graphics 615, 31.9 Wh
Acer TravelMate X514-51-511Q
i5-8265U, UHD Graphics 620, 36 Wh
LG Gram 14Z980-U.AAW5U1
i5-8250U, UHD Graphics 620, 72 Wh
Asus Zenbook 14 UX433FA-A6018T
i5-8265U, UHD Graphics 620, 50 Wh
Average of class Subnotebook

Autonomie de la batterie
-4%
26%
-11%
75%
20%
-5%
Reader / Idle
885
962
9%
1273
44%
1075
21%
2238
153%
653 (87 - 2735, n=574)
-26%
H.264
485
466
-4%
631
30%
521 (182 - 1312, n=142)
7%
WiFi v1.3
468
313
-33%
526
12%
378
-19%
720
54%
563
20%
504 (206 - 991, n=286)
8%
Load
134
150
12%
160
19%
88
-34%
159
19%
123 (40 - 369, n=596)
-8%

Points positifs

+ taille et poids
+ Wifi 6
+ Thunderbolt 3
+ maintenance aisée
+ luminosité et contraste de l'écran
+ carte graphique Intel
+ SSD
+ niveau sonore et températures

Points négatifs

- sélection des ports, 1 USB 2.0
- RAM soudée
- organisation du clavier
- throttling du processeur
- consommation
- autonomie

Verdict

En test : le Acer Swift 5 SF514-54T. Modèle de test fourni par Acer.
En test : le Acer Swift 5 SF514-54T. Modèle de test fourni par Acer.

Nous devons complimenter Acer pour avoir accepté les critiques, et y avoir répondu. Le fabricant a changé de nombreuses choses là où il fallait, et le résultat est impressionnant.

Avant tout, Acer réussit enfin à bien gérer les performances. Notre modèle est capable de se maintenir au niveau de la concurrence - à l’inverse de son prédécesseur, dont le throttling était élevé. Nous sommes également convaincus par l’écran qui est enfin plus lumineux et qui possède une surface matte. La luminosité accrue n’impacte pas le contraste, qui a également progressé. Un autre point positif est le retour à une plus grosse batterie, et donc à une meilleure autonomie. Nous avons également été surpris par le bon SSD et les performances globales et 3D, qui peuvent surpasser les concurrents équipés des anciennes puces Intel UHD Graphics. Le Wifi plus rapide et l’intégration du Thunderbolt 3 complètent cette liste des points positifs.

Il n’y a pas grand-chose à critiquer sur ce dernier Swift 5. Le port USB 2.0 aurait pu être passé à une norme plus récente, et le lecteur de carte est à nouveau absent. La sélection des ports est également plus limitée que sur les autres ultrabooks. Nous devons également signaler que la RAM est soudée, ce qui signifie qu’elle ne peut être échangée ou agrandie. La consommation a augmenté, ce qui signifie que l’autonomie est au mieux moyenne, malgré la plus grosse batterie. Les performances ont été améliorées, mais l’appareil ne parvient toujours pas à exploiter totalement son processeur. Mais cela est sans doute le prix à payer pour obtenir un tel compromis entre les performances et le refroidissement, qui est plutôt bien équilibré sur le Swift 5.

De nombreux bons points, et presque rien à critique pour le nouveau Swift 5. L’ultrabook de 14 pouces est compact et léger, possède un bon écran tactile, et s’avère performant. Il semble être une mise à jour réussie à tous les niveaux de son prédécesseur.

Vu ces résultats, nous pouvons recommander le nouvel Acer, qui est actuellement vendu dans les 900 $.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Acer Swift 5 SF514-54T-501U - 01/09/2020 v7
Christian Hintze

Châssis
79 / 98 → 81%
Clavier
81%
Dispositif de pointage
91%
Connectivité
61 / 75 → 81%
Poids
76 / 20-75 → 100%
Autonomie
77%
Écran
88%
Performances en jeu
53 / 78 → 68%
Performances dans les applications
84 / 85 → 98%
Chauffe
93%
Nuisance sonore
96%
Audio
58 / 91 → 64%
Appareil photo
33 / 85 → 39%
Moyenne
75%
86%
Subnotebook - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Test de l'Acer Swift 5 SF514 (i5-1035G1, UHD G1, FHD) : améliorations tous azimuts pour l'ultraportable de 14 pouces
Christian Hintze, 2020-01-20 (Update: 2020-01-20)
