Test du NiPoGi CK10 Intel Core i7-10810U : petit PC de bureau avec trois emplacements SSD

Nous connaissons déjà le fabricant chinois de systèmes Minipc Union, après avoir examiné les deux systèmes suivants Ace Magician AMR5 ainsi que le Ace Magician TK11-A0 - deux mini-PC intéressants. Un autre petit PC concurrent est maintenant apparu sous la forme de notre échantillon NiPiGi CK10. Le système est basé sur un Intel Core i7-10810U de la série Comet Lake. Le SoC n'est plus le petit dernier, même si 6 cœurs et 12 threads peuvent sembler prometteurs. Associé à 16 Go de RAM DDR4 et à un SSD de 512 Go, ainsi qu'à une licence Windows, l'appareil coûte environ 600 euros

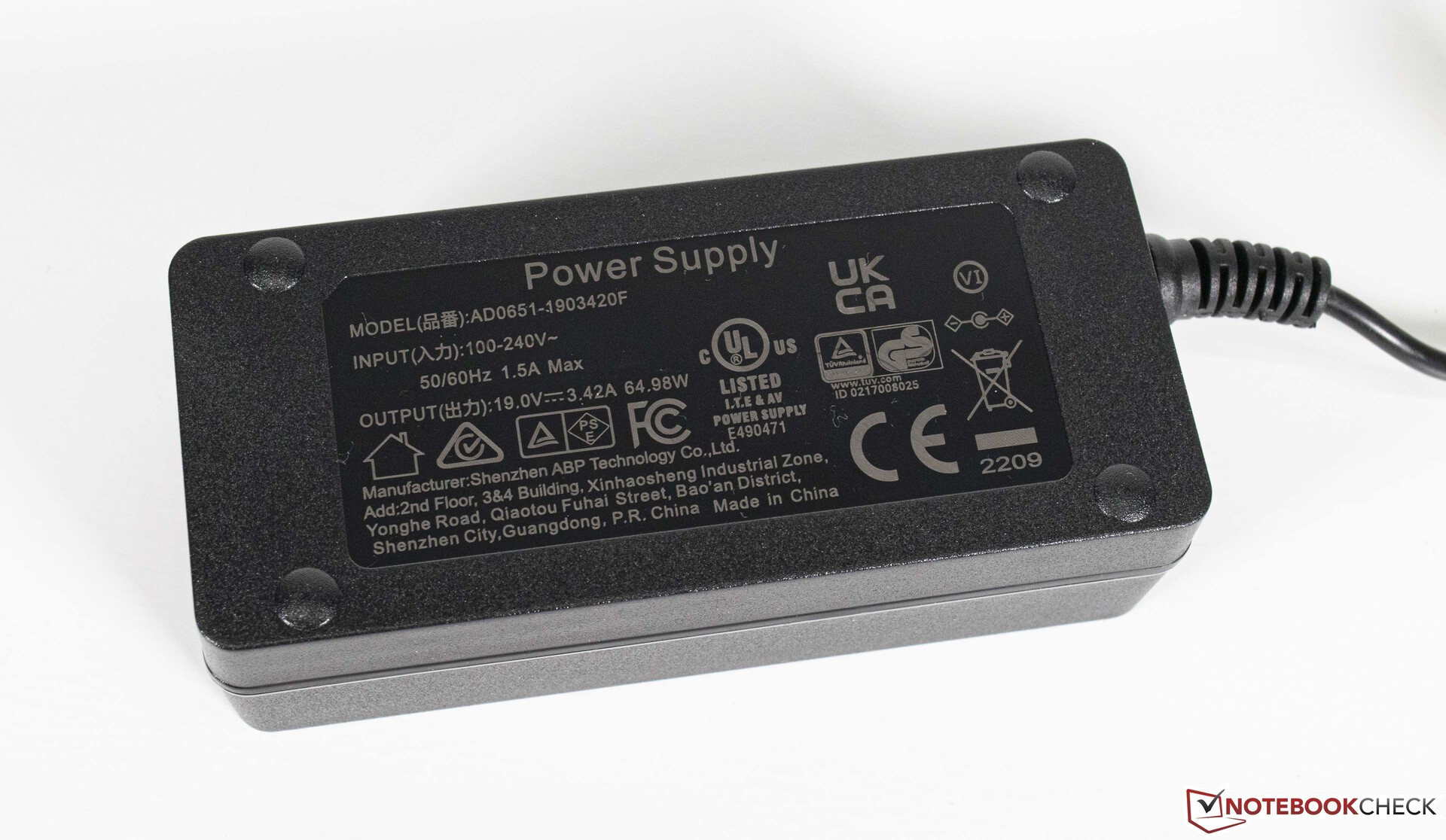

Le Mini PC est arrivé dans un emballage compact, comprenant un adaptateur d'alimentation de 65 watts et un support VESA permettant de fixer l'appareil à un moniteur. Un aperçu des concurrents potentiels se trouve dans le tableau ci-dessous.

Note	Date	Modèle	Poids	Épaisseur
70.9 %	12/22	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
	01/22	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
	01/22	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
	06/22	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
	02/22	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
	09/22	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
	12/21	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
	09/22	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

Cas

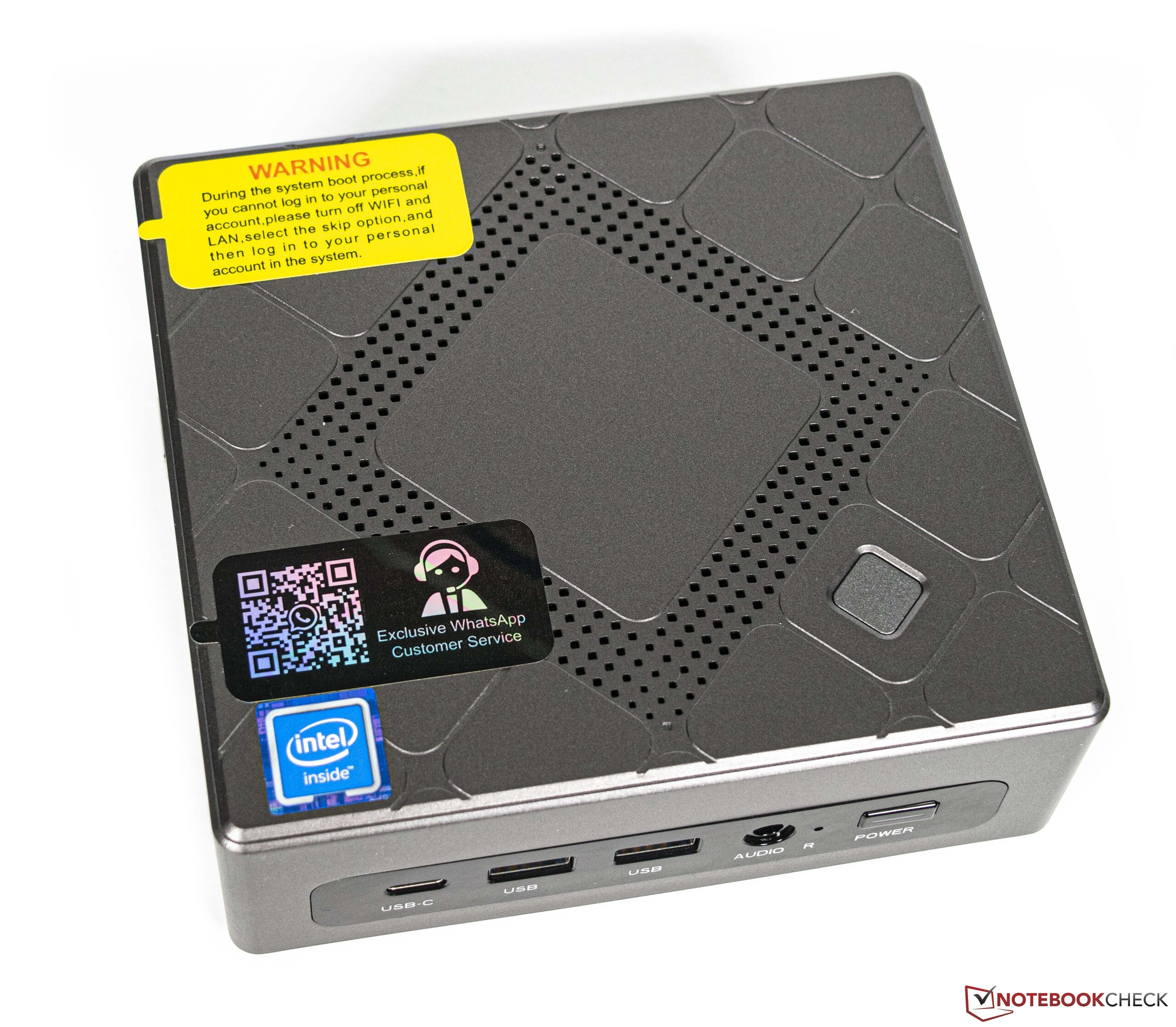

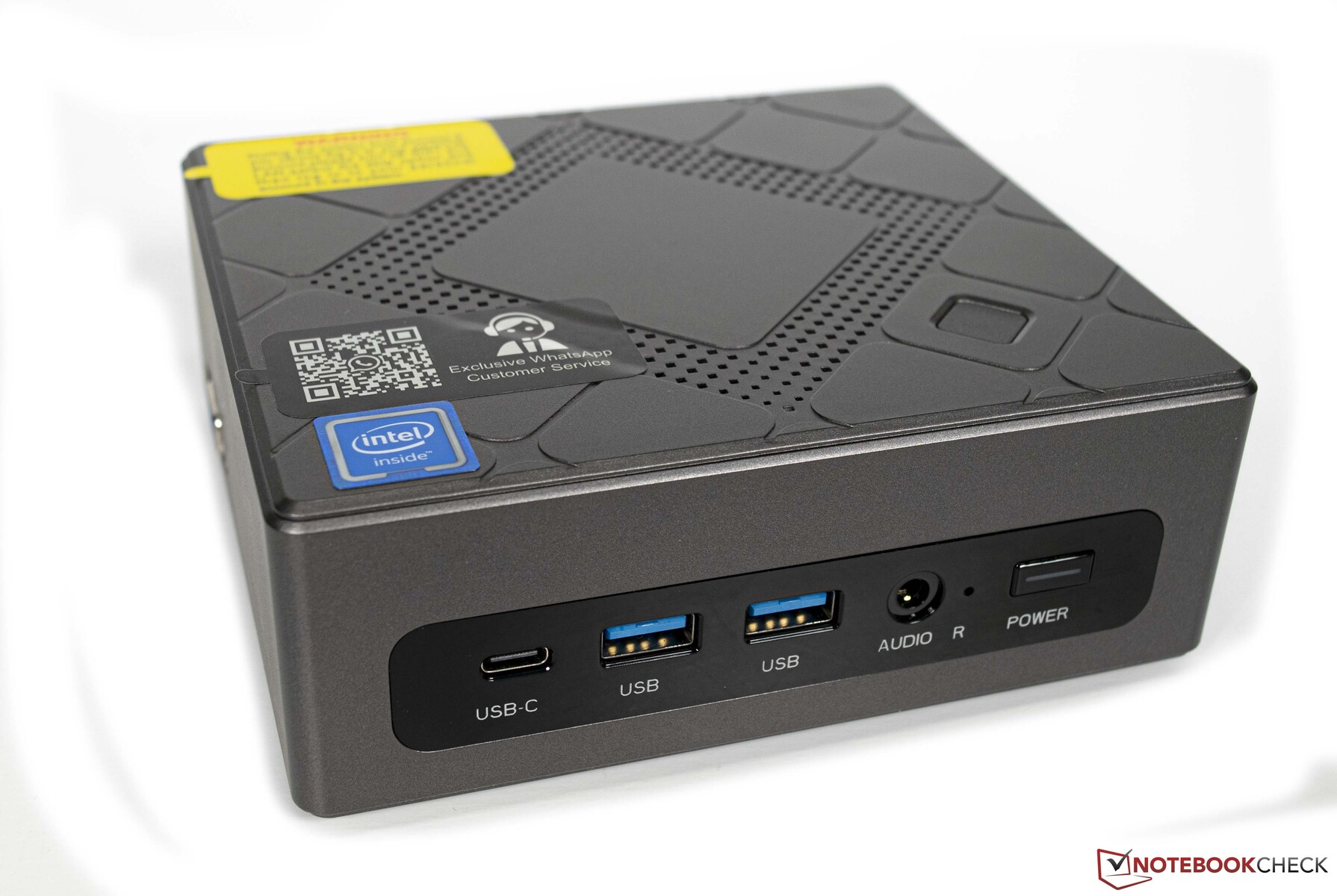

Le NiPoGi CK10 est un mini-PC simple qui n'a pas de points forts particuliers à mentionner. Avec un encombrement de 13,7 x 12,5 centimètres, il est plus petit que beaucoup de ses concurrents. En termes de hauteur, le PC compact mesure presque exactement cinq centimètres. En ce qui concerne le choix des matériaux, le NiPoGi CK10 est principalement constitué de plastique. Le fabricant a complètement évité la mise en place d'un cadre métallique stabilisateur. Un scanner d'empreintes digitales factice se trouve sur le dessus de l'appareil et suggère que le boîtier a été préparé pour des possibilités de configuration supplémentaires.

Comparaison des tailles

Minisforum EliteMini HX90 Minipc Union Ace Magician AMR5 Minisforum EliteMini B550 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Minipc Union NiPoGi CK10 - 10810U Morefine S500+ DIN A4 ❌

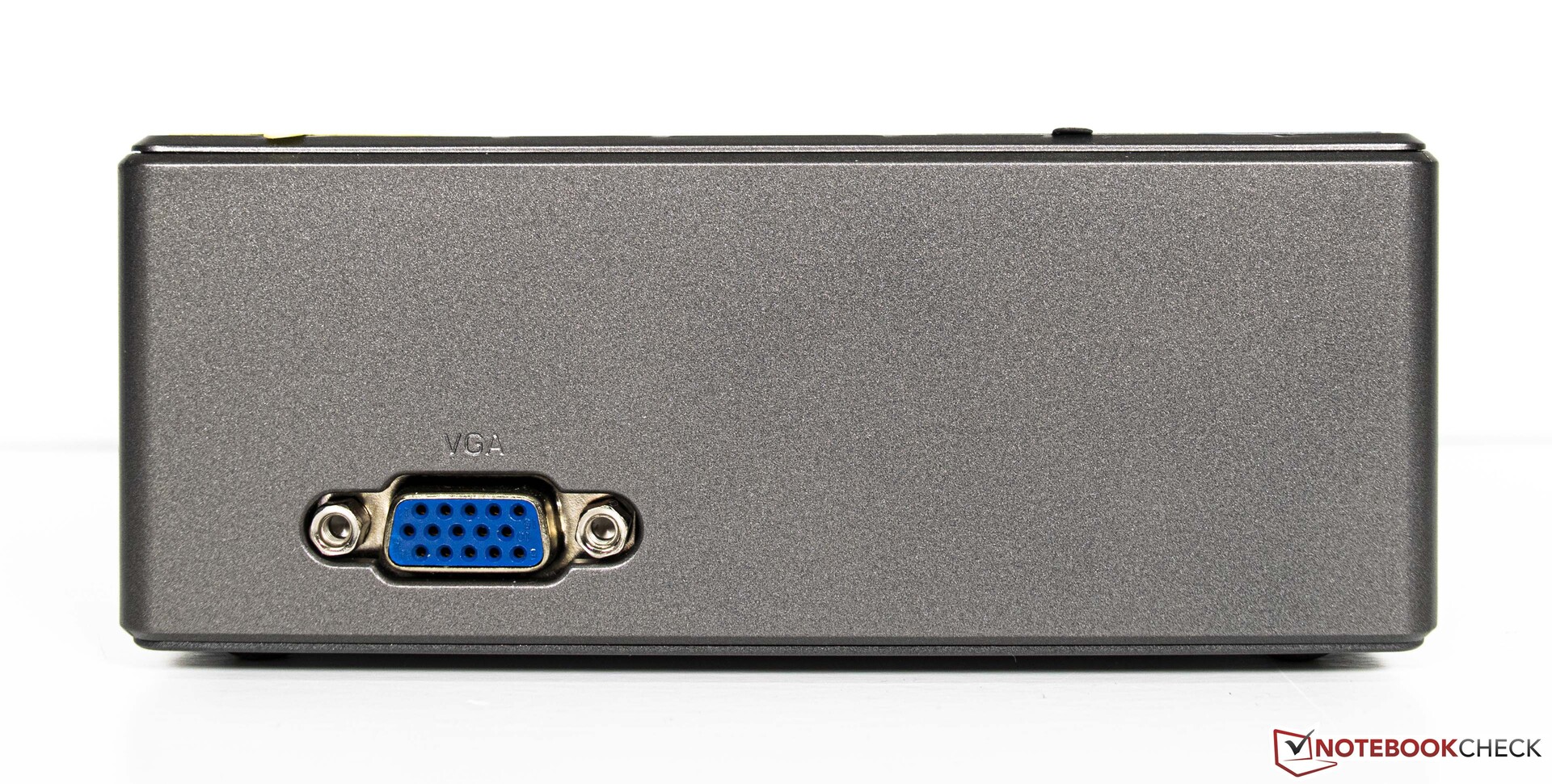

Connectivité

Dans le domaine des interfaces externes, le NiPoGi CK10 offre une sélection simple et standard. Un total de cinq ports USB est une bonne chose et devrait être suffisant pour la plupart des utilisateurs. Le port Type-C disponible n'offre pas de support Thunderbolt. Cependant, le connecteur VGA compense cela par des sentiments de nostalgie. L'intérêt du port pour écran analogique dépendra des utilisateurs eux-mêmes. Néanmoins, jusqu'à deux écrans modernes peuvent être utilisés sans problème via HDMI.

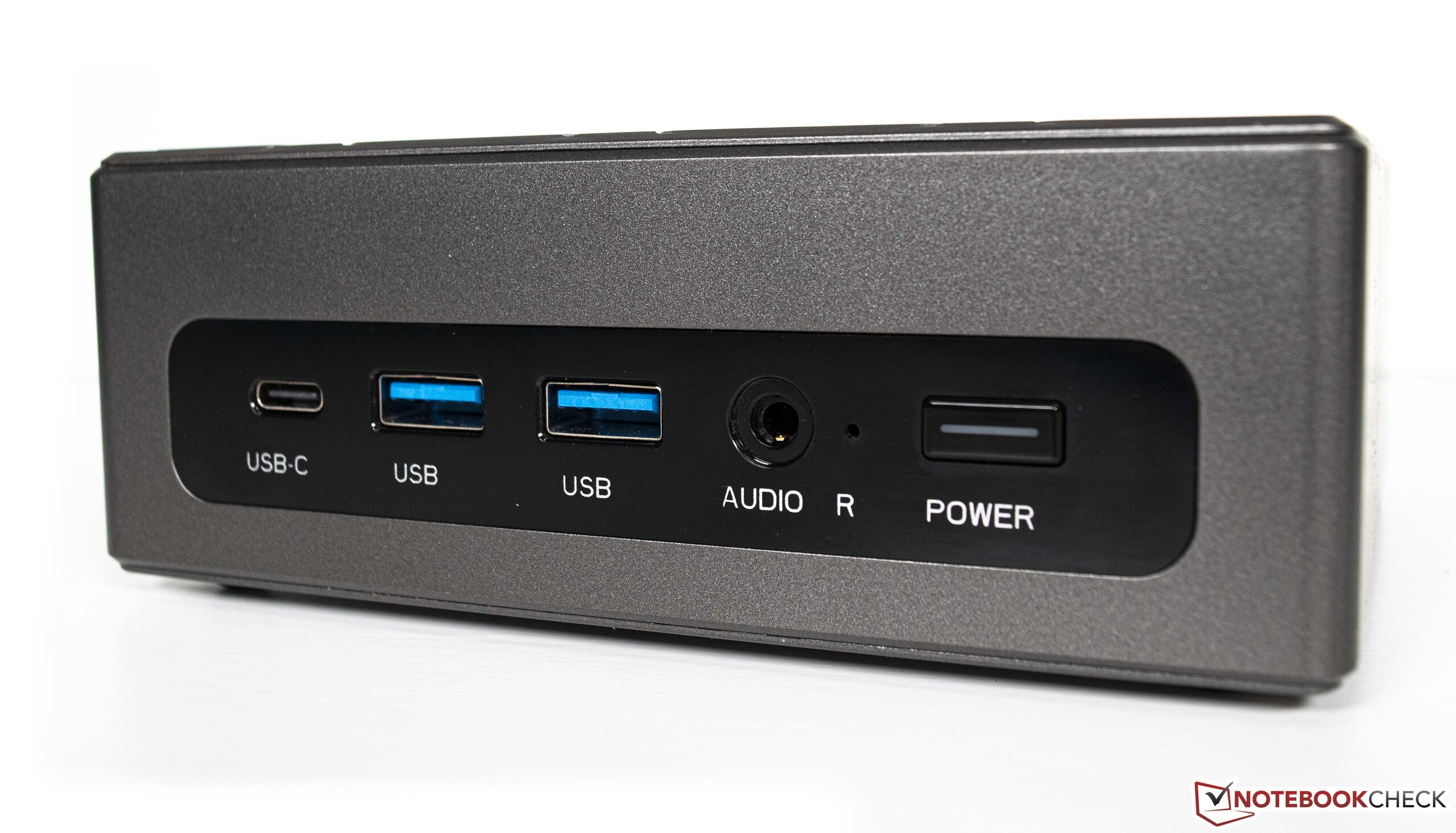

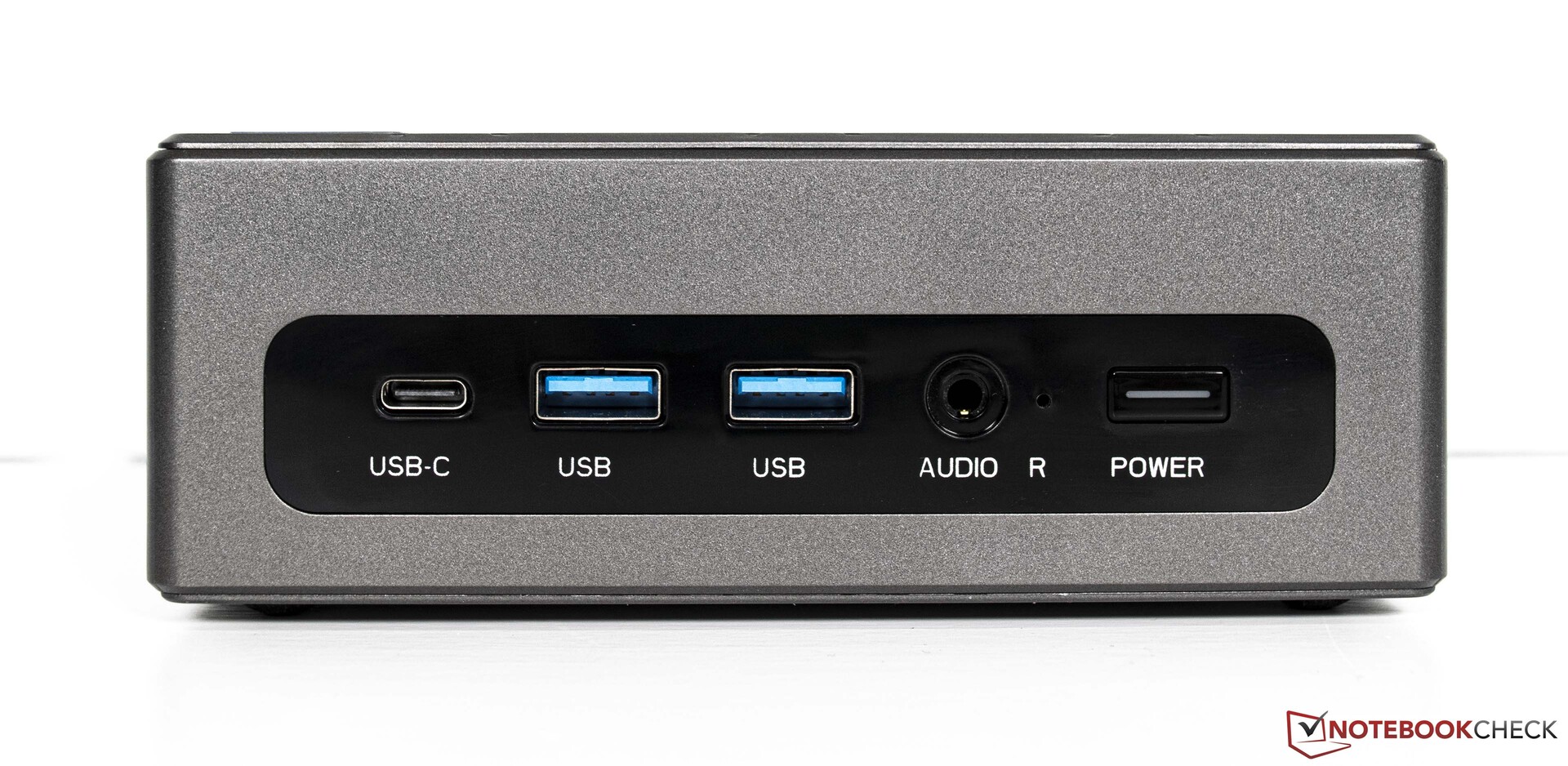

Face avant : USB Type C (Data), 2x USB 3.0, prise audio 3,5 mm, bouton d'alimentation

Face arrière : 2x USB 3.0, 2x HDMI, GBit LAN, connecteur secteur

Communication

Un module Wi-Fi Realtek est caché à l'intérieur du NiPoGi CK10. Lors des tests, le module sans fil n'a malheureusement pas été en mesure de fournir des performances convaincantes lorsqu'il a été associé à notre routeur de test, le Asus ROG Rapture GT-AXE11000. De loin, l'échantillon testé a pris la dernière place dans notre tableau comparatif. Heureusement, une connexion Internet plus rapide, jusqu'à 1 GBit/s, est possible en utilisant une connexion filaire.

Networking
iperf3 receive AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s ∼100% +368%
Moyenne de la classe Mini PC (192.9 - 1688, n=23, 2 dernières années)	842 MBit/s ∼93% +336%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s ∼86% +302%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s ∼48% +123%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s ∼43% +102%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s ∼21%
Moyenne RealTek Semiconductor, Device ID: C821	192.9 MBit/s ∼21% 0%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s ∼100% +182%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s ∼90% +152%
Moyenne de la classe Mini PC (184.1 - 1491, n=23, 2 dernières années)	783 MBit/s ∼81% +128%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s ∼77% +117%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s ∼59% +67%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s ∼35%
Moyenne RealTek Semiconductor, Device ID: C821	343 MBit/s ∼35% 0%

Minipc Union NiPoGi CK10 - 10810U; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Minipc Union NiPoGi CK10 - 10810U; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

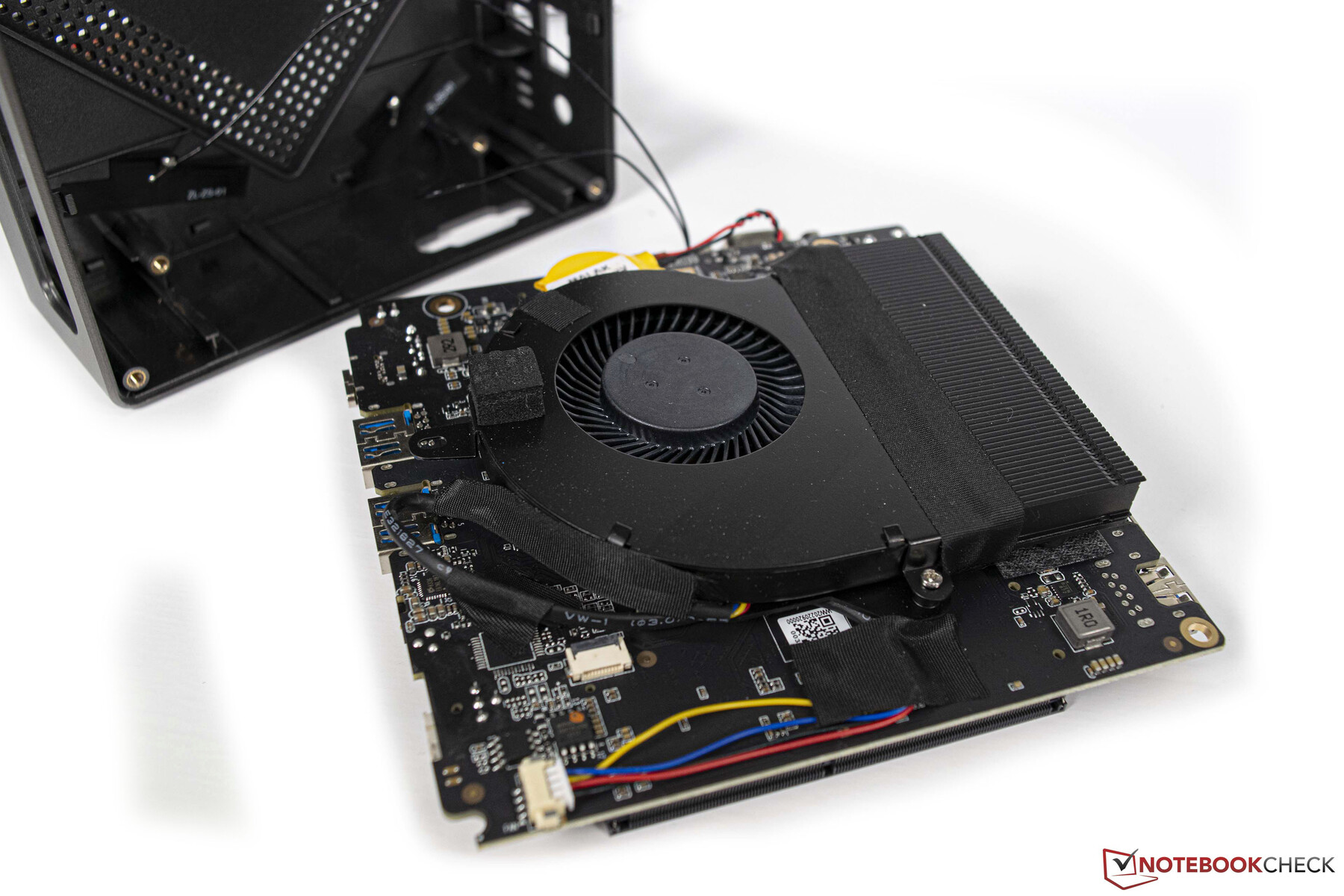

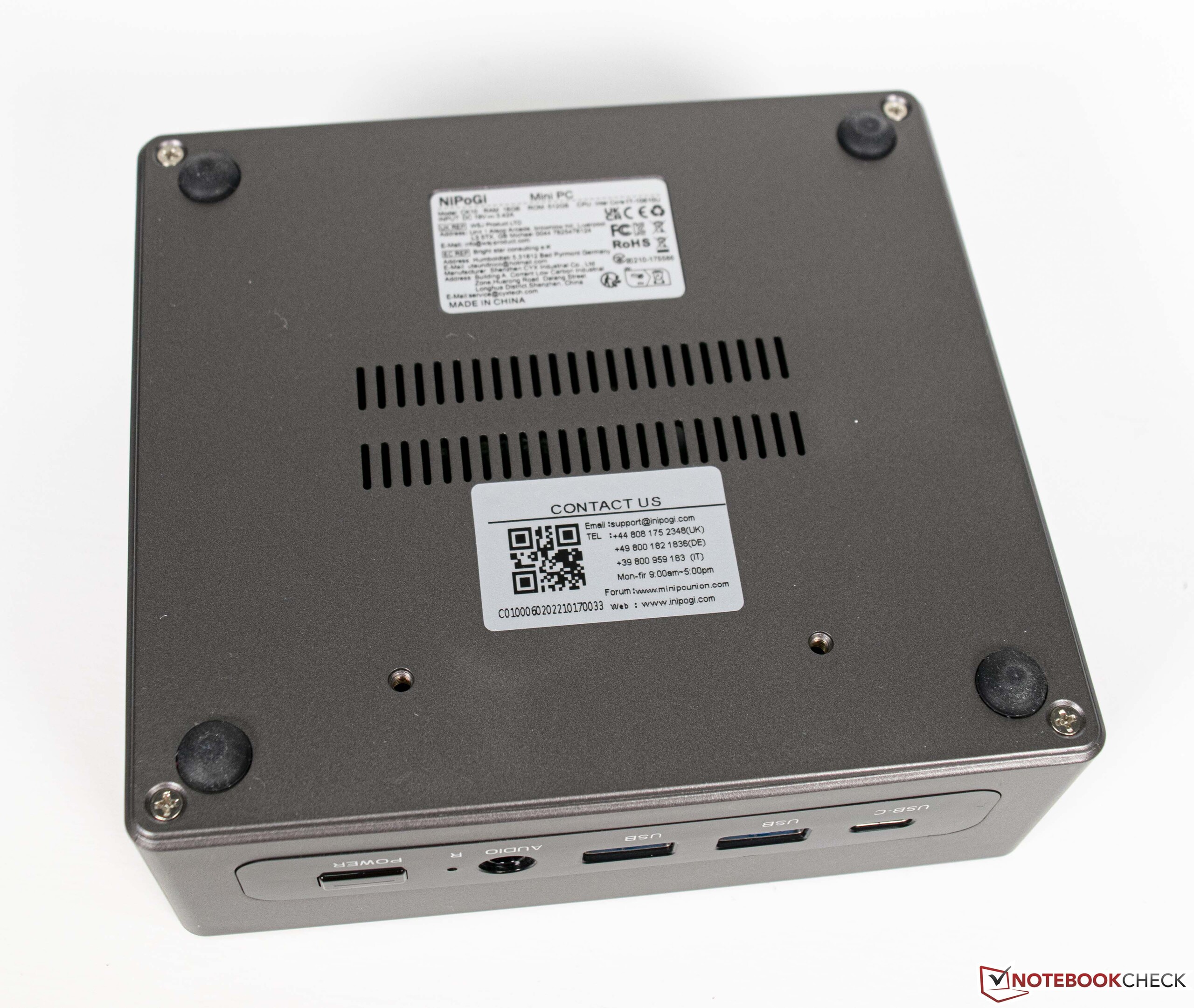

Maintenance

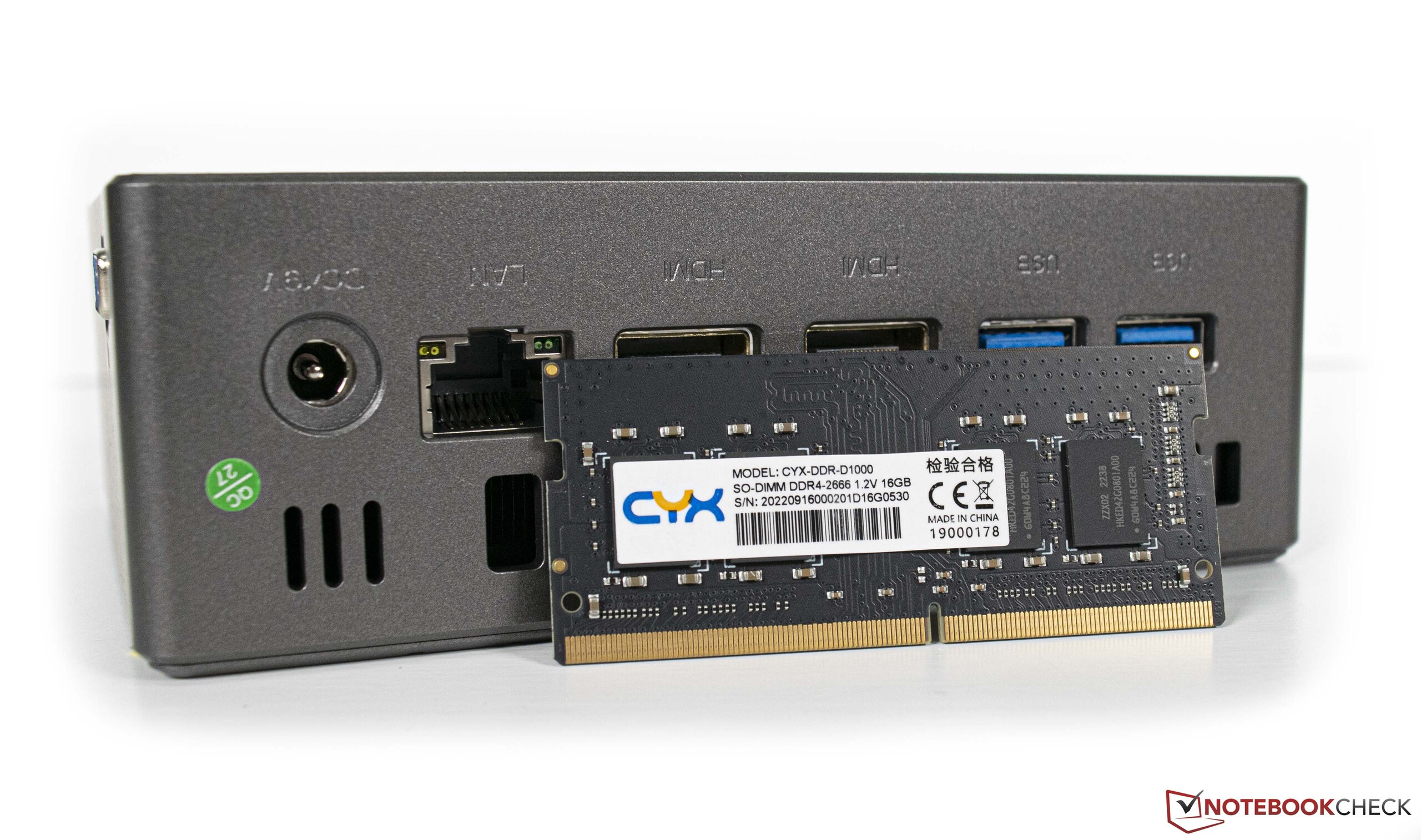

Pour l'instant, une mise à niveau n'est pas nécessaire en raison de la configuration de la base solide. Si vous souhaitez tout de même accéder aux composants intégrés, vous pouvez le faire facilement, car il suffit de dévisser quatre petites vis pour retirer la plaque de base. Un emplacement supplémentaire pour un autre module SO DIMM ainsi que deux autres périphériques de stockage de masse pouvaient être logés dans notre échantillon de test. Si vous voulez nettoyer le ventilateur, un démontage supplémentaire est nécessaire sans être particulièrement problématique.

Performance

Au niveau de base, l'Intel Core i7-10810U convient aux applications bureautiques et aux charges de travail légères et multi-threads qui sont traitées efficacement grâce à ses 12 threads. Malheureusement, le fabricant a dilapidé une partie des performances en n'installant qu'un seul module de mémoire vive. Il en va de même pour le SSD intégré qui n'est doté que de la vitesse SATA.

Conditions d'essai

Tous les tests de performance ont été effectués en utilisant les paramètres d'usine par défaut. Nous n'avons entrepris aucune modification des limites de puissance du SoC. Néanmoins, le BIOS permet de modifier ces valeurs.

Processeur

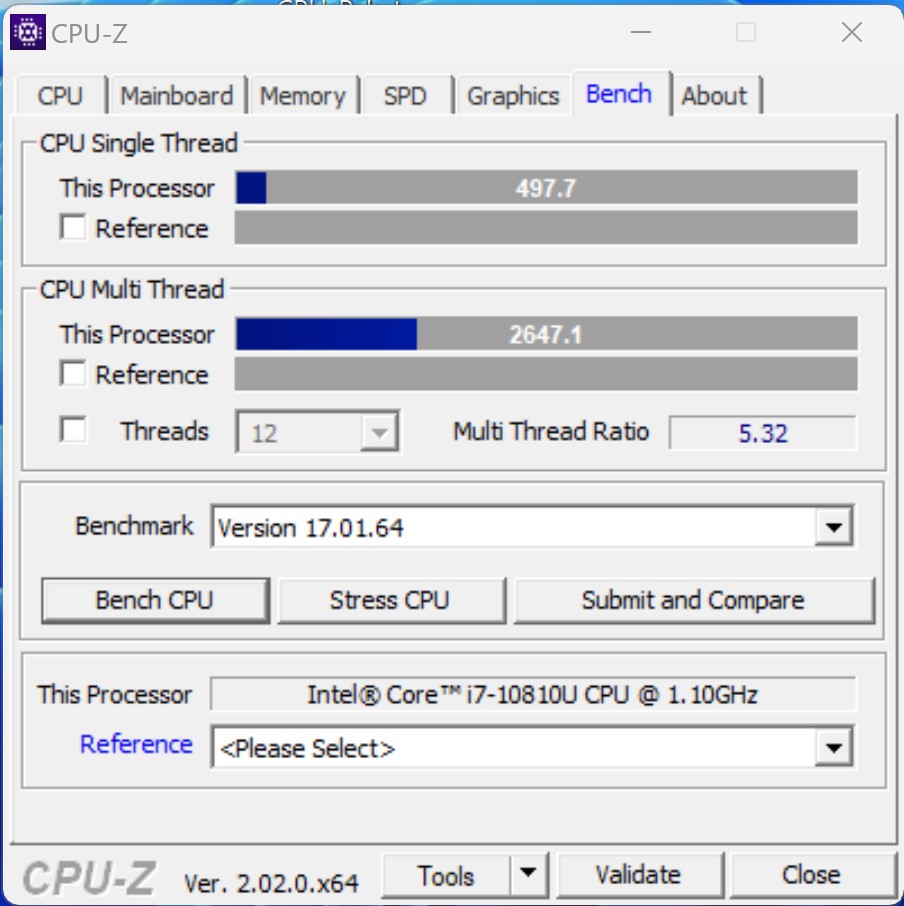

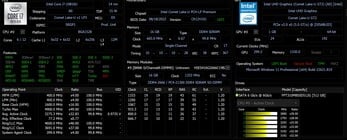

Le site Intel Core i7-10810U appartient à la série Comet Lake et offre six cœurs de calcul Hyper-Threading pour un total de 12 threads. La consommation d'énergie est limitée à 40 watts (limite de puissance à court terme) et à 15 watts (limite de puissance à long terme), le fabricant agissant de manière très conservatrice dans ce domaine. Le système de refroidissement a encore la possibilité d'augmenter les performances du SoC. Cela signifie que le NiPoGi CK10 a du mal à suivre la concurrence. Seul le Ace Magician TK11-A0 s'en approche et peut être battu dans de nombreux benchmarks multi-thread. Le vieillissant Intel Core i7-10810U a du mal à s'imposer face à ses concurrents dotés de 8 cœurs natifs

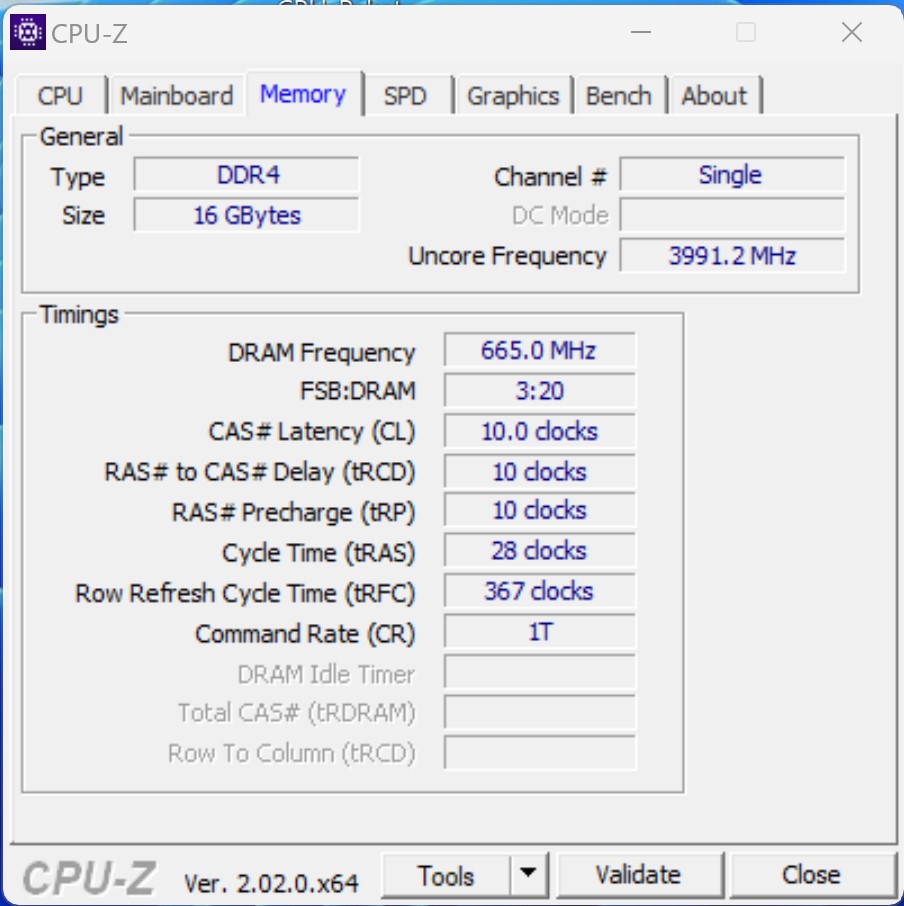

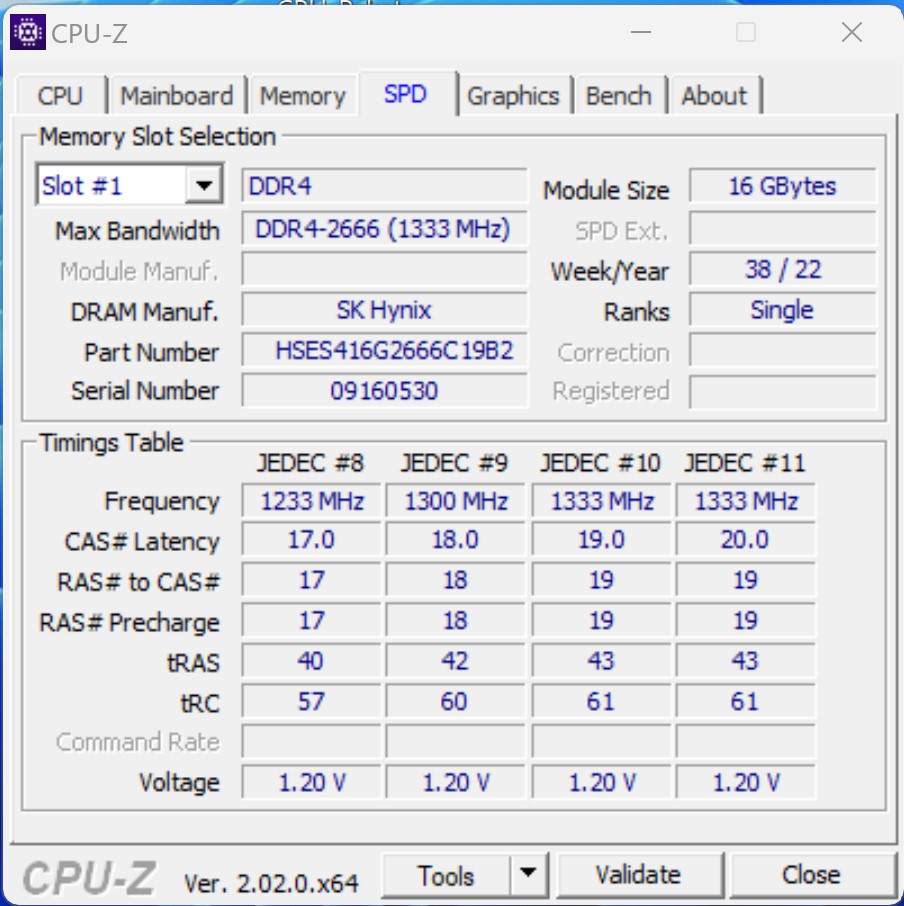

Dans les tests de mémoire, l'unique module de RAM intégré est fatal pour le NiPoGi CK10. Le mode double canal ne peut être utilisé qu'avec deux modules de RAM et c'est quelque chose dont l'ensemble du système bénéficierait

Vous pouvez trouver d'autres benchmarks de processeurs ici.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	48.7 pt ∼49%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	48.6 pt ∼49%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	48.6 pt ∼49%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	43.7 pt ∼44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	43.1 pt ∼43%
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	41.3 pt ∼41%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 pt ∼37%
Moyenne Intel Core i7-10810U	35.5 pt ∼36%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	34.5 pt ∼35%

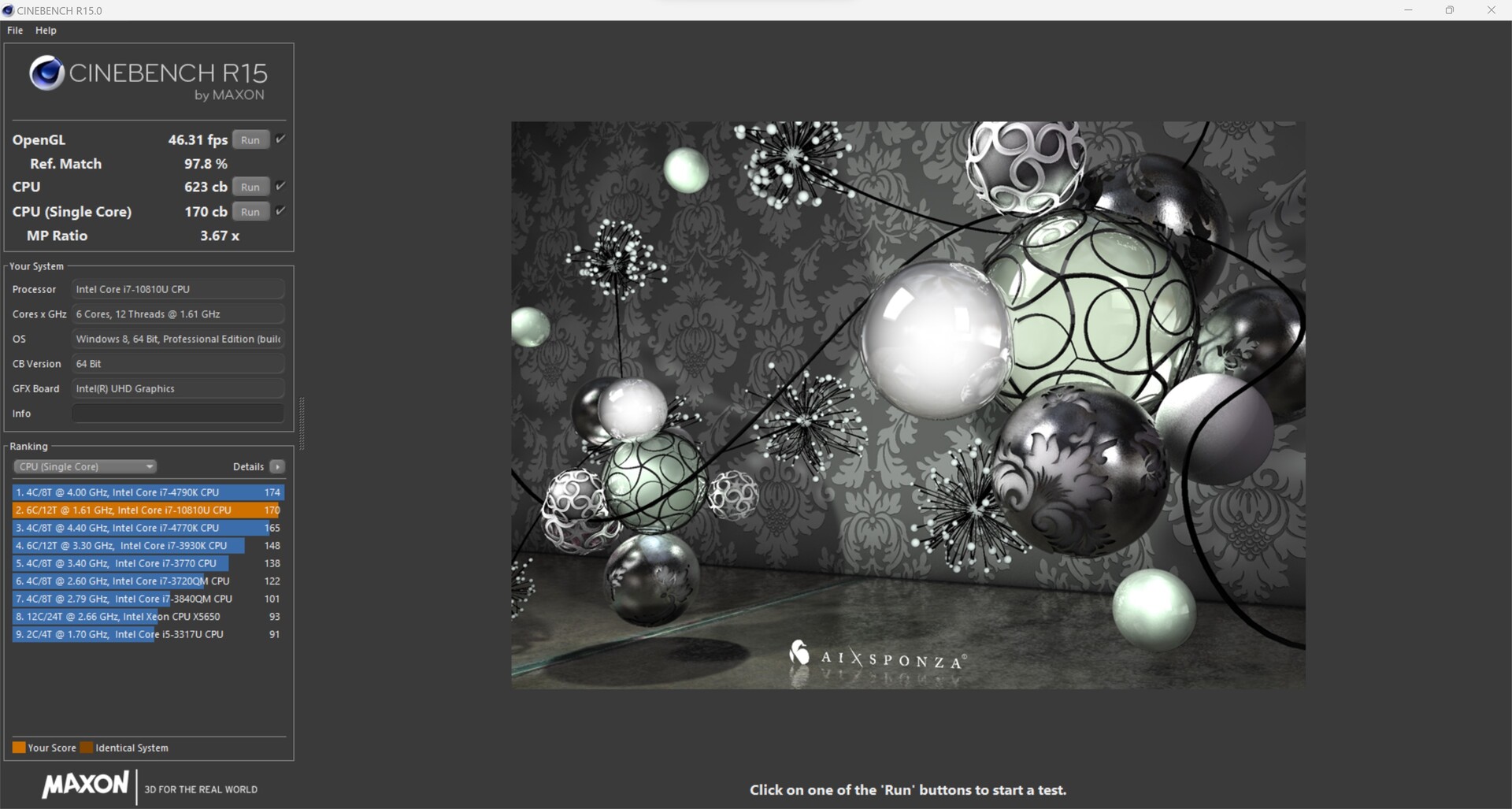

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points ∼74% +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points ∼74% +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points ∼73% +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points ∼68% +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points ∼65% +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points ∼60% +16%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points ∼59% +14%
Moyenne Intel Core i7-10810U (161 - 183, n=5)	175.6 Points ∼54% +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points ∼52%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points ∼23% +257%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points ∼20% +218%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points ∼20% +216%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points ∼20% +208%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points ∼13% +103%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points ∼10% +52%
Moyenne Intel Core i7-10810U (623 - 1064, n=4)	799 Points ∼8% +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points ∼6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points ∼6% -10%

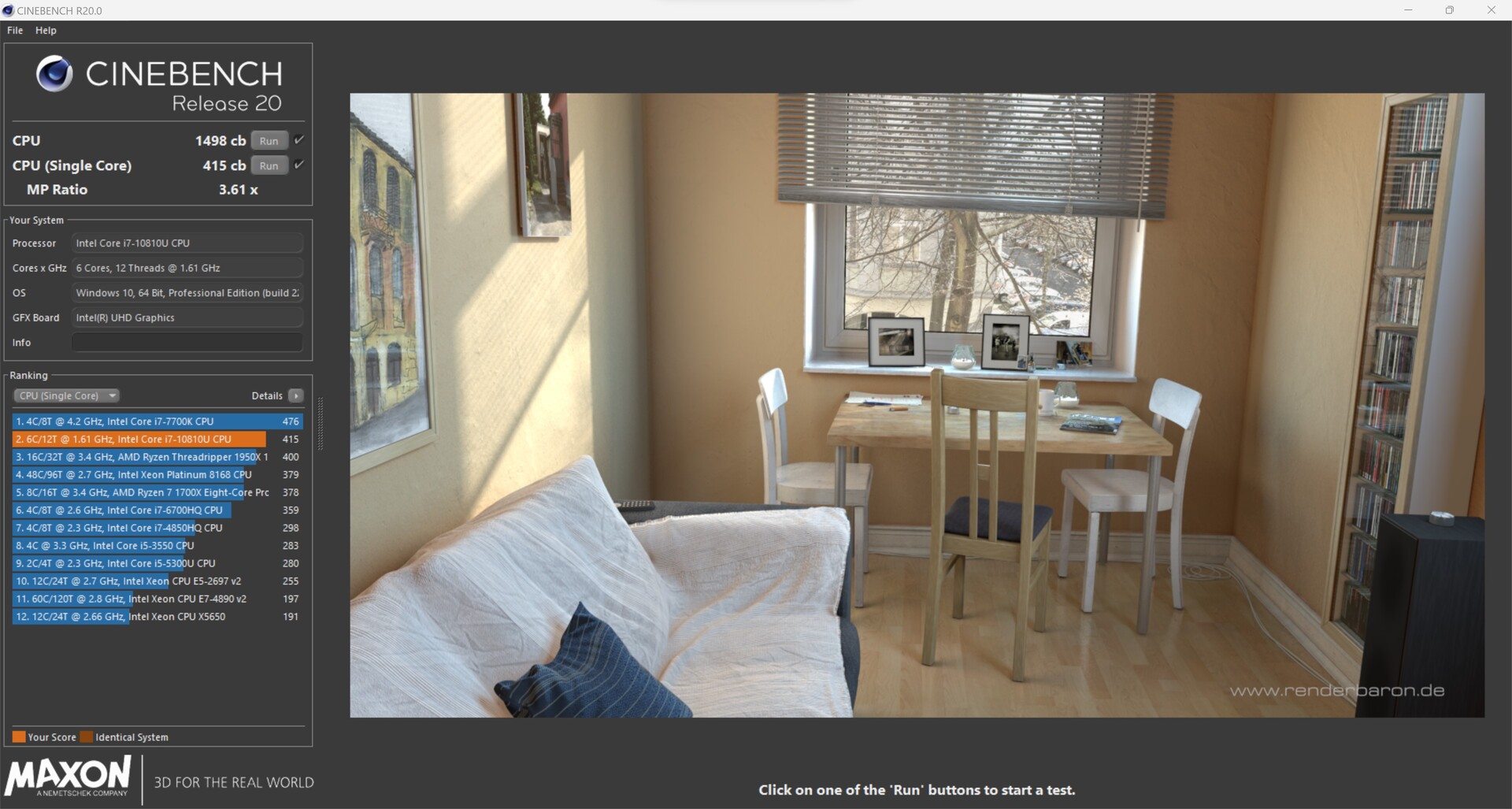

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points ∼67% +41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points ∼67% +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points ∼65% +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points ∼64% +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points ∼61% +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points ∼59% +25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points ∼58% +22%
Moyenne Intel Core i7-10810U (396 - 447, n=5)	425 Points ∼49% +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points ∼48%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points ∼22% +246%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points ∼20% +211%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points ∼19% +206%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points ∼19% +200%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points ∼13% +99%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points ∼10% +55%
Moyenne Intel Core i7-10810U (1498 - 2344, n=5)	1778 Points ∼8% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points ∼6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points ∼6% -4%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points ∼9% +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points ∼9% +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points ∼9% +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points ∼8% +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points ∼8% +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points ∼7% +18%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points ∼7% +15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points ∼6%
Moyenne Intel Core i7-10810U	1.95 Points ∼6% 0%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points ∼36% +267%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points ∼33% +230%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points ∼32% +227%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points ∼31% +215%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points ∼21% +112%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points ∼15% +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points ∼10%
Moyenne Intel Core i7-10810U	6.98 Points ∼10% 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points ∼9% -9%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points ∼66% +41%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points ∼66% +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points ∼64% +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points ∼62% +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points ∼60% +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points ∼57% +21%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points ∼55% +18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points ∼47%
Moyenne Intel Core i7-10810U	8591 Points ∼47% 0%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points ∼53% +211%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points ∼48% +182%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points ∼47% +178%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points ∼46% +174%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points ∼33% +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points ∼30% +80%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points ∼18% +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points ∼17%
Moyenne Intel Core i7-10810U	23491 Points ∼17% 0%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * ∼5% -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds * ∼5%
Moyenne Intel Core i7-10810U (571 - 875, n=5)	689 Seconds * ∼5% +1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * ∼4% +26%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * ∼3% +43%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * ∼2% +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * ∼2% +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * ∼2% +64%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * ∼2% +67%

wPrime 2.10
32m
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s * ∼1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * ∼1% +2%
Moyenne Intel Core i7-10810U (4.86 - 6.95, n=2)	5.9 s * ∼1% +15%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * ∼1% +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * ∼1% +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * ∼1% +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * ∼1% +48%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * ∼1% +52%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * ∼1% +54%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * ∼3% -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s * ∼3%
Moyenne Intel Core i7-10810U (205 - 267, n=2)	236 s * ∼3% +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * ∼2% +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * ∼2% +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * ∼1% +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * ∼1% +63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * ∼1% +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * ∼1% +69%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps ∼65% +95%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps ∼64% +92%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps ∼62% +86%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps ∼55% +65%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps ∼51% +52%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps ∼39% +17%
Moyenne Intel Core i7-10810U (141.6 - 153.7, n=2)	147.7 fps ∼35% +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps ∼33%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps ∼47% +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps ∼43% +198%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps ∼41% +186%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps ∼41% +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps ∼28% +94%
Moyenne Intel Core i7-10810U (39.2 - 39.7, n=2)	39.4 fps ∼14% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps ∼14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps ∼13% -6%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s ∼45% +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s ∼40% +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s ∼40% +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s ∼32% +15%
Moyenne Intel Core i7-10810U (4747 - 4927, n=2)	4837 KB/s ∼28% +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s ∼27%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s ∼25% -9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s ∼25% -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s ∼24% -12%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s ∼0% +83%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s ∼0% +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s ∼0% +29%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s ∼0% +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s ∼0% +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s ∼0% +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s ∼0%
Moyenne Intel Core i7-10810U (5.5 - 5.9, n=2)	5.7 GB/s ∼0% -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s ∼0% -10%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s ∼0% +100%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s ∼0% +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s ∼0% +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s ∼0% +50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s ∼0% +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s ∼0%
Moyenne Intel Core i7-10810U (0.956 - 1, n=2)	0.978 GB/s ∼0% -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s ∼0% -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s ∼0% -24%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s ∼0% +112%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s ∼0% +112%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s ∼0% +94%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s ∼0% +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s ∼0% +24%
Moyenne Intel Core i7-10810U (0.566 - 0.64, n=2)	0.603 GB/s ∼0% +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s ∼0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s ∼0% -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s ∼0% -21%

Geekbench 5.4
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points ∼27% +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points ∼27% +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points ∼27% +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points ∼25% +84%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points ∼21% +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points ∼20% +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points ∼17% +25%
Moyenne Intel Core i7-10810U (3351 - 5553, n=5)	4350 Points ∼15% +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points ∼14%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points ∼68% +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points ∼67% +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points ∼67% +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points ∼63% +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points ∼62% +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points ∼60% +14%
Moyenne Intel Core i7-10810U (1219 - 1274, n=5)	1240 Points ∼54% +2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points ∼53% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points ∼53%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points ∼25% +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points ∼25% +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points ∼25% +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points ∼24% +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points ∼19% +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points ∼18% +43%
Moyenne Intel Core i7-10810U (3924 - 5631, n=3)	4908 Points ∼15% +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points ∼15% +23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points ∼12%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points ∼7% +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points ∼7% +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points ∼7% +23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points ∼6% +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points ∼6% +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points ∼6% +13%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points ∼5% +1%
Moyenne Intel Core i7-10810U (1220 - 1235, n=3)	1229 Points ∼5% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points ∼5%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points ∼67% +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points ∼66% +35%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points ∼66% +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points ∼64% +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points ∼61% +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points ∼60% +23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points ∼55% +11%
Moyenne Intel Core i7-10810U (4762 - 5281, n=3)	5082 Points ∼52% +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points ∼49%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points ∼36% +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points ∼35% +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points ∼35% +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points ∼32% +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points ∼27% +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points ∼25% +14%
Moyenne Intel Core i7-10810U (19324 - 22533, n=3)	21447 Points ∼24% +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points ∼22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points ∼22% 0%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points ∼45% +157%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points ∼39% +118%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points ∼38% +113%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points ∼34% +93%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points ∼33% +87%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points ∼32% +78%
Moyenne Intel Core i7-10810U (6537 - 10599, n=5)	8591 Points ∼23% +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points ∼21% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points ∼18%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS ∼36% +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS ∼34% +173%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS ∼34% +173%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS ∼30% +143%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS ∼24% +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS ∼17% +33%
Moyenne Intel Core i7-10810U (16072 - 25244, n=5)	21290 MIPS ∼13% +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS ∼12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS ∼11% -13%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS ∼71% +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS ∼69% +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS ∼69% +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS ∼63% +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS ∼59% +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS ∼57% +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS ∼57% +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS ∼55%
Moyenne Intel Core i7-10810U (4398 - 4794, n=5)	4561 MIPS ∼55% -2%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps ∼34% +206%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps ∼32% +185%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps ∼31% +179%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps ∼28% +148%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps ∼22% +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps ∼17% +51%
Moyenne Intel Core i7-10810U (3.81 - 6.45, n=5)	5.31 fps ∼11% +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps ∼11% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps ∼11%

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec * ∼15%
Moyenne Intel Core i7-10810U (0.651 - 0.717, n=5)	0.682 sec * ∼15% +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * ∼14% +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * ∼13% +11%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * ∼12% +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * ∼12% +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * ∼11% +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * ∼11% +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * ∼11% +30%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s * ∼17%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * ∼17% +3%
Moyenne Intel Core i7-10810U (60.6 - 68.2, n=5)	65.4 s * ∼17% +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * ∼13% +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * ∼13% +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * ∼13% +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * ∼13% +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * ∼12% +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * ∼12% +29%

WebXPRT 3 - ---
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points ∼70% +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points ∼68% +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points ∼67% +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points ∼63% +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points ∼63% +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points ∼58% +15%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points ∼56% +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points ∼50%
Moyenne Intel Core i7-10810U (202 - 207, n=5)	205 Points ∼50% 0%

Mozilla Kraken 1.1 - Total Score
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms * ∼1%
Moyenne Intel Core i7-10810U (853 - 968, n=5)	901 ms * ∼1% +7%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * ∼1% +21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * ∼1% +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * ∼1% +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * ∼1% +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * ∼1% +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * ∼1% +38%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * ∼1% +38%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points ∼44% +183%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points ∼43% +175%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points ∼42% +171%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points ∼35% +124%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points ∼32% +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points ∼25% +63%
Moyenne Intel Core i7-10810U (8470 - 11179, n=2)	9825 Points ∼18% +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points ∼18% +13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points ∼16%
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points ∼46% +179%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points ∼44% +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points ∼44% +166%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points ∼38% +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points ∼33% +101%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points ∼25% +53%
Moyenne Intel Core i7-10810U (9003 - 11864, n=5)	10590 Points ∼20% +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points ∼17% +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points ∼17%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points ∼40% +200%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points ∼35% +160%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points ∼34% +155%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points ∼32% +139%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points ∼27% +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points ∼26% +91%
Moyenne Intel Core i7-10810U (2331 - 4127, n=5)	3331 Points ∼16% +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points ∼14% +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points ∼13%

* ... Moindre est la valeur, meilleures sont les performances

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.7 pt ∼94%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	84 pt ∼84%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.4 pt ∼83%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.3 pt ∼83%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.4 pt ∼58%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51 pt ∼51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.4 pt ∼40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	30.5 pt ∼31%

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s ∼100% +239%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s ∼96% +224%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s ∼87% +193%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s ∼85% +189%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s ∼58% +95%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s ∼48% +61%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s ∼36% +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s ∼30%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points ∼100% +283%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points ∼86% +231%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points ∼85% +225%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points ∼80% +206%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points ∼57% +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points ∼31% +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points ∼26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points ∼24% -8%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s ∼100% +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s ∼86% +181%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s ∼85% +178%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s ∼76% +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s ∼61% +100%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s ∼57% +87%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s ∼48% +57%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s ∼31%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points ∼100% +86%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points ∼97% +80%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points ∼93% +73%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points ∼90% +67%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points ∼64% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points ∼54%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points ∼50% -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points ∼44% -18%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points ∼100% +211%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points ∼88% +175%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points ∼84% +163%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points ∼82% +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points ∼57% +78%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points ∼35% +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points ∼32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points ∼27% -15%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points ∼100% +341%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points ∼86% +279%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points ∼85% +274%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points ∼76% +236%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points ∼57% +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points ∼34% +49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points ∼27% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points ∼23%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s ∼100% +655%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s ∼89% +569%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s ∼85% +544%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s ∼58% +337%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s ∼57% +327%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s ∼56% +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s ∼44% +229%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s ∼13%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s ∼100% +198%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s ∼98% +191%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s ∼89% +165%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s ∼86% +156%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s ∼58% +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s ∼47% +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s ∼34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s ∼30% -9%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s ∼100% +233%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s ∼98% +226%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s ∼85% +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s ∼85% +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s ∼55% +83%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s ∼48% +59%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s ∼36% +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s ∼30%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s ∼100% +203%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s ∼88% +167%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s ∼65% +97%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s ∼64% +95%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s ∼63% +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s ∼49% +48%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s ∼48% +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s ∼33%

NiPoGi CK10 Cinebench R15 multi-boucles

La boucle continue Cinebench R15 a montré que le système de refroidissement intégré n'a pas vraiment de travail à faire avec le Intel Core i7-10810U. Le réglage conservateur assure une vitesse d'horloge turbo très courte, c'est pourquoi nous n'avons observé qu'une perte minimale de performance après la première exécution. Avec une moyenne de 612 points, les performances ont été exceptionnellement stables tout au long des 50 tests.

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Performance du système

Les benchmarks servent à souligner que le SoC a déjà plus de deux ans. Vu subjectivement, les limitations de performance du système sont perceptibles en raison de la lenteur relative du SSD et de la RAM, qui ne fonctionne qu'en mode monocanal. De petites latences peuvent parfois être observées lors de l'ouverture de programmes. En outre, les performances Wi-Fi inférieures à la moyenne n'ont pas non plus d'effet bénéfique sur les flux de travail.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points ∼100% +68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points ∼97% +62%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points ∼95% +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points ∼89% +48%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points ∼86% +43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points ∼79% +32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points ∼69% +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points ∼60%

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points ∼100% +39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points ∼99% +38%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points ∼98% +36%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points ∼97% +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points ∼92% +28%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points ∼87% +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points ∼86% +19%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points ∼72%

PCMark 10 / Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points ∼100% +53%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points ∼97% +49%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points ∼97% +48%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points ∼94% +43%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points ∼81% +24%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points ∼67% +3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points ∼65%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points ∼62% -5%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt ∼100%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt ∼97%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt ∼93%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt ∼89%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	69.9 pt ∼70%

CrossMark / Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points ∼100% +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points ∼96% +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points ∼91% +28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points ∼87% +22%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points ∼71%

CrossMark / Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points ∼100% +63%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points ∼99% +62%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points ∼99% +62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points ∼96% +57%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points ∼61%

CrossMark / Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points ∼100% +39%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points ∼95% +33%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points ∼86% +20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points ∼82% +15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points ∼72%

CrossMark / Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points ∼100% +33%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points ∼97% +29%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points ∼95% +26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points ∼90% +20%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points ∼75%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s ∼100% +156%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s ∼86% +121%
Moyenne de la classe Mini PC (6481 - 70620, n=31, 2 dernières années)	40390 MB/s ∼83% +113%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s ∼78% +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s ∼77% +98%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s ∼73% +87%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s ∼72% +85%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s ∼65% +67%
Moyenne Intel Core i7-10810U (18973 - 28662, n=2)	23818 MB/s ∼49% +26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s ∼39%

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s ∼100% +139%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s ∼100% +138%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s ∼93% +123%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s ∼92% +119%
Moyenne de la classe Mini PC (6914 - 65856, n=31, 2 dernières années)	41175 MB/s ∼88% +110%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s ∼86% +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s ∼82% +96%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s ∼81% +94%
Moyenne Intel Core i7-10810U (19621 - 30124, n=2)	24873 MB/s ∼53% +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s ∼42%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s ∼100% +175%
Moyenne de la classe Mini PC (6862 - 66047, n=31, 2 dernières années)	42793 MB/s ∼85% +134%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s ∼83% +128%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s ∼78% +114%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s ∼74% +105%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s ∼70% +93%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s ∼70% +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s ∼70% +92%
Moyenne Intel Core i7-10810U (18296 - 32064, n=2)	25180 MB/s ∼50% +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s ∼36%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * ∼100% -59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * ∼95% -52%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * ∼95% -50%
Moyenne de la classe Mini PC (55.3 - 146, n=31, 2 dernières années)	85.5 ns * ∼89% -42%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * ∼83% -32%
Moyenne Intel Core i7-10810U (60.2 - 94.3, n=2)	77.3 ns * ∼81% -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * ∼78% -23%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * ∼77% -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * ∼72% -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * ∼63%

* ... Moindre est la valeur, meilleures sont les performances

Latences DPC

Le NiPoGi CK10 présente des problèmes de latence lors de l'ouverture de plusieurs onglets dans Edge. La latence ne s'est pas aggravée lors de la lecture de vidéos Youtube 4K. Le site Intel Core i7-10810Ufonctionne à une charge d'environ 35 % lors de la lecture d'une telle vidéo.

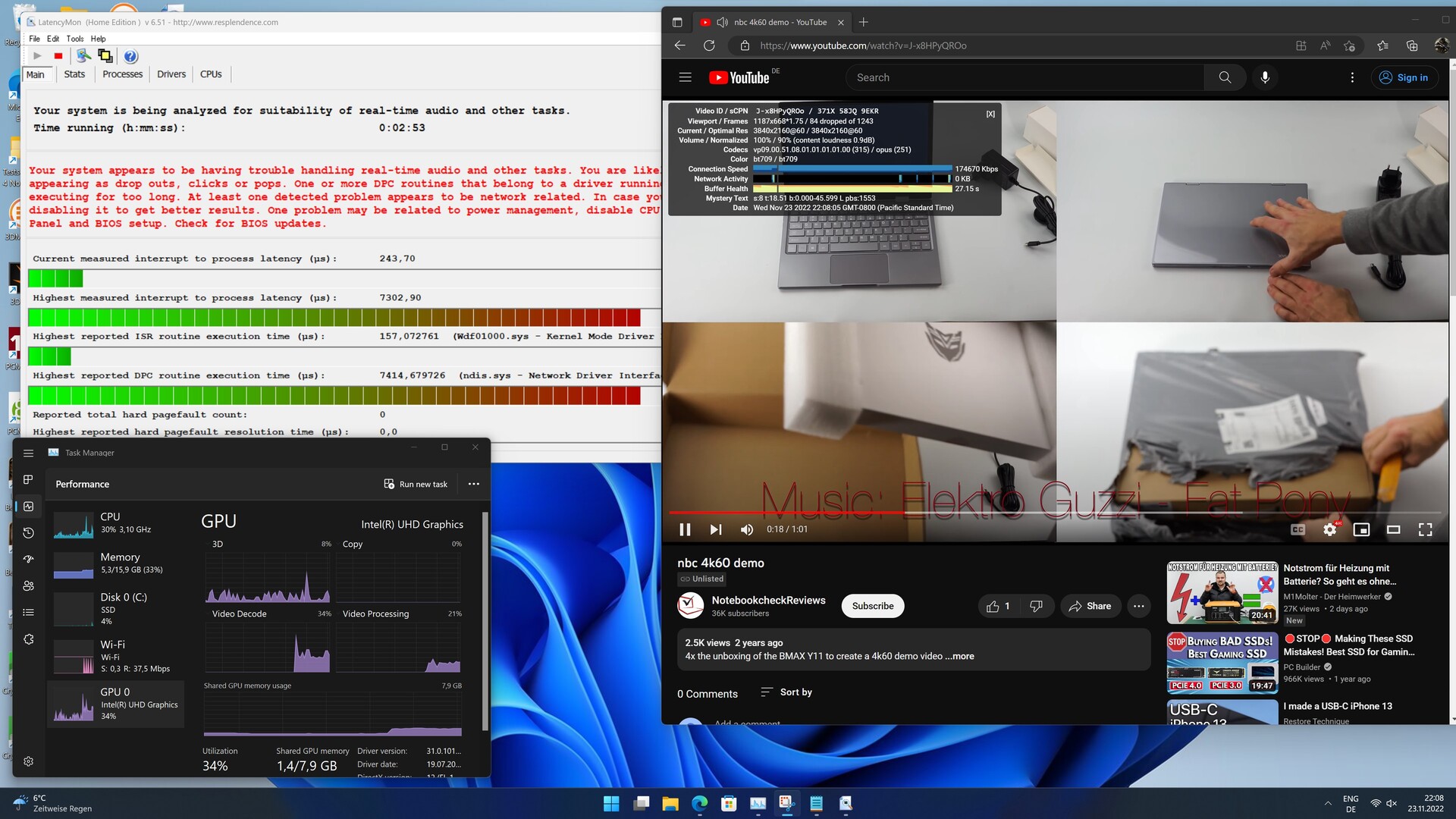

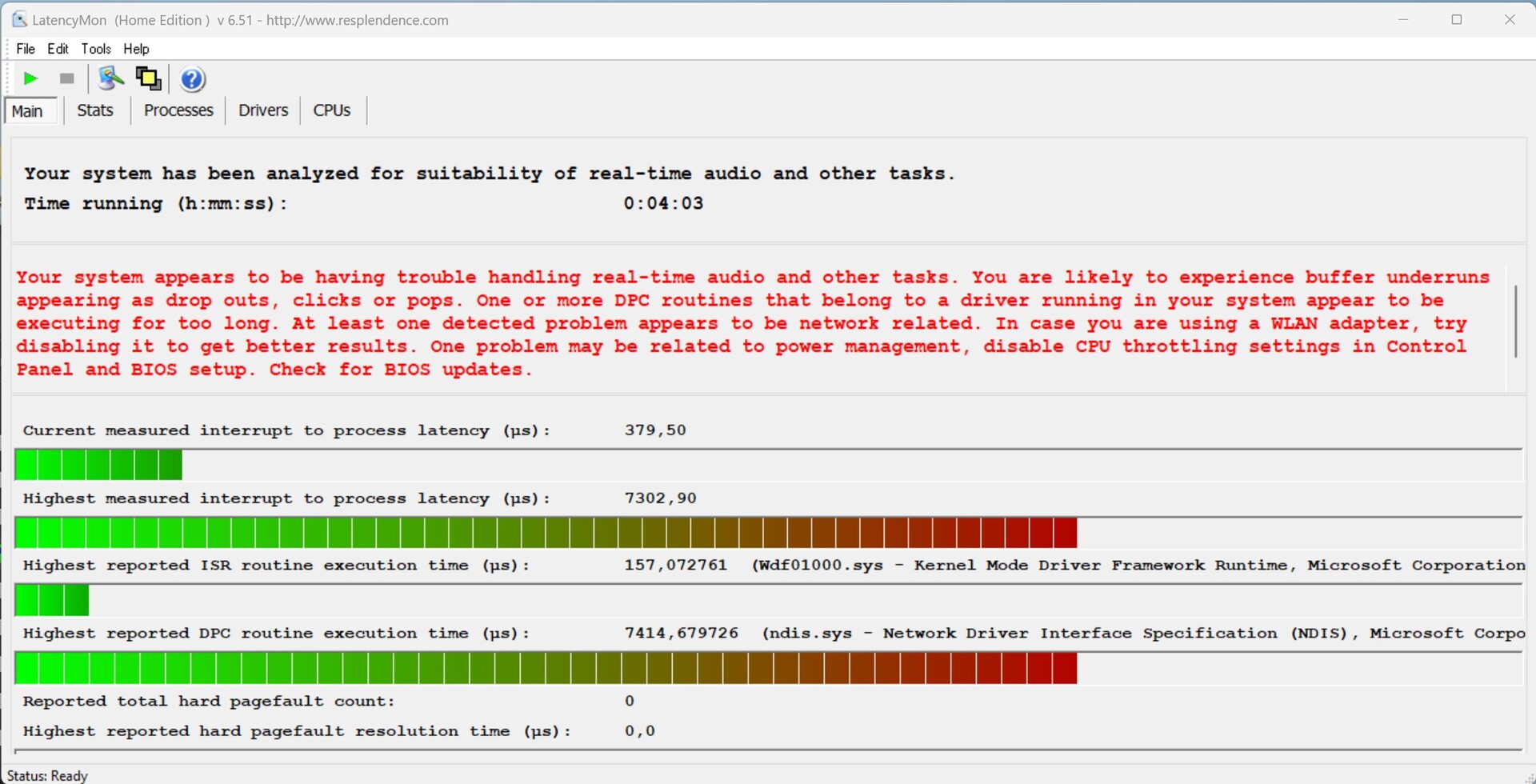

Latence maximale lors de l'ouverture de plusieurs onglets de navigateur et de la lecture de matériel vidéo 4K

Latence maximale après dix secondes de Prime95

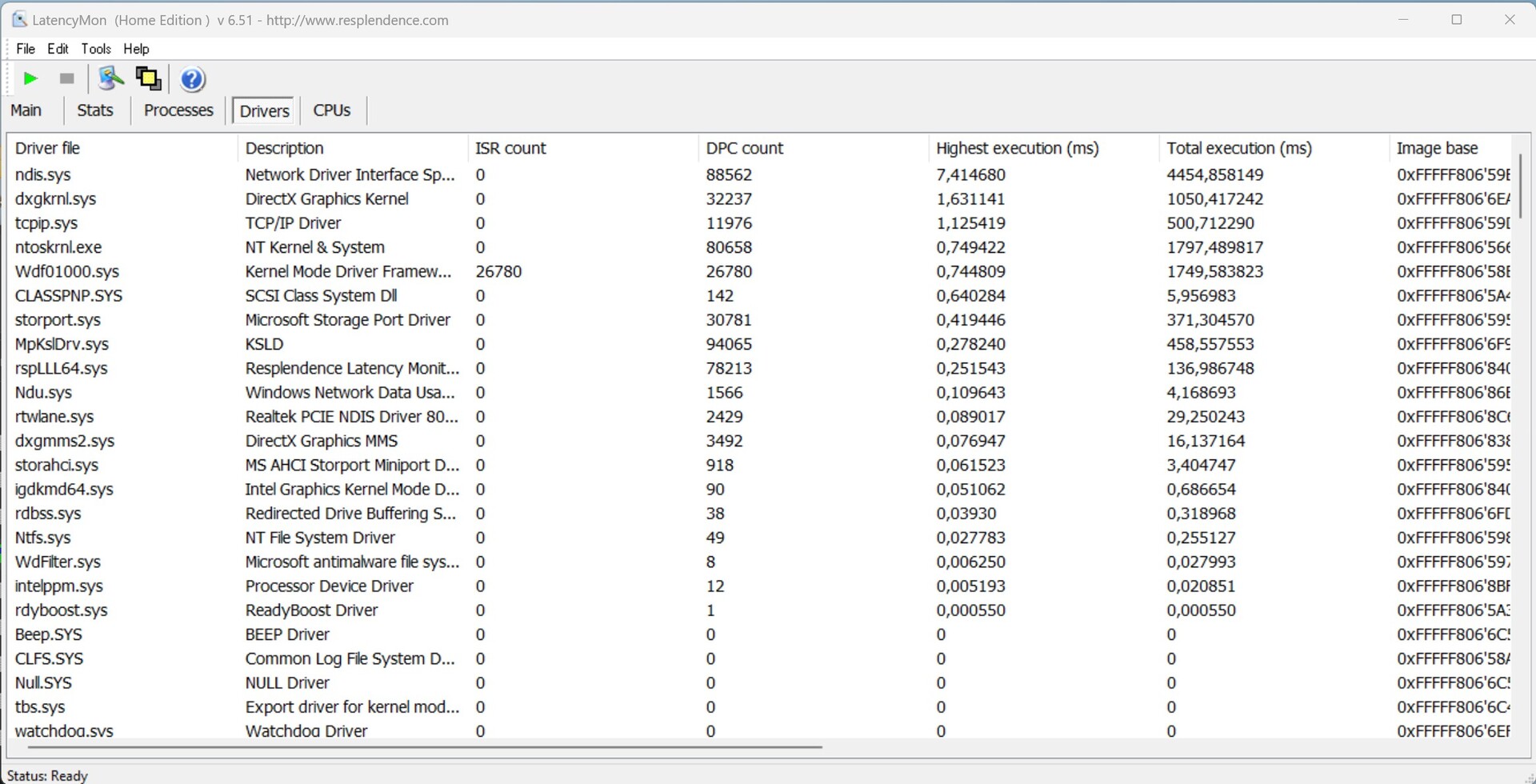

Pilotes classés par ordre de latence maximale

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs * ∼100%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * ∼25% +75%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * ∼22% +78%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * ∼15% +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * ∼15% +85%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * ∼10% +90%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * ∼9% +91%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * ∼5% +95%

* ... Moindre est la valeur, meilleures sont les performances

Mémoire de masse

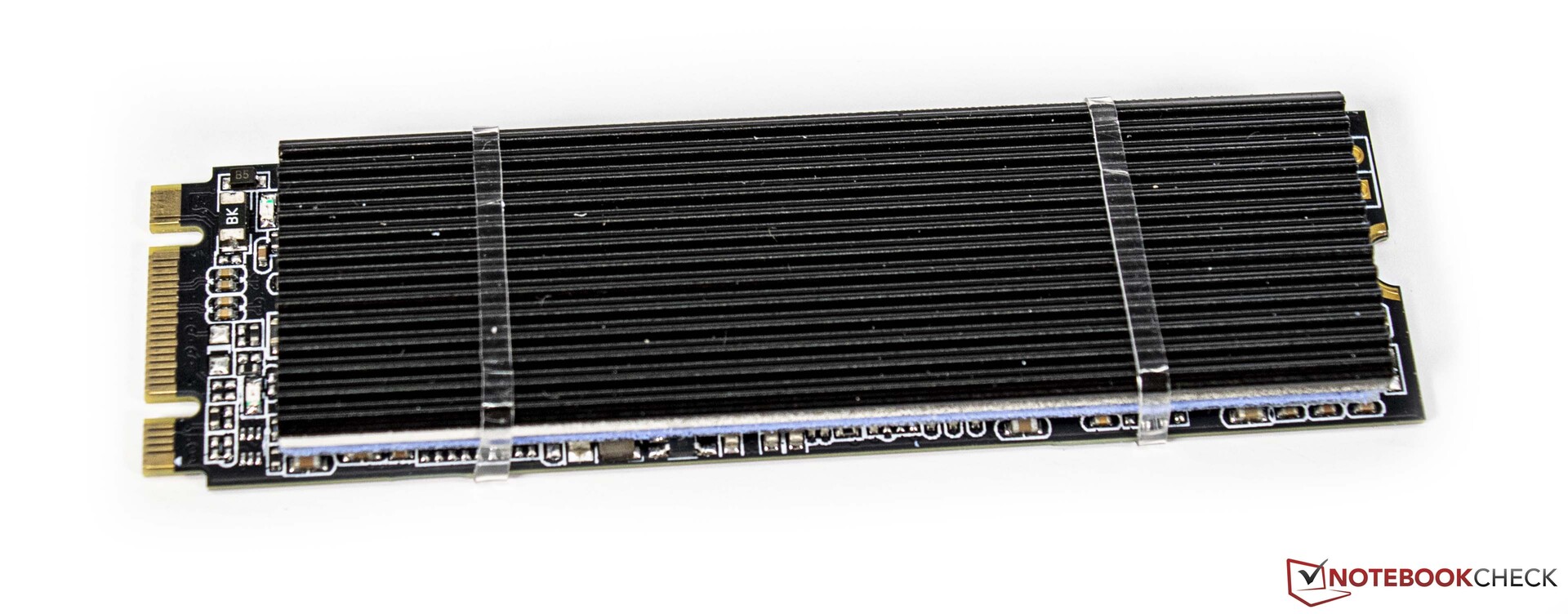

Le CK10 est alimenté par un SSD inconnu d'une capacité de stockage de 512 Go. Il s'agit d'un SSD M.2 2280 basé sur SATA, ce qui est clairement visible dans les benchmarks. Les inconvénients sont évidents par rapport à des alternatives plus rapides comme les SSD NVMe. Toutefois, les performances de lecture 4K sont d'un bon niveau. Le mini PC peut être équipé d'un maximum de trois périphériques de stockage de masse (2x M.2 2280, 1x 2,5 pouces).

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

FPT310M8SSD512G

Sequential Read: 346.8 MB/s

Sequential Write: 395.5 MB/s

512K Read: 263.7 MB/s

512K Write: 307.5 MB/s

4K Read: 39.26 MB/s

4K Write: 83.54 MB/s

4K QD32 Read: 317.5 MB/s

4K QD32 Write: 338.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	87.4 pt ∼87%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	85.7 pt ∼86%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	82.4 pt ∼82%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	71.1 pt ∼71%
Minisforum HM90 ^-11! Kingston OM8PDP3256B	68.6 pt ∼69%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	68.3 pt ∼68%
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	64.8 pt ∼65%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	27.5 pt ∼28%

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s ∼100% +602%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s ∼95% +569%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s ∼93% +554%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s ∼78% +451%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s ∼70% +392%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s ∼66% +365%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s ∼60% +324%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s ∼14%
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s ∼100% +308%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s ∼100% +308%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s ∼71% +191%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s ∼68% +176%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s ∼66% +170%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s ∼55% +123%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s ∼31% +26%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s ∼24%
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s ∼100% +469%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s ∼97% +450%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s ∼94% +436%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s ∼93% +430%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s ∼86% +390%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s ∼86% +388%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s ∼78% +344%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s ∼18%
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s ∼100% +288%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s ∼99% +284%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s ∼74% +185%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s ∼70% +170%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s ∼67% +160%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s ∼55% +112%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s ∼31% +20%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s ∼26%
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s ∼100% +24%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s ∼98% +22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s ∼94% +16%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s ∼92% +14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s ∼80%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s ∼79% -2%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s ∼61% -24%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s ∼56% -30%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s ∼100% +166%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s ∼96% +156%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s ∼90% +140%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s ∼77% +104%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s ∼73% +95%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s ∼63% +68%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s ∼57% +53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s ∼38%
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s ∼100% +259%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s ∼95% +240%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s ∼93% +235%

Test du NiPoGi CK10 Intel Core i7-10810U : petit PC de bureau avec trois emplacements SSD

Comparaison avec les concurrents potentiels

Cas

Comparaison des tailles

Connectivité

Communication

Maintenance

Performance

Conditions d'essai

Processeur

NiPoGi CK10 Cinebench R15 multi-boucles

Performance du système

Latences DPC

Mémoire de masse
