Test du Chuwi UBook CWI509 (Celeron N4100, UHD 600, FHD) : un ersatz de Surface Go

Allen Ngo, 👁 Allen Ngo (traduit par Prévots), 01/09/2020

Ecran ok, puissance en retrait. Chuwi est de retour, avec un autre clone de la Microsoft Surface. Cette fois, le fabricant chinois cible la Surface Go avec un convertible de 11,6 pouces. Le résultat possède des qualités certaines, mais s’avère au final peu crédible.

Chuwi UBook CWI509
Carte graphique
Intel UHD Graphics 600, DDR4, 26.20.100.7262
Mémoire
8192 Mo
, DDR4, 1200 MHz, double canal
Écran
11.6 pouces 16:9, 1920 x 1080 pixel 190 PPP, capacitif 10 points, Prise en charge native d'une utilisation avec un stylet, Panda LC116LF1L01, IPS, brillant: oui, detachable screen
Disque dur
Netac SSD 256GB, 256 Go
,
Carte son
Intel Gemini Lake SoC - High Definition Audio Controller
Connexions
3 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Port pour Station d'accueil, Connectique audio: 3,5 mm, Lecteur de cartes mémoires: micro SD, Capteurs: accéléromètre
Réseau
Wireless AC-9461 (ac = Wi-Fi 5), Bluetooth 5
Taille
Hauteur x Largeur x Profondeur (en mm): 9 x 290.4 x 179.3
Batterie
26 Wh Lithium-Polymère
Système d'exploitation
Microsoft Windows 10 Home 64 Bit
Appareil photo
Appareil photo primaire: 5 MPix
Appareil photo secondaire: 2 MPix
Fonctionnalités additionnelles
Haut-parleurs: stéréo, Clavier: Chiclet, Rétroéclairage du clavier: non, Wacom Pen, dock clavier, 12 Mois Garantie, fanless
Poids
810 g, Alimentation: 190 g
Prix
340 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



NoteDateModèlePoidsÉpaisseurTailleRésolutionBest Price
70%01/20Chuwi UBook CWI509
N4100, UHD Graphics 600
810 g9 mm11.6"1920x1080
88%11/19Microsoft Surface Pro 7 Core i5-1035G4
1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)
775 g8.5 mm12.3"2736x1824
83%10/18Microsoft Surface Go MHN-00003
4415Y, UHD Graphics 615
523 g8.3 mm10"1800x1200
83%09/19HP ProBook x360 11 G4
8100Y, UHD Graphics 615
1.4 kg19.9 mm11.6"1366x768
77%12/18HP x2 210 G2
Z8350, HD Graphics 400 (Braswell)
1.2 kg23.5 mm10.1"1280x800
300 mm 205.9 mm 19.9 mm 1.4 kg292 mm 201 mm 8.5 mm 775 g290.4 mm 179.3 mm 9 mm 810 g290 mm 180 mm 9.3 mm 719 g265 mm 183 mm 23.5 mm 1.2 kg245 mm 175 mm 8.3 mm 523 g

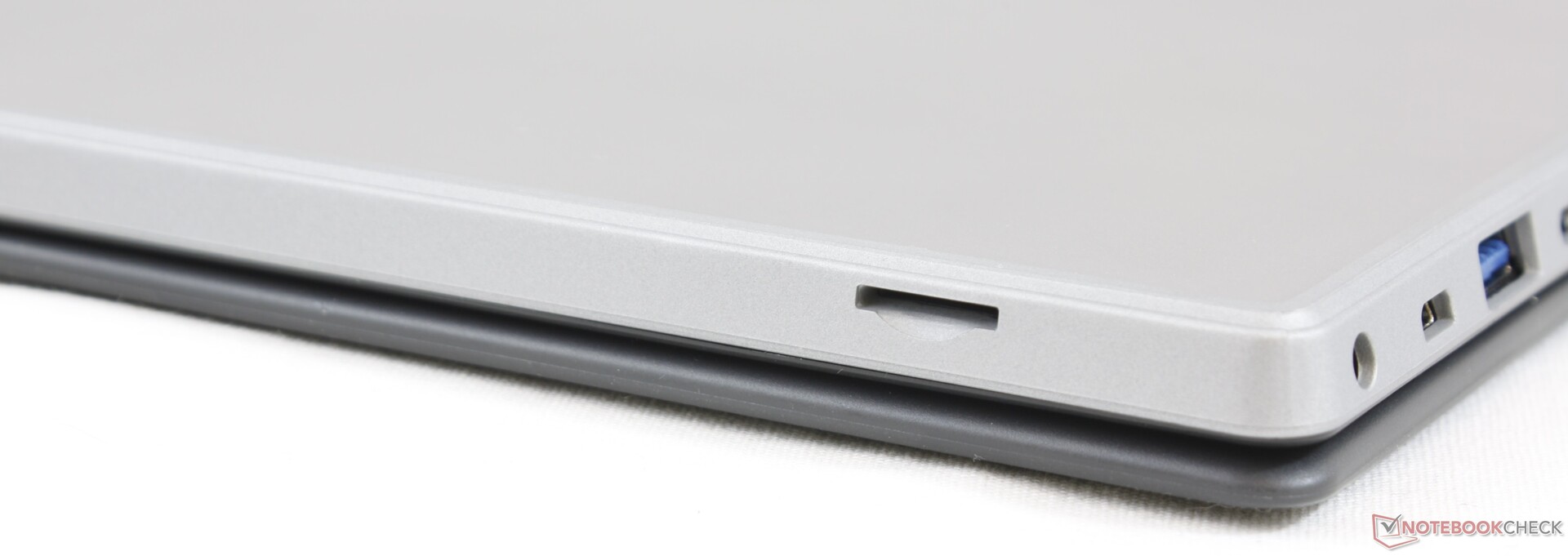

Au-dessus : bouton de démarrage, volume, lecteur de carte micro SD.
Au-dessus : bouton de démarrage, volume, lecteur de carte micro SD.

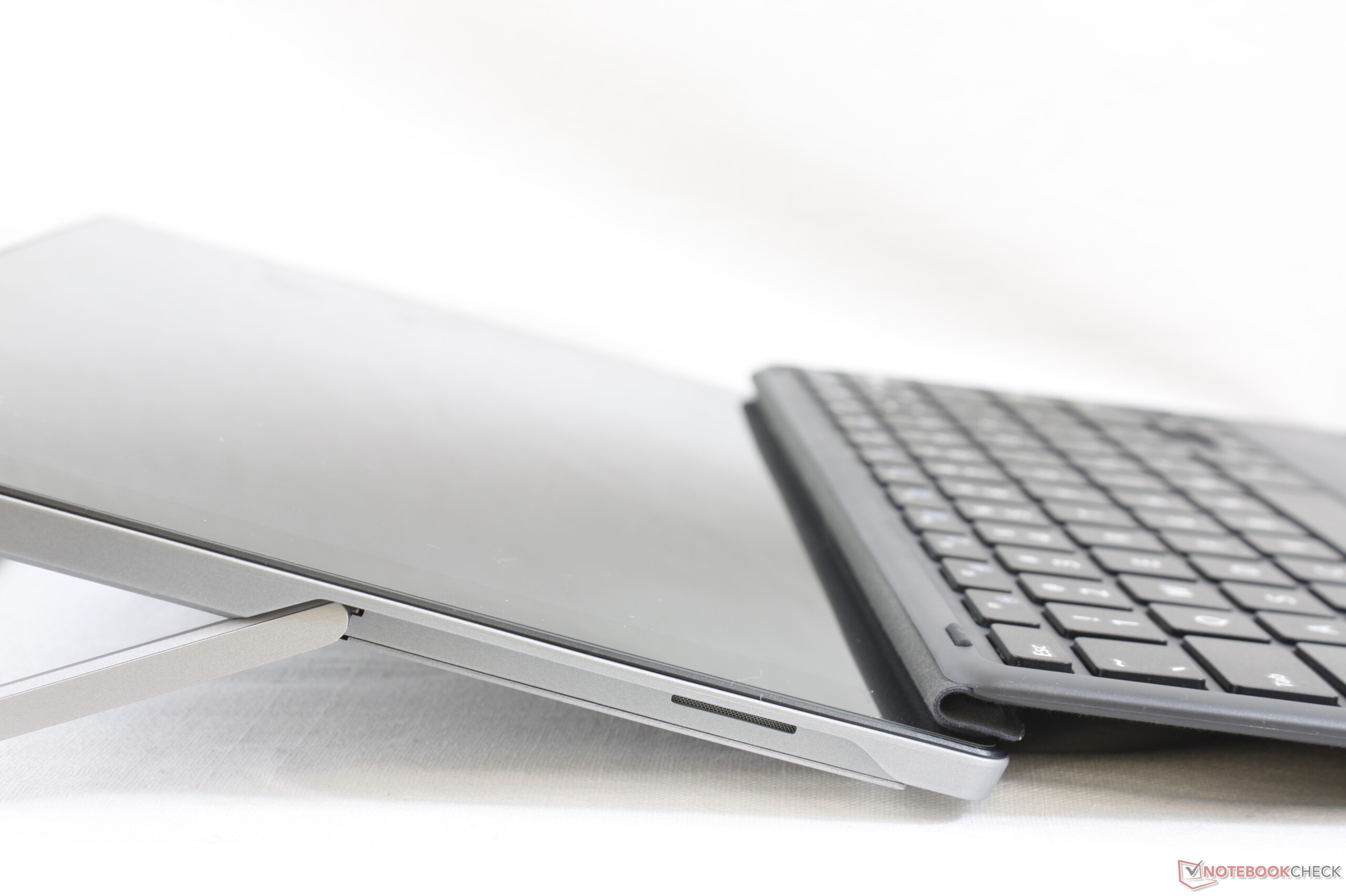

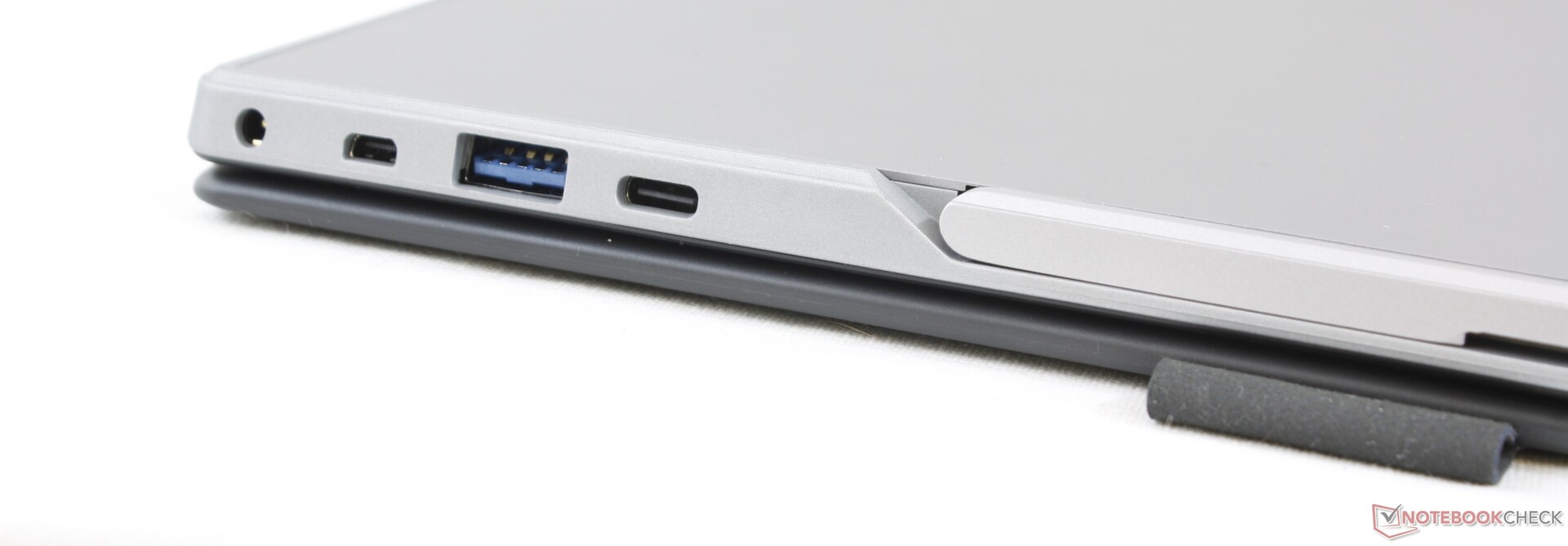

Côté droit : entrée secteur, Micro HDMI, USB A 3.0.
Côté droit : entrée secteur, Micro HDMI, USB A 3.0.

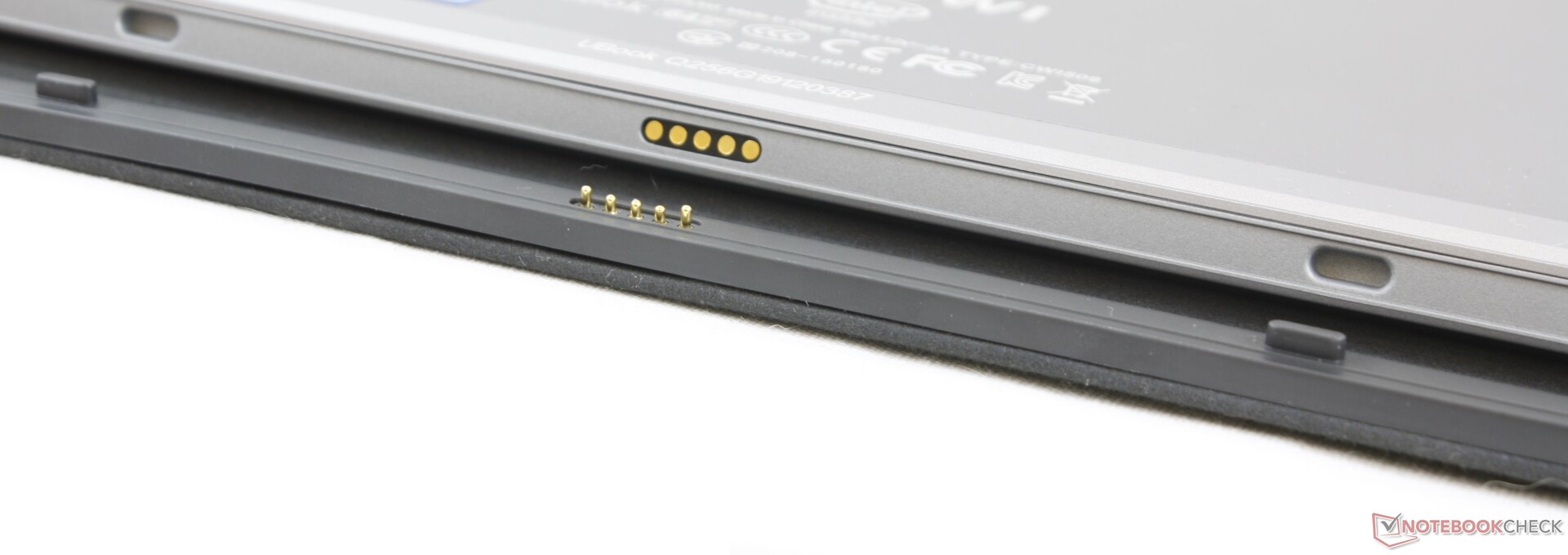

Au-dessous : connexion Pogo.
Au-dessous : connexion Pogo.

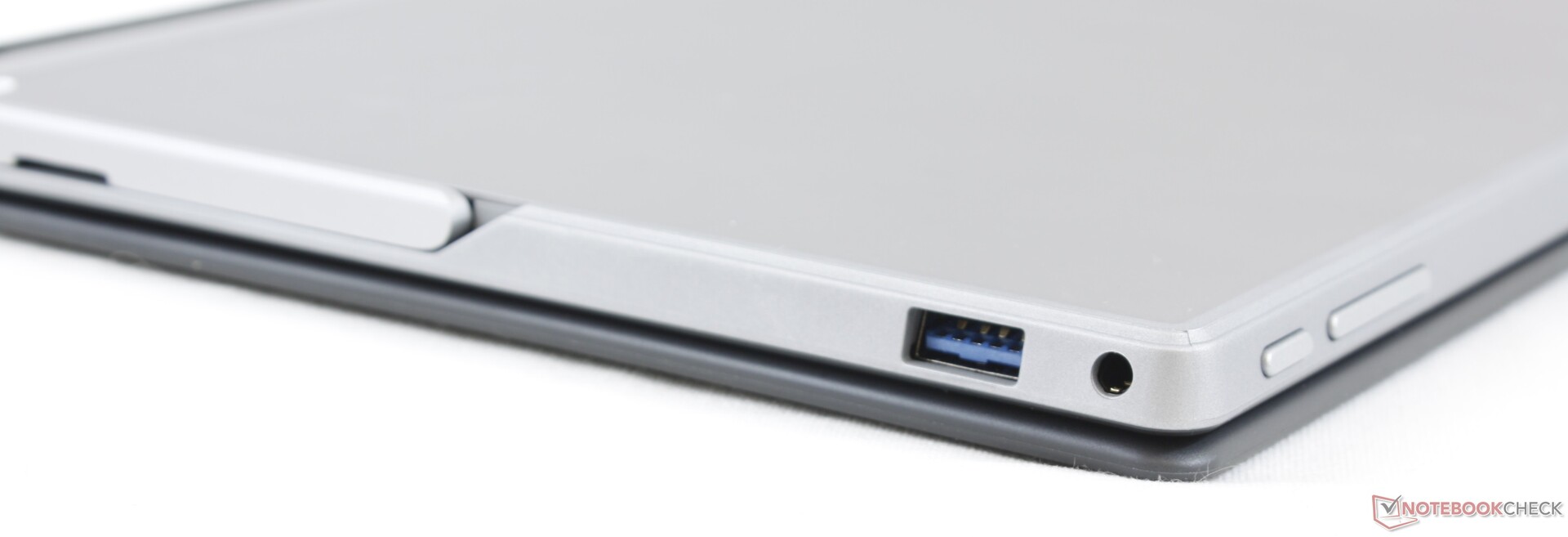

Côté gauche : USB 3.0, écouteurs 3,5 mm.
Côté gauche : USB 3.0, écouteurs 3,5 mm.
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP ProBook x360 11 G4
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
75.5 MB/s ∼100% +9%
Microsoft Surface Pro 7 Core i5-1035G4
  (Toshiba Exceria Pro M501 64 GB UHS-II)
73 MB/s ∼97% +5%
Chuwi UBook CWI509
  (Toshiba Exceria Pro M501 64 GB UHS-II)
69.4 MB/s ∼92%
Microsoft Surface Go MHN-00003
  (Toshiba Exceria Pro M501)
67.8 MB/s ∼90% -2%
HP x2 210 G2
  (Toshiba Exceria Pro M501 microSDXC 64GB)
48 MB/s ∼64% -31%
maximum AS SSD Seq Read Test (1GB)
HP ProBook x360 11 G4
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
85.9 MB/s ∼100% +4%
Microsoft Surface Pro 7 Core i5-1035G4
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.07 MB/s ∼99% +3%
Microsoft Surface Go MHN-00003
  (Toshiba Exceria Pro M501)
84.9 MB/s ∼99% +3%
Chuwi UBook CWI509
  (Toshiba Exceria Pro M501 64 GB UHS-II)
82.4 MB/s ∼96%
HP x2 210 G2
  (Toshiba Exceria Pro M501 microSDXC 64GB)
76.4 MB/s ∼89% -7%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP ProBook x360 11 G4
Intel Wireless-AC 9260
600 (min: 445, max: 675) MBit/s ∼100% +53%
Microsoft Surface Go MHN-00003
Qualcomm Atheros QCA61x4
581 MBit/s ∼97% +49%
HP x2 210 G2
Intel Dual Band Wireless-AC 7265
448 (min: 399, max: 476) MBit/s ∼75% +15%
Chuwi UBook CWI509
Wireless AC-9461
391 MBit/s ∼65%
Trekstor Surftab Theatre S11
802.11a/b/g/n
93 (min: 82, max: 98) MBit/s ∼16% -76%
iperf3 Client (transmit) TCP 1 m 4M x10
HP ProBook x360 11 G4
Intel Wireless-AC 9260
578 (min: 538, max: 619) MBit/s ∼100% +63%
HP x2 210 G2
Intel Dual Band Wireless-AC 7265
483 (min: 364, max: 559) MBit/s ∼84% +36%
Microsoft Surface Go MHN-00003
Qualcomm Atheros QCA61x4
476 MBit/s ∼82% +34%
Chuwi UBook CWI509
Wireless AC-9461
355 MBit/s ∼61%
Trekstor Surftab Theatre S11
802.11a/b/g/n
82 (min: 71, max: 89) MBit/s ∼14% -77%
213.2
cd/m²
221.2
cd/m²
222.6
cd/m²
210.9
cd/m²
235.6
cd/m²
223.2
cd/m²
206.8
cd/m²
222.6
cd/m²
219.7
cd/m²
Homogénéité de la luminosité
Panda LC116LF1L01
X-Rite i1Pro 2
Maximum: 235.6 cd/m² Moyenne: 219.5 cd/m² Minimum: 18.6 cd/m²
Homogénéité de la luminosité: 88 %
Valeur mesurée au centre, sur batterie: 235.6 cd/m²
Contraste: 589:1 (Valeurs des noirs: 0.4 cd/m²)
ΔE Color 8.9 | 0.6-29.43 Ø6, calibrated: 1.85
ΔE Greyscale 11.9 | 0.64-98 Ø6.2
93.8% sRGB (Argyll 3D) 59.5% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.07
Chuwi UBook CWI509
Panda LC116LF1L01, IPS, 11.6, 1920x1080
Microsoft Surface Pro 7 Core i5-1035G4
LG Philips LP123WQ112604, IPS, 12.3, 2736x1824
Microsoft Surface Go MHN-00003
Sharp SHP14A6, IPS, 10, 1800x1200
HP ProBook x360 11 G4
AU Optronics AUO405C, IPS, 11.6, 1366x768
Trekstor Surftab Theatre S11
IPS, 11.6, 1920x1080
HP x2 210 G2
AU Optronics AUO18D4, IPS, 10.1, 1280x800
Response Times
44%
-32%
3%
33%
-22%
Response Time Grey 50% / Grey 80% *
38 (16.4, 21.6)
34.8 (16.8, 18)
8%
44 (22, 22)
-16%
40 (19, 21)
-5%
48.8 (25.2, 23.6)
-28%
46 (22, 24)
-21%
Response Time Black / White *
28.8 (15.6, 13.2)
26.4 (13.2, 13.2)
8%
25.6 (11.6, 14)
11%
26 (15, 11)
10%
37 (20.8, 16.4)
-28%
35 (18, 17)
-22%
PWM Frequency
10000 (25)
21550 (24)
116%
1020 (99)
-90%
25510 (71)
155%
Screen
36%
60%
25%
29%
25%
Brightness middle
235.6
480.4
104%
456
94%
211
-10%
245
4%
292
24%
Brightness
220
485
120%
426
94%
211
-4%
231
5%
275
25%
Brightness Distribution
88
91
3%
88
0%
88
0%
87
-1%
82
-7%
Black Level *
0.4
0.48
-20%
0.31
22%
0.15
62%
0.25
37%
0.17
57%
Contrast
589
1001
70%
1471
150%
1407
139%
980
66%
1718
192%
Colorchecker DeltaE2000 *
8.9
5
44%
1.3
85%
4.32
51%
5.2
42%
6.76
24%
Colorchecker DeltaE2000 max. *
16.83
7.72
54%
3
82%
18.44
-10%
10.8
36%
24.45
-45%
Colorchecker DeltaE2000 calibrated *
1.85
2.44
-32%
1.1
41%
Greyscale DeltaE2000 *
11.9
5.9
50%
1.4
88%
2.39
80%
7.3
39%
6.01
49%
Gamma
2.07 106%
2.38 92%
2.24 98%
2.38 92%
2.24 98%
2.26 97%
CCT
11176 58%
7805 83%
6687 97%
6815 95%
7496 87%
6749 96%
Color Space (Percent of AdobeRGB 1998)
59.5
60.3
1%
62.3
5%
42
-29%
40
-33%
Color Space (Percent of sRGB)
93.8
93.2
-1%
96.8
3%
65
-31%
63
-33%
Moyenne finale (programmes/paramètres)
40% / 38%
14% / 41%
14% / 21%
31% / 30%
2% / 18%

* ... Moindre est la valeur, meilleures sont les performances

Temps de réponse de l'écran

Le temps de réponse d'un écran mesure la rapidité à laquelle l'écran est capable de changer une couleur pour une autre. Un temps de réponse élevé se traduit par une image floutée pour les objets en mouvement. Les joueurs bénéficieront de faibles latences d'affichage en jeu.

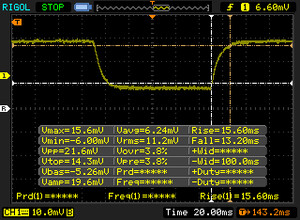

       Temps de réponse noir à blanc
28.8 ms ... hausse ↗ et chute ↘ combinées↗ 15.6 ms hausse
↘ 13.2 ms chute
L'écran souffre de latences relativement élevées, insuffisant pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.8 (minimum) et 240 (maximum) ms. » 66 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont moins bonnes que la moyenne (24.9 ms) de tous les appareils testés.

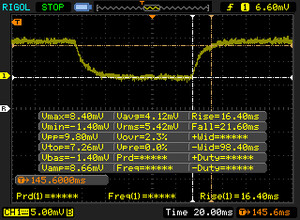

       Temps de réponse gris 50% à gris 80%
38 ms ... hausse ↗ et chute ↘ combinées↗ 16.4 ms hausse
↘ 21.6 ms chute
L'écran souffre de latences très élevées, à éviter pour le jeu.
En comparaison, tous les appareils testés affichent entre 0.9 (minimum) et 636 (maximum) ms. » 37 % des appareils testés affichent de meilleures performances.
Cela signifie que les latences relevées sont similaires à la moyenne (39.5 ms) de tous les appareils testés.

Scintillement / MLI (Modulation de largeur d'impulsion)

Afin d'abaisser la luminosité de l'écran, certains ordinateurs portables font varier très rapidement le rétroéclairage entre éteint et allumé. La fréquence à laquelle le rétroéclairage s'éteint et se rallume est normalement fixée à une valeur qui permet de rendre la variation indétectable à l'œil nu? Si la fréquence est trop basse, certaines personnes peuvent être sujettes à une fatigue oculaire, des maux de tête ou même percevoir les variations.
Scintillement / MLI (Modulation de largeur d'impulsion) décelé 10000 Hz ≤ 25 Niveau de luminosité

Le rétroéclairage de l'écran scintille à la fréquence de 10000 Hz (certainement du fait de l'utilisation d'une MDI - Modulation de largeur d'impulsion) à un niveau de luminosité inférieur ou égal à 25 % . Aucun scintillement ne devrait être perceptible au-dessus de cette valeur.

La fréquence de rafraîchissement de 10000 Hz est élevée, la grande majorité des utilisateurs ne devrait pas percevoir de scintillements et être sujette à une fatigue oculaire accrue.

En comparaison, 51 % des appareils testés n'emploient pas MDI pour assombrir leur écran. Nous avons relevé une moyenne à 13584 (minimum : 43 - maximum : 2500000) Hz dans le cas où une MDI était active.

0102030405060708090100110120130140150160170180Tooltip
Chuwi UBook CWI509 UHD Graphics 600, N4100, Netac SSD 256GB; CPU Multi 64Bit: Ø174 (172.96-175.02)
Microsoft Surface Go MHN-00003 UHD Graphics 615, 4415Y, 64 GB eMMC Flash; CPU Multi 64Bit: Ø163 (162.13-163.67)
HP x2 210 G2 HD Graphics 400 (Braswell), Z8350, 64 GB eMMC Flash; CPU Multi 64Bit: Ø96.1 (93.86-96.75)
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3; CPU Multi 64Bit: Ø124 (124.01-124.67)
Cinebench R15
CPU Single 64Bit
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
172 Points ∼79% +157%
Schenker Slim 15 L19
Intel Core i5-10210U
172 Points ∼79% +157%
Acer Swift 3 SF313-51-59SZ
Intel Core i5-8250U
143 Points ∼66% +113%
HP ProBook x360 11 G4
Intel Core m3-8100Y
97 Points ∼44% +45%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30
91 Points ∼42% +36%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30
90 Points ∼41% +34%
Average Intel Celeron N4100
  (62 - 71, n=8)
68 Points ∼31% +1%
Chuwi UBook CWI509
Intel Celeron N4100
67 Points ∼31%
Microsoft Surface Go MHN-00003
Intel Pentium Gold 4415Y
65 Points ∼30% -3%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points ∼19% -39%
HP x2 210 G2
Intel Atom x5-Z8350
28 Points ∼13% -58%
CPU Multi 64Bit
Schenker Slim 15 L19
Intel Core i5-10210U
744 Points ∼17% +325%
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
644 Points ∼15% +268%
Acer Swift 3 SF313-51-59SZ
Intel Core i5-8250U
576 Points ∼13% +229%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30
218 Points ∼5% +25%
Average Intel Celeron N4100
  (161 - 254, n=8)
201 Points ∼5% +15%
HP ProBook x360 11 G4
Intel Core m3-8100Y
197 Points ∼5% +13%
Chuwi UBook CWI509
Intel Celeron N4100
175 Points ∼4%
Microsoft Surface Go MHN-00003
Intel Pentium Gold 4415Y
164 Points ∼4% -6%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points ∼3% -29%
HP x2 210 G2
Intel Atom x5-Z8350
97 Points ∼2% -45%
Cinebench R20
CPU (Single Core)
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
441 Points ∼86% +190%
HP ProBook x360 11 G4
Intel Core m3-8100Y
232 Points ∼45% +53%
Chuwi UBook CWI509
Intel Celeron N4100
152 Points ∼30%
Average Intel Celeron N4100
  (151 - 153, n=3)
152 Points ∼30% 0%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points ∼18% -39%
CPU (Multi Core)
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4
1410 Points ∼16% +265%
Average Intel Celeron N4100
  (368 - 560, n=3)
438 Points ∼5% +13%
HP ProBook x360 11 G4
Intel Core m3-8100Y
413 Points ∼5% +7%
Chuwi UBook CWI509
Intel Celeron N4100
386 Points ∼4%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points ∼3% -30%
Cinebench R15 CPU Single 64Bit
67 Points
Cinebench R15 CPU Multi 64Bit
175 Points
Cinebench R15 OpenGL 64Bit
12.18 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Aide
PCMark 10
Digital Content Creation
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), 1035G4, Toshiba BG4 KBG40ZPZ256G
3315 Points ∼26% +252%
HP ProBook x360 11 G4
UHD Graphics 615, 8100Y, WDC PC SN520 SDAPNUW-256G
1490 Points ∼12% +58%
Average Intel Celeron N4100, Intel UHD Graphics 600
  (943 - 1237, n=6)
1017 Points ∼8% +8%
Chuwi UBook CWI509
UHD Graphics 600, N4100, Netac SSD 256GB
943 Points ∼7%
HP x2 210 G2
HD Graphics 400 (Braswell), Z8350, 64 GB eMMC Flash
605 Points ∼5% -36%
Productivity
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), 1035G4, Toshiba BG4 KBG40ZPZ256G
6678 Points ∼64% +145%
HP ProBook x360 11 G4
UHD Graphics 615, 8100Y, WDC PC SN520 SDAPNUW-256G
4817 Points ∼46% +77%
Average Intel Celeron N4100, Intel UHD Graphics 600
  (2567 - 2993, n=6)
2819 Points ∼27% +3%
Chuwi UBook CWI509
UHD Graphics 600, N4100, Netac SSD 256GB
2724 Points ∼26%
HP x2 210 G2
HD Graphics 400 (Braswell), Z8350, 64 GB eMMC Flash
1121 Points ∼11% -59%
Essentials
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), 1035G4, Toshiba BG4 KBG40ZPZ256G
8847 Points ∼77% +94%
HP ProBook x360 11 G4
UHD Graphics 615, 8100Y, WDC PC SN520 SDAPNUW-256G
5843 Points ∼51% +28%
Chuwi UBook CWI509
UHD Graphics 600, N4100, Netac SSD 256GB
4559 Points ∼40%
Average Intel Celeron N4100, Intel UHD Graphics 600
  (3776 - 5199, n=6)
4354 Points ∼38% -4%
HP x2 210 G2
HD Graphics 400 (Braswell), Z8350, 64 GB eMMC Flash
2662 Points ∼23% -42%
Score
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), 1035G4, Toshiba BG4 KBG40ZPZ256G
4163 Points ∼51% +156%
HP ProBook x360 11 G4
UHD Graphics 615, 8100Y, WDC PC SN520 SDAPNUW-256G
2490 Points ∼31% +53%
Average Intel Celeron N4100, Intel UHD Graphics 600
  (1502 - 1920, n=6)
1661 Points ∼20% +2%
Chuwi UBook CWI509
UHD Graphics 600, N4100, Netac SSD 256GB
1627 Points ∼20%
HP x2 210 G2
HD Graphics 400 (Braswell), Z8350, 64 GB eMMC Flash
872 Points ∼11% -46%
PCMark 8
Work Score Accelerated v2
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), 1035G4, Toshiba BG4 KBG40ZPZ256G
4639 Points ∼70% +58%
HP ProBook x360 11 G4
UHD Graphics 615, 8100Y, WDC PC SN520 SDAPNUW-256G
4014 Points ∼61% +37%
Average Intel Celeron N4100, Intel UHD Graphics 600
  (2858 - 3191, n=5)
2995 Points ∼45% +2%
Chuwi UBook CWI509
UHD Graphics 600, N4100, Netac SSD 256GB
2940 Points ∼45%
HP x2 210 G2
HD Graphics 400 (Braswell), Z8350, 64 GB eMMC Flash
1220 Points ∼19% -59%
Home Score Accelerated v2
Microsoft Surface Pro 7 Core i5-1035G4
Iris Plus Graphics G4 (Ice Lake 48 EU), 1035G4, Toshiba BG4 KBG40ZPZ256G
3537 Points ∼58% +100%
HP ProBook x360 11 G4
UHD Graphics 615, 8100Y, WDC PC SN520 SDAPNUW-256G
2459 Points ∼40% +39%
Average Intel Celeron N4100, Intel UHD Graphics 600
  (1765 - 2259, n=8)
1965 Points ∼32% +11%
Chuwi UBook CWI509
UHD Graphics 600, N4100, Netac SSD 256GB
1765 Points ∼29%
HP x2 210 G2
HD Graphics 400 (Braswell), Z8350, 64 GB eMMC Flash
1546 Points ∼25% -12%
Microsoft Surface Go MHN-00003
UHD Graphics 615, 4415Y, 64 GB eMMC Flash
741 Points ∼12% -58%
PCMark 8 Home Score Accelerated v2
1765 points
PCMark 8 Work Score Accelerated v2
2940 points
Aide
Chuwi UBook CWI509
Netac SSD 256GB
Microsoft Surface Pro 7 Core i5-1035G4
Toshiba BG4 KBG40ZPZ256G
Microsoft Surface Go MHN-00003
64 GB eMMC Flash
HP ProBook x360 11 G4
WDC PC SN520 SDAPNUW-256G
HP x2 210 G2
64 GB eMMC Flash
CrystalDiskMark 5.2 / 6
440%
-1%
278%
-31%
Write 4K
63.24
118.5
87%
26.91
-57%
81.69
29%
18.11
-71%
Read 4K
5.317
54.06
917%
19.72
271%
34.41
547%
15.77
197%
Write Seq
229.6
1166
408%
126.2
-45%
1167
408%
62.49
-73%
Read Seq
256.7
1676
553%
268
4%
1223
376%
121.8
-53%
Write 4K Q32T1
134.7
330.5
145%
62.89
-53%
293.4
118%
31.72
-76%
Read 4K Q32T1
155
393.1
154%
39.82
-74%
230.6
49%
48.64
-69%
Write Seq Q32T1
258.2
1569
508%
131.3
-49%
727.6
182%
95.63
-63%
Read Seq Q32T1
282.7
2390
745%
259.3
-8%
1729
512%
166.5
-41%
Netac SSD 256GB
CDM 5/6 Read Seq Q32T1: 282.7 MB/s
CDM 5/6 Write Seq Q32T1: 258.2 MB/s
CDM 5/6 Read 4K Q32T1: 155 MB/s
CDM 5/6 Write 4K Q32T1: 134.7 MB/s
CDM 5 Read Seq: 256.7 MB/s
CDM 5 Write Seq: 229.6 MB/s
CDM 5/6 Read 4K: 5.317 MB/s
CDM 5/6 Write 4K: 63.24 MB/s
3DMark
1920x1080 Fire Strike Graphics
Schenker Slim 15 L19
Intel UHD Graphics 620, i5-10210U
1280 Points ∼3% +245%
Acer Swift 3 SF313-51-59SZ
Intel UHD Graphics 620, 8250U
1225 Points ∼3% +230%
Microsoft Surface Go MHN-00003
Intel UHD Graphics 615, 4415Y
819 Points ∼2% +121%
HP ProBook x360 11 G4
Intel UHD Graphics 615, 8100Y
742 Points ∼2% +100%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel HD Graphics 515, 6Y30
735 Points ∼2% +98%
Average Intel UHD Graphics 600
  (371 - 484, n=4)
433 Points ∼1% +17%
Chuwi UBook CWI509
Intel UHD Graphics 600, N4100
371 Points ∼1%
HP x2 210 G2
Intel HD Graphics 400 (Braswell), Z8350
234 Points ∼1% -37%
1280x720 Cloud Gate Standard Graphics
Schenker Slim 15 L19
Intel UHD Graphics 620, i5-10210U
10047 Points ∼5% +229%
Acer Swift 3 SF313-51-59SZ
Intel UHD Graphics 620, 8250U
9974 Points ∼5% +226%
Microsoft Surface Go MHN-00003
Intel UHD Graphics 615, 4415Y
6602 Points ∼3% +116%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel HD Graphics 515, 6Y30
6078 Points ∼3% +99%
HP ProBook x360 11 G4
Intel UHD Graphics 615, 8100Y
5543 Points ∼3% +81%
Average Intel UHD Graphics 600
  (2826 - 3869, n=6)
3407 Points ∼2% +11%
Chuwi UBook CWI509
Intel UHD Graphics 600, N4100
3057 Points ∼2%
HP x2 210 G2
Intel HD Graphics 400 (Braswell), Z8350
1841 Points ∼1% -40%
1920x1080 Ice Storm Extreme Graphics
Acer Swift 3 SF313-51-59SZ
Intel UHD Graphics 620, 8250U
54599 Points ∼7% +369%
Microsoft Surface Go MHN-00003
Intel UHD Graphics 615, 4415Y
35452 Points ∼5% +204%
HP ProBook x360 11 G4
Intel UHD Graphics 615, 8100Y
23728 Points ∼3% +104%
Average Intel UHD Graphics 600
  (11647 - 16594, n=5)
14234 Points ∼2% +22%
Chuwi UBook CWI509
Intel UHD Graphics 600, N4100
11647 Points ∼2%
3DMark 11
1280x720 Performance Combined
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), 1035G4
2739 Points ∼12% +586%
Schenker Slim 15 L19
Intel UHD Graphics 620, i5-10210U
1789 Points ∼8% +348%
Acer Swift 3 SF313-51-59SZ
Intel UHD Graphics 620, 8250U
1653 Points ∼7% +314%
Microsoft Surface Go MHN-00003
Intel UHD Graphics 615, 4415Y
1134 Points ∼5% +184%
HP ProBook x360 11 G4
Intel UHD Graphics 615, 8100Y
1015 Points ∼4% +154%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel HD Graphics 515, 6Y30
1014 Points ∼4% +154%
Average Intel UHD Graphics 600
  (399 - 791, n=11)
548 Points ∼2% +37%
Chuwi UBook CWI509
Intel UHD Graphics 600, N4100
399 Points ∼2%
HP x2 210 G2
Intel HD Graphics 400 (Braswell), Z8350
392 Points ∼2% -2%
1280x720 Performance GPU
Microsoft Surface Pro 7 Core i5-1035G4
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), 1035G4
3228 Points ∼6% +652%
Schenker Slim 15 L19
Intel UHD Graphics 620, i5-10210U
1829 Points ∼4% +326%
Acer Swift 3 SF313-51-59SZ
Intel UHD Graphics 620, 8250U
1818 Points ∼4% +324%
Microsoft Surface Go MHN-00003
Intel UHD Graphics 615, 4415Y
1257 Points ∼2% +193%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel HD Graphics 515, 6Y30
1186 Points ∼2% +176%
HP ProBook x360 11 G4
Intel UHD Graphics 615, 8100Y
1111 Points ∼2% +159%
Average Intel UHD Graphics 600
  (429 - 638, n=11)
543 Points ∼1% +27%
Chuwi UBook CWI509
Intel UHD Graphics 600, N4100
429 Points ∼1%
HP x2 210 G2
Intel HD Graphics 400 (Braswell), Z8350
349 Points ∼1% -19%
3DMark 11 Performance
482 points
3DMark Ice Storm Standard Score
19808 points
3DMark Cloud Gate Standard Score
2628 points
3DMark Fire Strike Score
346 points
3DMark Time Spy Score
113 points
Aide
BioShock Infinite
1366x768 Medium Preset
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
50.8 fps ∼100% +464%
Acer Swift 3 SF313-51-59SZ
Intel Core i5-8250U, Intel UHD Graphics 620
37.5 fps ∼74% +317%
Microsoft Surface Go MHN-00003
Intel Pentium Gold 4415Y, Intel UHD Graphics 615
22.4 fps ∼44% +149%
HP ProBook x360 11 G4
Intel Core m3-8100Y, Intel UHD Graphics 615
18.1 fps ∼36% +101%
Average Intel UHD Graphics 600
  (9 - 13.3, n=6)
10.8 fps ∼21% +20%
Chuwi UBook CWI509
Intel Celeron N4100, Intel UHD Graphics 600
9 fps ∼18%
1280x720 Very Low Preset
Microsoft Surface Pro 7 Core i5-1035G4
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
87.3 fps ∼100% +364%
Acer Swift 3 SF313-51-59SZ
Intel Core i5-8250U, Intel UHD Graphics 620
68.2 fps ∼78% +263%
Microsoft Surface Go MHN-00003
Intel Pentium Gold 4415Y, Intel UHD Graphics 615
38.3 fps ∼44% +104%
HP ProBook x360 11 G4
Intel Core m3-8100Y, Intel UHD Graphics 615
31.1 fps ∼36% +65%
Average Intel UHD Graphics 600
  (18.8 - 28.3, n=7)
22.7 fps ∼26% +21%
Chuwi UBook CWI509
Intel Celeron N4100, Intel UHD Graphics 600
18.8 fps ∼22%
HP x2 210 G2
Intel Atom x5-Z8350, Intel HD Graphics 400 (Braswell)
16.9 fps ∼19% -10%
Bas Moyen Élevé Ultra
BioShock Infinite (2013) 18.8 9 8 2 fps
 22.4 °C28.6 °C34.8 °C
 23.2 °C26.8 °C33 °C
 27.6 °C27 °C28.8 °C
Maximum: 34.8 °C
Moyenne: 28 °C
36.4 °C30.2 °C26.2 °C
34.2 °C29.8 °C26.6 °C
32.2 °C29 °C27 °C
Maximum: 36.4 °C
Moyenne: 30.2 °C
Alimentation (valeur maximale)  32 °C | Température ambiante de la pièce 20 °C | Fluke 62 Mini IR Thermometer
(+) The average temperature for the upper side under maximal load is 28 °C / 82 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34.8 °C / 95 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 36.4 °C / 98 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.1 °C / 77 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.8 °C / 83.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (+0.1 °C / 0.2 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.238.638.22537.736.837.73136.135.836.14036.935.336.95034.934.534.96339.735.539.78033.232.633.210032.732.232.71253332.23316032.832.232.820035.333.735.325033.430.733.431536.330.536.340041.129.641.150042.428.842.463047.828.647.880052.828.152.8100060.728.160.7125059.827.959.8160057.727.757.7200053.627.453.625005427.55431505327.653400053.427.453.4500053.127.453.1630054.327.454.3800058.227.358.21000054.627.254.61250050.327.250.31600035.92735.9SPL67.74067.7N21.23.821.2median 52.8median 27.9median 52.8Delta7.61.67.635.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseChuwi UBook CWI509Apple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Chuwi UBook CWI509 audio analysis

(-) | not very loud speakers (67.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.9% lower than median
(+) | bass is linear (5.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6% lower than median
(-) | mids are not linear (15.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.5% away from median
(+) | highs are linear (6.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (33.4% difference to median)
Compared to same class
» 90% of all tested devices in this class were better, 3% similar, 6% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 94% of all tested devices were better, 2% similar, 4% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consommation énergétique
Éteint/en veilledarklight 2.4 / 2.2 Watts
Au reposdarkmidlight 5.2 / 8.3 / 8.7 Watts
Fortement sollicité midlight 15.8 / 27.1 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Chuwi UBook CWI509
N4100, UHD Graphics 600, Netac SSD 256GB, IPS, 1920x1080, 11.6
Microsoft Surface Pro 7 Core i5-1035G4
1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU), Toshiba BG4 KBG40ZPZ256G, IPS, 2736x1824, 12.3
Microsoft Surface Go MHN-00003
4415Y, UHD Graphics 615, 64 GB eMMC Flash, IPS, 1800x1200, 10
HP ProBook x360 11 G4
8100Y, UHD Graphics 615, WDC PC SN520 SDAPNUW-256G, IPS, 1366x768, 11.6
Trekstor Surftab Theatre S11
MT8163 V/A 1.5 GHz, Mali-T720 MP2, 32 GB eMMC Flash, IPS, 1920x1080, 11.6
HP x2 210 G2
Z8350, HD Graphics 400 (Braswell), 64 GB eMMC Flash, IPS, 1280x800, 10.1
Power Consumption
-62%
21%
41%
39%
44%
Idle Minimum *
5.2
4.5
13%
2.88
45%
2.4
54%
3.27
37%
2.9
44%
Idle Average *
8.3
9.2
-11%
4.8
42%
4.2
49%
6.33
24%
4.8
42%
Idle Maximum *
8.7
9.6
-10%
7.5
14%
5
43%
6.39
27%
5.2
40%
Load Average *
15.8
42
-166%
16.9
-7%
13.2
16%
8.9
44%
10.4
34%
Load Maximum *
27.1
63.5
-134%
23.8
12%
16
41%
10.55
61%
10.9
60%

* ... Moindre est la valeur, meilleures sont les performances

Autonomie
NBC WiFi Websurfing Battery Test 1.3
5h 27min
Chuwi UBook CWI509
N4100, UHD Graphics 600, 26 Wh
Microsoft Surface Pro 7 Core i5-1035G4
1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU), 45 Wh
Microsoft Surface Go MHN-00003
4415Y, UHD Graphics 615, 28 Wh
HP ProBook x360 11 G4
8100Y, UHD Graphics 615, 48 Wh
Trekstor Surftab Theatre S11
MT8163 V/A 1.5 GHz, Mali-T720 MP2, 25.16 Wh
HP x2 210 G2
Z8350, HD Graphics 400 (Braswell), 32.5 Wh
Autonomie de la batterie
83%
37%
96%
-9%
69%
Reader / Idle
1336
771
WiFi v1.3
327
597
83%
448
37%
641
96%
296
-9%
551
69%
Load
116
180

Points positifs

+ couverture sRVB à 95 %, couleurs si bien calibré
+ USB A, USB C, micro SD, HDMI
+ appareils photo avant et arrière
+ prix
+ niveau sonore

Points négatifs

- charnières en U fragiles avec de faibles angles
- qualité du clavier amovible
- calibrage de l'écran en sortie d'usine
- fuites de lumière
- boucle de stylet
- performances
- absence de rétroéclairage du clavier
- clickpad
- luminosité de l'écran

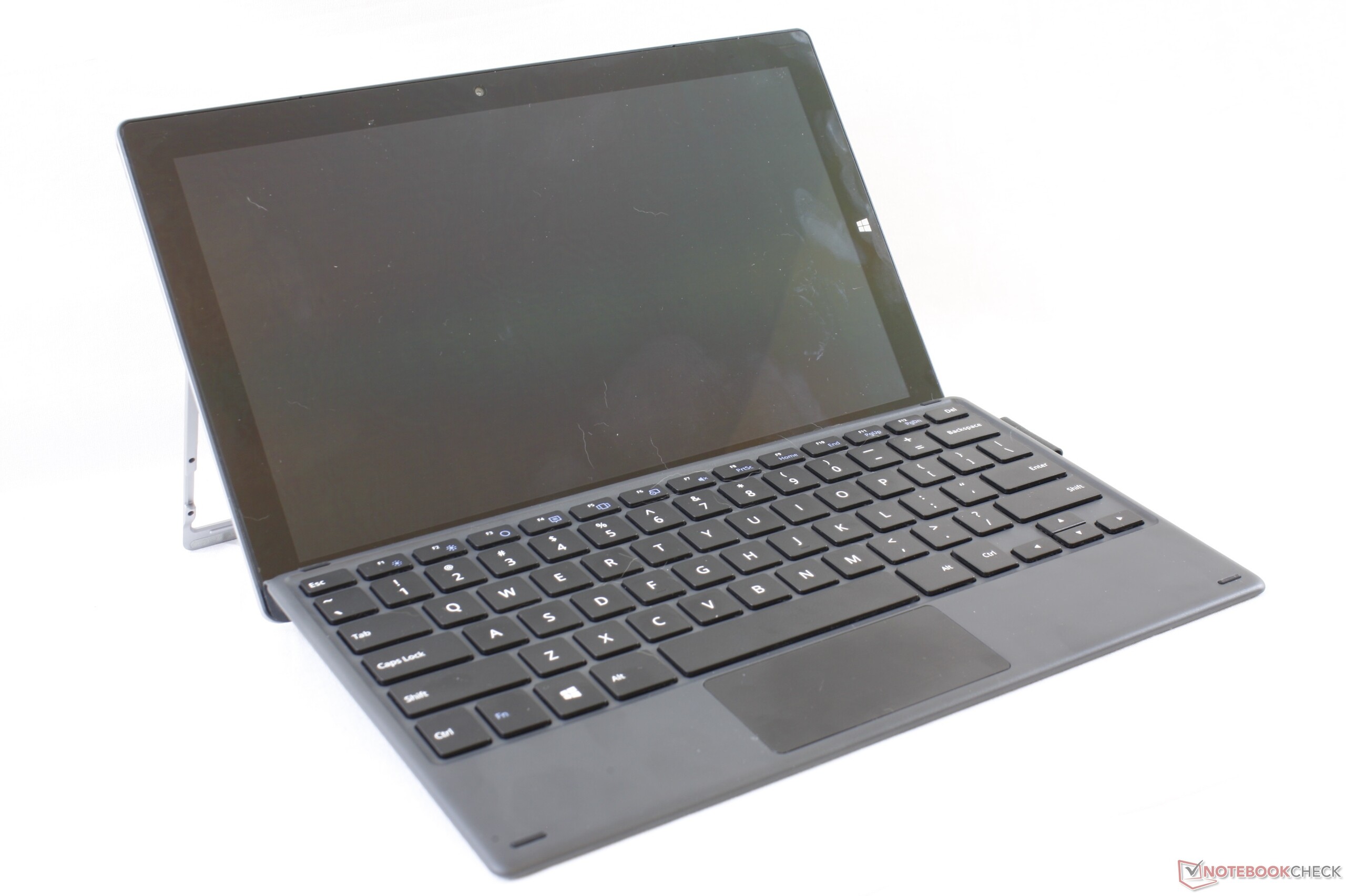

En test : le Chuwi UBook CWI509 detachable. Modèle de test fourni par Chuwi.
En test : le Chuwi UBook CWI509 detachable. Modèle de test fourni par Chuwi.

Le Chuwi UBook possède quelques caractéristiques intéressantes pour son niveau de prix. L’écran est plutôt bien réussi quand il est bien calibré, et la sélection des ports est bien plus complète que sur la Surface Go. Malheureusement, tout le reste est juste catastrophique ou au mieux passable. Le clavier amovible est de mauvaise qualité, l’écran est plutôt sombre et avec des fuites de lumière, et le système est globalement très lent. Cela suffit pour du traitement de texte et un peu de navigation web et de streaming, mais certainement pas tous en même temps.

Un convertible tablette qui reflète bien son prix. Le Chuwi UBook sera plutôt un portable de secours ou un HTPC pour la maison, plutôt qu’un portable principal.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Chuwi UBook CWI509 - 12/30/2019 v7
Allen Ngo

Châssis
54 / 98 → 55%
Clavier
64%
Dispositif de pointage
37%
Connectivité
49 / 75 → 65%
Poids
78 / 20-75 → 100%
Autonomie
66%
Écran
73%
Performances en jeu
15 / 78 → 20%
Performances dans les applications
55 / 85 → 65%
Chauffe
94%
Nuisance sonore
100%
Audio
46 / 91 → 50%
Appareil photo
40 / 85 → 47%
Moyenne
59%
70%
Convertible - Moyenne compensée

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Test du Chuwi UBook CWI509 (Celeron N4100, UHD 600, FHD) : un ersatz de Surface Go
Allen Ngo, 2020-01- 9 (Update: 2020-01- 9)
