Courte critique du mini PC Zotac ZBOX QK7P3000 (i7-7700T, Quadro P3000)

Portable de jeu transformé en station de travail. Zotac a remplacé la GeForce GTX 1060 de sa série ZBox Magnus par son équivalente pour station de travail, la Quadro P3000, afin de proposer un mini PC puissant pour les professionnels. Les températures et les nuisances sonores sont très bien maîtrisées par rapport aux stations de travail mobiles. Une légère tendance au throttling en cas de sollicitations extrêmes l’empêchent cependant d’être un achat incontournable.
Zotac ZBOX-QK7P3000
Processeur
Intel Core i7-7700T 4 x 2.9 - 3.8 GHz, Kaby Lake
Carte graphique
NVIDIA Quadro P3000 - 6 Go VRAM, Processeur: 1215 MHz, Mémoire: 7008 MHz, GDDR5, 390.77
Mémoire
8 Go
, DDR4 1600 MHz, 14-16-16-32, monocanal
Carte mère
Intel B150 (Skylake PCH-H)
Disque dur
Samsung SSD 960 Pro 512 GB m.2, 512 Go
Carte son
NVIDIA GP104 - High Definition Audio Controller
Connexions
2 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, 1 Infrarouge, 1 Encoche de Sécurité Kensington, Connectique audio: micro et écouteurs 3,5 mm, Lecteur de cartes mémoires: SD
Réseau
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Taille
Hauteur x Largeur x Profondeur (en mm): 62.2 x 210 x 203
Système d'exploitation
Microsoft Windows 10 Pro 64 Bit
Fonctionnalités additionnelles
guide de démarrage rapide, manuel utilisateur, antenne, carte de garantie, DVD des pilotes, clé USB des pilotes, 12 Mois Garantie
Poids
1.676 kg, Alimentation: 665 g
Prix
1 USD
Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.



225 mm 203 mm 128 mm 3.3 kg210 mm 203 mm 62.2 mm 1.7 kg210 mm 203 mm 62.2 mm 1.7 kg221 mm 142 mm 39 mm 1.3 kg115 mm 111 mm 51 mm 577 g297 mm 210 mm 1 mm 5.7 g

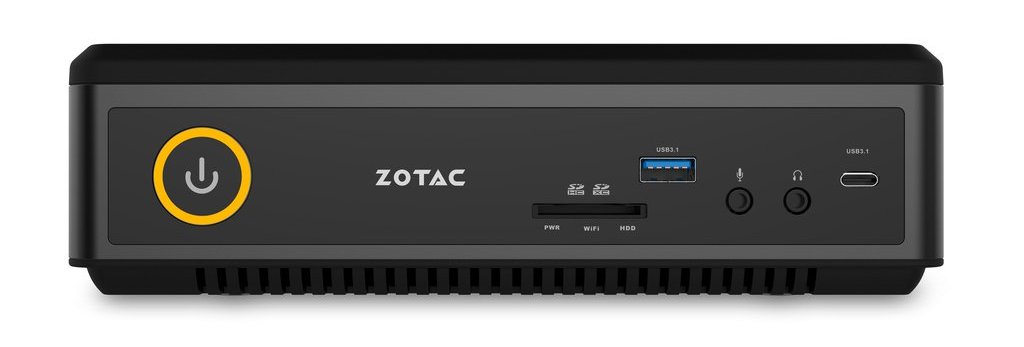

A l'avant : bouton de démarrage, lecteur de carte SD, USB 3.1, micro 3,5 mm, prise écouteurs 3,5 mms, USB C 3.1 Gen. 2.
A l'avant : bouton de démarrage, lecteur de carte SD, USB 3.1, micro 3,5 mm, prise écouteurs 3,5 mms, USB C 3.1 Gen. 2.
Côté gauche : verrou de sécurité Kensington.
Côté gauche : verrou de sécurité Kensington.
A l'arrière : entrée secteur, 2 USB 2.0, 2 USB 3.0, 2 HDMI 2.0, 2 DisplayPort 1.3, 2 Ethernet gigabit, antenne.
A l'arrière : entrée secteur, 2 USB 2.0, 2 USB 3.0, 2 HDMI 2.0, 2 DisplayPort 1.3, 2 Ethernet gigabit, antenne.
Côté droit : aucune connectivité.
Côté droit : aucune connectivité.
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81 MB/s +128%
Zotac ZBOX Magnus EK71080
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
41.11 MB/s +16%
Zotac ZBOX-QK7P3000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35.52 MB/s
maximum AS SSD Seq Read Test (1GB)
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.3 MB/s +107%
Zotac ZBOX-QK7P3000
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
42.73 MB/s
Zotac ZBOX Magnus EK71080
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
42.45 MB/s -1%
Networking
iperf3 transmit AX12
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
376 MBit/s +55%
Zotac ZBOX-QK7P3000
Intel Dual Band Wireless-AC 3165
243 MBit/s
Zotac ZBOX Magnus EK71080
Intel Dual Band Wireless-AC 3165
213 MBit/s -12%
iperf3 receive AX12
Intel Hades Canyon NUC8i7HVK
Intel Dual Band Wireless-AC 8265
591 MBit/s +102%
Zotac ZBOX Magnus EK71080
Intel Dual Band Wireless-AC 3165
321 MBit/s +10%
Zotac ZBOX-QK7P3000
Intel Dual Band Wireless-AC 3165
292 MBit/s

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Eurocom Sky X4C
Intel Core i7-8700K
192 Points +24%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
178 Points +15%
MSI GT63 Titan 8RG-046
Intel Core i7-8750H
174 Points +12%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
169 Points +9%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
161 Points +4%
Dell XPS 15 9575 i5-8305G
Intel Core i5-8305G
157 Points +1%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
155 Points
Acer Swift 3 SF315-41-R6J9
AMD Ryzen 7 2700U
141 Points -9%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
129 Points -17%
CPU Multi 64Bit
Eurocom Sky X4C
Intel Core i7-8700K
1359 Points +90%
MSI GT63 Titan 8RG-046
Intel Core i7-8750H
1091 Points +53%
Intel Hades Canyon NUC8i7HVK
Intel Core i7-8809G
864 Points +21%
Zotac ZBOX Magnus EK71080
Intel Core i7-7700HQ
738 Points +3%
Zotac ZBOX-QK7P3000
Intel Core i7-7700T
714 Points
Dell XPS 15 9575 i5-8305G
Intel Core i5-8305G
710 Points -1%
Acer Swift 3 SF315-41-R6J9
AMD Ryzen 7 2700U
566 Points -21%
HP ZBook 14u G5-2ZB99EA
Intel Core i7-8550U
531 Points -26%
Zotac ZBOX Magnus EN51050
Intel Core i5-7500T
512 Points -28%
Cinebench R10 Shading 32Bit
5873
Cinebench R10 Rendering Multiple CPUs 32Bit
21587
Cinebench R10 Rendering Single 32Bit
6824
Cinebench R11.5 OpenGL 64Bit
114.9 fps
Cinebench R11.5 CPU Multi 64Bit
7.58 Points
Cinebench R11.5 CPU Single 64Bit
1.75 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
170.5 fps
Cinebench R15 CPU Multi 64Bit
714 Points
Cinebench R15 CPU Single 64Bit
155 Points
Aide
PCMark 8 - Home Score Accelerated v2
Zotac ZBOX Magnus EK71080
GeForce GTX 1080 (Desktop), i7-7700HQ, Samsung PM961 MZVLW256HEHP
5166 Points +16%
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
4833 Points +8%
Dell XPS 15 9575 i5-8305G
Vega M GL / 870, i5-8305G, Toshiba XG5 KXG50ZNV256G
4693 Points +5%
Zotac ZBOX-QK7P3000
Quadro P3000, i7-7700T, Samsung SSD 960 Pro 512 GB m.2
4472 Points
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100, i5-8550U, Toshiba XG5 KXG50ZNV256G
4438 Points -1%
MSI WS63 7RF-290US
Quadro P3000, i7-7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4284 Points -4%
PCMark 10 - Score
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
5301 Points +16%
Zotac ZBOX Magnus EK71080
GeForce GTX 1080 (Desktop), i7-7700HQ, Samsung PM961 MZVLW256HEHP
5197 Points +14%
Dell XPS 15 9575 i5-8305G
Vega M GL / 870, i5-8305G, Toshiba XG5 KXG50ZNV256G
4702 Points +3%
Zotac ZBOX-QK7P3000
Quadro P3000, i7-7700T, Samsung SSD 960 Pro 512 GB m.2
4553 Points
HP ZBook 14u G5-2ZB99EA
Radeon Pro WX 3100, i5-8550U, Toshiba XG5 KXG50ZNV256G
3464 Points -24%
PCMark 8 Home Score Accelerated v2
4472 points
PCMark 10 Score
4553 points
Aide
Zotac ZBOX-QK7P3000
Samsung SSD 960 Pro 512 GB m.2
Intel Hades Canyon NUC8i7HVK
Intel Optane 120 GB SSDPEK1W120GA
Zotac ZBOX Magnus EK71080
Samsung PM961 MZVLW256HEHP
Dell XPS 15 9575 i5-8305G
Toshiba XG5 KXG50ZNV256G
MSI WS63 7RF-290US
Samsung SM961 MZVKW512HMJP m.2 PCI-e
AS SSD
38%
26%
-37%
49%
Copy Game MB/s
583
768
32%
1010
73%
250.5
-57%
1121
92%
Copy Program MB/s
234.6
342.4
46%
468
99%
174.9
-25%
447.3
91%
Copy ISO MB/s
871
1125
29%
1649
89%
392.7
-55%
1760
102%
Score Total
3863
3023
-22%
2791
-28%
1113
-71%
3759
-3%
Score Write
1705
714
-58%
669
-61%
307
-82%
1440
-16%
Score Read
1441
1524
6%
1429
-1%
595
-59%
1568
9%
Access Time Write *
0.09
0.033
63%
0.04
56%
0.056
38%
0.028
69%
Access Time Read *
0.079
0.025
68%
0.06
24%
0.146
-85%
0.036
54%
4K-64 Write
1479
556
-62%
443.8
-70%
181.2
-88%
1151
-22%
4K-64 Read
1200
1258
5%
1170
-2%
337.1
-72%
1244
4%
4K Write
43.07
103.5
140%
105.2
144%
92.7
115%
128.5
198%
4K Read
26.06
127.9
391%
46.69
79%
24.78
-5%
49.02
88%
Seq Write
1823
553
-70%
1205
-34%
334.3
-82%
1603
-12%
Seq Read
2154
1379
-36%
2119
-2%
2335
8%
2750
28%

* ... Moindre est la valeur, meilleures sont les performances

Samsung SSD 960 Pro 512 GB m.2
CDM 5/6 Read Seq Q32T1: 3354 MB/s
CDM 5/6 Write Seq Q32T1: 2039 MB/s
CDM 5/6 Read 4K Q32T1: 322.2 MB/s
CDM 5/6 Write 4K Q32T1: 250 MB/s
CDM 5 Read Seq: 1908 MB/s
CDM 5 Write Seq: 1837 MB/s
CDM 5/6 Read 4K: 42.82 MB/s
CDM 5/6 Write 4K: 104.7 MB/s
3DMark 11
1280x720 Performance GPU
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
25589 Points +77%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
20623 Points +42%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
15837 Points +9%
MSI GV62 8RE-016US
NVIDIA GeForce GTX 1060 Mobile, i5-8300H
15101 Points +4%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
14483 Points
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
12105 Points -16%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
8313 Points -43%
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
7831 Points -46%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
3749 Points -74%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
3022 Points -79%
1280x720 Performance Combined
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
12374 Points +53%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
10428 Points +29%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
9296 Points +15%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
9063 Points +12%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
8654 Points +7%
MSI GV62 8RE-016US
NVIDIA GeForce GTX 1060 Mobile, i5-8300H
8215 Points +2%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
8076 Points
Zotac ZBOX Magnus EN51050
NVIDIA GeForce GTX 1050 Mobile, i5-7500T
6938 Points -14%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
4854 Points -40%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
3016 Points -63%
SPECviewperf 12
1900x1060 Catia (catia-04)
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
155.4 fps +26%
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
135 fps +9%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
123.6 fps
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
110 fps -11%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
96.5 fps -22%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
77.9 fps -37%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
27.97 fps -77%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
15.05 fps -88%
1900x1060 Creo (creo-01)
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
126.6 fps +18%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
107.1 fps
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
91.9 fps -14%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
87 fps -19%
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
85.3 fps -20%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
64.8 fps -39%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
35.91 fps -66%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
17.12 fps -84%
1900x1060 Energy (energy-01)
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
18.58 fps +112%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
14.95 fps +70%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
10.6 fps +21%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
8.78 fps
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
7.7 fps -12%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
4.85 fps -45%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
0.55 fps -94%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
0.31 fps -96%
1900x1060 Maya (maya-04)
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
102.6 fps +19%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
102.1 fps +19%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
86.1 fps
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
73 fps -15%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
67.7 fps -21%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
50.4 fps -41%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
21.61 fps -75%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
9.22 fps -89%
1900x1060 Medical (medical-01)
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
74.6 fps +85%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
71.5 fps +78%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
41.8 fps +4%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
40.22 fps
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
29.82 fps -26%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
22.34 fps -44%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
9.33 fps -77%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
3.71 fps -91%
1900x1060 Showcase (showcase-01)
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
106.4 fps +92%
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
62.6 fps +13%
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
62.3 fps +13%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
55.3 fps
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
54.8 fps -1%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
43.81 fps -21%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
12.13 fps -78%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
5.19 fps -91%
1900x1060 Siemens NX (snx-02)
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
183.6 fps +54%
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
130.9 fps +10%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
119.4 fps
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
111.7 fps -6%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
71.8 fps -40%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
65.8 fps -45%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
28.31 fps -76%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
14.27 fps -88%
1900x1060 Solidworks (sw-03)
Eurocom Tornado F5W
NVIDIA Quadro P5000, E3-1280 v5
166.2 fps +17%
Zotac ZBOX-QK7P3000
NVIDIA Quadro P3000, i7-7700T
141.9 fps
MSI WS63VR 7RL-023US
NVIDIA Quadro P4000 Max-Q, i7-7700HQ
119.9 fps -16%
Apple iMac Pro
AMD Radeon Pro Vega 56, W-2145
117.7 fps -17%
MSI WS63 7RF-290US
NVIDIA Quadro P3000, i7-7700HQ
102.9 fps -27%
HP ZBook 17 G3 TZV66eA
NVIDIA Quadro M3000M, E3-1535M v5
84.8 fps -40%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, i5-8550U
53.5 fps -62%
HP ZBook 14u G5-2ZB99EA
AMD Radeon Pro WX 3100, i5-8550U
26.11 fps -82%
3DMark 11 Performance
12086 points
Aide
Bas Moyen Élevé Ultra
BioShock Infinite (2013) 291.2 242.1 233.2 107.9
The Witcher 3 (2015) 34
012345678910111213141516171819202122232425262728293031323334353637Tooltip
The Witcher 3 ultra

Degré de la nuisance sonore

Au repos
40.9 / 40.9 / 40.9 dB(A)
Fortement sollicité
40.9 / 41.6 dB(A)
  red to green bar


30 dB
silencieux
40 dB(A)
audible
50 dB(A)
bruyant

min: dark, med: mid, max: light   Audix TM1, Arta (à 15 cm de distance)   bruit ambiant: 29.6 dB(A)
Zotac ZBOX-QK7P3000
Quadro P3000, i7-7700T, Samsung SSD 960 Pro 512 GB m.2
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Zotac ZBOX Magnus EK71080
GeForce GTX 1080 (Desktop), i7-7700HQ, Samsung PM961 MZVLW256HEHP
Apple iMac Pro
Pro Vega 56, W-2145
HP ZBook 17 G3 TZV66eA
Quadro M3000M, E3-1535M v5, Samsung SM951 MZVPV256HDGL m.2 PCI-e
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, i5-8550U, Samsung PM961 MZVLW256HEHP
Noise
12%
1%
12%
7%
20%
off / environment *
29.6
28.7
3%
29.9
-1%
29.1
2%
30
-1%
29
2%
Idle Minimum *
40.9
29
29%
38.6
6%
29.8
27%
30
27%
29
29%
Idle Average *
40.9
29
29%
38.6
6%
29.8
27%
30
27%
29
29%
Idle Maximum *
40.9
29
29%
39
5%
29.8
27%
30
27%
31.2
24%
Load Average *
40.9
36
12%
40.6
1%
39.7
3%
48.9
-20%
32.5
21%
Witcher 3 ultra *
41.6
42
-1%
41.7
-0%
32.5
22%
Load Maximum *
41.6
49.4
-19%
47
-13%
47.9
-15%
48.9
-18%
37.5
10%

* ... Moindre est la valeur, meilleures sont les performances

Consommation énergétique
Éteint/en veilledarklight 1.43 / 1.8 Watts
Au reposdarkmidlight 19.9 / 20.3 / 27.6 Watts
Fortement sollicité midlight 86.2 / 96.3 Watts
 color bar
Légende: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Zotac ZBOX-QK7P3000
i7-7700T, Quadro P3000, Samsung SSD 960 Pro 512 GB m.2, , x,
Intel Hades Canyon NUC8i7HVK
i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Zotac ZBOX Magnus EK71080
i7-7700HQ, GeForce GTX 1080 (Desktop), Samsung PM961 MZVLW256HEHP, , x, 0.00
Apple iMac Pro
W-2145, Pro Vega 56, , , 5120x2880, 27.00
Lenovo ThinkPad P52s-20LB000HGE
i5-8550U, Quadro P500, Samsung PM961 MZVLW256HEHP, IPS LED, 1920x1080, 15.60
MSI WS63 7RF-290US
i7-7700HQ, Quadro P3000, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 1920x1080, 15.60
Power Consumption
-0%
-50%
-240%
57%
14%
Idle Minimum *
19.9
15.5
22%
27.1
-36%
49.5
-149%
4.1
79%
11
45%
Idle Average *
20.3
16.2
20%
27.4
-35%
86.7
-327%
7.7
62%
14.2
30%
Idle Maximum *
27.6
16.5
40%
28.8
-4%
88.9
-222%
10.7
61%
14.6
47%
Load Average *
86.2
83.4
3%
100.4
-16%
150.1
-74%
52
40%
77.7
10%
Witcher 3 ultra *
114.4
121.7
-6%
243.1
-113%
38.8
66%
89.1
22%
Load Maximum *
96.3
173.5
-80%
186.7
-94%
508.5
-428%
65
33%
161.7
-68%

* ... Moindre est la valeur, meilleures sont les performances

Points positifs

+ plus silencieux que la plupart des portables en cas de sollicitations
+ températures relativement peu élevées
+ compact
+ maintenance aisée
+ 2 baies de stockage

Points négatifs

- incapable de maintenir le Turbo Boost maximum du processeur
- throttling en cas de sollicitations extrêmes
- lecteur SD pas très rapide
- léger bourdonnement au ralenti ; jamais silencieux
- module WLAN 1x1 lent
- pas de Thunderbolt 3

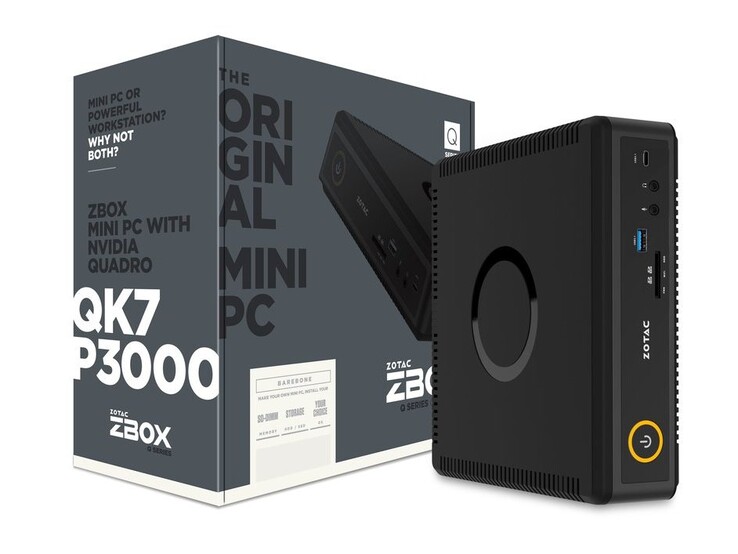

En test : le Zotac ZBOX QK7P3000. Modèle de test fourni par Zotac.
En test : le Zotac ZBOX QK7P3000. Modèle de test fourni par Zotac.

Nous sommes ravis de voir le Magnus EN51050 dédié au jeu converti en une station de travail pour les pros. Tout comme les gammes MSI WT et WS sont déviées des gammes de jeu GT et GS, la série Zotac Q récupère le meilleur de ce que propose les modèles de jeu ZBox, dont la maîtrise des nuisances sonores en cas de sollicitations, des températures internes pas trop élevées, ainsi que des performances élevées vu le faible niveau de nuisances sonores.

Malheureusement, les mêmes inconvénients demeurent. Zotac ne s’est pas pris la peine de mettre à niveau le WLAN, ni d’intégrer des fonctionnalités supplémentaires, pour mieux le distinguer de la série Q. Les vitesses Wifi sont toujours limitées à 1 x 1 433 Mbit/s par le module Intel 3165, alors que la plupart des nouveaux ordinateurs portables commencent à être livrés avec la puce Intel 9560 à 1,73 Gbit/s. Le Thunderbolt 3 est toujours absent, et les taux du lecteur de carte SD sont une fraction de ce que permet le UHS-II. La carte graphique ne peut maintenir sa fréquence Turbo maximale, ce qui est déconcertant vu que sa température interne conserve beaucoup de marge même en cas de sollicitations.

Beaucoup de ces défauts auraient pu être pardonnés si le prix n’avait pas été aussi élevé. A 1 400 $ pour un kit barebone sans aucun disque ni RAM, nous pensons que le QK7P3000 aurait pu faire mieux pour ce prix. Il faut cependant admettre que c’est l’un des rares mini-PC - sinon le premier - à être équipé d’une puce graphique Pascal Quadro, si bien que les alternatives se font rares. Nous espérons que les versions futures intégreront les composants absents, pour mieux refléter le prix de l'appareil.

La puissance disponible dans un appareil aussi compact ne doit pas être sous-estimée. Les utilisateurs de station de travail peuvent maintenant profiter de PC ultra compacts équipés de puces Pascal, dont profitent les joueurs depuis un certain temps. Cette machine possède une puissance élevée pour sa taille, bien qu’elle n’ait pas le meilleur rapport prix - performances.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Pricecompare

Please share our article, every link counts!
> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Courte critique du mini PC Zotac ZBOX QK7P3000 (i7-7700T, Quadro P3000)
Allen Ngo, 2018-07- 5 (Update: 2018-07- 5)
