Test du Chuwi LarkBox Celeron J4115 : un mini PC 4K si compact qu'il est plus léger que son propre adaptateur secteur

Plus petit qu'une balle de baseball. Le dernier produit de Chuwi est l'un des mini PC les plus compacts que l'on peut trouver qui ne repose pas sur un processeur refroidi passivement. Le niveau sonore est cependant plus élevé qu'attendu. Voyez ce que nous pensons de ce projet à 160 $ réalisé en crowdfunding.

Allen Ngo, 👁 Allen Ngo (traduit par Prévots), Published 08/29/2020 🇺🇸 🇪🇸 ...

Desktop Chinese Tech

Chuwi LarkBox 4K Mini PC

Processeur

Intel Celeron J4115 4 x 1.8 - 2.5 GHz, Gemini Lake

Carte graphique

Intel UHD Graphics 600, 26.20.100.7262

Mémoire

6 Go

, soudée, 1 200 MHz, double canal

Disque dur

128 GB eMMC Flash, 128 Go

Carte son

Intel Gemini Lake SoC - High Definition Audio Controller

Réseau

Wireless AC-9461 (ac = Wi-Fi 5/)

Taille

Hauteur x Largeur x Profondeur (en mm): 43 x 61 x 61

Système d'exploitation

Microsoft Windows 10 Home 64 Bit

Fonctionnalités additionnelles

12 Mois Garantie

Poids

129 g, Alimentation: 200 g

Liens

Chuwi Page d'accueil

Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.

voir toutes les spécifications

Date	Modèle	Poids	Épaisseur	Taille	Résolution
08/20	Chuwi LarkBox 4K Mini PC Celeron J4115, UHD Graphics 600	129 g	43 mm		x
12/19	Lenovo ThinkCentre M90n-1 Nano i5-8265U, UHD Graphics 620	499 g	22 mm	0.00"	x
09/18	Chuwi GBox CWI560 Celeron N4100, UHD Graphics 600	558 g	37.3 mm		x
06/18	Intel NUC7CJYH Celeron J4005, UHD Graphics 600	577 g	51 mm	0.00"	0x0
09/18	Zotac ZBOX-CI660 Nano i5-8550U, UHD Graphics 620	1.1 kg	68 mm		x

Zotac ZBOX-CI660 Nano Chuwi GBox CWI560 Lenovo ThinkCentre M90n-1 Nano Intel NUC10i5FNK Chuwi LarkBox 4K Mini PC DIN A4 ❌

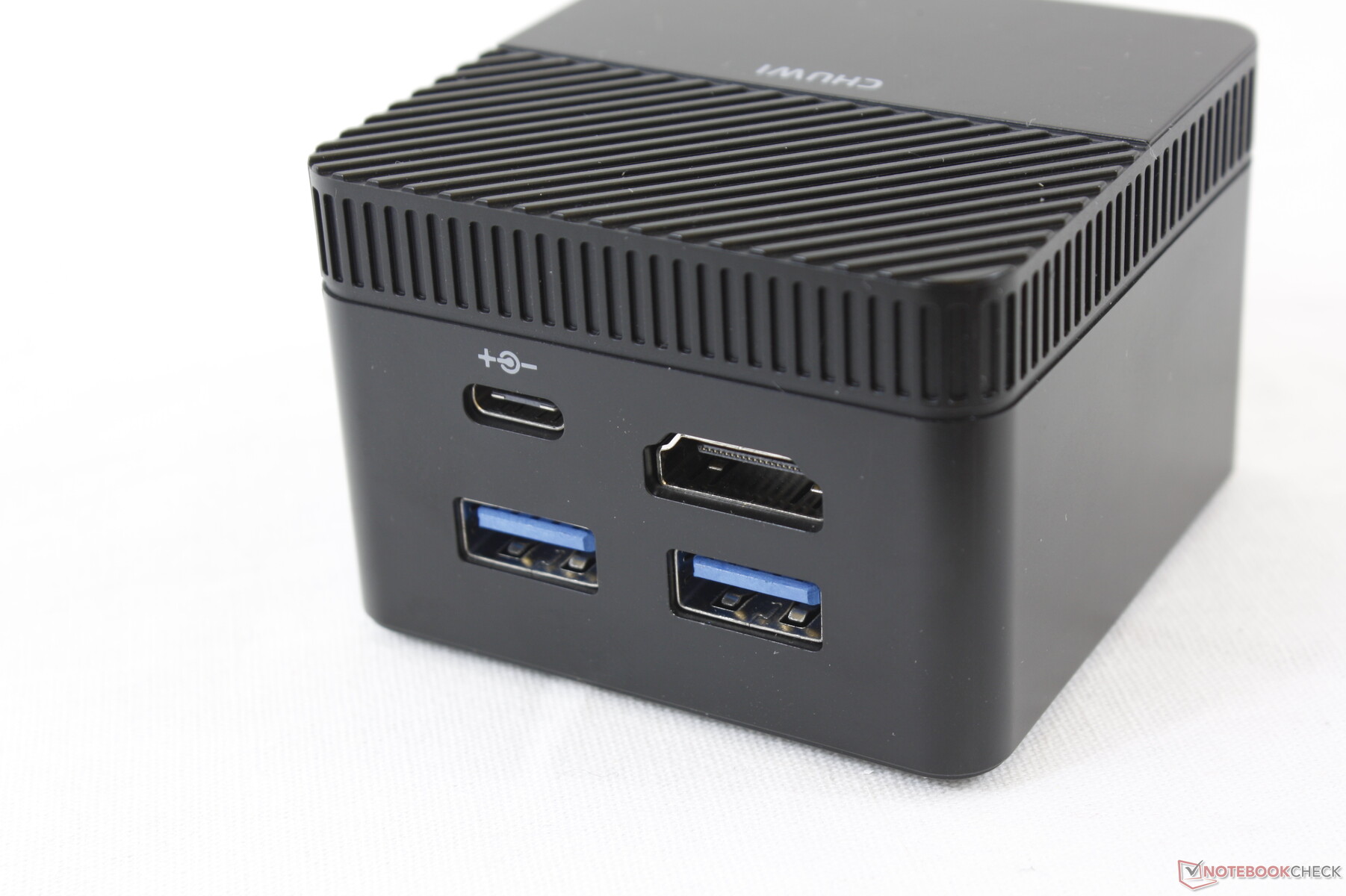

A l'arrière : USB C, HDMI 2.0, 2 USB A 3.0.

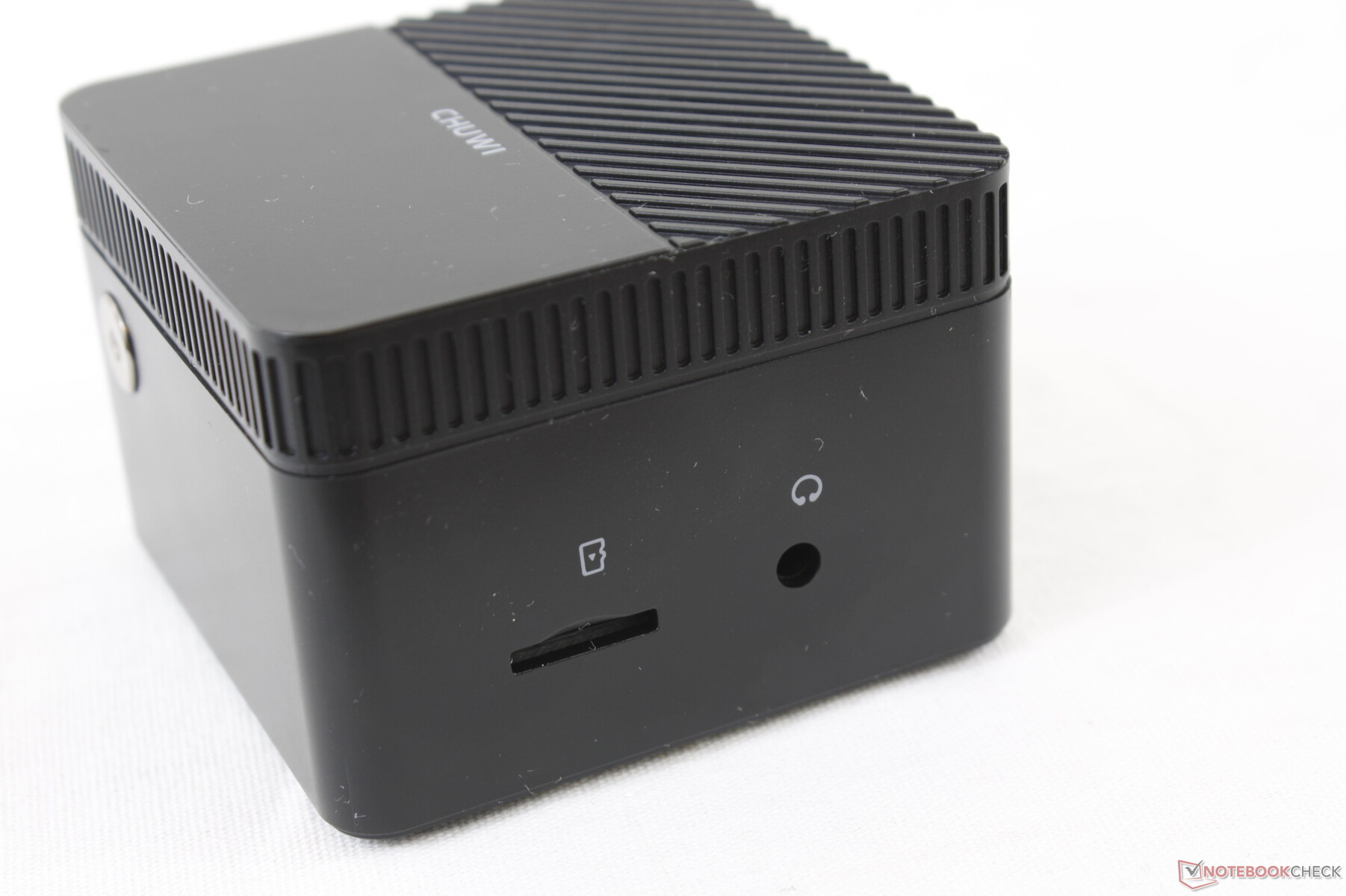

Côté droit : lecteur de carte micro SD, prise jack (absence de prise micro).

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Intel Hades Canyon NUC8i7HVK (Toshiba Exceria Pro SDXC 64 GB UHS-II)	81 MB/s +21%
Intel NUC8i7BE (Toshiba Exceria Pro M501 UHS-II)	69 MB/s +3%
Chuwi LarkBox 4K Mini PC (Toshiba Exceria Pro M501 UHS-II)	66.9 MB/s
Zotac ZBOX-CI660 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	35 MB/s -48%
Chuwi GBox CWI560 (Toshiba Exceria Pro M501 UHS-II)	18.7 MB/s -72%
maximum AS SSD Seq Read Test (1GB)
Intel Hades Canyon NUC8i7HVK (Toshiba Exceria Pro SDXC 64 GB UHS-II)	88.3 MB/s +3%
Chuwi LarkBox 4K Mini PC (Toshiba Exceria Pro M501 UHS-II)	85.4 MB/s
Intel NUC8i7BE (Toshiba Exceria Pro M501 UHS-II)	85 MB/s 0%
Zotac ZBOX-CI660 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	37.73 MB/s -56%
Chuwi GBox CWI560 (Toshiba Exceria Pro M501 UHS-II)	20.8 MB/s -76%

Networking
iperf3 transmit AX12
Lenovo ThinkCentre M90n-1 Nano Intel Wireless-AC 9560	604 MBit/s +78%
Intel NUC8i7BE Intel Wireless-AC 9560	553 MBit/s +63%
Apple MacBook Air 2020 i3 802.11 a/b/g/n/ac	545 (414^min - 604^max) MBit/s +61%
Chuwi UBook CWI509 Wireless AC-9461	355 MBit/s +5%
Chuwi LarkBox 4K Mini PC Wireless AC-9461	339 (302^min - 361^max) MBit/s
Chuwi Lapbook 12.3 Intel Dual Band Wireless-AC 3165	281 MBit/s -17%
Chuwi LapBook Plus Intel Dual Band Wireless-AC 3165	248 MBit/s -27%
Chuwi GBox CWI560 Intel Dual Band Wireless-AC 3165	227 MBit/s -33%
Zotac ZBOX-CI660 Nano Intel Dual Band Wireless-AC 3165	218 MBit/s -36%
iperf3 receive AX12
Lenovo ThinkCentre M90n-1 Nano Intel Wireless-AC 9560	643 MBit/s +83%
Apple MacBook Air 2020 i3 802.11 a/b/g/n/ac	641 (554^min - 678^max) MBit/s +82%
Intel NUC8i7BE Intel Wireless-AC 9560	602 MBit/s +71%
Chuwi UBook CWI509 Wireless AC-9461	391 MBit/s +11%
Chuwi LarkBox 4K Mini PC Wireless AC-9461	352 (344^min - 357^max) MBit/s
Chuwi LapBook Plus Intel Dual Band Wireless-AC 3165	330 MBit/s -6%
Chuwi GBox CWI560 Intel Dual Band Wireless-AC 3165	326 MBit/s -7%
Chuwi Lapbook 12.3 Intel Dual Band Wireless-AC 3165	316 MBit/s -10%
Zotac ZBOX-CI660 Nano Intel Dual Band Wireless-AC 3165	301 MBit/s -14%

Chuwi LarkBox 4K Mini PC; iperf3 receive AX12; iperf 3.1.3: Ø352 (344-357)

Chuwi LarkBox 4K Mini PC; iperf3 transmit AX12; iperf 3.1.3: Ø339 (302-361)

Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash; CPU Multi 64Bit: Ø253 (207.57-262.65)

Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064; CPU Multi 64Bit: Ø185.6 (184.81-188.15)

Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II; CPU Multi 64Bit: Ø145.7 (143.42-146.64)

Chuwi UBook CWI509 UHD Graphics 600, Celeron N4100, Netac SSD 256GB; CPU Multi 64Bit: Ø174 (172.96-175.02)

Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkCentre M90n-1 Nano IoT Intel Core i3-8145U	353 Points +34%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	333 (293^min - 333^max) Points +27%
Intel NUC8i3CYSM Intel Core i3-8121U	317.6 (304.79^min - 319.39^max) Points +21%
Asrock J4105-ITX Intel Celeron J4105	270 Points +3%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	263 (207.57^min - 262.65^max) Points
Chuwi GBox CWI560 Intel Celeron N4100	188 Points -29%
Chuwi Lapbook 12.3 Intel Celeron N3450	167 Points -37%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	144.1 (131.27^min - 145.38^max) Points -45%
Intel NUC7CJYH Intel Celeron J4005	144 Points -45%
Chuwi LapBook Plus Intel Atom x7-E3950	125 Points -52%
Chuwi Hi10 Air Intel Atom x5-Z8350	97 Points -63%
XIDU PhilBook Max Intel Celeron J3355	90 (89.56^min - 90.33^max) Points -66%
Jumper EZbook X3 Intel Celeron N3350	82.3 (81.02^min - 82.28^max) Points -69%

Cinebench R15 / CPU Single 64Bit
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	141 Points +98%
Lenovo ThinkCentre M90n-1 Nano IoT Intel Core i3-8145U	139 Points +95%
Intel NUC8i3CYSM Intel Core i3-8121U	133 Points +87%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	78.9 Points +11%
Intel NUC7CJYH Intel Celeron J4005	77 Points +8%
Asrock J4105-ITX Intel Celeron J4105	73 Points +3%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	71.1 Points
Chuwi GBox CWI560 Intel Celeron N4100	68 Points -4%
XIDU PhilBook Max Intel Celeron J3355	47.6 Points -33%
Chuwi Lapbook 12.3 Intel Celeron N3450	44 Points -38%
Jumper EZbook X3 Intel Celeron N3350	43.4 Points -39%
Chuwi LapBook Plus Intel Atom x7-E3950	41 Points -42%
Chuwi Hi10 Air Intel Atom x5-Z8350	30 Points -58%

Cinebench R20 / CPU (Multi Core)
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	590 Points
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	587 Points -1%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	316 Points -46%
Chuwi LapBook Plus Intel Atom x7-E3950	272 Points -54%
XIDU PhilBook Max Intel Celeron J3355	200 Points -66%
Jumper EZbook X3 Intel Celeron N3350	190 Points -68%

Cinebench R20 / CPU (Single Core)
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	348 Points +123%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	175 Points +12%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	156 Points
XIDU PhilBook Max Intel Celeron J3355	106 Points -32%
Jumper EZbook X3 Intel Celeron N3350	100 Points -36%
Chuwi LapBook Plus Intel Atom x7-E3950	93 Points -40%

Blender / v2.79 BMW27 CPU
Jumper EZbook X3 Intel Celeron N3350	6277 Seconds * -164%
XIDU PhilBook Max Intel Celeron J3355	5811 Seconds * -144%
Chuwi LapBook Plus Intel Atom x7-E3950	4564 Seconds * -92%
Intel NUC7CJYH Intel Celeron J4005	4124 Seconds * -73%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	4064 Seconds * -71%
Chuwi GBox CWI560 Intel Celeron N4100	3527 Seconds * -48%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	2380 Seconds *
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	1814 Seconds * +24%

7-Zip 18.03 / 7z b 4 -mmt1
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	3438 MIPS +55%
Chuwi GBox CWI560 Intel Celeron N4100	2459 MIPS +11%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	2456 MIPS +11%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	2215 MIPS
XIDU PhilBook Max Intel Celeron J3355	1825 MIPS -18%
Jumper EZbook X3 Intel Celeron N3350	1653 MIPS -25%
Chuwi LapBook Plus Intel Atom x7-E3950	1454 MIPS -34%

7-Zip 18.03 / 7z b 4
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	8098 MIPS
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	7921 MIPS -2%
Chuwi GBox CWI560 Intel Celeron N4100	6608 MIPS -18%
Chuwi LapBook Plus Intel Atom x7-E3950	4569 MIPS -44%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	4498 MIPS -44%
XIDU PhilBook Max Intel Celeron J3355	3541 MIPS -56%
Jumper EZbook X3 Intel Celeron N3350	3267 MIPS -60%

Geekbench 5.5 / Single-Core
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	1096 Points +182%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	475 Points +22%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	388 Points
Jumper EZbook X3 Intel Celeron N3350	310 Points -20%

Geekbench 5.5 / Multi-Core
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	2028 Points +44%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	1410 Points
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	858 Points -39%
Jumper EZbook X3 Intel Celeron N3350	591 Points -58%

HWBOT x265 Benchmark v2.2 / 4k Preset
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	2.23 fps +50%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	1.49 fps
Chuwi LapBook Plus Intel Atom x7-E3950	0.98 fps -34%
Chuwi GBox CWI560 Intel Celeron N4100	0.974 fps -35%
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	0.92 fps -38%
Intel NUC7CJYH Intel Celeron J4005	0.88 fps -41%
XIDU PhilBook Max Intel Celeron J3355	0.7 fps -53%
Jumper EZbook X3 Intel Celeron N3350	0.65 fps -56%

LibreOffice / 20 Documents To PDF
Jumper EZbook X3 Intel Celeron N3350	281 s * -87%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	150 s *
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	139 s * +7%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	97.8 s * +35%

R Benchmark 2.5 / Overall mean
Jumper EZbook X3 Intel Celeron N3350	2.21 sec *
Lenovo IdeaPad Flex 3 11IGL05 Intel Celeron N4020	1.511 sec *
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	0.918 sec *

* ... Moindre est la valeur, meilleures sont les performances

Cinebench R10 Rendering Multiple CPUs 32Bit

7426

Cinebench R10 Shading 32Bit

3259

Cinebench R10 Rendering Single 32Bit

2087

Cinebench R11.5 CPU Multi 64Bit

3.2 Points

Cinebench R11.5 OpenGL 64Bit

10.44 fps

Cinebench R11.5 CPU Single 64Bit

0.83 Points

Cinebench R15 CPU Single 64Bit

71.1 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

17.4 fps

Cinebench R15 CPU Multi 64Bit

263 Points

Aide

... en comparaison

PCMark 10 | PCMark 8

PCMark 10
Score
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4580 Points +154%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	4019 Points +123%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	3876 Points +115%
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	3837 Points +113%
Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001	3161 Points +75%
Lenovo ThinkCentre M90n-1 Nano IoT UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ	3042 Points +69%
Apple MacBook Air 2020 i3 Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256	2229 Points +24%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	1803 Points
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	1658 Points -8%
Chuwi Lapbook 12.3 HD Graphics 500, Celeron N3450, 64 GB eMMC Flash	1269 (1261^min - 1270^max) Points -30%
Jumper EZbook X3 HD Graphics 500, Celeron N3350, 64 GB eMMC Flash	1179 Points -35%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	1136 Points -37%
Essentials
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	8994 Points +86%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	8551 Points +77%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	8235 Points +70%
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	8051 Points +66%
Lenovo ThinkCentre M90n-1 Nano IoT UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ	7625 Points +58%
Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001	5576 Points +15%
Apple MacBook Air 2020 i3 Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256	5464 Points +13%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	4837 Points
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	4418 Points -9%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	4188 Points -13%
Chuwi Lapbook 12.3 HD Graphics 500, Celeron N3450, 64 GB eMMC Flash	3486 (3484^min - 3505^max) Points -28%
Jumper EZbook X3 HD Graphics 500, Celeron N3350, 64 GB eMMC Flash	2833 Points -41%
Productivity
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	7236 Points +144%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	6494 Points +119%
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	6481 Points +118%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	6337 Points +113%
Lenovo ThinkCentre M90n-1 Nano IoT UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ	5689 Points +92%
Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001	5302 Points +79%
Apple MacBook Air 2020 i3 Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256	3620 Points +22%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	3289 Points +11%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	2969 Points
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	2883 Points -3%
Chuwi Lapbook 12.3 HD Graphics 500, Celeron N3450, 64 GB eMMC Flash	2012 (1995^min - 2022^max) Points -32%
Jumper EZbook X3 HD Graphics 500, Celeron N3350, 64 GB eMMC Flash	1885 Points -37%
Digital Content Creation
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4007 Points +261%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	3296 Points +197%
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	2939 Points +165%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	2917 Points +163%
Intel NUC8i3CYSM Radeon RX 540, i3-8121U, Seagate ST1000VT001	2902 Points +161%
Lenovo ThinkCentre M90n-1 Nano IoT UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ	1762 Points +59%
Apple MacBook Air 2020 i3 Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256	1521 Points +37%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	1110 Points
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	990 Points -11%
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	972 Points -12%
Jumper EZbook X3 HD Graphics 500, Celeron N3350, 64 GB eMMC Flash	835 Points -25%
Chuwi Lapbook 12.3 HD Graphics 500, Celeron N3450, 64 GB eMMC Flash	787 (784^min - 789^max) Points -29%

PCMark 8
Home Score Accelerated v2
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4674 Points +130%
Zotac ZBOX-CI660 Nano UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G	3594 Points +77%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	3526 Points +73%
Apple MacBook Air 2020 i3 Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256	2701 Points +33%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	2550 Points +25%
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	2084 Points +2%
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	2062 Points +1%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	2036 Points
Chuwi Lapbook 12.3 HD Graphics 500, Celeron N3450, 64 GB eMMC Flash	1461 (1450^min - 1461^max) Points -28%
Work Score Accelerated v2
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	4286 Points +34%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	3550 Points +11%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	3191 Points
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II	3188 Points 0%
Chuwi Lapbook 12.3 HD Graphics 500, Celeron N3450, 64 GB eMMC Flash	2152 (2150^min - 2152^max) Points -33%

PCMark 10 | PCMark 8

PCMark 8 Home Score Accelerated v2		2036 points
PCMark 8 Work Score Accelerated v2		3191 points
PCMark 10 Score		1803 points
Aide

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaPad Flex 3 11IGL05 UHD Graphics 600, Celeron N4020, SanDisk DA4064	2421 μs * -216%
Honor MagicBook 15 Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ	1343 μs * -75%
Huawei MateBook 13 2020 AMD Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G	993 μs * -30%
Dell Latitude 7310 UHD Graphics 620, i7-10610U, Samsung SSD PM981a MZVLB512HBJQ	767 μs * -0%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	766 μs *

* ... Moindre est la valeur, meilleures sont les performances

	Chuwi LarkBox 4K Mini PC 128 GB eMMC Flash	Intel NUC10i5FNK Kingston RBUSNS8154P3256GJ1	Lenovo ThinkCentre M90n-1 Nano Samsung SSD PM981 MZVLB512HAJQ	Chuwi GBox CWI560 SanDisk DA4064	Intel NUC7CJYH SanDisk Ultra II
AS SSD		930%	1586%		416%
Seq Read	286	1318 361%	1668 483%		480 68%
Seq Write	106.9	616 476%	1150 976%		464.8 335%
4K Read	15.22	26.44 74%	48.46 218%		26.98 77%
4K Write	21.59	61.3 184%	116.5 440%		47.43 120%
4K-64 Read	16.8	650 3769%	726 4221%		420.5 2403%
4K-64 Write	20.03	642 3105%	1074 5262%		174.6 772%
Access Time Read *	0.254	0.11 57%	0.039 85%		0.115 55%
Access Time Write *	0.406	0.07 83%	0.032 92%		0.089 78%
Score Read	61	808 1225%	942 1444%		498 716%
Score Write	52	765 1371%	1305 2410%		268 415%
Score Total	142	1955 1277%	2716 1813%		1025 622%
Copy ISO MB/s	107.3	576 437%			197 84%
Copy Program MB/s	92.6	328.9 255%			102 10%
Copy Game MB/s	104.7	471.2 350%			175.5 68%
CrystalDiskMark 5.2 / 6		826%	1692%	69%	286%
Write 4K	26.02	58.4 124%	130 400%	38 46%	61.1 135%
Read 4K	16.33	30.24 85%	45.61 179%	23.84 46%	31.99 96%
Write Seq	109.5	773 606%		226.7 107%	421.7 285%
Read Seq	334.3	712 113%		271.8 -19%	427.4 28%
Write 4K Q32T1	28.76	448.5 1459%	365.3 1170%	44.74 56%	97 237%
Read 4K Q32T1	17.41	391.4 2148%	350.2 1911%	53.2 206%	121.9 600%
Write Seq Q32T1	59	914 1449%	2986 4961%	129.4 119%	504 754%
Read Seq Q32T1	218.8	1583 623%	3565 1529%	189.4 -13%	551 152%
Write 4K Q8T8		402.3	368.7		183.1
Read 4K Q8T8		680	790		221.3
Moyenne finale (programmes/paramètres)		878% / 892%	1639% / 1623%	69% / 69%	351% / 369%

* ... Moindre est la valeur, meilleures sont les performances

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

128 GB eMMC Flash

CDM 5/6 Read Seq Q32T1: 218.8 MB/s

CDM 5/6 Write Seq Q32T1: 59 MB/s

CDM 5/6 Read 4K Q32T1: 17.41 MB/s

CDM 5/6 Write 4K Q32T1: 28.76 MB/s

CDM 5 Read Seq: 334.3 MB/s

CDM 5 Write Seq: 109.5 MB/s

CDM 5/6 Read 4K: 16.33 MB/s

CDM 5/6 Write 4K: 26.02 MB/s

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

No graph data

3DMark | 3DMark 11

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC8i3CYSM AMD Radeon RX 540, i3-8121U	18704 Points +382%
Moyenne Intel UHD Graphics 620 (6205 - 16400, n=225)	9262 Points +139%
Lenovo ThinkCentre M90n-1 Nano IoT Intel UHD Graphics 620, i3-8145U	6971 Points +80%
Chuwi LapBook Plus Intel HD Graphics 505, x7-E3950	3997 Points +3%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	3882 Points
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	3513 Points -10%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	2651 (2630^min - 2661^max) Points -32%
1920x1080 Fire Strike Graphics
Intel NUC8i3CYSM AMD Radeon RX 540, i3-8121U	3242 Points +616%
Moyenne Intel UHD Graphics 620 (557 - 2608, n=213)	1161 Points +156%
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	922 Points +104%
Lenovo ThinkCentre M90n-1 Nano IoT Intel UHD Graphics 620, i3-8145U	863 Points +91%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	453 Points
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	448 Points -1%
Lenovo IdeaPad Flex 3 11IGL05 Intel UHD Graphics 600, Celeron N4020	372 Points -18%
Jumper EZbook X3 Intel HD Graphics 500, Celeron N3350	364 Points -20%
XIDU PhilBook Max Intel HD Graphics 500, Celeron J3355	311 Points -31%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	310 (307^min - 317^max) Points -32%
1920x1080 Ice Storm Extreme Graphics
Moyenne Intel UHD Graphics 620 (26409 - 59483, n=71)	42924 Points +159%
Chuwi LapBook Plus Intel HD Graphics 505, x7-E3950	17895 Points +8%
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	16594 Points 0%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	16551 Points

3DMark 11
1280x720 Performance GPU
Intel NUC8i3CYSM AMD Radeon RX 540, i3-8121U	4458 Points +637%
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	1941 Points +221%
Moyenne Intel UHD Graphics 620 (1144 - 3432, n=244)	1749 Points +189%
Chuwi LapBook Plus Intel HD Graphics 505, x7-E3950	765 Points +26%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	605 Points
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	584 Points -3%
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	579 Points -4%
Lenovo IdeaPad Flex 3 11IGL05 Intel UHD Graphics 600, Celeron N4020	532 Points -12%
Chuwi GBox CWI560 Intel UHD Graphics 600, Celeron N4100	484 Points -20%
Chuwi Hi10 Air Intel HD Graphics (Cherry Trail), Z8350	278 Points -54%
1280x720 Performance Combined
Intel NUC8i3CYSM AMD Radeon RX 540, i3-8121U	4334 Points +608%
Moyenne Intel UHD Graphics 620 (927 - 2505, n=244)	1578 Points +158%
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	1352 Points +121%
Chuwi LapBook Plus Intel HD Graphics 505, x7-E3950	754 Points +23%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	612 Points
Intel NUC7CJYH Intel UHD Graphics 600, Celeron J4005	593 Points -3%
Chuwi Lapbook 12.3 Intel HD Graphics 500, Celeron N3450	570 Points -7%
Lenovo IdeaPad Flex 3 11IGL05 Intel UHD Graphics 600, Celeron N4020	501 Points -18%
Chuwi GBox CWI560 Intel UHD Graphics 600, Celeron N4100	445 Points -27%
Chuwi Hi10 Air Intel HD Graphics (Cherry Trail), Z8350	318 Points -48%

3DMark | 3DMark 11

3DMark 06 Standard Score		4434 points
3DMark 11 Performance		687 points
3DMark Cloud Gate Standard Score		3516 points
3DMark Fire Strike Score		420 points
3DMark Time Spy Score		140 points
Aide

... en comparaison

	Bas	Moyen	Élevé	Ultra
Dota 2 Reborn (2015)	42.9	19.5	8.6	7.7
X-Plane 11.11 (2018)	7.17	4.93	4.55

	Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	Intel Skull Canyon NUC6i7KYK Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB	Dell XPS 13 9300 i5 FHD UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Toshiba XG6 KXG60ZNV512G	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Noise		2%	-5%	8%	0%
off / environment *	26	28.7 -10%	29.5 -13%	29.3 -13%	28.7 -10%
Idle Minimum *	26	28.7 -10%	31.6 -22%	29.3 -13%	29 -12%
Idle Average *	26	29.3 -13%	32.2 -24%	29.3 -13%	29 -12%
Idle Maximum *	43.3	31.8 27%	32.3 25%	29.3 32%	29 33%
Load Average *	43.3	39 10%	43 1%	30 31%	36 17%
Load Maximum *	43.5	41.4 5%	43.2 1%	32.4 26%	49.4 -14%
Witcher 3 ultra *		39			42

* ... Moindre est la valeur, meilleures sont les performances

Degré de la nuisance sonore

Au repos		26 / 26 / 43.3 dB(A)
Fortement sollicité		43.3 / 43.5 dB(A)

	30 dB silencieux 40 dB(A) audible 50 dB(A) bruyant
min: , med: , max: Earthworks M23R, Arta (à 15 cm de distance) bruit ambiant: 26 dB(A)

Consommation énergétique

Éteint/en veille	0.04 / 0.1 Watts
Au repos	2.2 / 2.6 / 3 Watts
Fortement sollicité	13.1 / 21.9 Watts


Légende: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Chuwi LarkBox 4K Mini PC Celeron J4115, UHD Graphics 600, 128 GB eMMC Flash, , x,	Intel NUC10i5FNK i5-10210U, UHD Graphics 620, Kingston RBUSNS8154P3256GJ1, , 0x0, 0.00	Lenovo ThinkCentre M90n-1 Nano i5-8265U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, , x, 0.00	Chuwi GBox CWI560 Celeron N4100, UHD Graphics 600, SanDisk DA4064, , x,	Intel NUC7CJYH Celeron J4005, UHD Graphics 600, SanDisk Ultra II, , 0x0, 0.00
Power Consumption		-336%	-93%	26%	-64%
Idle Minimum *	2.2		4.4 -100%	1.9 14%	3.9 -77%
Idle Average *	2.6	15.7 -504%	4.4 -69%	2 23%	4.5 -73%
Idle Maximum *	3		4.7 -57%	2.9 3%	8.4 -180%
Load Average *	13.1		27.7 -111%	8.6 34%	12.3 6%
Load Maximum *	21.9	58.6 -168%	49.9 -128%	9.5 57%	21.4 2%

* ... Moindre est la valeur, meilleures sont les performances

Points positifs

+ emplacements micro SD et M.2 2242

+ 75 et 100 mm

+ 6 Go de RAM double canal

+ robustesse

+ efficience

+ prix

+ taille

Points négatifs

- USB C uniquement pour la charge

- taille de l'adaptateur secteur

- niveau sonore

- pas de version CPU plus puissante

- latence DPC

- absence de récepteur infrarouge

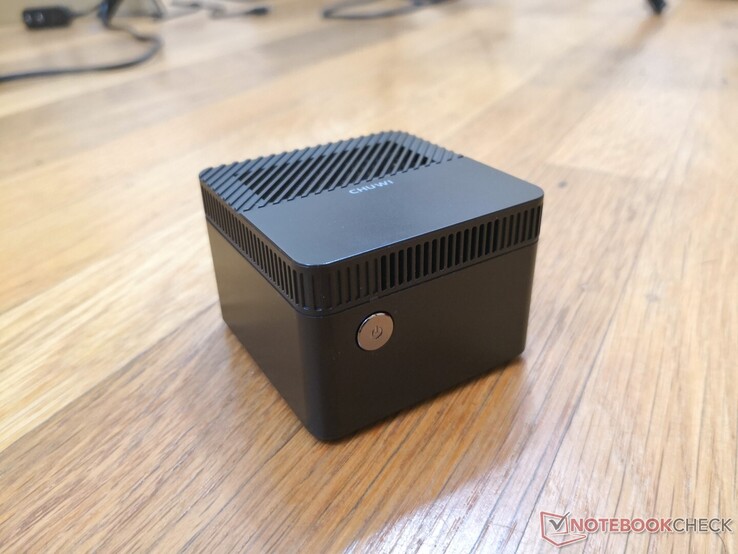

En test : le Chuwi LarkBox. Modèle de test fourni par Chuwi.

Pour un peu plus de 150 $, le LarkBox nous a surpris avec une conception pragmatique, la vidéo 4K, et de multiples possibilités de stockage, surtout au vu de sa taille réduite. Mais l'appareil pourrait être amélioré dans de nombreux domaines.

D'abord, le comportement du ventilateur pourrait être meilleur, puisque sa tendance aux variations est audible, voire gênante. Ensuite, l'adaptateur secteur est plutôt gros, alors qu'il ne fournit que 24 W. L'intégrer au LarkBox lui-même ou le réduire serait bien. Enfin, nous ne serions pas opposés à l'intégration de processeurs plus rapides, même si cela augmenterait la note. La lecture 4K est peut-être fluide, mais le multitâche est à la traîne. La compacité du tout est séduisante, mais des versions plus haut de gamme Core i3 ou Ryzen 3 seraient encore plus attrayantes.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5192 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Revues et rapports de ordinateurs portatifs et smartphones, ordiphones > Critiques > Test du Chuwi LarkBox Celeron J4115 : un mini PC 4K si compact qu'il est plus léger que son propre adaptateur secteur

Allen Ngo, 2020-08-29 (Update: 2020-08-29)
