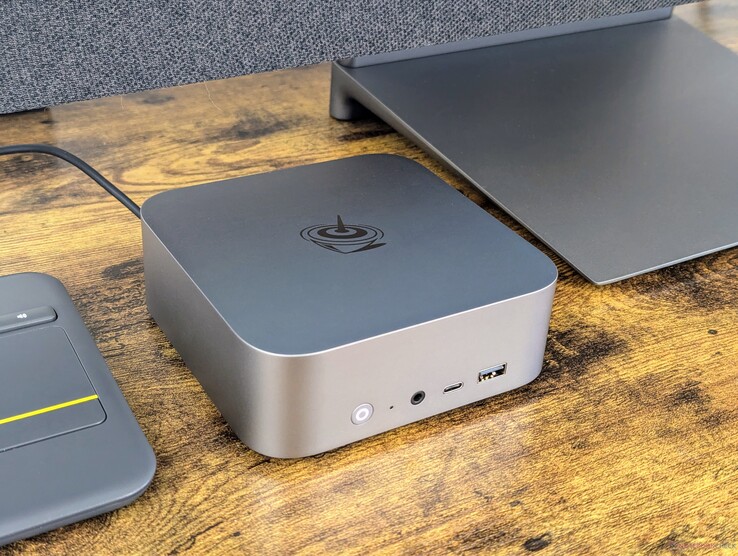

Test du Beelink SER8 : mini PC au design inspiré du Mac Mini et avec un AMD Ryzen 7 8845HS

Le meilleur mini PC de Beelink à ce jour.

La SER8 apporte la plus grande refonte que nous ayons vue pour la série SER. Sa nouvelle apparence, semblable à celle du site Apple, dégage une impression de professionnalisme sans pour autant coûter un bras.
Beelink SER8
Beelink SER8

La série SER de Beelink est de retour cette année avec non seulement une mise à niveau du processeur AMD Zen 3+ vers Zen 4, mais aussi une refonte complète du châssis pour la troisième année consécutive. Cette fois-ci, cependant, les changements extérieurs sont encore plus significatifs et distinguent le 2024 SER8 de tous les autres modèles précédents.

Notre unité de test est équipée d'un processeur Ryzen 7 8845HS, d'un GPU Radeon 780M intégré, de 32 Go de RAM et d'un disque dur SSD de 1 To pour un prix d'environ 650 $. Il n'y a pas d'autres configurations disponibles au moment où nous écrivons ces lignes, à l'exception d'un autre choix de couleur.

Les alternatives au SER8 comprennent d'autres mini PC de la taille d'un NUC, comme le GMKtec NucBox K6,Geekom GT13 Proou le Bosgame M1.

Plus d'avis sur Beelink :

Beelink SER8
Processeur
AMD Ryzen 7 8845HS 8 x 3.8 - 5.1 GHz, 54 W PL2 / Short Burst, 54 W PL1 / Sustained, Hawk Point-HS (Zen 4)
Carte graphique
AMD Radeon 780M, Processeur: 2700 MHz, DDR5, 31.0.24002.92
Mémoire
32 Go
, Crucial, DDR5-5600, Dual-Channel, 46-45-45-90
Carte mère
AMD Promontory/Bixby FCH
Disque dur
Crucial P3 Plus CT1000P3PSSD8, 1024 Go
Carte son
AMD Zen - Audio Processor - HD Audio Controller
Connexions
2 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Connectique audio: 2x 3.5 mm combo
Réseau
Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Taille
Hauteur x Largeur x Profondeur (en mm): 44.7 x 135 x 135
Système d'exploitation
Microsoft Windows 11 Pro
Fonctionnalités additionnelles
HDMI cable, 12 Mois Garantie

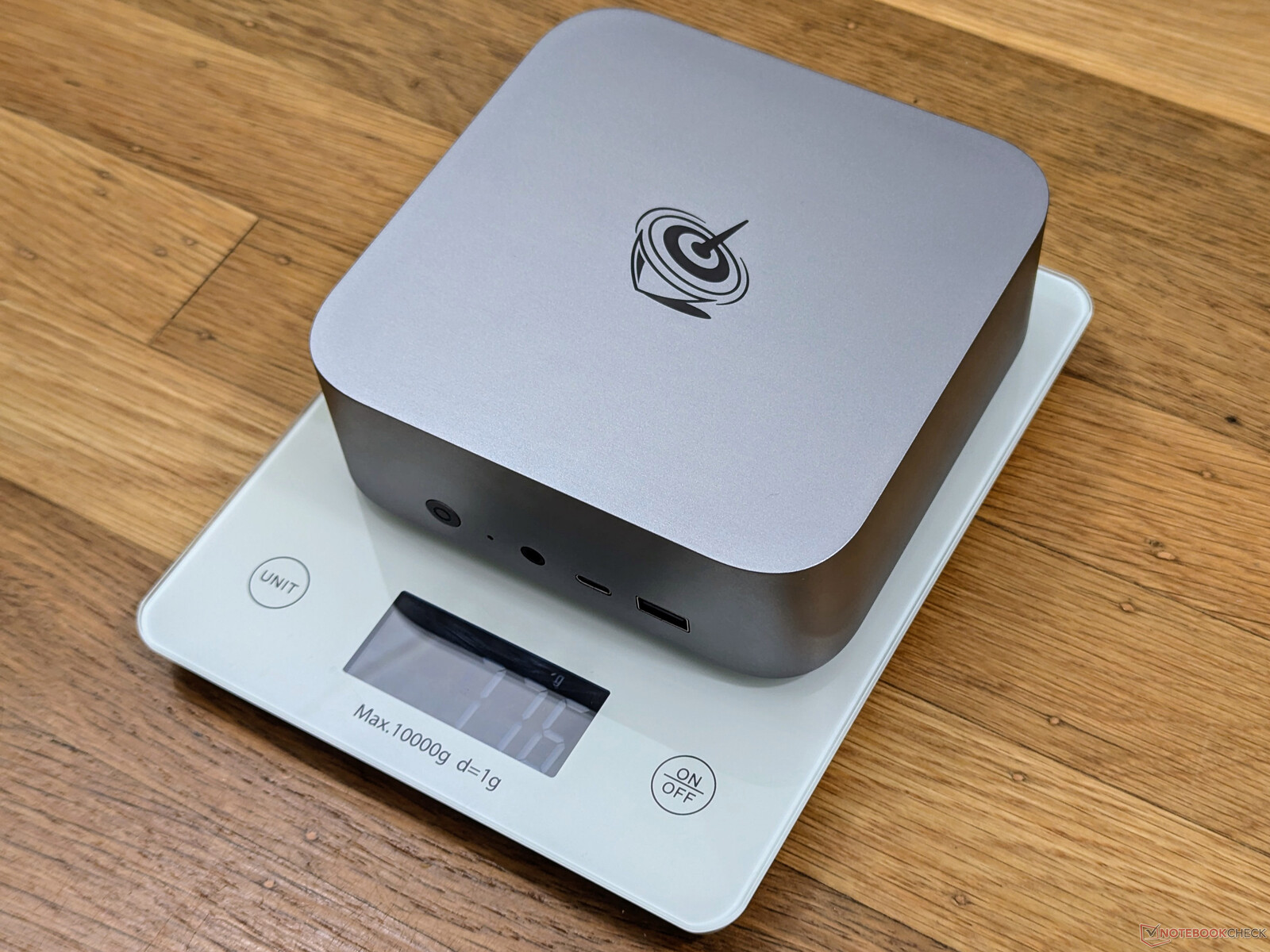

Poids
776 g, Alimentation: 273 g
Prix
650 USD
Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.



Comparaison avec les concurrents potentiels

Note
Version
Date
Modèle
Poids
Épaisseur
Taille
Résolution
Prix
74.9 %v8
07/24
Beelink SER8
R7 8845HS, Radeon 780M
776 g44.7 mmx
86.6 %
v7 (old)
v7 (old)
09/23
Beelink SER7
R7 7840HS, Radeon 780M
640 g49 mmx
86.3 %
v7 (old)
v7 (old)
07/23
Beelink GTR7 7840HS
R7 7840HS, Radeon 780M
890 g48.8 mmx
83.6 %
v7 (old)
v7 (old)
04/24
GMK NucBox K6
R7 7840HS, Radeon 780M
514 g47 mmx
72.1 %v8
06/24
Geekom GT13 Pro
i9-13900H, Iris Xe G7 96EUs
440 g37 mmx
73.7 %v8
Aoostar GEM10
R7 6800H, Radeon 680M
525 g60 mmx

Conseils : Notre système d'évaluation a été mis à jour récemment et les résultats de la version 8 ne sont pas comparables à ceux de la version 7. Vous trouverez d'autres informations à ce sujet ici sont disponibles ici.

Note : Nous avons récemment mis à jour notre système d'évaluation et les résultats de la version 8 ne sont pas comparables à ceux de la version 7. De plus amples informations sont disponibles ici .

Boîtier - Moins de plastique et plus de métal

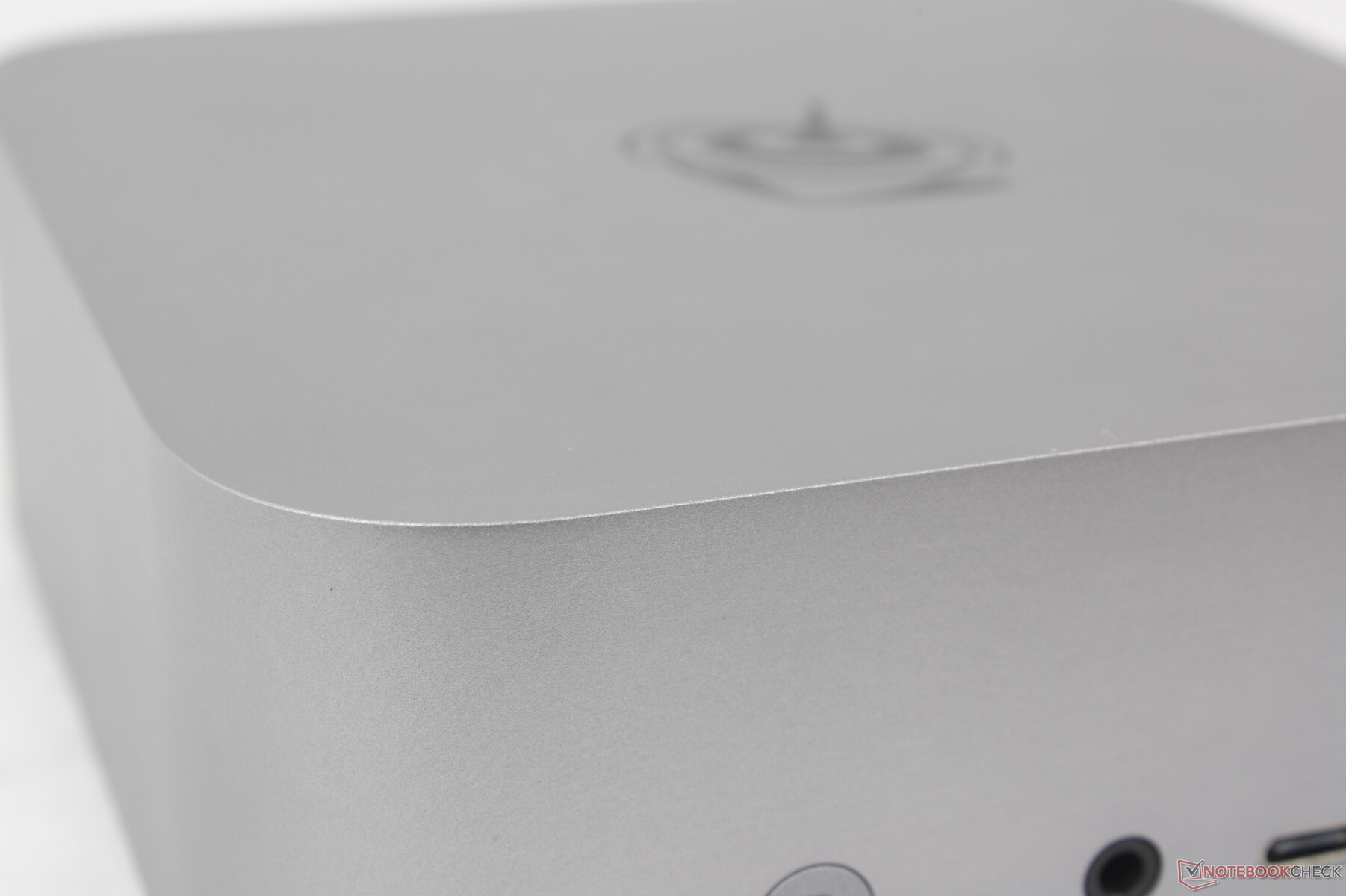

Le nouveau design de l'étui est peut-être la caractéristique la plus marquante du SER8. Alors que les anciens modèles Beelink reposaient sur une combinaison de métal, de plastique et de tissu, le SER8 se compose principalement d'une coque métallique unibody pour un aspect plus propre et plus professionnel. Ses côtés plats et ses surfaces grises mates imitent le Mac Mini sans pour autant donner l'impression d'un modèle bon marché ou d'une "contrefaçon". Si vous exercez une pression sur les côtés ou le dessus du SER8, vous ne constaterez aucune flexion visible, ce qui vous donnera une première impression de grande qualité.

Les parties arrière et inférieure sont toujours en plastique pour réduire les coûts et elles n'ont pas le brillant attrayant des parties métalliques du châssis. Bien sûr, les côtés en plastique moins attrayants sont plus discrets lorsqu'ils sont posés sur une table ou une étagère.

Aussi sexy que soit le nouveau design, il est sensiblement plus grand et plus lourd qu'auparavant, d'environ 31 % et 21 %, respectivement. Cela s'explique en grande partie par l'utilisation d'une plus grande quantité de métal au lieu de plastique et par la révision du refroidisseur de la chambre à vapeur.

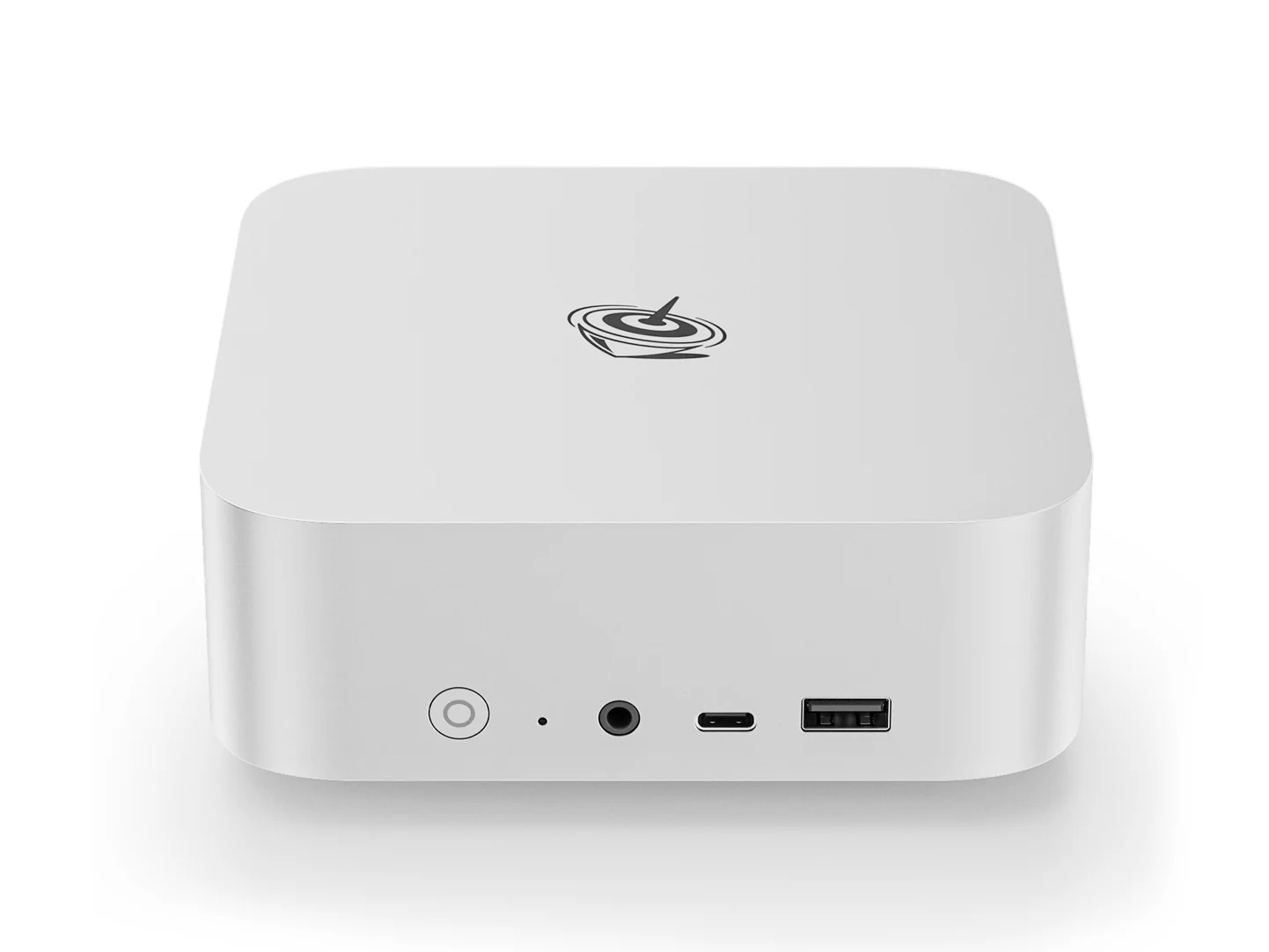

Seules deux options de couleur sont disponibles : Gris clair et gris foncé
Seules deux options de couleur sont disponibles : Gris clair et gris foncé

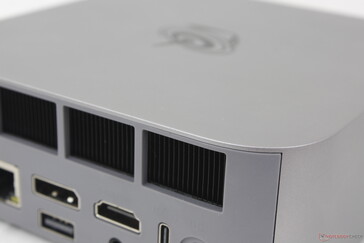

Les grilles d'aération arrière sont assez grandes par rapport à la taille du châssis
Les grilles d'aération arrière sont assez grandes par rapport à la taille du châssis
Rabat en caoutchouc pour extraire la plaque de fond après avoir desserré les vis
Rabat en caoutchouc pour extraire la plaque de fond après avoir desserré les vis
Les vis sont protégées par des inserts circulaires en caoutchouc
Les vis sont protégées par des inserts circulaires en caoutchouc

Comparaison des tailles

168 mm 120 mm 48.8 mm 890 g135 mm 135 mm 44.7 mm 776 g126 mm 113 mm 49 mm 640 g128 mm 126 mm 47 mm 514 g107 mm 107 mm 60 mm 525 g112.4 mm 112.4 mm 37 mm 440 g210 mm 148 mm 1 mm 2.9 g

Connectivité

Les ports du nouveau modèle sont légèrement différents de ceux de l'ancien modèle SER7 plus ancienne. Plus particulièrement, il n'y a plus que deux ports USB-C au lieu de trois et deux prises audio de 3,5 mm au lieu d'une. La prise audio avant est prioritaire si le système détecte deux sorties audio différentes. Gardez à l'esprit que seul le port USB-C arrière prend en charge USB4, DisplayPort et Power Delivery, tandis que le port USB-C avant est uniquement destiné aux données.

Il est regrettable que deux des quatre ports USB-A soient uniquement des ports USB 2.0 et qu'il n'y ait aucun moyen de les distinguer visuellement des ports USB 3.2. Ces ports étaient codés par couleur dans les modèles précédents, mais Beelink a décidé de les rendre tous gris pour le SER8.

Il n'y a pas d'emplacement pour le verrou Kensington, ce qui peut être inquiétant car les curieux pourraient confondre le SER8 avec un Mac Mini.

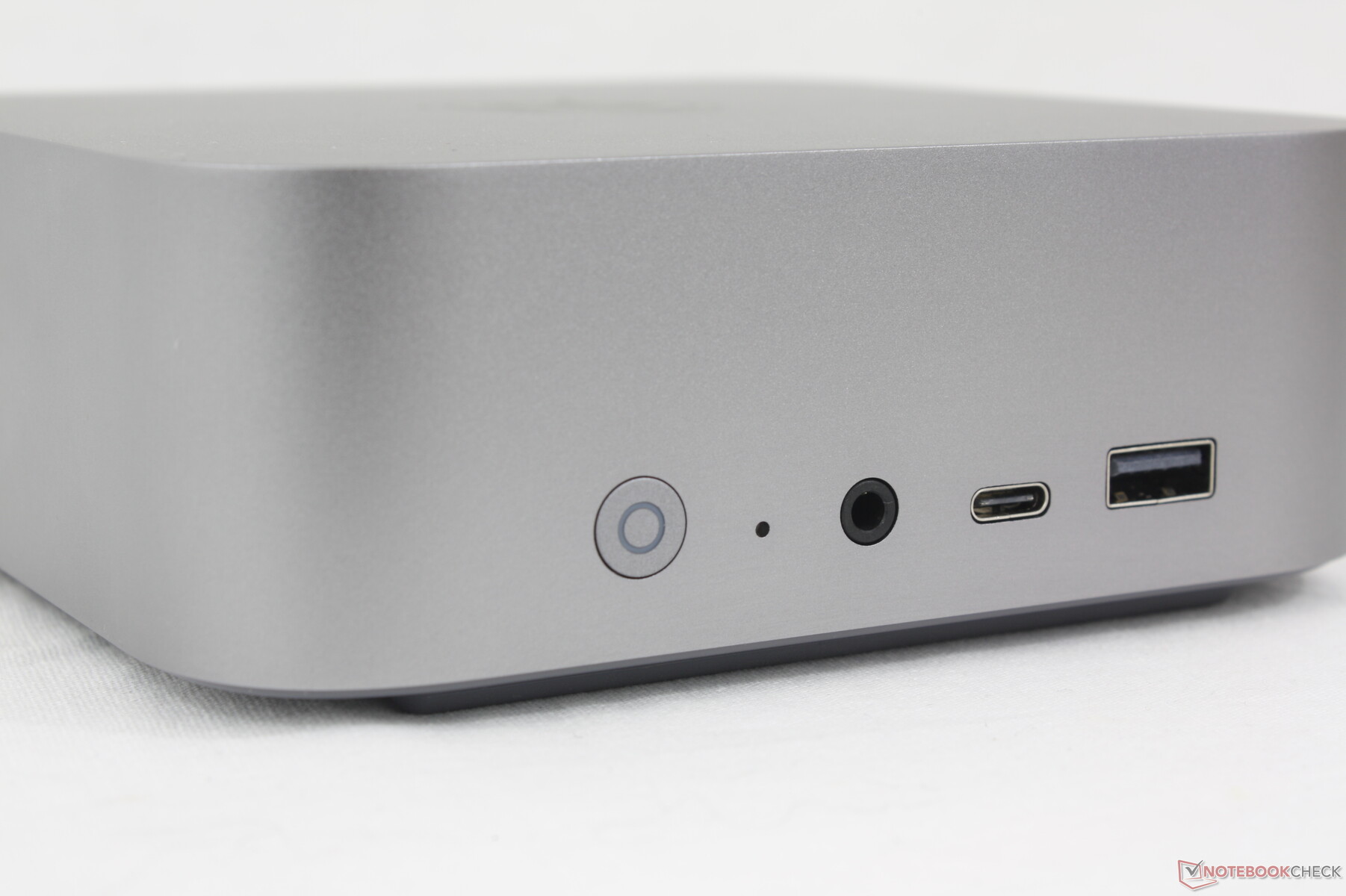

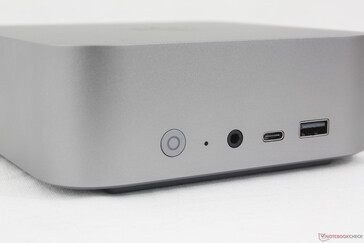

Face avant : Bouton d'alimentation, bouton de réinitialisation, casque d'écoute de 3,5 mm, USB-C (10 Gbps), USB-A 3.2 (10 Gbps)
Face avant : Bouton d'alimentation, bouton de réinitialisation, casque d'écoute de 3,5 mm, USB-C (10 Gbps), USB-A 3.2 (10 Gbps)

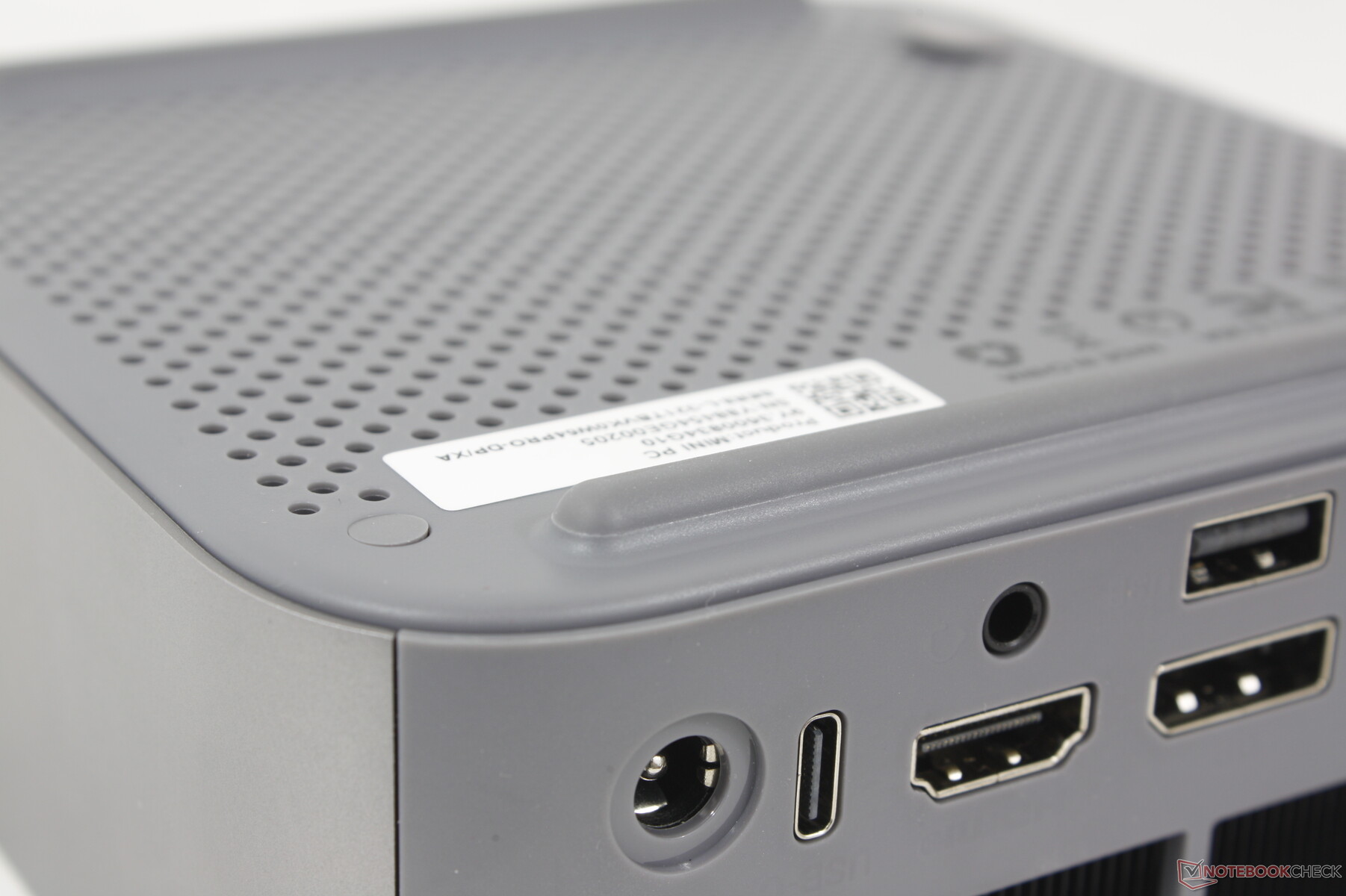

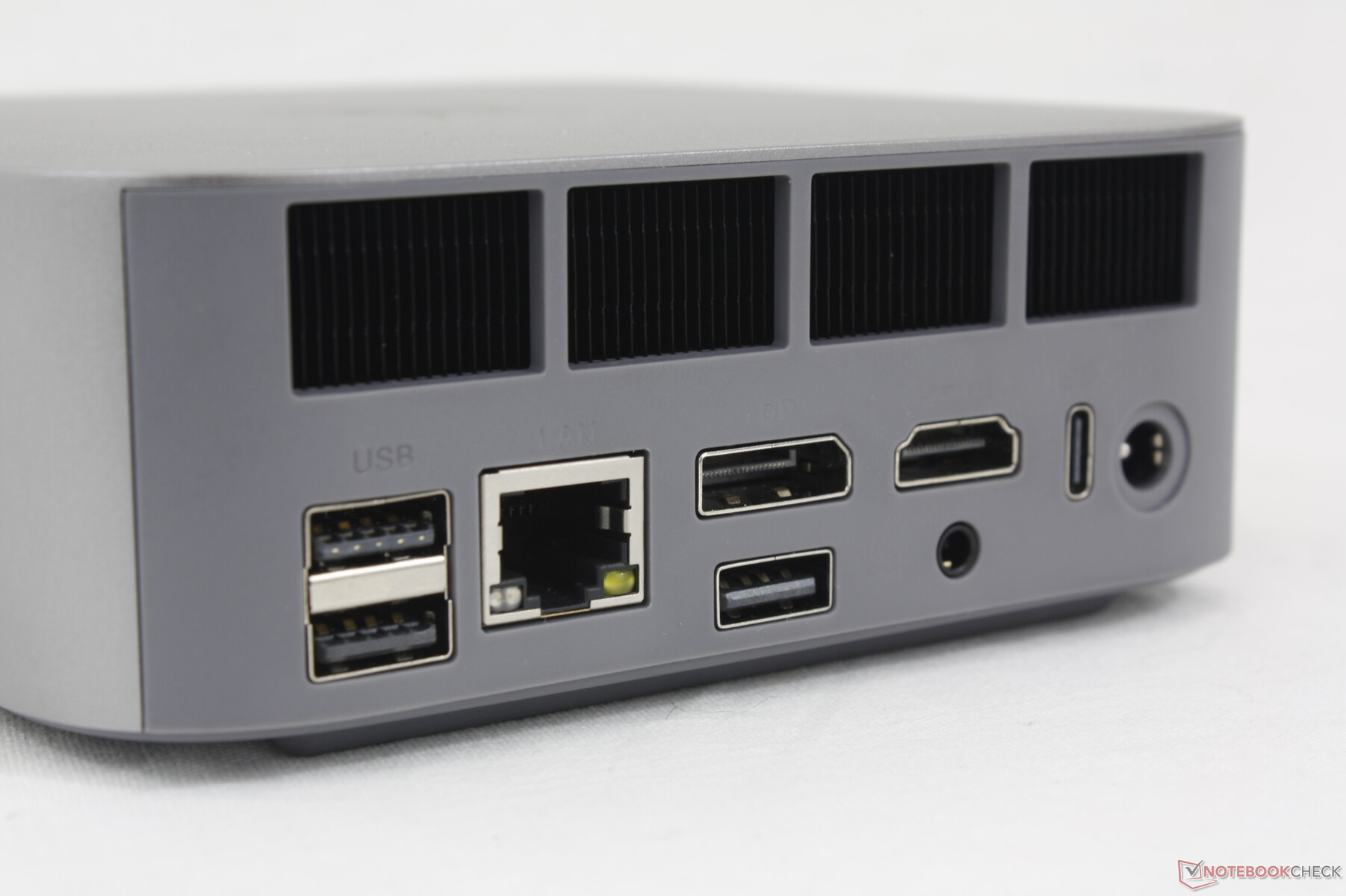

Arrière : USB-A 3.2 (10 Gbps), USB-A 2.0 (480 Mbps), RJ-45 (2,5 Gbps), DisplayPort 1.4 (4K@144), USB-A 2.0 (480 Mbps), HDMI 2.1 (4K@120), casque 3,5 mm, USB-C 4.0 avec DisplayPort + Power Delivery (40 Gbps), adaptateur secteur
Arrière : USB-A 3.2 (10 Gbps), USB-A 2.0 (480 Mbps), RJ-45 (2,5 Gbps), DisplayPort 1.4 (4K@144), USB-A 2.0 (480 Mbps), HDMI 2.1 (4K@120), casque 3,5 mm, USB-C 4.0 avec DisplayPort + Power Delivery (40 Gbps), adaptateur secteur

Communication

Le modèle est livré avec l'Intel AX200 au lieu de l'AX210 ou de l'AX211, probablement pour réduire les coûts. Ainsi, le Wi-Fi 6E et le Wi-Fi 7 ne sont pas pris en charge. Les performances sont fiables mais plus lentes que prévu avec seulement ~800 Mbps lorsqu'il est couplé à notre réseau Wi-Fi 6.

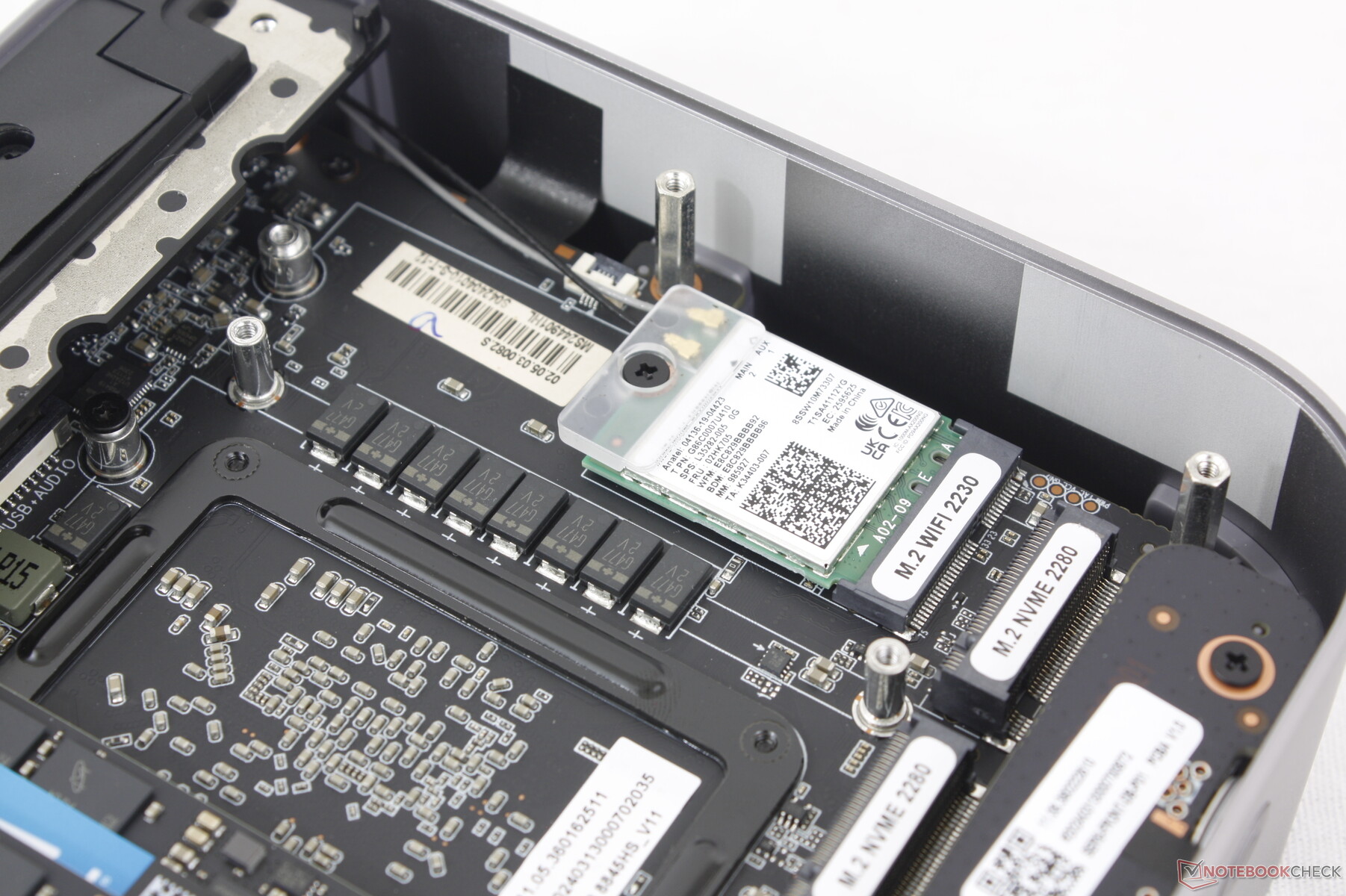

Le module WLAN amovible se trouve sous les disques SSD M.2
Le module WLAN amovible se trouve sous les disques SSD M.2
Networking
iperf3 transmit AXE11000
Beelink SER7
Intel Wi-Fi 6 AX200
1324 (665min - 1408max) MBit/s +63%
Geekom GT13 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1146 (846min - 1308max) MBit/s +41%
Beelink GTR7 7840HS
Intel Wi-Fi 6 AX200
1031 (961min - 1109max) MBit/s +27%
Beelink SER8
Intel Wi-Fi 6 AX200
812 (641min - 888max) MBit/s
GMK NucBox K6
MediaTek RZ616
634 (574min - 685max) MBit/s -22%
Aoostar GEM10
Intel Wi-Fi 6 AX200
429 (325min - 510max) MBit/s -47%
iperf3 receive AXE11000
Geekom GT13 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1398 (1261min - 1453max) MBit/s +78%
GMK NucBox K6
MediaTek RZ616
1222 (1074min - 1368max) MBit/s +56%
Beelink GTR7 7840HS
Intel Wi-Fi 6 AX200
1211 (1112min - 1284max) MBit/s +54%
Beelink SER7
Intel Wi-Fi 6 AX200
1193 (588min - 1333max) MBit/s +52%
Beelink SER8
Intel Wi-Fi 6 AX200
784 (679min - 845max) MBit/s
Aoostar GEM10
Intel Wi-Fi 6 AX200
451 (228min - 466max) MBit/s -42%
iperf3 transmit AXE11000 6GHz
Geekom GT13 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1429 (1392min - 1511max) MBit/s
GMK NucBox K6
MediaTek RZ616
432 (212min - 471max) MBit/s
iperf3 receive AXE11000 6GHz
Geekom GT13 Pro
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1583 (1557min - 1611max) MBit/s
GMK NucBox K6
MediaTek RZ616
984 (937min - 1048max) MBit/s
050100150200250300350400450500550600650700750800850Tooltip
Beelink SER8; iperf3 transmit AXE11000; iperf 3.1.3: Ø812 (641-888)
Beelink SER8; iperf3 receive AXE11000; iperf 3.1.3: Ø784 (679-845)

Maintenance

L'entretien se fait en deux étapes. Tout d'abord, la plaque extérieure doit être retirée en desserrant les quatre vis Phillips situées dans les coins. Ensuite, le filtre à poussière métallique doit être retiré en desserrant deux autres vis Phillips sur les bords. Une fois à l'intérieur, les utilisateurs auront un accès direct à deux emplacements SODIMM DDR5, deux emplacements SSD M.2 2280 et le module WLAN. Le refroidisseur à chambre à vapeur et le processeur se trouvent de l'autre côté de la carte mère.

Le panneau inférieur en plastique ne nécessite qu'un tournevis Phillips pour faciliter l'entretien, comme sur l'ancien modèle SER7. Les utilisateurs ont un accès direct aux deux emplacements M.2 2280 SSD, aux deux emplacements SODIMM et au module WLAN amovible.

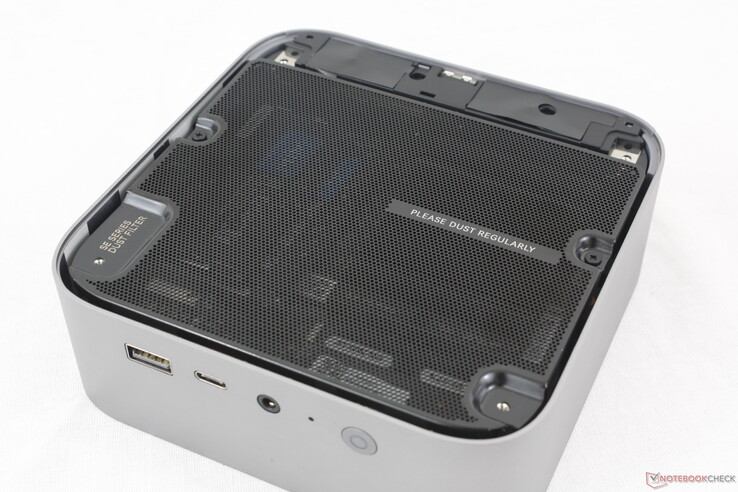

Filtre à poussière métallique après avoir retiré le fond extérieur en plastique
Filtre à poussière métallique après avoir retiré le fond extérieur en plastique

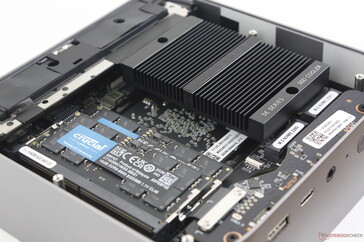

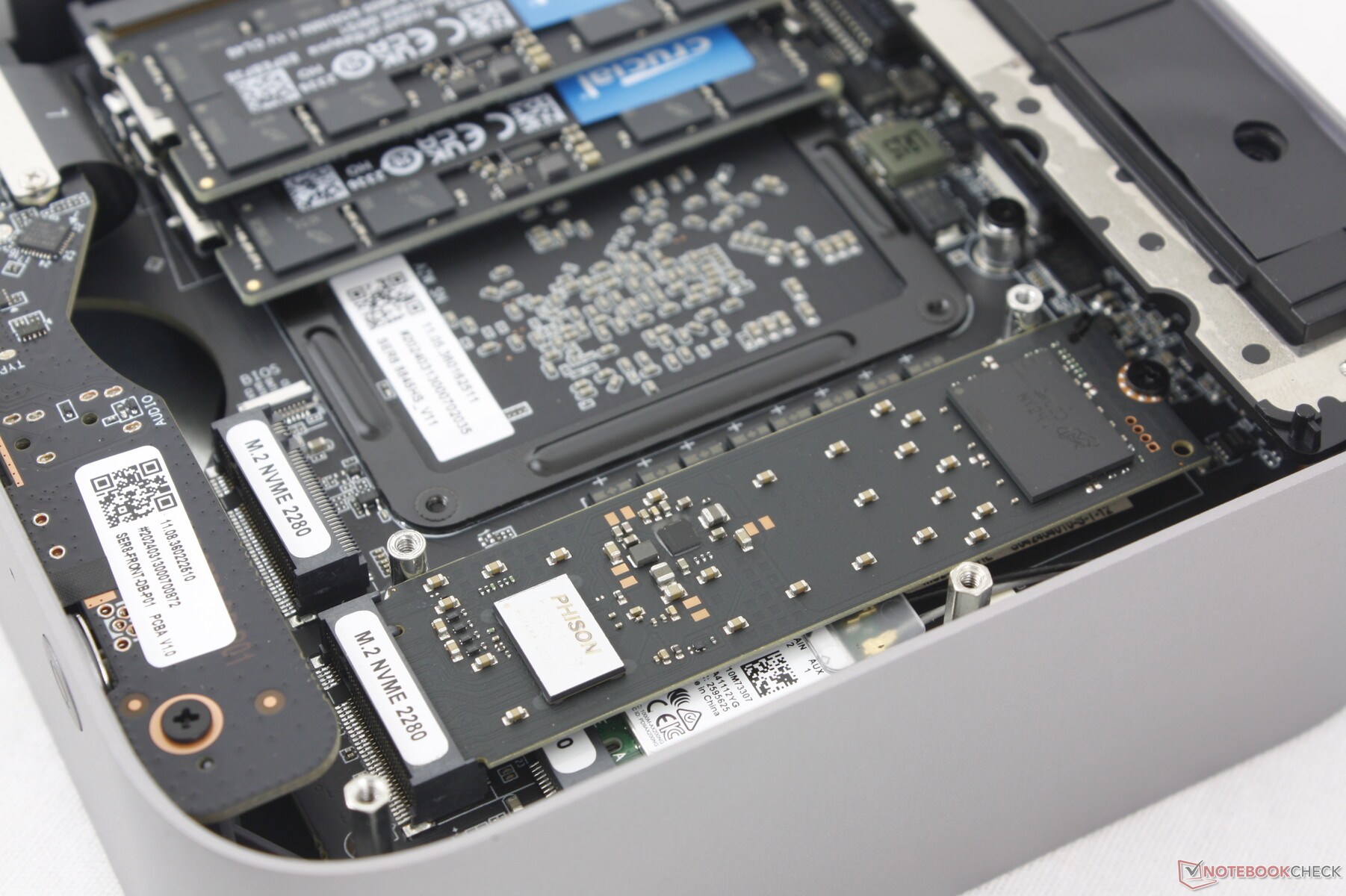

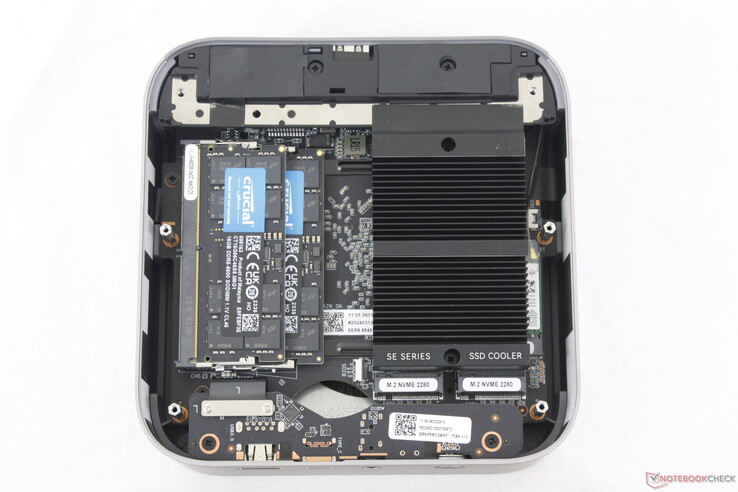

Accès facile aux composants évolutifs
Accès facile aux composants évolutifs

Accessoires et garantie

La boîte de vente au détail comprend un câble HDMI à côté de la paperasse et de l'adaptateur secteur à barillet. Le système peut être alimenté par des adaptateurs secteur USB-C tiers s'ils peuvent fournir suffisamment de puissance. Notre adaptateur secteur USB-C 135 W de Lenovo, par exemple, est compatible avec le SER8.

L'emballage ne contient pas le support VESA amovible qui est fourni avec presque tous les autres mini-PC de Beelink. En effet, le SER8 n'est pas compatible avec le montage VESA, ce qui constitue un inconvénient pour le nouveau design.

Une garantie limitée d'un an est offerte par le fabricant si vous l'achetez aux États-Unis.

Performances - Zen 4 prêt pour l'IA




Conditions d'essai

Nous avons réglé Windows sur le mode Performance avant d'effectuer les tests ci-dessous.

Il existe un mode spécial "65 W" (appelé réglage PowerLimit) qui n'est accessible que via le BIOS au démarrage. Sinon, le système est réglé sur "54 W" par défaut, quel que soit le réglage de la puissance sous Windows. De manière ridicule, le fabricant vous demande de "contacter le service clientèle pour obtenir des conseils" sur la manière d'ajuster les modes 54 W et 65 W, ce qu'aucun autre fabricant ne propose. Nous utilisons le réglage par défaut de 54 W pour cette évaluation.

Processeur

Performances du processeur de notre Ryzen 7 8845HS est excellente, avec des résultats essentiellement identiques à ceux que nous avons enregistrés sur le modèle Geekom A8 équipé d'un processeur plus coûteux, le Ryzen 9 8945HS. Le processeur AMD se situe confortablement entre le Core Ultra 7 155H et le Core Ultra 9 185H en moyenne, mais nous pensons qu'il peut mieux égaler le Core Ultra 9 185H s'il est réglé sur le mode 65 W.

La durabilité des performances est également excellente avec des résultats stables dans le CineBench R15 xT pendant notre test en boucle, contrairement à l'ordinateur Intel Geekom GT13 Pro.

D'un autre côté, le Ryzen 7 8845HS n'offre pas d'avantages en termes de performances brutes par rapport au Zen 3+ déjà rapide Ryzen 7 7840HS. Son principal facteur de différenciation réside plutôt dans son NPU intégré pour accélérer les tâches d'IA telles que Microsoft Co-Pilot. Si de telles fonctionnalités ne sont pas importantes pour vos cas d'utilisation, alors le SER7 peut fonctionner aussi rapidement que la SER8.

Cinebench R15 Multi Loop

0135270405540675810945108012151350148516201755189020252160229524302565Tooltip
Beelink SER8 AMD Ryzen 7 8845HS: Ø2607 (2586.82-2626.57)
Beelink SER7 AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)
GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)
Geekom GT13 Pro Intel Core i9-13900H: Ø1776 (1688.48-2326.12)
Aoostar GEM10 AMD Ryzen 7 6800H: Ø1983 (1919.75-2106.82)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Minisforum G7 PT
AMD Ryzen 9 7945HX
88.9 pt
Geekom A8
AMD Ryzen 9 8945HS
66.8 pt
Beelink SER8
AMD Ryzen 7 8845HS
66.7 pt
Beelink SER7
AMD Ryzen 7 7840HS
66.2 pt
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
65.8 pt
Moyenne AMD Ryzen 7 8845HS

63.9 pt
Minisforum Venus Series NAB9
Intel Core i9-12900HK
61.9 pt
Acemagic M2A
Intel Core i9-12900H
61.2 pt
AcePC Wizbox AI
Intel Core Ultra 7 155H
60.5 pt
Geekom GT13 Pro
Intel Core i9-13900H
58.9 pt
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
58.6 pt
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
57.7 pt
GMK NucBox M4
Intel Core i9-11900H
52.6 pt
Aoostar GEM10
AMD Ryzen 7 6800H
51.8 pt
GMK NucBox M6
AMD Ryzen 5 6600H
48.8 pt
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
48.5 pt
Geekom A5
AMD Ryzen 7 5800H
47.7 pt
GMK NucBox M5
AMD Ryzen 7 5700U
34.1 pt
Cinebench R23 / Multi Core
Minisforum G7 PT
AMD Ryzen 9 7945HX
30799 Points +85%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
18016 Points +8%
Geekom A8
AMD Ryzen 9 8945HS
16795 Points +1%
Beelink SER8
AMD Ryzen 7 8845HS
16661 (16363.9min - 16661max) Points
AcePC Wizbox AI
Intel Core Ultra 7 155H
16352 Points -2%
Moyenne AMD Ryzen 7 8845HS
  (14895 - 18037, n=12)
16150 Points -3%
Beelink SER7
AMD Ryzen 7 7840HS
16105 (15785.6min - 16105.2max) Points -3%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
14659 Points -12%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
14573 Points -13%
Acemagic M2A
Intel Core i9-12900H
13899 Points -17%
Aoostar GEM10
AMD Ryzen 7 6800H
13117 Points -21%
Geekom GT13 Pro
Intel Core i9-13900H
13015 Points -22%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
12155 Points -27%
GMK NucBox M4
Intel Core i9-11900H
11135 (10740.5min - 11134.5max) Points -33%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
11072 Points -34%
Geekom A5
AMD Ryzen 7 5800H
10819 Points -35%
GMK NucBox M6
AMD Ryzen 5 6600H
10418 (10142.8min - 10418max) Points -37%
GMK NucBox M5
AMD Ryzen 7 5700U
6649 (6519.7min - 6648.75max) Points -60%
Cinebench R23 / Single Core
Minisforum G7 PT
AMD Ryzen 9 7945HX
1957 Points +10%
Acemagic M2A
Intel Core i9-12900H
1907 Points +7%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1901 Points +7%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1878 Points +5%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
1851 Points +4%
Geekom A8
AMD Ryzen 9 8945HS
1825 Points +2%
AcePC Wizbox AI
Intel Core Ultra 7 155H
1801 Points +1%
Beelink SER8
AMD Ryzen 7 8845HS
1783 Points
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
1780 Points 0%
Beelink SER7
AMD Ryzen 7 7840HS
1774 Points -1%
Moyenne AMD Ryzen 7 8845HS
  (1623 - 1783, n=12)
1749 Points -2%
Geekom GT13 Pro
Intel Core i9-13900H
1715 Points -4%
GMK NucBox M4
Intel Core i9-11900H
1605 Points -10%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1543 Points -13%
Aoostar GEM10
AMD Ryzen 7 6800H
1542 Points -14%
GMK NucBox M6
AMD Ryzen 5 6600H
1486 Points -17%
Geekom A5
AMD Ryzen 7 5800H
1405 Points -21%
GMK NucBox M5
AMD Ryzen 7 5700U
1267 Points -29%
Cinebench R20 / CPU (Multi Core)
Minisforum G7 PT
AMD Ryzen 9 7945HX
12210 Points +90%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
7196 Points +12%
Geekom A8
AMD Ryzen 9 8945HS
6591 Points +2%
Beelink SER8
AMD Ryzen 7 8845HS
6431 Points
Beelink SER7
AMD Ryzen 7 7840HS
6344 Points -1%
Moyenne AMD Ryzen 7 8845HS
  (5808 - 7026, n=12)
6307 Points -2%
AcePC Wizbox AI
Intel Core Ultra 7 155H
6033 Points -6%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
5691 Points -12%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
5633 Points -12%
Acemagic M2A
Intel Core i9-12900H
5472 Points -15%
Aoostar GEM10
AMD Ryzen 7 6800H
5216 Points -19%
Geekom GT13 Pro
Intel Core i9-13900H
5013 Points -22%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
4687 Points -27%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
4339 Points -33%
GMK NucBox M4
Intel Core i9-11900H
4324 Points -33%
Geekom A5
AMD Ryzen 7 5800H
4229 Points -34%
GMK NucBox M6
AMD Ryzen 5 6600H
4106 Points -36%
GMK NucBox M5
AMD Ryzen 7 5700U
2580 Points -60%
Cinebench R20 / CPU (Single Core)
Minisforum G7 PT
AMD Ryzen 9 7945HX
754 Points +8%
Acemagic M2A
Intel Core i9-12900H
735 Points +5%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
734 Points +5%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
723 Points +4%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
715 Points +2%
Geekom A8
AMD Ryzen 9 8945HS
711 Points +2%
Beelink SER7
AMD Ryzen 7 7840HS
698 Points 0%
Beelink SER8
AMD Ryzen 7 8845HS
698 Points
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
685 Points -2%
Moyenne AMD Ryzen 7 8845HS
  (673 - 698, n=12)
685 Points -2%
AcePC Wizbox AI
Intel Core Ultra 7 155H
681 Points -2%
Geekom GT13 Pro
Intel Core i9-13900H
659 Points -6%
GMK NucBox M4
Intel Core i9-11900H
615 Points -12%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
604 Points -13%
Aoostar GEM10
AMD Ryzen 7 6800H
598 Points -14%
GMK NucBox M6
AMD Ryzen 5 6600H
584 Points -16%
Geekom A5
AMD Ryzen 7 5800H
551 Points -21%
GMK NucBox M5
AMD Ryzen 7 5700U
495 Points -29%
Cinebench R15 / CPU Multi 64Bit
Minisforum G7 PT
AMD Ryzen 9 7945HX
4998 Points +90%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
2746 Points +5%
Geekom A8
AMD Ryzen 9 8945HS
2640 Points 0%
AcePC Wizbox AI
Intel Core Ultra 7 155H
2638 (2192.5min - 2638.35max) Points 0%
Beelink SER8
AMD Ryzen 7 8845HS
2627 (2586.82min - 2626.57max) Points
Beelink SER7
AMD Ryzen 7 7840HS
2565 (2511.62min - 2564.76max) Points -2%
Moyenne AMD Ryzen 7 8845HS
  (2342 - 2908, n=12)
2558 Points -3%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
2405 Points -8%
Geekom GT13 Pro
Intel Core i9-13900H
2260 Points -14%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
2249 Points -14%
Acemagic M2A
Intel Core i9-12900H
2136 Points -19%
Aoostar GEM10
AMD Ryzen 7 6800H
2117 Points -19%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1990 Points -24%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1795 Points -32%
Geekom A5
AMD Ryzen 7 5800H
1773 Points -33%
GMK NucBox M4
Intel Core i9-11900H
1770 (1710.13min - 1769.75max) Points -33%
GMK NucBox M6
AMD Ryzen 5 6600H
1737 (1708.16min - 1737.02max) Points -34%
GMK NucBox M5
AMD Ryzen 7 5700U
1130 (1041.59min - 1129.53max) Points -57%
Cinebench R15 / CPU Single 64Bit
Minisforum G7 PT
AMD Ryzen 9 7945HX
309 Points +9%
Geekom A8
AMD Ryzen 9 8945HS
287 Points +1%
Beelink SER7
AMD Ryzen 7 7840HS
283 Points 0%
Beelink SER8
AMD Ryzen 7 8845HS
283 Points
Moyenne AMD Ryzen 7 8845HS
  (269 - 283, n=12)
276 Points -2%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
270 Points -5%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
268 Points -5%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
267 Points -6%
Acemagic M2A
Intel Core i9-12900H
266 Points -6%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
256 Points -10%
AcePC Wizbox AI
Intel Core Ultra 7 155H
251 Points -11%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
245 Points -13%
Geekom GT13 Pro
Intel Core i9-13900H
245 Points -13%
GMK NucBox M4
Intel Core i9-11900H
243 Points -14%
GMK NucBox M6
AMD Ryzen 5 6600H
243 Points -14%
Aoostar GEM10
AMD Ryzen 7 6800H
240 Points -15%
Geekom A5
AMD Ryzen 7 5800H
227 Points -20%
GMK NucBox M5
AMD Ryzen 7 5700U
188.1 Points -34%
Blender / v2.79 BMW27 CPU
GMK NucBox M5
AMD Ryzen 7 5700U
427 Seconds * -124%
Geekom A5
AMD Ryzen 7 5800H
293 Seconds * -53%
GMK NucBox M6
AMD Ryzen 5 6600H
293 Seconds * -53%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
279 Seconds * -46%
GMK NucBox M4
Intel Core i9-11900H
270 Seconds * -41%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
268 Seconds * -40%
Geekom GT13 Pro
Intel Core i9-13900H
262 Seconds * -37%
Aoostar GEM10
AMD Ryzen 7 6800H
259 Seconds * -36%
Acemagic M2A
Intel Core i9-12900H
254 Seconds * -33%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
234 Seconds * -23%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
223 Seconds * -17%
AcePC Wizbox AI
Intel Core Ultra 7 155H
205 Seconds * -7%
Moyenne AMD Ryzen 7 8845HS
  (179 - 216, n=12)
202 Seconds * -6%
Beelink SER7
AMD Ryzen 7 7840HS
196 Seconds * -3%
Geekom A8
AMD Ryzen 9 8945HS
196 Seconds * -3%
Beelink SER8
AMD Ryzen 7 8845HS
191 Seconds *
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
171 Seconds * +10%
Minisforum G7 PT
AMD Ryzen 9 7945HX
99 Seconds * +48%
7-Zip 18.03 / 7z b 4
Minisforum G7 PT
AMD Ryzen 9 7945HX
131378 MIPS +85%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
71934 MIPS +1%
Geekom A8
AMD Ryzen 9 8945HS
71874 MIPS +1%
Beelink SER8
AMD Ryzen 7 8845HS
70937 MIPS
Beelink SER7
AMD Ryzen 7 7840HS
69882 MIPS -1%
Moyenne AMD Ryzen 7 8845HS
  (62669 - 74664, n=12)
68159 MIPS -4%
AcePC Wizbox AI
Intel Core Ultra 7 155H
62334 MIPS -12%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
55620 MIPS -22%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
55528 MIPS -22%
Aoostar GEM10
AMD Ryzen 7 6800H
55067 MIPS -22%
Geekom A5
AMD Ryzen 7 5800H
53954 MIPS -24%
Acemagic M2A
Intel Core i9-12900H
52663 MIPS -26%
Geekom GT13 Pro
Intel Core i9-13900H
52479 MIPS -26%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
51340 MIPS -28%
GMK NucBox M4
Intel Core i9-11900H
49486 MIPS -30%
GMK NucBox M6
AMD Ryzen 5 6600H
49353 MIPS -30%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
48327 MIPS -32%
GMK NucBox M5
AMD Ryzen 7 5700U
34172 MIPS -52%
7-Zip 18.03 / 7z b 4 -mmt1
Minisforum G7 PT
AMD Ryzen 9 7945HX
7609 MIPS +13%
Beelink SER7
AMD Ryzen 7 7840HS
6734 MIPS 0%
Beelink SER8
AMD Ryzen 7 8845HS
6714 MIPS
Geekom A8
AMD Ryzen 9 8945HS
6668 MIPS -1%
Geekom GT13 Pro
Intel Core i9-13900H
6321 MIPS -6%
Moyenne AMD Ryzen 7 8845HS
  (5197 - 6714, n=12)
6297 MIPS -6%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
6136 MIPS -9%
Acemagic M2A
Intel Core i9-12900H
6076 MIPS -10%
GMK NucBox M4
Intel Core i9-11900H
6018 MIPS -10%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
5887 MIPS -12%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
5840 MIPS -13%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
5796 MIPS -14%
GMK NucBox M6
AMD Ryzen 5 6600H
5720 MIPS -15%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
5560 MIPS -17%
Aoostar GEM10
AMD Ryzen 7 6800H
5521 MIPS -18%
Geekom A5
AMD Ryzen 7 5800H
5486 MIPS -18%
AcePC Wizbox AI
Intel Core Ultra 7 155H
5344 MIPS -20%
GMK NucBox M5
AMD Ryzen 7 5700U
4599 MIPS -32%
Geekbench 6.3 / Multi-Core
Minisforum G7 PT
AMD Ryzen 9 7945HX
16765 Points +25%
Geekom A8
AMD Ryzen 9 8945HS
13619 Points +2%
Beelink SER8
AMD Ryzen 7 8845HS
13362 Points
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
13356 Points 0%
Moyenne AMD Ryzen 7 8845HS
  (11073 - 14014, n=16)
12808 Points -4%
Beelink SER7
AMD Ryzen 7 7840HS
12694 Points -5%
AcePC Wizbox AI
Intel Core Ultra 7 155H
12539 Points -6%
Acemagic M2A
Intel Core i9-12900H
12044 Points -10%
Geekom GT13 Pro
Intel Core i9-13900H
11358 Points -15%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
10997 Points -18%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
10721 Points -20%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
10348 Points -23%
Aoostar GEM10
AMD Ryzen 7 6800H
9527 Points -29%
Geekom A5
AMD Ryzen 7 5800H
9411 Points -30%
GMK NucBox M4
Intel Core i9-11900H
9401 Points -30%
GMK NucBox M6
AMD Ryzen 5 6600H
9240 Points -31%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
7854 Points -41%
GMK NucBox M5
AMD Ryzen 7 5700U
6260 Points -53%
Geekbench 6.3 / Single-Core
Minisforum G7 PT
AMD Ryzen 9 7945HX
2880 Points +7%
Geekom A8
AMD Ryzen 9 8945HS
2698 Points 0%
Beelink SER8
AMD Ryzen 7 8845HS
2694 Points
Beelink SER7
AMD Ryzen 7 7840HS
2657 Points -1%
Moyenne AMD Ryzen 7 8845HS
  (2510 - 2698, n=14)
2619 Points -3%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
2611 Points -3%
Acemagic M2A
Intel Core i9-12900H
2582 Points -4%
Geekom GT13 Pro
Intel Core i9-13900H
2580 Points -4%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
2575 Points -4%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
2492 Points -7%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
2483 Points -8%
AcePC Wizbox AI
Intel Core Ultra 7 155H
2415 Points -10%
GMK NucBox M4
Intel Core i9-11900H
2355 Points -13%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
2072 Points -23%
Aoostar GEM10
AMD Ryzen 7 6800H
2049 Points -24%
GMK NucBox M6
AMD Ryzen 5 6600H
2042 Points -24%
Geekom A5
AMD Ryzen 7 5800H
1991 Points -26%
GMK NucBox M5
AMD Ryzen 7 5700U
1625 Points -40%
Geekbench 5.5 / Multi-Core
Minisforum G7 PT
AMD Ryzen 9 7945HX
19836 Points +63%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
13392 Points +10%
Geekom A8
AMD Ryzen 9 8945HS
12481 Points +2%
AcePC Wizbox AI
Intel Core Ultra 7 155H
12248 Points 0%
Beelink SER8
AMD Ryzen 7 8845HS
12196 Points
Moyenne AMD Ryzen 7 8845HS
  (11256 - 12726, n=13)
11864 Points -3%
Beelink SER7
AMD Ryzen 7 7840HS
11423 Points -6%
Acemagic M2A
Intel Core i9-12900H
11406 Points -6%
Geekom GT13 Pro
Intel Core i9-13900H
11283 Points -7%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
10378 Points -15%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
10322 Points -15%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
10269 Points -16%
Aoostar GEM10
AMD Ryzen 7 6800H
8898 Points -27%
GMK NucBox M4
Intel Core i9-11900H
8829 Points -28%
Geekom A5
AMD Ryzen 7 5800H
8823 Points -28%
GMK NucBox M6
AMD Ryzen 5 6600H
8195 Points -33%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
7368 Points -40%
GMK NucBox M5
AMD Ryzen 7 5700U
5593 Points -54%
Geekbench 5.5 / Single-Core
Minisforum G7 PT
AMD Ryzen 9 7945HX
2147 Points +7%
Beelink SER8
AMD Ryzen 7 8845HS
2004 Points
Geekom A8
AMD Ryzen 9 8945HS
1996 Points 0%
Beelink SER7
AMD Ryzen 7 7840HS
1983 Points -1%
Moyenne AMD Ryzen 7 8845HS
  (1765 - 2004, n=13)
1926 Points -4%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
1866 Points -7%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
1856 Points -7%
Acemagic M2A
Intel Core i9-12900H
1842 Points -8%
Geekom GT13 Pro
Intel Core i9-13900H
1841 Points -8%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
1832 Points -9%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
1805 Points -10%
AcePC Wizbox AI
Intel Core Ultra 7 155H
1720 Points -14%
GMK NucBox M4
Intel Core i9-11900H
1692 Points -16%
Aoostar GEM10
AMD Ryzen 7 6800H
1552 Points -23%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
1534 Points -23%
GMK NucBox M6
AMD Ryzen 5 6600H
1513 Points -25%
Geekom A5
AMD Ryzen 7 5800H
1494 Points -25%
GMK NucBox M5
AMD Ryzen 7 5700U
1203 Points -40%
HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum G7 PT
AMD Ryzen 9 7945HX
34.6 fps +64%
Beelink SER8
AMD Ryzen 7 8845HS
21.1 fps
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
20.9 fps -1%
Geekom A8
AMD Ryzen 9 8945HS
20.9 fps -1%
Beelink SER7
AMD Ryzen 7 7840HS
20.4 fps -3%
Moyenne AMD Ryzen 7 8845HS
  (18.6 - 22.7, n=12)
20 fps -5%
AcePC Wizbox AI
Intel Core Ultra 7 155H
18.3 fps -13%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
16.3 fps -23%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
16.2 fps -23%
Acemagic M2A
Intel Core i9-12900H
15 fps -29%
Aoostar GEM10
AMD Ryzen 7 6800H
14.9 fps -29%
Geekom GT13 Pro
Intel Core i9-13900H
14.1 fps -33%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
13.9 fps -34%
GMK NucBox M6
AMD Ryzen 5 6600H
13.9 fps -34%
GMK NucBox M4
Intel Core i9-11900H
13.6 fps -36%
Geekom A5
AMD Ryzen 7 5800H
13.3 fps -37%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
12.7 fps -40%
GMK NucBox M5
AMD Ryzen 7 5700U
8.44 fps -60%
LibreOffice / 20 Documents To PDF
GMK NucBox M5
AMD Ryzen 7 5700U
58 s * -26%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
54.8 s * -19%
Geekom A5
AMD Ryzen 7 5800H
54.3 s * -18%
AcePC Wizbox AI
Intel Core Ultra 7 155H
53 s * -15%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
52.5 s * -14%
GMK NucBox M6
AMD Ryzen 5 6600H
52.4 s * -14%
Aoostar GEM10
AMD Ryzen 7 6800H
51.2 s * -11%
Moyenne AMD Ryzen 7 8845HS
  (44.4 - 77, n=12)
50.7 s * -10%
Geekom A8
AMD Ryzen 9 8945HS
49.9 s * -8%
Minisforum G7 PT
AMD Ryzen 9 7945HX
49.7 s * -8%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
49.5 s * -7%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
46.9 s * -2%
Beelink SER8
AMD Ryzen 7 8845HS
46.1 s *
GMK NucBox M4
Intel Core i9-11900H
42.3 s * +8%
Acemagic M2A
Intel Core i9-12900H
40 s * +13%
Beelink SER7
AMD Ryzen 7 7840HS
39.7 s * +14%
Geekom GT13 Pro
Intel Core i9-13900H
39.4 s * +15%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
37.2 s * +19%
R Benchmark 2.5 / Overall mean
GMK NucBox M5
AMD Ryzen 7 5700U
0.584 sec * -35%
Geekom A5
AMD Ryzen 7 5800H
0.523 sec * -21%
GMK NucBox M4
Intel Core i9-11900H
0.52 sec * -20%
Aoostar GEM10
AMD Ryzen 7 6800H
0.515 sec * -19%
Maxtang MTN-FP750
AMD Ryzen 7 7735HS
0.507 sec * -17%
GMK NucBox M6
AMD Ryzen 5 6600H
0.4995 sec * -15%
AcePC Wizbox AI
Intel Core Ultra 7 155H
0.4801 sec * -11%
Minisforum AtomMan X7 Ti
Intel Core Ultra 9 185H
0.4627 sec * -7%
Moyenne AMD Ryzen 7 8845HS
  (0.4304 - 0.4935, n=12)
0.4517 sec * -4%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P
0.45 sec * -4%
HP Elite Mini 800 G9-5M9T9EA
Intel Core i5-13500
0.4469 sec * -3%
Beelink SER7
AMD Ryzen 7 7840HS
0.4446 sec * -3%
Geekom GT13 Pro
Intel Core i9-13900H
0.4395 sec * -1%
Minisforum Venus Series NAB9
Intel Core i9-12900HK
0.4391 sec * -1%
Acemagic M2A
Intel Core i9-12900H
0.4347 sec * -0%
Geekom A8
AMD Ryzen 9 8945HS
0.4346 sec * -0%
Beelink SER8
AMD Ryzen 7 8845HS
0.4336 sec *
Minisforum G7 PT
AMD Ryzen 9 7945HX
0.406 sec * +6%
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... Moindre est la valeur, meilleures sont les performances

Cinebench R15 CPU Multi 64Bit
2627 Points
Cinebench R15 OpenGL 64Bit
253 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
283 Points
Cinebench R20 CPU (Multi Core)
6431 Points
Cinebench R20 CPU (Single Core)
698 Points
Cinebench R23 Single Core
1783 Points
Cinebench R23 Multi Core
16661 Points
Cinebench 2024 CPU Multi Core
956 Points
Aide
Performance Rating
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
99.9 pt
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
96.9 pt
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
93.8 pt
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
93.6 pt
Moyenne AMD Ryzen 7 8845HS

90 pt
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
67 pt
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
56.5 pt
AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
27538 KRay/s +5%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
26305 KRay/s
Moyenne AMD Ryzen 7 8845HS
  (23708 - 29544, n=12)
25871 KRay/s -2%
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
25685 KRay/s -2%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
25360 KRay/s -4%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
13726 KRay/s -48%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
11735 KRay/s -55%
AIDA64 / FPU Julia
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
116903 Points +5%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
111508 Points
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
109853 Points -1%
Moyenne AMD Ryzen 7 8845HS
  (99659 - 125873, n=12)
109375 Points -2%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
107805 Points -3%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
86223 Points -23%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
59094 Points -47%
AIDA64 / CPU SHA3
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
5096 MB/s +3%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
4933 MB/s
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
4783 MB/s -3%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
4763 MB/s -3%
Moyenne AMD Ryzen 7 8845HS
  (4332 - 5180, n=12)
4712 MB/s -4%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
2953 MB/s -40%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
2718 MB/s -45%
AIDA64 / CPU Queen
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
117764 Points +2%
Moyenne AMD Ryzen 7 8845HS
  (109458 - 124695, n=12)
116267 Points +1%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
115546 Points
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
111969 Points -3%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
111803 Points -3%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
98582 Points -15%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
93952 Points -19%
AIDA64 / FPU SinJulia
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
15525 Points +1%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
15420 Points
Moyenne AMD Ryzen 7 8845HS
  (14062 - 15519, n=12)
14886 Points -3%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
14721 Points -5%
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
14705 Points -5%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
12159 Points -21%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
8026 Points -48%
AIDA64 / FPU Mandel
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
62378 Points +5%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
59522 Points
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
58699 Points -1%
Moyenne AMD Ryzen 7 8845HS
  (53436 - 67367, n=12)
58411 Points -2%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
57534 Points -3%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
47463 Points -20%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
29138 Points -51%
AIDA64 / CPU AES
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
177158 MB/s +3%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
172642 MB/s
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
164041 MB/s -5%
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
161216 MB/s -7%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
119681 MB/s -31%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
102677 MB/s -41%
Moyenne AMD Ryzen 7 8845HS
  (64515 - 172642, n=12)
94293 MB/s -45%
AIDA64 / CPU ZLib
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
1103 MB/s +3%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
1073 MB/s
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
1031 MB/s -4%
Moyenne AMD Ryzen 7 8845HS
  (627 - 1080, n=12)
986 MB/s -8%
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
949 MB/s -12%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
789 MB/s -26%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
757 MB/s -29%
AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
14722 KRay/s +5%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
14041 KRay/s
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
13904 KRay/s -1%
Moyenne AMD Ryzen 7 8845HS
  (12361 - 15911, n=12)
13762 KRay/s -2%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
13642 KRay/s -3%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
7279 KRay/s -48%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
6205 KRay/s -56%
AIDA64 / CPU PhotoWorxx
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
41088 MPixel/s +1%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
40760 MPixel/s +1%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
40726 MPixel/s +1%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
40489 MPixel/s
Moyenne AMD Ryzen 7 8845HS
  (33192 - 41668, n=12)
39121 MPixel/s -3%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
28269 MPixel/s -30%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
26496 MPixel/s -35%

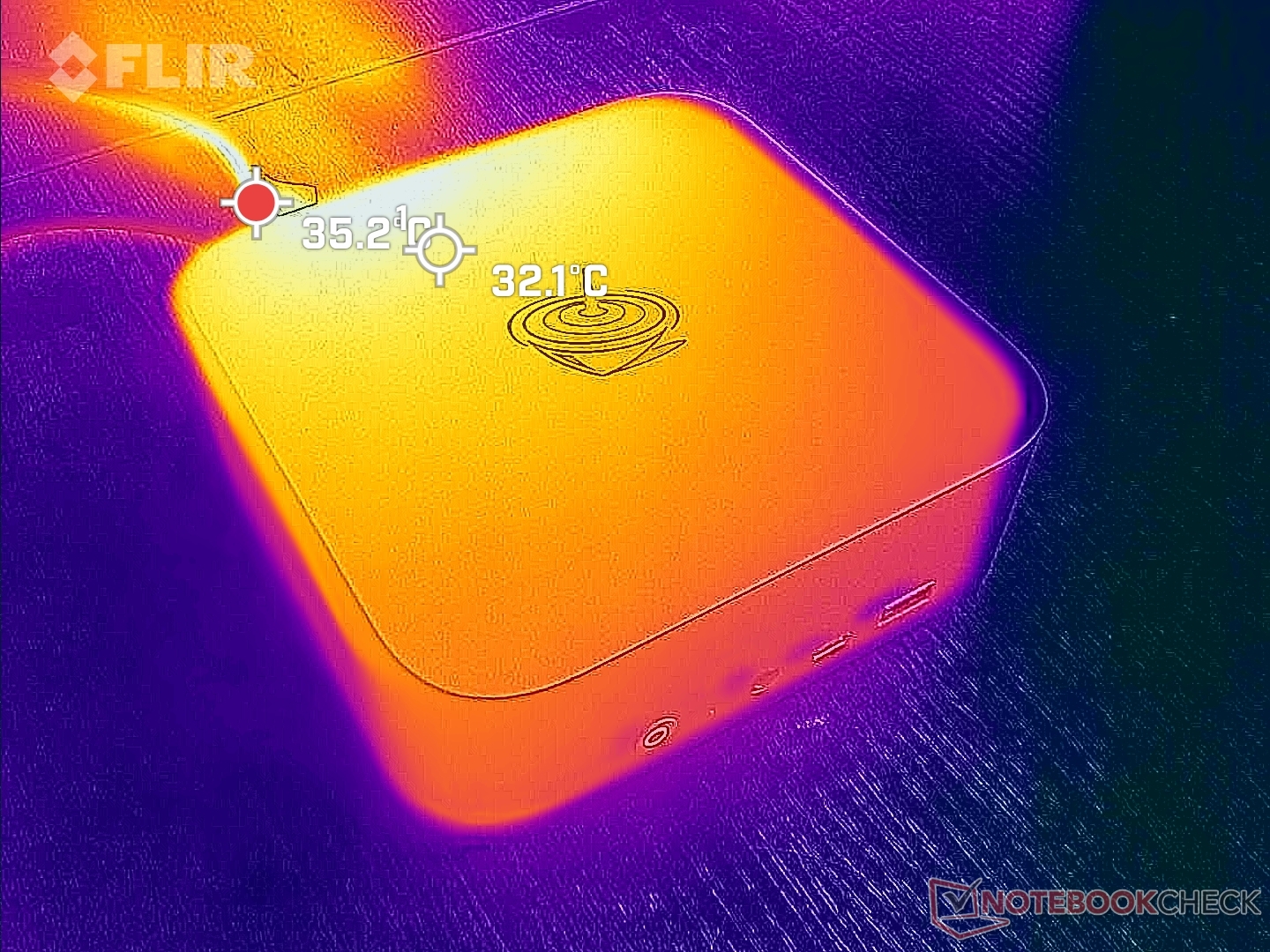

Test de stress

Lors de l'exécution de Prime95, le processeur a atteint 4,0 GHz et a maintenu une consommation d'énergie de 54 W sans aucune baisse, comme l'a annoncé le fabricant. La température du cœur s'est également stabilisée à une température raisonnable de 75°C, ce qui laisse un peu de marge pour le réglage de 65 W.

La fréquence d'horloge et la température du GPU en fonctionnement Witcher 3 sont en moyenne de 2700 MHz et 62 C, respectivement, par rapport à 2526 MHz et 64 C sur la carte SER7 même si le bruit du ventilateur est beaucoup plus faible sur la SER8.

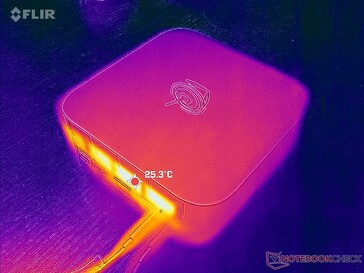

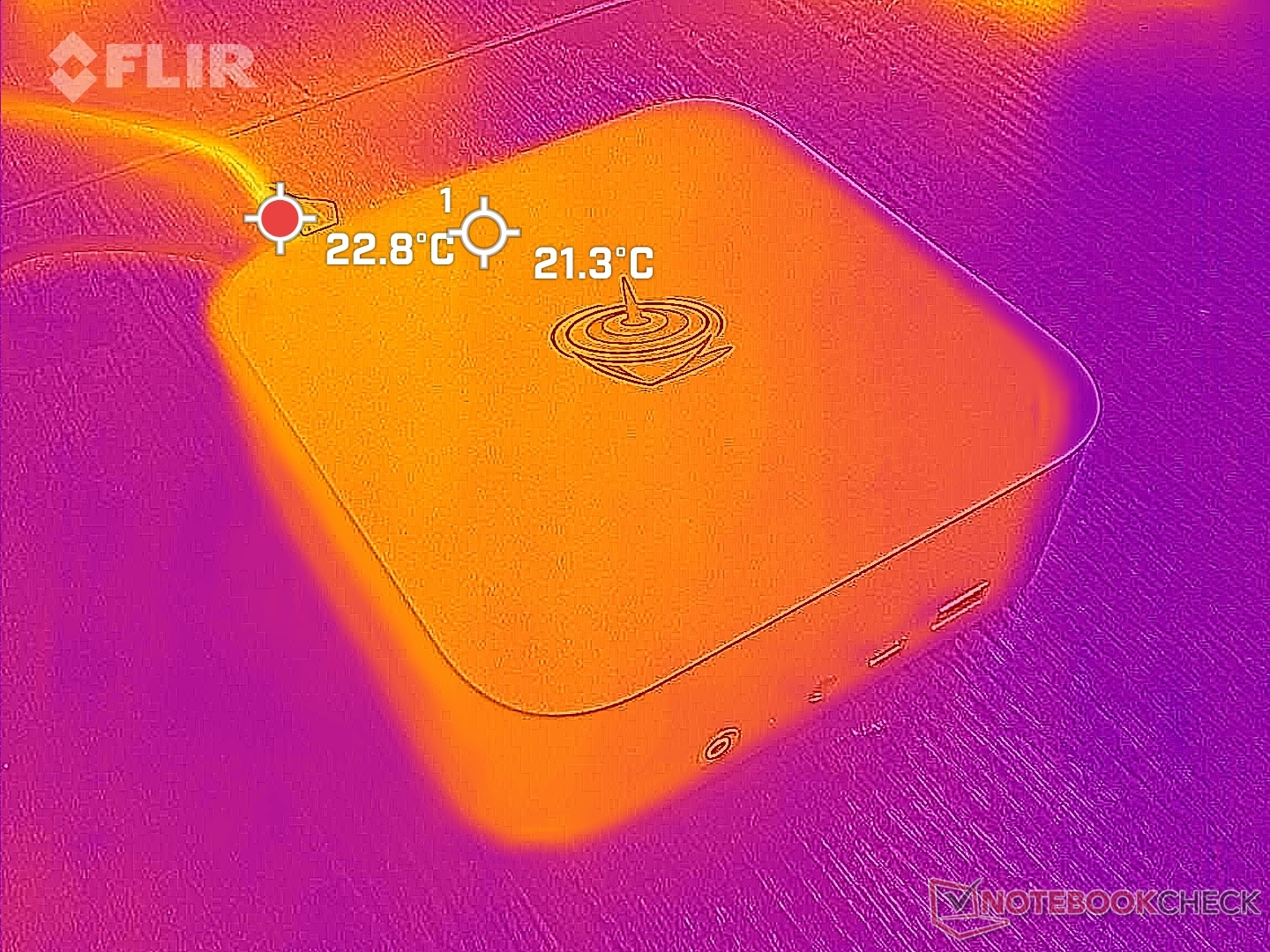

Système en veille
Système en veille

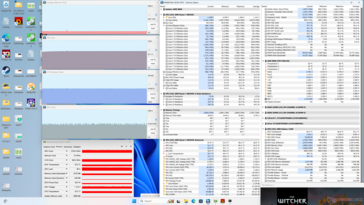

Witcher 3 stress
Witcher 3 stress

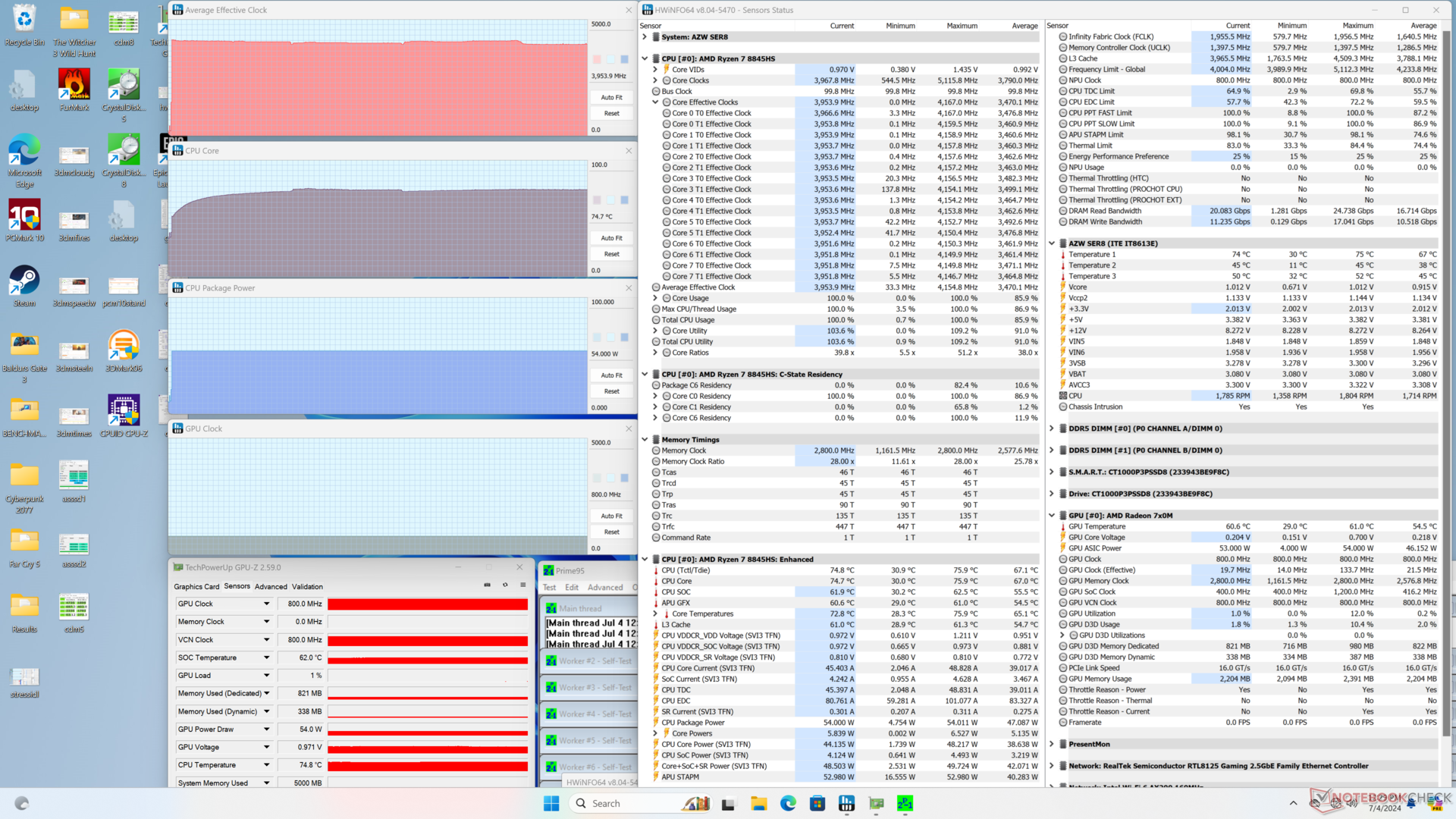

Prime95 stress
Prime95 stress

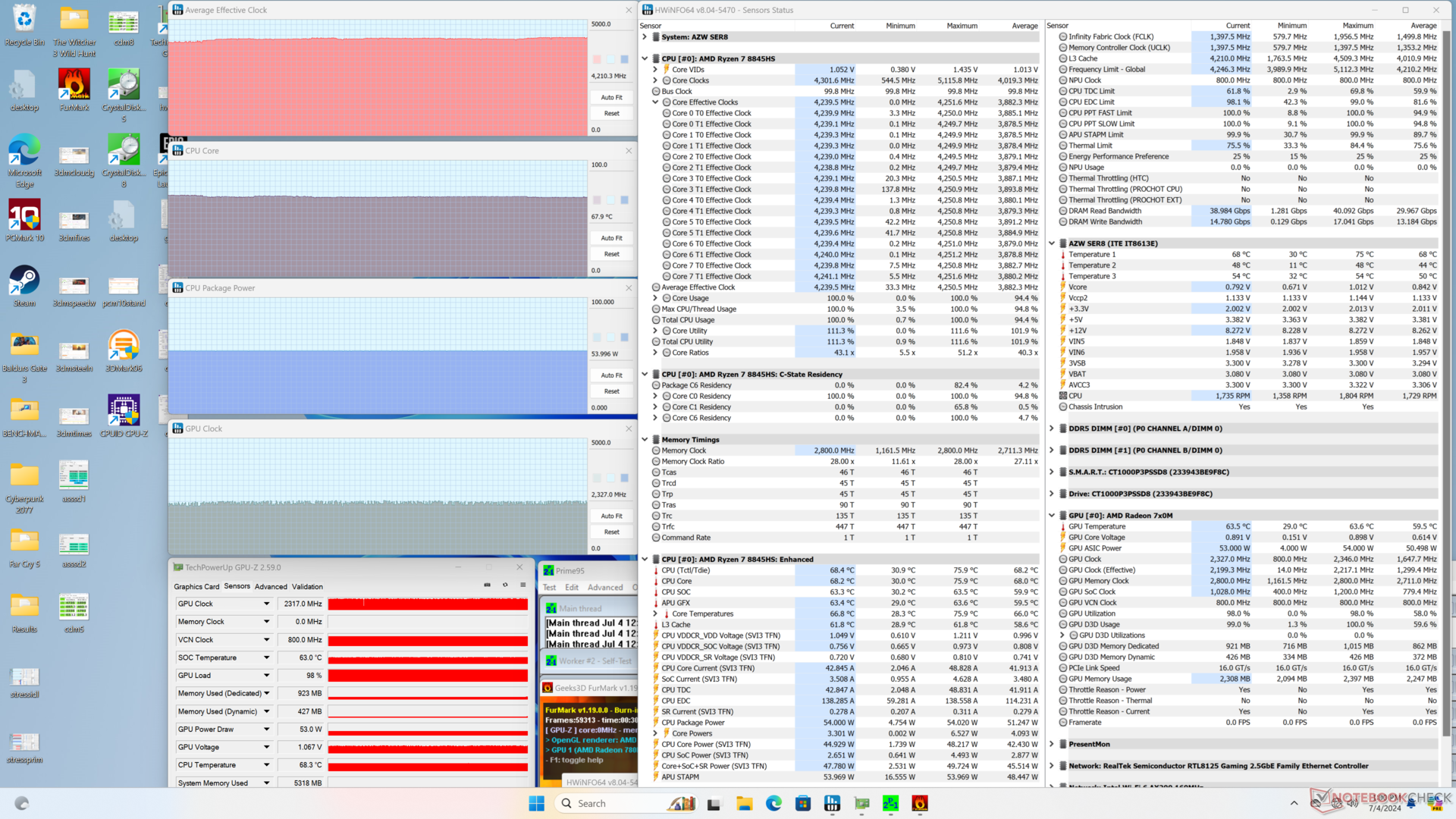

Prime95+FurMark stress
Prime95+FurMark stress
Horloge du CPU (GHz) Horloge du GPU (MHz) Température moyenne du CPU (°C)
Système au repos -- -- 30
Prime95 Stress 4.0 -- 75
Prime95 + FurMark Stress 4.2 2317 68
Witcher 3 Stress 0.5 2700 62

Performance du système

Les résultats de PCMark sont parmi les plus élevés de tous les mini-PC à carte graphique intégrée, mais ils ne sont pas beaucoup plus élevés que ceux que nous avons enregistrés sur le SER7 de l'année dernière et ne représentent que des améliorations marginales en ce qui concerne les applications et les charges de travail quotidiennes. Les performances de la mémoire n'ont pas non plus été améliorées malgré le passage de Zen 3+ à Zen 4.

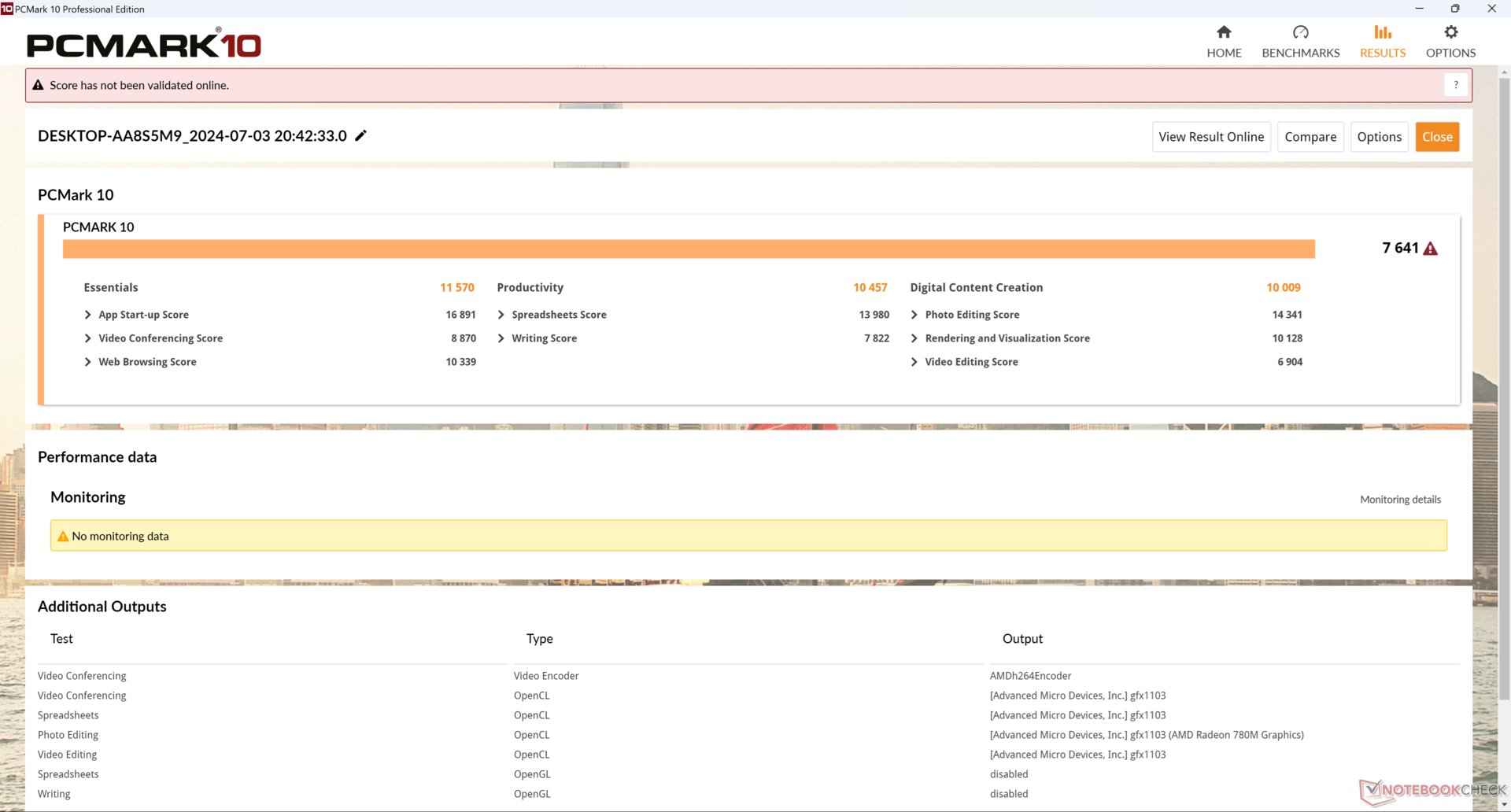

PCMark 10 Standard
PCMark 10 Standard
PCMark 10 / Score
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
7641 Points
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
7529 Points -1%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
7453 Points -2%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (7120 - 7641, n=7)
7320 Points -4%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
7225 Points -5%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
6749 Points -12%
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
5944 Points -22%
PCMark 10 / Essentials
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
11570 Points
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
11214 Points -3%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
11155 Points -4%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (10685 - 11570, n=7)
11015 Points -5%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
10819 Points -6%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
10522 Points -9%
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
10347 Points -11%
PCMark 10 / Productivity
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
10702 Points +2%
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
10591 Points +1%
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
10457 Points
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
10452 Points 0%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (9787 - 10482, n=7)
10170 Points -3%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
9367 Points -10%
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
7319 Points -30%
PCMark 10 / Digital Content Creation
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
10009 Points
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
9752 Points -3%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (9009 - 10009, n=7)
9506 Points -5%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
9409 Points -6%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
9052 Points -10%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
8466 Points -15%
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
7527 Points -25%
CrossMark / Overall
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
1875 Points
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
1873 Points 0%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (1633 - 1939, n=7)
1776 Points -5%
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
1766 Points -6%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1700 Points -9%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
1648 Points -12%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1566 Points -16%
CrossMark / Productivity
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
1816 Points +1%
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
1802 Points
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
1736 Points -4%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (1562 - 1872, n=7)
1711 Points -5%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
1629 Points -10%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1621 Points -10%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1559 Points -13%
CrossMark / Creativity
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
2009 Points
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
1994 Points -1%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1953 Points -3%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (1734 - 2040, n=7)
1912 Points -5%
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
1789 Points -11%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
1696 Points -16%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1556 Points -23%
CrossMark / Responsiveness
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
1790 Points +4%
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
1718 Points
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
1706 Points -1%
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1620 Points -6%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (1437 - 1849, n=7)
1595 Points -7%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
1566 Points -9%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
1293 Points -25%
WebXPRT 3 / Overall
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
339 Points +1%
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
334 Points
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
332 Points -1%
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
328 Points -2%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (295 - 334, n=7)
307 Points -8%
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
304 Points -9%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
275 Points -18%
WebXPRT 4 / Overall
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
280 Points +5%
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
266 Points 0%
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
266 Points
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
265 Points 0%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
263 Points -1%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (245 - 314, n=7)
263 Points -1%
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
223 Points -16%
Mozilla Kraken 1.1 / Total
Aoostar GEM10
Radeon 680M, R7 6800H, BIWIN CE980Y28900-1TB
591 ms * -18%
Moyenne AMD Ryzen 7 8845HS, AMD Radeon 780M
  (501 - 664, n=7)
541 ms * -8%
GMK NucBox K6
Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000
534 ms * -7%
Beelink SER7
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
518 ms * -3%
Geekom GT13 Pro
Iris Xe G7 96EUs, i9-13900H, Acer N7000
517 ms * -3%
Beelink SER8
Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8
501 ms *
Beelink GTR7 7840HS
Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8
485 ms * +3%

* ... Moindre est la valeur, meilleures sont les performances

PCMark 10 Score
7641 points
Aide
AIDA64 / Memory Copy
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
69325 MB/s +2%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
69281 MB/s +1%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
69199 MB/s +1%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
68283 MB/s
Moyenne AMD Ryzen 7 8845HS
  (61459 - 71873, n=12)
67518 MB/s -1%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
50829 MB/s -26%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
45721 MB/s -33%
AIDA64 / Memory Read
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
61976 MB/s
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
61911 MB/s 0%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
61838 MB/s 0%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
61708 MB/s 0%
Moyenne AMD Ryzen 7 8845HS
  (49866 - 61976, n=12)
58471 MB/s -6%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
45995 MB/s -26%
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
43828 MB/s -29%
AIDA64 / Memory Write
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
87358 MB/s +2%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
87226 MB/s +2%
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
86528 MB/s +1%
Moyenne AMD Ryzen 7 8845HS
  (68425 - 93239, n=12)
85746 MB/s 0%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
85464 MB/s
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
51116 MB/s -40%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
45733 MB/s -46%
AIDA64 / Memory Latency
Aoostar GEM10
AMD Ryzen 7 6800H, Radeon 680M
104.1 ns * -17%
Moyenne AMD Ryzen 7 8845HS
  (82.5 - 117, n=12)
97 ns * -9%
Beelink SER8
AMD Ryzen 7 8845HS, Radeon 780M
88.9 ns *
GMK NucBox K6
AMD Ryzen 7 7840HS, Radeon 780M
88.1 ns * +1%
Beelink GTR7 7840HS
AMD Ryzen 7 7840HS, Radeon 780M
85.1 ns * +4%
Beelink SER7
AMD Ryzen 7 7840HS, Radeon 780M
85.1 ns * +4%
Geekom GT13 Pro
Intel Core i9-13900H, Iris Xe G7 96EUs
75.8 ns * +15%

* ... Moindre est la valeur, meilleures sont les performances

Latence DPC

LatencyMon ne révèle aucun problème majeur de DPC lors de l'ouverture de plusieurs onglets de notre page d'accueil. Malheureusement, la lecture vidéo 4K60 est imparfaite, avec 20 images perdues enregistrées pendant une fenêtre de 60 secondes. Ce problème est plus courant sur les PC équipés d'AMD que sur ceux équipés d'Intel et il est décevant de voir la tendance se poursuivre sur la SER8. La majorité des utilisateurs ne remarqueront pas le saut d'image occasionnel, mais il devrait idéalement n'y en avoir aucun en premier lieu, surtout avec un processeur Ryzen 7 HS-class.

LatencyMon
LatencyMon

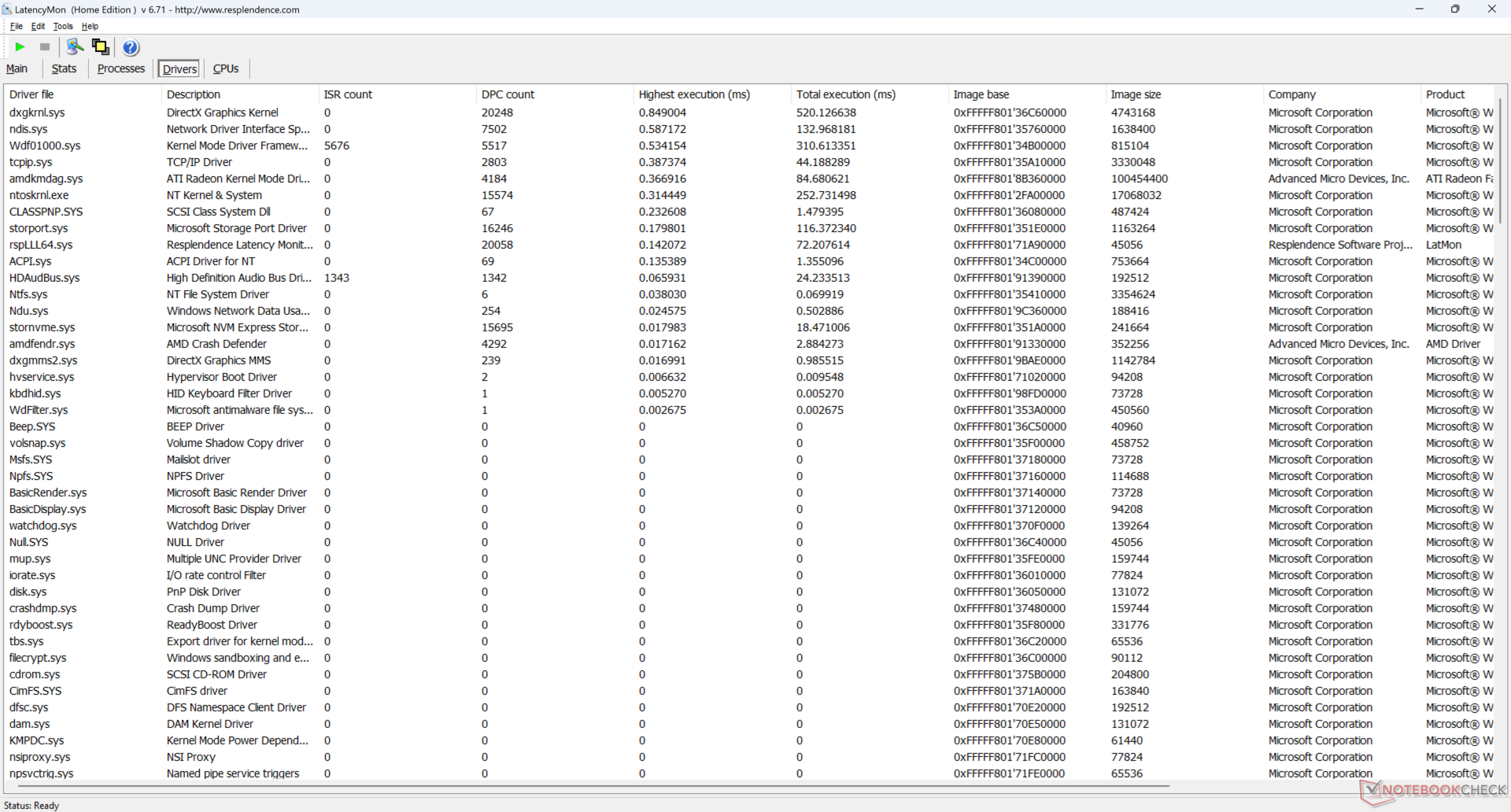

Liste des conducteurs
Liste des conducteurs

Dispositifs de stockage

Le modèle est livré avec le même Crucial P3 Plus CT1000P3PSSD8 PCIe4 x4 NVMe SSD que l'on trouve sur le GTR7 et SER7, ce qui donne une impression de cohérence entre les mini PC Beelink. Nous apprécions le fait que le fabricant livre des SSD de marques plus connues, alors que d'autres fabricants de mini PC comme GMktec ont tendance à livrer des SSD de marques moins connues. La durabilité des performances est excellente, sans aucun problème d'étranglement, comme le montrent les résultats de notre test en boucle DiskSpd ci-dessous.

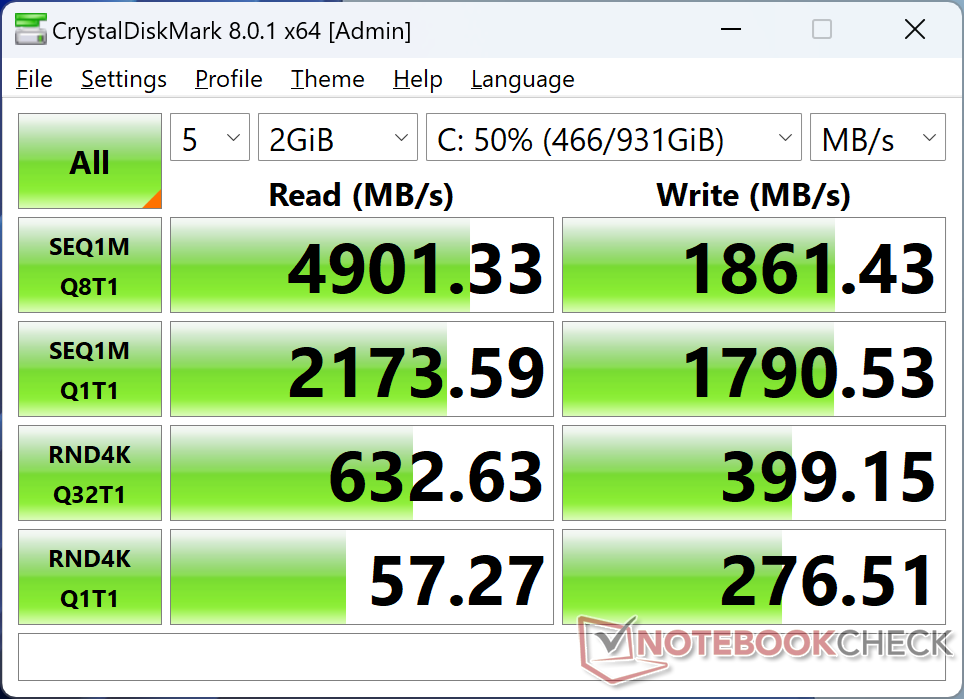

CDM 8
CDM 8
AS SSD
AS SSD
La SER8 est livrée avec un dissipateur thermique beaucoup plus grand qu'auparavant pour couvrir simultanément les deux emplacements SSD
La SER8 est livrée avec un dissipateur thermique beaucoup plus grand qu'auparavant pour couvrir simultanément les deux emplacements SSD
Le dissipateur thermique est retiré pour révéler deux emplacements pour SSD M.2 2280
Le dissipateur thermique est retiré pour révéler deux emplacements pour SSD M.2 2280
Crucial P3 Plus CT1000P3PSSD8
CDM 5/6 Read Seq Q32T1: 4735 MB/s
CDM 5/6 Write Seq Q32T1: 1899 MB/s
CDM 5/6 Read 4K Q32T1: 697.3 MB/s
CDM 5/6 Write 4K Q32T1: 403 MB/s
CDM 5 Read Seq: 2335 MB/s
CDM 5 Write Seq: 1793 MB/s
CDM 5/6 Read 4K: 63.12 MB/s
CDM 5/6 Write 4K: 273.3 MB/s
Drive Performance Rating - Percent
GMK NucBox K6
MasonSemi 1TB MC7000
83 pt
Geekom GT13 Pro
Acer N7000
79.5 pt
Aoostar GEM10
BIWIN CE980Y28900-1TB
71.4 pt
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
68.7 pt
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
61.1 pt
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
45.6 pt
DiskSpd
seq read
Geekom GT13 Pro
Acer N7000
4357 (4314.26min - 4356.72max) MB/s +40%
Aoostar GEM10
BIWIN CE980Y28900-1TB
4000 (3961.36min - 3999.66max) MB/s +29%
GMK NucBox K6
MasonSemi 1TB MC7000
3703 (3243.89min - 3702.94max) MB/s +19%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
3106 (3062.47min - 3106.43max) MB/s
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3033 (3026.64min - 3032.69max) MB/s -2%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
2718 (2645.56min - 2717.91max) MB/s -12%
seq write
GMK NucBox K6
MasonSemi 1TB MC7000
5595 (1443.73min - 5595.13max) MB/s +22%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
4604 (4532.99min - 4603.88max) MB/s
Aoostar GEM10
BIWIN CE980Y28900-1TB
4553 (4417.86min - 4552.92max) MB/s -1%
Geekom GT13 Pro
Acer N7000
4544 (4380.79min - 4543.83max) MB/s -1%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3591 (3535.23min - 3591.16max) MB/s -22%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
3404 (38.3min - 3403.58max) MB/s -26%
seq q8 t1 read
GMK NucBox K6
MasonSemi 1TB MC7000
7069 (6459.52min - 7068.99max) MB/s +36%
Geekom GT13 Pro
Acer N7000
7007 (6166.72min - 7006.62max) MB/s +35%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
5195 (4594.02min - 5195.39max) MB/s
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
5174 (4541.87min - 5174.3max) MB/s 0%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
4893 (3920.33min - 4893.08max) MB/s -6%
Aoostar GEM10
BIWIN CE980Y28900-1TB
4878 (4476.29min - 4877.98max) MB/s -6%
seq q8 t1 write
GMK NucBox K6
MasonSemi 1TB MC7000
6669 (1251.16min - 6668.61max) MB/s +41%
Geekom GT13 Pro
Acer N7000
5261 (5018.9min - 5261.3max) MB/s +11%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
4725 (4657.36min - 4724.88max) MB/s
Aoostar GEM10
BIWIN CE980Y28900-1TB
4505 (4403.81min - 4505.09max) MB/s -5%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3570 (3522.17min - 3569.77max) MB/s -24%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
739 (52.85min - 739.46max) MB/s -84%
4k q1 t1 read
Geekom GT13 Pro
Acer N7000
85.3 (82.57min - 85.32max) MB/s +7%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
79.7 (77.93min - 79.74max) MB/s
GMK NucBox K6
MasonSemi 1TB MC7000
71 (70.41min - 71.02max) MB/s -11%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
62.6 (62.13min - 62.62max) MB/s -21%
Aoostar GEM10
BIWIN CE980Y28900-1TB
61.7 (61.26min - 61.71max) MB/s -23%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
44.2 (41.58min - 44.2max) MB/s -45%
4k q1 t1 write
Geekom GT13 Pro
Acer N7000
327 (306.06min - 326.78max) MB/s +13%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
289 (283.17min - 289.07max) MB/s
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
269 (266.85min - 269.05max) MB/s -7%
GMK NucBox K6
MasonSemi 1TB MC7000
239 (237.67min - 239.17max) MB/s -17%
Aoostar GEM10
BIWIN CE980Y28900-1TB
235 (230.8min - 235.02max) MB/s -19%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
139.4 (137.92min - 139.38max) MB/s -52%
4k q32 t16 read
Geekom GT13 Pro
Acer N7000
3593 (3380.17min - 3593.41max) MB/s +14%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
3139 (3067min - 3138.94max) MB/s
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
2810 (2697.36min - 2809.61max) MB/s -10%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
2765 (2513.4min - 2765.45max) MB/s -12%
GMK NucBox K6
MasonSemi 1TB MC7000
2463 (2040.37min - 2463.15max) MB/s -22%
Aoostar GEM10
BIWIN CE980Y28900-1TB
2004 (2002.37min - 2004.23max) MB/s -36%
4k q32 t16 write
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
4288 (4275.2min - 4287.55max) MB/s
GMK NucBox K6
MasonSemi 1TB MC7000
3983 (3232.63min - 3982.67max) MB/s -7%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3254 (3139.57min - 3253.57max) MB/s -24%
Aoostar GEM10
BIWIN CE980Y28900-1TB
2681 (2560.18min - 2680.76max) MB/s -37%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
1066 (54.15min - 1066.13max) MB/s -75%
Geekom GT13 Pro
Acer N7000
762 (700.88min - 761.76max) MB/s -82%
AS SSD
Score Total
GMK NucBox K6
MasonSemi 1TB MC7000
7918 Points +199%
Geekom GT13 Pro
Acer N7000
6798 Points +157%
Aoostar GEM10
BIWIN CE980Y28900-1TB
6147 Points +132%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
5182 Points +96%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
2646 Points
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
2617 Points -1%
Score Read
GMK NucBox K6
MasonSemi 1TB MC7000
3258 Points +194%
Geekom GT13 Pro
Acer N7000
2866 Points +159%
Aoostar GEM10
BIWIN CE980Y28900-1TB
2109 Points +90%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
1796 Points +62%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
1215 Points +10%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
1108 Points
Score Write
GMK NucBox K6
MasonSemi 1TB MC7000
3000 Points +184%
Aoostar GEM10
BIWIN CE980Y28900-1TB
2964 Points +180%
Geekom GT13 Pro
Acer N7000
2516 Points +138%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
2508 Points +137%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
1057 Points
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
800 Points -24%
Seq Read
GMK NucBox K6
MasonSemi 1TB MC7000
5825.09 MB/s +49%
Geekom GT13 Pro
Acer N7000
4546 MB/s +16%
Aoostar GEM10
BIWIN CE980Y28900-1TB
4264 MB/s +9%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
3913.46 MB/s
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
3900.61 MB/s 0%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
3786.44 MB/s -3%
Seq Write
GMK NucBox K6
MasonSemi 1TB MC7000
5783.3 MB/s +197%
Aoostar GEM10
BIWIN CE980Y28900-1TB
3970 MB/s +104%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
3390.67 MB/s +74%
Geekom GT13 Pro
Acer N7000
3374 MB/s +73%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
2799.85 MB/s +44%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
1944.73 MB/s
4K Read
Geekom GT13 Pro
Acer N7000
83.4 MB/s +62%
Aoostar GEM10
BIWIN CE980Y28900-1TB
68.4 MB/s +33%
GMK NucBox K6
MasonSemi 1TB MC7000
65.5 MB/s +27%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
59.79 MB/s +16%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
51.6 MB/s
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
37.69 MB/s -27%
4K Write
Geekom GT13 Pro
Acer N7000
296 MB/s +35%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
219.02 MB/s
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
210.95 MB/s -4%
Aoostar GEM10
BIWIN CE980Y28900-1TB
196.5 MB/s -10%
GMK NucBox K6
MasonSemi 1TB MC7000
190.06 MB/s -13%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
129.29 MB/s -41%
4K-64 Read
GMK NucBox K6
MasonSemi 1TB MC7000
2610.4 MB/s +293%
Geekom GT13 Pro
Acer N7000
2328 MB/s +250%
Aoostar GEM10
BIWIN CE980Y28900-1TB
1614 MB/s +143%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
1357.17 MB/s +104%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
787.73 MB/s +18%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
664.76 MB/s
4K-64 Write
Aoostar GEM10
BIWIN CE980Y28900-1TB
2370 MB/s +268%
GMK NucBox K6
MasonSemi 1TB MC7000
2231.47 MB/s +247%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
2017.38 MB/s +214%
Geekom GT13 Pro
Acer N7000
1883 MB/s +193%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
643.31 MB/s
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
331.93 MB/s -48%
Access Time Read
Geekom GT13 Pro
Acer N7000
0.127 ms * -65%
Aoostar GEM10
BIWIN CE980Y28900-1TB
0.098 ms * -27%
GMK NucBox K6
MasonSemi 1TB MC7000
0.079 ms * -3%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
0.077 ms *
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
0.066 ms * +14%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
0.047 ms * +39%
Access Time Write
GMK NucBox K6
MasonSemi 1TB MC7000
0.196 ms * -161%
Beelink SER7
Crucial P3 Plus CT1000P3PSSD8
0.076 ms * -1%
Beelink SER8
Crucial P3 Plus CT1000P3PSSD8
0.075 ms *
Aoostar GEM10
BIWIN CE980Y28900-1TB
0.061 ms * +19%
Geekom GT13 Pro
Acer N7000
0.059 ms * +21%
Beelink GTR7 7840HS
Crucial P3 Plus CT1000P3PSSD8
0.049 ms * +35%

* ... Moindre est la valeur, meilleures sont les performances

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

02605207801040130015601820208023402600286031203380364039004160442046804940Tooltip
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5188 (4957.94-5197.46)
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8: Ø5151 (4560.99-5169.27)

Performance du GPU

La Radeon 780M dans le Ryzen 7 8845HS n'offre au mieux qu'une augmentation marginale des performances par rapport au même GPU dans le SER7 de l'année dernière. Ce n'est pas nécessairement une mauvaise chose, car AMD est toujours au coude-à-coude avec Intel, même si l'on compare avec les derniers modèles Arc 8 iGPU dans la plateforme Meteor Lake-H. L'iGPU Arc 8 de la plateforme Minisforum AtomMan X7 Tipar exemple, est environ 10 % plus rapide dans le benchmark Time Spy basé sur DX12, alors que c'est l'inverse dans le benchmark Fire Strike basé sur DX11.

3DMark 11
3DMark 11
Fire Strike
Fire Strike
Time Spy
Time Spy
Nomade d'acier
Nomade d'acier
Voie rapide
Voie rapide

3DMark Performance Rating - Percent
BOSGAME M1
AMD Radeon 780M, AMD Ryzen 7 7840HS
98.8 pt
Beelink SER8
AMD Radeon 780M, AMD Ryzen 7 8845HS
94.3 pt
Geekom A8
AMD Radeon 780M, AMD Ryzen 9 8945HS
91.8 pt
AcePC Wizbox AI -1!
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
90 pt
Beelink SER7 -1!
AMD Radeon 780M, AMD Ryzen 7 7840HS
89.9 pt
Minisforum AtomMan X7 Ti
Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H
87.3 pt
Moyenne AMD Radeon 780M

85.8 pt
Aoostar GEM10
AMD Radeon 680M, AMD Ryzen 7 6800H
81.3 pt
Geekom GT13 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H
57 pt
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
55.7 pt
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
53.3 pt
GMK NucBox M6
AMD Radeon 660M, AMD Ryzen 5 6600H
52.7 pt
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
50.1 pt
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
46.1 pt
GMK NucBox M5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
39.5 pt
GMK NucBox M4 -2!
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H
27.2 pt
HP Elite Mini 800 G9-5M9T9EA
Intel UHD Graphics 770, Intel Core i5-13500
26.1 pt
3DMark 11 - 1280x720 Performance GPU
BOSGAME M1
AMD Radeon 780M, AMD Ryzen 7 7840HS
14249 Points +4%
Beelink SER8
AMD Radeon 780M, AMD Ryzen 7 8845HS
13673 Points
Geekom A8
AMD Radeon 780M, AMD Ryzen 9 8945HS
13533 Points -1%
Beelink SER7
AMD Radeon 780M, AMD Ryzen 7 7840HS
12845 Points -6%
Moyenne AMD Radeon 780M
  (7868 - 14274, n=59)
12501 Points -9%
AcePC Wizbox AI
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
12105 Points -11%
Minisforum AtomMan X7 Ti
Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H
11691 Points -14%
Aoostar GEM10
AMD Radeon 680M, AMD Ryzen 7 6800H
11668 Points -15%
Geekom GT13 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H
7424 Points -46%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
7321 Points -46%
GMK NucBox M6
AMD Radeon 660M, AMD Ryzen 5 6600H
7184 Points -47%
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
7101 Points -48%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
6999 Points -49%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
6858 Points -50%
GMK NucBox M5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
5388 Points -61%
HP Elite Mini 800 G9-5M9T9EA
Intel UHD Graphics 770, Intel Core i5-13500
3428 Points -75%
GMK NucBox M4
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H
3122 Points -77%
3DMark
1280x720 Cloud Gate Standard Graphics
BOSGAME M1
AMD Radeon 780M, AMD Ryzen 7 7840HS
53972 Points +1%
Beelink SER8
AMD Radeon 780M, AMD Ryzen 7 8845HS
53347 Points
Geekom A8
AMD Radeon 780M, AMD Ryzen 9 8945HS
49053 Points -8%
Moyenne AMD Radeon 780M
  (27771 - 53972, n=31)
46695 Points -12%
Aoostar GEM10
AMD Radeon 680M, AMD Ryzen 7 6800H
45116 Points -15%
AcePC Wizbox AI
Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H
40417 Points -24%
Minisforum AtomMan X7 Ti
Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H
38976 Points -27%
Geekom GT13 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H
33541 Points -37%
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
32875 Points -38%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
32427 Points -39%
GMK NucBox M6
AMD Radeon 660M, AMD Ryzen 5 6600H
31849 Points -40%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
31054 Points -42%
GMK NucBox M5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
25003 Points -53%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
24634 Points -54%
GMK NucBox M4
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H
16753 Points -69%
HP Elite Mini 800 G9-5M9T9EA
Intel UHD Graphics 770, Intel Core i5-13500
16288 Points -69%
1920x1080 Fire Strike Graphics
BOSGAME M1
AMD Radeon 780M, AMD Ryzen 7 7840HS
8816 Points +3%
Beelink SER8
AMD Radeon 780M, AMD Ryzen 7 8845HS
8572 Points
Geekom A8
AMD Radeon 780M, AMD Ryzen 9 8945HS
8354 Points -3%
Beelink SER7
AMD Radeon 780M, AMD Ryzen 7 7840HS
8001 Points -7%
Moyenne AMD Radeon 780M
  (4550 - 8904, n=61)
7770 Points -9%
Aoostar GEM10
AMD Radeon 680M, AMD Ryzen 7 6800H
7653 Points -11%
Minisforum AtomMan X7 Ti
Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H
7599 Points -11%
Geekom GT13 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H
5812 Points -32%
Intel NUC 13 Pro Desk Edition Kit
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5616 Points -34%
Minisforum Venus Series NAB9
Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK
5407 Points -37%
GMK NucBox M6
AMD Radeon 660M, AMD Ryzen 5 6600H
4984 Points -42%
Geekom A5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H
4567 Points -47%
Maxtang MTN-FP750
AMD Radeon 680M, AMD Ryzen 7 7735HS
4424 Points -48%
GMK NucBox M5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
3653 Points -57%
HP Elite Mini 800 G9-5M9T9EA
Intel UHD Graphics 770, Intel Core i5-13500
2643 Points -69%
GMK NucBox M4
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H
2517 Points -71%
2560x1440 Time Spy Graphics
AceP
