Intel Core i5-540M

Intel 540M

Le Intel Core i5-540M est un dual core puissant pour portables (avec le Turbo Mode) cadencé de 2.66 à 3.33 GHz. Il est basé sur la plateforme Nehalem (Westemere). L'Hyperthreading permet à ce Dual Core de gérer 4 tâches à la fois (pour un meilleur usage du pipeline). Comparé au Core i7-620M, le 540M ne possède que 3 Mo de cache Level 3 est une fréquence moins élevée.

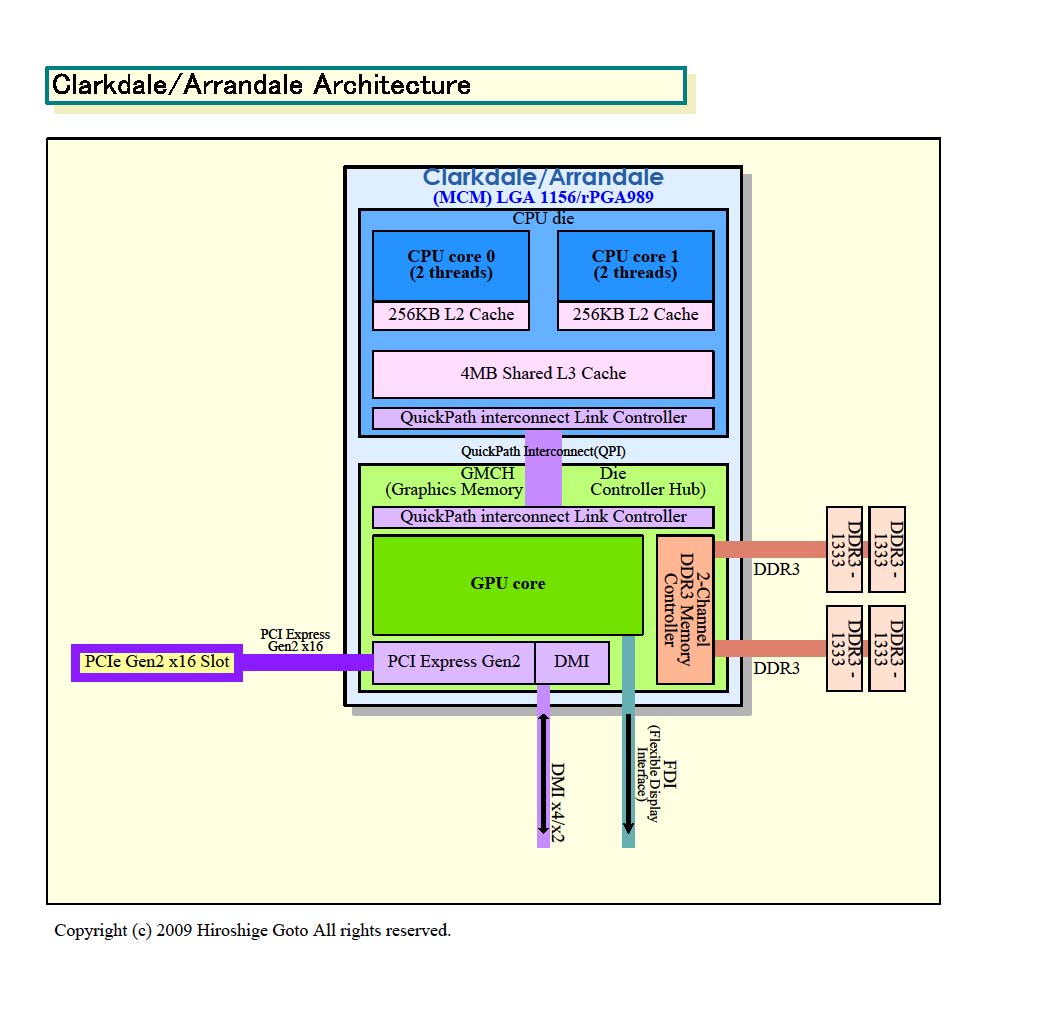

Le Core i5-540M possède une GMA HD et un contrôleur mémoire. Ils sont sur des puces séparées de 45nm alors que le CPU est gravé en 32nm.

Les performance du Core i5-540M est en moyenne plus rapide que les 2.8 GHz du Core 2 Duo T9800 et Core 2 Duo T9900. Le Core i5-540M est un processeur puissant capable de faire tourner tout les logiciels modernes. Il n'y a que le quad core i7 qui soit vraiment plus rapide.

Les CPU gravés en 32nm de la génération Westmere supportent les instructions AES.

La carte graphique intégrée Intel Graphics Media Accelerator HD (GMA HD) cadence entre 500 et 766 MHz bien plus rapide que la GMA 4500MHD. Une GeForce 9400M (ION) reste plus rapide vu que Nvidia et ATI mettent bien mieux à jour leurs drivers que Intel.

Avec une consommation de 35 Watt (max.) c'est bien mieux aux niveau des performances par rapport aux 35 Watt du Core 2 Duo de la série T (CPU seul). Grâce au Turbo Boost, Le Core i5 est potentiellement plus gourmand que le Core 2 Duo. En mode à vide, le i5 consomme moins que le Core 2 Duo.

GammeIntel Core i5
Nom de codeArrandale

Gamme: Core i5 Arrandale

Intel Core i5-580M2.67 - 3.33 GHz2 / 4 cores3 MB L3
Intel Core i5-560M2.67 - 3.2 GHz2 / 4 cores3 MB L3
Intel Core i5-480M2.67 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-540M « 2.53 - 3.07 GHz2 / 4 cores3 MB L3
Intel Core i5-460M2.53 - 2.8 GHz2 / 4 cores3 MB L3
Intel Core i5-520M2.4 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-450M2.4 - 2.66 GHz2 / 4 cores3 MB L3
Intel Core i5-430M2.26 - 2.53 GHz2 / 4 cores3 MB L3
Intel Core i5-560UM1.33 - 2.13 GHz2 / 4 cores3 MB L3
Intel Core i5-470UM1.33 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-540UM1.2 - 2 GHz2 / 4 cores3 MB L3
Intel Core i5-520UM1.06 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-430UM1.2 - 1.73 GHz2 / 4 cores3 MB L3
Fréquence2530 - 3066 MHz
Bus système2500
Cache de Niveau 1 (L1)128 KB
Cache de Niveau 2 (L2)512 KB
Cache de Niveau 3 (L3)3 MB
Nombres de cœurs/threads simultanés supportés2 / 4
Consommation énergétique maximale (TDP)35 Watt(s)
Nombre de transistors382+177 Million(s)
Lithographie (procédé de fabrication)32 nm
Taille du Die81+114 mm2
Température maximale105 °C
SocketBGA1288, PGA988
FonctionnalitésTurbo Boost, Hyper Threading, Enhanced Speedstep, integrierte GMA HD 733MHz,
64 BitPrend en charge les instructions 64 Bit
Architecturex86
Prix de départ$257 U.S.
Date de présentation01/04/2010
Lien redirigeant vers une page externe du produitark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 2.16     moyenne: 2.2     médian: 2.2 (3%)     maximum: 2.29 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 3061     moyenne: 3141     médian: 3132.5 (19%)     maximum: 3214 points
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 6545     moyenne: 6950     médian: 7030.5 (5%)     maximum: 7211 points
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 7844     moyenne: 8349     médian: 8408 (6%)     maximum: 8600 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 3237     moyenne: 3785     médian: 3938 (5%)     maximum: 3991 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 569     moyenne: 740     médian: 577 (7%)     maximum: 1352 s
wPrime 2.10 - wPrime 2.0 32m *
min: 18.1     moyenne: 18.8     médian: 18.5 (4%)     maximum: 19.9 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 2643     moyenne: 2814     médian: 2826 (6%)     maximum: 2905 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
15 s (3%)
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 35     moyenne: 36.2     médian: 36 (2%)     maximum: 37 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 822     moyenne: 848     médian: 850 (4%)     maximum: 867 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 32820     moyenne: 34953     médian: 33495 (16%)     maximum: 40000 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 26630     moyenne: 27546     médian: 26815 (21%)     maximum: 29923 MFLOPS
PCMark 05 - PCMark 05 - Standard
min: 6030     moyenne: 6499     médian: 6498.5 (13%)     maximum: 6967 Points
Windows 7 Experience Index - Win7 CPU
min: 5.2     moyenne: 6.4     médian: 6.6 (85%)     maximum: 6.8 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 7801     moyenne: 7897     médian: 7904 (7%)     maximum: 7994 Points
- Amplitude des valeurs obtenues dans le benchmark avec cette carte graphique
- Valeur moyenne obtenue dans le benchmark avec cette carte graphique
* Plus les chiffres sont petits, plus les performances sont élevées
