Intel Core i5-480M

Intel 480M

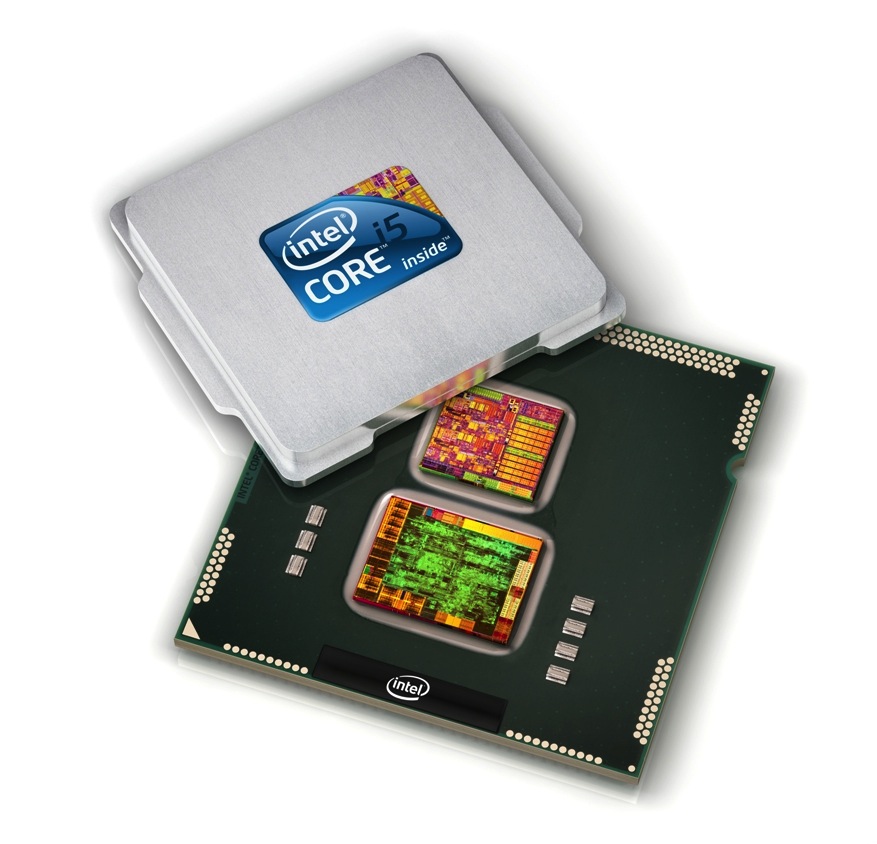

Le Intel Core i5-480M est un CPU de milieu de gamme dual-core (avec Turbo Mode) cadencé de 2.66 à 2.9 GHz. Ce sont des cœurs de la génération Nehalem (Westmere). L' Hyperthreading permet aux Dual Core de gérer 4 processeurs virtuels (pour mieux utiliser le pipeline). Comparé aux Core i5-540M, le 480M ne supporte pas les fonctions AES, VT-d et Trusted Execution Functions avec un Turbo Boost moins puissant (2.9 contre 3.06 GHz). Mais la fréquence de base est plus élevée par défaut.

Les nouveaux Core i5-480M possède un GPU intégré nommé GMA HD et un contrôleur mémoire. Tout deux sur une puce séparé et gravée en 45nm alors que le CPU est gravé en 32nm.

Les performances du Core i5-480M sont en moyenne superieures aux 2.8 GHz des Core 2 Duo T9800 et dans beaucoup de tests, les Core 2 Duo T9900 sont battus (dans 3DMark 06 CPU). Donc le Core i5-480M est un dual core haut de gamme capable de faire beaucoup de choses. Seul les quad core i7 sont plus puissants pour certaines tâches.

Le GPU intégré Intel Graphics Media Accelerator HD (GMA HD) est cadencé entre 500 et 766 MHz donc bien plus rapide que la GMA 4500MHD. Une GeForce 9400M (ION) sera plus rapide (Surtout grâce aux drivers). La GMA supporte le Turbo Mode pour augmenter sa fréquence.

Avec une consommation de 35 Watt TDP (max.) pour tout le package donc supérieur aux 35 Watt de TDP des Core 2 Duo série T (CPU seul). Et avec Turbo Boost, le Core i5 utilisera tout le TDP de 35 Watt a pleine puissance donc peut-être plus que les Core 2 Duo. A vide, le i5 consomme moins que les Core 2 Duo.

GammeIntel Core i5
Nom de codeArrandale

Gamme: Core i5 Arrandale

Intel Core i5-580M2.67 - 3.33 GHz2 / 4 cores3 MB L3
Intel Core i5-560M2.67 - 3.2 GHz2 / 4 cores3 MB L3
Intel Core i5-480M « 2.67 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-540M2.53 - 3.07 GHz2 / 4 cores3 MB L3
Intel Core i5-460M2.53 - 2.8 GHz2 / 4 cores3 MB L3
Intel Core i5-520M2.4 - 2.93 GHz2 / 4 cores3 MB L3
Intel Core i5-450M2.4 - 2.66 GHz2 / 4 cores3 MB L3
Intel Core i5-430M2.26 - 2.53 GHz2 / 4 cores3 MB L3
Intel Core i5-560UM1.33 - 2.13 GHz2 / 4 cores3 MB L3
Intel Core i5-470UM1.33 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-540UM1.2 - 2 GHz2 / 4 cores3 MB L3
Intel Core i5-520UM1.06 - 1.87 GHz2 / 4 cores3 MB L3
Intel Core i5-430UM1.2 - 1.73 GHz2 / 4 cores3 MB L3
Fréquence2666 - 2933 MHz
Bus système2400
Cache de Niveau 1 (L1)128 KB
Cache de Niveau 2 (L2)512 KB
Cache de Niveau 3 (L3)3 MB
Nombres de cœurs/threads simultanés supportés2 / 4
Consommation énergétique maximale (TDP)35 Watt(s)
Nombre de transistors382+177 Million(s)
Lithographie (procédé de fabrication)32 nm
Taille du Die81+114 mm2
Température maximale105 °C
SocketBGA1288, PGA988
Fonctionnalitésintegrated DDR3 memory controller, GMA HD Graphics (500-766MHz), MMX, SSE (1,2,3,3S, 4.1, 3.2), EM64T, VT-x
64 BitPrend en charge les instructions 64 Bit
Architecturex86
Date de présentation12/04/2010
Lien redirigeant vers une page externe du produitark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 2.18     moyenne: 2.3     médian: 2.3 (3%)     maximum: 2.37 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 3130     moyenne: 3192     médian: 3191 (19%)     maximum: 3248 points
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 6939     moyenne: 7187     médian: 7080 (5%)     maximum: 7553 points
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 8159     moyenne: 8558     médian: 8556 (6%)     maximum: 8969 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 3831     moyenne: 3928     médian: 3912 (5%)     maximum: 4030 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 539     moyenne: 564     médian: 557 (7%)     maximum: 600 s
wPrime 2.10 - wPrime 2.0 32m *
min: 17     moyenne: 18     médian: 18 (4%)     maximum: 19.19 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 2579     moyenne: 2880     médian: 2954 (6%)     maximum: 3093 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 15     moyenne: 15     médian: 15 (3%)     maximum: 15.2 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 35     moyenne: 36.1     médian: 36 (2%)     maximum: 37 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 842     moyenne: 852     médian: 851 (4%)     maximum: 866 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 33210     moyenne: 38100     médian: 38100 (18%)     maximum: 42990 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 29000     moyenne: 29750     médian: 29750 (23%)     maximum: 30500 MFLOPS
PCMark 05 - PCMark 05 - Standard
7718 Points (16%)
Windows 7 Experience Index - Win7 CPU
min: 6.8     moyenne: 6.9     médian: 6.9 (88%)     maximum: 6.9 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 7113     moyenne: 7765     médian: 7845 (7%)     maximum: 8255 Points
3DMark 11 - 3DM11 Performance Physics
min: 2640     moyenne: 2744     médian: 2741 (7%)     maximum: 2854 Points
- Amplitude des valeurs obtenues dans le benchmark avec cette carte graphique
- Valeur moyenne obtenue dans le benchmark avec cette carte graphique
* Plus les chiffres sont petits, plus les performances sont élevées
