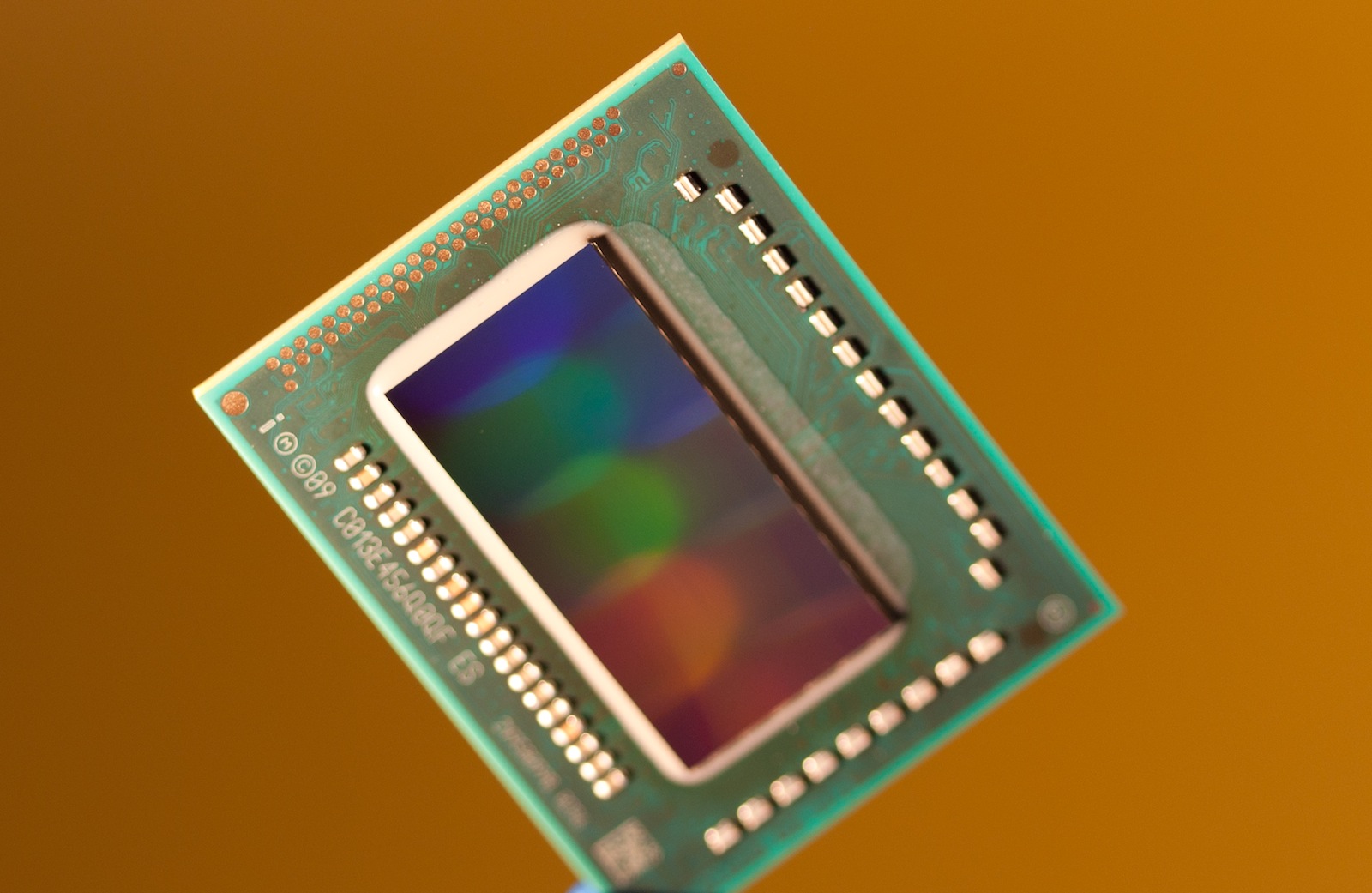

Intel Core i7-2820QM

Intel 2820QM

Le Intel Core i7-2820QM est un quad core puissant pour portables. A sa date de sortie (Jan. 2011) c'est le CPU de 45 Watt l;e plus puissant. Il possède une architecture Sandy Bridge et supporte l'Hyperthreading donc supporte 8 cœurs virtuellement. Comparé aux quad cores Clarksdale, le i7-2820QM est gravé en 32nm avec GPU intégré et fonctions AES. Avec un 2720QM plus lent, le 2820QM possède plus de cache de niveau 3 (8 vs. 6Mo).

Sandy Bridge succède à l'architecture Arrandale. On notera la présence des nouvelles instructions 265Bit AVX, le nouveau Turbo Boost et le GPU intégré à la puce gravée en 32nm. De plus le contrôleur mémoire supporte 8 Go de RAM DDR3-1333.

Le i7-2820QM possède un GPU intégré (Intel HD Graphics 3000) qui est beaucoup plus rapide que les Intel HD de la série Arrandale avec le niveau des GeForce 310M. La HD Graphics 3000 supporte Turbo Boost et se situe entre 650 MHz et 1300 MHz selon les cas. Mais le GPU pompe sur la puissance du CPU quand il est activé.

Les performances du Core i7-2820QM sont meilleures (dans Cinebench) que le Core i7-940XM quad core. Donc très largement suffisant pour les jeux modernes. Avec Turbo Boost 2.0 mêmes les applications mono cœur seront bien plus rapides. Retrouvez les tests du 2720QM en bas de cette page.

Le TDP élevé du 2820QM de 45 Watt n'autorise son installation que sur les 15" et plus gros. Mais ce TDP prend en compte la présence du GPU dans le CPU.

GammeIntel Core i7
Nom de codeSandy Bridge

Gamme: Core i7 Sandy Bridge

Intel Core i7-2960XM2.7 - 3.7 GHz4 / 8 cores8 MB L3
Intel Core i7-2860QM2.5 - 3.6 GHz4 / 8 cores8 MB L3
Intel Core i7-2920XM2.5 - 3.5 GHz4 / 8 cores8 MB L3
Intel Core i7-2760QM2.4 - 3.5 GHz4 / 8 cores6 MB L3
Intel Core i7-2820QM « 2.3 - 3.4 GHz4 / 8 cores8 MB L3
Intel Core i7-2720QM2.2 - 3.3 GHz4 / 8 cores6 MB L3
Intel Core i7-2675QM2.2 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-2670QM2.2 - 3.1 GHz4 / 8 cores6 MB L3
Intel Core i7-2635QM2 - 2.9 GHz4 / 8 cores6 MB L3
Intel Core i7-2630QM2 - 2.9 GHz4 / 8 cores6 MB L3
Intel Core i7-2640M2.8 - 3.5 GHz2 / 4 cores4 MB L3
Intel Core i7-2620M2.7 - 3.4 GHz2 / 4 cores4 MB L3
Intel Core i7-2649M2.3 - 3.2 GHz2 / 4 cores4 MB L3
Intel Core i7-2629M2.1 - 3 GHz2 / 4 cores4 MB L3
Intel Core i7-2677M1.8 - 2.9 GHz2 / 4 cores4 MB L3
Intel Core i7-2637M1.7 - 2.8 GHz2 / 4 cores4 MB L3
Intel Core i7-2657M1.6 - 2.7 GHz2 / 4 cores4 MB L3
Intel Core i7-2617M1.5 - 2.6 GHz2 / 4 cores4 MB L3
Fréquence2300 - 3400 MHz
Cache de Niveau 1 (L1)256 KB
Cache de Niveau 2 (L2)1 MB
Cache de Niveau 3 (L3)8 MB
Nombres de cœurs/threads simultanés supportés4 / 8
Consommation énergétique maximale (TDP)45 Watt(s)
Nombre de transistors995 Million(s)
Lithographie (procédé de fabrication)32 nm
Taille du Die216 mm2
Température maximale100 °C
SocketFCBGA1224, FCPGA988
FonctionnalitésHD Graphics 3000 (650-1300MHz), DDR-1066/1333/1600 Memory Controller, HyperThreading, AVX, Quick Sync, Virtualization
Carte graphiqueIntel HD Graphics 3000 (650 - 1300 MHz)
64 BitPrend en charge les instructions 64 Bit
Architecturex86
Prix de départ$568 U.S.
Date de présentation01/03/2011
Lien redirigeant vers une page externe du produitark.intel.com

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 4.41     moyenne: 5.2     médian: 5.5 (7%)     maximum: 5.81 Points
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 4200     moyenne: 4274     médian: 4249.5 (26%)     maximum: 4365 points
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 12641     moyenne: 14782     médian: 15043.5 (11%)     maximum: 16105 points
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 16327     moyenne: 18631     médian: 19316 (13%)     maximum: 20393 Points
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 5232     moyenne: 5368     médian: 5372 (7%)     maximum: 5468 Points
wPrime 2.10 - wPrime 2.0 1024m *
min: 281     moyenne: 366.3     médian: 360.2 (4%)     maximum: 458.6 s
wPrime 2.10 - wPrime 2.0 32m *
min: 8.27     moyenne: 10.7     médian: 10 (2%)     maximum: 13.64 s
3DMark 06 - CPU - 3DMark 06 - CPU
min: 4427     moyenne: 5486     médian: 5818.5 (12%)     maximum: 5923 Points
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 11     moyenne: 11.2     médian: 11 (2%)     maximum: 11.6 s
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 23.1     moyenne: 29.7     médian: 25 (1%)     maximum: 54 s
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
min: 618     moyenne: 628     médian: 625 (3%)     maximum: 644 s
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
min: 83000     moyenne: 90497     médian: 87000 (41%)     maximum: 101490 MIPS
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
min: 23590     moyenne: 53623     médian: 66280 (51%)     maximum: 71000 MFLOPS
PCMark 05 - PCMark 05 - Standard
13842 Points (29%)
Windows 7 Experience Index - Win7 CPU
min: 7.4     moyenne: 7.5     médian: 7.5 (96%)     maximum: 7.5 Points
3DMark Vantage - 3DM Vant. Perf. CPU no Physx
min: 16115     moyenne: 18441     médian: 18520 (16%)     maximum: 20526 Points
3DMark 11 - 3DM11 Performance Physics
min: 5165     moyenne: 6335     médian: 6724 (18%)     maximum: 7245 Points
- Amplitude des valeurs obtenues dans le benchmark avec cette carte graphique
- Valeur moyenne obtenue dans le benchmark avec cette carte graphique
* Plus les chiffres sont petits, plus les performances sont élevées
