Qualcomm Adreno 420

Qualcomm Adreno 420

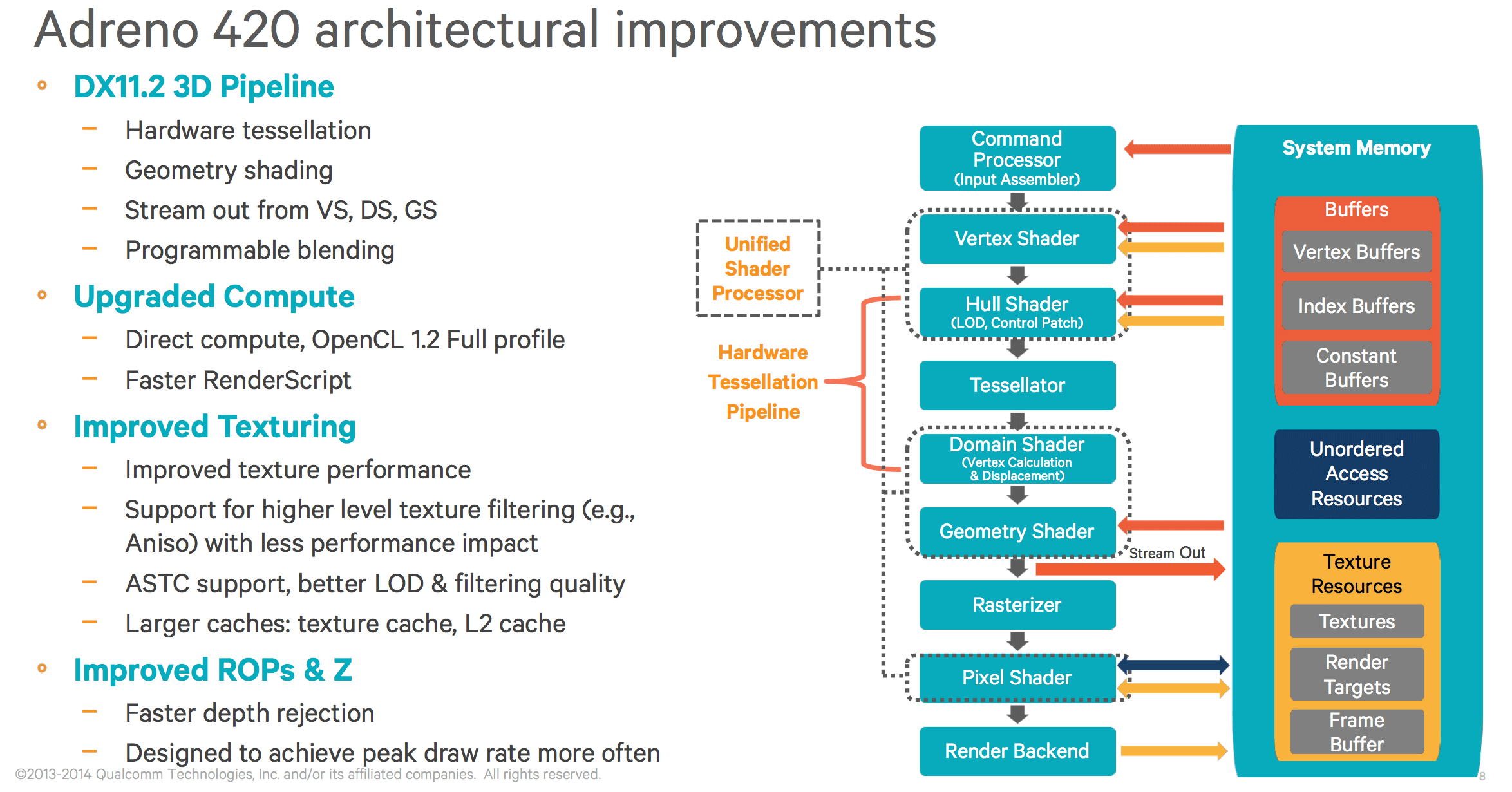

Le Qualcomm Adreno 420 est une puce graphique intégrée dans certains SoC Qualcomm que l'on retrouve dans des Smartphones et autres tablettes. Présentée en milieu d'année 2013, la carte graphique a principalement été intégrée dans des appareils Android. Elle utilise une technologie dénommée FlexRender, qui permet de commuter "intelligemment" entre le rendement TBR (TBR Tile Based Renderer) et le rendement classique direct. L'Adreno 420 prend en charge les librairies OpenGL ES 3.1 et DirectX 11 FL 11_2 (respectivement ES 3.0 et DirectX 9_3 pour l'Adreno 330)

La fréquence de fonctionnement de l'Adreno 420 diffère en fonction du SoC, elle va ainsi de 500 MHz à 600 MHz dans le Snapdragon 805 APQ8084.

Selon Qualcomm, la consommation éenrgétique a été réduite jusqu'à 20M par rapport au Snapdragon 800 sous GFXBench 2.7 T-Rex, tout en offrant 40% de performances en plus. Les premiers tests synthétiques montrent même des gains plus importants, mais la chauffe risque de brider la puce dans certains appareils afin d'éviter toute surchauffe (sans surprise comme beaucoup d'autre SoC ARM, sur les Smartphones en particulier). L'Adreno 420 n'a aucun mal à faire mieux que le Mali-T628 MP6 (Samsung Exynos 5420/5430) ou encore le PowerVR G6430 (Apple A7), il s'agit donc de l'une des puces graphiques les plus rapides mi-2014. Elle reste néanmoins derrière les Nvidia Tegra K1 et PowerVR GX6650 que l'on trouve dans le SoC Apple A8X (toutes deux des puces pour tablettes).

Adreno 400 Gamme
Adreno 430 192 @ 0.65 GHz
Adreno 420 128 @ 0.6 GHz
Adreno 418 128 @ 0.6 GHz
Adreno 405 48 @ 0.55 GHz
Pipelines128 - unifiés
Fréquence du noyau interne600 (Boost) MHz
Mémoire partagéeoui
APIDirectX 11, OpenGL ES 3.1
technologie28 nm
CaractéristiquesOpenCL 1.2
Date de présentation23.06.2014
Lien redirigeant vers la page du fabricanthttp://www.qualcomm.com/media/documents/...
CPU in Adreno 420GPU Base SpeedGPU Boost / Turbo
Qualcomm Snapdragon 805 APQ80844 x 2700 MHz600 MHz? MHz

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Graphics
min: 19019     moyenne: 21258     médian: 20733 (3%)     maximum: 25480 Points
GFXBench (DX / GLBenchmark) 2.7
GFXBench 2.7 T-Rex HD Onscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench 2.7 T-Rex HD Onscreen C24Z16
min: 25     moyenne: 28     médian: 27.9 (1%)     maximum: 31.4 fps
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
min: 39     moyenne: 41     médian: 41.4 (0%)     maximum: 42.4 fps
GFXBench 3.0 - GFXBench 3.0 Manhattan
min: 10     moyenne: 11     médian: 11 (3%)     maximum: 12 fps
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
min: 17.7     moyenne: 18.1     médian: 17.9 (1%)     maximum: 19 fps
Basemark X 1.0 - Basemark X 1.0 Off-Screen
min: 21.1     moyenne: 21.1     médian: 21.1 (99%)     maximum: 21.260000228881836 fps
Basemark X 1.1 - Basemark X 1.1 High Quality
min: 17868     moyenne: 18483     médian: 18680 (42%)     maximum: 18900 Points
Basemark X 1.1 - Basemark X 1.1 Medium Quality
min: 29551     moyenne: 31186     médian: 31806 (71%)     maximum: 32200 Points
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile 2D Graphics Tests
min: 2283     moyenne: 3091     médian: 3436 (3%)     maximum: 3554 Points
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile 3D Graphics Tests
min: 1129     moyenne: 1732     médian: 1979 (4%)     maximum: 2088 Points
Smartbench 2012 - Smartbench 2012 Gaming Index
min: 2108     moyenne: 3733     médian: 4224.5 (92%)     maximum: 4375 points
- Amplitude des valeurs obtenues dans le benchmark avec cette carte graphique
- Valeur moyenne obtenue dans le benchmark avec cette carte graphique
* Plus les chiffres sont petits, plus les performances sont élevées

Pour plus de jeux susceptibles d'être fluides avec cette carte graphique et obtenir une liste exhaustive de tous les jeux et cartes graphiques testés, consultez notre liste des jeux.
