ATI Mobility FireGL V5700

ATI Mobility FireGL V5700

L'ATI Mobility FireGL V5700 est une carte graphique professionnelle pour laptops/stations de travail mobiles. Elle est basée sur la puce Mobilty Radeon HD 3650 mais dispose de pilotes professionnels et certifiés. En outre, certaines fonctions ne sont activées que dans la gamme FireGL (comme les lignes AA). En raison des optimisations pour l’OpenGL, même les cartes  FireGL d'entrée de gamme peuvent battre les cartes graphiques haut de gamme pour grand public dans certains benchmarks et applications graphiques.
La FireGL V5700 est construite en 55nm et est composée de 378 millions de transistors. Grâce aux 120 unified shaders et le bus mémoire de 128 bits, la performance peut se positionner dans la classe moyenne.
Grâce au moteur vidéo Avivo, le processeur graphique est capable d’accélérer le décodage de vidéos HD.

Mobility FireGL V5000 Gamme
Mobility FireGL V5725 120 @ 0.68 GHz128 Bit @ 800 MHz
Mobility FireGL V5700 120 @ 0.6 GHz128 Bit @ 700 MHz

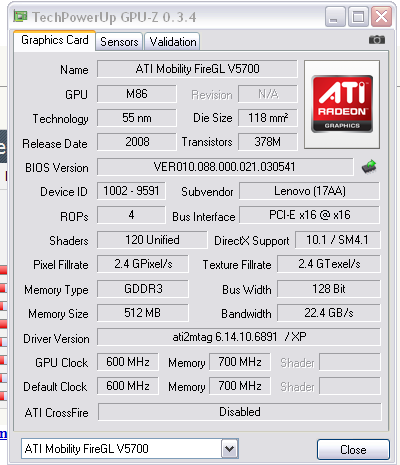

Nom de codeM86-GL
ArchitectureRV6xx
Pipelines120 - unifiés
Fréquence du noyau interne600 MHz
Fréquence de la mémoire700 MHz
Largeur du bus mémoire128 Bit
Type de mémoireDDR2/GDDR3/GDDR4
Mémoire partagéenon
APIDirectX 10.1, Shader 4.1
Nombre de transistors378 Million(s)
technologie55 nm
Caractéristiques Powerplay 7.0, PCI-E 2.0, 2 dual-link-fähige DVI Ausgänge (HDCP fähig), integrierter DisplayPort Ausgänge. bis 2560x1600
Dimension de l'ordinateur portablede taille moyenne
Date de présentation07.01.2008
Lien redirigeant vers la page du fabricanthttp://ati.amd.com/de/products/mobilityr...

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DM Vant. Perf. GPU no PhysX +
3DMark 03 - 3DMark 03 - Standard
min: 10460     moyenne: 10662     médian: 10662 (6%)     maximum: 10864 Points
3DMark 05 - 3DMark 05 - Standard
min: 8530     moyenne: 8577     médian: 8577 (12%)     maximum: 8624 Points
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06 - Standard 1280x1024 +
Cinebench R10 Cinebench R10 Shading (32bit) +
- Amplitude des valeurs obtenues dans le benchmark avec cette carte graphique
- Valeur moyenne obtenue dans le benchmark avec cette carte graphique
* Plus les chiffres sont petits, plus les performances sont élevées

Pour plus de jeux susceptibles d'être fluides avec cette carte graphique et obtenir une liste exhaustive de tous les jeux et cartes graphiques testés, consultez notre liste des jeux.
