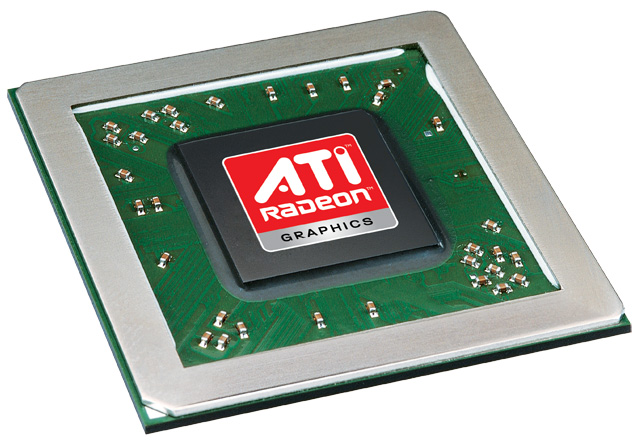

ATI Mobility Radeon X2300

L’ATI Mobility Radeon détrône la ATI Mobility Radeon X1350ATI Mobility Radeon X1350 pour des ordinateurs portatifs. Elle supporte DirectX 10. Elle est aussi rapide que la ATI Mobility Radeon X600 ou la NVidia GeForce Go 7300.
Aux dernières rumeurs, la X2300 n’est qu’une X1300 / X1350 avec un autre nom (pour le pas confondre avec la X1250 qui est bien moins rapide). Et elle n’est compatible qu’avec Direct X 9.
| Fabricant | ATI |
| Série | Mobility Radeon X2000 |
| Nom de code | M64 |
| Pipelines | 4 / 2 Pixel- / Vertexshader |
| Vitesse du processeur * | 480 MHz |
| Shader Speed * | 480 MHz |
| Vitesse de la mémoire * | 400 MHz |
| Largeur de la mémoire du bus | 128 Bit |
| Type de mémoire | DDR1/DDR2/GDDR3 |
| Quantité de mémoire maximum possible | 256 MB |
| Mémoire partagée | non HyperMemory wird unterstützt |
| DirectX | DirectX 9c, Shader 3.0 |
| Transistors | 105 Million |
| technology | 80 / 90 nm |
| Caractéristiques | 90nm Herstellungsprozess, PCI Express X16 Interrace, PoxerPlay 6.0, Avivo Video Architektur (MPEG-2, MPEG-4, DivX, WMV9, VC-1 Beschleunigung), 64-bit Floating Point HDR, Ultra-Threaded Shader Engine |
| Taille de l'ordinateur portable | petit et léger |
| Date de l'annonce | 01.03.2007 |
| Lien sur la page du fabricant | http://ati.amd.com/fr/ |
Benchmarks
3DMark 2001: - Standard 1024x768
0%
![]()
![]()
![]()
![]()
100%
min: 7564, avg: 8355, max: 9145 Points ... More Details
3DMark 03: - Standard 1024x768
0%
![]()
![]()
![]()
![]()
100%
min: 3250, avg: 3606, max: 4242 Points ... More Details
3DMark 05: - Standard 1024x768
0% ![]()
![]()
![]()
![]()
100%
min: 1468, avg: 1773, max: 2279 Points ... More Details
3DMark 06:
0% ![]()
![]()
![]()
![]()
100%
min: 808, avg: 892, max: 976 Points ... More Details
F.E.A.R.: - GPU min, CPU min 640x480
0%
![]()
![]()
![]()
100%
min: 120, avg: 120, max: 120 fps ... More Details
F.E.A.R.: - GPU medium, CPU medium 800x600
0%
![]()
![]()
![]()
100%
min: 35, avg: 35, max: 35 fps ... More Details
Doom 3: - Low 640x480
0%
![]()
![]()
![]()
100%
min: 81.97, avg: 82, max: 81.97 fps ... More Details
Doom 3: - Medium 800x600
0%
![]()
![]()
![]()
100%
min: 57.22, avg: 57, max: 57.22 fps ... More Details
Doom 3: - High 800x600
0%
![]()
![]()
![]()
100%
min: 50.22, avg: 50, max: 50.22 fps ... More Details
Doom 3: - Ultra 1024x768
0%
![]()
![]()
![]()
100%
min: 29.02, avg: 29, max: 29.02 fps ... More Details
Based on 16 Benchmarks
| 3DMark 05in comparison | ||
| Intel Graphics Media Accelerator (GMA) 900 (min) | 234 | |
| ... | ||
| NVIDIA Quadro NVS 110M | 1500 | |
| NVIDIA GeForce 8400M G | 1684 | |
| NVIDIA GeForce Go 7400 | 1693 | |
| ATI Mobility Radeon X2300 | 1773 | |
| ATI Mobility Radeon X600 | 1800 | |
| NVIDIA Quadro NVS 120M | 1900 | |
| ATI Mobility Radeon HD 2300 | 1902 | |
| ... | ||
| ATI Mobility Radeon HD 3870 X2 (max) | 20115 | |
