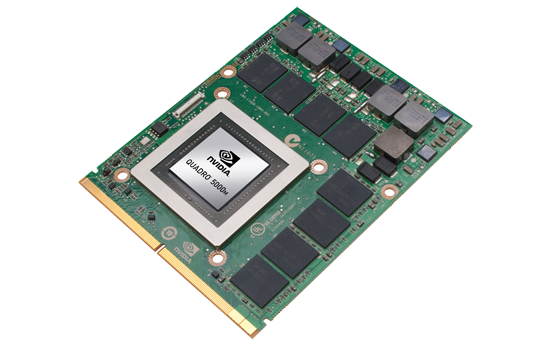

NVIDIA Quadro 5000M

NVIDIA Quadro 5000M

La NVIDIA Quadro 5000M est une carte graphique pour station de travail basé sur la puce Fermi. Donc la 5000M est proche de la GF100 que l'on retrouve dans la GeForce GTX 480M qui possède plus de cores CUDA. Cette Quadro est la première puce graphique mobile à supporter la RAM ECC RAM et le support de la double vérification de la virgule flottante.

La série Quadro possède des drivers certifiés pour les applications de CAO, médicales, ou de visualisation pro. Les performances OpenGL sont supérieures aux GeForces.

Les shader / CUDA cores utilisent DirectX 11, OpenGL 4.1 pour la 3D et DirectCompute, OpenCL, AXE, ainsi que CUDA pour les calculs purs. Avec son architecture Fermi, elle peut calculer bien plus vite que ses prédécesseurs.

De plus la Quadro 5000M supporte la stéréoscopie pro: NVIDIA 3D Vision Pro.

Comme pour la GeForce GTX 480M, la Quadro 5000M consomme 100 Watt au maximum (TDP) donc uniquement compatible avec de très gros portables, comme le Clevo D901F.

A sa sortie (mi 2010), la Quadro 5000M qui succède à la GeForce FX 3800M (G92b core) devoent la carte la plus rapide du marché. Comparé aux Quadro de bureau, comme la Quadro 5000 de bureau, la carte mobile est largement moins rapide.

FabricantNVIDIA
Quadro M Gamme
Quadro M5500 2048 @ 1.14 - 1.14 GHz256 Bit @ 6606 MHz
Quadro M5000M 1536 @ 0.96 - 1.05 GHz256 Bit @ 5000 MHz
Quadro M4000M 1280 @ 0.98 - 1.01 GHz256 Bit @ 5012 MHz
Quadro M3000M 1024 @ 1.05 GHz256 Bit @ 5000 MHz
Quadro M2200 1024 @ 0.69 - 1.04 GHz128 Bit @ 5508 MHz
Quadro M1200 640 @ 0.99 - 1.15 GHz128 Bit @ 5000 MHz
Quadro M2000M 640 @ 1.04 - 1.2 GHz128 Bit @ 5000 MHz
Quadro M1000M 512 @ 0.99 - 1.07 GHz128 Bit @ 5000 MHz
Quadro M620 512 @ 1.02 GHz128 Bit @ 5012 MHz
Quadro 5010M 384 @ 0.45 GHz256 Bit @ 1300 MHz
Quadro 4000M 336 @ 0.48 GHz256 Bit @ 1200 MHz
Quadro M520 384 @ 0.76 - 1.02 GHz64 Bit
Quadro M600M 384 @ 0.84 - 0.88 GHz128 Bit @ 5012 MHz
Quadro M500M 384 @ 1.03 - 1.12 GHz64 Bit @ 4004 MHz
Quadro 5000M 320 @ 0.41 GHz256 Bit @ 1200 MHz
Quadro 3000M 240 @ 0.45 GHz256 Bit @ 625 MHz
Quadro 2000M 192 @ 0.55 GHz128 Bit @ 900 MHz
Quadro 1000M 96 @ 0.7 GHz128 Bit @ 900 MHz
Nom de codeFermi
ArchitectureFermi
Pipelines320 - unifiés
Fréquence du noyau interne405 MHz
Fréquence des unités de calcul Shaders810 MHz
Fréquence de la mémoire1200 MHz
Largeur du bus mémoire256 Bit
Type de mémoireGDDR5
Quantité maximale possible de mémoire embarquée2048 Mo
Mémoire partagéenon
DirectXDirectX 11, Shader 5.0
Nombre de transistors3000 Million(s)
technologie40 nm
CaractéristiquesOpenGL 4.1, DirectX 11, DirectCompute, OpenCL, CUDA, AXE, Error-Correction-Codes (ECC)-Memory, IEEE-Double-Precision-Floating-Point, PowerMizer 9.0
Dimension de l'ordinateur portablede grandes dimensions (en remplacement d'un ordinateur de bureau)
Date de présentation27.07.2010
Lien redirigeant vers la page du fabricanthttp://www.nvidia.com/object/product-qua...

Benchmarks

3DMark Vantage
3DM Vant. Perf. total +
3DMark Vantage - 3DM Vant. Perf. total
min: 7700     moyenne: 7767     médian: 7766.5 (8%)     maximum: 7833 Points
3DM Vant. Perf. GPU no PhysX +
3DMark 06 3DMark 06 - Standard 1280x1024 +
3DMark 06
12967 Points (24%)
3DMark 06 - Standard 1280x768 +
3DMark 06
13127 Points (24%)
SPECviewperf 11
specvp11 snx-01 +
SPECviewperf 11 - specvp11 snx-01
min: 28.13     moyenne: 28.6     médian: 28.6 (20%)     maximum: 29 fps
specvp11 tcvis-02 +
SPECviewperf 11 - specvp11 tcvis-02
min: 25.96     moyenne: 26.4     médian: 26.4 (44%)     maximum: 26.82 fps
specvp11 sw-02 +
SPECviewperf 11 - specvp11 sw-02
min: 29.99     moyenne: 30.1     médian: 30.1 (36%)     maximum: 30.2 fps
specvp11 proe-05 +
SPECviewperf 11 - specvp11 proe-05
min: 6.4     moyenne: 6.6     médian: 6.6 (27%)     maximum: 6.71 fps
specvp11 maya-03 +
SPECviewperf 11 - specvp11 maya-03
min: 43.9     moyenne: 44.6     médian: 44.6 (34%)     maximum: 45.2 fps
specvp11 lightwave-01 +
SPECviewperf 11 - specvp11 lightwave-01
min: 31.9     moyenne: 33.3     médian: 33.3 (36%)     maximum: 34.7 fps
specvp11 ensight-04 +
SPECviewperf 11 - specvp11 ensight-04
min: 28.6     moyenne: 29     médian: 29 (14%)     maximum: 29.3 fps
specvp11 catia-03 +
SPECviewperf 11 - specvp11 catia-03
min: 25.1     moyenne: 26.9     médian: 26.9 (33%)     maximum: 28.7 fps
Cinebench R11.5 Cinebench R11.5 OpenGL 64 Bit +
- Amplitude des valeurs obtenues dans le benchmark avec cette carte graphique
- Valeur moyenne obtenue dans le benchmark avec cette carte graphique
* Smaller numbers mean a higher performance

Pour plus de jeux susceptibles d'être fluides avec cette carte graphique et obtenir une liste exhaustive de tous les jeux et cartes graphiques testés, consultez notre liste des jeux.
