NVIDIA Quadro FX 3800M

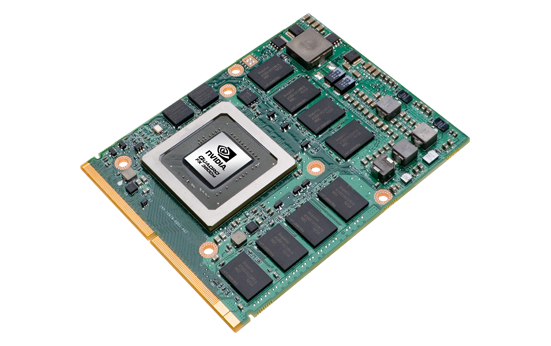

La NVIDIA Quadro FX 3800M est une carte graphique pour portable pro. Elle est basée sur une Geforce GTX 280M core (G92 core) avec 128 CUDA cores (Shaders unifiés).
Comparée à la Quadro FX 3700M, la Quadro FX 3800M est plus rapide et est gravée en 55nm (3700M - 65nm). La FX3800M est même plus rapide que la GeForce GTX 280M et don elle est meilleure.
Les Quadro FX sont conçues pour les applications de CAO et les applications OpenGL fenêtrées en général.
Au moment de l'annonce (12-2009), la FX 3800M était la plus puissante des cartes annoncées.
| Fabricant | NVIDIA |
| Quadro FX Série | Quadro FX 3800M 128@675MHz Quadro FX 3700M 128@550MHz Quadro FX 2800M 96@600MHz Quadro FX 3600M 96@500MHz Quadro FX 2700M 48@530MHz Quadro FX 880M 48@550MHz Quadro FX 3500M 24/8@575MHz Quadro FX 2500M 24/8@500MHz Quadro FX 1700M 32@625MHz Quadro FX 1600M 32@625MHz Quadro FX 1500M 20/7@375MHz Quadro FX 770M 32@500MHz Quadro FX 570M 32@475MHz Quadro FX 370M 8@580MHz Quadro FX 360M 16@400MHz Quadro FX 350M 4/3@450MHz |
| Nom de code | N10E-GLM4 |
| Pipelines | 128 - unifié |
| Vitesse du processeur * | 675 MHz |
| Vitesse des Shaders * | 1688 MHz |
| Vitesse de la mémoire * | 1000 MHz |
| Largeur de la mémoire du bus | 256 Bit |
| Type de mémoire | GDDR3 |
| Quantité de mémoire maximum possible | 1024 MB |
| Mémoire partagée | non |
| DirectX | DirectX 10, Shader 4.0 |
| Consommation d'énergie | 100 Watt |
| Transistors | 754 Million |
| technologie | 55 nm |
| Caractéristiques | OpenGL 2.1, CUDA, PowerMizer 8.0 |
| Taille de l'ordinateur portable | volumineux |
| Date de l'annonce | 20.12.2009 |
| Lien sur la page du fabricant | http://www.nvidia.com/object/product_qua... |
* Les fréquence spécifiées ne sont pas garanties.
Benchmarks
3DMark 2001SE - Standard 1024x768
0% 100%
100%min: 32886 avg: 34790 (57%) max: 36694 Points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 32886 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 36694 |
...
GeForce GT 540M -18%
GeForce GTS 160M -14%
GeForce GTX 260M SLI -11%
Radeon HD 6550M -10%
Quadro FX 880M -7%
GeForce GT 550M -7%
GeForce GTS 250M -7%
Radeon HD 6490M -4%
GeForce GTX 260M -2%
Quadro FX 3800M
Radeon HD 6450 GDDR5 11%
...
Radeon HD 6870 75%
0%
100%
3DMark 03 - Standard 1024x768
0% 100%
100%min: 33146 avg: 37082 (35%) max: 39909 Points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 33146 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 38191 |
Dell Precision M6500  | 920XM | 4096 MB | 1024MB GDDR3 | 39909 |
S3G UniChrome Pro II -100%
...
GeForce GT 445M -26%
GeForce GTS 160M -22%
GeForce GTX 260M -20%
FirePro M5950 -14%
Radeon HD 5670 -9%
Quadro FX 2800M -9%
GeForce GTX 460M -5%
GeForce GTX 280M -4%
Quadro FX 3800M
GeForce GTS 450 8%
Quadro 5000M 12%
GeForce GTX 470M 13%
GeForce GTX 480M 18%
GeForce GTX 570M 18%
...
0%
100%
3DMark 05 - Standard 1024x768
0% 100%
100%min: 16593 avg: 18198.7 (56%) max: 19960 Points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 16593 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 18043 |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 19960 |
...
Radeon HD 6730M -15%
Quadro FX 3700M -13%
GeForce GT 550M -9%
Quadro 1000M -9%
GeForce GTS 360M -8%
Quadro FX 2800M -7%
Radeon HD 6850M -7%
FirePro M7740 -6%
Quadro FX 3800M
Radeon HD 5850 2%
Quadro 5000M 4%
FirePro M5950 10%
...
GeForce GTX 570 77%
0%
100%
3DMark 06
0% 100%
100%min: 12050 avg: 12882 (50%) max: 13323 Points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 13232 | |
| Standard 1280x1024 | |||||
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 12050 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 12923 |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 13323 | |
...
Quadro FX 2800M -12%
Quadro 2000M -9%
Radeon HD 5670 -7%
FirePro M7740 -6%
GeForce GT 635M -6%
FirePro M7820 -3%
GeForce GTX 280M -2%
Quadro FX 3800M
Quadro 5000M 1%
Radeon HD 4850 10%
Quadro 3000M 10%
Radeon HD 6870M 12%
GeForce GTX 560M 18%
...
GeForce GTX 590 95%
0%
100%
Cinebench R10 - Shading 32Bit
0% 100%
100%min: 4429 avg: 4928 (45%) max: 5427 Points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 4429 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 5427 |
...
Quadro FX 3700M -9%
GeForce GTS 250M -9%
Quadro FX 570M -8%
HD Graphics 3000 -6%
Mobility Radeon HD 550v -4%
Quadro FX 880M -1%
Quadro FX 3800M
Radeon HD 6470M 6%
...
Radeon HD 6870 120%
0%
100%
3DMark Vantage - P Result no PhysX 1280x1024
0% 100%
100%min: 6584 avg: 6951.3 (23%) max: 7491 Points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 6584 | |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 6779 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 7491 |
...
Radeon HD 6770M -13%
Radeon HD 6850M -10%
FirePro M5950 -10%
GeForce GTX 280M -9%
Radeon HD 7690M -7%
GeForce GTX 285M -6%
Radeon HD 5670 -5%
FirePro M7740 -5%
Quadro 2000M -5%
Quadro FX 3800M
GeForce GTX 460M 10%
Quadro 5000M 12%
Quadro 3000M 14%
GeForce GTX 480M 28%
Radeon HD 4850 29%
GeForce GTX 560M 32%
...
0%
100%
3DMark Vantage - P GPU no PhysX 1280x1024
0% 100%
100%min: 5758 avg: 5926.3 (17%) max: 6019 Points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 5758 | |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 6002 |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 6019 |
...
Radeon HD 6850M -13%
Radeon HD 6770M -13%
GeForce GTX 280M -12%
Radeon HD 5670 -10%
Quadro 2000M -9%
FirePro M5950 -6%
GeForce GTX 285M -5%
FirePro M7740 -1%
Quadro FX 3800M
Quadro 3000M 12%
GeForce GTX 460M 14%
Quadro 5000M 18%
Radeon HD 4850 25%
GeForce GTX 480M 33%
GeForce GTX 560M 35%
GeForce GTS 450 44%
GeForce GTX 470M 45%
...
GeForce GTX 590 433%
0%
100%
SPEC Viewperf 10.0 - 3ds Max 1280x1024
0% 100%
100%min: 32.8 avg: 32.8 (68%) max: 32.8 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 32.8 |
...
GeForce GT 240M -82%
GeForce GT 330M -80%
Quadro NVS 5100M -77%
GeForce 410M -70%
GeForce GTX 480M -69%
GeForce GTX 280M SLI -69%
Mobility Radeon HD 5470 -51%
Quadro FX 3700M -22%
Quadro FX 2800M -1%
Quadro FX 3800M
Quadro FX 880M 46%
FirePro M7740 47%
...
FirePro M7740 47%
0%
100%
SPEC Viewperf 10.0 - Catia 1280x1024
0% 100%
100%min: 45.75 avg: 45.8 (96%) max: 45.75 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 45.75 |
...
GeForce GT 330M -87%
GeForce 410M -78%
GeForce GTX 480M -77%
GeForce GTX 280M SLI -73%
Mobility Radeon HD 5470 -69%
Quadro FX 3700M -30%
FirePro M7740 -17%
Quadro FX 2800M -15%
Quadro FX 770M -12%
Quadro FX 3800M
...
0%
100%
SPEC Viewperf 10.0 - EnSight 1280x1024
0% 100%
100%min: 47.37 avg: 47.4 (100%) max: 47.37 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 47.37 |
...
Mobility Radeon HD 5470 -75%
GeForce GT 240M -75%
GeForce GT 330M -72%
GeForce GTX 280M SLI -67%
GeForce GTX 480M -56%
Quadro FX 770M -33%
Quadro FX 3700M -27%
Quadro FX 2800M -7%
FirePro M7740 -1%
Quadro FX 3800M
...
0%
100%
SPEC Viewperf 10.0 - Maya 1280x1024
0% 100%
100%min: 59.74 avg: 59.7 (32%) max: 59.74 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 59.74 |
...
GeForce 410M -72%
GeForce GTX 480M -70%
GeForce GT 240M -68%
GeForce GT 330M -66%
Quadro NVS 5100M -65%
GeForce GTX 280M SLI -65%
Mobility Radeon HD 5470 -49%
Quadro FX 3800M
Quadro FX 770M 42%
FirePro M7740 212%
...
FirePro M7740 212%
0%
100%
SPEC Viewperf 10.0 - Pro/Engeneer 1280x1024
0% 100%
100%min: 51.12 avg: 51.1 (100%) max: 51.12 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 51.12 |
...
Quadro NVS 5100M -83%
GeForce GTX 280M SLI -80%
GeForce 410M -79%
Mobility Radeon HD 5470 -76%
GeForce GTX 480M -76%
Quadro FX 3700M -42%
Quadro FX 770M -29%
Quadro FX 2800M -17%
FirePro M7740 -12%
Quadro FX 3800M
...
0%
100%
SPEC Viewperf 10.0 - SolidWorks 1280x1024
0% 100%
100%min: 59.72 avg: 59.7 (89%) max: 59.72 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 59.72 |
...
FirePro M7740 -82%
GeForce GTX 280M SLI -82%
GeForce GT 330M -77%
Quadro NVS 5100M -74%
Mobility Radeon HD 5470 -56%
Quadro FX 3700M -9%
Quadro FX 770M -8%
Quadro FX 880M -3%
Quadro FX 3800M
...
0%
100%
SPEC Viewperf 10.0 - UGS Teamcenter 1280x1024
0% 100%
100%min: 38.52 avg: 38.5 (100%) max: 38.52 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 38.52 |
...
GeForce GT 240M -93%
GeForce GT 330M -92%
Quadro NVS 5100M -92%
GeForce GTX 280M SLI -91%
Quadro FX 770M -51%
Quadro FX 3700M -43%
Quadro FX 880M -37%
FirePro M7740 -13%
Quadro FX 2800M -9%
Quadro FX 3800M
...
0%
100%
SPEC Viewperf 10.0 - UGS NX 1280x1024
0% 100%
100%min: 35.3 avg: 35.3 (72%) max: 35.3 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 675/1688 / 1000MHz | 1024MB GDDR3 | 35.3 |
...
GeForce 410M -97%
GeForce GT 330M -89%
GeForce GT 240M -89%
Quadro NVS 5100M -89%
GeForce GTX 280M SLI -86%
Mobility Radeon HD 5470 -85%
Quadro FX 770M -50%
Quadro FX 3700M -25%
Quadro FX 2800M -11%
Quadro FX 3800M
FirePro M7740 39%
...
FirePro M7740 39%
0%
100%
Windows 7 Experience Index - Graphics
0% 100%
100%min: 6.9 avg: 6.9 (87%) max: 6.9 points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 6.9 |
...
Mobility Radeon HD 5730 -2%
Radeon HD 6770M -2%
Radeon HD 6730M -1%
Radeon HD 6850M -1%
GeForce GT 445M -1%
GeForce GTS 360M -1%
GeForce GTX 260M -1%
GeForce GTX 560M -1%
Quadro FX 3800M
Quadro 2000M 0%
Quadro 4000M 3%
...
0%
100%
Windows 7 Experience Index - Gaming graphics
0% 100%
100%min: 6.9 avg: 6.9 (87%) max: 6.9 points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| Dell Precision M6500 | 920XM | 4096 MB | 1024MB GDDR3 | 6.9 |
...
Radeon HD 6770M -2%
GeForce GT 635M -1%
Radeon HD 6730M -1%
Radeon HD 6850M -1%
GeForce GT 445M -1%
GeForce GTS 360M -1%
GeForce GTX 260M -1%
GeForce GT 555M -1%
Quadro FX 3800M
Quadro 2000M 0%
Quadro 4000M 3%
...
0%
100%
Cinebench R11.5 - OpenGL 64Bit
0% 100%
100%min: 32.07 avg: 32.7 (43%) max: 33.29 Points
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| ThinkPad W701ds NTV5FPB164 | 820QM | 16384 MB | 675 / 1650MHz | 1024MB GDDR3 ForceWare 188.98 | 32.07 |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 33.29 |
...
Radeon HD 6650M -12%
Quadro FX 3700M -9%
Radeon HD 5570 -8%
GeForce GTX 285M -4%
GeForce GTX 480M -2%
GeForce GT 555M -2%
Radeon HD 6550M -1%
Quadro FX 3800M
Quadro 5000M 0%
Radeon HD 6570M 3%
GeForce GT 635M 7%
GeForce GTX 550 Ti 10%
GeForce GTX 560 Ti 10%
GeForce GTX 460M 10%
Radeon HD 6730M 13%
...
Radeon HD 6870 132%
0%
100%
SPECviewperf 11 - Catia 1920x1080
0% 100%
100%min: 23.38 avg: 23.4 (55%) max: 23.38 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 23.38 |
GeForce G210M -91%
...
Radeon HD 6970M -71%
Radeon HD 5770 -63%
Radeon HD 6870 -59%
Quadro FX 880M -47%
Quadro FX 2800M -43%
Quadro 1000M -36%
FirePro M5950 -28%
Quadro FX 1800M -25%
Quadro FX 3800M
Quadro 3000M 5%
Quadro 5000M 15%
Quadro 2000M 17%
Quadro 4000M 56%
Quadro 5010M 63%
...
Quadro 5010M 63%
0%
100%
SPECviewperf 11 - Ensight 1920x1080
0% 100%
100%min: 16.17 avg: 16.2 (41%) max: 16.17 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 16.17 |
HD Graphics (Sandy Bridge) -100%
...
GeForce GT 445M -28%
Radeon HD 6650M -28%
Quadro FX 2800M -27%
GeForce GT 555M -26%
Quadro FX 1800M -24%
Radeon HD 6730M -19%
Radeon HD 6770M -9%
Radeon HD 6850M -6%
FirePro M5950 -4%
Quadro FX 3800M
GeForce GTX 460M SLI 5%
Radeon HD 5850 5%
Quadro 2000M 11%
Quadro 3000M 13%
Radeon HD 6970M 16%
GeForce GTX 470M 18%
...
Quadro 5010M 134%
0%
100%
SPECviewperf 11 - Lightwave 1920x1080
0% 100%
100%min: 38.4 avg: 38.4 (70%) max: 38.4 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 38.4 |
GeForce G210M -87%
...
Quadro FX 880M -38%
Radeon HD 6730M -37%
Radeon HD 6970M -34%
Radeon HD 5770 -16%
Quadro 5000M -13%
Radeon HD 6870 -13%
Quadro 3000M -10%
Quadro 1000M -6%
Quadro FX 3800M
Quadro 2000M 9%
Quadro 4000M 10%
Quadro 5010M 24%
FirePro M5950 26%
...
Quadro 5010M 24%
0%
100%
SPECviewperf 11 - Maya 1920x1080
0% 100%
100%min: 16.55 avg: 16.6 (18%) max: 16.55 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 16.55 |
HD Graphics 3000 -94%
...
GeForce GTX 570M -47%
Radeon HD 6490M -44%
GeForce GTX 580M SLI -42%
Radeon HD 6850M -42%
Radeon HD 6730M -35%
Radeon HD 6970M -35%
GeForce GTX 580M -33%
Radeon HD 5770 -22%
Radeon HD 6870 -19%
Quadro FX 3800M
FirePro M5800 97%
Quadro 1000M 102%
Quadro 3000M 157%
Quadro 5000M 169%
Quadro 2000M 176%
FirePro M5950 198%
Quadro 4000M 210%
...
Quadro 5010M 337%
0%
100%
SPECviewperf 11 - Pro/ENGINEER 1920x1080
0% 100%
100%min: 6.9 avg: 6.9 (51%) max: 6.9 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 6.9 |
HD Graphics (Sandy Bridge) -95%
...
Radeon HD 5770 -62%
Radeon HD 6870 -62%
FirePro M5800 -58%
GeForce GT 425M -54%
FirePro M5950 -32%
Quadro FX 2800M -26%
Quadro FX 880M -24%
Quadro 5000M -5%
Quadro FX 3800M
Quadro 3000M 10%
Quadro 1000M 21%
Quadro 5010M 28%
Quadro 2000M 40%
Quadro 4000M 53%
GeForce GTX 580 95%
...
GeForce GTX 580 95%
0%
100%
SPECviewperf 11 - SolidWorks 1920x1080
0% 100%
100%min: 30.57 avg: 30.6 (56%) max: 30.57 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 30.57 |
HD Graphics 3000 -88%
...
FirePro M5800 -34%
Radeon HD 6970M -31%
Quadro 1000M -18%
Radeon HD 5770 -11%
Quadro FX 1800M -8%
Radeon HD 6870 -5%
Quadro 3000M -2%
Quadro 5000M -2%
Quadro FX 3800M
Quadro 2000M 8%
FirePro M5950 27%
Quadro 4000M 28%
Quadro 5010M 51%
...
Quadro 5010M 51%
0%
100%
SPECviewperf 11 - Tcvis 1920x1080
0% 100%
100%min: 18.68 avg: 18.7 (45%) max: 18.68 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 18.68 |
HD Graphics (Sandy Bridge) -100%
...
Radeon HD 6870 -59%
Radeon HD 5770 -59%
Quadro FX 880M -40%
FirePro M5800 -35%
Quadro FX 1800M -30%
Quadro FX 2800M -15%
Quadro 1000M -13%
FirePro M5950 -11%
Quadro FX 3800M
Quadro 2000M 20%
Quadro 3000M 23%
Quadro 5000M 41%
Quadro 4000M 56%
Quadro 5010M 113%
GeForce GTX 580 119%
...
Quadro 5010M 113%
0%
100%
SPECviewperf 11 - Siemens NX 1920x1080
0% 100%
100%min: 18.82 avg: 18.8 (45%) max: 18.82 fps
| Modèle | CPU | Mémoire | Core / mémoire | mémoire du GPU | Valeur |
| EliteBook 8740w (WD942EA) | 740QM | 8192 MB | 675 / 1000MHz | 1024MB GDDR3 ForceWare 59.47 | 18.82 |
HD Graphics (Sandy Bridge) -99%
...
Radeon HD 5850 -47%
Radeon HD 6990M -46%
Quadro FX 1800M -34%
Radeon HD 6870 -30%
Quadro 1000M -29%
Quadro FX 2800M -22%
FirePro M5800 -18%
Quadro FX 3800M
Quadro 2000M 3%
FirePro M5950 4%
Quadro 3000M 9%
Quadro 4000M 40%
Quadro 5000M 52%
Quadro 5010M 103%
...
Quadro 5010M 103%
0%
100%
- Benchmarks pour cette carte graphique - Moyenne des benchmarks pour cette carte graphiqueBenchmarks de jeux
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.
Fifa 11 (2010)
moyen:
230.6
Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
GeForce GT 525M -31%
GeForce GT 540M -24%
Quadro 1000M -17%
GeForce GT 550M -16%
Radeon HD 6570M -13%
Radeon HD 5850 -8%
GeForce GT 555M -5%
Quadro FX 3800M
Radeon HD 6770M 4%
Radeon HD 6730M 6%
Radeon HD 6750M 19%
GeForce GTX 560M 32%
GeForce GTX 460M 35%
GeForce GTX 470M 36%
GeForce GTX 460M SLI 38%
Radeon HD 6970M 41%
...
0%
100%
haut:
124.2 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
Quadro 2000M -26%
GeForce GT 425M -21%
GeForce GT 335M -21%
Radeon HD 6570M -19%
GeForce GT 525M -16%
GeForce GT 435M -13%
Radeon HD 6850M -11%
Radeon HD 6730M -11%
GeForce GT 540M -7%
Quadro FX 3800M
Radeon HD 6770M 1%
Radeon HD 6750M 5%
Quadro 1000M 6%
GeForce GT 445M 31%
Radeon HD 6650M 34%
Radeon HD 5850 34%
...
0%
100%
» Jouable avec tout les portables en détail haut.
Civilization 5 (2010): Jouable avec les détails au minimum bas. - plus...
Civilization 5 (2010) - Approximation!
ultra:
17+ fps (Radeon HD 7690M)
bas:
63+ fps (Radeon HD 7690M)
Risen (2009)
moyen:
64.9 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonRadeon HD 4250 -90%
...
GeForce GTS 360M -30%
GeForce GTX 260M -29%
GeForce GT 555M -29%
Radeon HD 6850M -27%
GeForce GT 445M -25%
Radeon HD 5670 -12%
GeForce GTX 285M -9%
GeForce GTX 460M -5%
Quadro FX 3800M
Quadro 3000M 3%
Radeon HD 6970M 20%
GeForce GTX 570M 23%
GeForce GTX 470M 29%
Radeon HD 5850 45%
Radeon HD 6990M 48%
...
GeForce GTX 580M SLI 151%
0%
100%
ultra:
31.8 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonGeForce G210M -81%
...
Radeon HD 6850M -27%
GeForce GTS 360M -27%
Radeon HD 5670 -18%
GeForce GTX 260M -15%
GeForce GTX 460M -14%
GeForce GTX 285M -5%
Quadro 3000M -4%
Radeon HD 4850 -3%
Quadro FX 3800M
GeForce GTX 480M 13%
GeForce GTX 570M 17%
GeForce GTX 470M 20%
Quadro 5010M 32%
Radeon HD 5770 38%
GeForce GTS 450 38%
Radeon HD 6970M 42%
GeForce GTX 580M 63%
...
GeForce GTX 590 299%
0%
100%
» Jouable avec tout les portables en détail moyen.
Resident Evil 5 (2009): Jouable avec les détails au minimum haut. - plus...
Resident Evil 5 (2009) - Approximation!
ultra:
33+ fps (GeForce GT 555M)
haut:
62+ fps (GeForce GT 555M)
bas:
119+ fps (GeForce GT 555M)
Need for Speed Shift (2009)
moyen:
78.5 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonHD Graphics 2000 -85%
...
Radeon HD 6730M -31%
Radeon HD 6970M -25%
GeForce GT 555M -24%
Radeon HD 5850 -20%
GeForce GTS 360M -19%
GeForce GTX 260M -15%
GeForce GTX 480M -6%
GeForce GT 445M -4%
GeForce GTX 285M -3%
Quadro FX 3800M
GeForce GTX 560M 12%
GeForce GTX 460M 26%
GeForce GTX 570M 32%
Quadro 3000M 34%
Radeon HD 6990M 34%
GeForce GTX 485M 36%
...
0%
100%
ultra:
40.9 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonGeForce GT 330M -69%
...
GeForce GT 540M -42%
GeForce GT 550M -38%
Radeon HD 6770M -32%
GeForce GT 445M -22%
GeForce GT 555M -22%
GeForce GTS 360M -22%
GeForce GTX 285M -6%
GeForce GTX 260M -4%
Quadro FX 3800M
Quadro 3000M 6%
GeForce GTX 560M 20%
GeForce GTX 480M 27%
Radeon HD 5850 27%
GeForce GTX 470M 36%
Radeon HD 6970M 39%
...
GeForce GTX 580 267%
0%
100%
» Jouable avec tout les portables en détail ultra.
Colin McRae: DIRT 2 (2009)
bas:
97 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonHD Graphics (Sandy Bridge) -86%
...
GeForce GT 540M -21%
GeForce GT 435M -20%
Radeon HD 5850 -19%
Quadro FX 880M -18%
GeForce GTX 570M -17%
Radeon HD 6770M -10%
GeForce GTX 460M -9%
GeForce GTX 260M -5%
Quadro FX 2800M -1%
Quadro FX 3800M
Radeon HD 6970M 8%
GeForce GTX 485M 65%
GeForce GTX 460M SLI 70%
GeForce GTX 470M 72%
...
GeForce GTX 485M SLI 142%
0%
100%
moyen:
82 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonRadeon HD 6470M -61%
...
GeForce GT 550M -18%
Radeon HD 5850 -18%
Radeon HD 6770M -13%
Radeon HD 6750M -13%
GeForce GTX 570M -7%
GeForce GTX 260M -3%
GeForce GTS 360M -1%
Quadro FX 3800M
Radeon HD 6970M 15%
GeForce GTX 285M 21%
GeForce GTX 480M 37%
...
GeForce GTX 485M SLI 141%
0%
100%
ultra:
29.9 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonGeForce GT 330M -58%
...
GeForce GT 425M -34%
Mobility Radeon HD 5730 -31%
GeForce GT 435M -29%
Radeon HD 6750M -29%
GeForce GT 555M -13%
Radeon HD 5670 -12%
GeForce GT 240 -10%
GeForce GTS 360M -7%
Quadro FX 3800M
GeForce GTX 285M 10%
GeForce GTX 260M 18%
Quadro 3000M 34%
Radeon HD 5770 39%
GeForce GTX 460M 42%
GeForce GTX 560M 49%
...
GeForce GTX 485M SLI 282%
0%
100%
» Jouable avec tout les portables en détail moyen.
Anno 1404 (2009)
bas:
142.8 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide Comparison...
GeForce GT 525M -12%
GeForce GTX 260M -10%
Radeon HD 6970M -7%
Radeon HD 5850 -5%
Radeon HD 6630M -4%
GeForce GT 555M -1%
Quadro FX 3800M
Radeon HD 6650M 2%
GeForce GT 540M 11%
GeForce GTX 480M 19%
Quadro 4000M 21%
GeForce GTX 470M 23%
GeForce GTX 460M SLI 27%
Quadro 3000M 31%
...
0%
100%
ultra:
61.9 Compare
Hide Comparison
[X] EliteBook 8740w (WD942EA)
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
fps
Intel Core i7 740QM 1.7GHz
Quadro FX 3800M (675MHz), 1024MB (1000MHz) GDDR3, ForceWare 59.47
8192MB RAM
Compare
Hide ComparisonGeForce G 102M -92%
...
GeForce GTX 260M -32%
GeForce GTX 460M -29%
GeForce GTX 285M -25%
GeForce GTX 280M -22%
GeForce GTX 560M -16%
Quadro 3000M -15%
GeForce GTX 480M -14%
Quadro FX 3800M
Quadro 4000M 0%
Radeon HD 6970M 33%
GeForce GTX 485M 35%
GeForce GTX 580M 39%
Radeon HD 5850 52%
GeForce GTX 460M SLI 53%
...
GeForce GTX 590 147%
0%
100%
» Jouable avec tout les portables en détail ultra.
ArmA 2 (2009) - Approximation!
ultra:
7+ fps (Radeon HD 6450 GDDR5)
pour plus de test sur les jeux et les cartes graphiques, consultez notre liste des jeux
Test du portable avec NVIDIA Quadro FX 3800M carte graphique
Eurocom Panther 2.0 (Intel Core i7 (Desktop) 980X EE, 17.3")
» Eurocom Panther 2.0 - Test externe
HP 8740W-WW427PA (Intel Core i7 820QM, 17.0")
» HP 8740W-WW427PA - Test externe
HP EliteBook 8740w-WD943EA (Intel Core i7 840QM, 17.0")
» HP EliteBook 8740w-WD943EA - Test externe
HP EliteBook 8740W-XT911UT (Intel Core i7 740QM, 17.0")
» HP EliteBook 8740W-XT911UT - Test externe
Lenovo ThinkPad W701ds (Intel Core i7 920XM, 17.0")
» Lenovo ThinkPad W701ds - Test externe
